Athena Technologies AS-P400, AS-P300, Point 5 S.5, C.5 User Manual 2
POINT 5 MKII
Create your sound.
athena TECHNOLOGIES
®
3641 McNicoll Avenue
Toronto, Ontario
Canada M1X 1G5
www.athenaspeakers.com
Printed in Canada. Subject to change without notice.
© 2003 athena TECHNOLOGIES
®
Part #3PAB006E
C.5 Center Channel Speaker | FEATURES: • Small –
High Power center channel speaker to match the S.5
speaker • C.5 is timbre matched to the other “S” models
as well • Magnetically Shielded – all drivers • Key-Way
wall mount • Bass Reflex design – Dual rear vents
COMPONENTS: • 1-1" Teteron Dome Tweeter • 2-4" Composite Cone Woofers • MDF
Construction • Composite Resin Front and Rear Baffles • Binding Post terminals
SPECIFICATIONS: • Frequency Response: 80-20kHz +/- 3dB • Power Handling: 100
watts per channel RMS • Sensitivity: 86dB anechoic – 89 dB room measurement
• Crossover Point:2.0kHz • Impedance: 8 ohms compatible • Dimensions: - Width: 15"
(38.1 cm) - Height: 5-5/8" (14.3 cm) - Depth: 6-1/4" (15.6 cm) - Weight: 9.5 lbs
(4.3 kg) each • Color: High Gloss Black with Silver or Black Injection Molded Baffles
Recommended subwoofers (optional)
AS-P300 – 300 watt 8” vented subwoofer
AS-P400 – 400 watt 10” vented subwoofer
(used for rooms over 400 sq feet in size)
Both models feature athena TECHNOLOGIES
TM
exclusive
SCT control, for precise blending of the
POINT5MK II
system to the subwoofer.
S.5 Speaker | FEATURES: • Small, High Power Full-Range speaker
solution • S.5 is timbre-matched to the other “S” models •
Magnetically Shielded – all drivers • Built-In Wall Mounting System for
flexible and secure wall mounting - Will allow horizontal and vertical
movement – no tools required! • Bass Reflex design – Rear vented
COMPONENTS: • 1-1" Teteron Dome Tweeter • 1-4" Composite Cone
Woofer • MDF Construction • Composite Resin Front and Rear Baffles • Binding
Post terminals
SPECIFICATIONS: • Frequency response: 80-20kHz +/- 3dB • Power handling: 100
watts per channel RMS • Sensitivity: 86dB anechoic – 89 dB room measurement
• Crossover point: 2.0kHz • Impedance: 8 ohms compatible • Dimensions:
- Width: 5-3/4" (14.6 cm) - Height: 8-1/2" (21.6 cm) - Depth: 6-1/4" (15.9 cm) Weight: 6 lbs (2.7 kg) each • Color: High Gloss Black with Silver or Black Injection
Molded Baffles
4 Satellite Speakers
1 Center Channel
A PERFORMANCE ENHANCED SYSTEM... athena’s POINT5
MK II sound system has been conceived to dramatically enhance your home
theater and music listening pleasure. Capitalizing on athena’s breakthrough
research and development in acoustics and speaker engineering, this system is
designed inside out to work together perfectly, with such features as timbrematched drivers and Medium Density Fiberboard (MDF) cabinets to minimize
resonance and enrich the deep bass.The POINT5 MK II system comes complete
with four S.5 satellite speakers, and the matching C.5 center channel. For bass
enhancement, add the matching active subwoofers AS-P300 or AS-P400.
Both subwoofers feature athena’s exclusive SCT control for perfect subwoofer
to speaker blending, which will provide the sound of large tower speakers in a
small subwoofer satellite combination. For performance enhanced music
and home theater sound, get to the point with
POINT5 MKII.

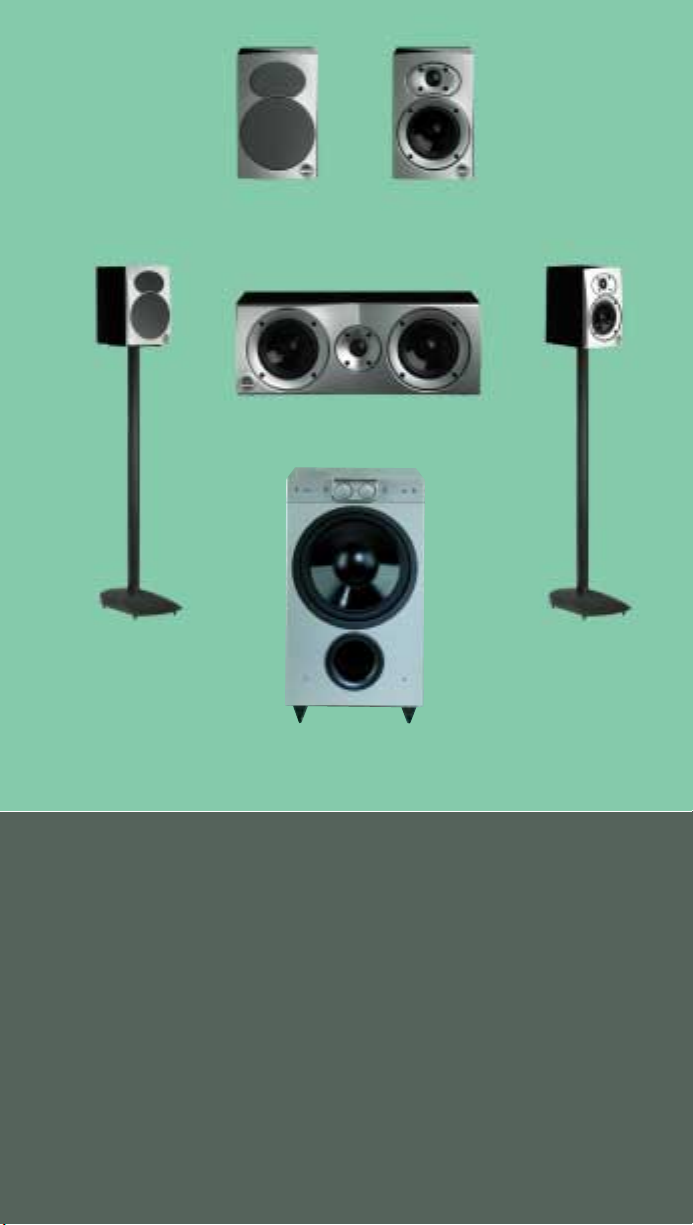

POINT5 MK II system consists of:
