ATEN Technology CS-82A User Manual
2 Port KVM Switch
User Manual
CS-82A
Read this guide thoroughly and follow the installation and operation procedures carefully in order to prevent any damage to the units and/or any devices that connect to them.
This package contains:
M 1 Master View CS-82A KVM Switch
M 1 User Manual
If anything is damaged or missing, contact your dealer.
®
© Copyright 2000 ATEN
Manual Part No. PAPE - 1217-200
Printed in Taiwan 11/2003
All brand names and trademarks are the registered property of their respective owners.
International Co., Ltd.
2003-11-25
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in
accordance with the instruction manual, may cause
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
M Reorient or relocate the receiving antenna;
M Increase the separation between the equipment and
receiver;
M Connect the equipment into an outlet on a circuit different
from that which the receiver is connected;
M Consult the dealer or an experienced radio/television
technician for help.
2003-11-25
Overview
The Master View CS-82A KVM (Keyboard, Video, Mouse),
Switch is a control unit that allows access to two computers
from a single console (keyboard, monitor and mouse). Before
the development of the Master View, the only way to control
multiple computer configurations from a single console was
through a complex and costly network system. Now, with the
CS-82A, you can easily access two computers in a cost
effective manner.

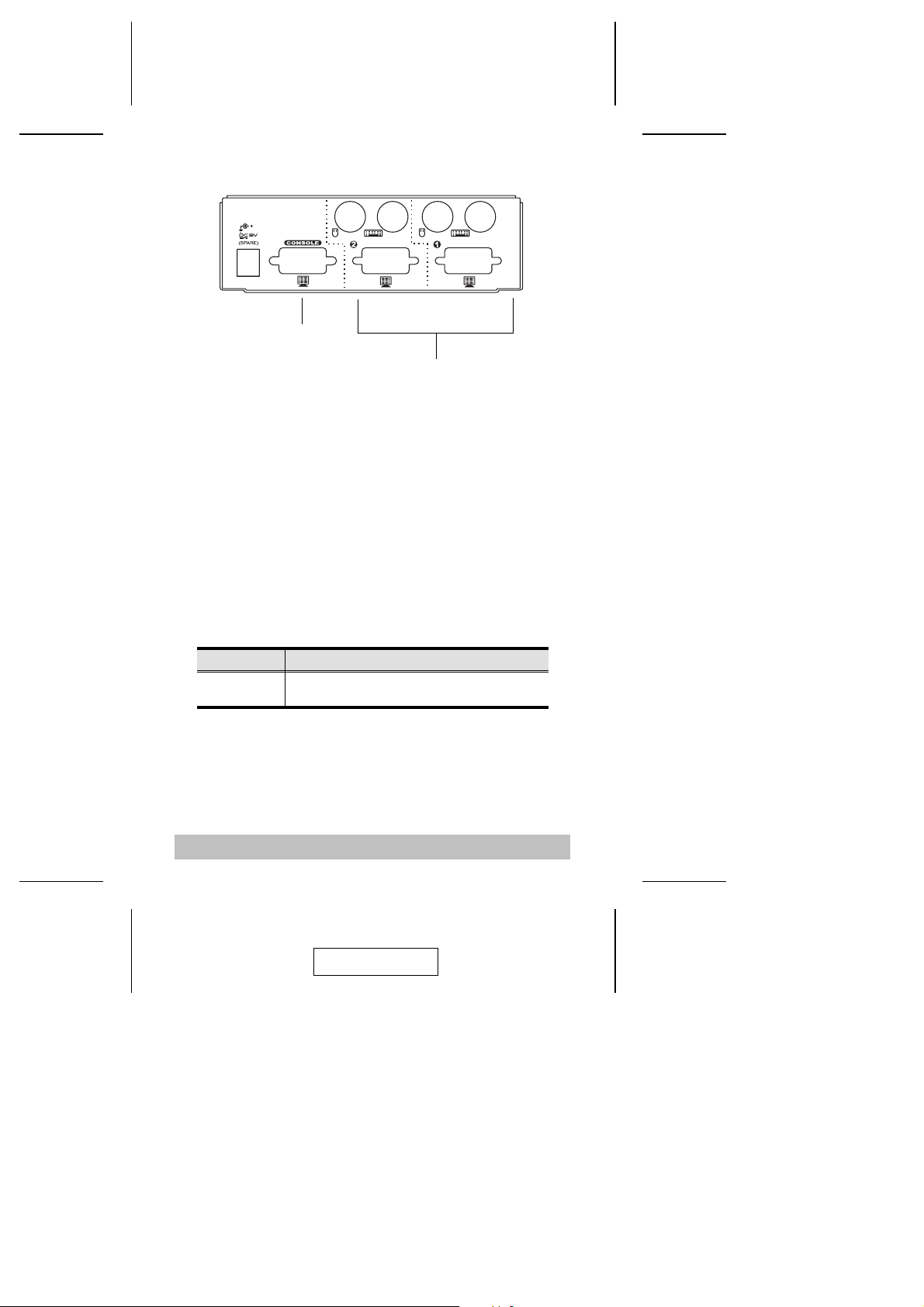

Setup is fast and easy; plugging cables into their appropriate
ports is all that is entailed. There is no software to configure; no
installation routines; and no incompatibility problems. Since the
CS-82A intercepts keyboard input directly, it works on all
hardware platforms and operating systems*.

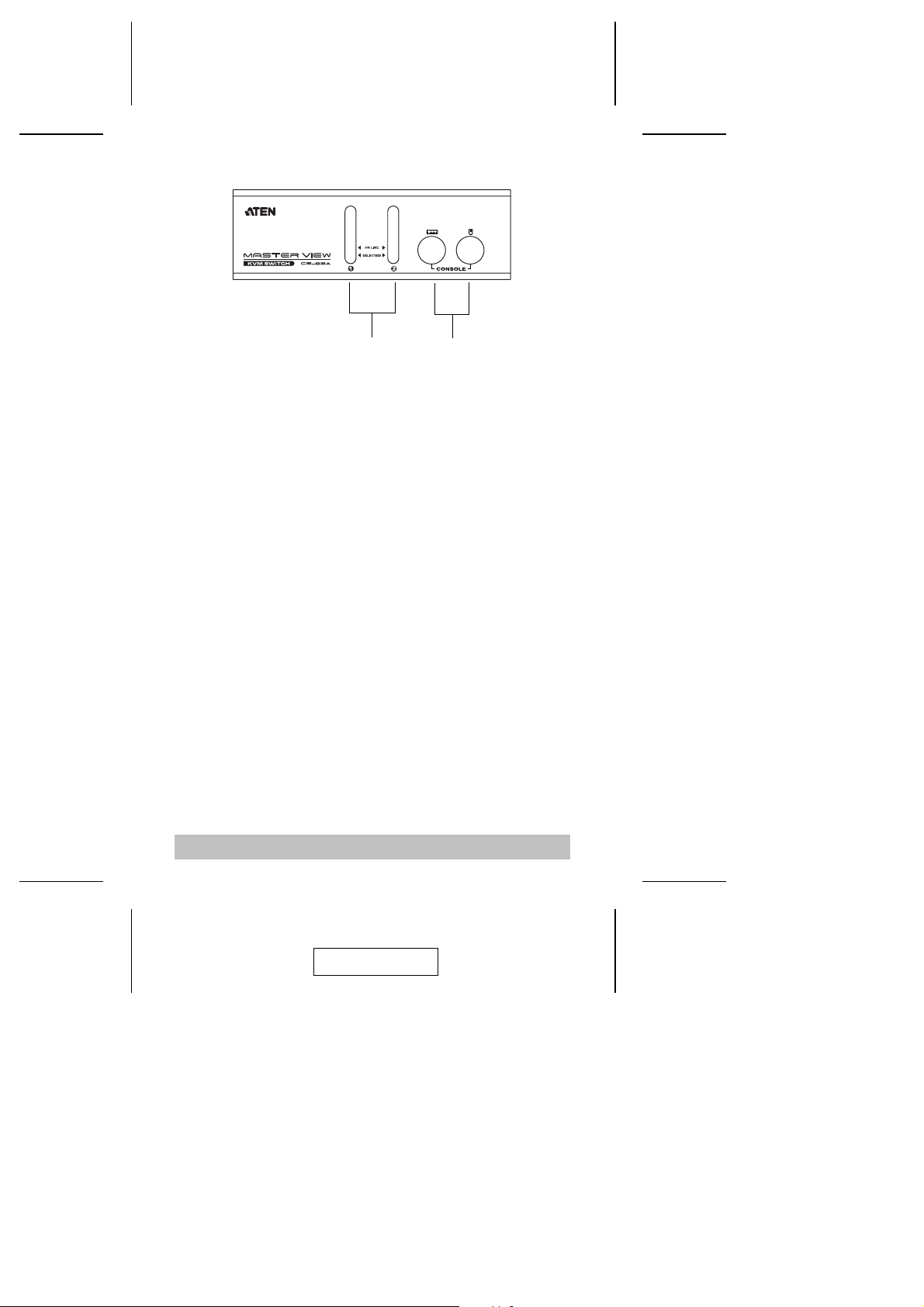

The Master View CS-82A provides two convenient methods to
access the computers connected to the system: 1) push button
Port Selection Switches located on the unit’s front panel; and 2)
Hotkey combinations entered from the keyboard.
There is no better way to save time and money than with a
Master View CS-82A installation. Since a single console
manages both of the computers, a CS-82A setup: 1) eliminates
the expense of having to purchase a separate keyboard,
monitor, and mouse for each computer; 2) saves the space
those extra components would take up; 3) saves on energy
costs; and 4) eliminates the inconvenience and wasted effort
involved in constantly moving around from one computer to
another.
* Mac and Sun systems may require additional equipment. See
p. 5 for details.
- 1 -
2003-11-25
Features
One console controls two computers
M
Easy to install - no software required - connecting cables is
M
all it takes
Easy to operate - computer selection via push button
M
switches or hotkeys
Auto Scan function to monitor computer operation
M
LED display for easy status monitoring
M
Caps Lock, Num Lock, and Scroll Lock, states are saved
M
and restored when switching
Keyboard and mouse emulation for error free booting
M
Supports Microsoft Intellimouse and the scrolling wheel on
M
most mice
Superior video quality - up to 1920x1440; DDC; DDC2;
M
DDC2B
Compatible with all operating platforms*
M
Compact, sturdy, durable metal housing
M
Efficient, ergonomic design - logical connector layout
M
Follows PC 99 color specifications
M
Non-powered operation
M
Saves time, space, power, and equipment costs
M
* Mac and Sun systems may require additional equipment. See
p. 5 for details.
- 2 -
2003-11-25
Hardware Requirements
Console
A VGA, SVGA, or Multisync monitor capable of the highest
M
resolution that you will be using on any computer in the
installation
A PS/2 style keyboard
M
A PS/2 style mouse
M
Computers
The following equipment must be installed on each computer
that is to be connected to the system:
M A VGA, SVGA or Multisync port.
M A PS/2 Style keyboard port.
M A PS/2 Style mouse port.
Cables
Only CS Custom cable sets specifically designed to work with
this switch may be used. KVM cable sets are available in 1.2,
1.8, 3, and 6 meter lengths (see table, below):
Length CS Part Number
1.2 m
1.8 m
3.0 m
6.0 m
2L-5201P
2L-5202P
2L-5203P
2L-5206P
If you need to purchase cables, contact your dealer.
- 3 -
2003-11-25
