User Manual
CS-62
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
M 1 CS-62 Two Port Petite KVM Switch with Attached Cables
M 1 User Manual
M 1 Quick Start Guide
If anything is damaged or missing, contact your dealer.
© Copyright 2003 ATEN® International Co., Ltd.
Manual Part No. PAPE - 1232-1AT
Printed in China 06/2003
All brand names and trademarks are the registered property of their respective owners.
2003-06-20
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and
used in accordance with the instruction manual, may cause
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
M Reorient or relocate the receiving antenna;
M Increase the separation between the equipment and
receiver;
M Connect the equipment into an outlet on a circuit different
from that which the receiver is connected;
M Consult the dealer or an experienced radio/television
technician for help.
2003-06-20
Overview
The CS-62 Petite KVM Switch Switch is a control unit that
allows access to two computer systems from a single console
(keyboard, monitor, and mouse). Before the development of the
CS-62, the only way to control multiple computer configurations
from a single console was through a complex and costly
network system. Now, with the CS-62 Petite KVM Switch, you
can easily access two computers in a cost effective manner.
The CS-62 improves on previous models with a 50% smaller
desktop footprint plus attached custom KVM cables for
hassle-free installation and a neat and tidy workspace.
Setup is fast and easy; plugging cables into their appropriate
ports is all that is entailed. There is no software to configure, no
installation routines, and no incompatibility problems. Since the
CS-62 intercepts keyboard input directly, it works on any
hardware platform and with all operating systems. The KVM
focus is toggled between the computers by means of simple
hotkey combinations entered from the keyboard.
There is no better way to save time and money than with a
CS-62 Petite KVM Switch installation. By allowing a single
console to manage both computers, the CS-62 eliminates the
expense of purchasing a separate keyboard, monitor, and
mouse for each. Additionally, it saves the extra space they
would take up, and eliminates the inconvenience and wasted
effort involved in constantly having to move from one computer
to the other.
- 1 -
2003-06-20
Features
One console controls two computers
M
Compact design features two molded-in KVM (keyboard,
M
video, mouse) cables
Supports Microsoft IntelliMouse and the scrolling wheel on
M
most mice
Easy to install - No software required - connecting cables to
M
the computers is all it takes
Easy to operate - computer selection via hotkeys - auto scan
M
function to monitor computer operation
LED display for easy status monitoring
M
Caps Lock, Num Lock, and Scroll Lock states are saved and
M
restored when switching
Hot pluggable - add or remove computers for maintenance
M
without powering down the switch
Keyboard and mouse emulation for error free computer
M
booting
Superior video quality - up to 2048 x 1536; DDC2B
M
Compatible with all operating platforms
M
Non-powered
M
- 2 -
2003-06-20
Hardware Requirements
Console
A VGA, SVGA, or Multisync monitor capable of the highest
M
resolution that you will be using on any computer in the
installation
A PS/2 Mouse
M
A PS/2 Keyboard
M
Computers
The following equipment must be installed on each computer
that is to be connected to the system:
A VGA, SVGA or Multisync card.
M
A 6-pin mini-DIN (PS/2 style) mouse port.
M
A 6-pin mini-DIN (PS/2 Style) keyboard port.
M
Cables
For optimum signal integrity and to simplify the layout, two highquality 3-in-1 CS Custom KVM cables have been designed into
the CS-62. There is no need for a separate cable purchase.
Note: The keyboard and mouse cables have PS/2 style
connectors. The CS-62 does not support AT Keyboards
or serial mice.
- 3 -
2003-06-20
Front View
2
1
3
1. Port LEDs
A LED lights to indicate its corresponding port is the one that
has the KVM focus. Depending on the port’s status, the LED
may flash according to a specific pattern (see the LED
Display Table, p. 8, for details).
2. KVM Cables
These 3-in-1 cables connect to the keyboard, video, and
mouse ports on the computers you are installing.
3. Console Ports
Your keyboard, monitor, and mouse plug in here. Each port
is marked with an appropriate icon to indicate itself.
- 4 -
2003-06-20
Installation
Before you begin, make sure that power to all the
1.
devices you will be connecting up have been
turned off. You must unplug the power cords of
any computers that have the Keyboard Power On
function. Otherwise, the switch will receive power
from the computer.
2. To prevent damage to your installation due to
ground potential difference, make sure that all
devices on the installation are properly grounded.

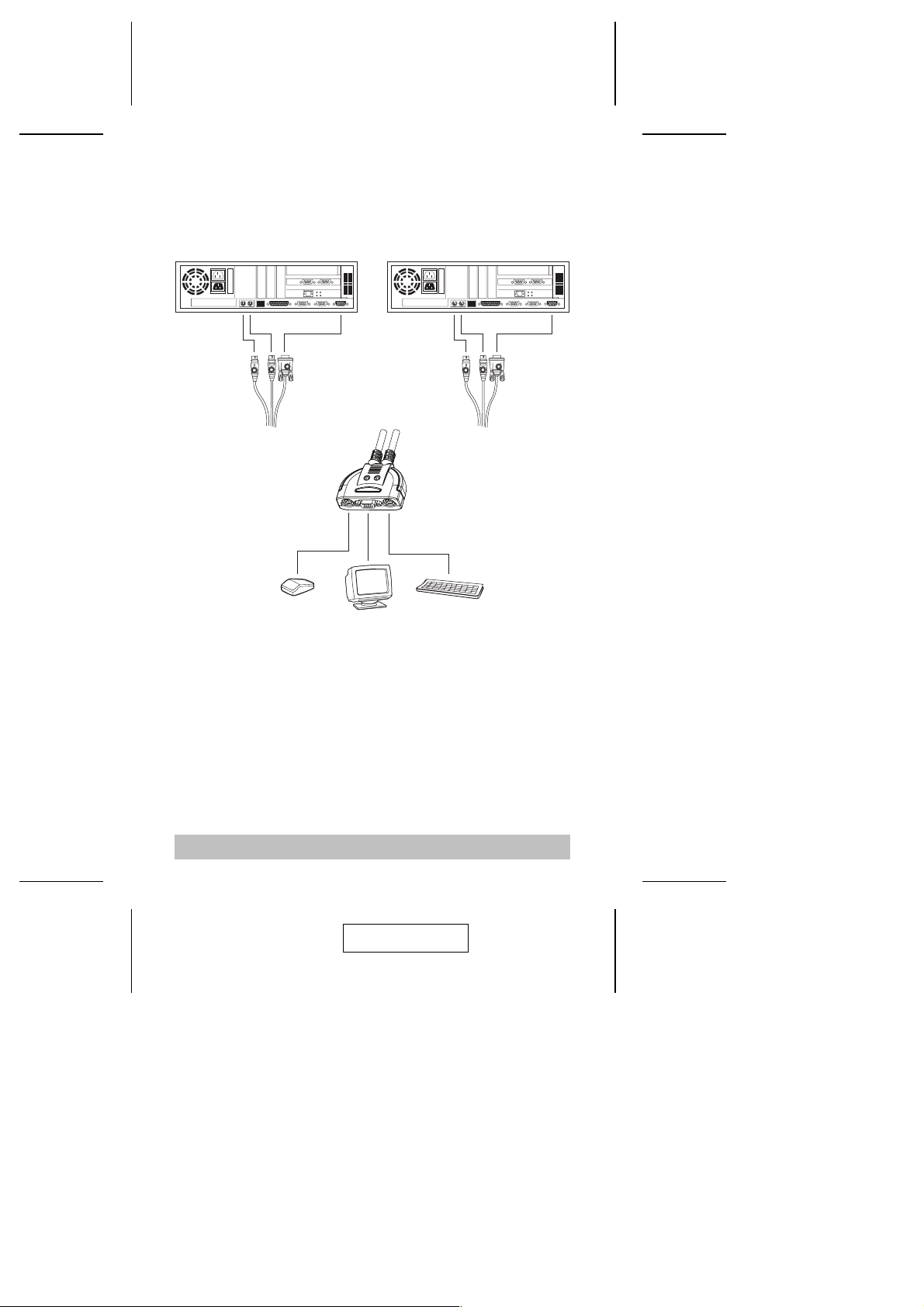

Refer to the Installation diagram on the next page as you
perform the following steps:
1. Plug your keyboard, monitor, and mouse into the appropriate
Console ports of the CS-62. Each port is labeled with an
appropriate icon to indicate itself.
2. Plug the keyboard, monitor, and mouse connectors of the
attached KVM cables into their respective ports on the
computers you are installing.
3. Turn on the power to the computers.
Note: The CS-62’s Power On default is to link to the first
computer you turn on.
- 5 -
2003-06-20
- 6 -
2003-06-20
Operation
The CS-62 Petite KVM Switch uses hotkey combinations to
provide KVM focus to the computers. The hotkey combinations
allow you to:
Select the Active Port
M
Invoke Auto Scan Mode
M
Set the Auto Scan Time Interval
M
Selecting the Active Port
You can toggle the KVM focus between the two computers by
pressing and releasing the Scroll Lock key twice:
[Scroll Lock]+[Scroll Lock].
Auto Scan Mode
The CS-62’s Auto Scan feature automatically toggles the KVM
focus between the two computers at regular intervals so that
you can monitor their activity without having to take the trouble
of switching manually. The default time interval is 5 seconds.
To invoke Auto Scan Mode:
Press and release the Left Shift key; then press and release the
Right Shift key:
[Left Shift] [Right Shift]
Once scanning begins, it continues until you press the
[Spacebar] to exit Auto Scan Mode. The port that was currently
active at the time scanning stopped remains active.
Note: While Auto Scan Mode is in effect, ordinary keyboard
and mouse functions are suspended. You must exit Auto
Scan Mode by pressing the [Spacebar] in order to regain
normal control of their use.
- 7 -
2003-06-20
Changing the Scan Interval
Before you invoke Auto Scan, you can change the amount of
time that Auto Scan dwells on each port (the time interval), with
the following hotkey combination:
[Left shift] [Right shift] [S] [n]
Where n represents a number from 1 to 4 that specifies the
desired scan interval time, as shown in the table below;
n Scan Interval
1
3 secs
2
5 secs
3
10 secs
4
20 secs
Note: Press and release the keys one at a time.
LED Display Table
Activity Indication
Off Port is not selected.
On (Steady) The computer connected to the LED’s
Flashing (On and Off equal) The computer connected to the LED’s
corresponding port is the one that has the KVM
focus.
corresponding port is the one that has the KVM
focus and is being accessed in Auto Scan mode.
- 8 -
2003-06-20
Specifications
Function Specification
Computer Connections 2
Port Selection Hot Keys
LEDs Selected 2
Connectors Keyboard 1 x 6 pin mini-DIN female (PS/2 style) - Console
Mouse 1 x 6 pin mini-DIN female (PS/2 style) - Console
Video 1 x HDB-15 female (std. VGA/SVGA) - Console
Scan Interval 3, 5, 10, 20 Seconds
Operating Temperature 0 - 50
Storage Temperature -20 - 60
Humidity 0 - 80% RH Noncondensing
Housing Plastic
Weight 0.41 Kg
Dimensions (L x W x H) 7.3 x 5.85 x 2.25 cm
2 x 6 pin mini-DIN male (PS/2 style) - CPU Ports
2 x 6 pin mini-DIN male (PS/2 style) - CPU Ports
2 x HDB-15 male (std. VGA/SVGA) - CPU Ports
o
C
o
C
- 9 -
2003-06-20
Troubleshooting
Symptom Possible Cause Action
Keyboard Not
Responding
Pressing Hot
Keys Gets No
Response.
Mouse Not
Detected, or
Does Not
Respond
Correctly.
Loose cables. Check all keyboard cable connections
1
Keyboard needs to be
reset.
Switch needs to be
reset
Switch is in Auto Scan
Mode.
Selected port
connects to a
2
powered Off computer.
Hotkey sequence
input incorrectly.
Switch is in Auto Scan
Mode.
Loose cables. Check all mouse cable connections to
2
Use of Mouse Port
Adapters
Mouse needs to be
reset.
to make sure they are completely
seated in their sockets.
Unplug the keyboard from the Console
Keyboard Port, then plug it back in.
Turn off the computers. Unplug the
KVM cables. Wait five seconds; then
plug the cables back in and turn the
computers on.
Press the [Spacebar] to exit Auto Scan
Mode.
Resend the Hotkey command
selecting a port that has a powered On
computer attached.
Resend the Hotkey command - press
and release each key in the sequence
individually.
Press the [Spacebar] to exit Auto Scan
Mode.
make sure they are completely seated
in their sockets.
This unit is designed to only work with
PS/2 mice and computers with PS/2
type mouse ports. PS/2 mouse signals
and serial mouse signals are different adapters will not convert the signals therefore, the computer must be
equipped with a PS/2 type mouse port.
Serial mouse ports with adapters
cannot be used.
Unplug the mouse from the Console
Mouse Port, then plug it back in.
(Table continues on the next page.)
- 10 -
2003-06-20
Symptom Possible Cause Action
Mouse Not
Detected, or
Does Not
Respond
Correctly
Video
Problems
1
The unit is designed to work with PS/2keyboards. XT (84 key)
Switch needs to be
reset.
2
Mouse set to Serial
Mode.
Incorrect Mouse
Driver.
Resolution and/or
Bandwidth set too
high.
Turn off the computers and unplug the
KVM cables. Wait five seconds; then
plug the cables back in and turn the
computers on.
Some mice can be set to act as either
a PS/2 or serial mouse. Make sure the
mouse is set to PS/2 mode.
Check your Device Manager to be sure
that the correct driver for your mouse
(obtained from the manufacturer, or
supplied by the operating system), has
been installed.
Select a lower resolution and/or
bandwidth.
and AT keyboards will not work.
2
Some Notebooks, notably the IBM Thinkpad and Toshiba
Tecra, have trouble when their mouse and keyboard ports
are used simultaneously. To avoid this, only connect the
mouse port or the keyboard port. If you connect the mouse
port, you will need to use the notebook’s keyboard when the
notebook becomes the active computer.
- 11 -
2003-06-20
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED
THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT,
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK
OR ITS DOCUMENTATION.
The direct vendor makes no warranty or representation, expressed,
implied, or statutory with respect to the contents or use of this
documentation, and specially disclaims its quality, performance,
merchantability, or fitness for any particular purpose.
The direct vendor also reserves the right to revise or update the device
or documentation without obligation to notify any individual or entity of
such revisions, or update. For further inquires please contact your
direct vendor.
- 12 -
2003-06-20
Notes:
- 13 -
2003-06-20
Notes:
- 14 -
2003-06-20
Loading...
