ATEN CS62US, CS64US User guide

CS62US / CS64US
USER MANUAL
USB KVM Switch
EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
KCC Statement
유선 제품용 /B 급 기기 ( 가정용 방송 통신 기기 )
이 기기는 가정용 (B 급 )전자파적합기기로서 주로 가정에서 사용하는 것 을 목적으로 하며 ,모든 지역에서 사용할 수 있습니다 .
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.
CS62US / CS64US User Manual
Online Registration
You can register your product at our online support center:
International http://support.aten.com
North America ATEN TECH http://www.aten-usa.com/
ATEN NJ http://support.aten.com
Online Support
International
Email Support support@aten.com
Online Support
Telephone Support 886-2-8692-6959
North America
Technical Support http://support.aten.com
Troubleshooting Documentation Software Updates
product_registration
http://www.aten.com
Email Support ATEN TECH support@aten-usa.com
ATEN NJ sales@aten.com
Online Support
Telephone Support ATEN TECH 1-888-999-ATEN
Te ch ni ca l Support
Troubleshooting Documentation SW Updates
ATEN TECH http://www.aten-usa.com/support
ATEN NJ http://support.aten.com
ATEN TECH http://www.aten-usa.com
ATEN NJ http://www.aten.com
ATEN NJ 1-732-356-1703
- 3 -
Package Contents
Copyright © 2015 ATEN? International Co., Ltd.
Manual Date: 2015-04-13
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
The CS62US / CS64US USB KVM Switch package contains the following items:
1 2-port CS62US USB KVM Switch
or 1 4-port CS64US USB KVM Switch
1 Quick Start Guide
Check to make sure that all the components are present and that nothing got damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit, and/or any of the devices connected to it.
- 4 -
Overview
The CS62US / CS64US takes a giant step forward from prior cable KVM models in the Petite series, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.
The CS62US / CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.
Furthermore, the CS62US / CS64US features enhanced Video DynaSyncTM technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution.
Featuring an unbeatable combination of design and functionality, USB peripheral sharing convenience, and enhanced user­friendly operations, the CS62US / CS64US allows users to keep up with the latest innovations in desktop multimedia applications.
- 5 -
Features
One USB console controls two/four USB computersUSB mouse port can be used for USB hub and USB
peripheral sharing
Computer selection via hotkeysHotkey selection for OS and keyboard languageAudio-enabledMultiplatform support – Windows, Linux, Mac, and SunCompact design, built-in all-in-one cables Superior video quality – up to 2048 x 1536; DDC2BVideo DynaSync
boot-up display problems and optimizes resolution when switching between ports
Independent switching of the KVM and audio focusSupports multimedia keyboardsSupports wireless keyboards and miceSupports multifunction miceMac/Sun keyboard support and emulationAuto Scan function to monitor computer operationHDCP CompliantNon-PoweredFirmware upgradable
TM
– Exclusive ATEN technology eliminates
1
2
Note: 1. PC keyboard combinations emulate Mac/Sun
keyboards; Mac/Sun keyboards work only with their own computers.
2. Only CS64US supports firmware upgrade function.
- 6 -
System Requirements
Console
A VGA, SVGA, or multisync monitor capable of the highest
resolution that you will be using on any computer in the installation
A USB Keyboard and a USB MouseSpeakers (optional)
Computers
The following equipment must be installed on each computer that is to be connected to the system:
A VGA, SVGA, or multisync video portUSB Type A portSpeaker port (optional)
Cables
The CS62US / CS64US’s innovative design features built-in KVM and speaker cables for extra convenience. No further cables are necessary.
- 7 -
Operating Systems
Supported operating systems are shown in the table, below:
OS Ver si on
Windows 2000 and higher
Linux RedHat 9.0 and higher
SuSE 10 and higher
Mandriva (Mandrake) 2006, 2007, 2008
Debian 3.1, 4.0
Ubuntu 7.04, 7.10
UNIX FreeBSD 5.5, 6.1, 6.2
Sun Solaris 9 and higher
Novell Netware 5.0 and higher
Mac OS 9 and higher
DOS 6.2 and higher
- 8 -
Components
CS62US
2
3
1
4
KVM Cable Connectors
5
6
7
Note: The KVM cable connectors are the same on both models.
- 9 -
CS64US
2
1
3
4
No. Component Description
1 Port LEDs The port LEDs light to indicate that the
2 KVM Cables These cables attach to the computers
3 Speaker Jack Your console speakers plug in here.
4 Console Ports The cables from your console monitor,
5 Speaker Plug The connectors on the KVM cables
6 Video Connector
7 USB Keyboard/Mouse
connector
computer attached to its corresponding port has the KVM focus.
in your installation.
USB keyboard, and USB mouse plug into these ports.
plug into the computers in your installation. See Installation Diagram, page 12, for more information.
- 10 -
Installation
1. Make sure that the power to any device that you connect to the installation has been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.
2. Make sure that all devices you will be installing are properly grounded.
Setting up the CS62US / CS64US USB KVM Switch is quick and easy. Refer to the installation diagrams on the following pages (the numbers in the diagrams correspond to the steps, below) and do the following:
1. Plug your USB keyboard, USB mouse, and monitor into their ports on the CS62US / CS64US. These are located on the side of the CS62US and the front of the CS64US.
Note: When using a wireless keyboard and mouse combo,
the dongle must plug into the CS62US / CS64US’s keyboard port in order for the hotkeys to function.
2. Plug your speakers into the speaker jack.
3. Plug the USB, video, and audio connectors of the attached KVM cables into their respective ports on the computers you are installing.
4. Power on the computers.
Note: The CS62US / CS64US’s power on default is to link to
the first computer that is powered on.
- 11 -

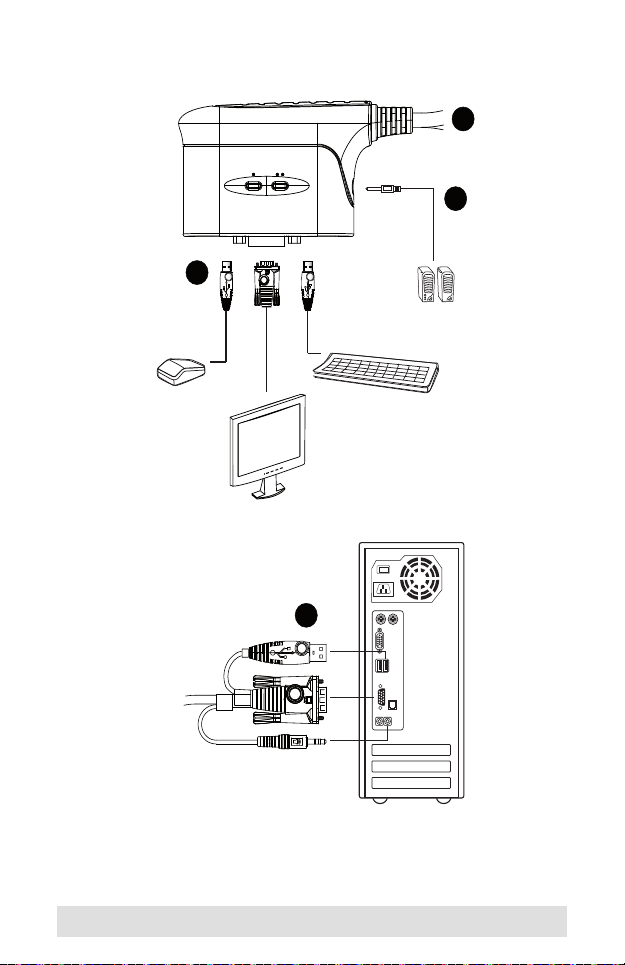

Installation Diagram
1
3
3
2
- 12 -
Port Switching
All port switching operations begin by tapping the Scroll Lock key twice. See the following table for full details.
Hotkey Action
[Scroll Lock] [Scroll Lock] CS62US: Toggles the KVM and Audio focus
[Scroll Lock] [Scroll Lock] +
[Enter] CS64US: Brings the KVM and Audio focus
[n] [Enter] Brings the KVM and Audio focus to the
between the two ports.
from the port that currently has the KVM focus to the next port on the installation (1 to 2; 2 to 3; 3 to 4; 4 to 1) Note: If the KVM and Audio focus are on different ports, only the KVM focus switches.
computer attached to the corresponding Port ID. Note: Replace n with the port number (1, 2, 3, 4).
- 13 -
Invoking Hotkey Setting Mode (HSM)
All hotkey operations begin by holding the Num Lock key, pressing and releasing the Minus key, then releasing the Num
Lock key. See the the following tables for full details.
Note: If using [Num Lock] [-] conflicts with other programs, [Ctrl]
[F12] can be used instead. See Hotkey Summary Table, page 15, for details.
Auto Scanning
Model Hotkey Action
CS62US [Num Lock] [-]
CS64US [Scroll Lock]
[a]
[Scroll Lock] [a] [Enter]
[Scroll Lock] [Scroll Lock] [a] [n] [Enter]
Note: To exit Auto Scan, press [Esc] or [Spacebar]. Auto
Scanning stops when you exit Auto Scan mode.
Starts Auto Scan. The KVM focus cycles from port to port at 5-second intervals.
Starts Auto Scan. The KVM focus cycles from port to port at 5-second intervals.
Starts Auto Scan. The KVM focus cycles from port to port at n-second intervals.
Note: Replace n with a number between 1 and 99.
- 14 -
Hotkey Summary Table
Combination Function
[Num Lock] [-] + [H] Toggles between the default [Num Lock]
[T] Toggles between the default [Scroll Lock]
[F2] Activates Mac keyboard mapping.
[F3] Activates Sun keyboard mapping.
[F10] Auto detects keyboard operating platform.
[F4] Lists current switch settings via the paste
[F5] Performs a USB keyboard and mouse
[F6] [nn] [Enter] Sets the keyboard language layout.
[r] [Enter] Resets hotkeys to the default setting.
[u] [p] [g] [r] [a] [d] [e] [Enter]
[Esc] or [Space Bar] Quits hotkey setting mode.
[-] and alternate [Ctrl][F12] HSM invocation keys.
[Scroll Lock] and alternate [Ctrl][Ctrl] port switching keys.
function of a text editor.
reset.
Note: nn is a two-digit number that represents one of the following keyboard language codes: US English 33; French 08; Japanese 15.
Invokes Firmware Upgrade Mode (CS64US only).
- 15 -
Keyboard Emulation
Mac Sun
PC Keyboard Mac Keyboard PC Keyboard Sun Keyboard
[Shift] Shift [Ctrl] [T] Stop
[Ctrl] Ctrl [Ctrl] [F2] Again
[Ctrl] [F3] Props
[Ctrl] [1] [Ctrl] [F4] Undo
[Ctrl] [2] [Ctrl] [F5] Front
[Ctrl] [3] [Ctrl] [F6] Copy
[Ctrl] [4] [Ctrl] [F7] Open
[Alt] Alt [Ctrl] [F8] Paste
[Print Screen] F13 [Ctrl] [F9] Find
[Scroll Lock] F14 [Ctrl] [F10] Cut
=[Ctrl] [1]
[Enter] Return [Ctrl] [2]
[Backspace] Delete [Ctrl] [3]
[Insert] Help [Ctrl] [4]
[Ctrl]
F15 [Ctrl] [H] Help
-
+
Compose
Note: When using key combinations, press and release the first
key [Ctrl], then press and release the activation key.
- 16 -
The Firmware Upgrade Utility
To upgrade the CS62US / CS64US’s firmware, do the following:
1. From a computer that is not part of your KVM installation, download the latest Firmware Upgrade package for the CS62US / CS64US from our Internet support site (
www.aten.com).
2. Invoke Firmware Upgrade Mode [Num Lock] [-] [Upgrade]. The LEDs flash together to indicate Firmware Upgrade Mode is in effect.
Note: While the switch is in Firmware Upgrade Mode, normal
keyboard and mouse functions are suspended. You must complete the upgrade or exit Firmware Upgrade Mode to regain normal control of the console.
3. Run the Firmware Upgrade Package file. The Firmware Upgrade Utility Welcome screen appears.
4. Read the License Agreement and enable to I Agree button.
5. Click Next to continue. The Firmware Upgrade Utility main screen appears. All the devices capable of being upgraded by the package are listed in the Devices List panel.
6. Select your device. Its description appears in the Device Description panel. Click Next to perform the upgrade.
As the upgrade proceeds, status messages appear in the Status Messages panel, and the progress towards completion is shown in the Progress bar.
7. After the upgrade has completed, a screen appears to inform you that procedure was successful. Click Finish to close the Firmware Upgrade Utility.
8. Set up your KVM installation again. See Installation, page 11.
Upgrade Failed
If the Upgrade Succeeded screen doesn’t appear, it means that the upgrade failed to complete successfully, in which case you should return the unit to your local service center for assistance.
- 17 -
Troubleshooting
Symptom Possible Cause Action
Mouse and/or Keyboard not responding.
USB devices not responding.
Device not recognized (Windows).
Cannot switch ports by pressing [Scroll Lock] twice
Cannot invoke HSM using [Num Lock][-]
Improper mouse and/or keyboard reset.
KVM switch needs to be reset.
USB ports need to reset.
Windows timing problem.
Keyboard is incompatible with Scroll Lock invocation.
Incorrect operation for invoking HSM.
Keyboard is incompatible with [Num Lock] invocation.
Unplug the cable(s) from the console port(s), then plug it/them back in.
Power off all devices on the installation (see safety note, page 9); power off the KVM switch; wait five seconds; then power up
Unplug the device’s USB cable from the USB port on the switch’s rear panel, then plug it back in.
Unplug the KVM cable from the computer’s USB port; go into Windows’ System Settings and remove the Unknown Device entry; plug the KVM cable back in. Windows will now recognize the device.
Switch to the Alternate HSM invocation keys using hotkey [T].
Hold the [Num Lock] key, press and release the [Minus] key, then release the [Num Lock] key. The [Caps Lock] and [Scroll Lock] LEDS will flash together to indicate that the unit is in HSM.
Switch to the alternate HSM invocation keys by using hotkey [H].
- 18 -
Factory Default Settings
Setting Default
Port Switching [Scroll Lock] [Scroll Lock]
Hotkey Invocation [Number Lock] + [-]
Auto Scan Interval 5 seconds
Port Switching Keys ON
Keyboard Operating Platform PC compatible
LED Display Status
Status Indication
Off Port is not selected
On Port is connected to an active
Flashing (one) Port is connected to an active
Flashing (all) Firmware Upgrade Mode is invoked
computer
computer and is being accessed in Auto Scan Mode
- 19 -
Specifications
Function CS62US CS64US
Computer Connections 2 4
Console Connections 1 1
Port Selection Hotkeys
Connectors Console
LEDs Selected 2 (Green) 4 (Green)
Cable Length 2 x 0.9 m 2 x 0.9 m; 2 x 1.2 m
Emulation Keyboard / Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 3, 5, 10, 20 secs.
Environment Operating Temp. 0–50ºC
Physical Properties
Ports
KVM Ports Keyboard /
Storage Temp. -20–60ºC
Humidity 0–80% RH, Non-condensing
Housing Plastic
Weight 0.29 kg 0.77 kg
Dimensions (L x W x H) 8.10 x 6.90 x 2.60 cm 10.9 x 9.72 x 2.54 cm
Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speakers 1 x Mini Stereo Jack Female (Green)
Mouse
Video 2 x HDB-15 Male
Speakers 2 x Mini Stereo Jack
2 x USB Type A Male
(White)
(Blue)
Female (Green)
(default 5 secs.)
4 x USB Type A Male
(White)
4 x HDB-15 Male
(Blue)
4 x Mini Stereo Jack
Female (Green)
1–99 secs.
(default 5 secs.)
- 20 -
Loading...
