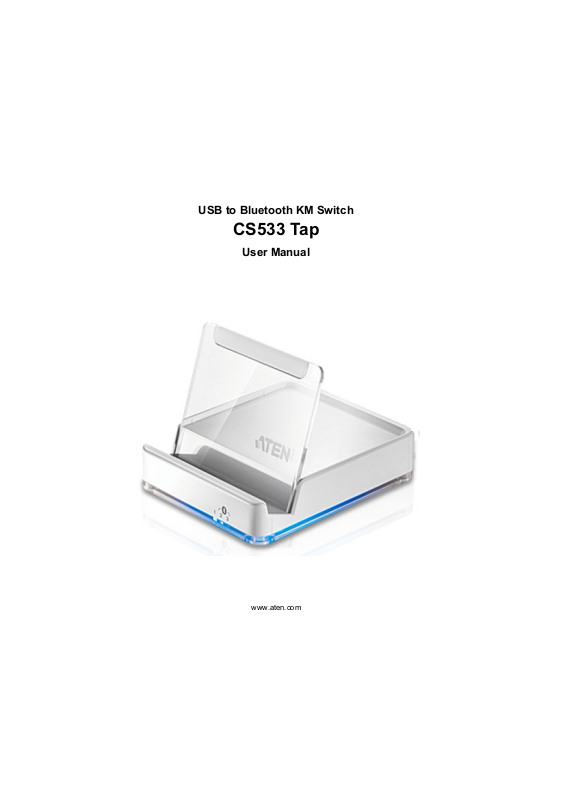

ATEN CS533 Tap User Manual
USB to Bluetooth KM Switch
CS533 Tap
User Manual
www.aten.com
CS533 User Manual
FCC Information
This is an FCC Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.
ii
CS533 User Manual
User Information
Online Registration
Be sure to register your product at our online support center:
International http://eservice.aten.com
Telephone Support
For telephone support, call this number:
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8-4481-58923
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
iii
CS533 User Manual
© Copyright 2013 ATEN® International Co., Ltd.
F/W Version: V1.1.106
Manual Date: 2013-10-17
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved.
All other brand names and trademarks are the registered property of their respective owners.
Package Contents
Package
The CS533 Tap package consists of:
1 CS533 Tap USB to Bluetooth KM Switch
1 Plastic backing
2 Hotkey Stickers
1 User Instructions*
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
* Features may have been added to the CS533 Tap since this manual was
published. Please visit our website to download the most up-to-date version.
iv
CS533 User Manual
Contents
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
SJ/T 11364-2006. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Keyboard and Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
USB Power Adapter (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Mobile Devices*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Rear / Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Plastic Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Setup
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Connecting Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3. Input Method Editor (IME)
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4. Advanced Functions
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Hotkeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Keyboard Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Keyboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the Keyboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Key Mapping Stickers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Standard Keyboard Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Clearing Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Disconnecting Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
v
CS533 User Manual
Reset Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Seamless Switching Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Compatible Mobile Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Standard Keyboard Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Keyboard Mapping Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
vi
CS533 User Manual
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CS533 Tap. Its purpose,
features, benefits, and requirements are presented, and its front and back panel
components are described.
Chapter 2, Setup, describes how to set up your CS533. The necessary steps
for basic hardware and Bluetooth setup are provided.
Chapter 3, Input Method Editor (IME), explains the IME feature for
international users and how to use IME with your device.
Chapter 4, Advanced Functions, provides a complete description of the
CS533's advanced functions, which include Hotkeys, Switching, Keyboard
Mapping, Clearing Bluetooth, Settings, and Firmware Upgrades.
An Appendix, provides specifications, troubleshooting, and other technical
information regarding the CS533 Tap.
vii
CS533 User Manual
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
→ Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start
open the Start menu, and then select Run.
Indicates critical information.
Product Information
→ Run means to
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com
viii
Chapter 1
Introduction
Overview
The CS533 Tap is a Bluetooth link that allows you to use a desktop keyboard
and mouse* on a mobile device. With the CS533 you can use a desktop
keyboard on your mobile device to compose and send text messages, e-mails,
and instant messages; plus work within smartphone applications.
The CS533 allows you to:
Wirelessly connect mobile devices to a desktop keyboard and mouse
Use a desktop USB keyboard and mouse* on your mobile device
Share a USB keyboard and mouse with a computer and 2 mobile devices
Tap to switch USB keyboard and mouse use between devices
*Mouse functionality only available on select mobile devices.
1
CS533 User Manual
Requirements
Device
1 Mobile Device with Bluetooth
Computer
1 Computer with Type A USB Port
Keyboard and Mouse
1 USB Keyboard
1 USB Mouse
USB Power Adapter (optional)
The CS533 can connect a mobile device to a USB keyboard and mouse without
a computer. If you use the CS533 without a computer, a USB Power Adapter
must be purchased to power the CS533.
Operating Systems
Supported operating systems are shown in the table, below:
OS Ver sio n
Windows 2000 and higher
Mac OS 10.6 and higher
Mobile Devices*
Supported Apple devices are shown in the table below:
Apple iPad 1, 2, The new iPad, and above
iPhone 3GS, 4, 4S, and above
iPod touch 2nd, 3rd, 4th Generation, and
above
*For a complete list of supported mobile devices see Compatible Mobile
Devices, page 31.
2
iOS 4.2.1 and higher
Components
Rear / Front View
2
4
Chapter 1. Introduction
5
3
1
No. Component Description
1 Port LED’s Blue LED: light indicates which device is selected for
2 Keyboard Port Plug the USB keyboard into this port.
3 Mouse Port Plug the USB mouse into this port.
4 USB Cable Plug this cable into the computer which will share keyboard
5 Cradle / Plastic
Stand
keyboard and mouse use:
1. Computer
2. Bluetooth #1
3. Bluetooth #2
and mouse use.
Cradle with plastic stand to hold your mobile device upright
and in place. (See Plastic Stand, page 4, for details)
3
CS533 User Manual
Plastic Stand
Insert the plastic stand as shown above and place the mobile device in the
cradle upright to hold it in place.
4
Chapter 2
Setup
Getting Started
To begin using the CS533 with your mobile device requires two steps,
explained in this chapter:
1. Connecting the Hardware
2. Connecting Bluetooth
Connecting Hardware
1. Plug the CS533’s USB cable into the computer.
2. Unplug the USB keyboard from the computer, and plug it into the CS533.
3. Unplug the USB mouse from the computer, and plug it into the CS533.
2
1
3
(Continues on next page.)
5
CS533 User Manual
(Continued from previous page.)
Note: 1. If you are using a wireless keyboard and mouse, be sure to plug the
wireless receiver into the CS533’s keyboard port.
2. By default when the CS533 is plugged into a computer, it switches to
port #2 to connect a Bluetooth device. If you would like to switch the
keyboard and mouse back for use on the computer, use hotkey:
[Alt][Alt] to switch to port #1 (see Hotkeys, page 11).
Connecting Bluetooth
To connect your iPad/iPhone via Bluetooth, do the following:
1. When you plug the CS533 into a computer, it switches to Bluetooth port
#2, and the LED light flashes:
2. Place your iPad/iPhone on the CS533:
3. From the Home Screen on your iPad/iPhone, go to: Settings:
6
4. Select General, then Bluetooth:
5. Turn Bluetooth On.
Chapter 2. Setup
6. With Bluetooth On, your iPad/iPhone will search for devices:
7
CS533 User Manual
7. When the CS533 is discovered, it appears on the screen.
8. Select CS533 from the iPad/iPhone, as shown above.
9. A message will appear on the iPad/iPhone screen:
10. From the USB keyboard, type the PIN code that appears on your iPad/
iPhone, and press Enter.
Note: If Bluetooth does not pair with your device, repeat starting at step 7.
8
Loading...
