USB to Bluetooth KM Switch
CS533 Tap
User Manual
www.aten.com
CS533 User Manual
FCC Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B dig ital service, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installat ion. Any chan ges or modi fications ma de to this e quipment may void
the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in accordance with the instructions, may cause harmful
interference to radio communications . Howe ver, th ere is no g ua rant ee th at inte rfere n ce will not o c cur i n
a particular installation. If this eq uipment does cause harm ful interference to radio or television reception ,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit d ifferent from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
VCCI Information
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.
ii
CS533 User Manual
User Information
Online Registration
Be sure to register your product at our online support center:
International http://eservice.aten.com
Telephone Support
For telephone support, call this number:
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8-4481-58923
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
iii
CS533 User Manual
© Copyright 2013–2014 ATEN® International Co., Ltd.
F/W Version: V1.1.106
Manual Date: 2014-01-22
ATEN and the ATEN logo are registered trademarks of ATEN Internatio nal Co., Ltd. All rights rese rved.
All other brand names and trademarks are the registered property of their respective owners.
Package Contents
Package
The CS533 Tap package consists of:
1 CS533 Tap USB to Bluetooth KM Switch
1 Plastic backing
2 Hotkey Stickers
1 User Instructions*
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
* Features may have been added to the CS533 Tap since this manual was
published. Please visit our website to download the most up-to-date version.
iv
CS533 User Manual
Contents
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
1. Introduction
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Keyboard and Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
USB Power Adapter (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Mobile Devices*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Rear / Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Plastic Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2. Setup
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Connecting Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Connecting Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3. Input Method Editor (IME)
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4. Advanced Functions
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

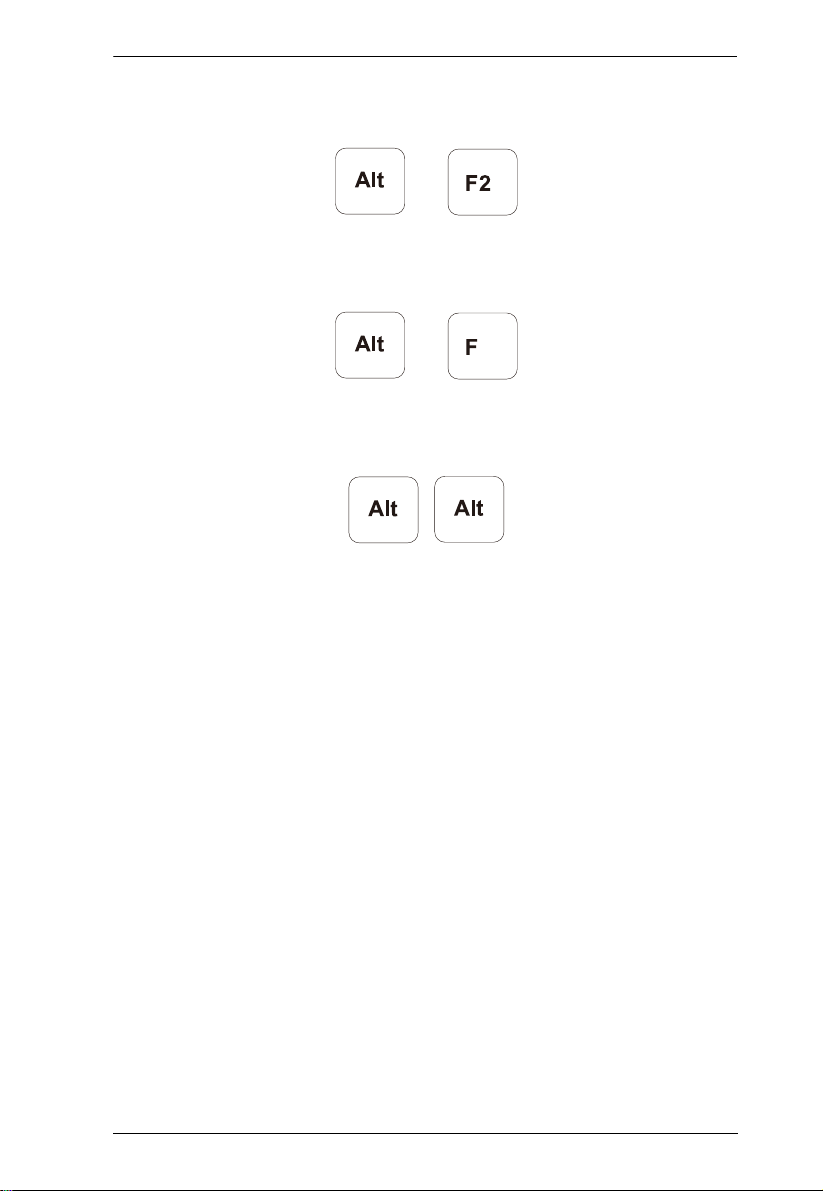

Hotkeys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Keyboard Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Keyboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Setting the Keyboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Key Mapping Stickers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Standard Keyboard Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Clearing Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Disconnecting Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Reset Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Seamless Switching Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
v
CS533 User Manual
Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
North America. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Bluetooth Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Standard Keyboard Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

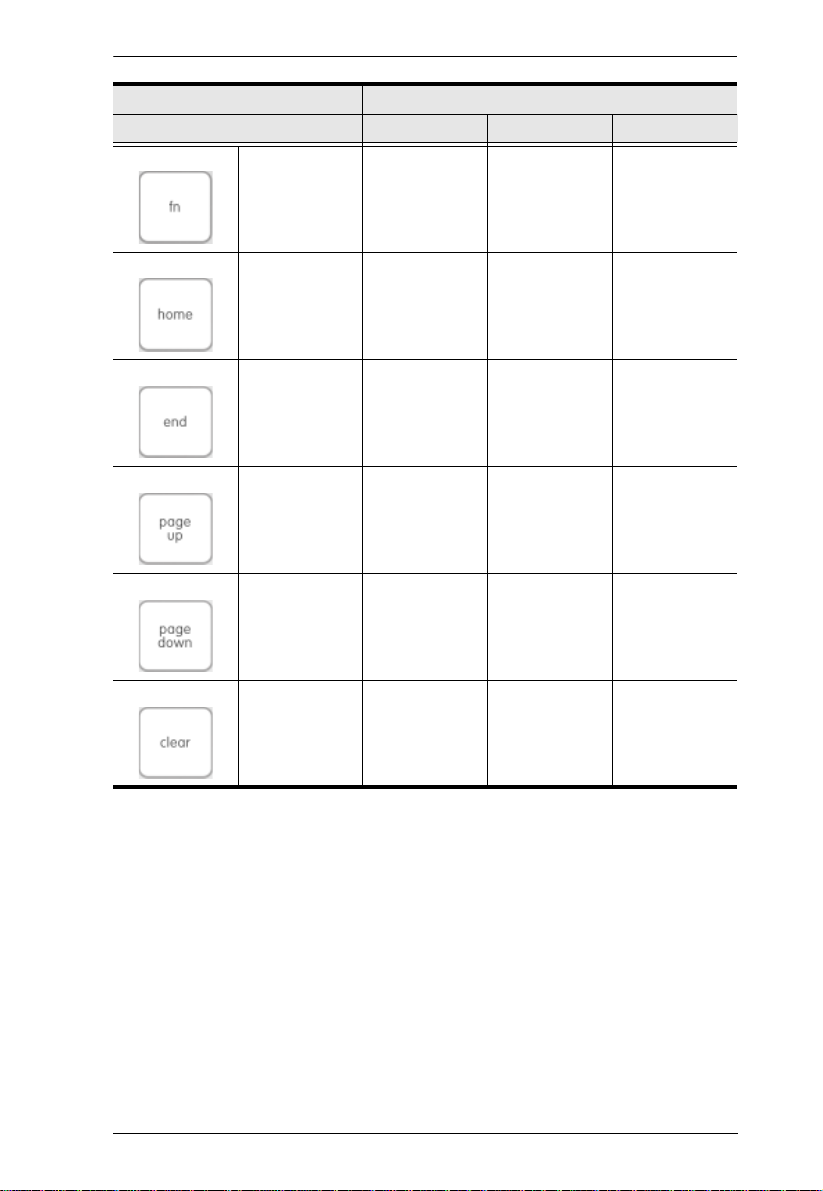

Keyboard Mapping Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
vi
CS533 User Manual
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CS533 Tap. Its purpose,
features, benefits, and requirements are presented, and its front and back panel
components are described.
Chapter 2, Setup, describes how to set up your CS533. The necessary steps
for basic hardware and Bluetooth setup are provided.
Chapter 3, Input Method Editor (IME), explains the IME feature for
international users and how to use IME with your device.
Chapter 4, Advanced Functions, provides a complete description of the
CS533's advanced functions, which include Hotkeys, Switching, Keyboard
Mapping, Clearing Bluetooth, Settings, and Firmware Upgrades.
An Appendix, provides specifications, troubleshooting, and other technical
information regarding the CS533 Tap.
vii
CS533 User Manual
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
→ Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start
open the Start menu, and then select Run.
Indicates critical information.
Product Information
→ Run means to
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com
viii
Chapter 1
Introduction
Overview
The CS533 Tap is a Bluetooth link that allows you to use a desktop keyboard
and mouse* on a mobile device. With the CS533 you can use a desktop
keyboard on your mobile device to compose and send text messages, e-mails,
and instant messages; plus work within smartphone applications.
The CS533 allows you to:
Wirelessly connect mobile devices to a desktop keyboard and mouse
Use a desktop USB keyboard and mouse* on your mobile device
Share a USB keyboard and mouse with a computer and 2 mobile devices
Tap to switch USB keyboard and mouse use between devices
*Mouse functionality only available on select mobile devices.
1
CS533 User Manual
Requirements
Device
1 Mobile Device with Bluetooth
Computer
1 Computer with Type A USB Port
Keyboard and Mouse
1 USB Keyboard
1 USB Mouse
USB Power Adapter (optional)
The CS533 can connect a mobile device to a USB keyboard and mouse without
a computer. If you use the CS533 without a computer, a USB Power Adapter
must be purchased to power the CS533.
Operating Systems
Supported operating systems are shown in the table, below:
OS Version
Windows 2000 and higher
Mac OS 10.6 and higher
Mobile Devices*
Supported Apple devices are shown in the table below:
Apple iPad 1, 2, The new iPad, and above
iPhone 3GS, 4, 4S, and above
iPod touch 2nd, 3rd, 4th Generation, and
above
*For a complete list of supported mobile devices see Bluetooth Compatibility,
page 31.
2
iOS 4.2.1 and higher
Components
4
5
2
3
1
Rear / Front View
Chapter 1. Introduction
No. Component Description
1 Port LED’s Blue LED: light indicates which device is selected for
2 Keyboard Port Plug the USB keyboard into this port.
3 Mouse Port Plug the USB mouse into this port.
4 USB Cable Plug this cable into the computer which will share keyboard
5 Cradle / Plastic
Stand
keyboard and mouse use:
1. Computer
2. Bluetooth #1
3. Bluetooth #2
and mouse use.
Cradle with plastic stand to hold your mobile device upright
and in place. (See Plastic Stand, page 4, for details)
3
CS533 User Manual
Plastic Stand
Insert the plastic stand as shown above and place the mobile device in the
cradle upright to hold it in place.
4
Chapter 2
Setup
Getting Started
To begin using the CS533 with your mobile device requires two steps,
explained in this chapter:
1. Connecting the Hardware
2. Connecting Bluetooth
Connecting Hardware
1. Plug the CS533’s USB cable into the computer.
2. Unplug the USB keyboard from the computer, and plug it into the CS533.
3. Unplug the USB mouse from the computer, and plug it into the CS533.
2
1
3
(Continues on next page.)
5
CS533 User Manual
(Continued from previous page.)
Note: 1. If you are using a wireless keyboard and mouse, be sure to plug the
wireless receiver into the CS533’s keyboard port.
2. By default when the CS533 is plugged into a computer, it switches to
port #2 to connect a Bluetooth device. If you would like to switch the
keyboard and mouse back for use on the computer, use hotkey:
[Alt][Alt] to switch to port #1 (see Hotkeys, page 11).
Connecting Bluetooth
To connect your iPad/iPhone via Bluetooth, do the following:
1. When you plug the CS533 into a computer, it switches to Bluetooth port
#2, and the LED light flashes:
2. Place your iPad/iPhone on the CS533:
3. From the Home Screen on your iPad/iPhone, go to: Settings:
6
4. Select General, then Bluetooth:
5. Turn Bluetooth On.
Chapter 2. Setup
6. With Bluetooth On, your iPad/iPhone will search for devices:
7
CS533 User Manual
7. When the CS533 is discovered, it appears on the screen.
8. Select CS533 from the iPad/iPhone, as shown above.
9. A message will appear on the iPad/iPhone screen:
10.From the USB keyboard, type the PIN code that appears on your iPad/
iPhone, and press Enter.
Note: If Bluetooth does not pair with your device, repeat starting at step 7.
8
Chapter 2. Setup
11.The CS533 appears on the iPad/iPhone as Connected:
12.The keyboard is now connected and ready for use on the iPad/iPhone:
13.To switch the keyboard back to your computer, press:
Note: 1. If you have a problem with the Bluetooth connection, see Clearing
Bluetooth, page 18, and repeat the steps above.
2. To connect a second Bluetooth device to the CS533, repeat the
instructions above, using [Alt]+[F3] for step 1.
3. To change Keyboard Mappings for better use with mobile devices,
See Keyboard Mapping, page 16, for details.
9
Chapter 3
+
Spacebar
Input Method Editor (IME)
Overview
IME is a system component that sets English keyboards to use characters of
other languages. If your device is used exclusively in English, you can skip this
chapter.
An Input Method Editor (IME) is an operating system component that allows
users to enter characters and symbols not found on standard English keyboards.
For example; this allows users on English keyboards to input Chinese, Korean,
Japanese, or Indic characters.
T o change your keyboard language using the IME on your computer or mobile
device, do the following:
1. From the USB keyboard switch to the CS533 port for your device.
2. Toggle IME on/off from the USB keyboard, using the hotkey:
Keyboard Type iOS/Mac Windows
PC
Apple
3. Once IME is enabled, the device will use characters of the language setup
for your device.
Note: It is recommended that iPad/iPhone users upgrade to iOS 6, as this
version provides the most effective IME component for typing in alternate
languages.
+
+
Spacebar
Spacebar
+
Spacebar
10
Chapter 4
Advanced Functions
Overview
This chapter discusses the advanced functions of the CS533. Advanced
functions include: Hotkeys, Switching, Keyboard Mapping, Clearing and
Disconnecting Bluetooth, Resetting, and Firmware Upgrades.
Hotkeys
This chart lists the Hotkeys, Function, and Page for additional information.
“+” means: hold-down [Alt], then press the second hotkey.
Function Hotkey Page
Switch to Port 1
Switches keyboard and mouse to the
Switches keyboard and mouse to the
Computer.
Switch to Port 2
Bluetooth Device.
+
+
14
Switch to Port 3
Switches keyboard and mouse to the
Bluetooth Device.
Switch Back
Switch to the previous port.
+
3
11
CS533 User Manual
+
6
+
7
+
12
+
8
+
5
Clear Bluetooth Pairing
Clears Bluetooth pair
Function Hotkey Page
18
Reset Settings
Resets the CS533 settings.
Disconnect Bluetooth
Disconnects Bluetooth Connection
Firmware Upgrade
Invokes Firmware Upgrade Mode.
Enable Keyboard Mapping
Sets the QWERTY keyboard mapping.
20
19
22
then
P
then
16
then
12
1
then
Function Hotkey Page
Enable Keyboard Mapping:
Sets the Mac keyboard mapping.
Enable Keyboard Mapping:
Sets the iPad/iPhone keyboard mapping.
Chapter 4. Advanced Functions
16
5
+
then
2
then
5
+
then
3
then
Enable/Disable Seamless Switching
Mode:
Toggles Seamless Switching off and on.
21
+
13
CS533 User Manual
Switching
Hotkeys are used from the USB keyboard to select a device:
Computer, Bluetooth Device 1, or Bluetooth Device 2.
The LED light indicates the port that is selected for keyboard and mouse use:
1. Computer
2. Bluetooth Device (1)
3. Bluetooth Device (2)
Switching Between Devices
1. To switch the keyboard and mouse to the Computer, from the USB
keyboard press:
+
“+” means: hold-down [Alt], then press the second hotkey.
14
Chapter 4. Advanced Functions
2. To switch the keyboard and mouse to Bluetooth Device (1), from the USB
keyboard press:
+
3. To switch the keyboard and mouse to Bluetooth Device (2), from the USB
keyboard press:
+
4. To switch the keyboard and mouse Back to the previous port, from the
USB keyboard press:
3
15
CS533 User Manual
+
Keyboard Mapping
Mapping a USB keyboard allows a standard Windows keyboard to work like a
Mac or iPad/iPhone keyboard; or a Mac keyboard to work like a Windows
keyboard. This allows your desktop keyboard to function as the keyboard of
the device (iPhone/iPad, Android, Mac) it is connected to.
Keyboard Layout
Select the layout for your device, then set a CS533 port to use that layout. For
example: if your iPhone uses port #2 on the CS533, set port #2 to use the iPad/
iPhone layout.
Layout Device
QWERTY Windows PC, Android
Mac Mac Computer
iPad/iPhone iPad, iPhone, iPod touch
Setting the Keyboard Layout
Use the instructions below to set a keyboard layout on a CS533 port:
1. From the USB keyboard, select a port by pressing:
–or–
3
16
+
“+” means: hold-down [Alt], then press the second hotkey.
2. Enable Keyboard Mapping, by pressing:
2
then
Chapter 4. Advanced Functions
+
3. Change the port layout to QWERTY, by pressing:
then
1
–or–
change the port layout to Mac, by pressing:
–or–
change the port layout to iPad/iPhone, by pressing:
3
+
4. Refer to the Keyboard Mapping Tables, page 35, for a layout guide.
5
Key Mapping Stickers
Place mapping stickers on your keyboard for quick reference. The blue heading
above each sticker indicates the key on which it belongs.
On each sticker:
Blue represents a keys function when pressed with the [Alt] key.
Gray represents a keys function under a specific keyboard layout: iPhone/iPad,
Mac, or QWERTY.
Standard Keyboard Commands
For a list of common keyboard commands see Standard Keyboard Commands,
page 33.
17
CS533 User Manual
+
3
Clearing Bluetooth
Clearing Bluetooth allows you to remove a Bluetooth pairing and create a new
one. To clear a Bluetooth pairing, do the following:
1. From the USB keyboard, select a Bluetooth port you want to clear, by
pressing:
+
–or–
“+” means: hold-down [Alt], then press the second hotkey.
2. Disconnect the Bluetooth pairing, by pressing:
+
3. The LED light will flash, indicating the CS533 has cleared the pairing and
is ready to connect a new device.
18
6
Chapter 4. Advanced Functions
+
3
Disconnecting Bluetooth
Disconnecting Bluetooth without removing the pairing allows you to
disconnect and automatically reconnect the same Bluetooth device, as you
come and go.
To disconnect Bluetooth, do the following:
1. From the USB keyboard, select a Bluetooth port you want to disconnect,
by pressing:
+
–or–
“+” means: hold-down [Alt], then press the second hotkey.
2. Disconnect the Bluetooth connection, by pressing:
+
3. The LED light will flash, indicating Bluetooth has disconnected, and the
CS533 is waiting to reconnect.
To reconnect Bluetooth:
1. Place the device on the CS533.
2. From the device turn Bluetooth On.
3. Press a key on the USB keyboard and Bluetooth automatically reconnects.
12
19
CS533 User Manual
+
7
Reset Settings
Resetting sets the CS533 back to the default settings.
To reset the CS533 to the default settings, do the following:
1. From the USB keyboard press:
“+” means: hold-down [Alt], then press the second hotkey.
2. The CS533 is now reset to the default settings.
20
Chapter 4. Advanced Functions
+
Seamless Switching Mode
Seamless Switching mode is enabled by default and allows a mobile device to
stay connected via Bluetooth when you switch the CS533 to the USB port. If
Seamless Switching mode is disabled, Bluetooth will disconnect every time
you switch to the USB port, and there will be a delay when switching back to
the Bluetooth port, while Bluetooth reconnects.
To enable/disable Seamless Switching mode, do the following:
1. From the USB keyboard press:
“+” means: hold-down [Alt], then press the second hotkey.
21
CS533 User Manual
then
P
Firmware Upgrade
To upgrade the firmware, do the following:
1. From the computer connected to a CS533, go to: http://eService.aten.com
2. From the Download Center select CS533, then click Firmware for a list of
downloads.
3. Download the appropriate Firmware Upgrade package to your computer.
4. Unplug the USB mouse from the CS533 and plug it int o the com puter.
5. Invoke the CS533’s Firmware Upgrade Mode, by pressing:
+
then
“+” means: hold-down [Alt], then press the second hotkey.
6. All LEDs flash to indicate the Firmware Upgrade Mode is in effect.
7. Double click the Firmware Upgrade package and follow the instructions.
8. The Welcome to the InstallShield Wizard screen appears. Click Next.
8
22
Chapter 4. Advanced Functions
9. The Select Keyboard Type screen appears:
Select the type of keyboard you will use with the CS533: English (104key), or Japanese (109-key). Click Next.
10.The Select A Default Port screen appears:
Choose the port that the CS533 selects for use when it is plugged into a
computer: USB - computer port, or Bluetooth - mobile device Bluetooth
port. Click Next.
23
CS533 User Manual
11. The Ready to Install the Program screen appears:
Click Install.
12.The Firmware Upgrade Utility welcome screen appears:
Read the License Agreement, if you agree to the terms, select I Agree and
click Next.
24
Chapter 4. Advanced Functions
13.The Firmware Utility Main screen appears:
The Utility inspects your installation. All the devices capable of being
upgraded by the package are listed in the Device List panel.
If you enable Check Firmware Version, the Utility compares the
device’s firmware level with that of the upgrade files. If it finds that the
device’s version is higher than the upgrade version, it brings up a
dialog box informing you of the situation and gives you the option to
Continue or Cancel.
If you don’t enable Check Firmware Version, the Utility installs the
upgrade files without checking whether they are a higher level, or not.
After you have made your selections, Click Next to perform the upgrade.
As the Upgrade proceeds, status messages appear in the Status Messages
panel, and the progress toward completion is shown on the Progress bar.
25
CS533 User Manual
14.After the upgrade has completed, a screen appears to inform you that the
procedure was successful:
Click Finish to close the Firmware Upgrade Utility.
15.After the upgrade process is complete, unplug the CS533’s USB cable
from the computer and plug it back in.
16.Unplug the USB mouse from the computer and plug it into the CS533.
17.The firmware upgrade is complete.
26
Appendix
Safety Instructions
General
This product is for indoor use only.
Read all of these instructions. Save them for future reference.
Follow all warnings and instructions marked on the device.
Do not place the device on any unstable surface (cart, stand, table, etc.). If
the device falls, serious damage will result.
Do not use the device near water.
Do not place the device near, or over, radiators or heat registers.
The device cabinet is provided with slots and openings to allow for
adequate ventilation. To ensure reliable operation, and to protect against
overheating, these openings must never be blocked or covered.
The device should never be placed on a soft surface (bed, sofa, rug, etc.) as
this will block its ventilation openings. Likewise, the device should not be
placed in a built in enclosure unless adequate ventilation has been provided.
Never spill liquid of any kind on the device.
Unplug the device from the wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a damp cloth for cleaning.
The device should be operated from the type of power source indicated on
the marking label. If you are not sure of the type of power available,
consult your dealer or local power company.
To prevent damage to your installation it is important that all devices are
properly grounded.
Do not allow anything to rest on the power cord or cables. Route the
power cord and cables so that they cannot be stepped on or tripped over.
To help protect your system from sudden, transient increases and
decreases in electrical power, use a surge suppressor, line conditioner, or
un-interruptible power supply (UPS).
Position system cables and power cables carefully; Be sure that nothing
rests on any cables.
27
CS533 User Manual
Never push objects of any kind into or through cabinet slots. They may
touch dangerous voltage points or short out parts resulting in a risk of fire
or electrical shock.
Do not attempt to service the device yourself. Refer all servicing to
qualified service personnel.
If the following conditions occur, unplug the device from the wall outlet
and bring it to qualified service personnel for repair.
The power cord or plug has become damaged or frayed.
Liquid has been spilled into the device.
The device has been exposed to rain or water.
The device has been dropped, or the cabinet has been damaged.
The device exhibits a distinct change in performance, indicating a need
for service.
The device does not operate normally when the operating instructions
are followed.
Only adjust those controls that are covered in the operating instructions.
Improper adjustment of other controls may result in damage that will
require extensive work by a qualified technician to repair.
28
Appendix
Technical Support
International
For online technical support – including troubleshooting, documentation,
and software updates: http://support.aten.com
For telephone support, See Telephone Support, page iii:
North America
Email Support support@aten-usa.com
Online
Technical
Support
Telephone Support 1-888-999-ATEN ext 4988
When you contact us, please have the following information ready beforehand:
Product model number, serial number, and date of purchase.
Your computer config urat ion, including operating system, revision level,
expansion cards, and software.
Any error messages displayed at the time the error occurred.
The sequence of operations that led up to the error.
Any other information you feel may be of help.
Troubleshooting
Documentation
Software Updates
http://www.aten-usa.com/support
29
CS533 User Manual
Specifications
Function CS533
PC / Bluetooth Connections 1/2
Port Selection Hotkey
Connectors Keyboard 1 x USB Type A Female (White)
Mouse 1 x USB Type A Female (White)
Power Supply 1 x USB Type A Male (White)
Cable Length Computer 1.8 m
LEDs USB Selected/Power Supply 1 (Blue)
Bluetooth Selected 2 (Blue)
Emulation Keyboard USB
Bluetooth V2.1, Class 2
Mouse USB
Bluetooth V2.1, Class 2
Power Consumption 5v, W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 112 g
Dimensions (L x W x H) 92 x 78 x 24.55 mm
30
Appendix
Bluetooth Compatibility
Below is a table of devices that support Bluetooth keyboard and mouse
functionality. Devices that support HID* Profiles will work with the CS533.
Supported Devices
Brand Model Version
Apple iPad 1/2, iPad mini, iPad with Retina Display
iPhone 3GS/4/4S/5
iPod touch (2nd/3rd/4th Generation)
Apple TV (2nd/3rd Generation) Apple TV software
MacBook Air, MacBook Pro, Mac Pro, Mac
Mini, iMac
ACER A500 / A501 / A100 / A200 Android 3.x / 4.x
ASUS Eee Pad Transformer TF101, Eee Pad
Transformer Prime TF201, Transformer Pad
300T , Padfone , ASUS Eee Pad, Memo M171,
PadFone T004, PadFone Infinity
Google Nexus 7
HTC One V, One S, One X, One J Z321e, Butterfly,
Butterfly S, New One, Desire L, Desire P
HUAWEI Media Pad, P6
LG Optimus Pad, Optimus 4x HD, Optimus L7,
Optimus L7 II, Optimus L5II, Optimus Pro,
Optimus GJ
MOTOROLA XOOM
Samsung Galaxy Tab 7.7, Galaxy Tab 8.9, Galaxy Tab
10.1 (WIFI/3G), Galaxy Tab II 7.0, Galaxy Tab
II 10.1, Galaxy Tab III 8.0
Galaxy Nexus, Galaxy Nexus S, Galaxy S II,
Galaxy Note, Galaxy S III, Galaxy S Advance,
Galaxy Note2, Galaxy Core, Galaxy S IV,
Galaxy Note3, Galaxy MEGA "5.8", Galaxy
MEGA "6.3", Galaxy Win Duos
SONY Tablet S
Xperia Arc S, Xperia NEO V, Xperia Ray,
Xperia acro S, Xperia XL, Xperia P, Xperia Z,
Xperia Z Ultra, Xperia XS, Xperia TX, LT29i,
Xperia Z1, Xperia V, Xperia M, Xperia SP
Wiz Aero T-518
Xiaomi mi2S
iOS4.2.1 and higher
version 5.2 or later
OS 10.6 and higher
31
CS533 User Manual
Supported Devices
Brand Model Version
HTC Evo 3D, Sensation, Sensation XE/XL,
Explorer, Flyer
MOTOROLA RAZR MAXX
Samsung Galaxy SII i9100 / R i9103
Galaxy Nexus / Galaxy Note
Galaxy Tab (3G)P1000
GALAXY S II LTE
ACER W500
FIC Tycoon TVBO0 XP / 2000 / Vista / 7
Gigabyte S1080
Microsoft Windows compatible PC (with Bluetooth
support )
MIS WindPad 100W
Android 2.x
*Bluetooth Note: The term “HID” refers to a compatible Bluetooth device.
Although Google provides native support for Bluetooth HID (Human Interface
Devices), for input devices (such as keyboards) - with all Android 4.0 and later
O.S. versions - specific Bluetooth compatibility still depends on each
smartphone manufacture's decision to include HID support with each device.
For specific information about Bluetooth HID (keyboard/mouse) support with
your Android device; (especially Android O.S 3.x, Android O.S. 2.x and older
versions), please contact your smartphone manufacture for detailed support
information. Your phone/tablet/pc must support Bluetooth HID Profiles
(which allows for the support of input devices such as keyboards and mice)
with the CS533. Bluetooth HID (keyboard/mouse) compatibility with your
device is beyond our control, but the new Andriod O.S.’s have the ability to
support these functions and it is up to the manufacture to activate them on your
device, therefore we will be not be able to guarantee, even if the smartphone
device is upgraded with latest Android O.S, that a keyboard or mouse will work
on it.
32
Appendix
+
C
+
C
+
V
+
V
+
X
+
X
+
Z
+
Z
+
A
+
A
+
+
+
Spacebar
+
C
Standard Keyboard Commands
Below are standard key combinations to: C opy, Paste, Cut, Restore, Select,
Select All, and invoke IME Change on PC and Apple keyboards.
PC Keyboard:
Function Mac OS Windows OS
Copy
Paste
Cut
Restore
Apple Keyboard:
Select All
Select
IME Change*
Function Mac OS Windows OS
Copy
+
Spacebar
+
C
33
CS533 User Manual
+
V
+
V
+
X
+
Z
+
Z
+
A
+
+
Spacebar
Function Mac OS Windows OS
Paste
Cut
X
+
Restore
Select All
A
+
Select
+
IME Change*
+
Spacebar
*An input method editor (IME) is an operating system component that receives
keyboard input as data, allowing users to enter characters and symbols not
found on the keyboard. For example; on a computer this allows users of English
keyboards to input Chinese, Korean, or Japanese characters. For more
information on using IME see Input Method Editor (IME), page 10, for details.
34
Appendix
Esc
Keyboard Mapping Tables
Keyboard mappings are listed on two tables. Refer to the table according to the
USB keyboard you use: PC or Mac. Then use the Layout column to
understand how each Key registers when pressed under the keyboard layouts:
QWERTY, Mac, iPad/iPhone.
PC Keyboard Mapping
PC Keyboard Layout
Key QWERTY Mac iPad / iPhone
Right/Left
Control
Right/Left
Alt
Right/Left
Windows Key
Escape Escape Escape
F1 F1 F1 / Brightness
Right/Left
Control
Right/Left
Alt
Right/Left
Windows Key
Right/Left
Right/Left
Right/Left
Command
Control
Option
Down
Right/Left
Control
Right/Left
Option
Right/Left
Command
Home / Siri
(iPhone 4s,
New iPad)
F1 / Brightness
Down
F2 F2 F2 / Brightness UpF2 / Brightness
Up
35
CS533 User Manual
3
4
5
6
7
8
9
PC Keyboard Layout
Key QWERTY Mac iPad / iPhone
F3 F3 F3 / Expose Spotlight
F4 F4 F4 / DashBoard
F5 F5 F5
F6 F6 F6 -
F7 F7 F7 / Rewind Rewind
Search
Photo Frame
(iPad)
Screen Lock
(iPhone)
On-Screen
Keyboard
F8 F8 F8 / Play -
F9 F9 F9 / Fast
36
Pause
Forward
Play - Pause
Fast Forward
PC Keyboard Layout
10
11
12
+
Delete
Print
Screen
SysRq
Key QWERTY Mac iPad / iPhone
F10 F10 F10 / Mute Mute
Appendix
F11 F11 F11 / Volume
Down
F12 F12 F12 / Volume UpVolume Up
Windows Key + EWindows Key + ECD Eject -
Delete Delete Delete Forward Delete
Volume Down
Backward
Print Screen Print Screen F13 -
37
CS533 User Manual
Scroll
Lock
Home
End
Page
Up
Page
Down
Enter
PC Keyboard Layout
Key QWERTY Mac iPad / iPhone
Scroll Lock Scroll Lock F14 -
Home Home Home -
End End End -
Page Up Page Up Page Up -
Backspace
38
Page Down Page Down Page Down -
Backspace Backspace
Enter Enter Return Return
Delete
Backward
Delete
Backward
PC Keyboard Layout
Insert
Pause
Break
Num
Lock
Key QWERTY Mac iPad / iPhone
Insert Insert Fn -
Pause Pause F15 -
Num Lock Num Lock Clear -
Appendix
39
CS533 User Manual
Mac Keyboard Mapping
Mac Keyboard Layout
Key QWERTY (PC) Mac iPad / iPhone
Right/Left
Control
Right/Left
Shift
Right/Left
Option
Right/Left
Command
Escape Escape Escape
F1 / Brightness
Down
Right/Left
Control
Right/Left
Shift
Right/Left
Alt
Right/Left
GUI
F1 F1 / Brightness
Right/Left
Control
Right/Left
Shift
Right/Left
Option
Right/Left
Command
Down
Right/Left
Control
Right/Left
Shift
Right/Left
Option
Right/Left
Command
Home / Siri
(iPhone 4S,
New iPad)
Brightness
Down
40
F2 / Brightness
Up
F3 / Expose F3 F3 / Expose Spotlight
F4 / Dash
Board
F2 F2 / Brightness UpBrightness Up
Search
Photo Frame
F4 F4 / Dash
Board
(iPad)
Screen Lock
(iPhone)
Mac Keyboard Layout
Key QWERTY (PC) Mac iPad / iPhone
Appendix
F5 F5 F5
F6 F6 F6 -
F7 / Rewind F7 F7 / Rewind F7 / Rewind
F8 / Play-
Pause
F9 / Fast
Forward
F10 / Mute F10 F10 / Mute Mute
F11 / Volume
Down
F8 F8 / Play-
Pause
F9 F9 / Fast
Forward
F11 F11 / Volume
Down
On-Screen
Keyboard
Play-
Pause
Fast Forward
Volume Down
F12 / Volume
Up
Eject - - -
F13 Print Screen F13 -
F12 F12 / Volume UpVolume Up
41
CS533 User Manual
Mac Keyboard Layout
Key QWERTY (PC) Mac iPad / iPhone
F14 Scroll Lock F14 -
F15 Pause F15 -
F16 - F16 -
F17 - F17 -
F18 - F18 -
F19 - F19 -
42
Delete Forward Delete Delete Forward Delete
Delete
Backward
Return Enter Return Return
Backspace Delete
Backward
Backward
Delete
Backward
Mac Keyboard Layout
Key QWERTY (PC) Mac iPad / iPhone
fn / Help Insert fn / Help -
Home Home End -
End End End -
Page Up Page Up Page Up -
Appendix
Page Down Page Down Page Up -
Clear Num Lock Clear -
43
CS533 User Manual
Troubleshooting
Overview
Operation problems can be due to a variety of causes. The first step in solving
them is to make sure that all cables are securely attached and seated completely
in their sockets.
In addition, updating the product’s firmware may solve problems that have
been discovered and resolved since the prior version was released. If your
product is not running the latest firmware version, we strongly recommend that
you upgrade. See Firmware Upgrade, page 22, for upgrade details.
Symptom Possible Cause Action
Mouse and/or
Keyboard not
responding.
Pressing [Enter]
doesn’t send
text or sms
messages from
my mobile
device.
Improper mouse,
keyboard, or CS533
connection.
Wireless receiver
plugged into the
wrong port.
Y ou are connected to
a Bluetooth port that
is not paired with a
mobile device.
USB mouse is not
supported for use on
some mobile
devices.
The mobile
application must
have an option
allowing you to send
messages using the
[Enter] key.
Check that the keyboard and mouse are
plugged into the correct USB (keyboard and
mouse) ports on the rear of the CS533, and
that the CS533 is properly plugged into the
computer. Unplug the cables, and plug them
back in.
See Connecting Hardware, page 5.
If you are using a wireless keyboard and
mouse, be sure that the wireless receiver is
plugged into the CS533’s keyboard port.
From the USB keyboard switch to the
computers port, using the hotkey: [Alt] + [F1]
See Switching, page 14.
-or-
Use Bluetooth to pair your mobile device with
the CS533 port you are connected to.
See Connecting Bluetooth, page 6.
Some manufacturer’s operating system
platforms do not support use of a USB mouse
on their mobile devices; particularly iOS
products. Please check the device’s user
manual for information on supporting a USB
mouse.
Check the mobile applications options to
enable the [Enter] key to send messages.
Some mobile applications do not allow you to
use the [Enter] key to send messages, and
you will need to press Send from the devices
screen.
If you are using a mobile device that supports
use with a USB mouse, you can use the
mouse to click Send.
44
Symptom Possible Cause Action
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID
FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK,
OR ITS DOCUMENTATION.
The direct vendor makes no warranty or representation, expressed, implied, or statutory with
respect to the contents or use of this documentation, and especially disclaims its quality,
performance, merchantability, or fitness for any particular purpose.
The direct vendor also reserves the right to revise or update the device or
documentation without obligation to notify any individual or entity of such
revisions, or update. For further inquiries, please contact your direct vendor.
Bluetooth won’t
connect or pair
with my mobile
device.
The CS533
won’t switch
ports when
using hotkeys.
Can’t switch
ports after the
firmware
upgrade is
complete.
When the
CS533 is
plugged into a
computer it
switches to the
Bluetooth port.
Bluetooth is not in
sync with your
mobile device.
You may not be
pressing the hotkeys
correctly.
Firmware upgrade
process incomplete.
Firmware needs to
be upgraded.
The best way to resolve any Bluetooth
connectivity issue is to clear the Bluetooth
connection (see Clear Bluetooth Pairing,
page 12), and re-connect Bluetooth (see
Connecting Bluetooth, page 6).
Another possibility is that the mobile device is
placed too far from the CS533 to establish a
connection, or Bluetooth is not turned on from
your device.
The hotkeys must be pressed in the correct
order. When a hotkey combo shows a “+”,
you should do the following:
Press and hold-down the [Alt] key , then press
the second hotkey [F1].
When you finish upgrading the firmware, be
sure to unplug the CS533’s USB cable from
the computer, and plug it back in.
The latest firmware allows you to choose the
default port (USB or Bluetooth) that the
CS533 uses when plugged into a computer.
To download and install the latest firmware
see Firmware Upgrade, page 22, for details.
Appendix
+
45
CS533 User Manual
46
Loading...
