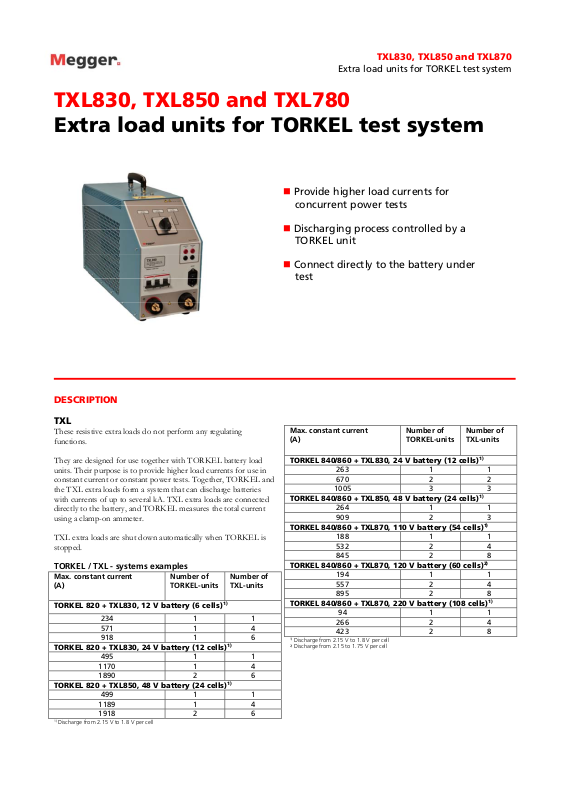

Page 1
TXL830, TXL850 and TXL870
Extra load units for TORKEL test system
TXL830, TXL850 and TXL780
Extra load units for TORKEL test system
Provide higher load currents for
concurrent power tests
Discharging process controlled by a
TORKEL unit
Connect directly to the battery under
test
DESCRIPTION
TXL
These resistive extra loads do not perform any regulating
functions.
They are designed for use together with TORKEL battery load
units. Their purpose is to provide higher load currents for use in
constant current or constant power tests. Together, TORKEL and
the TXL extra loads form a system that can discharge batteries
with currents of up to several kA. TXL extra loads are connected
directly to the battery, and TORKEL measures the total current
using a clamp-on ammeter.
TXL extra loads are shut down automatically when TORKEL is
stopped.
TORKEL / TXL - systems examples
Max. constant current
(A)
TORKEL 820 + TXL830, 12 V battery (6 cells)
234 1 1
571 1 4
918 1 6
TORKEL 820 + TXL830, 24 V battery (12 cells)1)
TORKEL 820 + TXL850, 48 V battery (24 cells)1)
1)
Discharge from 2.15 V to 1.8 V per cell
495 1 1
1170 1 4
1890 2 6
499 1 1
1189 1 4
1918 2 6
Number of
TORKEL-units
Number of
TXL-units
1)
Max. constant current
(A)
TORKEL 840/860 + TXL830, 24 V battery (12 cells)1)
TORKEL 840/860 + TXL850, 48 V battery (24 cells)1)
TORKEL 840/860 + TXL870, 110 V battery (54 cells)1)
TORKEL 840/860 + TXL870, 120 V battery (60 cells)2)
TORKEL 840/860 + TXL870, 220 V battery (108 cells)1)
1)
Discharge from 2.15 V to 1.8 V per cell
2)
Discharge from 2.15 to 1.75 V per cell
263 1 1
670 2 2
1005 3 3
264 1 1
909 2 3
188 1 1
532 2 4
845 2 8
194 1 1
557 2 4
895 2 8
94 1 1
266 2 4
423 2 8
Number of
TORKEL-units
Number of
TXL-units
Page 2
APPLICATIONS
TXL830, TXL850 and TXL870
Extra load units for TORKEL test system
SPECIFICATIONS
Specifications are valid at nominal input voltage and an ambient
temperature of +25°C, (77°F). Specifications are subject to change
without notice.
Environment
Application field The instrument is intended for use in high-voltage
substations and industrial environments.
Temperature Operating
Storage & transport
Humidity
CE-marking
LVD 2006/95/EC
EMC 2004/108/EC
Load Section
0°C to +40°C
-40°C to +70°C
5% – 95% RH, non-condensing
Max. voltage d.c.
Max. current
Max. power
Internal resistance, 3-position selector
Position 1 0.275 W 0.55 W 4.95 W
Current 100 A at 27.6 V (12 x 2.3 V) at 55.2 V (24 x 2.3 V) -
78.5 A at 21.6 V (12 x 1.8 V) at 43.2 V (24 x 1.8 V) -
50.1 A - - at 248.4 V (108 x 2.3 V)
39.2 A - - at 194.4 V (108 x 1.8 V)
Position 2 0.138 W 0.275 W 2.48 W
Current 200 A at 27.6 V at 55.2 V (24 x 2.3 V) -
156 A at 21.6 V 43.2 V (24 x 1.8 V) -
Position 3 0.092 W 0.184 W 1.24 W
Current 300 A at 27.6 V at 55.2 V (24 x 2.3 V) -
235 A at 21.6 V 43.2 V (24 x 1.8 V) 100 A - - at 124.2 V (54 x 2.3 V)
78.4 A - - at 97.2 V (54 x 1.8 V)
TXL830 TXL850 TXL870
28 V 56 V 140 V / 280 V
300 A 300 A 112 A at 140 V
8.3 kW 16.4 kW 15.8 kW
General
Mains voltage
100 – 240 V AC, 50 / 60 Hz
Power consumption
75 W (max)
Protection
Thermal cut-outs, automatic overload protection
Dimensions
Instrument 210 x 353 x 600 mm
Transport case 265 x 460 x 750 mm
Weight 13 kg
21.4 kg with transport case
Cable sets
for TXL830 and TXL 850 2 x 3 m, 70 mm
lug. Max. 100 V. 5 kg
for TXL870 2 x 3 m, 25 mm
Max. 480 V. 3 kg
56 A at 280 V
2
, 270 A, with cable
2
, 110 A, with cable lug.
Page 3
TXL830, TXL850 and TXL870
Extra load units for TORKEL test system
Item Part number
Extra loads for use with TORKEL systems
TXL830 BS-59093
TXL850 BS-59095
TXL870 BS-59097
Cable sets
For TXL830 and TXL 850
2 x 3 m, 70 mm2, 270 A, with cable lug. Max. 100 V. 5 kg GA-00554
For TXL870
2 x 3 m, 25 mm2, 110 A, with cable lug.Max. 480 V. 3 kg GA-00552
Ordering information
UK
Archcliffe Road Dover
CT17 9EN England
T +44 (0) 1304 502101
F +44 (0) 1304 207342
UKsales@megger.com
UNITED STATES
4271 Bronze Way
Dallas TX 75237-1019 USA
T 800 723 2861 (USA only)
T +1 214 333 3201
F +1 214 331 7399
USsales@megger.com
OTHER TECHNICAL SALES OFFICES
Valley Forge USA, College Station USA, Sydney
AUSTRALIA, Täby SWEDEN, Ontario CANADA,
Trappes FRANCE, Oberursel GERMANY, Aargau
SWITZERLAND, Kingdom of BAHRAIN, Mumbai
INDIA, Johannesburg SOUTH AFRICA, Chonburi
THAILAND
CERTIFICATION ISO
Registered to ISO 9001:2008 Cert. no. Q 09250
Registered to ISO 14001-2004 Cert. no. EMS 61597
TXL820_TXL850_TXL870_SS_EN_V0
