FIREBERD 6000
Communications Analyzer
17
Protect
your
Network
with the

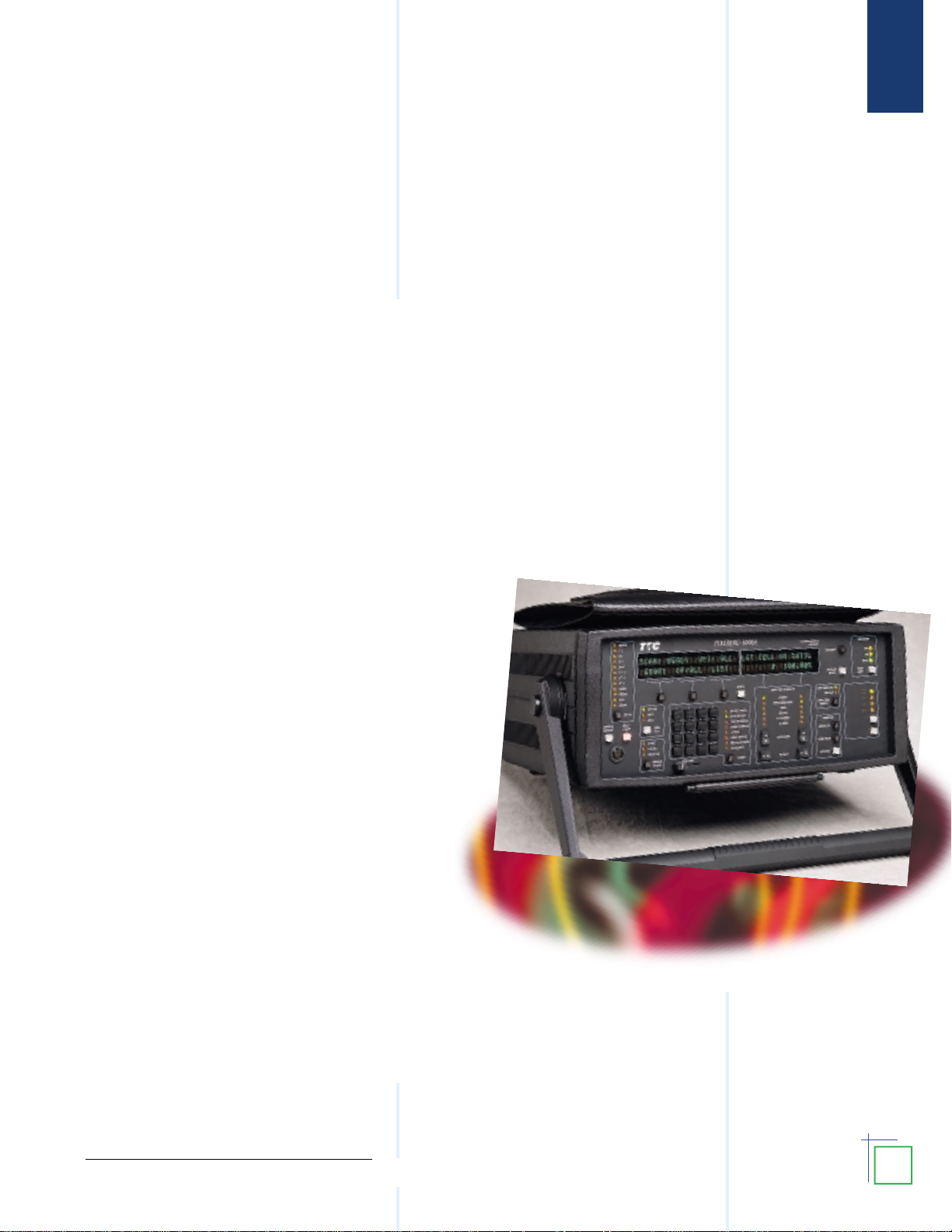

FIREBERD 6000
he FIREBERD 6000 Communications Analyzer brings advanced testing capabilities to today’s data networks,
T
and cell generation, along with signal, performance and timing measurements. The FIREBERD 6000 is fully programmable, with customized printouts, programmable user patterns, frequency synthesizer, and user-defined flow control. It’s a great way to protect your network.
Highlights
Many Capabilities, One Instrument
Customize Your Testing Needs
Save Time with Automation and Remote Testing
One Tester You Can Count On
enabling you to maximize your testing capabilities and minimize your training costs. Whether your test
With an intuitive, menu-driven test methodology, the FIREBERD 6000 performs traditional bit error analysis, frame
Perform bit error, signal and performance analysis on datacom,
T1/FT1, 2M/Nx64, DDS, E3 and T3 services
Perform analog tests with VF and wideband Transmission
Impairment Measurement Set (TIMS) tests on analog and digital transmission lines with the TIMS-45 Lid.
Complete jitter generation and measurements on T1, 2M and
64 kb/s circuits
Monitor and generate traffic on ATM and frame relay networks
Recall up to ten of your most frequently used test scripts with the
push of a button
Choose the configuration settings that you require and the
FIREBERD 6000 filters and prints the results
Automate your testing routine with Dynamic Script Generator soft-
ware
Maximize your FIREBERD 6000’s ability as a frame relay solution with NetAnalyst.
Reduce response time and extend the reach of your field technicians with Distributed Test Manager (DTM)
software which enables you to perform remote testing from your PC
Support your testing needs for years to come with the FIREBERD 6000’s industry-leading three-year warranty and
field-tested reliability
®
1
At Home in Any Test Environment
The FIREBERD 6000 performs in-service monitoring and loopback, end-to-end, and out-of-service testing.
Convenient and powerful, the FIREBERD 6000 sets the standard for physical and service layer analysis.
In the Field
A single field service package meets a wide array of test requirements. Whether
troubleshooting, benchmarking, or installing circuits, the FIREBERD 6000 is an
indispensable tool for getting the job done quickly. The FIREBERD 6000’s menu-
driven design keeps setup time to a minimum—you can even store and recall your
most frequently used configurations with the push of a button. The front-panel
display lets you monitor key test results at a glance, and the optional integrated lid
printer gives you hard copy documentation of all your findings. And because the
FIREBERD 6000 offers such an extensive array of measurements and alarm
reports, you can accurately find problems the first time and eliminate the need
for a second trip.
22
In the Network Control Center
Because the FIREBERD 6000 lets you monitor all field offices and switch nodes from a central location with DTM remote control software, you can find and fix network problems before they disrupt service. The FIREBERD 6000’s LEDs update you to the condition of your network and alert you to potential problems.
X.21 HSSI V.35
RS-449
EIA-530
MIL 188-114
RS-232C RS-232D
MIL-188C
FIREBERD
T1/FT1
V.35
RS-449
EIA-530
DTE
RS-232
V.35 RS-449 EIA-530
WAN Protocol
T1/FT1/2M/DS-3
MUX or
Channel Bank
T1 CSU
or
FT1 DSU/CSU
DDS
DSU/CSU
CPE & Local Loop
CSU
or NTU
T1/FT1/2M/ Nx64/DS-3
Smart
Jack
T1/FT1
OCU-DP
T-Carrier or
CCITT-standard
Network
Channel Bank
T1/E1
The FIREBERD in the digital network
Telco/Carrier Central Office or
DSX-1
MON
MON MON
Large Network Node
Channel Bank
T1/FT1/2M
Nx64/T3
DDS DS0A/B
DS3 MUX
DSX-1
MON
DDS Local Loop
DDS DS0A/B
Packet Network Testing
Perform analysis of your circuits and equipment during deployment and provisioning of your network by generating frame relay and ATM traffic. Perform analysis on lost frames or cells by generating fixed or variable loads of traffic over multiple virtual channels to verify the service that your customers demand. The capability to test the physical layer and data link layer in a single platform provides the information to troubleshoot the most complex problems.
In-Service monitoring
Monitor live data at various access locations, from resistor-isolated DSX monitor points to a bridge on a four-wire access point, without disturbing revenue­generating traffic. Ideal for routine maintenance, the FIREBERD 6000 offers a variety of in-service measure­ments, including bipolar violations, timing and level analysis, frame errors, and CRC errors.
T1/FT1
End-To-End Testing
Quickly isolate any problem to a specific direction by analyzing the performance of an entire digital link in both directions. Full-duplex end-to-end testing also serves as an excellent analysis of all circuits and equipment within your network.
Loopback Testing
Enjoy the convenience of using a single FIREBERD 6000 to perform out-of-service testing. Loopback testing is ideal as a quick check of circuit performance or when isolating faulty equipment. The FIREBERD 6000 supports all standard TI, E1, DDS, and data communications loopbacks.
3
Frame Relay Testing
Successful frame relay deployment begins with the proven transmission test capability of the FIREBERD 6000. With the Frame Relay Option, you can easily perform frame relay turn-up and troubleshooting tests over a permanent virtual circuit (PVC). The Frame Relay Option is compatible with the T1/FT1, 2M/Nx64, DDS, HSSI, V.35, X.21, RS-449, and most other FIREBERD 6000 interface modules.
The FIREBERD 6000 can test at both the User-to-Network Interface (UNI) and the Network-to-Network Interface (NNI)—including out-of-service and in-service testing. With the FIREBERD 6000 Frame Relay Option, you can easily perform a ping test to determine end-to-end PVC connectivity and to measure round trip delay.
Highlights
Perform lost-frame analysis
Perform test frame generation (fixed rate and burst modes for emulating specific traffic patterns), while
controlling the status of the FECN, BECN, C/R, and DE bits
Transmit InARP packets and provide replies to incoming InARP packets
Transmit ICMP echo (“ping”) packets and provide echo replies to incoming ICMP echo packets
Perform link management emulation (ANSI T1.617 Annex D, ITU Q.933 Annex A, and LMI)
Gather PVC status messages and determine PVC state (i.e., active, inactive, new, or deleted)
Emulate the network side or CPE side of a UNI (unidirectional polling); an NNI frame relay switch, including both
bi-directional polling and full status message interpretation
Display physical and data link layer results simultaneously
Collect frame relay statistics on one specific data link connection identifier (DLCI) or on all DLCIs
Monitor frame relay performance and link management statistics at the UNI and NNI
44
End to End Connectivity Test
Local Connectivity
Testing
Access Circuit
Router Router
DSU
CSU
Frame Relay
Network
Access Circuit
DSU
CSU
Perform extensive frame relay testing with speeds up to 8Mb/s.
Frame Relay Testing with NetAnalyst
TTC provides a centralized frame relay testing solution by integrating NetAnalyst Test Management Software with the FIREBERD 6000. NetAnalyst, a component of TTC’s Service Optimization Framework, is a client/server GUI-based software package that provides remote test solutions to enhance the provisioning and troubleshooting process for service providers. Combining NetAnalyst with TTC’s industry standard test hardware offers service providers a complete, centralized test and monitoring solution.
Highlights
Provides consistent user interface to a variety of TTC hardware
Supports Automated Scheduled Testing, including the ability to e-mail test results
Facilitates distributed testing from a network operations center or other location
Supports custom integration with other operation support system (OSS) software applications
Improves efficiency by helping to pinpoint problems prior to a field service dispatch
ATM Testing
With the DS1/DS3 Interface Module and 2M/34M Interface Module, you can use your FIREBERD 6000 to test DS1/DS3 and 2M/34M ATM at the edge of the network and perform end-to-end testing from many edge device inputs that access the ATM network. This allows you to verify that devices converting non-ATM traffic to ATM traffic are functioning properly.
Adding the capability to test at the ATM layer, transmission convergence (TC) sublayer, and ATM adaptation layer (AAL) to its extensive transmission test capabilities, the ATM Interface Module makes the FIREBERD 6000 your tool from installation to ongoing maintenance. The FIREBERD 6000’s intuitive, menu-driven front panel makes both in-service and out-of-service ATM testing simple.
Highlights
Generate constant bit rate (CBR) traffic based on peak cell rate
Generate variable bit rate (VBR) traffic based on peak cell rate, sustained cell rate, and maximum burst size
Perform quality of service (QoS) analysis including cell loss ratio, cell error ratio, cell misinsertion rate, cell transit
delay, and cell delay variation
Obtain statistics at the ATM layer, AAL, TC layer, and physical layer (e.g., total cell count, OAM cell count, AAL CRC
errors, average PDU length, PLCP alarms, PLPC errors, receive frequency, and DS1/DS3 alarms)
Characterize the latency of your network with round trip delay measurements
Perform GCRA “leaky bucket” conformance analysis
Transmit over three VPI/VCIs simultaneously (one primary channel, two background channels)
Scan and store all active VPI/VCIs on the link
Generate correctable and uncorrectable HEC Errors
Generate or monitor OAM cells
5
T1 and FT1 Testing
The T1/FT1 Module enables you to analyze the entire range of T1 and FT1 services regardless of data rates and formats, with features like level and current measurements, G.821 performance measurements, voice applications, and jitter generation and measurement. You can perform Nx56 kb/s or Nx64 kb/s bit error rate (BER) analysis without disrupting live traffic on the remaining channels. The ESF data link far-end Performance Report Message Option lets you monitor and report on far-end status, as defined by the ANSI T1.403 standard.
Highlights
Perform comprehensive bit error rate testing (BERT) with the T1/FT1 Module’s full selection of BERT patterns
Identify circuit troubles quickly with test results such as bit error rate, pattern and timing slips, voltage level,
simplex current, and round-trip transmission delay
Test frame relay, in-band, out-of-band, and V.54 loopback
Test unframed, D4, ESF, or SLC-96® circuits encoded in AMI or B8ZS format
Replace a CSU at the customer premises during troubleshooting and installation
Detect network synchronization problems or improper multiplexer configuration for in-service loop timing, and
verify end-to-end network synchronization (out of service)
Measure jitter at the rate of 1.544 Mb/s; generate jitter at a single frequency or automatically sweep jitter over
the frequency range
DS3 Testing
The DS3 Module thoroughly tests your 45 Mb/s circuits and equipment and lets you troubleshoot difficult problems quickly. One FIREBERD 6000 equipped with this module can analyze any T3 format, making the FIREBERD 6000 an all-in-one test instrument for unframed, M13, or C-bit parity environments. With frame, BPV, and parity results, you can monitor your network while it’s up and running.
66
Highlights
Perform full DS3 BERT
Insert errors or BPVs at programmable rates or individually, so you can easily analyze the protection switching
recovery time of your DS3 equipment and simulate transmission impairments
Use one FIREBERD 6000 to transmit and decode FEAC bit sequences (including alarm conditions and
loopbacks), and perform bit error analysis
2M and Nx64 Testing
Keep your E1 (2M) network running smoothly with features like complete G.821 performance analysis, automatic histograms, delay and timing measurements, signal analysis, and jitter testing. When equipped with the 2M/Nx64 Module, the FIREBERD 6000 offers complete G.821 bit error analysis, with more than 60 test results that enable full correlation between errors and their specific causes. You can perform Nx64 kb/s or Nx56 kb/s analysis from any 2M circuit access point and take advantage of an auto-configuration feature that immediately identifies how Nx64 kb/s circuits and equipment are configured.
Highlights
Test Nx64 kb/s or Nx56 kb/s from any access point on a 2M circuit. Select contiguous or non-contiguous
timeslots, independently select Tx and Rx timeslots, and program idle codes
Use extensive BERT capabilities
Obtain network status with multiple measurements: FAS word errors, REBEs, received FAS word, timing slips,
code errors, MFAS word errors, received NFAS word, network jitter, CRC errors, 2M alarms, and received MFAS word
Perform both level measurements and timing slip analysis
Test unframed, framed, and both CRC-4 and TS-16 (MFAS) multiframed formats
Maximize network utilization during testing by inserting patterns on selected timeslots without disrupting traffic
on remaining channels
Monitor and transmit voice and ABCD signaling bits to verify the quality of VF circuits
Use a referenced 2M signal to identify timing slips
Measure jitter at the rate of 2M; generate jitter at a single frequency or automatically sweep jitter over the
frequency range
34M Testing
Equipped with a 34M Interface Adapter, the FIREBERD 6000 can thoroughly test your 34 Mb/s circuits and equipment. Using this module, a single FIREBERD 6000 can analyze any 34M format, including unframed, G.751, or G.832, concentrating on basic signal analysis, frame analysis, G.826 test results, and bit error analysis. With these results, you can monitor you network’s performance while it’s up and running. And when out-of-service testing is required, the FIREBERD 6000 calculates measurements so you can complete any test quickly and keep costly down time to a minimum.
Highlights
Analyze unframed, G.751, or G.832, framing formats
Maintain your network by monitoring live traffic with fame, code errors, and signal results
Perform G.826 in-service monitoring, or obtain out-of-service results
Insert errors at programmable rates, in bursts, or individually
7
High Speed Serial Interface (HSSI) Testing
The growth in popularity of fractional T3 and E3 frame relay service, especially among Internet service providers (ISPs), many CSU/DSUs are now providing a HSSI interface to the customer, providing access to these high-speed links. In addition, both switch and router manufacturers are providing HSSI access, to allow customers to seamlessly access these fractional T3 and E3 links. The FIREBERD 6000 provides HSSI transmission testing and frame relay test capability for high-speed links and accommodates turn-up testing for these applications and more.
Highlights
Perform Bit Error Rate Testing (BERT) on out-of-service high-speed links
Characterize the latency of your network
Isolate network components using local data terminating equipment (DTE), local line (LA), and remote line (LB)
loopbacks
Perform frame relay testing with a load rate up to 8Mb/s on a line rate from 56kb/s to 52Mb/s (requires Option
6010/6011)
Emulate high-speed DTE equipment
Data Communications Testing
With the FIREBERD 6000, you can test an array of interface standards, including RS-232/V.24, EIA-530, V.35/306, X.21, RS-449/422/423, and MIL-188C at speeds up to 15 Mb/s. The V.35/306/RS-449/X.21 Module fully supports end­to-end and loopback testing, with built-in remote and local loopback modes.
The Recovered Clock Option operates with DTE/DCE interfaces at rates of 520 kb/s or less and allows the FIREBERD 6000 to recover timing (and proceed with data analysis) by extracting a clock from the receiver data. This provides a powerful method of differentiating timing problems from transmission problems.
88
Highlights
Supports all standard loopback, clock recovery, and clock/data inversion tests
Provides comprehensive BERT capability
Identifies and compensates for improper received inverted data with built-in data inversion detection and
correction
Supports balanced and unbalanced modes
Allows complete flow-control troubleshooting, with user-controllable signaling leads (CTS, RTS, DTR, and DSR),
LED status indicators, and CTS-RTS delay measurement
Features software-selectable DTE and DCE emulation and six different operating modes with the V.35/306/
RS-449/X.21 Module
DDS Testing
For testing at a D4 channel bank, the DDS DS0A/B Module enables the FIREBERD 6000 to analyze DDS subrate circuits, with DS0A, DS0B, and clear channel compatibility for all data rates. The module provides complete loopback support, which allows a DDS circuit to be completely sectionalized in either direction using alternating and latching loopbacks. For testing DDS four-wire facilities to the customer premises, the DDS Local Loop Module emulates a DSU/ CSU at all data rates, including 64 kb/s clear channel service. Unique stress and signal capabilities provide quick detection of marginal circuits and equipment. You can perform frame relay testing from any DDS access point—both the DDS DS0A/B Module and the DDS Local Loop Module are completely compatible with the FIREBERD 6000’s Frame Relay Option.
Highlights
Perform comprehensive BERT
Test and maintain the digital cards of a D4 channel bank such as an OCU-DP, DSU-DP, and DS0-DP
Test the DSU/CSU or four-wire facility of a DDS circuit at the customer premises
Test the entire range of DDS service from 2.4 kb/s to 64 kb/s, with or without secondary channel
Sectionalize circuit problems using comprehensive loop-code generation and auto response
Detect excessive signal attenuation and sealing current problems on the four-wire local loop
Send or report network condition codes with byte encoder and result display
TIMS-45 Analog Lid Option
The TIMS-45 Option enables you to perform both VF and wideband TIMS tests on analog and digital transmission lines with your FIREBERD 6000. New filters and a frequency range between 50 Hz and 300 kHz enable you to test high­bit-rate digital subscriber line (HDSL), DDS, and ISDN circuits. The TIMS-45 integrates into the lid of the FIREBERD 6000 so yo u can use it anywhere. The large screen enables you to view all test setups and results at a glance. You can print test results to any printer with the RS-232 port. With the external power adapter, you can even use the lid as a stand-alone tester.
Software
Distributed Test Manager (DTM)
The DTM Option enables you to perform remote testing from your PC, expanding the field service capabilities of the FIREBERD 6000 into network control centers. Compatible with all interface modules and mainframe options, Windows®-based DTM software makes your PC a cost-effective platform for wide area transmission tests and extends the reach of your field technicians.
Dynamic Script Generator (DSG)
Developed to operate on the user-friendly Windows® 95 and Windows® NT platforms, the Dynamic Script Generator allows you to generate and run multiple scripts in succession on your PC to control and gather information from your FIREBERD 6000.
Highlights
Supports testing of T1/FT1, 2M/Nx64, V.35/306, RS-449, X.21, EIA-530 and DDS
Enables rapid test setup and execution with less work for the technician
Allows test scripts to be created and shared among technicians
Permits information retrieval and analysis on your PC
9
IEEE-488.2 Remote Control Option
The FIREBERD IEEE-488.2 Remote Control Option gives you the ability to control your FIREBERD 6000 via computer for automated testing. Ideal for the manufacturing environment, the option lets you control as many as 15 devices with a single controller.
LabVIEW® Drivers
LabVIEW® drivers available free from National Instruments® Corporation enable you to communicate with your FIREBERD 6000 through the IEEE-488 (GPIB) interface. Using LabVIEW with your computer allows you to send and receive information from a variety of test instruments, including voltmeters and oscilloscopes, and display the results on your computer. And you can speed up your automated testing using predefined test scripts—the graphical interface makes programming simple.
ISU 6000-4 and ISU 6000-8 Interface Switching Units
ISUs offer maximum convenience when using more than two interfaces by enabling you to switch among up to eight different interface modules. Select these interfaces from the FIREBERD 6000’s front panel or under remote control for added versa­tility. ISUs can be rack-mounted in a standard 19" rack.
Rack Mounts
A variety of sturdy rack mounts are available for both plastic case and metal case FIREBERD 6000 mainframes and printers, standard at 19". A rack mount extension kit expands available space to 23".
Printers
• PR-45A Lid Printer
The PR-45A Lid Printer is a thermal, dot matrix printer that mounts in the lid of the FIREBERD 6000A with a spring-loaded hinge and receives power from the mainframe. The PR-45A features alphanumeric and graphical printout capability.
• PR-35 Rack Mount Printer
The PR-35 is a rack mountable printer with all of the features of the PR-45A. It can be rack
mounted in a standard 19" rack or, using extenders, installed in a 23" rack.
• PR-2000A Thermal Printer (MC-6000 Rackmount Only)
The PR-2000A Thermal Printer is an alphanumeric, non-impact thermal printer that prints the
full ASCII character set with up to 20 characters per line. This printer may be rack mounted along with the FIREBERD 6000 in the MC-6000 Rack Mount unit. An RS-232 cable is included,
to allow direct connection to the FIREBERD 6000’s built-in RS-232 interface.
1010
Product Information
FIREBERD 6000
Model No. Description
Mainframes
FB6000A FIREBERD 6000 (Plastic Case) FB6000R FIREBERD 6000 (Remote Control only) MC6000 FIREBERD 6000 (Metal Case)
Mainframe Options
6001 DS1Wideband Jitter Measurement 6002 DS1 Jitter Spectral Analysis 6003 DS1 Jitter Generation 6004 Clock Recovery 6005 IEEE-488 Remote Control 6006 Precision Time Base 6007 G.703 Wideband Jitter Measurement and Generation 6008 G.703 Jitter Spectral Analysis 6009 ANSI T1.403 PRMs 6010 Frame Relay New Unit Option 6011 Frame Relay Factory Upgrade 220-V Setting
Interface Modules
Accessories
1
42522 V.35/306/RS-449/X.21 DTE/DCE 41400 RS-449/530/MIL DTE/DCE 42219A HSSI 40202 V.35/306 DTE/DCE 40200 RS-449 (422/423) DTE/DCE 41440A T1/FT1 Drop and Insert 41945 T3 Transmission Test 43440 DS1/DS3 ATM 41800 CCITT 2.048M/Nx64 kb/s Drop and Insert 31812 34 Mb/s Interface Adapter 31650 2M/34M ATM Interface 30608 CCITT G.703 64 kb/s 30524 CCITT G.703 8448 kb/s 41075 ISDN S/T TE (Euro/NI-1) 30678 DDS DSOA/B 41131B DDS Local Loop 42242 Diphase 31910 High Speed TTL Interface Adapter (up to 52 Meg) 40204 Lab (TTL, up to 10 Meg)
RM-6000A Rack Mount for plastic case (19") RM-MC6000 Rack Mount for metal case (23” extenders) PR-2000A Thermal Compact Rack Mount Printer (for MC6000 only) PR-45 Integrated Thermal Printer (for FB6000A only) PR-35 Rack Mounted Printer
1
Software upgrades may be necessary. Check with TTC for necessary software revision.
11
Customer Care
When you buy a TTC product, you are getting not just a world-class test instrument, but also unsurpassed TTC service.
Warranty and Repair Service
TTC service excellence starts with an industry­leading three-year warranty on all mainframes1. We also offer extended warranty options, as well as customized maintenance/calibration plans. As part of our ISO-9001 approved quality system, all components are screen­tested before installation and each instrument is rigor­ously tested before being shipped.
Technical Support
To complement our instruments
and systems, TTC offers superior tech-
nical support. In North America our
engineers offer expert consultation on
any technical problem from 8 a.m. to 8 p.m. Monday through Friday, ET
(1-800-638-2049 or 301-353-1550).
In Europe, technical support is pro­vided through our UK office
(44-1189-759696). In Asia, call our
Hong Kong office (852-2892-0990).
Training
The right technical training can make you more productive and your FIREBERD 6000 more effective. Whether your goal is to shorten installation time, reduce downtime, or increase productivity, TTC’s instructors can provide practical, hands-on training tailored to meet your needs, at any location you designate.
Thank you for your interest in the FIREBERD 6000. If you have any questions about TTC or about the FIREBERD 6000’s features, specifications, and capa­bilities, call 1-800-638-2049, or +1-301-353-1550 to talk to your local sales engineer, or visit us on the Internet at www.ttc.com.
NOTE: Specifications, terms, and con-
ditions are subject to change without notice.
Copyright 2000, TTC, a division of Dynatech, LLC. All rights reserved. TTC and FIREBERD are registered trademarks of TTC, a division of Dynatech, LLC. All other trademarks and registered trademarks are the property of their respective owners.
1212
World Headquarters
20400 Observation Drive
Germantown, Maryland 20876-4023 USA
Toll Free 1-800-638-2049 • +1-301-353-1550 • Fax +1-301-353-0234
www.ttc.com
North America
United States
Atlanta, Georgia • Chicago, Illinois • Dallas, Texas • Denver, Colorado
East Rutherford, New Jersey • Los Angeles, California • Roanoke, Virginia
San Diego, California • San Francisco, California • Terre Haute, Indiana
Canada
Calgary, Alberta • Laval, Quebec • Vancouver, British Columbia
Toronto, Ontario Toll Free 1-888-689-2165 • +1-905-812-7471 • Fax +1-905-812-3892
International
Australia
Melbourne +61-3-9563-4800 Sydney +61-2-9926-1447
Benelux +32-15-28-7686 China
Beijing +86-10-6460-5258 Hong Kong +852-2892-0990 Shanghai +86-21-6255-2333
France +33-1-39-30-24-24 Germany +49-6172-5911-00 United Kingdom +44-1189-759696 European Freephone +800-TTC-UKTAC
(+800-882-85822)
1616
International Distributors
Argentina • Austria • Brazil • Chile • Colombia • Costa Rica
Czech Republic • Denmark • El Salvador • Finland • Hungary
India • Indonesia • Ireland • Israel • Italy • Japan • Korea Malaysia • Mexico • Norway • Peru • Philippines • Poland
Saudi Arabia • Singapore • Slovakia • Slovenia • South Africa
Spain • Sweden • Switzerland • Taiwan • Thailand
United Arab Emirates • Venezuela
OPTIMIZING NETWORK PERFORMANCE
FB6000-A-6/00
Loading...
