R&S®SMA100A
SignalGenerator

Thenewstandardof
excellenceintheanalog
signalgeneratorclass



Test&Measurement

ProductBrochure|06.00

R&S®SMA100A
SignalGenerator

Ataglance

Signal quality, speed and flexibility – these are the crite­ria by which signal generators are measured today. The
R&S®SMA100A perfectly meets these criteria, and thus is
a premium-class analog generator that sets new standards
due to its outstanding characteristics.

The R&S®SMA100A combines superior signal quality with
very high setting speed, which makes it ideal for any task.
Whether in development, production, service or mainte­nance, the R&S®SMA100A does an excellent job.

In the frequency range from 9 kHz to 6 GHz, it can gen­erate CW signals as well as all common types of analog
modulation (AM, FM, φM, pulse modulation). Excellent
specifications and a wide range of modulation signals –
these are the characteristic features of the R&S®SMA100A.

In addition, a low- jitter clock synthesizer option supplies
differential clock signals of up to 1.5 GHz independently of
the RF frequency. This makes the R&S®SMA100A suitable
for a variety of applications – from use in phase noise test
systems through to tests on mixed-signal ICs.

The R&S®SMA100A signal generator also offers a modern
graphical user interface for fast and intuitive operation.

The R&S®NRP-Zxx power sensors can be connected to
the R&S®SMA100A. The user can therefore perform very
precise power measurements directly with the signal
generator.

22

R&S®SMA100A
SignalGenerator

Benefitsand
keyfeatures

Excellent signal quality

❙ Very low SSB phase noise of typ. –134 dBc

(20 kHz carrier offset, f = 1 GHz, 1 Hz measurement
bandwidth), typ. –139.5 dBc with the R&S®SMA-B22
enhanced phase noise performance option

❙ Wideband noise of –162 dBc (meas.) with carrier offset

> 40 MHz, f = 1 GHz, level = 9 dBm, 1 Hz measurement
bandwidth

❙ Nonharmonics < –96 dBc (carrier offset > 10 kHz,

f<750 MHz, with the R&S®SMA-B22 option)
❙ High-stability reference oscillator as standard
❙ Very low phase noise at low frequencies due to internal

division of the fundamental frequency range (750 MHz to

1500 MHz) down to 6.6 MHz

▷ page 4

Ideal for use in production

❙ Very short frequency/level setting times of

<1.5ms/1ms (meas.) across the entire frequency and

level range, <450 µs in List mode
❙ Fast Hopping mode with exibly addressable frequency

and level pairs, as fast as normal List mode
❙ Frequency setting time of typ. 10 µs within a bandwidth

of up to 80 MHz due to direct access to the DDS-based

synthesizer (with the R&S®SMA-B20 or R&S®SMA-B22

option; FM EXTERNAL DIGITAL mode)
❙ Very high level accuracy and repeatability
❙ High output power of up to +18 dBm, overrange up to

+28 dBm
❙ Electronic attenuator with built-in overvoltage protection

over entire frequency range
❙ Minimum space requirements due to compact size

(onlytwo height units)

▷ page 5

All-purpose instrument

❙ Frequency range of 9 kHz to 3 GHz (R&S®SMA-B103/

R&S®SMA-B103L) or 6 GHz (R&S®SMA-B106/

R&S®SMA-B106L)
❙ Frequency, level and LF sweeps
❙ Phase-continuous frequency setting
❙ AM, broadband FM/φM (R&S®SMA-B20 or

R&S®SMA-B22), pulse modulation
❙ Built-in LF generator up to 1 MHz, optional multifunction

generator (R&S®SMA-K24) up to 10 MHz
❙ Optional low-jitter clock synthesizer up to 1.5 GHz

(R&S®SMA-B29)
❙ Power measurement using R&S®NRP-Zxx power sensors
❙ Optional power analysis (R&S®SMA-K28) using

R&S®NRP-Zxx power sensors for scalar network analysis

or automatic pulse parameter measurement

▷ page 6

Aerospace and defense applications

❙ Pulse modulator with excellent characteristics

(on/off ratio of > 100 dB (meas.) for f < 5.5 GHz,

rise/fall time typ. < 7 ns)
❙ Pulse generator integrated as standard
❙ Optional high-performance pulse generator with

minimum pulse width of 10 ns (R&S®SMA-K23)
❙ Optional generation of versatile pulse sequences/pulse

trains (R&S®SMA-K27)
❙ Optional chirp modulation (R&S®SMA-B20 or

R&S®SMA-B22)
❙ Optional VOR/ILS modulation (R&S®SMA-K25)
❙ Optional DME modulation/analysis (R&S®SMA-K26)
❙ Optional operating altitude up to 4600 m (R&S®SMA-B46)
❙ Optional removable mass storage (CompactFlash™ card,

R&S®SMA-B80)

▷ page 8

Intuitive operating concept and versatile
interfaces

❙ Color display with 480 × 272 pixel
❙ Intuitive user interface with graphical display of signal

ow (block diagram)
❙ Context-sensitive online help
❙ Remote control via GPIB, LAN or USB
❙ Selectable control language (SCPI or remote control

emulation of various signal generators)
❙ Remote operation by browser or VNC client
❙ USB connectors (e.g. for keyboard, mouse, memory

stick)
❙ Support of R&S®NRP-Zxx power sensors for precise

power measurements

▷ page 11

Rohde & Schwarz R&S®SMA100A Signal Generator 3

Excellentsignal
quality

Measured SSB phase noise with internal reference oscillator

(standard instrument).

The R&S®SMA100A is the ideal solution for measurement
applications requiring high spectral purity, e.g. adjacent­channel or phase-noise measurements. It is also optimal
for use as a local oscillator or quartz replacement.

Due to an innovative synthesizer concept, the standard
version of the instrument already offers excellent values in
terms of broadband noise, SSB phase noise and nonhar­monics suppression. The R&S®SMA-B22 enhanced phase
noise performance and FM/φM modulator option even fur­ther improves SSB phase noise for frequency offsets of up
to approx. 100 kHz as well as nonharmonics suppression.
The R&S®SMA100A is therefore the ideal signal source for
measurement tasks that place exacting requirements on
spectral purity (e.g. A/D and D/A converter tests).

Frequency synthesis is implemented by division of the fun­damental frequency range (750 MHz to 1500 MHz) down
to 6.6 MHz. In the lower frequency range from 6.6 MHz,
this yields spectral purity on par with that of high-grade
crystal oscillators.

The oven-controlled crystal oscillator (OXCO) built in as
standard provides very high frequency accuracy and
stability. These characteristics are even further improved
with the R&S®SMA-B22 option.

–3 0
–4 0
–5 0
–6 0
–7 0
–8 0

–9 0
–1 00
–1 10
–1 20
–1 30
–1 40
–1 50

SSB phase noise/dBc (1 Hz)

–1 60
–1 70
–1 80

1 10 10 0 1k 1 0k 10 0k 1M 1 0M

Measured SSB phase noise with internal reference oscillator

(with the R&S®SMA-B22 enhanced phase noise performance and

FM/φM modulator option).

–40
–50
–60
–70
–80

–90
–100
–110
–120
–130
–140
–150

SSB phase noise/dBc (1 Hz)

–160
–170
–180

1 10 100 1k 10k 100k 1M 10M

Offset frequency/Hz

Offset frequency/Hz

6 GHz
3 GHz
1 GHz
100 MHz
10 MHz

6 GHz
3 GHz
1 GHz
100 MHz
10 MHz

In summary, the R&S®SMA100A’s outstanding signal qual­ity makes it THE analog state-of-the-art signal generator
for even the most exacting demands.

4

Idealforusein

In production and ATE applications, the test equipment
must provide short setting times in order to ensure high
throughput and low measurement costs.

production

The R&S®SMA100A features the very short level and fre­quency setting times that Rohde & Schwarz signal gen­erators are known for and is thus an ideal choice in time­critical measurement systems. Frequency/level setting
times are already shorter than 2 ms/1.5 ms in normal oper­ation. A further significant reduction (< 450 µs) is achieved
in the List mode, which uses frequency and level settings
previously stored in a list.

In the Fast Hopping mode, the R&S®SMA100A features
setting times as short as in the List mode. In contrast to
the List mode, up to 10 000 frequency and level pairs can
be addressed as desired via a serial bus.

The electronic attenuator enables rapid and wear-free
level setting of the generator. The level setting range
is –145dBm to +13dBm (+20 dBm overrange) for
f≤3GHz, and –145 dBm to +9 dBm (+16 dBm over­range) for f > 3 GHz. Higher output levels of +24 dBm to
+28dBm over the entire frequency range can be provided
by using the relay-switched high-power bypass imple­mented in the R&S®SMA100A. Overvoltage protection is
integrated as standard over the entire frequency range.

Maximum available power, attenuator mode NORMAL (lower trace) or

HIGH POWER (center trace) and without attenuator (upper trace).

30

28

26

24

22

20

18

Level/dBm

16

14

12

10

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0

Setting time after frequency change in List mode

(frequency deviation versus time).

Frequency/GHz

For applications requiring a level setting range not exceed­ing 30 dB, a more favorably priced solution is available
in the form of a frequency option without an attenuator
(R&S®SMA-B103L/R&S®SMA-B106L).

The high level accuracy and repeatability of the
R&S®SMA100A help ensure results of utmost precision in
series measurements.

With a compact size of only two height units, the signal
generator takes up minimum space in 19" racks.

Rohde & Schwarz R&S®SMA100A Signal Generator 5

All-purpose

The signal generator has a lower frequency limit of 9kHz,
which makes it suitable for use in EMC applications. The
upper frequency limit is 3 GHz or 6 GHz.

instrument

Amplitude and pulse modulation are provided as
standard; frequency and phase modulation with a
bandwidth of 10 MHz can be implemented optionally
(R&S®SMA-B20/R&S®SMA-B22).

The R&S®SMA-B22 enhanced phase noise performance
and FM/φM modulator option offers different setting
modes in which the user can optimally set the modulation
bandwidth and SSB phase noise.

These characteristics make the R&S®SMA100A suitable for
phase noise measurements on free-running VCOs, elimi­nating the need for complex delay-line measurements.

Tests on integrated RF circuits frequently require a pure
clock signal in addition to the RF signal. In the past, an
extra signal generator was usually necessary in this case.
The R&S®SMA100A delivers a low-jitter clock signal
(R&S®SMA-B29 clock synthesizer option), which can be
set independently of the RF output signal. The clock signal
is available as a differential signal in the frequency range
from 100 kHz to 1.5 GHz at two separate connectors. It
enables, for example, A/D converter tests using only a
single signal generator.

The application note “Selecting a Signal Generator for
Testing A/D Converters” (1GP66) can be downloaded from
the Rohde & Schwarz website (Application Notes download
area).

Application example: A/D converter test with the R&S®SMA100A

Differential clock signal from the ¸SMA-B29 option

A

D

FFT analysis

The ¸SMA100A signal generator
with the ¸SMA-B29 option

6

DUT

The RF signal can be internally modulated by means of the
built-in LF generator or the optional multifunction genera­tor (R&S®SMA-K24). The multi function generator supplies
various waveforms including sine wave, square wave,
user-programmable trapezoidal waveforms or noise with
selectable bandwidth. Modulation signals can be added
together, with different weighting applied to the individual
signals. The modulation signals for AM/FM/φM and for the
LF output can be set independently of one another. Based
on this concept, the new signal generator offers a level of
modulation flexibility previously unknown in analog signal
generators. For example, all types of two-tone modulation
can be implemented; the user can add together two in­ternal modulation signals or one external and one internal
signal.

Using noise as a modulation signal, the R&S®SMA100A
generates defined and adjustable phase or FM noise to
simulate, for example, a VCO or an interference signal of
variable spectral purity for receiver tests.

Moreover, the R&S®SMA-B20 and R&S®SMA-B22 FM/φM
modulator options can be used to implement extremely
fast frequency changes (across a limited frequency range).
Direct access to the DDS-based synthesizer yields fre­quency setting times of nominally 10 µs across a range of
max. 80 MHz. This allows fast frequency- hopping trans­mitters to be simulated, for example.

The R&S®SMA-K28 power analysis option makes it pos­sible to use the R&S®NRP-Zxx power sensors to measure
and display power versus frequency, power and time. The
user does not need any additional equipment to quickly
and simply carry out sophisticated power analysis.

Power analysis applications

Measurement of level versus Application

Frequency ❙ Scalar network analysis

❙ VSWR measurement

(with directional coupler)

Power ❙ Measurement of amplifier charac-

teristics/compression points

Time ❙ Automatic analysis of pulse

parameters

❙ Gated power measurements

Scalar network analysis: characterization of a

bandpass filter.

Rohde & Schwarz R&S®SMA100A Signal Generator 7

Aerospace
anddefense
applications

Pulse train: combination of pulses with

different pulse widths and pauses.

For pulse modulation, the R&S®SMA100A includes as
standard a high-quality pulse modulator with an on/off
ratio of > 80 dB and a rise/fall time of typ. 7 ns as well as
a basic pulse generator. Optionally, a high- performance
pulse generator with a minimum pulse width of 10 ns,
aresolution of 5 ns and a variety of setting options is
available (R&S®SMA-K23).

An optional feature of the built-in pulse generator is the
generation of pulse trains (R&S®SMA-K27 option), which
are commonly used for radar applications. An example
of a pulse train is shown in the figure on the left. In
contrast to single or double pulses, pulse trains are a
combination of different pulses, which can be a periodical
or non- periodical set of pulses.

The application note “Pulse Train Master for the R&S®SMF
and R&S®SMA Signal Generators” (1MA148, available
from the Application Notes download area on the
Rohde & Schwarz website) comes with a software that
enables the user to easily create and transfer pulse trains
between a PC and an R&S®SMA100A signal generator.

T

1

RF signal

Simple creation and transfer of pulse trains with

the Pulse Train Master application software.

T

t

1

T

2

3

t

2

t

T

n

Time

n–1

8

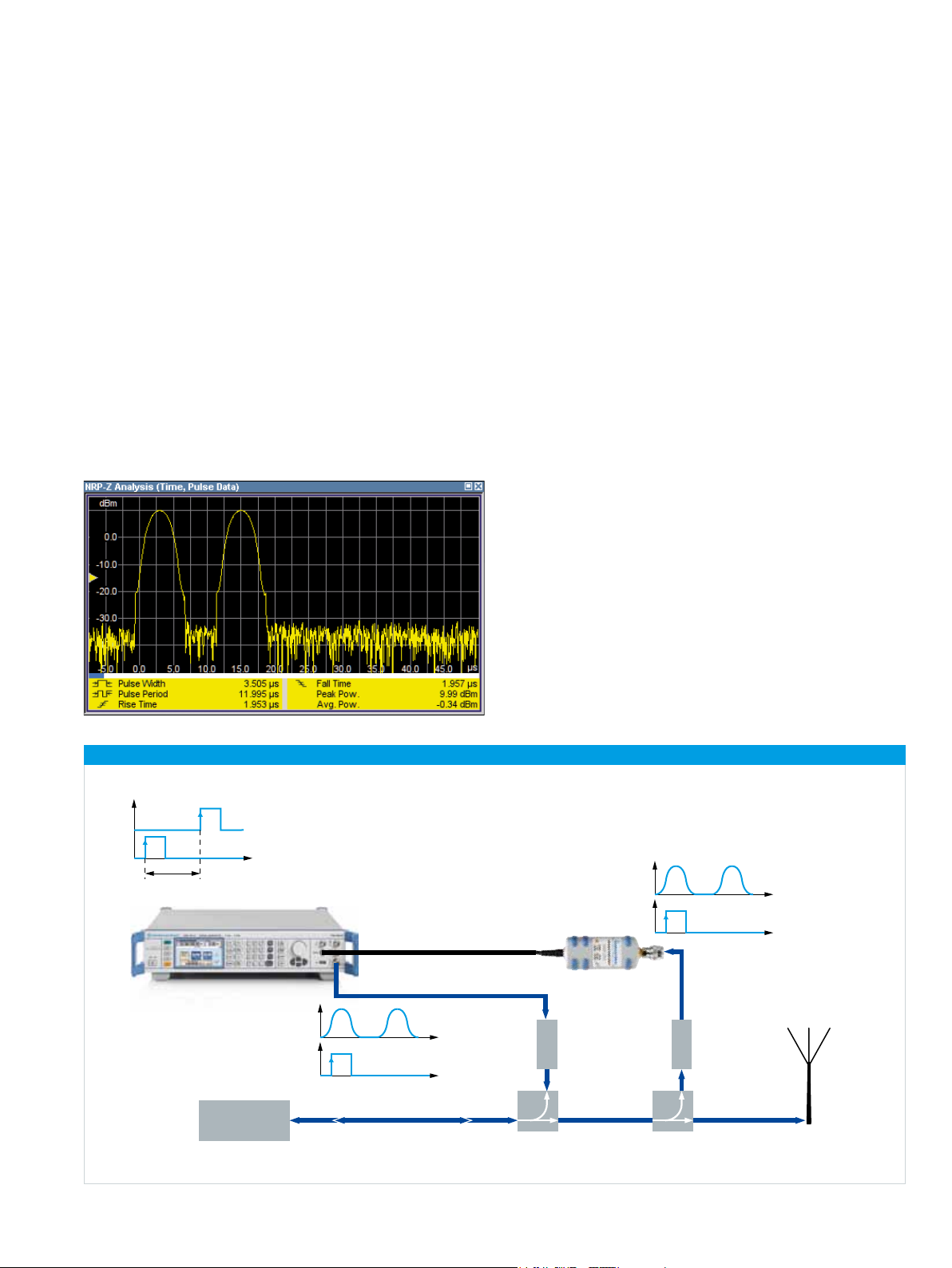

Automatic DME pulse measurement with

the R&S®SMA-K28 pulse analysis option.

The R&S®SMA100A offers internal (linear) chirp generation
up to an 80 MHz chirp bandwidth without the need for
external synchronization. Frequency and pulse modulation
are synchronized internally. This feature can be used in
radar applications, for example.

When equipped with the R&S®SMA-K25 option, the
R&S®SMA100A can generate avionics signals (VOR/ILS) in
accordance with ICAO standards. Due to its low modula­tion error and very high level accuracy, the R&S®SMA100A
is the optimal high-precision VOR/ILS signal source for
testing avionics receivers.

The R&S®SMA100A signal generator, together with the
R&S®SMA-K26 DME modulation option, lets the user cre­ate standard-compliant distance measurement equipment
(DME) signals. The user can easily create the DME interro­gation signal (simulation of an airplane interrogator) or the
ground station’s response signal and test the components
or DME receiver in a flexible manner.

The R&S®NRP-Z81 wideband power sensor can also be
connected directly to the R&S®SMA100A signal generator
to analyze DME signals. This provides a convenient way to
measure the reply delay and reply efficiency of the ground
station or the DME average peak power and pulse repeti­tion rate.

Test setup for DME analysis

¸NRP trigger

Video out

t

50 μs/56 μs

¸SMA100A

DME

transponder

Replay delay 50 μs/56 μs

Interrogation pulses
from ¸SMA100A

t

Video out

t

20 dB

Reply pulses from
DME transponder

t

¸NRP trigger out

t

¸NRP-Z81

20 dB

Antenna

Coupler 20 dBCoupler 20 dB

Rohde & Schwarz R&S®SMA100A Signal Generator 9

If the R&S®SMA100A signal generator is equipped with
the R&S®SMA-K28 power analysis option, the DME
double pulse parameters can be simply displayed and
automatically measured. This eliminates the need for
other measurement equipment such as oscilloscopes
and RF detectors.

The application note “Test of DME Transponders” (1GP74)
can be downloaded from the Rohde & Schwarz website
(Application Notes download area).

For areas where security is an issue, an ejector option
(R&S®SMA-B80) is available, by means of which the mass
storage medium (CompactFlash™ card containing all
stored settings) can be removed from the instrument.

A sanitizing procedure for the R&S®SMA100A is also
available.

Furthermore, the USB and LAN interfaces can be disabled.

For further security-related details, please refer to
the “Instrument Security Procedures”, which can
be downloaded from the Rohde & Schwarz website
(R&S®SMA100A > Downloads > Security).

CompactFlash™ card ejector on instrument rear panel.

When the R&S®SMA-B46 operating altitude option is
installed, the R&S®SMA100A can even be used up to an
altitude of 4600m.

10

Intuitiveoperating
conceptand

Intuitive operating concept

The signal flow is shown by a straightforward
block diagram on the R&S®SMA100A color display
(480×272pixel ). Thus, the user can immediately see
the activated and deactivated generator blocks as well as
where settings can be made.

versatileinterfaces

Rotary knob for menu navigation

Turn

Click

The entire operating manual for the R&S®SMA100A signal
generator is integrated into the instrument’s help system.
At the press of a button, the user can access details about
the function currently being used. For example, it is very
easy to display the associated remote-control command.

To make settings, the rotary knob, the cursor and function
keys or a USB mouse and/or keyboard can be used.

The above features combine to make operation of the
R&S®SMA100A easy and intuitive.

Connectors

The R&S®SMA100A can be remote-controlled via GPIB
or LAN and also manually operated from an external PC
using remote desktop control (VNC).

Two USB connectors on the front and the rear panel al­low the use of USB devices such as a mouse or a memory
stick.

The R&S®NRP-Zxx USB power sensors can also be con­nected directly to the R&S®SMA100A. The user can then
easily carry out highly precise power measurements in the
existing test setup without requiring an additional power
meter base unit.

Power measurement dialog on the R&S®SMA100A.

Block diagram of the R&S®SMA100A with power measurement display.

Rohde & Schwarz R&S®SMA100A Signal Generator 11

Selectable control language

In addition to the standard SCPI remote-control command
set, the R&S®SMA100A offers emulations of common
analog signal generators. If these generators are no lon­ger manufactured or if they can no longer be repaired, the
user can easily replace them with the R&S®SMA100A. This
eliminates the time- and budget-consuming task of rewrit­ing the remote-control software.

Selection of GPIB command set.

Rear view of the R&S®SMA100A and its versatile interfaces.

12

Specificationsinbrief

Base unit

Frequency

Frequency range 9 kHz to 3 GHz/6 GHz

Setting time < 2 ms

Level

Range –145 dBm to +18 dBm (up to +28 dBm overrange)

Setting time < 1.5 ms

Setting time in List mode/Fast Hopping mode < 450 µs

Spectral purity (at f = 1 GHz)

Nonharmonics (carrier offset >10 kHz, f ≤ 1500 MHz) < –80 dBc

SSB phase noise (20 kHz carrier offset, 1 Hz measurement bandwidth) < –131 dBc (typ. –134 dBc)

Wideband noise (carrier offset > 10 MHz, 1 Hz measurement bandwidth,
750 MHz < f ≤ 1500 MHz)

Supported modulation modes

AM standard

FM/φM optional (with the R&S®SMA-B20/R&S®SMA-B22 options)

Pulse standard

Chirped pulses optional (with the R&S®SMA-B20/R&S®SMA-B22 options)

VOR/ILS optional (with the R&S®SMA-K25 option)

DME optional (with the R&S®SMA-K26 option)

Clock synthesis

Frequency range 100 kHz to 1.5 GHz (with the R&S®SMA-B29 option)

Interfaces IEEE 488.2, LAN (10/100BaseT), 2 × USB, 1 × USB slave

< –90 dBc with the R&S®SMA-B22 option

< –136 dBc (typ. –139.5 dBc) with the R&S®SMA-B22 option
< –153 dBc (–160 dBc, meas.)

Rohde & Schwarz R&S®SMA100A Signal Generator 13

Orderinginformation

Designation Type Order No.

Signal Generator
including power cable, Quick Start Guide and CD-ROM (with operating and service manual)

Options

RF Path

9 kHz to 3 GHz, with electronic attenuator R&S®SMA-B103 1405.0209.02

9 kHz to 6 GHz, with electronic attenuator R&S®SMA-B106 1405.0809.02

9 kHz to 3 GHz, without attenuator R&S®SMA-B103L 1405.0609.02

9 kHz to 6 GHz, without attenuator R&S®SMA-B106L 1405.1005.02

FM/φM Modulator R&S®SMA-B20 1405.1605.02

Enhanced Phase Noise Performance and FM/φM Modulator R&S®SMA-B22 1405.1805.02

Clock Synthesizer R&S®SMA-B29 1400.2503.02

Operating Altitude up to 4600 m R&S®SMA-B46 1405.1305.02

Removable Mass Storage (CompactFlash™ card) R&S®SMA-B80 1405.2001.02

Rear Connectors R&S®SMA-B81 1405.2401.02

High-Performance Pulse Generator R&S®SMA-K23 1405.2801.02

Multifunction Generator R&S®SMA-K24 1405.2901.02

VOR/ILS Modulation R&S®SMA-K25 1405.3008.02

DME Modulation

Pulse Train

Power Analysis R&S®SMA-K28 1405.3959.02

Calibration

Documentation of Calibration Values R&S®DCV-2 0240.2193.18

DKD (ISO 17025) Calibration including ISO 9000 calibration (can only be ordered with the instrument) R&S®SMA-DKD 1161.3571.00

Recommended extras

Hardcopy manuals (in English, UK) 1400.0075.32

Hardcopy manuals (in English, US) 1400.0075.39

Spare CompactFlash™ Card (R&S®SMA-B80 required) R&S®SMA-Z10 1405.4004.02

19" Rack Adapter R&S®ZZA-211 1096.3260.00

Keyboard with USB Interface (US character set) R&S®PSL-Z2 1157.6870.04

Mouse with USB Interface, optical R&S®PSL-Z10 1157.7060.03

External USB DVD Drive R&S®PSP-B6 1134.8201.22

Wideband Power Sensor (for R&S®SMA-K26 DME modulation and R&S®SMA-K28 power analysis) R&S®NRP-Z81 1137.9009.02

Power Sensor, 9 kHz to 6 GHz, 33 dBm R&S®NRP-Z92 1171.7005.02

USB Adapter for R&S®NRP-Zxx power sensors R&S®NRP-Z4 1146.8001.02

USB Serial Adapter for RS-232-C remote control R&S®TS-USB1 6124.2531.00

1)

2)

3) 4)

R&S®SMA100A 1400.0000.02

R&S®SMA-K26 1405.3408.02

R&S®SMA-K27 1405.3908.02

1)

The base unit must be ordered together with an R&S®SMA -B103/R&S®SMA-B103L or R&S®SMA-B106/R&S®SMA-B106L frequency option.

2)

The R&S®SMA-K26 option can be inst alled in an R&S®SMA100A with serial number 101500 or higher.

3)

Requires the R&S®SMA-K23 high-p erformanc e pulse generator option.

4)

The R&S®SMA-K27 option can be inst alled in an R&S®SMA100A with serial number 101500 or higher.

14

Service options

Two-Year Calibration Service R&S®CO2SMA100A Please contact your local

Three-Year Calibration Service R&S®CO3SMA100A

Five-Year Calibration Service R&S®CO5SMA100A

One-Year Repair Service following the warranty period R&S®RO2SMA100A

Two-Year Repair Service following the warranty period R&S®RO3SMA100A

Four-Year Repair Service following the warranty period R&S®RO5SMA100A

Rohde & Schwarz sales office.

For data sheet, see PD 5213.6412.22 and www.rohde-schwarz.com

Your local Rohde & Schwarz expert will help you determine the optimum solution for your requirements.
To find your nearest Rohde & Schwarz representative, visit

www.sales.rohde-schwarz.com

Rohde & Schwarz R&S®SMA100A Signal Generator 15

Service you can rely on

J Worldwide
J Local and personalized
J Customized and exible
J Uncompromising quality
J Long-term dependability

About Rohde & Schwarz

Rohde & Schwarz is an independent group of companies
specializing in electronics. It is a leading supplier of solu­tions in the fields of test and measurement, broadcasting,
radiomonitoring and radiolocation, as well as secure
communications. Established more than 75 years ago,
Rohde & Schwarz has a global presence and a dedicated
service network in over 70 countries. Company headquar­ters are in Munich, Germany.

Environmental commitment

❙ Energy-efcient products
❙ Continuous improvement in environmental sustainability
❙ ISO 14001-certied environmental management system

Cert iedQ ualit ySyst em

ISO9001

Rohde & Schwarz GmbH & Co. KG

www.rohde-schwarz.com

Regional contact

❙ Europe, Africa, Middle East

[phone]
[e-mail]

❙ North America

1 888 TEST RSA (1 888 837 87 72)
[e-mail]

❙ Latin America

[phone]
[e-mail]

❙ Asia/Pacic

[phone]
[e-mail]

R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG
Trade names are trademarks of the owners | Printed in Germany (ft/ch)
PD 5213.6412.12 | Version 06.00 | November 2010 | R&S®SMA100A
Data without tolerance limits is not binding | Subject to change
© 2006 - 2010 Rohde & Schwarz GmbH & Co. KG | 81671 München, Germany

5213641212
