Atec SH User Manual

１

Compact design for personal use
Ready to network with your computer.

Introducing a new lineup of our Bench-top Type Temperature (& Humidity) Chamber Series.

Our latest models achieve superb performance in a compact size,

and attains temperatures as low as −20℃/−40℃/−60℃, with capacity of 20L or 60L.

They provide high performance and quality features with new capabilities for integration

with our information network system,〈E-PILOT 21〉.

It is useful for centralized control and data processing, as well as operating chamber control

and specimen measurement at the same time. All brought to you by ESPEC.

Viewing window and stand are optional

２

３

Small size & light weight

Chamber size is a compact 440W

×

560H×695Dmm (excluding protru­sion), while its weight is only 66kg.
Ensured the inside test area dimension at
300W×300H×250Dmm.
(SU-221･241 100VAC model) .

Compact design with high
performance

−−−

SH-661

The new model SH-661 achieves −60
to ＋150℃/ 30 to 95%rh in a compact
design, and shows outstanding perfor­mance than any other previous bench­top models.

Select your optimum
chamber from a full variation

The series provide six variations in
temperature (& humidity) range of

−20℃/−40℃/−60℃

to ＋150

℃

(and 30 to 95%rh), and two capacities of
20L or 60L, with a total of 10 models
altogether. A wide temperature (&
humidity) range is offered in a bench­top model, enabling you to choose the
right chamber.

SH-661

SU 60L model

Utility

４

User-friendly

Newly developed refrigeration
system that saves energy
consumption up to 55%

Our exclusive refrigerator capacity
variable control system saves up to 55%
energy consumption compared to our
previous model.

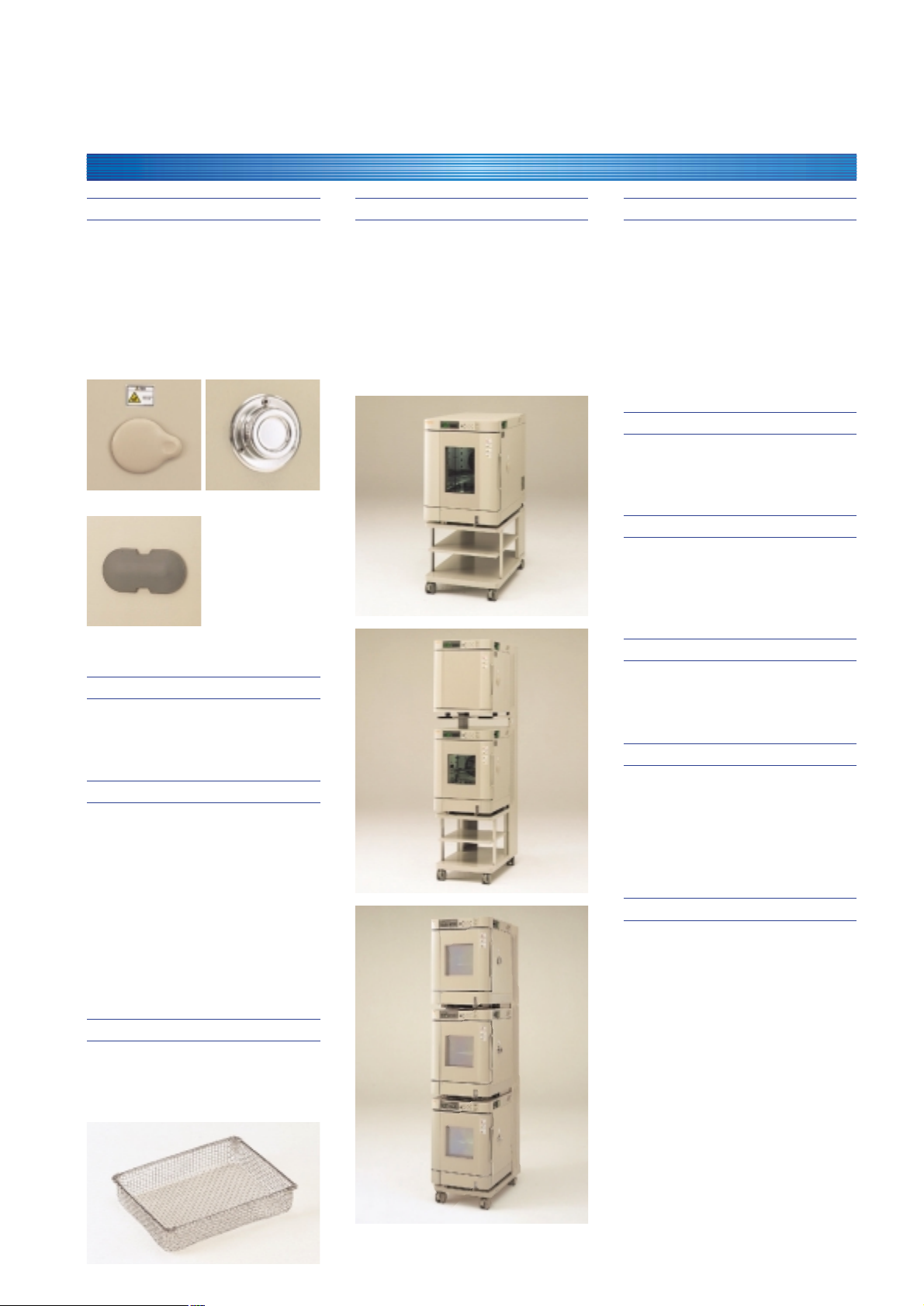

Optional stand for
space-saving layout

For use in limited space, we provide an
exclusive stand with casters for stacking
up to three chambers.

*Be sure to secure the stand onto the floor with earthquake

resistant fittings for your safety when using stand.

Recycling

Molded resin and metal parts which can
be recycled are clearly marked to make
recyclable materials easier to identify
during disassembly.

Ozone layer protection

The HFC refrigerant used is completely
safe for the ozone layer.

Paperless Recording (optional)

The paperless recorder makes it easy
record the temperatures of different
components, such as the chamber
temperature, on a memory card (Compact
Flash).

Cable port flug (Material marked)

Paperless recorder Portable type (optional)

５

User-friendly

Water supply tank

Right-opening door Viewing window: 20L model

Cable ports for running in
wires

Each one 25mm diameter cable port is
standard equipped on both sides of the
chamber for wiring to the specimen. We
also provide 50mm, 100mm diameter
port and flat type cable port.

Cartridge tank for easy
water supply

Once water is supplied into the tank,
continuous operation is maintained for
three days. Maintenance can be done
easily from the front side. Additional
water tank connection is available for
further extended operation. (SH model)

Right-opening door (optional)

You may want to change the direction of
opening the door to fit the installation
space.

Viewing window for
observation (optional)

A large window provides a clear view of
your specimen during testing.
(215W×215Hmm for 20L model,
215W×315Hmm for 60L model)

*The basic specification of the chamber will be modified.

Flexible Computer Interface

Communication port RS-485 is
equipped as standard. You can select
RS-232C, GP-IB, and E-BUS communi­cation port as option.

６

Description of program function

Program function

Step program

Temperature
gradient program

Termination program

Pattern

*1 Sets a program repetition frequency between a range of 1 and 99.
*2 Selects HOLD, CONST or OFF when a program is over.

Temp

Time

Temp

Temp

Time

Time Time Time

*1,2

*1,2

1.HOLD 2.CONST 3.OFF

END

END END

Retains value
of last step

Operation at
constant temp

Chamber
OFF

2

4

1

3

6

5

8

7

9

2

4

1

3

6

5

8

7

9

Control operation

Easy operation with 9 keys

Temperature & humidity setting, timer
setting, and upper/lower temperature &
humidity limit alarm setting can be done
with simple key operation.

Programming operation of
up to 9 steps

In addition to constant setting,
programming instrumentation is
equipped to allow programmable
operation to a maximum of 9 steps per
pattern and the rise and fall gradient of
temperature (& humidity) to be set to
meet the application requirements for
temperature characteristic testing and
temperature (& humidity) cycle testing.
Maximum 99-time repeat function and
operational setting function after
program execution are just two of the
various functions offered.

７

Installation

Output

Converter

Bench-top Type

Temperature（& Humidity

）

Chamber

Liquid to Liquid

Thermal shock chamber

Windows

R

ERC−200M
CD−ROM

RS

−

485

RS

−

232C

Test setting & control
Monitoring
Program setting

●

ERC−200M

Platinous K Series

Fast Cycle Chamber

Network

E−PILOT《ERC-200M

》

E−PILOT《ERC-300M

》

Set up an Intranet Web-PILOT site to allow monitoring of up
to 16 chambers through one PC (possible with E-BUS
communications system). Monitor the settings and operation
of your chambers from any PC on the Intranet. Web-based
method allows display of chamber information across many
computer platform types.

Control, monitoring, programming, and datalogging for up to
16 ESPEC chambers can be performed through a single PC.
RS-485 from ESPEC chambers connect via a serial bus
converter to RS-232C on the PC.

●

Remote operation

Have full control of test chambers while sitting in your office.

●

Potential savings

Because the ERC-200M allows program operations to be run
directly from the PC, test chambers with less-expensive
single-setting controllers can be used.

●

E-BUS version available

For existing units with E-BUS system, ERC-100M is
available.

E−PILOT《ERC-100S

》

E−PILOT《LabVIEW

》

Provides an interlocking system of testing and measuring
devices that allows customers currently using LabVIEW to
link to ESPEC chambers, opening new horizons for
environmental testing. Optional E-BUS or GP-IB (IEEE-488)
communications interface is required.

●

Driver software to connect test chambers are provided
for free

Lab VIEW drivers are available to give the basic building
blocks for addressing ESPEC equipment. Drivers required for
connecting ESPEC products to a personal computer is
provided for free. For further information, please contact your
nearby ESPEC sales office.

The high-level of functions offered by ERC-200M is included
in a non-networked package, meant for a single chamber to
be interfaced with your personal computer. The RS-232C
communications port option is required, but the software is
free.

●

For one-to-one users

If you are not ready to establish a network of test chambers,
this software would be an ideal trial of the capabilities of our
ERC-200M package.

●

Freeware

ERC-100S can be downloaded from our website for free at

www.espec.co.jp/english.

CMS−J30

This is a fully customizable system that provides centralized
control, centralized monitoring, remote operation and
specimen data management of ESPEC products (up to 32
units of which 16 are dedicated to centralized monitoring) by
the use of a PC. (E-BUS compatible)

* Please contact us for further information.

* The series of application softwares and network systems are provided on a

separate basis from the chamber.

Communication Network of
Environmental Test Chambers

Bench-top type temperature & humidity
chamber incorporates the communi­cation port RS-485 as standard to cope
with the［E-PILOT 21］, which is a
newly developed centralized control
system.［E-PILOT 21］not only serves
as a system for centralized control of
environmental chambers, but also
establishes an open network including
specimen measurement function and
remote chamber main-tenance function.

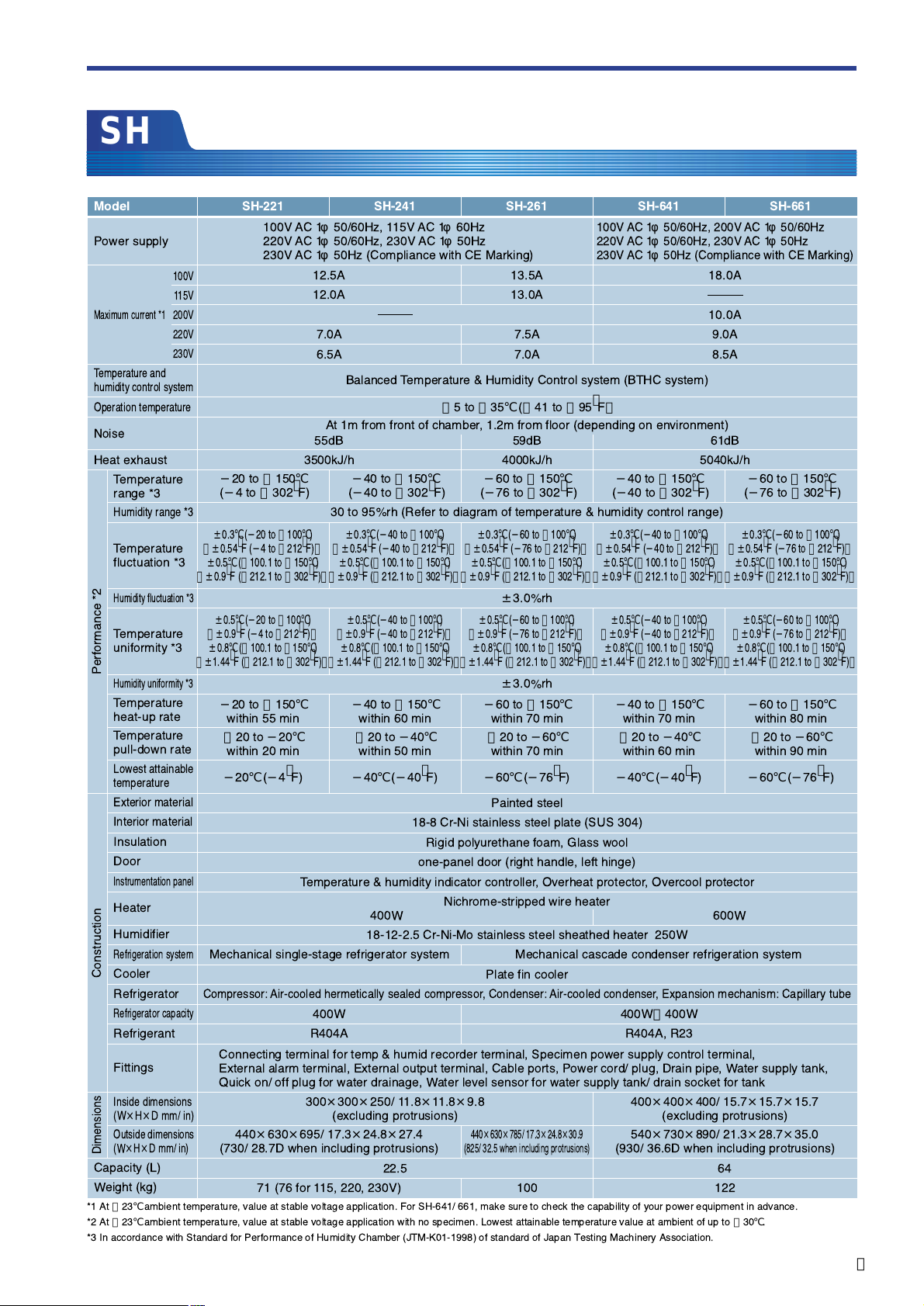

Power supply

Temperature and
humidity control system

Operation temperature

Noise

Temperature
range *3

Humidity range *3

Humidity fluctuation *3

Humidity uniformity *3

Temperature
fluctuation *3

Temperature
uniformity *3

Temperature
heat-up rate

Temperature
pull-down rate

Lowest attainable
temperature

Exterior material
Interior material
Insulation
Door
Instrumentation panel

Humidifier
Refrigeration system
Cooler
Refrigerator
Refrigerator capacity
Refrigerant

Capacity (L)
Weight (kg)

Dimensions

Construction Performance *2

Fittings

Inside dimensions
(W×H×D mm/ in)

Outside dimensions
(W×H×D mm/ in)

Heater

100V
115V

Maximum current *1

200V
220V
230V

100V AC 1φ50/60Hz, 115V AC 1φ60Hz
220V AC 1φ50/60Hz, 230V AC 1φ50Hz
230V AC 1φ50Hz (Compliance with CE Marking)

Balanced Temperature & Humidity Control system (BTHC system)

＋

5to＋35℃(＋41 to＋95。F

）

Heat exhaust

At 1m from front of chamber, 1.2m from floor (depending on environment)

30 to 95%rh (Refer to diagram of temperature & humidity control range)

±

3.0%rh

±

3.0%rh

Painted steel

18-8 Cr-Ni stainless steel plate (SUS 304)

Rigid polyurethane foam, Glass wool

one-panel door (right handle, left hinge)

Temperature & humidity indicator controller, Overheat protector, Overcool protector

18-12-2.5 Cr-Ni-Mo stainless steel sheathed heater 250W

Mechanical single-stage refrigerator system Mechanical cascade condenser refrigeration system

Plate fin cooler

Compressor: Air-cooled hermetically sealed compressor, Condenser: Air-cooled condenser, Expansion mechanism: Capillary tube

400W

R404A

440×630×695/ 17.3×24.8×27.4

(730/ 28.7D when including protrusions)

540×730×890/ 21.3×28.7×35.0

(930/ 36.6D when including protrusions)

400×400×400/ 15.7×15.7×15.7

(excluding protrusions)

440×630×785/ 17.3×24.8×30.9

(825/ 32.5 when including protrusions)

400W＋400W

R404A, R23

Connecting terminal for temp & humid recorder terminal, Specimen power supply control terminal,
External alarm terminal, External output terminal, Cable ports, Power cord/ plug, Drain pipe, Water supply tank,
Quick on/ off plug for water drainage, Water level sensor for water supply tank/ drain socket for tank

Nichrome-stripped wire heater

400W

600W

12.5A 13.5A 18.0A

12.0A 13.0A

10.0A

7.0A 7.5A 9.0A

6.5A 7.0A

−

60 to＋150

℃

(−76 to＋302。F)

−

40 to＋150

℃

(−40 to＋302。F)

−

60 to＋150

℃

(−76 to＋302。F)

−

40 to＋150

℃

(−40 to＋302。F)

−

20 to＋150

℃

(−4to＋302。F)

±

0.3℃(−60 to＋100℃)

［±

0.54。F(−76 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−40 to＋100℃)

［±

0.54。F(−40 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−60 to＋100℃)

［±

0.54。F(−76 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−40 to＋100℃)

［±

0.54。F(−40 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−20 to＋100℃)

［±

0.54。F(−4to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.5℃(−60 to＋100℃)

［±

0.9。F(−76 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−40 to＋100℃)

［±

0.9。F(−40 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−60 to＋100℃)

［±

0.9。F(−76 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−40 to＋100℃)

［±

0.9。F(−40 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−20 to＋100℃)

［±

0.9。F(−4to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

−

60 to＋150

℃

within 70 min

−

40 to＋150

℃

within 70 min

−

60 to＋150

℃

within 80 min

−

40 to＋150

℃

within 60 min

−

20 to＋150

℃

within 55 min

＋

20 to−60

℃

within 70 min

＋

20 to−40

℃

within 60 min

＋

20 to−60

℃

within 90 min

＋

20 to−40

℃

within 50 min

＋

20 to−20

℃

within 20 min

−60℃(−

76。F)

−40℃(−

40。F)

−60℃(−

76。F)

−40℃(−

40。F)

300×300×250/ 11.8×11.8×9.8

(excluding protrusions)

6422.5

12271 (76 for 115, 220, 230V) 100

−20℃(−

4。F)

8.5A

55dB 59dB 61dB

3500kJ/h 4000kJ/h 5040kJ/h

100V AC 1φ50/60Hz, 200V AC 1φ50/60Hz
220V AC 1φ50/60Hz, 230V AC 1φ50Hz
230V AC 1φ50Hz (Compliance with CE Marking)

Model SH-221 SH-241 SH-261 SH-641 SH-661

*1 At＋23℃ambient temperature, value at stable voltage application. For SH-641/ 661, make sure to check the capability of your power equipment in advance.
*2 At＋23℃ambient temperature, value at stable voltage application with no specimen. Lowest attainable temperature value at ambient of up to＋30℃.
*3 In accordance with Standard for Performance of Humidity Chamber (JTM-K01-1998) of standard of Japan Testing Machinery Association.

８

SH

Power supply

Temperature
control system

Operation temperature

Heat exhaust

Noise

Temperature
range *3

Temperature
heat-up rate

Temperature
pull-down rate

Lowest attainable
temperature

Exterior material
Interior material
Insulation
Door
Instrumentation panel

Heater

Refrigeration system
Cooler
Refrigerator
Refrigerator capacity
Refrigerant

Fittings

Inside dimensions
(W×H×D mm/ in)

Outside dimensions

(W×H×D mm/ in)
Capacity (L)
Weight (kg)

Temperature

fluctuation *3

Temperature

uniformity *3

Dimensions

Construction Performance *2

100V
115V

Maximum current *1

200V
220V
230V

100V AC 1φ50/60Hz, 115V AC 1φ60Hz
220V AC 1φ50/60Hz, 230V AC 1φ50Hz
230V AC 1φ50Hz (Compliance with CE Marking)

Balanced Temperature control system (BTC system)

＋

5to＋35℃(＋41 to＋95。F

）

Painted steel

18-8 Cr-Ni stainless steel plate (SUS 304)

Rigid polyurethane foam, Glass wool

one-panel door (right handle, left hinge)

Temperature indicator controller, Overheat protector, Overcool protector

Plate fin cooler

Compressor: Air-cooled hermetically sealed compressor, Condenser: Air-cooled condenser, Expansion mechanism: Capillary tube

Connecting terminal for temp recorder terminal, Specimen power supply control terminal
External alarm terminal, External output terminal, Cable ports, Power cord/ plug, Drain pipe

Mechanical single-stage refrigerator system

400W

R404A

400W＋400W

R404A, R23

Mechanical cascade condenser refrigeration system

300×300×250/ 11.8×11.8×9.8

(excluding protrusions)

400×400×400/ 15.7×15.7×15.7

(excluding protrusions)

22.5 64
1159566 (71 for 115, 220, 230V)

440×560×695/ 17.3×22.0×27.4

(730/ 28.7D when including protrusions)

440×560×785/ 17.3×22.0×30.9

(825/ 32.5 when including protrusions)

540×660×890/ 21.3×26.0×35.0

(930/ 36.6D when including protrusions)

Nichrome-stripped wire heater

400W

600W

At 1m from front of chamber, 1.2m from floor (depending on environment)

10.0A 13.5A 18.0A

9.5A 13.0A

10.0A

6.0A 7.5A 9.0A

5.5A 7.0A

−

60 to＋150

℃

(−76 to＋302。F)

−

40 to＋150

℃

(−40 to＋302。F)

−

60 to＋150

℃

(−76 to＋302。F)

−

40 to＋150

℃

(−40 to＋302。F)

−

20 to＋150

℃

(−4to＋302。F)

−

60 to＋150

℃

within 70 min

−

40 to＋150

℃

within 70 min

−

60 to＋150

℃

within 80 min

−

40 to＋150

℃

within 60 min

−

20 to＋150

℃

within 55 min

＋

20 to−60

℃

within 70 min

＋

20 to−40

℃

within 60 min

＋

20 to−60

℃

within 90 min

＋

20 to−40

℃

within 50 min

＋

20 to−20

℃

within 20 min

−60℃(−

76。F)

−40℃(−

40。F)

−60℃(−

76。F)

−40℃(−

40。F)

−20℃(−

4。F)

±

0.3℃(−60 to＋100℃)

［±

0.54。F(−76 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−40 to＋100℃)

［±

0.54。F(−40 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−60 to＋100℃)

［±

0.54。F(−76 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−40 to＋100℃)

［±

0.54。F(−40 to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.3℃(−20 to＋100℃)

［±

0.54。F(−4to＋212。F)

］

±

0.5℃(＋100.1 to＋150℃)

［±

0.9。F(＋212.1 to＋302。F)

］

±

0.5℃(−60 to＋100℃)

［±

0.9。F(−76 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−40 to＋100℃)

［±

0.9。F(−40 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−60 to＋100℃)

［±

0.9。F(−76 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−40 to＋100℃)

［±

0.9。F(−40 to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

±

0.5℃(−20 to＋100℃)

［±

0.9。F(−4to＋212。F)

］

±

0.8℃(＋100.1 to＋150℃)

［±

1.44。F(＋212.1 to＋302。F)

］

8.5A

55dB 59dB 61dB

3500kJ/h 4000kJ/h 5040kJ/h

100V AC 1φ50/60Hz, 200V AC 1φ50/60Hz
220V AC 1φ50/60Hz, 230V AC 1φ50Hz
230V AC 1φ50Hz (Compliance with CE Marking)

Model SU-221 SU-241 SU-261 SU-641 SU-661

*1 At＋23℃ambient temperature, value at stable voltage application. For SU-641/ 661, make sure to check the capability of your power equipment in advance.
*2 At＋23℃ambient temperature, value at stable voltage application with no specimen. Lowest attainable temperature value at ambient of up to＋30℃.
*3 In accordance with Standard for Performance of Humidity Chamber (JTM-K01-1998) of standard of Japan Testing Machinery Association.

９

SU

Operation mode Program operation, Constant operation

7-segment LED display

Mechanical key input

9 steps/ 1 pattern (1 to 99 repetitions)

Thermocouple type T (Copper/ Copper-Nickel)

PID control

RS-485

Lithium battery, 1

Temp :−25 to＋155℃(SH-221, SU-221)

:−45 to＋155℃(SH-241･641,SU-241･641)

:−65 to＋155℃(SH-261･661,SU-261･661)
Humid : 0 to 100 %rh (SH only)
Tim : 0 to 99 hours 59 minutes,

100 to 999 hours

Temp : 0.1

℃

Humid : 1%rh (SH only)
Time : 1 minute

(in one hour unit for over 100 hours)

Input burn-out detection function
Upper and lower temperature (& humidity) limit alarm function
Self-diagnostic function (watchdog timer)
Alarm indication function
Power failure protection function
Timer function (automatic start/stop)
Refrigerator capacity automatic control function

Temp : 0.5℃(Typ.)
Humid :±2%rh (Typ.) (SH only)
Time : within 30 sec. per month

Display
Setting
Program capacity

Setting and
indication
ranges

Setting and
indication
resolution

Indication
accuracy *

Input
Control
Communication function

Battery

Auxiliary
functions

Model ES-102

*At+23℃±5℃ambient temperature

１０

TEMPERATURE & HUMIDITY CONTROL RANGE (SH type only)

TEMPERATURE (& HUMIDITY) PROGRAM INDICATOR CONTROLLER

S

□ - □ □

1

Temperature range 2:−20 to＋150

℃

     4:−

40 to＋150

℃

     6:−

60 to＋150

℃

Capacity 2: 22.5L

6: 64.0L

H: Low temperature & humidity chamber
U: Low temperature chamber

100

90
80
70
60
50
40
30
20
10

0

10 20 30 40 50 60 70 80 90 100

85

℃

15

℃

Temperature

℃

95%rh

Relative Humidity %rh

※At＋23℃

anbuebt temperature.

MODEL

１１

ACCESSORIES

SHELVESSAFETY DEVICES

●

Load capacity (uniformly distributed load)

SH/ SU-221, 241, 261 500g
SH/ SU-641, 661 5kg

●

Number of shelves

SH/ SU-221, 241, 261 5 (Shelf pitch 35mm)
SH/ SU-641, 661 5 (Shelf pitch 50mm)

●

Shelf 1

●

Connector

2P for connecting terminal for temp & humid recorder 2 (1 for SU)
6P for connecting signal terminal 1

●

Rubber plug for cable port 2

●

Glass tube fuse 1

●

Adaptor for socket 1 (100V AC, 115V AC only)
(for SH/ SU-221, 241, 261)

●

Wet-bulb wick 1 box (SH only)

●

Humidifying tray drain hose 2m 1 (SH only)

●

Water level sensor tank drain hose 0.3m 1 (SH only)

●

Instruction manual 1

●

Warranty 1

●

Leakage breaker for power supply

●

Thermal fuse

●

Boil dry protector (SH only)

●

Short circuit protection fuse for control circuit

●

Overheat protector

●

Overcool protector

●

Air circulator temperature switch

●

Specimen power supply control terminals

●

Refrigerator overload relay

●

Inside chamber door switch

●

Upper and lower temperature & humidity limit alarms

(built inside temperature & humidity controller)

●

Burn-out detection function

(built inside temperature & humidity controller)

●

Watchdog timer

(built inside tem-perature & humidity controller)

●

Refrigerator automatic delay circuit

(built inside temperature & humidity controller)

DANGER

CAUTION

●

Do not use specimens which are explosive or inflammable, or which contain such

substances. To do so could be hazardous, as this may lead to fire or explosion.

●

Do not place corrosive materials in the chamber. If corrosive substances or

humidifying water is used, the life of the unit may be significantly shortened.

●

Do not place life forms or substances that exceed allowable heat generation.

Be sure to read the instruction manual before operation.

１２

DIMENSIONS

unit：mm (inch)

●

SH･SU−221･241

●

SH･SU−641･661

●

SH･SU−261

*The outside dimensions of SU are indicated in [].

)

170(6.7

)

9.8

(

250

)

300(11.8

)

440(17.3

)

)

)

40(1.6

)

170(6.7

)

9.8

(

250

)

)

70

2.8

(

)

695(27.4

)

268(10.6

)

11.8

(

)［530(20.9)］

)［560(22.0)］

300

23.6

24.8

(

(

600

630

)

30

1.2

(

250(9.8

)

6.9

(

175

)

18(0.7

)

35(1.4

)

300(11.8

440(17.3

)

70

2.8

(

)

)

11.8

(

)［530(20.9)］

)［560(22.0)］

300

23.6

24.8

(

(

600

630

)

30

1.2

(

268(10.6

250(9.8

785(30.9

)

)

6.9

(
175

18(0.7

)

)

200(7.9

)

400(15.7

)

540(21.3

)

15.7

(
400

)

70

2.8

(

)

890(35.0

)

418(16.5

)

15.7

)［630(24.8)］

)［660(26.0)］

27.6

(

28.7

(

700

730

)

30

1.2

(

(

400

400(15.7

)

8.1

(
205

)

18(0.7

)

40(1.6

)

１３

OPTIONS

Wet-bulb temperature detecting terminal

Detects wet-bulb temperature inside
the chamber. Equal electromotive force
as Thermocouple type T (Copper/
Copper-Nickel).
Equipped with connector.

*Not available for SU

SRJ25 ・−100to＋200℃

・100mm
・Portabletype
・6dots

ThermocoupletypeT

(Copper/Copper-Nickel)
・Digital
・Freepowersupply

(100VACto240VAC)

Temperature recorder

SRJ14−100 to ＋150℃/

0 to 100%rh (for SH)

SRJ12−50 to ＋150℃/

0 to 100%rh (for SH)

・

100mm

・

Portable type

・

6 dots
Temperature:5 dots
thermocouple type T
(Copper/ Copper-Nickel)
Humidity: 1 dot
DC1 to 5V

・

Digital

・

Free power supply

(100VAC to 240VAC)

Temperature & humidity recorder

Thermocouple

Measures the temperature of speci­mens

・

T (Copper/ Copper-Nickel)

・

2, 4, 6m

Viewing window

A window is installed on chamber
door.
SH

−

221･241･261 W215×H215mm

SU

−

221･241･261 W215×H215mm

SH

−

641･661 W215×H315mm

SU

−

641･661 W215×H315mm

*The basic specification of the chamber will be

modified.

Right-opening door

Door can be exchanged to a right hing­ed door.

*Not available with inner glass door option.

Inner door

A glass door is provided inside the
chamber door for observation.

* A wiper is equipped for the SH model.

SU model

■Some photographs listed in this catalog contain Japanese display.

Paperless recorder

Records temperature inside the
chamber. Additional inputs may also
be recorded
[Temperature type]
Temperature range: −100〜＋200

℃

Number of inputs:

Temperature 1 (5 more but turned OFF*)
Data saving cycle: 5 sec
External recording media:

CF memory card (32MB)

* Settings may be modified.

[Temperature and humidity type]
Temperature range: −50〜＋150

℃

−

100〜＋150

℃

Humidity range: 0~100％rh
Number of inputs:

Temperature 1 / Humidity 1

(4 more but turned OFF*)
Data saving cycle: 5 sec
External recording media:

CF memory cord (32MB)

* Settings may be modified.

Paperless recorder Portable type

１４

Computer interface

・

GPIB

・

RS-232C

・

E-BUS

*Select one other than standard RS-485.

Communication functions

・

RS-485 5, 10m

・

GPIB 2, 4m

・

RS-232C 1.5, 3, 5m

1.5, 3, 5m for extension

・

E-BUS 5, 10m

Communication cable

Cable port

Additional cable ports are provided on
the wall of chamber.

・

25, 50, 100mm diameter

・

Flat cable port

*One silicon sponge rubber port plug is equipped

per one cable port.

* Basic specification of the chamber may not be

effective when equipped with a cable port.

Cable port rubber plug

The additional silicon sponge rubber
port plug .

This stand enhances mobility of the
chamber and ease the work to load/
unload the specimen. Stand for stack­ing two or three chambers save
installation space.

* Be sure to secure the stand onto the floor with

earthquake resistant fittings for your safety
especially when using stand for two/ three
chambers.

OPTIONS

Stand

Auxiliary water tank circuit (for SH)

Automatic water supply circuit is
equipped to replenish the standard tank
from the auxiliary water tank.

・

Supply water quality
pure water
(electrical conductivity 0.1~10μS/cm)

・

Water supply pressure

4.9~19.6KPa (Gauge)

Auxiliary water tank (for SH)

Auxiliary tanks are provided to
replenish water to the standard tank.

Tray for auxiliary water tank (for SH)

Protects water from leaking while
supplying water from the auxiliary
water tank.

Drain tank (for SH)

Storage tank for drain water with a full
indication buzzer.

Shelf

Auxiliary shelves on request.
SH/ SU-221･241･261

・

Effective size 200W×150Dmm

・

Load capacity
(uniformly distributed load) 500g

SH/ SU-641･661

・

Effective size 300W×300Dmm

・

Load capacity
(uniformly distributed load) 5kg

Specimen basket

・

Size 206W×40H×156D mm

・

Material 18-8 Cr-Ni stainless steel,

5 mesh metal basket

25mm diameter type

flat type

50, 100mm diameter type

for one chamber

for stacking

two chambers

*Stand for three chambers is designated only for

SH-221, 241, SU-221, 241.

for stacking

three chambers
