Site Master

How-To Video:

Compact Handheld Cable & Antenna Analyzer
with Spectrum Analyzer

S331E S332E S361E S362E

2 MHz to 4 GHz 2 MHz to 4 GHz 2 MHz to 6 GHz 2 MHz to 6 GHz Cable & Antenna Analyzer

100 kHz to 4 GHz 100 kHz to 6 GHz Spectrum Analyzer

Introduction

Anritsu introduces its eighth generation compact handheld Cable and Antenna Analyzers with Spectrum Analyzers for
installation and maintenance of wireless networks. They feature the highest performance and the most capabilities ever
offered by Anritsu in a compact handheld tester since introducing its first line sweeper in 1995.

Cable and Antenna Analyzer Highlights

Measurements: RL, VSWR, Cable Loss, DTF, Phase•
2-port Transmission Measurement: High/Low Power•
Sweep Speed: 1 msec/data point, typical•
Display: Single or Dual Measurement Touchscreen•
Calibration: OSL, InstaCal•
Bias Tee: 32 V internal•

™

, and FlexCal

™

Spectrum and Interference Analyzer Highlights

Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I•
Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID,•

Interference Mapping
Dynamic Range: > 95 dB in 10 Hz RBW•
DANL: -152 dBm in 10 Hz RBW•
Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz•
Frequency Accuracy: < ± 50 ppb with GPS On•

Capabilities and Functional Highlights

4 hour battery operation time•
Store 2000 Traces internally•
Touchscreen keyboard•
Quick Name Matrix•
PIM Analyzer•
AM / FM / PM Analyzer•
High Accuracy Power Meter•

4, 6, 8, 18, 26 GHz USB Sensors•
On-Screen Interference Mapping•
On-Screen Coverage Mapping•
GPS tagging of saved traces•
USB & Optional Ethernet•

(Option 0411) for data transfer
and instrument control

Increase throughput by•
automating repetitive or operator
intensive tasks via Ethernet or
USB. Remote programming
provided via Ethernet (Option

0411)
< 5 minute warm-up time•

E-Learning Training•
Certified Line Sweep Training•
Line Sweep Tools•

Site Master™ S331E Cable & Antenna Analyzer featuring 8.4” Daylight Viewable Touchscreen

Compact Size: 273 mm x 199 mm x 91 mm (10.7 in x 7.8 in x 3.6 in), Lightweight: 2.71 kg (6.0 lbs)

Site Master™ S331E, S332E, S361E, S362E Specifications

Cable and Antenna Analyzer

Measurements

Measurements VSWR

Return Loss
Cable Loss

Distance-to-Fault (DTF) Return Loss
Distance-to-Fault (DTF) VSWR

1-Port Phase
Smith Chart

Setup Parameters

Measurement Display Single/Dual Measurement Display with independent markers

Frequency Start/Stop, Signal Standard, Start Cal

DTF Start/Stop, DTF Aid, Units (m/ft), Cable Loss, Propagation Velocity, Cable, Windowing

Windowing Rectangular, Normal Side Lobe, Low Side Lobe, Minimum Side Lobe

Amplitude Top, Bottom, Auto Scale, Full Scale

Sweep Run/Hold, Single/Continuous, RF Immunity (High/Low), Data Points, Aver a ging/Smoothing,

Data Points 137, 275, 551, 1102, 2204

Markers Markers 1-6 (On/Off), Delta Makers 1-6 (On/Off), Marker to Peak/Valley, Marker Table

Traces Recall, Copy to Display Memory, No Trace Math, Trace ± Memory, Trace Overlay

Limit Line On/Off, Single Limit, Multi-segment (41), Limit Alarm, Clear

Calibration Start Cal, Cal Type (Standard/FlexCal™)

Save/Recall Setups, Measurements (.vna, .dat), Screen Shots Jpeg (save only)

Application Options Bias-Tee (On/Off), Impedance (50 Ω, 75 Ω, Other)

Frequency

Frequency Range 2 MHz to 4 GHz (S331E, S332E), 2 MHz to 6 GHz (S361E, S362E)

Frequency Accuracy ≤ ± 2.5 ppm @ 25 °C

Frequency Resolution 1 kHz, (RF immunity low)

Output Power

High 0 dBm, typical

Low –30 dBm, typical

Interference Immunity

On-Channel +17 dBm @ > 1.0 MHz from carrier frequency

On-Frequency 0 dBm within ± 10 kHz of the carrier frequency

Measurement Speed

Return Loss ≤ 1.00 msec/data point, RF immunity low, typical

Distance-to-Fault ≤ 1.25 msec/data point, RF immunity low, typical

Return Loss

Measurement Range 0 to 60 dB

Resolution 0.01 dB

VSWR

Measurement Range 1 to 65

Resolution 0.01

Cable Loss

Measurement Range 0 to 30 dB

Resolution 0.01 dB

Distance-to-Fault

Vertical Range Return Loss 0 to 60 dB

Vertical Range VSWR 1 to 65

Fault Resolution (meters) (1.5 x 10

Horizontal Range (meters) 0 to (Data Points-1) x Fault Resolution, to a maximum of 1500 meters (4921 ft)

1-Port Phase

Measurement Range –180° to +180°

Resolution 0.01°

Smith Chart

Resolution 0.01

Output Power (High/Low)

100 kHz, (RF immunity high)

8

x vp)/∆F (vp = velocity propagation constant, ∆F is F2-F1 in Hz)

Page 2 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Cable and Antenna Analyzer (continued)

Measurement Accuracy

Corrected Directivity > 42 dB, OSL Calibration

Measurement Uncertainty

Optical Distance-to-Fault Module (P/N ODTF-1)

Wavelength 1550 nm, typical

Event Resolution 10.2 cm (0.335 ft) maximum, or 150 / (n*ΔF), ΔF in MHz, n is IOR

Horizontal Range 1020 meter (3345 ft) maximum, or (#dp-1) *Event Resolution

Optical Dynamic Range 30 dB

Optical Output Power 3 dBm, typical

RF Connector N(m)

Optical Connector FC/APC

> 38 dB, InstaCal™ Calibration

Fiber Type Single Mode Fiber

Datasheet 11410-00478 (for complete specications)

PIM Analyzer (Option 0419) (Requires PIM Master™)

2-Port Transmission Measurement (Option 0021)

Frequency

Frequency Range 2 MHz to 4 GHz (S331E, S332E), 2 MHz to 6 GHz (S361E, S362E)

Frequency Resolution 10 Hz

Output Power

Dynamic Range

Application Options Bias-Tee (On/Off), Impedance (50 Ω, 75 Ω, Other)

Bias-Tee (Option 0010)

Current (Low/High) 250 mA/450 mA, 1 A surge for 100 ms

See Product Brochure 11410-00546

High 0 dBm, typical

Low –30 dBm, typical

2 MHz to 4 GHz 80 dB
4 GHz to 6 GHz 70 dB

Setup On/Off, Voltage, Current (Low/High)

Voltage Range +12 V to +32 V

Resolution 0.1 V

Page 3 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Spectrum Analyzer (S332E, S362E)

Measurements

Smart Measurements Field Strength (uses antenna calibration tables to measure dBm/m

Occupied Bandwidth (measures 99% to 1% power channel of a signal)

Channel Power (measures the total power in a specied bandwidth)

ACPR (adjacent channel power ratio)
AM/FM/SSB Demodulation (wide/narrow FM, USB and LSB), (audio out only)
C/I (carrier-to-interference ratio)
Emission Mask
Coverage Mapping (requires Option 0431)

Setup Parameters

Frequency Center/Start/Stop, Span, Frequency Step, Signal Standard, Channel #, Channel Increment

Amplitude Reference Level (RL), Scale, Attenuation Auto/Level, RL Offset, Pre-Amp On/Off, Detection

Span Span, Span Up/Down (1-2-5), Full Span, Zero Span, Last Span

Bandwidth RBW, Auto RBW, VBW, Auto VBW, RBW/VBW, Span/RBW

File Save, Recall, Delete, Directory Management

Save/Recall Setups, Measurements, Limit Lines, Screen Shots Jpeg (save only), Save-on-Event

Save-on-Event Crossing Limit Line, Sweep Complete, Save-then-Stop, Clear All

Delete Selected File, All Measurements, All Mode Files, All Content

Directory Management Sort Method (Name/Type/Date), Ascend/Descend, Internal/USB, Copy, Format USB

Application Options Bias-Tee (On/Off), Impedance (50 Ω, 75 Ω, Other)

Sweep Functions

Sweep Single/Continuous, Sweep Mode (Fast, Performance, No FFT), Reset, Detection,

Minimum Sweep Time, Trigger Type, Gated Sweep (see Option 0090)

Detection Peak, RMS, Negative, Sample, Quasi-peak

Triggers Free Run, External, Video, Change Position, Manual

Trace Functions

Traces Up to three Traces (A, B, C), View/Blank, Write/Hold, Trace A/B/C Operations
Trace A Operations Normal, Max Hold, Min Hold, Average, # of Averages, (always the live trace)
Trace B Operations
Trace C Operations

Marker Functions

Markers Markers 1-6 each with a Delta Marker, or Marker 1 Reference with Six Delta Markers,

Marker Types Style (Fixed/Tracking), Noise Marker, Frequency Counter Marker

Marker Auto-Position Peak Search, Next Peak (Right/Left), Peak Threshold %, Set Marker to Channel,

Marker Table 1-6 markers frequency and amplitude plus delta markers frequency amplitude and offset

Limit Line Functions

Limit Lines Upper/Lower, On/Off, Edit, Move, Envelope, Advanced, Limit Alarm, Default Limit

Limit Line Edit Frequency, Amplitude, Add Point, Add Vertical, Delete Point, Next Point Left/Right

Limit Line Move To Current Center Frequency, By dB or Hz, To Marker 1, Offset from Marker 1

Limit Line Envelope Create Envelope, Update Amplitude, Points (41 max), Offset, Shape Square/Slope

Limit Line Advanced Type (Absolute/Relative), Mirror, Save/Recall

Frequency

Frequency Range 100 kHz to 4 GHz (S332E), 100 kHz to 6 GHz (S362E) (usable to 0 Hz)

Tuning Resolution 1 Hz

Frequency Reference Aging: ± 1.0 ppm/year

Frequency Span 10 Hz to 4 GHz including zero span (S332E), 10 Hz to 6 GHz including zero span (S362E)

Sweep Time Minimum 100 ms, 10 µs to 600 seconds in zero span

Sweep Time Accuracy ± 2% in zero span

Bandwidth

Resolution Bandwidth (RBW) 10 Hz to 3 MHz in 1–3 sequence ± 10% (1 MHz max in zero-span) (–3 dB bandwidth)

Video Bandwidth (VBW) 1 Hz to 3 MHz in 1–3 sequence (–3 dB bandwidth) (auto or manually selectable)
RBW with Quasi-Peak Detection 200 Hz, 9 kHz, 120 kHz (–6 dB bandwidth)
VBW with Quasi-Peak Detection Auto VBW is On, RBW/VBW = 1

A B, B  C, Max Hold, Min Hold
A  C, B  C, Max Hold, Min Hold, A - B  C, B - A  C, Relative Reference (dB), Scale

Marker Table (On/Off), All Markers Off

Marker Frequency to Center, Delta Marker to Span, Marker to Reference Level

Accuracy: ± 1.5 ppm (25 °C ± 25 °C) + aging, < ± 50 ppb with GPS On

2

or dBmV/m)

Page 4 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Spectrum Analyzer (S332E, S362E) (continued)

Spectral Purity

SSB Phase Noise @ 1 GHz –100 dBc/Hz, –110 dBc/Hz typical @ 10 kHz offset

–105 dBc/Hz, –112 dBc/Hz typical @ 100 kHz offset
–115 dBc/Hz, –121 dBc/Hz typical @ 1 MHz offset

Amplitude Ranges

Dynamic Range > 95 dB (2.4 GHz), 2/3 (TOI-DANL) in 10 Hz RBW

Measurement Range DANL to +26 dBm

Display Range 1 to 15 dB/div in 1 dB steps, ten divisions displayed

Reference Level Range –120 dBm to +30 dBm

Attenuator Range 0 to 55 dB, 5.0 dB steps

Maximum Continuous Input +35 dBm

Amplitude Units Log Scale Modes: dBm, dBV, dBmv, dBμV

Linear Scale Modes: nV, μV, mV, V, kV, nW, μW, mW, W, kW

Amplitude Accuracy

100 kHz to 4.0 GHz ± 1.25 dB, ± 0.5 dB typical
> 4.0 GHz to 6 GHz ± 1.50 dB, ± 0.5 dB typical

Displayed Average Noise Level (DANL)

Preamp Off

(Reference level -20 dBm)

(RBW Normalized to 1 Hz, 0 dB attenuation) Maximum Typical Maximum Typical

10 MHz to 2.4 GHz –141 dBm –146 dBm –157 dBm –162 dBm

> 2.4 GHz to 4 GHz –137 dBm –141 dBm –154 dBm –159 dBm

>4 GHz to 5 GHz –134 dBm –138 dBm –150 dBm –155 dBm

> 5 GHz to 6 GHz –126 dBm –131 dBm –143 dBm –150 dBm

(RBW = 10 Hz, 0 dB attenuation)

10 MHz to 2.4 GHz –131 dBm –136 dBm –147 dBm –152 dBm

> 2.4 GHz to 4 GHz –127 dBm –131 dBm –144 dBm –149 dBm

> 4 GHz to 5 GHz –124 dBm –128 dBm –140 dBm –145 dBm
> 5 GHz to 6 GHz –116 dBm –121 dBm –133 dBm –140 dBm

Spurs

Residual Spurious < –90 dBm (RF input terminated, 0 dB input attenuation, > 10 MHz)

Input-Related Spurious < –75 dBc (0 dB attenuation, –30 dBm input, span < 1.7 GHz, carrier offset > 4.5 MHz)

Exceptions, typical < –70 dBc @ < 2.5 GHz, with 2072.5 MHz Input

< –68 dBc @ F1-280 MHz with F1 Input
< –70 dBc @ F1 + 190.5 MHz with F1 Input
< –52 dBc @ 7349 - 2F2 MHz, with F2 Input, where F2 < 2424.5 MHz
< –55 dBc @ 190.5 ± F1/2 MHz, F1 < 1 GHz

Third-Order Intercept (TOI)

Preamp Off (–20 dBm tones 100 kHz apart, 10 dB attenuation)

800 MHz +16 dBm

2400 MHz +20 dBm

200-2200 MHz +25 dBm, typical

> 2.2 GHz to 5.0 GHz +28 dBm, typical
> 5.0 GHz to 6.0 GHz +33 dBm, typical

Second Harmonic Distortion

Preamp Off, 0 dB input attenuation, –30 dBm input

50 MHz –56 dBc

> 50 MHz to 200 MHz –60 dBc, typical

> 200 MHz to 3000 MHz –70 dBc, typical

VSWR

2:1, typical

Preamp On

(Reference level -50 dBm)

Page 5 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Coverage Mapping (Options 0431)

Measurements

Indoor Mapping Outdoor Mapping

RSSI

ACPR

Setup Parameters

Frequency Center/Start/Stop, Span, Freq Step, Signal Standard, Channel #, Channel Increment

Amplitude Reference Level (RL), Scale, Attenuation Auto/Level, RL Offset, Pre-Amp On/Off, Detection

Span Span, Span Up/Down (1-2-5), Full Span, Zero Span, Last Span

BW RBW, Auto RBW, VBW, Auto VBW, RBW/VBW, Span/VBW

Measurement Setup ACPR, RSSI

Point Distance / Time Setup Repeat Type Time Distance

Save Points Map Save KML, JPEG, Tab Delimited

Recall Points Map Recall Map, Recall KML Points only, Recall KML Points with Map, Recall Default Grid

Interference Analyzer (Option 0025)

Measurements Spectrum

Field Strength
Occupied Bandwidth
Channel Power
Adjacent Channel Power (ACPR)
AM/FM/SSB Demodulation (Wide/Narrow FM, Upper/Lower SSB), (audio out only)
Carrier-to-Interference ratio (C/I)

Spectrogram (Collect data up to 72 hours)
Signal Strength (Gives visual and aural indication of signal strength)
Received Signal Strength Indicator (RSSI) (collect data up to one week)

Gives visual and aural indication of signal strength

Signal ID (up to 12 signals)

Center Frequency

Bandwidth

Signal Type (FM, GSM, W-CDMA, CDMA, Wi-Fi)

Closest Channel Number

Number of Carriers

Signal-to-Nose Ratio (SNR) > 10 dB

Interference Mapping

Triangulate location of interference with on display maps

Application Options Bias-Tee (On/Off), Impedance (50 Ω, 75 Ω, Other)

RSSI

ACPR

GPS Receiver Option (Option 0031) (Antenna sold separately, P/N 2000-1528-R)

Setup On/Off, Antenna Voltage 3.3/5.0 V, GPS Info

GPS Time/Location Indicator Time, Latitude, Longitude and Altitude on display

Time, Latitude, Longitude and Altitude with trace storage

High Frequency Accuracy Spectrum Analyzer, Interference Analyzer, CW Signal Analyzers

when GPS Antenna is connected < ± 50 ppb with GPS On, 3 minutes after satellite lock in selected mode

Connector SMA, Female

Page 6 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Channel Scanner (Option 0027) (S332E, S362E)

Number of Channels 1 to 20 Channels (Power Levels)

Measurements Graph/Table, Max Hold (On/5 sec/Off), Freq/Channel, Current/Max, Single/Dual Color

Scanner Scan Channels, Scan Frequencies, Scan Customer List, Scan Script Master™

Amplitude Reference Level, Scale

Custom Scan Signal Standard, Channel, # of Channels, Channel Step Size, Custom Scan

Frequency Range 100 kHz to 4 GHz (S332E),

Frequency Accuracy ± 10 Hz + Time base error

Measurement Range –110 dBm to +26 dBm

Application Options Bias-Tee (On/Off), Impedance (50 Ω, 75 Ω, Other)

CW Signal Generator Option (Option 0028) (S332E, S362E)

(Requires CW Signal Generator Kit, P/N 69793)

Setup Parameters

Frequency Frequency, Signal Standard, Channel Number, Display Setup Help

Amplitude Power Level (Low/High), Offset (dB)

Frequency Range 2 MHz to 2 GHz

Frequency Reference Accuracy: ± 1.5 ppm (25 °C ± 25 °C) + aging, < ± 50 ppb with GPS On

Output Power High 0 dBm typical, Low –30 dBm typical

100 kHz to 6 GHz (S362E)

Attenuator (included in kit 69793): 0 dB to 90 dB in 1 dB steps

Gated Sweep (Option 0090) (S332E, S362E)

Mode Spectrum Analyzer, Sweep

Trigger External TTL

Setup Gated Sweep (On/Off)

Gate Polarity (Rising, Falling)
Gate Delay (0 to 65 ms typical)
Gate Length (1 µs to 65 ms typical)
Zero Span Time

Ethernet Connectivity (Option 0411) S331E, S332E, S361E, S362E

Connector RJ45

LAN Speed 10 Mbps

Mode Static, DHCP

Static IP settings IP address

Subnet Mask
IP Gateway

Remote Control Remote Access utility provided with Master Software Tools

Data Upload With Line Sweep Tools through LAN connection

Page 7 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Power Meter (Option 0029) (S332E, S362E)

Frequency Center/Start/Stop, Span, Frequency Step, Signal Standard, Channel #, Full Band

Amplitude Maximum, Minimum, Offset, Relative On/Off, Units, Auto Scale

Average Acquisition Fast/Med/Slow, # of Running Averages

Limits Limit On/Off, Limit Upper/Lower

Frequency Range 10 MHz to 4 GHz (S332E), 10 MHz to 6 GHz (S362E)

Span 1 kHz to 100 MHz

Display Range –140 dBm to +30 dBm, ≤ 40 dB span

Measurement Range –120 dBm to +26 dBm

Offset Range 0 to +100 dB

VSWR 2:1 typical

Maximum Continuous Input +35 dBm without attenuator

Accuracy Same as Spectrum Analyzer

Application Options Impedance (50 Ω, 75 Ω, Other)

High Accuracy Power Meter (Option 0019) (Requires external USB Power Sensor(s))

Amplitude Maximum, Minimum, Offset, Relative On/Off, Units, Auto Scale

Average # of Running Averages, Max Hold

Zero/Cal Zero On/Off, Cal Factor (Center Frequency, Signal Standard)

Limits Limit On/Off, Limit Upper/Lower

Power Sensor Model PSN50 MA24104A MA24106A MA24108/18/26A

Description High Accuracy RF Power

Sensor

Frequency Range 50 MHz to 6 GHz 600 MHz to 4 GHz 50 MHz to 6 GHz 10 MHz to 8 GHz

Connector Type N(m), 50 Ω Type N(m), 50 Ω Type N(m), 50 Ω Type N(m), 50 Ω

Dynamic Range -30 to +20 dBm (.001 to

100 mW)

VBW 100 Hz 100 Hz 100 Hz 50 kHz

Measurand True-RMS True-RMS True-RMS True-RMS,

Measurement Uncertainty ± 0.16 dB

Datasheet

11410-00414 11410-00483 11410-00424 11410-00504

(for complete specications)

Notes: 1) Total RSS measurement uncertainty (0 ºC to 50 ºC) for power measurements of a CW signal greater than -20 dBm with zero mismatch errors.

2) Expanded uncertainty with K=2 for power measurements of a CW signal greater than +20 dBm with a matched load. Measurement

results referenced to the input side of the sensor.

3) Expanded uncertainty with K=2 for power measurements of a CW signal greater than -20 dBm with zero mismatch errors.

1

Inline High Power Sensor High Accuracy RF Power

Sensor

+3 to +51.76 dBm (2 mW to

150 W)

± 0.17 dB

2

-40 to +23 dBm

(0.1 µW to 200 mW)

± 0.16 dB

1

Microwave USB Power

(MA24108A)

10 MHz to 18 GHz

(MA24118A)

10 MHz to 26 GHz

(MA24126A)

(MA24108/18A)

Type K(m), 50 Ω

(MA24126A)

-40 to +20 dBm

(0.1 µW to 100 mW)

Slot Power, Burst Average

± 0.18 dB

Sensor

Power

3

Page 8 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

AM/FM/PM Signal Analyzers (Option 0509) (S332E, S362E)

Measurements

RF Spectrum

AM/FM/PM

Graphic
Display

Numerical
Displays

Setup Parameters

Specifications

Power (dBm)
vs. Frequency

Carrier Power
Carrier Frequency
Occupied

Bandwidth

Audio Spectrum

(AM)

Depth (%)
vs. Modulation
Frequency

AM Rate
RMS Depth
(Pk-PK)/2 Depth
SINAD*
THD*
Distortion/Total

Vrms*

Frequency Center Freq, Span, Freq Step, Signal Standard, Channel, Channel Increment,

Amplitude Scale, Power Offset, Adjust Range

Setup Demod Type (AM, FM, PM), IFBW, Auto IFBW

Measurements RF Spectrum AM/FM/PM, Audio Spectrum (AM/FM/PM),

Marker On/Off, Delta, Peak Search, Marker Freq to Center, Marker to Ref Lvl, Marker Table,

IF bandwidth 1 to 300 kHz in 1-3 sequence

Frequency Span RF Spectrum: 10 kHz to 10 MHz

RBW/VBW 30

Span/RBW 100

Sweep time 50 µs to 50 ms (Audio Waveform)

Audio Spectrum

(FM/PM)

Deviation
(kHz/rad) vs.
Modulation
Frequency

FM/PM Rate
RMS Deviation

(Pk-PK)/2
Deviation

SINAD*
THD*
Distortion/Total

Vrms*

Set Carrier Freq

Audio Waveform (AM/FM/PM), Summary (AM/FM/PM), Average

All Markers Off

AM Modulation Rate: ± 1 Hz (< 100 Hz), ± 2% (> 100 Hz)

Depth: ± 5% for (Modulation rates 10 Hz to 100 kHz)

FM Modulation Rate: ± 1 Hz (< 100 Hz); ± 2% (100 Hz to 100 kHz)

Deviation Accuracy: ± 5% (100 Hz to 100 kHz)**

PM Modulation Rate: ± 1 Hz (< 100 Hz); ± 2% (100 Hz to 100 kHz)

Deviation Accuracy: ± 5% (deviation 0 to 93 Rad, rate 10 Hz to 5 kHz)**

Audio Spectrum: 2, 5, 10, 20 kHz

Audio

Waveform

(AM)

Depth (%)
vs. Time

AM Rate
RMS Depth
(Pk-PK)/2 Depth
SINAD*
THD*
Distortion/Total
Vrms*

Audio

Waveform

(FM/PM)

Deviation
(kHz/rad)
vs. Time

FM/PM Rate
RMS Depth
(Pk-PK)/2 Depth
SINAD*
THD*
Distortion/Total
Vrms*

**IFBW must be greater than 95% occupied BW

None None

RMS Depth (AM)
Peak + Depth
Peak – Depth

(Pk-PK)/2 Depth
Carrier Power
Carrier

Frequency
Occupied

Bandwidth
AM Rate
SINAD*
THD*
Distortion/Total

Vrms*

Summary

(AM)

*Requires Sinewave modulation

Summary

(FM/PM)

RMS Deviation
(FM/PM)

Peak + Depth
Peak – Depth

(Pk-PK)/2 Depth
Carrier Power
Carrier

Frequency
Occupied

Bandwidth
AM Rate
SINAD*
THD*
Distortion/Total

Vrms*

Page 9 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

General Specifications

All specications and characteristics apply under the following conditions, unless otherwise stated: 1) After 5 minutes of warm-up time, where the instrument is
left in the ON state; 2) All specications apply when using internal reference; 3) All specications subject to change without notice; 4) Typical performance is the
measured performance of an average unit; 5) Recommended calibration cycle is 12 months; 6) Performance Sweep Mode.

Setup Parameters

System Status (Temperature, Battery Info, Serial Number, Firmware Version, Options Installed)

System Options Name, Date and Time, Volume, Display (Brightness, Default Colors, Black & White, Night Vision,

Save/Recall Setups, Measurements, Screen Shots Jpeg (save only)

Delete Selected File, All Measurements, All Mode Files, All Content

Directory Management Sort Method (Name/Type/Date), Ascend/Descend, Internal/USB, Copy, Format USB

Internal Trace/Setup Memory 2,000 traces, 2,000 Setups

External Trace/Setup Memory Limited by size of USB Flash drive

Mode Switching Auto-Stores/Recalls most recently used Setup Parameters in the Mode

Connectors

RF Out Type N, female, 50 Ω (Reection In)

RF Out Damage Level 23 dBm, ± 50 VDC (Option 21 only)

RF In Type N, female, 50 Ω

RF In Damage Level +35 dBm peak, ± 50 VDC, Maximum Continuous Input (≥ 10 dB attenuation)

GPS SMA(f)

External Power 5.5 mm barrel connector, 12.5 VDC to 15 VDC, < 4.0 Amps

USB Interface (2) Type A, Connect USB Flash Drive and Power Sensor

USB Interface 5-pin mini-B, Connect to PC for data transfer

Ethernet Interface RJ45 connector for Ethernet 10-Base T (Available with Option 0411 Ethernet)

Headset Jack 2.5 mm mini-phone plug

External Reference In BNC, female, 50 Ω, Maximum Input +10 dBm

External Trigger/Clock Recovery BNC, female, 50 Ω, Maximum Input ± 50 VDC

Display

Type Resistive Touchscreen

Size 8.4” daylight viewable color LCD

Resolution 800 x 600

Battery

Type Li-Ion

Battery Operation 4.0 hours, typical (S331E, S361E)

Electromagnetic Compatibility

European Union CE Mark, EMC Directive 2004/108/EC

Australia and New Zealand C-tick N274

Interference EN 61326-1

Emissions EN 55011
Immunity EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-11

Safety

Safety Class EN 61010-1 Class 1

Product Safety IEC 60950-1 when used with Company supplied Power Supply

Environmental

Operating Temperature –10 ºC to 55 ºC

Maximum Humidity 95% RH (none condensing) at 40 °C

Shock MIL-PRF-28800F Class 2
Storage –40 ºC to 71 ºC
Altitude 4600 meters, operating and non-operating

ESD

RF Port Center Pin Withstands up to ± 15 kV

Size and Weight

Size 273 mm x 199 mm x 91 mm, (10.7 in x 7.8 in x 3.6 in)

Weight 2.71 kg, (6.0 lbs), (S331E, S361E)

Self Test, Application Self Test
GPS (see Option 0031)

High Contrast),

Language (English, French, German, Spanish, Chinese, Japanese, Korean, Italian, User dened)

Reset (Factory Defaults, Master R eset, Update Firmware)

File Save, Recall, Delete, Directory Management

1 MHz, 5 MHz, 10 MHz, 13 MHz

3.0 hours, typical (S332E, S362E)

Low Voltage Directive 2006/95/EC

3.71 kg, (8.2 lbs), (S332E, S362E)

Page 10 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Line Sweep Tools (for your PC)

Trace Capture

Browse to Instrument View and copy traces from the test equipment to your PC using Windows Explorer

Open legacy les Open DAT les captured with Hand Held Software Tools v6.61

Open Current les Open VNA or DAT les

Capture plots to: The Line Sweep Tools screen, DAT les, Database, or JPEG

Traces

Trace Types Return Loss, VSWR, DTF-RL, DTF-VSWR, Cable Loss, Smith Chart, and PIM

Trace formats DAT, VNA, CSV, PNG, BMP, JPG, HTML, Data Base, and PDF

Report Generation

Report Generator Includes GPS location along with measurements

Report Format Create reports in HTML or PDF format

Report setup Report Title, Company, Prepared for, Location, Date and Time, Filename, Company logo

Trace Setup 1 trace Portrait Mode, 2 Trace Portrait Mode, 1 Trace Landscape Mode

Trace Validation

Presets 7 presets allow “one click” setting of up to 6 markers and one limit line

Marker Controls 6 regular Markers, Marker Peak, Marker valley, Marker between, and frequency entry

Delta Markers 6 Delta markers

Limit Line Enable and drag or value entry. Also works with presets

Next Trace Button Next Trace and Previous trace arrow keys allow quick switching between traces

Tools

Cable Editor Allows creation of custom cable parameters

Distance to Fault Converts a Return Loss trace to a Distance to Fault trace

Measurement Calculator Converts Real, Imaginary, Magnitude, Phase, RL, VSWR, Rho, and Transmit power

Signal Standard Editor Creates new band and channel tables

Renaming Grid 36 user denable phrases for creation of le names, trace titles, and trace subtitles

Connectivity

Connections Ethernet, USB cable, USB Memory Stick, and RS-232 Serial Null Modem cable

Master Software Tools (for your PC)

Mapping (GPS Required)

Spectrum Analyzer Mode MapInfo, MapPoint

Mobile WiMAX OTA, LTE OTA Options Google Earth, Google Maps, MapInfo

Folder Spectrogram (Spectrum Monitoring for Interference Analysis and Spectrum Clearing)

Folder Spectrogram – 2D View Creates a composite le of multiple traces

Peak Power, Total Power, Peak Frequency, Histogram, Average Power (Max/Min)
File Filter (Violations over limit lines or deviations from averages)
Playback

Video Folder Spectrogram – 2D View Create AVI le to export for management review/reports

Folder Spectrogram – 3D View Views (Set Threshold, Markers)

- 3D (Rotate X, Y, Z Axis, Level Scale, Signal ID)

- Playback (Frequency and/or Time Domain)

List/Parameter Editors

Traces Add, delete, and modify limit lines and markers

Product Updates Auto-checks Anritsu website for latest revision rmware

Firmware Upload Upload new rmware into the instrument

Pass/Fail Create, download, or edit Signal Analysis Pass/Fail Limits

Languages Add up to two languages or modify non-English language menus

Script Master™

Channel Scanner Mode Automate scan up to 1200 channels, repeat for sets of 20 channels, repeat all channels

GSM/GPRS/EDGE or W-CDMA/HSDPA Mode Automate Signal Analysis testing requirements with annotated how-to pictures

Connectivity

Connections Connect to PC using USB, Ethernet, or Serial, depending on the instrument
Firmware Updates Product Update: download latest rmware version
Remote Operation Operate unit remotely with MST Remote Access Tool

Page 11 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Ordering Information – Options

S331E S332E S361E S362E Description

2 MHz to 4 GHz 2 MHz to 4 GHz 2 MHz to 6 GHz 2 MHz to 6 GHz Cable and Antenna Analyzer

100 kHz to 4 GHz 100 kHz to 6 GHz Spectrum Analyzer

Options Options Options Options

S332E-0419 S362E-0419 PIM Analyzer (requires PIM Master)

S331E-0021 S332E-0021 S361E-0021 S362E-0021 2-Port Transmission Measurement
S331E-0010 S332E-0010 S361E-0010 S362E-0010 Bias-Tee (requires Option 0021 for S331E /S361E)

S331E-0031 S332E-0031 S361E-0031 S362E-0031 GPS Receiver (requires Antenna P/N 2000-1528-R)
S331E-0019 S332E-0019 S361E-0019 S362E-0019 High-Accuracy Power Meter (requires External Power Sensor)

S332E-0029 S362E-0029 Power Meter

S332E-0025 S362E-0025 Interference Analyzer (Option 0031 recommended)
S332E-0027 S362E-0027 Channel Scanner

S332E-0431 S362E-0431 Coverage Mapping (requires Option 0031)

S332E-0090 S362E-0090 Gated Sweep
S332E-0028 S362E-0028 C/W Signal Generator (requires CW Signal Generator Kit, P/N 69793)

S332E-0509 S362E-0509 AM/FM/PM Analyzer

S331E-0411 S332E-0411 S361E-0411 S362E-0411 Ethernet Connectivity

S331E-0098 S332E-0098 S361E-0098 S362E-0098 Standard Calibration (ANSI 2540-1-1994)
S331E-0099 S332E-0099 S361E-0099 S362E-0099 Premium Calibration to Z540 plus test data

Power Sensors (For complete ordering information see the respective datasheets of each sensor)

Model Number Description

PSN50 High Accuracy RF Power Sensor, 50 MHz to 6 GHz, +20 dBm
MA24104A Inline High Power Sensor, 600 MHz to 4 GHz, +51.76 dBm
MA24106A High Accuracy RF Power Sensor, 50 MHz to 6 GHz, +23 dBm
MA24108A Microwave USB Power Sensor, 10 MHz to 8 GHz, +20 dBm
MA24118A Microwave USB Power Sensor, 10 MHz to 18 GHz, +20 dBm
MA24126A Microwave USB Power Sensor, 10 MHz to 26 GHz, +20 dBm

Manuals (soft copy included on Handheld Instruments Documentation Disc and at www.anritsu.com)

Part Number Description

10920-00060 Handheld Instruments Documentation Disc
10580-00252 Site Master User Guide (Hard copy included)
10580-00241 Cable and Antenna Analyzer Measurement Guide
10580-00242

10580-00244

10580-00240

10580-00215 ODTF-1 Optical Distance-to-Fault Module
10580-00256 Programming Manual
10580-00280 PIM Master User Guide

2-Port Transmission Measurement

- Bias-Tee
Spectrum Analyzer Measurement Guide

- Interference Analyzer, Channel Scanner, Gated Sweep,
CW Signal Generator, AM/FM/PM Analyzer,
Interference Mapping, Coverage Mapping

Power Meter Measurement Guide

- High Accuracy Power Meter

Troubleshooting Guides (soft copy at www.anritsu.com)

11410-00473 Cable, Antenna and Components
11410-00551 Spectrum Analyzers
11410-00472 Interference

Page 12 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Standard Accessories (included with instrument)

Part Number Description

10920-00060 Handheld Instruments Documentation Disc
10580-00252 Site Master User Guide

3-68736 Soft Carrying Case
2300-498 Master Software Tools (MST) CD Disc
2300-530 Anritsu Tool Box with Line Sweep Tools (LST) DVD Disc

633-44 Rechargeable Li-Ion Battery

40-168-R AC-DC Adapter

806-141-R Automotive Cigarette Lighter 12 VDC Adapter

3-2000-1498 USB A/5-pin mini-B Cable, 10 feet/305 cm

11410-00484 Site Master™ S331E, S332E, S361E, S362E Technical Data Sheet

Optional Accessories

Calibration Components, 50 Ω

Part Number Description

ICN50B InstaCal™ Calibration Module, 38 dB, 2 MHz to 6.0 GHz, N(m), 50 Ω

OSLN50-1 Precision Open/Short/Load, N(m), 42 dB, 6.0 GHz, 50 Ω

OSLNF50-1 Precision Open/Short/Load, N(f), 42 dB, 6.0 GHz, 50 Ω
2000-1618-R Precision Open/Short/Load, 7/16 DIN(m), DC to 6.0 GHz 50 Ω
2000-1619-R Precision Open/Short/Load, 7/16 DIN(f), DC to 6.0 GHz 50 Ω

22N50 Open/Short, N(m), DC to 18 GHz, 50 Ω

22NF50 Open/Short, N(f), DC to 18 GHz, 50 Ω

SM/PL-1 Precision Load, N(m), 42 dB, 6.0 GHz, 50 Ω

SM/PLNF-1 Precision Load, N(f), 42 dB, 6.0 GHz, 50 Ω

Calibration Components, 75 Ω

22N75 Open/Short, N(m), DC to 3 GHz, 75 Ω

22NF75 Open/Short, N(f), DC to 3 GHz, 75 Ω

26N75A Precision Termination, N(m), DC to 3 GHz, 75 Ω

26NF75A Precision Termination, N(f), DC to 3 GHz, 75 Ω

12N50-75B Matching Pad, DC to 3 GHz, 50 Ω to 75 Ω

Phase-Stable Test Port Cables, Armored w/ Reinforced Grip (recommended for cable & antenna line sweep applications)

15RNFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15RDFN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω

15RDN50-1.5-R 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω
15RNFN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω
15RDFN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω

15RDN50-3.0-R 3.0 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω

One Year Warranty (Including battery, rmware, and software)
Certicate of Calibration and Conformance

InterChangeable Adaptor Phase Stable Test Port Cables, Armored w/Reinforced Grip (recommended for cable and antenna line sweep applications. It
uses the same ruggedized grip as the Reinforced grip series cables. Now you can also change the adaptor interface on the grip to four different connector types)

15RCN50-1.5-R 1.5 m, DC to 6 GHz, N(m), N(f), 7/16 DIN(m), 7/16 DIN(f ), 50 Ω

15RCN50-3.0-R 3.0 m, DC to 6 GHz, N(m), N(f), 7/16 DIN(m), 7/16 DIN(f ), 50 Ω

Phase-Stable Test Port Cables, Armored (recommended for use with tightly spaced connectors and other general purpose applications)

15NNF50-1.5C 1.5 m, DC to 6 GHz, N(m) to N(f), 50 Ω

15NN50-1.5C 1.5 m, DC to 6 GHz, N(m) to N(m), 50 Ω

15NDF50-1.5C 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(f), 50 Ω

15ND50-1.5C 1.5 m, DC to 6 GHz, N(m) to 7/16 DIN(m), 50 Ω

15NNF50-3.0C 3.0 m, DC to 6 GHz, N(m) to N(f), 50 Ω

15NN50-3.0C 3.0 m, DC to 6 GHz, N(m) to N(m), 50 Ω

Page 13 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Optional Accessories (continued)

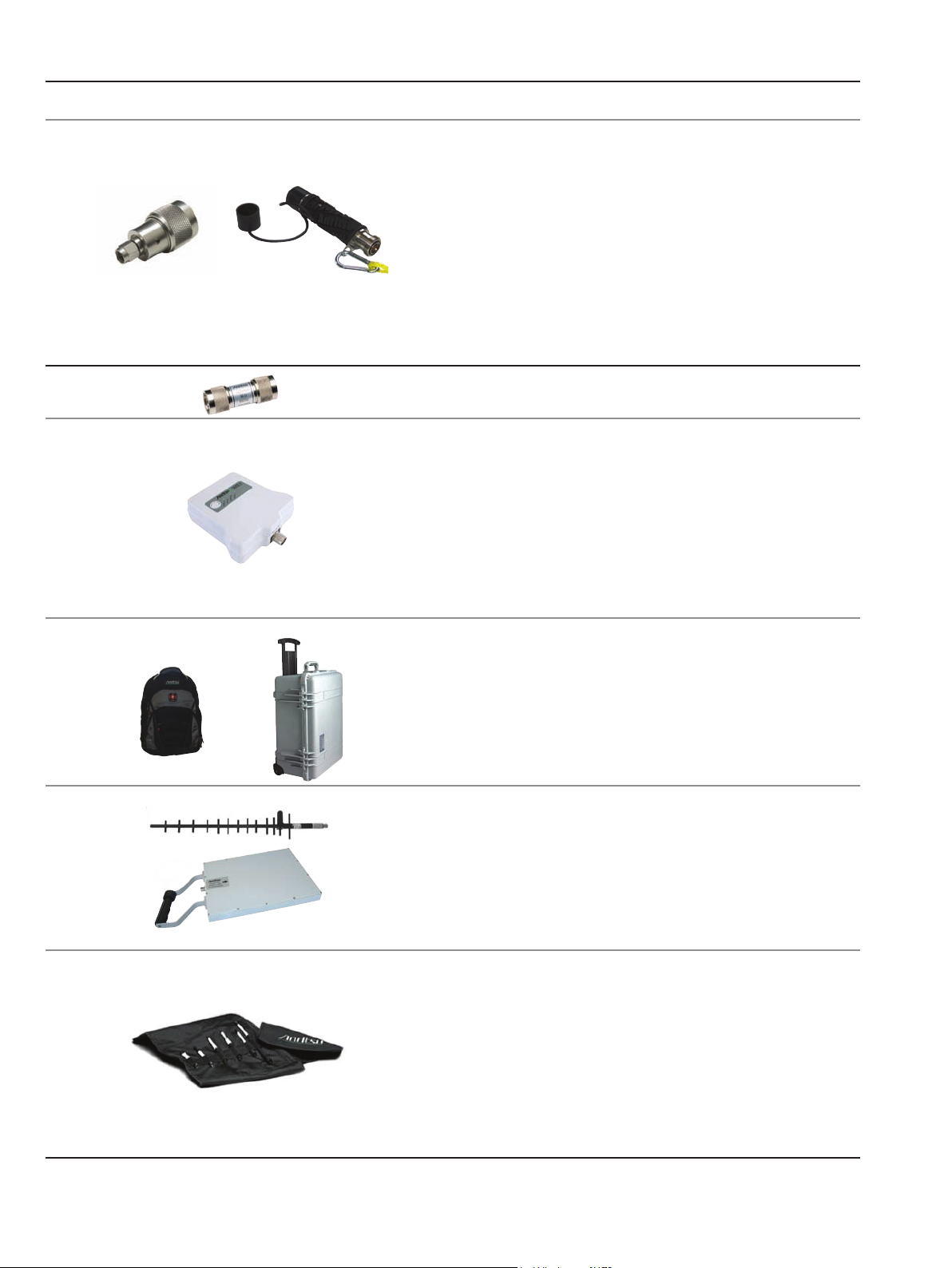

Adapters

1091-26-R SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R SMA(f) to N(f ), DC to 18 GHz, 50 Ω

1091-172-R BNC(f) to N(m), DC to 1.3 GHz, 50 Ω

510-90 7/16 DIN(f) to N(m), DC to 7.5 GHz, 50 Ω
510-91 7/16 DIN(f) to N(f ), DC to 7.5 GHz, 50 Ω
510-92 7/16 DIN(m) to N(m), DC to 7.5 GHz, 50 Ω
510-93 7/16 DIN(m) to N(f), DC to 7.5 GHz, 50 Ω
510-96 7/16 DIN(m) to 7/16 DIN (m), DC to 7.5 GHz, 50 Ω
510-97 7/16 DIN(f) to 7/16 DIN (f ), DC to 7.5 GHz, 50 Ω

1091-379-R 7/16 DIN(f) to 7/16 DIN(f ), DC to 6 GHz, 50 Ω, w/ Reinforced Grip

510-102-R N(m) to N(m), DC to 11 GHz, 50 Ω, 90 degrees right angle

Precision Adapters

34NN50A Precision Adapter, N(m) to N(m), DC to 18 GHz, 50 Ω

34NFNF50 Precision Adapter, N(f) to N(f), DC to 18 GHz, 50 Ω

Miscellaneous Accessories

2000-1528-R GPS Antenna, SMA(m) with 15 ft cable
2000-1652-R GPS Antenna, SMA(m) with 1 ft cable

69793 CW Signal Generator Kit

ODTF-1 Optical Distance-to-Fault Module, 1550 nm, Single Mode

2000-1520-R USB Flash Drive

2000-1374 External Charger for Li-lon Batteries

2000-1371-R Ethernet Cable, 7 ft/213 cm

3-806-152 Cat 5e Crossover Patch Cable, 7 ft/213 cm)

2300-517 Phase Noise Measurement Software (requires Ethernet Option 0411)
2300-532 Map Master CD

Backpack and Transit Case

67135 Anritsu Backpack (For Handheld Instrument and PC)

760-243-R Large Transit Case with Wheels and Handle

Directional Antennas

Portable Antennas

Part Number Description

2000-1411-R 822 MHz to 900 MHz, N(f), 10 dBd, Yagi
2000-1412-R 885 MHz to 975 MHz, N(f), 10 dBd, Yagi
2000-1413-R 1710 MHz to 1880 MHz, N(f), 10 dBd. Yagi
2000-1414-R 1850 MHz to 1990 MHz, N(f), 9.3 dBd, Yagi
2000-1415-R 2400 MHz to 2500 MHz, N(f), 10 dBd, Yagi
2000-1416-R 1920 MHz to 2170 MHz, N(f), 10 dBd, Yagi
2000-1519-R 500 MHz to 3 GHz, log periodic

2000-1200-R 806 MHz to 866 MHz, SMA(m), 50 Ω
2000-1473-R 870 MHz to 960 MHz, SMA(m), 50 Ω
2000-1035-R 896 MHz to 941 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1030-R 1710 MHz to 1880 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1474-R 1710 MHz to 1880 MHz with knuckle elbow (1/2 wave)
2000-1031-R 1850 MHz to 1990 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1475-R 1920 MHz to 1980 MHz and 2110 MHz to 2170 MHz, SMA(m), 50 Ω
2000-1032-R 2400 MHz to 2500 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1361-R 2400 MHz to 2500 MHz, 5000 MHz to 6000 MHz, SMA(m), 50 Ω
2000-1636-R Antenna Kit (Consists of: 2000-1030-R, 2000-1031-R, 2000-1032-R,

2000-1200-R, 2000-1035-R, 2000-1361-R, and carrying pouch)

Page 14 of 16

Site Master™ S331E, S332E, S361E, S362E Specifications

Optional Accessories (continued)

Mag Mount Broadband Antenna

2000-1647-R Cable 1: 698-1200 MHz 2 dBi peak gain, 1700-2700 MHz 5 dBi peak gain,

2000-1645-R 694-894 MHz 3 dBi peak gain, 1700-2700 MHz 3dBi peak gain,

2000-1646-R 750-1250 MHz 3 dBi peak gain, 1650-2000 MHz 5 dBi peak gain,

2000-1648-R 1700-6000 MHz 3 dBi peak gain, N(m), 50 Ω, 10 ft

Filters

1030-114-R 806 MHz to 869 MHz, N(m) to SMA(f), 50 Ω
1030-109-R 824 MHz to 849 MHz, N(m) to SMA(f), 50 Ω
1030-110-R 880 MHz to 915 MHz, N(m) to SMA(f), 50 Ω
1030-105-R 890 MHz to 915 MHz Band, 0.41 dB loss, N(m) to SMA(f), 50 Ω
1030-111-R 1850 MHz to 1910 MHz, N(m) to SMA(f), 50 Ω
1030-106-R 1710 MHz to 1790 MHz Band, 0.34 dB loss, N(m) to SMA(f), 50 Ω
1030-107-R 1910 MHz to 1990 MHz Band, 0.41 dB loss, N(m) to SMA(f), 50 Ω
1030-112-R 2400 MHz to 2484 MHz, N(m) to SMA(f), 50 Ω
1030-149-R High Pass, 150 MHz, N(m) to N(f), 50 Ω
1030-150-R High Pass, 400 MHz, N(m) to N(f), 50 Ω
1030-151-R High Pass, 700 MHz, N(m) to N(f), 50 Ω
1030-152-R Low Pass, 200 MHz, N(m) to N(f), 50 Ω
1030-153-R Low Pass, 550 MHz, N(m) to N(f), 50 Ω
1030-155-R 2500 MHz to 2700 MHz, N(m) to N(f), 50 Ω

Attenuators

3-1010-122 20 dB, 5 W, DC to 12.4 GHz, N(m) to N(f)

42N50-20 20 dB, 5 W, DC to 18 GHz, N(m) to N(f)

42N50A-30 30 dB, 50 W, DC to 18 GHz, N(m) to N(f)
3-1010-123 30 dB, 50 W, DC to 8.5 GHz, N(m) to N(f)
1010-127-R 30 dB, 150 W, DC to 3 GHz, N(m) to N(f)
3-1010-124 40 dB, 100 W, DC to 8.5 GHz, N(m) to N(f), Uni-directional

1010-121 40 dB, 100 W, DC to 18 GHz, N(m) to N(f), Uni-directional

1010-128-R 40 dB, 150 W, DC to 3 GHz, N(m) to N(f)

N(m), 50 Ω, 10 ft
Cable 2: 3000-6000 MHz 5 dBi peak gain, N(m), 50 Ω, 10 ft
Cable 3: GPS 26 db gain, SMA(m), 50 Ω, 10 ft

N(m), 50 Ω, 10 ft

2100-2700 MHz 3 dBi peak gain, N(m), 50 Ω, 10 ft

Page 15 of 16

The Master Users Group is an organization dedicated to providing training, technical support, networking opportunities
and links to Master product development teams. As a member you will receive the Insite Quarterly Newsletter with user
stories, measurement tips, new product news and more.

Visit us to register today: www.anritsu.us/smiusignup

To receive a quote to purchase a product or order accessories visit our online ordering site: www.ShopAnritsu.com

Training at Anritsu

Anritsu has designed courses to help you stay up to date with technologies important to your job.
For available training courses visit: www.anritsu.com/training

Anritsu Corporation

5-1-1 Onna, Atsugi-shi, Kanagawa, 243-8555 Japan
Phone: [phone]
Fax: [phone]

• U.S.A.
Anritsu Company

1155 East Collins Boulevard, Suite 100,
Richardson, TX, 75081 U.S.A.
Toll Free: 1-800-ANRITSU (267-4878)
Phone: [phone]
Fax: [phone]

• Canada
Anritsu Electronics Ltd.

700 Silver Seven Road, Suite 120, Kanata,
Ontario K2V 1C3, Canada
Phone: [phone]
Fax: [phone]

• Brazil
Anritsu Electrônica Ltda.

Praça Amadeu Amaral, 27 - 1 Andar
01327-010 - Bela Vista - São Paulo - SP - Brasil
Phone: [phone]
Fax: [phone]

• Mexico
Anritsu Company, S.A. de C.V.

Av. Ejército Nacional No. 579 Piso 9, Col. Granada
11520 México, D.F., México
Phone: [phone]
Fax: [phone]

• U.K.
Anritsu EMEA Ltd.

200 Capability Green, Luton, Bedfordshire LU1 3LU, U.K.
Phone: [phone]
Fax: [phone]

• France
Anritsu S.A.

12 Avenue du Québec,
Bâtiment Iris 1-Silic 638,
91140 VILLEBON SUR YVETTE, France
Phone: [phone]
Fax: [phone]

• Germany
Anritsu GmbH

Nemetschek Haus, Konrad-Zuse-Platz 1
81829 München, Germany
Phone: [phone]
Fax: [phone]

® Anritsu All trademarks are registered trademarks of

their respective companies. Data subject to change
without notice. For the most recent specifications visit:
www.anritsu.com

• Italy
Anritsu S.p.A.

Via Elio Vittorini, 129, 00144 Roma, Italy
Phone: [phone]
Fax: [phone]

• Sweden
Anritsu AB

Borgafjordsgatan 13, 164 40 KISTA, Sweden
Phone: [phone]
Fax: [phone]

• Finland
Anritsu AB

Teknobulevardi 3-5, FI-01530 VANTAA, Finland
Phone: [phone]
Fax: [phone]

• Denmark
Anritsu A/S (for Service Assurance)
Anritsu AB (for Test & Measurement)

Kirkebjerg Allé 90 DK-2605 Brøndby, Denmark
Phone: [phone]
Fax: [phone]

• Russia
Anritsu EMEA Ltd.

Representation Office in Russia

Tverskaya str. 16/2, bld. 1, 7th floor.
Russia, 125009, Moscow
Phone: [phone]
Fax: [phone]

• United Arab Emirates
Anritsu EMEA Ltd.
Dubai Liaison Office

P O Box 500413 - Dubai Internet City
Al Thuraya Building, Tower 1, Suite 701, 7th Floor
Dubai, United Arab Emirates
Phone: [phone]
Fax: [phone]

• Singapore
Anritsu Pte. Ltd.

60 Alexandra Terrace, #02-08, The Comtech (Lobby A)
Singapore 118502
Phone: [phone]
Fax: [phone]

• India
Anritsu Pte. Ltd.
India Branch Office

3rd Floor, Shri Lakshminarayan Niwas, #2726, 80 ft Road,
HAL 3rd Stage, Bangalore - 560 075, India
Phone: [phone]
Fax: [phone]

• P. R. China (Hong Kong)
Anritsu Company Ltd.

Units 4 & 5, 28th Floor, Greenfield Tower, Concordia Plaza,
No. 1 Science Museum Road, Tsim Sha Tsui East,
Kowloon, Hong Kong, P.R. China
Phone: [phone]
Fax: [phone]

• P. R. China (Beijing)
Anritsu Company Ltd.
Beijing Representative Office

Room 2008, Beijing Fortune Building,
No. 5 , Dong-San-Huan Bei Road,
Chao-Yang District, Beijing 100004, P.R. China
Phone: [phone]
Fax: [phone]

• Korea
Anritsu Corporation, Ltd.

8F Hyunjuk Bldg. 832-41, Yeoksam-Dong,
Kangnam-ku, Seoul, 135-080, Korea
Phone: [phone]
Fax: [phone]

• Australia
Anritsu Pty Ltd.

Unit 21/270 Ferntree Gully Road, Notting Hill
Victoria, 3168, Australia
Phone: [phone]
Fax: [phone]

• Taiwan
Anritsu Company Inc.

7F, No. 316, Sec. 1, Neihu Rd., Taipei 114, Taiwan
Phone: [phone]
Fax: [phone]

11410-00484, Rev. F Printed in United States 2011-01

©2011 Anritsu Company. All Rights Reserved.
