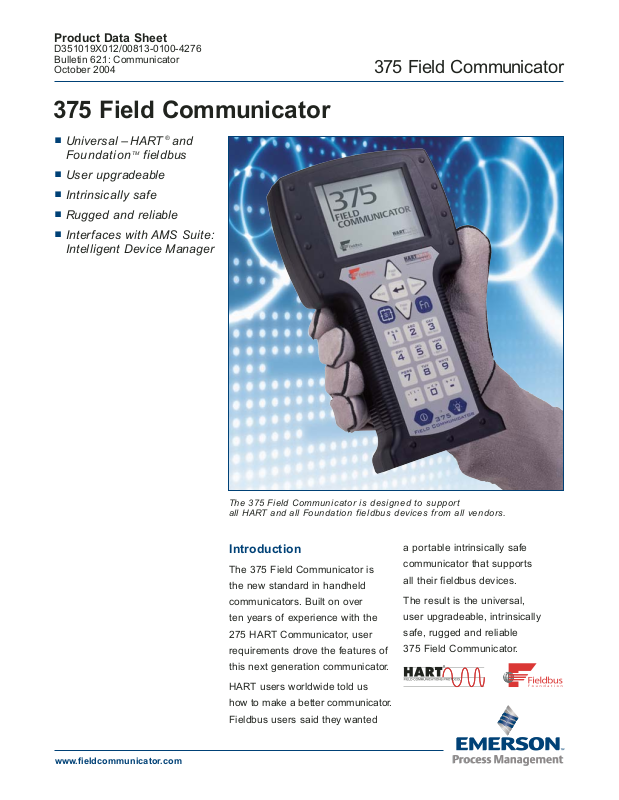

375 Field Communicator
Product Data Sheet
D351019X012/00813-0100-4276
Bulletin 62.1: Communicator
October 2004
■
Universal – HART®and
Foundation
TM
fieldbus
■
User upgradeable
■
Intrinsically safe
■
Rugged and reliable
■
Interfaces with AMS Suite:
Intelligent Device Manager
a portable intrinsically safe
communicator that supports
all their fieldbus devices.
The result is the universal,
user upgradeable, intrinsically
safe, rugged and reliable
375 Field Communicator.
Introduction
The 375 Field Communicator is
the new standard in handheld
communicators. Built on over
ten years of experience with the
275 HART Communicator, user
requirements drove the features of
this next generation communicator.
HART users worldwide told us
how to make a better communicator.
Fieldbus users said they wanted
375 Field Communicator
www.fieldcommunicator.com
The 375 Field Communicator is designed to support
all HART and all Foundation fieldbus devices from all vendors.
Page 2
Product Data Sheet
December 2003
Product Description
Building on the experience with the
proven 275 HART Communicator,
the 375 Field Communicator
includes enhancements designed
to simplify your work in the field.
We designed the 375 Field
Communicator user interface
around the 275, leveraging the
navigation features users told us
they liked. Then we added powerful
features including a much larger
touch screen, HART Revision 6
support, and the ability to upgrade
your 375 Field Communicator
onsite using the Internet.
■ See the difference.
The 375 Field Communicator runs
on Windows CE, a robust, real-time,
operating system. The display is
70% larger than that of the 275
HART Communicator and uses
transflective technology, making it
easy to read in both bright sunlight
and in normal lighting. To make sure
we covered all conditions, we added
a multi-level backlight, allowing the
display to be viewed in those areas
of your plant with dim light. The
touch sensitive display and large
physical navigation buttons provide
for efficient use both on the bench
and in the field.
We made sure that the weight was
evenly distributed for comfortable
one-handed operation in the field.
■ It is loaded!
The 375 Field Communicator has
a processor that is 20 times faster
than the 275. It features 32MB of
application memory, 64 times more
than the 275 HART Communicator.
The Configuration Expansion
Module holds hundreds of device
configurations, and it is externally
accessible. Enhancements in the
battery pack allow a full recharge
in 2 hours, 8 times faster than the
275 HART Communicator.
■ Easy Upgrade keeps your
communicator current.
If that’s not enough to get
your attention, the 375 Field
Communicator is also user
upgradeable via the Internet.
This means it is no longer
necessary to send your
communicator anywhere to
have new device drivers added.
A fold-away stand provides the correct viewing angle on the bench,
and flips up to a locked position for secure hanging in the plant.
375 Field Communicator
With over 600 different HART and
Foundation fieldbus devices from
more than 100 different vendors,
having a single field communicator
that works with everything is a big
help. So, grab the 375 Field
Communicator and go!
Page 3
■
Universal – HART and
Foundation fieldbus
The 375 Field Communicator is
designed to support all HART
and Foundation fieldbus devices.
If you are familiar with the 275
HART Communicator, used in
thousands of plants worldwide
for more than ten years, you will
appreciate universal HART
support in a single intrinsically
safe handheld communicator.
The 375 Field Communicator
can also be used to configure all
the Foundation fieldbus devices
in your plant. Use it to perform
diagnostics for effective start-up
and troubleshooting of Foundation
fieldbus segments. Create a quality
segment by diagnosing the network
DC voltage and average noise.
Detect power supply problems
by monitoring low frequency noise
on a segment. Locate incorrect
terminations and faulty devices by
diagnosing the communications
signal level. No longer do you need
to drag a laptop computer out into
the plant to communicate with your
Foundation fieldbus devices.
Designed not only for use on the bench, the 375 Field Communicator
enables you to do those tasks that just have to be done in the field.
Product Data Sheet
December 2003
375 Field Communicator
As new HART and Foundation
fieldbus DD’s become available,
download them from the Internet
and upgrade your 375 Field
Communicator.
In addition, as functional
enhancements to the 375
HART and Foundation fieldbus
applications become available,
download software updates from
the Internet and upgrade your
375 Field Communicator. No
longer is it necessary to send
your communicator to a service
center to have new DD’s or
software updates added.
No longer is it necessary to
be without your communicator
while you wait for upgrades.
Easy Upgrade lets you update
your own 375 Field Communicator.
On your site, within your control,
when it’s convenient for you.
■ User upgradeable
New HART and Foundation fieldbus
devices, as well as functional
updates to existing devices are
introduced continually by device
vendors. Keeping up-to-date with
the required Device Description
drivers for all the devices in your
plant can be a real challenge. Now,
with the Easy Upgrade option,
keeping your communicator
updated with the most current
Device Descriptions (DD’s) is easy.
Page 4
Easy Upgrade allows communication between the 375 Field Communicator and a PC using IrDA.
The IrDA port enables transfer of configuration data between the 375 and AMS Device Manager
as well as upgrading of new Device Descriptions and functionality.
Product Data Sheet
December 2003
375 Field Communicator
As for reliable, when was the last
time you had to send your 275
HART Communicator in for repair?
That’s exactly the kind of reliability
we’ve built into the 375. The 375
Field Communicator is designed,
manufactured and tested to
specifications that are even
more demanding. The 375
Field Communicator is designed
to go wherever you have to go
to get the job done.
Even the battery pack is approved
for installation in hazardous areas.
The 375 Field Communicator is
designed for use in areas where
laptops shouldn’t go.
■ Rugged and Reliable.
It’s called ‘Field Communicator’ for
a reason. Some tasks just have to
be performed at the device. The
375 Field Communicator is designed
for tough use in your plant or mill.
Its large keys and physical
navigation buttons allow for one-
handed operation, even with your
work gloves on. The rugged display
is designed to take the knocks and
shocks from normal use in the plant.
■ Intrinsically Safe.
The 375 Field Communicator meets
the Intrinsic Safety requirements
of the listed regulatory agencies
and standards. All of the available
Hazardous Locations approvals
are provided in a single model
option (see Ordering Information).
– CENELEC/ATEX
– Factory Mutual (FM)
–
Canadian Standards Association (CSA)
– FISCO
Page 5
Specifications
Processor and Memory
Specifications
Microprocessor
■
80 MHz Hitachi®SH3
Memory Internal Flash
■
32 MB
System Card
■
128 MB or higher secure digital card
RAM
■
32 MB
Expansion Module
■
32 MB or higher secure digital card
PHYSICAL Specifications
Weight
■
Approximately 2 lb. (0.9kg) with battery
Display
■
1/4 VGA (240 by 320 pixels)
monochrome 3.8” (9.6 cm) transflective
display with touch screen
■
Anti-glare coated
Keypad
■
25 keys including 4 action keys,
12 alphanumeric keys, 4 programmable
function keys, on/off, and 4 cursor-control
(arrow) keys; membrane design with
tactile feedback
ENVIRONMENTAL Specifications
Usage
■
-10° C (14° F ) to +50° C (122° F )
■
0% to 95% RH (non-condensing)
for 0° C (32° F ) to +50° C (122° F )
Charge
■
0° C (32° F) to +40° C (104° F )
Storage
■
-20° C (-4° F) to +55° C (131° F)
with batteries
Storage Without Batteries
■
-20° C (-4° F) to +60° C (140° F )
Enclosure Rating
■
IP51 (from front)
Shock
■
Tested to survive a 1-meter
drop test onto concrete
EASY UPGRADE REQUIREMENTS
Usage
■
PC with internet access
■
CD Rom drive
■
IrDA port (or adapter)
■
Windows 2000 or XP
POWER SUPPLY Specifications
Battery Pack
■
Rechargeable NiMH batteries
Battery Operating Time
■
Up to ten hours depending on usage
Battery Charger Options
■
Input voltage 85-240 VAC, 50/60 Hz
■
Cables included with U.S., European
and U.K. plugsONNECTION
CONNECTION Specifications
Battery Charger
■
Mini DIN 4-pin jack
HART and Fieldbus
■
Three 4mm banana plugs (one common
to HART and Foundation fieldbus)
IrDA Port
■
IrDA (Infrared Data Access) port
supporting up to 115 Kbps
■
±15 degrees recommended maximum
angle from center line
■
Approximately 12” (30 cm)
recommended maximum distance
Product Data Sheet
December 2003
375 Field Communicator
Page 6
■
Interfaces with AMS Suite:
Intelligent Device Manager.
The 375 Field Communicator is
fully compatible with AMS Device
Manager, the industry standard
for asset management software.
In fact, Control Magazine readers
selected AMS as the #1 Calibration
Software package for 3 years in a row.
AMS Device Manager allows you
to configure, streamline calibration,
document and troubleshoot HART
and Foundation fieldbus devices.
of device configurations safely in
your 375 Field Communicator.
Together, the 375 Field
Communicator and AMS Device
Manager enable you to more
efficiently manage all of your
devices, the assets that are the
foundation of your process.
The Configuration Expansion
Module safely stores hundreds
of device configurations.
AMS Device Manager uses the
intelligence from field devices to
create a predictive maintenance
environment.
Transfer device configuration
data via the infrared port on the
375 Field Communicator and AMS
Device Manager on your PC.Carry
your 375 Field Communicator out
to the field to configure or update
one or many devices. Save device
configurations in your 375 Field
Communicator for safe storage or
transfer to AMS Device Manager.
The optional Configuration
Expansion Module stores hundreds
The Configuration Expansion
Module safely stores hundreds
of device configurations.
Product Data Sheet
December 2003
375 Field Communicator
375 Field Communicator Spare Parts List
Description Part Number
Ruggedized 250 Ohm Load Resistor 00275-0096-0001
Rechargeable NiMH Battery Pack with Accessory Case 00375-0002-0011
Power Supply/Charger
(90-240 VAC, 50/60Hz, US/UK/EU connection types included) 00375-0003-0011
Lead Set with connectors 00375-0004-0001
Mounting Straps 00375-0005-0002
Carrying Case (with straps) 00375-0005-0003
Accessory Case (clips to Carrying Case) 00375-0005-0004
Stylus (pack of 5) 00375-0006-0001
IRDA to USB Adapter (1) 00375-0015-0002
Expansion Port Plug 00375-0031-0001
System Card - HART
®
and FOUNDATION™ fieldbus 00375-0042-0002
System Card - HART with Easy Upgrade Option (2) 00375-0042-0003
System Card - HART and Foundation fieldbus
with Easy Upgrade Option (2) 00375-0042-0004
Configuration Expansion Module 00375-0043-0001
Stand and Utility Plate 00375-0044-0001
Getting Started Guide 00375-0045-0001
User's Manual 00375-0047-0001
Resource CD (3) 00375-0049-0001
(1) For use with AMS Device Manager/375 Interface or 375 Easy Upgrade Programming Utility.
(2) Includes unlimited upgrades to System Card for 3 year period.
(3) Contains 375 Programming Utility and System Software/DD database.
This CD is updated quarterly.
Shipping Weight (varies with options)
71 lbs/3.2 kg (based on 375HR1EKLU)
Page 7
Product Data Sheet
December 2003
375 Field Communicator
375 Field Communicator Ordering Information
Model Product Description
375 Field Communicator (1)
Code Communication Protocol
H HART
®
F HART and Foundation fieldbus (2)
Code Battery Type
R Rechargeable NiMH Battery Pack
Code Power Supply/Recharger
1 Power Supply/Recharger
(90/240 VAC, 50/60Hz, US/UK/EU connection types included)
9 Not included
Code Language
E English (standard)
Code Approval Certifications
KL CENELEC/ATEX, FM, CSA Intrinsically Safe
(includes FISCO as applicable)
NA No Approval
Code Easy Upgrade (4)
U Easy Upgrade Option
(includes unlimited upgrades to System Card for 3 year period)
9 Not Included
Code Options
Spare Battery Pack
B Spare Rechargeable NiMH Battery Pack (5)
Expansion Module
C Configuration Expansion Module (6)
Typical Model Number: 375 H R 1 E KL U
(1) Base Model 375 includes Field Communicator Unit with Battery Pack,
System Card, Leadset with Connectors, Carrying Case, Getting Started Guide,
User’s Manual, 375 Resource CD, Stylus and Straps.
(2) Requires that the Easy Upgrade Option (CODE U) also be purchased.
(3) This option should only be considered if the user already has a 375 Power
Supply/Charger. Note: Only 375 Power Supply/Chargers may be used
with the 375 Battery Pack.
(4) The Easy Upgrade capability allows the user to add new System Application
software and Device Descriptions (DD’s) to the 375. To upgrade without this
feature, the System Card must be sent a Service Center.
(5) A fully charged battery pack is capable of delivering power for 8 hours
of typical field use. If requirements exceed this specification, a second
battery pack is recommended.
(6) The 375 is capable of storing a total of 25 configurations. For increased
storage capacity, use the Configuration Expansion Module which is capable
of storing in excess of 500 configurations.
www.fieldcommunicator.com
©2004, Emerson Process Management.
The contents of this publication are presented for informational purposes only, and while every effort
has been made to ensure their accuracy, they are not to be construed as warranties or guarantees,
express or implied, regarding the products or services described herein or their use or applicability.
All sales are governed by our terms and conditions, which are available on request. We reserve the
right to modify or improve the designs or specifications of our products at any time without notice.
All rights reserved. AMS is a mark of one of the Emerson Process Management group of companies.
The Emerson logo is a trademark and service mark of Emerson Electric Company.
All other marks are the property of their respective owners.
Emerson Process Management
Asset Optimization Division
12001 Technology Drive
Eden Prairie, MN 55344 USA
T 1(512) 832-3235
F 1(952) 828-3033
Product Data Sheet
October 2004
375 Field Communicator
Loading...
