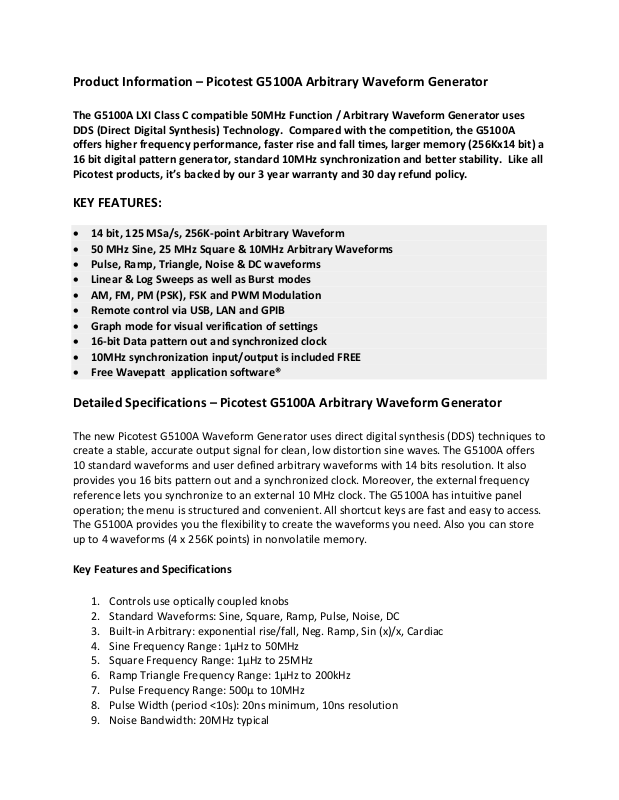

Product Information – Picotest G5100A Arbitrary Waveform Generator
The G5100A LXI Class C compatible 50MHz Function / Arbitrary Waveform Generator uses
DDS (Direct Digital Synthesis) Technology. Compared with the competition, the G5100A
offers higher frequency performance, faster rise and fall times, larger memory (256Kx14 bit) a
16 bit digital pattern generator, standard 10MHz synchronization and better stability. Like all
Picotest products, it’s backed by our 3 year warranty and 30 day refund policy.
The new Picotest G5100A Waveform Generator uses direct digital synthesis (DDS) techniques to
create a stable, accurate output signal for clean, low distortion sine waves. The G5100A offers
10 standard waveforms and user defined arbitrary waveforms with 14 bits resolution. It also
provides you 16 bits pattern out and a synchronized clock. Moreover, the external frequency
reference lets you synchronize to an external 10 MHz clock. The G5100A has intuitive panel
operation; the menu is structured and convenient. All shortcut keys are fast and easy to access.
The G5100A provides you the flexibility to create the waveforms you need. Also you can store
up to 4 waveforms (4 x 256K points) in nonvolatile memory.
Key Features and Specifications
1. Controls use optically coupled knobs
2. Standard Waveforms: Sine, Square, Ramp, Pulse, Noise, DC
3. Built-in Arbitrary: exponential rise/fall, Neg. Ramp, Sin (x)/x, Cardiac
• Internal modulations of AM, FM, PM (PSK), FSK & PWM for waveform adjustment.
• Built-in linear and logarithmic sweeps from 1ms to 500 s.
• The burst mode has a selectable number of cycles per period of time.
• Using remote control via USB, LAN and GPIB interface.
• The programmability by SCPI commands under the remote control connection.
• Precise phase adjustments and calibrations can be done from the front panel or via a PC.
User Friendly Operation
The front-panel operation of G5100A is simple and user friendly. Users can enter all functions
with a single key or two, and use knob or numeric keypad to adjust frequency, amplitude, offset
and other parameters. Otherwise, users can also directly input voltage values in Vpp, Vrms,
dBm or high & low levels. Timing parameters can be entered in Hertz (Hz) or second.
Users can easily use the following functions.
Functions and Waveforms
The Picotest G5100A 50 MHz Function / Arbitrary Waveform Generator can create stable,
precise, clean and low distortion sine waves by using DDS (Direct Digital Synthesis) Technology.
With fast rise and fall times up to 25 MHz for square waves and 200 KHz for linear ramp waves,
the G5100A also can reach users demand on waveforms. It can also generate variable-edgetime pulses up to 10 MHz. With variable period, pulse width and amplitude the G5100A is
perfectly suited to applications requiring a flexible pulse signal.
Pulse Generation
If a unique Waveform is needed, the G5100-A can generate variable-edge-time pulses up to 10
MHz. With variable period, pulse width and amplitude the G5100A is perfectly suited to
applications requiring a flexible pulse signal.
Custom Waveform Generation
The G5100A can generate complex custom waveforms. With 14-bit resolution and a 125 MSa/s
sampling rate, the G5100A gives users the flexibility to create waveforms. It also allows users to
store up to 5 waveforms, 4 (4 x 256k Points) in nonvolatile memory and 1 in volatile memory.
The G5100A’s Waveform Editor Software allows users to create, edit and download complex
waveform. In addition, by using the software, users can retrieve waveforms from Agilent MSO
8104 oscilloscope.
Support External Freq. Synchronization
The G5100A’s external frequency reference allows users to synchronize an external 10MHz
clock to another G5100A, or to any other unit which can support 10MHz frequency-input
function.
Data Transmission via Pattern Out
The WavePatt software adheres to the waveform editor. It allows users to create and store 16bit data in the G5100A’s nonvolatile or volatile memory. Then, according to application
purposes, users can transmit data via Pattern Out, located in the rear panel.
Specifications
Display
Graph mode for visual verification of signal set tings
Capability
Standard
waveforms
Exponential Rise and Fal l, Negative Ramp, Sin(x)/x,
Cardiac
Waveform Characteristics
Frequency
1 µHz to 50 MH z
0.1dB(<100 KH z)
0.15dB(<5 MHz)
0.3dB(<20 MHz)
0.5dB(<50 MHz)
DC to 20 KHz
-70 (< 1Vpp) -70 (≥ 1Vpp)
20 KHz to 100 KHz
-65 (< 1Vpp) -60 (≥ 1Vpp)
100 KHz to 1 MHz
-50 (< 1Vpp) -45 (≥ 1Vpp)
1 MHz to 20 M Hz
-40 (< 1Vpp) -35(≥ 1Vpp)
20 MHz to 50 MHz
-35 (< 1Vpp) -30(≥ 1Vpp)
Total Har mo nic
Distortion
DC to 20 KHz, Output ≥ 0.5
Vpp
DC to 1 MHz
-70 dBc
1 MHz to 50 M Hz
-70 dBc + 6 dB/Octave
Phase Noise
(10K Offset)
When F ≥ 1 MHz, V ≥ 0.1
Vpp
Frequency
1 µHz to 25 MH z
Rise/Fall Time
< 10ns
Overshoot
< 2%
20% to 80% (to 10 MHz)
40% to 60% (to 25 MHz)
Asymmetry
1% of peri od + 5ns (@ 50% duty)
Sine, Squar e, Ramp, Triangle, Pul se, Noise, DC
Built-in Arbitrary
Sine
Amplitude
Flatness
1,2
(Relative to 1
KHz)
Harmonic
Distortion
2,3
(unit: dBc)
2,3
Spurious
2,4
(non-harmonic)
THD+N ≤ 0.06%
Square
Variable Duty
Cycle
-115/dBC/Hz, Typi cal
When F ≥ 1MHz, V ≥ 0.1
Vpp
Ramp,
Frequency
1 µHz to 200 KHz
Linearity
< 0.1% of pea k output
Symmetry
0.0% ~ 100.0%
Frequency
500 µHz to 10 MHz
20 ns minimum
10 ns res. (period ≤ 10s)
Variable Edge
Time
Overshoot
< 2%
200 ps
When F ≥ 50 KHz, V ≥ 0.1 Vpp
Noise
Bandwidth
20 MHz Ty pical
Frequency
1 µHz to 10 MH z
Length
2 to 256K
Resolution
14 bits (including si gn)
Sample Rate
125 MSa/s
Min
Rise/Fall Time
Linearity
<0.1% of pea k output
Settling Time
<250ns to 0.5% of final value
Jitter (RMS)
6ns + 30ppm
Non-Volatile
Memory
Common Characteristic
Frequency
Resolution
1uHz
10mVpp to 10Vpp in 50Ω
20mVpp to 20Vpp in Hi-Z
Accuracy
1,2
(at 1KHz)
Triangle
Jitter (RMS) 200 ps
Pulse wi dth
Pulse
Arbitrary
< 10 ns to 100 ns
Jitter (RMS)
30ns typical
Amplitude
4 wavefor ms * 256K Points
Range
±1% of setting ± 1mVp p
Units
Vpp, Vrms, dBm
Resolution
4 digits
Range
±5V in 50Ω
±10V in Hi-Z
±2% of offset setting
±0.5% of a mplitude setting
Resolution
4 digits
Impedance
50 Ω typical
Isolation
42 Vpk maximum to earth
short-ci rcuit prot ected;
output
±10ppm in 90 days
±20ppm in 1 y ear
External
reference
External
Lock Range
10 MHz ± 500 Hz
Level
100mVpp ~5Vpp
Impedance
1KΩ typical, AC coupled
Lock Ti me
< 2 Sec
Lock Range
10 MHz
Level
632mVpp (0dBm), typical
Impedance
50Ω typical, AC coupled
Range
-360º to +360º
Resolution
0.001º
Accuracy
8ns
Modulation
Modulation
Type
AM
Carrier
Sine, Squar e, Ramp, Arb
(Peak AC +DC)
DC Offset
Accuracy
1,2
Main Output
Protection
Inter nal Frequency reference
Accuracy
Frequency
5
Standard
/Option
Frequency
Input
overload a utomatically disables main
Standard
External
Frequency
Output
Phase Offset
AM, FM, PM , FSK, PWM, Sweep and Burst
Source
Internal / external
Internal
Modulation
Sine, Squar e, Ramp, Triangle, Noi se, Arb
Frequency
(Internal)
Depth
0.0% ~ 120.0%
Carrier
Sine, Squar e, Ramp, Arb
Source
Internal / external
Modulation
Frequency
(Internal)
Deviation
DC ~ 25MHz
Carrier
Sine, Squar e, Ramp, Arb
Source
Internal / external
Modulation
Frequency
(Internal)
Deviation
0.0º to 360º
Carrier
Pulse
Source
Internal / external
Modulation
Frequency
(Internal)
Deviation
0% ~ 100% of pulse width
Carrier
Sine, Squar e, Ramp, Arb
Source
Internal / external
Internal
Modulation
Frequency
(Internal)
2mHz to 20KHz
FM
PM
PWM
Internal
Internal
Internal
Sine, Squar e, Ramp, Triangle, Noi se, Arb
2mHz to 20KHz
Sine, Squar e, Ramp, Triangle, Noi se, Arb
2mHz to 20KHz
Sine, Squar e, Ramp, Triangle, Noi se, Arb
FSK
2mHz to 20KHz
50% duty cycle Square
2mHz to 100KH z
External
Voltage Range
±5V full scale
Input Resistance
8.7KΩ typical
Bandwidth
DC to 20KHz
Waveforms
Sine, Squar e, Ramp, Arb
Type
Linear or logarithmic
Direction
up or down
Sweep Time
1 ms ~ 500 Sec
Trigger
Internal , External or Manual
(progra m ma ble frequency)
Waveforms
Sine, Squar e, Ramp, Triangle, Noi se, Arb
Type
Internal / external
Start/Stop Phase
-360º to +360º
Internal Period
1uS ~ 500Sec
Gated Source
External trigger
Trigger S ource
Internal , External or Manual
Level
TTL compatible
Slope
Rising or Falling (Selectable)
Pulse wi dth
> 100 ns
Impedance
> 10KΩ, DC coupled
Latency
< 500 ns
Level
TTL compatible into ≥ 1 KΩ
Pulse wi dth
> 400 ns
Output
Impedance
Maximum rate
1MHz
Fan-out
≤ 4 Picotest G5100As
Pattern Mode CHARACTERISTIC
Clock
Maximum rate
50MHz
Output
Level
TTL compatible into ≥ 2 KΩ
Modulation
Input
6
SWEEP
BURST
7
Trigger Input
Marker
falling edge of sync signal
Trigger
Output
50 Ω typical
Output
Impedance
110 Ω typical
Pattern
Length
2 to 256 K
1
Add 1/10th of output amplitude and offset spec per ºC for operation outside the range of
18 ºC to 28ºC.
2
Autorange enabled.
3
DC offset set to 0V.
4
Spurious output at low amplitude is -75 dBm typical.
5
Add 1 ppm/ ºC average for operation outside the range of 18 ºC to 28 ºC.
6
FSK uses trigger input (1 MHz maximum).
7
Sine and square waveforms above 10 MHz are allowed only with an “infinite” burst count.
Specifications are subject to change without notice.
All other trademarks and trade names are the property of their respective companies.
