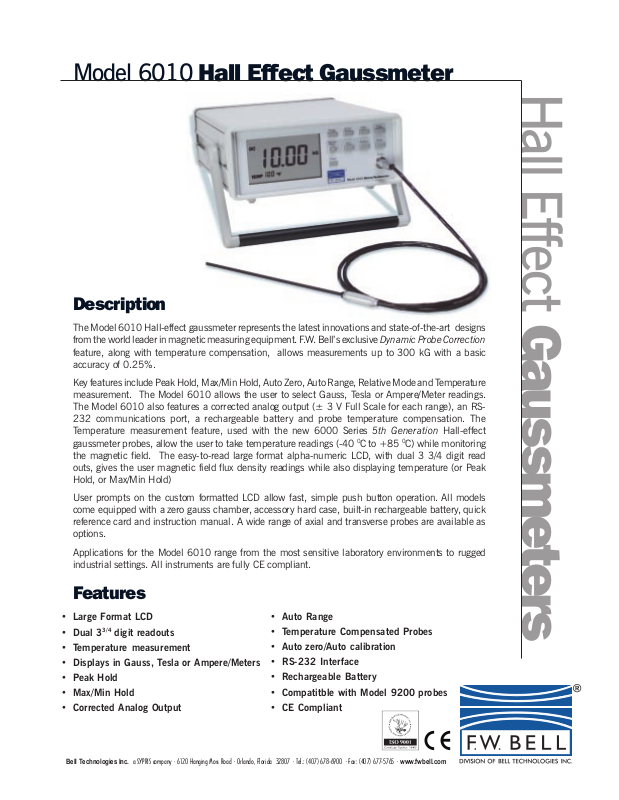

Model 6010 Hall Effect Gaussmeter

Description

The Model 6010 Hall-effect gaussmeter represents the latest innovations and state-of-the-art designs
from the world leader in magnetic measuring equipment. F.W. Bells exclusive Dynamic Probe Correction
feature, along with temperature compensation, allows measurements up to 300 kG with a basic
accuracy of 0.25%.

Hall Effect Gaussmeters

Key features include Peak Hold, Max/Min Hold, Auto Zero, Auto Range, Relative Mode and Temperature
measurement. The Model 6010 allows the user to select Gauss, Tesla or Ampere/Meter readings.
The Model 6010 also features a corrected analog output (± 3 V Full Scale for each range), an RS­232 communications port, a rechargeable battery and probe temperature compensation. The
Temperature measurement feature, used with the new 6000 Series 5th Generation Hall-effect
gaussmeter probes, allow the user to take temperature readings (-400C to +850C) while monitoring
the magnetic field. The easy-to-read large format alpha-numeric LCD, with dual 3 3/4 digit read
outs, gives the user magnetic field flux density readings while also displaying temperature (or Peak
Hold, or Max/Min Hold)

User prompts on the custom formatted LCD allow fast, simple push button operation. All models
come equipped with a zero gauss chamber, accessory hard case, built-in rechargeable battery, quick
reference card and instruction manual. A wide range of axial and transverse probes are available as
options.

Applications for the Model 6010 range from the most sensitive laboratory environments to rugged
industrial settings. All instruments are fully CE compliant.

Features

 Large Format LCD

 Dual 3

 Temperature measurement

 Displays in Gauss, Tesla or Ampere/Meters

 Peak Hold

 Max/Min Hold

 Corrected Analog Output

3/4

digit readouts

 Auto Range

 Temperature Compensated Probes

 Auto zero/Auto calibration

 RS-232 Interface

 Rechargeable Battery

 Compatitble with Model 9200 probes

 CE Compliant

Bell Technologies Inc. a SYPRIS company • 6120 Hanging Moss Road • Orlando, Florida 32807 • Tel.: [phone] • Fax: [phone] • www.fwbell.com

Model 6010 Specifications

Specification
Measuring Range*
Ranges

1 mG (0.1mT) to 300 kG (30T)

300 mG (300mT) 3 kG (300 mT)
30 G (3 mT) 30 kG (3 T)
300 G (30 mT) 300 kG (30 T)

Hall Effect Gaussmeters

Resolution
Accuracy (displayed reading)

dc:

ac:

Frequency Response
Display

Measuring Units
Analog Output (Corrected)

Output Voltage
Accuracy

dc
ac

Noise

Temperature Measurement

Note: * =available ranges depend on probe type.

% of Reading

±

0.25 3

1.0 3

Large alpha numeric LCD with

1 mG (0.1mT)

dc 20 kHz

Dual 3 ¾ digit read out

Gauss, Tesla, Ampere/Meters

3.0 V FS (for each range)

±

1% of reading
2% of reading

4 mVrms

40°C to +85°C

General Information

Specification
Temperature Range

Operating
Storage

Front Panel Display

Viewing area

Dual 3 ¾ digit, alphanumeric LCD

4.1 (10.4 cm) x 2.5 (6.35 cm)

Communication Ports

RS 232 RS 232, Full Duplex

Power

Input Voltage
Frequency

Internal Battery

Life (time between charges)

Connectors

Probe
Analog Output
RS 232

Probes

Types
Compatibility

Size

Adapters to be available for Model 9200 gaussmeter probes

Standard and temperature compensated

10 (25.4 cm) W, 4.5 (11.43 cm) H (w feet),

Weight (maximum)

Net
Shipping

Software

0°C to +50°C

20°C to +70°C

90 Vac to 240 Vac

Rechargeable, Sealed Lead Acid

8 Hours (typical)

Circular (Front Panel)

BNC (Rear Panel)

DB 9 (Rear Panel)

12.5 (31.75 cm) D

8.8 lb. (4.0 kg)

13.7 lb. (6.2 kg)
LabView Driver

50/60 Hz

Number of Counts

±

Due to continuous process improvement, specifications subject to change without notice.
