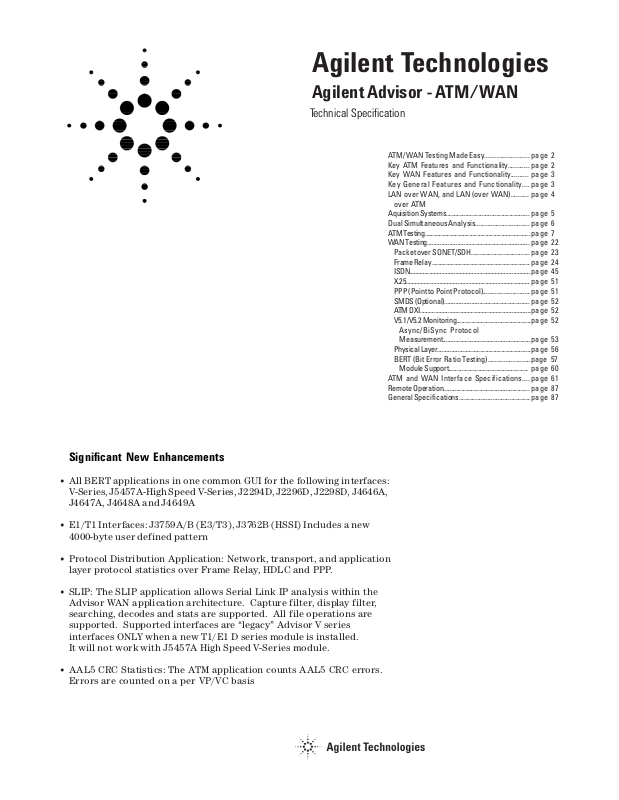

Agilent Technologies

Agilent Advisor - ATM/WAN

Technical Specification

ATM/WAN Tes ting Made Easy......................... page 2

Key ATM Features and Functionality............ page 2

Key WAN Features and Functionality.......... page 3

Key General Features and Functionality.... page 3

LAN over WAN, and LAN (over WAN).......... page 4

over ATM

Aquisition Systems................................................... page 5

Dual Simultaneous Analysis............................... page 6

ATM Testing.................................................................. page 7

WAN Testing................................................................ page 22

Packet over SONET/SDH.................................. page 23

Frame Relay ............................................................. page 24

ISDN...............................................................................page 45

X.25................................................................................. page 51

PPP (Point to Point Protocol)........................... page 51

SMDS (Optional)..................................................... page 52

ATM DXI....................................................................... page 52

V5.1/V5.2 Monitoring.............................................page 52

Async/BiSync Protocol

Measurement......................................................page 53

Physical Layer.......................................................... page 56

BERT (Bit Error Ratio Testing)........................page 57

Module Support................................................ page 60

ATM and WAN Interface Specifications.... page 61

Remote Operation.................................................... page 87

General Specifications.......................................... page 87

Significant New Enhancements

 All BERT applications in one common GUI for the following interfaces:

V-Series, J5457A-High Speed V-Series, J2294D, J2296D, J2298D, J4646A, J4647A, J4648A and J4649A

 E1/T1 Interfaces: J3759A/B (E3/T3), J3762B (HSSI) Includes a new

4000-byte user defined pattern

 Protocol Distribution Application: Network, transport, and application

layer protocol statistics over Frame Relay, HDLC and PPP.

 SLIP: The SLIP application allows Serial Link IP analysis within the

Advisor WAN application architecture. Capture filter, display filter, searching, decodes and stats are supported. All file operations are supported. Supported interfaces are “legacy” Advisor V series interfaces ONLY when a new T1/E1 D series module is installed. It will not work with J5457A High Speed V-Series module.

 AAL5 CRC Statistics: The ATM application counts AAL5 CRC errors.

Errors are counted on a per VP/VC basis

ATM/WAN Testing Made Easy

To install or troubleshoot an ATM or WAN link, it is necessary to test for many things: physical errors, equipment interoperability, ATM cell congestion, and even LAN traffic problems. The Agilent Advisor offers integrated ATM, WAN, and LAN protocol analysis capabilities, along with bit error ratio testing (BERT), stimulus/response measurements, and statistical analysis capability everything required to get a good look at the physical layer, ATM/MAC layer, and all of the upper protocol layers.

In addition, the Agilent Advisor can test ATM quality of service (QoS) with contract conformant traffic and can check live traffic for conformance to a traffic contract (policing). For Frame Relay, the Agilent Advisor can verify that Service Level Agreements are met.

No matter what the traffic level, the Agilent Advisor will capture every cell or frame on full-duplex network connections. It monitors non-intrusively and decodes ATM or WAN data at full line rate. Further, it can simulate traffic from either direction within a connection. In addition, it can process previously captured data from its capture buffers or from a file for retransmission. The analyzer not only captures traffic when the network is working - it provides information when the network is broken - when it is needed the most.

Key ATM Features and Functionality

The Agilent Advisor provides the following powerful ATM features and functions:

 Handles ATM testing rates from 1.5 Mb/s to 622 Mb/s; ATM Interfaces including

T1/E1, J2, E3/T3, STM-1/OC-3, STM-1e/EC-3, STM-4/OC-12, ATM25 (25.6 Mb/s UTP-3/5) and UTP155 are available as plug-in modules or undercradles

 Auto-discovers up to 1024 Virtual Channels on all ATM interfaces except J2

(up to 4096 on the STM-4/OC-12 interface) and gathers statistics on each

 Analyses protocols including full rate capture with capture and display filtering

and searching (e.g. set the capture filter to capture only ATM streams carrying IP traffic with specific IP addresses)

 Monitors, captures data, and decodes upper and lower layer protocols in real

time

 Decodes and logs statistics for LAN encapsulated protocols over ATM,

including Voice over IP decodes: H.323 series, IETF series (SIP, MGCP, SGCP,

MEGACO), ITU-T T.38  Finds Errors in capture file or buffer  Decodes AAL-1, AAL-2, AAL-3/4, AAL-5  AAL-1 5 CRC statistics  Decodes Frame Relay over ATM  Decodes ATM UNI, NNI (B-ISUP, B-ICI) and PNNI signaling  Decodes IMA Control Protocol (ICP) cells  Real-time and post-processing User Assisted LAN over ATM  Emulates ATM UNI signaling  check call set-up procedures  Emulates ELAN Join (LANE)  Generates user-defined cell traffic from a cell table  Retransmits captured traffic which has been copied and pasted to the cell table,

modified (e.g. VPI-VCI and/or embedded IP addresses changed); the HEC and

AAL-5 CRC-32 are automatically recalculated  Generates ATM ICMP Echo (PING)  Generates and analyses OAM cells  Tests ATM QoS performance to the ITU-T O.191 standard  measures cell loss,

cell delay, cell delay variation, cell misinsertion and cell errors  Generates ATM traffic shaped to traffic contracts  Polices ATM traffic to traffic contracts  Tests simultaneously on two different or similar ATM interfaces  Tests simultaneously with other technologies (e.g. Frame Relay, Ethernet)  Tests physical frame layer and cell layer bit error ratios (BER)  Measures optical power  Pulse amplitude measurement on T1, E1, E3, T3 and STM-1e/EC-3 ATM interfaces

Key WAN Features and Functionality

The Agilent Advisor provides the following powerful wide area network (WAN) features and functions:

 WAN testing speeds from 50 b/s to 155 Mb/s  Packet over SONET/SDH (PoS) analysis (IETF and Cisco)  Built-in all major WAN interfaces into the instrument mainframe, including

V.10/V.11, V.24/V.28/RS-232C, V.35, V.36/RS-449/422/423/530, X.21  V-Series interface support up to 8.192 Mb/s  Interfaces, including ISDN Basic Rate Interfaces (BRI) S/T/U and Primary Rate

Interfaces (PRI), E1/T1 and E3/T3 Cells and Frames, Packet over SONET/SDH

HSSI, DDS 4-wire, and High Speed V-Series (V.35, RS-449 and X.21 to 8.192 Mb/s)

are available as slide-in modules  Full-featured testing capability for all common WAN technologies, including

Frame Relay, PPP (Sync, Async), ISDN, X.25, HDLC, SMDS, SNA, Async,

Bisync, ATM DXI, and more  Monitoring, data capturing, and decoding for upper and lower layer protocols

in real time  Decodes LAN encapsulated protocols over WAN, including Voice over IP

decodes: H.323 series, IETF series (SIP, MGCP, SGCP, MEGACO), ITU-T T.38  Real-time and post-processing User Assisted LAN over Frame Relay and HDLC,

PPP, ATM, DXI capture/display filtering and searching  Find Error in capture file or buffer  Comprehensive bit error ratio testing (BERT)  Asynchronous and Bisynchronous monitor and traffic generation  Frame Relay analysis Voice and Fax over Frame Relay (FRF.11) decodes  Auto LMI detection and decoding for ANSI, ITU-T or original LMI Auto LAN encapsulation over Frame Relay detection for RFC 1490/2427,

Ethertype, FRF3.1, and RFC 2684/1483  Service Level Agreement measurements according to FRF.13  LMI Expert analysis  CIR Measurements in all Frame Relay DLCIs  Tests simultaneously on two WAN interfaces  Tests simultaneously with other technologies (e.g. ATM, Ethernet)  Signal Level measurement on T1, E1, E3, and T3  SLIP Measurement

Key General Features and Functionality

The Agilent Advisor provides the following additional features and functions:

Other technologies covered include 10/100 Ethernet, Gigabit Ethernet, Token

Ring, FDDI, RTP QoS, VoIP and more

LAN/WAN/ATM/VoIP under one handle Real-time counters and triggers, with logging and CSV export capabilities of

statistics to disk

Line-status monitoring Commentators Absolute, Delta and Relative Time User bytes (skip bytes between layers) Enhanced decode view with HEX to detail correlation True multi-tasking capability with user friendly full 32 bit Microsoft Windows

user interface, so that monitoring, decoding, statistical analysis, and stimulus/

response tests can be executed simultaneously

Context-sensitive on-line Help with measurement and troubleshooting guides,

acronym list, index and glossary

Agilent Software Upgrade Subscription Service to keep users up-to-date on

the latest software enhancements

Highly portable economical package featuring a rugged based PC with full

keyboard, large active color display and pointing device

LAN over WAN, and LAN (over WAN) over ATM

Encapsulated LAN data is automatically extracted and decoded by the Agilent Advisor including complex encapsulated protocols. For unique encapsulation schemes, the user may specify the offset as well. Nearly 300 decodes exist for layer 3 and above; these are common to all underlying technologies (LAN, WAN and ATM).

The Agilent Advisor provides an off-line LAN Expert Analysis tool. The off-line LAN Expert Analysis allows the user to examine Ethernet, Fast Ethernet, Gigabit Ethernet, ATM or WAN (HDLC or Frame Relay) encapsulated LAN frames on an Agilent Advisor or personal PC without Agilent Advisor hardware.

The comprehensive set of protocol decodes include all of todays popular Protocol Stacks:

 TCP/IP  SUN  AppleTalk  XNS  Banyan  Cisco  DECnet  3Com  IBM/SNA  H.323 series, T.38  Novell  SIP, MGCP,SGCP, MEGACO  ISO  W-CDMA

Commentators

Powerful Commentators follow state-based protocols and can provide warnings and alerts when unusual message sequences are detected.

Real-time Filtering

The Agilent Advisor now offers real-time IP and WAN filtering at rates up to 155Mb/s. This allows the user to isolate and analyze LAN and Frame Relay traffic taking place on an ATM circuit or LAN traffic taking place on a Frame Relay circuit.

The real time filtering function gives users application-level, LAN-centric troubleshooting on their ATM or Frame Relay network, thus allowing them to observe specific traffic types for potential problems on the network. The user can even filter by IP source and/or destination address. IP traffic encapsulated in Frame Relay that is additionally encapsulated over ATM can also be analyzed. This feature maximizes valuable buffer space for optimal data collection of targeted LAN traffic since the filtering takes place before data capture.

In addition to capture filtering performed in hardware, the Agilent Advisor is able to gather counts of events such as cells or frames within the defined criteria of the filters. Powerful display (post-capture) filtering and search functionality allows the user to drill down further for troubleshooting purposes.

For more details concerning these features, refer to the corresponding technical sections within this document.

Enhanced decode view

The decode view is user configurable by right clicking in the summary view. The decode view has a very user-friendly, one-line and multi-line read out in the summary view. Also, the decode view offers hex to detail mapping by highlighting an element in the detailed view, the corresponding hex element is highlighted in color in the Hex section of the decodes. The reverse is also true.

The Agilent Advisor also has powerful, user-configurable 100ns resolution timestamp options as follows:

 Delta  shows the time interval between adjacent cells or displayed filtered

frames.

 Relative  shows the time difference between critical events and other cells in

the traffic flow; for example, if a ping is considered time-zero, cells which arrived before or after will be time-stamped with their relative corresponding arrival time.

 Absolute  displays events with date and time with a resolution of 100

nanoseconds.

Color mapping of the protocol layers in the decode view distinguishes each of the layers in the data flow for easy identification, thus simplifying protocol analysis.

Acquisition Systems

There are two acquisition systems for ATM and WAN: the J2300E Agilent Advisor mainframe and the J2900A High Speed undercradle.

J2300E Agilent Advisor Mainframe

The J2300E mainframe comprises the acquisition system for all ATM and WAN plug-in modules plus the V series interfaces, connectors for which are present on the body of the mainframe. For LAN measurements such as Ethernet 10/100/ 1000, Token Ring and FDDI, LAN undercradles can be attached to the J2300E.

In addition, the mainframe includes a full PC running the Microsoft Windows98® operating system on a 400 MHz processor, 256 MB of RAM, a built in keyboard with pointing device, a Super VGA active color display, dual PCMCIA card slots, stereo speakers and the usual printer and serial ports. The PC is used to control the mainframe acquisition system and the acquisition system in any attached undercradle, and to collect and post process results.

With the new 400MHz PC processor and larger momory, post capture filtering and searches are significantly faster than before, saving valuable troubleshooting time.

Note that the PC is not used for real-time processing of measurements  this is all done in the acquisition system and plug-in modules. This allows the PC to handle multiple tasks such as the Dual Simultaneous Analysis feature which involves the simultaneous control of the mainframe acquisition system and attached undercradles, as discussed later.

J2900A High Speed Undercradle

The J2900A undercradle is similar in function to the J2300E mainframe except that it has no built in PC but relies upon the PC contained in the J2300E ATM/ WAN or J3446E LAN mainframes to control it and to collect and post process results. It accepts all ATM and WAN plug-in modules.

Dual Simultaneous Analysis

The Agilent Advisor has the ability to test at two different interfaces and technologies simultaneously, e.g. E1 Frame Relay and E3 ATM, DS3 Frame Relay and 10/100 Mb/s Ethernet, ATM25 and OC-3 ATM, etc. This functionality allows the user to test interworking in mixed technology environments (see the Application Note 1346 for details on this kind of testing).

In order to perform dual simultaneous analysis, combinations of an Agilent Advisor mainframe (J2300E or J3446E) and an undercradle (J3444A or J2900A) is required, the mainframe and undercradle being each supported by an application (LAN, WAN or ATM) running on the PC embedded in the mainframe. Note that the applications do not have to be different so, for example, a J2300E Agilent Advisor mainframe fitted with a J2900A High Speed undercradle could each be fitted with the same type of ATM or WAN interface and run simultaneously  e.g. two J3766A ATM25 interface modules.

The following table shows the combination of supported mainframes, undercradles, interfaces and technologies.

Table 1 Hardware Sup port

Note: The supported operating temperature range for Dual Simultaneous Analysis is 5° C to 30° C (41° F to 86° F).

ATM Testing

The Agilent Advisor supports the following interface types for ATM Testing:

E1* E3* STM-1* STM-1e* STM-4

* These interfaces also support WAN testing (see the WAN Testing section)

The following sub-sections deal with all layers of testing, starting at the upper layers and working down to the physical layer.

T1* T3* OC-3* EC-3* OC-12

ATM25 155UTP J2

Service Layer ATM Testing

Decoding

In addition to the nearly 300 encapsulated LAN decodes common to LAN, WAN

and ATM in the Agilent Advisor, ATM specific protocols decoded include:  LAN over Frame Relay (RFC 2427/1490) over ATM (FRF.5)  LAN over ATM (RFC 2684/1483)  Classical IP and ARP over ATM (RFC 2225/1577)  Ethernet and Token Ring LAN Emulation (ATM Forum LANE 1.0 & 2.0)  MPEG-2  UNI Signaling (ATM Forum UNI 3.0, 3.1, 4.0)  NNI Signaling (B-ISUP (ITU-T Q.2761  Q.2764) and B-ICI)  ILMI (Integrated Local Management Interface)  ATM Forum PNNI 1.0 signaling and routing  IP Switching (Ipsilon):

-IFMP (RFC 1953)

-IFMP-C (RFC 1987)

-GSMP (RFC 1954)  Fore Switch Signaling: SPANS  ATM Forum MPOA  Newbridge VIVID (MPOA)

Simulation

The Agilent Advisor is able to simulate upper layer traffic either by the use of pre-defined messages, e.g. ATM encapsulated ICMP-echo (PING), through the development of user defined cell sequences. Or, more conveniently, by copying and pasting previously captured traffic to the cell table and editing it, as appropriate (see ATM Cell Generation in a later section).

ATM Testing (continued )

ATM Adaptation Layer (AAL)

The Agilent Advisor provides decodes for AAL-1 through AAL-5. Decodes are also included for AAL-2 Common Part Sublayer (AAL-2 CPS to ITU-T I.363.2) and AAL-2 Service Specific Segmentation and Reassembly sublayer (AAL-2 SSSAR to ITU-T I.366.1). Note: AAL-1 & AAL-2 decodes are not currently supported at 622 Mb/s. The Decode screen in figure 1 depicts an AAL-2 sublayer.

AAL  1

Fields decoded:

CSI Sequence number CRC Parity Payload

AAL  2

Errors detected and displayed:

ATM SDU not 48 bytes long Invalid sequence number Invalid parity Invalid CRC-3

Figure 1: CPS (Common Part Sublayer).

CPS (Common Part Sublayer)

Fields decoded:

CPS-PDU start field (STF)

- OSF (Offset field)

- SN (Sequence number)

- P (Parity) CPS-Packet (one or more) CPS- Packet Header (CPS-PH)

- CID Channel identifier

- LI Length Indicator

- UUI (User to user indication)

- HEC CPS-Packet Payload (CPS-PP) CPS-INFO Padding

Errors detected and displayed:

STF Parity error STF Sequence number error Number of octets expected in the CPS packet does not match with the STF field Error in the OSF value (>=48) Error in HEC Length of received packet is incorrect. Errors in reassembly. Invalid value in UUI

ATM Testing (continued)

SSTED (Service Specific Transmission Error Detection) Sublayer

Fields decoded:

SSTED-PDU Payload SSTED-PDU Trailer

- SSTED-UU (User-User indication)

- Reserved

- CI (Congestion Indication)

- LP (Loss Priority)

- Length

- CRC

Note: The AAL-2 Service Specific Segmentation and Reassembly (SSSAR) sublayer has, of course, been implemented below the SSTED sublayer but its decode is not shown explicitly (the SSTED layer decode is sufficient)

Errors detected and displayed:

SSTED-PDU of length 8 or less has been received Incorrect length value of the SSTEDPDU Error in CRC

AAL  3-4

Fields decoded:

Reassembly of segments for upper layer decoding Decode of CPCS layer (CS-PDU) Check for segmentation errors in the

decode, such as Missing BOM or EOM Btag/Etag mismatch Check and flag of CRC-10 errors:

- MID

- BOM

- COM

- EOM

- Btag

- Etag

Errors detected and displayed:

ATM SDU not 48 bytes long Invalid SAR sequence number Invalid SAR length indicator Invalid SAR CRCR protocol simulation CPCS common part indicator = 0 CPCS buffer allocation size is less than the actual data size CPCS begin tag = end tag CPCS length is larger than the buffer allocation size SAR payload length is less than the CPCS header length SAR Payload length is less than CPCS trailer length

AAL  5

Fields decoded:

Re-assembly of segments for upper

layer

Decode of CPCS layer (CS-PDU)

Check and flag of CRC-32 errors

Display filtering on SDU type

Errors detected and displayed:

ATM SDU not 48 bytes long Invalid SAR segment type CPCS CPI=0 AAL-5 CRC-32 AAL-5 CRC statistics Not an AAL-5 PDU

ATM Layer

Up to 1024 virtual channels are auto-detected on all ATM interfaces up to 155

Mb/s, except J2. For each auto-discovered virtual channel, the following

statistics are collected:

Maximum and instantaneous utilization (%)  Total cells and octets (count)  Maximum, instantateous and average throughput (kb/s)  Header (HEC) errors (count)  CLP status (0 or 1)

At the 622 Mb/s ATM interface, up to 4096 VCs are auto-discovered.

Data within the ATM layer is captured in a cell-based buffer. Capture of ATM

cells occurs at full line speed up to 622 Mb/s into a data buffer. Each cell is

stamped with a 100 ns resolution time stamp and at rates up to 155Mb/s. The

display is user customizable - absolute, relative to a specific event, or delta,

representing the time change from one cell to the next, and a field indicating

whether the HEC was erroneous.

Display filtering of cells can be based on any of the header fields and also on

many common types of embedded protocols. OAM cells can be monitored

exclusively or with other data traffic for detailed analysis. Selective capture

can be done using pre-written quick test scripts or user-defined capture filters.

ATM Testing (continued)

ATM Capturing, Filtering and Searching

Capture Filters and Counters

Hardware counters and filters allow the user to select cells or AAL5 PDUs to

bring into the capture buffer. Even on a lightly loaded network, at ATM speeds

it does not take long to fill a data capture buffer. With data filtering, the user

can zero in on exactly the data the user needs to see. The filters examine every

cell in real time as it appears on the network. Since the filtering is done in the

hardware, nothing is missed, and the performance of the measurements and

user interface are not compromised.

Up to twelve hardware filters and counters can be enabled simultaneously and,

additionally, any two of the filters can be enabled to capture all the cells that

contain AAL5 PDUs. Flexible and user assisted menus can be used to define

specific filters, counters, and triggers based on protocol headers (see figure 2).

Examples include ATM, LAN over ATM (to RFC 2684/1483), Frame Relay

(FRF.5), LAN over Frame Relay over ATM (to RFC 2427/1490 and FRF.5

simultaneously), and Classical IP and ARP over ATM (RFC 2225/1577). Filter and

counter criteria can be used to start/stop the data capture and to center the

data in the buffer, the user can see what led up to an event and what followed

it. Filter criteria may also be used to ignore or store the data.

Figure 2: ATM Filter/Counter Properties.

Filters are also used as counters to specify statistical measurements based upon any part of the ATM header or payload on the line (network) side, the equipment (user) side of the link, or both. The counter and filter results provide the following:

 Number of cells that met the filter criteria  Percentage of cells out of the total busy (assigned) cells on the line  Percentage of bandwidth these cells occupied  Throughput in kb/s of these cells  Throughput in cells per second of these cells

Whatever filters or connectors the user selects or creates, the results are automatically grouped in real time.

ATM Testing (continued)

The following filters are provided, but others are easily created to incorporate several variations. Specific interface configurations and traffic generation cell tables can be saved along with filter configurations:

 IP address filtering  ILMI filtering  OAM filtering  Protocol distribution filtering  VP.VC filtering

Display Filters and Searching

Display filtering and searching lets the user search through collected data to find specific IP addresses, values for protocol fields, or conversations on specific bi-directional virtual connections (by VPI-VCI). The display filters provide the flexibility to select protocol attributes or specific protocols from a checklist, and the power to filter on any bit, byte or characteristic, such as protocol. For example, filtering can be preformed on OAM traffic without having to know any of the protocol specifics.

Post-processing lets the user quickly zoom in on selected criteria, from the traffic passing between specific devices to individual conversations. Post-processing allows the user to:

 Search through the data by record or by time stamp  Search for events or strings  Filter on protocols  Verify event-to-event timing  View protocol errors  Print a range of cells or the entire buffer  Export data in CSV (comma separated variables) format  Analyze statistics based on the buffered data

ATM Cell Generation

An ATM cell editor can build a cell table of up to 255 user defined or previously captured cells that can then be transmitted onto the network. Editing functions include the following:

Add  Edit  Delete  Copy  Insert

Windows keyboard commands are also supported  Ctrl-c, Ctrl-v, Ctrl-x, etc. Sequences of captured cells (e.g. an AAL-5 PDU) can be copied and pasted to the cell table; the resulting cell table contents can be edited/modified (e.g. to change the VPI-VCI or to change embedded IP addresses) and the HEC and AAL-5 CRC recalculated, as appropriate, prior to transmission.

ATM Testing (continued)

During the time that the cell table is not being sent, the Agilent Advisor will send idle or unassigned cells. Send Control allows the contents of cell table to be sent once or repetitively, or for AIS or idle cells to be sent. The peak cell rate (PCR) of the cell table based traffic can be set from zero to the following maximum values, all of which are 100% utilization for that interface. Also, for ease of entry, a percent of utilization can be entered, such as 50% in place of the cells per second value.

 353,207 cells per second for STM-1/OC-3, STM-1e/EC-3 and UTP155  104,268 for DS3 HEC  96,000 cells per second for DS3 PLCP  80,000 for E3 HEC  72,000 for E3 PLCP  59,111 for ATM25 with X8 8kHz timing reference  59,259 for ATM25 without X8 8kHz timing reference  14,491 cells for J2  3,623 cells for DS1  4,528 cells for E1

To generate OAM cells, the user can use quick tests that include F4 and F5 segment or end-to-end cells with user-defined VPI[-VCI] values, they are transmitted from the traffic generator. To generate cell errors, modify the quick tests to add corrupted cells to the cell table.

The fields of the generated ATM cell header can be specified as follows:

 VPI values from 0 to 255 (UNI), or 0 to 4095 (NNI)  VCI values from 0 to 65,535  GFC values from 0 to 15 (UNI only, not applicable in NNI)  PTI values from 0 to 7  CLP values of 0 or 1  HEC can be set to good (automatically calculated), bad, or user defined.

The generated ATM cell payload can be defined in hex, decimal, ASCII, or dont care. Errors can be inserted on any bit within any byte of the payload.

ATM Quality of Service (QoS) and Policing Tests

The Agilent Advisor has the ability to do various real-time tests and measurements to check the performance of ATM networks. These fall into two main categories  policing and traffic contract shaped test cell generation, really mirror images of each other. In the case of policing, the Agilent Advisor monitors live traffic and measures conformance to the traffic contract. Test cell generation allows test traffic shaped to a traffic contract to measure the networks ability to deliver the promised QoS, i.e. is the network meeting its SLA (service level agreement) obligations?

Policing, traffic shaping and traffic contract measurements

One of the most important premises of the deployment of ATM networks is the ability to maintain a given level of QoS within the public ATM network. ATM networks protect themselves by policing incoming traffic to check its conformance with pre-determined traffic contract parameters. Some cells may have to be discarded or tagged (marked to low priority) in order to protect the traffic of other users of the ATM network.

ATM Testing (continued)

When customer traffic exceeds or violates its contracted peak cell rate (PCR), taking into account its cell delay variation tolerance (CDVT), cells may be discarded or tagged; when it exceeds the sustainable cell rate (SCR) parameters, taking into account its maximum burst size (MBS) allowances, cells may be discarded or tagged (cell loss priority (CLP) bit changed to 1), depending on the type of traffic contract. When congestion occurs in the core network, low priority cells (CLP = 1) are discarded first by core ATM switches before the cells of normal priority (CPL = 0). Policing enables networks to assure a consistent quality of service within the core network, preventing the overall network performance to be degraded by an individual user.

The Agilent Advisors policing measurement feature is a real time measurement that checks a virtual connections conformance to the traffic contract at the ingress to the public network; this could be a virtual channel connection or virtual path connection. The user specifies the traffic contract type (e.g. VBR.3/SBR3) and parameters (PCR, CDVT, SCR and MBS) for the virtual connection and the Agilent Advisor counts the non-conforming test cells and delivers a non-conformance count and non-conformance ratio for active traffic on the network. This measurement would be used typically to check a users traffic either side of the boundary to the public network when quality of service is suspect (the user experiences unexpected levels of cell loss). If the user traffic entering the network does not conform, the network cannot be blamed for the resulting poor QoS.

Traffic Contracts Supported

As shown in figure 3, the user may specify one of the following types of traffic contract to determine how many cells in the virtual connection are conforming or non-conforming:

CBR.1/DBR/UBR.1: GCRA(1/PCR VBR.1/SBR1: GCRA(1/PCR

no tagging

VBR.2/SBR2: GCRA(1/PCR

0+1

, CDVT

0+1

, CDVT

)

0+1

), GCRA(1/SCR

0+1

), GCRA(1/SCR0, BT0),

0+1

, BT

0+1

no tagging

VBR.3/SBR3: GCRA(1/PCR

tagging supported

, CDVT

0+1

), GCRA(1/SCR

0+1

, BT

0+1

(note that in this notation, subscripts 0 and 1 means high and low priority cells respectively, so 0+1 means all cells; note also that BT (burst tolerance) is derived from the MBS, PCR and SCR values)

ATM Testing (continued)

Figure 3: Traffic Configuration.

Shaping of test cell traffic and background traffic

There are two sides to any contract and ATM traffic contracts are no exception.

If the user traffic keeps to its contract obligations then the network should

deliver the quality of service it guarantees in the traffic contract. This is usually

specified in terms of cell loss and added cell delay variation, etc.

The Agilent Advisor is able to measure ATM layer QoS by generating test traffic

shaped to meet the traffic contract in terms of PCR, CDVT, SCR and MBS; it

also allows users to choose the standardized Generic List values for the

parameters. The test traffic comprises test cells which conform to ITU-T

Recommendation O.191 which specifies the test cell and the methodology for

measuring ATM layer QoS parameters specified in ITU-T Recommendations

I.356 and I.357, and the ATM Forums Traffic Management Specification version

4.1. Measurements made by the Agilent Advisor are as follows:

Cell Loss Ratio

Cell Misinsertion Rate

Cell Error Ratio

Cell Delay Variation

Mean Cell Transfer Delay

Minimum Cell Transfer Delay

Maximum Cell Transfer Delay Severely Errored Cell Block Ratio Availability Ratio Transmitted Cells Non-Conforming Cells Tagged Cells

Test traffic can be sent and received by the same Advisor for local testing or it

can be sent by one Advisor and received on the other side of the network by

another. Each Agilent Advisor on either end of a connection, can source test

traffic in the opposite direction on the same bi-directional virtual connection

and, at the same time, analyze traffic from the other; each Advisor is configured

to source traffic conforming to the traffic contract for that direction of the

virtual connection; such connections are often asymmetrical. As conforming

test traffic is entering the network, any cell loss or cell delay variation detected

on the far side of the network must be caused by the network itself; this can be

compared with the SLA requirement to check that the network is complying

with its side of the agreement. The Advisor is also capable of generating same

link background traffic (on other virtual connections).

ATM Testing (continued)

For more details about policing and shaping, see the ATM QoS White Paper.

Test Cells

The ITU-T Recommendation O.191 specifies a test cell and a methodology for

using it to determine ATM QoS measurements, as defined in ITU-T

Recommendation I.356 and I.357. The ATM Forum references I.356 in its Traffic

Management 4.1 specification.

The O.191 test cell has a standard header for any user channel (any VCI above

31 is allowed). The payload has a number of special fields which allow the QoS

measurements to be made: there is a 32 bit sequence number field for

measurements of cell loss (ratio) and cell misinsertion (rate); there is a 32 bit

time stamp (with 10ns granularity in the least significant bit) for cell delay and

cell delay variation measurements, and the entire payload is error checked by a

CRC-16 for measurements of cell error. In addition, the entire payload is

scrambled to ensure that all bits of the payload are exercised so that memory-

based switch fabrics can be tested for stuck bits.

Because the O.191 test cell and the methodology for its use are standardized,

O.191 conformant test equipment from different vendors can inter-operate.

Results should be consistent between equipment from different vendors.

However, proprietary extensions are permitted, and Advisors working together

(one at each end of a virtual circuit) can detect when the network has tagged

(market to low priority, i.e. CLP = 1) a cell, which was sent at normal priority

(CLP = 0); these events are counted.

ATM Signaling and Call Placement

While permanent virtual circuits (PVCs) have dominated the ATM world thus

far, switched virtual circuits (SVCs) are increasing in utilization. Due to this

growth, it is necessary to have confidence in SVCs set up and troubleshooting

when the unexpected happens.

The Advisor includes UNI signaling emulation, ILMI address registration and

LANE emulation to provide connectivity testing. The signaling and call

placement feature supports ATM Forum UNI 3.0, 3.1 and 4.0. The Advisor can

emulate the user or network side of the UNI. In addition, the user can specify

and edit the information elements (IEs) placed on Call Connect messages that

specify what type of SVC to bring up. Figure 4 shows the configuration for call

signaling while figure 5 displays the results.

ATM Testing (continued)

Figure 4: Signaling Configuration.

Figure 5: Signaling Results.

Physical Layer

Inverse Multiplexing for ATM (IMA)

The Advisor can now decode IMA Control Protocol cells. These ICP cells are sent regularly on each E1 or T1 in an IMA Link Group in order to manage the IMA process. The ability to decode and display these physical layer cells helps troubleshooters identify IMA configuration problems.

ATM Testing (continued)

Bit Error Ratio Testing (BERT)

Often problems on the network can be attributed to the transmission medium.

The Advisor has a powerful, built-in bit error ratio test capability that performs

not only frame-based BERT (SDH/SONET-level), but also cell-based BERT, in

which the bit patterns are carried in the payload of the ATM cell.

 Testing Patterns: 1111, 1010, 1100  PRBS: 2

-1, 220-1, 223-1

 User defined - one octet (8 bits)

Optical Power Measurements

In addition to full ATM analysis, the STM-1/OC-3 ATM interface has a built-in

optical power meter that allows the user to check power levels with an

accuracy of +/- 0.5 dBm. This measurement capability has the ability to be

performed using the same interface on an optical fiber carrying STM-4c/OC-12c,

even though the interface does not otherwise operate at 622Mb/s.

Signal Strength Pulse Amplitude Meter

In addition to full ATM analysis, the Agilent Advisor E1/T1 and E3/T3 cells and

frames interfaces and STM-1e/EC-3 ATM interfaces have a built-in pulse

amplitude signal strength power meter that allows users to check pulse

amplitude levels with a resolution of +/- 1 dBm. The dynamic range is between

+6 dBmV and 40 dBmV.

Line Status

The operation of the physical interface is often critical in determining the cause

of network problems. Therefore, the Advisor also tracks errors at the physical

layer. Counts of error and alarm events are recorded on the display for both

the line (network) and equipment (user) side. The time of the last occurrence

of a particular event is recorded as well. Events are saved in the buffer and can

be logged to disk.

Figure 6: Line Status.

Line status is displayed in real time and is shown in figure 6. All of the events listed below are saved in the buffer and counted in the line status display. These events may be logged to disk. The current status of critical parameters (marked with an asterisk (*)) is also displayed in large green or red boxes in the line status display, for easy, at-a-glance viewing.

ATM Testing (continued)

T1/DS1

Loss of signal (LOS) (*) Loss of frame (LOF) (*) Loss of PLCP sync (LOPS) (*) AIS (*) RAI/Yellow (X-bits) (*) Bi-polar violations ESF CRC errors

Loss of Signal (LOS) (*)

Loss of Frame (LOF) (*)

Line code violations (HDB3)

RAI (FERF) (*)

AIS (*)

Loss of Signal (LOS) (*) Loss of Frame (LOF) (*) Line code violations (HDB3) RAI (FERF) (*)

ATM25

Loss of Signal (*)

Loss of Synchronization (*)

Timing sync frequency

Invalid Symbol

Short Cell

Line code violation (B8ZS) Frame slips Frame bits Ones density Excess zeros Loss of Cell Delineation (*) Pulse Amplitude

CRC-4 errors (if CRC-4 is selected) Frame alignment error Loss of Cell Delineation (*) Pulse Amplitude

Payload AIS (*) CRC-4 errors (if CRC-4 is selected) Loss of Cell Delineation (*) High Bit Error Ratio

Loss of signal (LOS) (*)

Loss of frame (LOF) (*)

BIP-8

Line code violations (HDB3)

Payload type mismatch

T3/DS3

Loss of Signal (LOS) (*)

Loss of Frame (LOF) (*)

RDI (Yellow) (X-bits) (*)

AIS (*)

Line code violations (B8ZS)

REI (FEBE)

Idle (*)

P1/P2 parity errors

C-bit parity errors

PLCP sync loss (*)

PLCP Yellow (*)

PLCP BIP

PLCP FEBE

STM-1/STM-1e/OC-3/EC-3

Loss of Signal (LOS) (*)

Loss of Frame (LOF) (*)

Loss of Pointer (LOP)

B1, B2, B3 BIP errors

Summary BIP error (*)

Label mismatch

MS-REI/REI-L (Line FEBE)

REI/REI-P (Path FEBE)

MS-RDI/RDI-L (Line/FERF)(*)

REI (FEBE) RDI (FERF) AIS (*) Loss of cell sync (LOCS) (*) Pulse Amplitude

FEAC (*) FEAC DS3 line FEAC loss of signal/HBER FEAC loss of frame FEAC AIS FEAC idle FEAC service failure FEAC no service failure FEAC common equipment failure FEAC line loopback activate FEAC line loopback de-activate Pulse Amplitude

MS-AIS/AIS-L (*) RDI/RDI-P (Yellow) AIS/AIS-P Summary Far End (RDI/RDI-P or REI/REI-P) (*) Loss of Cell Delineation (LCD) (*) Remote Optical power (STM-1/OC-3) Pulse Amplitude (STM-1e/EC-3)

ATM Testing (continued)

UTP155

Loss of signal (LOS)(*)

Loss of frame (LOF)(*)

Loss of pointer (LOP)

B1, B2, B3 BIP errors

Summary BIP error (*)

Label mismatch

MS-REI/REI-L (Line FEBE)

REI/REI-P (Path FEBE)

STM-4c/OC-12

Loss of Signal (LOS)

Loss of Frame (LOF)

Loss of Pointer (LOP)

Out of Frame (OOF)

MS-RDI/RDI-L (Line/FERF)

MS-AIS/AIS-L

RDI/ RDI-P (Yellow)

AIS/AIS-P

ATM Network Vitals

Vitals provides real-time statistics of network conditions that provide a

statistical picture of what is happening on the ATM links. Working

simultaneously with decodes, filters, and other measurements, the Vitals

feature interprets data traffic as it occurs. This feature can be used to identify

network problems or to assist the user in optimizing the configuration of

network components and software.

MS-RDI/RDI-L (Line FERF) (*) MS-AIS/AIS-L (*) RDI/RDI-P (Yellow) AIS/AIS-P Summary Far End (*) Loss of Cell Delineation (LCD) (*) Remote

MS-REI/REI-L (Line FEBE) and counts REI/REI-P (Path FEBE) and counts Label mismatch Loss of Cell Delineation (LCD) B1, B2, B3 BIP error counts BIP error indication Optical power (Using STM-1/OC-3 module)

Values in the Vitals display are presented in tabular form and are cumulative

from the start of a test. An exception is instantaneous utilization, which is also

displayed in graphical format for a quick look at overall usage of the network.

Vitals data are provided for both the network and the subscriber sides of the

connection.

T1/DS1

Average utilization in %

Instantaneous utilization in %

Maximum utilization %

Total cells received

Idle cells received

Busy cells received

HEC errors received

Average utilization in %

Instantaneous utilization in %

Maximum utilization %

Total cells received

Idle cells received

Busy cells received

Average utilization in %

Instantaneous utilization in %

Maximum utilization %

Total cells received

Idle cells received

Busy cells received

Bi-polar violations ESF CRC errors Frame slips Frame bits Ones density Excess zeros

HEC errors Code violations CRC-4 errors Frame alignment errors

HEC errors Line code violations CRC-45 errors

ATM Testing (continued)

ATM25

Average utilization in % Instantaneous utilization in % Maximum utilization % Total cells received Idle/unassigned cells received Busy (assigned) cells received Header (HEC) errors

Average utilization in %

Instantaneous utilization in %

Maximum utilization %

Total cells received

Idle/unassigned cells received

Busy (assigned) cells received

Header (HEC) errors received

T3/DS3

Average utilization in %

Instantaneous utilization in %

Maximum utilization %

Total cells received

Idle cells received

Busy cells received

HEC errors received

Code violations REI (FEBE) RDI (FERF) BIP-8 Label mismatches

Line code violations DS3 FEBE P1/P2 parity C-bit parity PLCP BIP8 PLCP FEBE

STM-1/STM-1e/OC-3/EC-3

Average utilization in %

Instantaneous utilization in %

Maximum utilization %

Total cells received

Idle/unassigned cells received

Busy (assigned) cells received

Header (HEC) errors received

UTP155

Average utilization in %

Instantaneous utilization in %

Maximum utilization %

Total cells

Idle/unassigned cells

Busy (assigned) cells

Header (HEC) errors

STM-4/OC-12

Auto-discovery of up to 4,095 VCs

Instantaneous utilization in % per VC

Peak % of total bandwidth per VC

Total cells received per VC

Header (HEC) errors received

Line code violations MS-REI/REI-L (Line FEBE) REI/REI-P (Path FEBE) MS-AIS/AIS-L AIS/AIS-P Loss of Cell Delineation (LCD)

WAN Testing

All major WAN interfaces, including V.10/V.11, V.24/V.28/RS-232C, V.35 and

V.36/ RS-449/422/423 are already built into the instrument mainframe; X.21

(with J2277A external cable  V.36/RS-449 to DB15) and RS-530 (with external

cable J2278A  V.36/RS-449 to DB25) are also available. A separate High Speed

V-Series module with V.35, RS-449 and X.21 interfaces are available to supports

speeds up to 8.192 Mb/s. Other WAN interfaces, including ISDN basic rate

interfaces (BRI) S/T/U and primary rate interfaces (PRI), E3/DS3, E1/T1, OC-3/

STM-1, STM-1e/EC-3, HSSI, DDS 4-wire, are available as slide-in modules or as

undercradles.

 Monitoring of LAN data over WAN and ATM is a standard feature. Real-time

monitoring of network conditions is a powerful testing capability to dig deeply

into the data if necessary.  The Agilent Advisor is a multitasking instrument; therefore users can perform

any of the active stimulus/response tests while the analyzer simultaneously

monitors their effect on the network.  Another powerful tool of the Advisor is traffic generation; it allows the

transmission of virtually any type of message or frame onto the network. To provide statistical information about the data on the network, the Agilent

Advisor analyzes every frame and count user definable events. A number of

counters have been pre-defined.  The Advisor is equipped with standard Bit Error Ratio Testing (BERT) and is

capable of generating BERT patterns onto V-series, T1, E1, E3, or DS3 WAN

links.

It does not matter if testing needs are for Frame Relay at E3/DS3 or HSSI

speeds or for low speed links, such as Async and Bisync, the Advisor provides

all of this functionality under one single handle solution.

Unmatched WAN Solutions

WAN testing solutions are provided from the easy-to-use main Windows® user

interface:  Network Line Vitals  Packet over SONET/SDH Statistics  Frame Relay DLCI Statistics  Frame Relay SLA Measurement  Frame Relay CIR Policing  Frame Relay LMI Expert  LAN over Frame Relay, HDLC and PPP Protocol Distribution  Top Talker Statistics  Ping Generation  X.25 LCN Statistics  Decode View  Filters/Counters Statistics  Full bandwidth traffic generation  Line Status  Simulation for retransmission of captured data and user defined simulation  ISDN B-channel call tracking Expert  SLIP Measurement

WAN Analysis Capabilities

The Advisor provides real-time and post-processing Layer 2 and Layer 3 analysis

capabilities for:

 Packet over Sonet/SDH  Frame Relay  PPP (Sync, Async)  ISDN  X.25  HDLC

 ATM DXI  SMDS (optional)  SNA  V5.1/V5.2  Async and Bisync

Packet over SONET/SDH

As well as being a core network technology, Packet over SONET/SDH (PoS), also sometimes known as HDLC over SONET/SDH, is becoming an access technology at 155 Mb/s, used as an alternative to ATM.

The Agilent Advisor supports analysis of the two main variants of PoS:

· IETF PPP in HDLC-like frames over SONET/SDH (both the current and obsolete versions with version auto-detect and manual over-ride)

· Cisco HDLC over SONET/SDH

These are supported in the standard Agilent Advisor PPP and HDLC applications which also support other interfaces. Full rate capture of frames down to 7 bytes in length is provided, and full higher-layer decodes are available, including those for 3G and Mobile-IP. These and other decodes are also available over ATM and Ethernet, providing the Advisor with the most extensive 3G analysis capability under one handle

Additionally, the Advisor allows the user to measure:

· Physical Layer Statistics (see figure 7)

-optical power / electrical pulse amplitude

-SONET/SDH alarms

· Link Layer

- Avg Util (%)

- Inst Util (%)

- Max Util (%)

- Min Util (%)

- Total Frames (count)

- Total Octets (count)

- Avg Thru (kbps)

- Inst Thru (kbps)

- Max Thru (kbps)

- Min Thru (kbps)

- Abort frames (count)

- Short Frames (count)

- FCS Errors (count)

Figure 7: Line Status Measurement.

Frame Relay

No matter how complex the testing needs are, the Agilent Advisor with interfaces such as the T1, E1, E3/T3, or the HSSI lets the user test and troubleshoot complex WAN environments to solve WAN access and internetworking problems quickly.

The Agilent Advisor provides extensive real-time and post-processing test capabilities for the Frame Relay protocol according to the following recommendations:

 ITU-T Q.933 Annex A  ANSI T1.617 Annex D  Original Frame Relay consortium

The Advisor with its extensive Frame Relay testing capabilities allows the user to test:

 Physical Interface  Physical Layer  Link Layer  LMI Signaling  LMI/PING Responses  DLCI Assignments  CIR  Data Transfer  Protocol Distribution SLA

These basic verification techniques are general approaches to WAN analysis and troubleshooting that are accepted in the industry because of their systematic appeal and proven effectiveness.

Committed Information Rate (CIR) Measurement

CIR is one of the most important features for Frame Relay Management. CIR is a contract between the Service Provider and a User. This contract allows both parties to exchange information under controlled traffic conditions. CIR is the rate expressed in bits per second (bit/s) where the network agrees to transfer information under normal conditions. This rate is measured over the measurement interval Tc. The default value of Tc is 1 second. Figure 8 depicts a typical CIR measurement.

Figure 8: CIR Measurement.

Frame Relay (continued)

 The Agilent Advisor performs CIR monitoring for Frame Relay activity in real

time. The analyzer provides useful customer information such as:

 Statistical traffic activity per DLCI in graphical and tabular form

comparison of real traffic activity per DLCI against a fixed CIR value CIR

 Statistics in bits, frames and percentage per DLCI for:

-Non discardable traffic DE=0

-Below the Bc (Committed Burst).

-Discard Eligible traffic DE=1

-EIR (Excess Information Rate) Statistics in bits per second, frames per second, and percentage per DLCI for:

-Traffic below Bc (CIR)

-Traffic above the Bc, but below the sum of Bc+Be.

-Traffic above the sum of Bc+Be.

 Ability to modify the Bc and Be parameters in post processing mode to play

different CIR scenarios.

Store statistics for further analysis in the Agilent Reporter.

Service Level Agreement (SLA) Measurement

Another aspect of the Frame Relay service that often needs to be tested is provisioning as defined by the CIR (Committed Information Rate). Figure 9 depicts a typical SLA measurement.

Note: This measurement is sometimes called Service Level Agreement (SLA) testing or Service Level Definitions (see the Frame Relay Forum FRF.13 implementation agreement).

Figure 9: SLA Measurement.

Frame Relay (continued)

The Advisor transmits controlled packets into the network according to an established traffic contract between the user and the network, defined by the Frame Relay Forum FRF.13. This application characterizes the reliability of the Frame Relay Network by simulating user traffic and optional background traffic.

There are three possible configurations:

Transmission of traffic between two advisors connected from end to end Physical network loopback utilizing only one Agilent Advisor Generation of IP-ICMP requests from the Agilent Advisor to a network device

This test runs with LMI emulation off or on for the following options:  UNI-User (CPE) Emulation UNI-Network (Switch) Emulation  NNI Emulation (bi-directional polling)

The following FRF.13 statistics are provided:

 All Frames delivered  Bc Frames delivered  Be Frames delivered  All Data delivered  Bc Data delivered  Be Data delivered Min, Mean, and Max Transfer Delay  Availability

The following T1.606 statistics are provided:

 Total Frames  Total Data  Total Lost Frames  Misdelivered Frames  DE=1 CIR Frames. Frames marked for possible discard by switch  DE=0 EIR Frames. Frames that should have been marked for discard but

werent.

Frame Relay (continued)

Frame Relay LMI Expert

Frame Relay LMI Expert is an application that automatically detects Frame

Relay conditions in the network. A typical display for the LMI Frame Relay LMI

Expert is depicted in figure 10. The application automatically identifies which

standard (ANSI, ITU-T or Original LMI) the network is running.

 The following LMI statistics are provided to perform a practical Frame Relay

troubleshooting, based on ANSI T1.617, ANSI T1.618, ITU-T Q922 and Q933:  Monitor Frame Relay Sequence Numbers and report missed sequences Monitor FULL Status (N391) Polling Cycles Monitor Status Enquiry messages (T391) counters  Monitor PVC Full Status messages and maintain Full Status summary

Tables for:

- Active / Inactive PVCs

- Present / New PVCs

- Deleted / Not deleted PVCs

- Monitor error conditions according to Q.933 Annex A, paragraph A.5

- T392 timers and thresholds

- N392 and N393 counters and thresholds

Figu re 10: LMI Exper t Sta tistics.

Frame Relay (continued)

DLCI Statistics

The Agilent Advisor captures all the Frame Relay frames on the link and

performs an automatic study of all the possible DLCIs (1024). This application

tracks the most relevant information of each of the virtual channels in the

network. A complete network condition analysis is performed on all the PVCs

present on the link.

The DLCI Measurement displays both the CPE and the Network statistics:

 Throughput in kb/s  Frame Distribution  Byte Distribution

The following values are provided for both the Line (Network) side and the

Equipment (User) side:

 Max. and inst. utilization (%)  Max., inst. and avg. throughput in kb/s Total octets (bytes)  Total frames/packets  Short frames/packets  DE  FECN BECN

Figure 11: DLCI Statistics Table.

DLCI Statistics allows graphing the throughput of a particular PVC in the

network to visually determine traffic patterns as seen in figure 11, 12a and 12b.

With this application, the user can isolate the traffic of a specific PVC from the

rest of the link traffic.

Frame Relay (continued)

Figure 12a: DLC I St at is tics.

Figure 12b: DLCI St at istics.

Frame Relay (continued)

Frame Relay Line Vital Statistics

Network Vital Statistics provide real-time measures of network conditions to

present a statistical picture of what is happening on the network links as

depicted in figure 13. Working simultaneously with decodes, filters and other

measurements the Vital Statistics feature interprets data traffic as it occurs.

This feature can be used to identify network problems or to assist the user in

optimizing the configuration on network components and software. Vital

Statistics are gathered in intervals of 1-second. Values may also be logged to

disk.

Values in the Vital Statistics display are presented in tabular form and are

cumulative from the start of a test. Instantaneous utilization is displayed in

graphical format for a quick look at overall usage of the network. The

following values are provided for both the Line (Network) side and the

Equipment (User) side:

Max., min., and avg. utilization (%) Max., min., inst., and avg. throughput in kb/s Total octets (bytes) Total frames/packets Short frames/packets Abort frames/packets FCS errors

Figure 13: Line Vital S tatistics.

Frame Relay (continued)

To p Ta l k e r s

Top Talkers determines which IP and IPX users consume the most Frame Relay bandwidth. With the Agilent Advisor, 256 top talkers are identified. Figure 14 depicts a typical top talker screen.

The following values are displayed:  Sorted IP and IPX source and destination statistics  Traffic identified as DTE or DCE (CPE or Network)  Throughput in kb/s  Frame rate and percentage (%) utilization

Samples from 2 seconds to 24 hours

Specified periods by hours, minutes and seconds

Updated measurement results every 2 seconds

Figure 14: Top Talkers.

Frame Relay (continued)

LAN Protocol Distribution

The Protocol Distribution application displays the traffic running in the network and categorizes it by Network Layer, Transport Layer or Application Layer. This is also present in the HDLC and PPP applications.

The display, as shown in figure 15, contains a table showing utilization, frames (total), bytes (total), frames/sec, and bytes/sec. The network protocols are sorted by the displayed statistic.

The Protocol Distribution pie chart graph can be configured to display the following parameters:

 %Utilization  Frames  Bytes  Frame/Sec  Bytes/Sec

Figure 15: Protocol Distribution.

Frame Relay (continued)

LAN Commentators and Expert System

Powerful Commentators follow state-based protocols and can provide warnings and alerts when unusual message sequences are detected. This is an expert analysis application that extracts LAN information from the Frame Relay frame and performs an intelligent analysis, detecting warnings and alarms of erroneous events in the user traffic. A typical Expert Analyzer screen is depicted in figure 16.

Figure 16: Expert Analysis

Frame Relay (continued)

Decodes

The Agilent Advisor provides the ability to decode correlated Frame Relay

network traffic with its enhanced decode view. Decodes can be configured to

see: Summary of the frame, detailed decode of the frame, and a hex

representation of the frames as depicted in figure 17.

The analyzer decodes and displays the following fields and protocols:  DLCI, DE, FECN, BECN, E/A and FCS  Auto LMI detection and decoding for ANSI T1.617 Annex D, ITU-T Q.933

Annex A, original LMI  Consolidated Link Layer Management (CLLM) messages, found on DLCI

1007.  Multi-Protocol over Frame Relay (Network Layer)  The Frame Relay applications will decode the multi-protocol encapsulation

over Frame Relay automatically according to RFC-1490, RFC-2427, Ethertype

or FRF.3.1, CLLM, and Annex G (X.25 over Frame Relay).  Voice over Frame Relay (VoFR) monitoring FRF.11  Committed Information Rate according to ANSI T1.606a

Double clicking on a field in the Detailed Pane of the decode Window will

cause the appropriate fields in the Hex decode pane to be inverse highlighted

giving the user greater analysis capabilities in the decode view.

Figure 17: Decodes

Frame Relay (continued)

Real-time Capturing, Filtering and Searching

The Agilent Advisor now offers real-time IP and WAN filtering at rates up to 155Mb/s (up to DS3 for Frame Relay). This allows the user to isolate and analyze LAN and Frame Relay traffic on an ATM circuit or LAN traffic taking place on a Frame Relay circuit.

The real time filtering function provides application-level, LAN-centric troubleshooting on ATM or Frame Relay networks, thus allowing users to observe specific traffic types that may be causing trouble on the network. The user can filter by IP source and/or destination address for IP traffic encapsulated in Frame Relay, and additionally encapsulated in ATM. This feature maximizes valuable buffer space for optimal data collection of targeted LAN traffic, since the filtering takes place before data capture.

In addition to capture filtering performed in the hardware, the Agilent Advisor is able to gather counts of events such as cells or frames that meet the filtering criteria. More details of these features are given in technology specific sections in this specification.

Powerful filtering and search functionality allows the user to drill down further for troubleshooting purposes when post-processing data from a capture buffer or file. The same graphical user interface is used for pre and post filtering.

Capture Filters and Counters

Hardware counters and filters allow the user select frames to bring into the capture buffer. A typical Filters and Counters screen is depicted in figure 18. The Agilent Advisor will capture every frame, no matter what the traffic level, and that is exactly what is needed.

Up to 16 hardware data filters can be enabled simultaneously or individually turned on or off. A flexible and user-friendly menu helps the user define specific filters, counters, and triggers:

 Up to 16 hardware data filters (both sides of the network)  Enabled simultaneously or individually  Flexible, user-friendly menu for protocol specific filter and counter setup  Several user selectable actions for triggers  Filter up to 64 bytes into the frame

Filter/Counter Statistics are available in Graphical and statistical view of the network based on setup filters/counters:

Graph type:  Bar  Pie

Mode  Instantaneous  Cumulative

Graph  % of frames

Throughput (frame/s)

Frame Relay (continued)

Figure 18: Filters and Counters

Display Filters and Searching

Display filtering and searching lets the user search through collected data to find specific IP addresses, values for protocol fields, or conversations on specific bi-directional virtual connections (by DLCI). The display filters provide the flexibility to select protocol attributes or specific protocols from a checklist, and the power to filter on any bit, byte or characteristic, such as protocol. For example, anyone can filter on Annex D without having to know any of the protocol specifics.

Post-processing allows the user quickly zoom in on selected criteria, from the traffic passing between specific devices to individual conversations. With post-processing, the user can do the following:

 Search through the data by record or by time stamp  Search for events or strings  Filter on protocols  Verify event-to-event timing  Search and view protocol errors  Print a range of cells or the entire buffer to printer or ASCII file  Export data in CSV (comma separated variables) format  Analyze statistics based on the buffered data

User Assisted LAN over Frame Relay Filtering

The User Assisted LAN over Frame Relay allows the user to perform LAN filtering and searching on LAN nodes, Layer 3 protocols, and IP source and destination addresses as depicted in figure 19.

Frame Relay (continued)

Figure 19: Filter Properties

VoFR and FoFR Decodes and Filtering

The Agilent Advisor supports Voice and Fax over Frame Relay decodes and filtering based on the Frame Relay Forum FRF.11 - Voice over Frame Relay Implementation Agreement.

The Advisor Voice over Frame Relay solution provides decodes, as depicted in figure 20 for the headers of the different transfer syntax, such as:

G.729 CS-ACELP G.728 LD CELP G.723.1 MP-MLQ G.726/G.727 ADPCM G.711 PCM

Note: Voice compressed data is only shown in Hex format

The VoFR decodes provide extensive information for the primary payload. Three basic types of primary payloads are utilized:

 encoded voice payloads  encoded FAX payloads  data payloads

The VoFR decodes provide detail information for the Sub-frame Format Subchannel Identification (CID) and the different Annexes of the VoFR FRF.11 Implementation Agreement.

Frame Relay (continued)

Figure 20: Voice over Frame Relay Decode

Simulation

Because the Agilent Advisor is a multitasking instrument, the user can perform any of the active stimulus/response tests while the analyzer simultaneously monitors the tests effect on the network.

The Agilent Advisor WAN provides a series of pre-written and pre-configured test routines; the user can easily write others. Test scripts can be customized and saved as a new test to build a library of powerful test sequences tailored to the users individual applications.

LMI Emulation

Emulation is understood in the Frame Relay Industry as the testing capability of a test device to replace either side of the network and provide the functions of the replaced side. This implies the implementation of appropriate state machines, which allow the tester to interact according to protocol standards.

The Agilent Advisor provides the following emulation capabilities according to the Frame Relay Forum Implementation Agreements FRF.1.1 and FRF.2.1 and ITU-T Q.933 Annex A.

 UNI-User (CPE) Emulation  UNI-Network (Switch) Emulation  NNI Emulation (bi-directional polling)

The UNI-User (CPE) emulation implies unidirectional polling from the User or Customer Premise Equipment (CPE) to the Network (Switch).

The UNI-Network (Switch) emulation implies unidirectional replies from the Network (Switch) to polling from the User or Customer Premises Equipment (CPE).

The NNI emulation implies bi-directional polling from Network to Network. (NNI).

The simulation application allows transmitting ICMP PING Requests to the network as well as the ability for sending a capture buffer to the network.

Frame Relay (continued)

Frame Relay UNI-User (CPE) Emulation

The UNI-User emulation follows the Frame Relay Forum Implementation Agreement FRF.1.1 and ITU-T Q.933 Annex A. The UNI-User emulation supports the following Standards in the following order:

 ITU-T Q.933 Annex A  ANSI T1.617 Annex D  Original Frame Relay Consortium (Original LMI)

The UNI-User emulation supports the following setups:

 FULL Status Polling Cycles (N391) in the range from 1 to 10 polling cycles, with

an N391 default value of 6 polling cycles.

 Status Enquiry messages (T391) counters, in the range from 1 to 60 seconds,

with a T391 default value of 10 seconds.

Frame Relay UNI-Network (Switch) Emulation

The UNI-Network emulation follows the Frame Relay Forum Implementation Agreement FRF.1.1 and ITU-T Q.933 Annex A. The UNI-Network emulation supports the following Standards in the following order:

 ITU-T Q.933 Annex A  ANSI T1.617 Annex D  Original Frame Relay Consortium (Original LMI)

The UNI-Network (Switch) emulation supports the following PVC Full Status report message setups for up to 500 different PVC-DLCIs in a table format:

 Active / Inactive PVCs  Present / New PVCs  Deleted / Not deleted PVCs

Frame Relay NNI Emulation

The NNI emulation follows the Frame Relay Forum Implementation Agreement FRF.2.1 The NNI emulation supports the following Standards in the following order:

 ITU-T Q.933 Annex A  ANSI T1.617 Annex D  Original Frame Relay Consortium (Original LMI)

The NNI emulation supports the following setups:

 FULL Status Polling Cycles (N391) in the range from 1 to 10 polling cycles, with

an N391 default value of 6 polling cycles.

 Status Enquiry messages (T391) counters, in the range from 1 to 60 seconds,

with a T391 default value of 10 seconds.

The NNI emulation supports the following PVC Full Status report message setups for up to 317 different PVC-DLCIs in a table format:

 Active / Inactive PVCs  Present / New PVCs  Deleted / Not deleted PVCs

Frame Relay (continued)

Frame Relay Ping

A PING test verifies whether a route exists to any given IP address as depicted in figure 21.

The Agilent Advisor provides static ping measurement capabilities by sending IP-ICMP echo requests and then waiting for the ICMP echo reply from the destination address.

The ping tests run with LMI emulation off or on for the following options:

UNI-User Emulation UNI-Network Emulation NNI Emulation (bi-directional polling)

The test supports the following Frame Relay Standards:

ITU-T Q.933 Annex A ANSI T1.617 Annex D Original Frame Relay Consortium (Original LMI)

PING without LMI can be selected PING configuration selections are:

Destination IP address Source IP address Layer 2 address or DLCI Number of ICMP data bytes (range between 1 and 1400) Number of requests Continuous or select between 1 and 9999 requests and specify time-out

(from 1ms to 10000ms)

Encapsulation Ether type and RFC 1490/RFC 2427

Simulate mode can be either DTE or DCE

Figure 21: PING Measurement

Buffer Retransmission

The Agilent Advisor can capture a data file and then retransmit the frames back

to the network to replicate any particular network condition.

Frame Relay (continued)

Traffic Generation

The Agilent Advisor WAN has powerful and flexible traffic generator capabilities. Virtually any type of message or frame can be transmitted onto the network.

Transmit a frame once, a specific number of times, or continuously transmit

previously captured frames Emulation supported Frame Relay (Annex D, Original LMI, and Annex A)  Maximum traffic generation rate 100% of available bandwidth allowed by

protocol specifications Line speeds 300 b/s to 52 Mb/s  Traffic generation protocols supported HDLC/SDLC, Frame Relay and X.25 Frame lengths allowed 4 bytes (address, control and FCS) to 9216 bytes per

frame Specify traffic rates by:

- 1% to 100 % utilization

- interframe flags

- frames per second (30,000/sec)

- interframe delay (milliseconds)  Maximum measured line rate 99%  Maximum number of different frames allowed 20  Define up to 4 different blocks, each having different traffic levels and patterns  Use Quick Tests for commonly used message types Interfaces supported V.24/V.28/RS-232C, V.35, V.36/RS-449/422/423/530, X.21, T1,

E1, HSSI, and DS3

 Clock source DTE/equipment, DCE/Line, internal, or recovered

(50 b/s to 52 Mb/s)

Full bandwidth, channelized (DS1), fractional (DS0) on DS3 traffic generation

Li ne Status

The operation of the physical interface is often critical in determining the cause of network problems. Therefore, the Agilent Advisor tracks errors at the physical layer, and stamps the information with a 1 ms time stamp. Counts of error and alarm events are recorded on the display for both the line (network) and equipment (user) side. The time of the last occurrence of a particular event is recorded as well. Events are saved in the buffer and can be logged to disk. Figure 22 depicts a typical Line Status view.

Frame Relay (continued)

Figure 22: Line Status

Line status is displayed in real time. All of the events listed below are saved in the buffer and counted in the line status display. These events may be logged to disk. The current status of critical parameters (marked with an asterisk (*)) is also displayed in large green or red boxes in the line status display, for easy, at-a-glance viewing.

Included in this application is a power meter of pulse amplitude measurement (signal strength) for detecting weak signal conditions, which can cause transmission errors.

Frame Relay (continued)

T1/DS1

Loss of signal (LOS) (*) Loss of frame (LOF) (*) Loss of PLCP sync (LOPS) (*) AIS (*) RAI/Yellow (X-bits) (*) Bi-polar violations

Loss of Signal (LOS) (*) Loss of Frame (LOF) (*) Line code violations (HDB3) RAI (FERF) (*)

Loss of signal (LOS) (*) Loss of frame (LOF) (*) BIP-8 Line code violations (HDB3) Payload type mismatch

T3/DS3

Loss of Signal (LOS) (*) Loss of Frame (LOF) (*) Remote/Yellow (X-bits) (*) AIS (*) Line code violations (B8ZS) FEBE Idle (*) P1/P2 parity errors C-bit parity errors PLCP sync loss (*) PLCP Yellow (*) PLCP BIP PLCP FEBE

ESF CRC errors Line code violation (B8ZS) Frame slips Frame bits Ones density Excess zeros

AIS (*) CRC-4 errors (if CRC-4 is selected) Frame alignment error

REI (FEBE) RDI (FERF) AIS (*)

Signal Strength Pulse Amplitude Meter

In addition to full WAN analysis, the Agilent Advisor E1/T1 and E3/T3 interfaces have a built-in pulse amplitude signal strength power meter that allows users to check pulse amplitude levels with a resolution of +/- 1 dBm. The dynamic range is between +6 dBmV and 40 dBmV.

Bit Error Ratio Testing (BERT)

Often problems on the network can be attributed to the transmission medium. The Agilent Advisor has a powerful, built-in bit error ratio test capability. For a complete description of this functionality, please refer to the section on BERT later in this document.

Frame Relay (continued)

Configuration

Depending on the interface and application the configuration lets the user select entries and options for:

Interface/Protocols Decode table (protocol routing through decodes) Filters/Counters Log Simulate Full traffic generation

Auto-configuration for T1 and E1 interfaces is available.

Auto-configure T1 (physical layer)

Auto-determine

Line Code (AMI or B8ZS) Framing (ESF, D4, T1DM or Unframed) Receiver mode (Monitor Bridged, Monitor terminated, or Monitor Jack)

Auto-configure E1 (physical layer)

Auto-determine

Line Code (HDB3 or AMI) Framing with CRC-4, without CRC-4, or Unframed Receiver mode (Monitor Bridged, Monitor Terminated, or Monitor Jack)

Auto LMI in Decode Routing (link layer)

Auto LMI recognition will automatically detect the type of LMI on the Frame Relay link.

Decoding of the correct LMI version will take place automatically for the following standards:

ITU-T Q.933 Annex A ANSI T1.617 Annex D Original Frame Relay Consortium (Original LMI)

The Frame Relay application will decode the Consolidated Link Layer Management (CLLM) messages, found on DLCI 1007.

Auto Multi-protocol over Frame Relay (network layer)

The Frame Relay applications will decode the multi-protocol encapsulation over Frame Relay automatically according to RFC-1490, RFC-2427, Ethertype or FRF.3.1, CLLM.

ISDN

A Fully Integrated Monitoring, Simulation, and BERT Solution

Isolate basic and primary rate ISDN problems with the multitasking Microsoft Windows-based ISDN software solutions from the Advisor.

The Advisor is a multi-protocol, multi-interface protocol and performance analyzer that connects to any ISDN interface: basic rate S/T and U, as well as primary rate.

Complete, real-time ISDN decodes with summary and detailed displays and extensive D-channel statistics quickly isolates network problems.

The Advisor supports 18 different ISDN switch and country variants; extensive decodes on the user data channel allow LAN interconnect problems to be solved quickly.

Key Features

 Solve problems quickly using Advisors many pre-written tests and its intuitive

user-interface  Verify the integrity of the link to carry data with complete bit error ratio testing (BERT) on a B-channel while simulating on the D-channel  Check network connectivity with pre-written simulation tests  Monitoring

- Decode D and B channels

- Full data capture for the S/T, U and T1 or E1 interfaces

- B-channel voice and data call tracking Expert

- Improved post-process filtering for the ITU-T Q.931 decodes

- Easy D- or B-channel monitoring for ISDN troubleshooting

- Decode and filter GR-303 Timeslot Management Channel (TMC)

- Decode GR-303 Embedded Operations Channel (EOC)

 Simulation

- Call Placement

- Full data simulation capability for the S/T, the U, and T1 or E1 interfaces

 ISDN Bit Error Ratio Testing

- Run BERT on a B-channel while simulating on the D-channel  Loopback BERT bits or patterns  Statistical analysis of B and D channel activity  All interfaces supported

- Basic Rate (S/T and U)

- Primary Rate (T1 and E1)

ISDN (continued)

ISDN Test Capabilities

A typical B Channel Tracking display is depicted in figure 23.

Figure 23: B Channel Tracking

Complete decode of ISDN D- and B-channel real-time; Line Vitals, Channel

Statistics, Filter/Counter Statistics, Line Status, Summary and Detailed displays available.

Complete level 1 information state analysis, Q.921 (LAP-D) and Q.931

information elements.

All major Q.931 variants, including ETSI, NI-1 and 18 other signaling decodes

from the major switch manufactures and countries. Full X.25 decode on the D-channel Monitor and decode LAN traffic encapsulated in ISDN Decode Frame Relay, PPP, X.25 and HDLC on the B-channel Supports B1+B2 (128 kb/s) monitoring Verify connectivity and provisioning with pre-written call placement scripts Check the integrity of the link to carry traffic with complete BERT testing on

a B-channel while simulating on the D-channel Q.931 message type statistics; log statistics to disk to catch intermittent

problems Extensive B-channel traffic statistics: Channel State, Call type, Channel

Elements, Called Party Number, Calling Party number, Duration of Current

Call, Number of Calls Attempted, Number of Call Setup Completed, Start of

Latest Successful Call, Disconnect of Last Failed Call, Call Reference, Last

Disconnect Cause Test on BRI passive bus networks; one product to access any point in the

network B-channel Expert activity monitor tracks voice and data usage on all

B-channels Multi-link PPP dual channel monitor and decodes

Log statistics to disk for a complete record of B-channel activity over time

ISDN (continued)

ISDN Monitoring Specifications

D-channel Protocols

Layer 2: LAPD per ITU-T Recommendation Q.921. SAPI 0 signaling, SAPI 16

X.25 packet and SAPI 63 LAPD management procedures supported.

Layer 3: Q.931 variants

ITR6

AT&T4ESS

AT&T5ESS

AT&TNI-1

Australia

Bellcore

B-channel protocols

WAN: LAP-B, X.25 Blue Book 1988, HDLC, SDLC, synchronous, async and

multi-link PPP and LCP, Frame Relay (ANSI T1.606, ITU-T I.233, ANSI T1.617 Annex D, F & G, RFC 1490/RFC 2427, ITU-T Q.933, NTT), SNA, and SNAP. These can encapsulate any of the following LAN decodes:

LAN over WAN: 802.2, 802.3 and 802.5 MAC layer TCP/IP: IP, TCP, UDP, RIP, OSPF, ICMP, SNMP, BOOTP, EGP, NETBLT,

RFCNB, SUNRPC and TFTP

Novell: IPX, IPXFILE, IPXRIP, IPXSAP DECNet: DNA, MOP XNS (IDP, SPP, RIP) AppleTalk: AARP, AEP, ALAP, ATP, DDP, RTMP, ZIP 3Com: NetBIOS IBM: SNA (FID0, FID2, FID4, RU, RH, Data Sense), NetBIOS, SMB VoIP: H.323 series, IETF series (SIP, MGCP, SGCP, MEGACO) Fax over IP: T.38

ITU-T DMS-100 ETSI JT-Q931 NI-1 NI-2

QSIG Siemens SwissNet Televerket VN3 VN4

ISDN Post Processing and Analysis

The ISDN Advisors capture can be used for post-processing analysis.

Post-processing display filters quickly zooms in on selected criteria, from the

traffic passing between specific devices to individual conversations. With

post-processing the user can:

Search through the data by record or by time stamp Search for events, specific types of frames, or frames associated with a calling

or called number.

Verify event-to-event timing View protocol errors Print the current display or the entire buffer Export data to other programs Analyze statistics from the buffer data

A user will spend less time searching through frames, and more time solving

problems.

ISDN (continued)

Simulation and Emu lation

Easy to use pre-written call placement scripts allow users to simply enter the

called number and start testing connectivity as well as BERT over the

B-channel to verify link integrity quickly.

Simulation script editor can be used to modify pre-written tests or create new

ones. Simulate new devices, stress-test the network by placing multiple calls

simultaneously, or customize test scenarios to meet specific requirements of

the network.

The simulation script editor can also be used to modify and create simulation

scripts for other WAN applications.

Searching and Triggering

On frame type  user defined, information, supervisory, unnumbered, RR,

RNR, REJ, SABME, UI, DISC, DM, UA, FRMR, and XID. On SAPI  call control SAPI 0, Q.931 SAPI 1, X.25 SAPI 16, layer 2 management

SAPI 63, or user definable any SAPI value from 00 hex to FF hex. On TEI value  enter any Hex value. On LAP-D  command or response bit or poll/final bit and good, bad, or abort

FCS.  On Q.931  message types.

Statistics

Maximum, instantaneous, and minimum utilization as percent, maximum,

instantaneous, minimum, and average throughput in kb/s; total octets, data

segments, total frames, bad FCSs, abort frames, and short frames.

Pre-written statistics counters:  Message types  counts most Q.931 message types D Channel Frames  counts  D-channel frames (LAP-D, Q.931, and X.25)  LAPD frame counts  X.25 packet counts  Disconnect causes

Note: All counters are user modifiable. Sixteen counters are available for TE

and 16 for NT. All pre-written tests for PRI assume call reference length of 2

bytes; BRI tests assume a call reference length of 1 byte.

Timing Measurements:

Time stamp resolution 100 ns. Display time stamp with date.

Bus Configuration:

Point-to-point or passive bus connections

Quickly Verify Call Placement Specifications

The Advisors ISDN simulation, call placement BERT testing, and numerous pre-

written call placement scripts make verifying the proper operation of ISDN

basic rate and primary rate circuits quick and easy.

ISDN (continued)

BRI – Basic Rate Interface Simulation/Call Placement Specifications

Simulate:  TE (terminal equipment),  NT (network termination), or  LT (line termination)

Emulation:  LAP-D and partial Q.931

Bus Configuration (for S/T interfaces):  Point-to-Point, Short Passive Bus and Extended Passive Bus  Handset Support - A-law and m-law on B1 or B2

Receiver Mode:  Terminated or Bridged

BERT Channel:  B1 - 56 kb/s or 64 kb/s B2 - 56 kb/s or 64 kb/s B1 and B2 - 112 kb/s or 128 kb/s  B1 (B2 Looped) - Full Duplex (B1 transmit to B2 receive, B2 receive to B2

transmit, B2 transmit to B1 receive)  B2 (B1 Looped) - Full Duplex (B2 transmit to B1 receive, B1 receive to

B1transmit, B1 transmit to B2 receive)  B1 transmit to B2 receive  B2 transmit to B1 receive

TE Simulation Tests:  Place voice call  Place 56 kb/s data call  Place 64 kb/s data call  Place BERT call  B1 to B2 BERT Call - Place call and run a loopback BERT B1 to B2  Answer call

NT Simulation Tests:  Place voice call  Place 56 kb/s data call  Place 64 kb/s data call

Pre-written simulation test support:  ETSI, NI-1, JT-Q.931, ITU-T, AT&T 5ESS, AT&T NI-1, DMS-100,  1TR6, VN4, Siemens, and Australia

ISDN (continued)

PRI  Primary Rate Simulation and Call Placement Specifications

Simulate:

TE (terminal equipment) or NT (network termination)

Emulation:

LAP-D and partial Q.931

Transmit Clock:

Recovered from line or internal/equipment In

Receiver Mode:

Terminated or bridged

Line Codes:

AMI, B8ZS, HDB3

Framing Types:

ESF, D4, G.704 alternate framing with or without CRC-4, fractional; channel (any multiple) 56 kb/s or 64 kb/s

Handset Support:

A-law and m-law

Receiver Mode:

Terminated or Bridged

BERT Channel:

Select any B channel or Fraction

TE Simulation Tests:

Place voice call Place 56 kb/s data call Place 64 kb/s data call Place BERT call Answer call - Answer a call and run end-to-end BERT

NT Simulation Tests:

Place voice call Place 56 kb/s data call Place 64 kb/s data call

Pre-written simulation tests support:

ETSI, NI-1, JT-Q.931, ITU-T, AT&T 5ESS, AT&T 4ESS, AT&T NI-1, DMS-100, 1TR6, VN4, Siemens, and Australia

X.25

X.25/HDLC Decodes

The Advisor WAN provides real-time decoding capability for all three layers of the X.25 protocol according to ITU-T X.25-1988. The following fields are decoded and displayed:

 LAPB address, frame type, P/F, N(s), N(r), and FCS  X.25 GFI, LCN, packet type, P(s), and P(r)  called and calling addresses  facility fields  diagnostic, reset, and restart cause codes and explanations

X.25 LCN Statistics

Displays first 32 LCNs (all data stored to capture buffer).

Display for each individual LCN:

 Graph of instantaneous throughput  Number of frames in pie chart graphic.  Packet length distribution as a percent and total count.

X.25 Test Scripts

PPP (Point to Point Protocol)

 DCE and DTE network cell  DCE and DTE subscriber call  Traffic generation  X.25 Call Placement Scripts

- Mode: * Simulate DTE or DCE

- Select: * Network call or subscriber call * logical channel number * calling and called number

- Emulation: * Level 2 and partial Level 3

The Advisor WAN provides decode capability for synchronous, asynchronous, and multi-link PPP.

The maximum speed for asynchronous PPP is 115.2 kb/s. The following fields are decoded and displayed:

 HDLC header-address, frame type and FCS  PPP header-protocol ID and CP code  LCP  NCP/NSCP, including IPCP, IPXCP, CCP, NetBIOS CP PAP  CHAP  Multi-link PPP dual channel monitor and decodes  TCP tunneling  Top Talkers  LAN protocol distribution  Van Jacobsen compression

SMDS (Optional)

The Advisor WAN provides run-time and post processing display of the following decodes according to Bellcore TR-TSY-00772, 00773 and 00774 specifications:

Layer 1 PLCP Layer 2 PDU Layer 3 SMDS header

The following encapsulated protocols are decoded:

Frame Relay X.25 HDLC IP SNAP

AT M DX I

V5.1/V5.2 Monitoring

SLIP

ATM DXI monitoring on V.24/V.28/RS-232C, RS-449/V.36, V.35, T1, E1, E3, DS3, HSSI

V5.1 and V5.2 are interface standards defined by the European Telecommunication Standard Institute (ETSI) for interfaces between an Access Network (AN) and the Local Exchange (LE). The Advisor WAN provides V5.1/ V5.2 monitoring capabilities.

Layer 2 LAPV Layer 3

The Serial Link Internet Protocol (SLIP) monitoring application allows Serial Link IP analysis (see figure 24).

The following functionalites are supported

Capture filter  Display filter Searching Decodes Statistics

Note: This functionality can only be used with the V-Series interfaces in the mainframe, not with the High Speed V-Series interface J5457A. One of the J229XD T1/E1 modules needs to be inserted when using this SLIP application.

Figure 24: SLIP application decode view.

Async/BiSync Protocol Measurement

The Agilent Advisor provides Windows based Character Oriented Protocol (COP) Analysis. The Agilent Advisor Async/Bisync is an integrated hardware package and software application designed to decode and generate asynchronous and synchronous Character Oriented Protocol. It is designed specifically to operate on the V-Series interfaces of the Agilent Advisor, including:

 RS-232 / V.2  RS-449 / V.36  V.35  RS-530 (When used with J2278A)

Figure 25: Async/BiSync Application

A typical Async/BiSync Protocol Application is depicted in figure 25. The application runs in Windows operating environment to show data in ASCII or EBCDIC format, the lead states, time and date stamps and error conditions. The software can be configured for a specific application through a configuration menu, including the capability to define control and transparent characters, and set CRC and LCR error schemes. Filtering and triggering are supported, as is a simulation script language.

This application shows data in ASCII or EBCDIC format so the user can see the status of the physical line, utilization percentages, octets, throughput, and error/data events.

Async/BiSync Protocol Measurement (continued)

The application allows the user to configure:

Baud rate 50 to 256,000 bits per second Bit order LSB, MSB Error check None, LRC, CRC16 Character type ASCII-8, ASCII-7, EBCDIC Character framing Async, Sync, Monosync, Bisync Parity Even, Odd, Ignore Synchronization on one or two characters Transparent Characters Drop Synchronization Do not drop, Drop after n characters Start and Stop error checking

Figure 26: COP decodes.

Filters and Counters

The Async/BiSync (COP) application allows the user to set up filters and counters for specific capture patterns, as seen in figure 26. This filters and counters can be used to detect specific traffic conditions in the network.

Simulation

The user can simulate common network processes and devices. A simulation script language interface helps the user to quickly create custom simulation tests for the users unique measurement needs. A typical COP simulation is depicted in figure 27.

Async/BiSync Protocol Measurement (continued)

Figure 27: COP Simulation

Post-Process Analysis

Any traffic or statistics that are gathered by the Agilent Advisor can be held in its capture buffer or saved to file for later analysis. The user can print statistics and decoded characters, and print the information or export to an ASCII file.

Physical Layer Testing Line Status Statistics

The operation of the physical interface is often critical in determining the cause of network problems. Therefore, the Advisor WAN tracks errors at the physical layer. Signal events are recorded on the display for both the line (network) side as well as the equipment (subscriber) side.

Line status is displayed in real time (with 1 second resolution) All the events listed below are saved in the buffer and counted in the line status display.

These events may be logged to disk. Critical parameters marked with an asterisk (*) are also displayed in large green or red boxes in the line status display, for easy, at-a-glance viewing.

Available measurements:

T1/DS1

Loss of signal (LOS) (*) Loss of frame (LOF) (*) Loss of PLCP sync (LOPS) (*) AIS (*) RAI/Yellow (X-bits) (*) Bi-polar violations Signal Strength Meter

Loss of Signal (LOS) (*) Loss of Frame (LOF) (*) Line code violations (HDB3) RAI (FERF) (*) Signal Strength Meter

ESF CRC errors Line code violation (B8ZS) Frame slips Frame bits Ones density Excess zeros

AIS (*) CRC-4 errors (if CRC-4 is selected) Frame alignment error

Loss of signal (LOS) (*) Loss of frame (LOF) (*) BIP-8 Line code violations (HDB3) Payload type mismatch

T3/DS3

HSSI

Data: SD Data: RD Status DCE ready: TA Status DCE ready: CA Loopback: A: CA B: LB C: LC

REI (FEBE) RDI (FERF) AIS (*)

Test mode: TM Clocks: ST: (from DCE) RT: (from DCE) TT: (from DTE)

BERT (Bit Error Ratio Testing)

On many occasions problems on the network can often be attributed to the transmission medium. Although the physical medium may be good for normal data transmission, it may not be able to handle high-speed WAN data. That is why the Advisor WAN has a powerful, built-in BERT (bit error ratio tester).

BERT Specif ications for T1, E1, ISDN PRI T1 and E1, DS3, E3, HSSI, ISDN BRI S/ T/U, DDS 4-Wire, V-Series and High Speed V-Series

Transmit and receive framed and unframed bit patterns over single fractional or full bandwidth channels for T1, E1, DS3, E3, ISDN primary rate interface (PRI) T1 and E1, basic rate interface (BRI) S/T/U:

 B1 or B2 at 56 or 64 kb/s point-to-point B1 + B2 at 112 or 128 kb/s point-to-point  B1 with B2 looped full duplex  B2 with B1 looped full duplex  Patterns:

PRBS: 63, 511, 2047, 4095 2 3 in 24, 1 in 8 (1:7), 2 in 8 all 1s, all 0s, 1010...(1:1) DDS1, DDS2, DDS3N, DDS4N, DDS5N, DDS6N, DDS3R, DDS5R, DDS V54LPDN, DDS/V54LPUP, OCT53, OCT54, OCT55, OCT55V2, OCT72, OCT96, OCT120, and user defined patterns up to 996 bytes in hex or text

4000 byte user defined pattern (Only supported in the new modules E1/T1 J2294D, J2296D, J2298D, J4646A, J4647A, J4648A, J4649A, E3/T3 J3759A/B and HSSI J3762B)

, 220, 2

Standard pattern exception for E1:

and 215 inverted per ITU-T O.151, 220 (ITU-T O.153

 Block length:

511 bits, 1000 bits, 2047 bits

Duration:

through 109 bits

10 5, 10, 15 min.; 1, 4, 12, 24 hrs.; continuous

 Data rate:

User definable from 50 b/s to 2.048 Mb/s

 Error insert rate:

through 107 or single error

 Error insert type:

Frame, Logic, BPV (Frame and BPV on T1 interface only)

 BERT results include:

Bit and block count Bit and block errors Bit error ratio Errored second Error free seconds Percent error free seconds

 Log Results:

Disk

 G.821 statistics  both in quantity and in percentage:

Available time Errored seconds Degraded minutes Severely errored seconds Unavailable time

Notes: BERT results can be logged at user-defined intervals and duration with each log entry carrying a real-time stamp with 100 ns resolution.

T1 standard loopback commands are generated and processed to simulate a CSU (channel service unit).

ISDN BERT Specifications

Patterns:

63, 511,2047, 4095, 2

-1, 220-1, 223-1, QRSS, All 1s, All 0s, 10101010(1:1) and any user defined pattern User defined pattern can be hex or text up to 64 bytes in length Standard pattern exception for ETSI-E1: 2

-1 and 215-1 inverted per

ITU-T O.151

Test Duration:

5, 10, 15 minutes, 1, 4, 12, 24 hours, or continuous

Error insert type:

Logic, BPV, and frame

Error insert rate:

, 1 in 104, 1 in 105, 1 in 106, 1 in 10

1 in 10

BERT Results:

Errored seconds Errored free Seconds Percent error free seconds Total bits received count Total bit errors Bit error ratio

G.821 Statistics:

available time errored seconds degraded minutes severely errored seconds unavailable time

Logging:

All BERT results may be logged to the hard drive at intervals from 1 minute up to 999 hours.

Additional T1 BERT results:

Total BPVs ESF CRC errors Frame bit errors Frame slips

Additional E1 results:

Total BPVs CRC errors Frame bit errors

BERT (continued)

T1 interface indication:

Loss of signal, frame sync, B8ZS detect, BPV, ESF CRC errors, framing bit errors, frame slip, pulse density violation, yellow/remote alarm.

E1 interface indication:

Loss of signal, frame synch, like code violation, BPV, CRC-4 bit errors, frame alignment signal, far end block error, remote alarm, AIS/all 1s.

Cell BERT for E1/T1, E3 /DS3, STM-1/0C-3, STM-1e/EC-3, ATM25 and UTP155

1111, 1010, 1100, 215-1, 220-1, 223-1 User defined: one octet (8bits) Duration:

Continuous or user definable from 1 minute to 1000 hours

Errors:

Logic, Code, Frame, P1/P2 bit parity FEBE, FEAC

Error insert rate:

Programmable from 10

to 10

Module Support

Table 2 Interface Application Support

ATM and WAN Interface Specifications

Unless otherwise stated, ATM and WAN interfaces provide two input ports and two output ports allowing any one of the following connection configurations to be used:

 Terminal Mode - uses one input and one output  Bridged Monitor Mode - uses both inputs and outputs for bi-directional

monitoring at test access points; a high input impedance should normally be selected

 Monitor Jack Mode  uses both inputs only for bi-directional monitoring at

protected monitor points

 Through Monitor Mode - uses both inputs and outputs providing bi-directional

repeater functionality plus bi-directional monitoring functionality. Each receiver input is terminated. The insert mode can place test traffic like SLA, PING, LMI emulation, Traffic Generation and Simulation.

The operation of the physical interface is often critical in determining the cause of network problems. Therefore, the Advisor tracks errors at the physical layer, and it stamps the information with a 1 ms time stamp. Signal events are recorded on the display for both the line (network) side as well as the equipment (user/subscriber) side. The time of the last occurrence of a particular event is recorded as well. Events are saved in the buffer and can be logged to disk.

Line status is displayed in real time. All of the events listed in the Physical layer alarms and statistics section for each interface below are saved in the buffer and counted in the line status display. These events may be logged to disk. Critical parameters marked with an asterisk (*) are also displayed in large green or red boxes in the line status display for easy at-a-glance viewing.

V-Series Interfaces (Integrated in the J2300E)

General

V.10/V.11, V.24/V.28/RS-232C, V.35 and V.36/RS-449/422/423 are built into the J2300E mainframe; X.21 (with J2277A external cable  V.36/RS-449 to DB15) and RS-530 (with external cable J2278A  V.36/RS-449 to DB25) are also available.

Note: The interface J5457A provides V.35, RS-449 and X.21 interface operations up to 8.192 Mb/s.

Detail

Bit rates:

Sync or Sync NRZI, 50 b/s to 2.048 Mb/s on V.35, V.36/RS-449/422/423/530 and X.21 Sync or Sync NRZI, 50 b/s to 256 kb/s on V.24/V.28/RS-232C Async, 50 b/s to 256 kb/s

Lead status:

RTS, CTS, DTR, DSR, and CD (V.24/V.28/RS-232C and V.35) CS, RS, RR, TR, and DM (V.10/V.11 and V.36/RS-449/422/423)

ATM and WAN Interface Specifications (continued)

High-Speed V-Series J5457A

General

V.35, RS-449 and X.25 interface support up to 8.192 Mb/s.

Detail

Bit rates:

Sync or Sync NRZI, 2.4 kb/s to 8.192 Mb/s on V.35, RS-449 and X.21 Applications:

Frame Relay X.25 PPP HDLC SDLC BERT

Transmission of bit error ratio (BER) patterns in the physical layer frame payload. Transmission of 4000 byte BER user pattern in WAN

Note: The J5457A interface supports all the applications of Frame Relay (Vital Signs, Decode, LMI Expert, etc.) with the exception of Simulation and SLIP measurements. Traffic Generation and PING Generation are available.

DDS 4-wire J2908A

General

This interface comprises a plug-in module (J2908A) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe or J2900A High Speed undercradle. This WAN module can be used with T1 Digital Data Systems (DDS) circuits to monitor and decode the data traffic of individual DDS subrate users. The module is only available in the United States of America

Input

Connectors:

RJ48s

Demultiplexed access: Timeslots 1-24 on T1 lines using D4 or ESF framing Timeslots 1-23 on DDS lines using T1 DM framing Rates: DS0A, single user:

2.4, 4.8, 9.6, 19.2, 38.4, and 56 kb/s (error corrected 19.2 kb/s not supported) DS0B:

2.4, 4.8 and 9.6 kb/s in 20, 10 and 5 user positions respectively 19.2, 28.8 and 38.4 kb/s multiplexed intermediate rates in any adjacent combination of five 9.6 kb/s channels. Standards: ANSI T1.107  1988, Digital Hierarchy Synchronous Digital Data Format ANSI T1.107b  1991 Supplement to ANSI T1.107 AT&T TR 54075 Subrate Data Multiplexing for Digital Data Systems CB-INC-101 Compatibility Bulletin, Integrated Network Corporation,

38.4 kb/s DDS Equipment, June 1988

ATM and WAN Interface Specifications (continued)

ISDN Basic Rate Interface (BRI) S/ T/U J2905B

General

This interface J2905B is suitable for plugging into a J2300C/D/E Agilent Advisor mainframe or J2900A High Speed undercradle. The J2905B can handle the S, T and U interfaces.

Common to Inputs and Outputs

Connectors: RJ-45

RJ-11 handset jack

Voice coding supported:

a-law and Standards: BRI S/T: ITU-T I.430, ETSI ETS 300 012, ANSI T1.605 BRI U: 2B1Q ANSI T1.601  1992, ETSI ETR 80, ITU-T G.960/961 Data Rates:

D channel: 16 kb/s B1 channel: 56 or 64 kb/s B2 channel: 56 or 64 kb/s B1+B2 channels: 112 or 128 kb/s

m -law

ATM and WAN Interface Specifications (continued)

ISDN Primary Rate Interfacev (PRI) T1 (1.5 44 Mb/s) J4648A and J4649A

General

This interface comprises a choice of two plug-in modules (J4648A and J4649A) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and the J2900A High Speed undercradle. The J4648A has RJ-48C connectors and the J4649A has RJ-45 connectors; both have mini-Bantams. The modules handle ISDN, PPP, Async PPP, Multi-link PPP, and BERT.

Common to Inputs and Outputs:

Connectors: J4648A: balanced 100 Ohm RJ-48C and WECO mini-Bantams J4649A: balanced 100 Ohm RJ-45 and WECO mini-Bantams Line Code: B8ZS, AMI Framing:

Extended Super Frame (ESF) D4 (Super Frame) Ft and Fs, or Fs only Fractional, any multiple of 56 kb/s or 64 kb/s channels DS0A and DS0B subrates from a single 56 kb/s timeslot

Unframed 1.544 Mb/s

Inputs:

Two ports Interface types (and input sensitivities):

DSX-1 (+6 dB to 10 dB ) and Network Interface (+6 dB to -36 dB )

Monitor modes:

Terminated (100 Ohm)

Bridged (High Impedance) Monitor Jack Physical Layer Alarms and Statistics:

Loss of Signal (LOS) Loss of Frame (LOF)

Alarm Indication Signal (AIS)

Remote Alarm Indication (RAI)/Yellow

Bi-polar violations

Extended Super-Frame (ESF) CRC errors

Line code violation

Frame slips

Frame bit errors

Ones density violations

Excess zeros Capture buffer size: 28 Mbyte Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate

Outputs:

Two ports, 100 Ohm balanced RJ-11 handset jack (for WAN) Interface types (and output levels):

DSX-1 (build-out selectable from 0 to 655 ft in 5 steps) and Network

Interface (selectable LBO levels, 0, -7.5 dB and -15.0 dB) Electrical:

ITU-T G.703 Clocking:

Recovered (loop), Internal, and External (using other receiver input) Internal clock rate accuracy:

+/- 32 ppm Transmission of bit error ratio (BER) patterns in the physical layer

frame payload:

PRBS 2 Transmission of 64-byte BER User pattern in WAN

- 1, PRBS 220 - 1, PRBS 223  1

ATM and WAN Interface Specifications (continued)

ISDN Primary Rate Interface (PRI) E1 (2.048 Mb/s) J4646A and J4647A

General

This interface comprises a choice of two plug-in modules (J4646A and J4647A) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and the J2900A High Speed undercradle. The J4646A has 75 Ohm BNC connectors; the J4647A has RJ-45 and DB-9 connectors, which with converter cables, can connect to 120 Ohm Small Siemens connectors. The modules handle ISDN, PPP, Async PPP, Multi-link PPP and BERT.

Common to Inputs and Outputs:

Connectors:

J4646A: unbalanced 75 Ohm BNC female J4647A: balanced 120 Ohm DB-9 and RJ-45

Line Code:

HDB3, AMI

Electrical:

ITU-T G.703

Framing:

ITU-T G.704 alternate framing with or without CRC-4 Fractional channel, any multiple of 64 kb/s channel Unframed at 2.048 Mb/s

Inputs:

Two ports Levels:

ITU-T G.703

Monitor modes:

Terminated, 75 Ohm unbalanced (J4646A) Monitor Jack -20 dB and -30 dB Terminated, 120 Ohm balanced (J4646A) Bridged (High Impedance)

Physical Layer Alarms and Statistics:

Loss of Signal (LOS) Loss of Frame (LOF) Alarm Indication Signal (AIS) Remote Alarm Indication (RAI) Line code violations CRC-4 errors (if CRC-4 is selected)

Frame alignment error Capture buffer size: 28 Mbyte Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate

Outputs:

Two ports, 75 Ohm unbalanced (J4646A) or 120 Ohm balanced

(J4647A) Levels:

ITU-T G.703 Clocking:

Recovered (loop), Internal and External (using other receiver input) Internal clock rate accuracy:

+/- 50 ppm Generation of bit error ratio (BER) patterns in the physical layer

frame payload:

PRBS 2

Transmission of 64-bit BER user pattern

- 1, PRBS 220 - 1, PRBS 223  1

ATM and WAN Interface Specifications (continued)

T1 (1.544 Mb/s) / E1 (2.048 Mb/s) J2298D

General

This interface module suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and the J2900A High Speed undercradle. This module has 4 bantam connectors and two 8-pin connectors that can easily switch between RJ-48C and RJ-45 pin wiring. The J2298D module handles frame- and cell- based technologies such as ATM, Frame Relay, HDLC, SDLC, X.25, ATM DXI and PPP in addition to BERT.

This module can be configured as a T1 (1.544 Mb/s) or as an E1 (2.048 Mb/s) interface. For E1 information, see J2294D specifications.

Common to Inputs and Outputs:

Connectors:

Balanced 100 Ohm RJ-48C/RJ-45 and WECO mini-Bantams

Line Code:

ATM: B8ZS WAN: B8ZS, AMI

Framing:

Extended Super Frame (ESF) with CRC D4 (Super Frame) Fractional WAN and ATM, any multiple of 56 kb/s or 64 kb/s channels Unframed 1.544 Mb/s

Cell Mapping:

Direct (ITU-T G.804)

Cell Scrambling:

Conforms to ITU-TI.432.1 (x

Inputs:

Two ports Interface types (and input sensitivities):

DSX-1 (+6 dB to 10 dB)

Network Interface (+6 dB to -36 dB) Received pulse amplitude measurement (mVpeak) Monitor modes:

Terminated (100 Ohm)

Bridged (High Impedance)

Monitor Jack (20dB for T1) Physical Layer Alarms and Statistics:

Loss of Signal (LOS)

Loss of Frame (LOF)

Alarm Indication Signal (AIS)

Remote Alarm Indication (RAI)/Yellow

Bi-polar violations

Extended Super-Frame (ESF) CRC errors

Line code violation

Frame slips

Frame bit errors

Pulse density violations / Excess zeros Loss of Cell Delineation (LCD) IMA Control Protocol (ICP) decoding supported ATM Layer Statistics:

Auto-discovery of up to 1024 VCs and collection of statistics on each Average utilization in percent Instantaneous utilization in percent Total cells received Idle/unassigned cells received Busy (assigned) cells received Header (HEC) errors

+ 1) and may be turned on or off

Frame Relay Statistics: Average utilization in percent Instantaneous utilization in percent Maximum utilization in percent Minimum utilization in percent Total frames Total octets Average throughput (bps) Instantaneous throughput (bps) Maximum throughput (bps) Minimum throughput (bps) Aborted frames Short frames FCS errors ATM QoS measurements (to ITU-T O.191) ATM Traffic contract conformance (policing) measurements Frame Relay SLA measurements (to FRF.13) Frame Relay CIR measurements Capture buffer size: 64 Mbyte on each receiver Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

Two ports, 100 Ohm balanced RJ-11 handset jack (for WAN) Interface types (and output levels):

DSX-1 (build-out selectable from 0 to 655 ft in 5 steps)

Network Interface (selectable LBO levels, 0, -7.5 dB and -15.0 dB)

Electrical:

ITU-T G.703, G.704

Clocking:

Recovered (loop), Internal or External (using other receiver input)

Internal clock rate accuracy:

+/- 20 ppm

Alarm generation: Remote Alarm Indication (RAI), formerly known as FERF Alarm Indication Signal (AIS) Simulate line or equipment Generate Test Cell traffic (to ITU-T O.191) shaped to traffic contract Generate from cell table Generate Frame Relay SLA traffic (to FRF.13) Generate bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223  1

Transmission of 4000 byte BER user pattern in WAN

ATM and WAN Interface Specifications (continued)

E1 (2.048 Mb/s) / T1 (1.544 Mb/s) J2294D

General

This interface is a plug-in module suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and the J2900A High Speed undercradle. The J2294D has DB-9 and RJ-45 connectors, which, with converter cables, can connect to 120 Ohm Small Siemens connectors. This module handles frame- and cell-based technologies such as ATM, Frame Relay, HDLC, SDLC, X.25, ATM DXI, and PPP in addition to BERT.

This module can be configured as a T1 (1.544 Mb/s) or as an E1 (2.048 Mb/s) interface. For T1 information, see J2298D specifications.

Common to Inputs and Outputs:

Connectors:

Balanced 120 Ohm DB-9 and RJ-45

Line Code:

ATM: HDB3

WAN: HDB3, AMI

Electrical:

ITU-T G.703, G.704

Framing:

ATM and WAN

ITU-T G.704 alternate framing with or without CRC-4

Fractional channel, any multiple of 64 kb/s channel

Unframed at 2.048 Mb/s

Cell Mapping:

Direct (ITU-T G.804)

Cell Scrambling:

Conforms to ITU-T I.432.1 (x

Inputs:

Two ports Levels:

ITU-T G.703

Received pulse amplitude measurement (mVpeak) Monitor modes:

Terminated, 120 Ohm balanced

Bridged (High Impedance)

Monitor Jack -20 dB and -30 dB Physical Layer Alarms and Statistics:

Loss of Signal (LOS)

Loss of Frame (LOF)

Alarm Indication Signal (AIS)

Remote Alarm Indication (RAI)

Line code violations

CRC-4 errors (if CRC-4 is selected)

Frame alignment error

Loss of Cell Delineation (LCD)

IMA Control Protocol (ICP) decoding supported ATM Layer Statistics: Auto-discovery of up to 1024 VCs and collection of statistics on each Average utilization in percent Instantaneous utilization in percent Total cells received Idle/unassigned cells received Busy (assigned) cells received

Header (HEC) errors

+ 1)

Frame Relay Statistics: Average utilization in percent Instantaneous utilization in percent Maximum utilization in percent Minimum utilization in percent Total frames Total octets Average throughput (bps) Instantaneous throughput (bps) Maximum throughput (bps) Minimum throughput (bps) Aborted frames Short frames FCS errors ATM QoS measurements (ITU-T O.191) ATM Traffic contract conformance (policing) measurements Frame Relay SLA measurements (to FRF.13) Frame Relay CIR measurements Capture buffer size: 64 Mbyte each receiver Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

Two ports, 120 Ohm balanced Levels:

ITU-T G.703

Clocking:

Recovered (loop), Internal or External (using other receiver input)

Internal clock rate accuracy:

+/- 20 ppm

Alarm generation: Remote Alarm Indication (RAI), formerly known as FERF Alarm Indication Signal (AIS) Simulate line or equipment Generate ATM Test Cell traffic (ITU-T O.191) shaped to traffic contract Generate from cell table Generate Frame Relay SLA traffic (to FRF.13) Generate bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223  1

Transmission of 4000 byte BER user pattern in WAN

ATM and WAN Interface Specifications (continued)

E1 (2.048 Mb/s) J2296D

General

This interface is a plug-in module suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and the J2900A High Speed undercradle. The J2296D has 75 Ohm BNC connectors and handles frame-based technologies such as Frame Relay, HDLC, SDLC, X.25, ATM DXI, and PPP in addition to BERT.

Common to Inputs and Outputs:

Connectors:

Unbalanced 75 Ohm BNC female

Line Code:

HDB3, AMI

Electrical:

ITU-T G.703, G.704

Framing:

ATM and WAN:

ITU-T G.704 alternate framing with or without CRC-4

Fractional channel, any multiple of 64 kb/s channel

Unframed at 2.048 Mb/s

Inputs:

Two ports Levels:

ITU-T G.703

Received pulse amplitude measurement (mVpeak) Monitor modes:

Terminated, 75 Ohm unbalanced

Bridged (High Impedance

Monitor Jack -20 dB and -30 dB

Physical Layer Alarms and Statistics:

Loss of Signal (LOS)

Loss of Frame (LOF)

Alarm Indication Signal (AIS)

Remote Alarm Indication (RAI)

Line code violations

CRC-4 errors (if CRC-4 is selected)

Frame alignment error

Loss of Cell Delineation (LCD) IMA Control Protocol (ICP) decoding supported ATM Layer Statistics: Auto-discovery of up to 1024 VCs and collection of statistics on each Average utilization in percent Instantaneous utilization in percent Total cells received Idle/unassigned cells received Busy (assigned) cells received Header (HEC) errors Frame Relay Statistics: Average utilization in percent Instantaneous utilization in percent Maximum utilization in percent Minimum utilization in percent Total frames Total octets Average throughput (bps) Instantaneous throughput (bps) Maximum throughput (bps) Minimum throughput (bps) Aborted frames Short frames FCS errors

ATM QoS measurements (to ITU-T O.191) ATM Traffic contract conformance (policing) measurements Frame Relay SLA measurements (to FRF.13) Frame Relay CIR measurements Capture buffer size: 64 Mbyte on each receiver Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

Two ports, 75 Ohm unbalanced Levels:

ITU-T G.703

Clocking:

Recovered (loop), and Internal or External (using other receiver input)

Internal clock rate accuracy:

+/- 20 ppm

Alarm generation: Remote Alarm Indication (RAI), formerly known as FERF Alarm Indication Signal (AIS) Simulate line or equipment Generate ATM Test Cell traffic (to ITU-T O.191) shaped to traffic contract Generate from cell table Generate Frame Relay SLA traffic (to FRF.13) Generate bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223  1

Transmission of 4000 byte BER user pattern in WAN

ATM and WAN Interface Specifications (continued)

J2 (6.312 Mb/s) J2911A

General

This interface is a plug-in module (J2911A) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and the J2900A High Speed undercradle. It handles ATM for the Japanese J2 standard.

Common to Input and Output:

Connectors:

Unbalanced 75 Ohm BNC female

Electrical:

ITU-T G.703

Line Code:

B8ZS

Framing:

ITU-T G.704 framing

Full frame: Timeslots 1 - 96 (6.312 Mb/s)

Fractional frame: Timeslots 1 - 72 (4.608 Mb/s) Timeslots 1 - 48, 49 - 96 (3.073 Mb/s) Timeslots 1 - 24, 25 - 48, 49 - 72, 73 - 96 (1.536 Mb/s) Cell Mapping:

Direct (ITU-T G.804)

Cell Scrambling conforms to ITU-T I.432.1 (x

Input:

Two ports Levels:

0.5V to 2.0V (ITU-T G.703)

peak peak

Monimodes:

Terminated, 75 Ohms unbalanced

Bridged (High Impedance, >1 kOhm)

Physical Layer Alarms and Statistics:

Loss of Signal (LOS)

Loss of Frame (LOF)

Loss of Cell Delineation (LCD)

Alarm Indication Signal (AIS)

Remote Alarm Indication (RAI)

Payload AIS

Line code violations

CRC-5 errors

Capture buffer size: 28 Mbyte (approximately 400,000 cells) Capture buffer timestamp resolution: 100ns Capture rate: full line rate

Output:

Two ports, 75 Ohm unbalanced Levels:

0.2V , to +/- 0.3V (ITU-T G.703)

peak peak

Clocking:

Recovered (loop), Internal and External (using other receiver input)

Internal clock rate accuracy:

+/- 30 ppm

Traffic Generation from cell table Alarm Generation:

RAI, AIS

+ 1) and may be turned on or off

ATM and WAN Interface Specifications (continued)

ATM25 (25.600 Mb/s) J376 6A

General

This interface comprises a plug-in module (J3766A) suitable for plugging into the J2300E Agilent Advisor mainframe and J2900A High Speed undercradle.

Common to Inputs and Outputs:

Main Specifications: ATM Forum af-phy-0040.000, ITU-T I.432.5 Ports: Two bi-directional, one towards the equipment and the other towards

the network: 100 Ohm (for UTP-3 cable) and 120 Ohm (for UTP-5 cable)

Test configuration modes:

Terminal (towards network or equipment) and Monitor (both directions for

protocol analysis with repeater functionality in each direction)

Connectors: RJ-45 (UTP) Line Code: NRZI Symbol Coding: 4B5B Line Symbol Rate: 32 Mbaud Cell Mapping: Symbolic direct (i.e. no framing) Cell Scrambling: Conforms to af-phy-0040.000 (x Inputs: Physical Layer Alarms and Statistics:

Invalid symbol

Short cell

Loss of signal (LOS)

Loss of Timing Synchronization

Timing synchronization frequency

ATM Layer Statistics: Auto-discovery of up to 1024 VCs and collection of statistics on each

Average utilization in percent

Instantaneous utilization in percent

Maximum utilization in percent

Total cells received

Idle/unassigned cells received

Busy (assigned) cells received

Header (HEC) errors

ATM QoS measurements (to ITU-T O.191):

ATM traffic contract conformance (policing) measuremets

Capture buffer size: 64 Mbyte (approximately 1,000,000 cells) Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate Analyze bit error ratio (BER) patterns in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

QoS and X8 timing source:

Recovered from line (loop), recovered

from X8 8 kHz time synchronization

source, and internal

Internal clock rate accuracy: +/- 50 ppm Optional generation of X8 8 kHz time synchronization symbol pair Simulate network or user equipment Generate ATM Test Cell traffic (to ITU-T O.191) shaped to traffic contract Generate bit error ratio (BER) patterns in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

+ x7 + 1)

ATM and WAN Interface Specifications (continued)

E3 (34.368 Mb/s) J3759B

General

This interface comprises a plug-in module (J3759B) suitable for plugging into the J2300C/D/E Advisor mainframe and the J2900A High Speed undercradle. The J3759B supports both ATM and frame-based technologies such as Frame Relay (CIR & SLA), HDLC, PPP in addition to BERT. This module can also be configured for use as a DS3 (44.736 Mb/s) interface; see below for details.

Common to Inputs and Outputs:

Connectors: 75 Ohm BNC female Electrical: ITU-T G.703 Line Code: HDB3 Framing:

Frame Relay: ITU-T G.751

ATM Direct: ITU-T G.832

ATM PLCP: ITU-T G.751

Cell Mapping:

Direct (normal mode, ITU-T G.804)

PLCP (obsolete mode, ETSI 300 214)

Cell Scrambling:

Conforms to ITU-T I.432.1 (x

Inputs: Two ports Levels:

Auto gain control for high, low and monitor jack; all unbalanced 1.2Vpeak

to 26mVpeak, 34 dB dynamic range

Received pulse amplitude measurement (mVpeak) Monitor modes:

Terminated/Repeater (75 Ohm unbalanced)

Bridged (high impedance)

Physical Layer Alarms and Statistics:

Loss of Signal (LOS)

Loss of Frame (LOF)

Line code violations

Alarm Indication Signal (AIS)

Remote Defect Indication (RDI), formerly known as FERF

Remote Error Indication (REI), formerly known as FEBE

Bit Interleave Parity (BIP-8)

Payload type mismatch

Loss of Cell Delineation (LCD)

ATM Statistics:

Auto-discovery of up to 1024 VCs and collection of statistics on each

Average utilization in percent

Instantaneous utilization in percent

Maximum utilization in percent

Total cells received

Idle/unassigned cells received

Busy (assigned) cells received

Header (HEC) errors

Frame Relay Statistics:

Average utilization in percent

Instantaneous utilization in percent

Maximum utilization in percent

Minimum utilization in percent

Total frames

Total octets

+ 1) and may be turned on or off

ATM and WAN Interface Specifications (continued)

Average throughput (bps)

Instantaneous throughput (bps)

Maximum throughput (bps)

Minimum throughput (bps)

Aborted frames

Short frames

FCS errors

ATM QoS measurements (to ITU-T O.191): ATM traffic contract conformance (policing)measurements: Frame Relay SLA traffic measurements (to FRF.13) Frame Relay CIR measurements Capture buffer size: 64 Mbyte (approximately 1,000,000 cells) Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

Two ports, 75 Ohm unbalanced Levels:

ITU-T G.703

High (1.0 Vpeak)

137 m / 450 ft (0.62 Vpeak)

275 m / 900 ft (0.26 Vpeak)

Clocking source (Tx bit clock and ATM QoS):

Recovered (loop)

Internal (± 20 ppm)

Alarm generation:

Remote Defect Indication (RDI), formerly known as FERF

Alarm Indication Signal (AIS)

Simulate line or equipment Generate ATM Test Cell traffic (to ITU-T O.191) shaped to traffic contract Generate from cell table Generate Frame Relay SLA traffic (to FRF.13) Generate bit error ratio (BER) patterns in the physical layer

frame payload or in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223  1

Transmission of 4000 byte BER user pattern in WAN

ATM and WAN Interface Specifications (continued)

DS3 (44.736 Mb/s) J3759B

General

This interface comprises a plug-in module (J3759B) suitable for plugging into the J2300C/D/E Advisor mainframe and the J2900A High Speed undercradle. The J3759B supports both ATM and frame-based technologies Frame Relay (CIR & SLA), HDLC, PPP in addition to BERT. This module can also be configured for use as an E3 (34.368 Mb/s) interface; see above for details.

Common to Inputs and Outputs:

Connectors: 75 Ohm BNC female Electrical: ITU-T G.703 Line Code: B3ZS Framing:

Frame Relay: C-bit and M13 (auto-select on input side)

ATM: C-bit framing

Cell Mapping:

Direct (normal mode, ITU-T G.804)

PLCP (obsolescent mode, ITU-T G.804)

Cell Scrambling:

conforms to ITU-T I.432.1 (x

Inputs:

Two ports, Levels:

Auto gain control for high, DSX-3, low, and monitor jack

(min. = DSX -23 dB); all unbalanced 1.2 V peak to 26 mV,

34 dB dynamic range

Received pulse amplitude measurement (mVpeak) (WAN only) Monitor modes:

Terminated/Repeater (75 Ohm)

Bridged (high impedance)

Physical Layer Alarms and Statistics:

Loss of Signal (LOS)

Loss of Frame (LOF)

Alarm Indication Signal (AIS)

Remote/yellow X-bit

Line code violations

Far End Block Error (FEBE)

Idle

P1/P2 parity errors

C-bit parity errors

Far End Alarm and Control (FEAC):

DS3 Line LOS/HBER Out of Frame (OOF) AIS received Idle signal received Service failure No service failure Common equipment failure Line loopback activate

Line loopback de-activate PLCP sync loss PLCP yellow (Path FERF) PLCP BIP PLCP FEBE Loss of Cell Delineation (LCD)

+ 1) and may be turned on or off

ATM and WAN Interface Specifications (continued)

ATM Statistics:

Frame Relay Statistics:

Average utilization in percent Instantaneous utilization in percent Maximum utilization in percent Minimum utilization in percent Total frames Total octets Average throughput (bps) Instantaneous throughput (bps) Maximum throughput (bps) Minimum throughput (bps) Aborted frames Short frames FCS errors

ATM QoS measurements (to ITU-T O.191):

CLR, CMR, CER, CDV, CTD, SECBR

ATM traffic contract conformance (policing) measurements Frame Relay SLA measurements (to FRF.13) Frame Relay CIR measurements Capture buffer size: 64 Mbyte (approximately 1,000,000 cells) Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

Two ports, 75 Ohm unbalanced Transmit levels/line build-out (±100 mV):

High(0.85 V peak) DSX (0.45 V peak) Low (0.36 V peak) 900ft.(0.12 V peak)  selectable in frame mode (FR, PPP, HDLC) only

Clocking source (Tx bit clock and ATM QoS):

Recovered (loop) Internal (± 20 ppm)

Alarm generation:

Remote/Yellow (X-bits), Alarm Indication Signal (AIS) Idle

frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223  1

Transmission of 4000 byte BER user pattern in WAN

ATM and WAN Interface Specifications (continued)

HSSI (56 kb/s – 52 Mb/s)

General

This interface comprises a plug-in module (J3762B) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and J2900A High Speed undercradle. The J3762B supports frame-based technologies such as Frame Relay (CIR and SLA), HDLC, SDLC, and PPP in addition to BERT.

Common to Inputs and Outputs:

Connectors:

Two 50 pin SCSI (one to DCE, one to DTE)

Type:

Latch Blocks without rails

Clocking:

Recovered or Internal (selectable from 56 kb/s - 52 Mb/s)

Control Signal:

DCE: CA, TM DTE: TA

Loop Control:

DTE: None, Local DTE, Local Line, Remote Line DCE: LC

Electrical:

EIA-612 EIA-613

Monitored:

Signal:

DTE: SD

DCE: RD Clock:

From DCE: ST, RT

From DTE: TT Status:

DCE Ready: TA

DTE Ready: CA Loopback:

A: LA

B: LB

Test Mode: TM

BERT: Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload. Generate bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload Transmission of 4000 byte BER user pattern in WAN

ATM and WAN Interface Specifications (continued)

STM-1/OC-3 (155.520 Mb/s) J2912B

General

This optical interface comprises a plug-in module (J2912B) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and J2900A High Speed undercradle. The interface handles ATM and Packet over SONET/SDH (PoS).

Common to Inputs and Outputs:

Connectors: SC-PC Framing:

SDH: STM-1 SONET: STS-3c

SONET/SDH Frame Scrambling (x

STM-1: ITU-T G.707 SONET: ANSI T1.105

ATM Cell Scrambling: conforms to ITU-T I.432.1 (x

or off;

PoS analysis configurations supported: IETF PPP in HDLC: RFC 1662 and both current RFC 2615 (x scrambled SONET/SDH payload) and obsolete RFC 1619 (unscrambled SONET/SDH payload) versions with version auto-detect based on POH

C2 byte value (default) and manual over-ride for scrambling enable/disable

Cisco HDLC over SONET/SDH FCS-16 (default) and FCS-32

Inputs: Two ports (single-mode/multi-mode compatible) Sensitivity:

Typ. -32 dBm Min. -28 dBm

Loss of Signal Detect Level:

-34 dBm

Real-time optical power measurement (can also be used to measure at 622Mb/s):

+3 dBm to -42 dBm dynamic range +/-0.5 dB absolute accuracy

Physical layer alarms and statistics (SDH / SONET):

Loss of Signal (LOS) (*) Loss of Frame (LOF) (*) B1, B2, B3 BIP errors Summary BIP error (*) MS-REI/REI-L (Line FEBE) REI/REI-P (Path FEBE) MS-RDI/RDI-L (Line FERF) (*) MS-AIS/AIS-L (*) RDI/RDI-P (Yellow) AIS/AIS-P Summary Far End (*) Loss of Cell Delineation (LCD) (*)

ATM layer statistics: Auto-discovery of up to 1024 VCs and collection of statistics on each

Average utilization in percent Instantaneous utilization in percent Maximum utilization in percent Total cells received Idle/unassigned cells received Busy (assigned) cells received Header (HEC) errors

+ x6 + 1)

+ 1) and may be turned on

+ 1

ATM and WAN Interface Specifications (continued)

PoS statistics:

Average utilization in percent Instantaneous utilization in percent Maximum utilization in percent Minimum utilization in percent Average throughput (kbps) Instantaneous throughput (kbps) Maximum throughput (kbps) Minimum throughput (kbps) Total frames Total octets Abort frames Short frames

FCS errors ATM QoS measurements (to ITU-T O.191): ATM: traffic contract conformance (policing) measurements Capture buffer size: 64 Mbyte (approximately 1,000,000 cells) Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate for ATM and PoS Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

Two ports, 1310nm Class 1 laser (multi-mode fiber compatible with 10 dB attenuator, available separately as J2928A) Output levels:

Min. -12 dBm

Max. -7 dBm Clocking: Internal (± 20 ppm) Alarm Generation:

MS-RDI/RDI-L (Line FERF)

MS-AIS/AIS-L

RDI/RDI-P (Yellow)

AIS/AIS-P Generate ATM Test Cell traffic (to ITU-T O.191) shaped to traffic contract Generate bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Generation of PoS traffic not supported

ATM and WAN Interface Specifications (continued)

STM-1e/EC-3 (155.520 Mb/s) J2914A

General

This electrical interface comprises a plug-in module (J2914A) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and J2900A High Speed undercradle. The interface handles ATM and Packet over SONET/SDH (PoS).

Common to Inputs and Outputs:

Connectors: 75 Ohm BNC, unbalanced Electrical: ITU-T G.703 Line Code: CMI Framing: SDH: STM-1 SONET: STS-3c SONET/SDH Frame Scrambling (x

SDH: STM-1, ITU-T G.707 SONET: STS-3c, GR-253

ATM Cell Scrambling: conforms to ITU-T I.432.1 (x

or off PoS analysis configurations supported: IETF PPP in HDLC: RFC 1662 and both current RFC 2615 (x

scrambled SONET/SDH payload) and obsolete RFC 1619 (unscrambled SONET/SDH payload) versions with version auto-detect based on POH C2 byte value (default) and manual over-ride for scrambling enable/disable

Cisco HDLC over SONET/SDH FCS-16 (default) and FCS-32

+ x6 + 1):

+ 1) and may be turned on

+ 1

Inputs: Two ports

Terminal mode

Monitor Mode: automatic gain control (0 dB or 12 dB gain)

to ITU-T G.772 (protected monitor point specification) Received pulse amplitude measurement (mVpeak) Physical layer alarms and statistics (SDH/SONET):

Loss of Signal (LOS) (*) Loss of Frame (LOF) (*) Loss of Pointer (LOP) Line Code Violations B1, B2, B3 BIP errors Summary BIP error (*) MS-REI/REI-L REI/REI-P (Line FEBE) MS-RDI/RDI-L (Line FERF) (*) MS-AIS/AIS-L (*) RDI/RDI-P (Yellow) AIS/AIS-P Summary Far End (*) Loss of Cell Delineation (LCD) (*)

ATM layer statistics:

Auto-discovery of up to 1024 VCs and collection of statistics on each Average utilization in percent Instantaneous utilization in percent Maximum utilization in percent Total cells received Idle/unassigned cells received Busy (assigned) cells received Header (HEC) errors

ATM and WAN Interface Specifications (continued)

PoS statistics:

FCS errors ATM QoS measurements (to ITU-T O.191) ATM traffic contract conformance (policing) measurements Capture buffer size: 64 Mbyte (approximately 1,000,000 cells) Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate for ATM and PoS Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload:

1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Outputs:

Two ports Output levels: 1.0 V ± 0.1V Clocking:

Internal (± 20 ppm) Recovered from input signal

Alarm Generation:

MS-RDI/RDI-L (Line FERF) MS-AIS/AIS-L RDI/RDI-P (Yellow)

AIS/AIS-P Generate ATM Test Cell traffic (to ITU-T O.191) shaped to traffic contract Generate from cell table Generate bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

Transmission of 4000 byte BER user pattern in WAN

Generation of PoS traffic not supported

ATM and WAN Interface Specifications (continued)

UTP155 (155.520 Mb/s) J2913B

General

This interface comprises a plug-in module (J2913B) suitable for plugging into the J2300C/D/E Agilent Advisor mainframe and J2900A High Speed undercradle.

Common to Inputs and Outputs:

Main Specification:

ATM Forum af-phy-0015.000 Connectors: RJ-45 (UTP) Line Code: NRZ Framing: SONET: STS-3c SDH: STM-1 Frame Scrambling: SONET: ANSI T1.105 Cell Scrambling conforms to ITU-T I.432.1 (x Inputs: Two ports, one towards the user, one towards the network,

100 Ohm and 120 Ohm Monitor modes:

Terminated Physical layer alarms and statistics (SONET/SDH):

Loss of Signal (LOS) (*)

Loss of Frame (LOF) (*)

Loss of Pointer (LOP)

B1, B2, B3 BIP errors

Summary BIP error (*)

REI-L/MS-REI

REI-P/REI

RDI-L (Line FERF)/MS-RDI (*)

AIS-L/MS-AIS (*)

RDI-P (Yellow)/RDI

AIS-P/AIS

Summary Far End (*)

Loss of Cell Delineation (LCD) (*) ATM layer statistics:

Auto-discovery of up to 1024 VCs and collection of statistics on each

Average utilization in percent

Instantaneous utilization in percent

Maximum utilization in percent

Total cells received

Idle/unassigned cells received

Busy (assigned) cells received

Header (HEC) errors ATM QoS measurements (to ITU-T O.191) ATM traffic contract conformance (policing) measurements Capture buffer size: 64 Mbyte (approximately 1,000,000 cells) Capture buffer timestamp resolution: 100 ns Capture rate: Full line rate Analyze bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 2

- 1, PRBS 220 - 1, PRBS 223 - 1

+ 1)

ATM and WAN Interface Specifications (continued)

Outputs:

Two ports, one towards the user, one towards the network,

100 Ohm and 120 Ohm Clocking: Internal (± 20 ppm) Alarm Generation:

RDI-L (Line FERF)/MS-RDI

AIS-L/MS-AIS

RDI-P (Yellow)/RDI

AIS-P/AIS Simulate network or user equipment Generate ATM Test Cell traffic (to ITU-T O.191) shaped to traffic contract Generate from cell table Generate bit error ratio (BER) patterns in the physical layer frame payload or in the ATM cell payload: 1111, 1010, 1100, PRBS 215 - 1, PRBS 220 - 1, PRBS 223 - 1

Transmission of 4000 byte BER user pattern in WAN

ATM and WAN Interface Specifications (continued)

STM-4c/OC-12 (622.080 Mb/s) J3763A

General

This interface comprises an undercradle (J3763A) for the Agilent Advisor and a single-mode optics plug-in module (J3764A) which can be used in multi-mode situations with the use of a pair of 10 dB attenuators such as the J2928A.

Common to Inputs and Outputs:

Connectors: SC Framing:

SDH: STM-4c SONET: STS-12c

Frame Scrambling:

STM-1: ITU-T Rec.G.707 SONET: ANSI T1.105

Cell Scrambling conforms to I.432.1 (x

Inputs:

With single-mode optics plug-in module J3764A:

Two ports (single-mode/multi-mode compatible) Sensitivity:

Typ. 30 dBm Min. 28 dBm

Loss of Signal (LOS) Detect Level: -39 dBm

Physical layer alarms and statistics (SDH / SONET):

Loss of Signal (LOS) Loss of Frame (LOF) Loss of Pointer (LOP) Out of Frame (OOF) B1, B2, B3 BIP error counts BIP error indication MS-REI/REI-L (Line FEBE) and counts REI/REI-P (Path FEBE) and counts MS-RDI/RDI-L (Line FERF) MS-AIS/AIS-L RDI/RDI-P (Yellow) AIS/AIS-P Signal label mismatch Loss of Cell Delineation (LCD)

ATM Statistics:

Auto-discovery of up to 4,095 virtual channels (VC) Instantaneous utilization in percent per VC Peak percentage of total bandwidth per VC Total cells received per VC

Header (HEC) errors Capture buffer size: 64 Mbyte (approximately 1,000,000 cells) Capture buffer timestamp resolution: 100ns Capture rate: full line rate

+ 1) and may be turned on or off

ATM and WAN Interface Specifications (continued)

Pre-capture filtering:

By VPI-VCI (UNI or NNI), including/excluding idle/unassigned cells,

by PTI and/or CLP; up to three different VPI-VCI filters can be specified;

cells with bad HECs can also be filtered Display (post-capture) filtering by:

VCC: VPI-VCI (UNI or NNI), errored headers (HEC errors)

IP source and/or destination address in PDUs conforming to RFC 1483,

RFC 1577 or LANE

Decode: same as for display decodes (below) Display decodes include:

AAL-3/4, AAL-5, OAM, ILMI, RM

Q.2110 SSCOP (for UNI Sig. 3.1), Q.SAAL1 SSCOP (for UNI Sig. 3.0),

UNI Signalling (3.0, 3.1), SPANS, LANE (1.0 and 2.0), MPOA, PNNI,

Frame Relay network interworking (FRF.5),

MPEG2,

802.1d (Spanning Tree), 802.2, 802.3, Ethernet, 802.5,

ARP (inc. Inverse ARP), BGP (Keep Alive),

BOOTP, DNS, GSMP, ICMP, IFMP, IP, IPX, LLC/SNAP, NHRP, OSPF,

RIP, SAP, SNAP, SNMP, TCP, TFTP, Telnet, UDP Other LAN decodes (including Agilent Advisor Commentators):

TCP/IP, Novell, IBM, AppleTalk, Xerox, Banyan, Oracle, Sybase, OSI,

DECNet QoS measurements:

Test cell analysis for cell loss, misinsertion, CDV tolerance threshold

(note: test-cell generation does not conform to ITU-T O.191)

Outputs:

With single-mode optics plug-in module J3764A:

Two ports, 1310nm Class 1 single-mode laser

(multi-mode fiber compatible with 10 dB attenuator, sold separately)

Output levels:

Min. -15 dBm Typ. -13 dBm

Max. -8 dBm Clocking: Recovered (loop) and Internal

Generation:

a single cell from a script of multiple cells from a previously captured cell trace from imported files send PING (ICMP Echo) - AAL-5 encapsulated RFC 1483 and RFC 1577 QoS test cell generation (note: test-cell generation does not conform to ITU-T O.191

Remote Operation

The Agilent Advisor can connect to other Advisors or to PCs using standard Microsoft Windowsâremote operation software, such as pcANYWHERE 8.0 and 9.2.

General Specifications

Physical Specifications (J2300E)

Size: 300 x 100 x 310 mm (12 x 4 x 12 in) Weight: 6 kg (14 lb); 7.2 kg (16.5 lb) with optional J3444A LAN undercradle

Power Requirements

External: 100 to 120 and 200 to 240 V AC

50 to 60 Hz, 130 VA

Temperature

Operating: 5° to 40° C Non-operating: -25° to 60° C

Humidity

Operating: 20% to 80% Non-operating: 10% to 90%

Condensation

Not allowed

Altitude

Operating to 4.5 km (15,000 ft) Non-operating: to 12.2 km (40,000 ft)

Regulatory Compliances

EMC: European Union EMC Directive

IEC 801-2, ESD Susceptibility IEC 801-3, Radiated Immunity IEC 801-4, Electrical Fast Transient Immunity

CISPR11, Radiated and Conducted Emission

CE marked C-Tick marked

Safety: CSA 22.2 No. 1010-1

UL 3111 IEC 1010-1 CE marked CSA marked (NRTL)

Related Literature

Agilent Advisor ATM Product Overview 5968-1437E Advisor WAN Product Overview 5967-5566E Downtime is not an Option for Enterprise Brochure 5988-2430EN ATM Quality of Service White Paper 5968-8556E Basic ATM Troubleshooting with the Advisor Application Note 1327 5968-5924E Testing and Troubleshooting Medium and High Speed Frame Relay Networks Application Note 1323 5968-5310E Dual Simultaneous Measurements Application Note 1346 5980-0547E

Microsoftâ is a U.S. registered trademark of Microsoft Corp. Windows

is a U.S. registered trademark of Microsoft Corp.

Notes

Agilent Technologies’ Test and Measurement Support, Services, and Assistance

Agilent Technologies aims to maximize the value you receive, while minimizing your risk and problems. We strive to ensure that you get the test and measurement capabilities you paid for and obtain the support you need. Our extensive support resources and services can help you choose the right Agilent products for your applications and apply them successfully. Every instrument and system we sell has a global warranty. Support is available for at least five years beyond the production life of the product. Two concepts underlie Agilent’s overall support policy: “Our Promise” and “Your Advantage.”

Our Promise

Our Promise means your Agilent test and measurement equipment will meet its advertised performance and functionality. When you are choosing new equipment, we will help you with product information, including realistic performance specifications and practical recommendations from experienced test engineers. When you use Agilent equipment, we can verify that it works properly, help with product operation, and provide basic measurement assistance for the use of specified capabilities, at no extra cost upon request. Many self-help tools are available.

Your Advantage

Your Advantage means that Agilent offers a wide range of additional expert test and measurement services, which you can purchase according to your unique technical and business needs. Solve problems efficiently and gain a competitive edge by contracting with us for calibration, extra-cost upgrades, out-of-warranty repairs, and on-site education and training, as well as design, system integration, project management, and other professional engineering services. Experienced Agilent engineers and technicians worldwide can help you maximize your productivity, optimize the return on investment of your Agilent instruments and systems, and obtain dependable measurement accuracy for the life of those products.

www.agilent.com

Agilent Ordering Information

J2300E Agilent Advisor - WAN

Undercradles

J2524A LAN-FDDI undercradle J2900A High Speed Acquisition undercradle J2901A LAN – Gigabit Ethernet undercradle J3444A LAN Fast Ethernet undercradle J3763A OC-12/STM-4 undercradle J4630A VQT undercradle – Analog FXO/E&M

Modules

J2294D E1/T1 DB-9/RJ-45 interface module J2296D E1 BNC 75 Ohm interface module J2298D E1/T1 RJ-45/RJ-48C/ mini-bantam interface J2905B ISDN BRI S/T and U interface module J2908A DDS 4-wire module J2911A J2 (6.13 Mbs) ATM interface module J2912B OC-3/STM-1 plug-in module J3913B UTP155 interface module J2914A ATM-1e/EC-3 plug-in module J3759B WAN-DS3/E3 cells and frames module J3762B WAN-HSSI module J3766A ATM25 module J5457A High Speed V-series interface

Software

J3307A Agilent Advisor Reporter WAN/LAN/ATM J5425A Switch Advisor software – RMON J5458A Advisor 3G UMTS W-CDMA software

By internet, phone or fax, get assistance with all your Test and Measurement needs.

Online assistance:

http://ww w.agilent .com/ find/assist

Unit ed S tates:

(Tel) 1 800 452 4844

Canada:

(Tel) 1 877 894 4414 (Fax) (905) 282 6495

China:

(Tel) 800-810-0189 (Fax) 1-0800-650-0121

Europe:

(Tel) (31 20) 547 2323 (Fax) (31 20) 547 2390

Japan:

(Tel) (81) 426 56 7832 (Fax) (81) 426 56 7840

Korea:

(Tel) (82-2) 2004-5004 (Fax) (82-2) 2004-5115

Latin America:

(Tel) (305) 269 7500 (Fax) (305) 269 7599

Taiwan:

(Tel) 080-004-7866 (Fax) (886-2) 2545-6723

Other Asia Pacific Countries:

(Tel) (65) 375-8100 (Fax) (65) 836-0252

Education

J1998A Network Troubleshooting book J1999A Network Troubleshooting CD H7211A-211 Wide Area Network Analysis

H7211A-212 Frame Relay Network Analysis H7211A-213 ATM Network Analysis H7211A-403 TCP/IP Troubleshooting

Warranty and Support Services

Hardware 1 year

Agilent Instrument Warranty and Service Plan Agilent Phone Support Products Agilent Software Support Products

Software 90-day media replacement warranty

Use this link to go directly to our network troubleshooting solutions:

http://www.agilent.com/comms/onenetworks

Product specifications and descriptions in this document subject to change without notice.

Agilent Technologies, Inc. 2000-2002

Printed in U.S.A. January 12, 2002

*5980-0786E*

5980-0786E

Atec Agilent-J2300E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
