Agilent Infiniium 9000 Series Oscilloscopes
Data Sheet
Engineered for broadest measurement capability
If you haven’t purchased an Agilent scope lately,
why should you consider one now?
If you’re like most engineers, you never know what your next project will demand from you.
You need an oscilloscope that can adapt to a wide variety of debug and test challenges.
That’s why we designed our new Infiniium 9000 Series oscilloscope to meet a full range
of needs.
First we built in the powerful features you’d expect in any Infiniium scope. Then we
engineered the scope for the broadest measurement capability, so it would be the most
indispensable tool in your arsenal.
There is no better way to experience
the superiority of the Infiniium 9000 Series
scopes than to see it.
Contact Agilent today to request an
evaluation.
Or visit:
www.agilent.com/find/9000
The Infiniium 9000 Series offers bandwidths up to 4 GHz. Each model, equipped with a large 15” XGA LCD display, comes in a whisper-quiet
package that is just 9” (23 cm) deep and weighs only 26 pounds (11.8 kg).
Model
DSO9064A 600 MHz 5 GSa/s/10 GSa/s 20 Mpts/40Mpts 4 -
MSO9064A 600 MHz 5 GSa/s/10 GSa/s 20 Mpts/40Mpts 4 16
DSO9104A 1 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 -
MSO9104A 1 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 16
DSO9254A 2.5 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 -
MSO9254A 2.5 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 16
DSO9404A 4 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 -
MSO9404A 4 GHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4 16
Analog bandwidth
Analog sample rate
4-channel/2-channel
Standard memory
4-channel/2-channel Scope channels
2
Logic channels
What makes the Infiniium 9000 Series the go-to scope for a whole range of
test and debug challenges?
It’s three instruments in one
1. Scope: The powerful features of our Infiniium Series oscilloscopes coupled with
superior specifications give you precise signal representation.
2. Logic analyzer: Fast deep-memory digital channels let you see critical data values
and timing relationships.
3. Protocol analyzer: The world’s first scope-based protocol viewer with multi-tab
viewing. Quickly drill and move between protocol and physical layers
It offers the widest range of debug and compliance application software
Need accurate answers to your measurement questions? The Infiniium 9000 Series offers
the largest range of application-specific software for debug, analysis and compliance test-
ing. Which application is right for you? Take a look at the possibilities on pages 7-12.
.

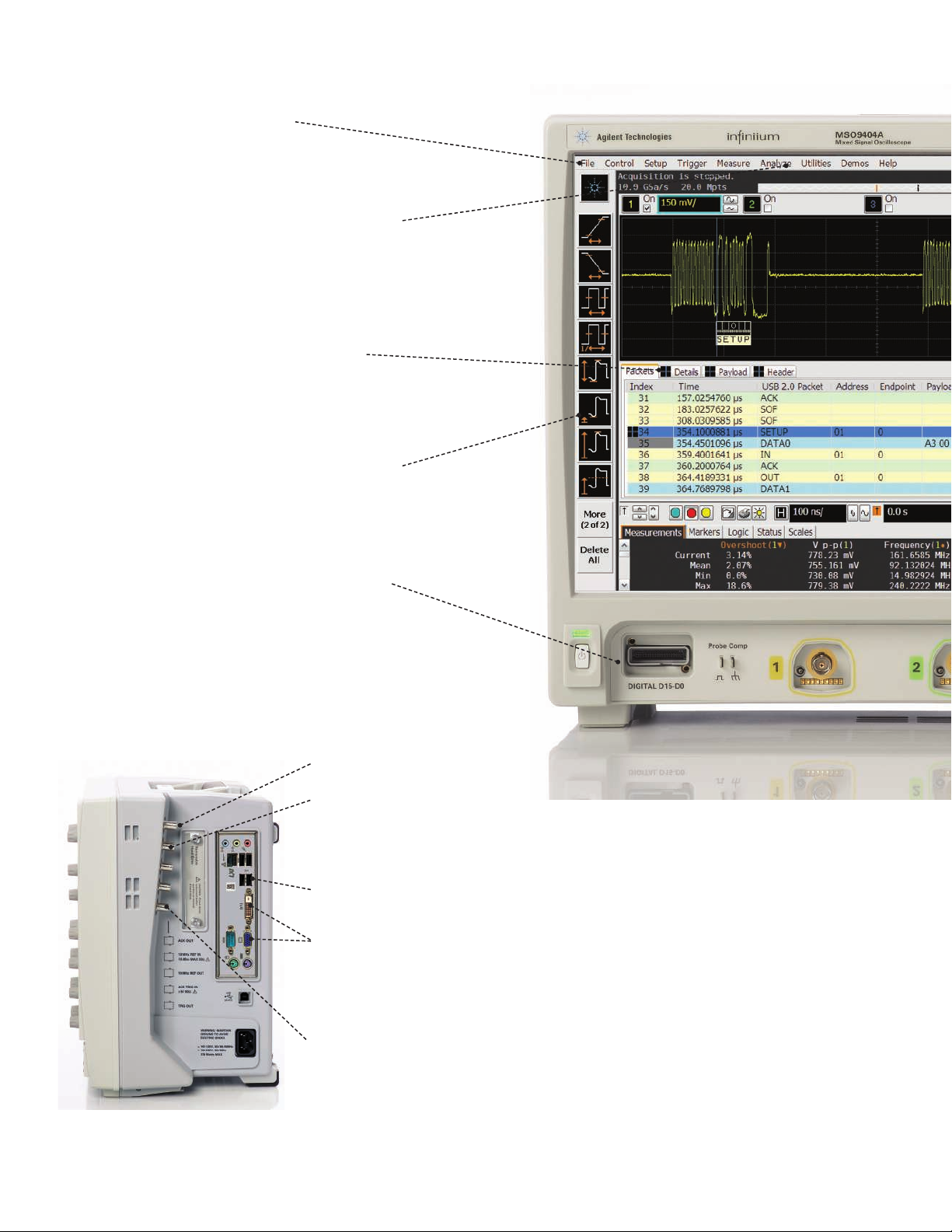

It’s sized to fit your environment
Limited bench space? It has a small footprint and thin profile
Height: 12.9” (33 cm); width: 16.8” (43 cm); depth: just 9” (23 cm)
Need to share the scope? It’s light weight: 26 lbs. (11.8 kg)
Need to see lots of signals? It has the biggest screen: 15” (23 cm) XGA
3
It’s three instruments in one
1. Oscilloscope
High-performance scope channels ensure superior viewing of signals under test. All models incorporate a powerful, feature-packed Infiniium oscilloscope with responsive deep memory.
Up to 4 GHz bandwidth and 20 GSa/s high sample rates guarantee you’ll see a
precise representation of the analog characteristics of signals you’re testing.
Responsive deep memory
With standard 20 Mpts/ch, and up to 1 Gpts/
ch of memory, you can capture long time
periods while retaining fast sample rates.
Fast update rates mean your scope stays
responsive with deep memory on, ensuring
precise representation of analog signals.
Advanced triggering
Advanced triggers are essential when you are
investigating suspected problems. Infiniium
offers a full range of advanced triggers to
help you isolate and capture the condition
you need to characterize. The 9000 Series
simplifies trigger setups by using intuitive
dialog boxes with descriptive graphics.
Mask tests, histograms and a wide variety of functions such
as the gated FFTs in the above image provide deep signal
analysis.
Drag and drop measurements
It’s simple: drag an icon from the measurement bar and drop it on the cycle you want to
measure. You can make up to ten measurements on your waveforms. All of the measurements appear at the bottom of the display with
statistics and are color-coded to the channel
you are measuring.
4
It’s three instruments in one
2. Logic analyzer
MSO models add 16 high-speed timing channels with standard 128 Mpts digital memory, allowing you to retain fast 2 GSa/s sample rates
over long periods of time.
Use the timing channels to evaluate control signal relationships and data buses
up to 16 bits wide. Use symbols to more quickly interpret waveforms.
Digital and mixed-signal trigger
Trigger on and display individual
signals or buses. With precise
time-correlation between analog
and digital signals, confidently trigger across any combination
of analog and digital signals
Industry’s only segmented memory for both
analog and digital channels
Capture short bursts without consuming
memory during periods when the trigger
condition is not met. Agilent is the only
vendor that supports segmented memory
capture on both analog and digital channels.
simultaneously.
Designing with Altera or Xilinx FPGAs? Use the FPGA
dynamic probe for rapid internal FPGA measurements. Using
I²C, SPI, RS-232, or low- or full-speed USB? Use the digital
channels to acquire and decode these buses, preserving
analog channels for other time-correlated measurements.
Waveform and Listing Windows
View buses as waveforms or easily follow
events in the listing window expandable to
the entire display. A blue tracking marker
provides time-correlation between waveform
and listing displays.
5
It’s three instruments in one
3. Protocol analyzer
Does your design include a serial bus that is a key point for testing or debugging? Add protocol analysis capability to your scope for:
2
• CAN • FlexRay • I
• PCle • RS-232/UART • SATA • SPI • USB • 8B/10B
• digRF
C • JTAG • LIN • MIPI D-Phy
Quickly move between physical and protocol layer information using the time-correlated
tracking marker. Display protocol content using waveform symbols and the industry’s first
multi-tab protocol viewer. The packets tab shows a high level view of the packet over time.
Use any combination of analog or digital channels for serial protocol decode, with
up to four buses decoded simultaneously.
Protocol-level triggering makes it easy to
isolate events with pinpoint accuracy.
Header tab shows packets in a databook for
mat. Hovering on any tab reveals additional
detail.
-
6
Widest range of debug and compliance software applications: serial protocol-level
I2C/SPI serial trigger and decode (N5391B or Option 007 on new scope purchases)
This application displays real-time time-aligned decode of I2C and SPI serial buses. Hardware-based
triggering means triggering reliably, even on the most infrequent events.
This application works on all models and can use any combination of scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_I2C-SPI
Trigger and view on-screen serial decode
of I2C packets.
RS-232/UART serial decode and trigger (N5462B or Option 001 on new scope purchases)
This application eliminates the need to manually decode bus traffic. Using data captured on the
scope or logic channels, the application lets you easily view the information sent over an RS-232
RS-422, RS-485 or other UART serial buses.
Display real-time time-aligned decode of transmit and receive lines. Hardware-based triggering
Trigger on and decode RS-232/UART
transmission.
means triggering reliably, even on the most infrequent events.
This application works on all models and can use any combination of the scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_RS-232
Trigger on and decode CAN, LIN and
FlexRay serial packets.
Import BSDL files and decode JTAG
scan chain activity.
CAN, LIN and FlexRay triggering and decode (N8803B or Option 008 on new scope purchases)
Trigger on and view both protocol layer information and physical layer signal characteristics for
CAN, LIN and FlexRay buses. Numerical decode values are automatically displayed and
synchronized below the captured signal or seen in protocol viewer.
Hardware-based triggering for CAN and LIN means triggering reliably, even on the most infrequent
events. FlexRay uses software-based protocol triggering.
This application works on all models and can use any combination of scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_CAN
JTAG (IEEE 1149.1) triggering and decode (N8817A or Option 042 on new scope purchases)
This application displays real-time time-aligned decode of JTAG (IEEE 1149.1) TDI and TDO signals.
The application eliminate the difficult task of manually determining JTAG TAP controller states, instruction and data register decode, and flags error conditions. The application includes scan chain
description features including the ability to import .bsdl files for each device and displays device
names and opcodes in the protocol listing.
This application works on all models and can use any combination of scope or logic acquisition
channels.
For more information: www.agilent.com/find/9000_JTAG
7
Widest range of debug and compliance software applications: serial protocol and FPGA
USB serial trigger and protocol viewer (N5464B or Option 005 on new scope purchases)
Trigger on and quickly view USB packets, payload, header and detail information. Powerful
time-correlated views of waveform and symbol, to the bit level, make it easy to isolate
communication faults to logic or analog sources.
USB hardware-based triggering means triggering reliably, even on the most infrequent events.
Low and full-speed USB protocol is supported on digital and scope channels of all models.
High-speed USB protocol is supported on scope channels of 1 GHz, 2.5 GHz and 4 GHz models.
For more information: www.agilent.com/find/9000_USB
Trigger on and decode USB packets.
MIPI D-Phy serial decode and trigger (N8802A or Option 019 on new scope purchases)
This application eliminates the need to manually decode bus traffic. Using data captured on the
scope, the application lets you easily view the information sent over MIPI serial buses.
The application also enables software-based protocol triggering.
This application works on all 4 GHz models and can use any combination of the scope
channels
Trigger on and decode MIPI packets
Trigger on and decode PCIe serial packets.
For more information: www.agilent.com/find/N8802A
PCI Express® serial trigger and protocol viewer (N5463B or Option 006 on new scope
purchases)
This application provides protocol-level triggering and viewing of a PCIe® lane. Quickly view packets, payload, header, and detail information. Powerful time-correlated views of waveform, symbol,
character, link and transaction layer packet data down to the bit level make it easy to isolate communication faults to logic or analog sources.
Trigger on and view CRC, 8B/10B and disparity errors. Hardware-based triggering for PCIe means
triggering reliably, even on the most infrequent events.
This application is supported on scope channels of 4 GHz models.
For more information: www.agilent.com/find/9000_PCI
SATA triggering and decode (N8801A or option 038 on new scope purchases)
Trigger on and view both protocol layer information and physical layer signal characteristics
for SATA 1 (1.5 GB/s). Numerical decode values are automatically displayed and synchronized
below the capture signal or seen in protocol viewer.
This application enables software-based protocol triggering. This application works on 4 GHz
and can use any combination of scope channels
Trigger on and decode SATA serial
packets
For more information: www.agilent.com/find/N8801A
8
Widest range of debug and compliance software applications: serial physical-layer
USB 2.0 compliance testing (N5416A or Option 029 on new scope purchases)
Quickly determine USB compliance with this USB-IF recognized solution. A setup
wizard guides you through test selection and configuration.
This application is USB-IF approved and supported on all 2.5 GHz and 4 GHz models.
Check for USB compliance.
Test DDR memory.
For more information:
DDR1 and LPDDR/DDR2 and LPDDR2/DDR3 compliance testing (U7233A/N5413B/U7231A
or Options 031/032/033 on new scope purchases) or N5459A Opt 001 for all memory
applications
Quickly and easily evaluate and characterize your memory designs. Automated testing based
on JEDEC specifications saves time. The application also includes additional debug and com-
pliance capabilities.
This application is supported on all models. However, the DDR technology you are using may
dictate the minimal bandwidth required for your scope.
For more information: www.agilent.com/find/9000_DDR
Ethernet and Energy Efficient Ethernet compliance testing (N5392A and N5392B)
Perform a wide range of electrical tests for 10-, 100-, and 1000-Base-T systems. An N5395C
test fixture and N5396A jitter test cable speed compliance testing.
These applications are supported on all 600 MHz and higher bandwidth models.
www.agilent.com/find/9000_USB-complianc
e
Validate Ethernet compliance.
Check for MIPI compliance.
For more information: www.agilent.com/find/9000_ethernet
MIPI compliance testing (U7238A or Option 035 on new scope purchased)
Quickly validate your embedded D-Phy data link for CSI and DSI architectures. This software
performs a wide range of tests required for meeting MIPI D-Phy physical layer
requirements.
These applications are is supported on analog channels of all 4 GHz models.
For more information: www.agilent.com/find/U7238A
9
Widest range of debug and compliance software applications: InfiniiScan and jitter analysis
InfiniiScan event identification (N5415B or Option 009 on new scope purchases)
Rapidly trigger on complex events and identify signal integrity issues.
This innovative software quickly scans through thousands of acquired waveform cycles and isolates anomalous signal behavior. Up to eight zones across channels are available.
This application is supported on all models.
For more information: www.agilent.com/find/infiniiScan
Identify signal integrity issues with InfiniiScan
Zone – Qualify triggering.
EZJIT analysis software (E2681A or option 002 on new scope purchases)
Quickly characterize and evaluate most commonly needed jitter measurements, including cyclecycle, N-cycle, period, time-interval, error, setup and hold time, histograms, measurement trending
and jitter spectrum.
This application is supported on all models.
Conduct jitter analysis.
Analyze jitter plus RJ/DJ separation.
For more information: www.agilent.com/find/EZJIT
EZJIT Plus analysis software (N5400A or Option 004 on new scope purchases. To upgrade from
EZJIT to EZJIT Plus, order N5401A.)
EZJIT Plus adds additional compliance views and an expanded measurement setup wizard to
simplify and automate RJ/DJ separation for testing against industry standards.
This application is supported on all models.
For more information: www.agilent.com/find/EZJITPlus
EZJIT Complete analysis software (N8823A or Option 070 on new scope purchases. To upgrade
from EZJIT Plus to EZJIT Complete, order N8813A.)
EZJIT Complete includes all of the advanced jitter analysis capabilities of EZJIT and EZJIT Plus,
and adds advanced analysis of the vertical noise affecting the ones and zeros of your real-time eye.
Decomposition of vertical noise provides key insight into degradation of your eye height. In
providing advanced decomposition of both horizontal jitter and vertical noise components of your
signals, EZJIT Complete represents the most comprehensive analysis software available.
EZJIT Complete.
This application is supported on all models and is standard on DSA models.
For more information: www.agilent.com/find/EZJITComplete
10
Widest range of debug and compliance software applications: viewing and analysis
High-speed serial data analysis software (N5384A or Option 003 on new scope purchases)
Quickly validate signal integrity for high-speed serial interfaces with embedded clocks. Recover
embedded clocks synchronized with the analog waveform view. Build and validate eye diagrams.
The SDA package also includes software-based bit-level triggering and decode for 8B/10B.
Recover embedded clocks with serial data
analysis (SDA).
Use vector signal analysis software to see
FFT-based spectrum analysis.
This application is supported on all models.
For more information: www.agilent.com/find/9000_SDA
Vector signal analysis software (89601B)
Expand the measurement capability of your scope with the 89601B vector signal analysis software.
This advanced DSP-based software takes the digitized signal data from the scope. Then it provides
FFT-based spectrum analysis and wide-bandwidth digital modulation analysis for wireless
communication signals such as WCDMA and cdma2000 and wireless networking signals such as
802.11 WiFi and 802.16 WiMax.
Take advantage of the super-wide bandwidth of your scope to capture and evaluate radar signals.
For more information: www.agilent.com/find/VSA
Communication mask test kit (E2625A)
Take the frustration out of communications testing and prove your designs conform to industry
standards with the communication mask test kit option.
The kit comes with a set of electrical communication adapters to ensure convenient, reliable, and
accurate connections to your device under test. The kit includes more than 20 industry-standard
ANSI T1.102, ITU-T G.703, and IEEE 802.3 communication signal mask templates.
This application is supported on all models.
Prove your designs conform to industry
standards with a communication mask test kit.
Signal equalization using user-defined
function.
For more information: www.agilent.com/find/9000_comm
User-defined function (N5430A or Option 010 on new scope purchases)
Install MATLAB® on your scope and add your favorite MATLAB .m scripts as function operators
and use them as standard waveform functions.
This application is supported on all models and requires MATLAB software (not included with UDF)
For more information: www.agilent.com/find/UDF
11
Infiniium 9000 Series applications and upgrades
User-definable application (N5467A or Option 040 on new scope purchases)
Rapidly develop your own automated measurements and tests. This application provides the
framework you need to quickly program and automate any single or set of measurements the
oscilloscope can make.
The application also provides full control of other Agilent instruments and HTML reporting capabilities.
For more information: www.agilent.com/find/9000_UDA
Quickly automate oscilloscope measurements.
FPGA dynamic probe application (N5397A or Option 016 on new scope purchases)
Agilent’s MSO FPGA dynamic probe provides internal FPGA visibility and quick instrument
setup using an innovative core-assisted debug approach. Measurement tasks that previously
took hours can be done in seconds with a few mouse clicks.
This application is supported on all MSO models.
Rapid FPGA debug.
Use your scope to quickly make and analyze
power measurements.
For more information: www.agilent.com/find/9000_xilin
Power application (U1882A or Option 015 on new scope purchases)
Agilent’s power application provides a full suite of power measurements. Make more accurate
power-supply efficiency measurements by using an U1880A de-skew fixture to de-skew your voltage and current probes.
This application is supported on all models.
For more information: www.agilent.com/find/9000_power-app
PrecisionProbe software (N2808A)
Make more accurate measurements independent of what probes or cables used. Agilent’s
N2808A PrecisionProbe software characterizes and corrects for the loss in your specific cable or
probe. PrecisionProbe removes the uncertainty about the input connected to your oscilloscope by
allowing you to see its characteristics in less than five minute. PrecisionProbe gives you design
and debug confidence by allowing you to quickly de-embed probe and cable loss to make more
accurate measurements.
x
Quickly characterize and correct for any
input to your oscilloscope
For more information: www.agilent.com/find/PrecisionProbe
InfiniiView Oscilloscope Analysis Software (N8900A)
Wish you could do additional signal viewing, analysis and documentation tasks away from
your scope and target system? With Agilent’s InfiniiView oscilloscope analysis software
you can. Capture waveforms on your scope, save to a file, and open the data record into
Agilent’s InfiniiView application. View, analyze, share, and document scope measurements
anywhere your PC goes.
12
Agilent Infiniium portfolio
Agilent’s real-time Infiniium lineup includes 9000, 9000 H-, 90000A and 90000 X Series oscilloscopes. These share a number of advanced
hardware and software technology blocks. Use the following selection guide to determine which best matches your specific needs.
Biggest display plus thin depth
See your signals in HD
Low noise, high bandwidthWidest range of applications.
Fastest real-time oscilloscope
9000 Series 9000 H-Series 90000 Series 90000 X-Series 90000 Q-Series
Bandwidth Up to 4 GHz Up to 2 GHz Up to 13 GHz Up to 33 GHz Up to 63 GHz
50 Ω & 1 MΩ inputs • • 1 M Ω with adapter 1 M Ω with adapter 1 M Ω with adapter
MSO models • • •
Max 2-channel (4-channel)
sample rate
GPIB
Rackmount height 8U 8U 7U 7U 8U
Display size
20 GSa/s
(10 GSa/s)
N4865A GPIB to LAN
adapter
10 GSa/s
(10 GSa/s)
N4865A GPIB to
LAN adapter
40 GSa/s
(40 GSa/s)
Built in option Built in option Built in option
80 GSa/s
(40 GSa/s)
160 GSa/s
(80 GSa/s)
15” 15” 12” 12” 15”
13
Agilent Infiniium 9000 Series oscilloscopes
15” XGA display makes it easier to view
analog, digital and serial signals.
Comprehensive built-in information system gives you fast
answers to your questions. The task-oriented setup guide
provides step-by-step instructions for several measurement
procedures.
Touchscreen display comes standard for mouse-free
operation.
Drag-and-drop measurements from the measurement bar
provide an intuitive way to make a measurement on a particular cycle of your waveform.
Mixed-signal oscilloscope (MSO) models seamlessly
integrate four analog scope channels with 16 digital channels.
AUX OUT for calibration
Built-in 10-MHz reference in/out port
synchronizes multiple measurement instruments in a system.
Standard USB and LAN ports provide
PC and printer connectivity.
XGA and DVI video output port lets you
connect to an external monitor.
Trig in/out ports provide an easy way to
synchronize your scope to other instruments.
14
Dedicated single acquisition button provides better control to
capture a unique event.
Pressing horizontal delay knob sets the delay to zero. A zoom
button provides quick access to two screen-zoom modes.
MegaZoom instant response and optimum resolution allows
you to pan and zoom quickly.
Autoscale lets you rapidly display any analog or digital active
signals, automatically setting the vertical, horizontal and
trigger controls for the best display, while optimizing memory.
Digital channel button provides quick setup access.
Serial decode button enables quick setup access.
AutoProbe interface automatically
configures the attenuation ratio of the
probe and provides probe power for
Agilent’s active probes.
Dedicated per-channel front panel controls make it easy to
access the vertical and horizontal scaling and offset.
Quick access to fine/vernier control by pressing the horizontal and vertical sensitivity knobs.
Built-in USB ports makes it easy
to save your work and update your
system software quickly.
15
Accessory pouch detaches easily.
Connectivity and probing
Connectivity
Industry compatibility
Export screen shots and waveforms in
numerous industry-standard formats.
In addition, the 9000 Series supports
compatibility with the following
• MATLAB Basic and Advanced (add as 061
and 062 on new scope orders)
• IVI COM driver for application development
environments such as Visual Studio, Agilent
VEE, NI LabView and MATLAB instrument
control toolbox.
www.agilent.com/find/adn
• IntuiLink tool bars and data capture.
www.agilent.com/find/intuilink
• LXI Class C including built-in Web control
• NI LabView PnP and IVI drives
www.agilent.com/find/ni9404
Probing
Each Infiniium 9000 Series oscilloscope ships
with four N2873A 10:1 divider passive probes
and probe accessory pouch.
With both 50 Ω and 1 MΩ inputs, Infiniium
9000 Series scopes support a wide range of
probes, including Agilent’s InfiniiMax and
InfiniiMode Series probes.
Agilent offers an innovative family of probes
that are engineered for signal access and
measurement accuracy. Whether you’re
looking for simple passive probes, the high
bandwidth and low loading of an active
probe, or specialty probes for current or high
voltage, we can meet your needs. Our innovative accessories allow reliable connection
to challenging
components like small pitch devices,
surface mount ICs, and DDR BGA packages – even hands free! To see our entire
award-winning portfolio of passive, singleended active, differential active, and
current probes for Infiniium oscilloscopes,
please view the Infiniium Oscilloscope
Probes and Accessories Selection Guide.
publication number 5968-7141EN.
Recommended optional active probes
DSO/MSO9404A 1132A InfiniiMax 5 GHz probe
N2752A InfiniiMode 6 GHz probe
DSO/MSO9254A 1131A InfiniiMax 3.5 GHz probe
N2751A InfiniiMode 3.5 GHz probe
DSO/MSO9104A N2796A 2 GHz single-ended probe
1130A InfiniiMax 1.5 GHz probe
N2750A InfiniiMode 1.5 GHz probe
DSO/MSO9064A N2795A 1 GHz single-ended probe
N2750A InfiniiMode 1.5 GHz probe
16
Infiniium 9000 Series performance characteristics
Vertical: scope channels 9064A 9104A 9254A 9404A
Analog bandwidth (–3 dB) 50 Ω
1
600 MHz 1.0 GHz 2.5 GHz 4 GHz
1MΩ 500 MHz 500 MHz 500 MHz 500 MHz
Typical Rise Time / Fall 540 ps 253 ps 142 ps 85 ps
Time 10% to 90% at 50 Ω
Typical Rise Time / Fall 360 ps 174 ps 98 ps 59 ps
Time 20% to 80% at 50 Ω
Input channels DSO9000 – 4 analog
MSO9000 – 4 analog + 16 digital
Input impedance
Input sensitivity
1
50 Ω ± 2.5%, 1 MΩ ± 1% (11pF typical)
3
1 MΩ: 1 mV/div to 5 V/div
50 Ω: 1 mV/div to 1 V/div
Input coupling 1 MΩ: AC (3.5 Hz), DC
50 Ω:DC
Bandwidth limit 20 MHz on 1 MΩ input ; 500 MHz up to full scope bandwidth in increments of 500 MHz
Vertical resolution
2,3
8 bits, ≥12 bits with averaging
Channel-to-channel isolation DC to 50 MHz: 50 dB
>50 MHz to 2.5 GHz: 40 dB
>2.5 GHz to 4 GHz: 25 dB
DC gain accuracy
Maximum input voltage
1,2,3
± 2% of full scale at full resolution on channel scale ± 5 ˚C from cal temp
1
1 MΩ: 150V RMS or DC, CAT I
± 250 V (DC + AC) in AC coupling
50 Ω: 5 Vrms
Offset range Vertical sensitivity Available offset
1 MΩ 1 mV to <10 mV/div ± 2 V
10 mV to <20 mV/div ± 5 V
20 mV to <100 mV/div ± 10 V
100 mV to <1 V/div ± 20 V
1 V to 5 V/div ± 100 V
50 Ω ±12 div or ±4V, whichever is smallest
1 Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±5 °C from firmware calibration temperature. Input
impedance is valid when V/div scaling is adjusted to show all waveform vertical values within scope display.
2 Vertical resolution for 8 bits = 0.4% of full scale, for 12 bits = 0.024% of full scale.
3 50Ω input: Full scale is defined as 8 vertical divisions. Magnification is used below 10mV/div, full-scale is defined as 80 mV. The major scale settings are 5mV, 10mV, 20mV, 50
mV, 100mV, 200 mV, 500 mV, 1V.
1MΩ input: Full scale is defined as 8 vertical divisions. Magnification is used below 5mV/div, full-scale is defined as 40 mV. The major scale settings are 5mV, 10mV, 20mV, 50
mV, 100 mV, 200 mV, 500 mV, 1V,2V, 5V.
17
Infiniium 9000 Series performance characteristics
Vertical: scope channels (con’t)
Offset accuracy
1,3
± (1.25% of channel offset +1% of full scale + 1 mV)
Dynamic range 1 MΩ: ± 8 div from center screen
50 Ω: ± 8 div from center screen
DC voltage measurement accuracy
2
Dual cursor ± [(DC gain accuracy)+(resolution)]
Single cursor ± [(DC gain accuracy)+(offset accuracy)+(resolution/2)]
RMS Noise Floor (V
RMS AC
)
9064A 9104A 9254A 9404A
Volts/div full BW 500 MHz filter full BW 1 GHz filter full BW 2 GHz filter full BW 4 GHz filter
10 mV 213 uV 138 uV 240 uV 120 uV 273 uV 210 uV 402 uV 263 uV
20 mV 470 uV 175 uV 481 uV 154 uV 445 uV 330 uV 627 uV 424 uV
50 mV 1.15 mV .464 mV 1.24 mV .415 mV 1.22 mV .780 mV 1.67 mV 1.12 mV
100 mV 2.37 mV .895 mV 2.43 mV .786 mV 2.54 mV 1.50 mV 3.17 mV 2.16 mV
200 mV 4.65 mV 1.75 mV 4,85 mV 1.50 mV 5.06 mV 2.86 mV 6.18 mV 4.15 mV
500 mV 11.8 mV 4.60 mV 12.3 mV 4.15 mV 12.2 mV 7.61 mV 15.8 mV 11.26 mV
1 V 23.9 mV 8.91 mV 24.3 mV 7.85 mV 25.2 mV 14.9 mV 31.5 mV 21.9 mV
Vertical: digital channels On all MSO Models
Input channels 16 digital channels
Threshold groupings 16 digital channels Pod 2: D15 – D8
Threshold selections TTL (1.4V), CMOS, (5.0V, 3.3V, 2.5V), ECL (-1.3V), PECL (3.7V), user defined (±8.00 V in 100 mV increments)
Maximum input voltage ±40 V peak CAT I
Threshold accuracy ±(100 mV + 3% of threshold setting)
Input dynamic range ±10 V about threshold
Minimum input voltage swing 500 mV peak-to-peak
Input impedance (flying leads) 100 kΩ ± 2% (~ 8 pF) at probe tip
Resolution 1 bit
Analog bandwidth 400 MHz
1 Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±5 °C from firmware calibration temperature.
2 Vertical resolution for 8 bits = 0.4% of full scale, for 12 bits = 0.024% of full scale.
3 50Ω input: Full scale is defined as 8 vertical divisions. Magnification is used below 10mV/div, full-scale is defined as 80 mV. The major scale settings are 5mV, 10mV, 20mV,
50 mV, 100 mV, 200 mV, 500 mV, 1V.
1MΩ input: Full scale is defined as 8 vertical divisions. Magnification is used below 5mV/div, full-scale is defined as 40 mV. The major scale settings are 5mV, 10mV, 20mV,
50 mV, 100 mV, 200 mV, 5 00mV, 1V,2V, 5V.
18
Infiniium 9000 Series performance characteristics
9404 2.0
Horizontal
Channel-to-channel skew (digital) 2 ns typical
Glitch detect (digital) ≥ 2.0 ns
Main time base range 5 ps/div to 20 s/div
Horizontal position range 0 to ± 200 s
Delayed sweep range 1 ps/div to current main time base setting
Resolution 1 ps
Modes Main, delayed, roll (200 ms to 20 sec)
Reference positions Left, center, right
Channel deskew -1 ms to +1 ms range
Time scale accuracy (internal reference) Horizontal time base setting ± ((Horizontal time base setting) *(0.4 + 0.5* years since
(External reference clock = off) calibration)) ppm
Delta-time measurement accuracy
2,3,4,5
Absolute averaging disabled
Absolute >256 averages
Standard deviation averaging disabled
Standard deviation >256 averages
Jitter measurements floor
Time interval error
2,3
4
Period jitter
N-cycle, cycle-cycle jitter
9064 4.8 20
9104 4.8 15
9254 4.0 15
9404 5.0 20
9064 .33 .1
9104 .33 .05
9254 .33 .10
9404 .35 .15
9064 .75
9104 .65
9254 .75
9404 .80
9064 1.0 1.0
9104 1.0 0.5
9254 .95 1.1
9404 .95 1.2
9064 .75
9104 .65
9254 .75
9404 .80
9064 1.8
9104 1.4
9254 1.9
1 Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±5 °C from firmware calibration temperature.
2 Noise is the displayed noise floor. SlewRate is the displayed slew rate of the signal at the threshold crossings. Sample rate = max, sin(x)/x interpolation enabled.
3 Measurement threshold = fixed voltage at 50% level.
4 Time ranges ≤ 10 µs.
5 Values represent time error between two edges on a single channel. Standard deviation value refers to the standard deviation of 256 consecutive measurements performed
using an individual instrument. Reading is the displayed DTMA measurement value.
19
Infiniium 9000 Series performance characteristics
9404 .40
Acquisition 9104, 9254, 9404 9064
Maximum real-time sample rate
4 ch x 10 GS/s or 2 ch x 20 GS/s 4 ch x 5 GSa/s or 2 ch x 10 GSa/s
Memory depth per channel
Standard 20 Mpts on 4 channels, 40 Mpts on 2 channels
Option 50M 50 Mpts on 4 channels, 100 Mpts on 2 channels
Option 100 100 Mpts on 4 channels, 200 Mpts on 2 channels
Option 200 200 Mpts on 4 channels, 400 Mpts on 2 channels
Option 500 500 Mpts/ 250 Mpts on 4 channels, 1 Gpts/ 500 Mpts on 2 channels (single/repetitive mode)
Sampling Modes
Real-time
Real-time with peak detect
Real-time with high resolution (user selectable to 9-, 10-, 11-, or 12-bits of resolution)
Real-time with roll mode (200 ms to 20 sec.)
Equivalent-time (1.0 ps fine interpolator resolution yields a maximum effective sample rate of 1,000 GSa/s)
Segmented memory ( 1 ps time stamp resolution between segments)
Up to 8192 segments for 20 Mpts standard memory, up to 131,072 segments with Option 500
Maximum time between triggers is 562,950 seconds (6.5 days)
Re-arm time (minimum time between trigger events) is 4.5 s with analog channels, 5.8 s with digital channels on
Filters Sin (x) / x Interpolation
Acquisition: digital channels
Maximum real time sample rate 2 GSa/s
Maximum memory depth per channel 128/ 64 Mpts with 2 GSa/s. 64/32 Mpts with sampling < 2 GSa/s (single/repetitive mode).
Minimum width glitch detection 2 ns
Trigger: scope channels
Trigger sources Channel 1, channel 2, channel 3, channel 4, aux, and line
Sensitivity 1 MΩ input, edge trigger, DC to 500 MHz: 0.6 div
50 Ω DC to 2 GHz, 0.5 div
2 GHz to 4 GHz: 1.0 div
Auxiliary DC to 700 MHz: 300 mVp-p
Trigger level range ±
Channel 1,2,3,4 ±
Auxiliary ± 5 V (50 up to 500 MHz with at least 500 mV signal swing)
Sweep modes Auto, triggered, single
Display jitter (displayed trigger jitter)
1,2
Trigger holdoff range 100 ns to 10 s fixed and random
Trigger actions Specify an action to occur, and the frequency of the action, when a trigger condition occurs.
Actions include: e-mail on trigger and execute “multipurpose” user settings
Trigger coupling 1 MΩ: DC, AC, (10 Hz) low frequency reject (50 kHZ high pass filter), high frequency reject (50 kHz low pass filter)
4 div from center screen (50 Ω)
8 div from center screen with max of ± 8 V (1 MΩ)
9064 .50
9104 .35
9254 .50
1. Internal edge trigger mode. Trigger threshold = fixed voltage at 50% level. The slew rate independent value in the formula represents the traditional trigger jitter.
2. Display jitter example. At 100 mV/div typical noise values are 3.2 mV RMS for 9404 models, 2.5 mV RMS for 9254A models, and 2.4 mV RMS for 9104A models. For slew rate of 500 mVpp
sin wave with frequency equal to max analog bandwidth of each model, typical display jitter is .95 ps RMS for 9404A models, .97ps for 9254A models, and 1.7 ps RMS for 9104A models.
20
Infiniium 9000 Series performance characteristics
Trigger: digital channels MSO Models
Threshold range (user defined) ±8.0 V in 100-mV increments
Threshold accuracy ±(100 mV + 3% of threshold setting)
Measurements and math
Waveform measurements (can be made on either min or zoom window with up to 10 simultaneous measurements
with statistics)
Voltage (scope channels) Peak-to-peak, minimum, maximum, average, RMS, amplitude, base, top, overshoot, V overshoot,
preshoot, V
amplitude
Time (digital channels) Period, frequency, positive width, negative width, duty cycle, delta time
Time (scope channels) Rise time, fall time, period, frequency, positive width, negative width, duty cycle, Tmin, Tmax, Tvolt,
channel-to-channel delta time, channel-to-channel phase , count pulses , burst width, burst period,
burst interval, setup time, hold time
Mixed (scope channels only) Area, slew rate
Frequency domain FFT frequency, FFT magnitude, FFT delta frequency, FFT delta magnitude
Level qualification Any channels that are not involved in a measurement can be used to level-qualify all timing
measurements
Eye-diagram measurements Eye height, eye width, eye jitter, crossing percentage, Q factor, and duty-cycle distortion
Measurement modes
Statistics Displays the mean, standard deviation, minimum, maximum range, and number of measurement values
for the displayed automatic measurements
Histograms (scope channels)
Source Waveform or measurement (histogram on measurement requires EZJIT, EZJIT+, or EZJIT Complete
option)
Orientation Vertical (for timing and jitter measurements) or horizontal (noise and amplitude change) modes,
regions are defined using waveform markers
Measurements Mean, standard deviation, mean ± 1, 2, and 3 sigma, median, mode, peak-to-peak, min, max, total
hits, peak (area of most hits), X scale hits, and X offset hits
Marker modes Manual markers, track waveform data, track measurements
Waveform math
Number of functions 16
Operators Absolute value, add, AM demodulation, average, horizontal gating, Butterworth
ferentiate, divide, FFT magnitude, FFT phase, FIR
filter (4th-order Bessel Thompson filter),
SqrtSumOfSquare
Chartstate (MSO models), charttiming (MSO models)
Automatic measurements Measure menu access to all measurements, ten measurements can be displayed simultaneously
Multipurpose Front-panel button activates up to ten pre-selected or ten user-defined automatic measurements
Drag-and-drop Measurement toolbar with common measurement icons that can be dragged and dropped onto the
measurement toolbar displayed waveforms
FFT
Frequency range DC to 10 GHz (at 20 GSa/s) or 5 GHz (at 10 GSa/s)
Frequency resolution Resolution = sample rate/memory depth
Window modes Hanning, flattop, rectangular , Blackman Harris, Force
preshoot, upper, middle, lower, crossing point voltage , pulse top, pulse base, pulse
2
11
, high pass filter, integrate, invert, LFE2, low pass
, common mode, dif
magnify, max, min, multiply, RT Eye2, smoothing,
2
, square, square root, subtract, versus
2 Requires MATLAB software.
21
Infiniium 9000 Series performance characteristics
Trigger modes
Edge (analog and digital) Triggers on a specified slope (rising, falling or alternating between rising and falling) and voltage
level on any channel.
Edge transition (analog) Trigger on rising or falling edges that cross two voltage levels in > or < the amount of time specified.
Edge transition setting from 250 ps.
Edge then edge (time) The trigger is qualified by an edge. After a specified time delay between 10 ns to 10 s, a rising or
(analog and digital) falling edge on any one selected input will generate the trigger.
Edge then edge (event) The trigger is qualified by an edge. After a specified delay between 1 to 16,000,000 rising or falling
(analog and digital) edges, another rising or falling edge on any one selected input will generate the trigger.
Glitch (analog and digital) Triggers on glitches narrower than the other pulses in your waveform by specifying a width less than
your narrowest pulse and a polarity. Glitch range settings equal pulse width settings
Line Triggers on the line voltage powering the oscilloscope.
Pulse width (analog and digital) Trigger on a pulse that is wider or narrower than specified.
4 GHz model Minimum detectable pulse width: 125 ps for analog channels, 1 ns for digital channels.
Pulse width range settings: 250 ps to 10 s for analog channels, 2 ns to 10 s for digital channels.
2.5 GHz model Minimum detectable pulse width: 200 ps for analog channels, 1 ns for digital channels. Pulse width
range settings: 350 ps to 10 s for analog channels, 2 ns to 10 s for digital channels.
1 GHz and 600 MHz model Minimum detectable pulse width: 500 ps for analog channels, 1 ns for digital channels. Pulse width
range settings: 700 ps to 10 s for analog channels, 2 ns to 10 s for digital channels.
Runt (analog) Triggers on a pulse that crosses one threshold but fails to cross a second threshold before crossing
the first again. Runt settings equal pulse width settings.
Timeout (analog and digital) Trigger when a channel stays high, low, or unchanged for too long.
Timeout settings equal pulse width settings.
Pattern/pulse range Triggers when a specified logical combination of the channels is entered, exited, present for a
(analog and digital) specified period of time or is within a specified time range or times out. Each channel can have a
value of High (H), Low (L) or Don’t care (X).
State (analog and digital)
Setup/hold (analog) Triggers on setup, hold, or setup and hold violations in your circuit. Requires a clock and data signal
on any two inputs (except aux or line) channels as trigger sources. Setup and/or hold time must
then be specified.
Window (analog) Trigger on entering, exiting, or inside specified voltage range
Video (analog) NTSC, PAL-M(525/60), PAL, SECAM(625,50) EDTV(480p/60), EDTV(576/50), HDTV(720p/60),
HDTV(720p/50) HDTV(1080i/60)
Serial (analog and digital) Requires specified serial software option, I
PCIe, MIPI D-Phy, generic 8B/10B
Zone-qualified Requires InfiniiScan software option. SW-based triggering across up to 8 user-drawn zones. For each
zone, user specifies “must intersect” or “must not intersect.” Zones can be drawn on multiple
channels and combined using Boolean expressions.
Pattern trigger clocked by the rising, falling or alternating between rising and falling edge of one channel.
2
C, SPI, CAN, LIN,FlexRay, RS-232/UART, JTAG, USB,
22
Infiniium 9000 Series performance characteristics
Display
Display 15 inch color XGA TFT-LCD with touch screen
Display intensity grayscale 64-level intensity-graded display
Resolution 1024 pixels horizontally x 768 pixels vertically
Annotation Up to 12 labels, with up to 100 characters each, can be inserted into the waveform area
Grids Can display 1, 2 or 4 waveform grids
Waveform styles Connected dots, dots, variable persistence, infinite persistence, color graded infinite persistence.
Includes up to 64 levels of intensity-graded waveforms.
Waveform update rate Segmented mode: Maximum up to 250,000 waveforms/sec
(10 GS/s, 50 ns/div, sin(x)/x: on) Real time mode Maximum of 4,000 waveforms/sec.
Typical of 2,100 waveforms/sec with 1kpts memory.
Typical of 420 waveforms/sec with 100 kpts memory
Typical of 400 waveforms/sec with 1 Mpts memory
Typical of 300 waveforms/sec with 10 Mpts
Computer system and peripherals, I/O ports
Computer system and peripherals
Operating system Windows 7 Embedded Standard
CPU Intel® Core 2 Duo, M890, 3.0 GHz microprocessor
PC system memory 4 GB
Drives ≥ 250-Gb internal hard drive (optional removable hard drive), external DVD-RW drive (optional)
Peripherals Optical USB mouse and compact keyboard supplied. All Infiniium models support any Windows compatible input device with a PS/2 or USB interface.
File types
Waveforms Compressed internal format (*.wfm), comma separated values (*.csv), .hdf5, .bin, tab separated
values (*.tsv), ability to save .osc (composite including both setup and waveform.
and Y value files (*.txt)
Images BMP, TIFF, GIF, PNG or JPEG
I/O ports
LAN RJ-45 connector, supports 10Base-T, 100Base-T, and 1000Base-T. Enables Web-enabled remote
control, e-mail on trigger, data/file transfers and network printing.
RS-232 (serial) 9-pin, COM1, printer and pointing device support
PS/2 Two ports. Supports PS/2 pointing and input devices.
USB 2.0 Hi-Speed Three 2.0 high-speed ports on front panel plus four ports on side panel. Allows connection of USB
peripherals like storage devices and pointing devices while the oscilloscope is on. One device port
on side for instrument control
Video output 15 pin XGA on side of scope, full output of scope display or dual monitor video output, DVI
Auxiliary output DC (± 2.4 V); square wave ~755 Hz with ~200 ps rise time.
Time base reference output 10 MHz, Amplitude into 50 ohms: 800 mV pp to 1.26 V pp (4 dBm ± 2 dB) if derived from internal
reference. Tracks external reference input amplitude ± 1 dB if applied and selected.
Time base reference input Must be 10 MHz, input Z = 50 ohms. Minimum 500 mV pp (–2 dBm), maximum 2.0 V pp (+10 dBm).
LXI compliance LXI Class C
23
Infiniium 9000 Series performance characteristics
General characteristics
Temperature
Operating 5 °C to + 40 °C
Non-operating –40 °C to + 65 °C
Humidity
Operating Up to 95% relative humidity (non-condensing) at +40 °C
Non-operating Up to 90% relative humidity at +65 °C
Altitude
Operating Up to 4,000 meters (12,000 feet)
Non-operating Up to 15,300 meters (50,000 feet)
Vibration
Operating Random vibration 5-500 Hz, 10 minutes per axis, 0.3 g (rms)
Non-operating Random vibration 5-500 Hz, 10 minutes per axis, 2.41 g (rms); resonant search 5-500 Hz, swept sine,
1 octave/minute sweep rate, (0.75 g), 5 minute resonant dwell at 4 resonances per axis
Power 100-120 V, ± 10% 50/60/400 Hz
100-240 V, ± 10% 50/60 Hz
Max power dissipated: 375 W
Typical operator noise 30 dB at front of instrument
Weight Net: 11.8 kg (26 lbs.) Shipping: 17.8 kg (39 lbs.)
Dimensions (with feet retracted) Height: 12.9 in (33 cm); width: 16.8 in (43 cm); depth: 9 in (23 cm)
Safety Meets IEC1010-1 Second Edition, certified to UL61010-1 and CAN/CSA-C22.2 No 61010-1
Second Edition (IEC61010-1:2001, MOD).
24
Infiniium 9000 Series ordering information
How to configure an Infiniium 9000 Series
1. Choose needed bandwidth
2. Choose MSO or DSO
3. Choose desired software applications
4. Choose memory depth upgrade
5. Choose any additional probes and accessories
Accessories included:
All models ship standard with: 1-year warranty, four N2873A
500 MHz passive probes, probe accessory pouch (mounts on
rear of instrument), Agilent I/O libraries suite 15.0, localized
power cord, front panel cover, keyboard, mouse, and stylus.
User guide and programmer’s guide ship on oscilloscope
hard drive. Service guide available on Agilent.com. MSO
models additionally ship with channel flying lead set logic
probe, MSO cable and calibration fixture.
Model
DSO9064A 600 MHz 5 GSa/s / 10 GSa/s 20 Mpts / 40 Mpts 4 -
MSO9064A 600 MHz 5 GSa/s / 10 GSa/s 20 Mpts / 40 Mpts 4 16
DSO9104A 1 GHz 10 GSa/s / 20 GSa/s 20 Mpts / 40 Mpts 4 -
MSO9104A 1 GHz 10 GSa/s / 20 GSa/s 20 Mpts / 40 Mpts 4 16
DSO9254A 2.5 GHz 10 GSa/s / 20 GSa/s 20 Mpts / 40 Mpts 4 -
MSO9254A 2.5 GHz 10 GSa/s / 20 GSa/s 20 Mpts / 40 Mpts 4 16
DSO9404A 4 GHz 10 GSa/s / 20 GSa/s 20 Mpts / 40 Mpts 4 -
MSO9404A 4 GHz 10 GSa/s / 20 GSa/s 20 Mpts / 40 Mpts 4 16
* In 2-channel mode, maximum sample rate and memory depth double.
Analog
bandwidth
Analog sample
rate* (4 ch / 2 ch)
Standard memory*
(4 ch / 2 ch)
Scope
channels
channels
Logic
Additional options and accessories
Option A6J ANSI Z540 compliant calibration
DSO9000A-820 External DVD-RW with USB connection
N2902A or Option 1CM (8U) 9000 Series oscilloscope rackmount kit
Option 801 Removable solid state drive
N2746A (requires Option 801) Additional solid state drive Windows 7 embedded
Gemstar 5000 custom-molded case Available from
N2918B Infiniium 9000 Series Evaluation Kit
N4865A GPIB to LAN adapter
standard
www.gemstarmfg.com
Quickly remove your solid state drive for
additional security with Option 801.
Mount your 9000 Series scope in an 8U high,
19” (487mm) wide rack with option ICM.
25
Infiniium 9000 Series ordering information
SW Applications
RS-232/UART triggering and decode
EZJIT jitter analysis software 002 E2681A 002
High-speed SDA and clock recovery 003 N5384A 003
EZJIT Plus jitter analysis software 004 N5400A 001
USB triggering and decode 005 N5464B 034
PCI Express 1.1 triggering and decode 006 N5463B 032
I²C/SPI triggering and decode 007 N5391B 006
CAN, LIN, and FlexRay triggering and decode 008 N8803B 033
InfiniiScan 009 N5415B 004
User-defined function 010 N5430A 005
InfiniiSim signal equalization 012 N5461A 025
InfiniiSim basic signal de-embedding 013 N5465A 001 026
InfiniiSim advanced signal de-embedding 014 N5465A 002 027
Power measurement application software 015 U1882A
Xilinx FPGA dynamic probe 016 N5397A
Altera FPGA dynamic probe 017 N5433A
2
RS-232, SPI and I
MIPI D-Phy Triggering and decode 019 N8802A 036
Ethernet compliance 021 N5392A 008
USB2.0 compliance 029 N5416A 017
DDR1 and LPDDR compliance 031 U7233A 021
DDR2 and LPDDR2 compliance 032 N5413B 016
DDR3 compliance 033 U7231A 020
MIPI D-Phy compliance 035 U7238A 022
SATA1 (1.5 GB/s triggering and decode) 038 N8801A 035
User definable application 040 N5467A
JTAG (IEEE 1149.1) triggering and decode 042 N8817A 038
USB HSIC compliance test 043 U7248 042
DigRF protocol decode 045 N8807A 047
SVID protocol triggering and decode 046 N8812A 054
Communication mask test kit E2625A
MATLAB basic 061
MATLAB advanced 062
HDMI 1.4 (up to 740 Mbp/s) N5399B
10GBase-T Ethernet compliance U7236A
Precision Probe N2808A 044
eMMC compliance 064 N6465A 061
BroadR-Reach compliance 065 N6467A 062
EZJIT Complete jitter analysis software 070 N8823A 067
MOST compliance 073 N6466A 068
MIPI RFFE protocol 075
Energy Efficient Ethernet N5392B
C triggering and decode bundle 018 N8800B
Factory-installed option
for new scope purchases
001 N5462B
User-installed stand-alone
product number
User-installed floating
license (N5435A option)
031
26
Upgrades
Memory upgrade
DSO to MSO upgrades
(N2901A/B/C/D)
Upgrade your existing DSO to an MSO
model in 5 minutes. The upgrade kit turns
on all MSO capability and includes an
MSO cable, 16-channel lead set with
grabbers, an MSO-enabled sticker, and a
digital-analog deskew fixture.
Memory per scope
channel (4-channel/
Factory-installed option for
new scope purchases
User-installed option
(N2900A)
2-channel mode)
20 Mpts/40 Mpts Standard 020
50 Mpts/100 Mpts 50M 050
100 Mpts/200 Mpts 100 100
200 Mpts/400 Mpts 200 200
500 Mpts/1 Gpts 500 500
Post-sales upgrades
DSO → MSO upgrades
N2901D DSO9064A to MSO9064A Upgrade Kit
N2901A DSO9104A to MSO9104A Upgrade Kit
N2901B DSO9254A to MSO9254A Upgrade Kit
N2901C DSO9404A to MSO9404A Upgrade Kit
Oscilloscopes bandwidth upgrades (done at service centers)
N2905A Upgrade to 2.5 GHz bandwidth -option 006 600 MHz to 2.5 GHz
-option 010 1 GHz to 2.5 GHz
N2904A Upgrade to 4.0 GHz bandwidth -option 006 600 MHz to 4 GHz
-option 010 1 GHz to 4 GHz
-option 025 2.5 GHz to 4 GHz
Additional acquisition memory
(N2900A or options 50, 100, 200,
and 500 on new scope
purchase)
Increase memory depth to capture longer
time periods and maintain faster speeds.
Memory depth doubles in 2-channel
mode.
Memory depth upgrades
N2900A Depth doubles in 2 channel
mode.
-option 050 upgrade to 50 Mpts/ch
-option 100 upgrade to 100 Mpts/ch
-option 200 upgrade to 200 Mpts/ch
-option 500 upgrade to 500 Mpts/ch
Operating system upgrades
N2753A Windows 7 embedded standard for Infiniium 9000 scope with
Windows XP and SN>MY50410100
N2754A Window 7 embedded standard and M890 motherboard for Infiniium
9000 scopes with Windows XP and SN <MY50410100
27
myAgilent
myAgilent
www.agilent.com/find/myagilent
A personalized view into the information most relevant to you.
www.lxistandard.org
LAN eXtensions for Instruments puts the power of Ethernet and the
Web inside your test systems. Agilent is a founding member of the
LXI consortium.
www.pxisa.org
PCI eXtensions for Instrumentation (PXI) modular instrumentation
delivers a rugged, PC-based high-performance measurement and
automation system.
Three-Year Warranty
www.agilent.com/find/ThreeYearWarranty
Beyond product specification, changing the ownership experience.
Agilent is the only test and measurement company that offers
three-year warranty on all instruments, worldwide.
Agilent Assurance Plans
www.Agilent.com/find/AssurancePlans
Five years of protection and no budgetary surprises to ensure your
instruments are operating to specifications and you can continually
rely on accurate measurements.
www.agilent.com/quality
Agilent Electronic Measurement Group
DEKRA Certified ISO 9001:2008
Quality Management System
Agilent Channel Partners
www.agilent.com/find/channelpartners
Get the best of both worlds: Agilent’s measurement expertise and
product breadth, combined with channel partner convenience.
www.agilent.com
www.agilent.com/find/9000
For more information on Agilent
Technologies’ products, applications or
services, please contact your local Agilent
office. The complete list is available at:
www.agilent.com/find/contactus
Americas
Canada (877) 894 4414
Brazil (11) 4197 3600
Mexico 01800 5064 800
United States (800) 829 4444
Asia Pacific
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 375 8100
Europe & Middle East
Belgium 32 (0) 2 404 93 40
Denmark 45 45 80 12 15
Finland 358 (0) 10 855 2100
France 0825 010 700*
*0.125 €/minute
Germany 49 (0) 7031 464 6333
Ireland 1890 924 204
Israel 972-3-9288-504/544
Italy 39 02 92 60 8484
Netherlands 31 (0) 20 547 2111
Spain 34 (91) 631 3300
Sweden 0200-88 22 55
United Kingdom 44 (0) 118 927 6201
Agilent Technologies Oscilloscopes
Multiple form factors from 20 MHz to > 90 GHz | Industry leading specs | Powerful applications
PCI Express and PCIe are registered trademarks of PCI-SIG.
MATLAB is a U.S. registered trademark of The MathWorks, Inc.
For other unlisted countries:
www.agilent.com/find/contactus
(BP-10-29-13)
Product specifications and descriptions in
this document subject to change without
notice.
© Agilent Technologies, Inc. 2013
Published in USA, November 6, 2013
5990-3746EN
Loading...
