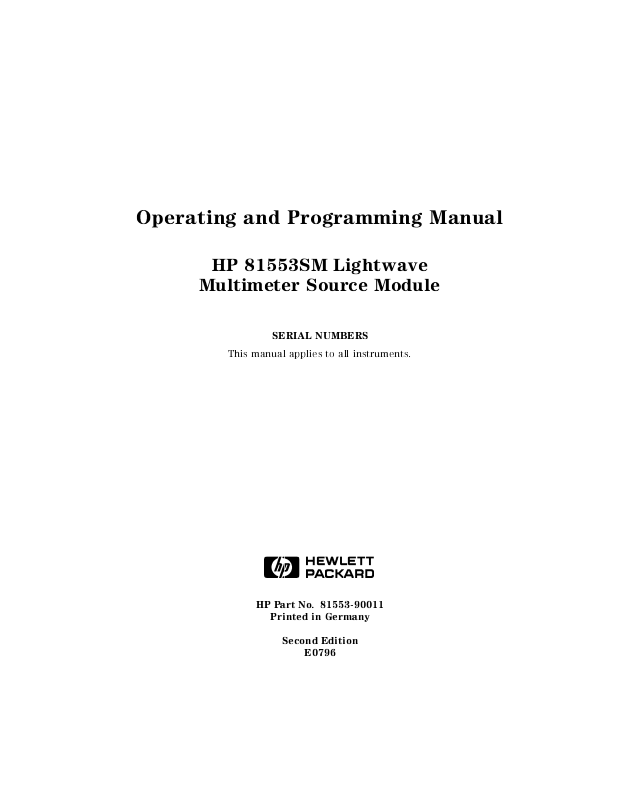

Operating and Programming Manual

HP 81553SM Lightwave

Multimeter Source Module

SERIAL NUMBERS

This manual applies to all instruments.

ABCDE

HP Part No. 81553-90011

Printed in Germany

Second Edition

E0796

C

HP 81553SM Specications

Specications describe the instrument's warranted preformance. Supplementary

performance characteristics describe the instrument's non-warranted typical

performance.

Because of the modular nature of the instrument, these performance

specications apply only to this module.You should insert these pages into the

appropriate section of the manual.

Table C-1. HP 81553SM Specications

Type

Central Wavelength

[1]

Fiber Type

Spectral Bandwidth (RMS)

Output Power

CW-Stability

[3]

[4]

[2]

FP-Laser

1550nm620nm

single mode 9/125m

<

4nm rms

>

0dBm

Short Term (15min, T=Constant)60.003dB

Long Term (6h, T=0 to 55C61K)60.03dB

Operating Tempreature

Dimensions

Weight

Recalibration Period

[1]

Central Wavelength is shown on the display.

[2]

rms: root mean square.

[3]

Class 3A according to IEC 825-1 (1993), Class 1 according to FDA CFR 21 (1986)

[4]

After a warm-up time of 60 min. with output enabled. If previously stored at

0C to +55C

75mm H, 32mm W, 335mm D

(2.8"2

1.3"2

13.2"2

)

net 0.7kg (1.5lbs), shipping 1kg (2.2lbs)

1 year

the same temperature, 20 min. only.

HP 81553SM Specications C-1
