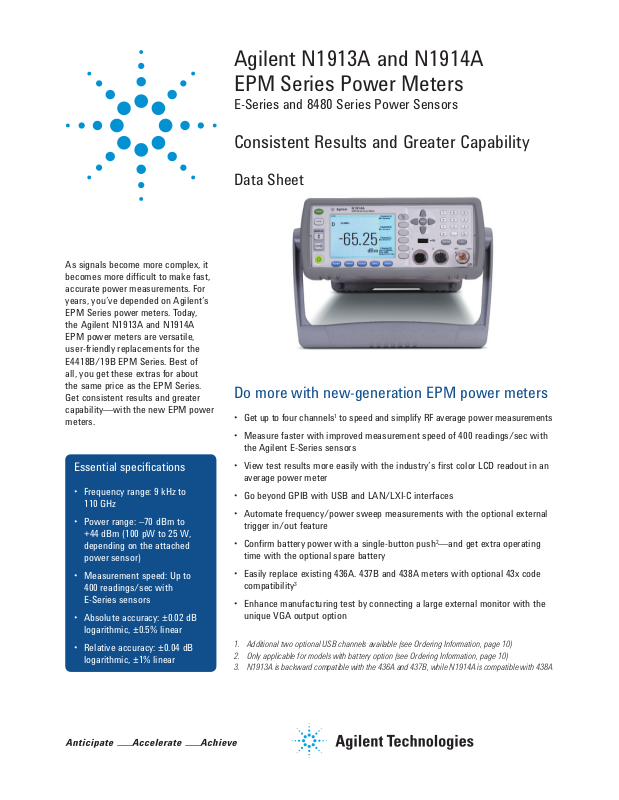

Agilent N1913A and N1914A

As signals become more complex, it
becomes more difficult to make fast,
accurate power measurements. For
years, you’ve depended on Agilent’s
EPM Series power meters. Today,
the Agilent N1913A and N1914A
EPM power meters are versatile,
user-friendly replacements for the
E4418B/19B EPM Series. Best of
all, you get these extras for about
the same price as the EPM Series.
Get consistent results and greater
capability—with the new EPM power
meters.

EPM Series Power Meters

E-Series and 8480 Series Power Sensors

Consistent Results and Greater Capability

Data Sheet

Do more with new-generation EPM power meters

• Get up to four channels1 to speed and simplify RF average power measurements

• Measure faster with improved measurement speed of 400 readings/sec with
the Agilent E-Series sensors

Essential specifications

• Frequency range: 9 kHz to
110GHz

• Power range: –70 dBm to
+44dBm (100 pW to 25 W,
depending on the attached
power sensor)

• Measurement speed: Up to
400readings/sec with
E-Series sensors

• Absolute accuracy: ±0.02 dB
logarithmic, ±0.5% linear

• Relative accuracy: ±0.04 dB
logarithmic, ±1% linear

• View test results more easily with the industry’s first color LCD readout in an
average power meter

• Go beyond GPIB with USB and LAN/LXI-C interfaces

• Automate frequency/power sweep measurements with the optional external
trigger in/out feature

• Confirm battery power with a single-button push2—and get extra operating
time with the optional spare battery

• Easily replace existing 436A. 437B and 438A meters with optional 43x code
compatibility

• Enhance manufacturing test by connecting a large external monitor with the
unique VGA output option

1. Additional two optional USB channels available (see Ordering Information, page10)

2. Only applicable for models with battery option (see Ordering Information, page 10)

3. N1913A is backward compatible with the 436A and 437B, while N1914A is compatible with 438A

3

Take a Closer Look

N1914A front panel

Industry’s first high-resolution color
LCD in an average power meter

Display keys select
the display format for
the active window
(single/split screen)

Hard keys provide quick access to
the most frequently used functions,
such as Trigger and Acquisition

Soft keys provide
menu selection

USB port for additional
sensor connection
(Optional)

Channel A&B sensor
connectors

Arrow keys and Select allow positioning of
the cursor for character selection and editing

Numeric keypad

Run/Stop enables
single-shot
measurements

Cal enables fully
automatic digital
zeroing (corrected
for residual offsets)
and fully automatic
sensor calibration

Power reference
(0 dBm, 50 MHz)

N1914A back panel

Rear-panel sensor and Power Ref
connectors provide an option to
replace front-panel connectors

Trigger in and out
connectors (for
automated power
or frequency sweep
function) (Optional)

VGA output
(Optional)

USB port

DC recorder outputs (0-1 V)

USB port for additional sensor connection
(Optional)

LAN port

2

Line power accepts
universal input
voltage with
automatic range
selection

GPIB connector

N1913A/14A Series Power Meter: Applications and Compatible Sensors for
Average Power Measurements

Signal
characteristics > CW Modulated

Pulse/

CW

Typical application
examples >

Themocouple sensors:
8480A/B/H,
N8480A/B/H,
R/Q8486A,
N8486AR/AQ

Diode sensors:
8480D, V8486A,
W8486A

Diode sensors
compensated for
extended range:
E4412A/3A

Two-path diode-stack
sensors:
E9300 Series

USB sensors:
U2000 Series

* The N1913A/4A power meters are compatible with all 8480 Series power sensors, including discontinued models.

Metrology
lab

●●●●

●●●●

● FM only

●●●●

●●●●

averaged

Radar/
navigation

AM/FM
profiled

Mobile
radio

GSM
EDGE
GPRS

Average
only

Average
only

Average
only

Average
only

Mobile phone WLAN WPAN WMAN

CDMA2000
cdmaONE
IDEN

●
Average
only

●
Average
only

●
Average
only

●
Average
only

Wireless standards

3G
HSPA
LTE

●
Average
only

●
Average
only

●
Average
only

●
Average
only

802.11a

802.11b

802.11g

802.11n

●
Average
only

●
Average
only

●
Average
only

●
Average
only

Bluetooth

RFID
ZigBee

●
Average
only

●
Average
only

●
Average
only

●
Average
only

®

Wimax
Wibro

●
Average
only

●
Average
only

●
Average
only

●
Average
only

3

N1913A/14A EPM Series Power Meters Performance Characteristics

Specifications describe the instrument’s warranted performance and apply
after a 30 minute warm-up. These specifications are valid over its operating/
environmental range unless otherwise stated and after performing a zero and
calibration procedure.

Supplemental characteristics (shown in italics) are intended to provide addi­tional information, useful in applying the instrument by giving typical (expected),
but not warranted performance parameters. These characteristics are shown in
italics or labeled as “typical”, “nominal” or “approximate”.

Compatible power sensors Agilent 8480 Series

Agilent E9300 E-Series
Agilent E4410 E-Series
Agilent N8480 Series
Agilent U2000 Series

Frequency range 9 kHz to 110 GHz, sensor dependent

Power range –70 dBm to +44 dBm (100 pW to 25 W), sensor dependent

Single sensor dynamic range 90 dB maximum (Agilent E-Series power sensors)

50 dB maximum (Agilent 8480 Series power sensors)
55 dBm maximum (Agilent N8480 Series power sensors)
80 dBm maximum (Agilent U2000 Series USB power sensors)

Display units Absolute: Watts or dBm

Relative: Percent or dB

Display resolution Selectable resolution of: 1.0, 0.1, 0.01 and 0.001 dB in logarithmic mode, or 1, 2, 3 and 4 significant

digits in linear mode

Default resolution 0.01dB in logarithmic mode or three digits in linear mode

Accuracy

Absolute accuracy ±0.02 dB (Logarithmic) or ±0.5% (Linear). Please add the corresponding power sensor linearity

percentage from Tables 6, 9 and 10 (for the E-Series sensors), Table 14 (for the 8480 series sensors)
and Table 16 (for N8480 sensors) to assess the overall system accuracy.

Relative accuracy ±0.04 dB (Logarithmic) or ±1.0% (Linear). Please add the corresponding power sensor linearity

percentage from the mentioned tables above to assess the overall system accuracy.

Zero set
(digital settability of zero)

Zero drift of sensors This parameter is also called long term stability and is the change in the power meter indication

Power sensor dependent (refer Table 1), this specification applies when zeroing is performed with
the sensor input disconnected from the POWER REF.

over a long time (within one hour) at a constant temperature after a 24-hour warm-up of the power
meter. Sensor dependent, refer to Table 1. For E9300 sensors, refer to Table11 for complete data.

Measurement noise

Sensor dependent, refer to Tables 1 and 2. For E9300 sensors, refer to Table 11 for complete data.

Effects of averaging on noise Averaging over 1 to 1024 readings is available for reducing noise. Table 1 provides the

measurement noise for a particular power sensor with the number of averages set to 16 for normal
mode and 32 for x2 mode. Use the “Noise Multiplier” for the appropriate mode (normal or x2) and
number of averages to determine the total measurement noise value.

For example: For an Agilent 8481D power sensor in normal mode with the number of averages set
to 4, the measurement noise is equal to: (<45 pW x 2.75) = <124 pW

4

N1913A/14A EPM Series Power Meters Performance Characteristics (continued)

1 mW power reference

Power output 1.00 mW (0.0 dBm). Factory set to ±0.4 % traceable to the National Physical Laboratories (NPL), UK

Accuracy (for two years) ±0.4% (25 ±10 ºC)

±1.2% (0 to 55 ºC)

Frequency 50 MHz nominal

SWR 1.05 (typical), 1.08 (0 to 55ºC)

Connector type Type-N (f), 50 Ω

Measurement speed

Using remote interface (over the GPIB, USB or LAN), three measurement speed modes are available as shown,
along with the typical maximum measurement speed for each mode.

With N1913A power meter • Normal: 20 readings/second

• x2: 40 readings/second

• Fast: 400 readings/second

With N1914A power meter The measurement speed is reduced, for example, with both channels in FAST mode, the typical

maximum measurement speed is 200 readings/second.

Fast mode is for Agilent E-Series power sensors only.

Maximum measurement speed is obtained using binary output in free run trigger mode.

Table 1. Power sensors zero set, zero drift and measurement noise

Model Zero set Zero drift

E9300A, E9301A, E9304A

E9300B, E9301B

E9300H, E9301H

E4412A, E4413A ±50 pW

N8481A, N8482A, N8485A, N8487A, N8486AR, N8486AQ ±25 nW

8483A ±50 nW

N8481B, N8482B ±50 μW

8481D, 8485D, 8487D ±20 pW

N8481H, N8482H ±5 μW

R8486D, Q8486D ±30 pW

V8486A, W8486A ±200 nW

1. Within 1 hour after zero set, at a constant temperature, after a 24-hour warm-up of the power meter.

2. The number of averages at 16 for normal mode and 32 for x2 mode, at a constant temperature, measured over a one minute interval and two
standard deviations. For E-Series sensors, the measurement noise is measured within the low range. Refer to the relevant sensor manual for further
information.

3. Specification applies to the low power path, 15% to 75% relative humidity.

The 8480 Series sensors in the table do not include discontinued models.

Table 2. Noise multiplier

3

3

3

±500 pW

±500 nW

±5 nW

<±150 pW <700 pW

<±150 nW <700 nW

<±1.5 nW <7 nW

<±15 pW <70 pW

<±3 nW <80 nW

<±10 nW <110 nW

<±10 μW <110 μW

<±4 pW <45 pW

<±1 μW <10 μW

<±6 pW <65 pW

<±40 nW <450 nW

1

Measurement noise

Number of averages 1 2 4 8 16 32 64 128 256 512 1024

Noise multiplier
Normal mode
x2 mode

5.5

6.5

3.89

4.6

2.75

3.25

1.94

2.3

1

1.63

0.8510.61

0.72

0.49

0.57

0.34

0.41

0.24

0.29

0.17

0.2

2

5

N1913A/14A EPM Series Power Meters Performance Characteristics (continued)

Settling time

1

Manual filter, 10-dB decreasing power step for normal and x2 modes (not across
range switch points for E-Series and N8480 Series sensors).

Table 3. Settling time

Number of averages 12481632641282565121024

Settling time with E-Series sensors (s)

Normal mode
x2 mode

0.08

0.07

0.13

0.09

0.24

0.15

0.45

0.24

1.1

0.45

1.9

1.1

3.5

1.9

6.7

3.6

14

6.7

27
14

57
27

Settling time with N8480 Series sensors (s)

Normal mode
x2 mode

0.15

0.15

0.2

0.18

0.3

0.22

0.5

0.35

1.1

0.55

1.9

1.1

3.4

1.9

6.6

3.5

13

6.9

27

14.5

57
33

Settling time with 8480 Series sensors (s)

Normal mode
x2 mode

E-Series sensors In FAST mode (using free run trigger), within the range –50 dBm to +17 dBm, for a 10 dB decreasing
power step, the settling time is:
N1913A: 10 ms
N1914A: 20 ms

2

2

0.15

0.15

0.2

0.18

0.3

0.22

0.5

0.35

1.1

0.55

1.9

1.1

3.4

1.9

6.6

3.5

13

6.9

27

14.5

57
33

1. Settling time: 0 to 99% settled readings over the GPIB.

2. When a power step crosses through the sensor’s auto-range switch point, add 25 ms. Refer to the relevant sensor manual for switch point information.

6

N1913A/14A EPM Series Power Meters Performance Characteristics (continued)

Settling time (continued)

Auto filter, 10 dB decreasing power step for normal and X2 modes (not across
the range switch points for E-Series and N8480 Series sensors).

x2

speed

Normal

speed

Maximum dBm

x2

speed

Normal

speed

Maximum dBm

Typical

40 ms 70 ms

settling
times

70 ms 120 ms

210 ms 400 ms

3.4 s 6.5 s

–40 dBm
–50 dBm
–60 dBm

With E-Series E4412/13A sensors

x2

Normal

Typical
settling
times

speed

40 ms 70 ms
120 ms 210 ms
210 ms 400 ms
400 ms 1 s

40 ms 70 ms

70 ms 120 ms
400 ms 1 s

speed

3.4 s 6.5 s

6.8 s 13 s

+10 dBm

+2 dBm

–4 dBm
–10 dBm
–20 dBm
–30 dBm
–40 dBm
–50 dBm

With E-Series E9300A/01A/04A sensors

Sensor
dynamic
range

Minimum dBm

Maximum dBm

High power
path

Sensor
dynamic
range

Low power
path

Minimum dBm

Typical
settling
times

150 ms 150 ms
180 ms 200 ms
400 ms 1 s

3.6 s 6.6 s

6.6 s 13.5 s

With N8480 Series sensors

x2

Normal

speed

speed

Typical
settling
times

150 ms 150 ms
180 ms 200 ms
350 ms 500 ms

3.5 s 6.6 s

With 8480 Series sensors

20 dB
10 dB
10 dB
10 dB

5 dB

20 dB
10 dB
10 dB
10 dB

Sensor
dynamic
range

Minimum dBm

Maximum dBm

Sensor
dynamic
range

Minimum dBm

x2

Normal

Typical
settling
times

speed

40 ms 70 ms
120 ms 210 ms
210 ms 400 ms
400 ms 1 s

40 ms 70 ms

70 ms 120 ms
400 ms 1 s

speed

3.4 s 6.5 s

6.8 s 13 s

+40 dBm
+32 dBm
+26 dBm
+20 dBm
+10 dBm

0 dBm
–10 dBm
–20 dBm

With E-Series E9300B/01B/00H/01H sensor

Maximum dBm

+20 dBm
+12 dBm

+6 dBm

0 dBm
–10 dBm
–20 dBm
–30 dBm
–40 dBm

Minimum dBm

High power
path

Sensor
dynamic
range

Low power
path

7

N1913A/14A EPM Series Power Meters Performance Characteristics (continued)

Power meter functions

Accessed by key entry Either hard keys, or soft key menu, and programmable

Zero Zeros the meter. (Power reference calibrator is switched off during zeroing.)

Cal Calibrates the meter using internal (power reference calibrator) or external source. Reference cal factor

settable from 1% to 150%, in 0.1% increments.

Frequency Entered frequency range is used to interpolate the calibration factors table. Frequency range from 1 kHz

to 999.9 GHz. Also settable in 1 kHz steps.

Cal factor Sets the calibration factor for the meter. Range: 1% to 150%, in 0.1% increments.

Relative Displays all successive measurements relative to the last displayed value

Offset Allows power measurements to be offset by –100 dB to +100 dB, settable in 0.001 dB increments, to

compensate for external loss or gain

Save/recall Store up to 10 instrument states via the save/recall menu

dBm/W Selectable units of either Watts or dBm in absolute power; or percent or dB for relative measurements

Filter (averaging) Selectable from 1 to 1024. Auto-averaging provides automatic noise compensation.

Duty cycle Duty cycle values between 0.001% to 99.999%, in 0.001% increments, can be entered to display a peak

power representation of measured power. The following equation is used to calculate the displayed peak
power value: peak power = measured power/duty cycle.

Sensor cal tables Selects cal factor versus frequency tables corresponding to specified sensors

Limits High and low limits can be set in the range –150.000 dBm to +230.000 dBm, in 0.001 dBm increments

Preset default values dBm mode, rel off, power reference off, duty cycle off, offset off, frequency 50 MHz, AUTO average, free

run, AUTO range (for E-Series sensors and N8480 Series)

Display Color display with selectable single and split screen formats are available. A quasi-analog display is

available for peaking measurements. The dual channel power meter can simultaneously display any two
configurations of A, B, A/B, B/A, A-B, B-A and relative. With the optional USB ports, additional dual
channel (C & D), adds up to total 4-channels measurement display.

Power meter general specifications

Dimensions The following dimensions exclude front and rear protrusions:

212.6 mm W x 88.5 mm H x 348.3 mm D (8.5 in x 3.5 in x 13.7 in)

Weight Model Net Shipping

N1913A 3.6 kg (8.0 lb) 8.2 kg (18.1 lb)
N1914A 3.7 kg (8.2 lb) 8.2 kg (18.3 lb)

Rear panel connectors

Recorder outputs Analog 0 to 1 Volt, 1 kΩ output impedance, BNC connector. N1914A recorder outputs are dedicated to

channel A and channel B.

GPIB, USB 2.0 and
10/100BaseT LAN

Trigger Input (optional)

Trigger Output (optional)

Ground Binding post, accepts 4 mm plug or bare wire connection

USB Host (options) USB ports which connects to U2000 series USB power sensors

VGA Out (options) Standard 15-pin VGA connector, allows connection of external VGA monitor

1. For automated power or frequency sweep function

Interfaces to allow communication with an external controller

1

Input has TTL compatible logic levels and uses a BNC connector.
High: >2.4 V Low: <0.7 V

1

Output provides TTL compatible logic levels and uses a BNC connector.
High: >2.4 V Low: <0.7 V

8

N1913A/14A EPM Series Power Meters Performance Characteristics (continued)

Line power

Input voltage range 90 to 264 VAC, automatic selection

Input frequency range 47 to 63 Hz and 400 Hz @ 110 Vac

Power requirement 75 VA (50 Watts)

Battery option operational characteristics

The following information describes characteristic performance based at a temperature of 25 °C unless otherwise noted.

Typical operating time Up to 6 hours with LCD backlight on; up to 7.5 hours with LCD backlight off (N1913A power meter).

Charge time Approximately, 2.5 hours to charge fully from an empty state. Power meter is operational whilst charging.

Battery type Lithium-ion (Li-ion)

Battery storage
temperature

–20 °C to 60 °C, ≤80 % RH

1

Environmental characteristics

Electromagnetic
compatibility

Product safety This product conforms to the requirements of the following safety standards:

Low Voltage Directive This product conforms to the requirements of European Council Directive “2006/95/EC”

Complies with the essential requirements of EMC Directive (2004/108/EC) as follows:

• IEC61326- 1:2005 / EN61326- 1:2006

• CISPR11:2003 / EN55011:2007 (Group 1, Class A)

The product also meets the following EMC standards:

• Canada: ICES/NMB- 001:2004

• Australia/New Zealand: AS/NZS CISPR 11:2004

• IEC 61010- 1:2001 / EN 61010- 1:2001

• CAN/CSA- C22.2 No.61010- 1- 04

• ANSI/UL61010- 1:2004

Operating environment

Temperature 0 °C to 55 °C

Maximum Humidity 95% at 40 °C (non-condensing)

Minimum Humidity 15% at 40 °C (non-condensing)

Maximum Altitude 4,600 meters (15,000 feet)

Storage conditions

Non-operating storage
temperature

Non-operating maximum
humidity

Non-operating maximum
altitude

–40 °C to +70 °C

90% at 65 °C (non-condensing)

4,600 meters (15,000 feet)

Remote programming

Interface GPIB, USB and LAN interfaces operates to IEEE 488.2 standard

Command language SCPI standard interface commands. Code-compatible with legacy E4418B/9B EPM Series, 436A, 437B

and 438A power meters (43X compatibility only with option N191xA-200).

GPIB compatibility SH1, AH1, T6, TE0, L4, LE0, SR1, RL1, PP1, DC1, DT1, C0

1. Characteristics describe product performance that is useful in the application of the product, but is not covered by the product warranty.

9

N1913A/14A EPM Series Power Meters Ordering Information

Power meters

N1913A

Single-channel average power meter

N1914A

Dual-channel average power meter

Standard-shipped accessories

Power cord

Power sensor cable, 1.5 m (5 ft)
(One per N1913A, two per N1914A)

USB cable Type A to Mini-B, 6 ft

Product CD-ROM (contains English
and localized User’s Guide and
Programming Guide)

Agilent IO Libraries Suite CD-ROM

Calibration certificate

Warranty

Standard 1-year, return-to-Agilent
warranty and service plan for
N1913A/N1914A

3 months for standard-shipped
accessories

Options

Power meter configurations

N1913/ 4A-101 Single/ dual-channel average power meter

N1913/ 4A-201 Single/ dual-channel average power meter with VGA, trigger in/out, 1

front and 1 rear USB port

N1913/ 4A-B01 Without battery

N1913/ 4A-B02 With battery

N1913/ 4A-C01 Front calibrator, front sensor

N1913/ 4A-C02 Front calibrator, parallel front and rear sensor

N1913/ 4A-C03 Rear calibrator, parallel front and rear sensor

N1913A-200 436A and 437B code compatibility

N1914A-200 438A code compatibility

N6901A-1FP Code compatibility (436A, 437A, 438A) standalone upgrade for N1913A

N6902A-1FP Code compatibility (436A, 437A, 438A) standalone upgrade for N1914A

Power sensor cables

11730A Power sensor cable: 1.5 m/5 ft

11730B Power sensor cable: 3.0 m/10 ft

11730C Power sensor cable: 6.1 m/20 ft

11730D Power sensor cable: 15.2 m/50 ft

11730E Power sensor cable: 30.5 m/100 ft

Other accessories

34131A Transit case

34141A Soft carrying case

34161A Accessory pouch

N191xA-300 Spare battery pack

N191xA-908 Rackmount kit for one instrument

N191xA-909 Rackmount kit for two instruments

Warranty

R-50C-011-3 Agilent Calibration Upfront Plan 3-year coverage

R-50C-011-5 Agilent Calibration Upfront Plan 5-year coverage

R-51B-001-3C 1 year Return-to-Agilent warranty extended to 3 years

R-51B-001-5C 1 year Return-to-Agilent warranty extended to 5 years

GPIB connectivity products

82357B USB/GPIB converter

10833x GPIB cables: 10833D (0.5 m), 10833A (1 m), 10833B (2 m),

10833C (4 m), 10833F (6 m), 10833G (8 m)

10

N1913A/14A EPM Series Power Meters Ordering Information (continued)

Options (continued)

Documentation

N191xA-0B0 Delete hard copy English language User’s Guide

N191xA-0BF Hard copy English language Programming Guide

N191xA-0B1 Hard copy English language User's Guide and Installation Guide

N191xA-0BK Hard copy English language User's Guide and Programming Guide

N191xA-ABJ Hard copy Japanese localization User’s Guide and Programming Guide

E-Series Power Sensor Specifications

The E-Series of power sensors have their calibration factors stored in EEPROM
and operate over a wide dynamic range. They are designed for use with the EPM
Series of power meters and two classes of sensors are available:

• CW power sensors (E4412A and E4413A)

• Average power sensors (E9300 sensors)

E-Series CW Power Sensor Specifications

Widest dynamic range: 100 pW to 100 mW (–70 dBm to +20 dBm)

Table 4. E4410 Series max SWR specification

Model Maximum SWR Maximum SWR Maximum power Connector type

E 4412A 10 MHz to 18 GHz *10 MHz to <30 MHz: 1.22

30 MHz to <2 GHz: 1.15
2 GHz to <6 GHz: 1.17
6 GHz to <11 GHz:1.2
11 GHz to <18 GHz: 1.27

E4413A 50 MHz to 26.5 GHz 50 MHz to <100 MHz: 1.21

100 MHz to <8 GHz: 1.19
8 GHz to <18 GHz: 1.21
18 GHz to 26.5 GHz: 1.26

* Applies to sensors with serial prefix US 3848 or greater

200 mW (+23 dBm) Type-N (m)

200 mW (+23 dBm) APC-3.5 mm (m)

11

E-Series CW Power Sensor Specifications (continued)

Calibration factor (CF) and
reflection coefficient (Rho)

Calibration factor and reflection
coefficient data are provided at 1 GHz
increments on a data sheet included
with the power sensor. This data is
unique to each sensor. If you have
more than one sensor, match the
serial number on the data sheet with
the serial number on the power sen­sor you are using. The CF corrects for
the frequency response of the sensor.
The EPM power meter automatically
reads the CF data stored in the sensor
and uses it to make the corrections.
For power levels greater than 0 dBm,
add 0.5%/dB to the calibration factor
uncertainty specification.

Reflection coefficient (Rho) relates to
the SWR according to the following
formula:

SWR = 1 + Rho/1 – Rho.

Table 5a: E4412A calibration factor
uncertainty at 1 mW (0 dBm)

Frequency Uncertainty*(%)

10 MHz 1.8

30 MHz 1.8

50 MHz Reference

100 MHz 1.8

1.0 GHz 1.8

2.0 GHz 2.4

4.0 GHz 2.4

6.0 GHz 2.4

8.0 GHz 2.4

10.0 GHz 2.4

11.0 GHz 2.4

12.0 GHz 2.4

14.0 GHz 2.4

16.0 GHz 2.6

18.0 GHz 2.6

Table 5b: E4413A calibration factor
uncertainty at 1 mW (0 dBm)

Frequency Uncertainty*(%)

50 MHz Reference

100 MHz 1.8

1.0 GHz 1.8

2.0 GHz 2.4

4.0 GHz 2.4

6.0 GHz 2.4

8.0 GHz 2.4

10.0 GHz 2.6

11.0 GHz 2.6

12.0 GHz 2.8

14.0 GHz 2.8

16.0 GHz 2.8

17.0 GHz 2.8

18.0 GHz 2.8

20.0 GHz 3.0

24.0 GHz 3.0

26.0 GHz 3.0

28.0 GHz 3.0

Maximum uncertainties of the CF
data are listed in Table 5a, for the
E4412A power sensor, and Table 5b
for the E4413A power sensor. The
uncertainty analysis for the calibra­tion of the sensors was done in
accordance with the ISO/TAG4 Guide.
The uncertainty data reported on the
calibration certificate is the expanded
uncertainty with a 95% confidence
level and a coverage factor of 2.

12

E-Series CW Power Sensor Specifications (continued)

Power linearity

Table 6. E4410 Series power linearity specification

Power Temperature (25 °C ±5 °C) Temperature (0 °C to 55 °C)

100 pW to 10 mW (–70 dBm to +10 dBm) ±3% ±7%

10 mW to 100 mW (+10 dBm to +20 dBm) ±4.5% ±10%

+20

+10

A

+6

–20

–35

Power level being measured (dBm)

–70

–70 –35 –20 –10 +10 +20

Power level used as reference (dBm)

Figure 1. Relative mode power measurement linearity with EPM Series power
meter/E-Series CW power sensor at 25 °C ± 5 °C (typical)

+3%

B

±4%

The chart in Figure 1 shows the typi­cal uncertainty in making a relative
power measurement, using the same
power meter channel and the same
power sensor to obtain the reference
and the measured values. Example
A illustrates a relative gain (amplifier
measurement). Example B illustrates
a relative loss (insertion loss
measurement). This chart assumes
negligible change in frequency and
mismatch occur when transitioning
from the power level used as the
reference to the power level being
measured.

Example A:

P = 10(P)/10 x 1 mW

P = 10 6/10 x 1 mW

P = 3.98 mW

3% x 3.98 mW = 119.4 μW

Example B:

P = 10 (P)/10 x1 mW

P = 10 –35/10 x 1 mW

P = 316 nW

3% x 316 nW = 9.48 nW

where

P = power in Watts

and

(P) = power in dBm

13

E-Series E9300 Average Power Sensor Specifications

The E-Series E9300 wide dynamic
range, average power sensors are
designed for use with the EPM family
of power meters. These specifications
are valid ONLY after proper calibration
of the power meter and apply for CW
signals unless otherwise stated.

Specifications apply over the tem­perature range 0 °C to 55 °C unless
otherwise stated, and specifications
quoted over the temperature range
25°C ±10 °C, conform to the standard
environmental test conditions as
defined in TIA/EIA/ IS-97-A and

The E-Series E9300 power sensors
have two independent measurement
paths (high and low power paths) as
shown in Table 7.

TIA/EIA/IS-98-A.

Table 7. E9300 Series two-path specification

“A” suffix sensors “B” suffix sensors “H” suffix sensors

High power path –10 to +20 dBm +20 to +44 dBm 0 to +30 dBm

Low power path –60 to –10 dBm –30 to +20 dBm –50 to 0 dBm

Table 8. E9300 Series sensors specification

Model

Frequency
range

Maximum SWR
(25 °C ± 10 °C)

Maximum SWR
(0 to 55 °C) Maximum power

–60 dBm to +20 dBm wide dynamic range sensors

E9300A 10 MHz to 18 GHz 10 MHz to 30 MHz: 1.15

30 MHz to 2 GHz: 1.13
2 GHz to 14 GHz: 1.19
14 GHz to 16 GHz: 1.22
16 GHz to 18 GHz: 1.26

E9301A 10 MHz to 6 GHz 10 MHz to 30 GHz: 1.15

30 MHz to 2 GHz: 1.13
2 GHz to 6 GHz: 1.19

E9304A 9 kHz to 6 GHz 9 kHz to 2 GHz: 1.13

2 GHz to 6 GHz: 1.19

10 MHz to 30 MHz: 1.21
30 MHz to 2 GHz: 1.15
2 GHz to 14 GHz: 1.20
14 GHz to 16 GHz: 1.23
16 GHz to 18 GHz: 1.27

10 MHz to 30 MHz: 1.21
30 MHz to 2 GHz: 1.15
2 GHz to 6 GHz: 1.20

9 kHz to 2 GHz: 1.15
2 GHz to 6 GHz: 1.20

+25 dBm (320 mW) average;
+33 dBm peak (2 W)
(< 10 μsec)

+25 dBm (320 mW) average;
+33 dBm peak (2 W)
(< 10 μsec)

+25 dBm (320 mW) average;
+33 dBm peak (2 W)
(< 10 μsec)

–30 dBm to +44 dBm wide dynamic range sensors

E9300B 10 MHz to 18 GHz 10 MHz to 8 GHz: 1.12

8 GHz to 12.4 GHz: 1.17

12.4 GHz to 18 GHz: 1.24

E9301B 10 MHz to 6 GHz 10 MHz to 6 GHz: 1.12 10 MHz to 6 GHz: 1.14 0 to 35 °C: 30 W avg

10 MHz to 8 GHz: 1.14
8 GHz to 12.4 GHz: 1.18

12.4 GHz to 18 GHz: 1.25

0 to 35 °C: 30 W avg
35 to 55 °C: 25 W avg
< 6 GHz: 500 W pk
> 6 GHz: 125 W pk
500 W.μS per pulse

35 to 55 °C: 25 W avg
< 6 GHz: 500 W pk
> 6 GHz: 125 W pk
500 W.μS per pulse

–50 dBm to +30 dBm wide dynamic range sensors

E9300H 10 MHz to 18 GHz 10 MHz to 8 GHz: 1.15

8 GHz to 12.4 GHz: 1.25

12.4 GHz to 18 GHz: 1.28

E9301H 10 MHz to 6 GHz 10 MHz to 6 GHz: 1.15 10 MHz to 6 GHz: 1.17 3.16 W avg

10 MHz to 8 GHz: 1.17
8 GHz to 12.4 GHz: 1.26

12.4 GHz to 18 GHz: 1.29

3.16 W avg
100 W pk
100 W.μS per pulse

100 W pk
100 W.μS per pulse

Connector
type

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

14

E-Series E9300 Average Power Sensor Specifications (continued)

1.2

1.18

1.16

1.14

1.12

1.1

SWR

1.08

1.06

1.04

1.02
1

0.01 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00

Frequency GHz

Typical SWR, 10 MHz to 18 GHz (25 °C ±10 °C)
for E9300A and E9301A sensor

1.20

1.15

1.10

SWR

1.05

1.2

1.15

1.1

SWR

1.05

1

012 3456

Frequency GHz

Typical SWR, 9 kHz to 6 GHz (25 °C ±10 °C)
for E9304A sensors

1.2

1.15

1.1

SWR

1.05

1.00

0 2 4 6 8 10 12 14 16 18

Frequency GHz

Typical SWR, 10 MHz to 18 GHz (25 °C ±10 °C)
for E9300B and E9301B sensors

1

0 2 4 6 8 1012141618

Frequency GHz

Typical SWR, 10 MHz to 18 GHz (25 °C ±10 °C)
for E9300H and E9301H sensors

15

E-Series E9300 Average Power Sensor Specifications (continued)

Power linearity*

Table 9. E9300 Series power linearity (after zero and cal at ambient environmental conditions) sensor

Sensor Power Linearity (25 °C ±10 °C) Linearity (0 °C to 55 °C)

E9300A, E9301A, E9304A –60 to –10 dBm

–10 to 0 dBm
0 to +20 dBm

E9300B, E9301B –30 to +20 dBm

+20 to +30 dBm
+30 to +44 dBm

E9300H, E9301H –50 to 0 dBm

0 to +10 dBm
+10 to +30 dBm

* After zero and calibration at ambient environmental conditions

±3.0%
±2.5%
±2.0%

±3.5%
±3.0%
±2.5%

±4.0%
±3.5%
±3.0%

±3.5%
±3.0%
±2.5%

±4.0%
±3.5%
±3.0%

±5.0%
±4.0%
±3.5%

0.5

0.4

0.3

0.2

0.1
0

–0.1

% Error

–0.2
–0.3
–0.4
–0.5

Power (dBm)

1

0.8

0.6

0.4

0.2
0

–0.2

% Error

–0.4
–0.6
–0.8

–1

–10 –5 0 5 10 15 20 25 30

Power (dBm)

Typical E9300A/01A/04A power linearity at 25 °C, after zero and
calibration, with associated measurement uncertainty

Power range Measurement uncertainty

–30 to –20 dBm ±0.9%

–20 to –10 dBm ±0.8%

–10 to 0 dBm ±0.65%

0 to +10 dBm ±0.55%

+10 to +20 dBm ±0.45%

18141062–2–8–10–14–18–22–26–30 20

Typical E9300B/01B power linearity at 25 °C, after zero and
calibration, with associated measurement uncertainty

Power range Measurement uncertainty

–6 to 0 dBm ± 0.65%

0 to +10 dBm ± 0.55%

+10 to +20 dBm ± 0.45%

+20 to +26 dBm ± 0.31%

1

0.8

0.6

0.4

0.2
0

–0.2

% Error

–0.4
–0.6
–0.8

–1

–10 –5 0 5 10 15 20 25 30

Power (dBm)

Typical E9300H/01H power linearity at 25 °C, after zero and
calibration, with associated measurement uncertainty

Power range Measurement uncertainty

–26 to –20 dBm ± 0.9%

–20 to –10 dBm ± 0.8%

–10 to 0 dBm ± 0.65%

0 to +10 dBm ± 0.55%

+10 to +20 dBm ± 0.45%

+20 to +26 dBm ± 0.31%

16

E-Series E9300 Average Power Sensor Specifications (continued)

Effects of change in
temperature on linearity

For small changes in temperature:

The typical maximum additional

For large changes in temperature:

Refer to Table 10.

power linearity error due to small

Note: If the temperature changes
after calibration and you choose not
to re-calibrate the sensor, the follow-

temperature change after calibration
is ±0.15%/°C (valid after zeroing the
sensor).

ing additional power linearity error
should be added to the linearity specs
in Table 9.

Table 10. Typical maximum additional power linearity error due to temperature change (valid after zeroing the sensor)

Sensor Power Additional power linearity

error (25 °C ± 10 °C)

E9300A, E9301A, E9304A –60 to –10 dBm

–10 to 0 dBm
0 to +20 dBm

E9300B, E9301B –30 to +20 dBm

+20 to +30 dBm
+30 to +44 dBm

E9300H, E9301H –50 to 0 dBm

0 to +10 dBm
+10 to +30 dBm

±1.5%
±1.5%
±1.5%

±1.5%
±1.5%
±1.5%

±1.5%
±1.5%
±1.5%

Additional power linearity
error (0 °C to 55 °C)

±2.0%
±2.5%
±2.0%

±2.0%
±2.5%
±2.0%

±2.0%
±2.5%
±2.0%

A+20 dBm

±2%

–10 dBm

Measured power

±1%

60 dBm

A–60 dBm

B–30 dBm

H–50 dBm

Figure 2. Relative mode power measurement linearity with an EPM Series power meter,
at 25 °C ±10 °C (typical)

–10 dBm

+20 dBm

0 dBm

±1%

±2%

B+44 dBm
H+30 dBm

+20 dBm, 0 dBm

–30 dBm, –50 dBm

+20 dBm

+44 dBm

+30 dBm

Figure 2 shows the typical uncertainty
in making a relative power measure­ment, using the same power meter
channel and same power sensor
to obtain the reference and the
measured values, and assumes that
negligible change in frequency and
mismatch error occur when transi­tioning from the power level used as
the reference to the power level being
measured.

17

E-Series E9300 Average Power Sensor Specifications (continued)

Switch point data

The E9300 power sensors have
two paths as shown in Table 7. The
power meter automatically selects
the proper power level path. To avoid
unnecessary switching when
the power level is near the switch
point, switching point hysteresis has
been added.

E9300 “A” suffix sensors example:

Hysteresis causes the low power
path to remain selected until approxi­mately –9.5 dBm as the power level is
increased, above this power the high
power path will be selected. The high
power path will remain selected
until approximately –10.5 dBm is
reached as the signal level decreases,
below this power the low power path

Switching point linearity:

Typically = ±0.5% (= ±0.02 dB)

Switching point hysteresis:

0.5 dB typical

will be selected.

Table 11. E9300 Series sensor switch point specification

E9300 sensor suffix Conditions

Lower power path (15% to 75% RH) 500 pW

A

B

H

1. RH is the abbreviation for relative humidity.

2. Within 1 hour after zero set, at a constant temperature, after a 24-hour warm-up of the power meter with power sensor connected.

3. The number of averages at 16 for normal mode and 32 for x2 mode, at a constant temperature, measured over a one minute interval and two
standard deviations.

Lower power path (75% to 95% RH) 500 pW

High power path (15% to 75% RH) 500 nW

High power path (75% to 95% RH) 500 nW

Lower power path (15% to 75% RH) 500 nW

Lower power path (75% to 95% RH) 500 nW

High power path (15% to 75% RH) 500 μW

High power path (75% to 95% RH) 500 μW

Lower power path (15% to 75% RH) 5 nW

Lower power path (75% to 95% RH) 5 nW

High power path (15% to 75% RH) 5 μW

High power path (75% to 95% RH) 5 μW

1

Zero set Zero drift2Measurement noise

150 pW 700 pW

4,000 pW 700 pW

150 nW 500 nW

3000 nW 500 nW

150 nW 700 nW

4 μW 700 nW

150 μW 500 μW

3000 mW 500 μW

1.5 nW 7 nW

40 μW 7 nW

1.5 μW 5 μW

30 mW 5 μW

3

18

E-Series E9300 Average Power Sensor Specifications (continued)

Calibration factor (CF) and
reflection coefficient (Rho)

Calibration factor and reflection
coefficient data are provided at
frequency intervals on a data sheet
included with the power sensor. This
data is unique to each sensor. If you
have more than one sensor, match
the serial number on the certificate
of calibration (CoC) with the serial
number on the power sensor you
are using. The CF corrects for the
frequency response of the sensor.
The EPM Series power meter auto­matically reads the CF data stored in
the sensor and uses it to make the
corrections.

Reflection coefficient (Rho) relates to
the SWR according to the following
formula:

SWR = (1 + Rho)/(1 – Rho)

Maximum uncertainties of the CF
data are listed in Tables 12a and 12b.
As the E-Series E9300 power sensors
have two independent measurement
paths (high and low power paths),
there are two calibration factor
uncertainty tables. The uncertainty
analysis for the calibration of the
sensors was done in accordance with
the ISO Guide. The uncertainty data
reported on the calibration certificate
is the expanded uncertainty with a
95% confidence level and a coverage
factor of 2.

Table 12a. Calibration factor uncertainties (low power path)

Uncertainty (%)

Frequency

10 MHz to 30 MHz ± 1.8% ±2.2%

30 MHz to 500 MHz
(E9304A: 9 kHz to 500 MHz)

500 MHz to 1.2 GHz ±1.8% ±2.5%

1.2 GHz to 6 GHz ±1.7% ±2.0%

6 GHz to 14 GHz ±1.8% ±2.0%

14 GHz to 18 GHz ± 2.0 % ±2.2%

Table 12b. Calibration factor uncertainties (high power path)

(25 °C ±10 °C)

±1.6% ±2.0%

Uncertainty (%)

Frequency

10 MHz to 30 MHz ± 2.1% ±4.0%

30 MHz to 500 MHz
(E9304A: 9 kHz to 500 MHz)

500 MHz to 1.2 GHz ±2.3% ±4.0%

1.2 GHz to 6 GHz ±1.8% ±2.1%

6 GHz to 14 GHz ±1.9% ±2.3%

14 GHz to 18 GHz ± 2.2 % ±3.3%

(25 °C ±10 °C)

±1.8% ±3.0%

Uncertainty (%)
(0 °C to 55 °C)

Uncertainty (%)
(0 °C to 55 °C)

19

848xD Series Diode and 8483A Thermocouple Power Sensor Specifications

Calibration factor uncertainties

These thermocouple and diode power sensors provide extraordinary accuracy,
stability, and SWR over a wide range of frequencies (100 kHz to 110 GHz) and
power levels (–70 dBm to +20 dBm).

Table 13. Typical root sum of squares (rss) uncertainty on the calibration factor data printed on the power sensor

Frequency (GHz) 8483A 8481D 8485D 8487D R8486D Q8486D

0.0001 1.3 – – – – –

0.0003 1.2 – – – – –

0.001 1.1 – – – – –

0.003 1.2 – – – – –

0.01 1.2 – – – – –

0.03 1.2 – – – – –

0.05 1.2 – – – – –

0.1 1.2 – – – – –

0.3 1.2 – – – – –

1 1.2 0.8 1.4 1.3 – –

2 1.2 0.8 1.4 1.3 – –

4 – 0.8 1.7 1.4 – –

6 – 0.9 1.7 1.4 – –

8 – 1.0 1.7 1.4 – –

10 – 1.1 1.9 1.5 – –

12 – 1.2 1.9 1.5 – –

14 – 1.1 2.0 1.6 – –

16 – 1.5 2.1 1.7 – –

18 – 1.7 2.2 1.7 – –

22 – – 2.7 1.9 – –

26.5 – – 2.8 2.2 3.0 –

28 – – 2.9* 2.3 3.2 –

30 – – 3.2* 2.4 3.0 –

33 – – 3.3* 2.6 3.0 4.2

34.5 – – – 2.6 3.0 4.2

37 – – – 2.7 3.0 4.2

40 – – – 3.0 – 4.2

42 – – – 3.2 – 4.9

44 – – – 2.5 – 5.1

46 – – – 3.8 – 5.5

48 – – – 3.8 – 5.8

50 – – – 5.0 – 6.2

* These uncertainties only apply to Option 033.
** The 8480 Series sensors in the table do not include discontinued models.

20

848xD Series Diode and 8483A Thermocouple Power Sensor Specifications

(continued)

Maximum SWR and power linearity

Table 14. 8480 Series maximum SWR and power linearity

Frequency

Model

range

100 mW sensors, 1 μW to 100 mW (–30 dBm to +20 dBm)

8483A
(75-Ohm)

V8486A 50 GHz to

W8486A 75 GHz to

100 kHz to
2 GHz

75 GHz

110 GHz

High sensitivity sensors, 100 pW to 10 μW (–70 dBm to –20 dBm)

2

8481D

8485D

Option
8485D-033

8487D

R8486D

Q8486D

1. Negligible deviation except for those power ranges noted.

2. Includes 11708A 30 dB attenuator for calibrating against 0 dBm, 50 MHz power
reference. The 11708A is factory set to 30 dB ±0.05 dB at 50 MHz, traceable to
NIST. SWR < 1.05 at 50 MHz.

2

2

2

2

10 MHz to
18 GHz

50 MHz to

26.5 GHz

50 MHz to
33 GHz

50 MHz to
50 GHz

26.5 GHz to
40 GHz

33 GHz to
50 GHz

Maximum
SWR

100 kHz to 600 kHz: 1.80
600 kHz to 2 GHz: 1.18

50 GHz to 75 GHz: 1.06 –30 dBm to

75 GHz to 110 GHz: 1.08 (±2%) 200 mW avg,

10 MHz to 30 MHz: 1.40
30 MHz to 4 GHz: 1.15
4 GHz to 10 GHz: 1.20
10 GHz to 15 GHz: 1.30
15 GHz to 18 GHz: 1.35

0.05 GHz to 0.1 GHz: 1.19

0.1 GHz to 4 GHz: 1.15
4 GHz to 12 GHz: 1.19
12 GHz to 18 GHz: 1.25
18 GHz to 26.5 GHz: 1.29

26.5 GHz to 33 GHz: 1.35 –30 dBm to

0.05 GHz to 0.1 GHz: 1.19

0.1 GHz to 2 GHz: 1.15
2 GHz to 12.4 GHz: 1.20

12.4 GHz to 18 GHz: 1.29
18 GHz to 34 GHz: 1.37
34 GHz to 40 GHz: 1.61
40 GHz to 50 GHz: 1.89

26.5 GHz to 40 GHz: 1.40 –30 dBm to

33 GHz to 50 GHz: 1.40 –30 dBm to

Power
linearity

+10 dBm to
+20 dBm: (±3%)

+10 dBm: (±1%)
+10 dBm to
+20 dBm: (±2%)

–30 dBm to
–20 dBm: (±1%)

–30 dBm to
–20 dBm: (±2%)

–20 dBm: (±2%)

–30 dBm to
–20 dBm: (±2%)

–25 dBm: (±3%)
–25 dBm to
–20 dBm: (±5%)

–25 dBm: (±3%)
–25 dBm to
–20 dBm: (±5%)

1

Maximum
power

300 mW avg,
10 W pk

200 mW avg,
40 W pk
(10.μs per pulse,

0.5% duty cycle)

40 W pk
(10.μs per pulse,

0.5% duty cycle)

100 mW avg,
100 mW pk

100 mW avg,
100 mW pk

100 mW avg,
100 mW pk

100 mW avg,
100 mW pk
10 W.μs per
pulse

100 mW avg,
or pk 40 V
dc max

100 mW avg,
or pk 40 V
dc max

Connector
type Weight

Type-N (m)
75 Ohm

Waveguide flange
UG-385/U

Waveguide flange
UG-387/U

Type-N (m) Net:

APC-3.5 mm (m) Net:

APC-3.5 mm (m) Net:

2.4 mm (m) Net:

Waveguide flange
UG-599/U

Waveguide flange
UG-383/U

Net:

0.2 kg (0.38 lb)
Shipping:

0.5 kg (1.0 lb)
Net:

0.4 kg (0.9 lb)
Shipping:
1 kg (2.1 lb)

Net:

0.4 kg (0.9 lb)
Shipping:
1 kg (2.1 lb)

0.16 kg (0.37 lb)
Shipping:

0.9 kg (2.0 lb)

0.2 kg (.38 lb)
Shipping:

0.5 kg (1.0 lb)

0.2 kg (0.38 lb)
Shipping:

0.5 kg (1.0 lb)

0.2 kg (0.38 lb)
Shipping:

0.5 kg (1.0 lb)

Net:

0.26 kg (0.53 lb)
Shipping:

0.66 kg (1.3 lb)
Net:

0.26 kg (0.53 lb)
Shipping:

0.66 kg (1.3 lb)

* The 8480 Series sensors in the table do not include discontinued models.

21

N8480 Series Thermocouple Power Sensor Specifications

The N8480 Series power sensors (excluding Option CFT) measure power levels
from –35 dBm to +44 dBm (316 nW to 25.1 W), at frequencies from 100 kHz to
50 GHz and have two independent power measurement range (upper and lower
range).

Meanwhile, the N8480 sensors with Option CFT only measure power levels
from –30 dBm to +44 dBm (1 μW to 25.1 W) in single range. Similiar to the
E-Series power sensors, the N8480 Series power sensors are also equipped with
EEPROM to store sensor’s characteristics such as model number, serial number,
linearity, temperature compensation, calibration factor, and so forth.

This feature ensures the correct calibration data is applied by any compatible
power meter connected with N8480 Series power sensor, and to ensure the
accuracy of the measurements.

Calibration factor uncertainties

Table 15. N8480 Series calibration factor uncertainty at 25 ºC ± 3 ºC

Frequency N8481A N8481B N8481H N8482A N8482B N8482H N8485A N8487A N8486AR N8486AQ

100 kHz to
10MHz

10 MHz to
30MHz

30 MHz to
500MHz

500 MHz to

1.2GHz

1.2 GHz to
6GHz

6 GHz to
14GHz

14 GHz to
18GHz

18 GHz to

26.5GHz

26.5 GHz to
33GHz

33 GHz to
34GHz

34 GHz to
35GHz

35 GHz to
40GHz

40 GHz to
45GHz

45 GHz to
50GHz

– – – 0.91 1.48 0.89 – – – –

0.82 1.42 0.77 0.78 1.43 0.79 0.82 – – –

0.77 1.48 0.89 0.77 1.49 0.89 1.24 1.33 – –

0.78 1.48 0.89 0.78 1.49 0.89 1.26 1.35 – –

0.91 1.58 1.06 0.89 1.56 1.02 1.35 1.41 – –

1.26 1.77 1.46 – – – 1.66 1.61 – –

1.59 1.92 1.73 – – – 1.83 1.73 – –

– – – – – – 2.67 2.26 – –

– – – – – – 3.32 2.58 2.68 –

– – – – – – – 2.80 3.19 3.14

– – – – – – – 2.80 3.19 3.40

– – – – – – – 2.80 3.19 3.14

– – – – – – – 3.66 – 3.19

– – – – – – – 4.23 – 3.26

22

N8480 Series Thermocouple Power Sensor Specifications (continued)

Maximum SWR and power linearity for standard N8480 Series power sensors

Table 16. N8480 Series maximum SWR and power linearity

Frequency

Model

range

100 mW sensors. Power range3: 316 nW to 100 mW (–35 dBm to +20 dBm)

N8481A 10 MHz to

18 GHz

N8482A 100 kHz to

6 GHz

N8485A 10 MHz to

26.5 GHz

N8485A
Option 033

N8487A 50 MHz to

N8486AR 26.5 GHz to

N8486AQ 33 GHz to

10 MHz to
33 GHz

50 GHz

40 GHz

50 GHz

High power sensors. Power range3: 316 μW to 21.1 W (–5 dBm to +44 dBm)

N8481B 10 MHz to

18 GHz

N8482B 100 kHz to

6 GHz

High power sensors. Power range3: 31.6 μW to 3.2 W (–15 dBm to +35 dBm)

N8481H 10 MHz to

18 GHz

N8482H 100 kHz to

6 GHz

1. At 25 °C ± 10 °C

2. The N8480 Series power sensors’ linearity is negligible except for the power range specified in the table

3. For N8480 Standard (excluding the CFT option)

Maximum

1

SWR

10 MHz to 30 MHz: 1.37
30 MHz to 50 MHz: 1.14
50 MHz to 2 GHz: 1.08
2 GHz to 12.4 GHz: 1.16

12.4 GHz to 18 GHz: 1.23
100 kHz to 300 kHz: 1.54
300 kHz to 1 MHz: 1.17
1 MHz to 2 GHz: 1.06
2 GHz to 6 GHz: 1.07
10 MHz to 50 MHz: 1.33
50 MHz to 100 MHz: 1.08
100 MHz to 2 GHz: 1.05
2 GHz to 12.4 GHz: 1.14

12.4 GHz to 18 GHz: 1.19
18 GHz to 26.5 GHz: 1.26

26.5 GHz to 33 GHz: 1.32 –1 dBm to

50 MHz to 100 MHz: 1.08
100 MHz to 2 GHz: 1.05
2 GHz to 12.4 GHz: 1.10

12.4 GHz to 18 GHz: 1.16
18 GHz to 26.5 GHz: 1.22

26.5 GHz to 40 GHz: 1.30
40 GHz to 50 GHz: 1.34

26.5 GHz to 40 GHz: 1.40 –1 dBm to

33 GHz to 50 GHz: 1.50 –1 dBm to

10 MHz to 2 GHz:1.09
2 GHz to 12.4 GHz: 1.14

12.4 GHz to 18 GHz: 1.23
100 kHz to 2 GHz: 1.08
2 GHz to 6 GHz: 1.16

10 MHz to 8 GHz: 1.20
8 GHz to 12.4 GHz: 1.25

12.4 GHz to 18 GHz: 1.30
100 kHz to 6 GHz: 1.13 +30 dBm to

Power
linearity

–1 dBm to
+15 dBm (±0.52%)
+15 dBm to
+20 dBm (±0.80%)

–1 dBm to
+15 dBm (±0.52%)
+15 dBm to
+20 dBm (±0.80%)
–1 dBm to
+15 dBm (±0.52%)
+15 dBm to
+20 dBm (±0.80%)

+15 dBm (±0.52%)
+15 dBm to
+20 dBm (±0.80%)
–1 dBm to
+15 dBm (±0.52%)
+15 dBm to
+20 dBm (±0.80%)

+15 dBm (±0.52%)
+15 dBm to
+20 dBm (±0.80%)

+15 dBm (±0.52%)
+15 dBm to
+20 dBm (±0.80%)

+29 dBm to
+39 dBm
(±0.52%)
+39 dBm to
+44 dBm
(±0.80%)

+17 dBm to
+30 dBm
(±0.52%)

+35 dBm
(±0.80%)

23

1, 2

Maximum
power

+25 dBm
15 W/2 μs

+25 dBm
15 W/2 μs

+25 dBm
15 W/2 μs

+25 dBm
15 W/2 μs

+25 dBm
15 W/2 μs

+25 dBm
15 W/2 μs

+25 dBm
15 W/2 μs

+49 dBm
500 W/1 μs

+49 dBm
500 W/1 μs

+40 dBm
100 W/1 μs

+40 dBm
100 W/1 μs

Connector
type Weight

Type-N (m) Net: 0.181 kg (0.40 lb)

Shipping: 0.90 kg
(1.98 lb)

Type-N (m) Net: 0.181 kg (0.40 lb)

Shipping: 0.90 kg
(1.98 lb)

APC-3.5 mm
(m)

APC-3.5 mm
(m)

2.4 mm (m) Net: 0.154 kg (0.34 lb)

Waveguide
flange
UG-599/U

Waveguide
flange
UG-383/U

Type-N (m) Net: 0.684 kg (1.51 lb)

Type-N (m) Net: 0.684 kg (1.51 lb)

Type-N (m) Net: 0.234 kg (0.52 lb)

Type-N (m) Net: 0.234 kg (0.52 lb)

Net: 0.183 kg (0.40 lb)
Shipping: 0.90 kg
(1.98 lb)

Net: 0.183 kg (0.40 lb)
Shipping: 0.90 kg
(1.98 lb)

Shipping: 0.874 kg
(1.92 lb)

Net: 0.202 kg (0.45 lb)
Shipping: 0.922 kg
(2.03 lb)

Net: 0.204 kg (0.45 lb)
Shipping: 0.924 kg
(2.03 lb)

Shipping: 1.404 kg
(3.09 lb)

Shipping: 1.404 kg
(3.09 lb)

Shipping: 0.954 kg
(2.10 lb)

Shipping: 0.954 kg
(2.10 lb)

N8480 Series Thermocouple Power Sensor Specifications (continued)

Switch point data

Switching point is applicable for
standard N8480 Series power sensors
only.

The N8480 Series power sensors
have two power measurement
ranges; a lower range and upper
range. The power meter automatically
selects the proper power range. To
avoid unnecessary switching when
the power level is near switching
point, a Switching Point Hysteresis
has been added.

Switching point hysteresis:

0.5 dB typical

Example of switching point hysteresis
on N8481/2H power sensors, this
hysteresis causes the lower range
to remain selected until approxi­mately 17.5 dBm as the power level
is increased, above this power the
upper range is selected.

The upper range remains selected
until approximately 16.5 dBm as the
signal level decreases, below this
power the lower range is selected.

For more detailed specifications, refer to Agilent N8480 Series Thermocouple
Power Sensors, data sheet (5989-9333EN).

24

U2000 Series USB Power Sensor Specifications

The U2000 Series USB power sensors are true average, wide-dynamic-range
RF/microwave power sensors, based on a dual-sensor diode pair/attenuator/
diode pair topology.

The U2000 Series USB power sensors can be operated on N1913A/14A via the
USB host port (options).

Frequency and power ranges

Table 17. U2000 Series USB sensors frequency and power ranges

Model Frequency range Power range Maximum power

U2000A 10 MHz to 18 GHz

U2001A 10 MHz to 6 GHz

U2002A 50 MHz to 24 GHz

U2004A 9 kHz to 6 GHz –60 dBm to +20 dBm

U2000B 10 MHz to 18 GHz

U2001B 10 MHz to 6 GHz

U2000H 10 MHz to 18 GHz

U2001H 10 MHz to 6 GHz

U2002H 50 MHz to 24 GHz –50 dBm to +30 dBm

–60 dBm to +20 dBm

–30 dBm to +44 dBm

–50 dBm to +30 dBm

+25 dBm avg, 20 VDC
+33 dBm pk, <10 µs

+25 dBm avg, 5 VDC
+33 dBm pk, <10 µs

+45 dBm avg, 20 VDC
+47 dBm pk, 1 µs

+33 dBm avg, 20 VDC
+50 dBm pk, 1 µs

+33 dBm avg, 10 VDC
+50 dBm pk, 1 µs

Power accuracy

Table 18. U2000 Series USB sensors power accuracy

Accuracy

Model Power range

U2000/1/2/4A –60 dBm to +20 dBm ±3.0% ±3.5%

U2000/1/2H –50 dBm to +30 dBm ±4.0% ±5.0%

U2000/1B –30 dBm to +44 dBm ±3.5% ±4.0%

Specifications valid with the following conditions:

• After zeroing

• Number of averages = 1024

• After 30 minutes of power-on warm-up

1. This accuracy is essentially a combination of linearity, instrumentation accuracy, and traceability
to absolute accuracy at 50 MHz, 0 dBm.
Note: Mismatch uncertainty, calibration factor uncertainty, and power level dependent terms
(zero set, drift, and noise) are excluded in this specification.

(25 °C ± 10 °C)

1

Accuracy1
(0 °C to 55 °C)

25

U2000 Series USB Power Sensor Specifications (continued)

Maximum SWR

Table 19. U2000 Series USB sensors maximum SWR

Maximum SWR

Model Frequency range

U2000A 10 MHz to 30 MHz

30 MHz to 2 GHz
2 GHz to 14 GHz
14 GHz to 16 GHz
16 GHz to 18 GHz

U2001A 10 MHz to 30 MHz

30 MHz to 2 GHz
2 GHz to 6 GHz

U2002A 50 MHz to 2 GHz

2 GHz to 14 GHz
14 GHz to 16 GHz
16 GHz to 18 GHz
18 GHz to 24 GHz

U2004A 9 kHz to 2 GHz

2 GHz to 6 GHz

U2000B 10 MHz to 2 GHz

2 GHz to 12.4 GHz

12.4 GHz to 18 GHz

U2001B 10 MHz to 2 GHz

2 GHz to 6 GHz

U2000H 10 MHz to 8 GHz

8 GHz to 12.4 GHz

12.4 GHz to 18 GHz

U2001H 10 MHz to 6 GHz 1.15 1.17

U2002H 50 MHz to 8 GHz

8 GHz to 12.4 GHz

12.4 GHz to 18 GHz
18 GHz to 24 GHz

(25 °C ± 10 °C)

1.15

1.13

1.19

1.22

1.26

1.15

1.13

1.19

1.13

1.19

1.22

1.26

1.30

1.13

1.19

1.12

1.17

1.24

1.12

1.17

1.15

1.25

1.28

1.15

1.25

1.28

1.30

Maximum SWR
(0 °C to 55 °C)

1.21

1.15

1.20

1.23

1.27

1.21

1.15

1.20

1.15

1.20

1.23

1.27

1.30

1.15

1.20

1.14

1.18

1.25

1.14

1.18

1.17

1.26

1.29

1.17

1.26

1.29

1.31

For more detailed specifications, refer
to Agilent U2000 Series USB Power
Sensors, data sheet (5989-6278EN).

26

www.agilent.com

s

www.agilent.com/find/epm

myAgilent

myAgilent

www.agilent.com/find/myagilent

A personalized view into the information most
relevant to you.

www.axiestandard.org

AdvancedTCA
Instrumentation and Test (AXIe) is an
open standard that extends the
AdvancedTCA for general purpose and
semiconductor test. Agilent is a founding

member of the AXIe consortium.

www.lxistandard.org

LAN eXtensions for Instruments puts the
power of Ethernet and the Web inside
your test systems. Agilent is a founding
member of the LXI consortium.

www.pxisa.org

PCI eXtensions for Instrumentation
(PXI) modular instrumentation delivers
a rugged, PC-based high-performance
measurement and automation system.

®

Extensions for

Agilent Channel Partners

www.agilent.com/find/channelpartners

Get the best of both worlds: Agilent’s
measurement expertise and product
breadth, combined with channel partner

convenience.

Three-Year Warranty

www.agilent.com/find/ThreeYearWarranty

Agilent’s combination of product reliability
and three-year warranty coverage is another
way we help you achieve your business goals:
increased confidence in uptime, reduced cost
of ownership and greater convenience.

Agilent Advantage Services

www.agilent.com/find/AdvantageServices

Accurate measurements throughout the
life of your instruments.

Agilent Electronic Measurement Group

DEKRA Certified

ISO 9001:2008

Quality Management SystemQuality Management Sy

www.agilent.com/quality

For more information on Agilent
Technologies’ products, applications or
services, please contact your local Agilent

office. The complete list is available at:

www.agilent.com/find/contactus

Americas

Canada [phone]
Brazil (11) 4197 3600
Mexico 01800 5064 800
United States [phone]

Asia Pacifi c

Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 375 8100

Europe & Middle East

Belgium 32 (0) 2 404 93 40
Denmark 45 45 80 12 15
Finland 358 (0) 10 855 2100
France 0825 010 700*
*0.125 €/minute
Germany 49 (0) 7031 464 6333
Ireland 1890 924 204
Israel 972-3-9288-504/544
Italy 39 02 92 60 8484
Netherlands 31 (0) 20 547 2111
Spain 34 (91) 631 3300
Sweden 0200-88 22 55
United Kingdom 44 (0) 118 927 6201

For other unlisted countries:
www.agilent.com/find/contactus

(BP-3-1-13)

Product specifications and descriptions
in this document subject to change
without notice.

© Agilent Technologies, Inc. 2013
Published in USA, August 23, 2013
5990-4019EN
