Agilent
ENA 2, 3 and 4 Port
RF Network Analyzers

E5070B 300 kHz to 3 GHz
E5071B 300 kHz to 8.5 GHz
E5091A Multiport Test Set
E5092A Configurable Multiport Test Set

Data Sheet

Definitions

All specifications apply over a 5°C to 40°C range (unless
otherwise stated) and 90 minutes after the instrument has
been turned on.

Specification (spec.):

Warranted performance. Specifications include guardbands
to account for the expected statistical performance distri­bution, measurement uncertainties, and changes in perfor­mance due to environmental conditions.

Supplemental information is intended to provide informa­tion that is helpful for using the instrument but that is not
guaranteed by the product warranty. This information is
denoted as either typical or nominal.

Typical (typ.):

Expected performance of an average unit that does not
include guardbands. It is not guaranteed by the product
warranty.

Nominal (nom.):

A general, descriptive term that does not imply a level of
performance. It is not guaranteed by the product warranty.

2

Corrected system performance

The specifications in this section apply for measurements
made with the Agilent E5070B/E5071B network analyzer
with the following conditions:

• No averaging applied to data

• Environmental temperature of 23°C ± 5°C, with less

than 1°C deviation from the calibration temperature

• Response and isolation calibration not omitted

Table 1-1 System dynamic range

Description Specification Supplemental information

System dynamic range

300 kHz to 3 MHz, IF bandwidth = 3 kHz 85 dB

3 MHz to 1.5 GHz, IF bandwidth = 3 kHz 95 dB 98 dB

1.5 GHz to 3 GHz, IF bandwidth = 3 kHz 97 dB 100 dB

3 GHz to 4 GHz, IF bandwidth = 3 kHz 96 dB 99 dB

4 GHz to 6 GHz, IF bandwidth = 3 kHz 92 dB 94 dB

6 GHz to 7.5 GHz, IF bandwidth = 3 kHz 87 dB 90 dB

7.5 GHz to 8.5 GHz, IF bandwidth = 3 kHz 80 dB 83 dB

300 kHz to 3 MHz, IF bandwidth = 10 Hz 110 dB

3 MHz to 1.5 GHz, IF bandwidth = 10 Hz 120 dB 123 dB

1.5 GHz to 3 GHz, IF bandwidth = 10 Hz 122 dB 125 dB

3 GHz to 4 GHz, IF bandwidth = 10 kHz 121 dB 124 dB

4 GHz to 6 GHz, IF bandwidth = 10 Hz 117 dB 119 dB

6 GHz to 7.5 GHz, IF bandwidth = 10 Hz 112 dB 115 dB

7.5 GHz to 8.5 GHz, IF bandwidth = 10 Hz 105 dB 108 dB

1,2

1

The test port dynamic range is calculated as the difference between the test port rms noise floor
and the source maximum output power. The effective dynamic range must take measurement
uncertainty and interfering signals into account.

2

May be limited to 90 dB at particular frequencies below 350 MHz or above 4.25 GHz due to
spurious receiver residuals.

3

Table 1-2 Corrected system performance with type-N device connectors, 85032F calibration kit

Network analyzer: E5070B/E5071B, calibration kit: 85032F (type-N, 50 Ω), calibration: full 2-port

IF bandwidth = 10 Hz, No averaging applied to data, environmental temperature = 23°C ±5°C with < 1°C deviation from calibration
temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 49 40 38

Source match 41 36 35

Load match 49 40 37

Reflection tracking ±0.011 ±0.032 ±0.054

Transmission tracking ±0.016 ±0.062 ±0.088

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

4

Table 1-3 Corrected system performance with type-N device connectors, 85092C electronic calibration module

Network analyzer: E5070B/E5071B, calibration module: 85092C (type-N, 50 Ω) electronic calibration (ECal) module, calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with < 1°C deviation
from calibration temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 52 52 47

Source match 45 41 36

Load match 47 44 39

Reflection tracking ±0.040 ±0.060 ±0.070

Transmission tracking ±0.039 ±0.069 ±0.136

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

5

Table 1-4 Corrected system performance with 3.5 mm device connector type, 85033E calibration kit

Network analyzer: E5070B/E5071B, calibration kit: 85033E (3.5 mm, 50 Ω), calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with < 1°C deviation from
calibration temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 46 38 38

Source match 43 37 36

Load match 46 38 38

Reflection tracking ±0.006 ±0.009 ±0.010

Transmission tracking ±0.016 ±0.065 ±0.079

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

6

Table 1-5 Corrected system performance with 3.5 mm device connector type, 85093C electronic calibration module

Network analyzer: E5070B/E5071B, calibration module: 85093C (3.5 mm, 50 Ω) electronic calibration (ECal) module, calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23° C ± 5° C with < 1° C deviation from
calibration temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 52 51 47

Source match 44 39 34

Load match 47 44 40

Reflection tracking ±0.030 ±0.050 ±0.070

Transmission tracking ±0.039 ±0.069 ±0.117

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

7

Uncorrected system performance

Table 1-6 Uncorrected system performance (correction: off, system correction: on)

Description Specification

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 25 dB 20 dB 15 dB

Source match 25 dB 20 dB 15 dB

Load match 17 dB 12 dB 10 dB

Transmission tracking ±1.0 dB ±1.0 dB ±1.0 dB

Reflection tracking ±1.0 dB ±1.0 dB ±1.0 dB

Test port output (source)

Table 1-7 Test port output frequency

Description Specification Supplemental information

Range

E5070B 300 kHz to 3 GHz

E5071B 300 kHz to 8.5 GHz

Resolution 1 Hz

Source stability

Option E5070B/E5071B-UNQ ±5 ppm (5° C to 40° C, typical)

Option E5070B/E5071B-1E5 ±0.05 ppm (23° C ± 5° C, typical)
±0.5 ppm/year (typical)

CW accuracy

Option E5070B/E5071B-UNQ ±5 ppm, 23° C ± 5° C

Option E5070B/E5071B-1E5 ±1 ppm, 23° C ± 5° C

8

Test port output (source)

Table 1-8 Test port output power

Description Specification Supplemental information

Level accuracy (at 23° C ±5° C)

300 kHz to 10 MHz ±1.0 dB (at 0 dBm, relative to 50 MHz reference)

10 MHz to 8.5 GHz ±0.650 dB (at 0 dBm, 50 MHz absolute,

source attenuator 0 dB)

±1.0 dB (at 0 dBm, relative to 50 MHz

reference, source attenuator 0 dB)

Level accuracy (high temperature mode: on)

300 kHz to 8.5 GHz ±0.8 dB (at 0 dBm, 50 MHz absolute, source attenuator 0 dB)

±1.5 dB (at 0 dBm, relative to 50 MHz reference,

source attenuator 0 dB)

Level accuracy (swept mode: on)

300 kHz to 4.25 GHz ±2.5 dB (at 0 dBm, relative to 50 MHz reference,

source attenuator 0 dB)

4.25 GHz to 8.5 GHz ±3.5 dB (at 0 dBm, relative to 50 MHz reference,

source attenuator 0 dB)

Level linearity (at 23° C ±5° C)

10 MHz to 3 GHz ±0.75 dB (at -15 dBm to 10 dBm)

3 GHz to 4.25 GHz ±0.75 dB (at -15 dBm to 9 dBm)

4.25 GHz to 6 GHz ±0.75 dB (at -10 dBm to 7 dBm)

6 GHz to 8.5 GHz ±0.75 dB (at -15 dBm to 5 dBm)

Level linearity (high temperature mode: on)

300 kHz to 3 GHz ±1.5 dB (at -15 dBm to 10 dBm)

3 GHz to 4.25 GHz ±1.5 dB (at -15 dBm to 9 dBm)

4.25 GHz to 6 GHz ±2.0 dB (at -15 dBm to 7 dBm)

6 GHz to 8.5 GHz ±2.0 dB (at -15 dBm to 5 dBm)

Level linearity (swept mode: on)

300 kHz to 3 GHz ±1.5 dB (at -15 dBm to 10 dBm)

3 GHz to 4.25 GHz ±1.5 dB (at -15 dBm to 9 dBm)

4.25 GHz to 6 GHz ±3 dB (at -15 dBm to 7 dBm)

6 GHz to 8.5 GHz ±3 dB (at -15 dBm to 5 dBm)

Range (source attenuator 0 dB)

300 kHz to 3 GHz -15 dBm to 10 dBm

3 GHz to 4.25 GHz -15 dBm to 9 dBm

4.25 GHz to 6 GHz -15 dBm to 7 dBm

6 GHz to 8.5 GHz -15 dBm to 5 dBm

Range (with source attenuators)

300 kHz to 3 GHz -50 dBm to 10 dBm (non-harmonics spurious may limit power range)

3 GHz to 4.25 GHz -50 dBm to 9 dBm (non-harmonics spurious may limit power range)

4.25 GHz to 6 GHz -50 dBm to 7 dBm (non-harmonics spurious may limit power range)

6 GHz to 8.5 GHz -50 dBm to 5 dBm (non-harmonics spurious may limit power range)

Sweep range (source attenuator 0 dB)

300 kHz to 3 GHz -15 dBm to 10 dBm -20 dBm to 10 dBm

3 GHz to 4.25 GHz -15 dBm to 9 dBm -20 dBm to 9 dBm

4.25 GHz to 6 GHz -15 dBm to 7 dBm -20 dBm to 7 dBm

6 GHz to 8.5 GHz -15 dBm to 5 dBm -20 dBm to 5 dBm

Level resolution 0.05 dB

1

1

Source output performance on port 1 only. Other port output performance is typical.

9

Test port output (source)

Table 1-9 Test port output signal purity

Description Specification Supplemental information

Harmonics (2nd or 3rd)

10 MHz to 2 GHz < -25 dBc (at 5 dBm, typical)

2 GHz to 3 GHz < -15 dBc (at 5 dBm, typical)

3 GHz to 8.5 GHz < -10 dBc (at 5 dBm, typical)

Non-harmonic spurious

10 MHz to 3 GHz < -25 dBc (at 5 dBm, typical)

3 GHz to 8.5 GHz < -10 dBc (at 5 dBm, typical)

10

Test port input

Table 1-10 Test port input levels

Description Specification Supplemental information

Maximum test port input level

300 kHz to 3 GHz +10 dBm

3 GHz to 4.25 GHz +9 dBm

3 GHz to 6 GHz +7 dBm

6 GHz to 8.5 GHz +5 dBm

Damage level

300 kHz to 8.5 GHz RF +20 dBm

±10 VDC (source attenuator = 0 dB)

±25 VDC (source attenuator = 5 dB or more, typical)

Crosstalk

3 MHz to 3 GHz -120 dB

3 GHz to 6 GHz -109 dB

6 GHz to 7.5 GHz -99 dB

7.5 GHz to 8.5 GHz -89 dB

Table 1-11 Test port input (trace noise2)

Description Specification Supplemental information

1

Trace noise magnitude

300 kHz to 3 MHz 5 mdB rms (typical)
(source power level = +10 dBm) 8 mdB rms (high temperature mode: ON, typical)

3 MHz to 3 GHz 1 mdB rms (23°C ±5°C) 4 mdB rms
(source power level = +10 dBm) (high temperature mode: ON, typical)

3 GHz to 4.25 GHz 1.2 mdB rms (23°C ±5°C) 4.8 mdB rms
(source power level = +9 dBm) (high temperature mode: ON, typical)

4.25 GHz to 6 GHz 3.6 mdB rms (23°C ±5°C) 7.2 mdB rms
(source power level = +7 dBm) (high temperature mode: ON, typical)

6 GHz to 7.5 GHz 3.6 mdB rms (23°C ±5°C) 7.2 mdB rms
(source power level = +5 dBm) (high temperature mode: ON, typical)

7.5 GHz to 8.5 GHz 6 mdB rms (23°C ±5°C) 9.6 mdB rms
(source power level = +5 dBm) (high temperature mode: ON, typical)

Trace noise phase

300 kHz to 3 MHz 0.035° rms (23°C ±5°C, typical)
(source power level = +10 dBm) 0.05° rms (high temperature mode: ON, typical)

3 MHz to 3 GHz 0.007° rms (23°C ±5°C, typical)
(source power level = +10 dBm) 0.02° rms (high temperature mode: ON, typical)

3 GHz to 4.25 GHz 0.008° rms (23°C ±5°C, typical)
(source power level = +9 dBm) 0.024° rms (high temperature mode: ON, typical)

4.25 GHz to 6 GHz 0.025° rms (23°C ±5°C, typical)
(source power level = +7 dBm) 0.042° rms (high temperature mode: ON, typical)

6 GHz to 7.5 GHz 0.025° rms (23°C ±5°C, typical)
(source power level = +5 dBm) 0.042° rms (high temperature mode: ON, typical)

7.5 GHz to 8.5 GHz 0.042° rms (23°C ±5°C, typical)
(source power level = +5 dBm) 0.06° rms (high temperature mode: ON, typical)

1

Response calibration not omitted.

2

Trace noise is defined as a ratio measurement of a through, at IF bandwidth = 3 kHz.

11

Table 1-12 Test port input (stability 1)

Description Specification Supplemental information

Stability magnitude

3 MHz to 3 GHz 0.005 dB/° C
(at 23° C ±5° C, typical)

3 GHz to 6 GHz 0.01 dB/° C
(at 23° C ±5° C, typical)

6 GHz to 8.5 GHz 0.04 dB/°C
(at 23° C ±5° C, typical)

Stability phase

3 MHz to 3 GHz 0.1°/° C
(at 23° C ±5° C, typical)

3 GHz to 6 GHz 0.2°/° C
(at 23° C ±5° C, typical)

6 GHz to 8.5 GHz 0.8°/° C
(at 23° C ±5° C, typical)

Table 1-13 Test port input (dynamic accuracy)

Accuracy of the test port input power reading is relative to -10 dBm reference input power level.

Specification Supplemental information

Magnitude Phase

1

Stability is defined as a ratio measurement at the test port.

12

Table 1-14 Test port input (group delay 1)

Description Specification Supplemental information

Aperture (selectable) (frequency span)/(number of points -1)

Maximum aperture 25% of frequency span

Maximum delay Limited to measuring no more than
180° of phase change within the minimum aperture.

Accuracy See graph below, typical

The following graph shows group delay accuracy with type-N full 2-port calibration and a 10 Hz IF bandwidth. Insertion loss is assumed to be < 2 dB.

Group delay (typical)

In general, the following formula can be used to determine the accuracy, in seconds, of specific group delay measurement:
± phase accuracy (deg)/[360 x aperture (Hz)]

1

Group delay is computed by measuring the phase change within a specified step (determined by the frequency span and the number of points per sweep).

13

General information

Table 1-15 System bandwidths

Description Supplemental information

IF bandwidth settings

Range 10 Hz to 100 kHz
Nominal settings are:
10, 15, 20, 30, 40, 50, 70, 100, 150, 200, 300, 400, 500, 700,
1 k, 1.5 k, 2 k, 3 k, 4 k, 5 k, 7 k, 10 k, 15 k, 20 k, 30 k, 40 k, 50 k, 70 k, 100 kHz

Table 1-16 Front panel information

Description Supplemental information

RF connectors

Type Type-N, female; 50 Ω , nominal

Display

Size 10.4 in TFT color LCD

Resolution VGA (640x480)

14

Table 1-17 Rear panel information

Description Supplemental information

External trigger connector

Type BNC, female

Input level LOW threshold voltage: 0.5 V
HIGH threshold voltage: 2.1 V
Input level range: 0 to +5 V

Pulse width ≥ 2 µsec, typical

Polarity Negative (downward) only

External reference signal input connector

Type BNC, female

Input frequency 10 MHz ±10 ppm, typical

Input level 0 dBm ±3 dB, typical

Internal reference signal output connector

Type BNC, female

Output frequency 10 MHz ±10 ppm, typical

Signal type Sine wave, typical

Output level 0 dBm ±3 dB into 50 Ω, typical

Output impedance 50 Ω, nominal

VGA video output 15-pin mini D-Sub; female; drives VGA compatible monitors

GPIB 24-pin D-Sub (type D-24), female; compatible with IEEE-488

Parallel port 36-pin D-Sub (type 1284-C), female; provides connection to printers

USB-host port Universal serial bus jack, type A configuration (4 contacts inline, contact 1 on left);

female; provides connection to printer, ECal module, USB/GPIB interface or multiport
test set

Contact 1 Vcc: 4.75 to 5.25 VDC, 500 mA, maximum

Contact 2 -Data

Contact 3 +Data

Contact 4 Ground

USB (USBTMC1) interface port Universal serial bus jack, type B configuration (4 contacts inline, contact 1 on left);
female; provides connection to an external PC

LAN 10/100 BaseT Ethernet, 8-pin configuration; auto selects between the two data rates

Handler I/O port 36-pin D-sub, female; provides connection to handler system

Line power

2

Frequency 47 Hz to 63 Hz

Voltage 90 to 132 VAC, or 198 to 264 VAC (automatically switched)

VA max 350 VA max.

1

USB Test and Measurement Class (TMC) interface that communicates over USB using USBTMC messages based on the IEEE 488.1 and

IEEE 488.2 standards.

2

A third-wire ground is required.

15

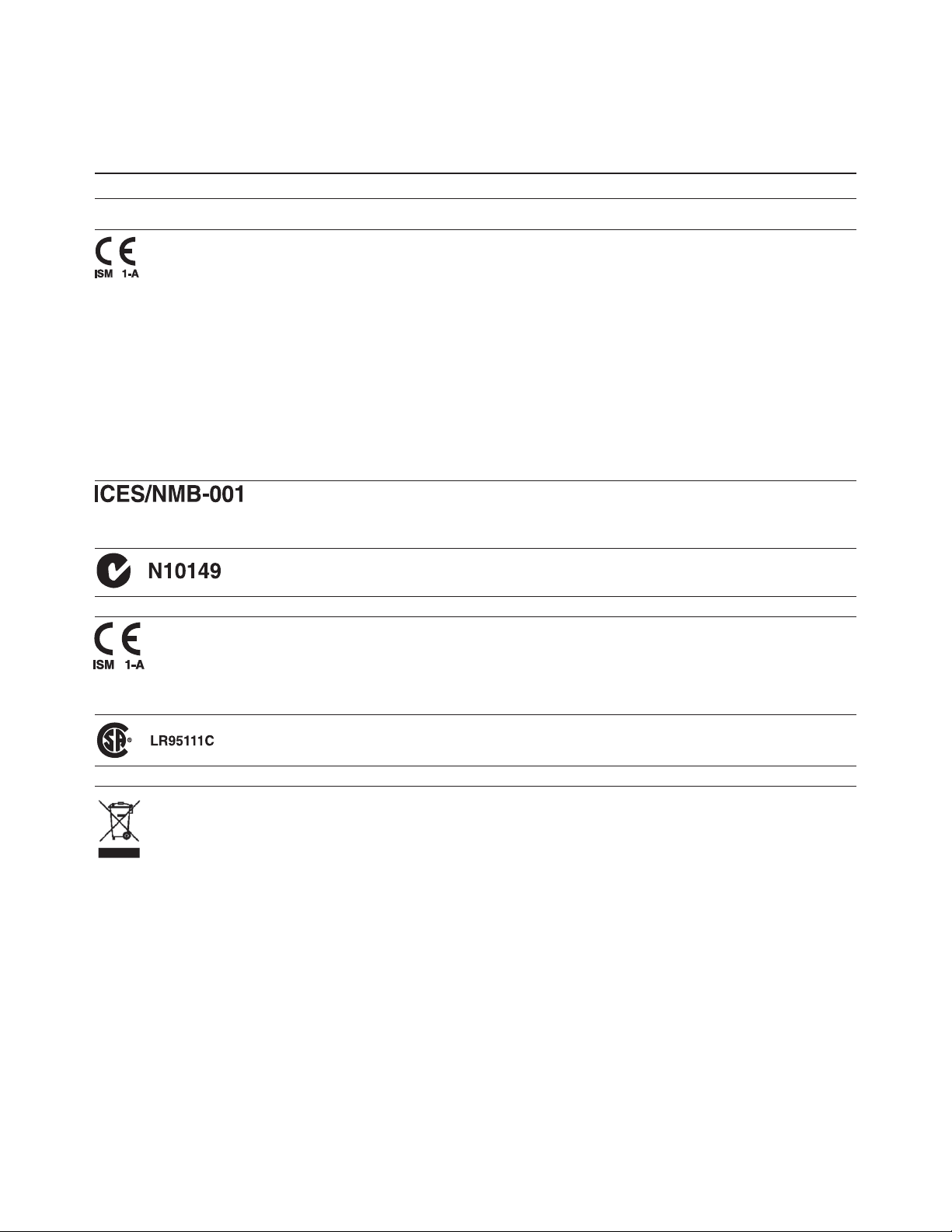

Table 1-18 EMC, safety, and Environment

Description Supplemental information

EMC

European Council Directive 89/336/EEC
EN / IEC 61326-1:1997+A1:1998
CISPR 11:1997+A1:1999 / EN 55011:1998+A1:1999 Group 1,
Class A
IEC 61000-4-2:1995 / EN 61000-4-2:1995+A1:1998
4 kV CD / 4 kV AD
IEC 61000-4-3:1995 / EN 61000-4-3:1996+A1:1998
3 V/m, 80-1000 MHz, 80% AM
IEC 61000-4-4:1995 / EN 61000-4-4:1995
1 kV power / 0.5 kV Signal
IEC 61000-4-5:1995 / EN 61000-4-5:1995

0.5 kV Normal / 1 kV Common
IEC 61000-4-6:1996 / EN 61000-4-6:1996
3 V, 0.15-80 MHz, 80% AM
IEC 61000-4-11:1994 / EN 61000-4-11:1994
100% 1cycle
Canada ICES001:1998
Note: The performance of EUT will be within the specification over the RF immunity tests
according to EN 61000-4-3 or EN 61000-4-6 except under the coincidence of measurement
frequency and interference frequency.

AS/NZS 2064.1/2 Group 1, Class A

Safety

European Council Directive 73/23/EEC
IEC 61010-1:1990+A1+A2 / EN 61010-1:1993+A2
INSTALLATION CATEGORY II, POLLUTION
DEGREE 2
INDOOR USE
IEC60825-1:1994 CLASS 1 LED PRODUCT

CAN/CSA C22.2 No. 1010.1-92

Environment

This product complies with the WEEE Directive (2002/96/EC) marking requirements. The affixed label

indicates that you must not discard this electrical/ electronic product in domestic household waste.

Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is
classed as a "Monitoring and Control instrumentation" product.

Do not dispose in domestic household waste.

To return unwanted products, contact your local Agilent office, or see

www.agilent.com/environment/product/ for more information.

16

Table 1-19 Analyzer environment and dimensions

Description Supplemental information

Operating environment

Temperature +5°C to +40°C

Error-corrected temperature range 23°C ± 5°C with < 1°C deviation from calibration temperature

Humidity 20% to 80% at wet bulb temperature < +29°C (non-condensing)

Altitude 0 to 2,000 m (0 to 6,561 feet)

Non-operating storage environment

Temperature -10°C to +60°C

Humidity 20% to 90% at wet bulb temperature < 40°C (non-condensing)

Altitude 0 to 4,572 m (0 to 15,000 feet)

Dimensions See figure 1-1 through figure 1-3.

Weight

Net 17.5 kg (option E5070B/E5071B-214, nominal)

19.5 kg (option E5070B/E5071B-414, nominal)

Figure 1-1. Dimensions (front view, E5071B with option E5071B-414, in millimeters, nominal)

17

Figure 1-2. Dimensions (rear view, with option E5070B/E5071B-1E5, in millimeters, nominal)

Figure 1-3. Dimensions (side view, in millimeters, nominal)

Figure 1-4. Dimensions (top view, in millimeters, nominal)

18

Measurement throughput summary

Table 1-20 Typical cycle time for measurement completion

Number of points

51 201 401 1601

Start 1 GHz, stop 1.2 GHz, 100 kHz IF bandwidth

Uncorrected 4 5 7 18

2-port cal 5 8 13 42

Start 300 kHz, stop 3 GHz, 100 kHz IF bandwidth

Uncorrected 11 12 13 23

2-port cal 20 23 25 46

Start 300 kHz, stop 8.5 GHz, 100 kHz IF bandwidth

Uncorrected 19 24 24 24

2-port cal 37 46 48 50

Table 1-21 Typical cycle time for measurement completion

Number of points

51 201 401 1601

Start 1 GHz, Stop 1.2 GHz, 100 kHz IF bandwidth

Uncorrected 4 6 8 22

2-port cal 5 10 16 56

1, 2

1, 3

(ms)

(ms)

Start 300 kHz, Stop 3 GHz, 100 kHz IF bandwidth

Uncorrected 11 12 13 23

2-port cal 20 24 25 55

Start 300 kHz, Stop 8.5 GHz, 100 kHz IF bandwidth

Uncorrected 20 24 24 26

2-port cal 37 46 47 57

Table 1-22 Typical cycle time for measurement completion

Number of points

51 201 401 1601

Start 1 GHz, Stop 1.2 GHz, 100 kHz IF bandwidth

Uncorrected 7 17 29 90

2-port cal 12 32 55 178

Start 300 kHz, Stop 3 GHz, 100 kHz IF bandwidth

Uncorrected 14 27 43 130

2-port cal 26 50 84 258

Start 300 kHz, Stop 8.5 GHz, 100 kHz IF bandwidth

Uncorrected 16 30 49 146

2-port cal 30 57 96 291

1, 4

(ms)

1

Typical performance.

2

Fast swept mode. System error correction OFF. Analyzer display turned off with :DISP:ENAB OFF. Number of traces = 1.

3

Fast swept mode. System error correction ON. Analyzer display turned off with :DISP:ENAB OFF. Number of traces = 1.

4

Standard stepped mode. System error correction ON. Analyzer display turned off with :DISP:ENAB OFF. Number of traces = 1.

19

Table 1-23 Cycle time

Number of points Fast swept mode

1,2

(ms) vs. number of points

Fast swept mode Standard stepped mode

1

system error correction OFF system error correction ON system error correction ON

3 4 4 4

11 4 4 4

51 4 4 7

101 4 5 11

201 5 6 17

401 8 8 29

801 11 13 52

1601 18 23 90

Table 1-24 Data transfer time1 (ms)

Number of points

51 201 401 1601

SCPI over GPIB

3

64-bit floating point 5 16 29 109

ASCII 21 79 156 617

SCPI over 100 Mbps LAN (telnet)

3

REAL 64 2 2 3 5

ASCII 34 128 254 995

SCPI over 100 Mbps LAN (SICL-LAN)

3

REAL 64 4 4 5 8

ASCII 6 14 26 95

SCPI over USB (USBTMC)4

REAL 64 4 5 5 7

ASCII 6 18 33 126

COM (program executed in the analyzer)

5

Variant type 1 1 1 1

1

Typical performance.

2

Start 1 GHz, stop 1.2 GHz, 100 kHz IF bandwidth, Error correction OFF, display update: OFF, number of traces = 1.

3

Measured using a VEE 6.0 program running on a 733 MHz Pentium III HP Kayak, Transferred complex S11 data, using :CALC:DATA?SDATA.

4

Measured using a VEE 7.0 program running on a 500 MHz Pentium III DELL OptiPlex, transferred complex S11 data.

5

Measured using an E5070B/E5071B VBA macro running inside the analyzer. Transferred complex S11 data.

20

Measurement capabilities

Number of measurement channels Up to 16 independent measurement channels. A measurement channel is coupled

to stimulus response settings including frequency, IF bandwidth, power level,
and number of points.

Number of display windows Each measurement channel has a display window. Up to 16 display windows (channels)
can be displayed.

Number of traces Six display modes (selectable):
16 data traces and 16 memory traces per channel at 4-channel mode
9 data traces and 9 memory traces per channel at 9-channel mode
6 data traces and 6 memory traces per channel at 12-channel mode
4 data traces and 4 memory traces per channel at 16-channel mode
4 data traces and 4 memory traces per channel at 2-channel mode
4 data traces and 4 memory traces per channel at 1-channel mode

Measurement choices Option E5070B/E5071B-214: S11, S21, S12, S22
Option E5070B/E5071B-314: S11, S21, S31, S12, S22, S32, S13, S23, S33,
Mixed-mode S-parameters, balanced parameters, CMRR
Option E5070B/E5071B-414: S11, S21, S31, S41, S12, S22, S32, S42, S13,
S
Option E5070B/E5071B-214 and 008: S11, S21, S12, S22, absolute parameters.
Option E5070B/E5071B-314 and 008: S11, S21, S31, S12, S22, S32, S13, S23, S33,
Mixed-mode S-parameters, balanced parameters, CMRRA, absolute parameters.
Option E5070B/E5071B-414 and 008: S11, S21, S31, S41, S12, S22, S32, S42, S13, S23,
S
absolute parameters.

Measurement parameter conversion Available to convert S-parameters into reflection impedance, transmission impedance
(series), transmission impedance (shunt), reflection admittance, transmission
admittance (series), transmission admittance (shunt), and 1/S.

Data formats Log magnitude, linear magnitude, phase, extended phase, positive phase,
group delay, SWR, real, imaginary, Smith chart, polar.

Data markers 10 independent markers per trace. Reference marker available
for delta marker operation. Smith chart format includes 5 marker formats:
linear magnitude/phase, log magnitude/phase, real/imaginary,
R + jX, and G + jB. Polar chart format includes 3 marker formats:
linear magnitude/phase, log magnitude/phase, and real/imaginary.

Marker functions

Marker search Max value, min value, peak, peak left, peak right, target, target left, target right,
bandwidth parameters with user-defined bandwidth values.

Marker-to functions Set start, stop, center to active marker stimulus value; set reference to active
marker response value; set electrical delay to group delay at active marker.

Search range User definable.

Tracking Performs marker search continuously or on demand.

Time domain functions1

Transformation Selectable transformation type from bandpass, lowpass impulse, lowpass step.
Selectable window from maximum, normal and minimum.

Gated functions Selectable gated filter type from bandpass, notch.
Selectable gate shape from maximum, normal and wide.

, S33, S43, S14, S24, S34, S44, mixed mode S-parameters, balanced parameters, CMRR

23

, S43, S14, S24, S34, S44, mixed mode S-parameters, balanced parameters, CMRR,

33

1

Option E5070B-010 or E5071B-010 is required.

21

Source control

1

Measured number of points per sweep User definable from 2 to 20,001

Sweep mode Standard stepped, standard swept, fast stepped and fast swept.

Sweep type Linear sweep, segment sweep, log sweep and power sweep.

Segment sweep Define independent sweep segments. Set number of points, test port power levels,

IF bandwidth, delay time, sweep time and sweep mode independently for each segment.

Sweep trigger Set to continuous, hold, or single, sweep with internal, external, manual,
or bus trigger.

Trigger event Set trigger event dependent on sweep or data point.

Power Set source power from -50 dBm to10 dBm. The power slope function and the power

calibration function compensate source power level error.

Frequency-offset 2 Set source frequency independently from where the receivers are tuned.

.

Trace functions

Display data Display current measurement data, memory data,

or current measurement and memory data simultaneously.

Trace math Vector addition, subtraction, multiplication or division of
measured complex values and memory data.

Title Add custom title to each channel window. Titles are
printed on hardcopies of displayed measurements.

Autoscale Automatically selects scale resolution and reference value to
vertically center the trace.

Electrical delay Offset measured phase or group delay by a defined amount of
electrical delay, in seconds.

Phase offset Offset measured phase or group delay by a defined amount in degrees.

Statistics Calculates and displays mean, standard deviation and peak-to-peak

deviation of the data trace.

Frequency blank Hide the frequency information to be displayed on the ENA screen.

1

20,001 points measurement is available only for 4 data traces and 4 memory traces per channel in 1- channel mode.

2

Option E5070B-008 or E5071B-008 is required.

22

Data accuracy enhancement

Measurement calibration Measurement calibration significantly reduces measurement

uncertainty due to errors caused by system directivity, source and
load match, tracking and crosstalk. Full 2-port, 3-port, or 4-port calibration
removes all the systematic errors for the related test ports to obtain
the most accurate measurements.

Calibration types available

Response Simultaneous magnitude and phase correction of frequency response
errors for either reflection or transmission measurements.

Response and isolation Compensates for frequency response and crosstalk errors of
transmission measurements.

Enhanced response Compensates for frequency response and source-match errors

One-port calibration Available on test set port 1, port 2, port 3, or port 4 to correct for directivity,
frequency response and source match errors.

Full 2-port/3-port/4-port calibration Compensation for directivity, reflection, transmission frequency response and
TRL/LRM calibration crosstalk in both forward and reverse directions. Provides the highest accuracy for
accuracy for coaxial and non-coaxial environments, such as on-probing, in-fixture
or waveguide measurements.

Interpolated error correction With any type of accuracy enhancement applied, interpolated mode
recalculates the error coefficients when the test frequencies are changed.
The number of points can be increased or decreased and the start/stop
frequencies can be changed.

Velocity factor Enter the velocity factor to calculate the equivalent physical length.

Reference port extension Redefine the measurement plane from the plane where the calibration

was done.
Automatic port extension Compensates for both electrical length and insertion loss by measuring open
and/or short standard. Provides a simplified approach for fixture compensation.

Accessible calibration coefficients Calibration coefficients can be easily read and written 1 with programming

commands.

Mixer calibration1

Scalar-mixer calibration Scalar-mixer calibration corrects the conversion loss for input port source match
and output port load match. Scalar-mixer calibration also corrects the input match
measurements for input port directivity, frequency response, and source match at
the input frequencies and corrects the output match measurements for output
port directivity, frequency response, and source match at output frequencies.
This calibration offers the conversion loss/gain measurements with correcting
the mismatches of both input and output test ports.

Vector-mixer calibration Vector-mixer calibration corrects for directivity, source match, load match,
and reflection frequency response at each test port by using a characterized
calibration mixer with de-embedding function. This calibration provides the
measurements of phase and absolute group delay. The characterization of the
calibration mixer is part of the calibration process.

Storage

Removable hard disk drive Store and recall instrument states, calibration data, and trace data

on 3 GB, minimum, removable hard drive. Trace data can be saved in CSV
(comma separated value) format. All files are MS-DOS ®-compatible.
Instrument states include all control settings, limit lines, segment sweep
tables, and memory trace data.

File sharing Internal hard disk drive (D:) can be accessed from an external
Windows® PC through LAN.

Disk drive Instrument states, calibration data, and trace data can be stored on
an internal 3.5 inch 1.4 MB floppy disk in MS-DOS ®-compatible format.

Screen hardcopy Printouts of instrument data are directly produced on a printer. The analyzer
provides USB and parallel interfaces.

1

Option E5070B-008 or E5071B-008 is required.

23

System capabilities

Familiar graphical user interface The ENA Series analyzer employs a graphical user interface based on

Windows® operating system. There are three ways to operate the instrument
manually: you can use a hardkey interface, touch screen interface (option
E5070B/E5071B-016) or a mouse interface.

Limit lines

Limit test Define the test limit lines that appear on the display for pass/fail testing.
Defined limits may be any combination of horizontal/sloping lines and discrete
data points. The offset limit line function adjusts offset values to the frequency
and output level.

Ripple limit test Defines the stop and start frequency and the maximum allowable ripple value of
each frequency band. Ripple limit test may set up as many as 12 frequency bands
for testing ripple. The frequency bands are combined in a list that is displayed
while the ripple frequency bands are being edited.

Bandwidth limit test Defines the amplitude below the peak and the minimum and maximum allowable
bandwidths.

Web-enabled control Access to the ENA from any Java™-enable Web browser via LAN interface. ENA
can be controlled from a remote location without using special software.

Fixture simulator

Balance-unbalance conversion Convert data from single-ended measurement to balanced measurement
parameters (mixed-mode S-parameters), balanced parameters or CMRR by
using internal software.

Network de-embedding De-embed an arbitrary circuit defined by a two-port Touchstone data file
(50 Ω system) for each test port. This function eliminates error factors
between calibration plane and DUT and expands the calibration plane for each
test port. This function can be used with the port extension function.

Port reference impedance conversion Convert S-parameters measured in 50 Ω reference impedance to data
in other reference impedance levels by using internal software. This conversion
can be performed for both single-ended (unbalance) measurement ports and
converted balanced measurement ports.

Matching circuit Add one of predefined matching circuits or a circuit defined by a two-port
Touchstone data file to each single-ended test port or converted balanced
(differential) test port by using internal software.

24

Automation

GPIB Internal

SCPI X X

COM X

Methods

Internal analyzer execution Applications can be developed in a built-in VBA® (Visual Basic for Applications)
language. Applications can be executed from within the analyzer via COM
(component object model) or using SCPI.

Controlling via GPIB The GPIB interface operates to IEEE 488.2 and SCPI protocols.
The analyzer can be controlled by a GPIB external controller. The analyzer can
control external devices using a USB/GPIB interface.

Controlling via USB (USBTMC) The USB interface operates to USBTMC and SCPI protocols.
The analyzer can be controlled by an external PC using the USB interface with a
USB cable.

LAN

Standard conformity 10 BaseT or 100 BaseTX (automatically switched), Ethertwist,
RJ45 connector

Protocol TCP/IP

Function Telnet, SICL-LAN

25

E5091A multiport test set

The section provides test set input/output performance without calibration by the E5070B/E5071B.

Table 2-1 Test set input/output performance

Description Specification Supplemental information

Range 50 MHz to 8.5 GHz

Damage level 20 dBm, ±25 VDC (typical)

Table 2-2 Option E5091A-009 port performance

Description Specification

50 MHz to 300 MHz 300 MHz to 1.3 GHz 1.3 GHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Load match

Test port selected

A, T2, R1+, R1– 19 dB 20 dB 18 dB 12 dB 10 dB
T1, R2+, R2–, R3+, R3– 15 dB 17 dB 15 dB 11 dB 8 dB

Test port unselected

A, T2, R1+, R1–, R3+, R3– 23 dB 25 dB 19 dB 12 dB 11 dB
T1, R2+, R2– 18 dB 20 dB 16 dB 12 dB 9 dB

Interconnect port, typical

P1, P2, P3, P4 19 dB 19 dB 17 dB 13 dB 9 dB

Insertion loss

Test port

A, T2, R1+, R1– 3 dB 3 dB 4 dB 5 dB 6 dB
T1, R2+, R2–, R3+, R3– 5 dB 5 dB 7 dB 8 dB 9.5 dB

Stability, typical 0.005 dB/° C 0.005 dB/° C 0.005 dB/° C 0.01 dB/° C 0.015 dB/° C

Isolation

Over arbitrarily test ports -100 dB -100 dB -100 dB -100 dB -90 dB

26

Table 2-3 Option E5091A-016 port performance

Description Specification

50 MHz to 300 MHz 300 MHz to 1.3 GHz 1.3 GHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Load match

Test port selected

A, T4, R1+, R1–, R2+, R2–, 15 dB 17 dB 15 dB 9 dB 8 dB
R3+, R3–, R4+, R4–

T1, T2, T3 12 dB 14 dB 14 dB 8 dB 6 dB

Test port unselected

A, T4, T2, R1+, R1–, R2+, R2– 18 dB 20 dB 16 dB 10 dB 9 dB
R3+, R3–, R4+, R4–, R4–

T1, T2, T3 13 dB 15 dB 14 dB 8 dB 6 dB

Interconnect port, typical

P1, P2, P3, P4 12 dB 12 dB 12 dB 9 dB 7 dB

Insertion loss

Test port

A, T4, R1+, R1–, R2+, R2–, R3+, R3–, 6 dB 6 dB 7 dB 8 dB 9.5 dB
R4+, R4–

T1, T2, T3 6 dB 9 dB 10.5 dB 12 dB 14.5 dB

Stability per switch, typical 0.005 dB/° C 0.005 dB/° C 0.005 dB/° C 0.01 dB/° C 0.015 dB/° C

Isolation

Over arbitrarily test ports -100 dB -100 dB -100 dB -100 dB -80 dB

Table 2-4 Front panel information

Description Supplemental information

RF connectors

Interconnect ports

Type Type-N, female, 50 Ω, nominal

Number of ports 4 ports

Test ports (Option E5091A-009)

Type Type-N, female, 50 Ω, nominal

Number of ports 9 ports

Test ports (Option E5091A-016)

Type SMA, female, 50 Ω, nominal

Number of ports 25 ports (includes configurable switch port)

Control line 15 pin D-sub, female

27

Table 2-5 Rear panel information

Description Supplemental information

USB port Type B-receptacles, provide connection to the E5070B/E5071B

Line power1

Frequency 47 Hz to 63 Hz

Voltage 90 to 132 VAC, or 198 to 264 VAC (automatically switched)

VA max 150 VA max.

For EMC, safety and environment information, refer to E5070B/E5071B section.

Table 2-6 Test set dimensions and block diagram

Description Supplemental information

Dimensions

Option E5091A-009 See figure 2-1, 2-3, and 2-4

Option E5091A-016 See figure 2-2, 2-3, and 2-5

Weight

Option E5091A-009 6 kg

Option E5091A-016 7 kg

Block diagram

Option E5091A-009/016 See figure 2-6

Figure 2-1. Dimensions (front view, with option E5091A-009, in millimeters, nominal)

1

A third-wire ground is required.

28

Figure 2-2. Dimensions (front view, with option E5091A-016, in millimeters, nominal)

Figure 2-3. Dimensions (rear view, in millimeters, nominal)

Figure 2-4. Dimensions (side view, with Option E5091A-009, in millimeters, nominal)

29

Figure 2-5. Dimensions (side view, with Option E5091A-016, in millimeters, nominal)

Figure 2-6. Block diagram

3030

E5092A configurable multiport test set

The section provides test input/output performance without calibration by the E5071B.

Table 3-1 Test set input/output performance

Description Specification Typical

Frequency range 50 MHz to 20 GHz

Damage level 20 dBm, ±35 VDC

Table 3-2 Option E5092A-020 port performance

Description Specification Typical

Load match (selected port)

SPDT switch

50 MHz to 2 GHz 17 dB
2 GHz to 4 GHz 11 dB
4 GHz to 8 GHz 8 dB
8 GHz to 10 GHz 7 dB
10 GHz to 18 GHz 4 dB
18 GHz to 20 GHz 4 dB

SP4T switch

50 MHz to 2 GHz 17 dB
2 GHz to 3 GHz 11 dB
3 GHz to 8 GHz 8 dB
8 GHz to 10 GHz 7 dB
10 GHz to 18 GHz 4 dB
18 GHz to 20 GHz 4 dB

Load match (unselected port)

SPDT switch

50 MHz to 3 GHz 17 dB
3 GHz to 10 GHz 11 dB
10 GHz to 16 GHz 8 dB
16 GHz to 18 GHz 6 dB
18 GHz to 20 GHz 4 dB

SP4T switch

50 MHz to 3 GHz 17 dB
3 GHz to 10 GHz 11 dB
10 GHz to 16 GHz 8 dB
16 GHz to 18 GHz 6 dB
18 GHz to 20 GHz 4 dB

1

2

1

2

1

SPDT: Single-pole-double-throw switches. Applies to SW5, SW6, SW7, SW8, SW9 and SW10 in the E5092A. (See Figure 3-5.)

2

SP4T: Single-pole-four-throw switches. Applies to SW1, SW2, SW3 and SW4 in the E5092A. (See Figure 3-5.)

31

Table 3-2 Option E5092A-020 port performance (continued)

Description Specification Typical

Load match (common port)

SPDT switch

50 MHz to 2 GHz 16 dB
2 GHz to 4 GHz 11 dB
4 GHz to 8 GHz 8 dB
8 GHz to 10 GHz 7 dB
10 GHz to 20 GHz 4 dB

SP4T switch

50 MHz to 1.3 GHz 16 dB

1.3 GHz to 4 GHz 11 dB
4 GHz to 8 GHz 8 dB
8 GHz to 10 GHz 7 dB
10 GHz to 20 GHz 4 dB

Insertion loss

SPDT switch

50 MHz to 100 MHz 4 dB
100 MHz to 2 GHz 3.5 dB
2 GHz to 3 GHz 4.5 dB
3 GHz to 4 GHz 5 dB
4 GHz to 6 GHz 5.5 dB
6 GHz to 8 GHz 7 dB
8 GHz to 10 GHz 8 dB
10 GHz to 14 GHz 8.5 dB
14 GHz to 18 GHz 10 dB
18 GHz to 20 GHz 11.5 dB

SP4T switch

50 to 100 MHz 4 dB
100 MHz to 2 GHz 3.5 dB
2 GHz to 3 GHz 4.5 dB
3 GHz to 4 GHz 5.5 dB
4 GHz to 6 GHz 6 dB
6 GHz to 8 GHz 7.5 dB
8 GHz to 10 GHz 8.5 dB
10 GHz to 14 GHz 9.5 dB
14 GHz to 18 GHz 10.5 dB
18 GHz to 20 GHz 12 dB

Stability

50 MHz to 6 GHz 0.003 dB/°C
6 GHz to 20 GHz 0.01 dB/°C (Stability per switch)

Isolation

50 MHz to 500 MHz 65 dB
500 MHz to 1 GHz 80 dB
1 GHz to 2 GHz 85 dB
2 GHz to 6 GHz 90 dB
6 GHz to 10 GHz 85 dB
10 GHz to 18 GHz 75 dB
18 GHz to 20 GHz 65 dB (Over arbitrarily test ports)

1

2

1

2

3

1

SPDT: Single-pole-double-throw switches. Applies to SW5, SW6, SW7, SW8, SW9 and SW10 in the E5092A. (See Figure 3-5.)

2

SP4T: Single-pole-four-throw switches. Applies to SW1, SW2, SW3 and SW4 in the E5092A. (See Figure 3-5.)

3

This specification is defined when all ports are terminated with a 50 ohm load.

32

Table 3-3 Control line

Description Specification Typical

Number of groups 4
Group A: 8 bits
Group B,C,D: 4 bits

Input voltage range1 0 V to +5 V (positive input)
–5 V to 0 V (negative input)

Maximum current Group A, B: 50 mA in total of each group
Group C, D: 500 µA in total of each group

Impedance Group A, B: < 10 ohm
Group C, D: < 200 ohm

Table 3-4 DC source

Description Specification Typical

Number of sources 4

Output voltage range 0 V to +5.2 V (nominal)

Output voltage accuracy ±3 % of setting (+1 V to +5 V) at
1 M ohm load impedance

Voltage resolution 10 mV (nominal)

Maximum current 150 mA for each source

Output impedance < 5 ohm

3

2

Table 3-5 Operating storage environment

Description General characteristics

Temperature +5 °C to +40 °C

Humidity 20 to 80% at wet bulb temperature < +29 °C (non-condensing)

Altitude 0 to 2,000m (0 to 6,561 feet)

Vibration 0.21 G max., 5 to 500 Hz

Table 3-6 Non-operating storage environment

Description General characteristics

Temperature –10 °C to +60 °C

Humidity 20 to 90 % at wet bulb temperature < +40 °C (non-condensing)

Altitude 0 to 4,572 m (0 to 15,000 feet)

Vibration 0.5 G max., 5 Hz to 500 Hz

1

Input voltage will be clipped at about ±5.2 V when over this range.

2

The output voltage can be set in this range.

3

The output voltage resolution becomes effective between 0 V to 5.2 V.

33

Table 3-7 Front panel information

426

129

192

133

18

Description General characteristics

RF connectors SMA

Test ports 38 ports

Control line 15-pin D-sub, female
25-pin D-sub, female

Table 3-8 Rear panel information

Description General characteristics

USB port Type B-receptacle, provide connection to the E5071C

Line power

1

Frequency 47 to 63 Hz
Voltage 90 to 132 VAC, or 198 to 264 VAC
VA max (automatically switched) 300 VA max.

Table 3-9 Test set dimensions and block diagram

Description General characteristics

Dimensions

E5092A Option 020 See Figures 3-1, 3-2, 3-3 and 3-4

Weight

E5092A Option 020 9 kg

Figure 3-1. Dimensions (front view, with Option E5092A-020, in millimeters, nominal)

1

1A third-wire ground is required.

34

36.8

132.72

18.57

17

27

27

65.34

23.38

23.38

40.640.640.6

13.5

27 69.8

272727

27 27.8

Figure 3-2. Dimensions (pitch between switches, with Option E5092A-020, in millimeters, nominal)

129 37

133

51

83

146

13 133

18 126

144

472

23

417

32 22

Figure 3-3. Dimensions (rear view, with Option E5092A-020, in millimeters, nominal)

Figure 3-4. Dimensions (side view, with Option E5092A-020, in millimeters, nominal)

35

SW6

6A 6B

6COM

SW7

7A 7B

7COM

SW8

8A 8B

8COM

SW9

9A 9B

9COM

SW10

10A10B

10COM

SW5

5A

5COM

5B

SW1

1A 1B

1C

1D

PORT 1

SW2

2A

2B 2C 2D

PORT 2

SW3

3A 3B 3C 3D

PORT 3

SW4

4A

4B 4C 4D

PORT 4

Figure 3-5. Switch confi guration (E5092A-020)

Figure 3-6. DC control line (E5092A-020)

DC Source (Group A)

Max Current

Output

Output

Voltage

Impedance

DC Source (Group B)

DC Source (Group C)

DC Source (Group D)

DC Source Output

DC Source Output

DC Source Output

DC Source Output

Positive Input

(High)

Negative Input

(Low)

Positive Input (High)

Negative Input (Low)

Positive Input (High)

Negative Input (Low)

Positive Input (High)

Negative Input (Low)

Control Line 1 (Group A)

Impedance

Control Line 2 (Group B)

Control Line 2 (Group C)

Control Line 2 (Group D)

Control Line 1 (Group A)

Control Line 2 (Group A)

Control Line 3 (Group A)

Control Line 4 (Group A)

::

Control Line 8 (Group A)

Control Line 1 (Group B)
Control Line 2 (Group B)
Control Line 3 (Group B)
Control Line 4 (Group B)

Control Line 1 (Group C)
Control Line 2 (Group C)
Control Line 3 (Group C)
Control Line 4 (Group C)

Control Line 1 (Group D)
Control Line 2 (Group D)
Control Line 3 (Group D)
Control Line 4 (Group D)

:

36

Figure 3-7. Control line pin assignment (E5092A-020)

D-SUB 15 pin
assignment

GRO UP A

Line 8

Line 7

Line 6

Line 5

Line 4

Line 3

Line 2

Line1

87654321

15 14 13 12 11 10 9

GND

Reserved

Reserved

Reserved

DC source

Positive input

Negative input

GRO UP A

D-SUB 25pin
assignment

GROUP B GROUP C GROUP D

Line 4

Line 3

Line 2

Line 1

Line 4

Line 3

Line 2

GND

12

13 111098765

23 22 21 20 19 18 17

24

25

GND

Positive input

Negative input

GROUP B GROUP C GROUP D

GND

DC source

Positive input

Negative input

Line 1

DC source

Line 4

4

16

GND

Line 3

Line 2

3

2

15

14

Positive input

Negative input

Line 1

1

DC source

37

Corrected system performance for 75 Ω measurements with 11852B
50 Ω to 75 Ω minimum-loss pads (supplemental information)

Table 4-1 Corrected system performance with type-N 75 Ω device connectors, 85036E calibration kit

Network analyzer: E5070B/E5071B, calibration kit: 85036E (type-N 75 Ω), 50 Ω to 75 Ω adapters: 11852B, calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23° C ± 5° C with < 1° C deviation from
calibration temperature, Isolation calibration not omitted

Description Supplemental information (dB, typical)

3 MHz to 3 GHz

Directivity 37

Source match 33

Load match 37

Reflection tracking ±0.017

Transmission tracking ±0.021

Transmission uncertainty 3 MHz to 3 GHz (supplemental information, typical)

Magnitude Phase

Reflection uncertainty 3 MHz to 3 GHz (supplemental information, typical)

Magnitude Phase

38

Agilent Email Updates

t

www.agilent.com/fi nd/emailupdates

Get the latest information on the
products and applications you select.

Agilent Direc

www.agilent.com/fi nd/agilentdirect

Quickly choose and use your test
equipment solutions with confi dence.

Agilent

Open

www.agilent.com/fi nd/open

Agilent Open simplifi es the process
of connecting and programming
test systems to help engineers
design, validate and manufacture
electronic products. Agilent offers
open connectivity for a broad range
of system-ready instruments, open
industry software, PC-standard I/O
and global support, which are
combined to more easily integrate
test system development.

Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.

Web Resources

For additional product information
and literature, please visit our Web
sites.

ENA RF network analyzers

www.agilent.com/find/ena

Test and measurement accessories

www.agilent.com/find/accessories

Remove all doubt

Our repair and calibration services
will get your equipment back to you,
performing like new, when prom­ised. You will get full value out of
your Agilent equipment through­out its lifetime. Your equipment
will be serviced by Agilent-trained
technicians using the latest factory
calibration procedures, automated
repair diagnostics and genuine parts.
You will always have the utmost
confi dence in your measurements.
For information regarding self main­tenance of this product, please
contact your Agilent offi ce.

Agilent offers a wide range of ad­ditional expert test and measure­ment services for your equipment,
including initial start-up assistance,
onsite education and training, as
well as design, system integration,
and project management.

For more information on repair and
calibration services, go to:

www.agilent.com/fi nd/removealldoubt

www.lxistandard.org

LXI is the LAN-based successor to
GPIB, providing faster, more effi cient
connectivity. Agilent is a founding
member of the LXI consortium.

www.agilent.com

For more information on Agilent
Technologies’ products, applications or
services, please contact your local Agilent

offi ce. The complete list is available at:

www.agilent.com/fi nd/contactus

Americas

Canada [phone]
Latin America 305 269 7500
United States [phone]

Asia Pacifi c

Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Thailand 1 800 226 008

Europe & Middle East

Austria 01 36027 71571
Belgium 32 (0) 2 404 93 40
Denmark 45 70 13 15 15
Finland 358 (0) 10 855 2100
France 0825 010 700*

*0.125 €/minute

Germany 07031 464 6333**

**0.14 €/minute

Ireland 1890 924 204
Israel 972-3-9288-504/544
Italy 39 02 92 60 8484
Netherlands 31 (0) 20 547 2111
Spain 34 (91) 631 3300
Sweden 0200-88 22 55
Switzerland 0800 80 53 53
United Kingdom 44 (0) 118 9276201
Other European Countries:
www.agilent.com/fi nd/contactus

Revised: August 14, 2008

Product specifi cations and
descriptions in this document
subject to change without notice.

© Agilent Technologies, Inc. 2002,
2003, 2004, 2005, 2008
Printed in USA, September 25, 2008
5988-3780EN
