Agilent E5063A ENA Series Network Analyzer

100 kHz to 4.5/ 8.5/18 GHz

Data Sheet

Deﬁnitions

Speciﬁcation (spec.):

Warranted performance. All speciﬁcations apply at 23 ºC (± 5 ºC), unless otherwise stated, and 90 minutes after the instrument has been turned on. Speciﬁcations include guard bands to account for the expected statistical performance distribution, measurement uncertainties, and changes in performance due to environmental conditions.

Typical (typ.):

Expected performance of an average unit which does not include guardbands. It is not covered by the product warranty.

General characteristics:

A general, descriptive term that does not imply a level of performance.

Boundary Conditions

In this data sheet, boundary conditions are given for the speciﬁcations. For example, system dynamic range is 68 dB with the following boundary condition.

Frequency: 300 kHz IF bandwidth: 3 kHz

If the same boundary conditions fall under more than one category in a table, apply the best value.

Calibration Kits and ECal modules

This data sheet also provides technical specifications for the following calibration kits and ECal modules. For models not listed in this data sheet, please download the free uncertainty calculator from www.agilent.com/find/na_calculator to generate the curves for your calibration kit.

•85032F Calibration kit

•85033E Calibration kit

•85052D Calibration kit

•85092C Electronic calibration (ECal) module

•85093C Electronic calibration (ECal) module

•N4691B Electronic calibration (ECal) module

Corrected System Performance

The specifications in this section apply to measurements made with the Agilent E5063A network analyzer under the following conditions:

•No averaging applied to data

•Environmental temperature of 23 °C (± 5 °C) with less than 1 °C deviation from the calibration temperature

•Response and isolation calibration performed

System Dynamic Range

Description Specification Typical

System dynamic range at test port

(IF Bandwidth = 3 kHz)

100 kHz to 300 kHz 63 dB

300 kHz to 8.5 MHz 68 dB

8.5 to 100 MHz 91 dB

100 MHz to 4.34 GHz 92 dB

4.34 to 8.5 GHz 81 dB

8.5 to 13 GHz 75 dB

13 to 16 GHz 65 dB

16 to 18 GHz 62 dB

(IF Bandwidth = 10 Hz)

100 kHz to 300 kHz 88 dB 92 dB

300 kHz to 8.5 MHz 93 dB 97 dB

8.5 to 100 MHz 116 dB 122 dB

100 MHz to 4.34 GHz 117 dB 122 dB

4.34 to 8.5 GHz 106 dB 112 dB

8.5 to 13 GHz 100 dB 106 dB

13 to 16 GHz 90 dB 100 dB

16 to 18 GHz 87 dB 93 dB

1. The test port dynamic range is calculated as the difference between the test port rms noise ﬂoor and the source maximum output power. The effective dynamic range must take measurement uncertainty and interfering signals into account.

Corrected system performance with calibration kit

Corrected system performance with type-N device connectors, 85032F calibration kit

Network analyzer : E5063A Calibration kit : 85032F (Type-N, 50 ) Calibration : Full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature, isolation calibration performed

Specification (dB)

Description 100 kHz to 10 MHz 10 MHz to 3 GHz 3 to 9 GHz

Directivity 49 46 38

Source match 41 40 35

Load match 47 46 36

Reﬂection tracking ± 0.011 ± 0.021 ± 0.054

Transmission tracking ± 0.082 ± 0.037 ± 0.128

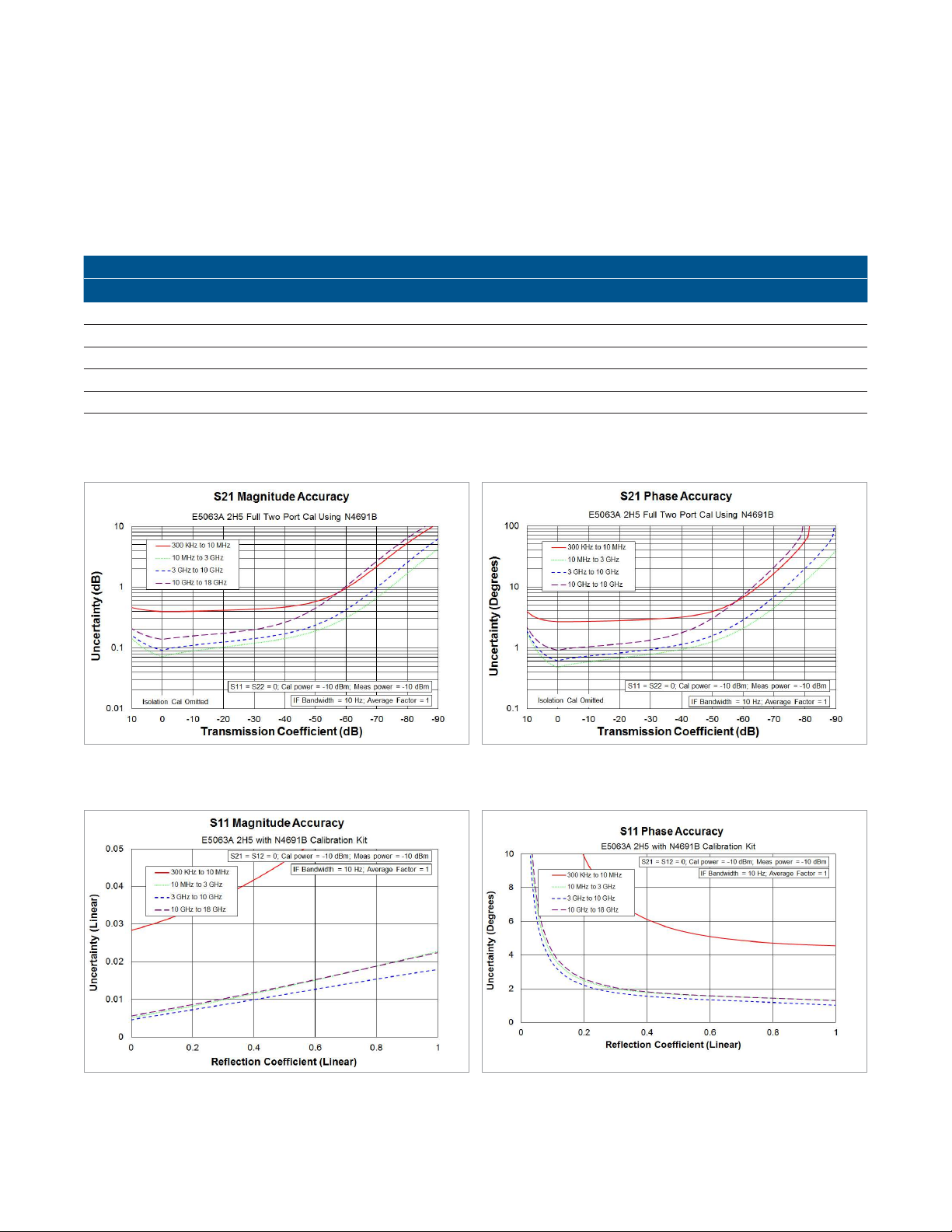

Transmission uncertainty (specification)

Reflection uncertainty (specification)

Corrected system performance with type-N device connectors, 85092C electronic calibration (ECal) module

Network analyzer : E5063A Calibration kit : 85092C (Type-N, 50 ) Electronic calibration (ECal) module Calibration : Full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature, isolation calibration is not performed

Specification (dB)

Description 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 9 GHz

Directivity 45 52 45

Source match 36 44 36

Load match 36 45 38

Reﬂection tracking ± 0.10 ± 0.04 ± 0.07

Transmission tracking ± 0.153 ± 0.052 ± 0.17

Transmission uncertainty (specification)

Reflection uncertainty (specification)

Corrected system performance with 3.5 mm device connector type, 85033E calibration kit

Network analyzer : E5063A Calibration kit : 85033E (3.5 mm, 50 ) Calibration : Full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature, isolation calibration performed

Specification (dB)

Description 100 kHz to 10 MHz 10 MHz to 3 GHz 3 to 9 GHz

Directivity 46 44 38

Source match 43 40 36

Load match 45 44 38

Reﬂection tracking ± 0.006 ± 0.007 ± 0.010

Transmission tracking ± 0.077 ± 0.040 ± 0.112

Transmission uncertainty (specification)

Reflection uncertainty (specification)

Corrected system performance with 3.5 mm device connector type, 85093C electronic calibration (ECal) module

Network analyzer : E5063A Calibration kit : 85093C (3.5 mm, 50 ) Electronic calibration (ECal) module Calibration : Full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature, isolation calibration is not performed

Specification (dB)

Description 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 9 GHz

Directivity 45 52 47

Source match 36 44 34

Load match 36 45 39

Reﬂection tracking ± 0.100 ± 0.040 ± 0.070

Transmission tracking ± 0.156 ± 0.047 ± 0.155

Transmission uncertainty (specification)

Reflection uncertainty (specification)

Corrected system performance with 3.5 mm device connector type, 85052D calibration kit

Network analyzer : E5063A Calibration kit : 85052D (3.5 mm, 50 ) Calibration : Full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature, isolation calibration performed

Specification (dB)

Description 100 kHz to 10 MHz 10 MHz to 3 GHz 3 to 10 GHz 10 to 18 GHz

Directivity 42 38 36 36

Source match 37 31 28 28

Load match 42 38 36 36

Reﬂection tracking ± 0.003 ± 0.004 ± 0.008 ± 0.008

Transmission tracking ± 0.136 ± 0.100 ± 0.208 ± 0.328

Transmission uncertainty (specification)

Reflection uncertainty (specification)

Corrected system performance with 3.5 mm device connector type, N4691B electronic calibration (ECal) module

Network analyzer : E5063A Calibration kit : N4691B (3.5 mm, 50 ) Electronic calibration (ECal) module Calibration : Full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature, isolation calibration is not performed

Specification (dB)

Description 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 10 GHz 10 to 18 GHz

Directivity 31 46 48 46

Source match 29 41 45 42

Load match 27 42 42 39

Reﬂection tracking ± 0.110 ± 0.050 ± 0.030 ± 0.040

Transmission tracking ± 0.358 ± 0.046 ± 0.062 ± 0.107

Transmission uncertainty (specification)

Reflection uncertainty (specification)

Uncorrected System Performance

User correction: OFF System error correction: ON

Specification (dB)

Description 100 kHz to

300 kHz

Directivity 10 dB 10 dB 25 dB 25 dB 20 dB 15dB 10 dB 10 dB

Source match

Load match 7 dB (typ.) 11 dB (typ.) 14 dB 11 dB 10 dB 7dB 8 dB (typ.) 6 dB (typ.)

Reﬂection tracking

Transmission tracking

20 dB 20 dB 25 dB 25 dB 20 dB 15dB 15 dB 15 dB

± 3.0 dB ± 3.0 dB ± 1.0 dB ± 1.0 dB ± 1.0 dB ± 1.0 dB ± 1.0 dB ± 1.0 dB

300 kHz to 1 MHz

1 to 100 MHz

100 MHz to 3 GHz

3 to 6 GHz

6 to 10 GHz

10 to 13 GHz

13 to 18 GHz

Test Port Output (Source)

Test port output frequency

Description Speciﬁcation Typical

Frequency range Option 245 Option 285 Option 2H5

Resolution 1 Hz (100 kHz to 6.5 GHz)

Source stability ± 7 ppm (5 to 40 ºC)

CW accuracy ± 7 ppm

Test port output power

Description Speciﬁcation Typical

Nominal power (preset power) –5 dBm

Range 100 kHz to 300 kHz 300 kHz to 8.5 GHz

8.5 to 18 GHz

Resolution 0.05 dB

Level accuracy At 50 MHz, –5 dBm, absolute (level ﬂatness) 100 kHz to 300 kHz 300 kHz to 1 MHz 1 MHz to 4.34 GHz

4.34 to 8.5 GHz

8.5 to 12 GHz 12 to 18 GHz

Level linearity –10 to –5 dBm, 100 kHz to 300 kHz –10 to 0 dBm, 300 kHz to 8.5 GHz –10 to –5 dBm, 8.5 to 18 GHz

100 kHz to 4.5 GHz 100 kHz to 8.5 GHz 100 kHz to 18 GHz

2 Hz (6.5 to 13 GHz) 11 Hz (13 to 18 GHz)

–20 to –5 dBm –20 to 0 dBm –15 to –5 dBm

± 0.9 dB

± 3.7 dB ± 2.0 dB ± 1.0 dB ± 1.6 dB ± 3.6 dB ± 5.8 dB

± 1.6 dB ± 1.6 dB ± 1.8 dB

–20 to –10 dBm, 100 kHz to 8.5 GHz –15 to –10 dBm, 8.5 to 18 GHz

1. Level accuracy of other frequencies is taken at –5 dBm, relative to 50 MHz reference unless otherwise stated. Level accuracy includes averaged total (non-) harmonics power. Its transient factor is not included.

2. Level linearity given is relative to –5 dBm unless otherwise stated. Level linearity includes averaged total (non-) harmonics power. The level accuracy needs to be taken into account for test port output power level. Its transient factor is not included.

± 2.7 dB ± 2.9 dB

Test Port Input

Description Speciﬁcation Typical

Test port input level Maximum input level Damage level

Crosstalk 100 kHz to 300 kHz 300 kHz to 8.5 MHz

8.5 MHz to 4.34 GHz

4.34 to 6 GHz 6 to 13 GHz 13 to 16 GHz 16 to 18 GHz

Test Port Noise Floor 100 kHz to 8.5 MHz

8.5 to 100 MHz 100 MHz to 4.34 GHz

4.34 to 8.5 GHz

8.5 to 13 GHz 13 to 16 GHz 16 to 18 GHz

Compression level (at maximum test port input level = +6 dBm)

Magnitude 100 kHz to 1 MHz 1 MHz to 4.34 GHz

4.34 to 13 GHz 13 to 18 GHz

Phase 100 kHz to 1 MHz 1 MHz to 4.34 GHz

4.34 to 13 GHz 13 to 18 GHz

+6 dBm

+26 dBm or ± 35 VDC

–88 dB –93 dB –115 dB –105 dB –100 dB –90 dB –85 dB

–103 dBm/Hz –126 dBm/Hz –127 dBm/Hz –116 dBm/Hz –115 dBm/Hz –105 dBm/Hz –102 dBm/Hz

± 0.2 dB ± 0.2 dB ± 0.2 dB ± 0.2 dB

± 5 deg. ± 1.5 deg. ± 6 deg. ± 10 deg.

Trace noise

Description Speciﬁcation Typical

(at maximum output power level of sweep range)

Magnitude Transmission: 100 kHz to 300 kHz, 3 kHz IFBW 300 kHz to 8.5 MHz, 3 kHz IFBW

8.5 MHz to 4.34 GHz, 70 kHz IFBW

4.34 to 8.5 GHz, 70 kHz IFBW

8.5 to 13 GHz, 70 kHz IFBW 13 to 16 GHz, 70 kHz IFBW 16 to 18 GHz, 70 kHz IFBW

Reﬂection: 100 kHz to 300 kHz, 3 kHz IFBW 300 kHz to 8.5 MHz, 3 kHz IFBW

8.5 MHz to 4.34 GHz, 70 kHz IFBW

4.34 to 8.5 GHz, 70 kHz IFBW

8.5 to 13 GHz, 70 kHz IFBW 13 to 16 GHz, 70 kHz IFBW 16 to 18 GHz, 70 kHz IFBW

Phase Transmission: 100 kHz to 300 kHz, 3 kHz IFBW 300 kHz to 8.5 MHz, 3 kHz IFBW

8.5 MHz to 4.34 GHz, 70 kHz IFBW

4.34 to 8.5 GHz, 70 kHz IFBW

8.5 to 13 GHz, 70 kHz IFBW 13 to 16 GHz, 70 kHz IFBW 16 to 18 GHz, 70 kHz IFBW

Reﬂection: 100 kHz to 300 kHz, 3 kHz IFBW 300 kHz to 8.5 MHz, 3 kHz IFBW

8.5 MHz to 4.34 GHz, 70 kHz IFBW

4.34 to 8.5 GHz, 70 kHz IFBW

8.5 to 13 GHz, 70 kHz IFBW 13 to 16 GHz, 70 kHz IFBW 16 to 18 GHz, 70 kHz IFBW

8 mdB rms 6 mdB rms 5 mdB rms 10 mdB rms 15 mdB rms 25 mdB rms 30 mdB rms

16 mdB rms 10 mdB rms 9 mdB rms 20 mdB rms 30 mdB rms 35 mdB rms 45 mdB rms

0.05 deg rms

0.04 deg rms

0.035 deg rms

0.066 deg rrns

0.1 deg rms

0.17 deg rms

0.2 deg rms

0.1 deg rms

0.066 deg rms

0.06 deg rms

0.13 degrrns

0.2 deg rms

0.23deg rms

0.3 deg rms

5 mdB rms 3 mdB rms 2 mdB rms 5 mdB rms 8 mdB rms 15 mdB rms 20 mdB rms

7 mdB rms 4 mdB rms 3 mdB rms 10 mdB rms 18 mdB rms 20 mdB rms 30 mdB rms

0.03 deg rms

0.02 deg rms

0.015 deg rms

0.04 degrrns

0.06 deg rms

0.1 deg rms

0.13 deg rms

0.05 deg rms

0.03 deg rms

0.02deg rms

0.07 degrrns

0.12 deg rms

0.14 deg rms

0.2 deg rms

Stability

Description Speciﬁcation Typical

Magnitude Transmission: 100 kHz to 300 kHz 300 kHz to 6 GHz 6 to 12 GHz 12 to 18 GHz

Reﬂection: 100 kHz to 300 kHz 300 kHz to 6 GHz 6 to 12 GHz 12 to 18 GHz

Phase Transmission: 100 kHz to 300 kHz 300 kHz to 6 GHz 6 to 12 GHz 12 to 18 GHz

Reﬂection: 100 kHz to 300 kHz 300 kHz to 6 GHz 6 to 12 GHz 12 to 18 GHz

± 0.02 dB/°C ± 0.01 dB/°C ± 0.025 dB/°C ± 0.04 dB/°C

± 0.02 dB/°C ± 0.02 dB/°C ± 0.035 dB/°C ± 0.05 dB/°C

± 0.4 deg/°C ± 0.2 deg/°C ± 0.5 deg/°C ± 0.6 deg/°C

1. Stability is deﬁned as a ratio measurement at the test port.

Dynamic accuracy

Description Speciﬁcation Typical

Magnitude 6 dBm –30 dBm –100 dBm –110 dBm

Phase 6 dBm –30 dBm –100 dBm

1. Accuracy of the test port input power reading is relative to –10 dBm reference input power level.

± 0.31 dB ± 0.056 dB ± 3.83 dB

± 5.00 dB

± 11.8 deg ± 0.37 deg ± 33.6 deg

Magnitude Phase

Group delay

Description Speciﬁcation Typical

Aperture (selectable) (frequency span)/(number of points - 1)

Maximum aperture 25% of frequency span

Minimum delay Limited to measuring no more than 180° of

phase change within the minimum aperture.

Accuracy See graph below (typical)

1. Group delay is computed by measuring the phase change within a speciﬁed step (determined by the frequency span and the number of points per sweep).

The following graph shows group delay accuracy with 3.5 mm connectors, full 2-port calibration and a 10 Hz IF bandwidth.

•Calibration kit (85052D).

•Insertion loss is assumed to be < 2 dB.

In general, the following formula can be used to determine the accuracy, in seconds, of a specific group delay measurement: ± phase accuracy (degrees) / [360 x aperture (Hz)]

General Information

Description General characteristics

System bandwidth Range 10, 15, 20, 30, 40, 50, 70, 100, 150, 200, 300, 400, 500, 700, 1 kHz, 1.5 kHz, 2 kHz, 3 kHz, 4 kHz,

5 kHz, 7 kHz, 10 kHz, 15 kHz, 20 kHz, 30 kHz, 40 kHz, 50 kHz, 70 kHz, 100 kHz, 150 kHz, 200 kHz, 300 kHz

Front panel

Description Typical General characteristics

Test ports Type-N, female, 50 Ω (nominal)

Display Type Resolution

USB host port Universal serial bus jack, type A

1. Valid pixels are 99.99 % and more. Below 0.01 % (approx. 30 points) of ﬁxed points of black, blue, green or red are not regarded as failure.

10.4 inch TFT color LCD with touch screen XGA (1024 x 768)

conﬁguration, female; provides connection to mouse, keyboard, printer, ECal module, USB coaxial switch, or USB/GPIB interface

Rear panel

Description Typical General characteristics

External trigger input connector Type Input level

Pulse width Polarity

External trigger output connector Type Maximum output current Output level

Pulse width Polarity

External reference signal input connector Type Input frequency Input level

Internal reference signal output connector Type Output frequency Signal type Output level Output impedance

10 MHz ± 10 ppm 0 dBm to ± 3 dB

10 MHz ± 7 ppm Sinewave 0 dBm ± 3 dB into 50 Ω

BNC, female Low threshold voltage: 0.5 V High threshold voltage: 2.1 V Input level range: 0 to + 5 V ≥ 2 µsec Positive or negative

BNC, female 50 mA Low level voltage: 0 V High level voltage: 5 V 1 µsec to 1 sec (adjustable) Positive or negative

BNC, female

50 Ω

Description Typical General characteristics

Video output 15-pin mini D-Sub, female; drives VGA

compatible monitors

GPIB 24-pin D-Sub (Type D-24), female; compatible

with IEEE-488

USB host port Universal serial bus jack, type A

conﬁguration, female; provides connection to mouse, keyboard, printer, ECal module, USB coaxial switch, or USB/GPIB interface

USB (USBTMC1) interface port Universal serial bus jack, type B

conﬁguration (4 contacts inline), female; provides connection to an external PC; compatible with USBTMC-USB488 and USB

2.0.LA

LAN 10/100/1000 BaseT Ethernet, 8-pin

conﬁguration; auto selects among the three data rates

Handler I/O port 36-pin Centronics, female; provides

connection to handler system

Line Power Frequency Voltage

VA max Power consumption

47 to 63 Hz 90 to 132 VAC, or 198 to 264 VAC (automatically switched) 300 VA max

120 W

1. USB Test and Measurement Class (TMC) interface that communicates over USB, complying with the IEEE 488.1 and IEEE 488.2 standards.

2. A third-wire ground is required.

3. At preset condition. No application running other than the E5063A on windows.

EMC, safety, environment and compliance

Description General characteristics

EMC

European Council Directive 2004/108/EC IEC 61326-1:2005 EN 61326-1:2006 CISPR 11:2003+A1:2004 EN 55011:2007 Group 1, Class A IEC 61000-4-2:1995 +A2:2000 EN 61000-4-2:1995 +A2:2001 4 kV CD/8 kV AD IEC 61000-4-3:2006 EN 61000-4-3:2006 1-3 V/m, 80-1000 MHz/1.4 GHz - 2.7 GHz, 80% AM IEC 61000-4-4:2004 EN 61000-4-4:2004 1 kV power lines/0.5 kV signal lines IEC 61000-4-5:2005 EN 61000-4-5:2006

0.5 kV line-line/1 kV line-ground IEC 61000-4-6:2003 + A1:2004+ A2:2006 EN 61000-4-6:2007 3 V, 0.15-80 MHz, 80% AM IEC 61000-4-11:2004 EN 61000-4-11:2004

0.5-300 cycle, 0%/70%

ICES-001:2006 Group 1, Class A

Safety

Environment

Compliance

AS/NZS CISPR11:2004 Group 1, Class A

European Council Directive 2006/95/EC IEC 61010-1:2001/EN 61010-1:2001 Measurement Category I Pollution Degree 2 Indoor Use

CAN/CSA C22.2 No. 61010-1-12 Measurement Category I Pollution Degree 2 Indoor Use

This product complies with the WEEE Directive (2002/96/EC) marking requirements. The afﬁxed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as a “Monitoring and Control instrumentation” product.

Do not dispose in domestic household waste. To return unwanted products, contact your local Agilent ofﬁce, or see

http://www.agilent.com/environment/product/

for more information.

Class C

Analyzer environmental speciﬁcations and dimensions

Description General characteristics

Operating environment

Temperature Error-corrected temperature range Humidity Altitude Vibration

Non-operating environment

Temperature Humidity Altitude Vibration

Dimensions

Weight (net)

+5 °C to +40 °C 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature 20% to 80% at wet bulb temperature < +29 °C (non-condensation) 0 to 2,000 m (0 to 6561 feet)

0.21 G maximum, 5 Hz to 500 Hz

–10 °C to +60 °C 20% to 90% at wet bulb temperature < +40 °C (non-condensation) 0 to 4,572 m (0 to 15,000 feet)

0.5 G maximum, 5 to 500 Hz

See below

11 kg

Dimensions (front view)

(in millimeters)

Dimensions (rear view)

Dimensions (side view)

(in millimeters)

Measurement Throughput Summary

Measurement throughput data is typical performance data. Common condition for the measurement throughput data:

•Analyzer display turned off with: DISP : ENAB OFF

•Number of traces = 1

•firmware version: A.01.0x

Cycle time for measurement completion

300 kHz IF bandwidth 30 kHz IF bandwidth 1 kHz IF bandwidth

Number of Points 51 201 401 1601 51 201 401 1601 51 201 401 1601

Start 1 GHz, stop 1.2 GHz

1-port cal, S11 4 9 14 43 6 15 26 89 53 201 398 1575 Response cal, S21 4 10 16 50 7 21 39 142 102 394 784 3114 2-port cal, S21 8 19 31 99 14 42 78 283 203 788 1566 6226

Start 100 kHz, stop 4.5 GHz

1-port cal, S11 8 17 26 71 10 23 37 117 57 209 409 1603 Response cal, S21 9 18 27 78 12 29 51 170 106 402 795 3141 2-port cal, S21 16 34 54 154 22 57 101 339 212 804 1589 6282

Start 100 kHz, stop 8.5 GHz

1-port cal, S11 11 20 28 73 13 26 40 120 60 212 412 1606 Response cal, S21 12 21 30 80 15 32 53 173 109 405 798 3144 2-port cal, S21 23 41 60 159 28 64 106 344 218 810 1595 6287

Start 11 GHz, stop 12 GHz

1-port cal, S11 4 9 16 47 6 15 27 93 53 202 399 1579 Response cal, S21 5 10 17 53 8 22 40 146 102 395 785 3117 2-port cal, S21 8 20 33 106 14 43 80 291 204 789 1568 6234

Start 8 GHz, stop 18 GHz

1-port cal, S11 10 17 24 64 12 23 36 111 59 209 408 1596 Response cal, S21 11 18 26 71 14 29 49 163 108 402 793 3135 2-port cal, S21 21 34 51 141 26 58 97 326 216 804 1586 6268

Start 100 kHz, stop 18 GHz

1-port cal, S11 15 25 34 80 16 30 45 126 64 217 417 1612 Response cal, S21 15 26 35 86 18 37 59 179 113 410 803 3151 2-port cal, S21 29 50 70 172 35 74 116 357 224 820 1605 6300

Unit: ms

Data transfer time

SCPI over GPIB 64-bit ﬂoating point 32-bit ﬂoating point ASCII

SCPI over 100 Mbps LAN (Socket) REAL 64 REAL 32 ASCII

SCPI over 100 Mbps LAN (SICL-LAN) REAL 64 REAL 32 ASCII

SCPI over 100 Mbps LAN (SICL-USB) REAL 64 REAL 32 ASCII

SCPI over GPIB/USB (82357B) REAL 64 REAL 32 ASCII

1, 2

Number of Points

51 201 401 1601

4 3 10

1 1 6

4 4 4

2 2 3

9 8 75

12 7 37

1 1 22

4 4 6

2 2 7

16 12 283

23 12 73

1 1 42

4 4 10

3 3 13

26 17 563

88 45 289

2 2 160

5 5 30

3 3 50

86 46 2242

1. Transferred complex S11 data, using :CALC:DATA:FDAT?.

2. Data transfer time varies depending on the type of PC and control software.

www.agilent.com

myAgilent www.agilent.com/find/myagilent

A personalized view into the information most relevant to you.

www.lxistandard.org

LAN eXtensions for Instruments puts the power of Ethernet and the Web inside your test systems. Agilent is a founding member of the LXI consortium.

Three-Year Warranty www.agilent.com/find/ThreeYearWarranty

Beyond product specification, changing the ownership experience. Agilent is the only test and measurement company that offers threeyear warranty on all instruments, worldwide

Agilent Assurance Plans

www.agilent.com/find/AssurancePlans

Five years of protection and no budgetary surprises to ensure your instruments are operating to specifications and you can continually rely on accurate measurements.

www.agilent.com/quality

Agilent Electronic Measurement Group DEKRA Certified ISO 9001:2008 Quality Management System

Agilent Channel Partners www.agilent.com/find/channelpartners

Get the best of both worlds: Agilent’s measurement expertise and product breadth, combined with channel partner convenience.

For more information on Agilent Technologies’ products, applications or services, please contact your local Agilent office. The complete list is available at:

www.agilent.com/find/contactus

Americas

Canada Brazil Mexico United States

(877) 894 4414 (11) 4197 3600 01800 5064 800 (800) 829 4444

Asia Paciﬁc

Australia China Hong Kong India Japan Korea Malaysia Singapore Taiwan Other AP Countries

1 800 629 485 800 810 0189 800 938 693 1 800 112 929 0120 (421) 345 080 769 0800 1 800 888 848 1 800 375 8100 0800 047 866 (65) 375 8100

Europe & Middle East

Belgium Denmark Finland France

32 (0) 2 404 93 40 45 45 80 12 15 358 (0) 10 855 2100 0825 010 700*

*0.125 €/minute Germany Ireland Israel Italy Netherlands Spain Sweden United Kingdom

49 (0) 7031 464 6333

1890 924 204

972-3-9288-504/544

39 02 92 60 8484

31 (0) 20 547 2111

34 (91) 631 3300

0200-88 22 55

44 (0) 118 927 6201

For other unlisted countries:

www.agilent.com/find/contactus

(BP-09-27-13)

Product specifications and descriptions in this document subject to change without notice.

Atec Agilent-E5063A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
