Agilent Technologies Infiniium 90000 Series Oscilloscopes
Data Sheet
Engineered for unmatched real-time measurement accuracy
Why choose Agilent oscilloscopes for your toughest high-speed measurement
challenges?
As an engineer you’re no stranger to tough challenges that
help you exceed your customer’s needs and expectations.
Deploying your next design successfully is even more
difficult with today’s high speed technologies. Data signal
eye openings become smaller and measurement error from
your oscilloscope becomes less tolerable. Agilent is
committed to providing the best measurement solutions
for these critical challenges.
The Agilent Infiniium 90000 Series oscilloscopes are
engineered to give you unmatched real-time measurement
accuracy so you can:
1. Use your jitter budget in your design, not on your
oscilloscope.
2. Pass today’s demanding compliance tests more
quickly.
3. Debug your toughest designs with confidence.
90000A Series Infiniium oscilloscopes
ModelReal-time
bandwidth on 4 ch
91304A13 GHz40 GSa/s on 4 ch20 Mpts on 4 ch1 Gpts on 4 ch1.73 mVrms
91204A12 GHz40 GSa/s on 4 ch20 Mpts on 4 ch1 Gpts on 4 ch1.45 mVrms
90804A8 GHz40 GSa/s on 4 ch20 Mpts on 4 ch1 Gpts on 4 ch1.15 mVrms
90604A6 GHz20 GSa/s on 4 ch*20 Mpts on 4 ch1 Gpts on 4 ch0.98 mVrms
90404A4 GHz20 GSa/s on 4 ch*20 Mpts on 4 ch1 Gpts on 4 ch0.79 mVrms
90254A2.5 GHz20 GSa/s on 4 ch*20 Mpts on 4 ch1 Gpts on 4 ch0.64 mVrms
*DSA model numbers come standard with 50 Mpts of memory on 4 ch.
Maximum sampling
rate on 4 ch
Standard memoryMaximum
memory
Noise floor at
50 mV/div
How much time span can I capture?
Sampling Rate 20 Mpts of
memory
40 GSa/s500 μs1.25 ms2.5 ms5.0 ms12.5 ms25.0 ms
20 GSa/s1 ms2.5 ms5.0 ms10.0 ms25.0 ms50.0 ms
Note: time span capture = memory depth x 1/ sampling rate
50 Mpts of
memory
100 Mpts of
memory
200 Mpts of
memory
500 Mpts of
memory
1 Gpts of
memory
2
Engineered for unmatched real-time measurement accuracy.
Use your jitter budget in your design, not on your oscilloscope.
Agilent’s Infiniium 90000 Series oscilloscopes offer the industry’s lowest noise floor and most accurate real-time
jitter measurements available on scopes of this bandwidth class. Complete with full-bandwidth probing solutions and
hardwareaccelerated de-embedding and equalization techniques, Agilent oscilloscopes are the best oscilloscope solution
for today’s demanding high-speed measurements.
The industry’s lowest noise floor
Leveraging the company expertise in
RF design, Agilent has invested in key
technology blocks like our proprietary
Faraday caged front end to significantly
reduce our inherent scope noise floor.
The result: the lowest noise floor
available on any real-time oscilloscope
from 2.5 GHz to 12 GHz.
The industry’s deepest memory
With 1 Gbyte of memory, lowfrequency jitter components can be
more quickly resolved in a single
measurement. Statistical accuracy is
improved with more data collection.
Agilent’s integrated deep memory
remains responsive and allows more
comprehensive testing, supporting
pattern lengths up to PRBS23 for
accurate transmitter and receiver
results.
We add full bandwidth probing
and accurate de-embedding and
equalization software
The performance of Agilent’s
oscilloscopes is matched by the
superiority of our probing, de-embedding
and equalization offerings. Maintain full
bandwidth performance to the probe tip
with our InfiniiMax probing solutions.
Render waveforms anywhere in the
digital serial link with our hardware
accelerated N5465A InfiniiSim Waveform
Transformation Toolset. Configurable
system modeling allows you to remove
the deleterious effects of unwanted
channel elements, simulate waveforms
with channel models inserted, view
waveforms in physically unprobeable
locations, and compensate for loading of
probes and fixtures. The N5461A Serial
Data Equalization software allows you
to model equalization techniques in real
time.
3
Engineered for unmatched real-time measurement accuracy.
Pass today’s demanding compliance tests more quickly.
Offering the industry’s widest range of available
compliance applications to provide fast setup for complete,
automated compliance and margin testing and reporting,
the Agilent 90000 Series scopes have become the go-to
tool for test houses worldwide. Our experts serve on the
industry standards committees, and our oscilloscopes
are certified on today’s high speed serial data standards.
Plus our 1G memory supports real-time testing to pattern
lengths of PRBS23 to stress your design to the max.
Choose from a wide range
of complete compliance
applications
Choose from the industry’s widest
range of complete applications for
the Infiniium 90000 Series to ensure
compliance to the leading industry
standards, including SATA, PCI
Express®, Ethernet, USB, and more.
Comprehensive set-up wizards and full
automation of the required testing take
the guesswork out of demonstrating
compliance quickly. Get further insight
with our protocol and analysis decode
available on PCI Express, SATA and USB.
Put Agilent’s experts on your
team
Agilent’s measurement experts sit on
the industry standards committees
and help define the compliance
requirements. They make sure our tools
deliver exactly to the standards. You
get the benefit of years of training and
experience on every measurement you
make.
PrecisionProbe
Agilent’s N2809A PrecisionProbe software quickly
characterizes and compensates the frequency response
of any path to the 90000 Series input. PrecisionProbe’s
patented technology uses the < 15ps edge from the 90000
Series oscilloscope to:
• Measure input impedance and response of any probe
and the loss of any cable
• Quickly correct from probe and cable loss(without extra
instruments such as VNA or TDR)
• Correct probing issues such as phase nonlinearity,
magnitude non-flatness, and see the effect of probe
loading
• Quickly gain insight into impedance/capacitance that
defines your connection
Free up valuable engineering
resources
Set-up wizards combined with
intelligent test filtering make it simple
to ensure the right tests are being
run. Comprehensive HTML reports
with visual documentation and pass/
fail results guarantee that critical
information is retained on each test.
Technicians can run complete and
accurate testing on their own, freeing
valuable engineering resources.
PrecisionProbe uses Agilent’s proprietar 200 GHz indium phosphide
process to create a fast edge for characterization with PrecisionProbe.
4
Engineered for unmatched real-time measurement accuracy.
Debug your toughest designs with confidence.
The 90000 series boasts an ever-expanding set of measurement applications
for serial debugging and protocol viewing, jitter testing, advanced triggering,
measurement customization, and rapid automation. Put the power of the scope to
work for your unique debug and analysis challenges.
Streamline your debug and analysis tasks with the industry’s widest
range of application software
Whether you need to trigger and decode serial buses, iron out the kinks in your
memory designs, or see FFT based spectrum analysis of your signal, the Infiniium
90000 Series has application software to help. Our serial protocol views are unique
to oscilloscopes, and our DDR debug tools support multiple generations of the
standard. Quickly access additional features from the scope’s standard menus.
Customize your scope for even more efficiency
The N5414B InfiniiScan Event Identification software makes unique capabilities
like Zone Qualify and Generic Serial triggering possible. Rapidly automate any
scope measurement using the N5467A User Defined Application and have it appear
seamlessly in your scope’s menu. Customize your Infiniium further by taking full
advantage of MyInfiniium (standard on all 90000A Series oscilloscopes). Use
MyInfiniium to deliver automated measurements, execute customized scripts, save
screenshots, or load your favorite setup.
Add measurement capability with MATLAB compatibility
If we haven’t provided exactly what you need, take customization to a new level
with MATLAB (Option 062) - a data analysis software environment and scripting
language with over 1,000,000 users today. Use MATLAB to design and apply your
own filters to oscilloscope signals, graphically visualize oscilloscope signals in
2-D and 3-D plots, automate measurements, and build test applications. Add the
N5430A User Defined Function software to your scope to seamlessly integrate your
custom functionality into the Infiniium 90000 menus so results are displayed on the
scope screen. Agilent is the only T&M manufacturer today that sells and supports
MATLAB as its own product as part of a complete T&M solution.
5
Engineered for unmatched real-time measurement accuracy.
Debug your toughest designs with confidence.

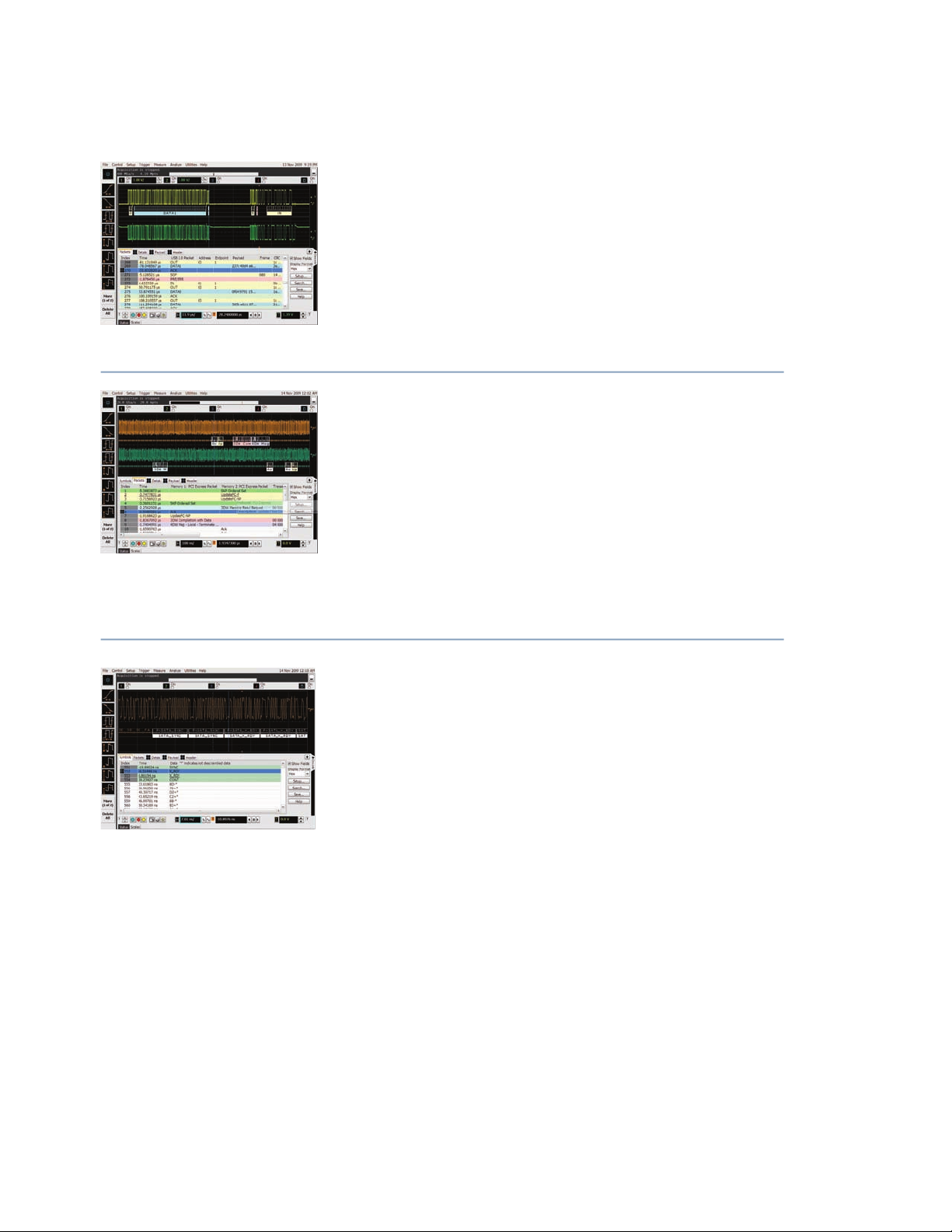

I2C/SPI serial trigger and decode (N5391A or Option 007 on new
scope purchases)
Given even further insights with protocol decode capability. Quickly move between
physical and protocol layer information using the time-correlated tracking marker.
Display protocol content using waveform symbols and the industry’s first multi-tab
protocol viewer. The packets tab shows a high level view of the packet over time.
Trigger and view on-screen serial decode
of I2C packets
Frequency Domain Analysis
Infiniium’s built-in FFT allows users to quickly and easily analyze the frequency
components of their signals. Both FFT magnitude and phase can be displayed
and can be combined with other built-in math functions or Matlab based
measurements. A resolution bandwidth of 6 kHz is supported with the standard
10 Megabytes of acquisition memory at the maximum sample rate of 40 GSa/s.
With optional acquisition memory installed resolution bandwidths of 2 kHz can be
obtained. Standard windowing of Hanning, Flattop and Rectangular are supported
along with cursor based power measurements. When more powerful frequency
domain measurements are required including modulation analysis, consider the
Agilent 89601A Vector Signal Analyzer software.
Hardware Accelerated Differential and Common Mode Math
Select the channel menu and enable differential mode to enable hardware accelerated
math capability. Enjoy full channel functionality including InfiniiScan triggering and
jitter analysis. Save time, by using the hardware acceleration for even faster update
rates with your differential and common mode math needs.
6
Debug your toughest designs with confidence
EZJIT analysis software (E2681A or option 002 on new scope purchases)
Quickly characterize and evaluate most commonly needed jitter measurements,
including cycle-cycle, N-cycle, period, time-interval, error, setup and hold time,
histograms, measurement trending and jitter spectrum.
Includes advanced clock recovery options such as constant frequency and PLL.
Make measurements on repetitive or arbitrary data.
This application is supported on all models and is standard on DSA models.
Conduct jitter analysis.
Analyze jitter plus RJ/DJ separation.
For more information: www.agilent.com/find/EZJIT
EZJIT Plus analysis software (N5400A or Option 004 on new scope purchases.
To upgrade from EZJIT to EZJIT Plus, order N5401A.)
EZJIT Plus adds additional compliance views and an expanded measurement setup wizard
to simplify and automate RJ/DJ separation for testing against industry
standards.
This application is supported on all models and is standard on DSA models.
For more information: www.agilent.com/find/EZJITPlus
EZJIT Complete.
EZJIT Complete analysis software (N8823A or Option 070 on new scope purchases.
To upgrade from EZJIT Plus to EZJIT Complete, order N8813A)
EZJIT Complete includes all of the advanced jitter analysis capabilities of EZJIT and
EZJIT Plus, and adds advanced analysis of the vertical noise affecting the ones and
zeros of your real-time eye. Decomposition of vertical noise provides key insight into
degradation of your eye height. In providing advanced decomposition of both
horizontal jitter and vertical noise components of your signals, EZJIT Complete
represents the most comprehensive analysis software available.
This application is supported on all models and is standard on DSA models.
For more information: www.agilent.com/find/EZJITComplete
7
Debug your toughest designs with confidence
InfiniiScan event identification (N5414B or Option 009 on new scope purchases)
Rapidly trigger on complex events and identify signal integrity issues. This innovative
software quickly scans through thousands of acquired waveform cycles and isolates
anomalous signal behavior.
This application is supported on all models.
For more information: www.agilent.com/find/infiniiScan
Identify signal integrity issues with InfiniiScan
Zone – Qualify triggering.
PrecisionProbe software (N2809A or Option 001 on new scope purchases)
Make more accurate measurements independent of what probes or cables used.
Agilent’s N2809A PrecisionProbe software characterizes and corrects for the loss
in your specific cable or probe. PrecisionProbe removes the uncertainty about the
input connected to your oscilloscope by allowing you to see its characteristics in
less than five minute. PrecisionProbe gives you design and debug confidence by
allowing you to quickly de-embed probe and cable loss to make more accurate
measurements.
Quickly characterize and correct for any input
to your oscilloscope.
Recover embedded clocks with serial data
analysis (SDA).
For more information: www.agilent.com/find/PrecisionProbe
High-speed serial data analysis software (E2688A or Option 003 on new scope
purchases)
Quickly validate signal integrity for high-speed serial interfaces with embedded clocks.
Recover embedded clocks synchronized with the analog waveform view. Build and
validate eye diagrams.
The SDA package also includes software-based bit-level triggering and decode for
8B/10B. This application is supported on all models and comes standard on DSA
models.
For more information: www.agilent.com/find/SDA
8
Debug your toughest designs with confidence
Infiniium Remote Programming interface (N5452A or Option 011 on new scope
purchases)
Operate your Infiniium compliance and validation applications remotely using .NET
languages.
This application is supported on all models.
For more information: www.agilent.com/find/RPI
Control your applications remotely.
Serial Data Equalization (N5461A or Option 012 on new scope purchases)
Measure at the pin and use equalization to see a virtual eye on the other side of an
equalizer. Model equalization techniques such as DFE, FFE, and CTLE.
This application is supported on all models.
For more information: www.agilent.com/find/SDE
Reduce receiver errors by opening tightly shut eyes.
InfiniiSim Waveform Transformation and De-embedding Toolset (Basic: N5465A-001
or option 13 on new scope purchases. Advanced: N5465A-002 or Option 14 on new
scope purchases.)
The N5465A InfiniiSim waveform transformation toolset for Infiniium Series
oscilloscopes provides the most flexible and accurate means to render waveforms
anywhere in the digital serial link. The configurable system modeling allows you to
remove the deleterious effects of unwanted channel elements, simulate waveforms
with channels models inserted, view waveforms in physically un-probable locations,
compensate for loading of probes and other circuit elements, and do so simply and
Model channel effects including reflection.
quickly on the real-time oscilloscope.
This application is supported on all models.
For more information: www.agilent.com/find/InfiniiSim
9
Debug your toughest designs with confidence
Control your applications remotely.
MATLAB
®
data analysis software (Option 061 or O62 on new scope purchases)
MATLAB is a data analysis software environment and scripting language used by over
1,000,000 users in aerospace/defense, automotive, communications, electronics, and
other applications. MATLAB is now available directly from Agilent as in instrument
option with the purchase of your Agilent 90000 Series oscilloscope. Install MATLAB
on your oscilloscope or remote PC to make customized measurements, design and
apply your own filters to oscilloscope signals, graphically visualize signals in 2-D or
3-D plots, automate measurements, or build test applications. Purchase MATLAB with
your Agilent 90000 Series oscilloscope to ensure version compatibility and so that your
MATLAB software license is always available when you need it.
For more information: www.agilent.com/find/matlab_oscilloscopes
User-definable application (N5467A or Option 040 on new scope purchases)
Rapidly develop your own automated measurements and tests.This application
provides the framework you need to quickly program and automate any single or set of
measurements the oscilloscope can make.The application also provides full control of
other Agilent instruments and HTML reporting capabilities.
For more information: www.agilent.com/find/UDA
Quickly automate oscilloscope measurements.
Signal equalization using user-defined function.
User-defined function (N5430A or Option 010 on new scope purchases)
If we haven’t provided exactly what you need, use the N5430A User Defined Function
software to create it yourself. Develop your own math functions or filters using
MATLAB. Your custom functionality is seamlessly integrated into the Infiniium 90000
menus and results are displayed on the scope screen. This requires MATLAB
(available as Option 062) to be installed directly on the oscilloscope. Agilent is the only
T&M manufacturer today that sells and supports MATLAB as its own product.
This application is supported on all models and requires MATLAB software (not
included with UDF).
For more information: www.agilent.com/find/UDF
Vector signal analysis software (89601A)
Expand the measurement capability of your scope with the 89601A vector signal analysis software. This advanced DSP-based software takes the digitized signal data from
the scope and displays FFT-based spectrum analysis and wide-bandwidth digital modulation analysis for wireless communication signals such as WCDMA and cdma2000
and wireless networking signals such as 802.11 WiFi and 802.16 WiMax.
Take advantage of the super-wide bandwidth of your scope to capture and evaluate
radar signals.
Use vector signal analysis software to see
FFT-based spectrum analysis.
For more information: www.agilent.com/find/VSA
10
Debug your toughest designs with confidence
I2C/SPI serial trigger and decode (N5391A or Option 007 on new scope purchases)
This application displays real-time time-aligned decode of I2C and SPI packets. View
decode in waveform area or in protocol lister.
This application works on all models.
For more information: www.agilent.com/find/90000_I2C-SPI
Trigger and view on-screen serial decode
2
of I
C packets.
JTAG (IEEE 1149.1) triggering and decode (N8817A or Option 042 on new scope
purchases)
This application displays real-time time-aligned decode of JTAG (IEEE 1149.1) TDI
and TDO signals. The application eliminates the difficult task of manually determining JTAG TAP controller states, instruction and data register decode, and flags error
conditions. The application includes scan chain description features including the
ability to import .bsdl files for each device and displays device names and opcodes in
the protocol listing.
Trigger on and decode JTAG packets.
Trigger on and decode RS-232/UART
transmission.
This application works on all models and can use any combination of scope or logic
acquisition channels.
For more information: www.agilent.com/find/90000_JTAG
RS-232/UART serial decode and trigger (N5462A or Option 015 on new scope
purchases)
This application eliminates the need to manually decode bus traffic. Using data captured
on the scope channels, the application lets you easily view the information sent over an
RS-232.
Display real-time time-aligned decode of transmit and receive lines.
This application works on all models.
For more information: www.agilent.com/find/90000_RS-232
N8805A USB 3.0 Protocol Triggering and Decode (N8805A)
Trigger on and view USB 3.0 with the industry’s first oscilloscope-based protocol
analyzer with time-correlated views of physical layer and transaction layer errors.
The multi-tab protocol viewer includes correlation between the waveforms and the
selected packet, enabling you to quickly move between the physical and protocol layer
using the time-correlated tracking marker.
For more information: www.agilent.com/find/usb3decode
Isolate signal integrity problems from logic-level coding
errors on bidirectional serial data streams.
11
Loading...
+ 25 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
