Reliable DC power for manufacturing
test and long-term burn-in
This series of 5000 watt DC power
supplies has the exceptional, proven
reliability that test system engineers
look for. It also has the features
needed for easy test system
integration.
Programming of the DC output and
the extensive protection features
can be done either from the front
panel or using industry standard
SCPI commands, via the GPIB.
Using the serial link, up to 16 power
supplies can be connected through
one GPIB address. Test system
integration can be further simplified
by using the VXIPlug&Play drivers.
The output voltage and current
can also be controlled with analog
signals. This is helpful for certain
types of noisy environments, and
also immediate reactions to
process changes.
The 6680A Series has extremely
low ripple and noise for a 5000 watt
DC power supply. This helps the
built-in measurement system make
extremely accurate current and
voltage measurements.
Selectable compensation is provided
for problem-free powering of
inductive loads.

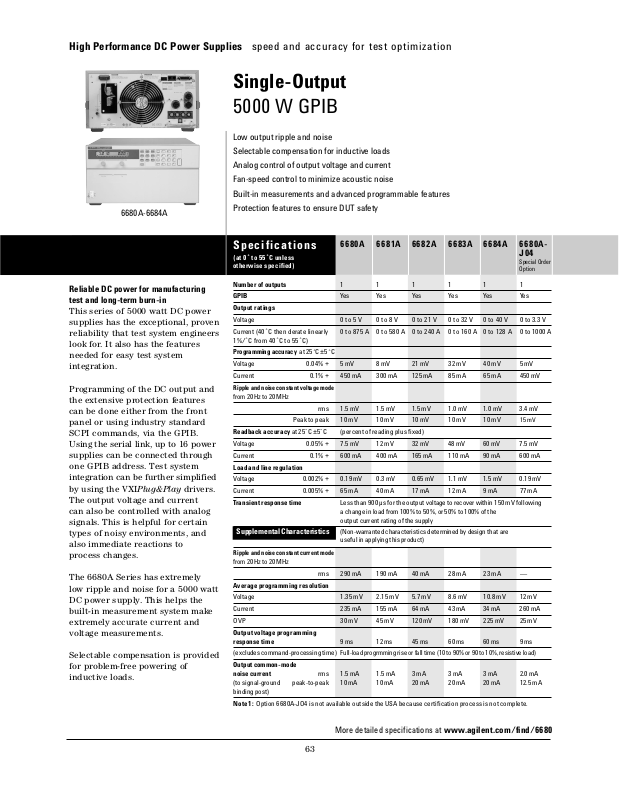

High Performance DC Power Supplies speed and accuracy for test optimization
Specifications
(at 0˚to 55˚C unless
otherwise specified)
6680A 6681A 6682A 6683A 6684A 6680A-
J04
Special Order
Option
More detailed specifications at
www.agilent.com/find/6680
63
Low output ripple and noise
Selectable compensation for inductive loads
Analog control of output voltage and current
Fan-speed control to minimize acoustic noise
Built-in measurements and advanced programmable features
Protection features to ensure DUT safety
6680A-6684A
Single-Output
5000 W GPIB
Number of outputs 111111
GPIB Yes Yes Yes Ye s Yes Ye s
Output ratings
Voltage 0 to 5 V 0 to 8 V 0 to 21 V 0 to 32 V 0 to 40 V 0 to 3.3 V
Current (40
˚
C then derate linearly 0 to 875 A 0 to 580 A 0 to 240 A 0 to 160 A 0 to 128 A 0 to 1000 A
1%/˚C from 40˚C to 55˚C)
Programming accuracy
at 25˚C ±5˚C
Voltage 0.04% + 5 mV 8 mV 21 mV 32 mV 40 mV 5 mV
Current 0.1% + 450 mA 300 mA 125 mA 85 mA 65 mA 450 mV
Ripple and noise constant voltage mode
from 20 Hz to 20 MHz
rms 1.5 mV 1.5 mV 1.5 mV 1.0 mV 1.0 mV 3.4 mV
Peak to peak 10 mV 10 mV 10 mV 10 mV 10 mV 15 mV
Readback accuracy at 25˚C ±5˚C (percent of reading plus fixed)
Voltage 0.05% + 7.5 mV 12 mV 32 mV 48 mV 60 mV 7.5 mV
Current 0.1% + 600 mA 400 mA 165 mA 110 mA 90 mA 600 mA
Load and line regulation
Voltage 0.002% + 0.19 mV 0.3 mV 0.65 mV 1.1 mV 1.5 mV 0.19 mV
Current 0.005% + 65 mA 40 mA 17 mA 12 mA 9 mA 77 mA
Transient response time Less than 900 µs for the output voltage to recover within 150 mV following
a change in load from 100% to 50%, or 50% to 100% of the
output current rating of the supply
Supplemental Characteristics (Non-warranted characteristics determined by design that are
useful in applying this product)
Ripple and noise constant current mode
from 20 Hz to 20 MHz
rms 290 mA 190 mA 40 mA 28 mA 23 mA —
Average programming resolution
Voltage 1.35 mV 2.15 mV 5.7 mV 8.6 mV 10.8 mV 12 mV
Current 235 mA 155 mA 64 mA 43 mA 34 mA 260 mA
OVP 30 mV 45 mV 120 mV 180 mV 225 mV 25 mV
Output voltage programming
response time 9 ms 12 ms 45 ms 60 ms 60 ms 9 ms
(excludes command-processing time)
Full-load progrmming rise or fall time (10 to 90% or 90 to 10%, resistive load)
Output common-mode
noise current rms 1.5 mA 1.5 mA 3 mA 3 mA 3 mA 2.0 mA
(to signal-ground peak-to-peak 10 mA 10 mA 20 mA 20 mA 20 mA 12.5 mA
binding post)
Note 1: Option 6680A-JO4 is not available outside the USA because certification process is not complete.
64
Application Notes:
6671A/72A/81A/82A/90A
System DC Power Supplies Product Overview
5988-3050EN
Agilent DC Power Supplies
for Base Station Testing
5988-2386EN
10 Practical Tips You Need to
Know About Your Power Products
5965-8239E
Supplemental Characteristics
for all model numbers
DC Floating Voltage: Output terminals can
be floated up to ±60 Vdc maximum from
chassis ground
Remote Sensing: Up to half the rated
output voltage can be dropped in each
load lead. The drop in the load leads
subtracts from the voltage available for
the load.
Command Processing Time: Average time
required for the output voltage to begin
to change following receipt of digital data
is 20 ms for power supplies connected
directly to the GPIB
Modulation: (analog programming of
output voltage and current):
Input Signal: 0 to –5 V for voltage,
0 to +5 V for current
Input Impedance: 30 kΩ/or greater
AC Input (47 to 63 Hz): 180 to 235 Vac
(line-to-line, 3 phase), 27.7 A rms
maximum worst case, 21.4 A rms
nominal; 360 to 440 Vac, 14.3 A rms
maximum worst case, 10.7 A rms nominal (maximum line current includes
5% unbalanced phase voltage condition.)
Output voltage derated 5% at 50 Hz
and below 200 Vac.
Input Power: 7350 VA and 6000 W
maximum; 160 W at no load
GPIB Interface Capabilities: SH1, AH1, T6,
L4, SR1, RL1, PP0, DC1, DT1, E1, and C0.
IEEE-488.2 and SCPI command set.
Software Driver:
•IVI-COM
•VXIPlug&Play
Size: 425.5 mm W x 221.5 mm H x
674.7 mm D (16.75 in x 8.75 in x 25.56 in)
Weight: Net, 51.3 kg (113 lbs);
shipping, 63.6 kg (140 lbs)
Warranty Period: One year
Ordering Information
Opt 208 180 to 235 Vac, 3 phase,
47 to 63 Hz
Opt 400 360 to 440 Vac, 3 phase,
47 to 63 Hz
Opt 602 Two Bus Bar Spacers for
paralleling power supplies
(p/n 5060-3514)
* Opt 908 Rack-mount Kit
(p/n 5062-3977 and p/n 5062-3974)
Single-Output: 5000 W GPIB (Continued)
More detailed specifications at
www.agilent.com/find/6680
High Performance DC Power Supplies speed and accuracy for test optimization
* Opt 909 Rack-mount Kit with Handles
(p/n 5063-9221 and p/n 5063-9219).
Opt 0L1 Full documentation on
CD-ROM, and printed standard
documentation package
Opt 0L2 Extra copy of standard
printed documentation package
Opt 0B0 Full documentation on
CD-ROM only
Opt 0B3 Service Manual
* Support rails required
Accessories
p/n 5060-3513 Three 30-A Replacement
Fuses for 180 to 235 Vac line
p/n 5060-3512 Three 16-A Replacement
Fuses for 360 to 440 Vac line
E3663AC Support rails for Agilent
rack cabinets
p/n 5080-2148 Serial link cable 2m (6.6 ft.)
Side
Output
Buss Bars
Top
12.7mm
0.5"
28.6mm
1.13"
30.2mm
1.19"
65.1mm
2.56"
27.8mm
1.09"
9.5mm
0.38"
12.7mm
0.5"
674.7mm
26.56"
667.3mm
26.27"
574mm
22.6"
221.5mm
8.75"
425.5mm
16.75"
Buss Bar Detail
+
–
Rear
3/8" Diameter (6)
3 3/4"
Agilent Models: 6680A, 6681A, 6682A, 6683A, 6684A
