This series of 2000 watt dc power supplies has the exceptional, proven reliability that test system engineers look for. It also has the unusual combination of high efficiency and low noise operation.
Programming of the dc output and the extensive protection features can be done either from the front panel or using industry standard SCPI commands, via the GPIB. Using the serial link, up to 16 power supplies can be connected through one GPIB address. Test system integration can be further simplified be using the VXIPlug&Play drivers. The output voltage and current can also be controlled with analog signals. This is helpful for certain types of noisy environments, and also immediate reactions to process changes.
Lab-bench use is enhanced by the fan-speed control, which minimizes acoustic noise. The extremely low ripple and noise helps the built-in measurement system make extreme­ly accurate current and voltage measurements.
Agilent Performance dc Power Supplies speed and accuracy for test optimization
Specifications
(at 0˚to 55˚C unless otherwise specified)
Power Products Catalog 2002-2003
For more detailed specifications see the product manual at
www.agilent.com/find/power
39

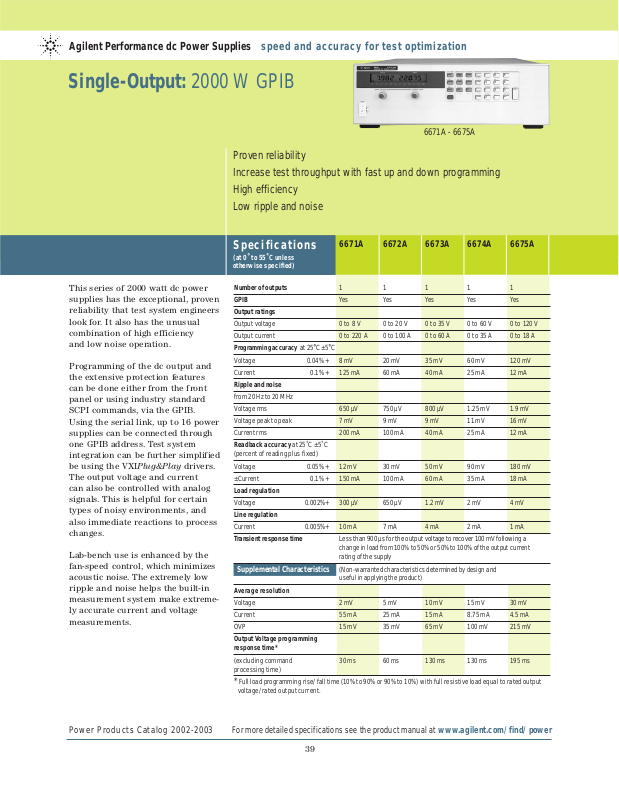

Proven reliability Increase test throughput with fast up and down programming High efficiency Low ripple and noise
6671A - 6675A
Single-Output: 2000 W GPIB
6671A 6672A 6673A 6674A 6675A
Number of outputs 11111 GPIB Yes Yes Yes Yes Yes Output ratings
Output voltage 0 to 8 V 0 to 20 V 0 to 35 V 0 to 60 V 0 to 120 V Output current 0 to 220 A 0 to 100 A 0 to 60 A 0 to 35 A 0 to 18 A
Programming accuracy
at 25˚C ±5˚C Voltage 0.04% + 8 mV 20 mV 35 mV 60 mV 120 mV Current 0.1% + 125 mA 60 mA 40 mA 25 mA 12 mA
Ripple and noise
from 20 Hz to 20 MHz Voltage rms 650 µV 750 µV 800 µV 1.25 mV 1.9 mV Voltage peak to peak 7 mV 9 mV 9 mV 11 mV 16 mV Current rms 200 mA 100 mA 40 mA 25 mA 12 mA Readback accuracy at 25˚C ±5˚C
(percent of reading plus fixed) Voltage 0.05% + 12 mV 30 mV 50 mV 90 mV 180 mV ±Current 0.1% + 150 mA 100 mA 60 mA 35 mA 18 mA
Load regulation
Voltage 0.002%+ 300 µV 650 µV 1.2 mV 2 mV 4 mV
Line regulation
Current 0.005%+ 10 mA 7 mA 4 mA 2 mA 1 mA Transient response time Less than 900 µs for the output voltage to recover 100 mV following a
change in load from 100% to 50% or 50% to 100% of the output current rating of the supply
Supplemental Characteristics (Non-warranted characteristics determined by design and
useful in applying the product)
Average resolution
Voltage 2 mV 5 mV 10 mV 15 mV 30 mV Current 55 mA 25 mA 15 mA 8.75 mA 4.5 mA OVP 15 mV 35 mV 65 mV 100 mV 215 mV
Output Voltage programming response time*
(excluding command 30 ms 60 ms 130 ms 130 ms 195 ms processing time)
*Full load programming rise/fall time (10% to 90% or 90% to 10%) with full resistive load equal to rated output
voltage/rated output current.
40
Supplemental Characteristics for all model numbers
dc Floating Voltage: Output terminals
can be floated up to ±240 Vdc from chassis ground
Output Common-Mode Noise Current:
(to signal ground binding post) 500 µA rms, 4 mA peak-to-peak
Remote Sensing: Up to half the rated output voltage can be dropped in each load lead. The drop in the load leads subtracts from the voltage available for the load.
Command Processing Time: Average time required for the output voltage to begin to change following receipt of digital data is 20 ms for the power supplies connected directly to the GPIB.
Modulation: (Analog programming of output voltage and current)
Input Signal: 0 to –4 V for voltage,
0 to 7 V for current
Input Impedance: 60 k Ohm or greater
Input Power: 3,800 VA, 2,600 W at full
load; 170 W at no load GPIB Interface Capabilities: SH1, AH1, T6,
L4, SR1, RL1, PP0, DC1, DT1, E1, and C0. IEEE-488.2 and SCPI-compatible command set
Regulatory Compliance: Listed to UL1244; certified to CSA556B; conforms to IEC 61010-1.
Size:
425.5 mm W x 132.6 mm H x 640 mm D (16.75 in x 5.22 in x 25.2 in) See page 102 for more details
Weight: Net, 28.2 kg (62 lbs); shipping, 31.8 kg (70 lbs)
Warranty Period: Three years
Single-Output: 2000 W GPIB (Continued)
Specifications
(at 0˚to 55˚C unless otherwise specified)
6671A- 6671A- 6671A- 6672A- 6673A­J03 J04 J17 J04 J03
Special Order Special Order Special Order Special Order Special Order Option Option Option Option Option
Number of outputs 11111 GPIB Yes Yes Yes Yes Yes Output ratings
Output voltage 14 V 10 V 15 V 24 V 37.5 V Output current 150 A 200 A 120 A 85 A 45 A
Programming accuracy
at 25˚C ±5˚C Voltage 0.04%+ 14 mV 10 mV 15 mV 25 mV 37.5 mV Current 0.1%+ 90 mA 125 mA 90 mA 60 mA 40 mA
Ripple and noise
from 20 Hz to 20 MHz Voltage rms 1.5 mV 750 µV 1.5 mV 1 mV 800 µV Voltage peak to peak 15 mV 9 mV 15 mV 11 mV 9 mV Current rms 150 mA 200 mA 150 mA 100 mA 40 mA Readback accuracy at 25˚C ±5˚C
(percent of reading plus fixed) System models only
Voltage 0.05% + 25 mV 15 mV 27 mV 40 mV 53.5 mV ±Current 0.1% + 110 mA 150 mA 110 mA 100 mA 60 mA
Load regulation
Voltage 0.002%+ 600 µV 300 µV 650 µV 650 µV 1.2 mV
Line regulation
Current 0.005%+ 7 mA 10 mA 7 mA 7 mA 4 mA Transient response time Less than 900 µs for the output voltage to recover 100 mV following a
change in load from 100% to 50% or 50% to 100% of the output current rating of the supply
Supplemental Characteristics (Non-warranted characteristics determined by design and
useful in applying the product)
Average resolution
Voltage 4 mV 2.5 mV 4 mV 6 mV 10 mV Current 40 mA 55 mA 35 mA 22 mA 15 mA OVP 28 mV 20 mV 30 mV 42 mV 65 mV
Output Voltage programming response time*
(excluding command 30 ms 35 ms 35 ms 70 ms 130 ms programming processing time)
*Full load programming rise/fall time (10% to 90% or 90% to 10%) with full resistive load equal to rated output
voltage/rated output current.
Power Products Catalog 2002-2003
For more detailed specifications see the product manual at
www.agilent.com/find/power
Agilent Performance dc Power Supplies speed and accuracy for test optimization
