Overcome Battery Powered
Device Testing Challenges
Digital communications devices
and digital battery powered devices
present a unique testing challenge:
they draw rapid pulses of current.
By offering superior transient
performance, unmatched in the
marketplace, the Agilent Mobile
Communications DC Sources
dramatically reduce the transient
voltage drop due to pulse loading
characteristics of digital communications devices. The Agilent Mobile
Communications DC Sources enable
you to maximize test throughput by
minimizing test interruption due to
false trigger of device low voltage
shutdown.
Dynamic Measurement Capabilities
The Agilent Mobile Communications
DC Sources offer a built-in advanced
measurement system to accurately
measure battery current drains
when the device operates in different modes (such as talk mode, active
mode, standby mode, and off/sleep
mode). Measurements made during
these modes are critical for ensuring
that your devices are operating
properly and that you are getting
the most out of the battery.
Simulate both Main Battery and Charger
Single output models are recommended when you need to provide
power as a replacement to your
Application Specific DC Power Supplies tailored solutions for specific needs
Specifications
(at 0˚to 55˚C unless
otherwise specified)
66309B/D 66311B 66319B/D 66321B/D 66332A 66332A-
J01
Special Order
Option
More detailed specifications at
www.agilent.com/find/66300
81
Ideal for testing wireless and battery powered devices
Several times improvement in measurement throughput over general purpose DC sources
Superior output transient performance with short or long load leads (up to 6 meters)

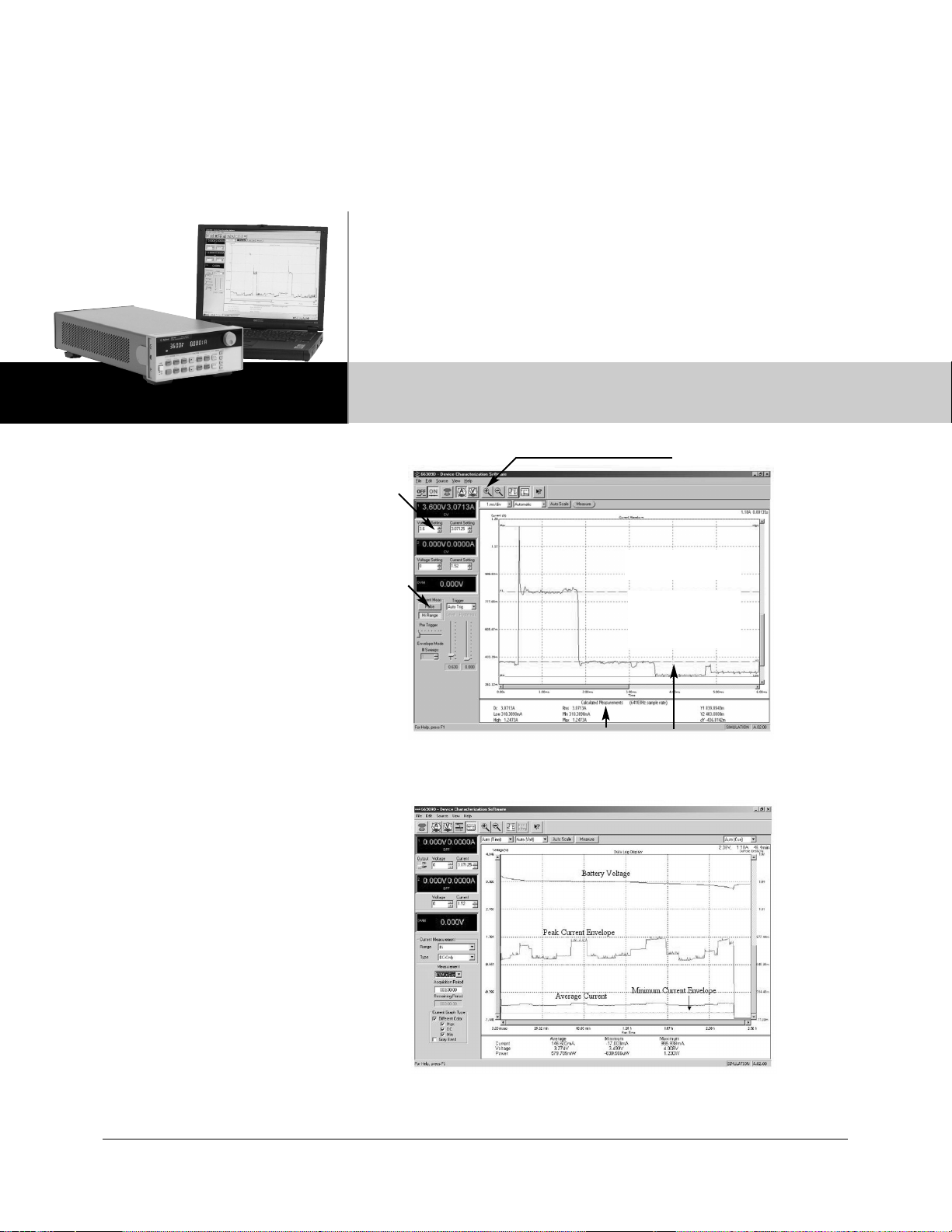

Dynamic measurement system for accurate battery current drain measurement
New easy-to-use Graphical User Interface and analysis tools for bench top use
Mobile Communications DC Sources
40-100 W
Number of outputs 212111
GPIB Yes Yes Yes Ye s Yes Ye s
Output ratings
Voltage 0 to 15 V 0 to 15 V 0 to 15 V 0 to 15 V 0 to 20 V 0 to 30 V
Current 0 to 3 A 0 to 3 A 0 to 3 A 0 to 3 A 0 to 5 A 0 to 3.3 A
Peak current for up to 7 ms 5 A 5 A 5 A 5 A 5 A 3.3 A
Programming accuracy
at 25°C ±5°C (% of setting plus fixed)
Voltage 0.05%+ 10 mV 10 mV 10 mV 10 mV 10 mV 15 mV
+Current 0.05%+ 1.33 mA 1.33 mA 1.33 mA 1.33 mA 2 mA 2 mA
Ripple and Noise (20 Hz to 20 MHz)
Voltage rms 1 mV 1 mV 1 mV 1 mV 0.3 mV 0.5 mV
peak-to-peak 6 mV 6 mV 6 mV 6 mV 3 mV 5 mV
Current rms 2 mA 2 mA 2 mA 2 mA 2 mA 2 mA
DC measurement accuracy
Voltage 0.03%+ 5 mV 5 mV 5 mV 5 mV 3 mV 5 mV
+20 mA to + rated current 0.2%+ 0.5 mA20.5 mA2— — 0.5 mA 0.5 mA
-20 mA to - rated current 0.2%+ 1.1 mA 1.1 mA — — 1.1 mA 1.1 mA
-3 A to + 5 A 0.2% — — 0.5 mA20.5 mA2——
-1 A to + 1 A 0.1% — — 0.2 mA 0.2 mA — —
-20 mA to + 20 mA range 0.1%+ 2.5 µA 2.5 µA 2.5 µA 2.5 µA 2.5 µA 2.5 µA
Dynamic measurement system
Buffer size
4096 points 4096 points 4096 points 4096 points 4096 points 4096 points
Sampling interval 15 µs - 15 µs - 15 µs - 15 µs - 15 µs - 15 µs -
31,200 s 31,200 s 31,200 s 31,200 s 31,200 s 31,200 s
Transient response time <35 µs3<35 µs3<20 µs3<20 µs <100 µs4<100 µs
4
Transient voltage dip 70 mV 70 mV 40 mV 40 mV 500 mV 650 mV
(typical with up to 15 feet
22 AWG wiring)
Programmable output resistance
Range —- — -40 mΩ to -40 mΩ to — —
+1 Ω +1 Ω
Programming accuracy — — 0.5% + 0.5% + — —
2 mΩ 2 mΩ
Resolution — — 1 mΩ 1 mΩ ——
66319B/D, 66321B/D
82
device’s main battery during testing.
Dual output models are recommended when you need to provide power
as a replacement to your device’s
main battery and when you need to
simulate the battery charger power;
Use one output to supply current to
the battery charger input port and
the second output to connect in
place of the main battery (which
sinks current to simulate the main
battery being charged).
Performs Like a Battery
With their battery emulation
features, the Agilent 66319B/D
and 66321B/D allow you to test
your devices under the same power
conditions that exist in actual use.
Emulating the battery is key when
characterizing battery operating life
and detecting early product failures.
These DC sources simulate the
effects of internal resistance of the
battery, enabling them to emulate
the operation of various battery
types or batteries in different charge
states. Plus, these DC sources can
simulate negative resistance so that
you can compensate for voltage
drop due to wiring in a fixture.
Feature Summary
Agilent has designed in the capability
and flexibility that is required for
accurately testing today’s communications devices as well as your next
generation designs for cell phones
(formats include: 3G, cdma2000,
WCDMA, CDMA, TDMA, GSM, PCS,
DECT, TETRA, PHS, NADC), PDAs,
Bluetooth
TM
enabled devices, and
Wireless LAN access devices.
Mobile Communications DC Sources
40-100 W (Continued)
Specifications
(at 0˚to 55˚C unless
otherwise specified)
More detailed specifications at
www.agilent.com/find/66300
Application Specific DC Power Supplies tailored solutions for specific needs
66309B/D 66311B 66319B/D 66321B/D 66332A 66332A-
J01
Special Order
Option
Voltmeter input (66309D, 66319D,
and 66321D only)
Input range -25 to — -25 to -25 to — —
+25 Vdc — +25 Vdc +25 Vdc — —
DC readback accuracy 0.04% + — 0.04% + 0.04% + — —
(at 25°C ±5°C) 5 mV — 5 mV 5 mV — —
AC + DC readback accuracy 1% + — 1% + 1% + — —
(at 25°C ±5°C) with DC plus 5 mV — 5 mV 5 mV — —
a sinewave input > 25 mV rms (60 Hz to — (60 Hz to (60 Hz to — —
10 kHz) — 10 kHz) 10 kHz) — —
Auxilary output
(66309B/D and 66319B/D)
Output ratings Voltage 0 to 12V — 0 to 12V — — —
Current 0 to 1.5 A — 0 to 1.5 A — — —
Programming accuracy Voltage 0.2% + — 0.2% + — — —
40 mV 40 mV
+Current 0.2% + — 0.2% + — — —
4.5 mA 4.5 mA
DC measurement accuracy Voltage 0.2% + — 0.2% + — — —
15 mV 15 mV
+Current 0.2% + — 0.2% + — — —
3 mA 3 mA
Ripple and Noise (20 Hz to 20 MHz)
Voltage rms 1 mV — 1 mV — — —
peak-to-peak 6 mV 6 mV
Current rms 2 mA — 2 mA — — —
Notes:
1
66332A also has RS-232 interface.
2
Applies with current detector set to DC.
3
Time for the output voltage to recover to within 20 mV of final value after 0.1 to 1.5 A load change in
high capacitance compensation range.
4
Time for the output voltage to recover to within 20 mV or 0.1% of the voltage rating of the unit following
a change in load current of up to 50% of the output current rating.
Supplemental Characteristics (Non-warranted characteristics determined by design and useful
in applying the product)
DC Floating Voltage
Output terminals can be floated up
to +/- 50 Vdc maximum from chassis
ground (+/- 240 Vdc for 66332A)
Remote Sensing Voltage Drop
For 66332A: Up to 2 V can be dropped
in each load lead. Add 2 mV to the load
regulation specification for each 1 V
drop in the positive output lead. For
66309B/D, 66311B: Up to 4 V can be
dropped in each load lead. Add 2 mV to
the load regulation specification for each
1 V drop in the positive output lead. For
66319B/D main output, 66321B/D main
output: Up to 3 V total can be dropped in
both load leads. For 66319B/D auxiliary
output, 66321B/D auxiliary output: Up
to 4 V total can be dropped in both load
leads.
Command Processing Time
Average time required for the output
voltage to begin to change following
receipt of GPIB data is 4 ms (with
display disabled).
83
All models offer:
• Fast output response technology
• Programmable output response
compensation
• Advanced DSP-based dynamic
measurements
• Current sinking for testing and
calibrating charger circuitry
• Extensive protection features
(including broken sense lead
detection)
• GPIB Interface, SCPI (Standard
Commands for Programmable
Instruments), VXIplug&play
drivers
In addition, the 66319B/D and
66321B/D high performance
models offer:
• Output resistance programming
(positive and negative)
• Superior output stability with
up to 6 meters of load leads
• Excellent transient voltage
drop (typically < 30 mV)
• Three current measurement ranges
• NEW! Additional advanced battery
drain measurements (CCDF, long
term battery drain)
The new and improved 66319B/D
and 66321B/D high performance
models are recommended for new
automated test system platforms
and for R&D applications. The
66309B/D and the 66311B are
available for those customers who
need to replicate existing test
platforms and who do not want to
re-engineer existing automated
test system designs.
Mobile Communications DC Sources
40-100 W (Continued)
More detailed specifications at
www.agilent.com/find/66300
Application Specific DC Power Supplies tailored solutions for specific needs
Supplemental Characteristics (Non-warranted characteristics determined by design and useful
in applying the product)
(Continued)
Output Programming Response Time
For 66332A: The rise and fall time
(10/90% and 90/10%) of the output
voltage is < 2 ms (400 µs in fast mode).
The output voltage change settles within
1 LSB (0.025% x full scale voltage) of
final value in < 6 ms (2 ms in fast mode).
For 66311B, 66321B/D, 66309B/D
output 1, 66319B/D output 1: The rise
and fall time (10/90% and 90/10%) of
the output voltage is < 200 µs.
Measurement Time
Average time to process query, calculate
measurement parameter and return
data is 50 ms (includes the default time
of 30 ms for acquiring data and 20 ms
data processing overhead).
GPIB Interface Capabilities
IEEE-488.2, SCPI command set, 6630A
series programming capability (not
supported in 66309B/D, 66319B/D,
66321B/D)
Software Driver:
•VXIPlug&Play
•IntuiLink Connectivity Software
Input power
(at worst case conditions:
full load, 100 Vac mains)
For 66311B, 66321B/D: 1.7 A, 125 W.
For 66309B/D, 66319B/D: 2 A, 170 W.
For 66332A: 3.5 A, 250 W.
Regulatory Compliance
Complies with EMC directive
89/336/EEC (ISM 1B).
Warranty Period One year

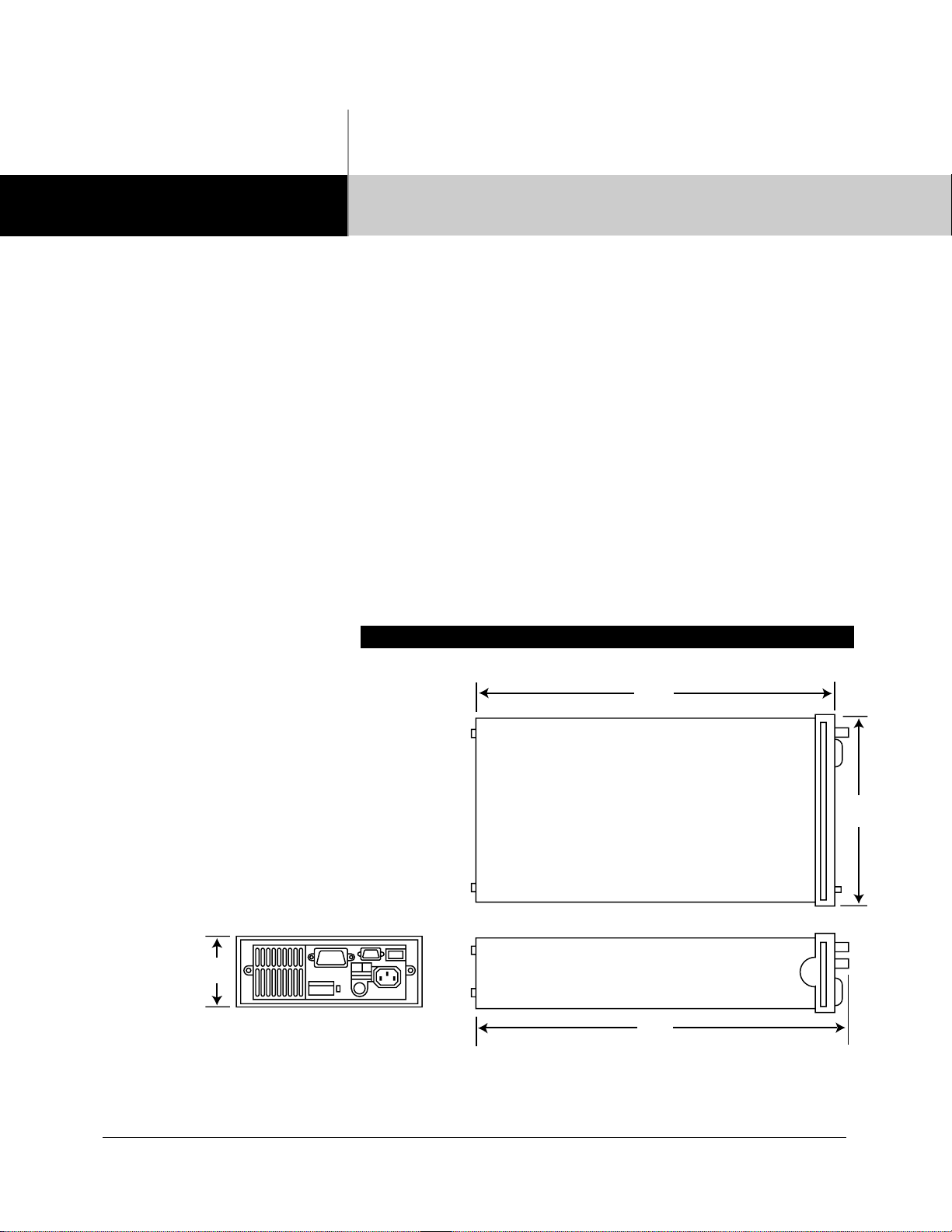

Size
For 66309B/D, 66311B, 66319B/D,
66321B/D: 212.8 mm W x 88.1 mm H x
435 mm D (8.4 in x 3.5 in x 17.13 in).
For 66332A: 425.5 mm W x 88.1 mm H x
364.4 mm D (16.8 in x 3.5 in x 14.3 in).
Weight
For 66309B/D, 66311B, 66319B/D,
66321B/D: 9.07 kg (20 lb) net, 11.1 kg
(24.5 lb) shipping. For 66332A: 12.7 kg
(28 lb) net, 15.0 kg (33 lb) shipping.
Application Notes:
Mobile Communications Device Testing
(AN 1310)
5968-2424EN
Evaluating Battery Run-down Performance
Using the Agilent 66319D or 66321D
with Option #053 14565A
Device Characterization Software
(AN 1427)
5988-8157EN
Using Battery Drain Analysis to Improve
Mobile-Device Operating Time
5988-7772EN
Current Drain Analysis Enhances
WLAN Network Card Design and Test
(AN 1468)
5989-0565EN
