ASUS Z87-PRO User Manual

Z87-PRO

Motherboard

E8489
Revised Edition V2

June 2013

Copyright© 2013 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.

Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either

(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location

where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source

Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address [e-mail], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

ii

Contents

Safety information ...................................................................................................... vi

About this guide ........................................................................................................ vii

Z87-PRO specications summary ............................................................................ ix

Package contents ..................................................................................................... xiv

Installation tools and components .......................................................................... xv

Chapter 1: Product Introduction

1.1 Special features..........................................................................................1-1

1.1.1 Product highlights........................................................................1-1

1.1.2 Dual Intelligent Processors 4 with 4-Way Optimization ............... 1-2

1.1.3 ASUS Exclusive Features ........................................................... 1-3

1.1.4 ASUS Quiet Thermal Solution ..................................................... 1-4

1.1.5 ASUS EZ DIY .............................................................................. 1-4

1.1.6 Other special features ................................................................. 1-5

1.2 Motherboard overview ............................................................................... 1-6

1.2.1 Before you proceed ..................................................................... 1-6

1.2.2 Motherboard layout ..................................................................... 1-7

1.2.3 Central Processing Unit (CPU) ...................................................1-9

1.2.4 System memory ........................................................................ 1-10

1.2.5 Expansion slots ......................................................................... 1-23

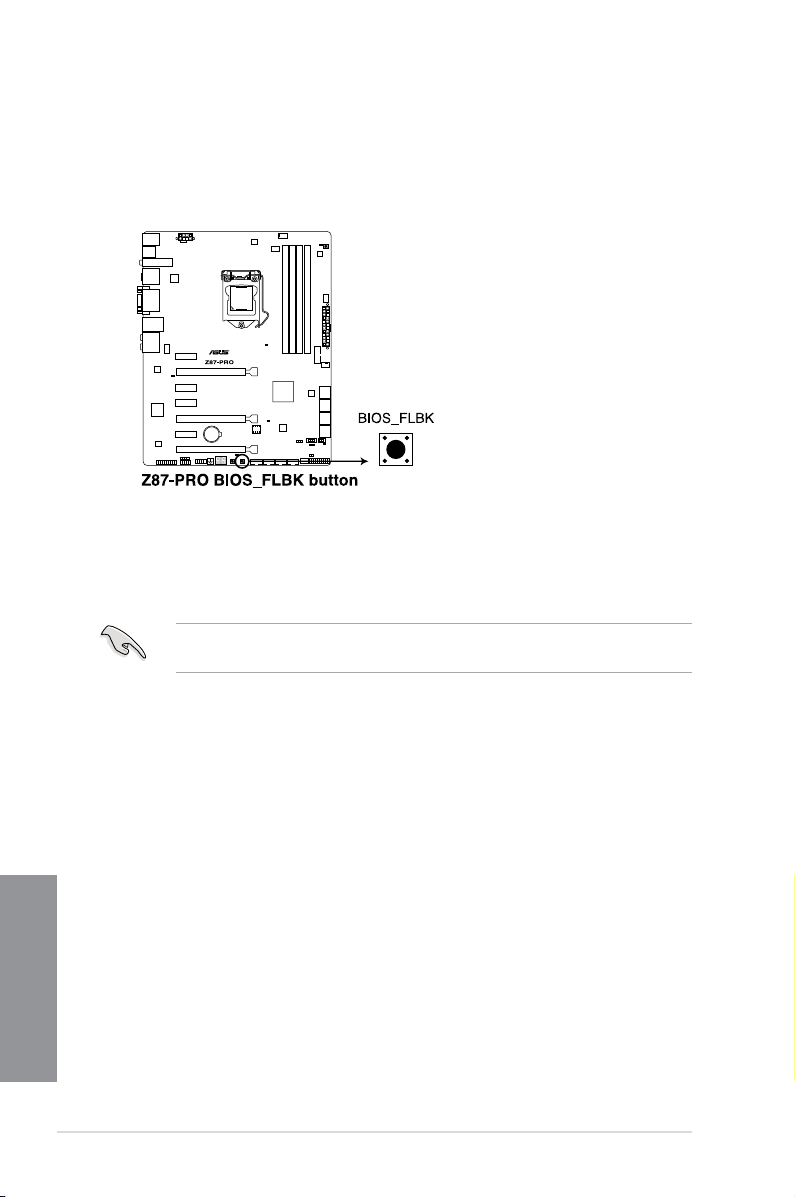

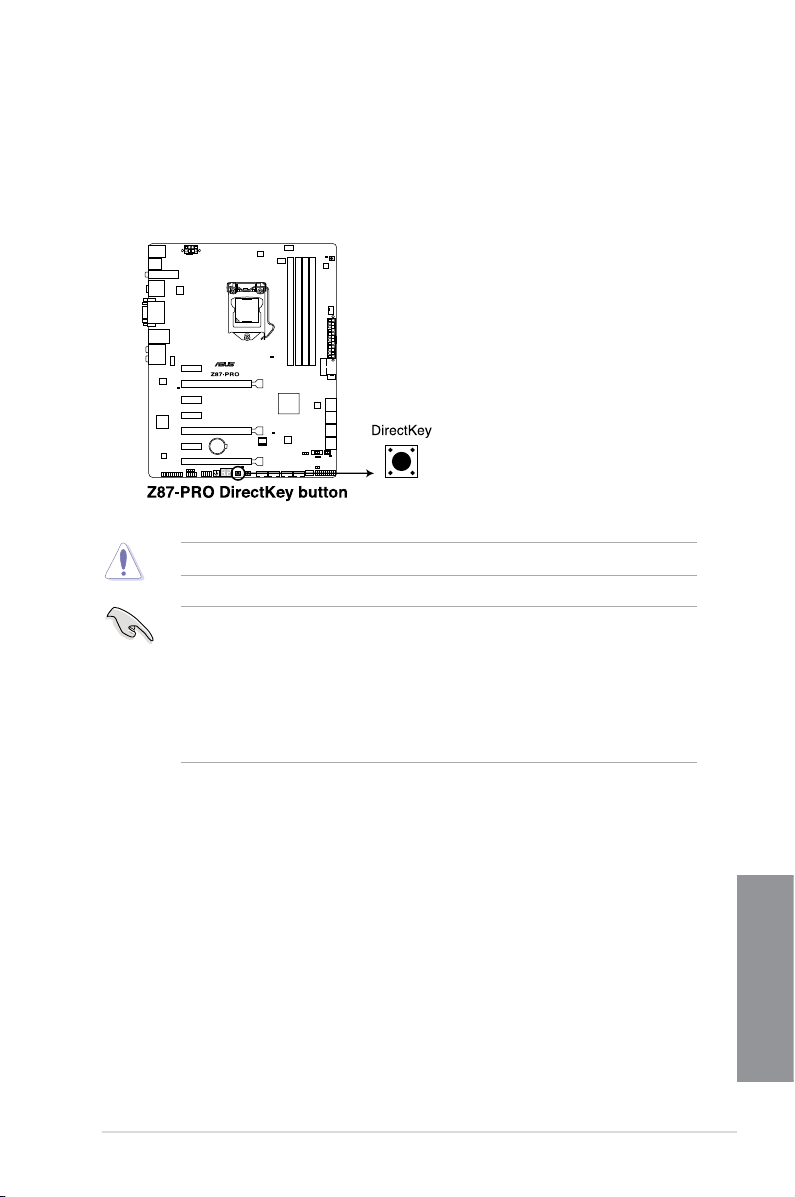

1.2.6 Onboard buttons and switches..................................................1-25

1.2.7 Jumper ...................................................................................... 1-30

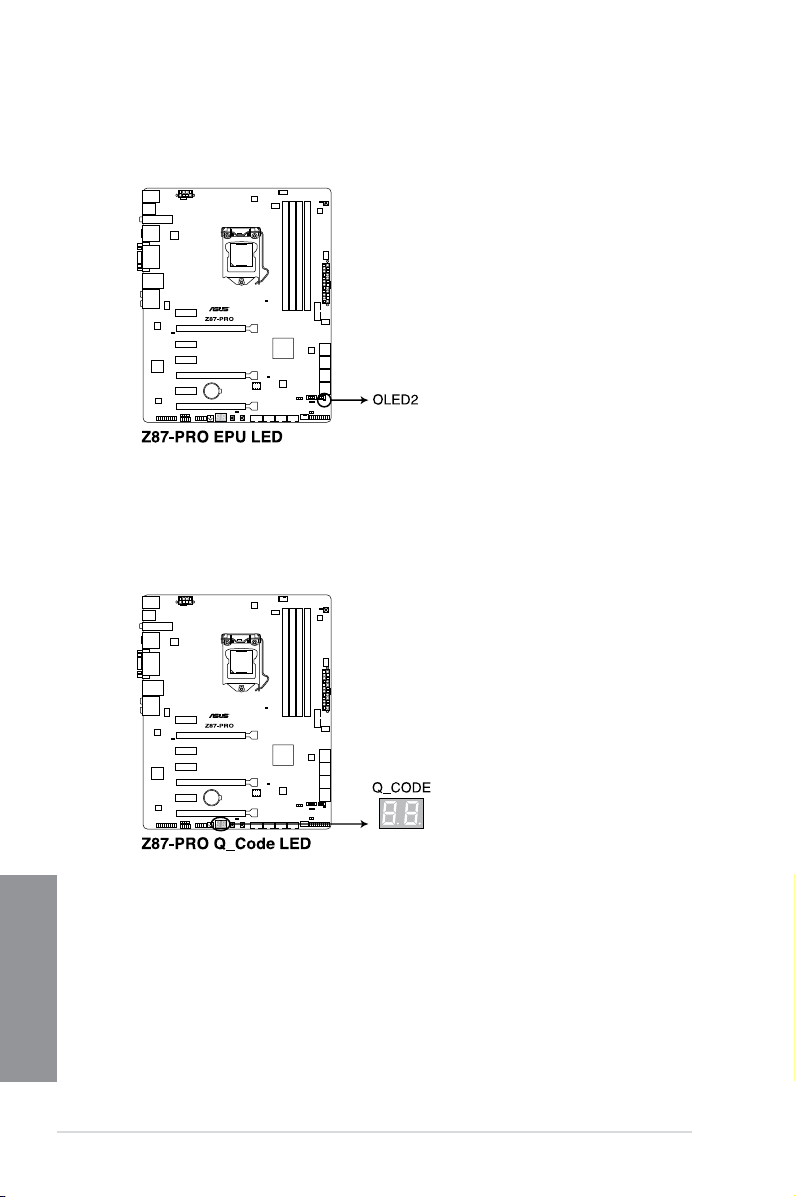

1.2.8 Onboard LEDs ..........................................................................1-31

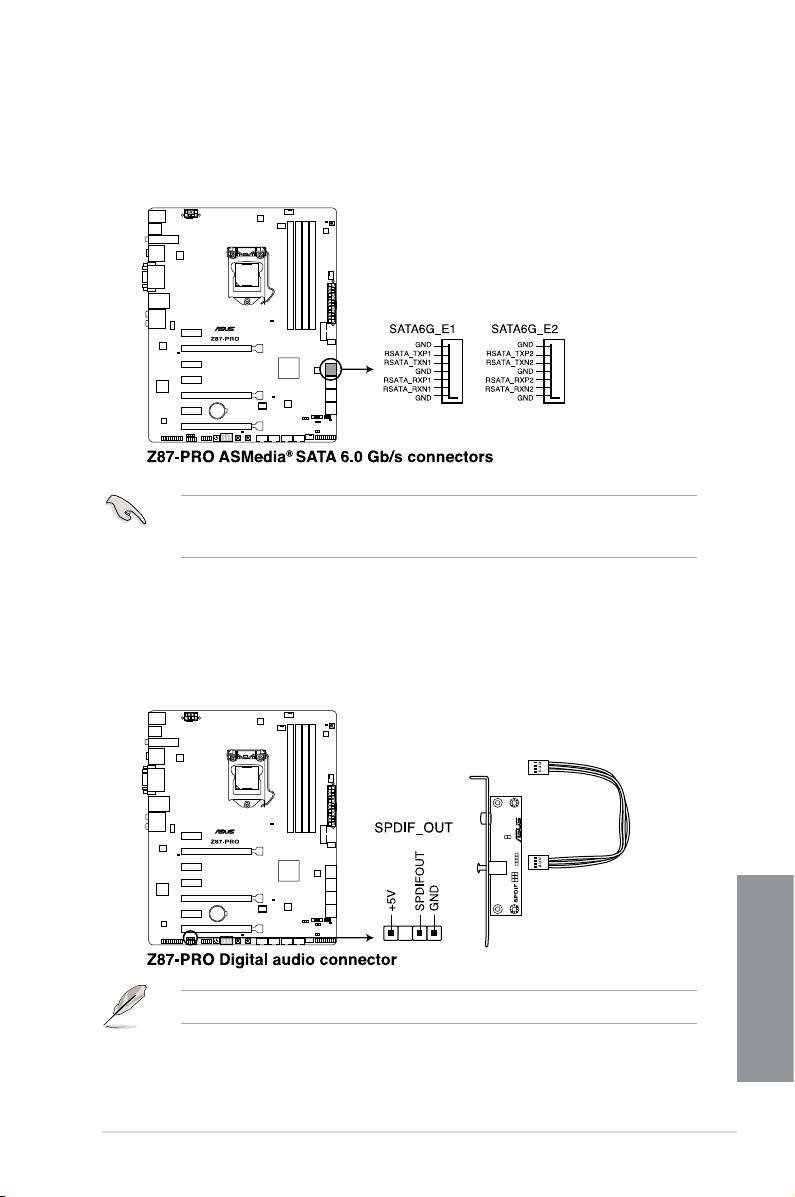

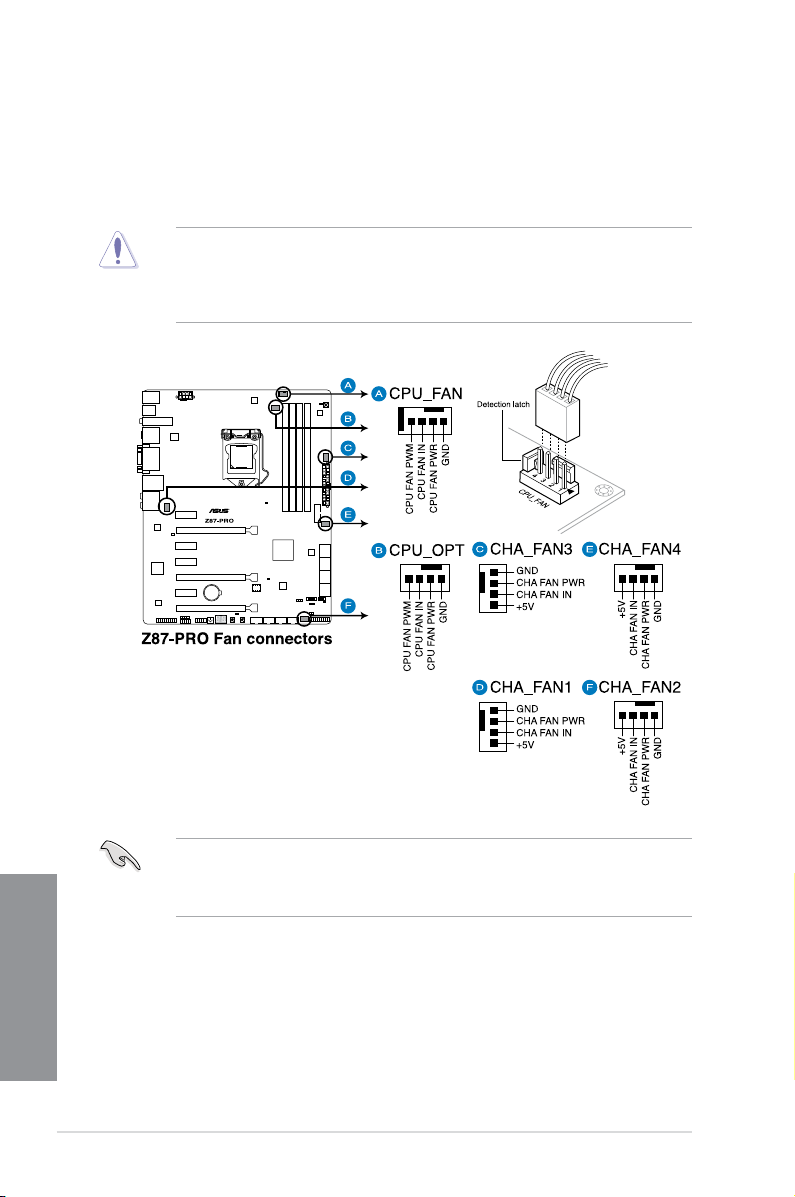

1.2.9 Internal connectors....................................................................1-38

Chapter 2: Basic installation

2.1 Building your PC system...........................................................................2-1

2.1.1 Motherboard installation .............................................................. 2-1

2.1.2 CPU installation...........................................................................2-3

2.1.3 CPU heatsink and fan assembly installation ............................... 2-4

2.1.4 DIMM installation.........................................................................2-6

2.1.5 ATX Power connection ................................................................ 2-7

2.1.6 SATA device connection .............................................................. 2-8

2.1.7 Front I/O Connectors...................................................................2-9

2.1.8 Expansion Card installation.......................................................2-10

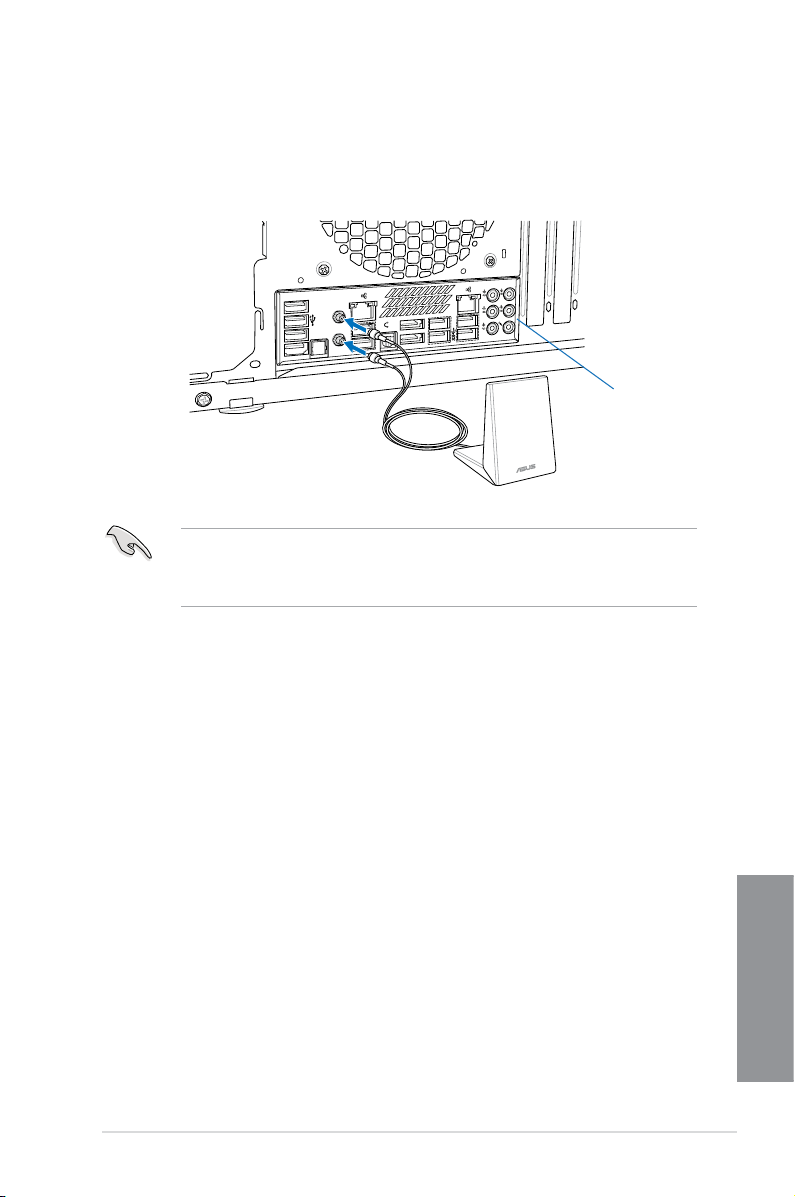

2.1.9 Wi-Fi antenna installation .......................................................... 2-11

2.2 BIOS update utility ................................................................................... 2-12

2.3 Motherboard rear and audio connections .............................................2-14

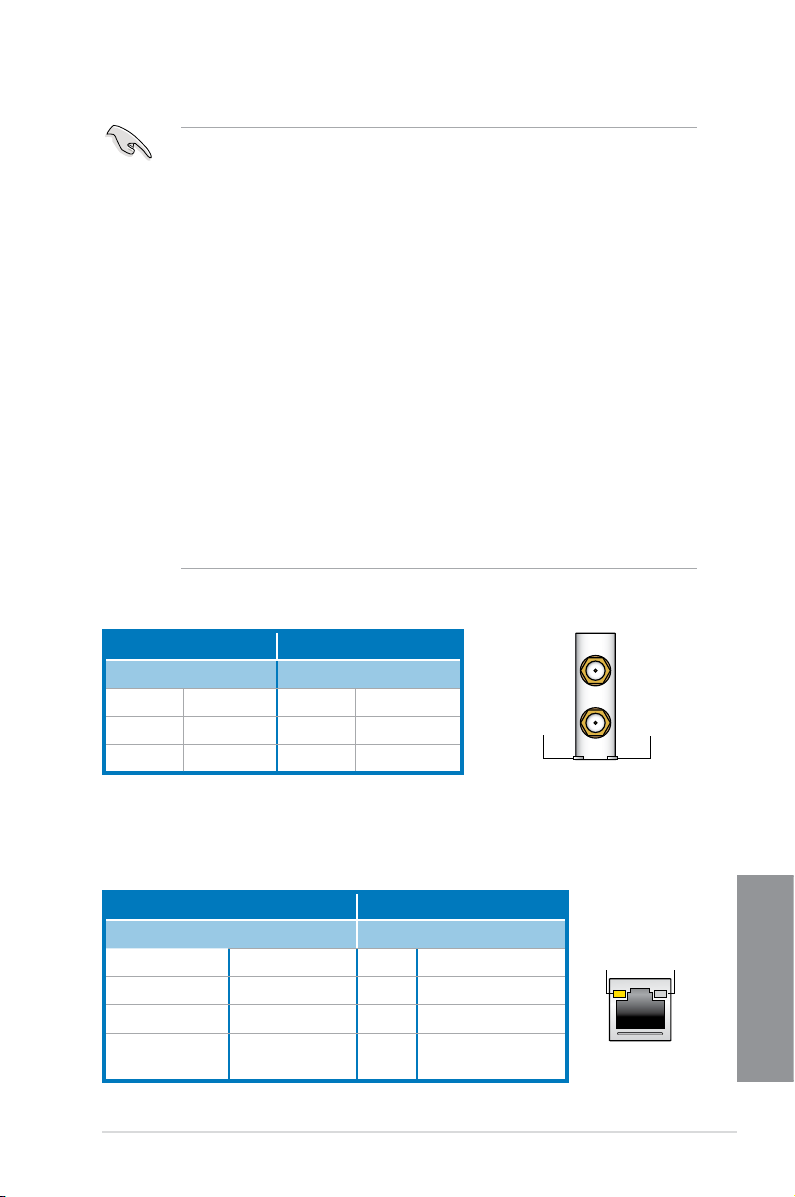

2.3.1 Rear I/O connection .................................................................. 2-14

iii

2.3.2 Audio I/O connections ............................................................... 2-16

2.4 Starting up for the rst time .................................................................... 2-18

2.5 Turning off the computer ......................................................................... 2-19

Chapter 3: BIOS setup

3.1 Knowing BIOS ............................................................................................3-1

3.2 BIOS setup program ..................................................................................3-2

3.2.1 EZ Mode......................................................................................3-3

3.2.2 Advanced Mode .......................................................................... 3-4

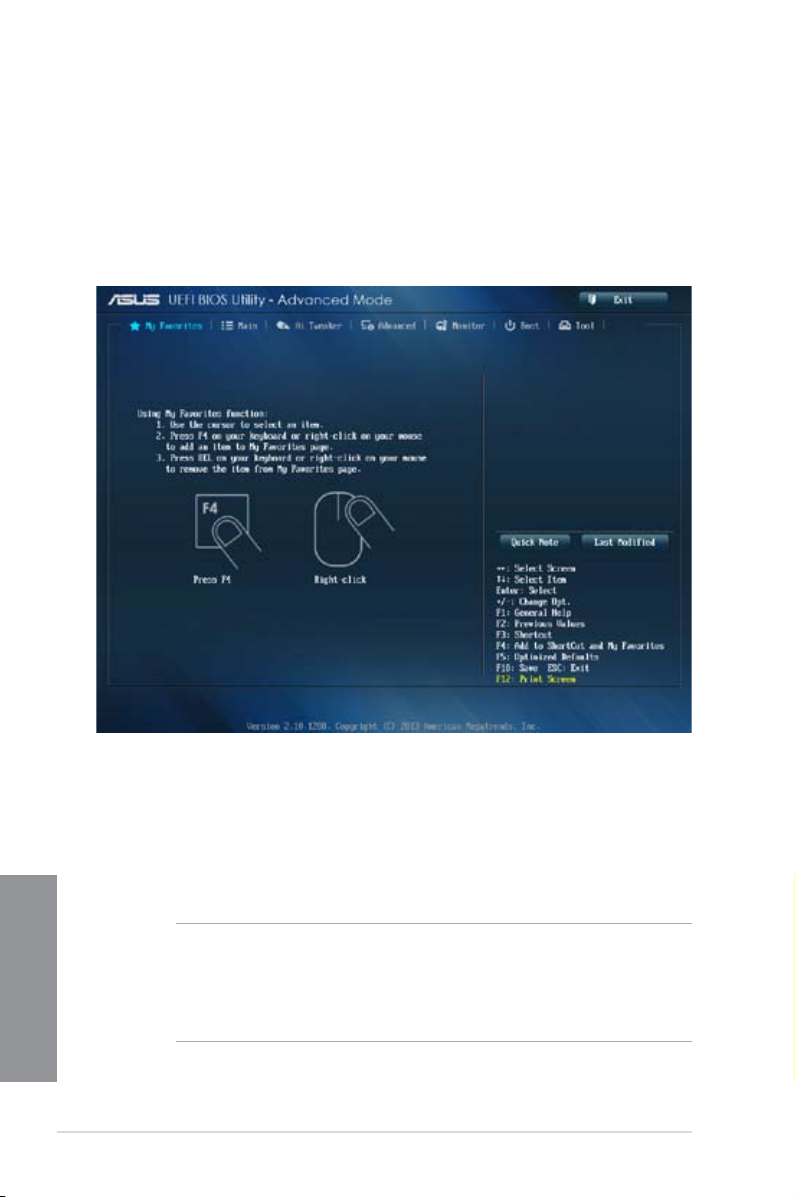

3.3 My Favorites ...............................................................................................3-6

3.4 Main menu ..................................................................................................3-7

3.5 Ai Tweaker menu ........................................................................................ 3-9

3.6 Advanced menu .......................................................................................3-24

3.6.1 CPU Conguration .................................................................... 3-25

3.6.2 PCH Conguration .................................................................... 3-28

3.6.3 SATA Conguration ................................................................... 3-29

3.6.4 System Agent Conguration......................................................3-31

3.6.5 USB Conguration ....................................................................3-33

3.6.6 Platform Misc Conguration ...................................................... 3-34

3.6.7 Onboard Devices Conguration ................................................ 3-35

3.6.8 APM ..........................................................................................3-37

3.6.9 Network Stack ........................................................................... 3-38

3.7 Monitor menu ...........................................................................................3-39

3.8 Boot menu ................................................................................................3-42

3.9 Tools menu ............................................................................................... 3-48

3.9.1 ASUS EZ Flash 2 Utility ............................................................ 3-48

3.9.2 ASUS O.C. Prole ..................................................................... 3-48

3.9.3 ASUS SPD Information ............................................................. 3-49

3.10 Exit menu .................................................................................................. 3-50

3.11 Updating BIOS .......................................................................................... 3-51

3.11.1 EZ Update ................................................................................. 3-51

3.11.2 ASUS EZ Flash 2 ...................................................................... 3-52

3.11.3 ASUS CrashFree BIOS 3 .......................................................... 3-53

3.11.4 ASUS BIOS Updater ................................................................. 3-54

Chapter 4: Software support

4.1 Installing an operating system .................................................................4-1

4.2 Support DVD information .......................................................................... 4-1

4.2.1 Running the support DVD ........................................................... 4-1

iv

4.2.2 Obtaining the software manuals..................................................4-2

4.3 Software information .................................................................................4-3

4.3.1 AI Suite 3.....................................................................................4-3

4.3.2 USB 3.0 Boost.............................................................................4-5

4.3.3 USB BIOS Flashback Wizard......................................................4-6

4.3.4 Ai Charger+ .................................................................................4-8

4.3.5 EZ Update ................................................................................... 4-9

4.3.6 Network iControl........................................................................4-10

4.3.7 USB Charger+ ........................................................................... 4-11

4.3.8 System Information ................................................................... 4-12

4.3.9 Audio congurations..................................................................4-13

Chapter 5: RAID support

5.1 RAID congurations ..................................................................................5-1

5.1.1 RAID denitions ..........................................................................5-1

5.1.2 Installing Serial ATA hard disks ...................................................5-2

5.1.3 Setting the RAID item in BIOS .................................................... 5-2

5.1.4 Intel® Rapid Storage Technology Option ROM utility ..................5-3

5.2 Creating a RAID driver disk.......................................................................5-7

5.2.1 Creating a RAID driver disk without entering the OS .................. 5-7

5.2.2 Creating a RAID driver disk in Windows® .................................... 5-8

5.2.3 Installing the RAID driver during Windows® OS installation ........ 5-8

Appendices

Notices .................................................................................................................... A-1

ASUS contact information ...................................................................................... A-5

v

Safety information

Electrical safety

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

•
before relocating the system.

When adding or removing devices to or from the system, ensure that the power cables

•
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.

Before connecting or removing signal cables from the motherboard, ensure that all

•
power cables are unplugged.

Seek professional assistance before using an adapter or extension cord. These devices

•
could interrupt the grounding circuit.

Ensure that your power supply is set to the correct voltage in your area. If you are not

•
sure about the voltage of the electrical outlet you are using, contact your local power
company.

If the power supply is broken, do not try to x it by yourself. Contact a qualied service

•
technician or your retailer.

Operation safety

Before installing the motherboard and adding devices on it, carefully read all the manuals

•
that came with the package.

Before using the product, ensure all cables are correctly connected and the power

•
cables are not damaged. If you detect any damage, contact your dealer immediately.

To avoid short circuits, keep paper clips, screws, and staples away from connectors,

•
slots, sockets and circuitry.

Avoid dust, humidity, and temperature extremes. Do not place the product in any area

•
where it may become wet.

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

•
technician or your retailer.

vi

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it
supports. It includes description of the switches, jumpers, and connectors on the
motherboard.

• Chapter 2: Basic installation

This chapter lists the hardware setup procedures that you have to perform when
installing system components.

• Chapter 3: BIOS setup

This chapter tells how to change system settings through the BIOS Setup menus.
Detailed descriptions of the BIOS parameters are also provided.

• Chapter 4: Software support

This chapter describes the contents of the support DVD that comes with the
motherboard package and the software.

• Chapter 5: RAID support

This chapter describes the RAID congurations.

Where to nd more information

Refer to the following sources for additional information and for product and software
updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the
standard package.

vii

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to
complete a task.

CAUTION: Information to prevent damage to the components when trying to
complete a task

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

<Key> Keys enclosed in the less-than and greater-than sign

<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key

Used to emphasize a word or a phrase.

means that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or
Return key.

names are linked with a plus sign (+).

viii

Z87-PRO specications summary

CPU LGA1150 socket for the 4th Generation Intel® Core™ i7/Intel®

Core™i5/ Intel® Core™ i3, Pentium® and Celeron® processors

Supports 22nm CPU

Supports Intel® Turbo Boost Technology 2.0*

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU

types.

Chipset Intel® Z87 Express Chipset

Memory 4 x DIMM, max. 32GB, DDR3 3000 (O.C.)* / 2933 (O.C.)* / 28003000 (O.C.)* / 2933 (O.C.)* / 28002800

(O.C.)* / 2666 (O.C.)* 2600 (O.C.)* / 2500 (O.C.)* / 2400 (O.C.)* /* / 2500 (O.C.)* / 2400 (O.C.)* / / 2500 (O.C.)* / 2400 (O.C.)* /* / 2400 (O.C.)* / / 2400 (O.C.)* /
2200(O.C.)* / 2133(O.C.)* / 2000 (O.C.)* / 1866(O.C.)* /* / 2133(O.C.)* / 2000 (O.C.)* / 1866(O.C.)* / / 2133(O.C.)* / 2000 (O.C.)* / 1866(O.C.)* /* / 2000 (O.C.)* / 1866(O.C.)* / / 2000 (O.C.)* / 1866(O.C.)* /* / 1866(O.C.)* / / 1866(O.C.)* /* / /

1800(O.C.)* /1600 / 1333 MHz, non-�CC, un-buffered memory1600 / 1333 MHz, non-�CC, un-buffered memory

Dual channel memory architecture

Supports Intel® �xtreme Memory Prole (XMP)

* Hyper DIMM support is subject to the physical characteristics of

individual CPUs. Please refer to Memory QVL (Qualied Vendors List)

for details.

Expansion slots 2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8

mode)

1 x PCI Express 2.0 x16 slot (max. at x4 mode, compatible with
PCIe x1 and x4 devices)*

4 x PCI Express 2.0 x1 slots**

* The PCIe x16_3 slot shares bandwidth with PCIe x1_2/3/4 slots. The

PCIe x16_3 slot is set to x1 mode by default.

** The PCIe x1_2 shares bandwidth with SATA6G_E12. The SATA6G_E12

is enabled by default for system resource optimization.

VGA Integrated Graphics Processor - Intel® HD Graphics support

Multi-VGA output support: DisplayPort/HDMI/DVI-D/VGA port

Supports DisplayPort 1.2* with max. resolution 4096 x 2160 @24Hz
and 3840 x 2160 @60Hz

Supports HDMI with max. resolution of 4096 x 2160 @24Hz and
2560 x 1600 @60Hz

Supports DVI with max. resolution of 1920 x 1200 @60Hz

Supports RGB with max. resolution of 1920 x 1200 @60Hz

Supports Intel® InTru™ 3D, Intel® Quick Sync Video, Intel® Clear
Video HD Technology, and Intel® Insider™

Supports up to three displays simultaneously

Maximum shared memory 1024MB

* DisplayPort 1.2 Multi-Stream Transport compliant, supports

DisplayPort 1.2 monitor daisy chain up to 3 displays.

Multi-GPU support Supports NVIDIA® Quad-GPU SLI™ Technology (with 2 PCIe x16

graphics cards)

Supports AMD® 3-WAY/Quad-GPU CrossFireX™ Technology

LAN Intel® I217-V Gigabit LAN - Dual interconnect between the

integrated LAN controller and physical layer (PHY)

(continued on the next page)

ix

Z87-PRO specications summary

Storage

Intel® Z87 Express Chipset with RAID 0, 1, 5, 10

- 6 x SATA 6.0 Gb/s ports (yellow)

- Supports IntelIntel® Dynamic Storage Accelerator, IntelIntel® Smart
Response Technology, Intel® Rapid Start Technology, Intel®
Smart Connect Technology*

ASMedia® SATA 6Gb/s controller**

- 2 x SATA 6Gb/s ports (dark brown)

* Supports on Intel® Core™ processor family.

** These SATA ports are for data hard drives only. ATAPI devices are not

supported.

Wireless Data Network Speedy Wi-Fi 802.11 a/b/g/n supports dual frequency band 2.4/5

Bluetooth Bluetooth v4.0

Audio

USB

GHz

ASUS Wi-Fi GO! Utility

Bluetooth v3.0 + HS

Realtek® ALC1150 8-channel high denition audio COD�C

- High quality 112dB SNR stereo playback output (Line-out at
rear) and 104dB SNR recording input (Line-in) support.

- Absolute Pitch 192khz/24bit True BD Lossless Sound

- BD audio layer content protection

- DTS UltraPC II

- DTS Connect

- Supports jack-detection, multi-streaming and front panel jack­retasking

- Optical S/PDIF out ports at rear I/O

Intel® Z87 Express Chipset - supports ASUS USB 3.0
Boost

- 2 x USB 3.0/2.0 ports at mid-board for front panel support

- 2 x USB 3.0/2.0 ports at rear panel (blue)

- 8 x USB 2.0/1.1 ports at mid-boardat mid-board

ASMedia® USB 3.0 controller - supports ASUS USB 3.0
Boost

- 4 x USB 3.0/2.0 ports at rear panel (blue)(blue)

ASUS Exclusive
features

ASUS Dual Intelligent Processors 4 with 4-Way
Optimization

- 4-Way Optimization tuning key perfectly consolidates

ASUS-exclusive DIGI+Power Control, TPU, EPU, and Fan

Xpert 2 that quickly optimize the digital power setting, system

performance, power saving and whole system cooling

conguration with just a click.

CPU Power

- Industry leading digital 12-phase power design

- ASUS CPU power utility

DRAM Power

- Industry leading digital 2-phase DRAM power design

- ASUS DRAM power utility

(continued on the next page)

x

Z87-PRO specications summary

ASUS Exclusive
features

ASUS EPU

- EPU, EPU switch

ASUS TPU

- TurboV, GPU Boost, TPU switch

ASUS Fan Xpert 2

- Featuring Fan Auto Tuning function for optimized speed

control.

ASUS Wi-Fi GO!

- Wi-Fi GO! functions include Cloud GO!, Media Streaming Hub,
Smart Sensor Control, Remote Desktop, Remote Keyboard &
Mouse, File Transfer, Capture & Send

- “Wi-Fi GO! & NFC Remote” for portable Smartphone/Tablet,
supporting iOS and Android systems.

- Wi-Fi Engine’s Client and AP modes for network sharing and
connection.

ASUS Exclusive Features:

- Network iControl featuring instant network bandwidth
domination for top network program in use

- USB 3.0 Boost featuring speedy USB 3.0 transmission

- USB Charger+ featuring quick-charging function for all smart
devices

- Ai Charger+

- Disk Unlocker

- AI Suite 3

- Anti Surge

- MemOK!

ASUS Quiet Thermal Solution:

- ASUS Fan Xpert 2

- ASUS Fanless Design: Heat-sink solution

ASUS EZ DIY

- ASUS USB BIOS Flashback with USB BIOS Flashback Wizard

for EZ BIOS download scheduling

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user
interface

- ASUS O.C. Tuner

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

ASUS Q-Design

- ASUS Q-Code

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

(continued on the next page)

xi

Z87-PRO specications summary

ASUS exclusive
overclocking features

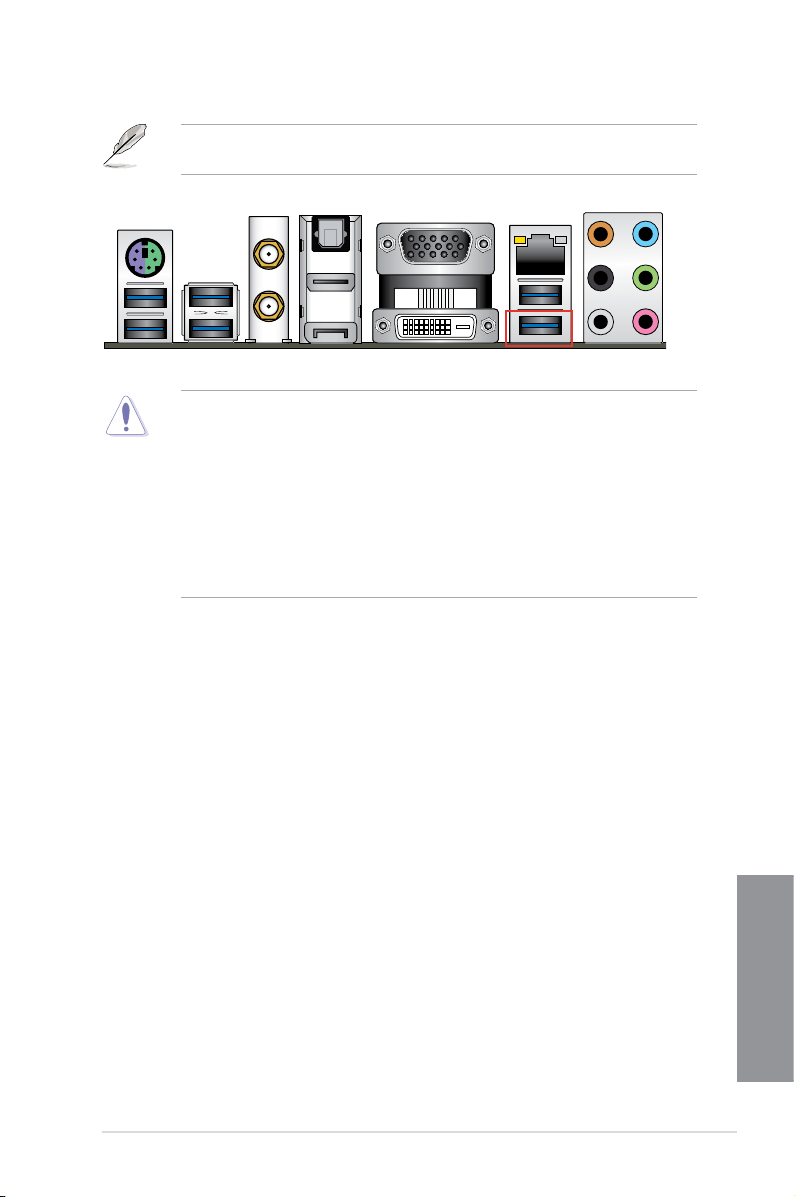

Rear Panel I/O Ports 1 x PS/2 Keyboard/mouse combo port

Internal I/O connectors 1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB ports

Precision Tweaker 2

- vCore: Adjustable CPU Core voltage at 0.001V incrementvCore: Adjustable CPU Core voltage at 0.001V increment

- iGPU: Adjustable CPU Graphics voltage at 0.001V incrementiGPU: Adjustable CPU Graphics voltage at 0.001V increment

- vCCIO: Adjustable Analog and Digital I/O voltage at 0.001VvCCIO: Adjustable Analog and Digital I/O voltage at 0.001V
increment

- vCCIN: Adjustable CPU Input voltage at 0.01V incrementvCCIN: Adjustable CPU Input voltage at 0.01V increment

- vCCSA: Adjustable CPU System Agent voltage at 0.001VvCCSA: Adjustable CPU System Agent voltage at 0.001V
increment

- vDRAM Bus: Adjustable DRAM voltage control at 0.005VvDRAM Bus: Adjustable DRAM voltage control at 0.005V
increment

- vPCH: Adjustable PCH voltage control at 0.0125 incrementvPCH: Adjustable PCH voltage control at 0.0125 increment

SFS (Stepless Frequency Selection)

- BCLK/PCI� frequency tuning from 80MHz up to 300MHz at

0.1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

1 x DisplayPort

1 x HDMI port

1 x DVI

1 x RGB

2 x ASUS Wi-Fi GO! SMA antenna ports (2TR2) (Wi-Fi 802.11
a/b/g/n and Bluetooth v4.0/3.0+HS)

1 x Optical S/PDIF Out port

1 x IntelIntel® LAN (RJ-45) port

6 x USB 3.0/2.0 ports (blue, 1 supports USB BIOS Flashback)

8-channel Audio I/O ports

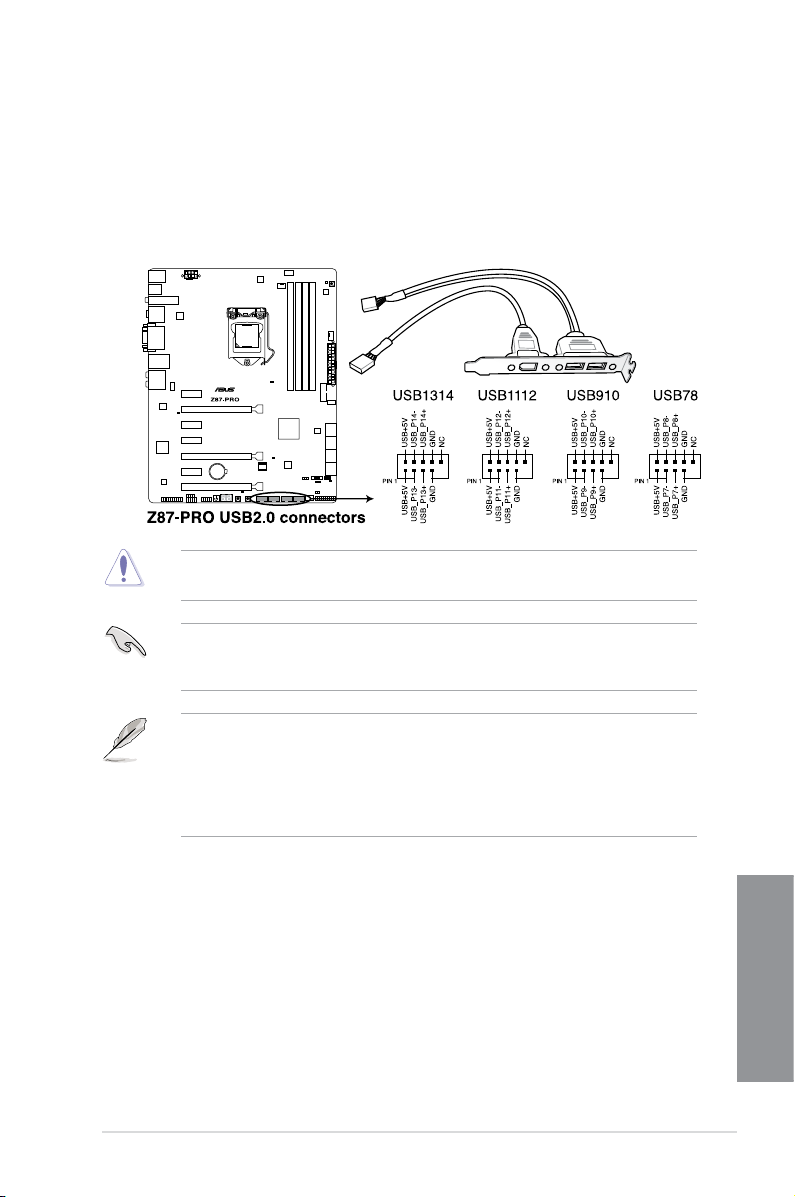

4 x USB 2.0/1.1 connectors support additional 8 USB ports

8 x SATA 6.0 Gb/s connectors (6 x yellow; 2 x dark brown)

1 x 4-pin CPU Fan connector supports both 3-pin (DC mode) and
4-pin (PWM mode) CPU coolers control

1 x 4-pin CPU Optional Fan connector (CPU_OPT)

4 x 4-pin Chassis Fan connectors

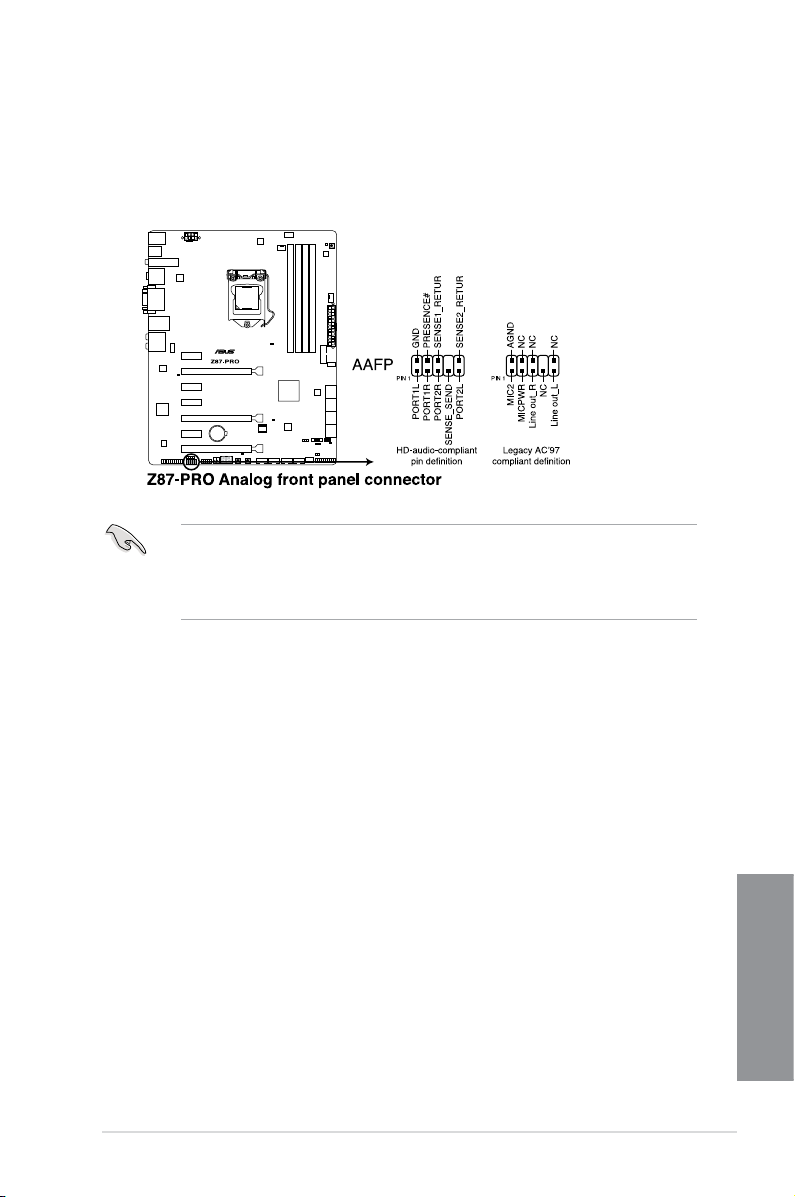

1 x Front panel audio connector (AAFP)

1 x S/PDIF out header

1 x TPM connector

1 x 24-pin EATX Power connector

1 x 8-pin EATX 12V Power connector

System Panel (Q-Connector)

1 x MemOK! button

1 x Clear CMOS jumper

(continued on the next page)

xii

Z87-PRO specications summary

Internal I/O connectors

BIOS features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM

Manageability WfM 2.0, DMI 2.7, WOL by PME, PXE

Support DVD contents

Form factor

Specications are subject to change without notice.

1 x DirectKey button

1 x DRCT (DirectKey) connector

1 x BIOS Flashback button

1 x EPU switch

1 x TPU switch (advanced two-stage adjustments)

1 x Power-on switch

BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS

CrashFree BIOS 3, My Favorites, Quick Note, Last Modied log,

F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD
(Serial Presence Detect) memory information

Drivers

ASUS Utilities

EZ Update

Anti-virus software (OEM version)

ATX form factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

xiii

User Manual

Package contents

Check your motherboard package for the following items

ASUS Z87-PRO motherboard User manual Support DVD

4 x Serial ATA 6.0 Gb/s cables 1 x ASUS SLI™ bridge connector 1 x ASUS I/O Shield

1 x 2-in-1 ASUS Q-Connector kit

xiv

1 x 2T2R dual-band Wi-Fi moving

antennas (Wi-Fi 802.11a/b/g/n

compliant)

• If any of the above items is damaged or missing, contact your retailer.

• The illustrated items above are for reference only. Actual product specications may

vary with different models.

• The 1 x 2-in-1 ASUS Q-Connector kit is for retailer version only.

Installation tools and components

1 bag of screws Philips (cross) screwdriver

PC chassis Power supply unit

Intel® LGA1150 CPU Intel® LGA1150 compatible CPU Fan

DIMM SATA hard disk drive

SATA optical disc drive (optional) Graphics card (optional)

The tools and components in the table above are not included in the motherboard package.

xv

xvi

Chapter 1: Product Introduction

Product introduction

1

1.1 Special features

1.1.1 Product highlights

LGA1150 socket for 4th generation Intel® Core™ i7/Intel® Core™ i5/Intel®
Core™ i3, Pentium® and Celeron® processors

This motherboard supports 4th generation Intel® Core™ i7/Intel® Core™ i5/Intel® Core™ i3,
Pentium®, and Celeron® processors in the LGA1150 package. It provides great graphics and
system performance with its GPU, dual-channel DDR3 memory slots and PCI Express 2.0/3.0
expansion slots.

Intel® Z87 Express Chipset

Intel® Z87 Express Chipset is a single chipset that supports the LGA1150 socket for 4th
generation Intel® Core™ i7/Intel® Core™ i5/Intel® Core™ i3, Pentium® and Celeron®

processors. It utilizes the serial point-to-point links, which increases bandwidth and enhances

the system’s performance. It natively supports up to six USB 3.0 ports for up to ten times
faster transfer rate than USB 2.0 and enables the iGPU function for Intel
performance.

PCI Express® 3.0

PCI Express® 3.0 (PCIe 3.0) is the PCI Express bus standard that provides twice the
performance and speed of PCIe 2.0. It provides an optimal graphics performance,
unprecedented data speed and seamless transition with its complete backward compatibility
to PCIe 1.0/2.0 devices.

Dual-Channel DDR3 2800 (O.C.) / 2666 (O.C.) / 2600 (O.C.) / 2500 (O.C.) / 2400
(O.C.) / 2200 (O.C.) / 2133 (OC.) / 2000 (O.C.) / 1866 (O.C.) / 1800 (O.C.) / 1600 // 1800 (O.C.) / 1600 / / 1600 /

1333 MHz Support

The motherboard supports the dual-channel DDR3 memory that features data transfer rates
of DDR3 2800 (O.C.) / 2666 (O.C.) / 2600 (O.C.) / 2500 (O.C.) / 2400 (O.C.) / 2200 (O.C.) /

2133 (OC.) / 2000 (O.C.) / 1866 (O.C.) / 1800 (O.C.) / 1600 / 1333 MHz to boost the system’s1800 (O.C.) / 1600 / 1333 MHz to boost the system’s1600 / 1333 MHz to boost the system’s

performance, and to meet the higher bandwidth requirements of 3D graphics, multimedia and
Internet applications.

Quad-GPU SLI and CrossFireX™ Support

This motherboard features the most powerful Intel® Z87 platform that optimizes PCIe
allocation in multi-GPU SLI and CrossFireX™ solution, giving you a brand-new gaming
enjoyment.

®

integrated graphics

ASUS Z87-PRO

Chapter 1

1-1

Intel® Smart Response Technology

Intel® Smart Response Technology, an important part of Green ASUS eco-friendly computing,
reduces load and wait time, eliminates unecessary hard drive spin thus lowering power
usage, and uses an installed SSD (requires 18.6 GB available space) as a cache for
frequently accessed data or applications. It combines SSD performance and hard drive
capacity, operating up to six times faster than a hard-drive-only system to boost the system’s
overall performance.

* 4th Generation Intel® Core™ processors family support Intel® Smart Response Technology.

** An operating system must be installed on the HDD to launch Intel® Smart Response Technology.

*** The SSD is reserved for caching function.

Intel® Smart Connect Technology

Your computer can receive fresh updates for selected applications, even when the system
is in sleep mode. This means less time waiting for applications to update and sync with the

cloud, leading to a more efcient computing experience.

Intel® Rapid Start Technology

Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving
your system memory to the designated SSDs, it provides your computer a faster wake-up
response time, while still keeping the energy use low.

1.1.2 Dual Intelligent Processors 4 with 4-Way Optimization

ASUS Dual Intelligent Processors 4 brings system control solution to a totally whole new
level, combining TPU, EPU, DIGI+ Power Control and Fan Xpert 2 functions to push the
system’s performance to its optimal potential. It automatically pushes or reasonably balances
the system’s performance, power saving levels and fan settings via the user-friendly AI Suite
3 utility.

DIGI+ Power Control

ASUS DIGI+ Power Control features the revolutionary and innovative digital VRM, DRAM,
and CPU Voltage controllers. These controllers offers ultra-precise memory and voltage

tuning for optimal system efciency, stability and performance.

TPU

TPU (Turbo Processing Unit), offers precise voltage control and advanced monitoring
mechanisms through the TurboV functions in your ASUS AI Suite 3 utility.

EPU

�PU (�nergy Processing Unit), the world’s rst real-time system power-saving chip,

Chapter 1

automatically detects the current system load and intelligently moderates power usage.

It offers a total system-wide energy optimization, reduces fan noise and extends the

component’s lifespan.

ASUS Fan Xpert 2

ASUS Fan Xpert 2 provides customizable settings for a cooler and quieter computing

environment. With its Fan Auto Tuning feature, ASUS Fan Xpert 2 automatically detects

and tweaks all fan speeds, and provides you with optimized fan settings based on the fans’
specications and positions.

1-2

Chapter 1: Product introduction

1.1.3 ASUS Exclusive Features

Wi-Fi GO!

ASUS Wi-Fi GO! leads the way to a more enjoyable home entertainment. With ASUS Wi-Fi

GO!, you can wirelessly stream media les to your HDTV, remotely control and access your
computer using your smart device and easily transfer les between your computer and smart

device.

Conveniently use and enjoy these ASUS Wi-Fi GO! functions:

Cloud GO!: Allows you to control les and sync them all across cloud services in a few

•

clicks.

Media Streaming Hub: Allows you to stream media les to your HDTV.

•

Remote Desktop: Allows you to view your computer’s desktop and remotely operate

•

your computer in real-time from your smart device.

Remote Keyboard & Mouse: Allows you to use your smart device’s touch panel as a

•

remote keyboard and mouse for your computer.

Smart Sensor Control: Allows you to remotely control your computer using your smart

•

device’s customized gestures.

File Transfer: Allows you to transfer les between your computer and smart device.

•

Capture & Send: Allows you to take screenshots and send them to a smart device.

•

USB 3.0 Boost

ASUS USB 3.0 Boost, which supports USB 3.0 standard UASP (USB Attached SCSI

Protocol), signicantly increases a USB device’s transfer speed up to 170% faster than the

already impressive USB 3.0 transfer speed. It automatically accelerates data speeds for
compatible USB 3.0 peripherals without the need for any user interaction.

USB Charger+

With a dedicated onboard controller, quick-charge all your smart devices such as
smartphones, tablets and more, all up to three times faster, even when the system is
powered off, in sleep or hibernation mode.

USB BIOS Flashback

USB BIOS Flashback offers a hassle-free updating solution for your ultimate convenience.

Install a USB storage device containing the BIOS le, press the BIOS Flashback button for

about three seconds, and the UEFI BIOS is automatically updated even without entering
the existing BIOS or operating system. It also allows you to regularly check for UEFI BIOS
updates, and download the latest BIOS automatically.

ASUS Z87-PRO

Chapter 1

1-3

AI Suite 3

With its user-friendly interface, ASUS AI Suite 3 consolidates all the exclusive ASUS features
into one simple-to-use software package. It allows you to supervise overclocking, energy
management, fan speed control, voltage and sensor readings, and even interact with smart
devices via Wi-Fi. This all-in-one software offers diverse and ease to use functions, with no
need to switch back and forth between different utilities.

1.1.4 ASUS Quiet Thermal Solution

ASUS Fanless Design - Heat-sink solution

The stylish heatsink features a 0-dB thermal solution that offers you a noiseless PC
environment. The heatsink design also lowers the temperature of the chipset and power

phase area through high efcient heat-exchange. Combined with usability and aesthetics,

the ASUS stylish heatsink will give you an extremely silent and cooling experience with its
elegant appearance.

1.1.5 ASUS EZ DIY

ASUS UEFI BIOS (EZ Mode)

ASUS U�FI BIOS, a U�FI compliant architecture, offers the rst mouse-controlled intuitive

graphical BIOS interface that goes beyond the traditional keyboard-only BIOS controls,

providing you with more exibility, convenience, and easy to navigate U�FI BIOS than the

traditional BIOS versions. It offers you with dual selectable modes and native support for hard
drives larger than 2.2 TB.

ASUS UEFI BIOS includes the following new features:

• New My Favorite function allows you to quickly access the frequently used items

• New Quick Note function allows you to take notes in the BIOS environment

• New log reminder allows you to view all your modied settings

• F12 BIOS snapshot hotkey

• F3 Shortcut for most accessed information

• ASUS DRAM SPD (Serial Presence Detect) information detecting faulty DIMMs, and

helping with difcult POST situations.

Chapter 1

1-4

Chapter 1: Product introduction

ASUS Q-connector

ASUS Q-Connector is a unique adapter that allows you to easily connect or disconnect the
chassis front panel cables to one module, eliminating the hassle of plugging one cable at a
time and making the connection quick and accurate.

1.1.6 Other special features

DTS Connect

To get the most out of your audio entertainment across all formats and quality levels, DTS
Connect combines two enabling technologies, DTS Neo:PC™ upmixes stereo sources (CDs,
MP3s, WMAs, internet radio) into as many as 7.1 channels of incredible surround sound.
Consumers can connect their PC to a home theater system. DTS Interactive is capable of
performing mult-channel encoding of DTS bitstreams on personal computers, and sending
encoded bitstreams out of a digital audio connection (such as S/PDIF or HDMI) designed to
deliver audio to an external decoder.

DTS UltraPC II

DTS UltraPC II delivers a superior surround sound experience through your system’s
speakers and headphones while monitoring and balancing the loudness level difference
between digital audio formats. It also ehnances the audio settings through augmenting
low and high frequencies of musical tones, restores compressed or re-mastered sounds,
improves bass performance even without a subwoofer, and improves dialogues derived from
DVD or Blu-ray Disc™.

ErP Ready

The motherboard is European Union’s Energy-related Products (ErP) ready, and ErP requires

products to meet certain energy efciency requirement in regards to energy consumptions.
This is in line with ASUS vision of creating environment-friendly and energy-efcient products

through product design and innovation to reduce carbon footprint of the product and thus
mitigate environmental impacts.

ASUS Z87-PRO

Chapter 1

1-5

1.2 Motherboard overview

1.2.1 Before you proceed

Take note of the following precautions before you install motherboard components or change
any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.

Chapter 1

1-6

Chapter 1: Product introduction

1.2.2 Motherboard layout

Refer to 1.2.8 Internal connectors and 2.3.1 Rear I/O connection for more information
about rear panel connectors and internal connectors.

ASUS Z87-PRO

Chapter 1

1-7

Layout contents

Connectors/Jumpers/Slots Page

1. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 1-44

2. LGA1150 CPU socket 1-9

3. CPU, chassis, and power fan connectors (4-pin CPU_FAN, 4-pin
CPU_OPT, 4-pin CHA_FAN1-4 )

4. DDR3 DIMM slots 1-10

5. MemOK! button 1-26

6. USB 3.0 connector (20-1 pin USB3_12) 1-40

7. TPU switch 1-28

8. ASMedia® Serial ATA 6.0 Gb/s connectors
(7-pin SATA6G_E12 [dark brown])

9. Intel® Z87 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1-6 [yellow]) 1-38

10. EPU switch 1-29

11. Clear CMOS jumper 1-30

12. Direct connector (2-pin DRCT) 1-46

13. System panel connector (20-8 pin PANEL) 1-45

14. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112, USB1314) 1-41

15. BIOS_FLBK button 2-12

16. DirectKey button 1-27

17. Q-Code LED 1-32

18. Power-on button 1-25

19. Front panel audio connector (10-1 pin AAFP) 1-43

20. TPM connector (20-1 pin TPM) 1-46

21. Digital audio connector (4-1 pin SPDIF_OUT) 1-39

1-42

1-39

Chapter 1

1-8

Chapter 1: Product introduction

1.2.3 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA1150 socket designed for the 4th
Generation Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3, Pentium® and Celeron®
processors.

• Ensure that all power cables are unplugged before installing the CPU.

• Ensure that you install the correct CPU designed for LGA1150 only. DO NOT install a
CPU designed for LGA1155 and LGA1156 sockets on the LGA1150 socket.

• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

Authorization (RMA) requests only if the motherboard comes with the cap on the

LGA1150 socket.

• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.

ASUS Z87-PRO

Chapter 1

1-9

1.2.4 System memory

The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) slots.

A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR
or DDR2 memory module to the DDR3 slot.

Recommended memory congurations

Chapter 1

1-10

Chapter 1: Product introduction

Memory congurations

You may install 2GB, 4GB and 8GB unbuffered and non-ECC DDR3 DIMMs into the DIMM
sockets.

• You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel conguration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.

• According to Intel® CPU spec, DIMM voltage below 1.65V is recommended to protect
the CPU.

• Always install DIMMs with the same CAS latency. For optimum compatibility, we
recommend that you obtain memory modules from the same vendor.

• Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:

a) Use a maximum of 3GB system memory if you are using a 32-bit Windows

b) Install a 64-bit Windows® OS when you want to install 4GB or more on the

motherboard.

c) For more details, refer to the Microsoft® support site at http://support.microsoft.

com/kb/929605/en-us.

• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less
(Memory chip capacity counts in Megabit, 8 Megabit/Mb = 1 Megabyte/MB).

• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked
or at a higher frequency, refer to section 3.5 Ai Tweaker menu for manual memory
frequency adjustment.

• For system stability, use a more efcient memory cooling system to support a full

memory load (4 DIMMs) or overclocking condition.

• Memory modules with memory frequency higher than 2133MHz and their
corresponding timing or the loaded XMP prole is not the J�D�C memory standard.

The stability and compatibility of the memory modules depend on the CPU’s
capabilities and other installed devices.

• Always install the DIMMS with the same CAS Latency. For an optimum compatibility,
we recommend that you install memory modules of the same version or data code (D/
C) from the same vendor. Check with the vendor to get the correct memory modules.

®

OS.

ASUS Z87-PRO

Chapter 1

1-11

Z87-PRO Motherboard Qualied Vendors Lists (QVL)

DDR3 3000(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

G.SKILL F3-3000C12Q-16GTXDG(XMP) 16GB (4x4GB) DS - - 12-14-14-35 1.65V • • •

Brand

Chip

Timing Voltage DIMM socket

NO.

support

(Optional)

1 2 4

DDR3 2933(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

G.SKILL F3-2933C12Q-16GTXDG(XMP) 16GB (4x4GB) DS - - 12-14-14-35 1.65V • • •

Brand

Chip

Timing Voltage DIMM socket

NO.

support

(Optional)

1 2 4

DDR3 2800(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

G.SKILL F3-2800C11Q-16GTXD(XMP) 16GB (4x4GB) DS - - 11-13-13-35 1.65 • • •

G.SKILL F3-2800C12Q-32GTXD(XMP) 32GB (4x8GB) DS - - 12-13-13-35 1.65 • • •

G.SKILL F3-2800C12Q-32GTXDG(XMP) 32GB (4x8GB) DS - - 12-14-14-35 1.65 • • •

APACER 78.BAGH5.AFD0C 8GB (2x4GB) DS - - 12-14-14-35 1.65 • •

APACER 78.CAGH6.AFD0C 16GB (2x8GB) DS - - 12-14-14-35 1.65 • •

CORSAIR CMD16GX3M4A2800C11 16GB (4x4GB) DS - - 11-14-14-35 1.65 • • •

CORSAIR CMD16GX3M4A2800C12 16GB (4x4GB) DS - - 12-14-14-36 1.65 • • •

DDR3 2666(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

APACER 78.BAGFF.AFC0C 16GB (4x4GB) SS - - 12-13-13-35 1.65 • • •

APACER 78.CAGFF.AFD0C 32GB (4x8GB) DS - - 12-13-13-35 1.65 • • •

CORSAIR CMD16GX3M4A2666C11 16GB (4x4GB) DS - - 11-13-13-35 1.65 • • •

Chapter 1

G.SKILL F3-2666C11Q-16GTXD(XMP) 16GB (4x4GB) DS - - 11-13-13-35 1.65 • • •

G.SKILL F3-2666C10Q-16GTXD(XMP) 16GB (4x4GB) DS - - 10-12-12-31 1.65 • • •

GEIL GOC332GB2666C11QC(XMP) 32GB (4x8GB) DS - - 11-13-13-35 1.65 • • •

TEAM TXD34G2666HC11CBK 8GB (2x4GB) SS - - 11-13-13-35 1.65 • • •

TEAM TXD38G2666HC11CBK 16GB (2x8GB) DS - - 11-13-13-35 1.65 • •

G.SKILL F3-2666CL10Q-16GBZHD(XMP) 16GB (4x4GB) DS - - 9-11-9-27 1.65 • •

Brand

Brand

Chip

Timing Voltage DIMM socket

NO.

Chip

Timing Voltage DIMM socket

NO.

support (Optional)

1 2 4

support (Optional)

1 2 4

1-12

Chapter 1: Product introduction

DDR3 2600(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

ADATA AX3U2600GW8G11-DG2 16GB (2x4GB) DS - - 11-13-13-35 1.65V • • •

Brand

Chip

Timing Voltage DIMM socket

NO.

support

(Optional)

1 2 4

DDR3 2500(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

G.SKILL F3-20000CL10Q-16GBZHD(XMP) 16GB (4x4GB) DS - - 10-11-11-31 1.65 • • •

Brand

Chip

Timing Voltage DIMM socket

NO.

support

(Optional)

1 2 4

DDR3 2400(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

A-DATA AX3U2400GC4G10(XMP) 4GB DS - - 10-12-12-31 1.65 • • •

Apacer 78.BAGFL.AFD0C(XMP) 8GB (2x4GB) DS - - 11-12-12-30 - • • •

Apacer 783BAGF3.AFD0C(XMP) 8GB (2x4GB) DS - - 11-11-11-30 - • • •

CORSAIR CMGTX8(XMP) 8GB (4x2GB) SS - - 10-12-10-30 1.65 • • •

CORSAIR CMZ16GX3M2A2400C10

CORSAIR CMZ16GX3M4A2400C9R

G.SKILL F3-19200CL10Q-

G.SKILL F3-19200CL11Q-

G.SKILL F3-19200CL11Q-

G.SKILL F3-19200CL9D-

G.SKILL F3-19200CL9Q-

GEIL GOC316GB2400

GEIL GOC316GB2400

Kingston KHX2400C11D3

KINGSTON KHX24C11K4/16X(XMP) 16GB (4x4GB) DS - - 11-13-13-30 1.65 • • •

KINGSTON KHX24C11T2K2/8X(XMP) 8GB (2x4GB) DS - - - 1.65 • • •

KINGSTON KHX24C11T3K4/32X(XMP) 32GB (4x8GB) DS - - 9-9-9-24 1.65 • • •

Patriot PVV34G2400C 9K(XMP) 4GB (2x2GB) DS - - 9-11-9-27 1.66 • •

Patriot PXD38G2400C 11K(XMP) 8GB (2x4GB) DS - - 11-11-11-30 1.65 • • •

Patriot PXD38G2400C 11K(XMP) 8GB (2x4GB) DS - - 2400 11-11-11-30 1.65 • • •

Team TXD38G2400HC

(Ver4.21)

(Ver4.13)(XMP)

32GBZHD(XMP)

16GBZHD(XMP)

16GBZHD(XMP)

4GBPIS(XMP)

16GBZMD(XMP)

C10QC(XMP)

C11QC(XMP)

K4/8GX(XMP)

10QBK(XMP)

16GB (2x8GB) DS - - 10-12-12-31 1.65 • • •

16GB (4x4GB) DS - - 2400 9-11-11-31 1.65 • • •

32GB (4x8GB) DS - - 10-12-12-31 1.65 • • •

16GB (4x4GB) DS - - 11-11-11-31 1.65 • • •

16GB (4x4GB) DS - - 11-11-11-31 1.65 • • •

4G (2x2GB) DS - - 9-11-9-28 1.65 • •

16GB (4x4GB) DS - - 9-11-11-31 1.65 • • •

16GB (4x4GB) DS - - 10-11-11-30 1.65 • • •

16GB (4x4GB) DS - - 11-11-11-30 1.65 • • •

8GB (4x2GB) SS - - 11-13-11-30 1.65 • • •

8GB DS - - 10-12-12-31 1.65 • • •

Brand

Chip

Timing Voltage DIMM socket

NO.

support (Optional)

1 2 4

Chapter 1

ASUS Z87-PRO

1-13

DDR3 2200(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

G.SKILL F3-17600CL7D-4GBFLS(XMP) 4GB (2x2GB) DS - - 7-10-10-28 1.65 • •

GEIL GET34GB2200C9DC(XMP) 4GB (2x2GB) DS - - 9-10-9-28 1.65 • • •

GEIL GET38GB2200C9ADC(XMP) 8GB (2x4GB) DS - - 9-11-9-28 1.65 • • •

DDR3 2133(O.C.) MHz capability

Vendors Part No. Size SS/DSChip

A-DATA AX3U2133XC4G10(XMP) 4GB DS - - 10-11-11-30 1.65 • • •

A-DATA AX3U2133XW8G10(XMP) 8GB DS - - 10-11-11-30 1.65 • • •

Apacer 78.BAGE4.AFD0C(XMP) 8GB (2x4GB) DS - - 9-9-9-24 - • • •

Apacer AHU04GFB33CAQ3R(XMP) 4GB DS - - 11-13-13-31 - • • •

CORSAIR CMD8GX3M2A2133C9

CORSAIR CMT4GX3M2B2133C9(Ver

CORSAIR CMT4GX3M2B2133C9(XMP) 4GB (2x2GB) DS - - 9-10-9-27 1.5 • • •

G.SKILL F3-17000CL11Q2-

G.SKILL F3-17000CL9Q-

G.SKILL F3-17000CL9Q-

G.SKILL F3-17066CL9D-

G.SKILL F3-17066CL9Q-

G.SKILL F3-2133C11Q-32GZL(XMP) 32GB (4x8GB) DS - - 11-11-11-31 1.5 • • •

KINGSTON KHX2133C11D3K4/

KINGSTON KHX2133C11D3T1K2/

KINGSTON KHX21C11T3FK8/64X(XMP) 64GB (8x8GB) DS - - 9-9-9-24 1.5 • • •

OCZ OCZ3XTEP2133C 9LV4GK 2GB DS - - 7-7-7-20 1.65 • •

Patriot PV316G213C1K (XMP) 16GB (2x8GB) DS - - 11-11-11-30 1.5 • • •

Patriot PVV34G2133C9 K(XMP) 4GB (2x2GB) DS - - 9-11-9-27 1.66 • • •

Patriot PXD38G2133C1 1K(XMP) 8GB (2x4GB) DS - - 9-9-9-24 1.65 • • •

Patriot PXD38G2133C11 K(XMP) 8GB (2x4GB) DS - - 2133 11-11-11-27 1.5 • • •

Chapter 1

Team TLD38G2133HC11A BK(XMP) 8GB DS - - 11-11-11-31 1.65 • • •

Team TXD34096M2133HC11A-

(Ver1.5)(XMP)

7.1)(XMP)

64GBZLD(XMP)

16GBXLD(XMP)

16GBZH(XMP)

8GBPID(XMP)

16GBTDD(XMP)

16GX(XMP)

16GX(XMP)

V(XMP)

Chip

Brand

Brand

8GB (2x4GB) DS - - 9-11-10-27 1.5 • • •

4GB (2x2GB) DS - - 9-10-9-27 1.5 • • •

64GB (8x8GB) DS - - 11-11-11-30 1.5 • • •

16GB (4x4GB) DS - - 9-11-9-28 1.65 • • •

16GB (4x4GB) DS - - 9-11-10-28 1.65 • • •

8GB (2x4GB) DS - - 9-9-9-24 1.65 • • •

16GB (4x4GB) DS - - 9-9-9-24 1.65 • •

16GB (4x4GB) DS - - 11-12-11-30 1.65 • • •

16GB (2x8GB) DS - - 9-9-9-24 1.6 • • •

4GB DS - - 11-11-11-31 1.65 • • •

Timing Voltage DIMM socket

NO.

Chip

Timing Voltage DIMM socket

NO.

support

(Optional)

1 2 4

support

(Optional)

1 2 4

1-14

Chapter 1: Product introduction
