ASUS RTACHN00 User Manual
RT-
AC86U
Wireless-AC2900 Dual band
Gigabit Router
Quick Start Guide
US12549 / First Edition / March 2017
US12549_RT-AC86U_QSG_172x144mm.indb 1 |
|
|
2017/3/31 10:52:18 |
|
|
||
|
|
|
|
Table of contents |
|
Package contents........................................................................ |
3 |
A quick look at your router...................................................... |
3 |
Preparing your modem............................................................ |
4 |
Setting up your router............................................................... |
5 |
A. Wired connection.............................................................................. |
5 |
B. Wireless connection ........................................................................ |
6 |
Remembering your wireless router settings .................... |
7 |
FAQ................................................................................................... |
7 |
Networks Global Hotline Information............................... |
23 |
This QSG contains these languages: |
|
English |
|
Français |
|
Português |
|
Español |
|
US12549_RT-AC86U_QSG_172x144mm.indb 2 |
|
|
2017/3/31 10:52:18 |
|
|
||
|
|
|
|
Package contents
RT-AC86U Wireless Router |
3 * wireless antennas |
AC adapter |
Network cable (RJ-45) |
Quick Start Guide |
|
NOTE: If any of the items is damaged or missing, contact your retailer.
A quick look at your router
1. |
LAN LED |
8. |
Power (DC-IN) port |
2. |
WAN (Internet) LED |
9. |
USB 2.0 port |
3. |
2.4GHz / 5GHz Wi-Fi LED |
10. |
USB 3.0 port |
4. |
Power LED |
11. |
WAN (Internet) port |
5. |
WPS button |
12. |
LED On/Off button |
6. |
Wi-Fi On/Off button |
13. |
LAN ports |
7. |
Power button |
14. |
Reset button |
3
English
US12549_RT-AC86U_QSG_172x144mm.indb 3 |
|
|
2017/3/31 10:52:19 |
|
|
||
|
|
|
|
English
Preparing your modem
1.Unplug the power cable/DSL modem. If it has a battery backup, remove the battery.
NOTE: If you are using DSL for Internet, you
will need your username/password from your In- Unplug ternet Service Provider (ISP) to properly configure
the router.
2.Connect your modem to the router with the bundled network cable.
3.Power on your cable/DSL modem.
4. Check your cable/DSL modem LED lights to ensure the connection is active.
4
US12549_RT-AC86U_QSG_172x144mm.indb 4 |
|
|
2017/3/31 10:52:20 |
|
|
||
|
|
|
|
Setting up your router
You can set up your router via wired or wireless connection.
A. Wired connection
1.Plug your router into a power outlet and power it on. Connect network cable from your computer to a LAN port on your router. the
4 |
WAN |
LAN |
|
|
2 |
|
3 |
Laptop |
Internet
2.The web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com
3.Set up a password for your router to prevent unauthorized access.
English
5
US12549_RT-AC86U_QSG_172x144mm.indb 5 |
|
|
2017/3/31 10:52:21 |
|
|
||
|
|
|
|

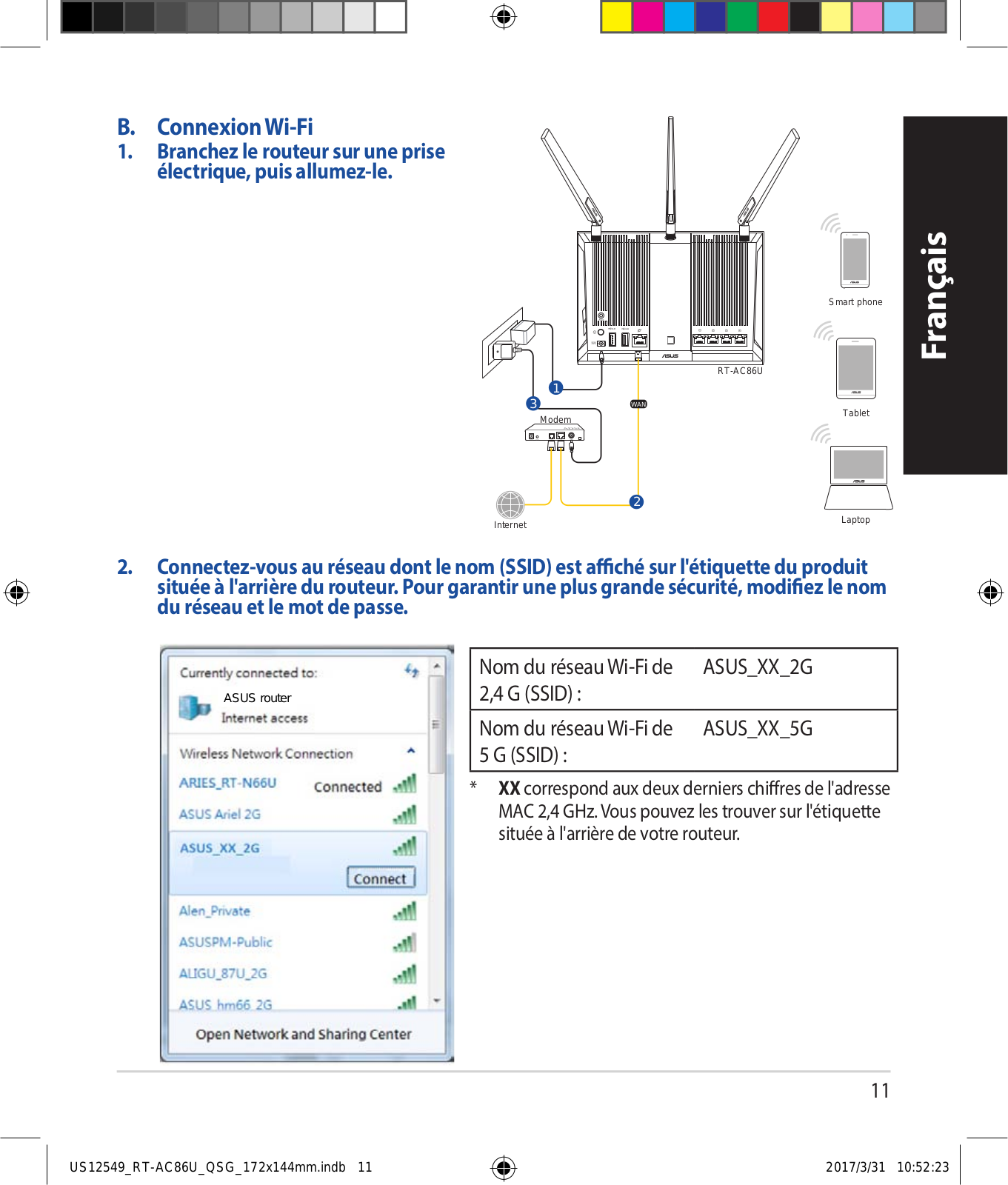

B. Wireless connection
1.Plug your router into a power outlet and power it on.
English
|
Smart phone |
|
RT-AC86U |
3 |
WAN |
|
Tablet |
2
Internet |
Laptop |
|
2.Connect to the network name(SSID) shown on the product label on the back side of the router. For better network security, change to a unique SSID and assign a password.
ASUS router
2.4G Wi-Fi Name (SSID): ASUS_XX_2G
5G Wi-Fi Name (SSID): ASUS_XX_5G
*XX refers to the last two digits of 2.4GHz MAC address. You can find it on the label on the back of your router.
6
US12549_RT-AC86U_QSG_172x144mm.indb 6 |
|
|
2017/3/31 10:52:21 |
|
|
||
|
|
|
|
3.Once connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.
4.Set up a password for your router to prevent unauthorized access.
English
Remembering your wireless router settings
•Rememberyourwirelesssettingsasyoucompletetheroutersetup.
Router Name: |
Password: |
|
|
2.4 GHz network SSID: |
Password: |
|
|
5GHz network SSID: |
Password: |
|
|
FAQ
1.Where can I find more information about the wireless router?
•Online FAQ site: http://support.asus.com/faq
•Technical support site: http://support.asus.com
•Customer hotline: refer to the Support Hotline section in this Quick Start Guide
7
US12549_RT-AC86U_QSG_172x144mm.indb 7 |
|
|
2017/3/31 10:52:21 |
|
|
||
|
|
|
|
Contenu de la boîte
Routeur Wi-Fi RT-AC86U |
3 * Antennes Wi-Fi |
Français
Adaptateur secteur |
Câble réseau (RJ-45) |
Guide de démarrage rapide
REMARQUE : Si l'un des éléments est endommagé ou manquant, veuillez contacter votre revendeur.
Aperçu rapide de votre routeur
1. |
Voyant réseau local (LAN) |
8. |
Prise d'alimentation (CC) |
2. |
Voyant réseau étendu (WAN) (Internet) |
9. |
Port USB 2.0 |
3. |
Voyant Wi-Fi de bande 2,4 GHz / 5 GHz |
10. |
Port USB 3.0 |
4. |
Voyant d'alimentation |
11. |
Port réseau étendu (WAN) (Internet) |
5. |
Bouton WPS |
12. |
Bouton voyant allumé/éteint |
6. |
Bouton Wi-Fi activé/désactivé |
13. |
Ports réseau local (LAN) |
7. |
Bouton d'alimentation |
14. |
Bouton de réinitialisation |
|
|
|
|
8 |
|
|
|
US12549_RT-AC86U_QSG_172x144mm.indb 8 |
|
|
2017/3/31 10:52:22 |
|
|
||
|
|
|
|

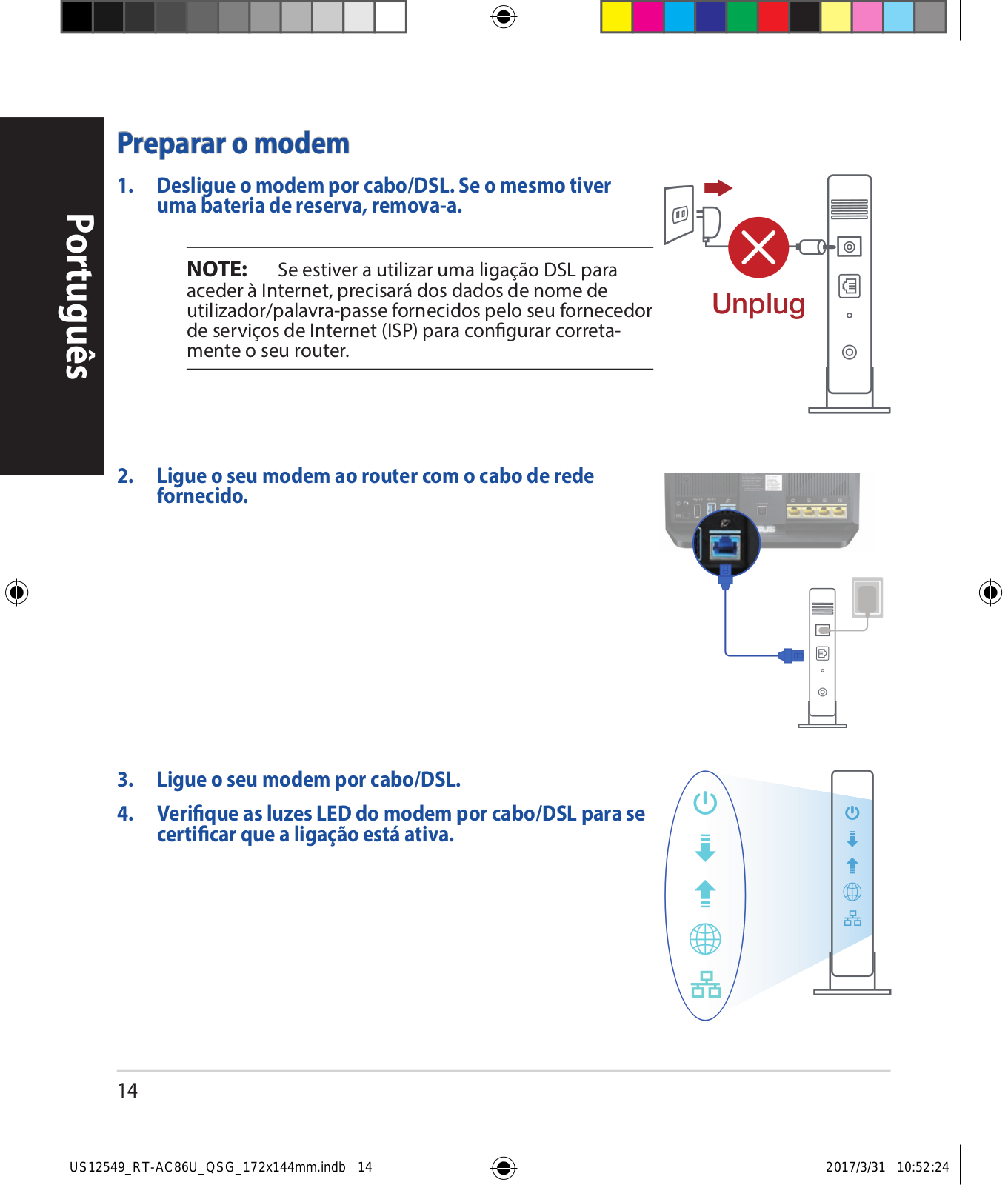

Préparer votre modem
1.Débranchez le câble d'alimentation / le modem DSL. Si votre modem possède une batterie de secours, retirez-la.
REMARQUE : Si vous utilisez le DSL pour accéder à Internet, vous aurez besoin du nom d'utilisateur et du mot de
passe fournis par votre fournisseur d'accès internet pour Débranchez configurer votre routeur.
2.Raccordez votre modem au routeur à l'aide du câble réseau fourni.
3.Allumez votre modem câble/DSL.
4.Vérifiez les voyants lumineux de votre modem câble/DSL pour vous assurer que la connexion est établie.
Français
9
US12549_RT-AC86U_QSG_172x144mm.indb 9 |
|
|
2017/3/31 10:52:22 |
|
|
||
|
|
|
|
