ASUS P5SVM User Manual

®

P5S-VM

Super7 microATX Motherboard

USER’S MANUAL

USER'S NOTICE

No part of this manual, including the products and software described in it, may be repro­duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EI­THER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR­TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EM­PLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT , SPECIAL, INCIDENT AL, OR
CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS
OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE
LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAM­AGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trade­marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.

• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

• AMD, K6, Super7, and combinations thereof are trademarks of Advanced Micro Devices, Inc.

• Cyrix, M II, and combinations thereof are trademarks of National Semiconductor Corporation.

• IBM is a registered trademark of IBM Corporation.

• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.

• SiS is a trademark of Silicon Integrated Systems Corp.

• Sound Blaster is a registered trademark of Creative Technology Ltd.

• Symbios is a registered trademark of Symbios Logic Corporation.

• Windows and MS-DOS are registered trademarks of Microsoft Corporation.

The product name and revision number are both printed on the product itself. Manual revi­sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.

For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR­NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM­MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD­ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved.

Product Name: ASUS P5S-VM
Manual Revision: 1.03 E385
Release Date: May 1999

2 ASUS P5S-VM User’s Manual

ASUS CONTACT INFORMATION

ASUSTeK COMPUTER INC. (Asia-Pacific)

Marketing

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]

Technical Support

Tel (English): [phone] ext. 706
Tel (Chinese): [phone] ext. 111
Fax: [phone]
Email: [email protected]
Newsgroup: news2.asus.com.tw
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER INTERNATIONAL (America)

Marketing

Address: 6737 Mowry Avenue, Mowry Business Center, Building 2

Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]

Technical Support

Fax: [phone]
BBS: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER GmbH (Europe)

Marketing

Address: Harkort Str. 25, 40880 Ratingen, BRD, Germany
Telephone: [phone]
Fax: [phone]
Email: [email protected]

Technical Support

Hotline: [phone]
BBS: 49-2102-448690
Email: [email protected]
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

ASUS P5S-VM User’s Manual 3

CONTENTS

I. INTRODUCTION........................................................................... 7

How this Manual is Organized ........................................................ 7

Item Checklist .................................................................................. 7

II. FEATURES .................................................................................... 8

ASUS P5S-VM Motherboard .......................................................... 8

Parts of the ASUS P5S-VM Motherboard ....................................... 11

III. HARDWARE SETUP................................................................... 12

ASUS P5S-VM Motherboard Layout.............................................. 12

Hardware Setup Steps ...................................................................... 14

1. Motherboard Settings................................................................... 14

Jumpers ...................................................................................... 14

Compatible Cyrix CPU Identification .................................. 18

2. System Memory (DIMM) ............................................................ 20

DIMM Memory Installation Procedures: ............................. 21

3. Central Processing Unit (CPU)................................................... 22

4. Expansion Cards ......................................................................... 23

Expansion Card Installation Procedure: ............................... 23

Assigning IRQs for Expansion Cards................................... 23

Assigning DMA Channels for ISA Cards............................. 24

ISA Cards and Hardware Monitor ........................................ 24

5. External Connectors.................................................................... 25

Power Connection Procedures ................................................... 35

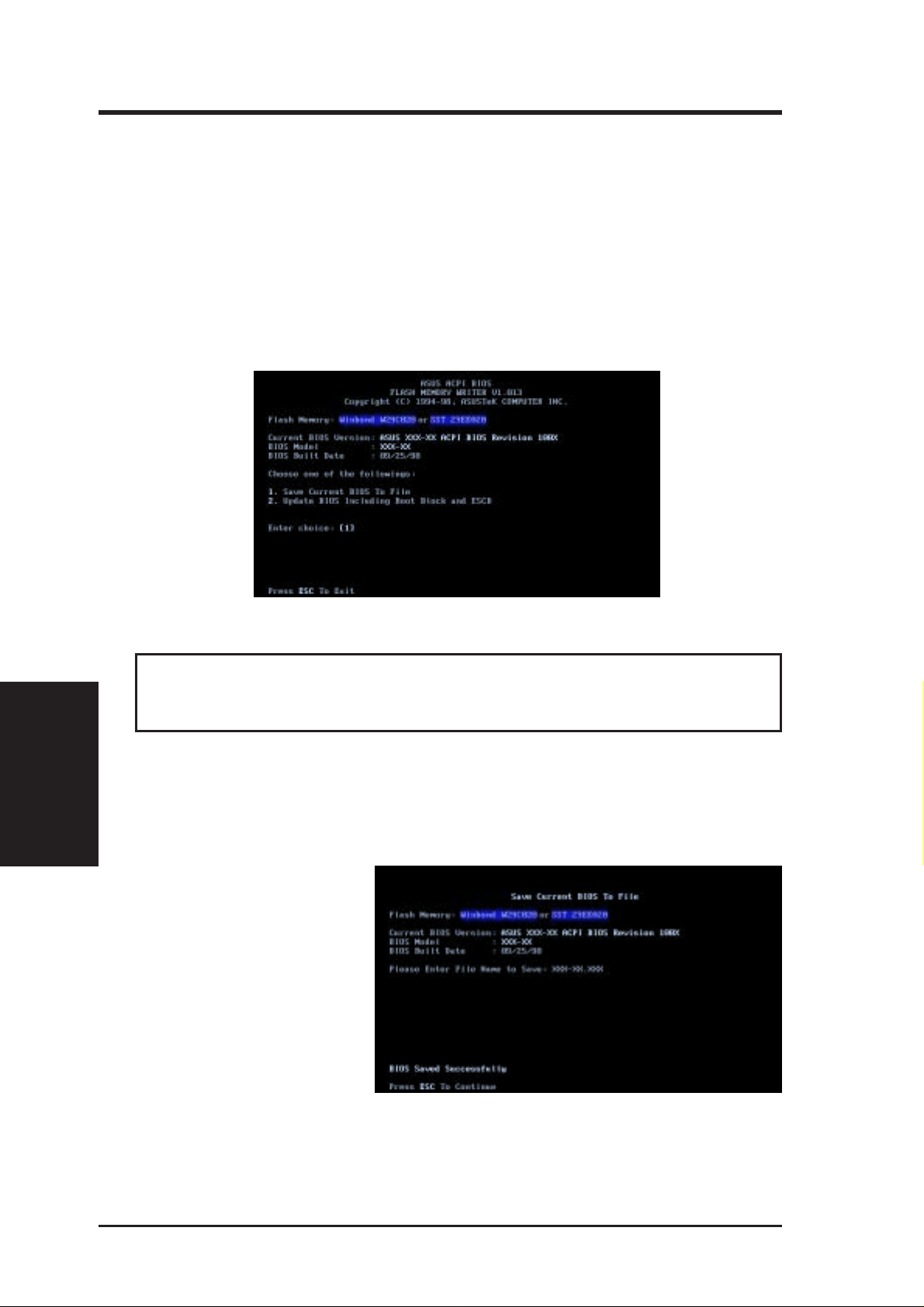

Flash Memory Writer Utility ........................................................... 36

IV. BIOS SETUP.................................................................................. 36

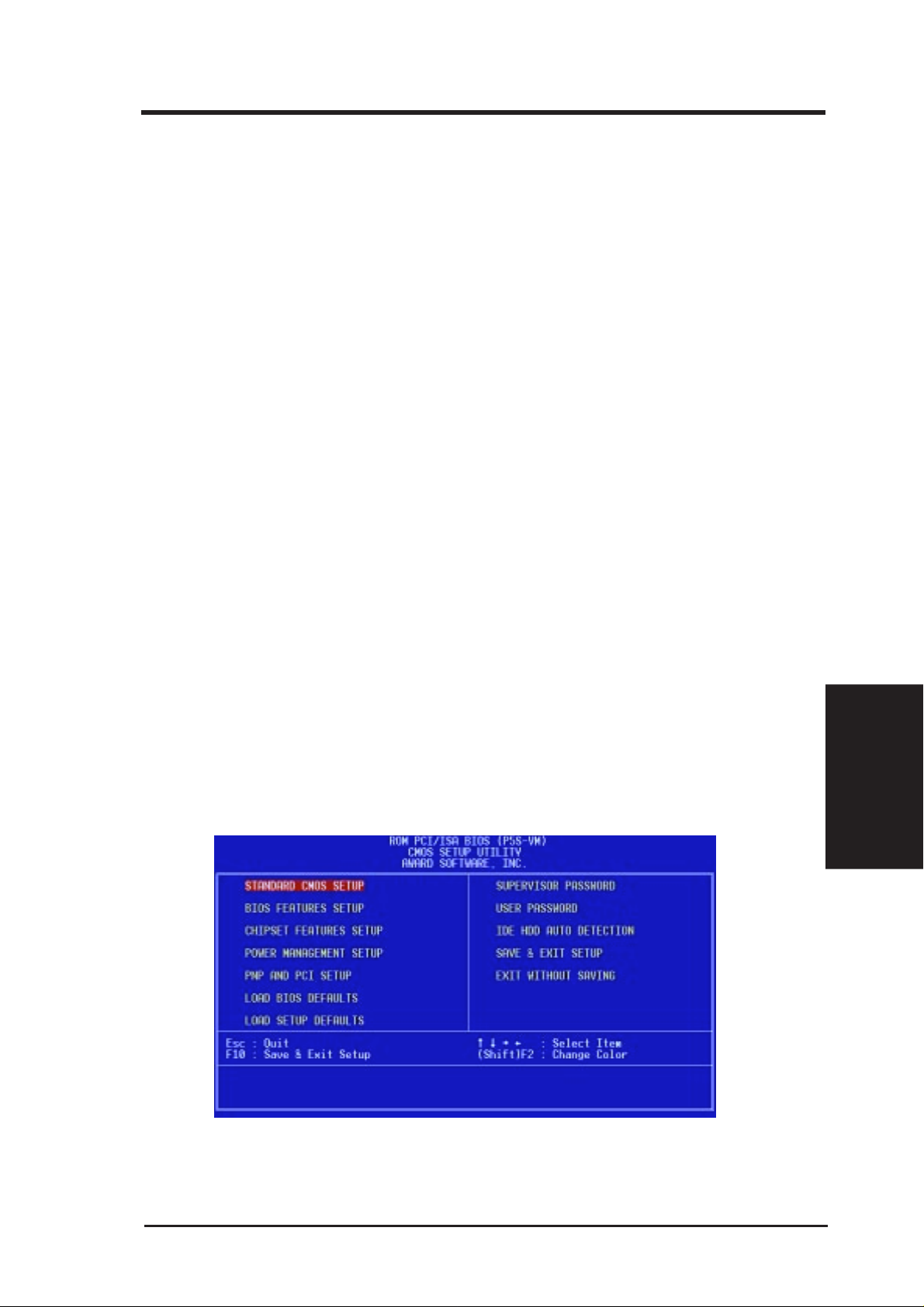

Main Menu ................................................................................. 36

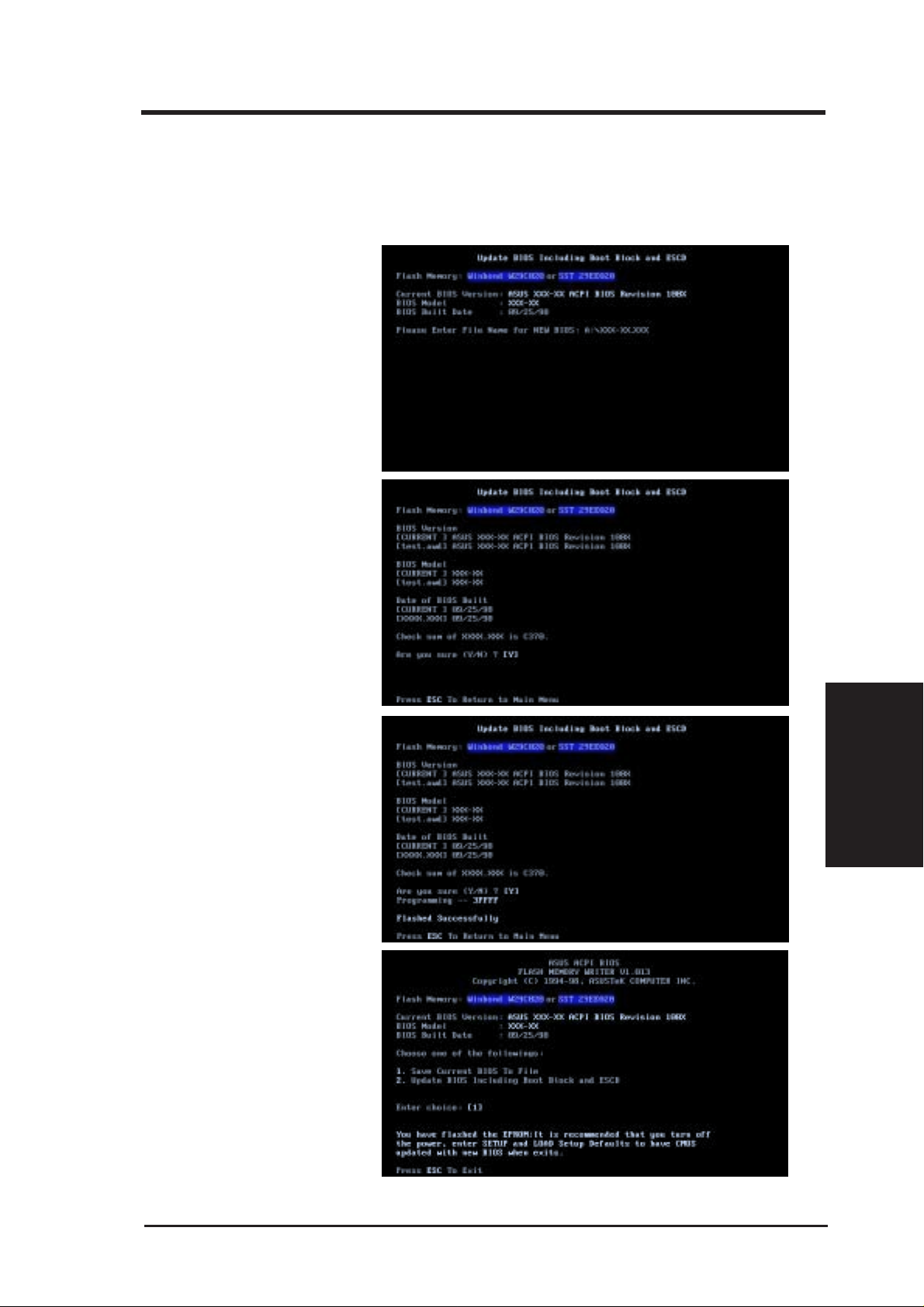

Managing and Updating Your Motherboard’s BIOS.................. 38

6. BIOS Setup ................................................................................. 39

Load Defaults ....................................................................... 40

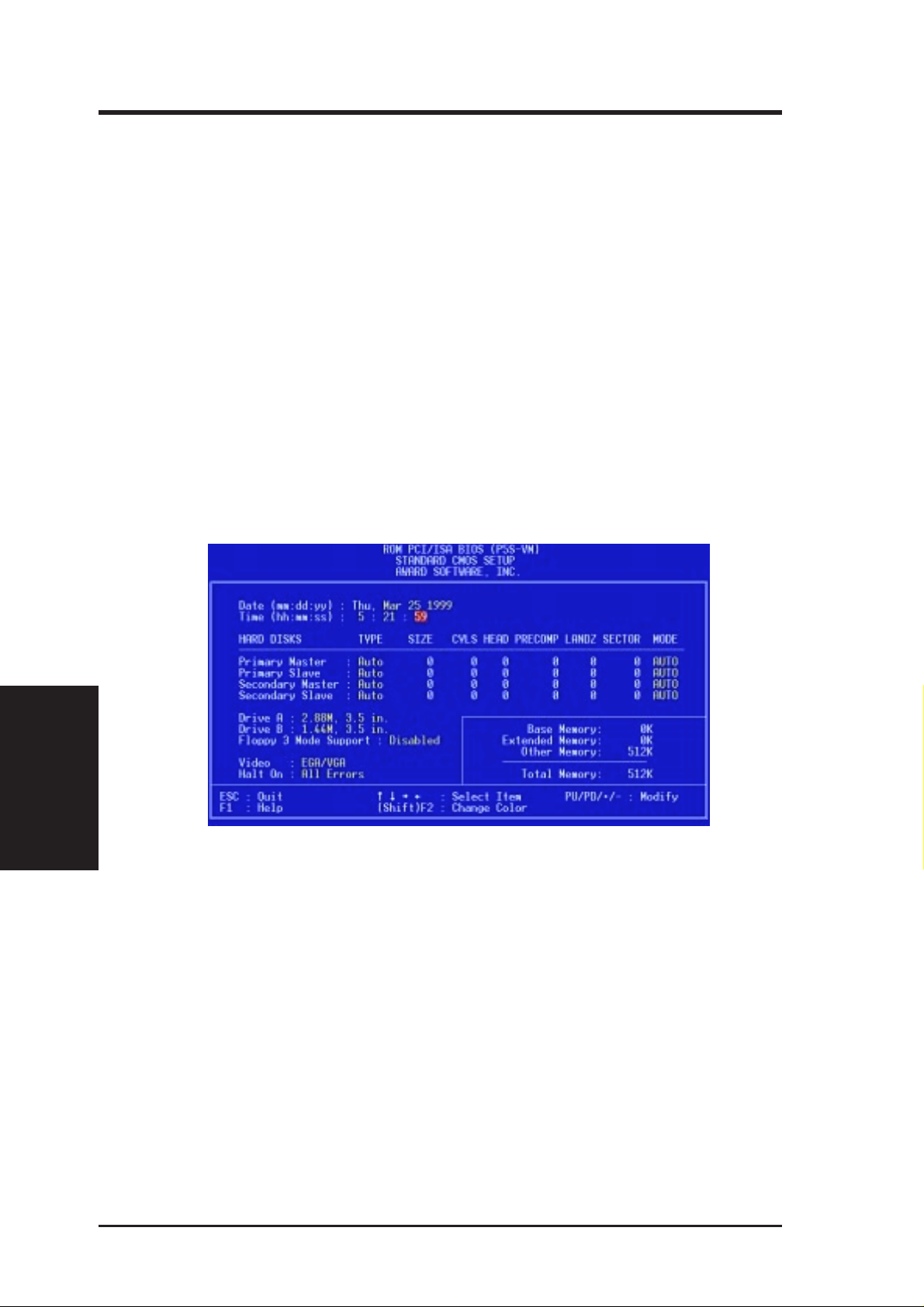

Standard CMOS Setup ............................................................... 40

Details of Standard CMOS Setup......................................... 40

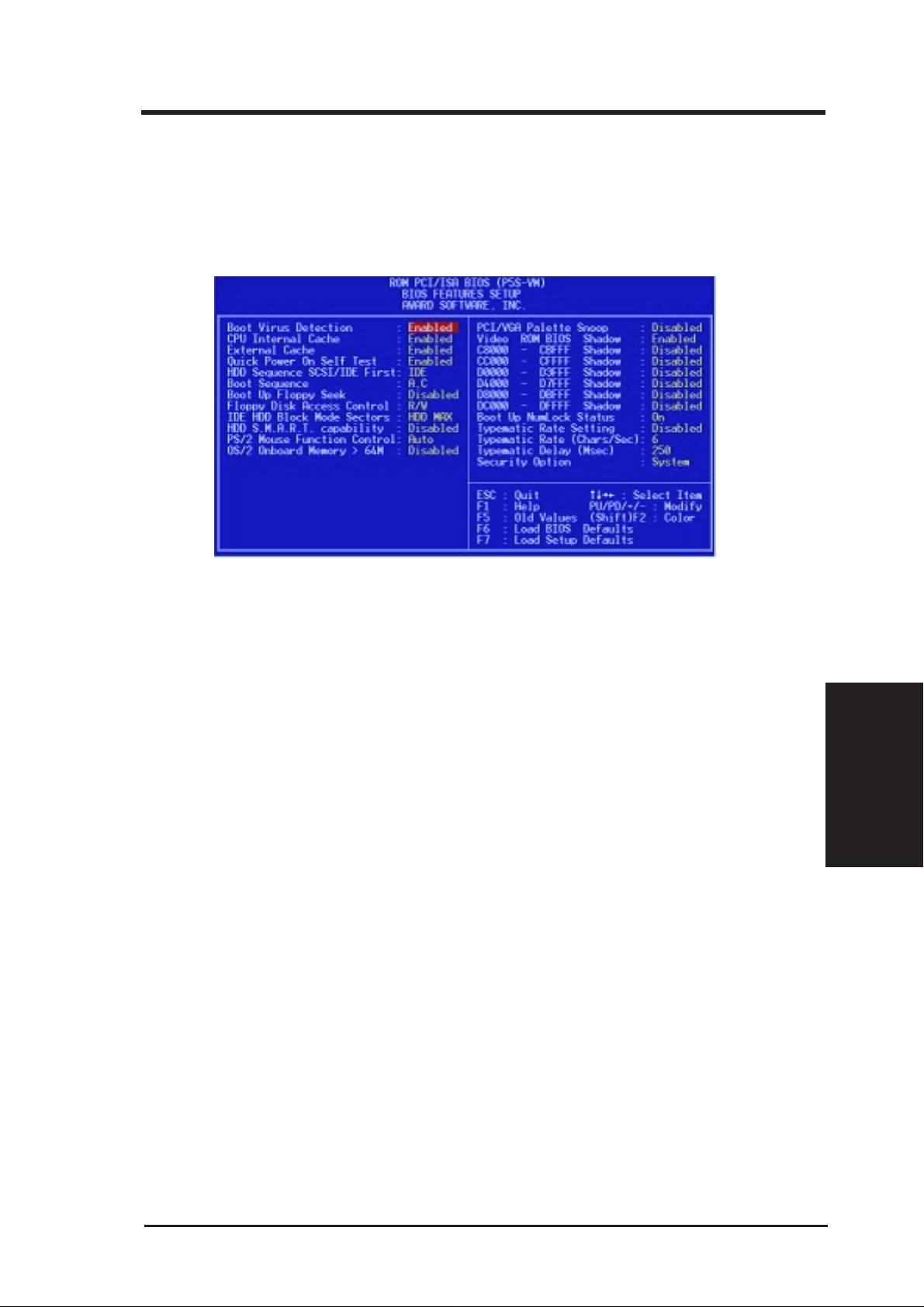

BIOS Features Setup .................................................................. 43

Details of BIOS Features Setup............................................ 43

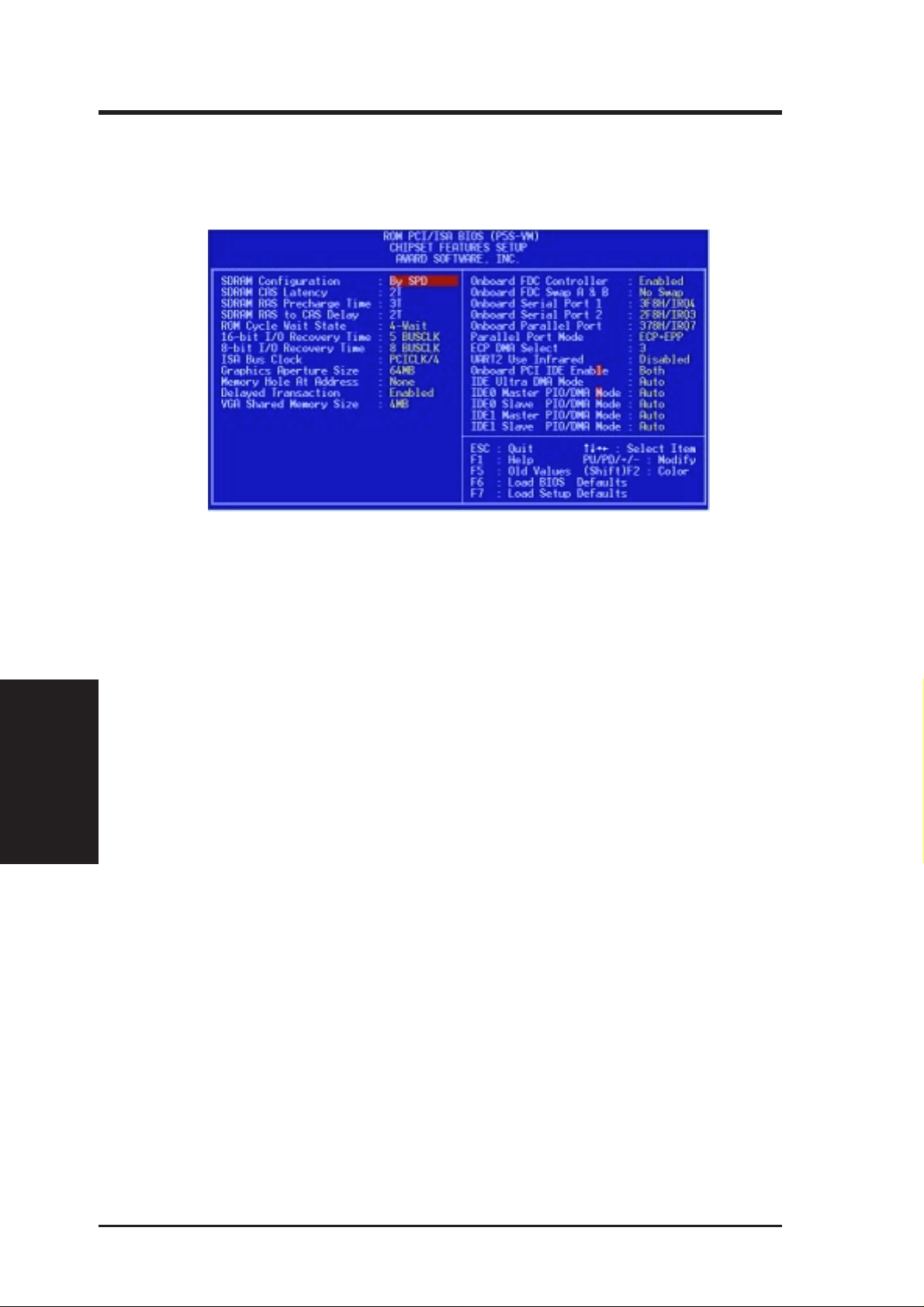

Chipset Features Setup ............................................................... 46

Details of Chipset Features Setup......................................... 46

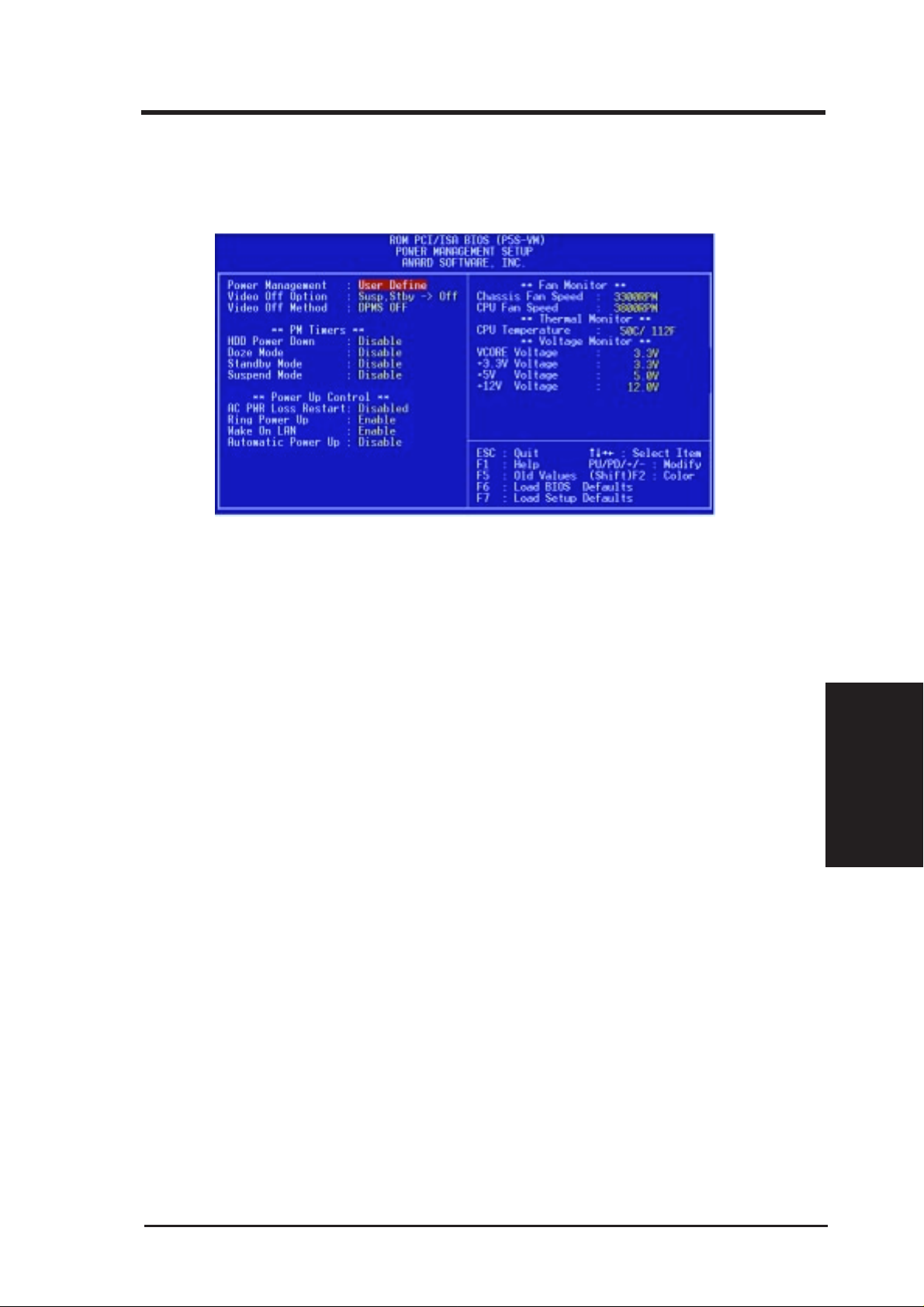

Power Management Setup.......................................................... 49

Details of Power Management Setup ................................... 49

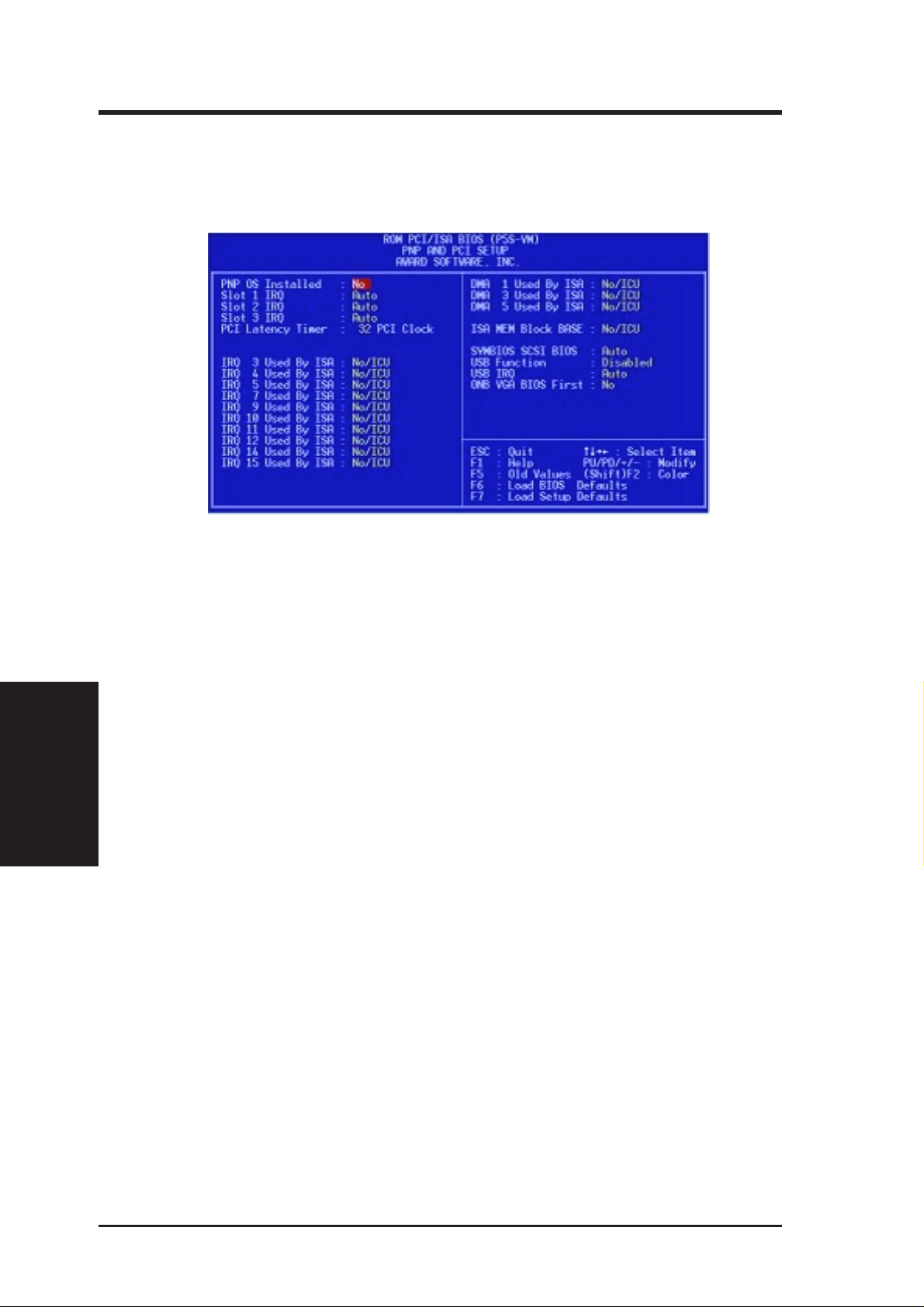

PNP and PCI Setup .................................................................... 52

Details of PNP and PCI Setup .............................................. 52

4 ASUS P5S-VM User’s Manual

CONTENTS

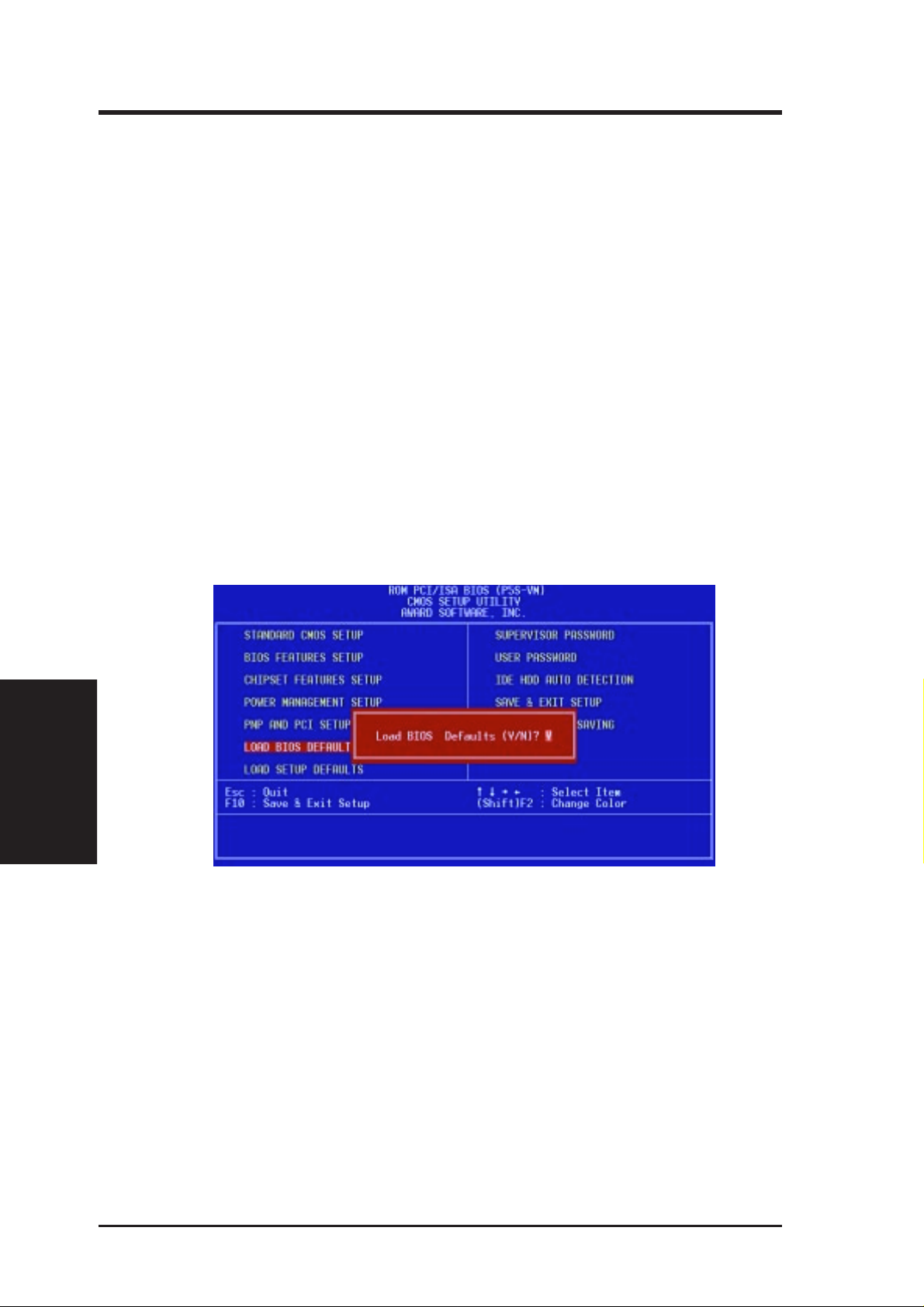

Load BIOS Defaults ................................................................... 54

Load Setup Defaults ................................................................... 54

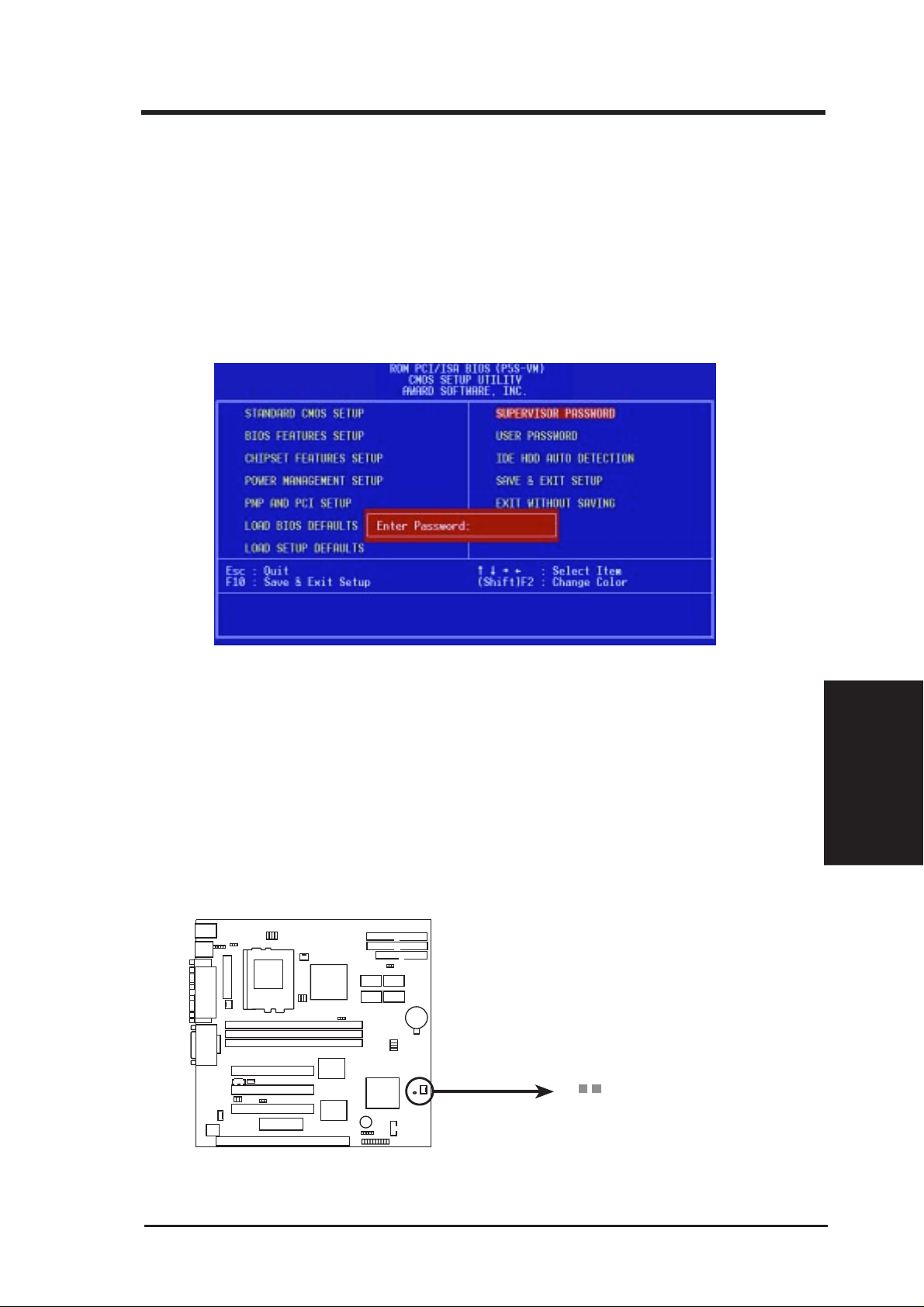

Supervisor Password and User Password .................................. 55

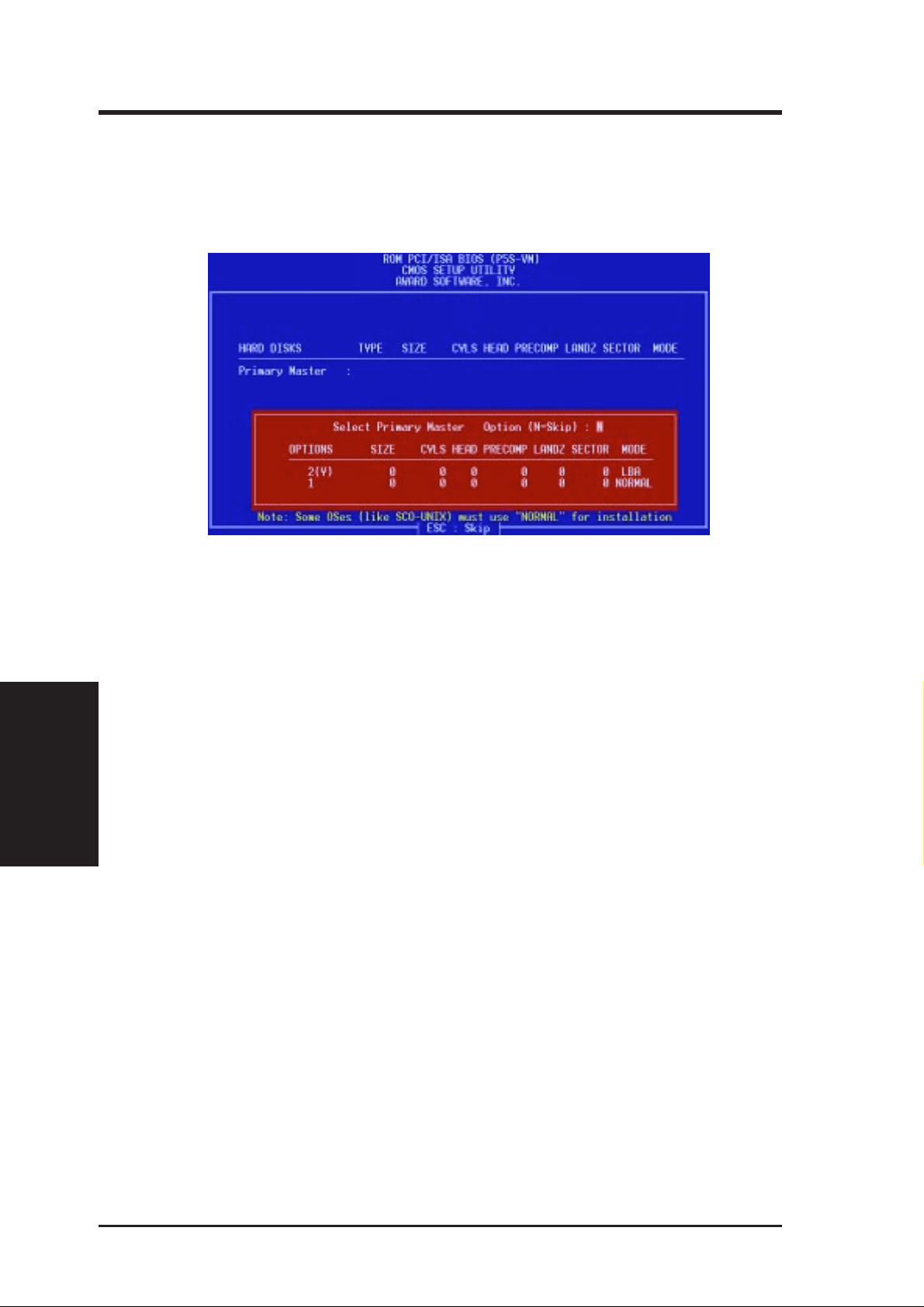

IDE HDD Auto Detection .......................................................... 56

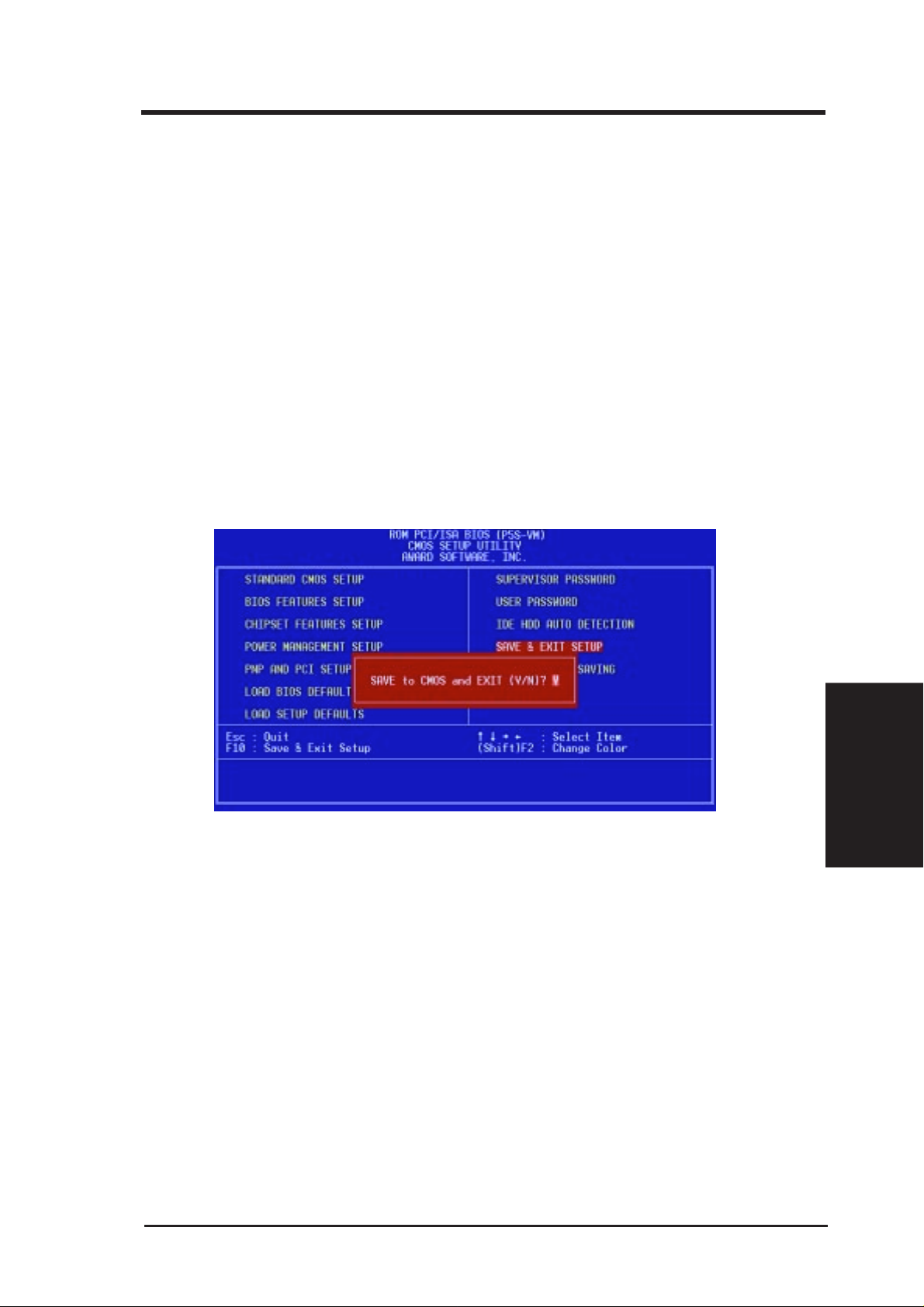

Save & Exit Setup ...................................................................... 57

Exit Without Saving ................................................................... 57

V. SOFTWARE SETUP ...................................................................... 61

Operating Systems ........................................................................... 61

Windows 98 First Time Installation ........................................... 61

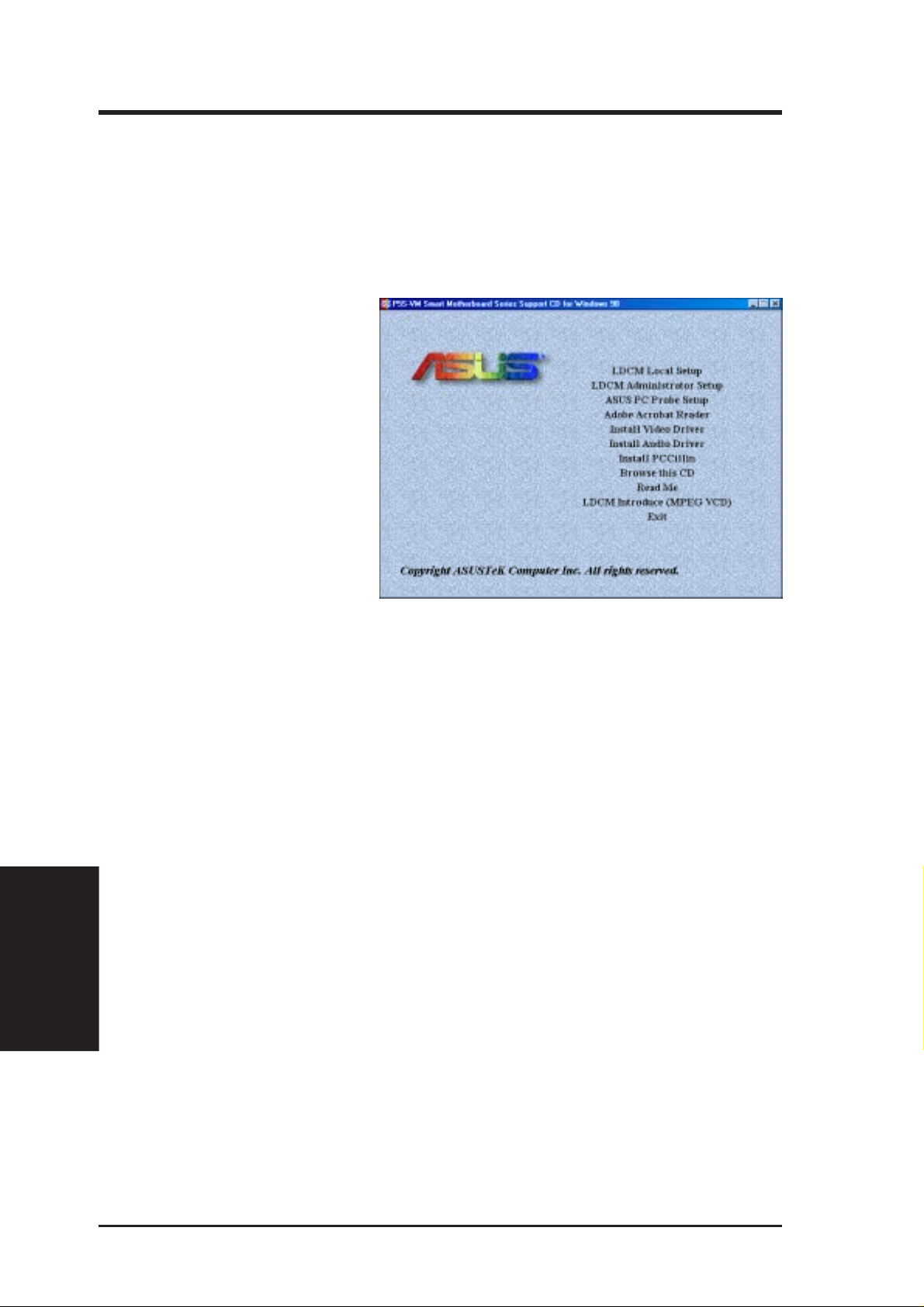

P5S-VM Support CD ....................................................................... 62

Installation Menu ....................................................................... 62

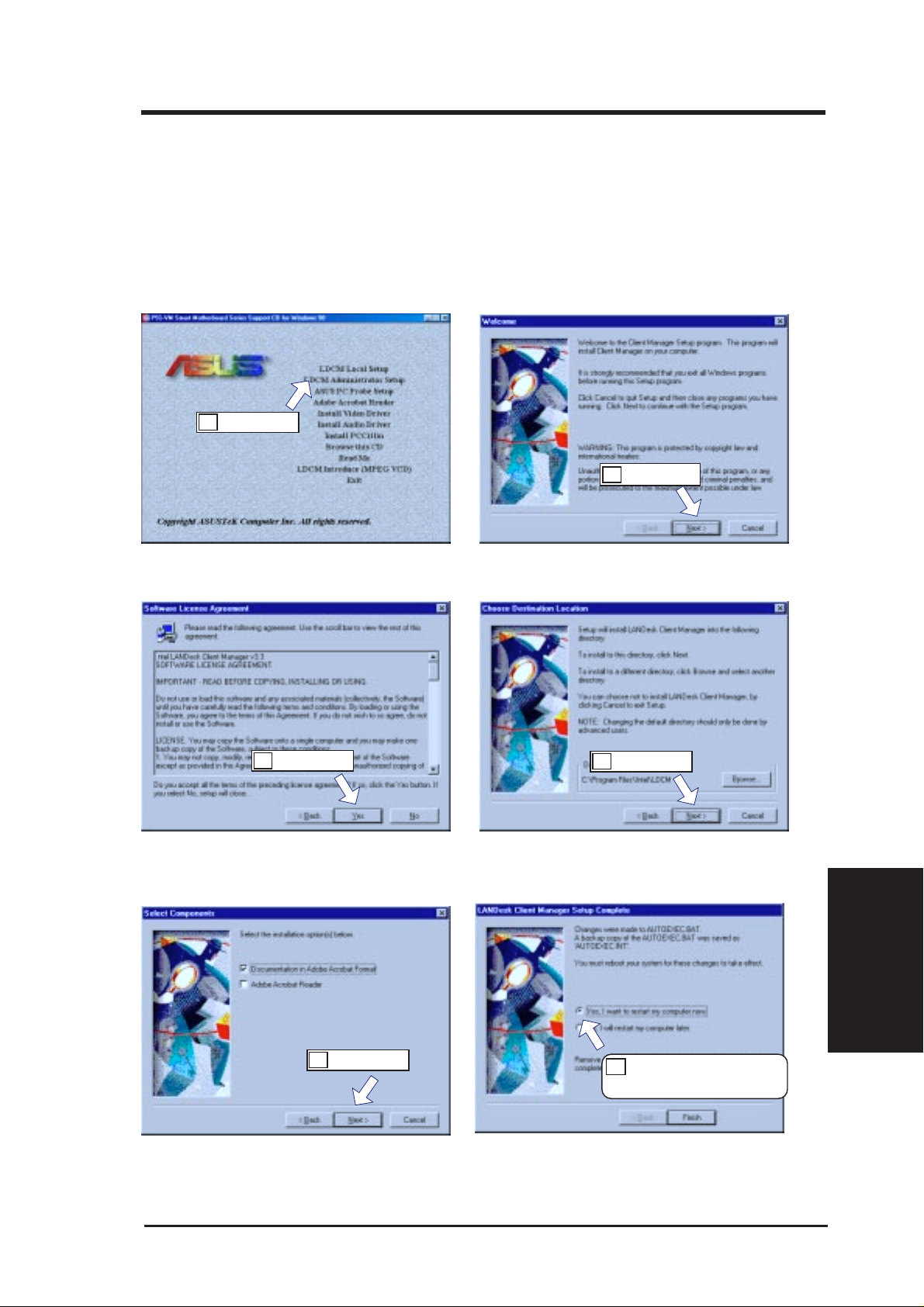

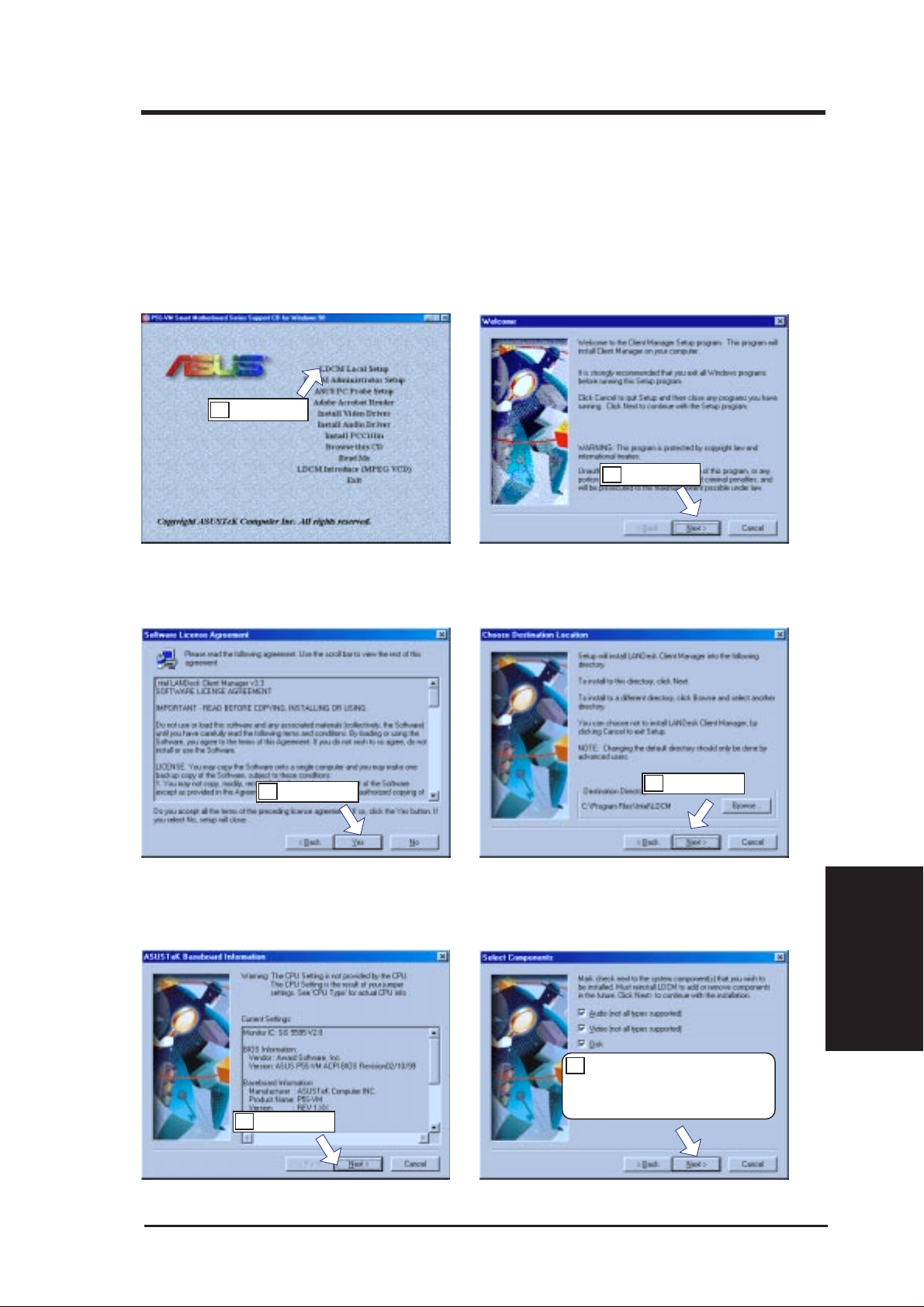

LDCM Local Setup.......................................................................... 63

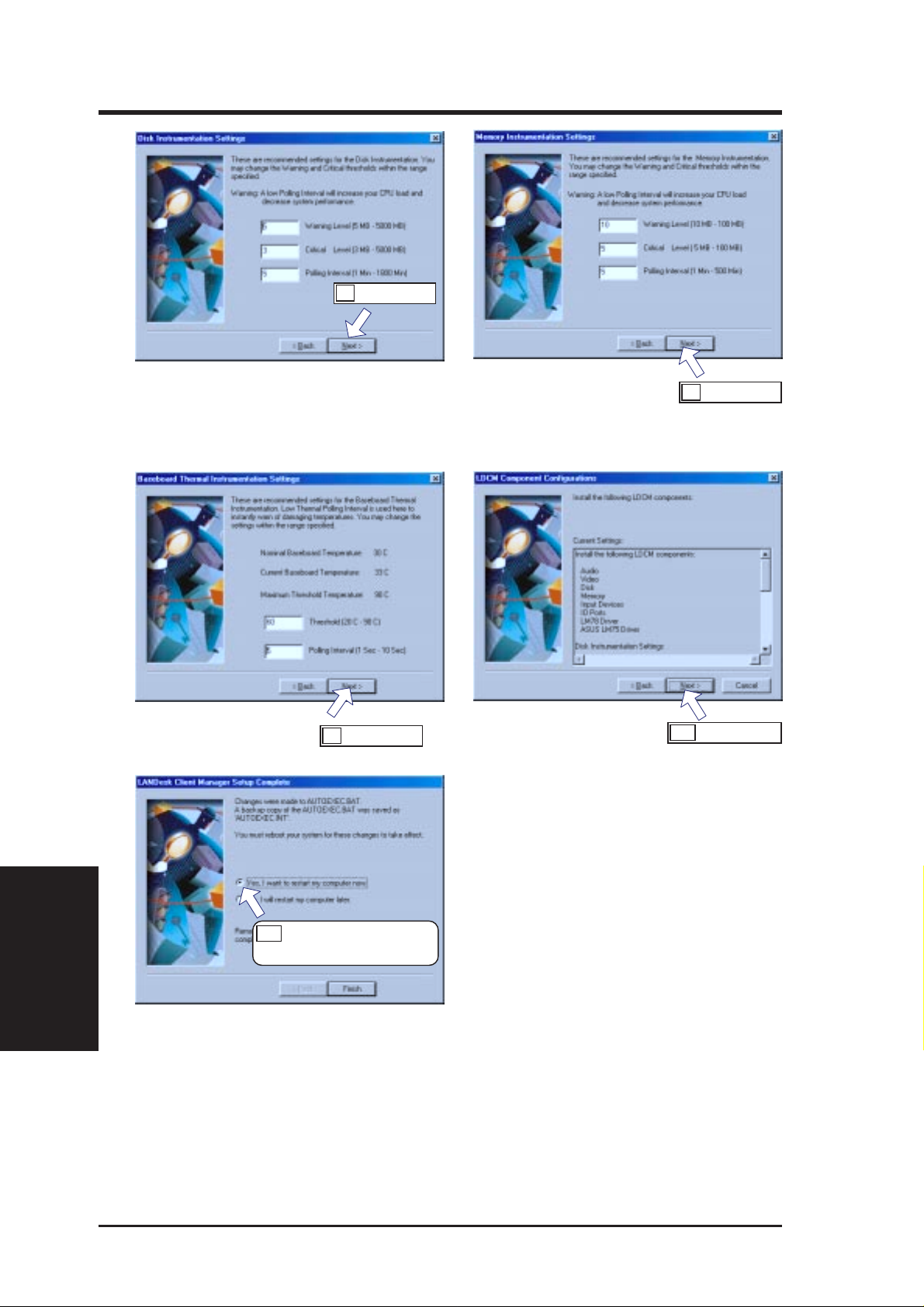

LDCM Administrator Setup............................................................. 65

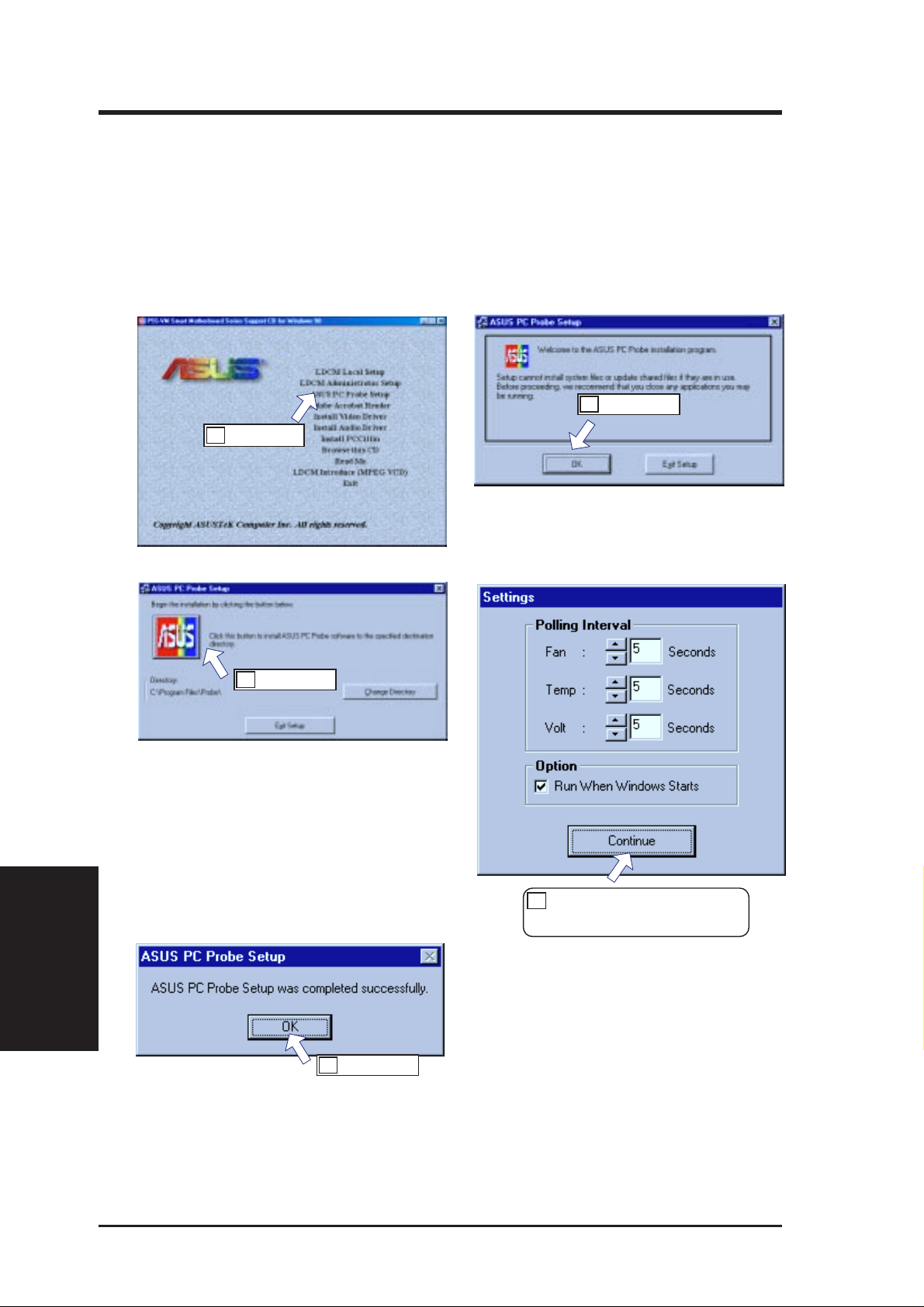

ASUS PC Probe Setup ..................................................................... 66

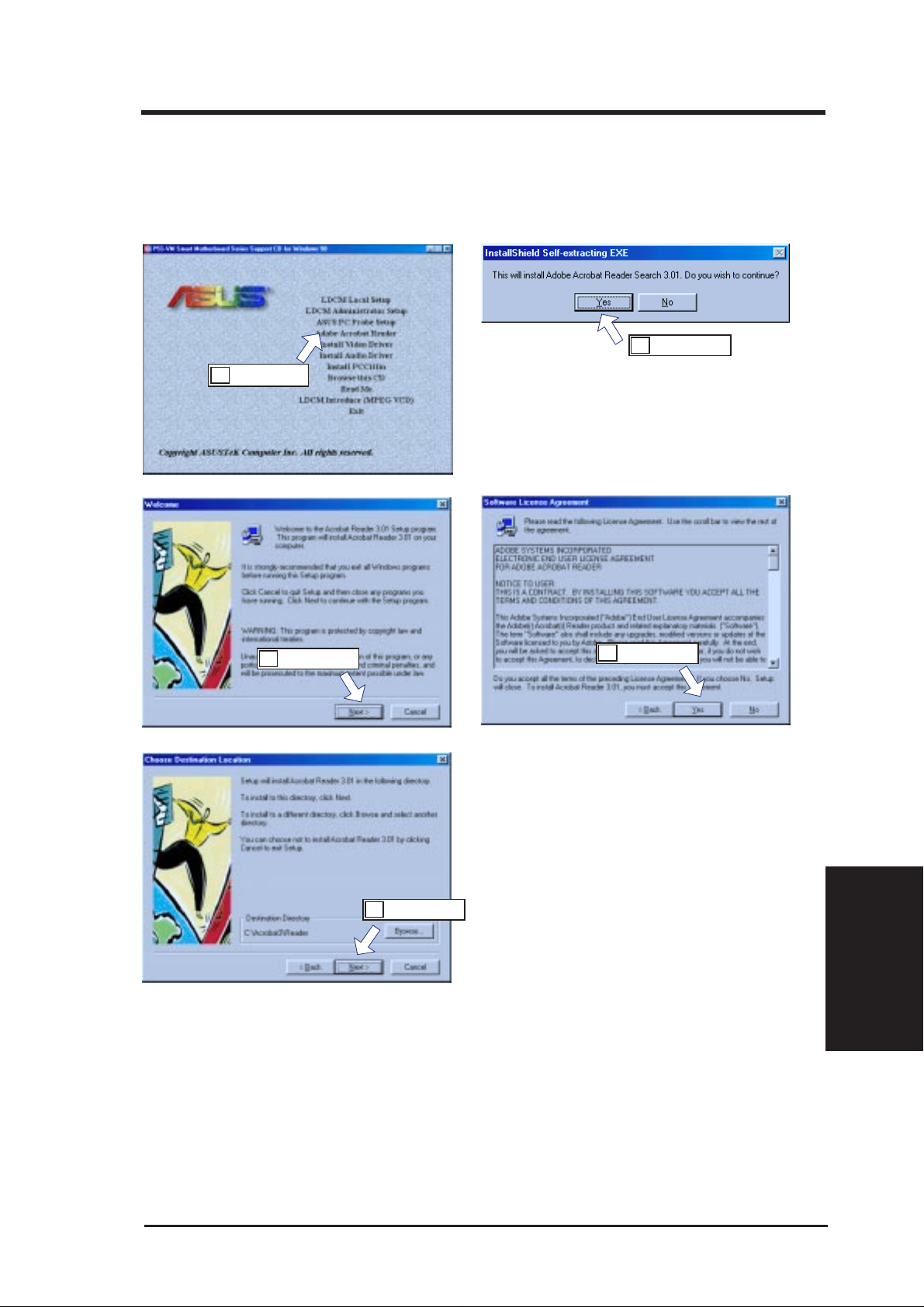

Adobe Acrobat Reader..................................................................... 67

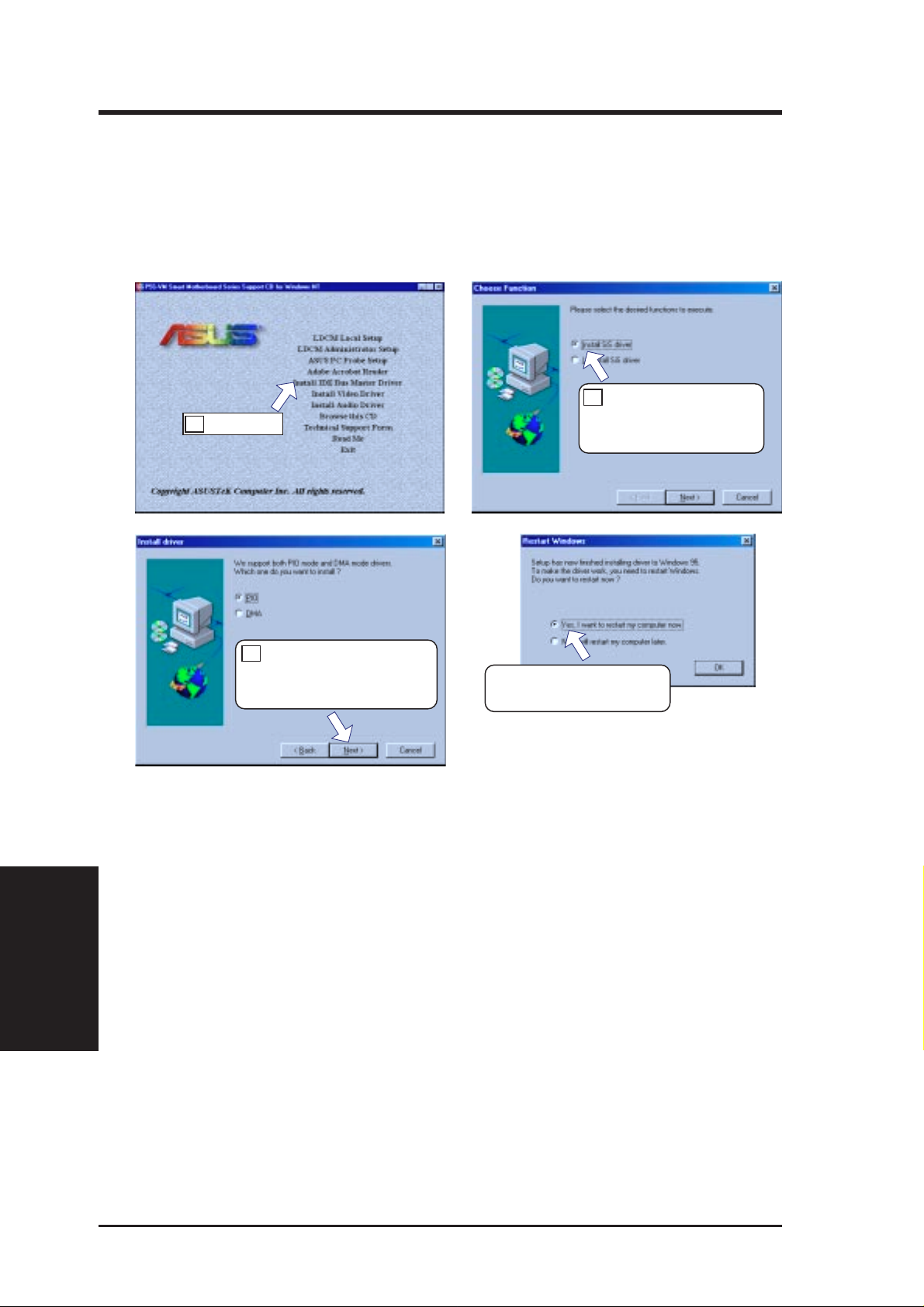

Install IDE Bus Master Driver ......................................................... 68

Install V ideo Driver.......................................................................... 69

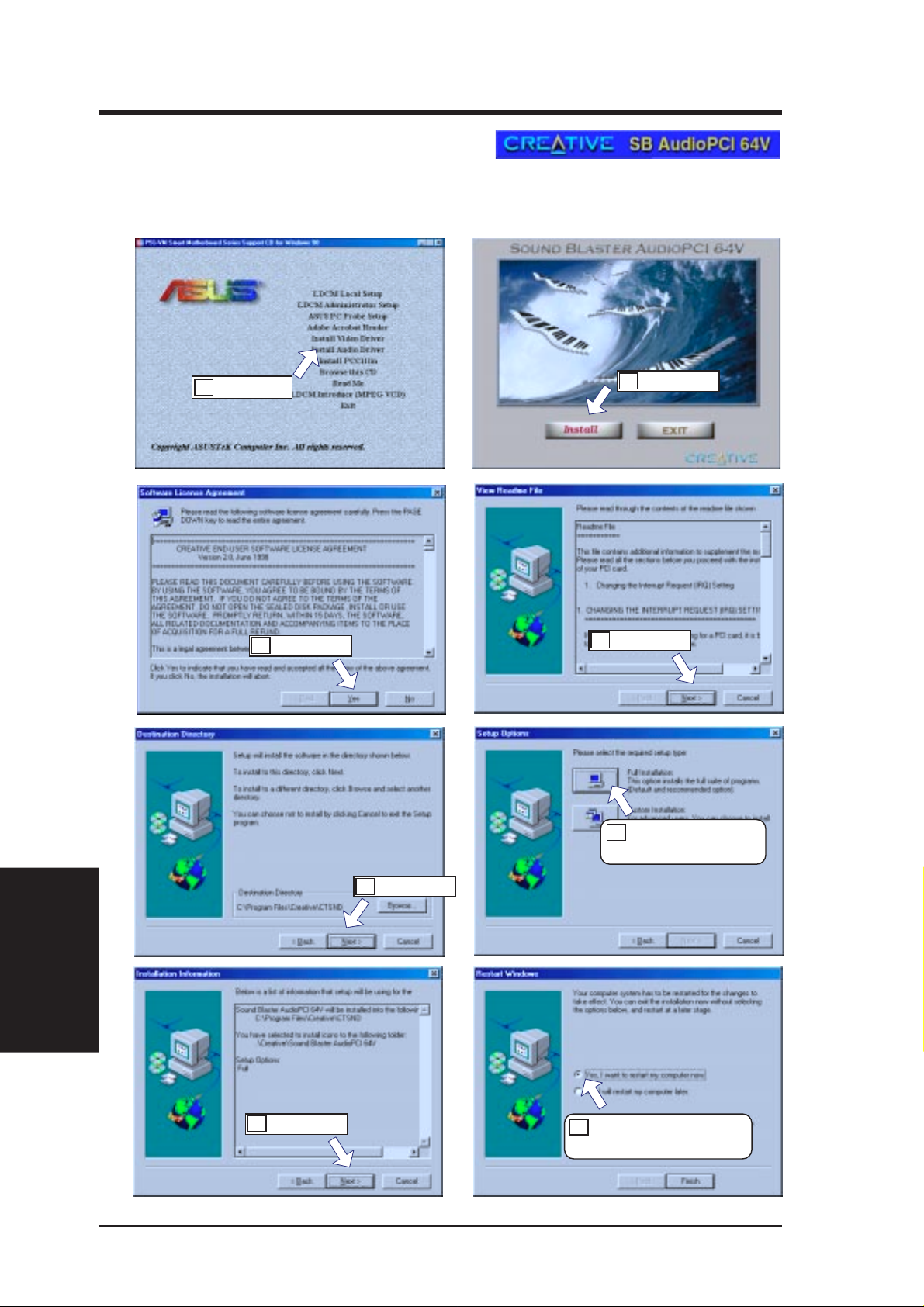

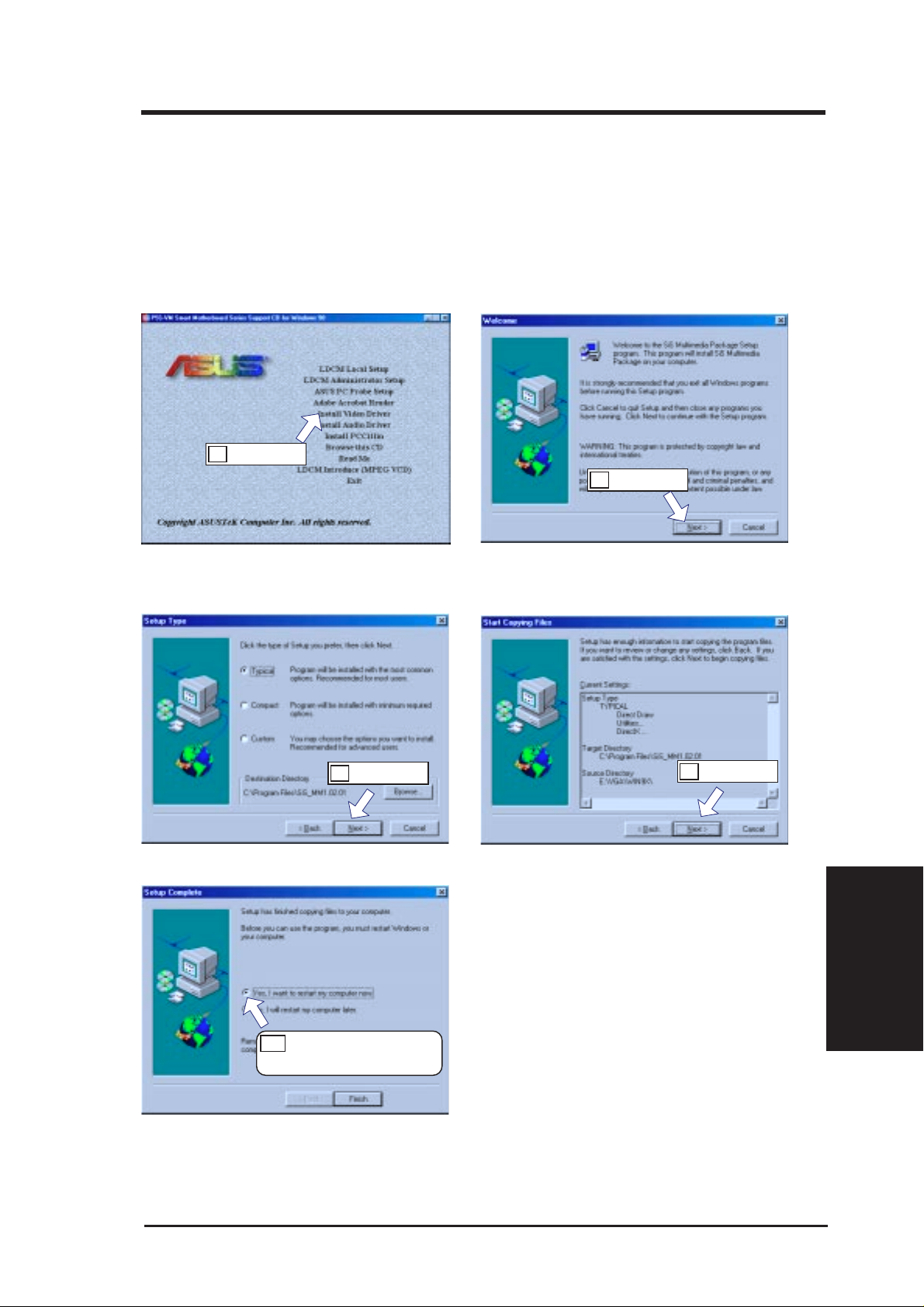

Install Audio Driver ......................................................................... 70

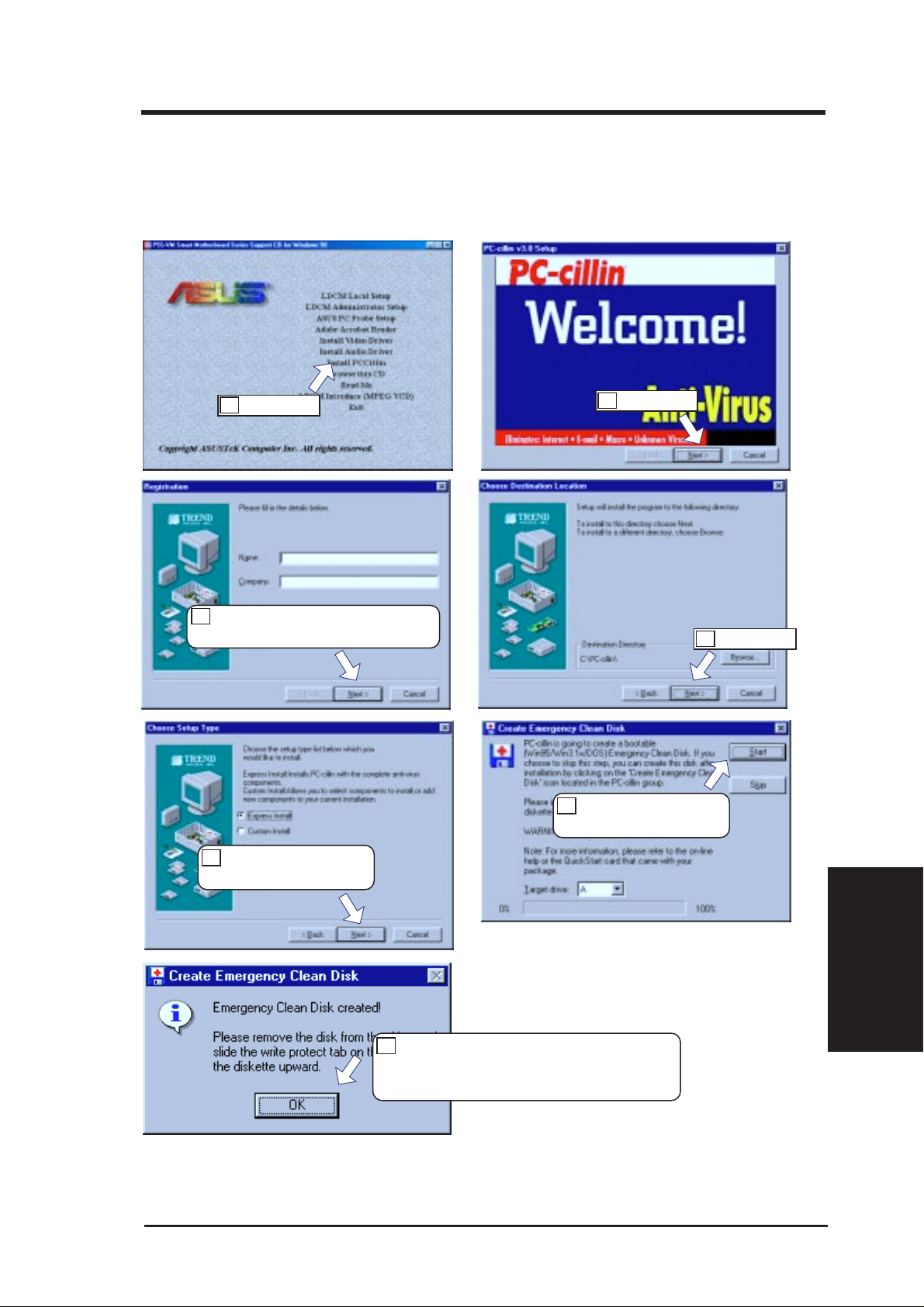

Install PC-Cillin ............................................................................... 71

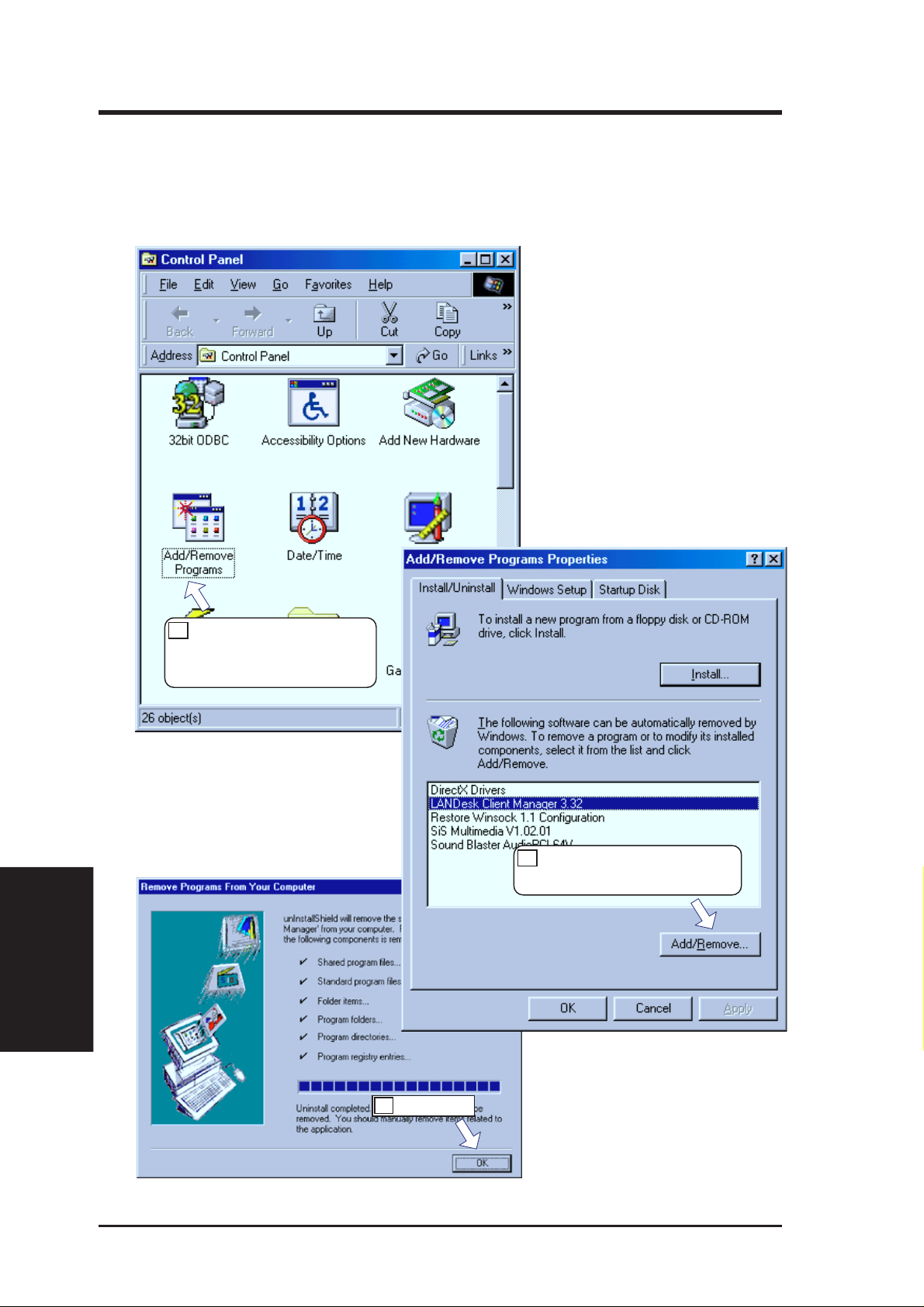

Uninstalling Programs ..................................................................... 72

VI. SOFTWARE REFERENCE......................................................... 73

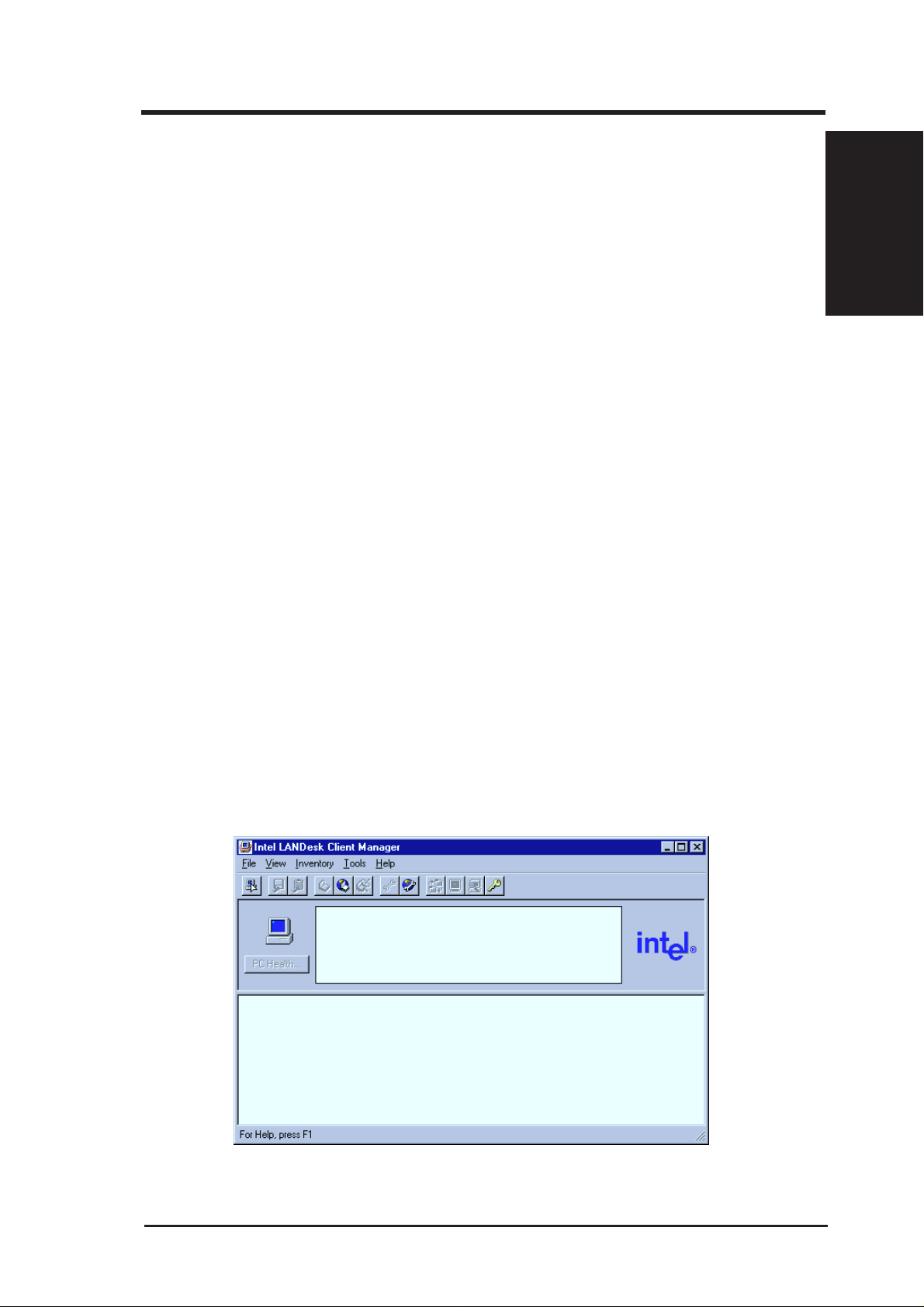

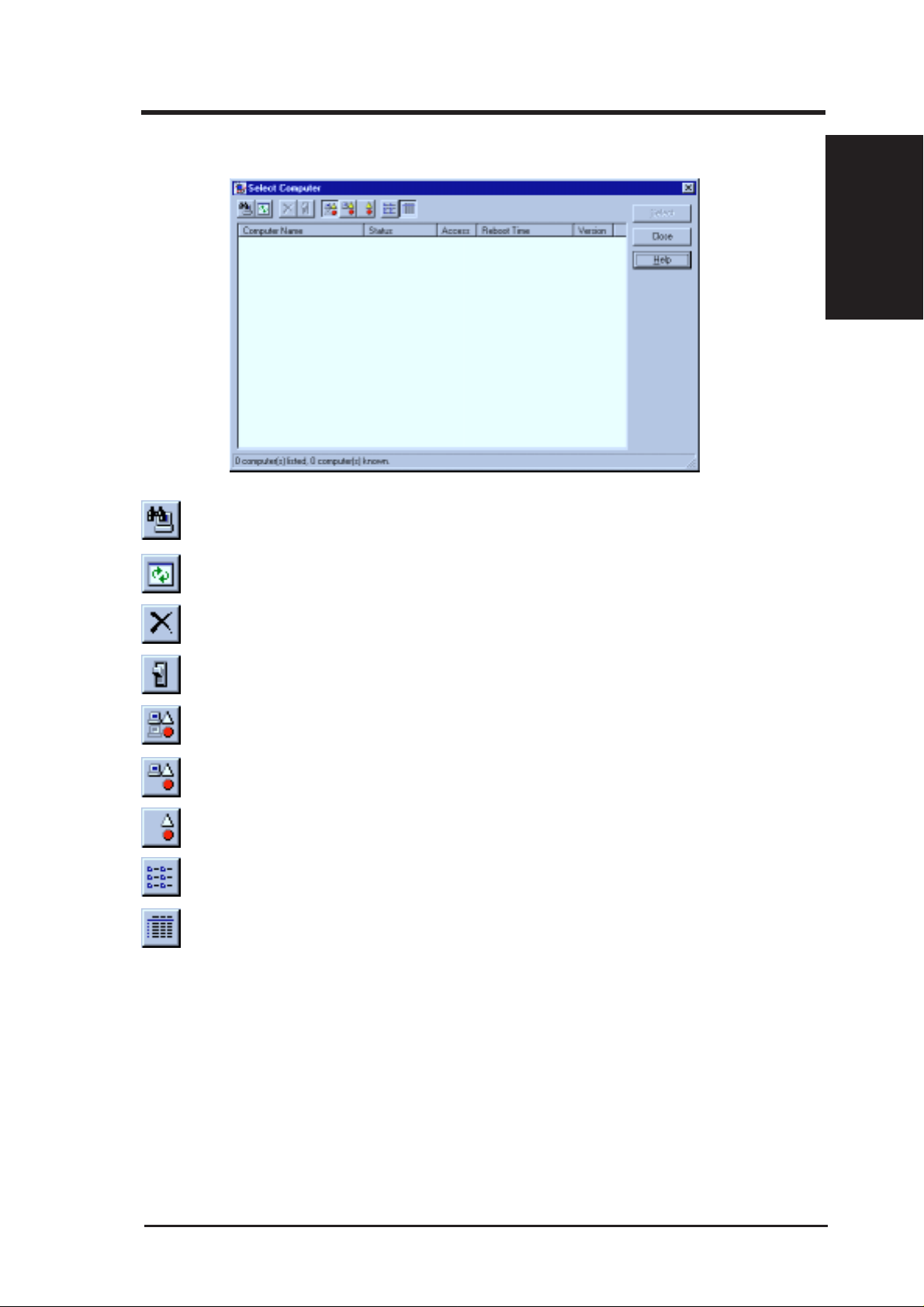

Intel LANDesk Client Manager....................................................... 73

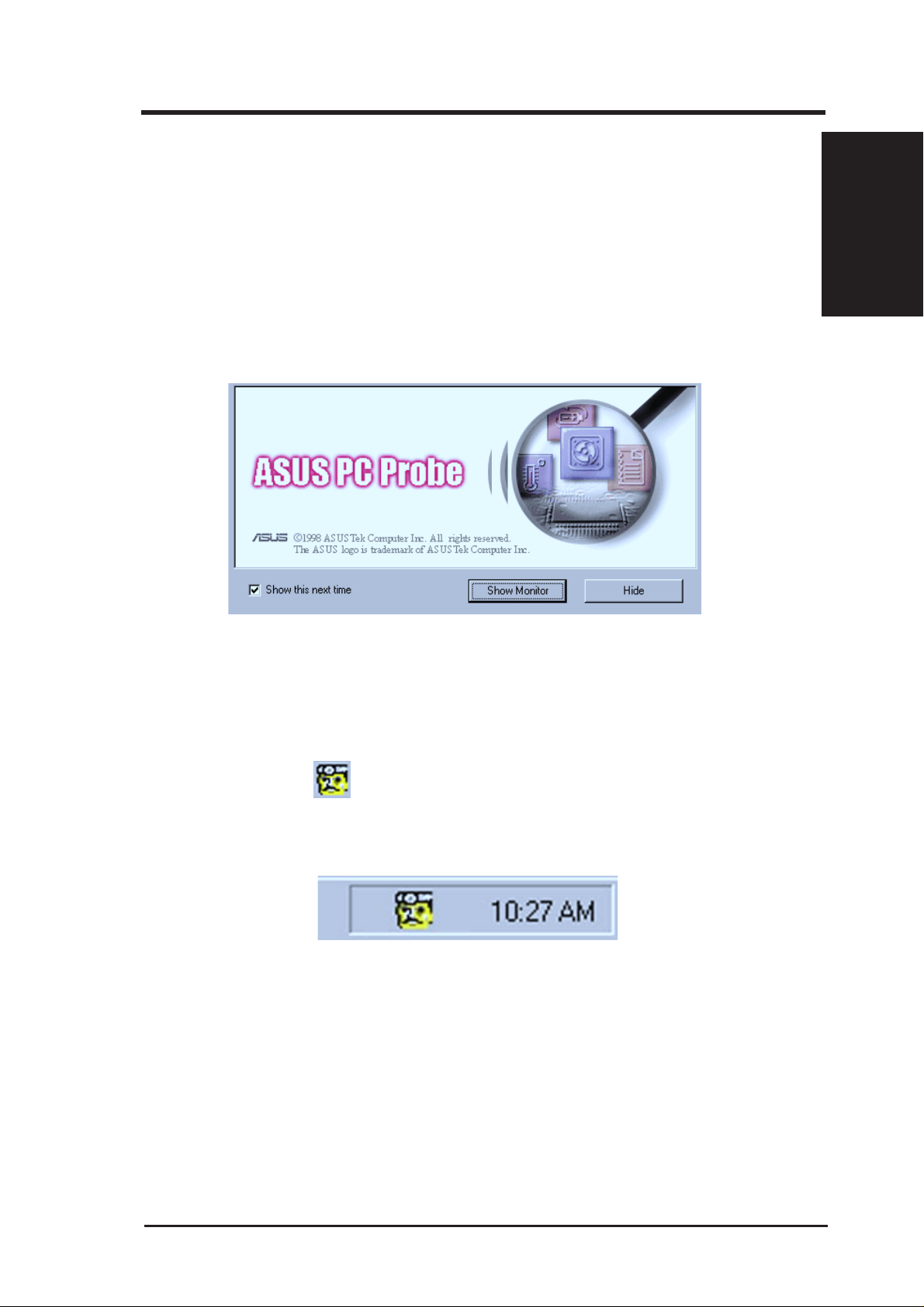

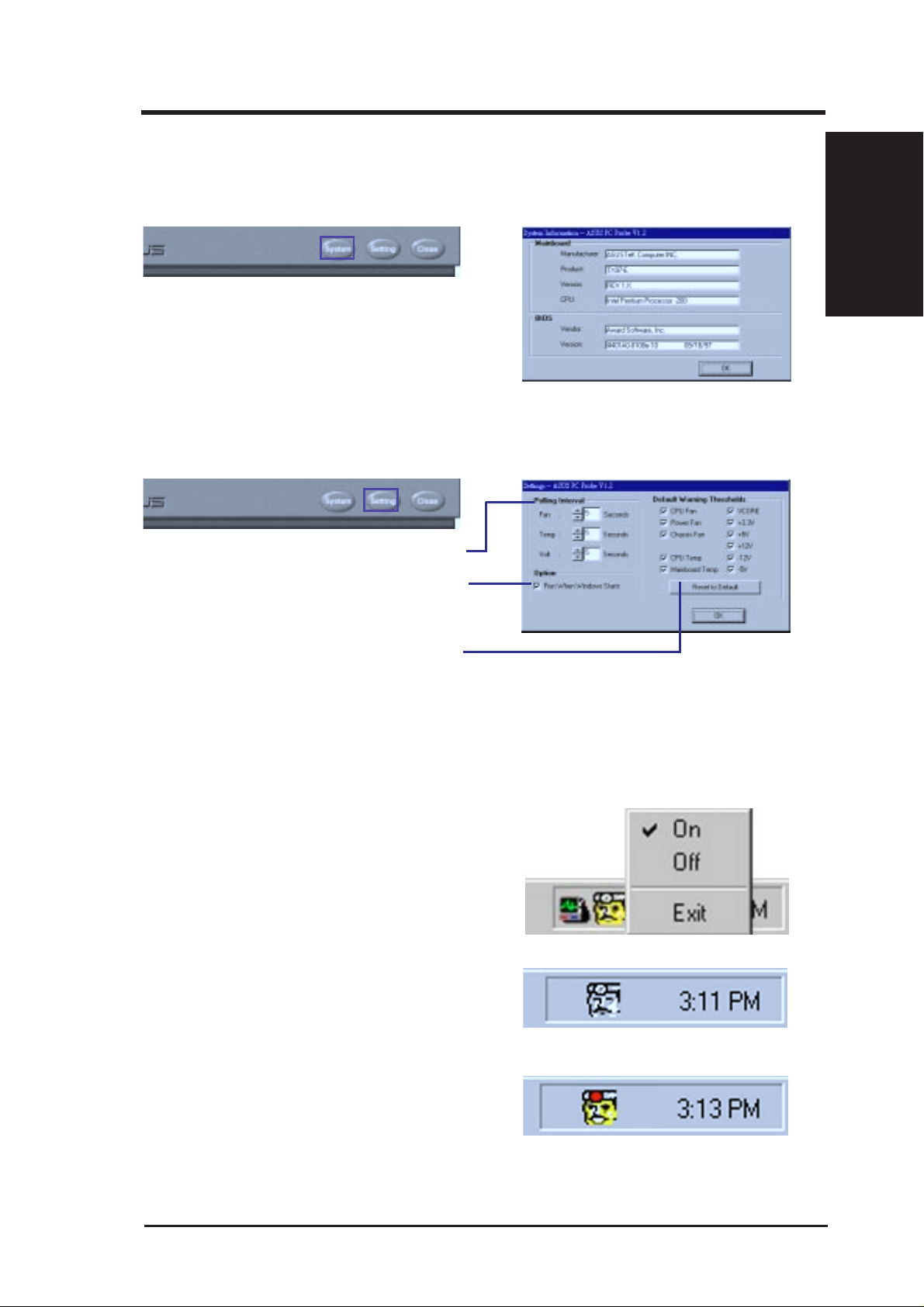

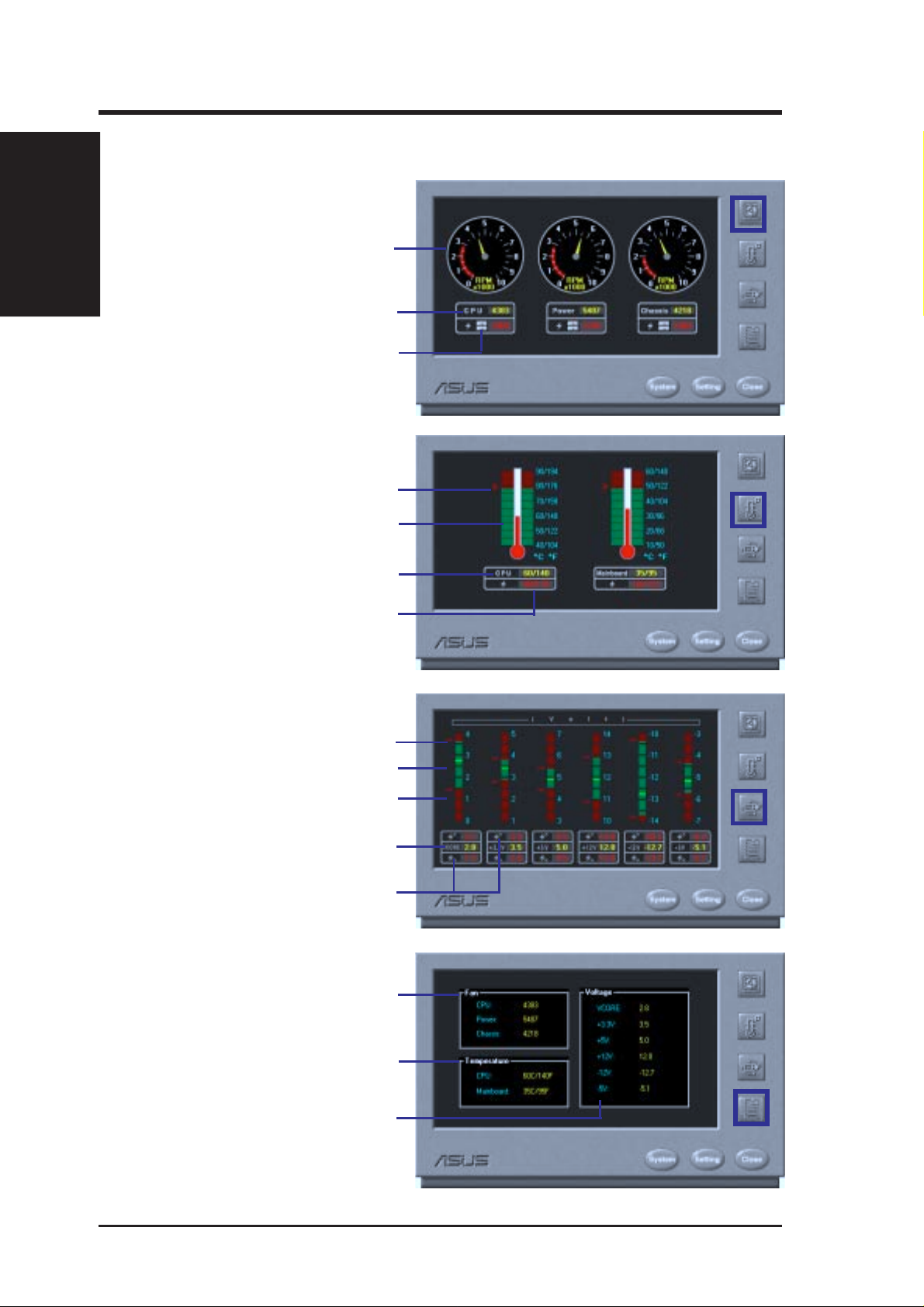

ASUS PC Probe ............................................................................... 79

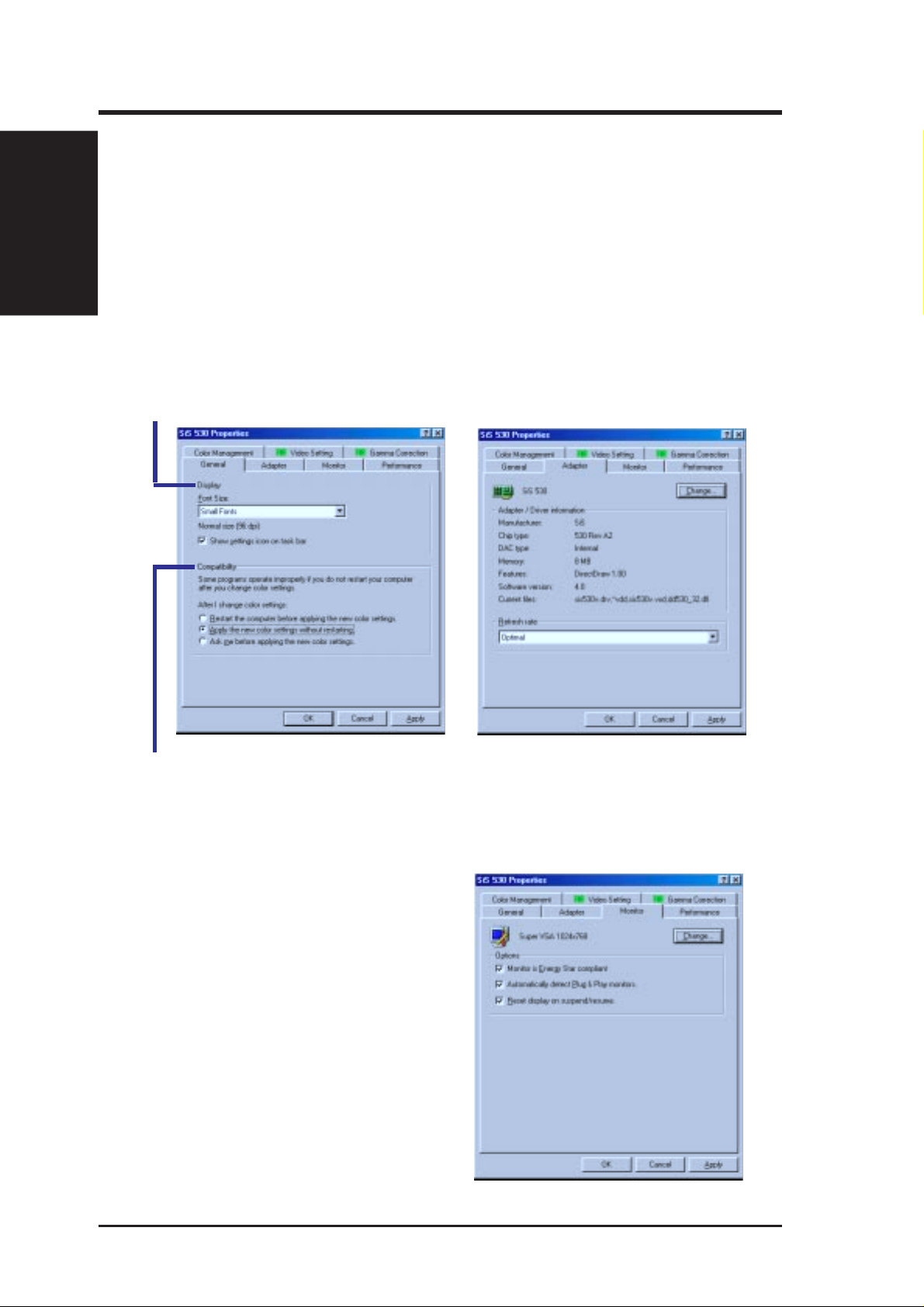

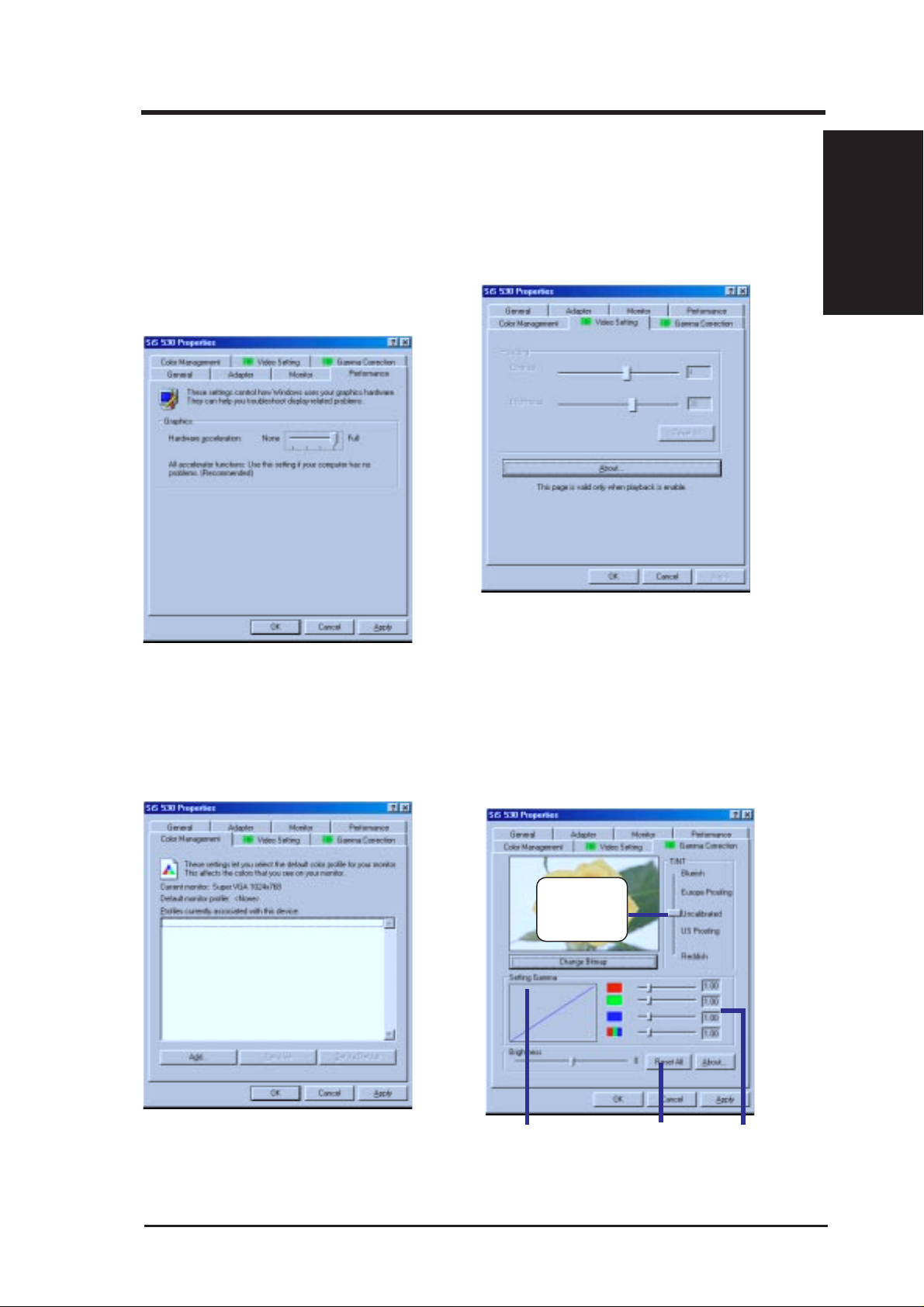

SiS 530 Display Properties .............................................................. 82

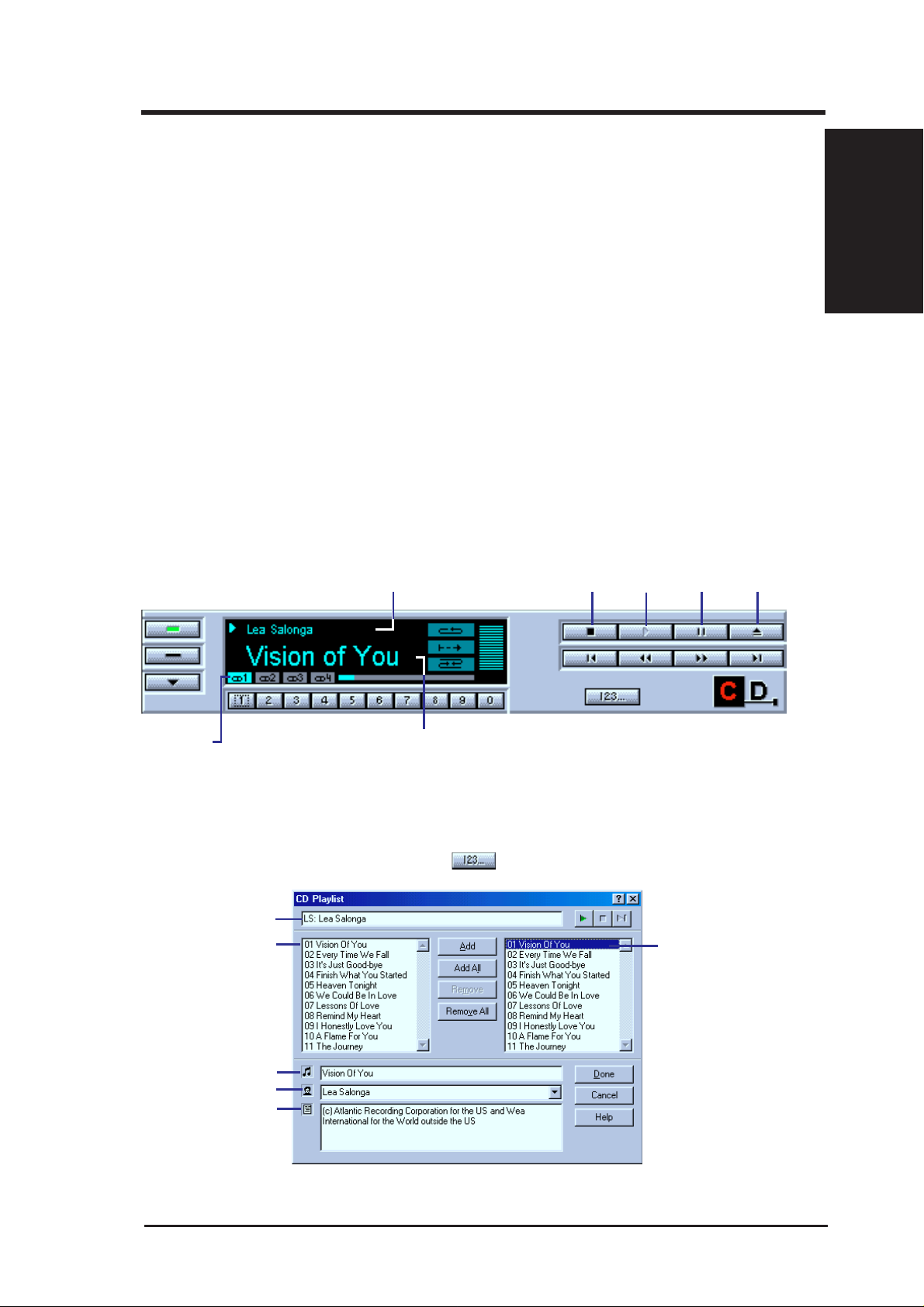

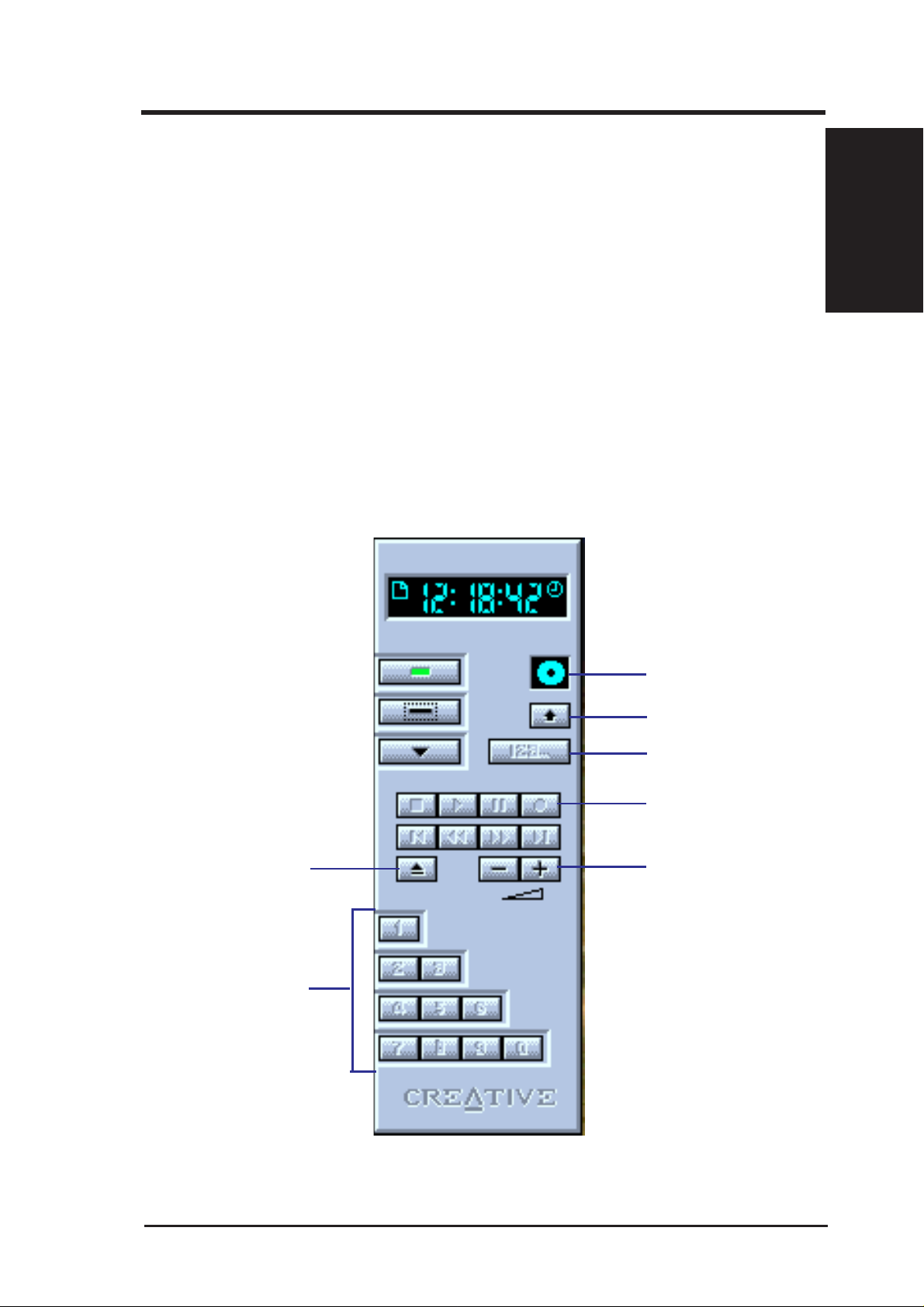

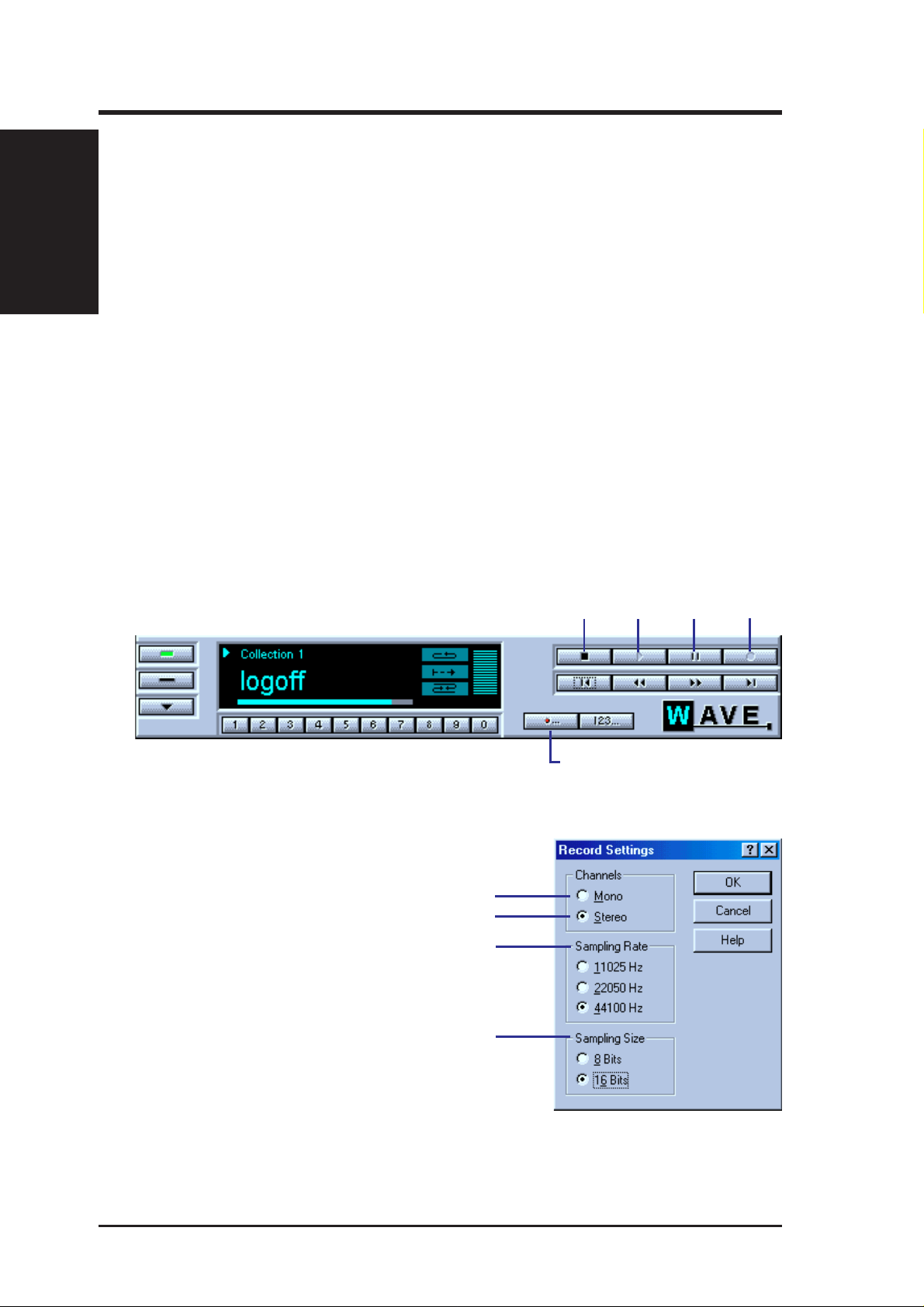

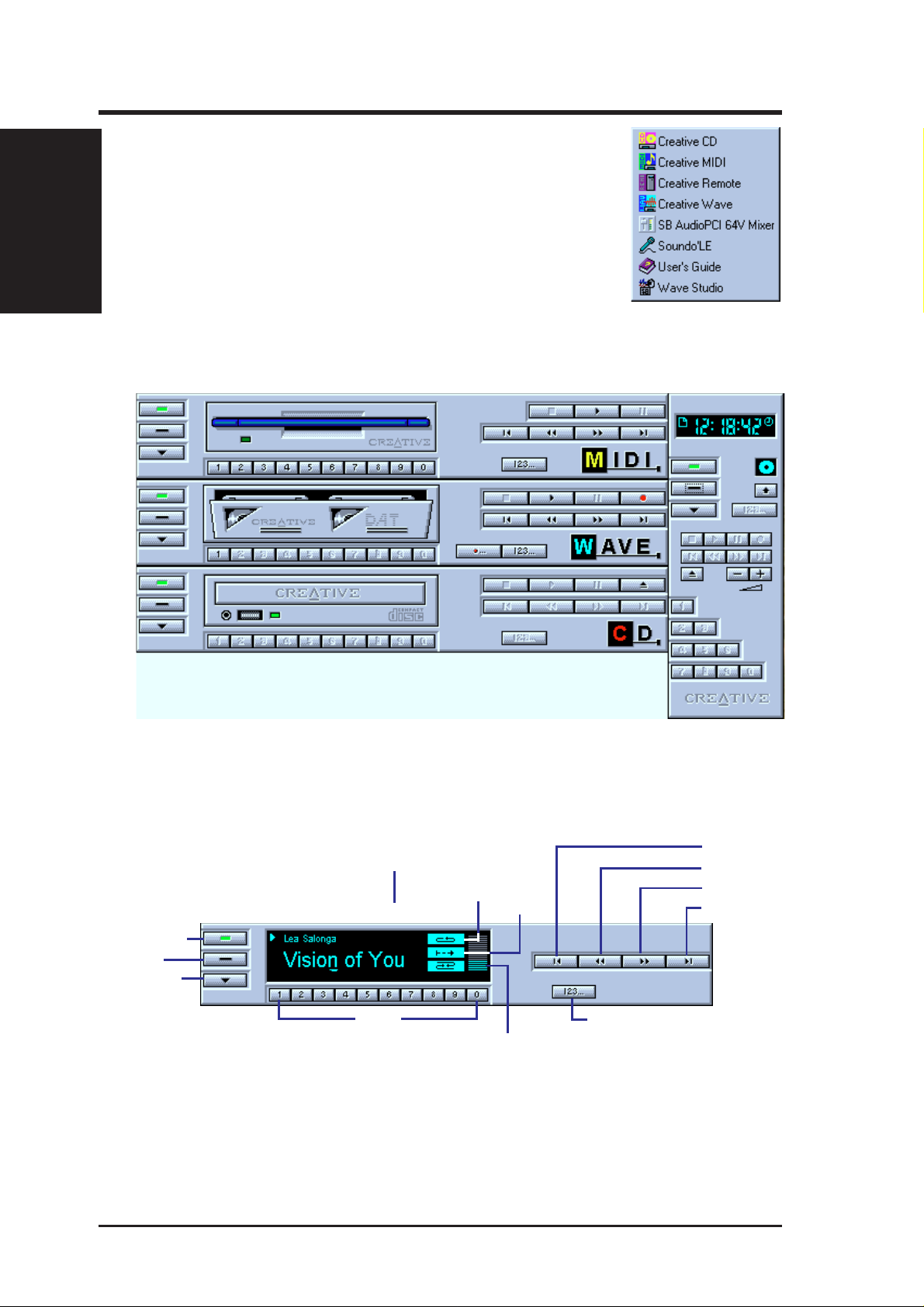

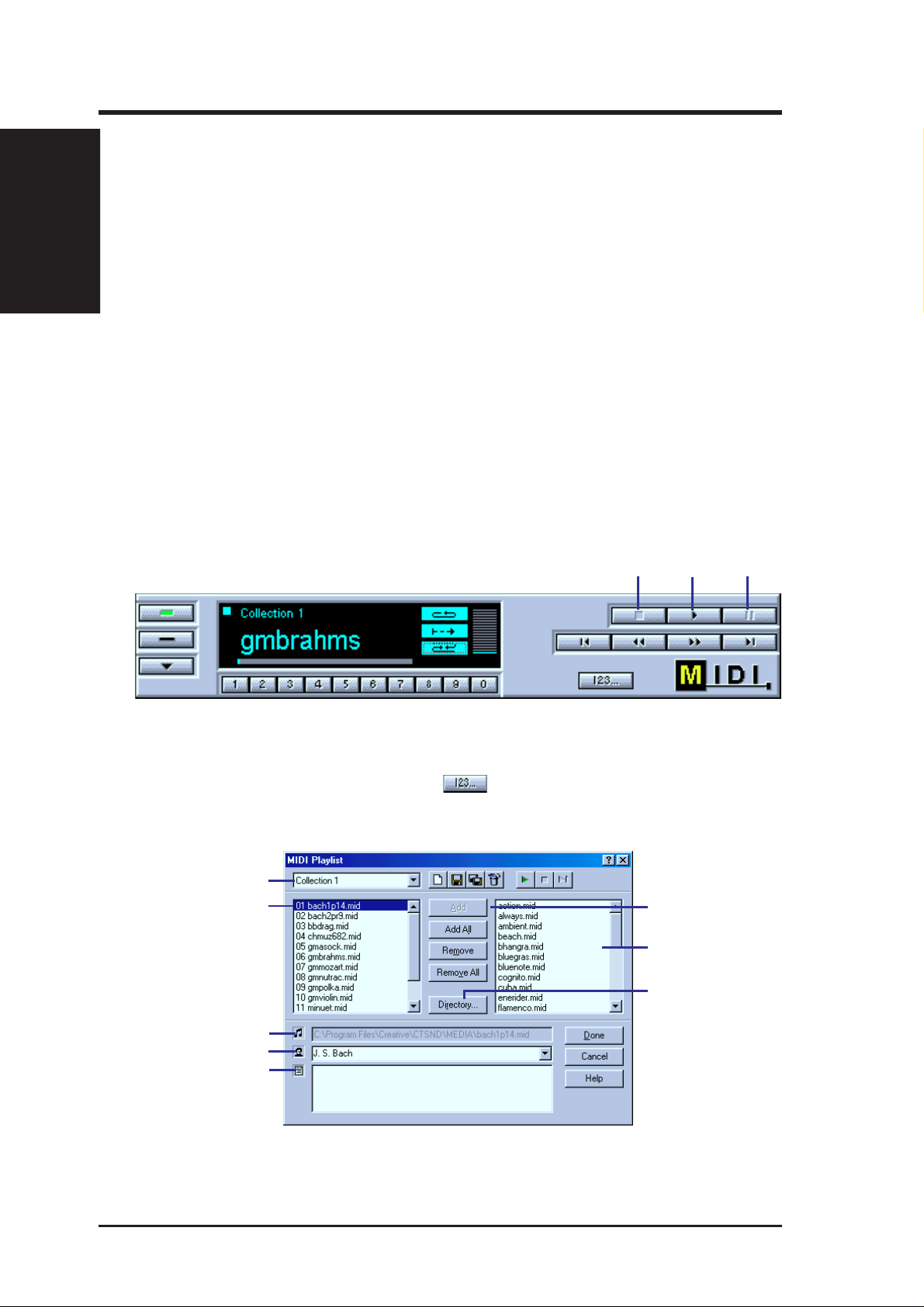

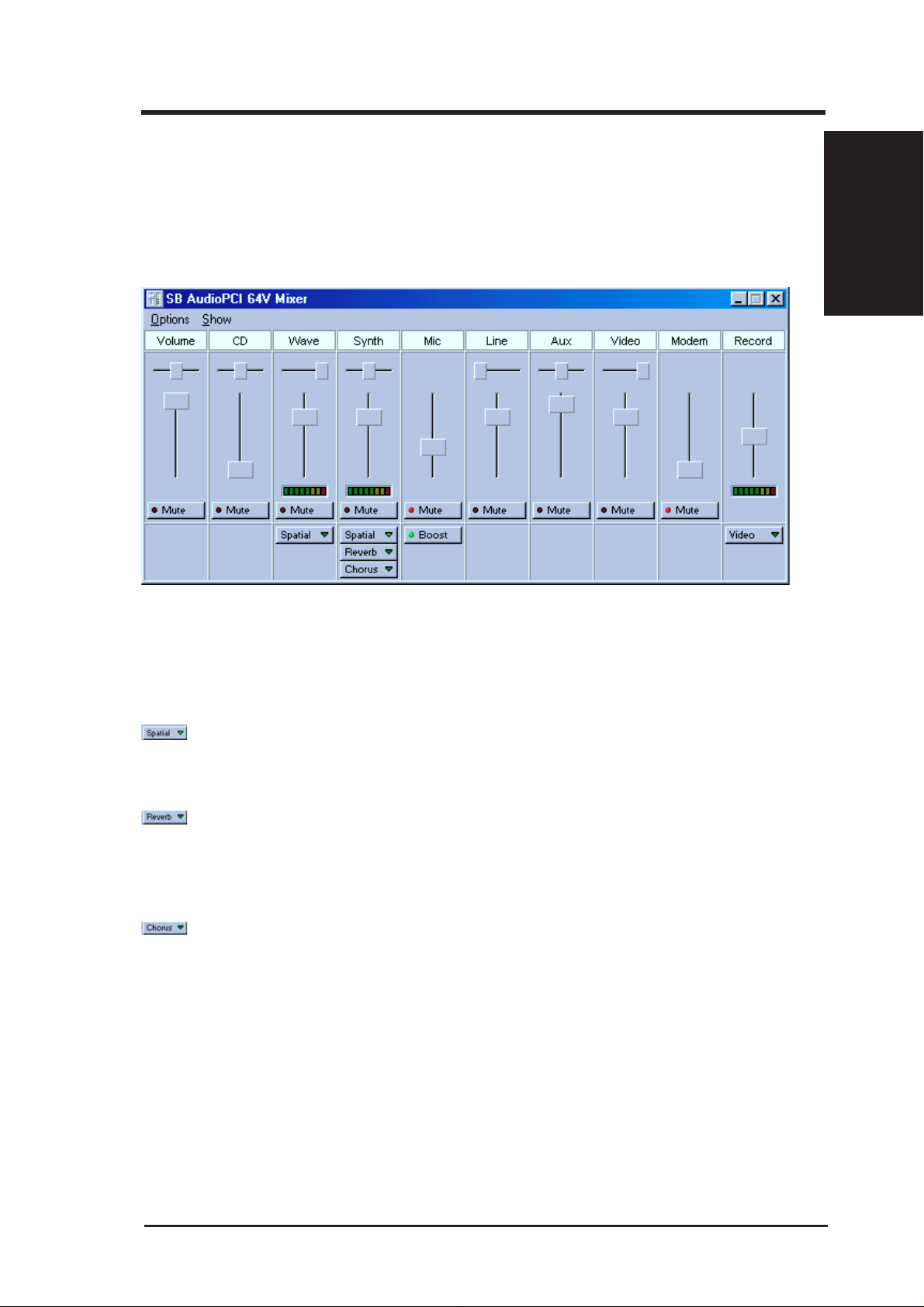

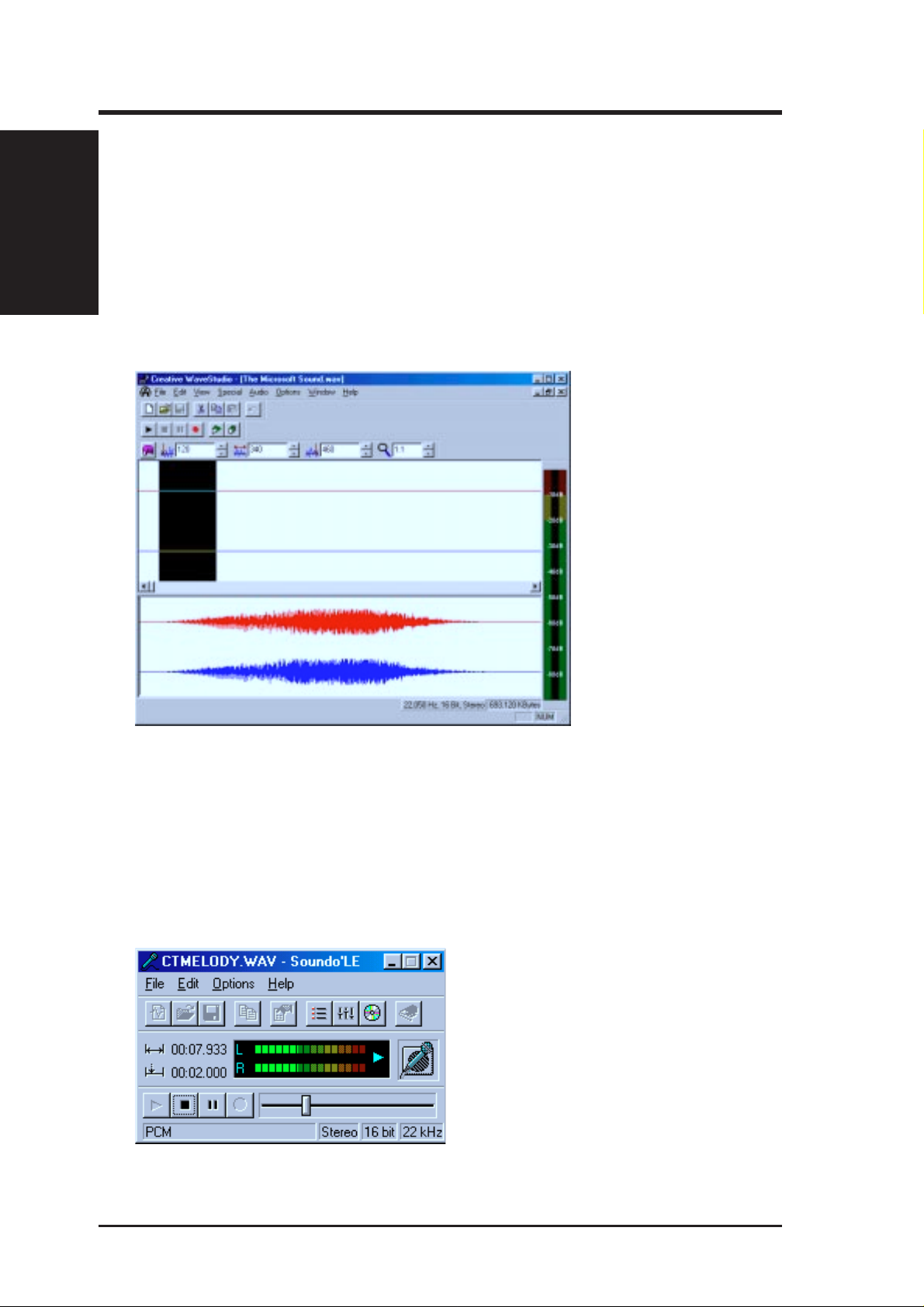

Creative Multimedia Decks ............................................................. 84

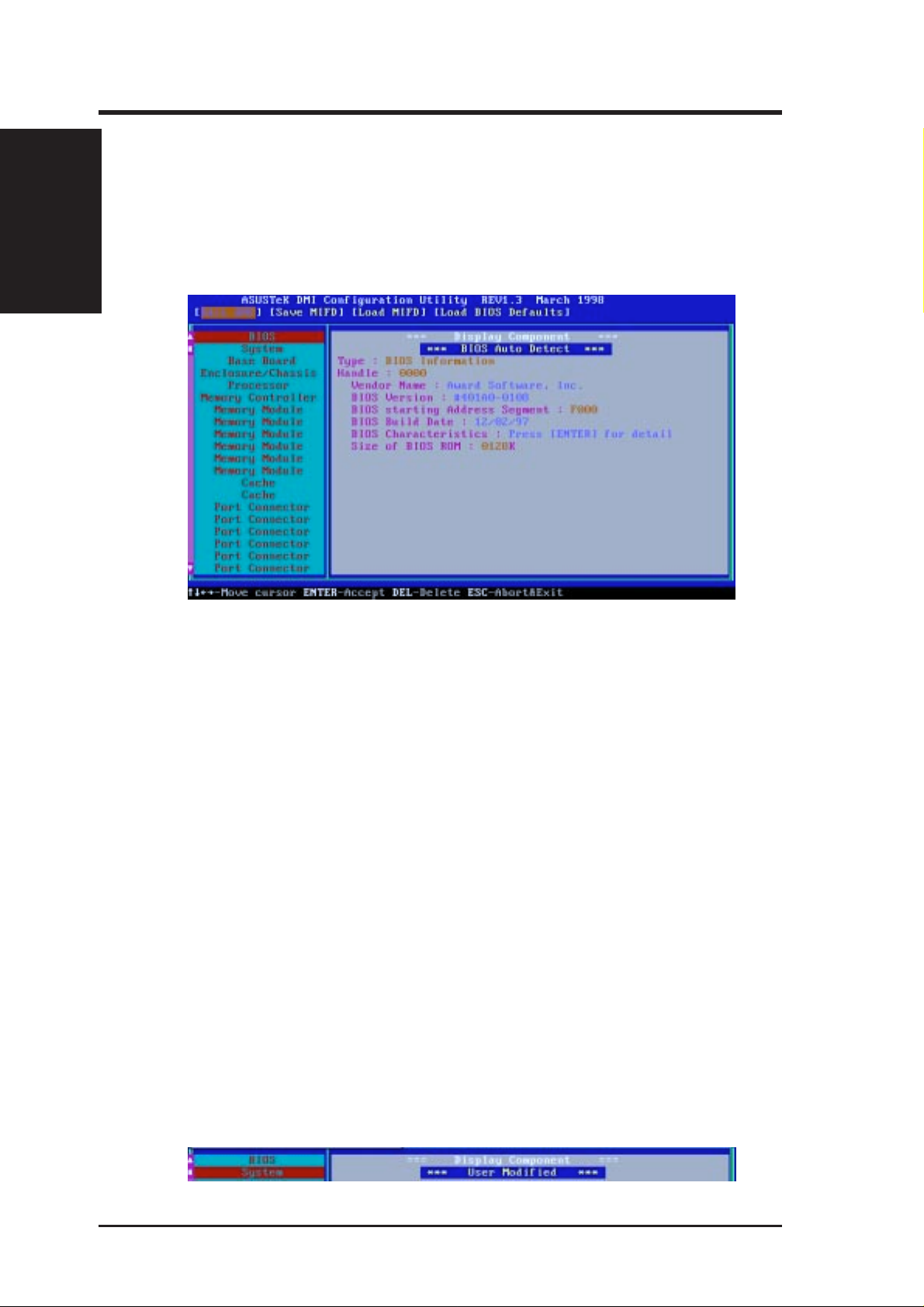

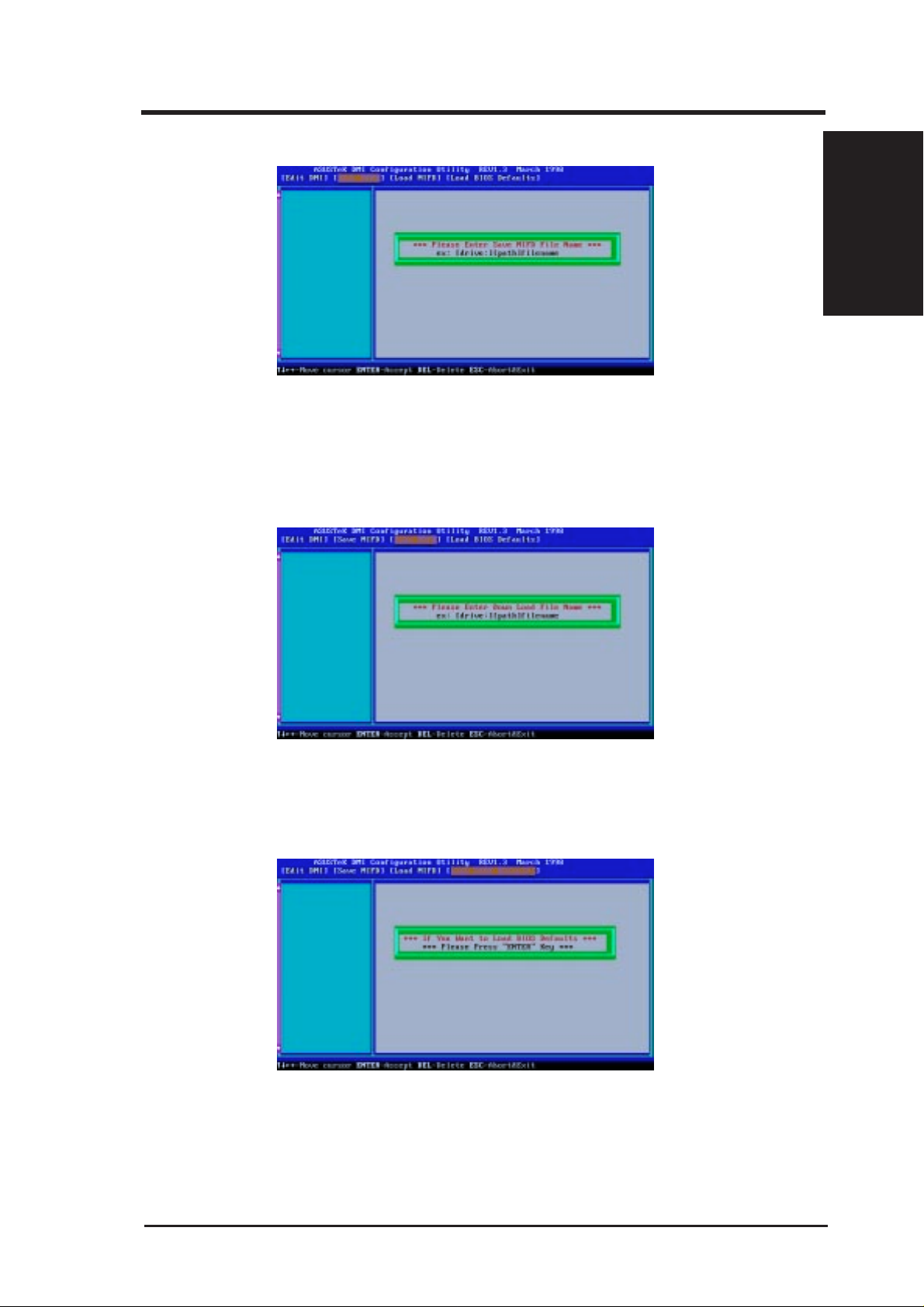

Desktop Management Interface (DMI)............................................ 91

VII. APPENDIX................................................................................... 95

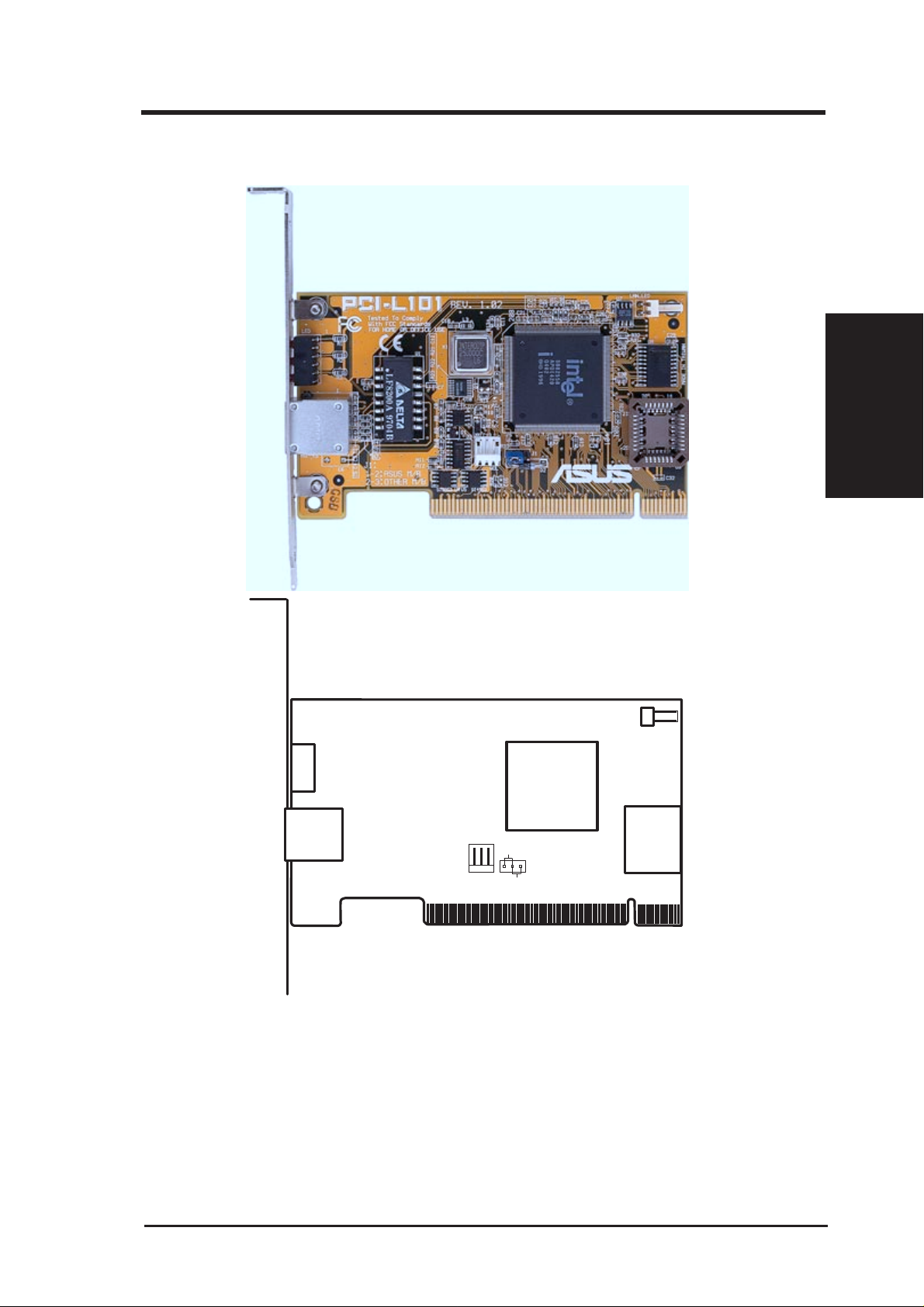

ASUS PCI-L101 Fast Ethernet Card ............................................... 95

Features ...................................................................................... 96

Software Driver Support ............................................................ 96

Question and Answer ................................................................. 96

ASUS P5S-VM User’s Manual 5

FCC & DOC COMPLIANCE

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that
may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer’s instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer­ence by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications to this product not expressly ap-

proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

6 ASUS P5S-VM User’s Manual

I. INTRODUCTION

How this Manual is Organized

Introduction Manual information and checklist

I.

Features Information on motherboard features

II.

Installation Instructions on motherboard/jumper setup

III.

BIOS Setup Instructions on BIOS software setup

IV.

Software Setup Information on the included support software

V.

Software Reference References for the included support software

VI.

Appendix Optional items and general reference

VII.

Item Checklist

Check that your package is complete. If you discover damaged or missing items,
contact your retailer.

(1) ASUS Motherboard

Sections/Checklist

I. INTRODUCTION

(1) IDE ribbon cable for master and slave drives
(1) COM2 cable with bracket
(1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives
(1) Bag of spare jumpers
(1) Support CD with drivers and utilities
(1) Motherboard User’s manual

ASUS IrDA-compliant module (optional)
ASUS PCI-L101 Wake-On-LAN 10/100 ethernet card (optional)

ASUS P5S-VM User’s Manual 7

II. FEATURES

Features

II. FEATURES

ASUS P5S-VM Motherboard

The ASUS P5S-VM is carefully designed for the demanding PC user who wants ad­vanced features in a small package.

Specifications

• SiS AGPset: SiS (Silicon Integrated Systems Corp.) 530 AGPset with support for a 100MHz

Front Side Bus (FSB), all current Socket 7 processors and with integrated Super AGP 2D/
3D VGA controller for high performance hardware 2D/3D VGA acceleration.

• Multi-Processor/Multi-Speed Support: AMD K6®-III/400 & faster, K6®-2/266 & faster,

AMD K6®/166 & faster, AMD K5™/100–133, IBM®/Cyrix® 6x86MX™/M II™ (PR166 &
faster), IBM®/Cyrix® 6x86-PR166+ (Rev 2.7 or later), Intel Pentium® 100–233MHz (P55C­MMX™, P54C/P54CS).

• PC100 Memory Support: Equipped with three DIMM sockets to support Intel PC100-

compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 768MB. These new SDRAMs
are necessary to meet the enhanced 95MHz/100MHz bus speed requirement.

• AGP VGA Onboard: Features built-in 2D/3D AGP VGA (on AGPset) with optional

8MB SDRAM as local graphics memory.

• Peripheral Wake Up: Supports modem wake up, keyboard wake up, and LAN card

wake up functions from sleep or soft-off mode.

• Onboard Audio (optional): Provides Creative Labs, Inc.’s ES1373 PCI audio chipset

with 3D surround and positioning capability . Includes complete online software guide.

• Audio CODEC (optional): Features an 18-bit stereo, full duplex, audio CODEC that

conforms to AC’97 analog component specifications.

• PC Health Monitoring: Provides an easier and convenient way to examine and man-

age system status information, such as system voltages, temperatures, and fan status
through the onboard PCIset (South Bridge) and the bundled LDCM from Intel or PC
Probe from ASUS.

• Ultra DMA/66 BM IDE: Comes with an onboard PCI Bus Master IDE controller with

two connectors that support four IDE devices in two channels, supports Ultra DMA/66,
Ultra DMA/33, PIO Modes 3/4 and Bus Master IDE DMA Mode 2, and supports En­hanced IDE devices, such as T ape Backup, CD-ROM, CD-R, CD-R W , and LS-120 drives.

• Wake-On-LAN: Supports Wake-On-LAN activity through an optional ASUS PCI­L101 10/100 Fast Ethernet PCI card (see APPENDIX) or a similar ethernet card.

• Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel
port with EPP and ECP capabilities. UART2 can also be directed from COM2 (with
SIR) to the Infrared Module for wireless connections.

• Multi-Cache: Features 512KB/1MB (when chip is available) pipelined-burst SRAM/
L2 memory cache and integrated T ag RAM to make using the 100MHz bus speed possible.

• USB: Supports the Universal Serial Bus standard through the onboard connectors for
multi-device connections.

• IrDA: Supports an optional infrared port module for a wireless interface.

8 ASUS P5S-VM User’s Manual

II. FEATURES

Special Features

• Enhanced ACPI and Anti-Boot Virus BIOS: Features a programmable BIOS,

offering enhanced ACPI for Windows 98 compatibility, built-in firmware-based
virus protection through T rend ChipA way Virus codes, and autodetection of most
devices for virtually automatic setup.

• Desktop Management Interface (DMI): Supports DMI through BIOS, which

allows hardware to communicate within a standard protocol creating a higher
level of compatibility . (Requires DMI-enabled components.) (See SOFTWARE

REFERENCE.)

• Easy Installation: Incorporates BIOS that supports autodetection of hard disk

drives, PS/2 mouse, and Plug and Play devices to make the setup of hard disk
drives, expansion cards, and other devices virtually automatic.

• PC’98 Compliant: Both the BIOS and hardware levels of this motherboard meet

PC’98 compliancy . The new PC’98 requirements for systems and components are
based on the following high-level goals: Support for Plug and Play compatibility
and power management for configuring and managing all system components,
and 32-bit device drivers and installation procedures for Windows 95/98/NT.

Smart Series

II. FEATURES

• Symbios SCSI BIOS: Supports optional ASUS SCSI controller cards or other

Symbios SCSI cards through the onboard SYMBIOS firmware.

Performance Features

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-

ter busses to the memory and processor.

• High-Speed Data T ransfer Interface: This motherboard with its chipset and sup-

port for Ultra DMA/66 doubles the Ultra DMA/33 burst transfer rate to 66.6MB/s.
Ultra DMA/66 is backward compatible with both DMA/33 and DMA and with
existing DMA devices and systems so there is no need to upgrade current EIDE/
IDE drives and host systems. (Ultra DMA/66 requires a 40-pin 80-conductor cable
to be enabled and/or for Ultra DMA Mode 4.)

• SDRAM Optimized Performance: Supports the new generation memory —

Synchronous Dynamic Random Access Memory (SDRAM) — which increases
the data transfer rate to 800MB/s max using PC100-compliant SDRAM.

Intelligent Features

• Fan Status Monitoring and Alarm: To prevent system overheat and system

damage, the CPU fan and system fans are monitored for RPM and failure. Each
fan can be set for its normal RPM range and alarm thresholds.

• T emperatur e Monitoring and Alert: T o avoid any failures triggered by extremely

high temperature, there is a heat sensor under the CPU to make sure your system
is operating at a safe heat level.

ASUS P5S-VM User’s Manual 9

II. FEATURES

Smart Series

II. FEATURES

• Auto Fan Off: The system fans will power off automatically even in sleep mode.
This function reduces both energy consumption and system noise, and is an im­portant feature in implementing silent PC systems.

• Dual Function Power Button (requir es A TX power supply): Pushing the power
button for less than 4 seconds when the system is in the working state places the
system into one of two states: sleep mode or soft-off mode, depending on the
BIOS setting (see Power Management Setup under BIOS SETUP). When the
power button is pressed for more than 4 seconds, the system enters the soft-off
mode regardless of the BIOS setting.

• Keyboard Power Up: Keyboard Power Up can be enabled or disabled to allow
the computer to be powered on by pressing the keyboard’s spacebar.

• Voltage Monitoring and Alert: System voltage levels are monitored to ensure
stable current to critical motherboard components. Voltage specifications are more
critical for future processors, so monitoring is necessary to ensure proper system
configuration and management.

• System Resources Alert: Today’s operating systems, such as Windows 95/98/
NT and OS/2, require much more memory and hard drive space to present enor­mous user interfaces and run large applications. The system resource monitor
will warn the user before the system resources are used up to prevent possible
application crashes. Suggestions on managing the user’s limited resources more
efficiently are provided.

• CPU Slow Down: When CPU fans or system fans malfunction, the system will
deactivate the CPU Clock line to decrease CPU utilization to the speed upon
detection of system overheat. This will prevent CPU damage from system over­heat. The CPU utilization will restore normal operations when temperature falls
below a safe level.

• Remote Ring On (requir es external modem): This feature allows a computer to
be turned on remotely through an external modem. With this benefit on hand, any
user can access vital information from their computer from anywhere in the world!

• Message LED (requires ACPI-supported OS): Turbo LEDs now act as infor­mation providers. Through the way a particular LED illuminates, the user can
determine the stage the computer is in. A simple glimpse provides useful infor­mation to the user.

10 ASUS P5S-VM User’s Manual

II. FEATURES

Parts of the ASUS P5S-VM Motherboard

(T): Top
(B): Bottom

PS/2 Mouse (T)
PS/2 Keyboard (B)

USB Port 1 (T)
USB Port 2 (B)

Serial Port
(COM1) (B)

Parallel Port

VGA
Connector (B)

Audio Ports (T)
Joystick/MIDI
Connector (B)
(optional)

SiS AGPset

3 DIMM

ATX

Sockets

Power L2 Cache Tag RAM

CPU ZIF
Socket 7

with Heatsink

(not shown)

8MB VGA Memory

(optional)

II. FEATURES

Motherboard Parts

3 PCI Slots

Creative Audio
CODEC
(optional)

ISA
Slot

Programmable

Flash ROM

Super Multi-IO

Creative Labs
Audio (optional)

Serial Port

(COM2)

ASUS P5S-VM User’s Manual 11

III. HARDWARE SETUP

ASUS P5S-VM Motherboard Layout

PS/2

Top: Mouse

Bottom: Keyboard

USB

Top: USB 1

Bottom: USB 2

COM1

PARALLEL PORT

Motherboard Layout

III. H/W SETUP

VGA

(optional)

GAME/AUDIO

LINEOUT_SW

Creative

Audio

CODEC

Line

Out

In

Line

In

Mic

Connector

KB_UP

ATX Power Connector

Row

01

0
1

2
3

4
5

Modem

VID0

VID1

VID2

VID3

CPU

Voltage

CPU ZIF Socket 7

DIMM Socket 1 (64/72-bit, 168-pin module)

DIMM Socket 2 (64/72-bit, 168-pin module)

DIMM Socket 3 (64/72-bit, 168-pin module)

PCI Slot 1

CD_IN

WOLCON

PCI Slot 2

AUDIOEN

PCI Slot 3

2Mbit Flash EEPROM
(Programmable BIOS)

ISA Slot 1

CPU_FAN

FREQ MULT

BF1

BF2

L2 Cache

SiS 530
Chipset

with integrated

2D/3D AGP VGA

controller

BF0

Creative

PCI Audio

Multi-I/O

TagRAM

PRIMARY IDE

VEN_DIS

SECONDARY IDE

FLOPPY

2 MB

SDRAM

2 MB

SDRAM

SiS 5595

with integrated

hardware

monitoring

BUZZER

IR

Panel Connectors

VIRQ

2 MB

SDRAM

2 MB

SDRAM

FS3
FS2
FS1
FS0

BUS FREQ

COM2

CR2032 3V
Lithium Cell

CMOS Power

CHASSIS_FAN

CLRTC

Dimmed components are optional.

12 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

Motherboard Settings

1) VIRQ p. 14 VGA Interrupt Selection (Enable/Disable)

2) VEN_DIS p. 14 VGA Setting (Enable/Disable)

3) LINEOUT_SW p. 15 Audio Line Out Setting (With amplifier/W ithout amplifier)

4) AUDIOEN p. 15 Audio Setting (Enable/Disable)

5) KB_UP p. 15 Keyboard Power (Wake) Up (Enable/Disable)

6) FS0, FS1, FS2, FS3 p. 16 CPU External (BUS) Frequency Selection

7) BF0, BF1, BF2 p. 16 CPU to BUS Frequency Multiple

8) VID0, VID1, VID2, VID3 p. 18 V oltage Regulator Output Selection

Expansion Slots/Sockets

1) DIMM Sockets p. 20 168-Pin DIMM Memory Expansion Sockets

2) CPU ZIF Socket 7 p. 22 Central Processing Unit (CPU) Socket

3) SLOT 1 p. 23 16-bit ISA Bus Expansion Slots

4) PCI 1, PCI2, PCI3 p. 23 32-bit PCI Bus Expansion Slots**

Connectors

1) PS2KBMS p. 25 PS/2 Keyboard Connector (6-pin Female)

2) PS2KBMS p. 25 PS/2 Mouse Connector (6-pin Female)

3) PARALLEL p. 26 Parallel (Printer) Port Connector (26-1 pins)

4) COM1 p. 26 Serial Port COM1 (9-pin Male)

5) COM2 p. 26 Serial Port COM2 (10-1 pins)

6) VGA p. 27 Monitor (VGA) Outout Connector (15-Female)

7) FLOPPY p. 27 Floppy Drive Connector (34-1 pins)

8) GAME_AUDIO p. 27 Audio Port Connectors (Three 1/8” Female)

9) GAME_AUDIO p. 28 Joystick/MidiConnector (15-pin Female)

10) USB p. 28 Universal Serial BUS Ports 1 & 2 (Two 4-pin Female)

11) PRIMARY/SECOND. IDE p. 29 Primary/Secondary IDE Connector (40-1 pins)

12) ATX p. 30 ATX Motherboard Power Connector (20 pins)

13) IR p. 30 IrDA/Fast IR-compliant Infrared Module Connector (5 pins)

14) PWR (PANEL) p. 31 ATX Power Switch/Soft Power Switch Lead (2 pins)
IDELED (

15)
PLED (

16)

17) RESET (PANEL) p. 31 Reset Switch Lead (2 pins)

18) MLED (PANEL) p. 31 System Message LED (2 pins)
KEYLOCK (

19)

20) SPEAKER (PANEL) p. 31 Speaker Output Connector (4 pins)

21) WOLCON p. 32 Wake-on-LAN Activity Connector (3 pins)

22) CD_IN p. 32 Stereo Audio In Connector (4 pins)

23) MODEM p. 32 MODEM Card Voice In Connector (4 pins)

24) FAN p. 34 CPU/Chassis Cooling Fan Connectors (Two 3 pins)

PANEL

PANEL

PANEL

)

)

p. 31 IDE Activity LED Lead (2 pins)
p. 31 System Power LED Lead (3 pins)

)

p. 31 Keyboard Lock Switch Lead (2 pins)

*

Contents

III. H/W SETUP

*

The onboard hardware monitor uses the address 290H-297H so legacy ISA cards must not

use this address or else conflicts will occur.

ASUS P5S-VM User’s Manual 13

Hardware Setup Steps

1. Check Motherboard Settings

2. Install Memory Modules

3. Install the Central Processing Unit (CPU)

4. Install Expansion Cards

5. Connect Ribbon Cables, Cabinet Wires, and Power Supply

6. Setup the BIOS Software

1. Motherboard Settings

This section explains how to change your motherboard’s function settings through
the use of switches and/or jumpers.

W ARNING! Computer motherboards, baseboards and components, such as SCSI

Motherboard Settings

III. H/W SETUP

cards, contain very delicate Integrated Circuit (IC) chips. To protect them against
damage from static electricity , you should follow some precautions whenever you
work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do
not have one, touch both of your hands to a safely grounded object or to a
metal object, such as the power supply case.

3. Hold components by the edges and try not to touch the IC chips, leads or
connectors, or other components.

4. Place components on a grounded antistatic pad or on the bag that came with
the component whenever the components are separated from the system.

III. HARDWARE SETUP

Jumpers

1. VGA Interrupt Selection (VIRQ) / 2. VGA Setting (VEN_DIS)

VIRQ allows you to set the VGA interrupt method. The default enables the
chipset’s internal interrupt routing. VEN_DIS allows you to enable or disable
the onboard VGA. Disable the onboard VGA if you are using a VGA card on the
expansion slot.

VIRQ

0 1

P5S-VM VGA Settings

2

3

1

Enable

(Default)

VEN_DIS

2

1

Enable

(Default)

3

2

1

Disable

2

1

Disable

3

3

14 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

3. Audio Line Out Setting (LINEOUT_SW) / 4. Audio Setting (AUDIOEN)

LINEOUT_SW allows you to set the audio line out settings. The default allows
a stereo amplified connection to external speakers through the Line Out jack of
the optional GAME/AUDIO connector . Sound quality is better using the W ith-
out amplifier setting and an external amplifier or powered speakers. AUDIOEN
allows you to enable or disable the onboard audio. Disable the onboard audio if
you are using an audio card on the expansion slot. (These settings are available
only on motherboards with the onboard audio option.)

LINEOUT_SW

3

5

1

24

0 1

With amplifier

.

6

(Default)

2

3

1

Enable

(Default)

AUDIOEN

3

5

1

24

2

1

Disable

6

3

Without amplifier

P5S-VM Audio Settings

5. Keyboard Power (Wake) Up (KB_UP)

This allows you to disable or enable the keyboard power or wake up function. Set
to Enable if you want to use your keyboard (by pressing <Spacebar>) to power or
wake up your computer. The default is set to Disable because not all computers
have the appropriate ATX power supply.

III. H/W SETUP

Motherboard Settings

0 1

P5S-VM Keyboard Power (Wake) Up

ASUS P5S-VM User’s Manual 15

2

1

(DEFAULT)

3

KB_UP

2

1

3

EnableDisable

6. CPU External (BUS) Frequency Selection (FS0, FS1, FS2, FS3)

These jumpers tell the clock generator what frequency to send to the CPU, chipset,
and AGP. These allow the selection of the CPU’s External frequency (or BUS
Clock). The BUS Clock times the BUS Ratio equals the CPU's Internal fre-
quency (the advertised CPU speed).

7. CPU to BUS Frequency Multiple (BF0, BF1, BF2)

These jumpers set the frequency ratio between the Internal frequency of the CPU
and the External frequency (called the BUS Clock) within the CPU. These must be
set together with the jumpers for CPU External (BUS) Frequency Selection.

Motherboard Settings

III. H/W SETUP

0 1

P5S-VM CPU Settings

Match the Mult. (Multiple) column of the table on
the opposite page to these CPU types:

CPU A: AMD-K6-III, AMD-K6-2/400&faster
CPU B: AMD-K6-2/380&slower, AMD-K6
CPU C: Intel Pentium P54C, AMD-K5
CPU D: Intel Pentium P55C, IBM/Cyrix 6x86MX,

IBM/Cyrix M II

CPU E: IBM/Cyrix 6x86, IBM/Cyrix 6x86L

III. HARDWARE SETUP

FS3
FS2
FS1
FS0

HOST

SDRAM

PCI

FS3
FS2
FS1
FS0

HOST

SDRAM

PCI

23

1

133MHz
133MHz

33MHz

23

1

133MHz

88.9MHz
33MHz

23

1

124MHz
124MHz

31MHz

23

1

124MHz

82.7MHz
31MHz

CPU Bus Frequency

BF→210 210 210 210 210 210 210 210

3
2
1

3.5x(7/2)

CPU A
CPU B
CPU C
CPU D
CPU E

→
→
→
→
→

3.5x(7/2)

1.5x(3/2)

3.5x(7/2)

3.0x(3/1)

6.0x(6/1)

2.0x(2/1)

2.0x(2/1)

2.0x(2/1)

2.0x(2/1)

CPU Core : BUS Frequency Multiple

23

1

112MHz
112MHz

37.3MHz
23

1

112MHz

74.7MHz

37.3MHz

2.5x(5/2)

2.5x(5/2)

2.5x(5/2)

2.5x(5/2)

1.0x(1/1)

23

1

100MHz
100MHz

33.3MHz
23

1

100MHz

75MHz
30MHz

3.0x(3/1)

3.0x(3/1)

3.0x(3/1)

3.0x(3/1)
—

23

1

95MHz
95MHz

31.7MHz
23

1

100MHz

66.7MHz

33.3MHz

4.0x(4/1)

4.0x(4/1)
—
—
—

23

1

83.3MHz

83.3MHz
33MHz

23

1

95MHz

63.3MHz

31.7MHz

4.5x(9/2)

4.5x(9/2)
—
—
—

23

1

75MHz
75MHz
30MHz

23

1

66.7MHz
100MHz

33.3MHz

5.0x(5/1)

5.0x(5/1)
—
—
—

23

1

66.6MHz

66.6MHz
33MHz

23

1

90MHz
90MHz
30MHz

5.5x(11/2)

5.5x(11/2)
—
—
—

WARNING! Frequencies above 100MHz exceed the specifications for the on-

board chipset and are not guaranteed to be stable. The table on the following
page is for general reference purposes only. Always refer to the instructions
included with your CPU when possible.

16 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

Set the jumpers by the Internal speed of your CPU as follows:

(BUS Freq.) (Freq. Mult.)

CPU Model Freq. Mult. BUS F. FS3 FS2 FS1 FS0 BF2 BF1 BF0

AMD-K6-III/450 450MHz A-4.5x 100MHz [1-2] [2-3] [2-3] [1-2] [2-3] [2-3] [2-3]
AMD-K6-III/400 400MHz A-4.0x 100MHz [1-2] [2-3] [2-3] [1-2] [2-3] [1-2] [2-3]

AMD-K6-2/475 475MHz A-5.0x 95MHz [1-2] [2-3] [2-3] [1-2] [2-3] [2-3] [1-2]
AMD-K6-2/450 450MHz A-4.5x 100MHz [1-2] [2-3] [2-3] [1-2] [2-3] [2-3] [2-3]
AMD-K6-2/400 400MHz A-4.0x 100MHz [1-2] [2-3] [2-3] [1-2] [2-3] [1-2] [2-3]

AMD-K6-2/380 380MHz B-4.0x 95MHz [2-3] [1-2] [2-3] [2-3] [2-3] [1-2] [2-3]
AMD-K6-2/366 366MHz B-5.5x 66MHz [2-3] [2-3] [2-3] [1-2] [2-3] [1-2] [1-2]
AMD-K6-2/350 350MHz B-3.5x 100MHz [1-2] [2-3] [2-3] [1-2] [----] [1-2] [1-2]
AMD-K6-2/333 333MHz B-3.5x 95MHz [2-3] [1-2] [1-2] [1-2] [----] [1-2] [1-2]
AMD-K6-2/300 300MHz B-3.0x 100MHz [1-2] [2-3] [2-3] [1-2] [----] [2-3] [1-2]
AMD-K6-2/266 266MHz B-4.0x 66MHz [2-3] [2-3] [2-3] [1-2] [2-3] [1-2] [2-3]

AMD-K6/300 300MHz B-4.5x 66MHz [2-3] [2-3] [2-3] [1-2] [2-3] [2-3] [2-3]
AMD-K6/266 266MHz B-4.0x 66MHz [2-3] [2-3] [2-3] [1-2] [2-3] [1-2] [2-3]
AMD-K6/233 233MHz B-3.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [1-2]
AMD-K6/200 200MHz B-3.0x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [2-3] [1-2]
AMD-K6/166 166MHz B-2.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [2-3] [2-3]

AMD-K5/133 100MHz C-1.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [1-2]
AMD-K5/100 100MHz C-1.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [1-2]

Intel Pentium P54C 166MHz C-2.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [2-3] [2-3]
Intel Pentium P54C 133MHz C-2.0x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [2-3]
Intel Pentium P54C 100MHz C-1.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [1-2]

Intel Pentium P55C 233MHz D-3.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [1-2]
Intel Pentium P55C 200MHz D-3.0x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [2-3] [1-2]
Intel Pentium P55C 166MHz D-2.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [2-3] [2-3]

IBM/Cyrix M II-PR333 333MHz D-3.0x 83MHz [2-3] [1-2] [2-3] [1-2] [----] [2-3] [1-2]
IBM/Cyrix M II-PR300 300MHz D-3.0x 75MHz [2-3] [2-3] [1-2] [1-2] [----] [2-3] [1-2]
IBM/Cyrix M II-PR300 300MHz D-3.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [1-2]

IBM/Cyrix 6x86MX-PR233 200MHz D-3.0x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [2-3] [1-2]
IBM/Cyrix 6x86MX-PR200 166MHz D-2.5x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [2-3] [2-3]

IBM/Cyrix 6x86-PR166+* 133MHz E-2.0x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [2-3]
IBM/Cyrix 6x86L-PR166+* 133MHz E-2.0x 66MHz [2-3] [2-3] [2-3] [1-2] [----] [1-2] [2-3]

*The only IBM or Cyrix 6x86(L) (or M1) that is supported on this motherboard is revision 2.7 or later
(see next page).

NOTE: For updated processor settings, visit the ASUS web site (see ASUS CON-
TACT INFORMATION for URLs).

III. H/W SETUP

Motherboard Settings

ASUS P5S-VM User’s Manual 17

III. HARDWARE SETUP

Compatible Cyrix CPU Identification

The only Cyrix 6x86-PR166+ CPU that is supported on this
motherboard must be Revision 2.7 or later . Look on the un­derside of the CPU for the serial number . The number should
read G8DC6620A or later.

8. Voltage Regulator Output Selection (VID0, VID1, VID2, VID3)

These jumpers set the VCORE voltage supplied to the CPU. Switching regulators
allow some jumper settings to be the same for two voltages of different power planes.

Motherboard Settings

III. H/W SETUP

AMD-K6-2
(266MHz & faster)

WARNING! Because CPU designs change rapidly , the table below is only intended as a simple

guideline and thus may not be true for your CPU. Always refer to the CPU documentation for
your CPU’s voltage and then set the appropriate VID jumpers according to the CPU Vcore

Voltage Selection illustration.

Manufacturer CPU Type Single Plane Dual Plane VID0 VID1 VID2 VID3

AMD (.25micron) K6-III/400,450 ---- 2.4V(Dual) [2-3] [2-3] [1-2] [2-3]

AMD (.25micron) K6-2/266,300,333, ---- 2.2V(Dual) [2-3] [1-2] [2-3] [2-3]

AMD K5 3.5V(VRE) ---- [1-2] [1-2] [1-2] [1-2]
IBM/Cyrix 6x86 3.5V(VRE) ---- [1-2] [1-2] [1-2] [1-2]
IDT WinChip2 3.5V(VRE) ---- [1-2] [1-2] [1-2] [1-2]
Intel P54C/P54CS 3.5V(VRE) ---- [1-2] [1-2] [1-2] [1-2]

AMD K5 3.4V(STD) ---- [2-3] [1-2] [1-2] [1-2]
Intel P54C/P54CS 3.4V(STD) --- [2-3] [1-2] [1-2] [1-2]

AMD-K6
(166MHz & faster)

Pentium MMX (P55C)
(150MHz-233MHz)

K6-2/450,475

350,366,380,400
K6/233,266,300

AMD-K5
(75MHz-133MHz)

IBM/Cyrix 6x86 (M1)
(PR166 & faster)

IBM/Cyrix 6x86 (M1)
(PR166 & faster)

AMD (.35micron) K6/233 ---- 3.2V(Dual) [2-3] [2-3] [1-2] [1-2]
AMD (.35micron) K6/166,200 ---- 2.9V(Dual) [1-2] [2-3] [2-3] [1-2]

IBM/Cyrix 6x86MX ---- 2.9V(Dual) [1-2] [2-3] [2-3] [1-2]
Intel P55C-MMX ---- 2.8V(Dual) [2-3] [2-3] [2-3] [1-2]

18 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

VID0

3
2
1

0 1

P5S-VM CPU Core Voltage Selection

2.0Volts

3
2
1

2.8Volts

3
2
1

3.3Volts 3.4olts

VID1

VID2

VID3

VID1

VID0

2.1Volts

2.9Volts

VID2

VID1

VID0

VID3

2.2Volts 2.3Volts

3.0Volts

3.5Volts

VID2

VID1

VID0

VID3

3.1Volts 3.2Volts

VID2

VID3

VID1

VID0

2.4Volts

VID2

VID3

III. H/W SETUP

Motherboard Settings

ASUS P5S-VM User’s Manual 19

III. HARDWARE SETUP

2. System Memory (DIMM)

This motherboard uses only Dual Inline Memory Modules (DIMMs). Sockets are
available for 3.3Volt (power level) unbuffered Synchronous Dynamic Random Ac-
cess Memory (SDRAM) of either 8, 16, 32, 64, 128MB, or 256MB to form a memory
size between 8MB and 768MB. One side (with memory chips) of the DIMM takes up
one row on the motherboard.

To utilize the chipset’ s Error Checking and Correction (ECC) feature, you must use a
DIMM module with 9 chips per side (standard 8 chips/side + 1 ECC chip) and make
the proper settings through “Chipset Features Setup” in BIOS setup.

Memory speed setup is recommended through SDRAM Configuration under “Chipset
Features Setup” in BIOS setup.

IMPORTANT (see Notes below)

System Memory

III. H/W SETUP

• To make using bus speeds ≥95MHz possible, SDRAMs used must be com-

Install memory in any combination as follows:

DIMM Location 168-pin DIMM Total Memory

DIMM1 (Rows 0&1) SDRAM 8, 16, 32, 64, 128, 256MB x1
DIMM2 (Rows 2&3) SDRAM 8, 16, 32, 64, 128, 256MB x1

DIMM3 (Rows 4&5) SDRAM 8, 16, 32, 64, 128, 256MB x1

NOTES

• At the time this User’s Manual was written, 256MB DIMMs are available either as

• DIMMs that have more than 18 chips are not supported on this motherboard.

• For the system CPU bus to operate

• ASUS motherboards support SPD (Serial Presence Detect) DIMMs. This is the

• SDRAM chips are generally thinner with higher pin density than EDO (Extended

• BIOS shows SDRAM memory on bootup screen.

• Single-sided DIMMs come in 16, 32, 64,128MB; double-sided come in 32, 64, 128,

patible with the current Intel PC100 SDRAM specification..

Total System Memory (Max 768MB) =

registered memory or 128Mbit DIMMs.

≥95MHz, use only PC100-compliant DIMMs.

When this motherboard operates at
compliant modules are used because of the strict timing issues involved under these
speeds. If your DIMMs are not PC100-compliant, set the CPU bus frequency to
66MHz for system stability.

memory of choice for best performance vs. stability.
Data Output) chips.

256MB.

≥95MHz, most system will not even boot if non-

20 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

DIMM Memory Installation Procedures:

Insert the module(s) as shown. Because the number of pins are different on either
side of the breaks, the module will only fit in the orientation as shown. DRAM
SIMM modules have the same pin contacts on both sides. SDRAM DIMMs have
different pin contacts on each side and therefore have a higher pin density.

Lock

0 1

20 Pins 60 Pins 88 Pins

P5S-VM 168-Pin DIMM Sockets

The DIMMs must be 3.3Volt unbuffered SDRAMs. To determine the DIMM type,
check the notches on the DIMMs (see figure below).

168-Pin DIMM Notch Key Definitions (3.3V)

DRAM Key Position

RFU

Buffered

Unbuffered

Voltage Key Position

5.0V

Reserved

3.3V

III. H/W SETUP

System Memory

The notches on the DIMM will shift between left, center, or right to identify the type
and also to prevent the wrong type from being inserted into the DIMM slot on the
motherboard. You must tell your retailer the correct DIMM type before purchasing.
This motherboard supports four clock signals.

ASUS P5S-VM User’s Manual 21

III. H/W SETUP

CPU

III. HARDWARE SETUP

3. Central Processing Unit (CPU)

The motherboard provides a 321-pin ZIF Socket 7 that is backwards compatible
with ZIF Socket 5 processors. The CPU that came with the motherboard should
have a fan attached to it to prevent overheating. If this is not the case then purchase
a fan before you turn on your system.

WARNING! Without a fan circulating air on the CPU, the CPU can overheat

and cause damage to both the CPU and the motherboard.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF
socket and open it by first pulling the lever sideways away from the socket then
upwards to a 90-degree right angle. Insert the CPU with the correct orientation as
shown. Use the notched corner of the CPU with the white dot as your guide. The
white dot should point toward the end of the lever . Notice that there is a blank area
where one hole is missing from that corner of the square array of pin holes and a “1”
printed on the motherboard next to that corner. Because the CPU has a corner pin
for three of the four corners, the CPU will only fit in the one orientation as shown.
The picture is for reference only; you should have a CPU fan that will cover the face
of the CPU. W ith the added weight of the CPU fan, no force is required to insert the
CPU. Once completely inserted, hold down on the fan and close the socket’ s lever.

IMPORTANT: You must set jumpers for “CPU to BUS Frequency Ratio” and
jumpers for “BUS Frequency Selection” depending on the CPU that you install.

CAUTION! Be careful not to scrape the motherboard when mounting a clamp-

style processor fan or else damage may occur to the motherboard.

Blank

1

0 1

Lock

Lever

P5S-VM ZIF Socket 7

22 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

4. Expansion Cards

WARNING! Make sure that you unplug your power supply when adding or

removing expansion cards or other system components. Failure to do so may
cause severe damage to both your motherboard and expansion cards.

Expansion Card Installation Procedure:

1. Read your expansion card documentation on any hardware and software set­tings that may be required to setup your specific card.

2. Set any necessary jumpers on your expansion card.

3. Remove your computer system’s cover.

4. Remove the bracket on the slot you intend to use.
Keep the bracket for possible future use.

5. Carefully align the card’s connectors and press firmly.

6. Secure the card on the slot with the screw you removed in step 4.

7. Replace the computer system’s cover.

8. Setup the BIOS if necessary
(such as “IRQ xx Used By ISA: Yes” in PNP AND PCI SETUP)

9. Install the necessary software drivers for your expansion card.

Assigning IRQs for Expansion Cards

Some expansion cards need to use an IRQ to operate. Generally an IRQ must be
exclusively assigned to one use. In a standard design there are 16 IRQs available
but most of them are already in use by parts of the system which leaves 6 free for
expansion cards.

Both ISA and PCI expansion cards may need to use IRQs. System IRQs are avail­able to cards installed in the ISA expansion bus first, and any remaining IRQs are
then used by PCI cards. Currently, there are two types of ISA cards.

The original ISA expansion card design, now referred to as “Legacy” ISA cards,
requires that you configure the card’s jumpers manually and then install it in any
available slot on the ISA bus. You may use Microsoft’s Diagnostic (MSD.EXE)
utility included in the Windows directory to see a map of your used and free IRQs.
For Windows 95 users, the “Control Panel” icon in “My Computer,” contains a
“System” icon, which gives you a “Device Manager” tab. Double clicking on a
specific device give you “Resources” tab which shows the Interrupt number and
address. Make sure that no two devices use the same IRQs or your computer will
experience problems when those two devices are in use at the same time.

III. H/W SETUP

Expansion Cards

ASUS P5S-VM User’s Manual 23

To simplify this process, this motherboard complies with the Plug and Play (PNP)
specification which was developed to allow automatic system configuration when­ever a PNP-compliant card is added to the system. For PNP cards, IRQs are as­signed automatically from those available.

If the system has both Legacy and PNP ISA cards installed, IRQs are
assigned to PNP cards from those not used by Legacy cards. The PCI and PNP
configuration of the BIOS setup utility can be used to indicate which IRQs are being
used by Legacy cards. For older Legacy cards that do not work with the BIOS, you
can contact your vendor for an ISA Configuration Utility.

An IRQ number is automatically assigned to PCI expansion cards after those used by
Legacy and PNP ISA cards. In the PCI bus design, the BIOS automatically assigns an
IRQ to a PCI slot that has a card in it that requires an IRQ. T o install a PCI card, you need
to set something called the INT (interrupt) assignment. Since all the PCI slots on this

Expansion Cards

III. H/W SETUP

motherboard use an INT A #, be sure that the jumpers on your PCI cards are set to INT A.

Assigning DMA Channels for ISA Cards

III. HARDWARE SETUP

Some ISA cards, both legacy and PnP, may also need to use a DMA (Direct Memory
Access) channel. DMA assignments for this motherboard are handled the same way
as the IRQ assignment process described earlier. You can select a DMA channel in
the PCI and PnP configuration section of the BIOS Setup utility.

IMPORTANT: To avoid conflicts, reserve the necessary IRQs and DMAs for legacy

ISA cards (under PNP AND PCI SETUP of the BIOS SOFTWARE, choose Yes in IRQ
xx Used By ISA and DMA x Used By ISA for those IRQs and DMAs you want to reserve).

ISA Cards and Hardware Monitor

The onboard hardware monitor uses the address 290H-297H, so legacy ISA cards
must not use this address or else conflicts will occur.

24 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

5. External Connectors

WARNING! Some pins are used for connectors or power sources. These are

clearly separated from jumpers in the Motherboard Layout. Placing jumper caps
over these will cause damage to your motherboard.

IMPORTANT: Ribbon cables should always be connected with the red stripe to
Pin 1 on the connectors. Pin 1 is usually on the side closest to the power connector
on hard drives and CD-ROM drives, but may be on the opposite side on floppy disk
drives. Check the connectors before installation because there may be exceptions.
IDE ribbon cables must be less than 46 cm (18 in.), with the second drive connector
no more than 15 cm (6 in.) from the first connector.

1. PS/2 Keyboard Connector (6-pin Female)
This connection is for a standard keyboard using an PS/2 plug (mini DIN). This
connector will not allow standard AT size (large DIN) keyboard plugs. You
may use a DIN to mini DIN adapter on standard AT keyboards.

PS/2 Keyboard (6-pin Female)

2. PS/2 Mouse Connector (6-pin Female)

The system will direct IRQ12 to the PS/2 mouse if one is detected. If not de­tected, expansion cards can use IRQ12. See “PS/2 Mouse Control” in BIOS
Features Setup of the BIOS SOFTWARE.

PS/2 Mouse (6-pin Female)

Connectors

III. H/W SETUP

ASUS P5S-VM User’s Manual 25

III. H/W SETUP

Connectors

III. HARDWARE SETUP

3. Parallel Port Connector (25-pin Female)

You can enable the parallel port and choose the IRQ through “Onboard Parallel
Port” in Chipset Features Setup of the BIOS SOFTWARE.
NOTE: Serial printers must be connected to the serial port.

Parallel (Printer) Port (25-pin Female)

4. Serial Port COM1 (9-pin Male) / 5. COM2 Connectors (10-1 pin Male)

The two serial ports can be used for pointing devices or other serial devices.
COM1 is ready for use while COM2 requires a serial port bracket connected
from the motherboard to an expansion slot opening. For setting these ports up,
see “Onboard Serial Port” in Chipset Features Setup of the BIOS SOFTWARE.

Serial Port (9-pin Male) COM 1

0 1

P5S-VM Serial COM 2 Connector

Pin 1

To Serial Connector

(COM2)

26 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

6. Monitor (VGA) Output Connector (15-pin Female)

This connector is for output to a VGA-compatible device.

VGA Monitor (15-pin Female)

7. Floppy drive connector (FLOPPY, 34-1 pin block )

This connector supports the provided floppy drive ribbon cable. After connect­ing the single end to the board, connect the two plugs on the other end to the
floppy drives. (Pin 5 is removed to prevent inserting in the wrong orienta-

tion when using ribbon cables with pin 5 plugged).

PIN 1

NOTE: Orient the red markings on

0 1

P5S-VM Floppy Disk Drive Connector

the floppy ribbon cable to

PIN 1

8. Audio Port Connectors (Three 1/8” Female) (with optional onboard audio)
Line Out can be connected to headphones or preferably powered speakers.
Line In allows tape players or other audio sources to be recorded by your com-

puter or played through the Line Out. Mic allows microphones to be connected
for inputing voice.

Connectors

III. H/W SETUP

MicLine InLine Out

1/8" Stereo Audio Connectors

ASUS P5S-VM User’s Manual 27

III. H/W SETUP

Connectors

III. HARDWARE SETUP

9. Joystick/Midi Connector (15-pin Female) (with optional onboard audio)

You may connect game joysticks or game pads to this connector for playing
games. Connect Midi devices for playing or editing audio.

Joystick/Midi (15-pin Female)

10. Universal Serial BUS Ports 1 & 2 (Two 4-pin Female Sockets)

Two USB ports are available for connecting USB devices.

USB 1

Universal Serial Bus (USB) 2

28 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

11. Primary / Secondary IDE connectors (Two 40-1 pin block)

These connectors support the provided IDE hard disk ribbon cable. After con­necting the single end to the board, connect the two plugs at the other end to
your hard disk(s). If you install two hard disks on the same channel, you must
set the second drive to Slave mode. Refer to the documentation of your hard
disk for the jumper settings. BIOS now supports SCSI device or IDE CD-ROM
bootup (see HDD Sequence SCSI/IDE First & Boot Sequence in BIOS Fea-

tures Setup of the BIOS SOFTWARE) (Pin 20 is removed to prevent insert-
ing in the wrong orientation when using ribbon cables with pin 20 plugged).

Secondary IDE Connector

0 1

PIN 1

Primary IDE Connector
NOTE: Orient the red

markings on the IDE
ribbon cable to

PIN 1

P5S-VM IDE Connectors

TIP: You may configure two hard disks to be both Master drives using one ribbon

cable on the primary IDE connector and another ribbon cable on the secondary
IDE connector. You may install one operating system on an IDE drive and an­other on a SCSI drive and select the boot disk through the BIOS features Setup.

Connectors

III. H/W SETUP

ASUS P5S-VM User’s Manual 29

III. HARDWARE SETUP

12. ATX Power Supply Connector (ATX, 20-pin block)

This connector connects to an ATX power supply. The plug from the power sup­ply will only insert in one orientation because of the different hole sizes. Find the
proper orientation and push down firmly making sure that the pins are aligned.

IMPORTANT: Make sure that your ATX power supply can supply at least
10mAmp on the 5-volt standby lead (+5VSB). You may experience difficulty in
powering on your system if your power supply cannot support the load. For
W ake on LAN support, your ATX power supply must supply at least 720mAmp.

III. H/W SETUP

Connectors

+12.0 Volts

+5V Standby

Power Good

Ground

0 1

+5.0 Volts

Ground

+5.0 Volts

Ground
+3.3 Volts
+3.3 Volts

+5.0 Volts
+5.0 Volts

-5.0 Volts
Ground
Ground
Ground
Power Supply On
Ground

-12.0 Volts
+3.3 Volts

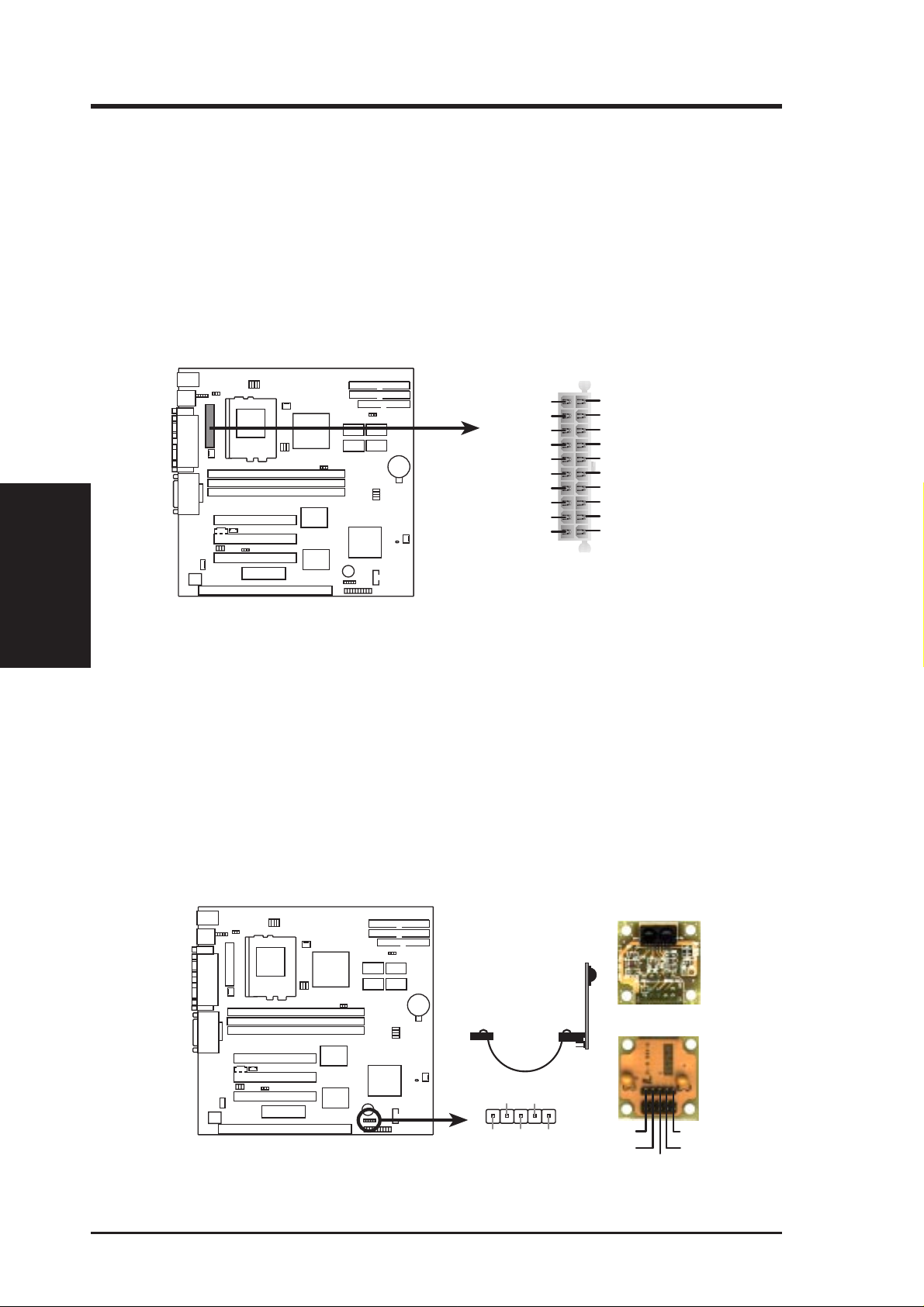

P5S-VM ATX Power Connector

13. IrDA-Compliant Infrared Module Connector (IR, 5-pin block)

This connector supports the optional wireless transmitting and receiving infra­red module. This module mounts to a small opening on system cases that sup­port this feature. You must also configure the setting through UART2 Use Infra-
red in Chipset Features Setup to select whether UART2 is directed for use
with COM2 or IrDA. Use the five pins as shown below (Back View) and con­nect a ribbon cable from the module to the motherboard according to the pin
definitions.

Front View

0 1

GND

IRRXH

+5V

IRRX

IRTX

P5S-VM Infrared Module Connector

30 ASUS P5S-VM User’s Manual

Back View

IRTX
GND

+5V

(NC)

IRRX

III. HARDWARE SETUP

14. ATX Power Switch/Soft Power Switch Lead (PWR, 2 pins)

The system power can be controlled by a momentary switch connected to this
lead. Pushing the button once will switch the system between ON and SLEEP.
Pushing the switch while in the ON mode for more than 4 seconds will turn the
system off. The system power LED shows the status of the system’s power.

15. IDE Activity LED Lead (IDELED, 2 pins)

This connector supplies power to the cabinet’s IDE activity LED. Read and
write activity by devices connected to the Primary or Secondary IDE connectors
will cause the LED to light up.

16. System Power LED Lead (PLED, 3 pins)

This 3-pin connector connects the system power LED, which lights when the
system is powered on and blinks when it is in sleep mode.

17. Reset Switch Lead (RESET, 2 pins)

This 2-pin connector connects to the case-mounted reset switch for rebooting
your computer without having to turn off your power switch This is a preferred
method of rebooting in order to prolong the life of the system’s power supply.

18. Message LED Lead (MLED, 2 pins)

This indicates whether a message has been received from a fax/modem. The
LED will remain lit when there is no signal and blink when there is data transfer
or messages waiting in the inbox. This function requires ACPI OS support.

19. Keyboard Lock Switch Lead (KEYLOCK, 2 pins)

This 2-pin connector connects to the case-mounted key switch to allow key­board locking.

20. Speaker Connector (SPEAKER, 4 pins)

This 4-pin connector connects to the case-mounted speaker.

Connectors

III. H/W SETUP

ATX Power Switch

requires an ATX power

0 1

supply, optional ATX to
AT power connector
adapter, and momentary
switch button

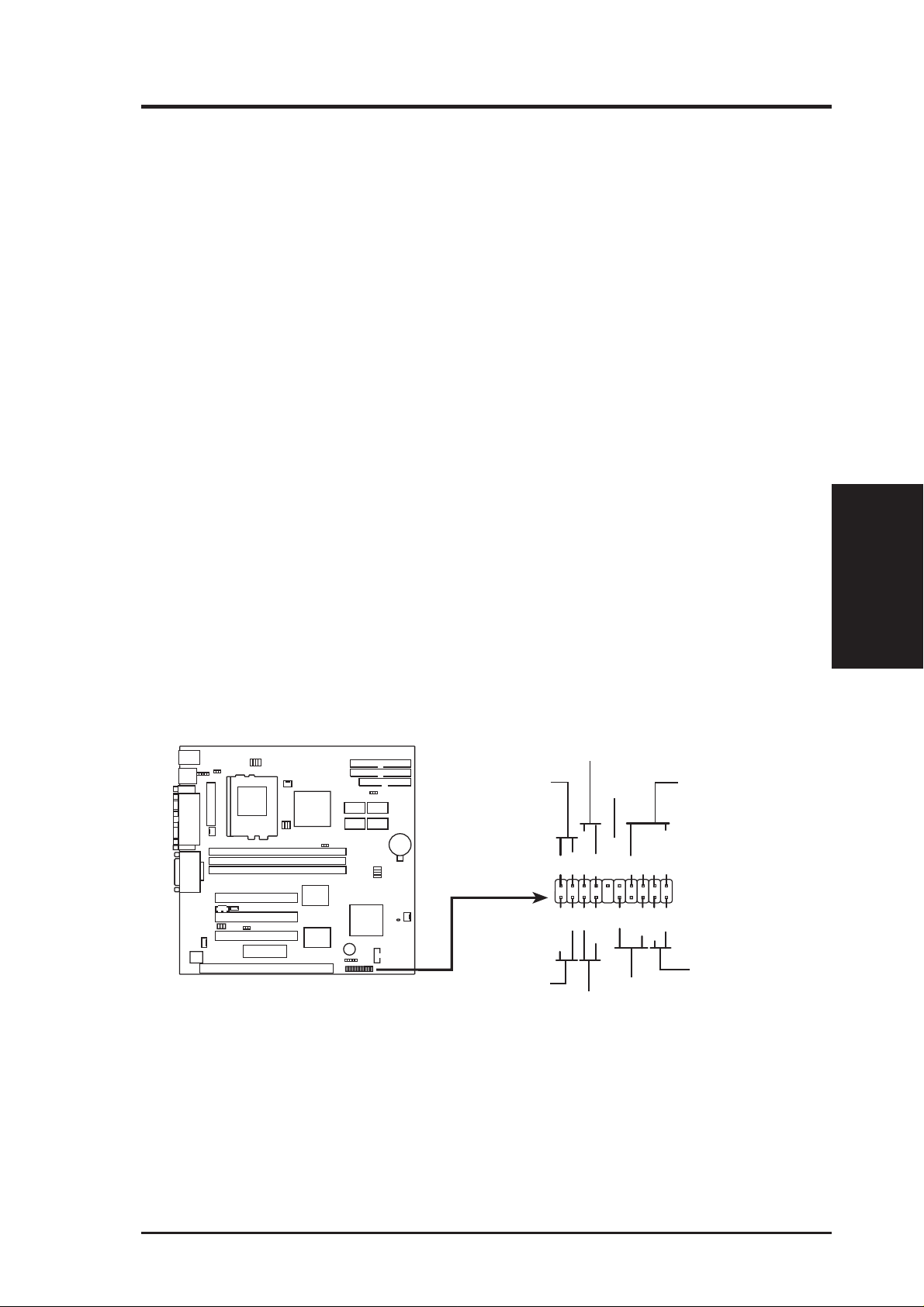

P5S-VM System Panel Connectors

Message LED

ATX Power
Switch

Keyboard Lock

GND

+5V

KEYLOCK

GND

GND

GND

IDELED

PWRSWT

Power LED

IDE LED

+5V

+5V

GND

PLED

GND

SPEAKER

GND

RESET

Speaker
Connector

Reset SW

ASUS P5S-VM User’s Manual 31

III. HARDWARE SETUP

21. Wake-on-LAN Activity Connector (3-pin WOLCON)

The WOLCON connector allows the system to power up when there is a wakeup
packet or signal is received from the network through the ASUS PCI-L101 LAN
card (see ASUS LAN CARD).

IMPORTANT : This feature requires that the WAKE On LAN Power Up Control is
set to Enabled (see Power Management Setup under BIOS SOFTWARE) and that
your system has an ATX power supply with at least 720mA +5V standby power .

IMPORTANT: Requires an ATX power

0 1

supply with at least 720mA +5-volt
standby power

III. H/W SETUP

Connectors

Ground

PME

+5 Volt Standby

P5S-VM Wake-On-LAN Connector

22. Stereo Audio In Connector (4-pin CD_IN) /

23. MODEM Card Voice In Connector (4-pin MODEM)

(with optional onboard audio)

CD_IN allows you to receive stereo audio input from an internal CD-ROM
drive or other sound sources, such as a TV tuner or MPEG card. MODEM al­lows mono inoput and output for a compatible voice modem microphone and
speaker interface.

CD_IN

0 1

Right Audio Channel

Left Audio Channel

Modem-Out

Modem-In

Ground
Ground

Ground
Ground

P5S-VM Stereo Audio In / Modem Card Voice In Connectors

32 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

24. CPU/Chassis Cooling Fan Connectors (FAN, 3 pins)

These connectors support 3-pin cooling fans of 500mA (6W) or less with a mini­mum of 3,500RPM. Orientate the fans so that the heatsink fins allow airflow to
go across the onboard heatsink(s) instead of the expansion slots. Depending on
the fan manufacturer, the wiring and plug may be dif ferent. The red wire should
be positive, while the black should be ground. Connect the fan’s plug to the
board taking into consideration the polarity of the connector . NOTE: The “Ro-

tation” signal is to be used only by a specially designed fan with rotation
signal. The Rotations per Minute (RPM) can be monitor ed using ASUS PC
Probe Utility.

WARNING! The CPU and/or motherboard will overheat if there is no airflow

across the CPU. Damage may occur to the motherboard and/or the CPU fan if
these pins are incorrectly used. These are not jumpers, thus, do not place

jumper caps over these pins.

0 1

P5S-VM 12-Volt Cooling Fan Power

CPU Fan Power

Rotation

+12V
GND

Rotation

+12V

GND

Chassis Fan Power

Connectors

III. H/W SETUP

ASUS P5S-VM User’s Manual 33

III. HARDWARE SETUP

(This page was intentionally left blank.)

34 ASUS P5S-VM User’s Manual

III. HARDWARE SETUP

Power Connection Procedures

1. After all jumpers and connections are made, close the system case cover.

2. Be sure that all switches are off (in some systems, marked with

3. Connect the power supply cord into the power supply located on the back of
your system case according to your system user’s manual.

4. Connect the power cord into a power outlet that is equipped with a surge protector .

5. You may then turn on your devices in the following order:
a. Your monitor
b. External SCSI devices (starting with the last device on the chain)
c. Your system power. For ATX power supplies, you need to switch

on the power supply as well as press the ATX power switch on the
front of the case.

6. The power LED on the front panel of the system case will light. For ATX power
supplies, the system LED will light when the ATX power switch is pressed. The
monitor LED may light up after the system’s if it complies with “green” stan­dards or if it has a power standby feature. The system will then run power-on
tests. While the tests are running, additional messages will appear on the screen.
If you do not see anything within 30 seconds from the time you turn on the
power, the system may have failed a power-on test. Recheck your jumper set­tings and connections or call your retailer for assistance.

).

III. H/W SETUP

Power Connections

7. During power-on, hold down <Delete> to enter BIOS setup. Follow the instruc­tions in the next section, BIOS SOFTWARE.

*Powering Off your computer: You must first exit or shut down your operat­ing system before switching off the power switch. For ATX power supplies, you
can press the ATX power switch after exiting or shutting down your operating
system. If you use Windows 95, click the Start button, click Shut Down, and
then click Shut down the computer?. The power supply should turn off after
Windows shuts down.

NOTE: The message “You can now safely turn off your computer” will not
appear when shutting down with ATX power supplies.

ASUS P5S-VM User’s Manual 35

IV. BIOS SETUP

Flash Memory Writer Utility

AFLASH.EXE: This is the Flash Memory W riter utility that updates the BIOS by uploading
a new BIOS file to the programmable flash ROM chip on the motherboard. To determine the
BIOS version of your motherboard, check the last four numbers of the code displayed on the
upper left-hand corner of your screen during bootup. Larger numbers represent a newer BIOS
file. This file works only in DOS mode.

NOTE: The following screen displays are provided as examples only and may not reflect the

screen contents displayed on your system.

Flash Memory Writer

IV. BIOS SETUP

IMPORTANT! If “unknown” is displayed after Flash Memory:, the memory chip is

either not programmable or is not supported by the ACPI BIOS and therefore, cannot be
programmed by the Flash Memory Writer utility.

Main Menu

1. Save Current BIOS To File

This option allows you to save a
copy of the original motherboard
BIOS in case you need to reinstall
it. It is recommended that you save
AFLASH.EXE and the BIOS file
to a bootable floppy disk.

To save your current BIOS, type [1] at the Main Menu and then press <Enter>. The Save

Current BIOS To File screen appears. Type a filename and the path and then press <Enter>.

ASUS P5S-VM User’s Manual36

IV. BIOS SETUP

2. Update BIOS Including Boot Block and ESCD

This option updates the boot block, the baseboard BIOS, and the ACPI extended system con­figuration data (ESCD) parameter block from a new BIOS file. See the next page for proce­dures on downloading an updated BIOS file.

To update your current BIOS,
type [2] at the Main Menu and
then press <Enter>. The Update

BIOS Including Boot Block and
ESCD screen appears. Type the

filename of your new BIOS and
the path and then press <Enter>.

When prompted to confirm the
BIOS update, press Y to start the

update.

The utility starts to program the
new BIOS information into the
flash ROM. When the program­ming is finished, Flashed Suc-
cessfully will be displayed.

Follow the onscreen instructions
to continue.

IV. BIOS SETUP

Flash Memory Writer

ASUS P5S-VM User’s Manual 37

IV. BIOS SETUP

Managing and Updating Your Motherboard’s BIOS

Upon First Use of the Computer System

1. Create a bootable system floppy disk by typing [FORMAT A:/S] from the DOS
prompt without creating “AUTOEXEC.BAT” and “CONFIG.SYS” files.

2. Copy AFLASH.EXE to the just created boot disk.

3. Run AFLASH.EXE from this new disk and select option 1. Save Current BIOS
to File. See 1. Save Current BIOS To File on the previous page for more de­tails and the rest of the steps.

Updating BIOS Procedures (only when necessary)

1. Download an updated ASUS BIOS file from the Internet (WWW or FTP) or a
BBS (Bulletin Board Service) (see ASUS CONT ACT INFORMATION on page
3 for details) and save to the disk you created earlier.

2. Boot from the disk you created earlier.

3. At the “A:\” prompt, type AFLASH and then press <Enter>.

4. At the Main Menu, type 2 and then press <Enter>. See 2. Update BIOS In-
cluding Boot Block and ESCD on the previous page for more details and the
rest of the steps.

Flash Memory Writer

IV. BIOS SETUP

WARNING! If you encounter problems while updating the new BIOS, DO NOT

turn off your system since this might prevent your system from booting up. Just
repeat the process, and if the problem still persists, update the original BIOS file
you saved to disk above. If the Flash Memory Writer utility was not able to
successfully update a complete BIOS file, your system may not be able to boot
up. If this happens, your system will need service.

ASUS P5S-VM User’s Manual38

IV. BIOS SETUP

6. BIOS Setup

The motherboard supports 5-volt programmable 2-Mbit Flash ROM chips. These
memory chips can be updated when BIOS upgrades are released. Use the Flash
Memory Writer utility to download the new BIOS file into the ROM chip as de­scribed in detail in this section.

All computer motherboards provide a Setup utility program for specifying the sys­tem configuration and settings. If your motherboard came in a computer system, the
proper configuration entries may have already been made. If so, invoke the Setup
utility , as described later , and take note of the configuration settings for future refer ­ence; in particular, the hard disk specifications.

If you are installing the motherboard, reconfiguring your system or you receive a
Run Setup message, you will need to enter new setup information. This section
describes how to configure your system using this utility.

The BIOS ROM of the system stores the Setup utility. When you turn on the com­puter, the system provides you with the opportunity to run this program. This ap­pears during the Power-On Self Test (POST). Press <Delete> to call up the Setup
utility . If you are a little bit late pressing the mentioned key(s), POST will continue
with its test routines, thus preventing you from calling up Setup. If you still need to
call Setup, reset the system by pressing <Ctrl> + <Alt> + <Delete>, or by pressing
the Reset button on the system case. You can also restart by turning the system off
and then back on again. But do so only if the first two methods fail.

When you invoke Setup, the CMOS SETUP UTILITY main program screen will
appear with the following options:

BIOS Setup

IV. BIOS SETUP

ASUS P5S-VM User’s Manual 39

IV. BIOS SETUP

Load Defaults

Load BIOS Defaults loads the minimum settings for troubleshooting. Load Setup
Defaults, on the other hand, is for loading optimized defaults for regular use. Choos-

ing defaults at this level will modify all applicable settings.
A section at the bottom of the preceding screen displays the control keys for this

screen. Take note of these keys and their respective uses.

Standard CMOS Setup

Standard CMOS Setup allows you to record some basic system hardware configu­ration and set the system clock and error handling. If the motherboard is already
installed in a working system, you will not need to select this option anymore. How­ever, if the configuration stored in the CMOS memory on the board gets lost or
damaged, or if you change your system hardware configuration, you will need to
respecify the configuration values. The configuration values usually get lost or
corrupted when the power of the onboard CMOS battery weakens.

IV. BIOS SETUP

Standard CMOS

The preceding screen provides you with a list of options. At the bottom of this screen
are the control keys. Take note of these keys and their respective uses.

User-configurable fields appear in a different color. If you need information on the
selected field, press <F1>. The help menu will then appear to provide you with the
information you need. The memory display at the lower right of the screen is read­only and automatically adjusts accordingly.

Details of Standard CMOS Setup

Date

T o set the date, highlight the “Date” field and then press either <Page Up>/<Page Down>
or <+>/<–> to set the current date. Follow the month, day and year format. Valid values
for month, day and year are: Month: (1 to 12), Day: (1 to 31), Year: (up to 2079)

ASUS P5S-VM User’s Manual40

IV. BIOS SETUP

Time

T o set the time, highlight the “Time” field and then press either <Page Up>/<Page Down>
or <+>/<–> to set the current time. Follow the hour, minute and second format. Valid
values for hour, minute and second are: (Hour: (00 to 23), Minute: (00 to 59), Second:
(00 to 59). If you do not want to modify the current time, press <Enter> three times
to go to HARD DISKS.

NOTE: You can bypass the date and time prompts by creating an AUTOEXEC.BAT
file. For information on how to create this file, refer to the MS-DOS manual.

Hard Disk Drives

This field records the specifications for all non-SCSI hard disk drives installed in
your system. The onboard PCI IDE connectors provide Primary and Secondary
channels for connecting up to four IDE hard disks or other IDE devices. Each chan­nel can support up to two hard disks; the first of which is the “master” and the
second is the “slave”.

Specifications for SCSI hard disks need not to be entered here since they operate
using device drivers and are not supported by any the BIOS. If you install either the
optional PCI-SC200 or PCI-SC860 SCSI controller card into the motherboard, see
section VI for instructions. If you install other vendor’s SCSI controller card, refer
to their respective documentations on how to install the required SCSI drivers.

For IDE hard disk drive setup, you can:

• Use the Auto setting for detection during bootup.

• Use the IDE HDD AUTO DETECTION in the main menu to automatically
enter the drive specifications.

• Enter the specifications yourself manually by using the “User” option.

The entries for specifying the hard disk type include CYLS (number of cylinders),
HEAD (number of read/write heads), PRECOMP (write precompensation), LANDZ
(landing zone), SECTOR (number of sectors) and MODE. The SIZE field auto­matically adjusts according to the configuration you specify. The documentation
that comes with your hard disk should provide you with the information regarding
the drive specifications.

The MODE entry is for IDE hard disks only , and can be ignored for MFM and ESDI
drives. This entry provides three options: Normal, Large, LBA, or Auto (see be-
low). Set MODE to the Normal for IDE hard disk drives smaller than 528MB; set
it to LBA for drives over 528MB that support Logical Block Addressing (LBA) to
allow larger IDE hard disks; set it to Large for drives over 528MB that do not sup-
port LBA. Large type of drive can only be used with MS-DOS and is very uncom­mon. Most IDE drives over 528MB support the LBA mode.

Standard CMOS

IV. BIOS SETUP

ASUS P5S-VM User’s Manual 41

IV. BIOS SETUP

Auto detection of hard disks on bootup

For each field: Primary Master, Primary Slave, Secondary Master, and Secondary
Slave, you can select Auto under the TYPE and MODE fields. This will enable auto
detection of your IDE hard disk during bootup. This will allow you to change your
hard disks (with the power off) and then power on without having to reconfigure
your hard disk type. If you use older hard disks that do not support this feature, then
you must configure the hard disk in the standard method as described earlier by the
“User” option.

NOTE: After the IDE hard disk drive information has been entered into BIOS, new
IDE hard disk drives must be partitioned (such as with FDISK) and then formatted
before data can be read from and write on. Primary IDE hard disk drives must have
its partition set to active (also possible with FDISK).

NOTE: SETUP Defaults are noted in parenthesis next to each function heading.

Drive A / Drive B (None)

These fields record the types of floppy disk drives installed in your system. The
available options for drives A and B are: 360K , 5.25 in.; 1.2M , 5.25 in.; 720K , 3.5

in.; 1.44M , 3.5 in.; 2.88M , 3.5 in.; None

IV. BIOS SETUP

Standard CMOS

To enter the configuration value for a particular drive, highlight its corresponding
field and then select the drive type using the left- or right-arrow keys.

Floppy 3 Mode Support (Disabled)

This is the Japanese standard floppy drive. The standard stores 1.2MB in a 3.5inch
diskette. This is normally disabled but you may choose from either: Drive A, Drive
B, Both, and Disabled

Video (EGA/VGA)

Set this field to the type of video display card installed in your system. The options
are EGA/VGA, CGA 40, CGA 80, and MONO (for Hercules or MDA).

If you are using a VGA or any higher resolution card, choose EGA/VGA.

Halt On (All Errors)

This field determines which types of errors will cause the system to halt. Choose from
All Errors; No Errors; All,But Keyboard; All,But Diskette; and All,But Disk/Key.

ASUS P5S-VM User’s Manual42

IV. BIOS SETUP

BIOS Features Setup

BIOS Features Setup consists of configuration entries that allow you to improve
your system performance, or let you set up some system features according to your
preference. Some entries are required by the motherboard’s design to remain in
their default settings.

A section at the lower right of the screen displays the control keys you can use. T ake
note of these keys and their respective uses. If you need information on a particular
entry, highlight it and then press <F1>. A pop-up help menu will appear to provide
you with the information you need. <F5> loads the last set values, <F6> and <F7>
loads the BIOS default values and Setup default values, respectively.

NOTE: SETUP Defaults are noted in parenthesis next to each function heading.

Details of BIOS Features Setup

Boot Virus Detection (Enabled)

This field allows you to set boot virus detection, ensuring a virus-free boot sector.
This new antivirus solution is unlike native BIOS tools, which offer limited virus
protection typically by write-protecting the partition table. With this new solution,
your computer is protected against boot virus threats earlier in the boot cycle, that is,
before they have a chance to load into your system. This ensures your computer
boots to a clean operating system. The system halts and displays a warning message
when it detects a virus. If this occurs, you can either allow the operation to continue
or use a virus-free bootable floppy disk to restart and investigate your system. Be­cause of conflicts with new operating systems, for example, during installation of
new software, you may have to set this to Disabled to prevent write errors.

BIOS Features

IV. BIOS SETUP

CPU Internal Cache (Enabled)

Choose Disable to turn off the CPU’s built-in level 1 cache.

External Cache (Enabled)

Choose Disable to turn off the CPU’s external level 2 cache.

ASUS P5S-VM User’s Manual 43

IV. BIOS SETUP

Quick Power On Self Test (Enabled)

This field speeds up the Power-On Self Test (POST) routine by skipping retesting a
second, third, and forth time. Setup default setting for this field is Enabled. A com­plete test of the system is done on each test.

HDD Sequence SCSI/IDE First (IDE)

When using both SCSI and IDE hard disk drives, IDE is always the boot disk using
drive letter C (default setting of IDE). This new feature allows a SCSI hard disk
drive to be the boot disk when set to SCSI. This allows multiple operating systems to
be used on both IDE and SCSI drives or the primary operating system to boot using
a SCSI hard disk drive.

Boot Sequence (A,C)

This field determines where the system looks first for an operating system. Options
are A,C; A,CDROM,C; CDROM,C,A; CDROM A,C; D,A; E,A; F,A; C only; LS/ZIP,C;
LAN,A,C; LAN,C,A; and C,A. The setup default setting, A,C, checks first the floppy
disk and then the hard disk drive.

Boot Up Floppy Seek (Disabled)

When enabled, the BIOS will seek drive A one time.

Floppy Disk Access Control (R/W)

This allows protection of files from the computer system to be copied to floppy disk
drives by allowing the setting of Read Only to only allow reads from the floppy disk
drive but not writes. The setup default R/W allows both reads and writes.

IDE HDD Block Mode Sectors (HDD MAX)

This field enhances hard disk performance by making multi-sector transfers instead

IV. BIOS SETUP

BIOS Features

of one sector per transfer. Most IDE drives, except older versions, can utilize this
feature. Selections are HDD MAX, Disabled, 2, 4, 8, 16, and 32.

HDD S.M.A.R.T. capability (Disabled)

This field enables or disables S.M.A.R.T . (Self-Monitoring Analysis and Reporting
Technology) support for S.M.A.R.T.-capable hard disk drives. This technology re­quires an application that can display S.M.A.R.T. warning messages.

PS/2 Mouse Function Control (Auto)

The setting of Auto allows the system to detect a PS/2 Mouse on bootup. If detected,
IRQ12 will be used for the PS/2 Mouse. If not detected, IRQ12 will be reserved for
expansion cards. Enabled will reserve IRQ12 for the PS/2 Mouse.

OS/2 Onboard Memory > 64M (Disabled)

When using OS/2 operating systems with installed DRAM of greater than 64MB,
you need to Enable this option otherwise leave this on the setup default of Disabled.

......................................................................................................................................

PCI/VGA Palette Snoop (Disabled)

Some display cards that are nonstandard VGA, such as graphic accelerators or MPEG
video cards may not show colors properly. Setting this to Enabled should correct
this problem. Otherwise, leave this on the default setting of Disabled.

Video ROM BIOS Shadow (Enabled)

This field allows you to change the video BIOS location from ROM to RAM. Relocat­ing to RAM enhances system performance, as information access is faster than the ROM.

ASUS P5S-VM User’s Manual44

IV. BIOS SETUP

C8000 - CBFFF Shadow to DC000 - DFFFF Shadow (Disabled)
These fields are used for shadowing other expansion card ROMs. If you install other
expansion cards with ROMs on them, you will need to know which addresses the
ROMs use to shadow them specifically. Shadowing a ROM reduces the memory

available between 640KB and 1024KB by the amount used for this purpose.

Boot Up NumLock Status (On)

This field enables users to activate the Number Lock function upon system boot.

Typematic Rate Setting (Disabled)
When enabled, you can set the Typematic Rate and Delay.

Typematic Rate (Chars/Sec) (6)

This field controls the speed at which the system registers repeated keystrokes. Op­tions range from 6 to 30 characters per second. Setup default setting is 6; other
settings are 8, 10, 12, 15, 20, 24, and 30.

Typematic Delay (Msec) (250)

This field sets the time interval for displaying the first and second characters. Four
delay rate options are available: 250, 500, 750, and 1000.

Security Option (System)

When you specify a Supervisor Password and/or User Passwor d (explained later in
this section), the Security Option field determines when the system prompts for the
password. The default setting is System, where the system prompts for the User
Password every time you start your system. The other option is Setup, where the
system goes through its startup routine unless the Setup utility is called, when the
system prompts for the Supervisor Password.

BIOS Features

IV. BIOS SETUP

ASUS P5S-VM User’s Manual 45

Chipset Features Setup

Chipset Features Setup controls the configuration of the board’s chipset. Control
keys for this screen are the same as in the BIOS Features Setup screen.

Chipset Features

IV. BIOS SETUP

NOTE: SETUP Defaults are noted in parenthesis next to each function heading.

Details of Chipset Features Setup

SDRAM Configuration (By SPD)

This sets the optimal timing for items 2-4. Leave on default setting, depending on
the memory modules that you are using. Default setting is By SPD, which config-

Chipset Features

IV. BIOS SETUP

ures items 2-4 by reading the contents in the SPD (Serial Presence Detect) device.
This 8-pin serial EEPROM device stores critical parameter information about the
module, such as memory type, size, speed, voltage interface, and module banks.

SDRAM CAS Latency

This controls the latency between SDRAM read command and the time that the
data actually becomes available. Leave on default setting.

SDRAM RAS Precharge Time

This controls the idle clocks after issuing a precharge command to SDRAM.
Leave on default setting.

SDRAM RAS to CAS Delay

This controls the latency between SDRAM active command and the read/write
command. Leave on default setting.

ROM Cycle Wait State (4-Wait)

Leave both on default setting.

16-bit I/O Recovery Time (5 BUSCLK) / 8-bit I/O Recovery Time (8 BUSCLK)

Timing for 16- and 8-bit ISA cards, respectively. Leave on default settings.

ISA Bus Clock (PCICLK/4)

Leave on default setting.

ASUS P5S-VM User’s Manual46

IV. BIOS SETUP

Graphics Aperture Size (64MB)

Memory-mapped, graphics data structures can reside in a Graphics Aperture. Leave
on default setting.

Memory Hole At Address (None)

This allows you to specify the memory address space to be reserved for ISA expan­sion cards that specifically require this setting. Setting the address space to a par­ticular setting (available settings: 15M-16M, 14M-16M, 12M-16M) will make that
memory space unavailable to the system. Expansion cards can only access memory
up to 16M. The default is None.

Delayed Transaction (Disabled)

If Enabled, this frees the PCI Bus during CPU accessing of 8-bit ISA cards that
normally consume about 50-60 PCI Clocks without PCI delayed transaction. If PCI
Bus Masters cannot use the PCI Bus, leave this on the default setting of Disabled for
some ISA cards that are not PCI 2.1 compliant.

VGA Shared Memory Size (4MB)

This allows you to specify the memory size (available settings: 2MB, 4MB, 8MB) to
be shared with the onboard VGA controller. Default setting is 4MB.

....................................................................................................................................

Onboard FDC Controller (Enabled)

When enabled, this field allows you to connect your floppy disk drives to the onboard
floppy drive connector instead of a separate controller card. If you want to use a differ­ent controller card to connect the floppy disk drives, set this field to Disabled.

Onboard FDC Swap A & B (No Swap)

This field allows you to reverse the hardware drive letter assignments of your floppy
disk drives. T wo options are available: Swap AB and No Swap (default). If you want
to switch drive letter assignments, set this field to Swap AB, and the swap will be
controlled by the onboard chipset.

Onboard Serial Port 1 (3F8H/IRQ4)

Settings are 3F8H/IRQ4, 2F8H/IRQ3, 3E8H/IRQ4, 2E8H/IRQ10, and Disabled for
the onboard serial connector.

Onboard Serial Port 2 (2F8H/IRQ3)

Settings are 3F8H/IRQ4, 2F8H/IRQ3, 3E8H/IRQ4, 2E8H/IRQ10, and Disabled for
the onboard serial connector.

Onboard Parallel Port (378H/IRQ7)

This field sets the address of the onboard parallel port connector . You can select either
3BCH / IRQ 7, 378H / IRQ 7, 278H / IRQ 5, or Disabled. If you install an I/O card with
a parallel port, ensure that there is no conflict in the address assignments. The PC can
support up to three parallel ports as long as there are no conflicts for each port.

IV. BIOS SETUP

Chipset Features

IV. BIOS SETUP

Chipset Features

ASUS P5S-VM User’s Manual 47

Parallel Port Mode (ECP+EPP)

This field allows you to set the operation mode of the parallel port. The setting
Normal, allows normal-speed operation but in one direction only; EPP allows bidi-
rectional parallel port operation at maximum speed; ECP allows the parallel port to
operate in bidirectional mode and at a speed faster than the maximum data transfer
rate; ECP+EPP allows normal speed operation in a two-way mode.

ECP DMA Select (3)

This selection is available only if you select ECP or ECP+EPP in the

Parallel Port Mode. Select either DMA Channel 1, 3, or Disabled.
UART2 Use Infrared (Disabled)

When enabled, this field activates the onboard infrared feature and sets the second serial
UART to support the infrared module connector on the motherboard. If your system
already has a second serial port connected to the onboard COM2 connector, it will no
longer work if you enable the infrared feature. By default, this field is set to Disabled,
which leaves the second serial port UART to support the COM2 serial port connector.

See IrDA/Fast IR-Compliant Infrar ed Mdule Connector under section III.

Chipset Features

IV. BIOS SETUP

Onboard PCI IDE Enable (Both)

Y ou can select to enable the Primary IDE channel, Secondary IDE channel, Both, or
Disable both channels (for systems with only SCSI drives).

IV. BIOS SETUP

IDE Ultra DMA Mode (Auto)

This sets the IDE UltraDMA to be active when using UltraDMA-capable IDE de­vices. The BIOS will automatically adjust or disable this setting for slower IDE
devices so that Auto or high settings will not cause problems for older IDE devices.

Chipset Features

IV. BIOS SETUP

Choose Disable if you do not want this feature for all devices.

IDE 0 Master/Slave PIO/DMA Mode, IDE 1 Master/Slave PIO/DMA Mode (Auto)

Each channel (0 and 1) has both a master and a slave making four IDE devices possible.
Because each IDE device may have a different Mode timing (0, 1, 2, 3, 4), it is necessary
for these to be independent. PIO and DMA timings can be independently set. The default
setting of Auto will allow autodetection to ensure optimal performance.

ASUS P5S-VM User’s Manual48

IV. BIOS SETUP

Power Management Setup

Power Management Setup allows you to reduce power consumption. This feature
turns off the video display and shuts down the hard disk after a period of inactivity.

NOTE: SETUP Defaults are noted in parenthesis next to each function heading.

Details of Power Management Setup

Power Management (User Define)

This field acts as the master control for the power management modes. User Define
allows you to set power saving options according to your preference; Disable dis­ables the power saving features; Min Saving puts the system into power saving mode
after 40 min of system inactivity; Max Saving puts the system into power saving
mode after 30 sec of system inactivity.

IMPORTANT: Advanced Power Management (APM) should be installed to
keep the system time updated when the computer enters suspend mode acti­vated by the BIOS Power Management. For DOS environments, you need to
add DEVICE=C:\DOS\POWER.EXE in you CONFIG.SYS. For Windows 3.x
and Windows 95, you need to install Windows with the APM feature. A battery
and power cord icon labeled “Power” will appear in the “Contr ol Panel.” Choose
“Advanced” in the Power Management Field.

Video Off Option (Susp,Stby -> Off )

This field determines when to activate the video off feature for monitor power
management. The settings are All Modes -> Off; Always On; Suspend -> Off; and
Susp,Stby -> Off .

IV. BIOS SETUP

Power Management

ASUS P5S-VM User’s Manual 49

IV. BIOS SETUP

Video Off Method (DPMS OFF)

This field defines the video off features. These options are available: DPMS OFF,
DPMS Reduce ON, Blank Screen, V/H SYNC+Blank, DPMS Standby, and DPMS Sus­pend. The DPMS (Display Power Management System) features allow the BIOS to

control the video display card if it supports the DPMS feature. Blank Screen only
blanks the screen (for monitors without power management or “green” features). If set
up in your system, your screen saver will not display with Blank Screen selected). V/H
SYNC+Blank blanks the screen and turns off vertical and horizontal scanning.

......................................................................................................................................

PM Timers

This section controls the time-out settings for the Power Management scheme. The
fields included in this section are HDD Power Down, which places the hard disk
into its lowest power consumption mode, and the Doze, Standby and Suspend sys­tem inactivation modes.

The system automatically “wakes up” from any power saving mode when there is
system activity, such as when a key is pressed from the keyboard, or when there is
activity detected from the enabled IRQ channels.

HDD Power Down (Disable)

This shuts down any IDE hard disk drives in the system after a period of inactivity.
This time period is user-configurable from 1 Min to 15 Min or Disable. This feature
does not affect SCSI hard disks.

Doze Mode, Standby Mode, Suspend Mode (Disable)

These fields set the period of time after which each of these modes activate: 1 Min, 2 Min,

Power Management

IV. BIOS SETUP

3 Min, 4 Min, 8 Min, 20 Min, 30 Min, 40 Min, or 1 Hour. The default setting is Disable.

.......................................................................................................................................

Power Up Control

This section determines the ways the system can be controlled when it is started or
restarted, when modem activity is detected, or when power to the computer is inter­rupted and reapplied.

AC PWR Loss Restart (Disabled)

This allows you to set how you want your system to boot up after the power has been
interrupted. Disabled leaves your system off after r eapplying power and Enabled

boots up your system after reapplying power.
Ring Power Up (Enable)

This allows either settings of Enable or Disable for powering up the computer (turns
the ATX power supply on) when the modem receives a call while the computer is off.
NOTE: The computer cannot receive or transmit data until the computer and appli­cations are fully running, thus connection cannot be made on the first try. Turning
an external modem off and then back on while the computer is off causes an initializa­tion string that will also cause the system to power on.

ASUS P5S-VM User’s Manual50

IV. BIOS SETUP

Wake On LAN (Enable)

This allows you to remotely power up your system thorugh your network by sendng
a wake-up frame or signal. With this feature, you can remotely upload/download
data to/from systems during off-peak hours. Set to Enable to use this feature.

IMPORTANT: This feature requires the ASUS PCI-L101 LAN Card (see APPEN-
DIX) or a similar ethernet card and an ATX power supply with at least 720mA +5V

standby power.

Automatic Power Up (Disable)

This allows you to have an unattended or automatic power up of your system. You may
configure your system to power up at a certain time of a day in a week by selecting
Enable.

.....................................................................................................................................

Fan Monitor (xxxxRPM)

The onboard hardware monitor is able to detect the Chassis Fan Speed and CPU Fan
Speed in Rotations Per Minute (RPM). These values refresh upon any key entries in
the BIOS setup screen. Set to Ignore if one of these are not used so that error mes-
sages will not be given.

Thermal Monitor (xxxC/xxxF)

The onboard hardware monitor is able to detect the CPU temperature. These values
refresh upon key entries. Set to Ignore only if necessary.

Voltage Monitor (xx.xV)

The onboard hardware monitor is able to detect the voltages put out by the voltage
regulators. These values refresh upon key entries. Set to Ignore only if necessary.

NOTE: If any of the monitored items are out of range, an error message will appear:
“Hardware Monitor found an error, enter POWER MANAGEMENT SETUP for
details”. You will then be prompted to “Press F1 to continue, DEL to enter SETUP”.

Power Management

IV. BIOS SETUP

Power Management

ASUS P5S-VM User’s Manual 51

IV. BIOS SETUP

PNP and PCI Setup

This “PNP and PCI Setup” option configures the PCI bus slots. All PCI bus slots on
the system use INTA#, thus all installed PCI cards must be set to this value.

NOTE: SETUP Defaults are noted in parenthesis next to each function heading.

Details of PNP and PCI Setup

PNP OS Installed (No)

This field allows you to use a Plug-and-Play (PnP) operating system to configure
the PCI bus slots instead of using the BIOS. Thus interrupts may be reassigned by

IV. BIOS SETUP

Plug & Play/PCI

the OS when Yes is selected. When a non-PnP OS is installed or to prevent reassign­ing of interrupt settings, select the default setting of No.

Slot 1 IRQ (Auto) / Slot 2 IRQ (Auto) / Slot 3 IRQ (Auto)
These fields set how IRQ use is determined for each PCI slot. The default setting for
each field is Auto, which uses auto-routing to determine IRQ use. The other options are
manual settings of NA, 3, 4, 5, 7, 9, 10, 1 1, 12, 14 or 15 for each slot.

PCI Latency Timer (32 PCI Clock)

The default setting of 32 PCI Clock enables maximum PCI performance.

IRQ xx Used By ISA (No/ICU)

These fields indicate whether or not the displayed IRQ for each field is being used
by a legacy (non-PnP) ISA card. Two options are available: No/ICU and Yes. The
first option, the default value, indicates either that the displayed IRQ is not used or
an ISA Configuration Utility (ICU) is being used to determine if an ISA card is
using that IRQ. If you install a legacy ISA card that requires a unique IRQ, and you
are not using an ICU, you must set the field for that IRQ to Yes. For example: If you
install a legacy ISA card that requires IRQ 10, then set IRQ10 Used By ISA to Yes.

......................................................................................................................................

ASUS P5S-VM User’s Manual52

IV. BIOS SETUP

DMA x Used By ISA (No/ICU)

These fields indicate whether or not the displayed DMA channel for each field is
being used by a legacy (non-PnP) ISA card. A vailable options include: No/ICU and
Yes. The first option, the default setting, indicates either that the displayed DMA
channel is not used or an ICU is being used to determine if an ISA card is using that
channel. If you install a legacy ISA card that requires a unique DMA channel, and
you are not using an ICU, you must set the field for that channel to Yes.

ISA MEM Block BASE (No/ICU)

This field allows you to set the base address and block size of a legacy ISA card that
uses any memory segment within the C800H and DFFFH address range. If you
have such a card, and you are not using an ICU to specify its address range, select a
base address from the six available options; the ISA MEM Block SIZE field will
then appear for selecting the block size. If you have more than one legacy ISA card
in your system that requires to use this address range, you can increase the block
size to either 8K, 16K, 32K, or 64K. If you are using an ICU to accomplish this task,
leave ISA MEM Block BASE to its default setting of No/ICU.

SYMBIOS SCSI BIOS (Auto)

Auto

allows the motherboard’ s BIOS to detect whether you have a Symbios
SCSI card. If a Symbios SCSI card is detected, the motherboard’s Symbios
BIOS will be enabled; if no Symbios SCSI card is detected, the onboard
Symbios SCSI BIOS will be disabled. Disabled will disable the
motherboard’ s Symbios SCSI BIOS so that the BIOS on an external Symbios
SCSI card can be used. (If your Symbios SCSI card does not have a BIOS,
the Symbios SCSI card will not function.)

USB Function (Disabled)

This motherboard supports Universal Serial Bus (USB) devices. Set to Enabled if
you want to use USB devices. Your system must support USB function. The default
setting is Disabled.

USB IRQ (Auto)

This field allows you to reserve an IRQ# (5, 7, 9, 10, 11, 12, 14, or 15) for the USB
to work. Auto assigns an IRQ# automatically to your USB device. If you are not
using a USB device, you may disable this feature by setting it to NA to save an extra
IRQ# for other devices or expansion cards.

IV. BIOS SETUP

Load Setup Defaults

Plug & Play/PCI

IV. BIOS SETUP

ONB VGA BIOS First (No)

This field, when set to Yes, gives priority to the onboard VGA BIOS over other VGA
controllers. The default setting is No.

ASUS P5S-VM User’s Manual 53

IV. BIOS SETUP

Load BIOS Defaults

This “Load BIOS Defaults” option allows you to load the troubleshooting default
values permanently stored in the BIOS ROM. These default settings are non-opti­mal and disable all high performance features. To load these default settings, high­light “Load BIOS Defaults” on the main screen and then press <Enter>. The system
displays a confirmation message on the screen. Press <Y> and then <Enter> to
confirm. Press <N> and then <Enter> to abort. This feature does not affect the
fields on the Standard CMOS Setup screen.

Load Setup Defaults

This “Load Setup Defaults” option allows you to load the default values to the system
configuration fields. These default values are the optimized configuration settings for
the system. T o load these default values, highlight “Load Setup Defaults” on the main
screen and then press <Enter>. The system displays a confirmation message on the
screen. Press <Y> and then <Enter> to confirm. Press <N> and then <Enter> to
abort. This feature does not affect the fields on the Standard CMOS Setup screen.

IV. BIOS SETUP

Load Defaults

ASUS P5S-VM User’s Manual54

IV. BIOS SETUP

Supervisor Password and User Password

These two options set the system passwords. “Supervisor Password” sets a password
that will be used to protect the system and the Setup utility; “User Password” sets a
password that will be used exclusively on the system. By default, the system comes
without any passwords. To specify a password, highlight the type you want and then
press <Enter>. A password prompt appears on the screen. T aking note that the password
is case sensitive, and can be up to 8 alphanumeric characters long, type in your password
and then press <Enter>. The system confirms your password by asking you to type it
again. After setting a password, the screen automatically reverts to the main screen.

To implement password protection, specify in the “Security Option” field of the BIOS
Features Setup screen when the system will prompt for the password. If you want to
disable either password, press <Enter> instead of entering a new password when the
“Enter Password” prompt appears. A message confirms the password has been disabled.

Forgot the password?

If you forgot the password, you can clear the password by erasing the CMOS Real
Time Clock (RTC) RAM. The RAM data containing the password information is
powered by the onboard button cell battery. To erase the RTC RAM: (1) Unplug
your computer, (2) Short the solder points, (3) Turn ON your computer, (4) Hold
down <Delete> during bootup and enter BIOS setup to re-enter user preferences.

0 1

CLRTC

Passwords

IV. BIOS SETUP

P5S-VM Clear RTC RAM

ASUS P5S-VM User’s Manual 55

IV. BIOS SETUP

IDE HDD Auto Detection

This “IDE HDD Auto Detection” option detects the parameters of an IDE hard disk
drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each listed inside the
box. To accept the optimal entries, press <Y> or else select from the numbers dis­played under the OPTIONS field (2, 1, 3 in this case); to skip to the next drive, press
<N>. If you accept the values, the parameters will appear listed beside the drive
letter on the screen. The process then proceeds to the next drive letter. Pressing

Hard Disk Detect

IV. BIOS SETUP

<N> to skip rather than to accept a set of parameters causes the program to enter
zeros after that drive letter.

Remember that if you are using another IDE controller that does not feature En­hanced IDE support for four devices, you can only install two IDE hard disk drives.
Y our IDE controller must support the Enhanced IDE features in order to use Drive E
and Drive F. The onboard PCI IDE controller supports Enhanced IDE, with two
connectors for connecting up to four IDE devices. If you want to use another con­troller that supports four drives, you must disable the onboard IDE controller in the
Chipset Features Setup screen.

When auto-detection is completed, the program automatically enters all entries you
accepted on the field for that drive in the Standard CMOS Setup screen. Skipped
entries are ignored and are not entered in the screen.

If you are auto-detecting a hard disk that supports the LBA mode, three lines will
appear in the parameter box. Choose the line that lists LBA for an LBA drive. Do
not select Large or Normal.

The auto-detection feature can only detect one set of parameters for a particular IDE
hard drive. Some IDE drives can use more than one set. This is not a problem if the
drive is new and empty.

ASUS P5S-VM User’s Manual56

IV. BIOS SETUP

IMPORTANT: If your hard disk was already formatted on an older previous system,
incorrect parameters may be detected. You will need to enter the correct parameters
manually or use low-level format if you do not need the data stored on the hard disk.

If the parameters listed differ from the ones used when the disk was formatted, the
disk will not be readable. If the auto-detected parameters do not match the ones that
should be used for your disk, do not accept them. Press <N> to reject the presented
settings and enter the correct ones manually from the Standard CMOS Setup screen.

Save & Exit Setup

Select this option to save into the CMOS memory all modifications you specified
during the current session. To save the configuration changes, highlight the “Save
& Exit Setup” option on the main screen, type “Y”, and then press <Enter>.

Exit Without Saving

Select this option to exit the Setup utility without saving the modifications you specify
during the current session. To exit without saving, highlight the “Exit Without Sav­ing” option on the main screen and then press <Enter>.

Save

IV. BIOS SETUP
