Asus Eee Top PC 2002T User guide

User Manual

English

ET20 Series

English

E5009

First Edition V1 August 2009

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER, INC. (“ASUS”).

Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identiﬁcation purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents, and reserves the right to make changes without prior notice.

English

Contents

Notices .....................................................................................................................................................5

Federal Communications Commission Statement ......................................................... 5

Canadian Department of Communications Statement ................................................6

IC Radiation Exposure Statement for Canada...................................................................6

Declaration of Conformity (R&TTE directive 1999/5/EC) .............................................. 6

CE Mark Warning ......................................................................................................................... 6

Wireless Operation Channel for Different Domains ....................................................... 6

France Restricted Wireless Frequency Bands .................................................................... 7

REACH ............................................................................................................................................. 8

Takeback and Recycling ...........................................................................................................9

Notes for this manual .......................................................................................................................10

Safety information .............................................................................................................................11

Setting up your system ...........................................................................................................11

Care during use..........................................................................................................................11

Welcome ..................................................................................................12

Package contents ..............................................................................................................................12

Getting to know your EeeTop PC ...........................................................13

Front view .............................................................................................................................................13

Rear view ..............................................................................................................................................16

Side views .............................................................................................................................................18

Using the touch screen ....................................................................................................................19

Cleaning the touch screen .....................................................................................................19

Using the keyboard ...........................................................................................................................20

Function keys .............................................................................................................................21

Positioning your EeeTop PC ...................................................................22

Placing on the desktop ....................................................................................................................22

Setting up your EeeTop PC .....................................................................23

Connecting the wired keyboard and mouse ...........................................................................23

Connecting the wireless keyboard and mouse ......................................................................23

Powering on the system..................................................................................................................24

Powering off ........................................................................................................................................24

English

Calibrating the screen ......................................................................................................................25

Conﬁguring a wireless connection .............................................................................................26

Conﬁguring the audio output .......................................................................................................27

Speaker conﬁgurations ...........................................................................................................27

Connecting to speakers ..........................................................................................................27

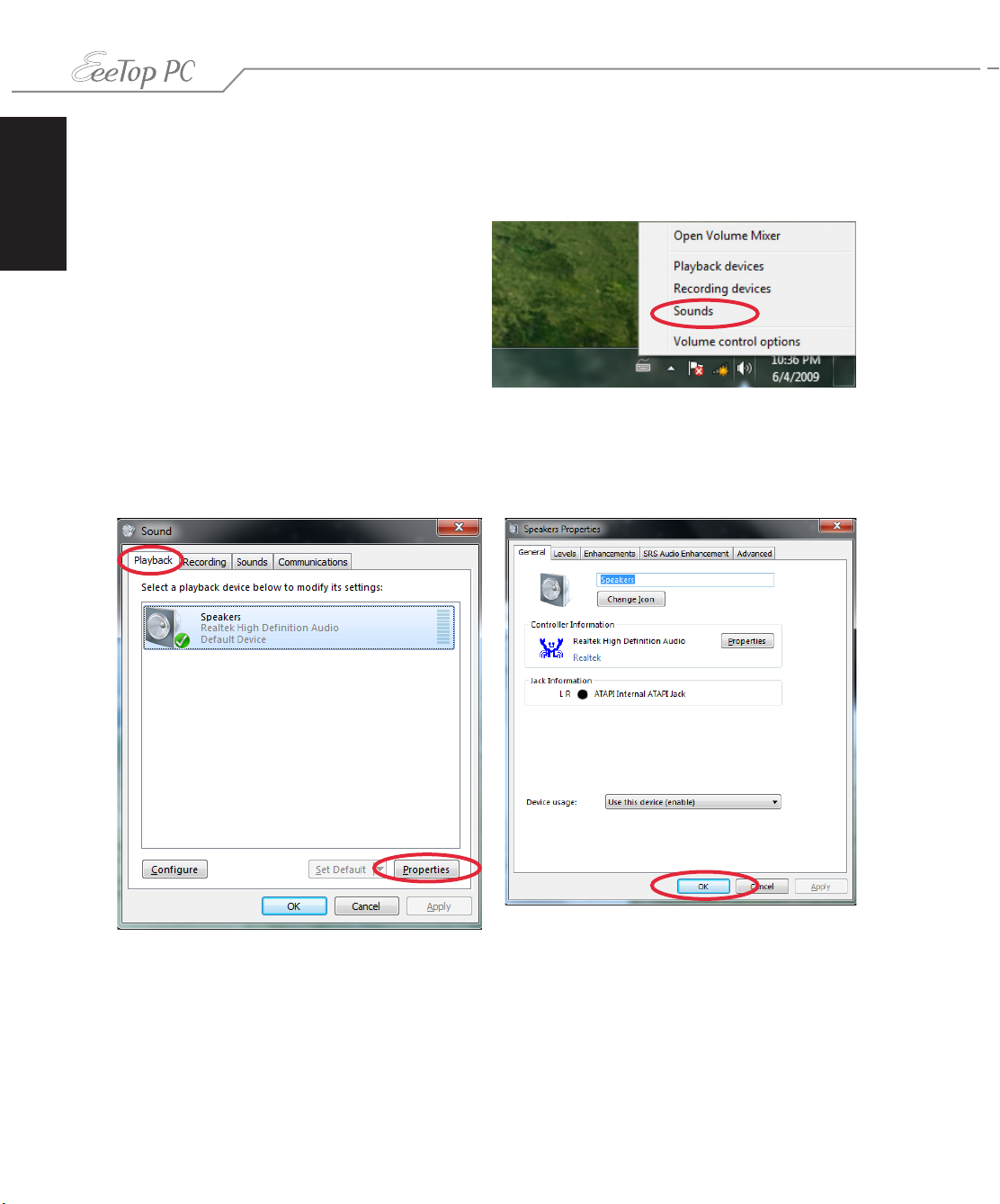

Conﬁguring audio output settings .............................................................................................28

Recovering your system ......................................................................... 29

Using the support DVD ...................................................................................................................29

Using the hidden partition .............................................................................................................30

English

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modiﬁcations not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

5EeeTop PC ET20 Series

English

6 EeeTop PC ET20 Series

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the speciﬁc operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and

• This device must accept any interference, including interference that may cause undesired operation of the device.

Declaration of Conformity (R&TTE directive 1999/5/EC)

The following items were completed and are considered relevant and sufﬁcient:

• Essential requirements as in [Article 3]

• Protection requirements for health and safety as in [Article 3.1a]

• Testing for electric safety according to [EN 60950]

• Protection requirements for electromagnetic compatibility in [Article 3.1b]

• Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]

• Effective use of the radio spectrum as in [Article 3.2]

• Radio test suites according to [EN 300 328-2]

CE Mark Warning

This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

English

7EeeTop PC ET20 Series

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:

• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)

• 100mW for frequencies between 2446.5 MHz and 2483.5 MHz

Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.

There are few possibilities for outdoor use: On private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100mW

• Maximum authorized power outdoors is 10mW

Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain 02 Aisne 03 Allier 05 Hautes Alpes

08 Ardennes 09 Ariège 11 Aude 12 Aveyron 16 Charente

24 Dordogne 25 Doubs 26 Drôme 32 Gers 36 Indre

37 Indre et Loire 41 Loir et Cher 45 Loiret 50 Manche 55 Meuse

58 Nièvre 59 Nord 60 Oise 61 Orne 63 Puy du Dôme

64 Pyrénées Atlantique 66 Pyrénées Orientales 67 Bas Rhin 68 Haut Rhin

70 Haute Saône 71 Saône et Loire 75 Paris 82 Tarn et Garonne

84 Vaucluse 88 Vosges 89 Yonne

90 Territoire de Belfort 94 Val de Marne

This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom. fr)

Your WLAN Card transmits less than 100mW, but more than 10mW.

English

8 EeeTop PC ET20 Series

NO DISASSEMBLY

The warranty does not apply to the products that

have been disassembled by users

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace

only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

No Exposure to Liquids

DO NOT expose to or use near liquids, rain, or moisture. This product is not

waterproof or oil-proof.

This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

REACH

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://green.asus.com/english/REACH.htm.

English

9EeeTop PC ET20 Series

Takeback and Recycling

Old computers, notebook computers, and other electronic equipment contain hazardous chemicals that are harmful to the environment when disposed in a landfill with trash. By recycling, the metals, plastics, and components found in an old computer will be broken down and reused to make new products. And, the environment is protected from any uncontrolled release of harmful chemicals.

ASUS works with recycling vendors with the highest standards for protecting our environment, ensuring worker safety, and complying with global environmental laws. Our commitment to recycling our old equipment grows out of our work to protect the environment in many ways.

For further information about ASUS product recycling and contacts, please visit GreenASUS Takeback and Recycling page at http://green.asus.com/english/takeback.htm.

English

10 EeeTop PC ET20 Series

Notes for this manual

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

WARNING: Vital information that you MUST follow to prevent injury to yourself.

IMPORTANT: Instructions that you MUST follow to complete a task.

TIP: Tips and useful information that help you complete a task.

NOTE: Additional information for special situations.

All illustrations and screenshots in this manual are for reference only. Actual product speciﬁcations and software screen images may vary with territories. Visit the ASUS website at www.asus.com for the latest information.
