Asus E35M1-I User Manual

E35M1-I

Motherboard

E6496

First Edition (V1) March 2011

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product may contain copyrighted software that is licensed under the General Public License (“GPL”) and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this product is distributed without any warranty. Copies of these licenses are included in this product.

You may obtain the complete corresponding source code (as dened in the GPL) for the GPL Software,

and/or the complete corresponding source code of the LGPL Software (with the complete machinereadable “work that uses the Library”) for a period of three years after our last shipment of the product including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either

(1) for free by downloading it from http://support.asus.com/download; or (2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc. Legal Compliance Dept. 15 Li Te Rd., Beitou, Taipei 112 Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code

we would be much obliged if you give us a notication to the email address gpl@asus.com, stating the

product and describing the problem (please do NOT send large attachments such as source code archives etc to this email address).

Contents

Notices ......................................................................................................... vi

Safety information ..................................................................................... vii

About this guide ....................................................................................... viii

E35M1-I specications summary .............................................................. ix

Chapter 1: Product introduction

1.1 Before you proceed ..................................................................... 1-1

1.2 Motherboard overview .................................................................

1.2.1 Motherboard layout .........................................................

1.2.2 Layout contents ...............................................................

1.3 Central Processing Unit (CPU) ...................................................

1.4 System memory ...........................................................................

1.4.1 Overview .........................................................................

1.4.2 Memory congurations ....................................................

1.5 Expansion slots ............................................................................

1.5.1 Installing an expansion card ...........................................

1.5.2 Conguring an expansion card .......................................

1.5.3 PCI Express x16 slot .......................................................

1.6 Jumpers ........................................................................................

1.7 Connectors ...................................................................................

1.7.1 Rear panel connectors ....................................................

1.7.2 Internal connectors .......................................................

1.8 Software support ........................................................................

1.8.1 Installing an operating system ......................................

1.8.2 Support DVD information ..............................................

1-10

1-14

1-2

1-3

1-4

1-7

1-8

1-9

Chapter 2: BIOS information

2.1 Managing and updating your BIOS ............................................ 2-1

2.1.1 ASUS Update utility ........................................................

2.1.2 ASUS EZ Flash 2 ............................................................

2.1.3 ASUS CrashFree BIOS 3 utility ......................................

2.1.4 ASUS BIOS Updater .......................................................

2.2 BIOS setup program ....................................................................

2-1

2-2

2-3

2-4

2-7

iii

Contents

2.3 Main menu .................................................................................. 2-10

2.3.1 System Language [English] ...........................................

2.3.2 System Date [Day xx/xx/xxxx] ........................................

2.3.3 System Time [xx:xx:xx] ..................................................

2.3.4 Security ..........................................................................

2.4 Ai Tweaker menu ........................................................................

2.4.1 Ai Overclock Tuner [Auto] .............................................

2.4.2 Memory Frequency [Auto] .............................................

2.4.3 DRAM Timing Control ...................................................

2.4.4 CPU Offset Mode Sign [+] .............................................

2.4.5 VDDNB Offset Mode Sign [+] ........................................

2.4.6 DRAM Voltage [Auto] ....................................................

2.4.7 SB 1.1V Voltage [Auto] .................................................

2.4.8 APU 1.8V Voltage [Auto] ...............................................

2.4.9 APU 1.05V Voltage [Auto] .............................................

2.4.10 APU Spread Spectrum [Auto] .......................................

2.5 Advanced menu .........................................................................

2.5.1 CPU Conguration ........................................................

2.5.2 SATA Conguration .......................................................

2.5.3 USB Conguration ........................................................

2.5.4 NB Conguration ...........................................................

2.5.5 Onboard Devices Conguration ....................................

2.5.6 APM ..............................................................................

2.6 Monitor menu .............................................................................

2.6.1 CPU Temperature / MB Temperature

2.6.2 CPU / Chassis Fan Speed ............................................

2.6.3 CPU Q-Fan Control [Enabled] ......................................

2.6.4 Chassis Q-Fan Control [Enabled] .................................

2.6.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage ..

2.6.6 Anti Surge Support [Enabled] .......................................

2.7 Boot menu ..................................................................................

2.7.1 Bootup NumLock State [On] .........................................

2.7.2 Full Screen Logo [Enabled] ...........................................

2.7.3 Option ROM Messages [Force BIOS] ...........................

2.7.4 Setup Mode [EZ Mode] .................................................

[xxxºC/xxxºF] ...... 2-19

2-11

2-12

2-13

2-14

2-15

2-16

2-17

2-18

2-19

2-20

2-21

2-22

Contents

2.7.5 Boot Option Priorities .................................................... 2-22

2.7.6 Boot Override ................................................................

2.8 Tools menu .................................................................................

2.8.1 ASUS EZ Flash 2 Utility ................................................

2.8.2 ASUS O.C. Prole .........................................................

2.9 Exit menu ....................................................................................

2-22

2-23

2-24

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Safety information

Electrical safety

• To prevent electric shock hazard, disconnect the power cable from the electric outlet

before relocating the system.

• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.

• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.

•

Before using the product, ensure that all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

vii

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

•

Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it

supports.

• Chapter 2: BIOS information

This chapter tells how to change system settings through the BIOS Setup menus.

Detailed descriptions of the BIOS parameters are also provided.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to

complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Where to nd more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the standard package.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: <Enter> means that you must press the Enter or Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key names are linked with a plus sign (+). Example: <Ctrl>+<Alt>+<D>

viii

E35M1-I specications summary

CPU AMD® Dual-core processor E-350 with AMD® Radeon™ HD 6310

Chipset AMD® FCH A50 (Hudson M1) Memory 2 x DIMMs, maximum 8GB, DDR3 1066 / 800 MHz, non-ECC,

Expansion slots 1 x PCI Express 2.0 x16 slot (at x4 mode, with latch) Graphics Integrated AMD® Radeon™ HD 6310

Storage 6 x Serial ATA 6.0 Gb/s connectors support AHCI mode LAN Realtek® 8111E PCIe Gigabit LAN controller Audio VIA® VT1708S 8-channel* High Denition Audio CODEC

USB

ASUS special features

Rear panel ports 1 x PS/2 Keyboard / Mouse combo port

Internal connectors 3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1 ports

Discrete-Class graphics

un-buffered memory Single-channel memory architecture * Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).

** When you install a total memory of 4GB capacity or more,

Windows® 32-bit operating system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows® 32-bit operating system.

Supports DVI with max. resolution up to 1920 x 1080 @60Hz Supports D-Sub with max. resolution up to 2560 x 1600 @60Hz

* Use a chassis with HD audio module in the front panel to

support an 8-channel audio output.

12 x USB 2.0/1.1 ports (6 ports at the mid-board, 6 ports at the back panel)

ASUS AI Suite II ASUS Anti-Surge protection ASUS Q-Fan 2 ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors

1 x DVI port 1 x D-Sub port 1 x LAN (RJ-45) port 6 x USB 2.0 ports 3 x Audio jacks

1 x CPU fan connector 1 x Chassis fan connector 1 x Chassis intrusion connector 6 x SATA 6.0Gb/s connectors 1 x System panel connector 1 x Front panel audio connector 1 x 24-pin EATX power connector 1 x 4-pin ATX 12V power connector

(continued on the next page)

E35M1-I specications summary

BIOS features 32 Mb Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM 2.0, ACPI 2.0a,

Accessories 2 x Serial ATA 6.0Gb/s cables

Support DVD Drivers

Form factor

* Specications are subject to change without notice.

SM BIOS 2.6

1 x I/O shield 1 x User Manual 1 x Support DVD

ASUS utilities ASUS Update Anti-virus software (OEM version)

Mini ITX form factor: 6.7 in x 6.7 in (17.0 cm x 17.0 cm)

Chapter 1

E35M1-I

SB_PWR

Standby Power Powered Off

OFF

E35M1-I Onboard LED

Product introduction

Thank you for buying an ASUS® E35M1-I motherboard! Before you start installing the motherboard, and hardware devices on it, check the items in

your motherboard package. Refer to page x for the list of accessories.

If any of the items is damaged or missing, contact your retailer.

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

Standby Power LED

The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

1-1Chapter 1: Product introduction

E35M1-I

PCIEX16

Super

I/O

F_PANEL

AAFP

ATX12V

EATXPWR

CPU_FAN

CHA_FAN

USB1112

USB910

USB78

Lithium Cell

CMOS Power

EPU

VIA

VT1708S

RTL

8111E

32Mb BIOS

SB_PWR

CLRTC

17cm(6.7in)

AMD® FCH A50

(Hudson M1)

SATA6G_2 SATA6G_1

SATA6G_4 SATA6G_3

SATA6G_6 SATA6G_5

AMD® Dual-core processor E-350 with RadeonTM HD 6310 graphics

CHASSIS

ICS

9LRPS482

DDR3 DIMM1 (64bit, 240-pin module)

DDR3 DIMM2 (64bit, 240-pin module)

AUDIO

KB_USB56

LAN1_USB12

USB34

VGA

DVI

1 2 3

7891011

1.2 Motherboard overview

1.2.1 Motherboard layout

Ensure that you install the motherboard into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis.

1-11 7. Serial ATA 6.0Gb/s connectors (7-pin

1-10 8. Chassis intrusion connector (4-1 pin CHASSIS) 1-13

1-3 9. Clear RTC RAM (3-pin CLRTC) 1-8

1-12

SATA6G_1~6)

1.2.2 Layout contents

Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page

1. CPU and chassis fan connectors (3-pin CPU_FAN, 3-pin CHA_FAN)

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

3. AMD® Dual-core processor E-350 with AMD Radeon™ HD 6310 graphics

Place four screws into the holes indicated by circles to secure the motherboard to the chassis. DO NOT overtighten the screws! Doing so can damage the motherboard.

4. DDR3 DIMM slots 1-3 10. Standby power LED (SB_PWR) 1-1

5. System panel connector (10-1 pin F_PANEL) 1-13 11. Front panel audio connector (10-1 pin AAFP) 1-11

6. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112)

1-12

ASUS E35M1-I1-2

1.3 Central Processing Unit (CPU)

E35M1-I

E35M1-I AMD® Dual-core processor E-350 with RadeonTM HD 6310 graphics

AMD® Dual-core processor E-350 with AMD® Radeon™ HD 6310 graphics

E35M1-I

E35M1-I 240-pin DDR3 DIMM sockets

DIMM1

DIMM2

The motherboard comes with an onboard AMD® Dual-core processor E-350 with AMD® Radeon™ HD 6310 Discrete-Class graphics and a specially designed CPU heatsink.

1.4 System memory

1.4.1 Overview

The motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets.

A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for better performance with less power consumption.

The gure illustrates the location of the DDR3 DIMM sockets:

1-3Chapter 1: Product introduction

1.4.2 Memory congurations

You may install 512MB, 1GB, 2GB, and 4GB unbuffered non-ECC DDR3 DIMMs into the DIMM sockets.

• We recommend that you install the memory modules from the blue slots for better overclocking capability.

• Due to the memory address limitation on 32-bit Windows or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

- Use a maximum of 3GB system memory if you are using a 32-bit Windows

- Install a 64-bit Windows® OS when you want to install 4GB or more on the

motherboard.

• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less.

• The default memory operation frequency is dependent on its Serial Presence Detect

(SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency, refer to section 2.4 Ai Tweaker menu for manual memory frequency adjustment.

• For system stability, use a more efcient memory cooling system to support a full

memory load (2 DIMMs) or overclocking condition.

E35M1-I Motherboard Qualied Vendors Lists (QVL)

DDR3-1066 MHz capability

OS, when you install 4GB

OS.

Vendors Part No. Size

Crucial CT12864BA1067.8FF 1GB SS Micron 9GF22D9KPT 7 - • Crucial CT12872BA1067.9FF 1GB SS Micron 9HF22D9KPT(ECC) 7 - • Crucial CT25664BA1067.16FF 2GB DS Micron 9HF22D9KPT 7 - • Crucial CT25672BA1067.18FF 2GB DS Micron 9GF22D9KPT(ECC) 7 - • ELPIDA EBJ10UE8EDF0-AE-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) • ELPIDA EBJ21UE8EDF0-AE-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) • KINGSTON KVR1066D3N7/1G 1GB SS KTC D1288JPNDPLD9U 7 1.5V • KINGSTON KVR1066D3N7/2G 2GB DS ELPIDA J1108BDSE-DJ-F 7 1.5V • KINGSTON KVR1066D3N7/4G 4GB DS Hynix H5TQ2G83AFR 7 1.5V • Micron MT8JTF12864AZ-1G1F1 1GB SS Micron 9GF22D9KPT 7 - • Micron MT9JSF12872AZ-1G1F1 1GB SS Micron 9HF22D9KPT(ECC) 7 - • Micron MT16JTF25664AZ-1G1F1 2GB DS Micron 9HF22D9KPT 7 - • Micron MT18JSF25672AZ-1G1F1 2GB DS Micron 9GF22D9KPT(ECC) 7 - •

SS/DSChip

Brand

Chip NO. Timing Voltage

DIMM socket support (Optional)

1 DIMM

ASUS E35M1-I1-4

DDR3-1333 MHz capability

DIMM socket

1.35V(low voltage)

1.3V(low voltage)

1.35V(low voltage)

support (Optional)

Vendors Part No. Size

A-Data AD31333001GOU 1GB SS A-Data AD30908C8D-151C E0906 - - • A-Data AD31333G001GOU 3GB(3 x 1GB) SS - - 8-8-8-24 1.65-1.85V • A-Data AD31333002GOU 2GB DS A-Data AD30908C8D-151C E0903 - - • A-Data AD31333G002GMU 2GB DS - - 8-8-8-24 1.65-1.85V • Apacer 78.A1GC6.9L1 2GB DS APACER AM5D5808DEWSBG - - • Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808FEQSBG 9 - • CORSAIR CM3X1024-1333C9 1GB SS - - 9-9-9-24 1.60V • CORSAIR TWIN3X2048-1333C9DHX G 2GB(2 x 1GB) SS - - 9-9-9-24 1.50V • CORSAIR TR3X3G1333C9 G 3GB(3 x 1GB) SS - - 9-9-9-24 1.50V • CORSAIR TR3X3G1333C9 G 3GB(3 x 1GB) SS - - 9-9-9-24 1.50V • CORSAIR CMD24GX3M6A1333C9(XMP) 24GB(6 x 4GB) DS - - 9-9-9-24 1.60V • CORSAIR TW3X4G1333C9D G 4GB(2 x 2GB) DS - - 9-9-9-24 1.50V • CORSAIR TW3X4G1333C9DHX G 4GB(2 x 2GB) DS - - 9-9-9-24 1.50V • CORSAIR CMX8GX3M4A1333C9 8GB(4 x 2GB) DS - - 9-9-9-24 1.50V • Crucial CT12864BA1339.8FF 1GB SS Micron 9FF22D9KPT 9 - • Crucial CT25664BA1339.16FF 2GB DS Micron 9KF27D9KPT 9 - • Crucial BL25664BN1337.16FF (XMP) 6GB(3 x 2GB) DS - - 7-7-7-24 1.65V •

ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F -

ELPIDA EBJ21UE8EDF0-DJ-F 2GB DS ELPIDA J1108EDSE-DJ-F -

G.SKILL F3-10600CL8D-2GBHK(XMP) 1GB SS G.SKILL - - - • G.SKILL F3-10666CL7T-3GBPK(XMP) 3GB(3 x 1GB) SS - - 7-7-7-18 1.5~1.6V • G.SKILL F3-10666CL8D-4GBECO(XMP) 4GB(2 x 2GB) DS - - 8-8-8-24 XMP 1.35V • G.SKILL F3-10666CL7T-6GBPK(XMP) 6GB(3 x 2GB) DS - - 7-7-7-18 1.5~1.6V • G.SKILL F3-10666CL7D-8GBRH(XMP) 8GB(2 x 4GB) DS - - 7-7-7-21 1.5V • GEIL GET316GB1333C9QC 16GB(4 x 4GB) DS - - 9-9-9-24 1.5V • GEIL GV32GB1333C9DC 2GB(2 x 1GB) DS - - 9-9-9-24 1.5V • GEIL GV34GB1333C7DC 2GB DS - - 7-7-7-24 1.5V •

GEIL GG34GB1333C9DC 4GB(2 x 2GB) DS GEIL GL1L128M88BA12N 9-9-9-24

GEIL GV34GB1333C9DC 4GB(2 x 2GB) DS - - 9-9-9-24 1.5V •

Hynix HMT112U6TFR8A-H9 1GB SS HYNIX H5TC1G83TFRH9A -

HYNIX HMT325U6BFR8C-H9 2GB SS HYNIX H5TQ2G83BFRH9C - - •

Hynix HMT125U6TFR8A-H9 2GB DS HYNIX H5TC1G83TFRH9A -

HYNIX HMT351U6BFR8C-H9 4GB DS HYNIX H5TQ2G83BFRH9C - - • KINGMAX FLFD45F-B8KL9 NAES 1GB SS KINGMAX KKB8FNWBFGNX-27A - - • KINGMAX FLFE85F-C8KF9 CAES 2GB SS KINGMAX KFC8FMFXF-DXX-15A - - • KINGMAX FLFE85F-C8KM9 NAES 2GB SS KINGMAX KFC8FNMXF-BXX-15A - - • KINGMAX FLFE85F-B8KL9 NEES 2GB DS KINGMAX KKB8FNWBFGNX-26A - - • KINGMAX FLFF65F-C8KM9 NEES 4GB DS KINGMAX KFC8FNMXF-BXX-15A - - • Kingston KVR1333D3N9/1G 1GB SS ELPIDA J1108BDBG-DJ-F 9 1.5V • KINGSTON KVR1333D3N9/2G(low prole) 2GB SS HYNIX H5TQ2G83AFRH9C 9 - • KINGSTON KVR1333D3N9/2G(low prole) 2GB DS ELPIDA J1108BDBG-DJ-F 9 1.5V • Kingston KVR1333D3N9/2G 2GB DS KTC D1288JPNDPLD9U 9 1.5V • Kingston KVR1333D3N9/2G 2GB DS ELPIDA J1108BDSE-DJ-F 9 1.5V • Kingston KHX1333C7D3K2/4GX(XMP) 4GB(2 x 2GB) DS - - 7 1.65V • Kingston KHX1333C9D3UK2/4GX(XMP) 4GB(2 x 2GB) DS - - 9 XMP 1.25V • KINGSTON KVR1333D3N9/4G(low prole) 4GB DS HYNIX H5TQ2G83AFRH9C 9 1.5V • KINGSTON KVR1333D3N9/4G 4GB DS Hynix H5TQ2G83AFR - - • MICRON MT4JTF12864AZ-1G4D1 1GB SS MICRON OJD12D9LGQ - - • Micron MT8JTF12864AZ-1G4F1 1GB SS Micron 9FF22D9KPT 9 - • MICRON MT8JTF25664AZ-1G4D1 2GB SS MICRON OJD12D9LGK - - • Micron MT16JTF25664AZ-1G4F1 2GB DS Micron 9KF27D9KPT 9 - • MICRON MT16JTF51264AZ-1G4D1 4GB DS MICRON OLD22D9LGK - - • OCZ OCZ3F13334GK 4GB(2 x 2GB) DS - - 9-9-9-20 1.7V • OCZ OCZ3G1333LV4GK 4GB(2 x 2GB) DS - - 9-9-9-20 1.65V • OCZ OCZ3P1333LV4GK 4GB(2 x 2GB) DS - - 7-7-7-20 1.65V • OCZ OCZ3X13334GK(XMP) 4GB(2 x 2GB) DS - - 7-7-7-20 1.75V • OCZ OCZ3G1333LV6GK 6GB(3 x 2GB) DS - - 9-9-9-20 1.65V • OCZ OCZ3P1333LV6GK 6GB(3 x 2GB) DS - - 7-7-7-20 1.65V • OCZ OCZ3X1333LV6GK(XMP) 6GB(3 x 2GB) DS - - 8-8-8-20 1.60V • OCZ OCZ3G1333LV8GK 8GB( 2x 4GB) DS - - 9-9-9-20 1.65V • OCZ OCZ3RPR1333C9LV8GK 8GB( 2x 4GB) DS - - 9-9-9-20 1.65V • PSC AL7F8G73D-DG1 1GB SS PSC A3P1GF3DGF 8-8-8-24 1.5V •

SS/DSChip

Brand

Chip NO. Timing Voltage

(continued on the next page)

1 DIMM

•

1-5Chapter 1: Product introduction

DDR3-1333 MHz capability

DIMM socket

Vendors Part No. Size

PSC AL7F8G73F-DJ2 1GB SS PSC A3P1GF3FGF - - • PSC AL8F8G73D-DG1 2GB DS PSC A3P1GF3DGF 8-8-8-24 1.5V • PSC AL8F8G73F-DJ2 2GB DS PSC A3P1GF3FGF - - • SAMSUNG M378B2873FHS-CH9 1GB SS SAMSUNG K4B1G0846F - - • SAMSUNG M378B5673FH0-CH9 2GB DS SAMSUNG K4B1G0846F - - • SAMSUNG M378B5273CH0-CH9 4GB DS SAMSUNG K4B2G0846C - - • Super Talent W1333UA1GH 1GB SS HYNIX H5TQ1G83TFR 9 - • Super Talent W1333X2G8(XMP) 1GB SS - - 8 - • Super Talent W1333UB2GS 2GB DS Samsung K4B1G0846F 9 - • Super Talent W1333UB4GS 4GB DS Samsung K4B2G0846C - - • Super Talent W1333UX6GM 6GB(3x 2GB) DS Micron 0BF27D9KPT 9-9-9-24 1.5V • Transcend TS256MLK64V3U 2GB DS Micron 9GF27D9KPT - - • Century PC3-10600 DDR3-1333 9-9-9 1GB SS Micron 8FD22D9JNM - - • Elixir M2F2G64CB88B7N-CG 2GB SS Elixir N2CB2G80BN-CG - - • Elixir M2Y2G64CB8HA9N-CG 2GB DS - - 7-7-7-20 - • Elixir M2Y2G64CB8HC9N-CG 2GB DS Elixir - - - • Elixir M2F4G64CB8HB5N-CG 4GB DS Elixir N2CB2G80BN-CG - - • KINGSHARE KSRPCD313332G 2GB DS PATRIOT PM128M8D385-15 - - • Kingtiger 2GB DIMM PC3-10666 2GB DS Samsung SEC 904 HCH9 K4B1G0846D - - • Kingtiger KTG2G1333PG3 2GB DS - - - - • PATRIOT PSD31G13332H 1GB DS - - 9 - • PATRIOT PSD31G13332 1GB DS Patriot PM64M8D38U-15 - - • PATRIOT PSD32G13332H 2GB DS - - - - • PATRIOT PDC34G1333ELK 4GB(2 x 2GB) DS - - 9-9-9-24 1.5V • RAMAXEL RMR1870ED48E8F-1333 2GB DS ELPIDA J1108BDBG-DJ-F - - • SILICON

SP001GBLTU133S01 1GB SS NANYA NT5CB128M8AN-CG 9 - •

POWER SILICON

SP001GBLTU133S02 1GB SS elixir N2CB1680AN-C6 9 - •

POWER SILICON

SP002GBLTU133S02 2GB DS elixir N2CB1680AN-C6 9 - •

POWER TAKEMS TMS1GB364D081-107EY 1GB SS - - 7-7-7-20 1.5V • TAKEMS TMS1GB364D081-138EY 1GB SS - - 8-8-8-24 1.5V • TAKEMS TMS2GB364D081-107EY 2GB DS - - 7-7-7-20 1.5V • TAKEMS TMS2GB364D081-138EY 2GB DS - - 8-8-8-24 1.5V • TAKEMS TMS2GB364D082-138EW 2GB DS - - 8-8-8-24 1.5V • UMAX E41302GP0-73BDB 2GB DS UMAX U2S24D30TP-13 - - • V-Color TD2G16C9-Z8 2GB DS HYNIX H5TQ1G83AFP - - • WINTEC 3WVS31333-2G-CNR 2GB DS AMPO AM3420803-13H - - •

SS/DSChip

Brand

Chip NO. Timing Voltage

support (Optional)

1 DIMM

DDR3 1333MHz memory module will run at DDR3 1066MHz frequency as default.

SS: Single-sided / DS: Double-sided DIMM support:

• 1 DIMM: Supports one module inserted into either slot as single-channel memory

conguration.

Visit the ASUS website at www.asus.com for the latest QVL.

ASUS E35M1-I1-6

1.5 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1.5.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press rmly until the card is completely

seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.5.2 Conguring an expansion card

After installing the expansion card, congure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup.

2. Assign an IRQ to the card.

3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that

the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI

groups, making the system unstable and the card inoperable.

1.5.3 PCI Express x16 slot

This motherboard has a PCI Express 2.0 x16 slot that supports PCI Express x16 2.0 graphic

cards complying with the PCI Express specications.

1-7Chapter 1: Product introduction

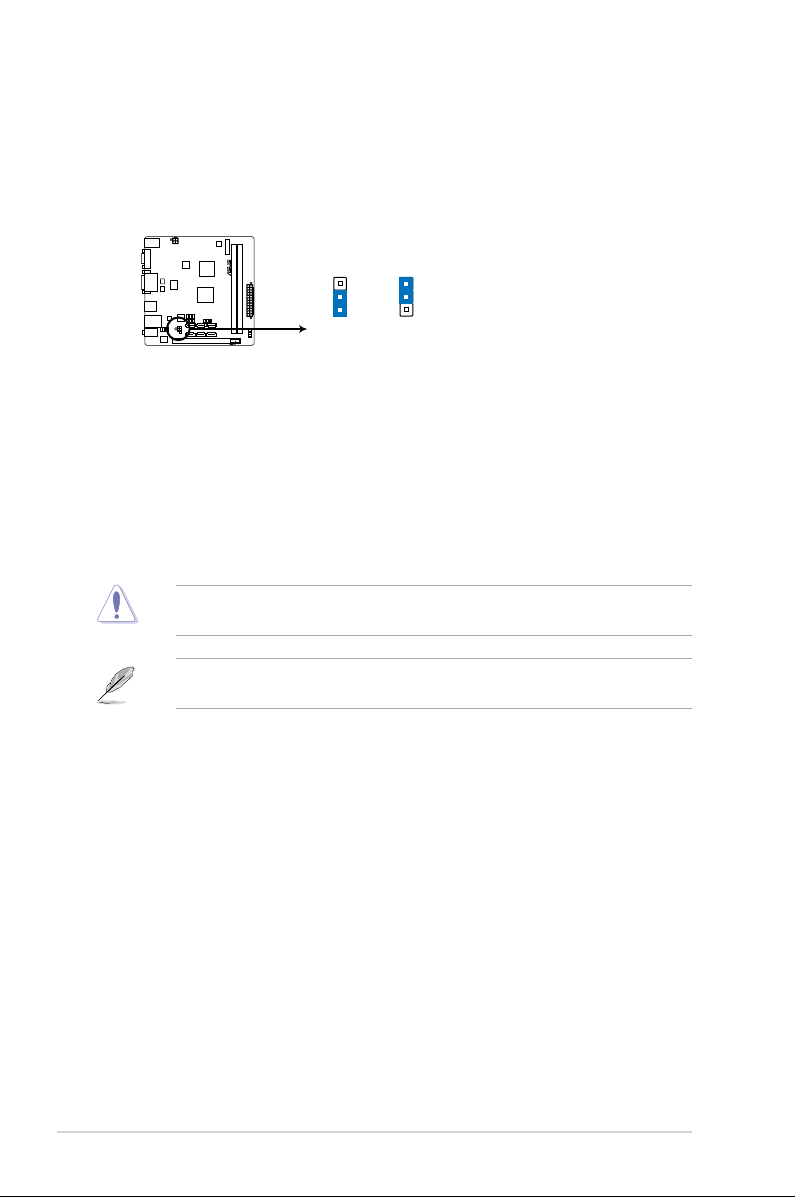

1.6 Jumpers

E35M1-I

E35M1-I Clear RTC RAM

1 2

2 3

Normal

(Default)

Clear RTC

CLRTC

Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the < data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

Del> key during the boot process and enter BIOS setup to re-enter

If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

ASUS E35M1-I1-8

1.7 Connectors

3 4

1.7.1 Rear panel connectors

1. PS/2 Keyboard / Mouse Combo port. This port is for a PS/2 keyboard or PS/2

mouse.

2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)

through a network hub. Refer to the table below for the LAN port LED indications.

LAN port LED indications

ACT/LINK LED SPEED LED

Status Description Status Description

OFF No link OFF 10 Mbps connection

ORANGE Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

Activity Link

3. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio

sources.

4. Line Out port (lime)

. This port connects to a headphone or a speaker. In 4-channel,

6-channel, and 8-channel congurations, the function of this port becomes Front

Speaker Out.

5. Microphone port (pink)

. This port connects a microphone.

LED

LAN port

Speed

LED

Refer to the audio conguration table below for the function of the audio ports in the 2, 4, 6, or 8-channel conguration.

Audio 2, 4, 6, 8-channel conguration

Port Headset 2-channel 4-channel 6-channel 8-channel

Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out

Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center

Lime (Front panel) - - - Side Speaker Out

To congure an 8-channel audio output:

Use a chassis with HD audio module in the front panel to support an 8-channel audio

output.

1-9Chapter 1: Product introduction

6. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for USB

E35M1-I

E35M1-I ATX power connectors

EATXPWR

ATX12V

PIN 1

GND +5 Volts +5 Volts +5 Volts

-5 Volts GND GND GND PSON# GND

-12 Volts +3 Volts

+3 Volts +12 Volts +12 Volts

+5V Standby

Power OK

GND

+5 Volts

GND

+5 Volts

GND +3 Volts +3 Volts

PIN 1

+12V DC

GND

2.0/1.1 devices.

7. USB 2.0 ports 3 and 4

. These two 4-pin Universal Serial Bus (USB) ports are for USB

2.0/1.1 devices.

8. DVI-D port.

This port is for any DVI-D compatible device. DVI-D can’t be converted to

output RGB Signal to CRT and isn’t compatible with DVI-I.

9. Video Graphics Adapter (VGA) port.

This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

10. USB 2.0 ports 5 and 6

. These two 4-pin Universal Serial Bus (USB) ports are for USB

2.0/1.1 devices.

1.7.2 Internal connectors

1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are

designed to t these connectors in only one orientation. Find the proper orientation and push down rmly until the connectors completely t.

• For a fully congured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum

power of 350 W.

• DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will not boot up.

• We recommend that you use a PSU with higher power output when conguring a

system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.

•

If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus. com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

ASUS E35M1-I1-10

2. CPU and chassis fan connectors (3-pin CPU_FAN, 3-pin CHA_FAN)

E35M1-I

E35M1-I fan connectors

CPU_FAN

GND +12V Rotation

CHA_FAN

GND +12V Rotation

E35M1-I

E35M1-

nt pa

conne

tor

AAFP

PIN 1

SENSE2_RETUR

SENSE1_RETUR

PRESENCE#

GND

PORT2 L

SENSE_SEND

PORT2 R

PORT1 R

PORT1 L

HD-audio-compliant

pin definition

AGND

Line out_LNCLine out_R

MICPWR

MIC2

Legacy AC’97

compliant definition

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the

system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!

The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.

3. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

• We recommend that you connect a high-denition front panel audio module to this connector to avail of the motherboard’s high-denition audio capability.

•

If you want to connect a high-denition front panel audio module to this connector, set

the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD]. See section 2.5.5 Onboard Devices Conguration for details.

1-11Chapter 1: Product introduction

4. Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~6)

E35M1-I

GND

RSATA_TXP4

RSATA_TXN4

GND

RSATA_RXP4

RSATA_RXN4

GND

SATA6G_4SATA6G_2

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA_RXP2

RSATA_RXN2

GND

RSATA_RXN3

RSATA_RXP3

GND

RSATA_TXN3

RSATA_TXP3

GND

RSATA_RXN1

RSATA_RXP1

GND

RSATA_TXN1

RSATA_TXP1

GND

SATA6G_3SATA6G_1

GND

RSATA_TXP6

RSATA_TXN6

GND

RSATA_RXP6

RSATA_RXN6

GND

SATA6G_6

GND

RSATA_RXN5

RSATA_RXP5

GND

RSATA_TXN5

RSATA_TXP5

GND

SATA6G_5

E35M1-I SATA 6.0Gb/s connectors

E35M1-I

E35M1-I USB2.0 connectors

PIN 1

GND

USB_P9+

USB_P9-

USB+5V

GND

USB_P10+

USB_P10-

USB+5V

USB910

PIN 1

GND

USB_P7+

USB_P7-

USB+5V

GND

USB_P8+

USB_P8-

USB+5V

USB78

PIN 1

GND

USB_P11+

USB_P11-

USB+5V

GND

USB_P12+

USB_P12-

USB+5V

USB1112

These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables.

• These connectors are set to [IDE Mode] by default. In IDE mode, you can connect Serial ATA boot/data hard disk drives to these connectors.

• When using hot-plug and NCQ, set the

OnChip SATA Type item in the BIOS to [AHCI

Mode]. See section 2.5.2 SATA Conguration for details.

5. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specication that supports up to

480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB module cable is purchased separately.

ASUS E35M1-I1-12

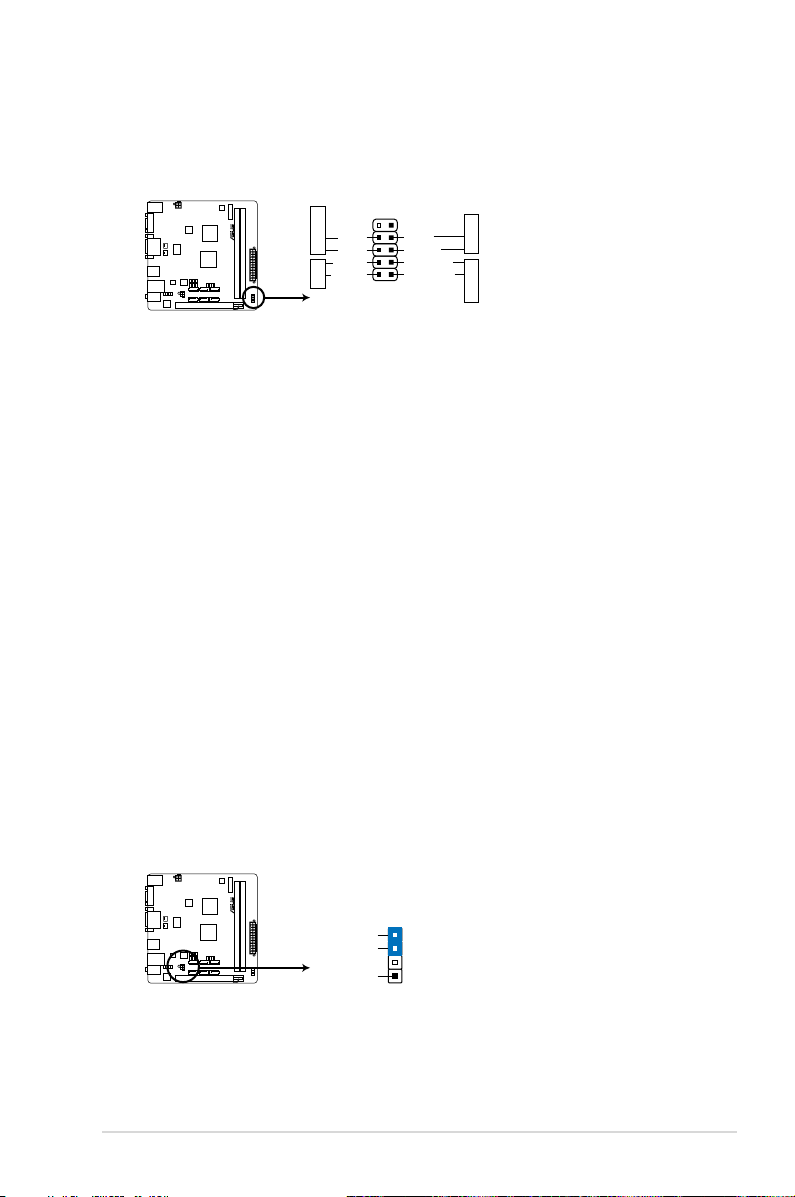

6. System panel connector (10-1 pin F_PANEL)

E35M1-I

E35M1-I System panel connector

PIN 1

PWRBTN

GND

PWR

PLED-

PLED+

Reset Ground HD_LEDHD_LED+

F_PANEL

PLED

+HDLED RESET

E35M1-I

E35M1-I Chassis intrusion connector

GND

Chassis Signal

+5VSB_MB

CHASSIS

This connector supports several chassis-mounted functions.

• System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

• Hard disk drive activity LED (2-pin +HDLED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or ashes when data is read from or written to

the HDD.

• Power/Soft-off button (2-pin PWRBTN)

This 2-pin connector is for the system power button.

• Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

7. Chassis intrusion connector (4-1 pin CHASSIS)

This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event.

By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature.

1-13Chapter 1: Product introduction

1.8 Software support

1.8.1 Installing an operating system

This motherboard supports Windows® XP / Vista / 7 Operating Systems (OS). Always install

the latest OS version and corresponding updates to maximize the features of your hardware.

• Motherboard settings and hardware options vary. Refer to your OS documentation for

detailed information.

• Ensure that you install Windows

Service Pack 1 or later versions before installing the drivers for better compatibility and system stability.

1.8.2 Support DVD information

The Support DVD that comes with the motherboard package contains the drivers, software applications, and utilities that you can install to avail all motherboard features.

The contents of the Support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

To run the Support DVD

Place the Support DVD to the optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer.

The following screen is for reference only.

XP Service Pack 3 or later versions / Windows® Vista

Click an item to install

If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to

locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run

the DVD.

Click an icon to display Support DVD/ motherboard information

ASUS E35M1-I1-14

Chapter 2 BIOS information

2.1 Managing and updating your BIOS

Save a copy of the original motherboard BIOS le to a USB ash disk in case you need to

restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility.

2.1.1 ASUS Update utility

The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows® environment.

• ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

• This utility is available in the support DVD that comes with the motherboard package.

Installing ASUS Update

To install ASUS Update:

1. Place the support DVD in the optical drive. The

2. Click the

3. Follow the onscreen instructions to complete the installation.

Utilities tab, then click AI Suite II.

Drivers menu appears.

Quit all Windows® applications before you update the BIOS using this utility.

Updating the BIOS

To update the BIOS:

1. From the Windows

II X.XX.XX to launch the AI Suite II utility. The AI Suite II Quick Bar appears.

2. Click

a. Select Update BIOS from the Internet, then click Next.

b. Select the ASUS FTP site nearest you to avoid network trafc, then click

c. From the FTP site, select the BIOS version that you wish to download then click

Chapter 2: BIOS information 2-1

Update button from the Quick Bar, and then click ASUS Update from the popup

menu. The ASUS Update main screen appears. From the list, select either of the following methods:

Updating from the Internet

Next.

desktop, click Start > Programs > ASUS > AI Suite II > AI Suite

Next.

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating from a BIOS file

a. Select Update BIOS from le, then click Next.

b. Locate the BIOS le from the

Open window, then click Open.

3. Follow the onscreen instructions to complete the updating process.

2.1.2 ASUS EZ Flash 2

The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility.

Before you start using this utility, download the latest BIOS le from the ASUS website at

www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB ash disk that contains the latest BIOS le to the USB port.

2. Enter the

ASUS EZ Flash Utility and press <Enter> to enable it.

ASUS EZ Flash 2 Utility V01.02

Flash Info

MODEL: E35M1-I VER: 0203 DATE: 03/02/2011

File Path: fs0:\

Drive Folder Info

fs0:\ 03/02/11 10:23p 4194304 E35M1I.ROM

Advanced Mode of the BIOS setup program. Go to the Tool menu to select

Exit

File Info

MODEL: VER: DATE

Help Info

[Enter] Select or Load [Tab] Switch [Up/Down/PageUp/PageDown/Home/End] Move [Esc] Exit [F2] Backup

2-2 ASUS E35M1-I

3. Press <Tab> to switch to the Drive eld.

4. Press the Up/Down arrow keys to nd the USB ash disk that contains the latest BIOS,

and then press <Enter>.

5. Press <Tab> to switch to the

Folder Info eld.

6. Press the Up/Down arrow keys to nd the BIOS le, and then press <Enter> to perform

the BIOS update process. Reboot the system when the update process is done.

• This function supports USB ash disks with FAT 32/16 format and single partition only.

• DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

2.1.3 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS le

when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS

le using the motherboard support DVD or a USB ash drive that contains the updated BIOS le.

• Before using this utility, rename the BIOS le in the removable device into

E35M1I.ROM.

• The BIOS le in the support DVD may not be the latest version. Download the latest BIOS le from the ASUS website at www.asus.com.

Recovering the BIOS

To recover the BIOS:

1. Turn on the system.

2. Insert the support DVD to the optical drive or the USB ash drive that contains the BIOS le to the USB port.

3. The utility automatically checks the devices for the BIOS le. When found, the utility reads the BIOS le and enters ASUS EZ Flash 2 utility automatically.

4. The system requires you to enter BIOS Setup to recover BIOS setting. To ensure system compatibility and stability, we recommend that you press <F5> to load default BIOS values.

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

Chapter 2: BIOS information 2-3

2.1.4 ASUS BIOS Updater

The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also

allows you to copy the current BIOS le that you can use as a backup when the BIOS fails or

gets corrupted during the updating process.

The succeeding utility screens are for reference only. The actual utility screen displays may not be same as shown.

Before updating BIOS

1. Prepare the motherboard support DVD and a USB ash drive in FAT32/16 format and

single partition.

2. Download the latest BIOS le and BIOS Updater from the ASUS website at http://support.asus.com and save them on the USB ash drive.

NTFS is not supported under DOS environment. Do not save the BIOS le and BIOS Updater to a hard disk drive or USB ash drive in NTFS format.

3. Turn off the computer and disconnect all SATA hard disk drives (optional).

Booting the system in DOS environment

1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.

2. Boot your computer. When the ASUS Logo appears, press <F8> to show the Boot Device Select Menu. Insert the support DVD into the optical drive and select the optical drive as the boot device.

Please select boot device:

SATA: XXXXXXXXXXXXXXXX USB XXXXXXXXXXXXXXXXX UEFI: XXXXXXXXXXXXXXXX Enter Setup

 ↑and ↓ to move selection ENTER to select boot device ESC to boot using defaults

BIOS

3. When the Make Disk menu appears, select the FreeDOS command prompt item by pressing the item number.

4. At the FreeDOS prompt, type

d: and press <Enter> to switch the disk from

Drive C (optical drive) to Drive D (USB ash drive).

Welcome to FreeDOS (http://www.freedos.org)!

C:\>d:

D:\>

2-4 ASUS E35M1-I

Backing up the current BIOS

To backup the current BIOS le using the BIOS Updater

Ensure that the USB ash drive is not write-protected and has at least 4MB free space to save the le.

1. At the FreeDOS prompt, type bupdater /o[lename] and press <Enter>.

D:\>bupdater /oOLDBIOS1.rom

Filename Extension

The [lename] is any user-assigned lename with no more than eight alphanumeric

characters for the lename and three alphanumeric characters for the extension.

2. The BIOS Updater backup screen appears indicating the BIOS backup process. When BIOS backup is done, press any key to return to the DOS prompt.

ASUSTek BIOS Updater for DOS V1.18

Current ROM

BOARD: E35M1-I VER: 0203

DATE: 03/02/2011

PATH: A:\

BIOS backup is done! Press any key to continue.

Note

Saving BIOS:

Update ROM

BOARD: Unknown VER: Unknown

DATE: Unknown

Chapter 2: BIOS information 2-5

Updating the BIOS le

To update the BIOS le using BIOS Updater

1. At the FreeDOS prompt, type

D:\>bupdater /pc /g

2. The BIOS Updater screen appears as below.

ASUSTek BIOS Updater for DOS V1.18

bupdater /pc /g and press <Enter>.

Current ROM

BOARD: E35M1-I VER: 0203

DATE: 03/02/2011

PATH: A:\

Note

[Enter] Select or Load [Tab] Switch [V] Drive Info [Up/Down/Home/End] Move [B] Backup [Esc] Exit

E35M1I.ROM 4194304 2011-02-03 17:30:48

Update ROM

BOARD: Unknown VER: Unknown

DATE: Unknown

3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys to select the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le and prompts you to conrm BIOS update.

Are you sure to update BIOS?

Yes No

4. Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS Updater. Restart your computer.

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS prompt after updating BIOS.

• Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. Refer to section 2.9 Exit menu for details.

• Ensure to connect all SATA hard disk drives after updating the BIOS le if you have

disconnected them.

2-6 ASUS E35M1-I

2.2 BIOS setup program

Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS

screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

• Press <Delete> during the Power-On Self Test (POST). If you do not press <Delete>, POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

• Press

• Press the reset button on the system chassis.

• Press the power button to turn the system off then back on. Do this option only if you

<Ctrl>+<Alt>+<Del> simultaneously.

failed to enter BIOS Setup using the rst two options.

Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a running operating system can cause damage to your data or system. We recommend to always shut down the system properly from the operating system.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Visit the ASUS website at www.asus.com to download the latest BIOS le for this

motherboard.

• Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program.

• If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. See section 2.9 Exit Menu for details.

• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section 1.6 Jumpers for information on how to erase the RTC RAM.

Chapter 2: BIOS information 2-7

BIOS menu screen

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from the Exit menu or from the Exit/Advanced Mode button in the

EZ Mode/Advanced Mode screen.

EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select

the display language, system performance mode and boot device priority. To access the Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode.

The default screen for entering the BIOS setup program can be changed. Refer to the

Setup Mode item in section 2.7 Boot menu for details.

Selects the display language of

Clicks to display all fan

the BIOS setup program

Displays the CPU/motherboard temperature, CPU/5V/3.3V/12V voltage output, CPU/chassis fan speed

EFI BIOS Utility - EZ Mode

E35M1-I

BIOS Version : 0203 Build Date : 03/02/2011

CPU Type : AMD E-350 Processor Speed : 1600 MHz

Friday [10/08/2010]

Temperature Voltage Fan Speed

+113.0ºF/+45.0ºC CPU 1.248V 5V 5.160V CPU_FAN 3325RPM CHA_FAN N/A

CPU

MB +75.2ºF/+40.0ºC 3.3V 3.344V 12V 12.248V

Q-Fan Control

Boot Priority

Use the mouse to drag or keyboard to navigate to decide the boot priority.

Selects the boot device priority

Total Memory : 1024 MB (DDR3 1066MHz)

Quiet

Energy SavingPerformance

Normal

Silent mode

Displays the system properties of the

selected mode on the right hand side

Exits the BIOS setup program without saving the changes, saves the changes and resets the system, or enters the Advanced Mode

Boot Menu(F8)

Loads optimized default

Standard mode Turbo mode

Selects the boot device priority

speeds if available

Exit/Advanced Mode

English

Default(F5)

• The boot device options vary depending on the devices you installed to the system.

• The

Boot Menu(F8) button is available only when the boot device is installed to the

system.

2-8 ASUS E35M1-I

Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to congure the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the following sections for the detailed congurations.

To access the EZ Mode, click Exit, then select ASUS EZ Mode.

Back button

HD Audio Device Enabled

Front Panel Type HD

Realtek LAN Controller Enabled

Realtek PXE OPROM Disabled

Menu items

EFI BIOS Utility - Advanced Mode

Main

Back Advanced\ Onboard Devices Conguration >

Ai Tweaker

Menu bar

Realtek LAN Controller

Disabled Enabled

Pop-up window

Conguration elds

Advanced Monitor Boot Tool

Scroll bar

General help

Enabled/Disabled Realtek LAN

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

Navigation keys

Exit

Menu items

The highlighted item on the menu bar displays the specic items for that menu. For example,

selecting Main shows the Main menu items. The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have

their respective menu items.

Back button

This button appears when entering a submenu. Press <Esc> or use the USB mouse to click this button to return to the previous menu screen.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press <Enter>.

Chapter 2: BIOS information 2-9

Pop-up window

Select a menu item and press <Enter> to display a pop-up window with the conguration

options for that item.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not t on

the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the other items on the screen.

Navigation keys

At the bottom right corner of the menu screen are the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

General help

At the top right corner of the menu screen is a brief description of the selected item.

Conguration elds

These elds show the values for the menu items. If an item is user-congurable, you can change the value of the eld opposite the item. You cannot select an item that is not user-congurable.

A congurable eld is highlighted when selected. To change the value of a eld, select it and

press <Enter> to display a list of options.

2.3 Main menu

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings.

EFI BIOS Utility - Advanced Mode

Main

BIOS Version 0203 x64 Build Date 03/02/2011

CPU Information AMD Engineering Sample

Speed 1600 MHz

Memory Information Total Memory 1024 MB (DDR3)

Speed 1066 MHz

System Language English

System Date [Mon 09/13/2010] System Time [16:46:15]

Access Level Administrator

> Security

Ai Tweaker

Advanced Monitor Boot Tool

Choose the system default languageBIOS Information

Exit

2-10 ASUS E35M1-I

2.3.1 System Language [English]

Allows you to choose the BIOS language version from the options. Conguration options:

[English]

2.3.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.3.3 System Time [xx:xx:xx]

Allows you to set the system time.

2.3.4 Security

The Security menu items allow you to change the system security settings.

• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC) RAM to clear the BIOS password. See section 1.6 Jumpers for information on how to erase the RTC RAM.

• The

Administrator or User Password items on top of the screen show the default Not

Installed. After you set a password, these items show Installed.

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only

selected elds in the BIOS setup program.

To set an administrator password:

1. Select the

2. From the

3. Conrm the password when prompted.

To change an administrator password:

1. Select the

2. From the <Enter>.

3. From the

4. Conrm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator

password, but press <Enter> when prompted to create/conrm the password. After you clear

the password, the Administrator Password item on top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

Administrator Password item and press <Enter>.

Create New Password box, key in a password, then press <Enter>.

Administrator Password item and press <Enter>.

Enter Current Password box, key in the current password, then press

Create New Password box, key in a new password, then press <Enter>.

Chapter 2: BIOS information 2-11

To set a user password:

1. Select the

2. From the

User Password item and press <Enter>.

Create New Password box, key in a password, then press <Enter>.

3. Conrm the password when prompted.

To change a user password:

1. Select the

2. From the

User Password item and press <Enter>.

Enter Current Password box, key in the current password, then press

<Enter>.

3. From the

Create New Password box, key in a new password, then press <Enter>.

4. Conrm the password when prompted.

To clear the user password, follow the same steps as in changing a user password, but press

<Enter> when prompted to create/conrm the password. After you clear the password, the

User Password item on top of the screen shows Not Installed.

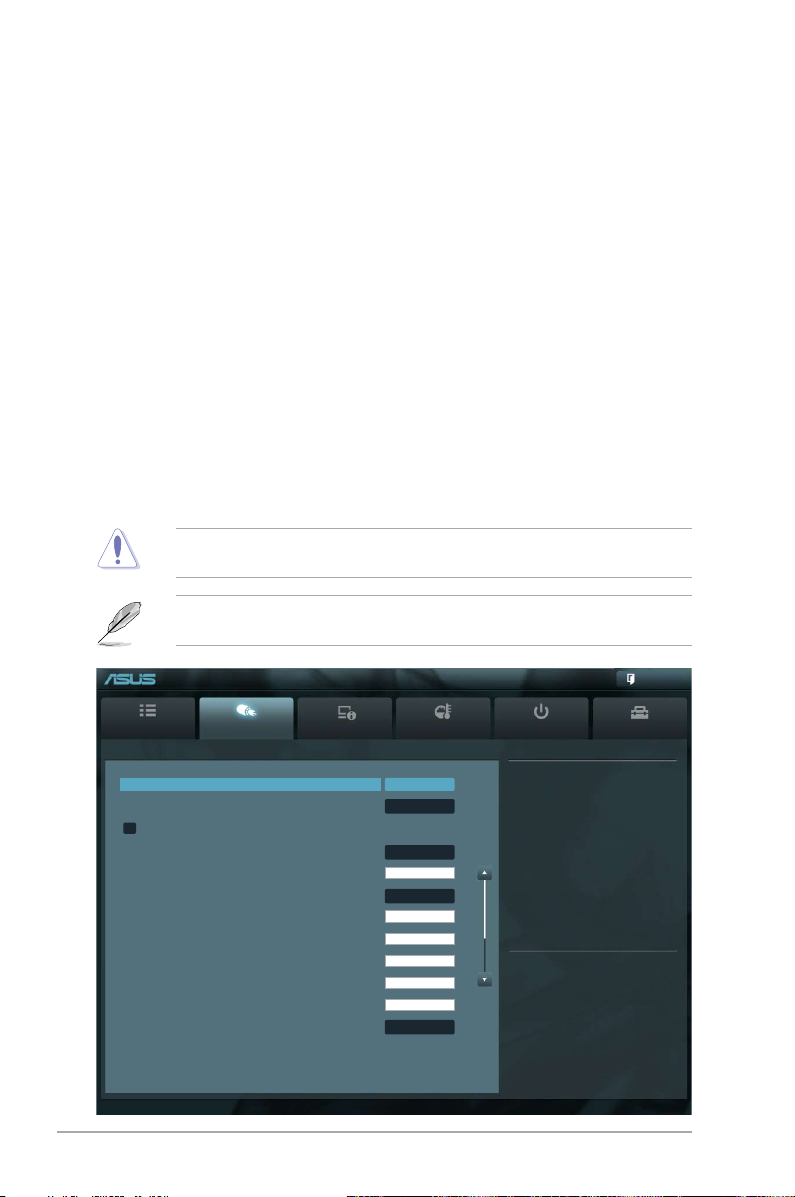

2.4 Ai Tweaker menu

The Ai Tweaker menu items allow you to congure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld

values can cause the system to malfunction.

The conguration options for this section vary depending on the CPU and DIMM model you

installed on the motherboard.

EFI BIOS Utility - Advanced Mode

Main

Ai Overclock Tuner Auto

Memory Frequency Auto

> DRAM Timing Control

CPU Offset Mode Sign +

CPU Voltage Auto

VDDNB Offset Mode Sign +

VDDNB Voltage Auto

DRAM Voltage Auto

SB 1.1V Voltage Auto

APU1.8V Voltage Auto

APU1.05V Voltage Auto

APU Spread Spectrum Auto

Ai Tweaker

Advanced Monitor Boot Tool

Select the target CPU frequency, and the relevant parameters will be auto-adjusted.

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

Exit

2-12 ASUS E35M1-I

2.4.1 Ai Overclock Tuner [Auto]

Allows you to select the CPU overclocking options to achieve the desired CPU internal

frequency. Select any of these preset overclocking conguration options:

[Auto] Loads the optimal settings for the system.

[Manual] Allows you to individually set overclocking parameters.

APU Frequency [XXX]

This item appears only when you set the Ai Overclock Tuner item to [Manual]. Use the <+> and <-> keys to adjust the value. You can also key in the desired value using the numeric

keypad. The values range from 90.0MHz to 300.0MHz.

2.4.2 Memory Frequency [Auto]

Allows you to set the memory operating frequency. Conguration options: [Auto] [DDR3800MHz] [DDR3-1066MHz] [DDR3-1333MHz]

Selecting a very high memory frequency may cause the system to become unstable! If this happens, revert to the default setting.

2.4.3 DRAM Timing Control

The sub-items in this menu allow you to set the DRAM timing control features. Use the <+> and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press <Enter>.

Changing the values in this menu may cause the system to become unstable! If this

happens, revert to the default settings.

2.4.4 CPU Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[–] To offset the voltage by a negative value.

CPU Voltage [Auto]

Allows you to set the CPU Offset voltage. The values range from -0.3V to +0.5V with a

0.00625V interval.

Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage may damage the CPU permanently, and setting a low voltage may make the system unstable.

2.4.5 VDDNB Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[–] To offset the voltage by a negative value.

Chapter 2: BIOS information 2-13

VDDNB Voltage [Auto]

Allows you to set the VDDNB Offset voltage. The values range from -0.3V to +0.5V with a

0.00625V interval.

2.4.6 DRAM Voltage [Auto]

Allows you to set the DRAM voltage. The values range from 1.35V to 2.10V with a 0.075V interval.

2.4.7 SB 1.1V Voltage [Auto]

Allows you to set the Southbridge 1.1V voltage. The values range from 1.1V to 1.2V with a

0.01V interval.

2.4.8 APU 1.8V Voltage [Auto]

Allows you to set the APU (Accelerated Processor Unit) 1.8V voltage. The values range from

1.8000V to 1.9000V with a 0.1V interval.

2.4.9 APU 1.05V Voltage [Auto]

Allows you to set the APU 1.05V voltage. The values range from 1.0500V to 1.1500V with a

0.01V interval.

• The values of the CPU Voltage, VDDNB Voltage, DRAM Voltage, SB 1.1V Voltage, APU 1.8V Voltage, and APU 1.05V Voltage items are labeled in different color, indicating the risk levels of high voltage settings.

• The system may need better cooling system to work stably under high voltage settings.

2.4.10 APU Spread Spectrum [Auto]

[Auto] Automatic conguration.

[Disabled] Enhances the PCIE overclocking ability.

[Enabled] Sets to [Enabled] for EMI control.

2-14 ASUS E35M1-I

2.5 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Be cautious when changing the settings of the Advanced menu items. Incorrect eld values

can cause the system to malfunction.

EFI BIOS Utility - Advanced Mode

Main

> CPU Conguration

> SATA Conguration

> USB Conguration

> NB Conguration

> Onboard Devices Conguration

> APM

Ai Tweaker

Advanced Monitor Boot Tool

CPU Conguration Parameters

Exit

2.5.1 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically detects.

The items shown in submenu may be different due to the CPU you installed.

Limit CPUID Maximum [Disabled]

[Enabled] Allows legacy operating systems to boot even without support for CPUs

[Disabled] Disables this function.

Cool ‘n’ Quiet [Enabled]

Enables or disables the generation of ACPI _PPC, _PSS, and _PCT objects. Conguration

options: [Disabled] [Enabled]

NX Mode [Enabled]

Enables or disables no-execute page protection function. Conguration options: [Disabled]

[Enabled]

SVM Mode [Enabled]

Enables or disables CPU virtualization. Conguration options: [Disabled] [Enabled]

C6 Mode [Enabled]

Enables or disables C6 mode. Conguration options: [Enabled] [Disabled]

with extended CPUID functions.

Chapter 2: BIOS information 2-15

2.5.2 SATA Conguration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port.

OnChip SATA Channel [Enabled]

Enables or disables onboard channel SATA port. Conguration options: [Disabled] [Enabled]

OnChip SATA Type [IDE]

Allows you to set the SATA conguration.

[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as

[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI

Parallel ATA physical storage devices.

(Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally

optimize the order of commands.

OnChip SATA Speed [Auto]

Sets the onboard SATA port speed. Conguration options: [Auto] [SATA 3.0Gb/s] [SATA

6.0Gb/s]

S.M.A.R.T. Status Check [Enabled]

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When read/write of your hard disk errors occur, this feature allows the hard disk to report warning

messages during the POST. Conguration options: [Enabled] [Disabled]

2.5.3 USB Conguration

The items in this menu allow you to change the USB-related features.

The USB Devices item shows the auto-detected values. If no USB device is detected, the item shows None.

Legacy USB Support [Enabled]

[Enabled] Enables the support for USB devices on legacy operating systems (OS).

[Disabled] The USB devices can be used only for the BIOS setup program.

[Auto] Allows the system to detect the presence of USB devices at startup. If

detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled.

EHCI Hand-off [Disabled]

[Enabled] Enables the support for operating systems without an EHCI hand-off

[Disabled] Disables the function.

2-16 ASUS E35M1-I

feature.

2.5.4 NB Conguration

IGFX Multi-Monitor [Disabled]

Enables or disables the Internal Graphics Device Multi-Monitor support for add-on VGA

devices. And the memory size of Internal Graphics Device will keep memory reserved. Conguration options: [Disabled] [Enabled]

Primary Video Device [PCIE Video]

Selects the primary display device. Conguration options: [IGFX Video] [PCIE Video]

Integrated Graphics [Auto]

Enables the integrated graphics controller. Conguration options: [Auto] [Force]

2.5.5 Onboard Devices Conguration

HD Audio Device [Enabled]

Enables or disables the Azalia High Denition Audio controller. Conguration options:

[Disabled] [Enabled]

Front Panel Type [HD]

Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-

denition audio depending on the audio standard that the front panel audio module supports. [HD] Sets the front panel audio connector (AAFP) mode to high denition audio.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97.

Realtek LAN Controller [Enabled]

[Enabled] Enables the Realtek LAN controller.

[Disabled] Disables the controller.

Realtek PXE OPROM [Disabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable or disable the PXE OptionRom of the Realtek LAN controller.

Conguration options: [Enabled] [Disabled]

2.5.6 APM

Restore AC Power Loss [Power Off]

[Power On] The system goes into on state after an AC power loss.

[Power Off] The system goes into off state after an AC power loss.

[Last State] The system goes into either off or on state, whatever the system state was

Power On By PS/2 Keyboard [Disabled]

[Disabled] Disables the Power On by a PS/2 keyboard.

[Space Bar] Sets the Space Bar on the PS/2 keyboard to turn on the system.

[Ctrl-Esc] Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system.

[Power Key] Sets Power key on the PS/2 keyboard to turn on the system. This feature

Chapter 2: BIOS information 2-17

before the AC power loss.

requires an ATX power supply that provides at least 1A on the +5VSB lead.

Power On By PS/2 Mouse [Disabled]

[Disabled] Disables the Power On by a PS/2 mouse.

[Enabled] Enables the Power On by a PS/2 mouse. This feature requires an ATX

power supply that provides at least 1A on the +5VSB lead.

Power On By PME [Disabled]

[Disabled] Disables PME wake from sleep states.

[Enabled] Enables PME wake from sleep states.

Power On By RTC [Disabled]

[Disabled] Disables RTC to generate a wake event. [Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/

Minute/Second will become user-congurable with set values.

2.6 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

EFI BIOS Utility - Advanced Mode

Exit

Main

CPU Temperature +45ºC / +113ºF

MB Temperature +34ºC / +93ºF

CPU Fan Speed 3325 RPM

Chassis Fan Speed N/A

CPU Q-Fan Control Enabled

CPU Fan Speed Low Limit 600 RPM

CPU Fan Prole Standard

Chassis Q-Fan Control Enabled

Chassis Fan Speed Low Limit 600 RPM

Chassis Fan Prole Standard

CPU Voltage +1.184 V

3.3V Voltage +3.312 V

5V Voltage +5.080 V

12V Voltage +12.192 V

Ai Tweaker

Advanced Monitor Boot Tool

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

Scroll down to display the following items:

Anti Surge Support Enabled

2-18 ASUS E35M1-I

2.6.1 CPU Temperature / MB Temperature [xxxºC/xxxºF]

The onboard hardware monitor automatically detects and displays the CPU and motherboard temperatures. Select Ignore if you do not wish to display the detected temperatures.

2.6.2 CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU and chassis fan

speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld

shows N/A. Select Ignore if you do not wish to display the detected speed.

2.6.3 CPU Q-Fan Control [Enabled]

[Disabled] Disables the CPU Q-Fan control feature.

[Enabled] Enables the CPU Q-Fan control feature.

CPU Fan Speed Low Limit [600 RPM]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to disable or set the CPU fan warning speed.

Conguration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

CPU Fan Profile [Standard]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to set the appropriate performance level of the CPU fan.

[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on

[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.

[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

the CPU temperature.

The following four items appear only when you set CPU Fan Prole to [Manual].

CPU Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range from 20ºC to 90ºC.

CPU Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from 40% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at the maximum duty cycle.

CPU Lower Temperature [20]

Displays the lower limit of the CPU temperature.

CPU Fan Min. Duty Cycle(%) [40]

Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 40% to 100%. When the CPU temperature is under 40ºC, the CPU fan will operate at the minimum duty cycle.

2.6.4 Chassis Q-Fan Control [Enabled]

[Disabled] Disables the Chassis Q-Fan control feature.

[Enabled] Enables the Chassis Q-Fan control feature.

Chapter 2: BIOS information 2-19

Chassis Fan Speed Low Limit [600 RPM]

This item appears only when you enable the Chassis Q-Fan Control feature and allows you

to disable or set the chassis fan warning speed. Conguration options: [Ignore] [200 RPM]

[300 RPM] [400 RPM] [500 RPM] [600 RPM]

Chassis Fan Profile [Standard]

This item appears only when you enable the Chassis Q-Fan Control feature and allows you to set the appropriate performance level of the chassis fan.

[Standard] Sets to [Standard] to make the chassis fan automatically adjust depending

[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.

[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

Chassis Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range from 20ºC to 90ºC.

Chassis Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range from 40% to 100%. When the chassis temperature reaches the upper limit, the chassis fan will operate at the maximum duty cycle.

Chassis Lower Temperature [20]

Displays the lower limit of the chassis temperature.

CPU Fan Min. Duty Cycle(%) [40]

Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from 40% to 100%. When the chassis temperature is under 40ºC, the chassis fan will operate at the

minimum duty cycle.

on the chassis temperature.

The following four items appear only when you set Chassis Fan Prole to [Manual].

2.6.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select Ignore if you do not want to detect this item.

2.6.6 Anti Surge Support [Enabled]

This item allows you to enable or disable the Anti Surge function.

Conguration options: [Disabled] [Enabled]

2-20 ASUS E35M1-I

2.7 Boot menu

The Boot menu items allow you to change the system boot options.

EFI BIOS Utility - Advanced Mode

Exit

Main

Bootup NumLock State On

Full Screen Logo Enabled

Option ROM Messages Force BIOS

Setup Mode EZ Mode

Boot Option Priorities

Boot Option #1 SATA: xxxxxxx

Boot Option #2 SATA: xxxxxxx

Boot Override

> SATA: xxxxxxxxxxxx

> Hard Drive BBS Priorities

> CD/DVD ROM Drive BBS Priorities

Ai Tweaker

Advanced Monitor Boot Tool

Select the keyboard NumLock state

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

2.7.1 Bootup NumLock State [On]

[On] Sets the power-on state of the NumLock to [On].

[Off] Sets the power-on state of the NumLock to [Off].

2.7.2 Full Screen Logo [Enabled]

[Enabled] Enables the full screen logo display feature.

[Disabled] Disables the full screen logo display feature.

Set this item to [Enabled] to use the ASUS MyLogo 2™ feature.

Post Report [5 sec]

This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to

set the waiting time for the system to display the post report. Conguration options: [1 sec] [2

sec] [3 sec] [4 sec] [5 sec] [6 sec] [7 sec] [8 sec] [9 sec] [10 sec] [Until Press ESC]

2.7.3 Option ROM Messages [Force BIOS]

[Force BIOS] The third-party ROM messages will be forced to display during the boot

[Keep Current] The third-party ROM messages will be displayed only if the third-party

Chapter 2: BIOS information 2-21

sequence.

manufacturer had set the add-on device to do so.

2.7.4 Setup Mode [EZ Mode]

[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup

[EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.

program.

2.7.5 Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

• To select the boot device during system startup, press <F8> when ASUS Logo appears.

• To access Windows OS in Safe Mode, press <F8> after POST.

2.7.6 Boot Override

These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

2-22 ASUS E35M1-I

2.8 Tools menu

The Tools menu items allow you to congure options for special functions. Select an item

then press <Enter> to display the submenu.

EFI BIOS Utility - Advanced Mode

Main

> ASUS EZ Flash 2 Utility

> ASUS O.C. Prole

Ai Tweaker

Advanced Monitor Boot Tool

Be used to update BIOS

Exit

2.8.1 ASUS EZ Flash 2 Utility

Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.

For more details, see section 2.1.2 ASUS EZ Flash 2.

2.8.2 ASUS O.C. Prole

This item allows you to store or load multiple BIOS settings.

The Setup Prole Status items show Not Installed if no prole is created.

Save to Prole

Allows you to save the current BIOS settings to the BIOS Flash, and create a prole. Key in a prole number from one to eight, press <Enter>, and then select Yes.

Load from Prole

Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the prole

number that saved your CMOS settings, press <Enter>, and then select Yes.

• DO NOT shut down or reset the system while updating the BIOS to prevent the system boot failure!

• We recommend that you update the BIOS le only coming from the same memory/CPU conguration and BIOS version.

Chapter 2: BIOS information 2-23

2.9 Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit menu.

Exit

Load Optimized Defaults

Save Changes & Reset

Discard Changes & Exit

ASUS EZ Mode

Launch EFI Shell from lesystem device

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup

menus. When you select this option or if you press <F5>, a conrmation window appears.

Select Yes to load the default values.

Save Changes & Reset

Once you are nished making your selections, choose this option from the Exit menu to

ensure the values you selected are saved. When you select this option or if you press <F10>,

a conrmation window appears. Select Yes to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press <Esc>, a conrmation window appears. Select Yes to discard changes and exit.

ASUS EZ Mode

This option allows you to enter the EZ Mode screen.

Launch EFI Shell from lesystem device

This option allows you to attempt to launch the EFI Shell application (shellx64.e) from one of the available devices that have a lesystem.

2-24 ASUS E35M1-I

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259 Telephone +886-2-2894-3447 Fax +886-2-2890-7798

E-mail info@asus.com.tw

Web site www.asus.com.tw

Technical Support

Telephone +86-21-38429911 Online support support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA Telephone +1-510-739-3777 Fax +1-510-608-4555 Web site usa.asus.com

Technical Support

Telephone +1-812-282-2787 Support fax +1-812-284-0883 Online support support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany Fax +49-2102-959911 Web site www.asus.de Online contact www.asus.de/sales

Technical Support

Telephone (Component) +49-1805-010923 Telephone (System/Notebook/Eee/LCD) +49-1805-010920 Support Fax +49-2102-9599-11 Online support support.asus.com

* EUR 0.14/minute from a German xed landline; EUR 0.42/minute from a mobile phone.

* *

EC Declaration of Conformity

We, the undersigned,

Manufacturer:

ASUSTek COMPUTER INC.

Address, City:

No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C.

Country:

TAIWAN

Authorized representative in Europe:

ASUS COMPUTER GmbH

Address, City: HARKORT STR. 21-23, 40880 RATINGEN

Country:

GERMANY

declare the following apparatus:

Product name : Motherboard

Model name : E35M1-I

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2006+A1:2007

EN 61000-3-2:2006

EN 55013:2001+A1:2003+A2:2006

EN 55024:1998+A1:2001+A2:2003

EN 61000-3-3:2008

EN 55020:2007

1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1(2006-05)

EN 300 440-1 V1.4.1(2008-05)

EN 300 440-2 V1.2.1(2008-03)

EN 301 511 V9.0.2(2003-03)

EN 301 908-1 V3.2.1(2007-05)

EN 301 908-2 V3.2.1(2007-05)

EN 301 893 V1.4.1(2005-03)

EN 302 544-2 V1.1.1(2009-01)

EN 50360:2001

EN 50371:2002

EN 50385:2002

EN 301 489-1 V1.8.1(2008-04)

EN 301 489-3 V1.4.1(2002-08)

EN 301 489-4 V1.3.1(2002-08)

EN 301 489-7 V1.3.1(2005-11)

EN 301 489-9 V1.4.1(2007-11)

EN 301 489-17 V2.1.1(2009-05)

EN 301 489-24 V1.4.1(2007-09)

EN 302 326-2 V1.2.2(2007-06)

EN 302 326-3 V1.3.1(2007-09)

EN 301 357-2 V1.3.1(2006-05)

EN 302 623 V1.1.1(2009-01)

2006/95/EC-LVD Directive

EN 60950-1:2006

EN 60950-1:2006+A11:2009

EN 60065:2002+A1:2006+A11:2008

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008

EN 62301:2005

Regulation (EC) No. 642/2009

EN 62301:2005

Regulation (EC) No. 278/2009

EN 62301:2005

Ver. 110101

CE marking

Declaration Date: Mar. 21, 2011

Year to begin affixing CE marking:2011

Position : CEO

Name : Jerry Shen

Signature :

__________

(

EC conformit

markin

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Address: 800 Corporate Way, Fremont, CA 94539.

hereby declares that the product

Product Name : Motherboard

Conforms to the following specifications:
