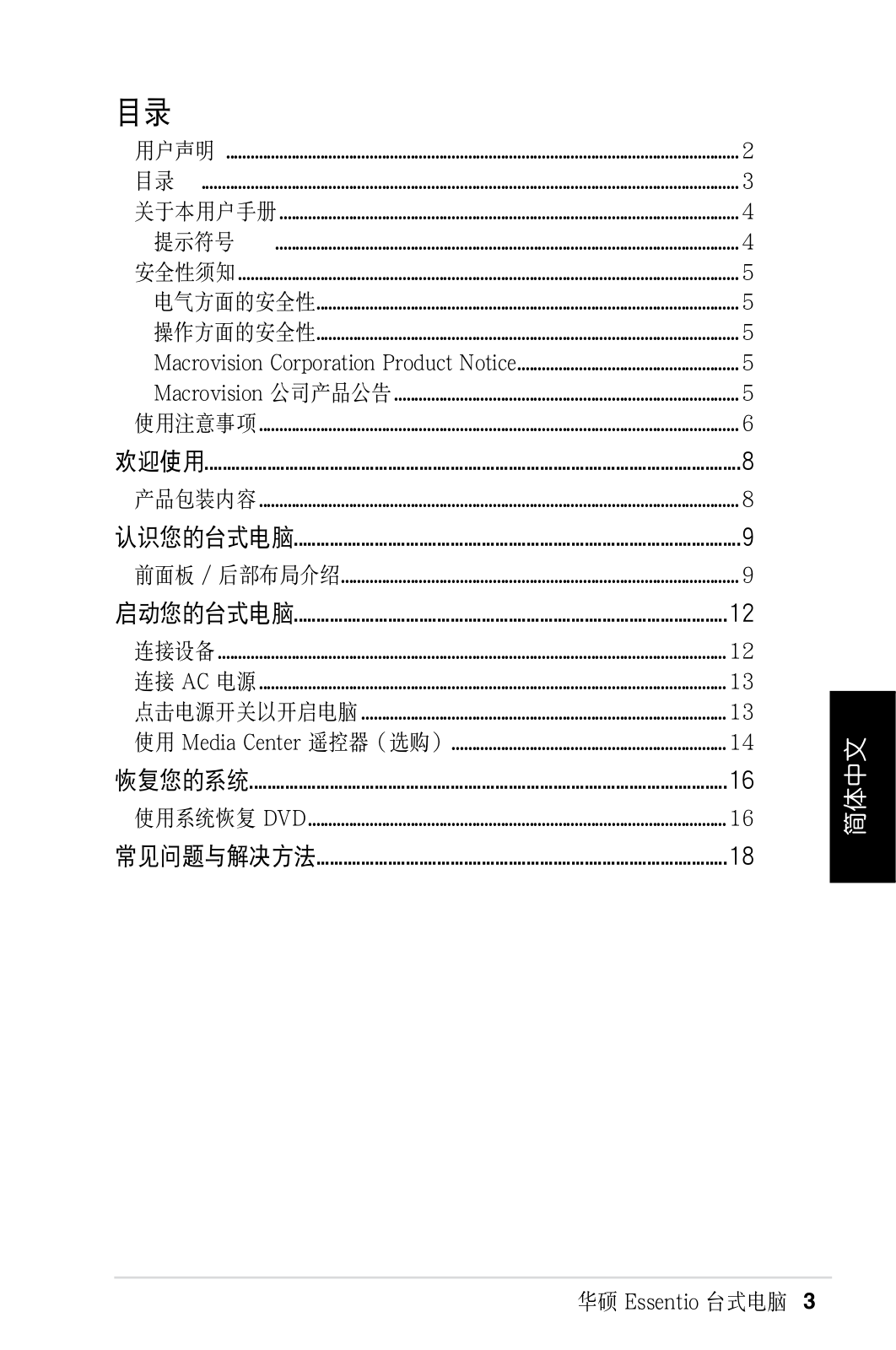

Contents |
|
Notices..................................................................................................... |
4 |
Safety information............................................................................... |
6 |
Notes for this manual......................................................................... |
7 |
Welcome.................................................................. |
8 |
Package contents................................................................................. |
8 |
Knowing your Desktop PC..................................... |
9 |
Front / Rear panel features............................................................... |
9 |
Setting up your Desktop PC................................ |
12 |
Connecting devices......................................................................... |
12 |
Connecting the power.................................................................... |
13 |
Pressing the power button to turn on the system................ |
13 |
Using the Media Center remote (optional)............................. |
14 |
Recovering your system....................................... |
16 |
Using the recovery DVD................................................................. |
16 |
Troubleshooting................................................... |
18 |
<![endif]>English
ASUS Essentio Desktop PC
<![endif]>English
Notices

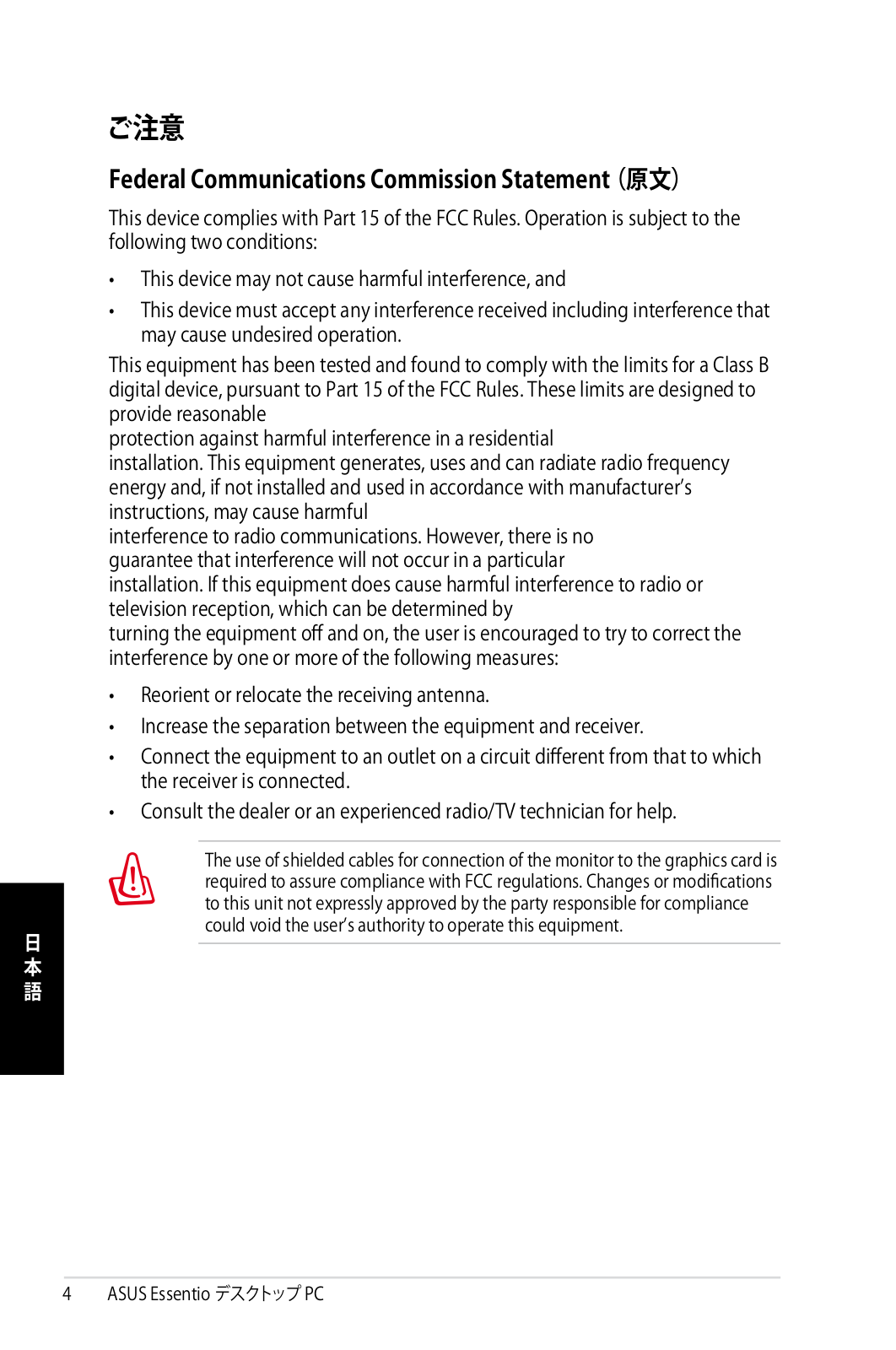

Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
ASUS Essentio Desktop PC
Canadian Department of Communications
Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
Macrovision Corporation Product Notice
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. VORSICHT: Explosionsgetahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnljchen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
<![endif]>English
ASUS Essentio Desktop PC
<![endif]>English

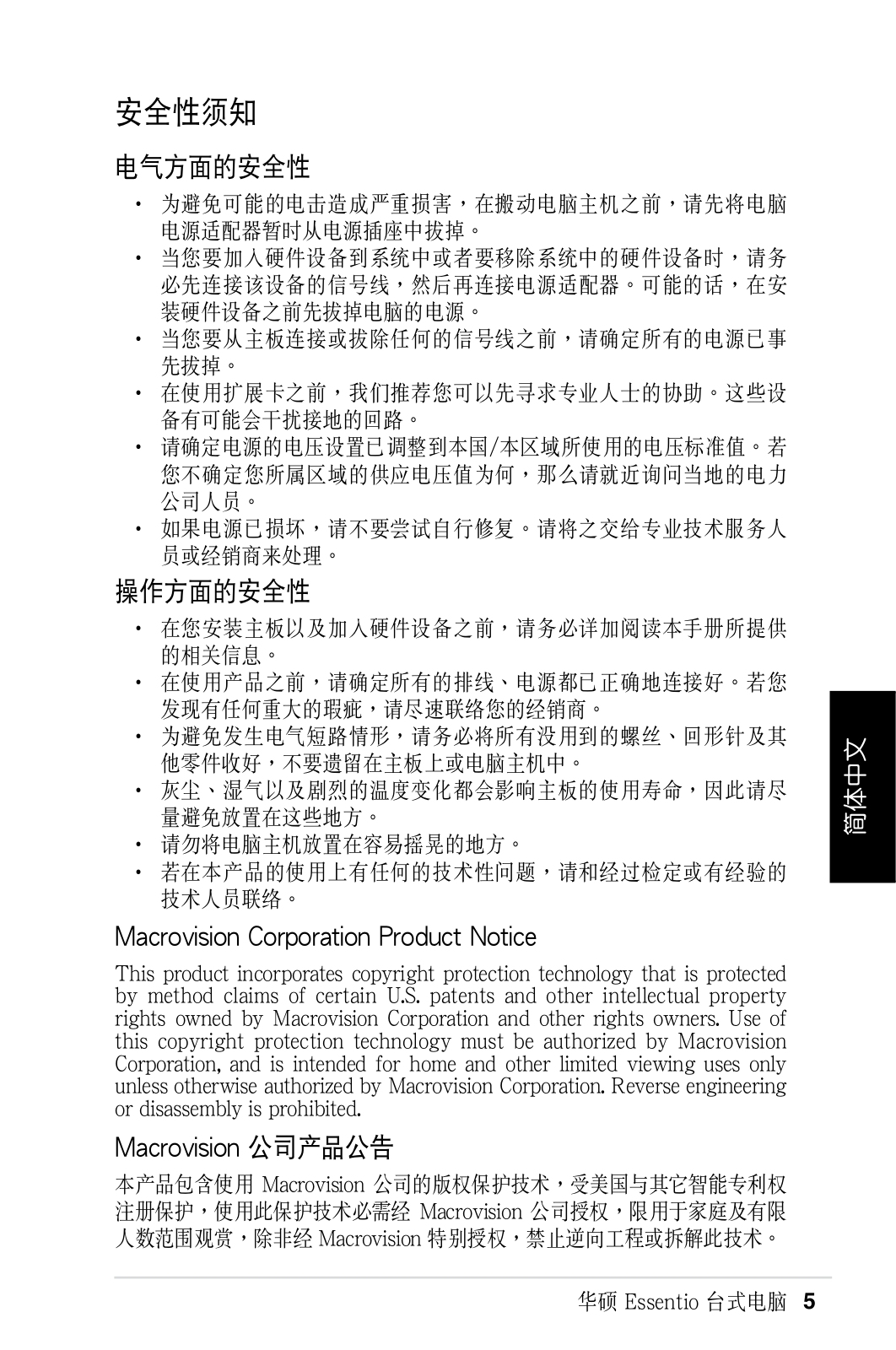

Safety information
Your ASUS Desktop PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.
Setting up your system
•Read and follow all instructions in the documentation before you operate your system.
•Do not use this product near water or a heated source such as a radiator.
•Set up the system on a stable surface.
•Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
•Use this product in environments with ambient temperatures between 0˚C and 35˚C.
•If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.
Care during use
•Do not walk on the power cord or allow anything to rest on it.
•Do not spill water or any other liquids on your system.
•When the system is turned off, a small amount of
electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
•If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.
•The power cord or plug is damaged.
•Liquid has been spilled into the system.
ASUS Essentio Desktop PC
• |
The system does not function properly even if you follow |
|
|
|
the operating instructions. |
<![if ! IE]> <![endif]>English |
|
• |
The system was dropped or the cabinet is damaged. |
||
|
|||
• |
The system performance changes. |
|
|
|
|
|

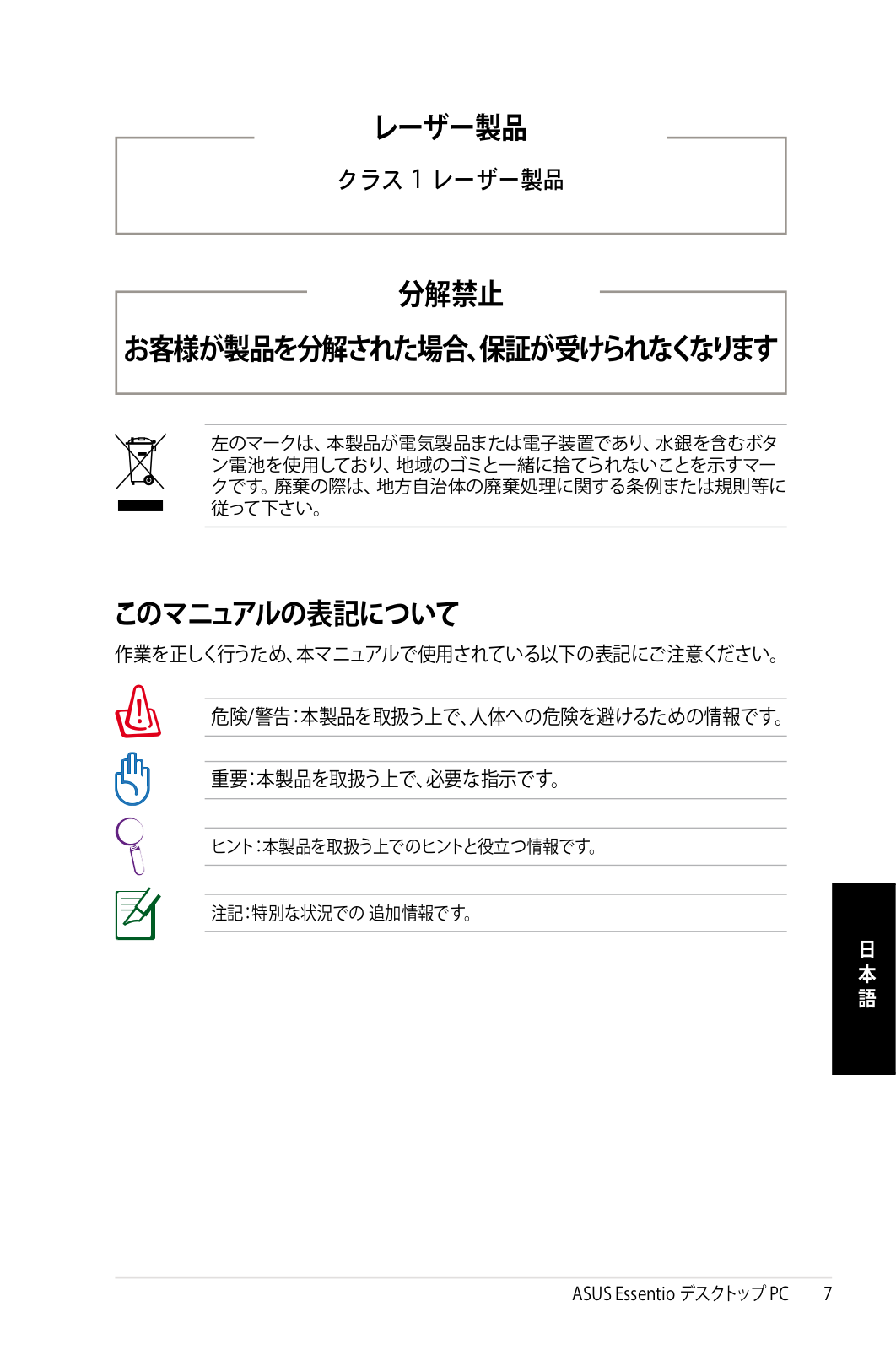

LASER PRODUCT WARNING
CLASS 1 LASER PRODUCT
NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users
This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercurycontaining button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

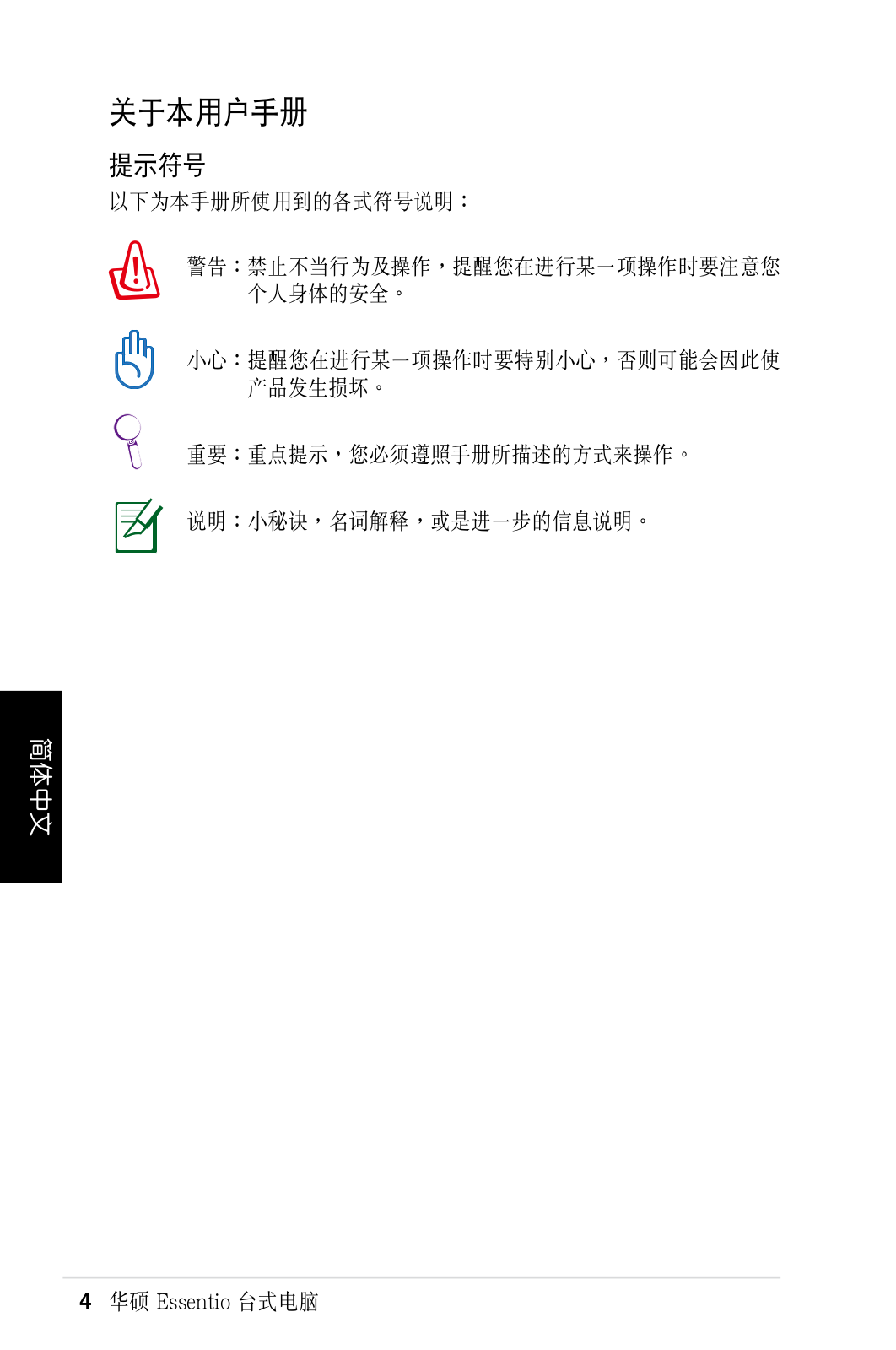

Notes for this manual
To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.
WARNING: Vital information that you MUST follow to prevent injury to yourself.
IMPORTANT: Instructions that you MUST follow to complete a task.
TIP: Tips and useful information that help you complete a task.
NOTE: Additional information for special situations.
ASUS Essentio Desktop PC
<![endif]>English
Welcome

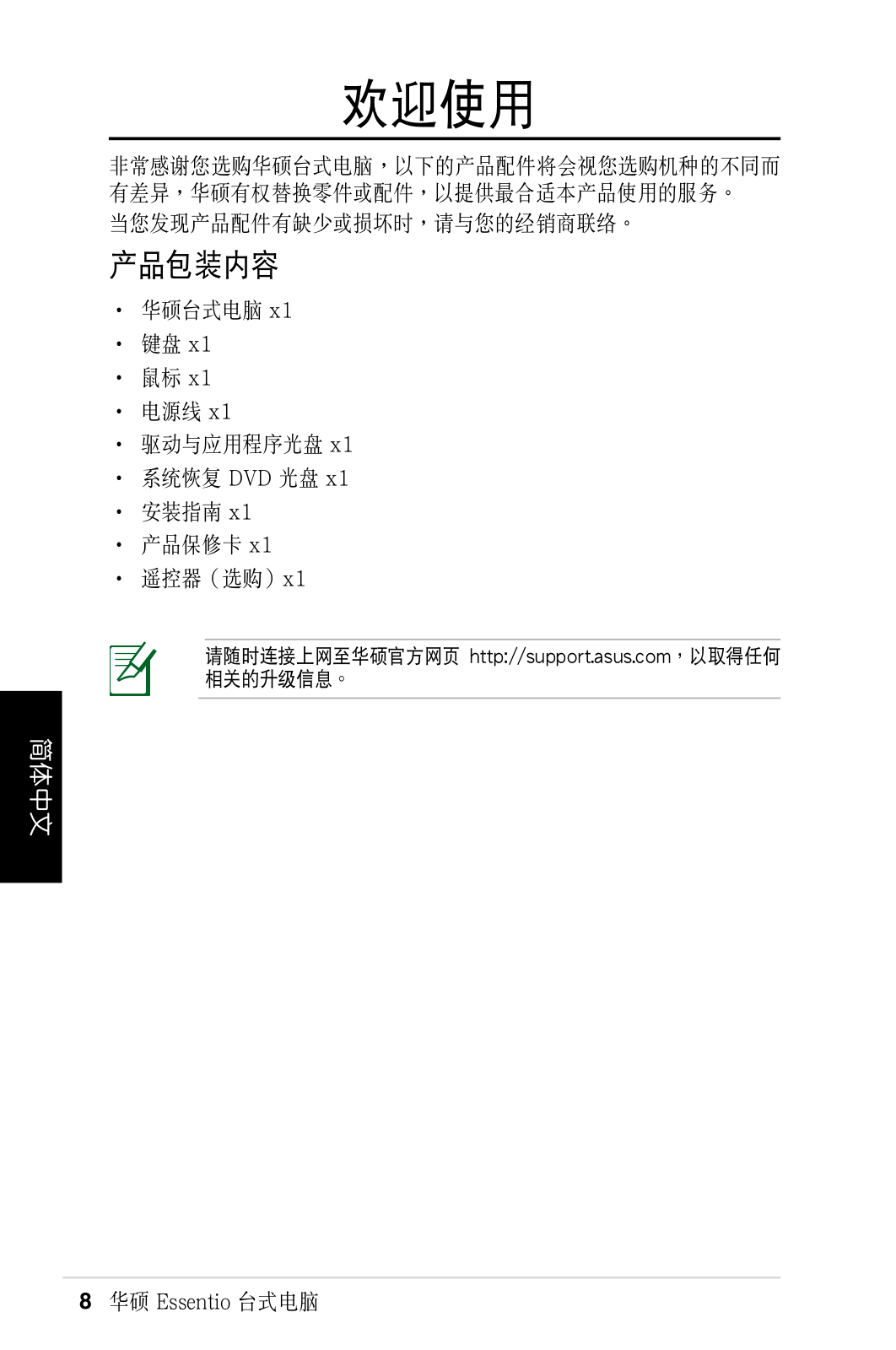

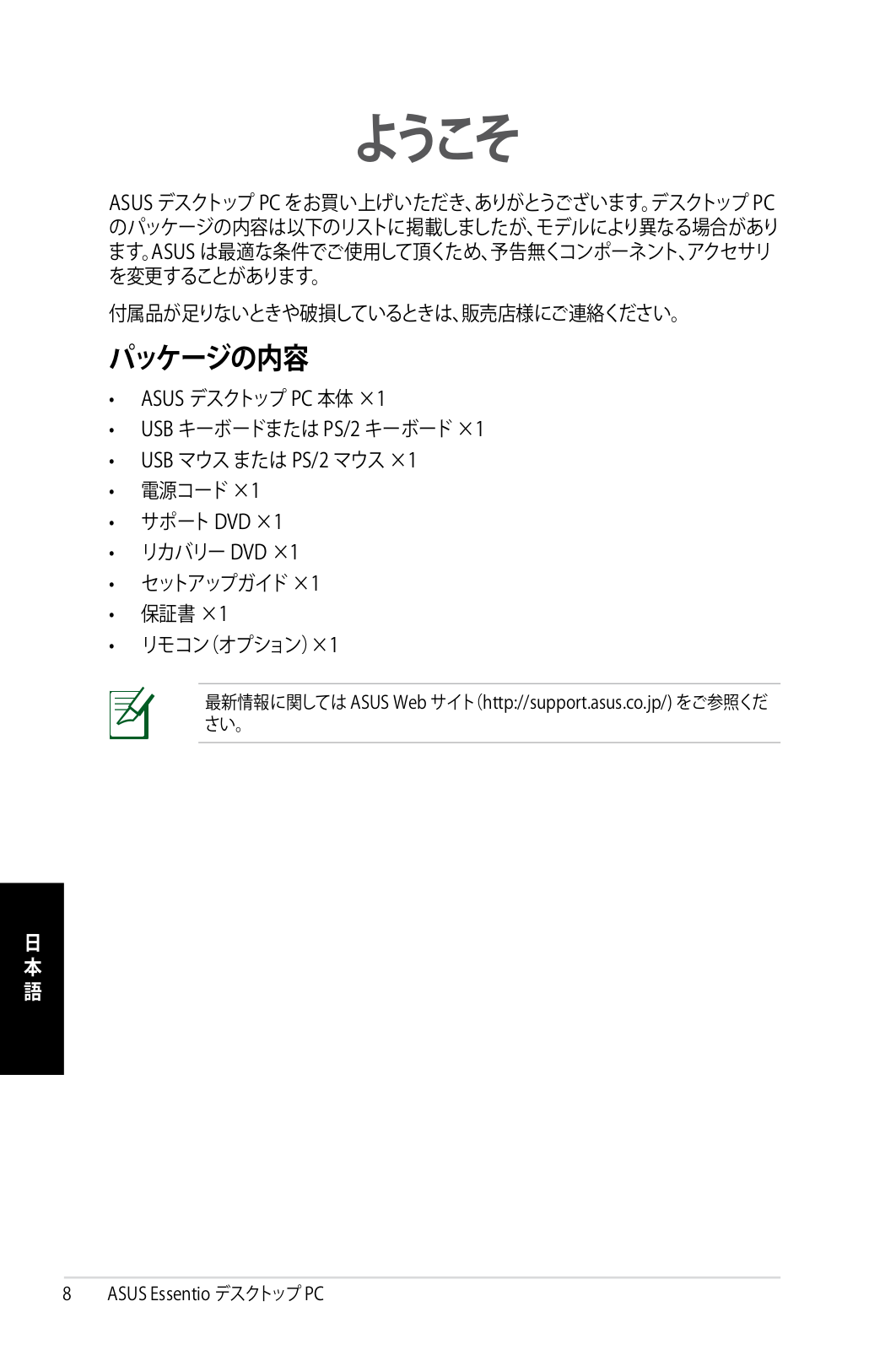

Congratulations on your purchase of the ASUS Desktop PC.The package contents of your new Desktop PC are listed below but may vary with models. ASUS reserves the right to replace components or accessories to provide optimum serviceability.
Contact your retailer if any item is damaged or missing.
Package contents
•ASUS Desktop PC x1
•Keyboard x1
•Mouse x1
•Power cord x1
•Support DVD x1
•Recovery DVD x1
•Installation Guide x1
•Warranty card x1
•Remote control (optional) x1
Visit the ASUS website at http://support.asus.com for any updates.
ASUS Essentio Desktop PC
Knowing your Desktop PC

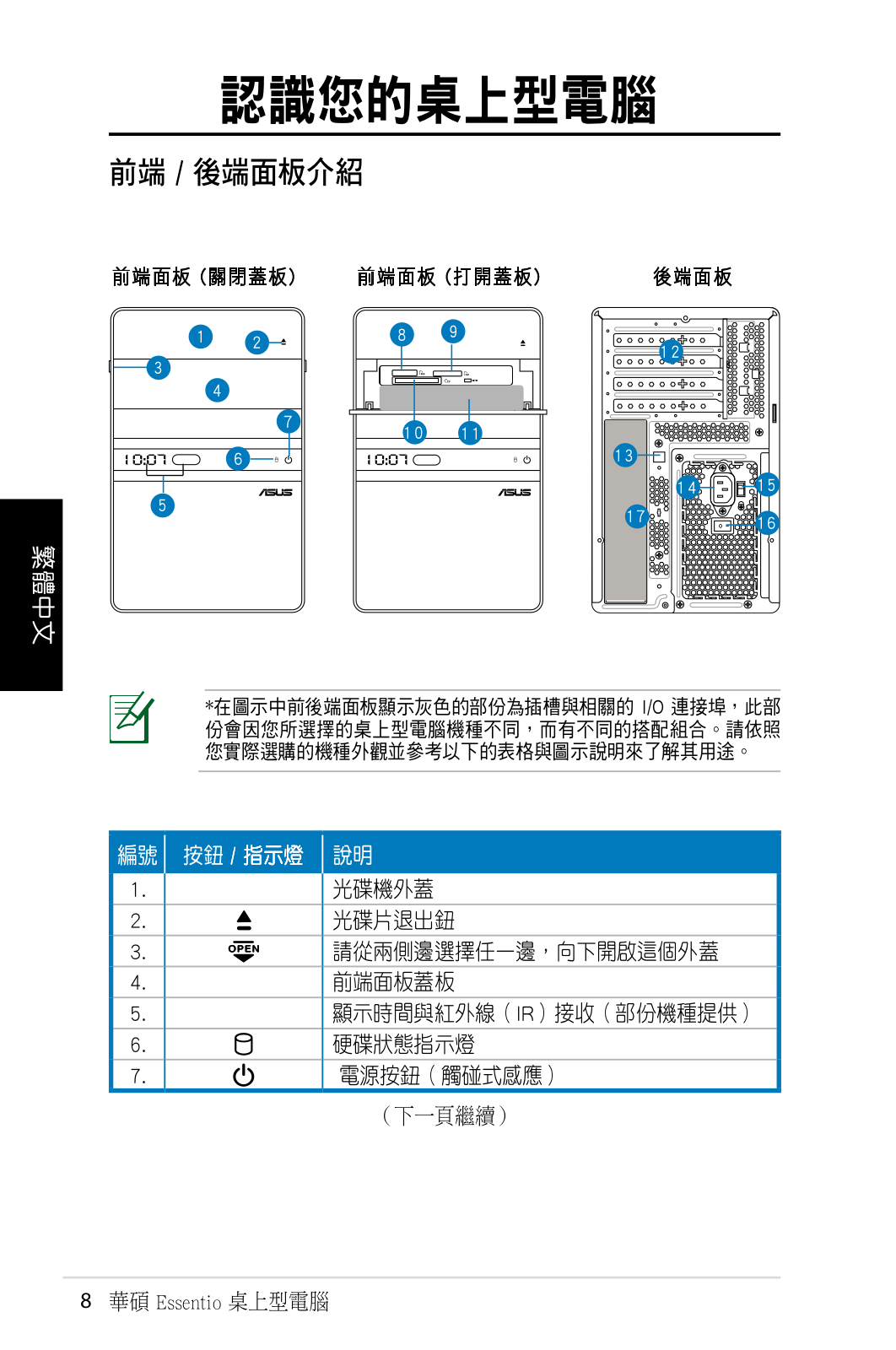

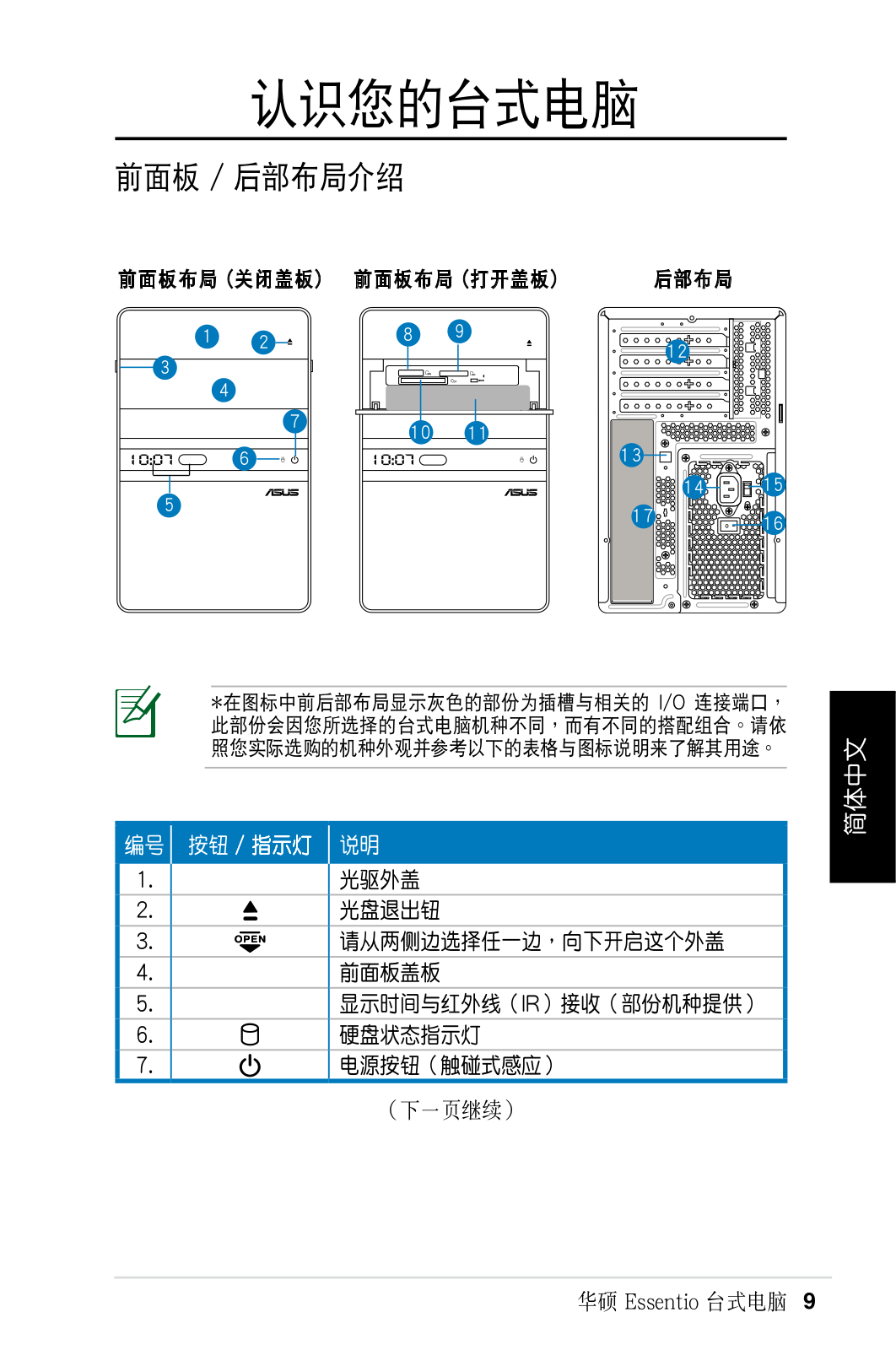

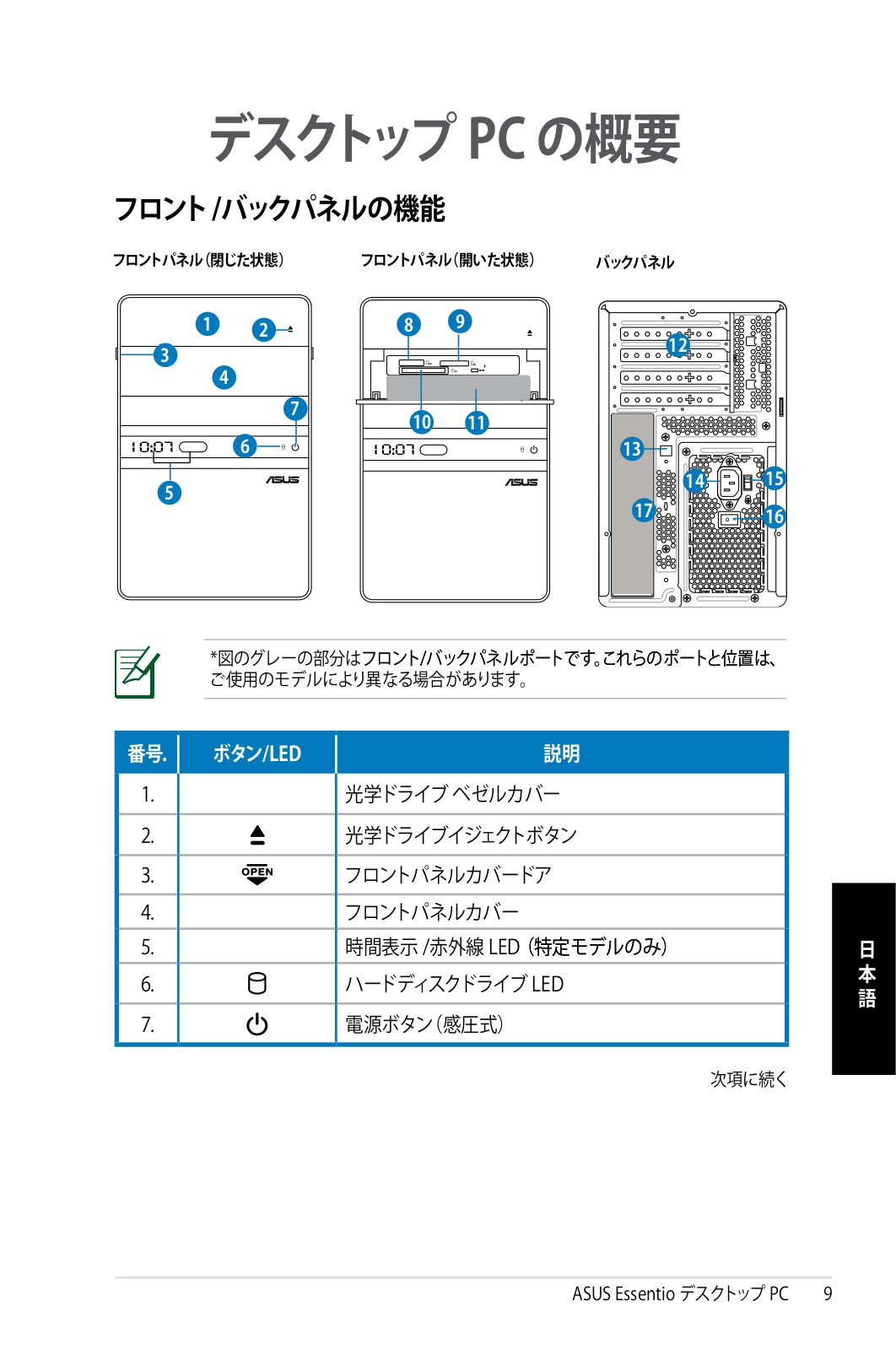

Front / Rear panel features
Front (Close) |
Front (Open) |
Rear |
||
1 |
2 |
8 |
9 |
|
|
|
|
12 |
|
3 |
|
|
|
|
|
|
|
|
4 |
|
|
7 |
10 |
11 |
|
||
6 |
|
13 |
5 |
14 |
15 |
|
|
17 |
16 |
|
<![endif]>English
*The gray areas contain front/rear panel ports.These ports and their locations may vary, depending on the model of your system.
No. Button/LED |
Description |
|
1. |
|
Optical drive bay cover. |
|
||
|
|
|
2. |
|
Optical drive eject button. |
|
|
|
3. |
|
Open the front panel cover. |
|
|
|
4. |
|
Front panel cover. |
5. |
|
Time display and IR (for some models |
|
only). |
|
|
|
|
6. |
|
Hard disk drive LED. |
|
|
|
7. |
|
Power button (touch-sensitive). |
|
|
|
continued on the next page
ASUS Essentio Desktop PC
<![endif]>English

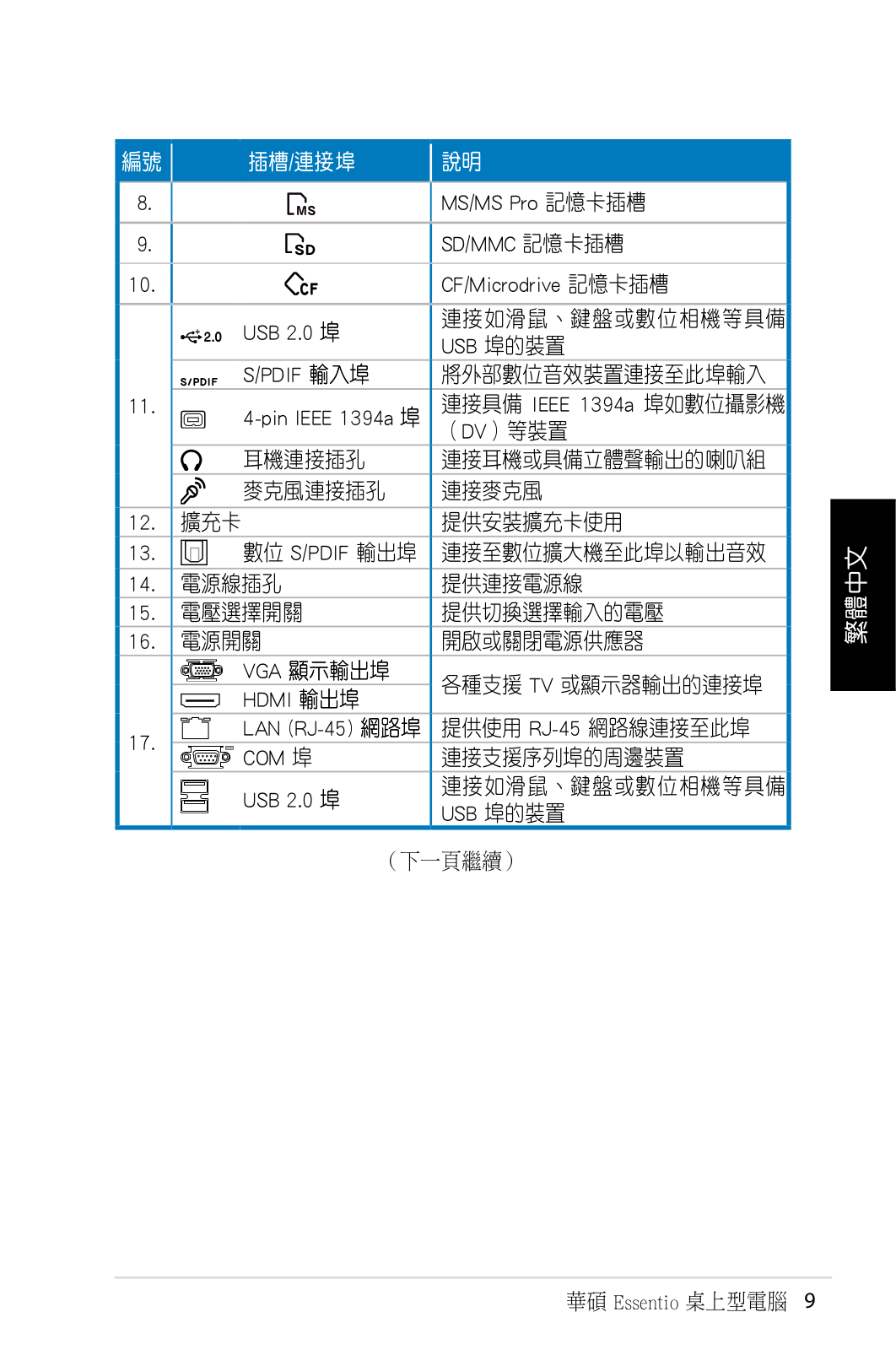

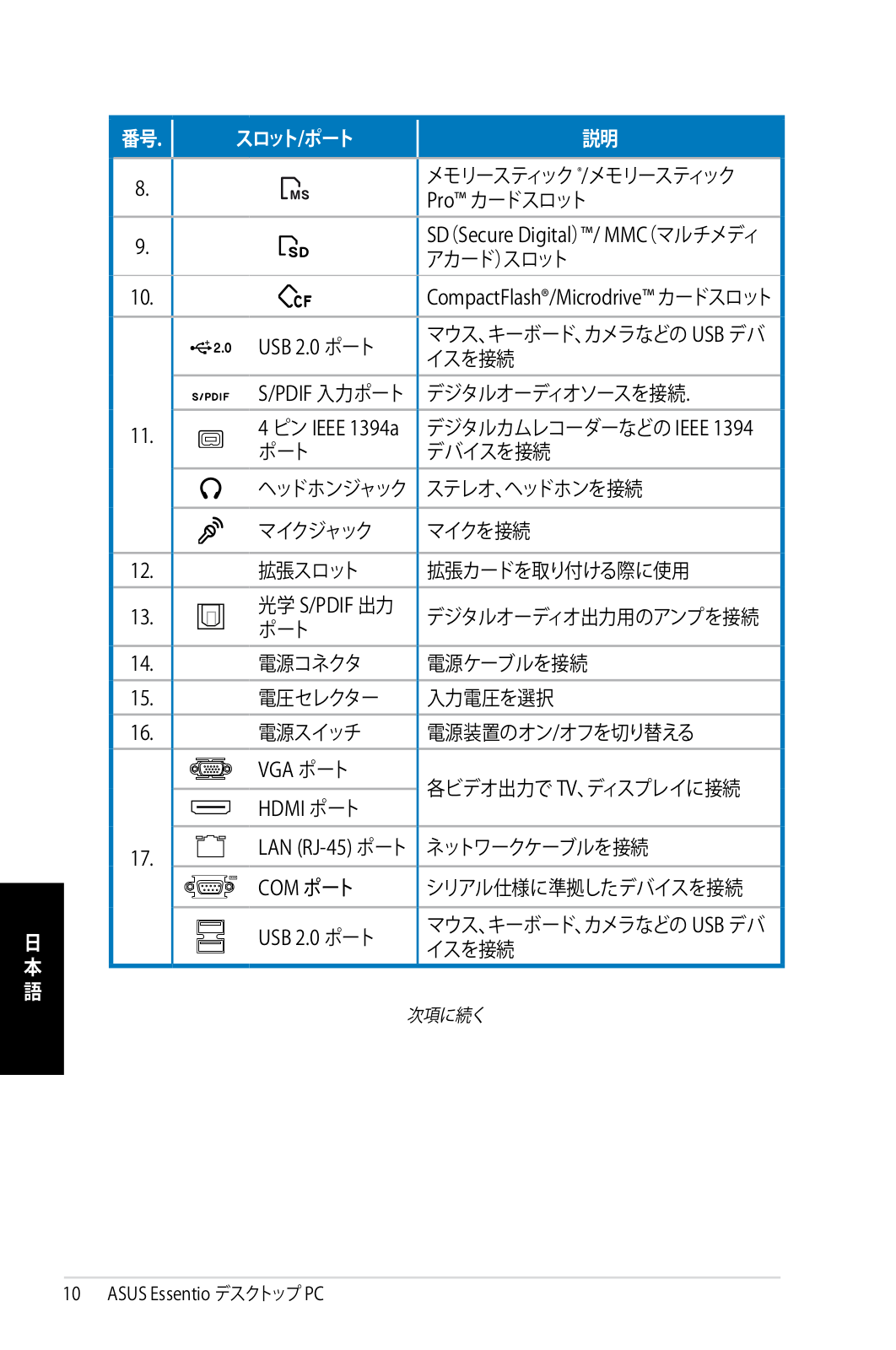

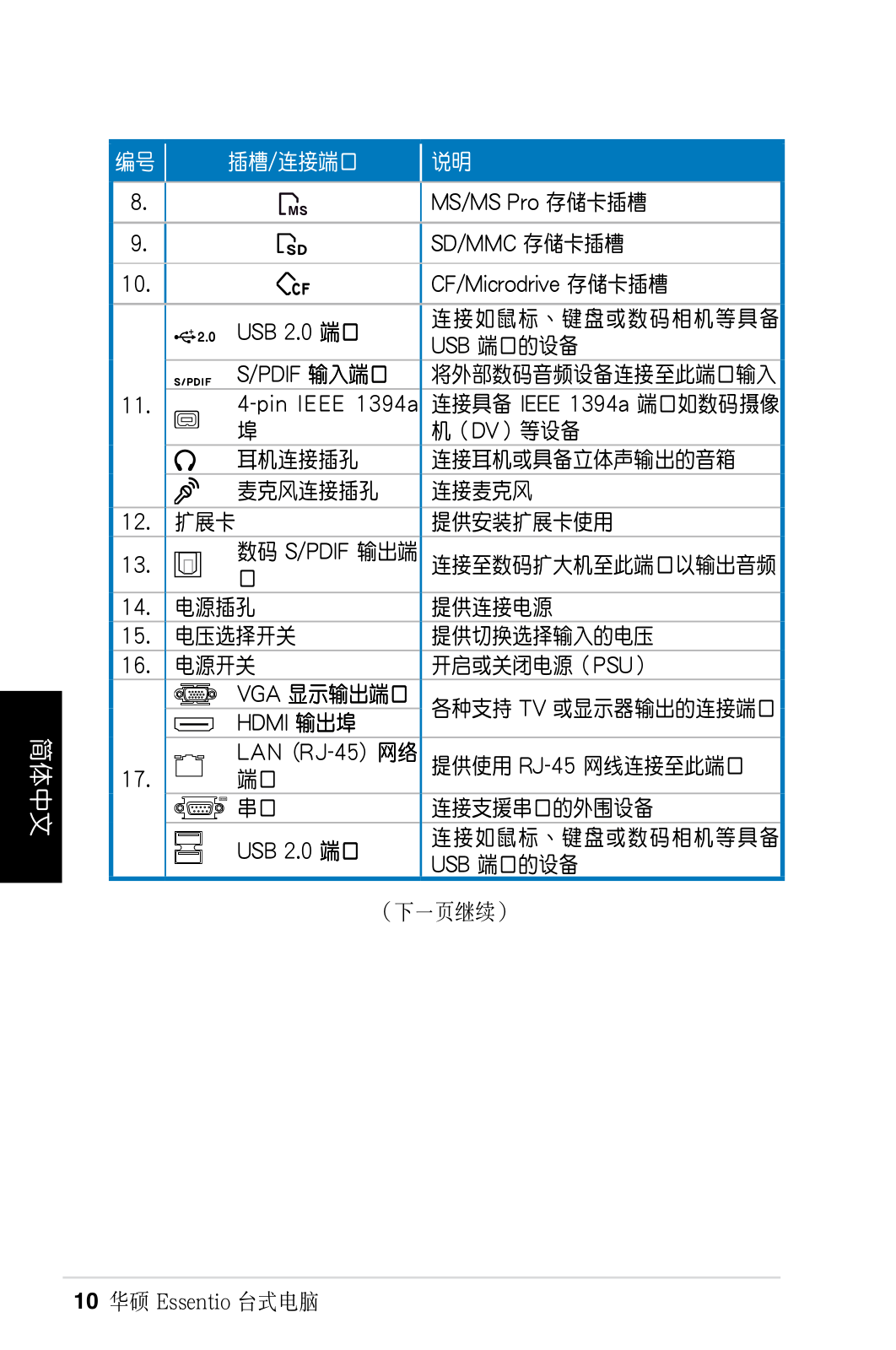

No. |
|
|
|
|
Slot/Port |
Description |
|
|
|
|
|
|
|
8. |
|
|
|
|
|
Memory Stick®/Memory Stick |
|
|
|
|
|
Pro™ card slot. |
|
|
|
|
|
|
|
|
9. |
|
|
|
|
|
Secure Digital™/MultimediaCard |
|
|
|
|
|
slot. |
|
|
|
|
|
|
|
|
10. |
|
|
|
|
|
CompactFlash®/Microdrive™ card |
|
|
|
|
|
slot. |
|
|
|
|
|
|
|
|
|
|
|
|
|
USB 2.0 ports |
Connect to USB devices such as a |
|
|
|
|
|
mouse, keyboard, or camera. |
|
|
|
|
|
|
|
|
|
|
|
|
|
S/PDIF In port |
Connects to digital audio source. |
|
|
|
|
|
4-pin IEEE |
Connects to an IEEE 1394 device |
11. |
|
|
|
|
1394a port |
such as a digital camrecorder. |
|
|
|
|
|
Headphone |
Plug a stereo or headphones into |
|
|
|
|
|
jack |
this jack. |
|
|
|
|
|
Microphone |
Plug a microphone into this jack. |
|
|
|
|
|
jack |
|
|
|
|
|
|
|
|
12. |
|
|
|
|
Expansion slots |
Use the slots when installing |
|
|
|
|
expansion cards. |
||
13. |
|
|
|
|
Optical S/PDIF |
Connects to an amplifier for |
|
|
|
|
Out port |
digital audio output. |
|
|
|
|
|
|
14.Power connector Connects power cable.
15. |
Voltage selector |
Selects input voltage. |
16. |
Power Switch |
Switches on/off the power supply. |
|
VGA port |
Connects to a TV or monitor with |
|
HDMI port |
different video output. |
|
LAN (RJ-45) |
Plug a network cable into this |
17. |
port |
port. |
|
Connects to devices that |
|
|
COM port |
|
|
conforms with serial specification. |
|
|
|
|
|
USB 2.0 ports |
Connect to USB devices such as a |
|
mouse, keyboard, or camera. |
|
|
|
|
|
continued on the next page |
10 ASUS Essentio Desktop PC

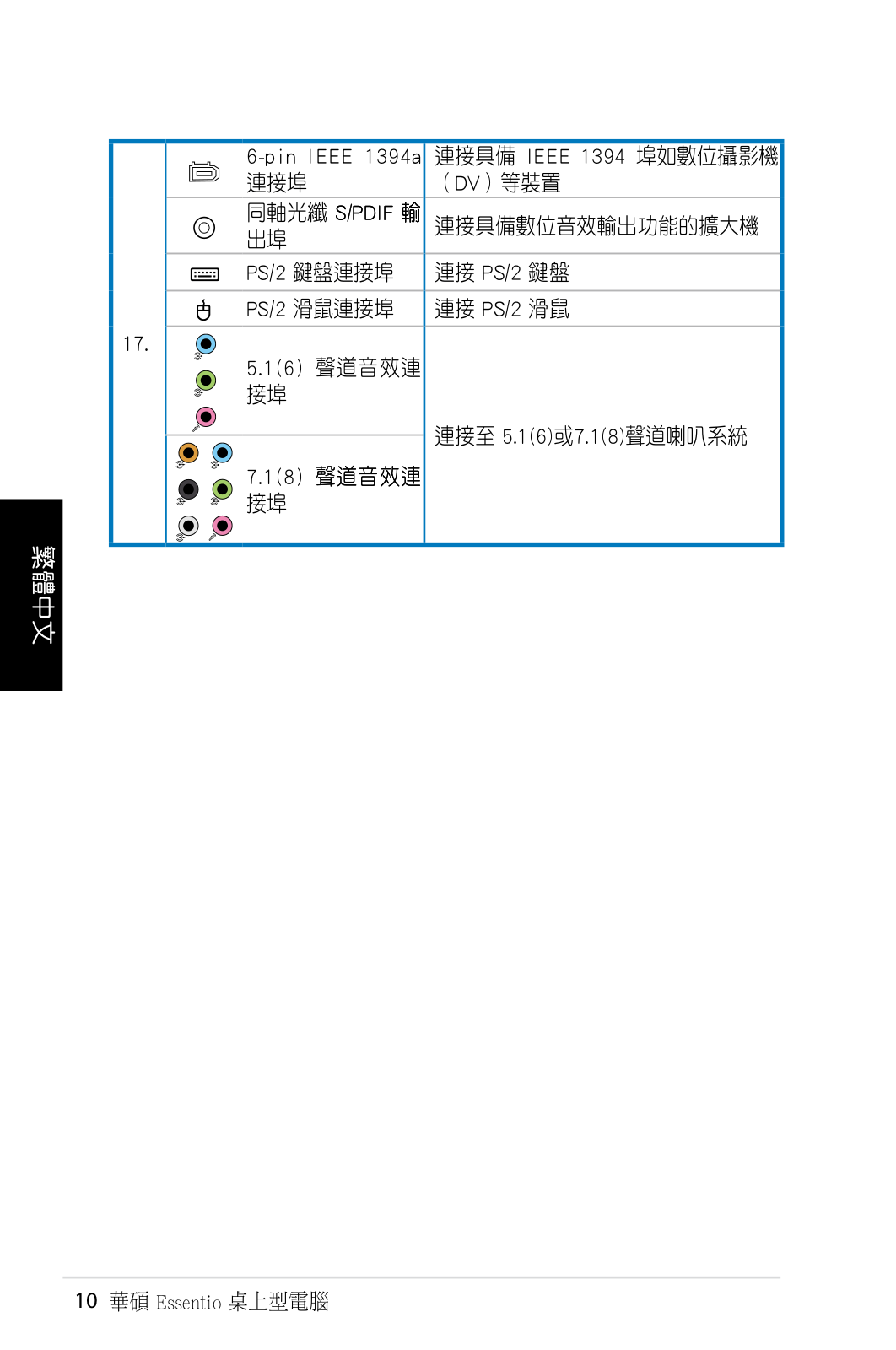

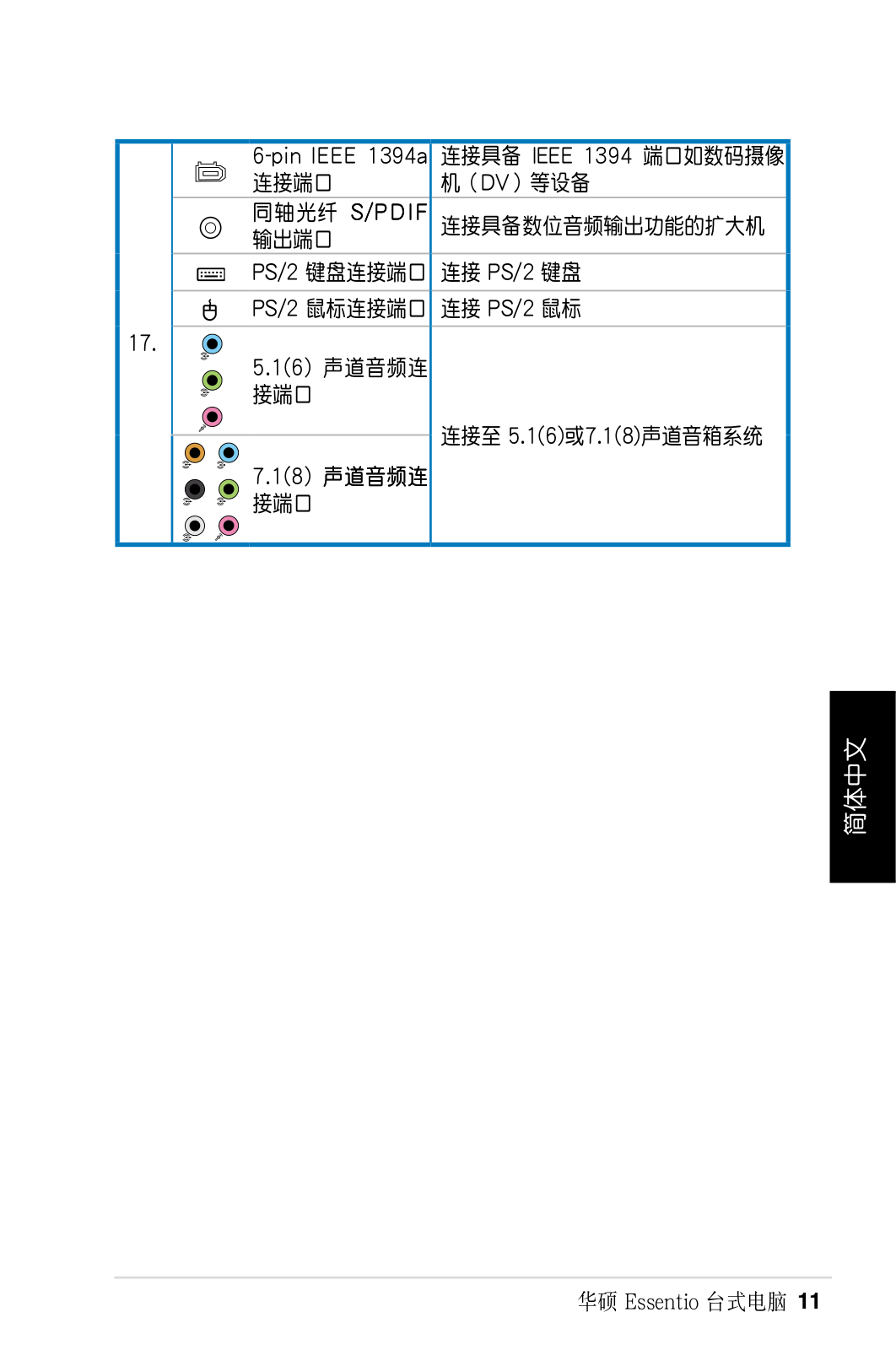

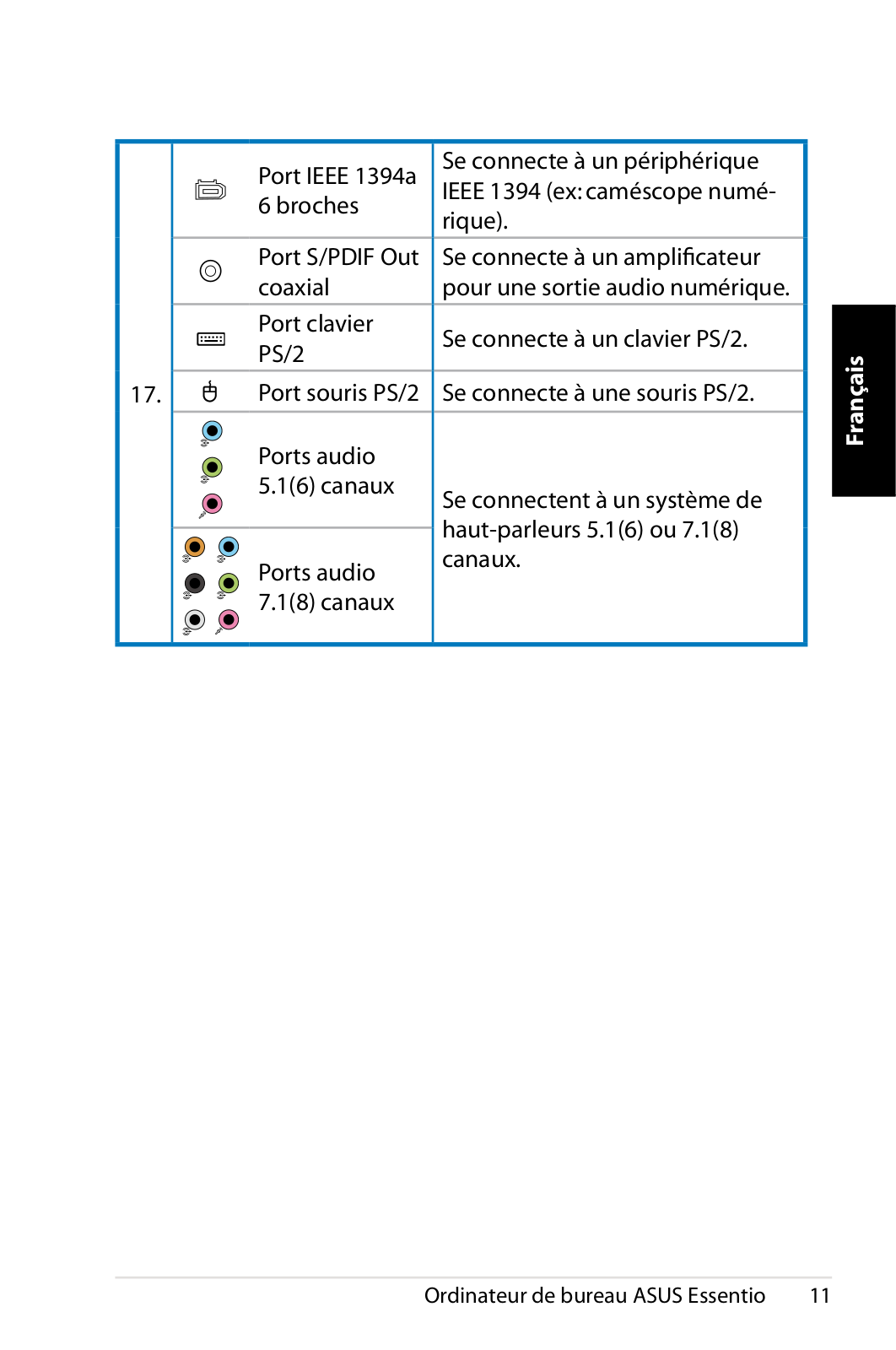

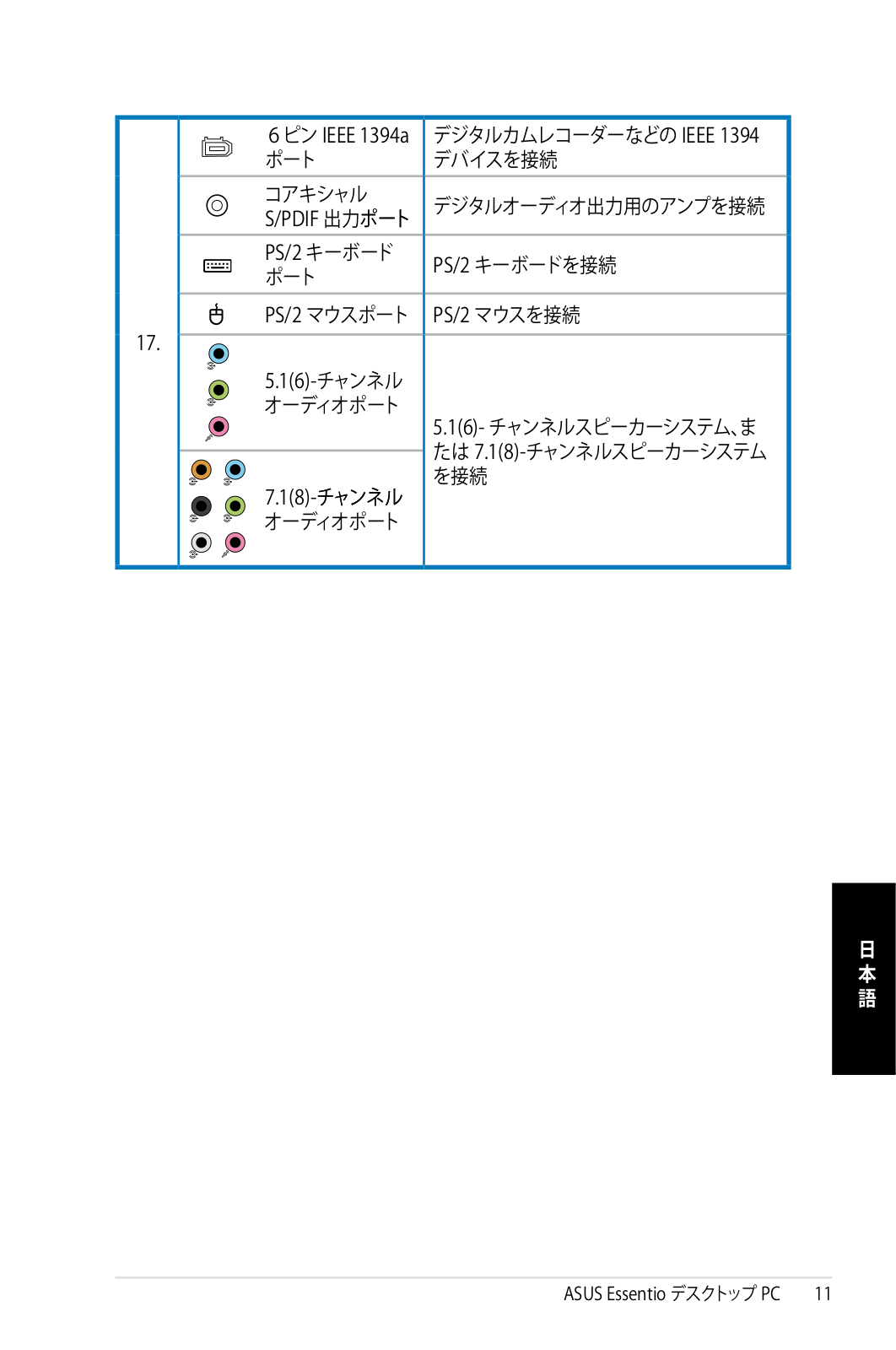

6-pin IEEE
1394a port
Coaxial S/PDIF
Out port
PS/2 Keyboard port
PS/2 mouse
17.port
5.1(6)-channel audio ports
7.1(8)-channel audio ports
Connects to an IEEE 1394 device such as a digital camrecorder.
Connects to an amplifier for digital audio output.
Connects to a PS/2 keyboard.
Connects to a PS/2 mouse.
Connect to a 5.1(6) or 7.1(8)-channel speaker system.
<![endif]>English
ASUS Essentio Desktop PC |
11 |
<![endif]>English
Setting up your Desktop PC

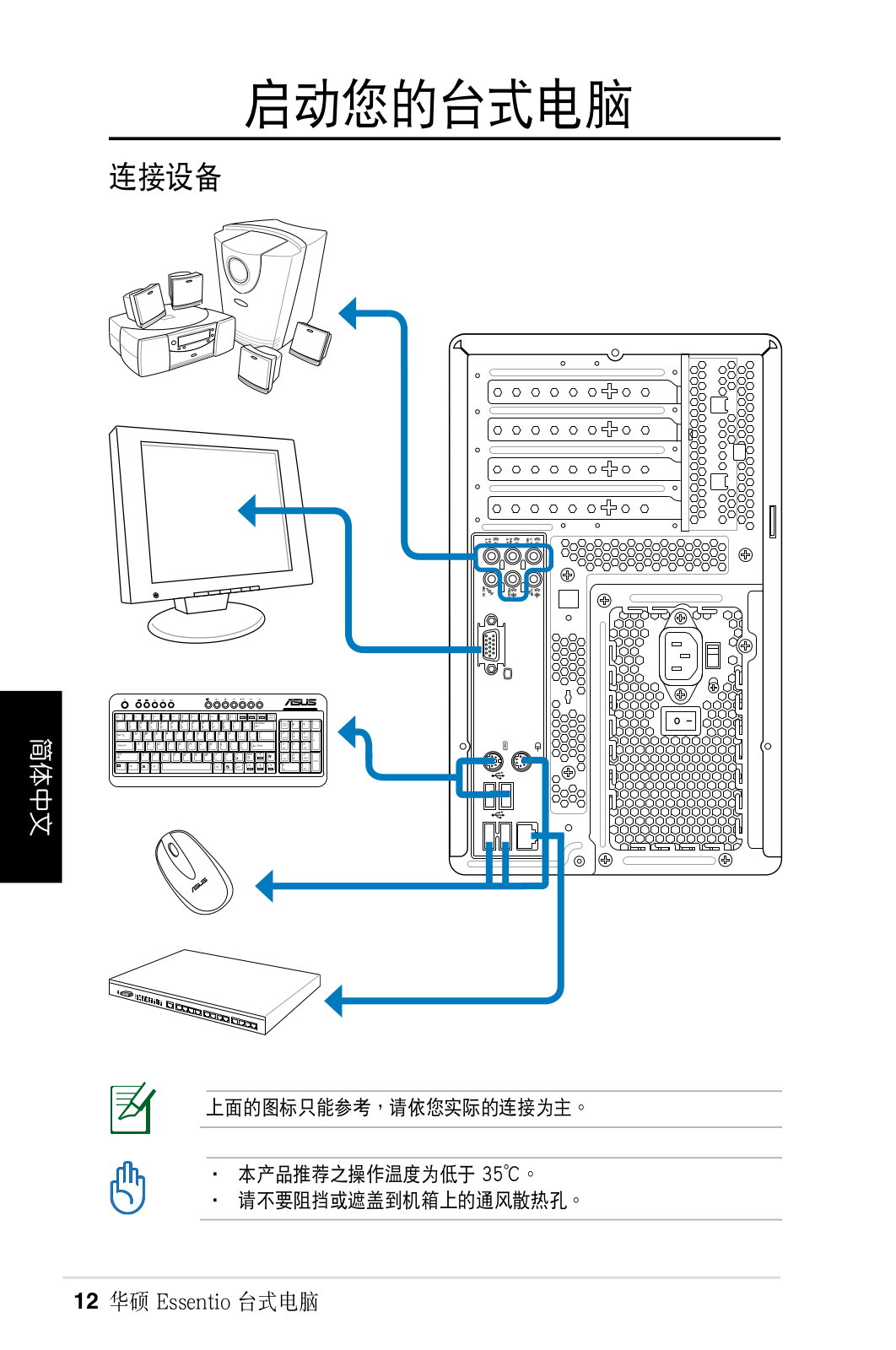

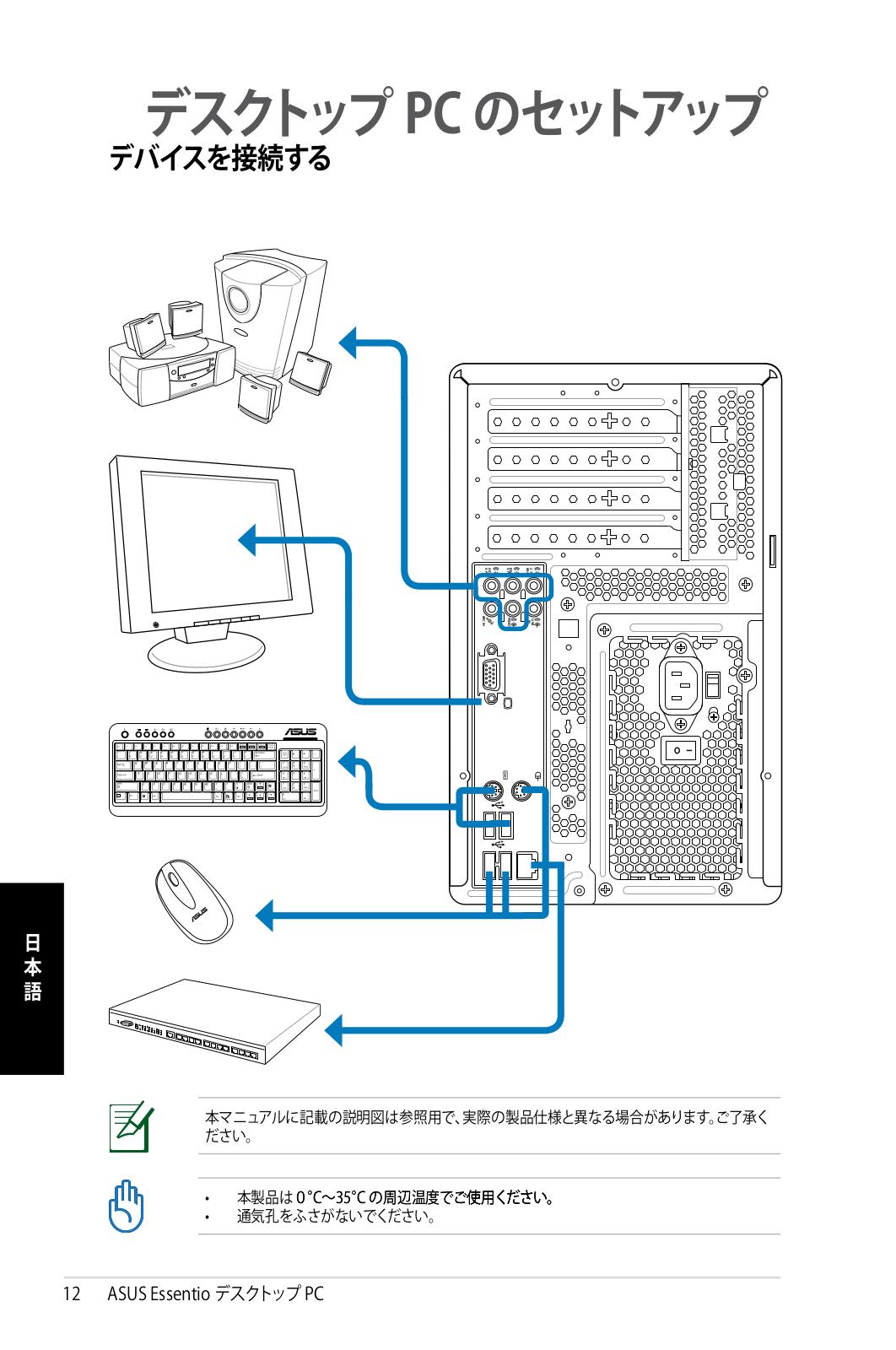

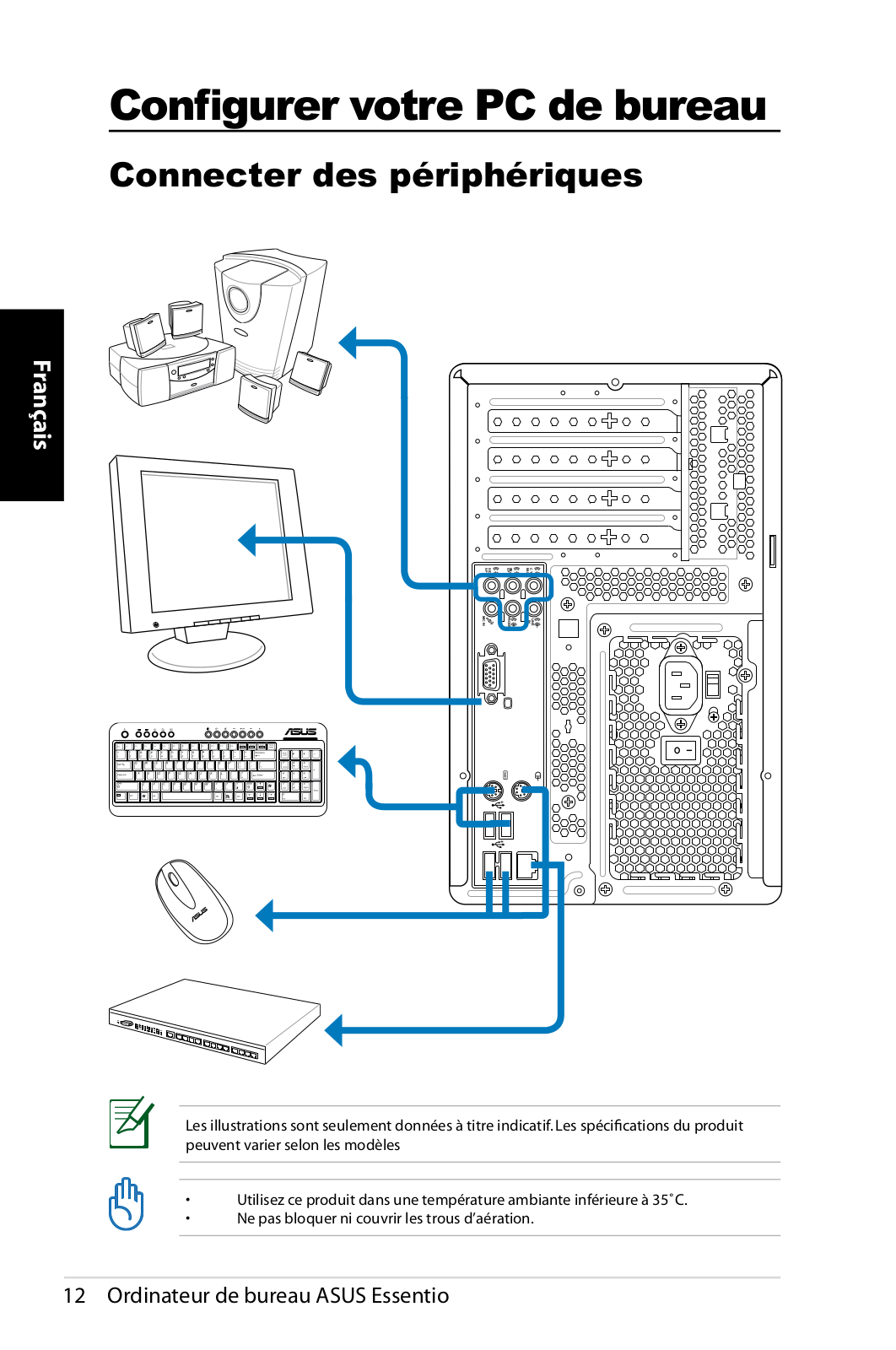

Connecting devices

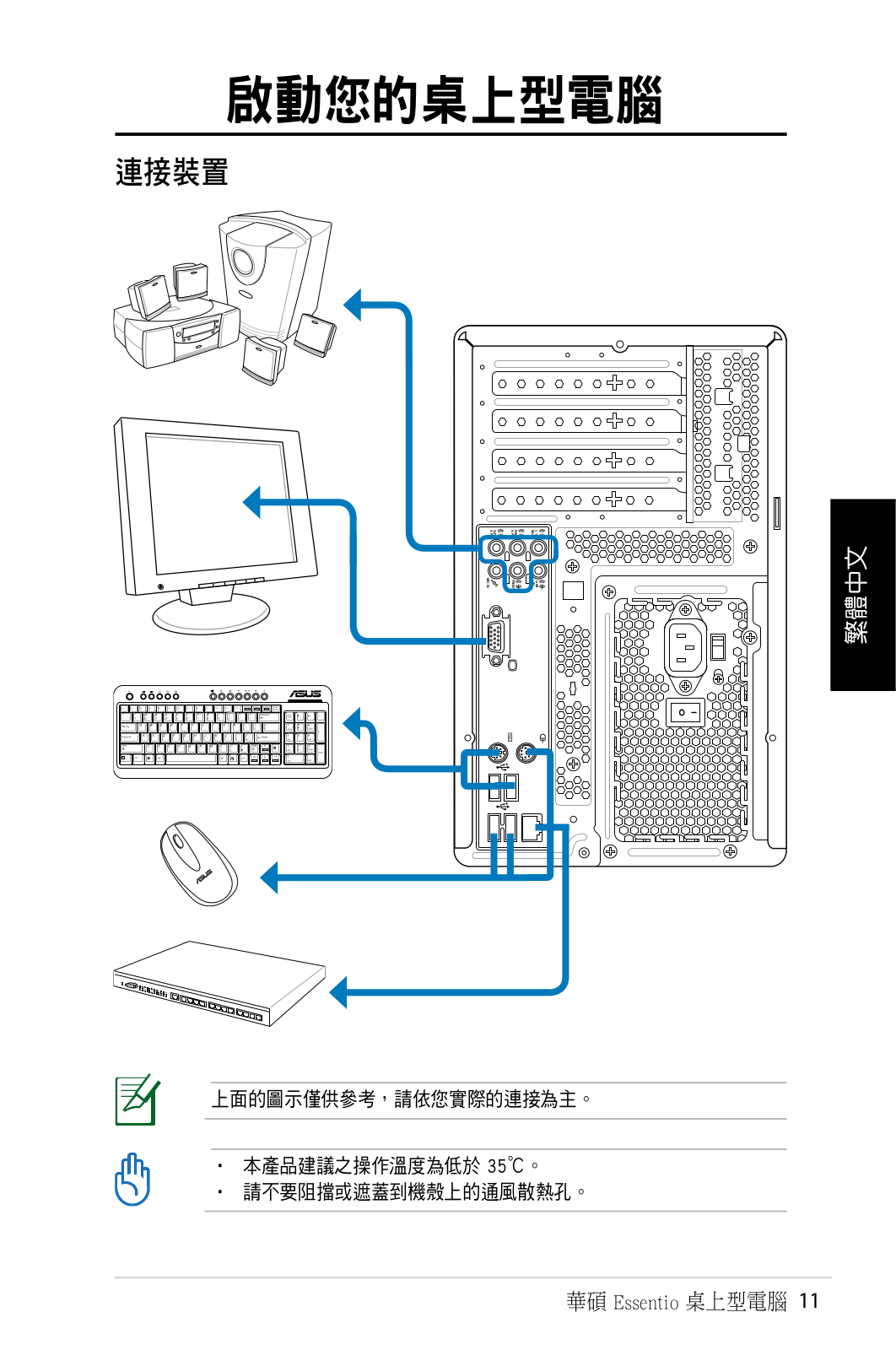

<![if ! IE]> <![endif]>SIDE K P S |
<![if ! IE]> <![endif]>REAR K P S |
<![if ! IE]> <![endif]>R T C BASS |
<![if ! IE]> <![endif]>IN MIC |
<![if ! IE]> <![endif]>FRONT |
<![if ! IE]> <![endif]>LINE IN |
Illustrations are for reference only. Actual product specifications may vary.
•Use this product in ambient temperature below 35˚C.
•Do not block or cover these vents.
12 ASUS Essentio Desktop PC

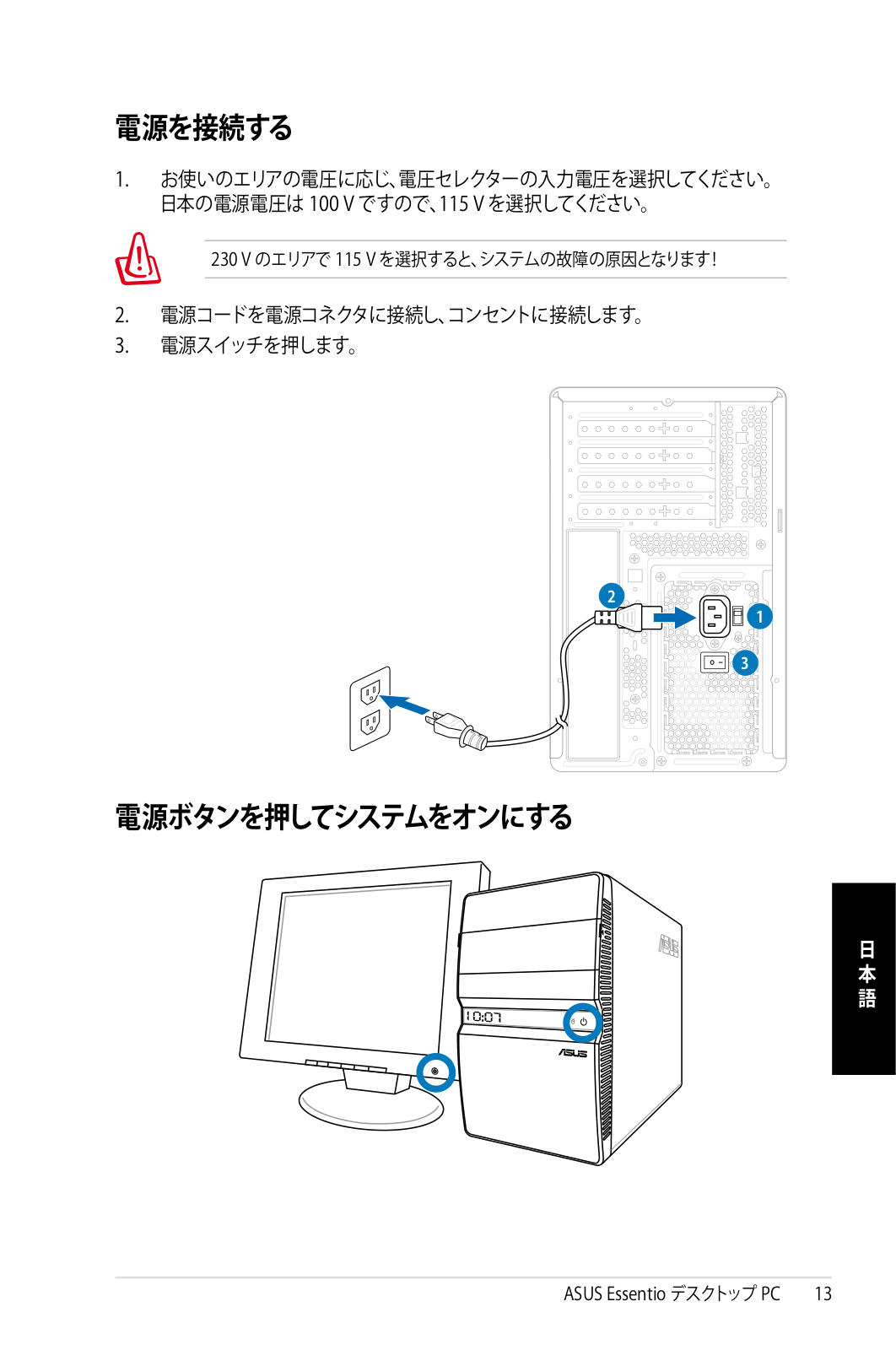

Connecting the power

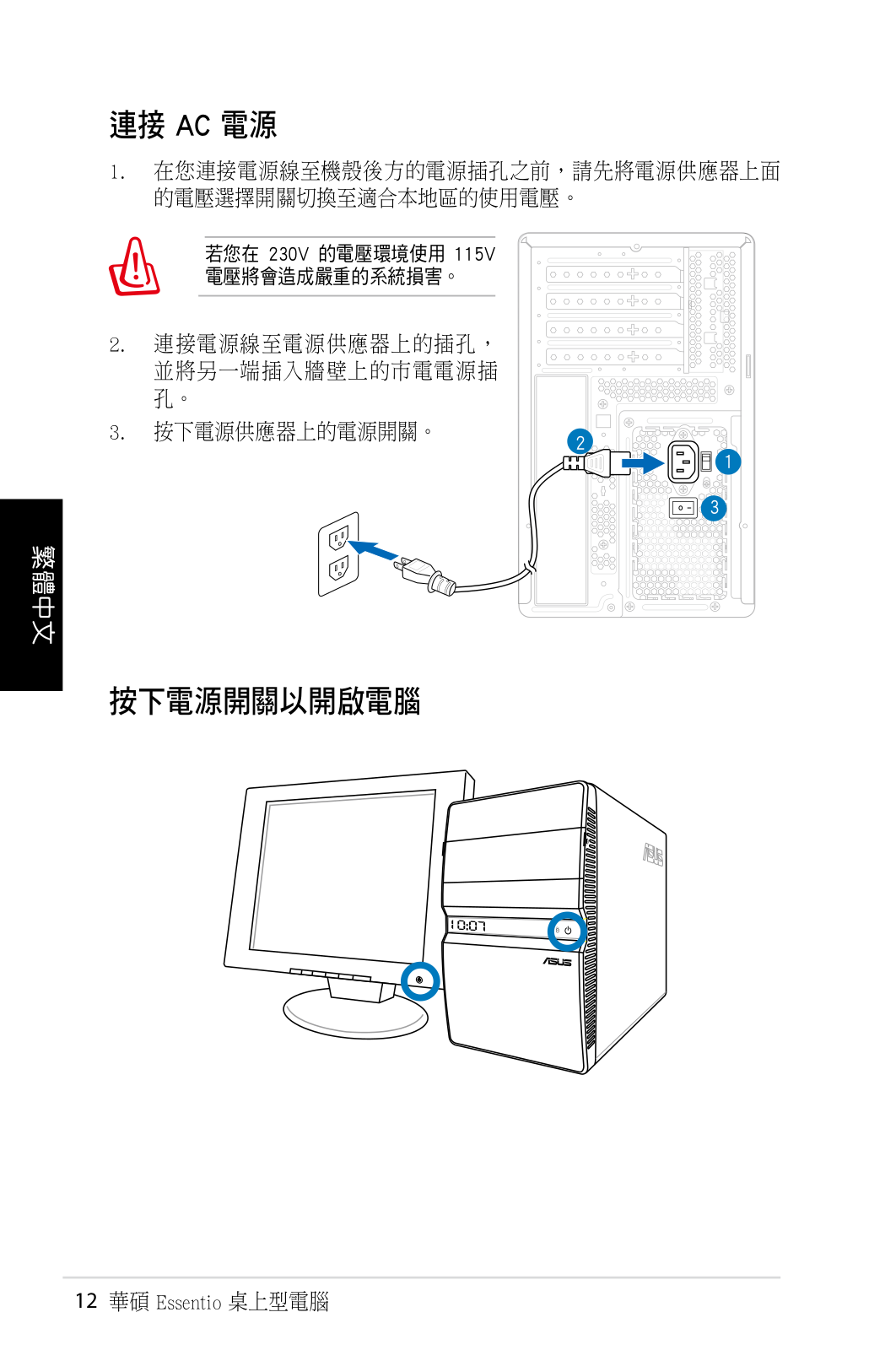

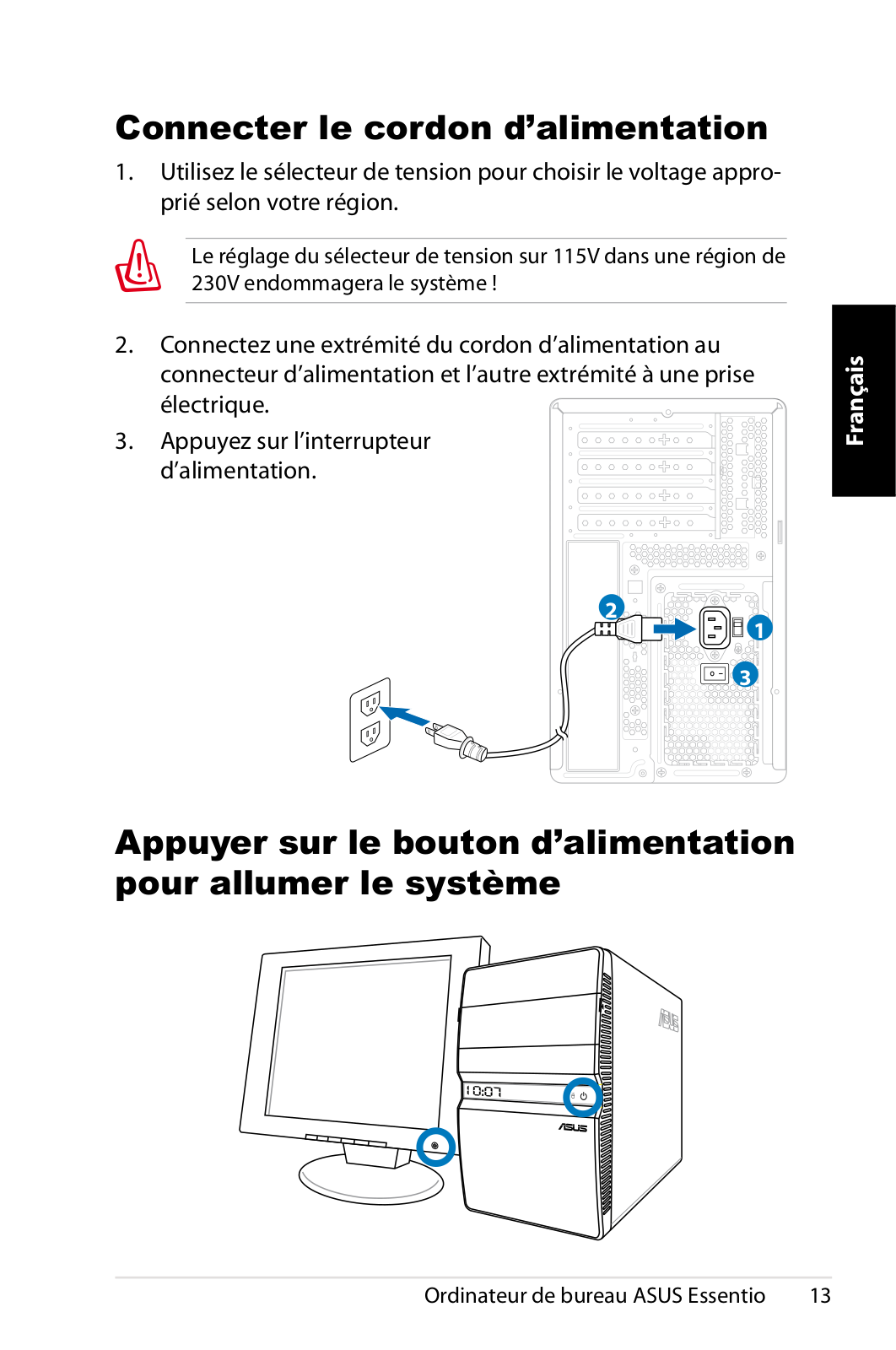

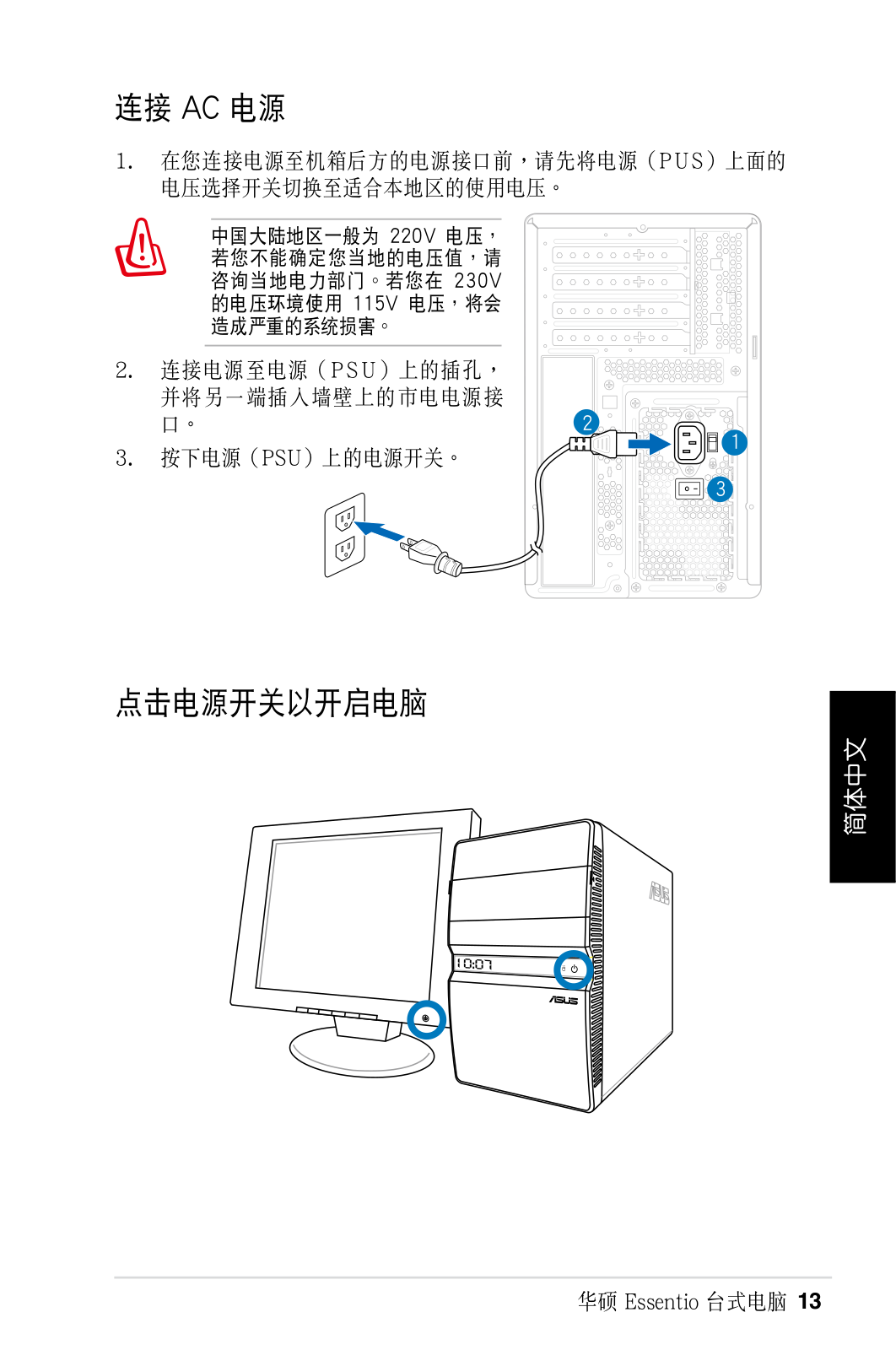

1.Switch the Voltage selector to select the appropriate input voltage according to the voltage supply in your area.
Setting the voltage selector to 115V in a 230V area will damage your system!
2.Connect the power cord to the power connector and plug it into the wall socket.
3.Press the Power Switch.
2 1
3
<![endif]>English
Pressing the power button to turn on the system
ASUS Essentio Desktop PC |
13 |
<![endif]>English

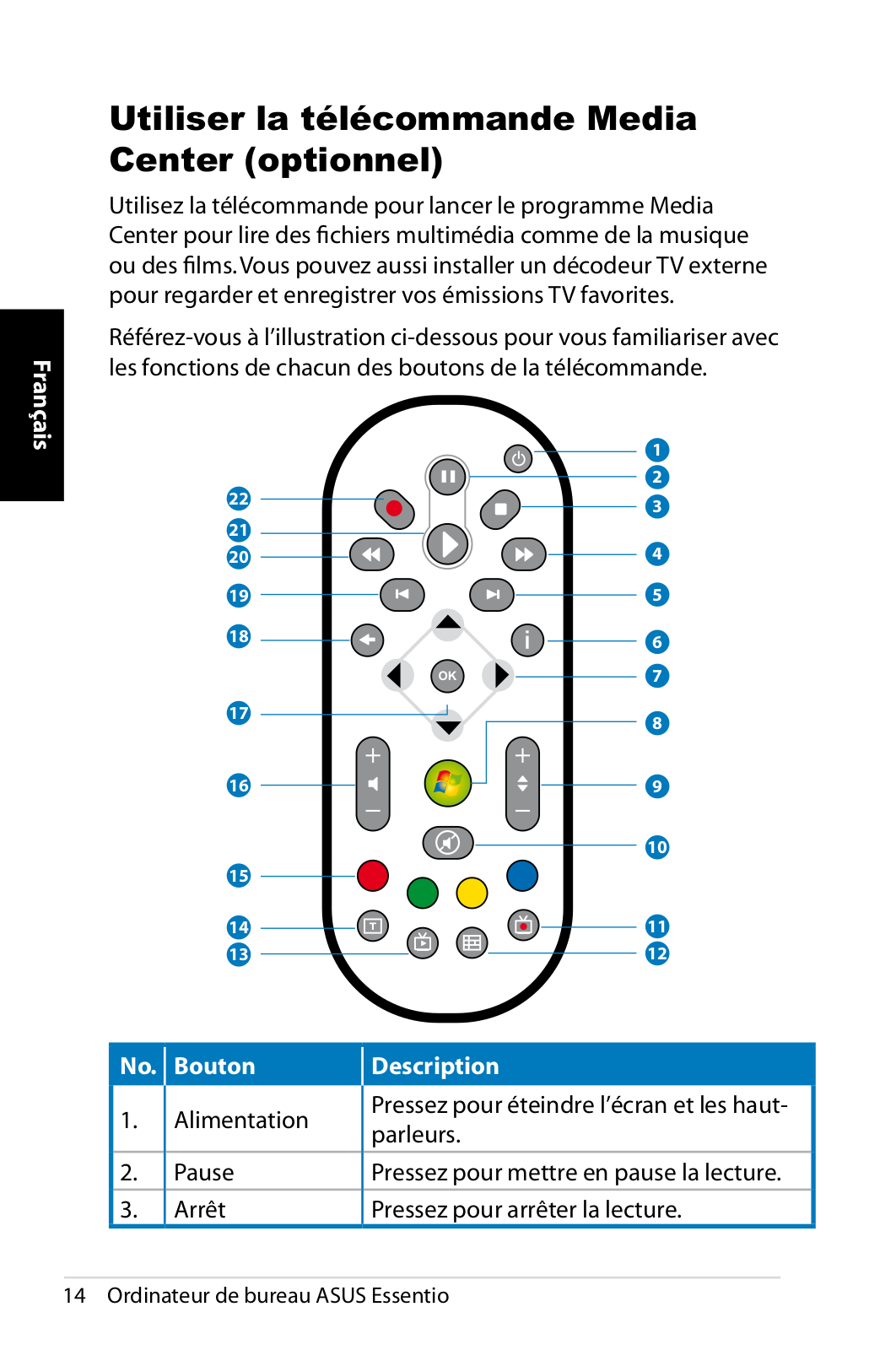

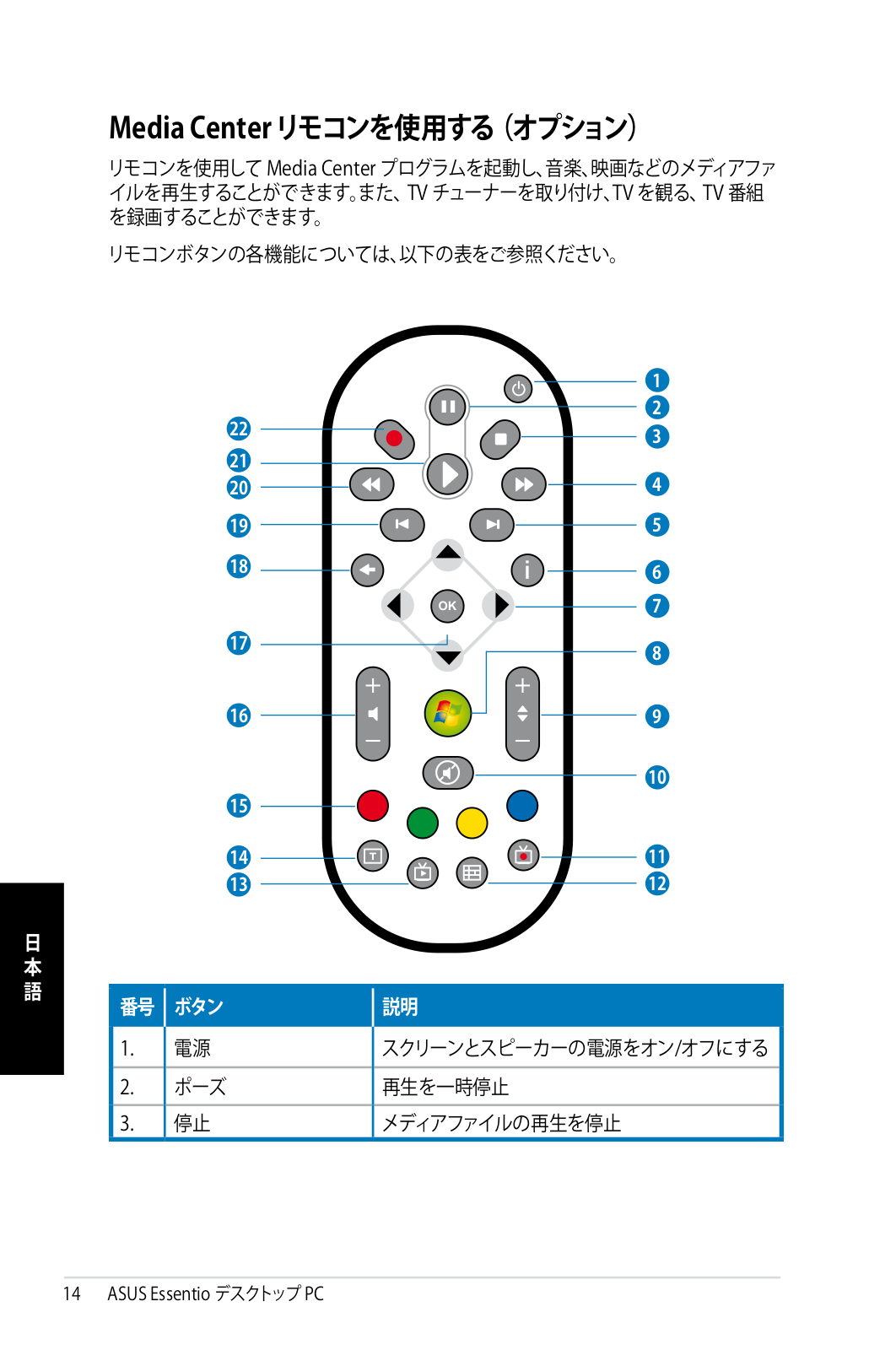

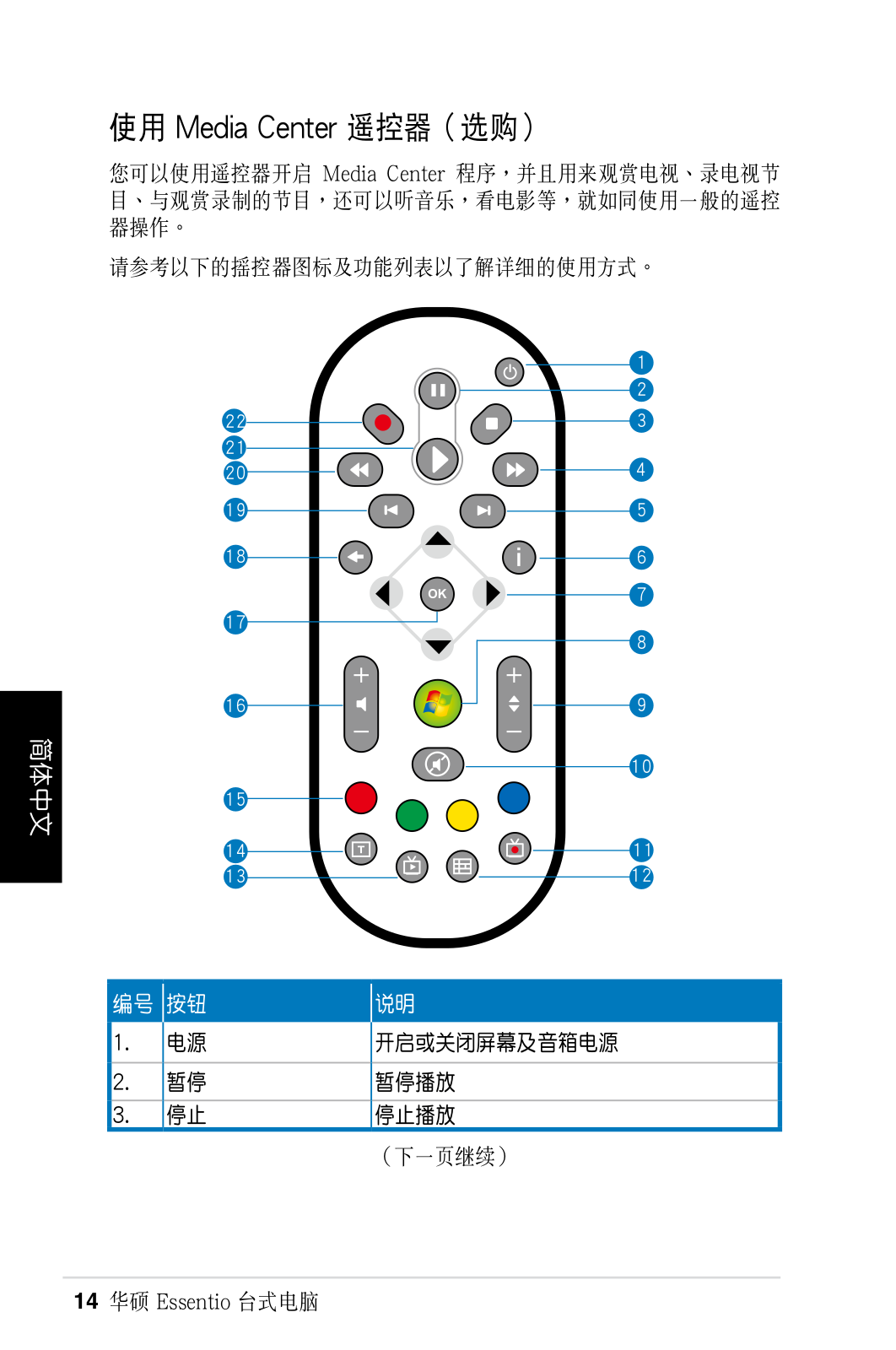

Using the Media Center remote (optional)

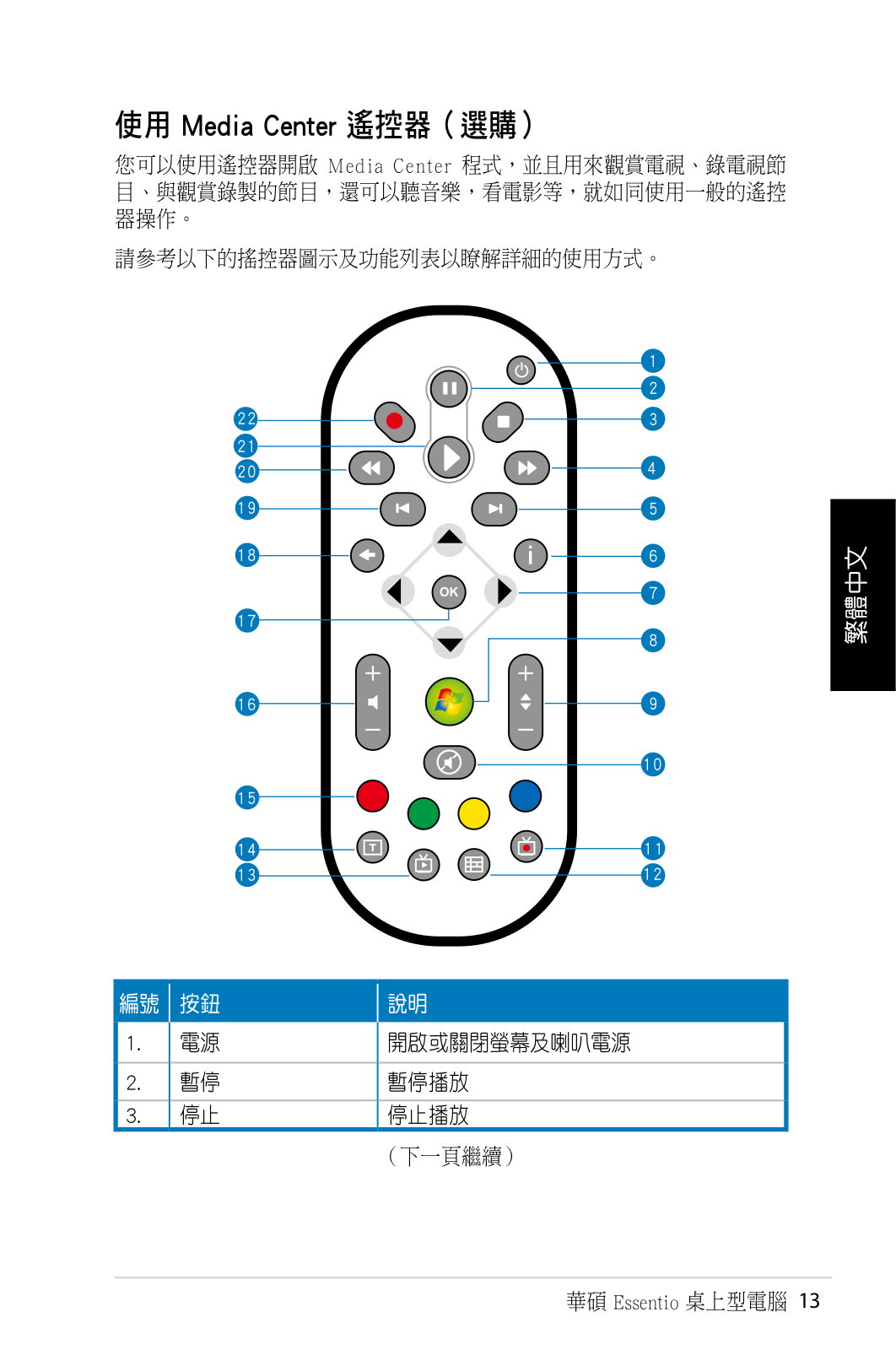

Use the remote to launch the Media Center program to play media files such as music and movies.You can also install an external TV box to watch TV and record TV programs.
Refer to the table below to familiarize yourself with the functions of the remote control buttons.
|
1 |
|
2 |
22 |
3 |
|
|
21 |
|
20 |
4 |
19 |
5 |
18 |
6 |
|
|
|
7 |
17 |
8 |
|
|
16 |
9 |
|
10 |
15 |
|
14 |
11 |
13 |
12 |
No. Button
1.Power
2.Pause
3.Stop
Description
Press to turn on/off the power of the screen and the speakers.
Press to pause a playback.
Press to stop playing a media file.
14 ASUS Essentio Desktop PC

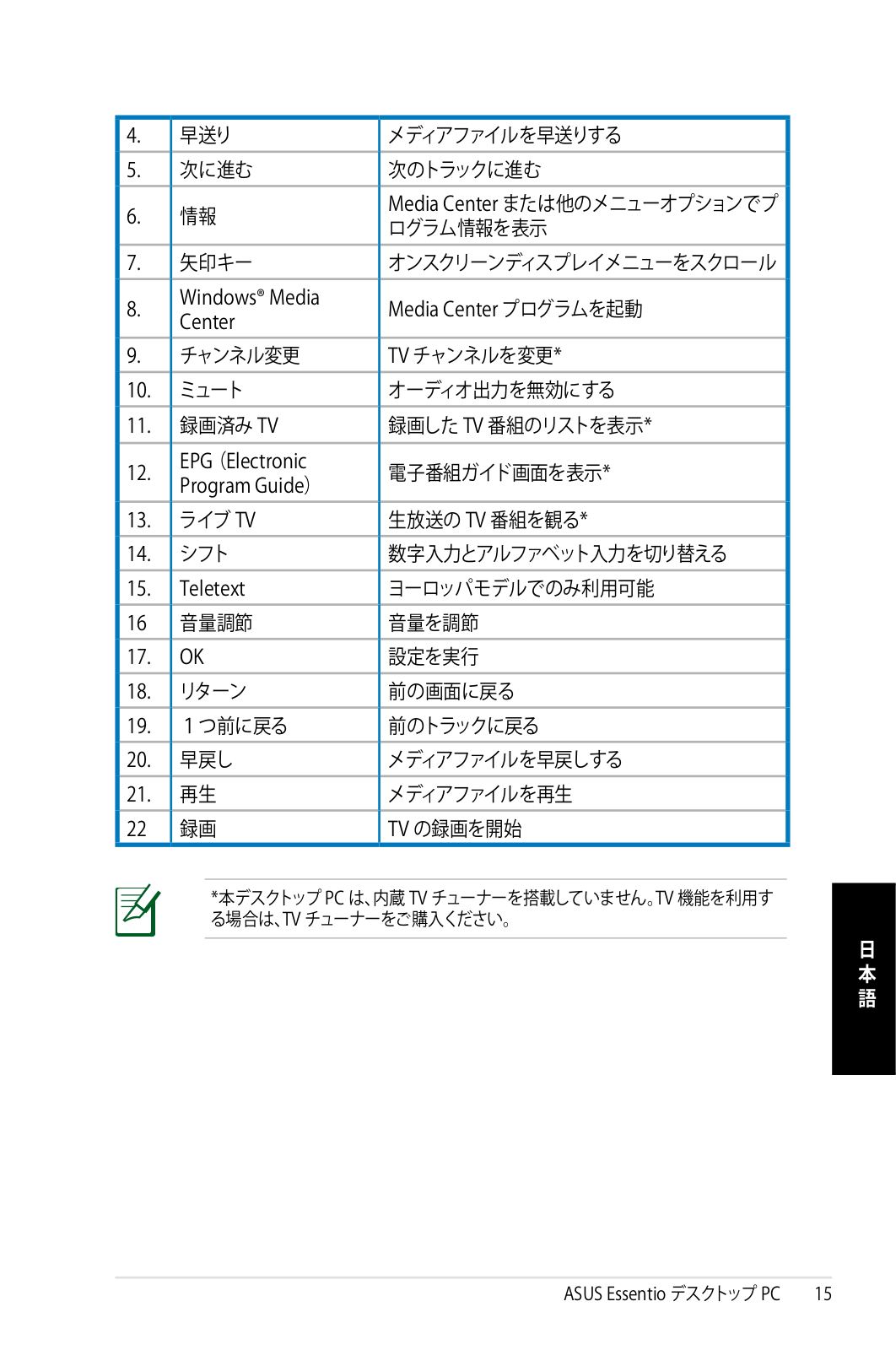

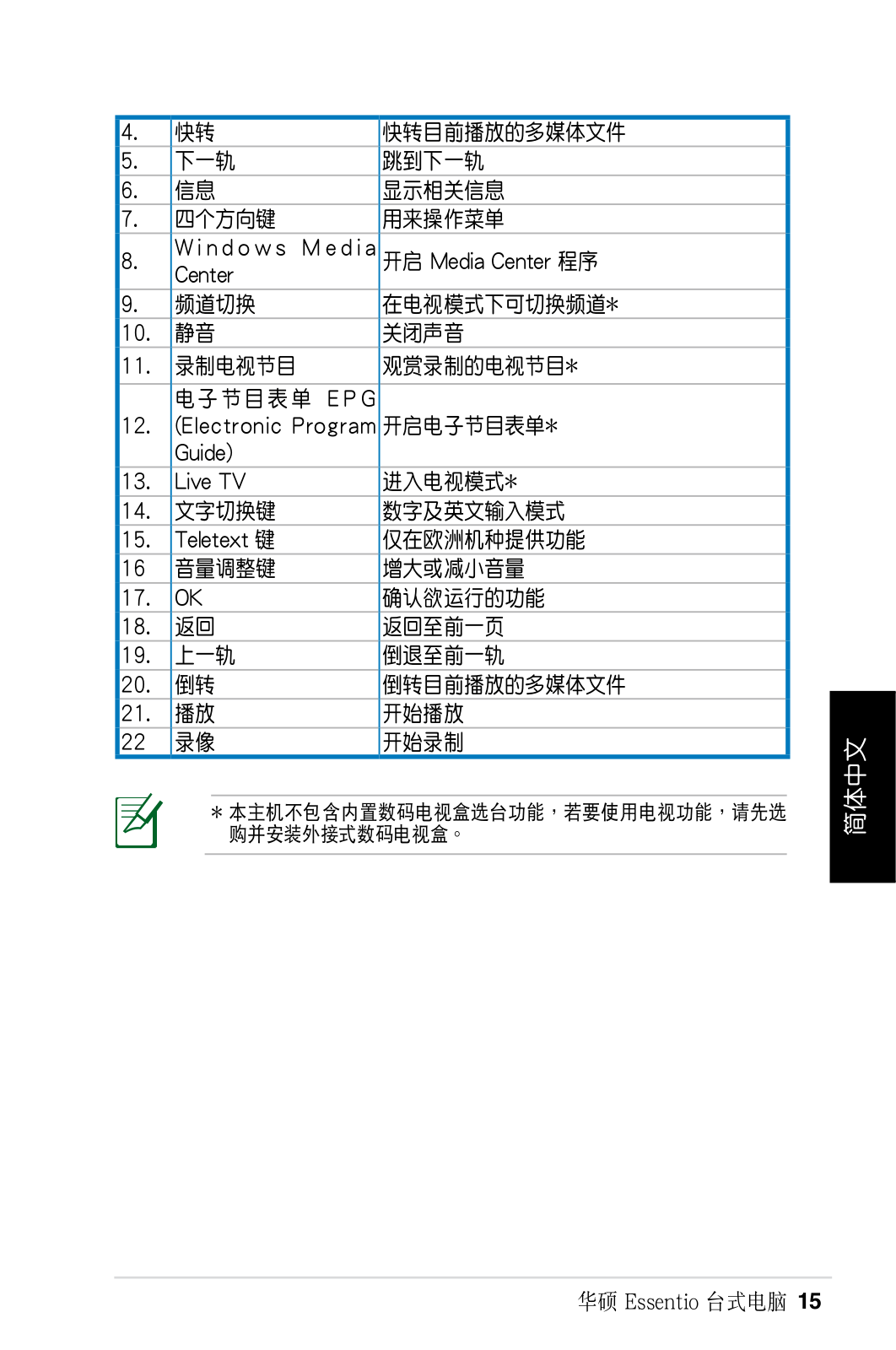

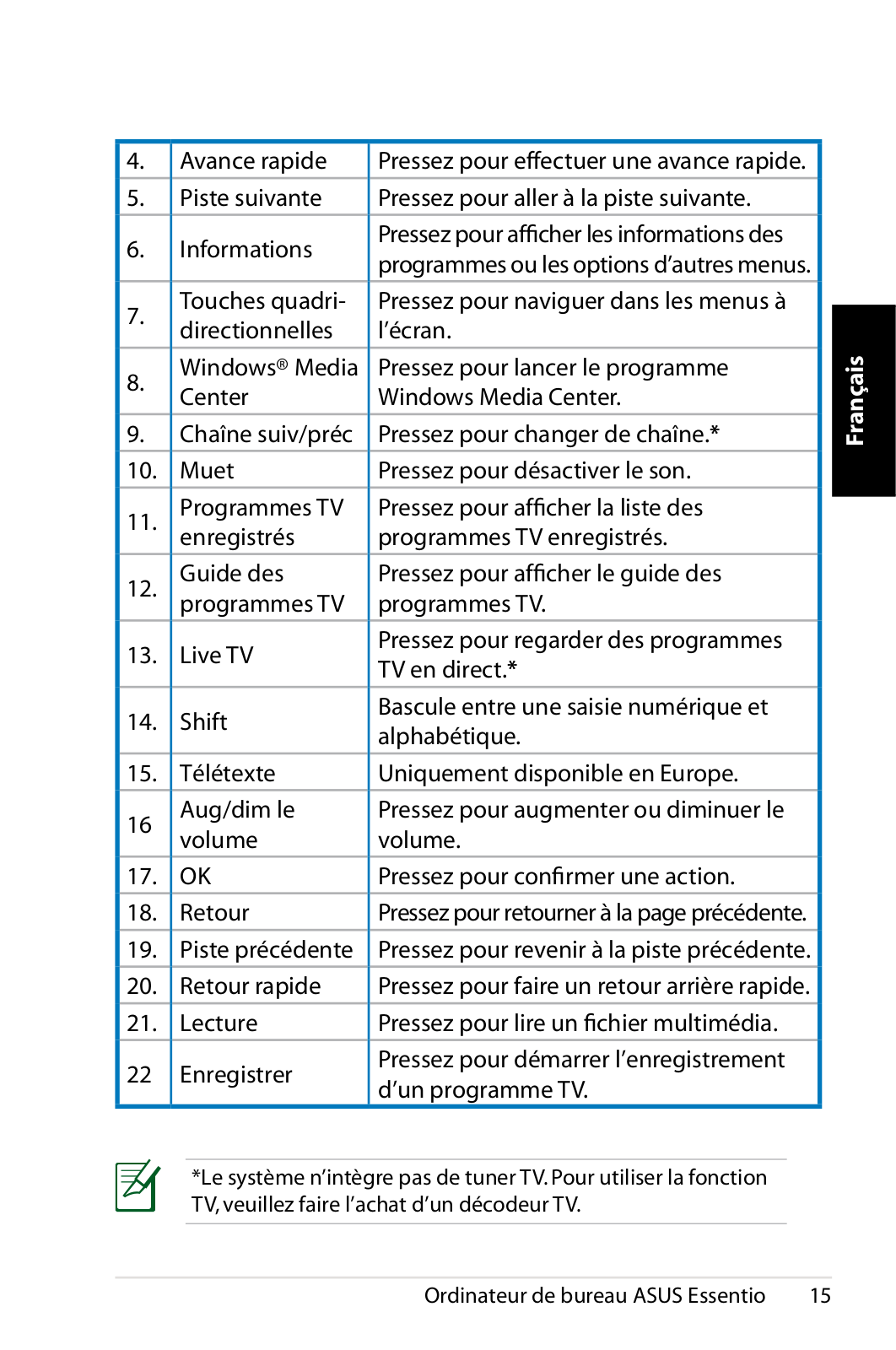

4. |
Fast-foward |
Press to fast-forward a media file. |
|
5. |
Next track |
Press to go to the next track. |
|
|
|
Press to display program information |
|
6. |
Information |
under Media Center or other menu |
|
|
|
options. |
|
7. |
Four-way |
Press to scroll through on-screen |
|
navigation keys |
display menus. |
||
|
|||
8. |
Windows® Media |
Press to launch the Media Center |
|
Center |
program. |
||
|
|||
9. |
Channel up/down |
Press to change TV channels.* |
|
10. |
Mute |
Press to disable audio output. |
|
11. |
Recorded TV |
Press to display a list of your recorded |
|
TV programs.* |
|||
|
|
||
12. |
EPG (Electronic |
Press to display the electronic |
|
|
Program Guide) |
program guide screen.* |
|
13. |
Live TV button |
Press to watch live TV programs. * |
|
14. |
Shift |
Toggles between numerical and |
|
alphabetical input. |
|||
|
|
||
15. |
Teletext buttons |
Available on European models only. |
|
16 |
Volume up/down |
Press to increase/decrease the |
|
volume. |
|||
|
|
||
17. |
OK |
Press to confirm an action. |
|
18. |
Return |
Press to return to the previous page. |
|
19. |
Previous track |
Press to go back to the previous track. |
|
20. |
Rewind |
Press to rewind a media file. |
|
21. |
Play |
Press to play a media file |
|
22 |
Record |
Press to start recording TV. |
*The system does not come with built-in TV tuner.To use the TV function, purchase an external TV box first.
<![endif]>English
ASUS Essentio Desktop PC |
15 |
<![endif]>English

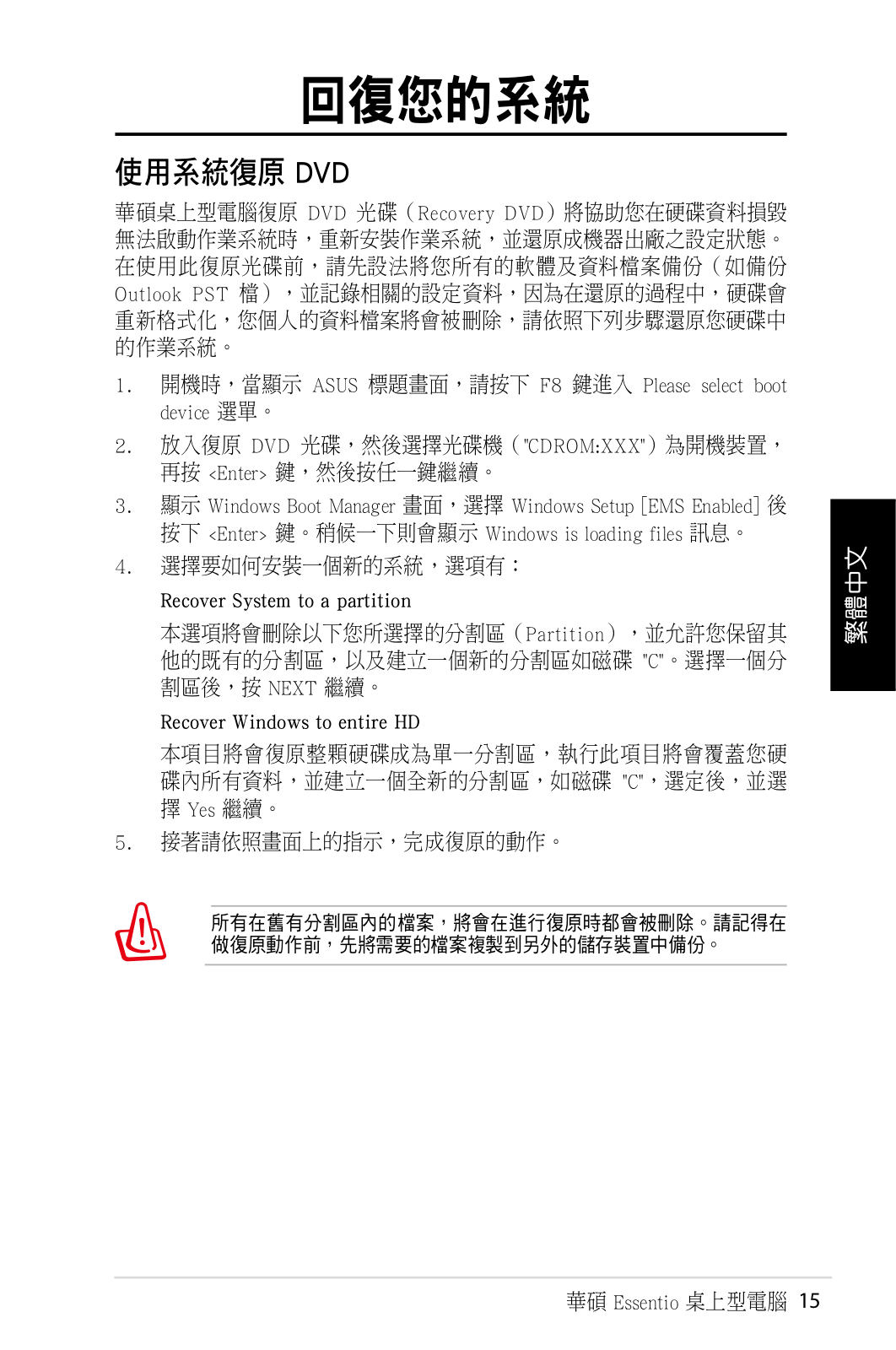

Recovering your system

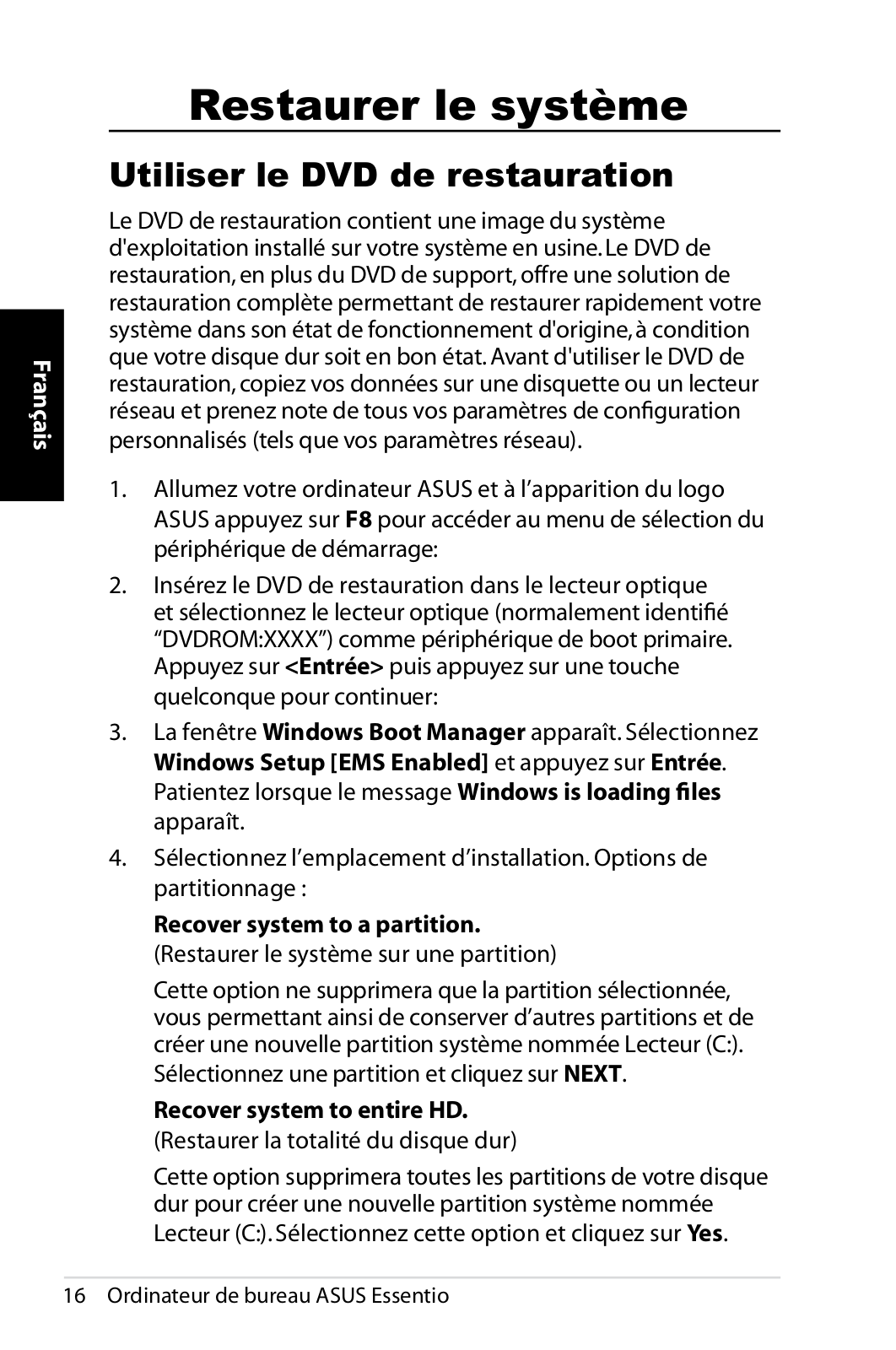

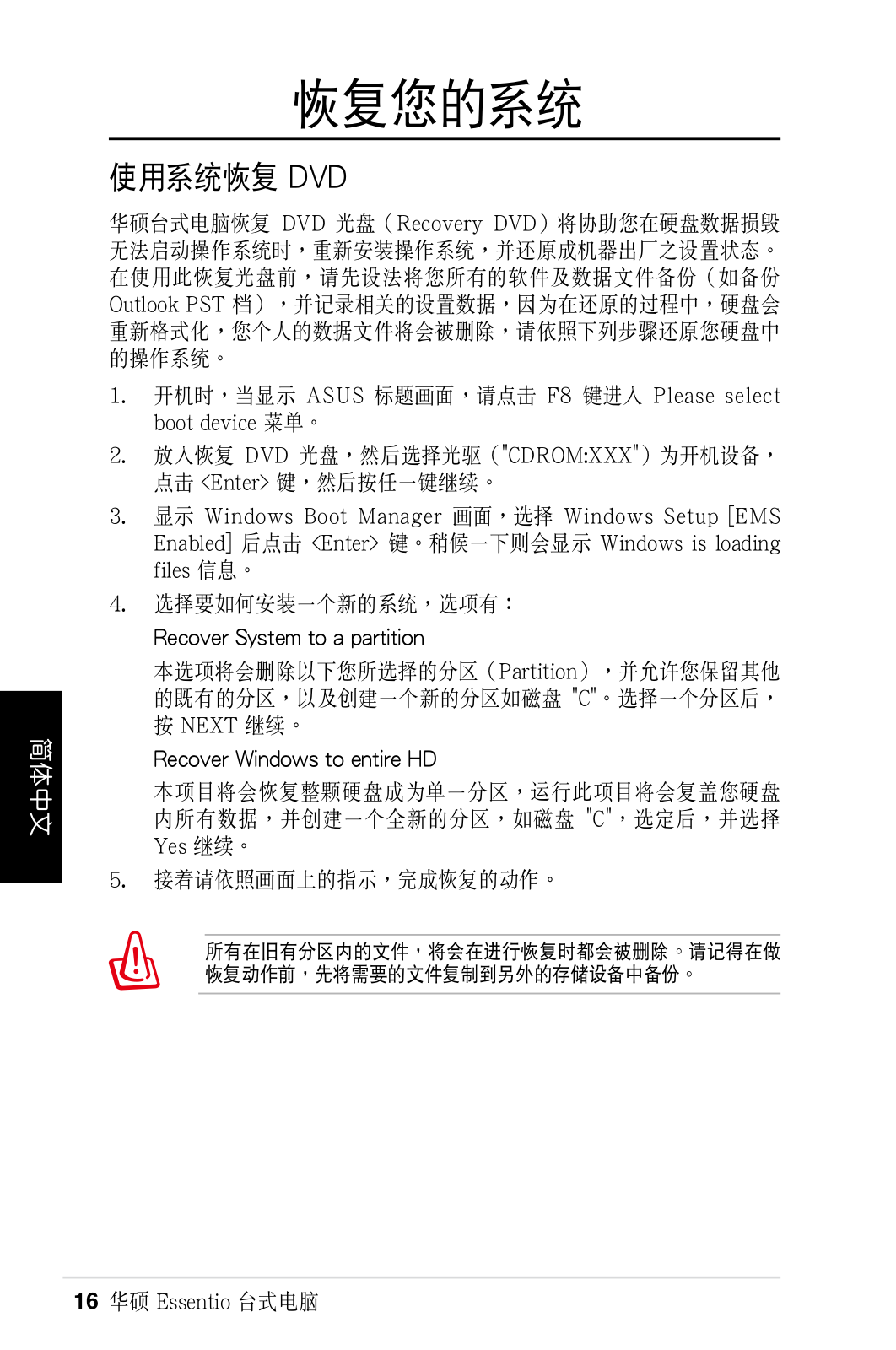

Using the recovery DVD
The recovery DVD includes an image of the operating system installed on your system at the factory.The recovery DVD, working with the support DVD, provides a comprehensive recovery solution that quickly restores your system to its original working state, provided that your hard disk drive is in good working order. Before using the recovery DVD, copy your data files (such as Outlook PST files) to a USB device or to a network drive and make note of any customized configuration settings (such as network settings).
1.Turn on your ASUS Desktop PC and the ASUS logo appears. Press F8 to enter the Please select boot device menu.
2.Insert the recovery DVD into the optical drive and select the optical drive (“CDROM:XXX”) as the boot device. Press Enter and then press any key to continue.
3.The Windows Boot Manager window appears. Select
Windows Setup [EMS Enabled] and press Enter.Wait when the Windows is loading files message appears.
4.Select where to install a new system. Options are:
Recover system to a partition
This option will delete only the partition you select from below, allowing you to keep other partitions, and create a new system partition as drive “C.” Select a partition and click
NEXT.
Recover system to entire HD
This option will delete all partitions from your hard disk drive and create a new system partition as drive “C.” Select and click Yes.

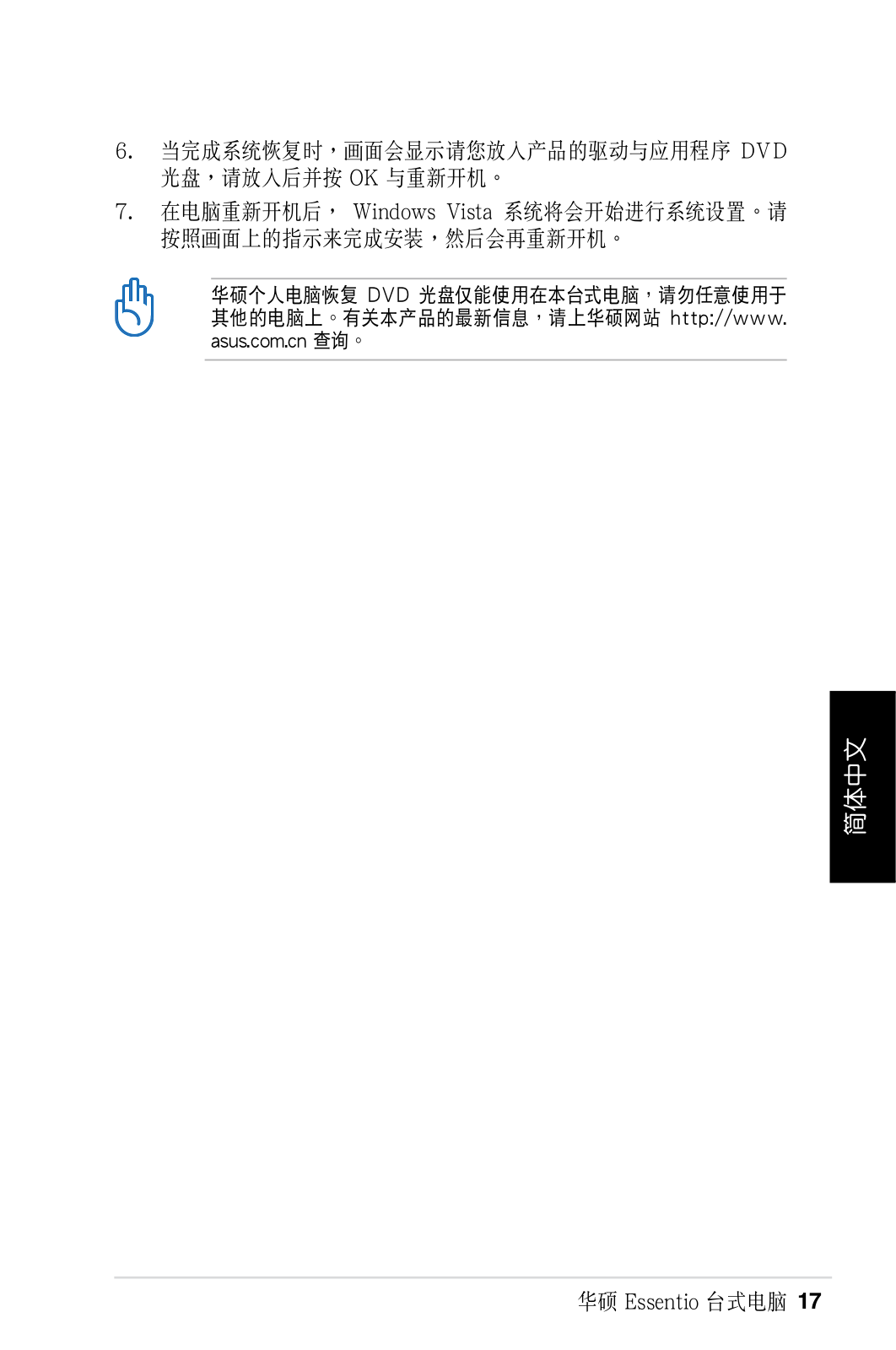

5.Follow the on-screen instructions to complete the recovery process.
You will lose all your data during the system recovery. Make sure that you make a backup of it before recovering the system.
16 ASUS Essentio Desktop PC

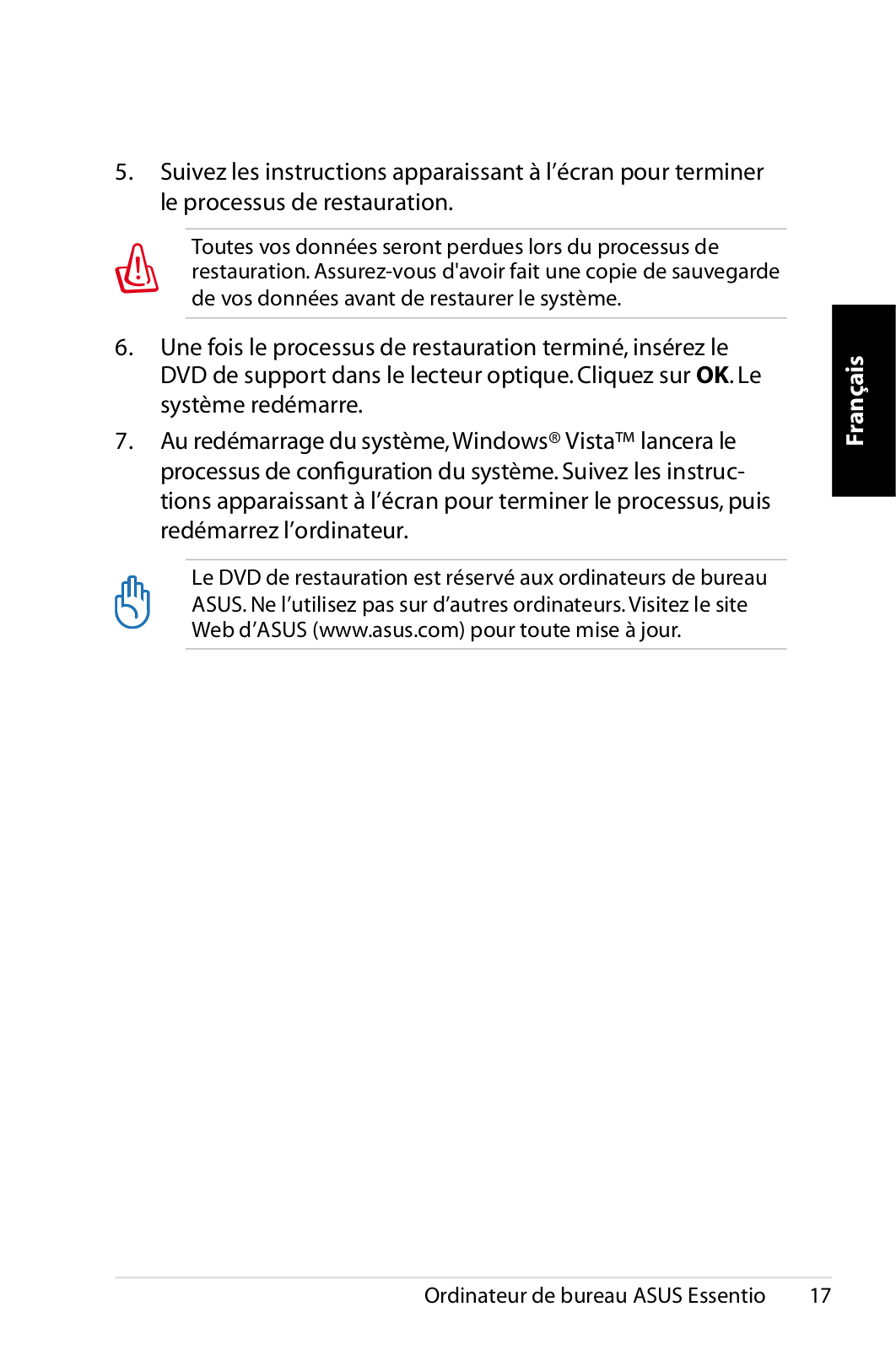

6. |
After the system recovery is completed, you will be asked to |
<![if ! IE]> <![endif]>English |
|
insert the support DVD into the optical drive. Click OK and |
|
|
|
|
|
the system reboots. |
|
7. |
After the system reboots,Windows® Vista™ will begin |
|
|
system configurations. Follow the on-screen instructions to |
|
|
complete the process, and then restart the computer. |
|
This recovery DVD is for ASUS Desktop PC only. DO NOT use it on other computers.Visit the ASUS website www.asus.com for any updates.
ASUS Essentio Desktop PC |
17 |
<![endif]>English

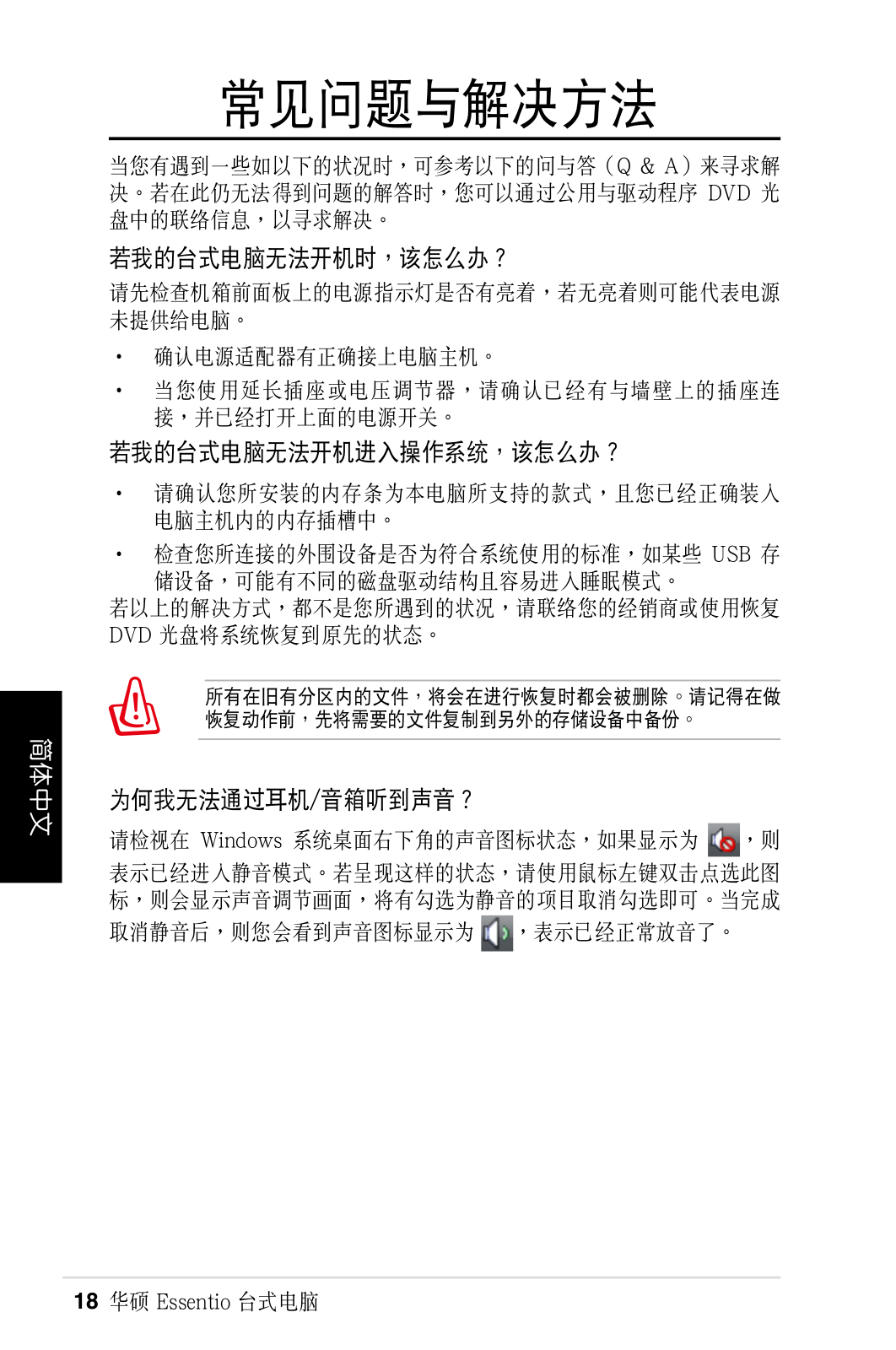

Troubleshooting
Read the following Q&As for troubleshooting guide. If these do not give you answers, you may contact us directly at the contact information provided in the support DVD.

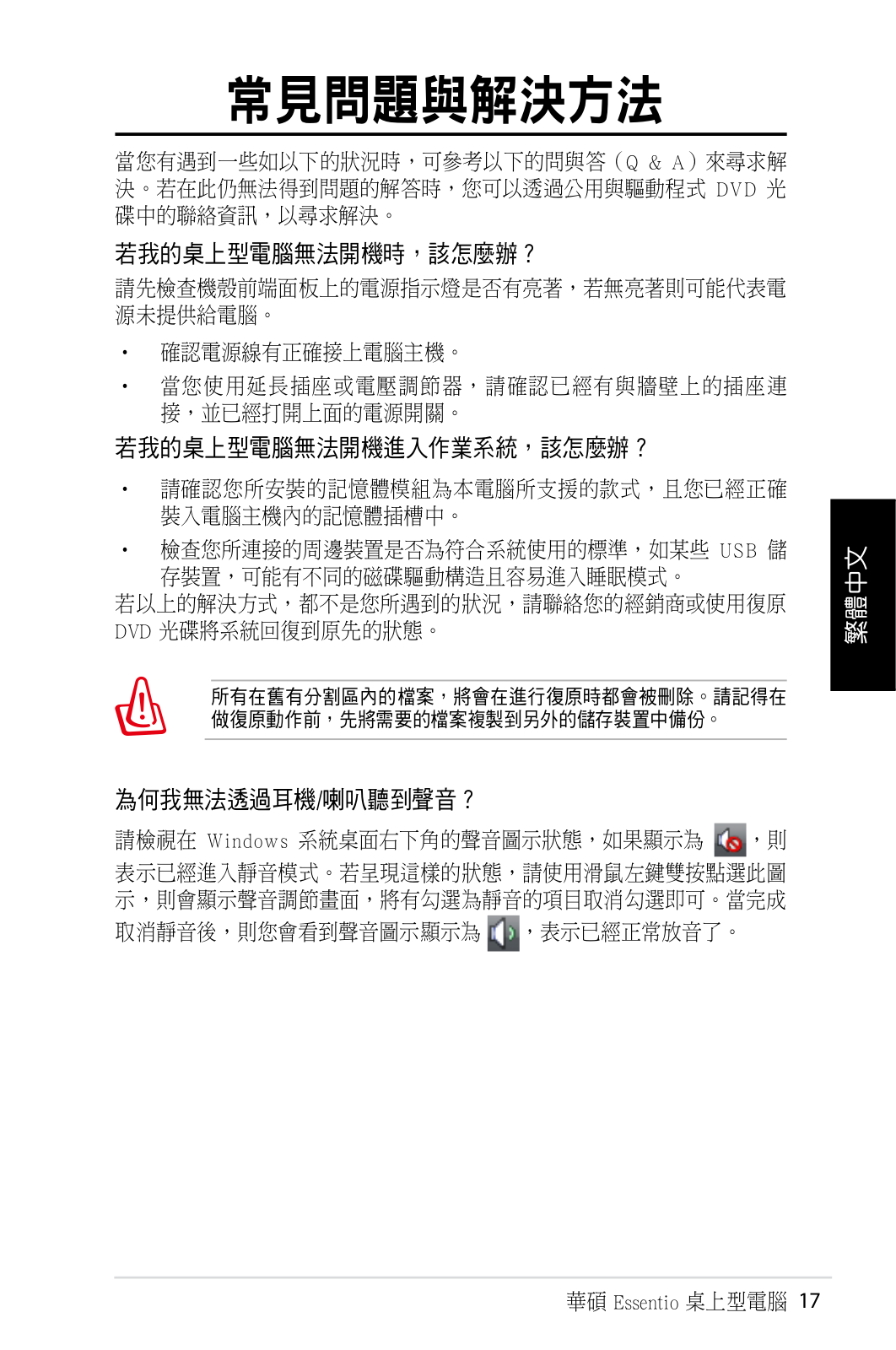

What can I do if my Desktop PC cannot be powered on?
Check if the power LED on the front panel lights up. It does not light up if no power is supplied to the system.
•Find out if the power cord is plugged in.
•When you use an extension cord or a voltage regulator, ensure that you have plugged it into the wall socket and switched it on.
What can I do if my Desktop PC cannot enter the operating system?
•Make sure that you use memory modules that the system supports and that you install them properly on the sockets.
•Check if your peripheral devices are compatible with the system. Some USB storage devices, for example, are with different disk drive structure and enter sleep mode easily.
If the above steps do not solve the problem, contact your retailer or perform system recovery using the supplied recovery DVD.
You will lose all your data during the system recovery. Make sure that you make a backup of it before recovering the system.
Why is it that I cannot hear anything from my speakers/ headphones?
Check the volume icon on the Windows® taskbar to see if it is set
to mute . If so, double-click this icon to display the volume bar, and then click the mute icon under the bar to cancel the muted
mode .
18 ASUS Essentio Desktop PC

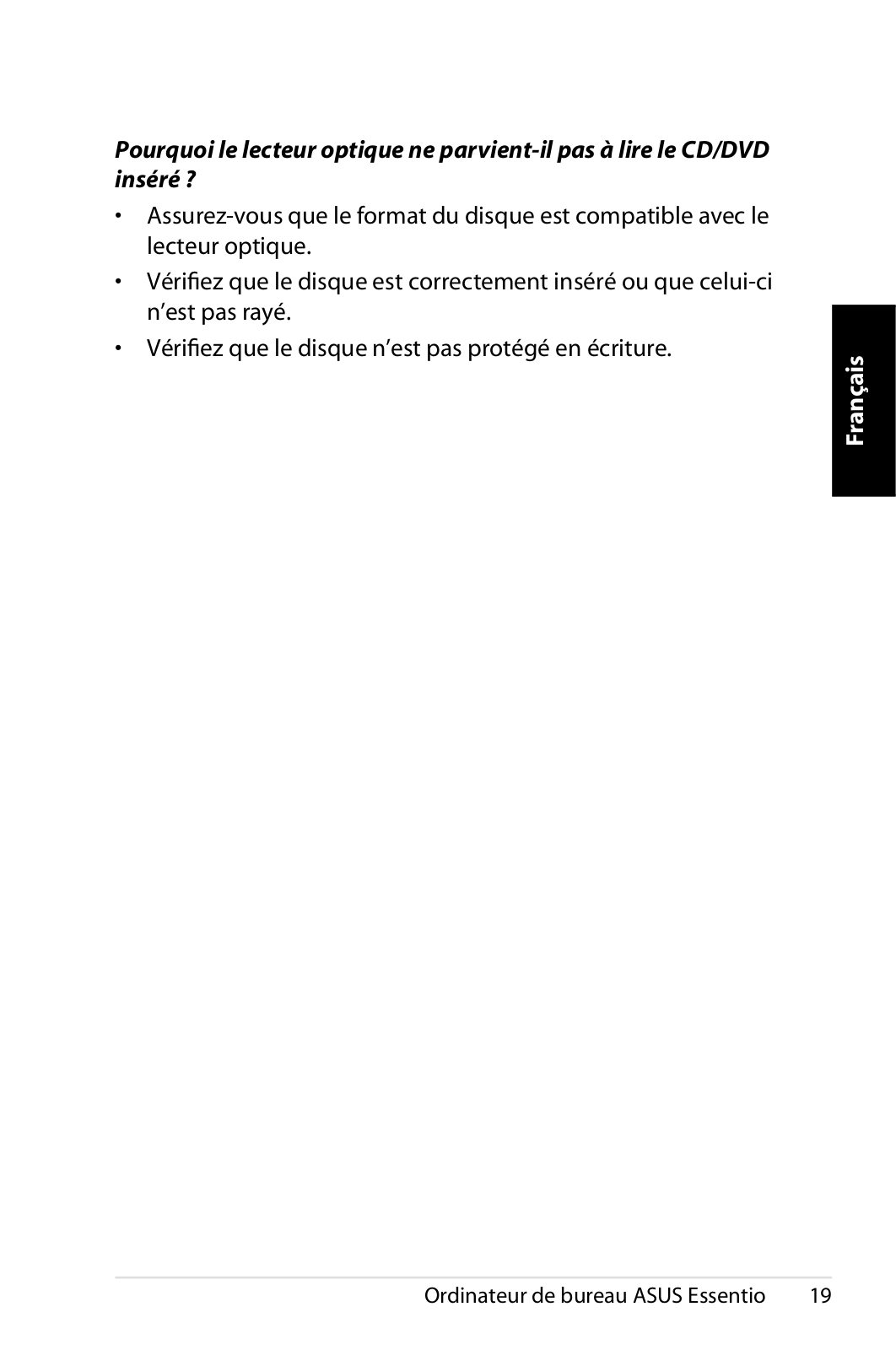

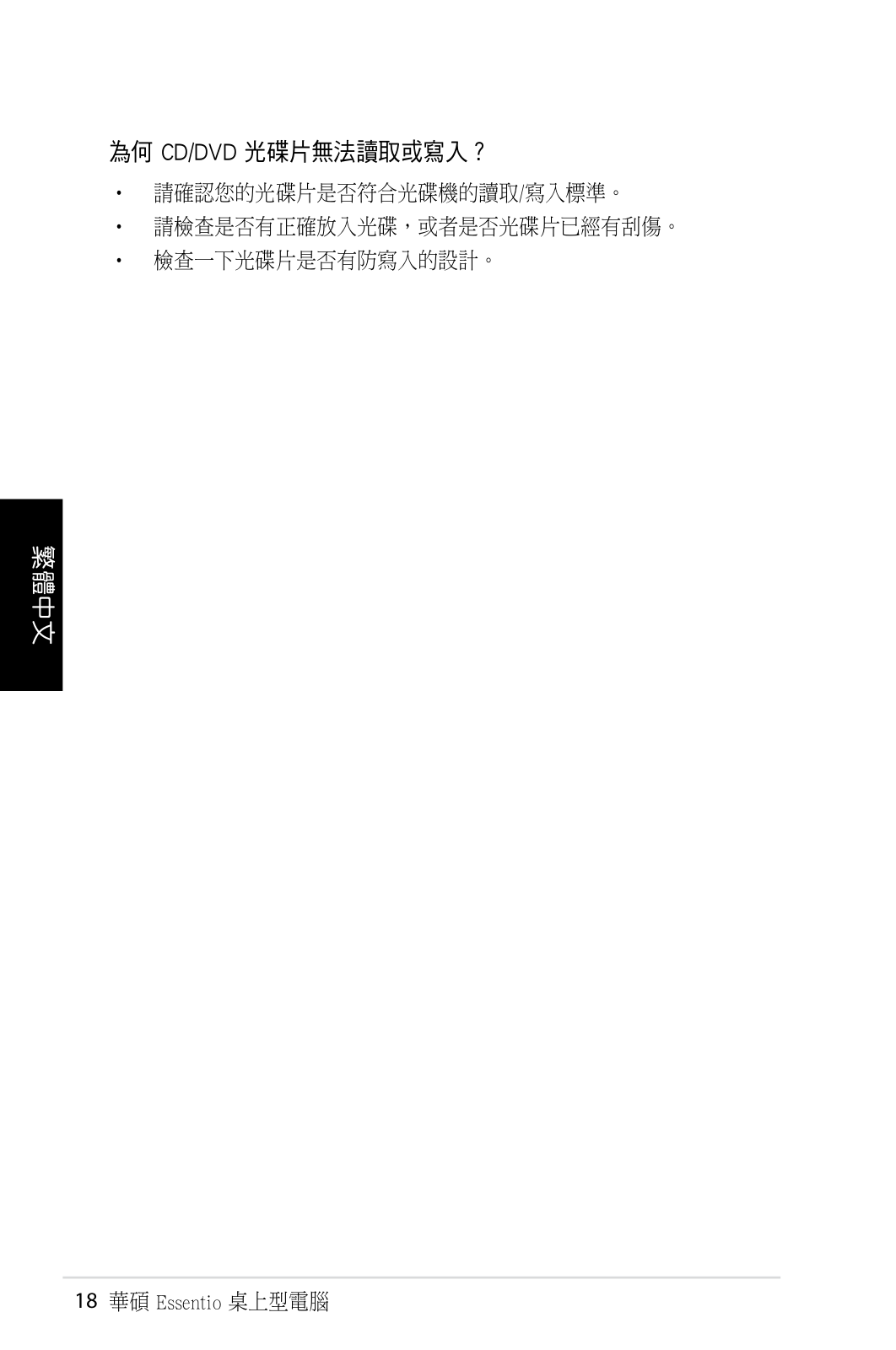

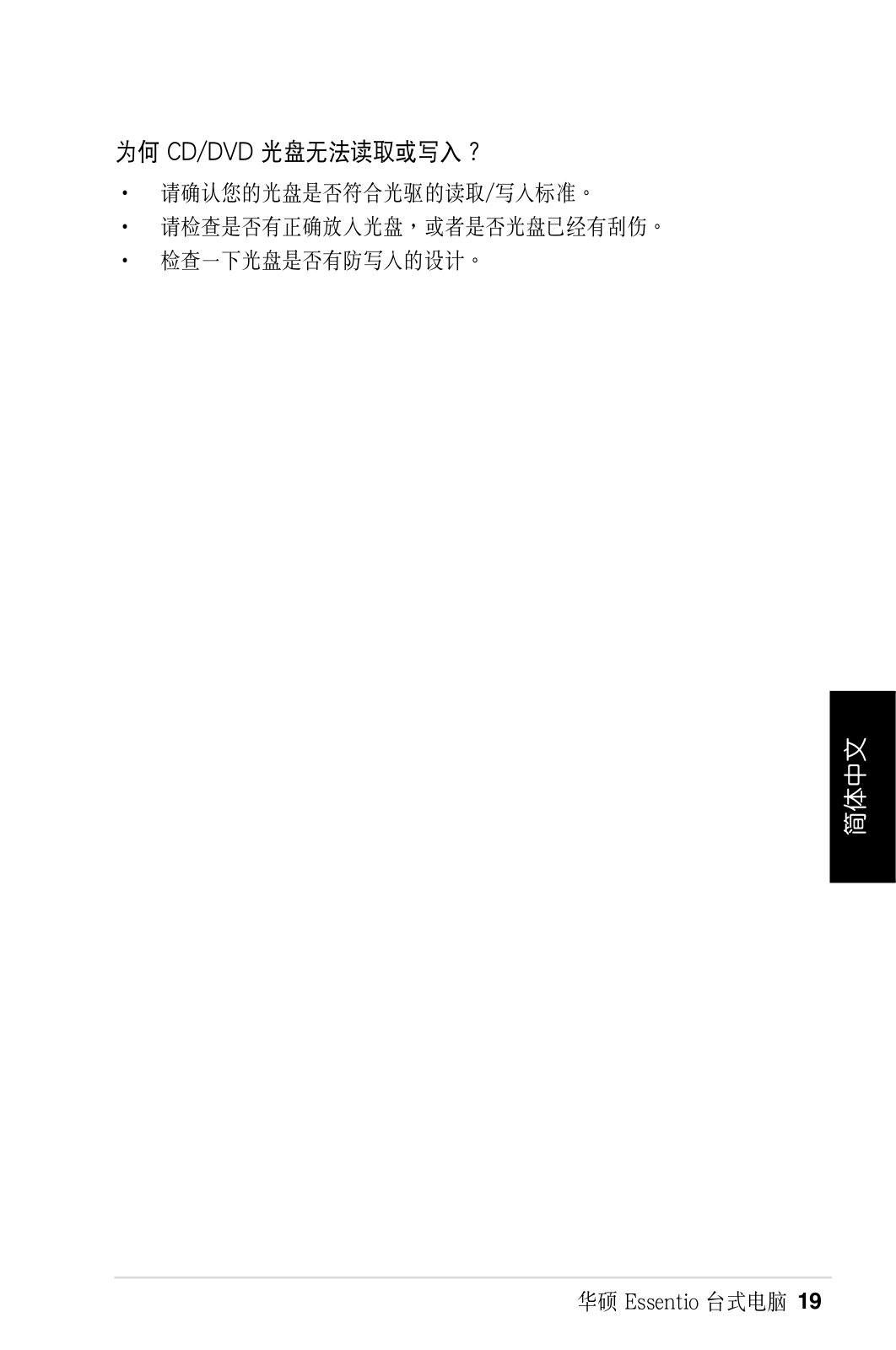

Why is it that a CD/DVD cannot be read from or written to? |
<![if ! IE]> <![endif]>English |
|
• Make sure that you use a disc compatible with the optical |
||
|
||
drive. |
|
|
• Check if you insert the disc properly or if there is any scratch |
|
|
on the disc. |
|
|
• Find out if the disc is with write protection. |
|
|
|
ASUS Essentio Desktop PC |
19 |
<![endif]>English
20 ASUS Essentio Desktop PC
Ordinateur de bureau ASUS Essentio
Manuel d’utilisation
<![endif]>Français
F3716
Première édition V1
Avril 2008
<![if ! IE]><![endif]>Français
Copyright © 2008 ASUSTeK COMPUTER INC.Tous droits réservés.
Aucun extrait de ce manuel, incluant les produits et logiciels qui y sont décrits, ne peut être reproduit, transmis, transcrit, stocké dans un système de restitution, ou traduit dans quelque langue que ce soit sous quelque forme ou quelque moyen que ce soit, à l’exception de la documentation conservée par l’acheteur dans un but de sauvegarde, sans la permission écrite expresse de ASUSTeK COMPUTER, INC. (“ASUS”).
Les produits et noms de sociétés qui apparaissent dans ce manuel ne sont utilisés que dans un but d’identification ou d’explication dans l’intérêt du propriétaire, sans intention de contrefaçon.Toutes les marques mentionnées dans ce manuel sont la propriété de leur propriétaires respectifs.
Des efforts particuliers ont été faits pour garantir que le contenu de ce manuel soit correct et à jour. Cependant, le fabricant n’offre aucune garantie sur l’exactitude de son contenu et se réserve le droit d’effectuer tout changement, et ce, à tout moment et sans avertissement.
Table des matières |
|
Notes........................................................................................................ |
4 |
Consignes de sécurité........................................................................ |
6 |
Notes pour ce manuel........................................................................ |
7 |
Bienvenue............................................................... |
8 |
Contenu de la boîte............................................................................ |
8 |
Faire connaissance avec votre PC de bureau....... |
9 |
Caractéristiques avants/arrières..................................................... |
9 |
Configurer votre PC de bureau............................ |
12 |
Connecter des périphériques....................................................... |
12 |
Connecter l’adaptateur d’alimentation.................................... |
13 |
Appuyer sur le bouton d’alimentation pour allumer le |
|
système................................................................................................ |
13 |
Utiliser la télécommande Media Center (optionnel)........... |
14 |
Restaurer le système............................................ |
16 |
Utiliser le DVD de restauration..................................................... |
16 |

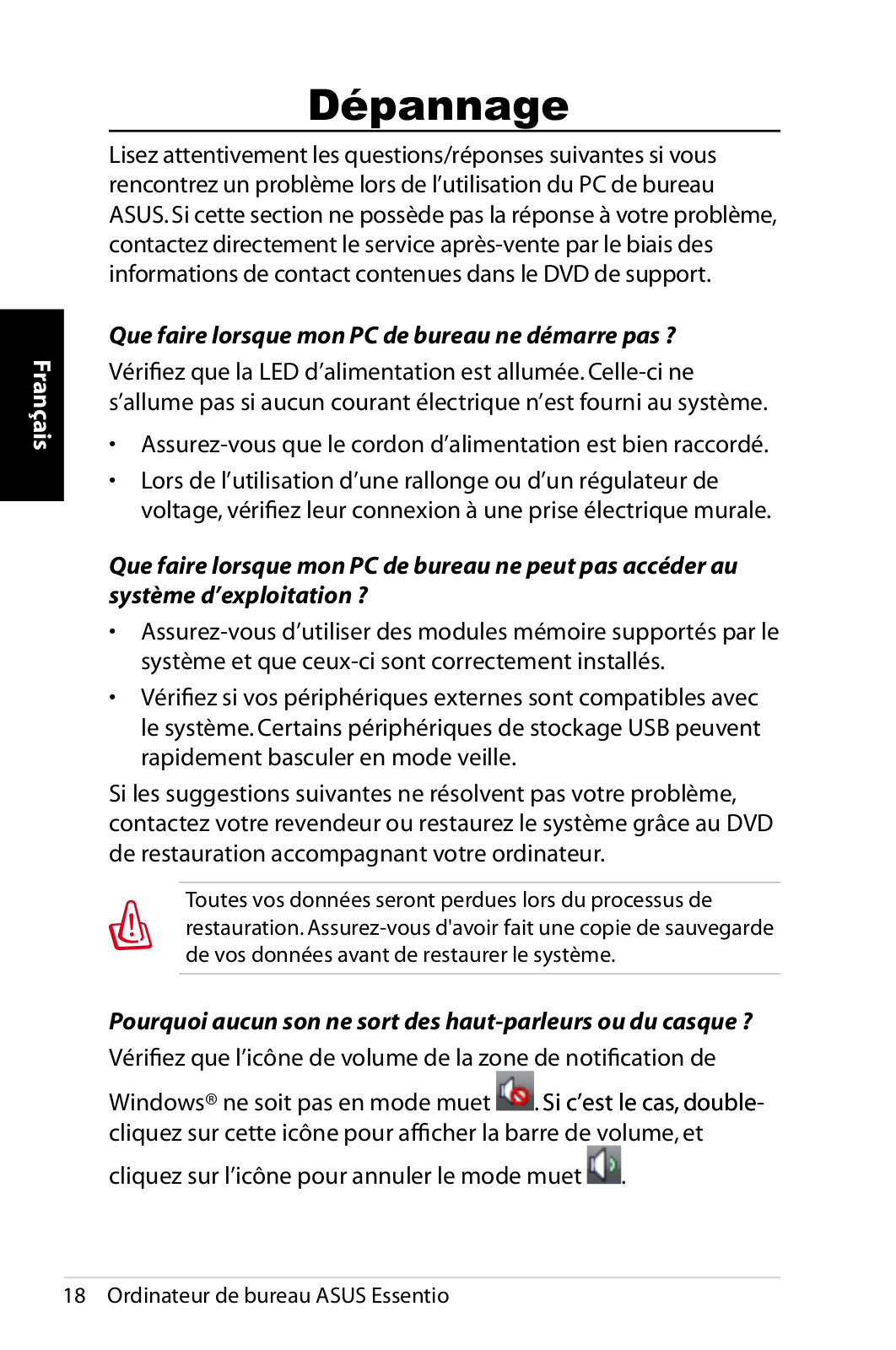

Dépannage........................................................... |
18 |
<![endif]>Français
Ordinateur de bureau ASUS Essentio
<![endif]>Français
Notes
RapportdelaCommissionFédéraledesCommunications
Ce dispositif est conforme à l’alinéa 15 des règles établies par la FCC. L'opération est sujette aux 2 conditions suivantes:
•Ce dispositif ne peut causer d'interférence nuisible, et
•Ce dispositif se doit d'accepter toute interférence reçue,incluant toute interférence pouvant causer des résultats indésirés.
Cet équipement a été testé et s'est avéré être conforme aux limites établies pour un dispositif numérique de classe B, conformément à l'alinéa 15 des règles de la FCC. Ces limites sont conçues pour assurer une protection raisonnable contre l’interférence nuisible à une installation réseau. Cet équipement génère, utilise et peut irradier de l'énergie à fréquence radio et, si non installé et utilisé selon les instructions du fabricant, peut causer une interférence nocive aux communications radio. Cependant, il n'est pas exclu qu'une interférence se produise lors d'une installation particulière. Si cet équipement cause une interférence nuisible au signal radio ou télévisé, ce qui peut-être déterminé par l'arrêt puis le réamorçage de celui-ci, l'utilisateur est encouragé à essayer de corriger l'interférence en s'aidant d'une ou plusieurs des mesures suivantes:
•Réorientez ou replacez l'antenne de réception.
•Augmentez l'espace de séparation entre l'équipement et le récepteur.
•Reliez l’équipement à une sortie sur un circuit différent de celui auquel le récepteur est relié.
•Consultez le revendeur ou un technicien expérimenté radio/ TV pour de l’aide.
L’utilisation de câbles protégés pour le raccordement du moniteur à la carte de graphique est exigée pour assurer la conformité aux règlements de la FCC. Les changements ou les modifications apportés à cette unité n'étant pas expressément approuvés par la partie responsable de la conformité pourraient annuler l’autorité de l’utilisateur à manipuler cet équipement.
Ordinateur de bureau ASUS Essentio
RapportduDépartementCanadiendesCommunications
Cet appareil numérique ne dépasse pas les limites de classe B en terme d'émissions de nuisances sonore, par radio, par des appareils numériques, et ce conformément aux régulations d’interférence par radio établies par le département canadien des communications.
(Cet appareil numérique de la classe B est conforme à la norme ICES-003 du Canada.)
Note relative aux produits de Macrovision Corporation
Ce produit comprend une technologie de protection de copyright protégée par certains brevets déposés aux U.S.A. et autres droits de propriété intellectuelle appartenant à Macrovision Corporation et autres détenteurs de droits. L’usage de cette technologie doit être autorisé par Macrovision Corporation, et n’est destiné qu’à un usage familial ou autres usages limités de même sorte à moins d’une autorisation par Macrovision Corporation. Rétro-ingénierie et démontage sont interdits.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. VORSICHT: Explosionsgetahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnljchen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
<![endif]>Français
Ordinateur de bureau ASUS Essentio
<![endif]>Français

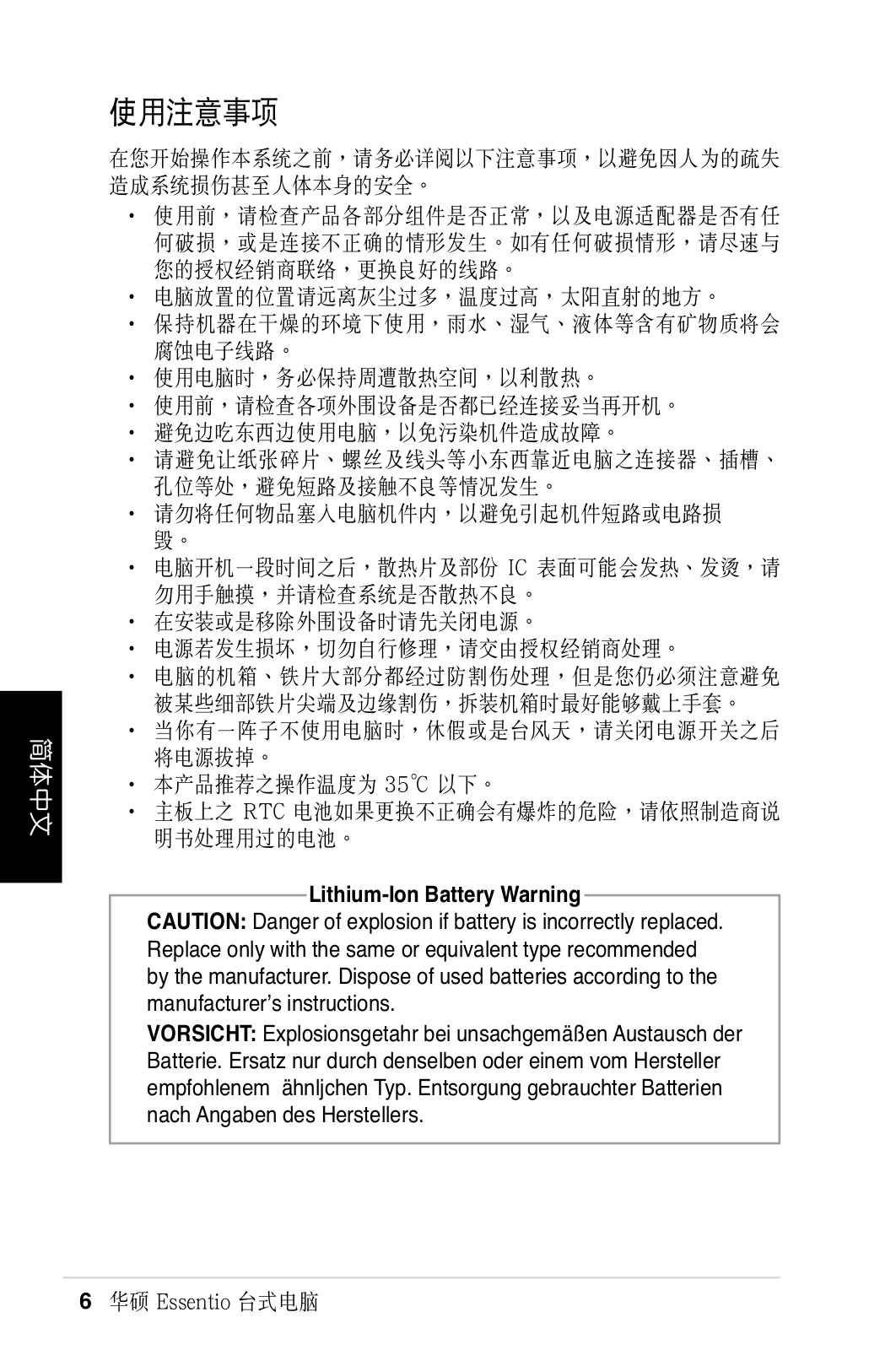

Consignes de sécurité
Votre ordinateur de bureau ASUS a été conçu et testé pour satisfaire aux standards de sécurité les plus récents en matière d’équipements informatiques.Toutefois, afin de garantir une utilisation sans risque de ce produit, il est important que vous respectiez les consignes de sécurité présentées dans ce manuel.
Configurer votre système
•Avant d’utiliser votre système, lisez et suivez les instructions de la documentation.
•N’utilisez pas ce produit à proximité de liquides ou d’une source de chaleur, tel qu’un radiateur.
•Positionnez le système sur une surface stable.
•Les ouvertures situées sur le boîtier de l’ordinateur sont destinées à la ventilation.Veillez à ne pas les bloquer ou les recouvrir. N’insérez jamais d’objet dans les ouvertures de ventilation
•Utilisez ce produit dans un environnement avec une température ambiante comprise entre 0˚C et 35˚C.
•Si vous utilisez une rallonge pour connecter votre PC Multimédia, vérifiez que la somme des intensités nominales des équipements connectés à la rallonge ne dépasse pas celle supportée par cette dernière.
Précautions à suivre lors de l’utilisation
•Ne pas marcher ni poser d’objets sur le cordon d’alimentation.
•Ne pas renverser d’eau ou tout autre liquide sur votre système.
•Lorsque le système est éteint, une certaine quantité de courant résiduel continue à circuler dans le système. Débranchez systématiquement tous les câbles d’alimentation, de modems et de réseau, des prises murales avant de nettoyer le système.
•Déconnecter le système du secteur, et demander conseil à votre revendeur ou à un technicien qualifié si :
•La prise ou le câble d’alimentation est endommagé.
Ordinateur de bureau ASUS Essentio
•Du liquide a été renversé sur le système.
•Le système ne fonctionne pas correctement alors que les consignes ont été respectées.
•Le système est tombé ou le boîtier est endommagé.
•Les performances système s’altèrent.
Avertissement de sécurité relatif au lecteur de CD-ROM
PRODUIT LASER DE CLASSE 1
PAS DE DÉMONTAGE La garantie ne couvre pas les appareils ayant été désassemblés par les utilisateurs
<![endif]>Français
Le symbole représentant une benne à roue barrée, indique que le produit (équipement électrique et électronique contenant une batterie au mercure) ne doit pas être placé dans un conteneur à ordures ménagères.Veuillez consulter les réglementations locales en matière de recyclage de produits électriques.
Notes pour ce manuel
Pour être certains que vous effectuiez certaines tâches correctement, veuillez prendre notes des symboles suivants. Ces symboles possèdent différents degrés d’importance:
AVERTISSEMENT: Ces informations vous permettront d’éviter de vous blesser lors de la réalisation d’une tâche.
IMPORTANT: Instructions que vous devez suivre pour terminer une tâche.
ASTUCE: Trucs et informations additionnelles pour vous aider à mener une tâche à bien.
NOTE: Informations additionnelles destinées à certaines situations spécifiques..
Ordinateur de bureau ASUS Essentio
<![endif]>Français
Bienvenue
Félicitations pour votre achat d’un ordinateur de bureau ASUS. Le contenu de la boîte de votre ordinateur de bureau est listé ci-dessous mais peut varier selon les modèles. ASUS se réserve le droit de remplacer les composants ou accessoires pour une meilleure qualité de service.
Si l’un des éléments ci-dessous était manquant ou endommagé, contactez votre revendeur.
Contenu de la boîte
•Ordinateur de bureau ASUS x1
•Clavier x1
•Souris x1
•Cordon d’alimentation x1
•DVD de support x1
•DVD de restauration x1
•Guide d’installation x1
•Carte de garantie x1
•Télécommande (optionnel) x1
Visitez le site Web d’ASUS sur http://support.asus.com pour les mises à jour.
Ordinateur de bureau ASUS Essentio
Faire connaissance avec votre PC de bureau
Caractéristiques avants/arrières
Avant (fermé) |
Avant (ouvert) |
Arrière |
||
1 |
2 |
8 |
9 |
|
|
|
|
12 |
|
3 |
|
|
|
|
|
|
|
|
4 |
|
|
7 |
10 |
11 |
|
||
6 |
|
13 |
5 |
14 |
15 |
|
|
17 |
16 |
|
<![endif]>Français
*Les parties grisées contiennent les ports avants et arrières. Ces ports et leur emplacement peuvent varier selon les modèles.
No. Bouton/LED |
Description |
|
1. |
|
Couvercle de la baie pour lecteur optique. |
|
||
|
|
|
2. |
|
Bouton d’éjection du lecteur optique. |
|
|
|
3. |
|
Ouvre le couvercle du lecteur optique. |
4. |
|
Couvercle du panneau avant. |
5. |
|
Ecran d’affichage de l’heure et récepteur |
|
infrarouge (sur une sélection de modèles). |
|
|
|
|
6. |
|
LED d’activité du disque dur. |
|
|
|
7. |
|
Bouton d’alimentation (tactile). |
|
|
|
continue à la page suivante
Ordinateur de bureau ASUS Essentio
<![endif]>Français
No. |
Slot/Port |
Description |
|
|
|
8. |
|
Slot pour carte Memory Stick®/ |
|
Memory Stick Pro™ . |
|
|
|
|
9. |
|
Slot carte Secure Digital™/MMC. |
10. |
|
Slot pour carte CompactFlash®/ |
|
Microdrive™. |
|
|
|
|
|
|
Se connecte à des périphériques |
|
Ports USB 2.0 |
USB (ex: souris, clavier, ou appareil |
|
|
photo). |
|
Port S/PDIF In |
Se connecte à une source audio |
|
numérique. |
|
|
|
11.Port IEEE 1394a Se connecte à un périphérique IEEE
|
|
|
|
|
|
4 broches |
|
1394 (ex: caméscope numérique). |
|
|
|
|
|
|
Port casque |
|
Se connecte à des écouteurs stéréo. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Port |
|
Se connecte à microphone. |
|
|
|
|
|
|
microphone |
|
|
|
|
|
|
|
|
|
|
|
12. |
|
|
|
|
|
Slot d’extension |
|
Utilisez ces slots lors de l’installa- |
|
|
|
|
|
|
|
|
tion de cartes d’extension. |
13. |
|
|
|
|
|
Port S/PDIF Out |
|
Se connecte à un amplificateur |
|
|
|
|
|
optique |
|
pour une sortie audio numérique. |
|
|
|
|
|
|
|
|
14.Port d’alimentation Seconnecteaucordond’alimentation.
15. |
Sélecteur de tension |
Sélectionne un type de voltage. |
|
16. |
Interrupteur |
Met le bloc d’alimentation hors/ |
|
d’alimentation |
sous tension. |
||
|
|||
|
Port VGA |
SeconnecteàuneTVouunmoniteur. |
|
|
Port HDMI |
||
|
|
||
|
Port LAN (RJ-45) |
Branchezuncâbleréseausurceport. |
|
17. |
Port COM |
Se connecte à un périphérique |
|
|
|||
|
supportant la norme série. |
||
|
|
||
|
Ports USB 2.0 |
SeconnecteàdespériphériquesUSB |
|
|
(souris, clavier, ou appareil photo). |
||
|
|
||
|
continue à la page suivante |
10 Ordinateur de bureau ASUS Essentio
