Asus A78M-A User Manual

A78M-A

Motherboard

E8865 First Edition December 2013

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product contains copyrighted software that is licensed under the General Public License (“GPL”), under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software Licenses. Such software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies of these licenses are included in this product.

Where the applicable license entitles you to the source code of such software and/or other additional data, you may obtain it for a period of three years after our last shipment of the product, either

(1) for free by downloading it from http://support.asus.com/download or (2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location

where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc. Legal Compliance Dept. 15 Li Te Rd., Beitou, Taipei 112 Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information. ASUSTeK is eager to duly provide complete source code as required under various Free Open Source

Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notication to the email address gpl@asus.com, stating the product and describing the problem (please DO NOT send large attachments such as source code archives, etc. to this email address).

Contents

Safety information ...................................................................................... iv

About this guide ......................................................................................... iv

Package contents ....................................................................................... vi

A78M-A specications summary .............................................................. vi

Product introduction

1.1 Before you proceed ..................................................................... 1-1

1.2 Motherboard overview .................................................................

1.3 Accelerated Processing Unit (APU) ...........................................

1.4 System memory ...........................................................................

1.5 Expansion slots ..........................................................................

1.6 Jumpers ......................................................................................

1.7 Connectors .................................................................................

1.8 Software support ........................................................................

BIOS information

2.1 Managing and updating your BIOS ............................................ 2-1

2.2 BIOS setup program ....................................................................

2.3 My Favorites .................................................................................

2.4 Main menu ..................................................................................

2.5 Ai Tweaker menu ........................................................................

2.6 Advanced menu .........................................................................

2.7 Monitor menu .............................................................................

2.8 Boot menu ..................................................................................

2.9 Tools menu .................................................................................

2.10 Exit menu ....................................................................................

1-2

1-4

1-8

1-10

1-12

1-14

1-23

2-6

2-9

2-10

2-12

2-16

2-22

2-25

2-32

2-33

Appendices

Notices .......................................................................................................A-1

ASUS contact information .......................................................................A-3

iii

Safety information

Electrical safety

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

• before relocating the system.

When adding or removing devices to or from the system, ensure that the power cables

• for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

Before connecting or removing signal cables from the motherboard, ensure that all

• power cables are unplugged.

Seek professional assistance before using an adapter or extension cord. These devices

• could interrupt the grounding circuit.

Ensure that your power supply is set to the correct voltage in your area. If you are not

• sure about the voltage of the electrical outlet you are using, contact your local power company.

If the power supply is broken, do not try to x it by yourself. Contact a qualied service

• technician or your retailer.

Operation safety

Before installing the motherboard and adding components, carefully read all the manuals

• that came with the package.

Before using the product, ensure all cables are correctly connected and the power

• cables are not damaged. If you detect any damage, contact your dealer immediately.

To avoid short circuits, keep paper clips, screws, and staples away from connectors,

• slots, sockets and circuitry.

Avoid dust, humidity, and temperature extremes. Do not place the product in any area

• where it may be exposed to moisture.

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

• technician or your retailer.

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard.

• Chapter 2: BIOS information

This chapter discusses changing system settings through the BIOS Setup menus. Detailed descriptions fo the BIOS parameters are also provided.

Where to nd more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

<Key> Keys enclosed in the less-than and greater-than sign

<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key

Used to emphasize a word or a phrase.

means that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or Return key.

names are linked with a plus sign (+).

Package contents

Check your motherboard package for the following items.

Motherboard ASUS A78M-A motherboard

Cables 2 x Serial ATA 6.0 Gb/s cables

Accessories 1 x I/O Shield

Application DVD Support DVD

Documentation User Guide

If any of the above items is damaged or missing, contact your retailer.

A78M-A specications summary

APU AMD® FM2+ socket for AMD® A-Series/Athlon series processors

Supports CPU up to 4 cores

AMD® Turbo Core Technology 3.0 support

• The AMD® Turbo Core Technology 3.0 support depends on the APU types.

• Refer to

www.asus.com for the AMD® APU support list.

Chipset AMD® A78 FCH

Memory 4 x 240-pin DIMM slots support maximum 64GB unbuffered non-ECC

Graphics Integrated AMD Radeon™ HD 8000/7000 Series Graphics in A-Series APU

Expansion slots 1 x PCI Express 3.0/2.0 x16 slot*

DDR3 2133/1866/1600/1333 MHz memory modules

Dual-channel memory architecture

Supports AMD Memory Prole (AMP) memory

• Hyper DIMM support is subject to the physical characteristics of indivudal APUs.

• The maximum 64GB memory capacity can be supported with 16GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market.

• Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).

• When you install a total memory of 4GB capacity or more, Windows operation system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows® 32-bit operating system.

32-bit

Multi-VGA output support: HDMI, DVI, D-Sub ports

- Supports HDMI with max. resolution of 4096x2160@24Hz/ 1920x1200@60Hz

- Supports Dual-link DVI with max. resolution of 2560x1600@60Hz

- Supports D-Sub with max. resolution of 1920x1600@60Hz

- Maximum shared memory of 2G

- Supports AMD

• Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/ dual-graphics.aspx#3 for the discrete GPUs that support Dual Graphics technology.

• Only FM2+ APU can support up to 4096x2160 resolution display via HDMI port.

Dual Graphics technology

1 x PCI Express 2.0 x1 slot

1 x PCI slot

* Only FM2+ processors can support PCIe 3.0.

(continued on the next page)

A78M-A specications summary

Storage AMD® A78 FCH:

LAN

Audio Realtek® ALC887-VD 8-Channel High Denition Audio CODEC

USB AMD® A78 FCH:

ASUS unique features

- 6 x Serial ATA 6 Gb/s connectors with RAID 0, RAID 1,RAID 5,RAID 10 and JBOD support

Realtek® 8111GR PCIe Gigabit LAN controller

• Use a chassis with HD audio module in the front panel to support an 8channel audio output.

- 4 x USB 3.0 ports board)

- 6 x USB 2.0 ports (2 ports at the back panel, 4 ports at mid-board)

* Supports ASUS USB 3.0 Boost

* (2 ports at the back panel [blue], 2 ports at mid-

ASUS 5X Protection

- ASUS motherboards safeguard your PC with 5X Protection: DIGI+VRM, DRAM Fuse, ESD Guards, High-Quality 5K-Hour Solid Capacitors, and Stainless Steel Back I/O to ensure the best quality, reliability, and durability.

ASUS DIGI+ VRM

- DIGI+ Power Design: Industry leading digital 3+2 phase power design for APU

ASUS DRAM Fuse

- Enhanced DRAM overcurrent protection and short circui damage prevention

ASUS ESD Guard

- Strong ESD Protection for extended component lifespan

ASUS High-Quality 5K-Hour Solid Capacitors

- 2.5x Long Lifespan with excellent durability

ASUS Stainless Steel Back I/O

- 3x More durable corrosion-resistant coating

ASUS Exclusive Features

- ASUS EPU

- ASUS USB 3.0 Boost

- ASUS Network iControl*

- ASUS AI Charger

- ASUS Disk Unlocker

- ASUS AI Suite 3

- ASUS Anti Surge

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution

- ASUS Fan Xpert

- Stylish Fanless Design Heat-sink solution

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS My Logo 2

* ASUS Network iControl feature is not supported on Windows® XP/Vista

operating systems.

(continued on the next page)

vii

A78M-A specications summary

Back panel I/O ports 1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI port

1 x DVI port

1 x D-Sub output port

1 x LAN (RJ-45) port

2 x USB 2.0/1.1 ports

2 x USB 3.0 ports (blue)

8-channel audio I/O ports (3 jacks)

Internal I/O connectors

BIOS features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM

Operating System Windows® 8.1 / 8.1 64-bit

Support DVD Drivers

Form factor

1 x USB 3.0 connector supports additional 2 USB 3.0 ports (19-pin)

2 x USB 2.0 connectors support additional 4 USB 2.0 ports

6 x SATA 6Gb/s connectors

1 x System panel connector

1 x Internal Speaker connector

1 x CPU fan connector (4-pin)

1 x S/PDIF Out connector

1 x Chassis fan connector (4-pin)

1 x High-denition front panel audio connector

1 x COM header

1 x 24-pin EATX power connector

1 x 4-pin ATX 12V power connector

BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFreen BIOS 3, F12 Printscreen function, F3 Shortcut function and ASUS DRAM SPD (Serial Presence Detect) memory information

Windows® 8 / 8 64-bit

Windows® 7 / 7 64-bit

Windows® XP

ASUS utilities

ASUS Update

Anti-virus software (OEM version)

MicroATX form factor: 9.3 in x 8.2 in (23.6 cm x 20.8 cm)

viii

Specications are subject to change without notice.

Product introduction

SB_PWR

Standby Power

Powered Off

OFF

A78M-A

A78M-A Onboard LED

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

Standby Power LED

The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

ASUS A78M-A

1-1

A78M-A

1.2 Motherboard overview

Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts.

Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage to motherboard components.

1.2.1 Placement direction

When installing the motherboard, place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image.

1.2.2 Screw holes

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

1-2

Place this side

towards the rear

of the chassis

Chapter 1: Product introduction

1.2.3 Motherboard layout

A78M-A

PCIEX16

PCIEX1_1

PCI1

F_PANEL

SPEAKER

USBPWF

COM

CLRTC

KB_USBWB

USB56 USB34

AAFP

SPDIF_OUT

ATX12V

EATXPWR

CPU_FAN

CHA_FAN

BATTERY

Super

I/O

ALC

887

RTL

8111GR

64Mb BIOS

SB_PWR

23.6cm(9.3in)

AMD

A78

DDR3 DIMM_A1 (64bit, 240-pin module)

DDR3 DIMM_A2 (64bit, 240-pin module)

DDR3 DIMM_B1 (64bit, 240-pin module)

DDR3 DIMM_B2 (64bit, 240-pin module)

SATA6G_3 SATA6G_4

SATA6G_1 SATA6G_2

SATA6G_5 SATA6G_6

AUDIO

KBMS

HDMI

LAN_USB12

USB3_12

20.8cm(8.2in)

VGA

DVI

SOCKET FM2+

DIGI

+VRM

USB3_34

3 121 4

10 9 812 11131516 14

ASUS A78M-A

1-3

1.2.4 Layout contents

A78M-A

A78M-A CPU socket FM2+

Connectors/Jumpers/Slots/LED Page

1. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN) 1-16

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

3. AMD FM2+ socket

4. DDR3 DIMM slots

5. Clear RTC RAM (3-pin CLRTC)

6. Standby power LED (SB_PWR)

7. SATA 6.0 Gb/s connectors (7-pin SATA6G_1~6)

8. Speaker connector (4-pin SPEAKER)

9. System panel connector (10-1 pin F_PANEL)

10. USB 2.0 connectors (10-1 pin USB34, USB56)

11. USB device wake-up (3-pin USBPWF)

12. USB 3.0 connector (20-1 pin USB3_34)

13. Serial port connector (10-1 pin COM)

14. Digital audio connector (4-1 pin SPDIF_OUT)

15. Front panel audio connector (10-1 pin AAFP)

16. Keyboard wake-up (3-pin KB_USBPWB)

1-17

1-4

1-8

1-12

1-1

1-18

1-19

1-21

1-13

1-21

1-22

1-20

1-13

1.3 Accelerated Processing Unit (APU)

This motherboard comes with a FM2+ socket designed for AMD® A-series and Athlon™ processors.

Ensure that you use an APU designed for the FM2+ socket. The APU ts in only one

correct orientation. DO NOT force the APU into the socket to prevent bending the pins and damaging the APU!

1-4

Chapter 1: Product introduction

1.3.1 APU installation

ASUS A78M-A

1-5

1.3.2 APU heatsink and fan assembly installation

Apply the Thermal Interface Material to the APU heatsink and APU before you install the heatsink and fan if necessary.

To install the APU heatsink and fan assembly

53 4

1-6

Chapter 1: Product introduction

To uninstall the APU heatsink and fan assembly

ASUS A78M-A

1-7

1.4 System memory

A78M-A

A78M-A 240-pin DDR3 DIMM sockets

DIMM_A1

DIMM_A2

DIMM_B1

DIMM_B2

1.4.1 Overview

This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets.

A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for better performance with less power consumption.

The gure illustrates the location of the DDR3 DIMM sockets:

Channel Sockets

Channel A DIMM_A1 and DIMM_A2

Channel B DIMM_B1 and DIMM_B2

1.4.2 Memory congurations

You may install 1GB, 2GB, 4GB, and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM sockets.

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel conguration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.

• Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules.

• Due to the memory address limitation on 32-bit Windows or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

- Use a maximum of 3GB system memory if you are using a 32-bit Windows

- Install a 64-bit Windows

OS if you want to install 4GB or more on the

motherboard.

• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less.

OS, when you install 4GB

OS.

1-8

Chapter 1: Product introduction

• The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency, refer to section 2.5 Ai Tweaker menu for manual memory frequency adjustment.

• For system stability, use a more efcient memory cooling system to support a full

memory load (4 DIMMs) or overclocking condition.

• Visit the ASUS website at:

1.4.3 Installing a DIMM

www.asus.com for the latest QVL.

ASUS A78M-A

1-9

To remove a DIMM

1.5 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1.5.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press rmly until the card is completely

seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.5.2 Conguring an expansion card

After installing the expansion card, congure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup.

2. Assign an IRQ to the card.

3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that

the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI

groups, making the system unstable and the card inoperable.

1-10

Chapter 1: Product introduction

1.5.3 PCI slot

The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that

comply with PCI specications.

1.5.4 PCI Express 2.0 x1 slot

This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that

comply with the PCI Express specications.

1.5.5 PCI Express x16 slot

This motherboard supports PCI Express x16 network cards, SCSI cards, and other cards that

comply with the PCI Express specications.

IRQ assignments for this motherboard

A B C D E F G H

PCIEx16_1 – – shared – – – – –

PCIEx1_1 shared – – – – – – – PCI1 slot – – – – shared – – – Realtek LAN controller – shared – – – – – –

HD audio shared – – – – – – –

SATA controller – – – shared – – – – OnChip XHCI controller1 – – shared – – – – – OnChip XHCI controller2 – shared – – – – – – OnChip USB EHCI 1/2/3 – shared – – – – – – OnChip USB OHCI – – shared – – – – –

ASUS A78M-A

1-11

1.6 Jumpers

A78M-A

A78M-A Clear RTC RAM

1 2

2 3

Normal

(Default)

Clear RTC

CLRTC

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3

for about 5-10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <

enter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

Del> key during the boot process and enter BIOS setup to re-

1-12

• If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

• You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut down and reboot the system, then the BIOS automatically resets parameter settings to default values.

Chapter 1: Product introduction

2. Keyboard wake-up (3-pin KB_USBPWB)

A78M-A

A78M-A Keyboard and USB device wake up

1 2

2 3

+5V

+5VSB

(Default)

KB_USBPWB

A78M-A

A78M-A USB device wake up

2 3

+5V

(Default)

+5VSB

USBPWF

This jumper allows you to enable or disable the keyboard wake-up feature. When you set this jumper to pins 2-3 (+5VSB), you can wake up the computer by pressing a key on the keyboard. This feature requires an ATX power supply that can supply at least 1A on the +5VSB lead, and a corresponding setting in the BIOS.

3. USB device wake-up (3-pin USBPWF)

Set this jumper to +5V to wake up the computer from S1 sleep mode (CPU stopped, DRAM refreshed, system running in low power mode) using the connected USB devices. Set to +5VSB to wake up from S3 and S4 sleep modes (no power to CPU, DRAM in slow refresh, power supply in reduced power mode).

• The USB device wake-up feature requires a power supply that can provide 500mA on

the +5VSB lead for each USB port; otherwise, the system would not power up.

• The total current consumed must NOT exceed the power supply capability (+5VSB) whether under normal condition or in sleep mode.

ASUS A78M-A

1-13

1.7 Connectors

5 64

79 8

1.7.1 Rear panel connectors

1. PS/2 mouse port. This port is for a PS/2 mouse.

2. HDMI port. This port is for a High-Denition Multimedia Interface (HDMI) connector,

and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.

Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other

3. VGA-compatible devices.

4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.

LAN port LED indications

Activity/Link LED Speed LED Status Description Status Description

OFF No link OFF 10Mbps connection ORANGE Linked ORANGE 100Mbps connection BLINKING Data activity GREEN 1Gbps connection

5. Line In port (light blue). This port connects to the tape, CD, DVD player, or other audio sources.

6. Line Out port (lime). This port connects to a headphone or a speaker. In the 2.1, 4.1,

5.1, and 7.1-channel congurations, the function of this port becomes Front Speaker

Out.

7. Microphone port (pink). This port connects to a microphone.

Refer to the audio conguration table on the next page for the function of the audio ports in 2, 4, 6 or 8-channel conguration.

1-14

Chapter 1: Product introduction

ACT/LINK

LED

LAN port

SPEED

LED

Audio 2.1, 4.1, 5.1 or 7.1-channel conguration

Port

Light Blue (Rear

panel)

Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out

Headset

2.1-channel

4.1-channel 5.1-channel 7.1-channel

Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out

Front Speaker

Out

Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center

Lime (Front panel) — — — Side Speaker Out

To congure an 8-channel audio output:

Use a chassis with HD audio module in the front panel to support an 8-channel audio

output.

8. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for USB

2.0/1.1 devices.

9. USB 3.0 ports 1 and 2. These two 9-pin Universal Serial Bus (USB) ports are for USB

3.0/2.0 devices.

• DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows® operating system.

• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows® OS environment and after the USB 3.0 driver installation.

• USB 3.0 devices can only be used as data storage only.

• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices.

10. DVI-D port. This port is for any DVI-D compatible device. DVI-D can’t be converted to

output RGB Signal to CRT and isn’t compatible with DVI-I.

11. PS/2 keyboard port. This port is for a PS/2 keyboard.

ASUS A78M-A

1-15

1.7.2 Internal connectors

A78M-A

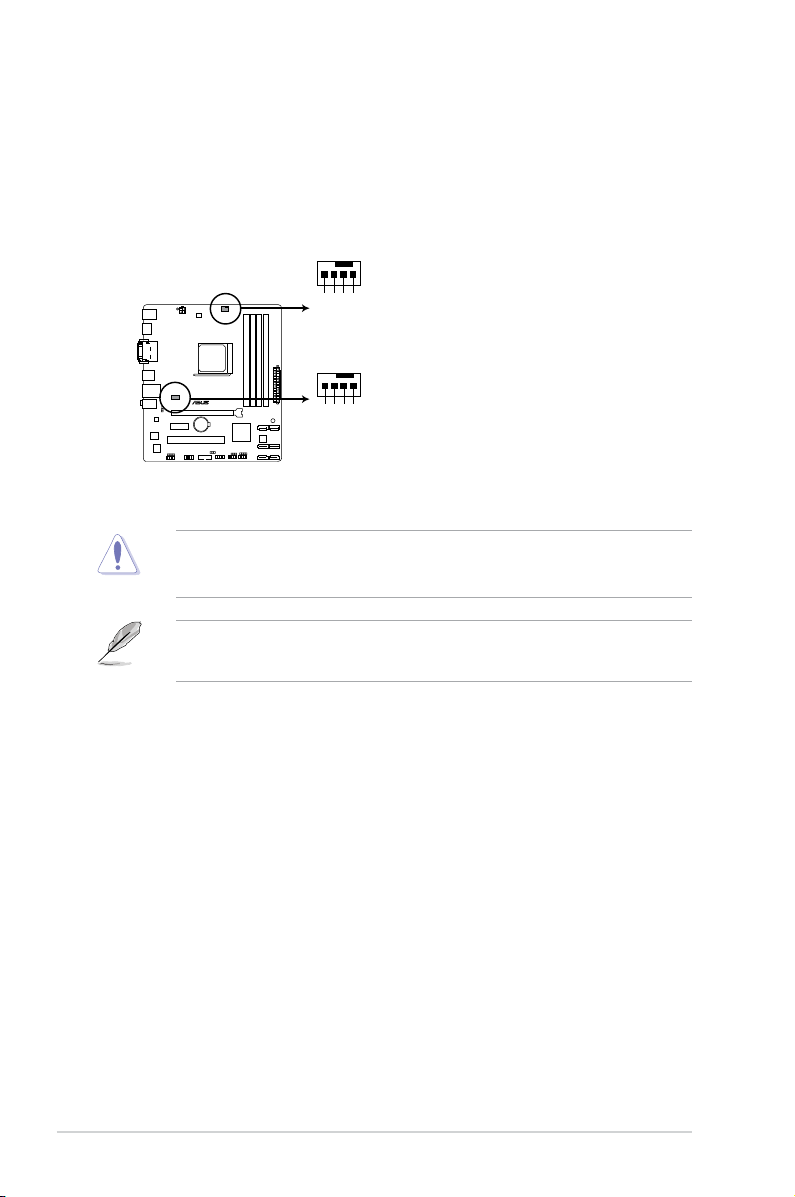

A78M-A Fan connectors

CPU_FAN

CPU FAN PWM

CPU FAN IN

CPU FAN PWR

GND

CHA FAN PWM

CHA FAN IN

CHA FAN PWR

GND

CHA_FAN

1. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow inside

the system may damage the motherboard components. These are not jumpers! DO NOT place jumper caps on the fan connectors.

• The CPU_FAN connector supports a CPU fan of maximum 2A (24W) fan power.

• The 4-pin CPU_FAN and chassis fan support the ASUS Fan Xpert feature.

1-16

Chapter 1: Product introduction

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

A78M-A

A78M-A ATX power connectors

EATXPWR

PIN 1

GND +5 Volts +5 Volts +5 Volts

-5 Volts GND GND GND PSON# GND

-12 Volts +3 Volts

+3 Volts +12 Volts +12 Volts

+5V Standby

Power OK

GND

+5 Volts

GND

+5 Volts

GND +3 Volts +3 Volts

ATX12V

PIN 1

+12V DC

GND

These connectors are for an ATX power supply. The plugs from the power supply are

designed to t these connectors in only one orientation. Find the proper orientation and push down rmly until the connectors completely t.

•

We recommend that you use an ATX 12V Specication 2.0-compliant power supply

unit (PSU) with a minimum of 300W power rating. This PSU type has 24-pin and 4-pin power plugs.

•

If you intend to use a PSU with 20-pin and 4-pin power plugs, ensure that the 20-pin power plug can provide at least 15 A on +12 V and that the PSU has a minimum power rating of 300W. The system may become unstable or may not boot up if the power is inadequate.

•

DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will not boot up.

• We recommend that you use a PSU with higher power output when conguring a

system with more power-consuming devices or when you intend to install additional devices. The system may become unstable or may not boot up if the power is inadequate.

•

If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus. com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

ASUS A78M-A

1-17

3. Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1~6)

SATA6G_2

GND

RSATA_TXP1

RSATA_TXN1

GND

RSATA_RXN1

RSATA_RXP1

GND

SATA6G_1

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA_RXN2

RSATA_RXP2

GND

SATA6G_4

GND

RSATA_TXP3

RSATA_TXN3

GND

RSATA_RXN3

RSATA_RXP3

GND

SATA6G_3

GND

RSATA_TXP4

RSATA_TXN4

GND

RSATA_RXN4

RSATA_RXP4

GND

SATA6G_6

GND

RSATA_TXP5

RSATA_TXN5

GND

RSATA_RXN5

RSATA_RXP5

GND

SATA6G_5

GND

RSATA_TXP6

RSATA_TXN6

GND

RSATA_RXN6

RSATA_RXP6

GND

A78M-A

A78M-A SATA 6.0Gb/s connectors

These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you

can create a RAID 0, RAID 1, RAID 5, RAID 10 and JBOD conguration through the

onboard controller.

• These connectors are set to AHCI mode by default. If you intend to create a Serial ATA RAID set using these connectors, set the type of the SATA connectors in the BIOS to [RAID]. See section 2.6.2 SATA Conguration for details.

• You must install Windows ATA hard disk drives. The Serial ATA RAID feature is available only if you are using Windows® XP SP3 or later version.

• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to [AHCI]. See section 2.6.2 SATA Conguration for details.

XP Service Pack 3 or later version before using Serial

1-18

Chapter 1: Product introduction

4. System panel connector (10-1 pin F_PANEL)

A78M-A

PIN 1

PWR BTN

PWR_LED+

PWR_LED-

PWR

GND

HDD_LED+

HDD_LED-

Ground

HWRST#

(NC)

F_PANEL

+PWR LED

+HDD_LED RESET

A78M-A System panel connector

A78M-A

A78M-A Speaker Out Connector

+5V

GND

Speaker Out

SPEAKER

PIN 1

This connector supports several chassis-mounted functions.

• System power LED (2-pin PWR_LED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

•

Hard disk drive activity LED (2-pin HDD_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or ashes when data is read from or written to

the HDD.

•

ATX power button/soft-off button (2-pin PWRBTN)

This 2-pin connector is for the system power button.

•

Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

5. Speaker connector (4-pin SPEAKER)

The 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

ASUS A78M-A

1-19

6. Digital audio connector (4-1 pin SPDIF_OUT)

SPDIF_OUT

+5V

SPDIFOUT

GND

A78M-A

A78M-A Digital audio connector

A78M-A

A78M-A Front panel audio connector

AAFP

PIN 1

AGNDNCSENSE1_RETUR

SENSE2_RETUR

PORT1 L

PORT1 R

PORT2 R

SENSE_SEND

PORT2 L

HD-audio-compliant

pin definition

PIN 1

AGNDNCNC

MIC2

MICPWR

Line out_R

Line out_L

Legacy AC’97

compliant definition

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.

The S/PDIF module is purchased separately.

7. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports

either High Denition Audio or AC`97 audio standard. Connect one end of the front

panel audio I/O module cable to this connector.

• We recommend that you connect a high-denition front panel audio module to this connector to avail of the motherboard high-denition audio capability.

• If you want to connect a high denition front panel audio module to this connector, set

the Front Panel Type item in the BIOS to [HD]. See section 2.6.4 Onboard Devices Conguration for details.

• The front panel audio I/O module is purchased separately.

1-20

Chapter 1: Product introduction

8. USB 2.0 connectors (10-1 pin USB34, USB56)

A78M-A

A78M-A USB2.0 connectors

PIN 1

USB+5V

USB_P5-

USB_P5+

GND

USB+5V

USB_P6-

USB_P6+

GND

USB56 USB34

PIN 1

USB+5V

USB_P3-

USB_P3+

GND

USB+5V

USB_P4-

USB_P4+

GND

A78M-A

A78M-A USB3.0 Front panel connector

USB3_34

GND

IntA_P1_D+

IntA_P1_D-

GND

IntA_P1_SSTX+

GND

IntA_P1_SSTX-

IntA_P1_SSRX+

IntA_P1_SSRX-

USB3+5V

PIN 1

IntA_P2_D+

IntA_P2_D-

GND

IntA_P2_SSTX+

IntA_P2_SSTX-

GND

IntA_P2_SSRX+

IntA_P2_SSRX-

USB3+5V

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specication that supports up to

480Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB 2.0 module is purchased separately.

9. USB 3.0 connector (20-1 pin USB3_34)

These connectors allow you to connect a USB 3.0 module for additional USB 3.0 front

or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benets of

USB 3.0 including faster data transfer speeds of up to 5Gbps, faster charging time for

USB-chargeable devices, optimized power efciency and backward compatibility with

USB 2.0.

You can connect the ASUS front panel USB 3.0 bracket to this connector to obtain the front panel USB 3.0 solution.

ASUS A78M-A

1-21

A78M-A

A78M-A Serial port connectors

PIN 1

COM

DCD

TXD

GND

RTS

RXD

DTR

DSR

CTS

10. Serial port connector (10-1 pin COM)

This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The COM module is purchased separately.

1-22

Chapter 1: Product introduction

1.8 Software support

1.8.1 Installing an operating system

This motherboard supports Windows® XP / Windows® 7 / 64-bit Windows® 7 / Windows® 8 / 64-bit Windows® 8 / Windows® 8.1 / 64-bit Windows® 8.1 Operating Systems (OS). Always

install the latest OS version and corresponding updates to maximize the features of your

hardware.

• Motherboard settings and hardware options vary. Refer to your OS documentation for detailed information.

• Ensure that you install Windows 7 / 64-bit Windows® 7 / Windows® 8 / 64-bit Windows® 8 / Windows® 8.1 / 64-bit Windows® 8.1 before installing the drivers for better compatibility and system stability.

XP Service Pack 3 or later versions / Windows

1.8.2 Support DVD information

The Support DVD that comes with the motherboard package contains the drivers, software applications, and utilities that you can install to avail all motherboard features.

The contents of the Support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

To run the Support DVD

Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the DVD automatically displays the Specials screen. Click Drivers, Utilities, Make Disk, Manual, and Contact tabs to display their respective menus.

The following screen is for reference only.

Click an item to install

If Autorun is NOT enabled on your computer, browse the contents of the Support DVD to

locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run

the DVD.

ASUS A78M-A

Click an icon to display Support DVD/motherboard information

1-23

1-24

Chapter 1: Product introduction

BIOS information

2.1 Managing and updating your BIOS

Save a copy of the original motherboard BIOS le to a USB ash disk in case you need to

restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility.

2.1.1 EZ Update

EZ Update is a utility that allows you to automatically update your motherboard’s softwares, drivers and the BIOS version easily. With this utlity, you can also manually update the saved BIOS and select a boot logo when the system goes into POST.

To launch EZ Update, click EZ Update on the AI Suite 3 main menu bar.

Click to

automatically

update your

motherboard’s

driver, software

and rmware

Click to nd and

select the BIOS

from le

EZ Update requires an Internet connection either through a network or an ISP (Internet Service Provider).

ASUS A78M-A 2-1

Click to select

a boot logo

Click to update the BIOS

2.1.2 ASUS EZ Flash 2

The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility.

Before you start using this utility, download the latest BIOS le from the ASUS website at

www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB ash disk that contains the latest BIOS le to the USB port.

2. Enter the

ASUS EZ Flash Utility and press <Enter> to enable it.

3. Press <Tab> to switch to the

4. Press the Up/Down arrow keys to nd the USB ash disk that contains the latest BIOS,

and then press <Enter>.

5. Press <Tab> to switch to the

6. Press the Up/Down arrow keys to nd the BIOS le, and then press <Enter> to perform

the BIOS update process. Reboot the system when the update process is done.

Advanced Mode of the BIOS setup program. Go to the Tool menu to select

Drive eld.

Folder Info eld.

• This function supports USB ash disks formatted using FAT32/16 on a single partition

only.

• Ensure to load the BIOS default settings to ensure system compatibility and stability.

Select the Load Optimized Defaults item under the Exit menu. .

• DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

2-2 Chapter 2: BIOS information

2.1.3 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS le

when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS

le using the motherboard support DVD or a USB ash drive that contains the updated BIOS le.

• Before using this utility, rename the BIOS le in the removable device into

A78MA.CAP.

• The BIOS le in the support DVD may not be the latest version. Download the latest BIOS le from the ASUS website at www.asus.com.

Recovering the BIOS

To recover the BIOS:

1. Turn on the system.

2. Insert the support DVD to the optical drive or the USB ash drive that contains the BIOS le to the USB port.

3. The utility automatically checks the devices for the BIOS le. When found, the utility reads the BIOS le and enters ASUS EZ Flash 2 utility automatically.

4. The system requires you to enter BIOS Setup to recover BIOS settings. To ensure system compatibility and stability, we recommend that you press <F5> to load default BIOS values.

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

2.1.4 ASUS BIOS Updater

The ASUS BIOS Updater allows you to update BIOS in a DOS environment. This utility also

allows you to copy the current BIOS le that you can use as a backup when the BIOS fails or

gets corrupted during the updating process.

The succeeding utility screens are for reference only. The actual utility screen displays may not be same as shown.

Before updating BIOS

1. Prepare the motherboard support DVD and a USB ash drive formatted using

FAT32/16 on a single partition.

Download the latest BIOS le and BIOS Updater from the ASUS website at

http://support.asus.com and save them on the USB ash drive.

NTFS is not supported under DOS environment. Do not save the BIOS le and BIOS Updater to a hard disk drive or USB ash drive in NTFS format.

3. Turn off the computer and disconnect all SATA hard disk drives (optional).

ASUS A78M-A 2-3

Booting the system to a DOS environment

1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.

2. Boot your computer. When the ASUS Logo appears, press <F8> to show the

BIOS

Boot Device Select Menu. Insert the support DVD into the optical drive and select the

optical drive as the boot device.

3. When the Make Disk menu appears, select the FreeDOS command prompt item by pressing the item number.

4. At the FreeDOS prompt, type d: and press <Enter> to switch the disk from Drive C

(optical drive) to Drive D (USB ash drive).

Updating the BIOS le

To update the BIOS le using BIOS Updater:

1. At the FreeDOS prompt, type

bupdater /pc /g and press <Enter>.

2. The BIOS Updater screen appears as below.

ASUSTek BIOS Updater for DOS V1.30

A78M-A

0301

05/08/2013

A78MA.CAP 8194 2013-05-08 15:25:48

2-4 Chapter 2: BIOS information

3. Press <Tab> to switch between screen elds and use the <Up/Down/Home/End> keys to select the BIOS le and press <Enter>. BIOS Updater checks the selected BIOS le and prompts you to conrm BIOS update.

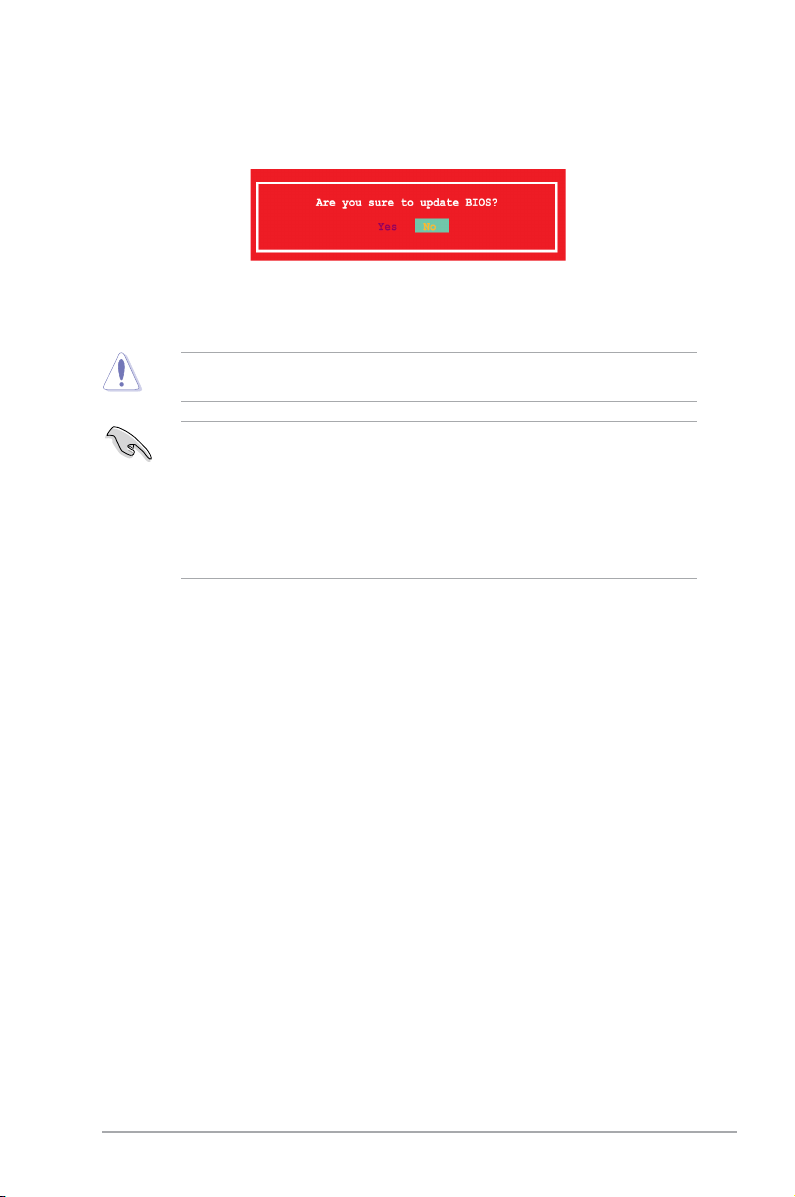

4. Select Yes and press <Enter>. When BIOS update is done, press <ESC> to exit BIOS Updater. Restart your computer.

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

• For BIOS Updater version 1.30 or later, the utility automatically exits to the DOS prompt after updating BIOS.

• Ensure to load the BIOS default settings to ensure system compatibility and stability.

Select the Load Optimized Defaults item under the Exit menu. Refer to section 2.10 Exit menu for details.

• Ensure to connect all SATA hard disk drives after updating the BIOS le if you have

disconnected them.

ASUS A78M-A 2-5

2.2 BIOS setup program

Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS

screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

• Press <Delete> during the Power-On Self Test (POST). If you do not press <Delete>, POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

• Press

• Press the reset button on the system chassis.

• Press the power button to turn the system off then back on. Do this option only if you

<Ctrl>+<Alt>+<Del> simultaneously.

failed to enter BIOS Setup using the rst two options.

Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a running operating system can cause damage to your data or system. We recommend to always shut down the system properly from the operating system.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program.

• The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit Menu. See section 2.10 Exit Menu.

• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. Refer to section 1.6 Jumpers on how to erase the RTC RAM.

• The BIOS setup program does not support the bluetooth devices.

BIOS menu screen

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from the Exit menu or from the Exit/Advanced Mode button in the

EZ Mode/Advanced Mode screen.

EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance mode and boot device priority. To access the Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press F7 for the advanced BIOS settings.

2-6 Chapter 2: BIOS information

The default screen for entering the BIOS setup program can be changed. Refer to the

Setup Mode item in section 2.8 Boot menu for details.

Selects the display language of the BIOS setup program

Displays the CPU temperature, CPU Voltage output, DRAM information and CPU/Chassis fan speed

Exits the BIOS setup program without saving the changes, saves the changes and resets the system, or enters the Advanced Mode

Power Saving mode

Advanced mode functions

Boot device priority

Normal mode

Advanced mode menus

• The boot device options vary depending on the devices you installed to the system.

• The

Boot Menu(F8) button is available only when the boot device is installed to the

system.

Selects the boot device priority

Loads optimized default

Displays the system properties

Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to congure the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the following sections for the detailed congurations.

To access the EZ Mode, click Exit, then select ASUS EZ Mode or press F7.

ASUS A78M-A 2-7

General helpMenu bar Conguration eldsMenu itemsBack button

Last modied

settings

Quick note

Menu bar

Pop-up window

Navigation keys

Scroll bar

The menu bar on top of the screen has the following main items:

My Favorites For saving the frequently-used system settings and conguration

Main For changing the basic system conguration

Ai Tweaker For changing the overclocking settings

Advanced For changing the advanced system settings

Monitor For displaying the system temperature, power status, and changing the fan settings

Boot For changing the system boot conguration

Tool For conguring options for special functions

Exit For selecting the exit options and loading default settings

Menu items

The highlighted item on the menu bar displays the specic items for that menu. For example,

selecting Main shows the Main menu items.

The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have their respective menu items.

Back button

This button appears when entering a submenu. Press <Esc> or use the USB mouse to click this button to return to the previous menu screen.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press <Enter>.

2-8 Chapter 2: BIOS information

Pop-up window

Select a menu item and press <Enter> to display a pop-up window with the conguration

options for that item.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not t on

the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the other items on the screen.

Navigation keys

At the bottom right corner of the menu screen are the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

General help

At the top right corner of the menu screen is a brief description of the selected item.

Conguration elds

These elds show the values for the menu items. If an item is user-congurable, you can change the value of the eld opposite the item. You cannot select an item that is not user-congurable.

A congurable eld is highlighted when selected. To change the value of a eld, select it and

press <Enter> to display a list of options.

Quick Note button

This button allows you to enter notes of the activities that you have done in BIOS.

Last Modied button

This button shows the items that you last modied and saved in BIOS Setup.

2.3 My Favorites

MyFavorites is your personal space where you can easily save and access your favorite

BIOS items.

ASUS A78M-A 2-9

Adding items to My Favorites

To add frequently-used BIOS items to My Favorites:

1. Use the arrow keys to select an item that you want to add. When using a mouse, hover the pointer to the item.

2. Press <F4> on your keyboard or right-click on your mouse to add the item to My Favorites page.

You cannot add the following items to My Favorites:

• Items with submenu options

• User-congurable items such as language and boot device order

• Conguration items such as Memory SPD Information, system time and date

2.4 Main menu

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings.

2.4.1 System Language [English]

Allows you to choose the BIOS language version from the options. Conguration options:

[English] [Español] [Русский] [

한국어]

2.4.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.4.3 System Time [xx:xx:xx]

Allows you to set the system time.

2.4.4 Security

The Security menu items allow you to change the system security settings.

2-10 Chapter 2: BIOS information

• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)

RAM to clear the BIOS password. See section 1.6 Jumpers for information on how to erase the RTC RAM.

• The

Administrator or User Password items on top of the screen show the default

Not Installed. After you set a password, these items show Installed.

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only

selected elds in the BIOS setup program.

To set an administrator password:

1. Select the

2. From the

Administrator Password item and press <Enter>.

Create New Password box, key in a password, then press <Enter>.

3. Conrm the password when prompted.

To change an administrator password:

1. Select the

2. From the

Administrator Password item and press <Enter>.

Enter Current Password box, key in the current password, then press

<Enter>.

3. From the

Create New Password box, key in a new password, then press <Enter>.

4. Conrm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator

password, but press <Enter> when prompted to create/conrm the password. After you clear

the password, the Administrator Password item on top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a user password:

1. Select the

2. From the

3. Conrm the password when prompted.

To change a user password:

1. Select the

2. From the <Enter>.

3. From the

4. Conrm the password when prompted.

To clear the user password, follow the same steps as in changing a user password, but press

<Enter> when prompted to create/conrm the password. After you clear the password, the

User Password item on top of the screen shows Not Installed.

User Password item and press <Enter>.

Create New Password box, key in a password, then press <Enter>.

User Password item and press <Enter>.

Enter Current Password box, key in the current password, then press

Create New Password box, key in a new password, then press <Enter>.

ASUS A78M-A 2-11

2.5 Ai Tweaker menu

The Ai Tweaker menu items allow you to congure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld

values can cause the system to malfunction.

The conguration options for this section vary depending on the CPU and DIMM model you

installed on the motherboard.

Scroll down to display the following items:

2-12 Chapter 2: BIOS information

Target CPU Speed : xxxxMHz

Displays the current CPU speed.

Target DRAM Speed : xxxxMHz

Displays the current DRAM speed.

2.5.1 Ai Overclock Tuner [Auto]

Allows you to select the CPU overclocking options to achieve the desired CPU internal

frequency. Select any of these preset overclocking conguration options:

[Auto] Loads the optimal settings for the system.

[Manual] Allows you to individually set overclocking parameters.

APU Frequency [XXX]

This item appears only when you set the Ai Overclock Tuner item to [Manual]. Use the <+> and <-> keys to adjust the value. You can also key in the desired value using the numeric

keypad. The values range from 90.0MHz to 300.0MHz.

2.5.2 Memory Frequency [Auto]

Allows you to set the memory operating frequency. Conguration options: [Auto] [DDR3800MHz] [DDR3-1066MHz] [DDR3-1333MHz] [DDR3-1600MHz] [DDR3-1866MHz] [DDR32133MHz] [DDR3-2400MHz]

Selecting a very high memory frequency may cause the system to become unstable! If this happens, revert to the default setting.

2.5.3 APU Multiplier [Auto]

Allows you to set the multiplier between the CPU Core Clock and the FSB Frequency. Use the <+> and <-> keys to adjust the ratio. The valid value ranges vary according to your CPU model.

2.5.4 NB Frequency [Auto]

Allows you to adjust the NB frequency. Use the <+> and <-> keys to adjust the value. You can also key in the desired value using the numeric keypad.

2.5.5 EPU Power Saving Mode [Disabled]

Allows you to enable or disable the EPU power saving function. Conguration options:

[Disabled] [Enabled]

EPU Setting [Auto]

This item appears only when The EPU Power Saving Mode is set to [Enabled] and

allows you to set power saving mode. Conguration options: [Auto] [Light Power

Saving Mode] [Medium Power Saving Mode] [Max Power Saving Mode]

ASUS A78M-A 2-13

2.5.6 DRAM Timing Control

The sub-items in this menu allow you to set the DRAM timing control features. Use the <+> and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press <Enter>.

Changing the values in this menu may cause the system to become unstable! If this happens, revert to the default settings.

2.5.7 APU Voltage [Offset Mode]

[Offset Mode] To offset the voltage by a positive or negative value.

CPU Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[–] To offset the voltage by a negative value.

CPU Offset Voltage [Auto]

Allows you to set the CPU Offset voltage. The values range from 0.00625V to

0.40000V with a 0.00625V interval.

Refer to the CPU documentation before setting the CPU voltage. Setting a high voltage may damage the CPU permanently, and setting a low voltage may make the system unstable.

VDDNB Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[–] To offset the voltage by a negative value.

VDDNB Offset Voltage [Auto]

Allows you to set the VDDNB Offset voltage. The values range from 0.00625V to

0.38750V with a 0.00625V interval.

2.5.8 DRAM Voltage [Auto]

Allows you to set the DRAM voltage. The values range from 1.350V to 1.650V with a 0.150V interval.

2.5.9 SB 1.1V Voltage [Auto]

Allows you to set the Southbridge 1.1V voltage. The values range from 1.10V to 1.22V with a

0.04V interval.

• The values of the CPU Offset Voltage, VDDNB Offset Voltage, DRAM Voltage, and SB 1.1V Voltage items are labeled in different colors, indicating the risk levels of high voltage settings.

• The system may need better cooling system to work stably under high voltage settings.

2-14 Chapter 2: BIOS information

2.5.10 DIGI+ VRM

CPU Load Line Calibration [Auto]

Load-line Calibration is dened by AMD VRM specications and affects CPU voltage. The

CPU working voltage will decrease proportionally to CPU loading. Higher load-line calibration would get higher voltage and better overclocking performance, but increase the CPU and VRM thermal. This item allows you to adjust the voltage range from the following percentages to boost the system performance: 0% (Regular), 60% (Medium), 80% (High), and 100%

(Extreme). Conguration options: [Auto] [Regular] [Medium] [High] [Extreme]

The actual performance boost may vary depending on your CPU speciation.

CPU/NB Load Line Calibration [Auto]

Allows you to select the CPU/NB Load-Line Calibration mode. Conguration options: [Auto]

[Regular] [High] [Extreme]

CPU Current Capability [100%]

This item provides wider total power range for overclocking. A higher value brings a wider total power range and extends the overclocking frequency range simultaneously.

Conguration options: [100%] [110%] [120%] [130%]

CPU/NB Current Capability [100%]

This item provides wider total power range for overclocking. A higher value brings a wider total power range and extends the overclocking frequency range simultaneously.

Conguration options: [100%] [110%] [120%] [130%]

CPU Power Phase Control [Standard]

Phase number is the number of working VRM phase. Increasing phase number under heavy system loading to get more transient and better thermal performance. Reducing phase

number under light system loading to increase VRM efciency.

[Standard] Proceeds phase control depending on the CPU loading.

[Optimized] Loads the ASUS optimized phase tuning prole.

[Extreme] Proceeds the full phase mode.

[Manual Adjustment] Allows manual adjustment.

DO NOT remove the thermal module when switching to Extreme and Manual Adjustment. The thermal conditions should be monitored.

Manual Adjustment [Fast]

This item appears only when you set the previous item to [Manual Adjustment]. Select [Ultra Fast] for a faster response. The reaction time will be longer when [Regular] is selected.

Conguration options: [Ultra Fast] [Fast] [Medium] [Regular]

CPU Voltage Frequency [300]

Switching frequency will affect the VRM transient response and component thermal. Setting a higher frequency gets faster transient response. Use the <+> and <-> keys to adjust the

value. The values range from 200k Hz to 350k Hz with a 50k Hz interval.

ASUS A78M-A 2-15

CPU Power Duty Control [T.Probe]

[T.Probe] Maintains the VRM thermal balance.

[Extreme] Maintains the VRM current balance.

Do not remove the thermal module while changing the DIGI+VRM related parameters. The thermal conditions should be monitored.

2.6 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Be cautious when changing the settings of the Advanced menu items. Incorrect eld values

can cause the system to malfunction.

2.6.1 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically detects.

The items shown in submenu may be different due to the CPU you installed.

AMD PowerNow function [Enabled]

Enables or disables the AMD PowerNow function. Conguration options: [Enabled] [Disabled]

NX Mode [Enabled]

Enables or disables the No-execute page protection function. Conguration options:

[Enabled] [Disabled]

SVM [Enabled]

Enables or disables CPU virtualization. Conguration options: [Disabled] [Enabled]

2-16 Chapter 2: BIOS information

CPB Mode [Auto]

Disables the CPB (Core Performance Boost) mode or set it to [Auto] for automatic

conguration. Conguration options: [Disabled] [Auto]

APM Master enable [Auto]

Enables or disables APM Master. Conguration options: [Auto] [Enabled] [Disabled]

C6 Mode [Enabled]

Enables or disables C6 mode. Conguration options: [Enabled] [Disabled]

IOMMU [Disabled]

Set this item to [Enabled] to show IOMMU Mode. Conguration options: [Enabled] [Disabled]

Bank Interleaving [Enabled]

Enables or disables the bank memory interleaving. Conguration options: [Enabled]

[Disabled]

Channel Interleaving [Enabled]

Enables or disables the channel memory interleaving. Conguration options: [Enabled]

[Disabled]

Core Leveling Mode [Automatic mode]

Allows you to change the number of Compute Units on the system. Conguration options:

[Automatic mode] [One core per processor] [One Compute Unit] [One core per Compute Unit]

2.6.2 SATA Conguration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port.

OnChip SATA Channel [Enabled]

Enables or disables onboard channel SATA port. Conguration options: [Disabled] [Enabled]

OnChip SATA Type [AHCI]

Allows you to set the SATA conguration.

[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as

[RAID] Set to [RAID] when you want to create a RAID conguration from the SATA

[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI

Parallel ATA physical storage devices.

hard disk drives.

(Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally

optimize the order of commands.

ASUS A78M-A 2-17

SATA Port 5 - Port 6 [AHCI]

This item only appears when OnChip SATA Type is set to [AHCI]. If SATA ports 5,

6 are congured as [AHCI], the ports can only be used under Windows

OS with the

requested drivers installed. Set to [IDE] instead of [AHCI] to access devices on SATA

ports 5, 6 before entering OS. Conguration options: [AHCI] [IDE]

SATA Port 5 - Port 6 [RAID]

This item only appears when OnChip SATA Type is set to [RAID]. If SATA ports 5,

6 are congured as [RAID], the ports can only be used under Windows

OS with the

requested drivers installed. Set to [IDE] instead of [RAID] to access devices on SATA

ports 5, 6 before entering OS. Conguration options: [RAID] [IDE]

OnChip SATA MAX Speed [SATA 6.0Gb/s]

For better HDD compatibility, set the SATA Speed to [SATA 3.0Gb/s] to support SATA 3.0Gb/s

HDDs or [SATA 6.0Gb/s] to support SATA 6.0Gb/s HDDs. Conguration options: [SATA

6.0Gb/s] [SATA 3.0Gb/s]

S.M.A.R.T. Status Check [Enabled]

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When read/write of your hard disk errors occur, this feature allows the hard disk to report warning

messages during the POST. Conguration options: [Enabled] [Disabled]

2-18 Chapter 2: BIOS information

2.6.3 USB Conguration

The items in this menu allow you to change the USB-related features.

The USB Devices item shows the auto-detected values. If no USB device is detected, the item shows None.

USB Device Enable [Enabled]

Allows you to enable or disable all USB ports. Conguration options: [Disabled] [Enabled]

Legacy USB Support [Enabled]

[Enabled] Enables the support for USB devices on legacy operating systems (OS).

[Disabled] The USB devices can be used only for the BIOS setup program.

[Auto] Allows the system to detect the presence of USB devices at startup. If

detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled.

EHCI Hand-off [Disabled]

[Enabled] Enables the support for operating systems without an EHCI hand-off

[Disabled] Disables the function.

feature.

USB Single Port Control

Allows you to enable/disable individual USB ports.

2.6.4 Onboard Devices Conguration

HD Audio Device [Enabled]

[Enabled] Enables the High Denition Audio Controller.

[Disabled] Disables the controller.

The following two items appear only when you set the HD Audio Device item to [Enabled].

Front Panel Type [HD]

Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-

denition audio depending on the audio standard that the front panel audio module supports.

[HD] Sets the front panel audio connector (AAFP) mode to high denition audio.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97.

SPDIF Out Type [SPDIF]

[SPDIF] Sets to [SPDIF] for SPDIF audio output.

[HDMI] Sets to [HDMI] for HDMI audio output.

ASUS A78M-A 2-19

Realtek LAN Controller [Enabled]

[Enabled] Enables the Realtek LAN controller.

[Disabled] Disables the controller.

Realtek PXE OPROM [Disabled]

This item appears only when you set the Realtek LAN Controller item to [Enabled] and

allows you to enable or disable the Rom of the Realtek LAN controller. Conguration options:

[Enabled] [Disabled]

Serial Port Conguration

The sub-items in this menu allow you to set the serial port conguration.

Serial Port [Enabled]

Allows you to enable or disable the serial port (COM).Conguration options: [Enabled]

[Disabled]

Change Settings [IO=3F8h; IRQ=4]

This item appears only when you set the Serial Port to [Enabled] and allows you

to select the Serial Port base address. Conguration options: [IO=3F8h; IRQ=4] [IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4] [IO=2E8h; IRQ=3]

2.6.5 APM

Restore AC Power Loss [Power Off]

[Power On] The system goes into on state after an AC power loss.

[Power Off] The system goes into off state after an AC power loss.

[Last State] The system goes into either off or on state, whatever the system state was

WOL (include AC Power Loss) [Disabled]

[Disabled] Disables Wake On LAN after a power failure (G3 state).

[Enabled] Enables Wake On LAN after a power failure (G3 state).

Power On By PME [Disabled]

[Disabled] Disables the PME to wake up by PCI/PCIE devices.

[Enabled] Allows you to turn on the system through a PCI/PCIE LAN or modem card.

Power On By Ring [Disabled]

[Disabled] Disables Ring to generate a wake event.

[Enabled] Enables Ring to generate a wake event.

before the AC power loss.

This feature requires an ATX power supply that provides at least 1A on the +5VSB lead.

2-20 Chapter 2: BIOS information

Power On By RTC [Disabled]

[Disabled] Disables RTC to generate a wake event. [Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/

Minute/Second will become user-congurable with set values.

RTC Alarm Date (Days)

This item appears only when you set the previous item to [Enabled] and allows you to select

RTC alarm time (days). When you set the time to zero, the RTC alarms everyday. Use <+>

and <-> keys to adjust the time.

- Hour / - Minute / - Second

Allows you to set the RTC alarm time. Use <+> and <-> keys to adjust the time.

2.6.6 Network Stack

Network Stack [Disabled]

This item allows user to disable or enable the UEFI network stack. Conguration options:

[Disabled] [Enabled]

The following two items appear only when you set the previous item to [Enabled].

Ipv4 PXE Support [Enabled]

This item allows user to disable or enable the Ipv4 PXE Boot support. Conguration options:

[Disabled] [Enable]

Ipv6 PXE Support [Enabled]

This item allows user to disable or enable the Ipv6 PXE Boot support. Conguration options:

[Disabled] [Enabled]

ASUS A78M-A 2-21

2.7 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

Scroll down to display the following items:

2-22 Chapter 2: BIOS information

2.7.1 CPU Temperature / MB Temperature [xxxºC/xxxºF]

The onboard hardware monitor automatically detects and displays the CPU and motherboard temperatures. Select Ignore if you do not wish to display the detected temperatures.

2.7.2 CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU / chassis fan

speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld

shows N/A. Select Ignore if you do not wish to display the detected speed.

2.7.3 CPU Q-Fan Control [Enabled]

[Disabled] Disables the CPU Q-Fan control feature.

[Enabled] Enables the CPU Q-Fan control feature.

Fan Speed Low Limit [200 RPM]

This item appears only when you enable the CPU Q-Fan Control feature and allows

you to disable or set the CPU fan warning speed. Conguration options: [Ignore] [100

RPM] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Q-Fan Profile [Standard]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to set the appropriate performance level of the CPU fan.

[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on

[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.

[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

the CPU temperature.

The following four items appear only when you set Q-Fan Prole to [Manual].

Q-Fan Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range from 20ºC to 75ºC.

Q-Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from 0% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at the maximum duty cycle.

Q-Fan Lower Temperature [20]

Use the <+> and <-> keys to adjust the lower limit of the CPU temperature. The values range from 20ºC to 75ºC.

Q-Fan Min. Duty Cycle(%) [20]

Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 0% to 100%. When the CPU temperature is under the lower limit, the CPU fan will operate at the minimum duty cycle.

ASUS A78M-A 2-23

2.7.4 Chassis Q-Fan Control [Enabled]

[Disabled] Disables the Chassis1 Q-Fan control feature.

[Enabled] Enables the Chassis1 Q-Fan control feature.

Fan Speed Low Limit [600 RPM]

This item appears only when you enable the Chassis1 Q-Fan Control feature and allows you to disable or set the chassis1 fan warning speed.

Conguration options: [Ignore] [200RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Q-Fan Profile [Standard]

This item appears only when you enable the Chassis1 Q-Fan Control feature and allows you to set the appropriate performance level of the chassis fan. [Standard] Sets to [Standard] to make the chassis fan automatically adjust

[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan

[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

The following four items appear only when you set Q-Fan Prole to [Manual].

Q-Fan Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the chassis temperature. The values range from 40ºC to 75ºC.

Q-Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range from 60% to 100%. When the chassis temperature reaches the upper limit, the chassis fan will operate at the maximum duty cycle.

Q-Fan Lower Temperature [40]

Displays the lower limit of the chassis temperature.

Q-Fan Min. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from 60% to 100%. When the chassis temperature is under 40ºC, the chassis fan will operate at the minimum duty cycle.

depending on the chassis temperature.

operation.

2.7.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select Ignore if you do not want to detect this item.

2.7.6 Anti Surge Support [Auto]

This item allows you to enable or disable the Anti Surge function. Conguration options:

[Auto] [Disabled] [Enabled]

2-24 Chapter 2: BIOS information

2.8 Boot menu

The Boot menu items allow you to change the system boot options.

Scroll down to display the following items:

ASUS A78M-A 2-25

2.8.1 Fast Boot [Enabled]

[Enabled] Select to accelerate the boot speed.

[Disabled] Select to go back to normal boot.

The following four items appear when you set Fast Boot to [Enabled].

SATA Support [All Devices]

[All Devices] All devices connected to SATA ports will be available during

[Hard Drive Only] Only hard drives connected to SATA ports will be detected during

[Boot Drive Only] Only boot drives connected to SATA ports will be detected during

USB Support [Partial Initialization]

[Disabled] All USB devices will not be available until OS boot up for a

[Full Initialization] All USB devices will be available during POST. This process will

[Partial Initialization] For a faster POST time, only the USB ports with keyboard and

PS/2 Keyboard and Mouse Support [Auto]

Select any of these settings when PS/2 keyboard and mouse are installed. These settings only apply when Fast Boot is enabled.

[Auto] For a faster POST time, PS/2 devices will only be available when the

system boots up or rebooted when the PS/2 devices have not been reconnected or changed. If you disconnect or change PS/2 devices before restarting the system, PS/2 devices will not be available and BIOS setup program will not be accessible via PS/2 devices.

[Full Initialization] For full system control, PS/2 devices will be available during POST at any

circumstances. This process will extend POST time.

[Disabled] For the fastest POST time, all PS/2 devices will not be available until your

computer enters the operating system.

Network Stack Driver Support [Disabled]

[Disabled] Select to skip the network stack driver from loading during POST.

[Enabled] Select to load the network stack driver during POST.

Next Boot after AC Power Loss [Normal Boot]

[Normal Boot] Returns to normal boot on the next boot after AC power loss.

[Fast Boot] Accelerates the boot speed on the next boot after AC power loss.

POST.

fastest POST time.

extend the POST time.

mouse connections will be detected.

2-26 Chapter 2: BIOS information

2.8.2 Boot Logo Display [Enabled]

[Auto] Auto adjustment for Windows requirements.

[Disabled] Hide the logo during POST.

[Full Screen] Maximize the boot logo size.

POST Delay Time [3 sec]

This item appears only when you set Full Screen Logo to [Enabled]. This item allows you to select the desired additional POST waiting time to easily enter the BIOS setup. You can only execute the POST delay time during Normal Boot. The values range from 0 to 10 seconds.

This feature will only work under normal boot.

Post Report [5 sec]

This item appears only when you set Full Screen Logo to [Disabled]. This item allows you to select a desired post report waiting time. The values range from 1 to 10 seconds.

2.8.3 Bootup NumLock State [On]

[On] Sets the power-on state of the NumLock to [On].

[Off] Sets the power-on state of the NumLock to [Off].

2.8.4 Wait for ‘F1’ If Error [Enabled]

When this item is set to [Enabled], the system waits for the F1 key to be pressed when error

occurs. Conguration options: [Disabled] [Enabled]

2.8.5 Option ROM Messages [Force BIOS]

[Force BIOS] The third-party ROM messages will be forced to display during the boot

[Keep Current] The third-party ROM messages will be displayed only if the third-party

sequence.

manufacturer had set the add-on device to do so.

2.8.6 Interrupt 19 Capture [Disabled]

[Enabled] Allows the option ROMs to trap Interrupt 19.

[Disabled] Disables this function.

2.8.7 Setup Mode [EZ Mode]

[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup

[EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.

ASUS A78M-A 2-27

program.

2.8.8 CSM (Compatibility Support Module)

Allows you to congure the CSM (Compatibility Support Module) items to fully support the

various VGA, bootable devices and add-on devices for better compatibility.

Launch CSM [Enabled]

[Auto] The system automatically detects the bootable devices and the add-on

[Enabled] For better compatibility, enable the CSM to fully support the non-UEFI

[Disabled] Disable the CSM to fully support the Windows

Boot Device Control [UEFI and Legacy OpROM]

Allows you to select the type of devices that you want to boot up. Conguration options:

[UEFI and Legacy OpROM] [Legacy OpROM only] [UEFI only]

Boot from Network Devices [Legacy OpROM rst]

Allows you to select the type of network devices that you want to launch. Conguration options: [Legacy OpROM rst] [UEFI driver rst] [Ignore]

Boot from Storage Devices [Legacy OpROM rst]

Allows you to select the type of storage devices that you want to launch. Conguration options: [Both, Legacy OpROM rst] [Both, UEFI rst] [Legacy OpROM rst] [UEFI driver rst]

[Ignore]

Boot from PCIe/PCI Expansion Devices [Legacy OpROM rst]

Allows you to select the type of PCIe/PCI expansion devices that you want to launch.

Conguration options: [Legacy OpROM rst] [UEFI driver rst]

devices.

driver add-on devices or the Windows® UEFI mode.

Security Boot.

The following four items appear when you set Launch CSM to [Enabled].

Security Update and

2-28 Chapter 2: BIOS information

2.8.9 Secure Boot

Allows you to congure the Windows® Secure Boot settings and manage its keys to protect the system from unauthorized access and malwares during POST.

OS Type [Windows UEFI mode]

Allows you to select your installed operating system.

[Windows UEFI mode] Executes the Microsoft

select this option when booting on Windows® UEFI mode or other Microsoft® Secure Boot compliant OS.

[Other OS] Get the optimized function when booting on

Windows® non-UEFI mode, Windows® Vista/XP, or other Microsoft® Secure Boot non-compliant OS. Only on Windows® UEFI mode that Microsoft® Secure Boot can function properly.

Secure Boot Mode [Standard]

This item appears only when you set the OS Type to [Windows UEFI]. Conguration option: [Standard] [Custom]

The following item appears when OS Type is set to [Windows UEFI mode].

Key Management

This item appears only when you set Secure Boot Mode to [Custom]. It allows you to manage the Secure Boot keys.

Clear Secure Boot keys

This item appears only when you load the default Secure Boot keys. This item allows you to clear all default Secure Boot keys.

Save Secure Boot keys

This item appears only when you load the default Secure Boot keys. This item allows you to save all default Secure Boot keys.

PK Management

The Platform Key (PK) locks and secures the rmware from any non-permissible changes. The system veries the PK before your system enters the OS.

Delete PK

Allows you to delete the PK from your system. Once the PK is deleted, all the

system’s Secure Boot keys will not be active. Conguration options: [Yes] [No]

Load PK from File

Allows you to load the downloaded PK from a USB storage device.

Secure Boot check. Only

The PK le must be formatted as a UEFI variable structure with time-based authenticated

variable.

ASUS A78M-A 2-29

KEK Management

The KEK (Key-exchange Key or Key Enrollment Key) manages the Signature database (db) and Revoked Signature database (dbx).

Key-exchange Key (KEK) refers to Microsoft® Secure Boot Key-Enrollment Key (KEK).

Delete the KEK

Allows you to delete the KEK from your system. Conguration options: [Yes] [No]

Load KEK from File

Allows you to load the downloaded KEK from a USB storage device.

Append KEK from le

Allows you to load the additional KEK from a storage device for an additional db and dbx loaded management.

The KEK le must be formatted as a UEFI variable structure with time-based authenticated

variable.

DB Management

The db (Authorized Signature database) lists the signers or images of UEFI

applications, operating system loaders, and UEFI drivers that you can load on the single computer.

Delete the db

Allows you to delete the db le from your system. Conguration options: [Yes] [No]

Load db from File

Allows you to load the downloaded db from a USB storage device.

Append db from le

Allows you to load the additional db from a storage device so that more images can be loaded securely.

The DB le must be formatted as a UEFI variable structure with time-based authenticated

variable.

DBX Management

The dbx (Revoked Signature database) lists the forbidden images of db items that are no longer trusted and cannot be loaded.

Delete the DBX

Allows you to delete the DBX le from your system. Conguration options: [Yes] [No]

Load DBX from File

Allows you to load the downloaded DBX from a USB storage device.

Append DBX from le

Allows you to load the additional DBX from a storage device so that more db’s images cannot be loaded.

2-30 Chapter 2: BIOS information

The DBX le must be formatted as a UEFI variable structure with time-based authenticated

variable.

2.8.10 Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

• To select the boot device during system startup, press <F8> when ASUS Logo

appears.

• To access Windows OS in Safe Mode, press <F8> after POST.

2.8.11 Boot Override

These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

ASUS A78M-A 2-31

2.9 Tools menu

The Tools menu items allow you to congure options for special functions. Select an item

then press <Enter> to display the submenu.

2.9.1 ASUS EZ Flash 2 Utility

Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.

For more details, see section 2.1.2 ASUS EZ Flash 2.

2.9.2 ASUS SPD Information

DIMM Slot # [DIMM_A1]

Displays the Serial Presence Detect (SPD) information of the DIMM module installed on the

selected slot. Conguration options: [DIMM_A1] [DIMM_B1] [DIMM_A2] [DIMM_B2]

2.9.3 ASUS O.C. Prole

This item allows you to store or load multiple BIOS settings.

The Setup Prole Status items show Not Installed if no prole is created.

Label

Allows you to input the label of the setup prole.

Save to Prole

Allows you to save the current BIOS settings to the BIOS Flash, and create a prole. Key in a prole number from one to eight, press <Enter>, and then select Yes.

Load from Prole

Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the prole

number that saved your CMOS settings, press <Enter>, and then select Yes.

• DO NOT shut down or reset the system while updating the BIOS to prevent the system boot failure!

• We recommend that you update the BIOS le only coming from the same memory/ CPU conguration and BIOS version.

2-32 Chapter 2: BIOS information

2.10 Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit menu.

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup

menus. When you select this option or if you press <F5>, a conrmation window appears.

Select Yes to load the default values.

Save Changes & Reset

Once you are nished making your selections, choose this option from the Exit menu to

ensure the values you selected are saved. When you select this option or if you press <F10>,

a conrmation window appears. Select Yes to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press <Esc>, a conrmation window appears. Select Yes to discard changes and exit.

ASUS EZ Mode

This option allows you to enter the EZ Mode screen.

Launch EFI Shell from lesystem device

This option allows you to attempt to launch the UEFI Shell application (shellx64.e) from one of the available devices that have a lesystem.

ASUS A78M-A 2-33

2-34 Chapter 2: BIOS information

Appendices

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

•

This device must accept any interference received including interference that may cause

• undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is

• connected.

Consult the dealer or an experienced radio/TV technician for help.

•

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

IC: Canadian Compliance Statement

Complies with the Canadian ICES-003 Class B specications. This device complies with RSS

210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil.

ASUS A78M-A

A-1

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

VCCI: Japan Compliance Statement

VCCI Class B Statement

KC: Korea Warning Statement

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

A-2

Appendices

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259 Telephone +886-2-2894-3447 Fax +886-2-2890-7798 E-mail info@asus.com.tw Web site http://www.asus.com

Technical Support

Telephone +86-21-3842-9911 Fax +86-21-5866-8722 ext. 9101# Online support http://support.asus.com/techserv/techserv.aspx

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA Telephone +1-510-739-3777 Fax +1-510-608-4555 Web site http://usa.asus.com

Technical Support

Telephone +1-812-284-0883 Support fax +1-812-282-2787 Online support http://support.asus.com/techserv/techserv.aspx

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, 40880 Ratingen, Germany Fax +49-2102-959931 Web site http://www.asus.com/de Online contact http://eu-rma.asus.com/sales

Technical Support

Telephone +49-2102-5789555 Support Fax +49-2102-959911 Online support http://support.asus.com/techserv/techserv.aspx

ASUS A78M-A

A-3

EC Declaration of Conformity

We, the undersigned,

Manufacturer:

ASUSTeK COMPUTER INC.

Address, City:

4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN

Country:

TAIWAN

Authorized representative in Europe:

ASUS COMPUTER GmbH

Address, City:

HARKORT STR. 21-23, 40880 RATINGEN

Country:

GERMANY

declare the following apparatus:

Product name :

Motherboard

Model name :

A78M-A

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011

EN 61000-3-2:2006+A2:2009

EN 55013:2001+A1:2003+A2:2006

EN 55024:2010

EN 61000-3-3:2008

EN 55020:2007+A11:2011

1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1(2006-10)

EN 300 440-1 V1.6.1(2010-08)

EN 300 440-2 V1.4.1(2010-08)

EN 301 511 V9.0.2(2003-03)

EN 301 908-1 V5.2.1(2011-05)

EN 301 908-2 V5.2.1(2011-07)

EN 301 893 V1.6.1(2011-11)

EN 302 544-2 V1.1.1(2009-01)

EN 302 623 V1.1.1(2009-01)

EN 50360:2001

EN 62479:2010

EN 50385:2002

EN 62311:2008

EN 301 489-1 V1.9.2(2011-09)

EN 301 489-3 V1.4.1(2002-08)

EN 301 489-4 V1.4.1(2009-05)

EN 301 489-7 V1.3.1(2005-11)

EN 301 489-9 V1.4.1(2007-11)

EN 301 489-17 V2.2.1(2012-09)

EN 301 489-24 V1.5.1(2010-09)

EN 302 326-2 V1.2.2(2007-06)

EN 302 326-3 V1.3.1(2007-09)

EN 301 357-2 V1.4.1(2008-11)

EN 302 291-1 V1.1.1(2005-07)

EN 302 291-2 V1.1.1(2005-07)

2006/95/EC-LVD Directive

EN 60950-1 / A12:2011 EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008

Regulation (EC) No. 642/2009

Regulation (EC) No. 278/2009

Regulation (EC) No. 617/2013

2011/65/EU-RoHS Directive

Ver. 130816

CE marking

Declaration Date: 25/12/2013

Year to begin affixing CE marking: 2013

Position : CEO

Name :

Jerry Shen

Signature :

__________

(EC conformity marking)

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Responsible Party Name:

Asus Computer International

Address: 800 Corporate Way, Fremont

, CA 94539.

Phone/Fax No: (510)739-3777/(510)608-4555

hereby declares that the product

Product Name : Motherboard

Model Number : A78M-A

Conforms to the following specifications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Representative Person’s Name : Steve Chang / President

Signature :

Date : Dec. 25, 2013

Ver. 120601

A-4

Appendices

Asus A78M-A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety information

About this guide

Package contents

Product introduction

1.1 Before you proceed

1.2 Motherboard overview

1.3 Accelerated Processing Unit (APU)

1.4 System memory

1.5 Expansion slots

1.6 Jumpers

1.7 Connectors

1.8 Software support

BIOS information

2.1 Managing and updating your BIOS

2.2 BIOS setup program

2.3 My Favorites

2.4 Main menu

2.5 Ai Tweaker menu

2.6 Advanced menu

2.7 Monitor menu

2.8 Boot menu

2.9 Tools menu

2.10 Exit menu

Appendices

Notices

ASUS contact information
