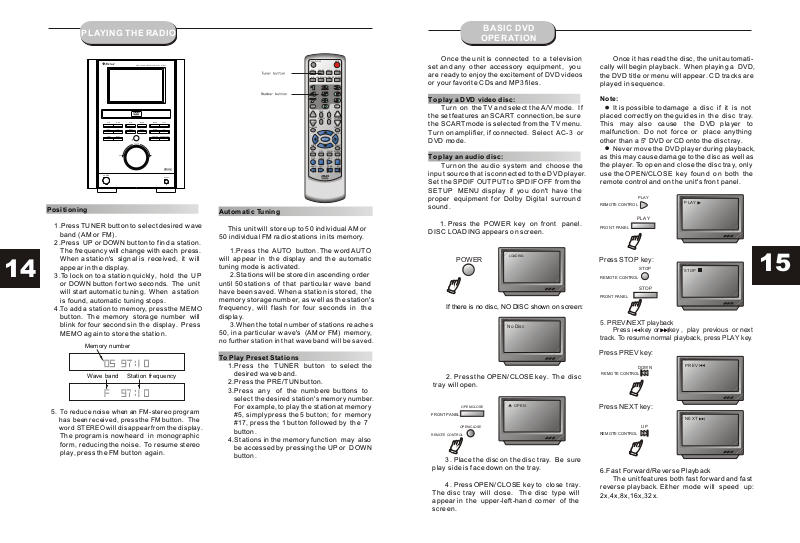

Astar MSC-2200 User Manual

PLAYING THE RADIO

BASIC DVD

OPERATION

14

MCS-2200 DVD MINI COMPO SYSTEM

TUNER

PLAY

REV

POWER

DVD

STOP

NEXTPREV

AUX2AUX1

MEMO

DOWN

PRE/TUN

AUTO

UP

OPEN/CLOSE

PHONE

Positioning

1.Press TUNER button to select desired wave
band (AM or FM).

2.Press UP or DOWN button to find a station.
The frequency will change with each press.
When a station's signal is received, it will
appear in the display.

3.To lock on to a station quickly, hold the UP
or DOWN button for two seconds. The unit
will start automatic tuning. When a station
is found, automatic tuning stops.

4.To add a station to memory, press the MEMO
button. The memory storage number will
blink for four seconds in the display. Press
MEMO again to store the station.

Memory number

Wave band

Station frequency

5. To reduce noise when an FM-stereo program

has been received, press the FM button. The
word STEREO will disappear from the display.

The program is now heard in monographic
form, reducing the noise. To resume stereo
play, press the FM button again.

TUNER

AUX1 AUX2

SUBTITLE

LANGUAGE ANGLE

PROG L/R

DISPLAY

SLOW

ENTER

STEP ZOOM RESUME

PLAY

PAUSE

MUTE

TIME

VOLUME

PRE/TUN

P-SCAN

REPEAT

A-B

UPDOWNMEMO AUTO

OPEN/CLOSE

DVD

N/P

+10

TITLE

MENU

FM MODE

SETUP

PBC

STOP

Automatic Tuning

This unit will store up to 50 individual AM or
50 individual FM radio stations in its memory.

1.Press the AUTO button. The word AUTO
will appear in the display and the automatic
tuning mode is activated.

2.Stations will be stored in ascending order
until 50 stations of that particular wave band
have been saved. When a station is stored, the
memory storage number, as well as the station's
frequency, will flash for four seconds in the
display.

3.When the total number of stations reaches
50, in a particular wave's (AM or FM) memory,

no further station in that wave band will be saved.

To Play Preset Stations

1.Press the TUNER button to select the
desired wave band.

2.Press the PRE/TUN button.

3.Press any of the numbere buttons to
select the desired station's memory number.
For example, to play the station at memory
#5, simply press the 5 button; for memory
#17, press the 1 button followed by the 7
button.

4.Stations in the memory function may also
be accessed by pressing the UP or DOWN
button.

Once the unit is connected to a television
set and any other accessory equipment, you

are ready to enjoy the excitement of DVD videos

or your favorite CDs and MP3 files.

To play a DVD video disc:

Turn on the TV and select the A/V mode. If
the set features an SCART connection, be sure
the SCART mode is selected from the TV menu.
Turn on amplifier, if connected. Select AC-3 or
DVD mode.

To play an audio disc:

Turn on the audio system and choose the
input source that is connected to the DVD player.
Set the SPDIF OUTPUT to SPDIF OFF from the
SETUP MENU display if you don't have the
proper equipment for Dolby Digital surround
sound.

1. Press the POWER key on front panel.
DISC LOADING appears on screen.

POWER

LOADING

If there is no disc, NO DISC shown on screen:

No Disc

2. Press the OPEN/CLOSE key. The disc
tray will open.

OPEN/CLOSE

FRONT PANEL

OPEN/CLOSE

REMOTE CONTROL

OPEN

3. Place the disc on the disc tray. Be sure
play side is face down on the tray.

4. Press OPEN/CLOSE key to close tray.
The disc tray will close. The disc type will
appear in the upper-left-hand corner of the
screen.

Once it has read the disc, the unit automati­cally will begin playback. When playing a DVD,
the DVD title or menu will appear. CD tracks are
played in sequence.

Note:
It is possible to damage a disc if it is not
placed correctly on the guides in the disc tray.
This may also cause the DVD player to
malfunction. Do not force or place anything
other than a 5 DVD or CD onto the disc tray.

"

Never move the DVD player during playback,
as this may cause damage to the disc as well as
the player. To open and close the disc tray, only
use the OPEN/CLOSE key found on both the
remote control and on the unit's front panel.

PLAY

REMOTE CONTROL

PLAY

FRONT PANEL

PLAY

Press STOP key:

STOP

REMOTE CONTROL

STOP

FRONT PANEL

STOP

5. PREV/NEXT playback
Press key or key , play previous or next
track. To resume normal playback, press PLAY key.

Press PREV key:

REMOTE CONTROL

DOWN

PREV

Press NEXT key:

NEXT

REMOTE CONTROL

UP

6.Fast Forward/Reverse Playback
The unit features both fast forward and fast
reverse playback. Either mode will speed up:
2x,4x,8x,16x,32x.

15
