Asrock Z690 Extreme, Z690 Extreme WiFi 6E Quick Installation Guide

Version 1.0
Published September 2021
Copyright©2021 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel

: [phone] ext.123 (Standard International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

INTEL END USER SOFTWARE LICENSE AGREEMENT

IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.

LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Soware
only in its unmodied and binary form, (with the accompanying documentation, the
“Soware”) for Licensee’s personal use only, and not commercial use, in connection with
Intel-based products for which the Soware has been provided, subject to the following
conditions:

(a) Licensee may not disclose, distribute or transfer any part of the Soware, and You agree
to prevent unauthorized copying of the Soware.

(b) Licensee may not reverse engineer, decompile, or disassemble the Soware.

(c) Licensee may not sublicense the Soware.

(d) e Soware may contain the soware and other intellectual property of third party
suppliers, some of which may be identied in, and licensed in accordance with, an enclosed
license.txt le or other text or le.

(e) Intel has no obligation to provide any support, technical assistance or updates for the
Soware.

OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Soware
remains with Intel or its licensors or suppliers. e Soware is copyrighted and protected
by the laws of the United States and other countries, and international treaty provisions.
Licensee may not remove any copyright notices from the Soware. Except as otherwise
expressly provided above, Intel grants no express or implied right under Intel patents,
copyrights, trademarks, or other intellectual property rights. Transfer of the license termi­nates Licensee’s right to use the Soware.

DISCLAIMER OF WARRANTY. e Soware is provided “AS IS” without warranty of
any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PUR­POSE.

LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS
WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF
BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG

ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN
IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

LICENSE TO USE COMMENTS AND SUGGESTIONS. is Agreement does NOT
obligate Licensee to provide Intel with comments or suggestions regarding the Soware.
However, if Licensee provides Intel with comments or suggestions for the modication,
correction, improvement or enhancement of (a) the Soware or (b) Intel products or
processes that work with the Soware, Licensee grants to Intel a non-exclusive, worldwide,
perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under
Licensee’s intellectual property rights, to incorporate or otherwise utilize those comments
and suggestions.

TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license
at any time if Licensee is in breach of any of its terms or conditions. Upon termination,
Licensee will immediately destroy or return to Intel all copies of the Soware.

THIRD PARTY BENEFICIARY. Intel is an intended beneciary of the End User License
Agreement and has the right to enforce all of its terms.

U.S. GOVERNMENT RESTRICTED RIGHTS. e Soware is a commercial item (as
dened in 48 C.F.R. 2.101) consisting of commercial computer soware and commercial
computer soware documentation (as those terms are used in 48 C.F.R. 12.212), consistent
with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide
the Soware to the U.S. Government. Contractor or Manufacturer is Intel Corporation,
2200 Mission College Blvd., Santa Clara, CA 95054.

EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee’s subsidiaries will
export/re-export the Soware, directly or indirectly, to any country for which the U.S.
Department of Commerce or any other agency or department of the U.S. Government
or the foreign government from where it is shipping requires an export license, or other
governmental approval, without rst obtaining any such required license or approval. In
the event the Soware is exported from the U.S.A. or re-exported from a foreign destina­tion by Licensee, Licensee will ensure that the distribution and export/re-export or import
of the Soware complies with all laws, regulations, orders, or other restrictions of the U.S.
Export Administration Regulations and the appropriate foreign government.

APPLICABLE LAWS. is Agreement and any dispute arising out of or relating to it will
be governed by the laws of the U.S.A. and Delaware, without regard to conict of laws
principles. e Parties to this Agreement exclude the application of the United Nations
Convention on Contracts for the International Sale of Goods (1980). e state and federal
courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising
out of or relating to this Agreement. e Parties consent to personal jurisdiction and venue
in those courts. A Party that obtains a judgment against the other Party in the courts iden­tied in this section may enforce that judgment in any court that has jurisdiction over the
Parties.

Licensee’s specic rights may vary from country to country.

CE Warning

is device complies with directive 2014/53/EU issued by the Commision of the European
Community.

is equipment complies with EU radiation exposure limits set forth for an uncontrolled
environment.
is equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.

Operations in the 5.15-5.35GHz band are restricted to indoor usage only.

Radio transmit power per transceiver type

Function Frequency Maximum Output Power (EIRP)

2400-2483.5 MHz 18.5 + / -1.5 dbm

5150-5250 MHz 21.5 + / -1.5 dbm

WiFi

Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm

5250-5350 MHz

5470-5725 MHz

18.5 + / -1.5 dbm (no TPC)

21.5 + / -1.5 dbm (TPC)

25.5 + / -1.5 dbm (no TPC)

28.5 + / -1.5 dbm (TPC)

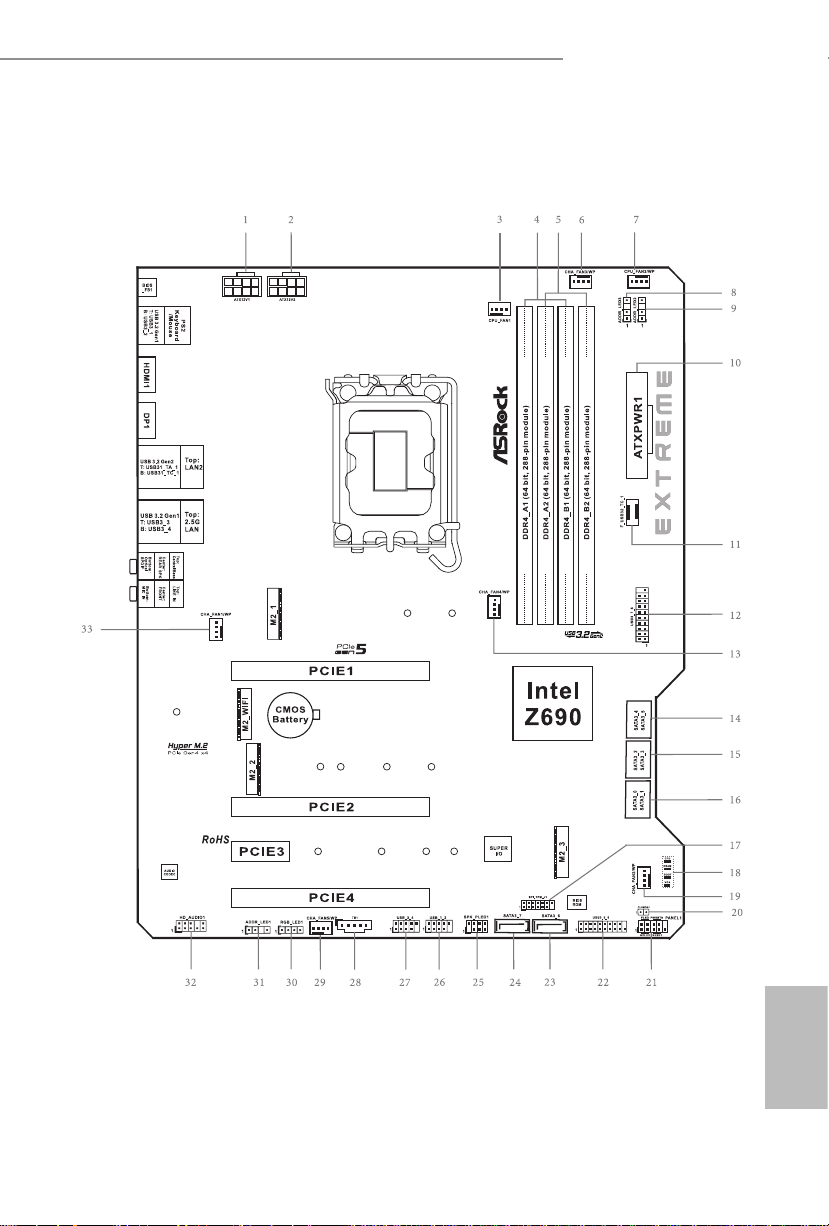

Motherboard Layout

Z690 Extreme WiFi 6E
Z690 Extreme

English

1

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 ATX 12V Power Connector (ATX12V2)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

7 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

8 Addressable LED Header (ADDR_LED3)

9 Addressable LED Header (ADDR_LED2)

10 ATX Power Connector (ATXPWR1)

11 Front Panel Type C USB 3.2 Gen2x2 Header (F_USB32_TC_1)

12 USB 3.2 Gen1 Header (USB3_7_8)

13 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

14 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_5) (Lower)

15 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_3) (Lower)

16 SATA3 Connector (SATA3_0) (Upper), SATA3 Connector (SATA3_1) (Lower)

17 SPI TPM Header (SPI_TPM_J1)

18 Post Status Checker (PSC)

19 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

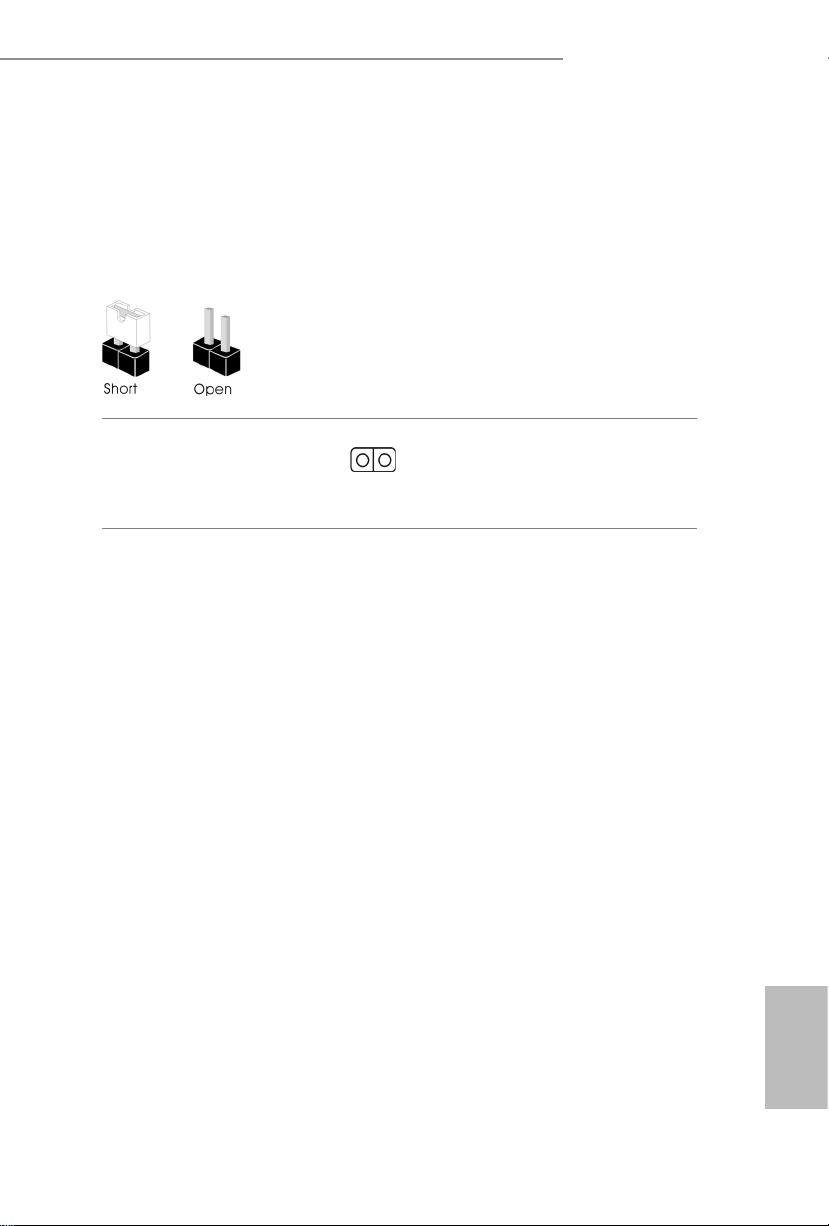

20 Clear CMOS Jumper (CLRMOS1)

21 System Panel Header (PANEL1)

22 USB 3.2 Gen1 Header (USB3_5_6)

23 SATA3 Connector (SATA3_6)

24 SATA3 Connector (SATA3_7)

25 Power LED and Speaker Header (SPK_PLED1)

26 USB 2.0 Header (USB_1_2)

27 USB 2.0 Header (USB_3_4)

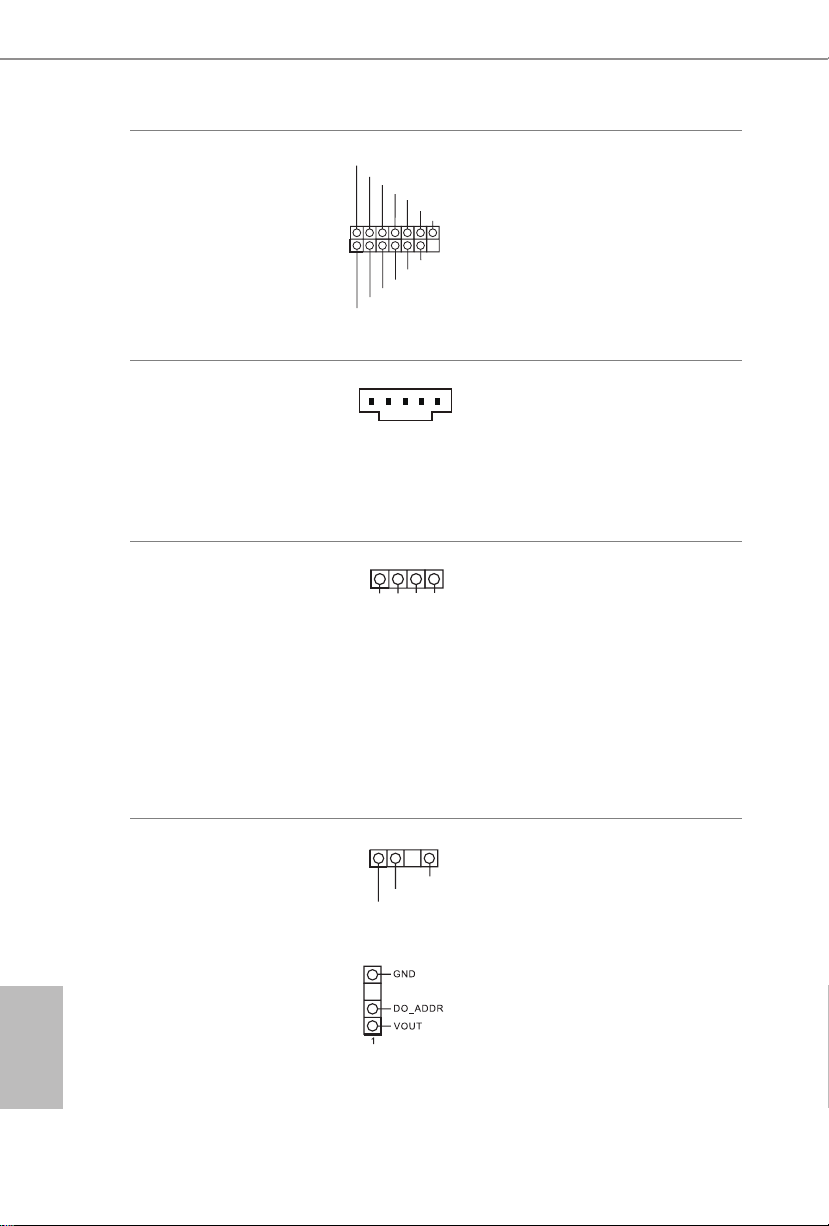

28 5-pin underbolt AIC Connector (TB1)

29 Chassis/Water Pump Fan Connector (CHA_FAN5/WP)

30 RGB LED Header (RGB_LED1)

31 Addressable LED Header (ADDR_LED1)

32 Front Panel Audio Header (HD_AUDIO1)

33 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

2

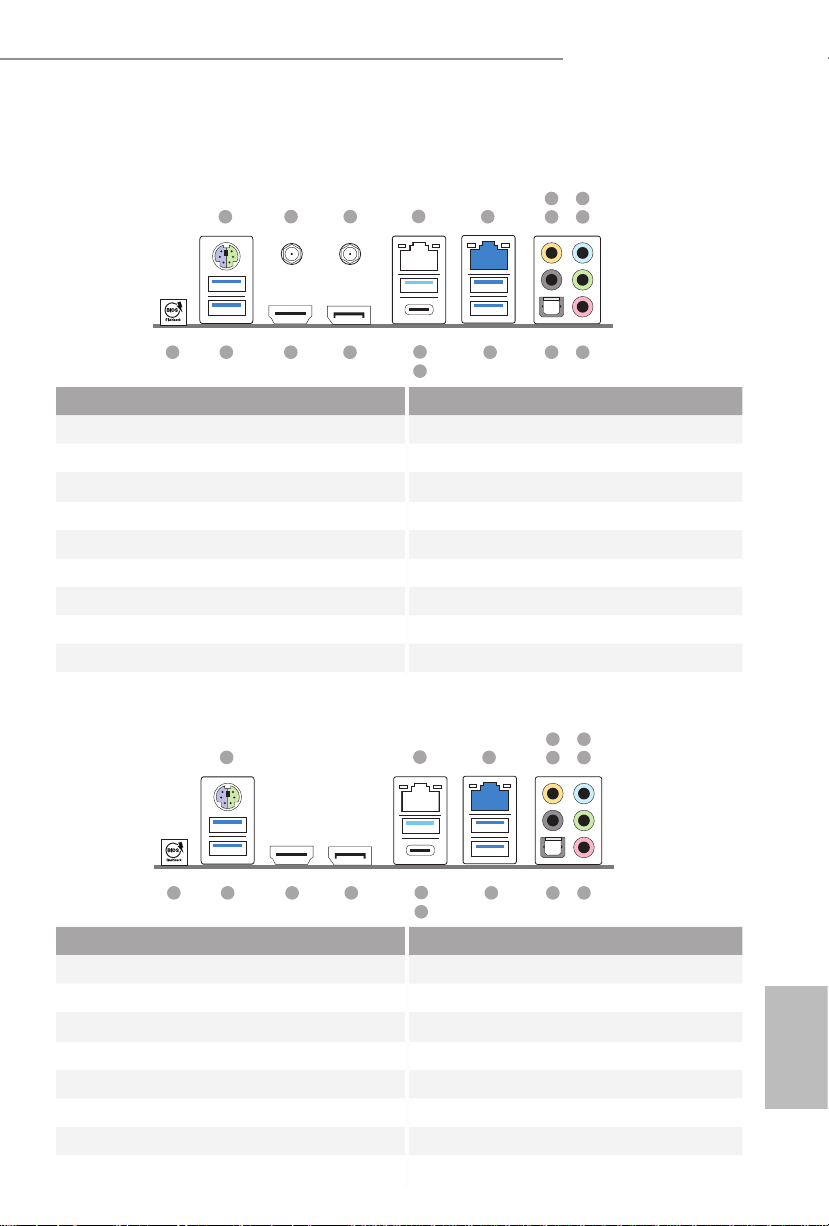

I/O Panel

Z690 Extreme WiFi 6E:

1

2 2

Z690 Extreme WiFi 6E
Z690 Extreme

3

4

7

658

16

17

14 11

12

13

91015

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 10 Optical SPDIF Out Port

2 Antenna Ports 11 USB 3.2 Gen1 Ports (USB3_3_4)

3 LAN RJ-45 Port (Intel® I219V)* 12 USB 3.2 Gen2 Type-A Port (USB31_TA_1)

4 2.5G LAN RJ-45 Port (Dragon RTL8125BG)** 13 USB 3.2 Gen2 Type-C Port (USB31_TC_1)

5 Central / Bass (Orange) 14 DisplayPort 1.4

6 Rear Speaker (Black) 15 HDMI Port

7 Line In (Light Blue) 16 USB 3.2 Gen1 Ports (USB3_1_2)****

8 Front Speaker (Lime)*** 17 BIOS Flashback Button

9 Microphone (Pink)

Z690 Extreme:

1

15

16

13 10

2

11

12

3

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 9 Optical SPDIF Out Port

2 LAN RJ-45 Port (Intel® I219V)* 10 USB 3.2 Gen1 Ports (USB3_3_4)

3 2.5G LAN RJ-45 Port (Dragon RTL8125BG)** 11 USB 3.2 Gen2 Type-A Port (USB31_TA_1)

4 Central / Bass (Orange) 12 USB 3.2 Gen2 Type-C Port (USB31_TC_1)

5 Rear Speaker (Black) 13 DisplayPort 1.4

6 Line In (Light Blue) 14 HDMI Port

7 Front Speaker (Lime)*** 15 USB 3.2 Gen1 Ports (USB3_1_2)****

8 Microphone (Pink) 16 BIOS Flashback Button

6

547

8914

English

3

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection

On Link Green 2.5Gbps connection

English

4

*** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection d etails in accordance w ith the type of speaker you use.

Audio Output

Channels

Front Speaker Rear Speaker Central / Bass Line In

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

**** Ultra USB Power is supported on USB3_1_2 ports. ACPI wake-up function is not supported on USB3_ 1_2
ports.

Z690 Extreme WiFi 6E
Z690 Extreme

802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antenna (For Z690 Extreme WiFi 6E)

802.11ax Wi-Fi 6E + BT Module

is motherboard comes with an exclusive 802.11 a/b/g/n/ax Wi-Fi 6E + BT module
that oers support for 802.11 a/b/g/n/ax Wi-Fi 6E connectivity standards and
Bluetooth. Wi-Fi 6E + BT module is an easy-to-use wireless local area network
(WLAN) adapter to support Wi-Fi 6E + BT. Bluetooth standard features Smart
Ready technology that adds a whole new class of functionality into the mobile
devices. BT also includes Low Energy Technology and ensures extraordinary low
power consumption for PCs.

* e transmission speed may vary according to the environment.

* Wi-Fi 6E (6GHz band) will be supported by Microso® Windows® 11. e
availability will depend on the dierent regulation status of each country and
region. It will be activated (for supported countries) through Windows Update and
soware updates once available.

* A 6GHz compatible router is required for 6E functionality.

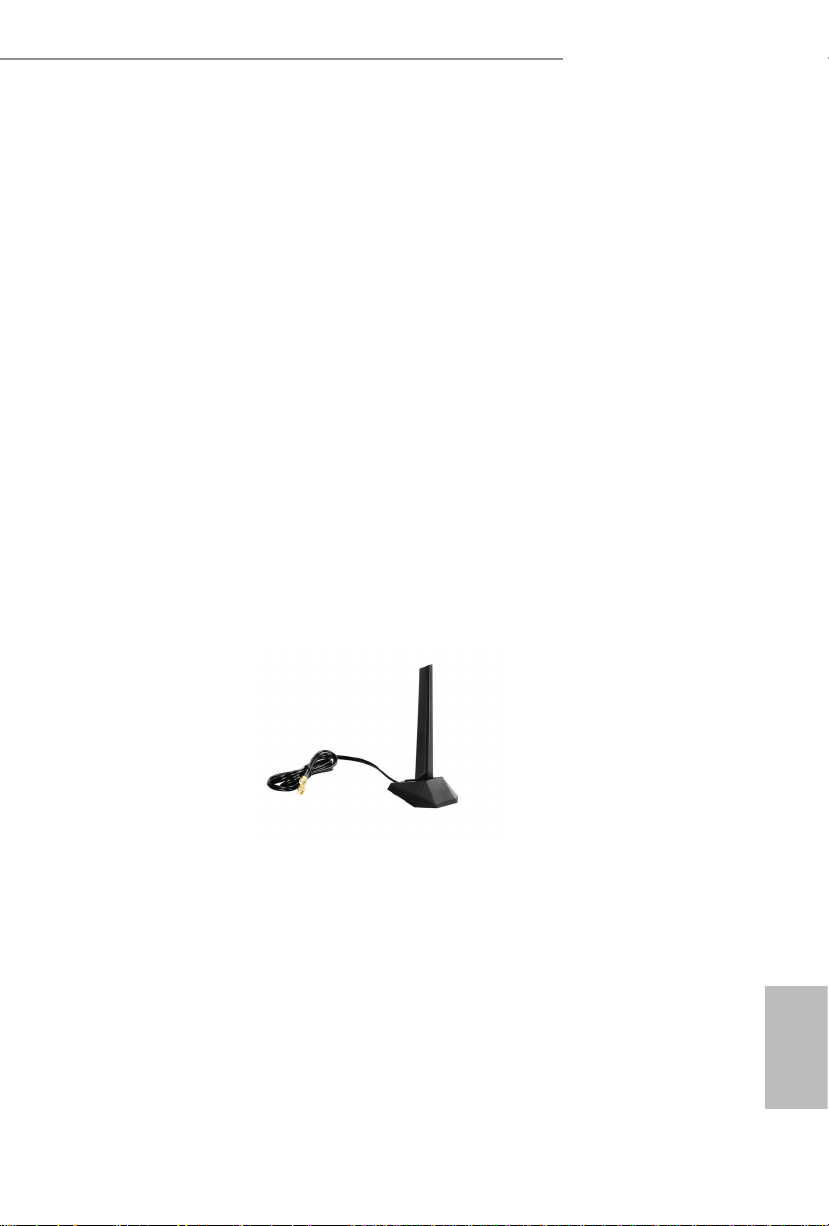

ASRock WiFi 2.4/5/6 GHz Antenna

English

5

Graphics Card Holder

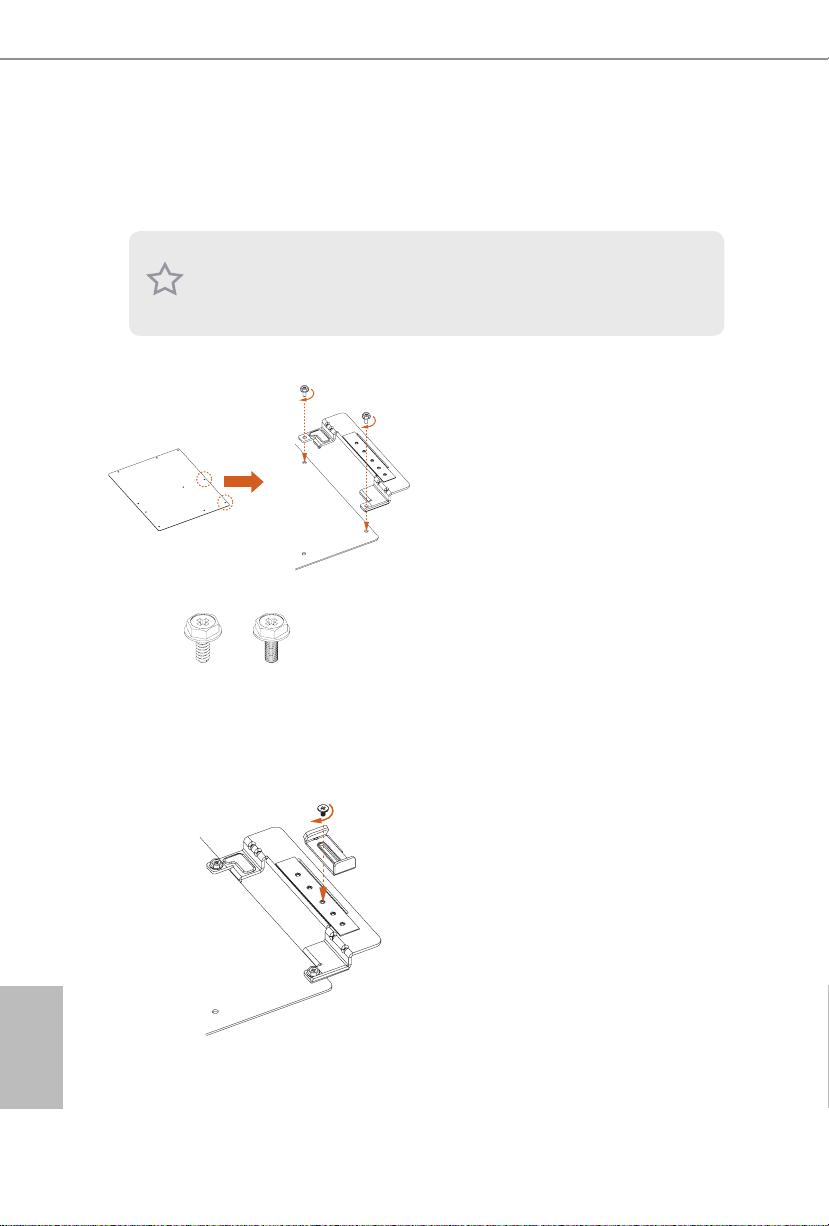

Installing the Graphics Card Holder

Before in stalling the Graphics Card Holder , please make sure that your mothe rboard
is prope rly installed into a PC case.

Type A Type B

Step 1

Secure the Graphics Card Holder to the chassis
with 2 screws.

*ere are two types of screws in the package.
Please use the appropriate type based on the
standos on the motherboard tray of your PC
case.

English

6

Step 2

Aer installing your graphics card, place the
bracket in the proper position to make sure that
it holds your graphics card in place.
en secure the bracket to the Graphics Card
Holder with 1 screw.

Z690 Extreme WiFi 6E
Z690 Extreme

Chapter 1 Introduction

ank you for purchasing ASRock Z690 Extreme WiFi 6E / Z690 Extreme
motherboard, a reliable motherboard produced under ASRock’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock’s commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website http://www.a srock.com.

1.1 Package Contents

ASRock Z690 Extreme WiFi 6E / Z690 Extreme Motherboard (ATX Form Factor)

•

ASRock Z690 Extreme WiFi 6E / Z690 Extreme Quick Installation Guide

•

ASRock Z690 Extreme WiFi 6E / Z690 Extreme Support CD

•

4 x Serial ATA (SATA) Data Cables (Optional)

•

1 x ASRock WiFi 2.4/5/6 GHz Antenna (Optional) (For Z690 Extreme WiFi 6E)

•

3 x Screws for M.2 Sockets (Optional) (For Z690 Extreme WiFi 6E)

•

4 x Screws for M.2 Sockets (Optional) (For Z690 Extreme)

•

2 x Standos for M.2 Sockets (Optional)

•

1 x Graphics Card Holder (Optional)

•

English

7

1.2 Specications

Platform

CPU

Chipset

Memory

* Supports DDR4 3200 natively.
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)

ATX Form Factor

•

2oz Copper PCB

•

Supports 12th Gen Intel® CoreTM Processors (LGA1700)

•

Digi Power design

•

13 Power Phase design

•

Supports Intel® Hybrid Technology

•

Supports Intel® Turbo Boost Max 3.0 Technology

•

Intel® Z690

•

Dual Channel DDR4 Memory Technology

•

4 x DDR4 DIMM Slots

•

Supports DDR4 non-ECC, un-buered memory up to

•

5333+(OC)*

Supports ECC UDIMM memory modules (operate in non-

•

ECC mode)
Max. capacity of system memory: 128GB

•

Supports Intel® Extreme Memory Prole (XMP) 2.0

•

15μ Gold Contact in DIMM Slots

•

English

8

Expansion
Slot

Graphics

3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16

•

(PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE2); triple at
Gen5x16 (PCIE1) / Gen4x4 (PCIE2) / Gen3x4 (PCIE4))*

* Supports NVMe SSD as boot disks

1 x PCIe Gen3x1 Slot

•

Supports AMD Quad CrossFireXTM and CrossFireX

•

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe

•

WiFi module and Intel® CNVi (Integrated WiFi/BT)
15μ Gold Contact in VGA PCIe Slot (PCIE1)

•

Intel® UHD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU
integrated.
Intel® Xe Graphics Architecture (Gen 12)

•

TM

Audio

Z690 Extreme WiFi 6E
Z690 Extreme

Dual graphics output: support HDMI and DisplayPort 1.4

•

ports by independent display controllers
Supports HDMI 2.1 TMDS Compatible with max. resolution

•

up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with DSC (compressed) max.

•

resolution up to 8K (8192x4320) @ 60Hz / 5K (5120x3200) @
120Hz
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and

•

DisplayPort 1.4 Ports

7.1 CH HD Audio with Content Protection (Realtek ALC1220

•

Audio Codec)
Premium Blu-ray Audio support

•

Supports Surge Protection

•

Pure Power-In

•

Direct Drive Technology

•

PCB Isolate Shielding

•

Impedance Sensing on Rear Out port

•

Individual PCB Layers for R/L Audio Channel

•

Gold Audio Jacks

•

15μ Gold Audio Connector

•

Nahimic Audio

•

LAN

1 x 2.5 Gigabit LAN 10/100/1000/250 0 Mb/s (Dragon RTL-

8125BG)

Supports Dragon 2.5G LAN Soware

•

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and
Streaming Modes

- User Customized Priority Control
Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

English

9

Wireless
LAN (For
Z690 Ex­treme WiFi
6E)

Rear Panel
I/O

802.11ax Wi-Fi 6E Module

•

Supports IEEE 802.11a/b/g/n/ax

•

Supports Dual-Band 2x2 160MHz with extended 6GHz

•

band* support
* Wi-Fi 6E (6GHz band) will be supported by Microso® Win­dows® 11. e availability will depend on the dierent regula­tion status of each country and region. It will be activated (for
supported countries) through Windows Update and soware
updates once available.
* A 6GHz compatible router is required for 6E functionality.

2 antennas to support 2 (Transmit) x 2 (Receive) diversity

•

technology

Supports Bluetooth + High speed class II

•

Supports MU-MIMO

•

2 x Antenna Ports (For Z690 Extreme WiFi 6E)

•

2 x Antenna Mounting Points (For Z690 Extreme)

•

1 x PS/2 Mouse/Keyboard Port

•

1 x HDMI Port

•

1 x DisplayPort 1.4

•

1 x Optical SPDIF Out Port

•

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports

•

ESD Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports

•

ESD Protection)

4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

* Ultra USB Power is supported on USB3_1_2 ports.
* ACPI wake-up function is not supported on USB3_1_2 ports.

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED

•

LED)

1 x BIOS Flashback Button

•

HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone (Gold Audio Jacks)

English

10

Storage

8 x SATA3 6.0 Gb/s Connectors*

•

* If M2_2 is occupied by a SATA-type M.2 device, SATA3_7 will
be disabled.

1 x Hyper M.2 Socket (M2_1, Key M), supports type

•

2260/2280 PCIe Gen4x4 (64 Gb/s) mode**

RAID

Connector

Z690 Extreme WiFi 6E
Z690 Extreme

1 x Ultra M.2 Socket (M2_2, Key M), supports type

•

2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32
Gb/s) modes**
1 x Hyper M.2 Socket (M2_3, Key M), supports type

•

2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode**
** Supports Intel® OptaneTM Technology
** Supports Intel® Volume Management Device (VMD)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA

•

storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe

•

storage devices

1 x SPI TPM Header

•

1 x Power LED and Speaker Header

•

1 x RGB LED Header

•

* Supports in total up to 12V/3A, 36W LED Strip

3 x Addressable LED Headers

•

* Support in total up to 5V/3A, 15W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.

5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

•

Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if
3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector (Hi-Density Power Con-

•

nector)

2 x 8 pin 12V Power Connectors (Hi-Density Power Connec-

•

tor)

1 x Front Panel Audio Connector (15μ Gold Audio Connec-

•

tor)

English

11

BIOS
Feature

Hardware
Monitor

1 x underbolt AIC Connector (5-pin) (Supports ASRock

•

underbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

•

(ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

•

(Supports ESD Protection)

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V

•

PROC, +1.8V PROC, +0.82V PCH , +1.05V PCH Voltage
Multi-adjustment

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water

•

Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/

•

Water Pump Fans
Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX,

•

+1.05V PROC, FIVR_SA_LOAD, +0.82V PCH, +12V, +5V,
+3.3V

English

12

Microso® Windows® 11 / 10 64-bit

OS

Certica­tions

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tool s. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

CEC Tier II ready

•

Z690 Extreme WiFi 6E
Z690 Extreme

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

13

English

2.1 Installing the CPU

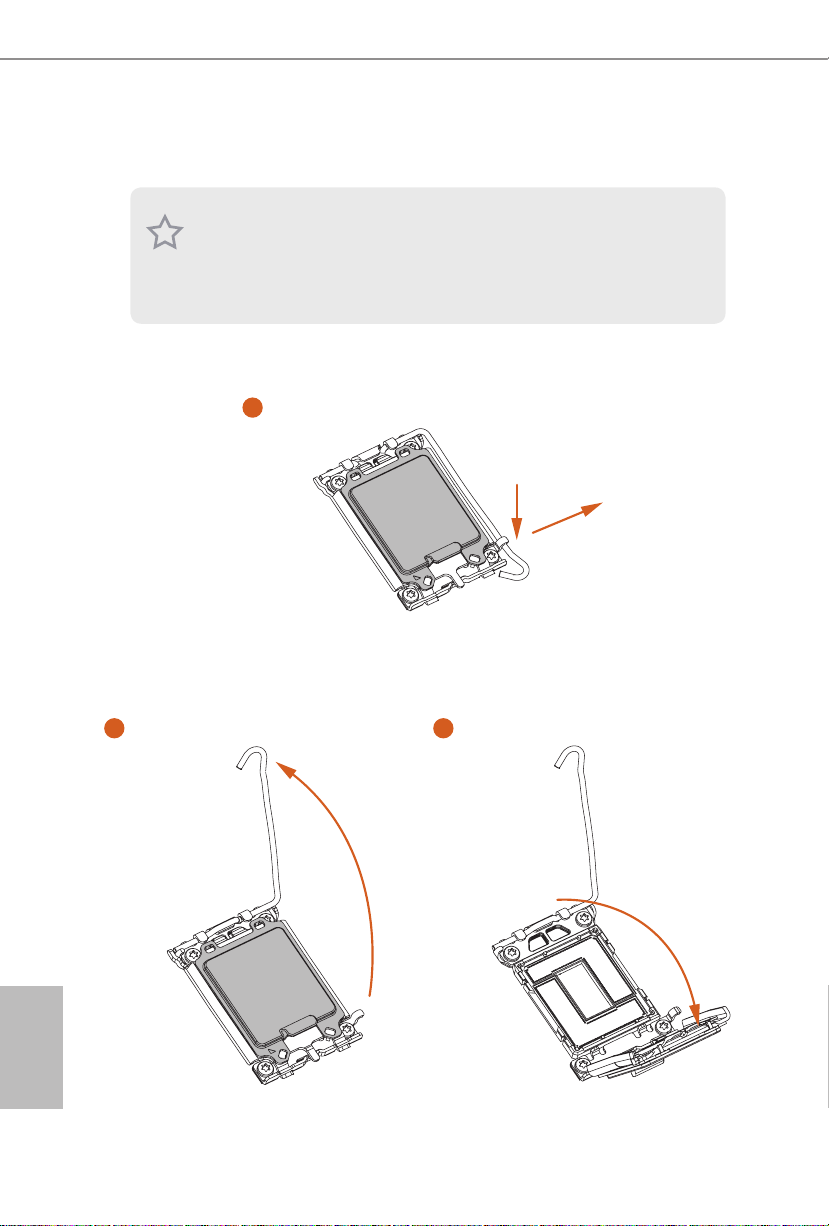

1. Before you insert the 1700-Pin CPU into the socket, please check if the P nP cap
is on the socket, if the CPU sur face is unclean, or if there are any b ent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Other wise, the CPU will be seriously d amaged.

2. Unplug all power cables be fore installing the CPU.

1

A

B

English

14

2 3

Z690 Extreme WiFi 6E
Z690 Extreme

4

76

5

15

English

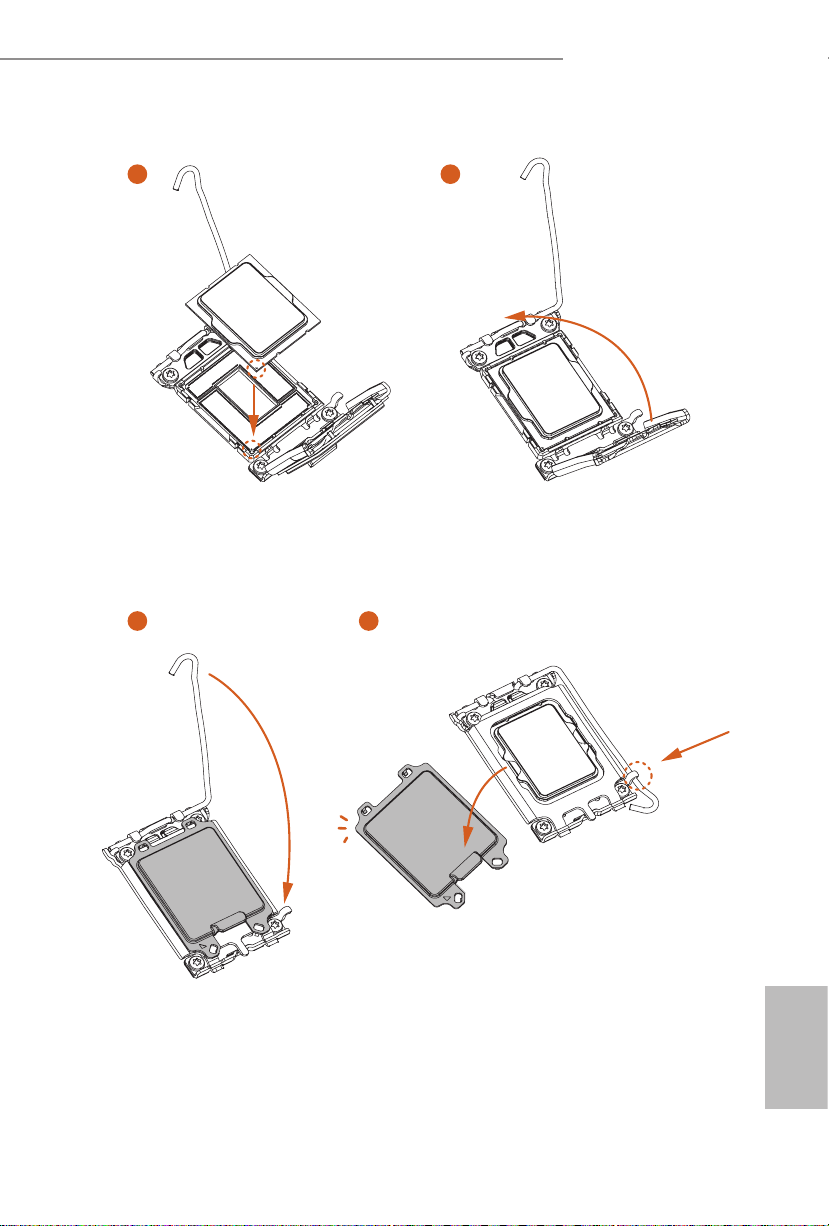

Please save and replace the cover if the processor i s removed. e cover must be
placed if you wish to return the motherboard for aer service.

English

16

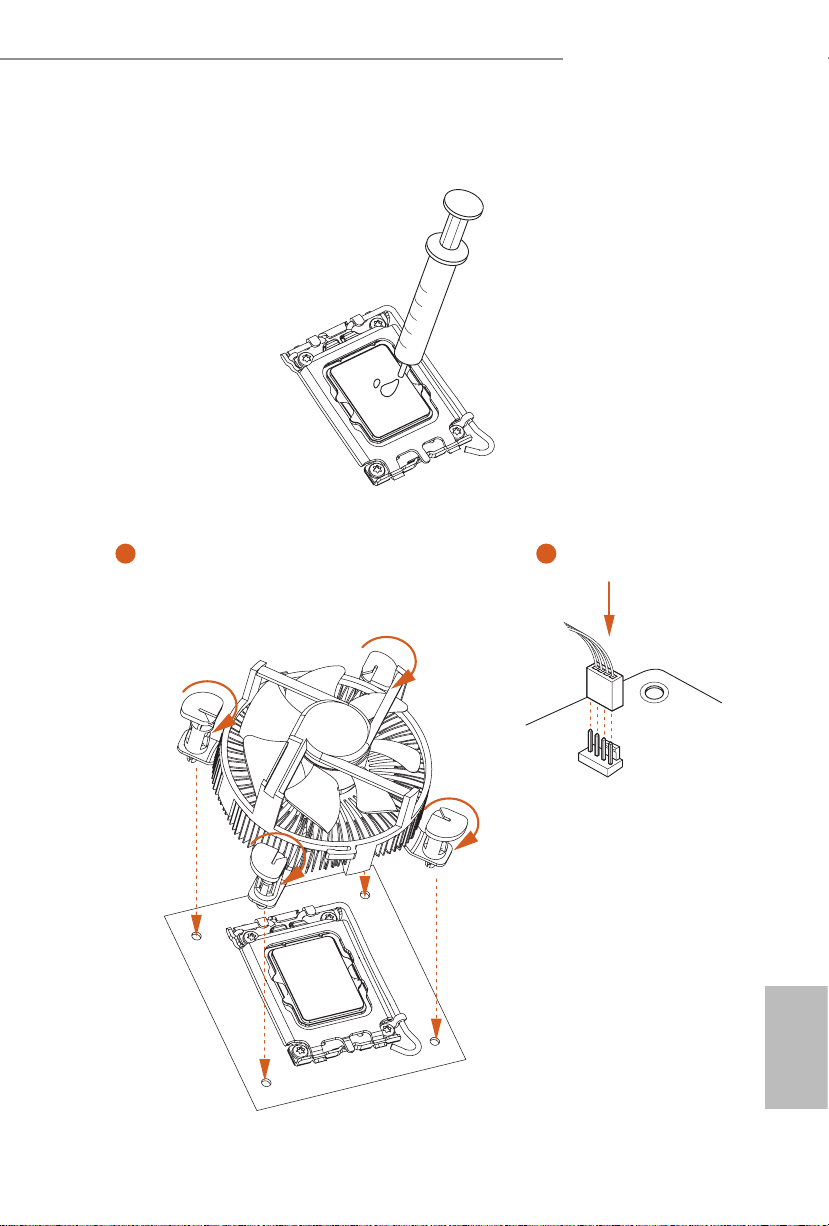

2.2 Installing the CPU Fan and Heatsink

1 2

Z690 Extreme WiFi 6E
Z690 Extreme

CPU_FAN

English

17

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memor y Technology with only one or three
memory module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Conguration

Priority DDR4_ A1 DDR4_ A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated Populated Populated

e DIMM only ts in one correct orientation. It will cause permanent damage to
the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect
orientation.

English

18

Z690 Extreme WiFi 6E
Z690 Extreme

1

2

3

English

19

2.4 Expansion Slots (PCIe Slots)

ere are 4 PCIe slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and make necessary hardware settings for the card before you start
the installation.

PCIe slots:
PCIE1 (PCIe 5.0 x16 slot) is used for PCIe x16 lane width graphics cards.
PCIE2 (PCIe 4.0 x16 slot) is used for PCIe x4 lane width graphics cards.
PCIE3 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCIe x4 lane width graphics cards.

PCIe Slot Congurations

PCIE1 PCIE2 PCIE4

Single Graphics Card Gen5x16 N/A N/A

English

20

Two Graphics Cards in

CrossFireXTM Mode

Two Graphics Cards in

CrossFireXTM Mode

For a better ther mal environment, please connect a chassi s fan to the motherboard’s
chassis fan connector (CHA_ FAN1~5/WP) when using multiple graphics cards.

Gen5x16 Gen4x4 N/A

Gen5x16 N/A Gen3x4

Z690 Extreme WiFi 6E
Z690 Extreme

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is

“Open”.

Clear CMOS Jumper
(CLRMOS1)
(see p.1, No. 20)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short the pins on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed. Please remember toremove the jumper cap aer clearing the CMOS.

2-pin Jumper

21

English

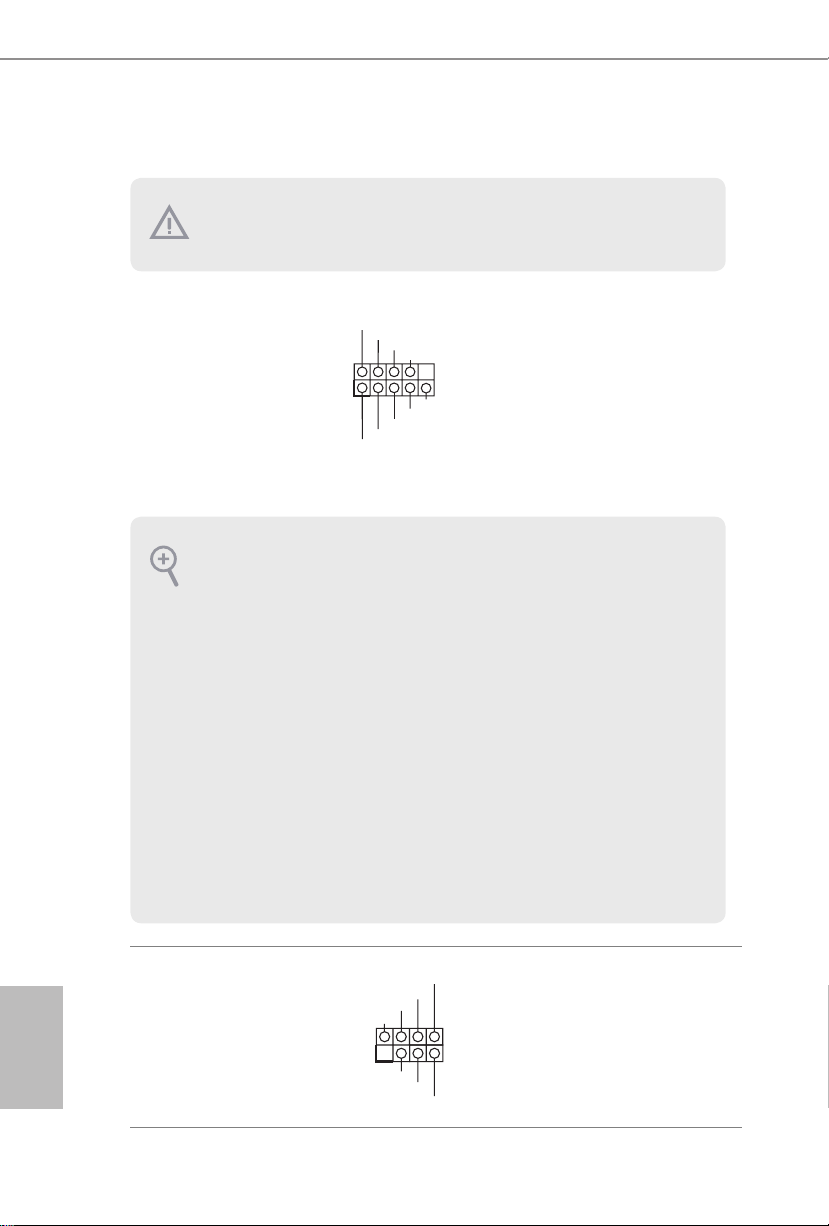

2.6 Onboard Headers and Connectors

PLE D-

SPE AKE R

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these headers and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.

System Panel Header
(9-pin PANEL1)
(see p.1, No. 21)

PWRBTN (Power Button):

Connec t to the power button on the chassi s front panel. You may congure the way
to turn o your system using the powe r button.

RESET (Reset Button):

Connec t to the reset button on the chassi s front panel. Press the reset button to
restar t the computer if the computer freezes and fails to perform a nor mal restart.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel. e LED i s on when
the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep
state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive activity LED on the chassis front panel. e LED is on
when the hard drive i s reading or writing data.

e front panel design may dier by chassis. A front panel module mainly consists
of power button, reset button, power LED, hard drive activity LED, speaker and etc.
When connecting your chassis front panel module to this head er, make sure the wire
assig nments and the pin assig nments are matched correctly.

1

PLE D+

PLE D-

HDL ED-

HDL ED+

PWR BTN #

GND

RES ET#

GND

GND

Connect the power button,
reset button and system
status indicator on the
chassis to this header
according to the pin
assignments below. Note the
positive and negative pins
before connecting the cables.

English

22

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.1, No. 25)

DUM MY
+5V

1

PLE D+

DUM MY

PLE D+

Please connect the
chassis power LED and
the chassis speaker to this
header.

Z690 Extreme WiFi 6E

IntA _P_D +

Z690 Extreme

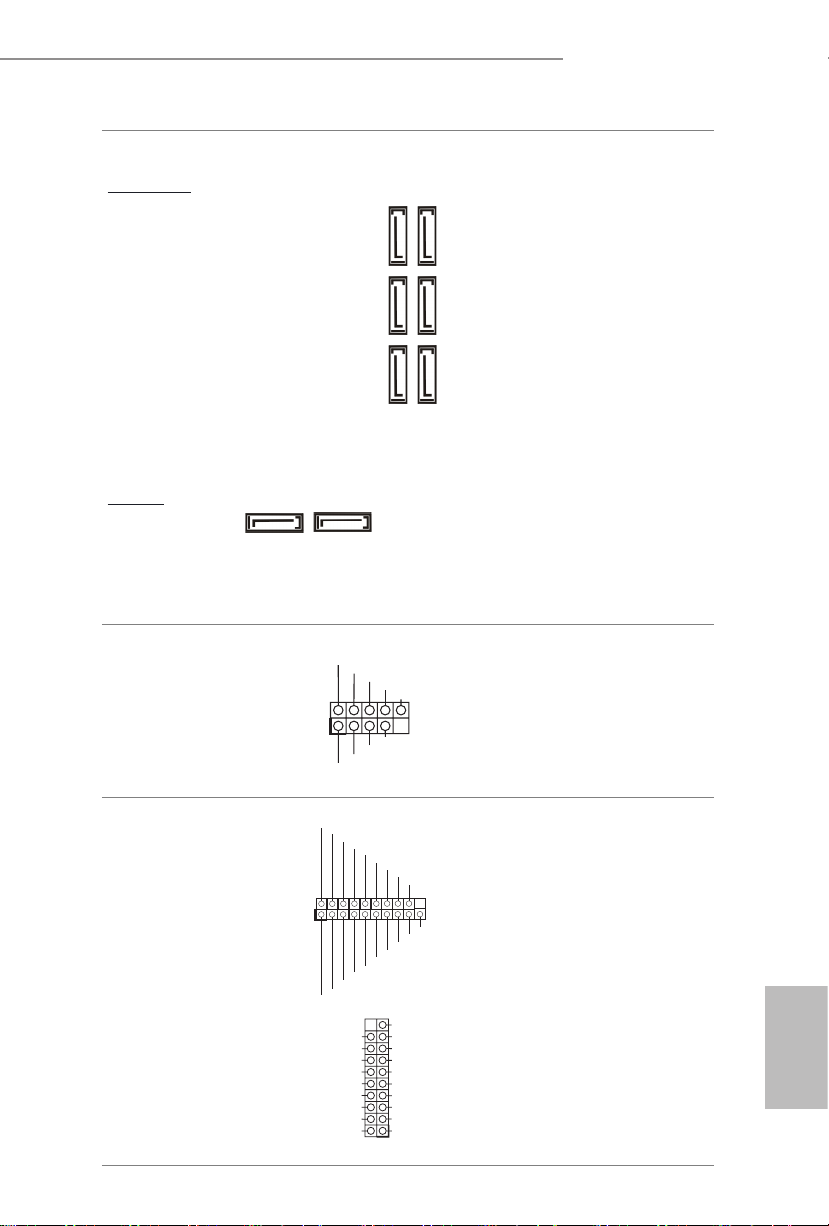

Serial ATA3 Connectors
Right Angle:
(SATA3_0:
see p.1, No. 16) (Upper)
(SATA3_1:
see p.1, No. 16) (Lower)
(SATA3_2:
see p.1, No. 15) (Upper)
(SATA3_3:
see p.1, No. 15) (Lower)
(SATA3_4:
see p.1, No. 14) (Upper)
(SATA3_5:
see p.1, No. 14) (Lower)
Vertical:

SATA3_7

(SATA3_6:
see p.1, No. 23)
(SATA3_7:
see p.1, No. 24)

USB 2.0 Headers
(9-pin USB_1_2)
(see p.1, No. 26)
(9-pin USB_3_4)
(see p.1, No. 27)

SATA3_6

USB _PW R

P-

1

P-

USB _PW R

P+

P+

SATA3_4

SATA3_2

SATA3_0

GND

GND

DUM MY

ese eight SATA3
connectors support SATA
data cables for internal
storage devices with up to 6.0
Gb/s data transfer rate.

SATA3_5

* If M2_2 is occupied by
a SATA-type M.2 device,

SATA3_3

SATA3_7 will be disabled.

SATA3_1

ere are two headers on
this motherboard. Each USB

2.0 header can support two
ports.

USB 3.2 Gen1 Headers
(19-pin USB3_5_6)
(see p.1, No. 22)

(19-pin USB3_7_8)
(see p.1, No. 12)

IntA _P_D -

GND

1

IntA _P_D -

IntA _P_D +

ID

Vbus

IntA _PA_S SRX-

IntA _PA_S SRX+

GND

IntA _PA_S STX-

IntA _PA_S STX+

GND

IntA _PA_D -

IntA _PA_D +

IntA _P_S STX+

IntA _P_S STX-

GND

IntA _P_S STX-

IntA _P_S STX+

GND

IntA _P_S SRX+

IntA _P_S SRX-

Vbus

IntA _P_S SRX-

IntA _P_S SRX+

GND

VbusVbus

IntA _PB_ SSRX -

IntA _PB_ SSRX +

GND

IntA _PB_ SSTX -

IntA _PB_ SSTX +

GND

IntA _PB_ D-

IntA _PB_ D+

Dumm y

1

ere are two headers on
this motherboard. Each USB

3.2 Gen1 header can support
two ports.

Vbus

English

23

Front Panel Type C USB

3.2 Gen2x2 Header
(20-pin F_USB32_TC_1)
(see p.1, No. 11)

USB Type-C Cable

ere is one Front Panel Type
C USB 3.2 Gen2x2 Header
on this motherboard. is
header is used for connecting
a USB 3.2 Gen2x2 module
for additional USB 3.2
Gen2x2 ports.

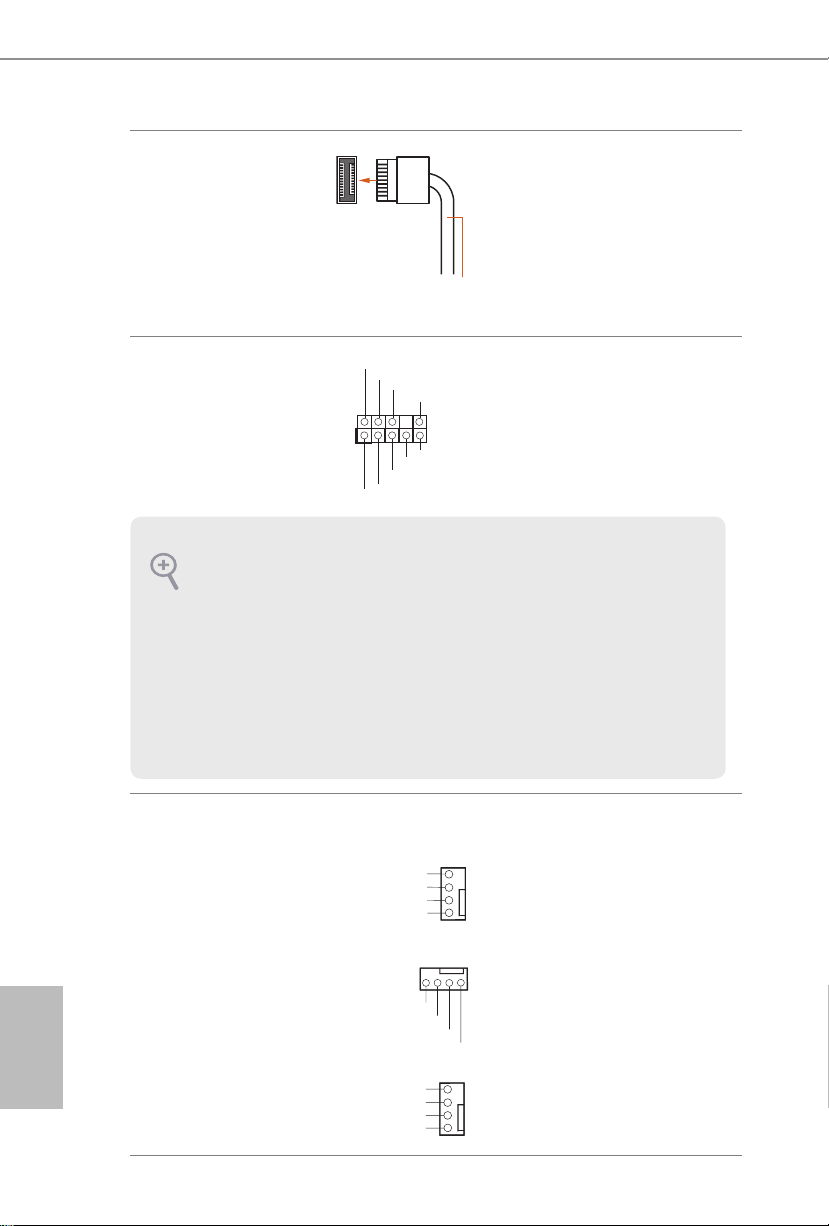

Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 32)

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio heade r by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adju st “Recording Volume”.

Chassis/Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.1, No. 33)
(4-pin CHA_FAN2/WP)
(see p.1, No. 19)

GND

PRE SEN CE#

MIC _RE T

1

J_S ENS E

OUT 2_R

MIC 2_R

MIC 2_L

FAN _SP EE D_C ONT RO L

CHA _FA N_ SPE ED

FAN _VO LT AGE

GND

OUT _RE T

OUT 2_L

4 3 2 1

is header is for connecting
audio devices to the front
audio panel.

is motherboard provides
ve 4-Pin water cooling
chassis fan connectors. If

4
3

you plan to connect a 3-Pin

2
1

chassis water cooler fan,
please connect it to Pin 1-3.

English

24

(4-pin CHA_FAN3/WP)
(see p.1, No. 6)

(4-pin CHA_FAN4/WP)
(see p.1, No. 13)

FAN _SP EED _CO NTR OL

CHA _FA N_S PEE D

FAN _VO LTA GE

FAN _SP EE D_C ONT RO L

CHA _FA N_ SPE ED

FAN _VO LT AGE

GND

GND

4
3
2
1

Z690 Extreme WiFi 6E

8 5

GND

Z690 Extreme

(4-pin CHA_FAN5/WP)
(see p.1, No. 29)

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 3)

CPU/Water Pump Fan
Connector
(4-pin CPU_FAN2/WP)
(see p.1, No. 7)

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 10)

FAN _VO LT AGE

CHA _FA N_S PE ED

FAN _SP EED _C ONT ROL

1 2 3 4

FAN_ SP EED _CO NT ROL

CPU _FA N_S PEE D

+12 V

GND

1 2 3 4

4 3 2 1

GND

FAN_ VOLTA GE

CPU_ F

FAN_S PEED_ CONTR OL

12

1

AN_S PEED

24

13

is motherboard provides
a 4-Pin CPU fan (Quiet Fan)
connector. If you plan to
connect a 3-Pin CPU fan,
please connect it to Pin 1-3.

is motherboard provides
a 4-Pin water cooling CPU
fan connector. If you plan to
connect a 3-Pin CPU water
cooler fan, please connect it
to Pin 1-3.

is motherboard provides
a 24-pin ATX power con­nector. To use a 20-pin ATX
power supply, please plug it
along Pin 1 and Pin 13.

ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.1, No. 1)
(8-pin ATX12V2)
(see p.1, No. 2)

4

is motherboard
provides two 8-pin ATX 12V

1

power connectors. To use
a 4-pin ATX power supply,
please plug it along Pin 1 and
Pin 5.
*Connecting an ATX 12V
8-pin cable to ATX12V2 is
optional.

*Warning: Please make

sure that the power cable

connected is for the CPU

English

and not the graphics card.

Do not plug the PCIe power

cable to this

connector.

25

SPI TPM Header

SPI_ DQ3

(13-pin SPI_TPM_J1)
(see p.1, No. 17)

1

SPI_ PWR

SPI_ CS0

SPI_ DQ2

Dumm y

CLK

RSMR ST#

SPI_ MIS O

SPI_ MOS I

RST#

TPM_ PIR Q

SPI_ TPM _CS#

GND

is connector supports SPI
Trusted Platform Module (TPM)
system, which can securely store
keys, digital certicates, passwords,
and data. A TPM system also helps
enhance network security, protects
digital identities, and ensures
platform integrity.

English

underbolt AIC
Connector
(5-pin TB1)
(see p.1, No. 28)

RGB LED Header
(4-pin RGB_LED1)
(see p.1, No. 30)

Addressable LED
Headers
(3-pin ADDR_LED1)
(see p.1, No. 31)

(3-pin ADDR_LED2)
(see p.1, No. 9)
(3-pin ADDR_LED3)
(see p.1, No. 8)

1

12V G R B

1

DO_ ADD R

VOU T

GND

Please connect a underbolt™ add­in card (AIC) to the underbolt
AIC connector via the GPIO cable.
*Please install the underbolt™
AIC card to PCIE4 (default
slot).

is RGB header is used to connect
RGB LED extension cable which
allow users to choose from
various LED lighting eects.

Caution: Never install the

RGB LED cable in the wrong

orientation; otherwise, the cable

may be damaged.

*Please refer to page 41 for further
instructions on this header.

ese headers are used to connect
Addressable

LED extension cables
which allow users to choose from
various LED lighting
eects.

Caution: Never install the Ad-

dressable LED cable in the wrong

orientation; otherwise, the cable

may be damaged.

*Please refer to page 42 for
further instructions on this header.

26
