Asrock X570 Extreme4 WiFi ax Quick Installation Guide

Version 1.0
Published June 2019
Copyright©2019 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;
7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &
DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,
DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.
© DTS, Inc., All Rights Reserved.

CE Warning

is device complies with directive 2014/53/EU issued by the Commision of the European
Community.

is equipment complies with EU radiation exposure limits set forth for an uncontrolled
environment.
is equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.

Operations in the 5.15-5.35GHz band are restricted to indoor usage only.

Radio transmit power per transceiver type

Function Frequency Maximum Output Power (EIRP)

2400-2483.5 MHz 18.5 + / -1.5 dbm

5150-5250 MHz 21.5 + / -1.5 dbm

WiFi

Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm

5250-5350 MHz

5470-5725 MHz

18.5 + / -1.5 dbm (no TPC)

21.5 + / -1.5 dbm (TPC)

25.5 + / -1.5 dbm (no TPC)

28.5 + / -1.5 dbm (TPC)

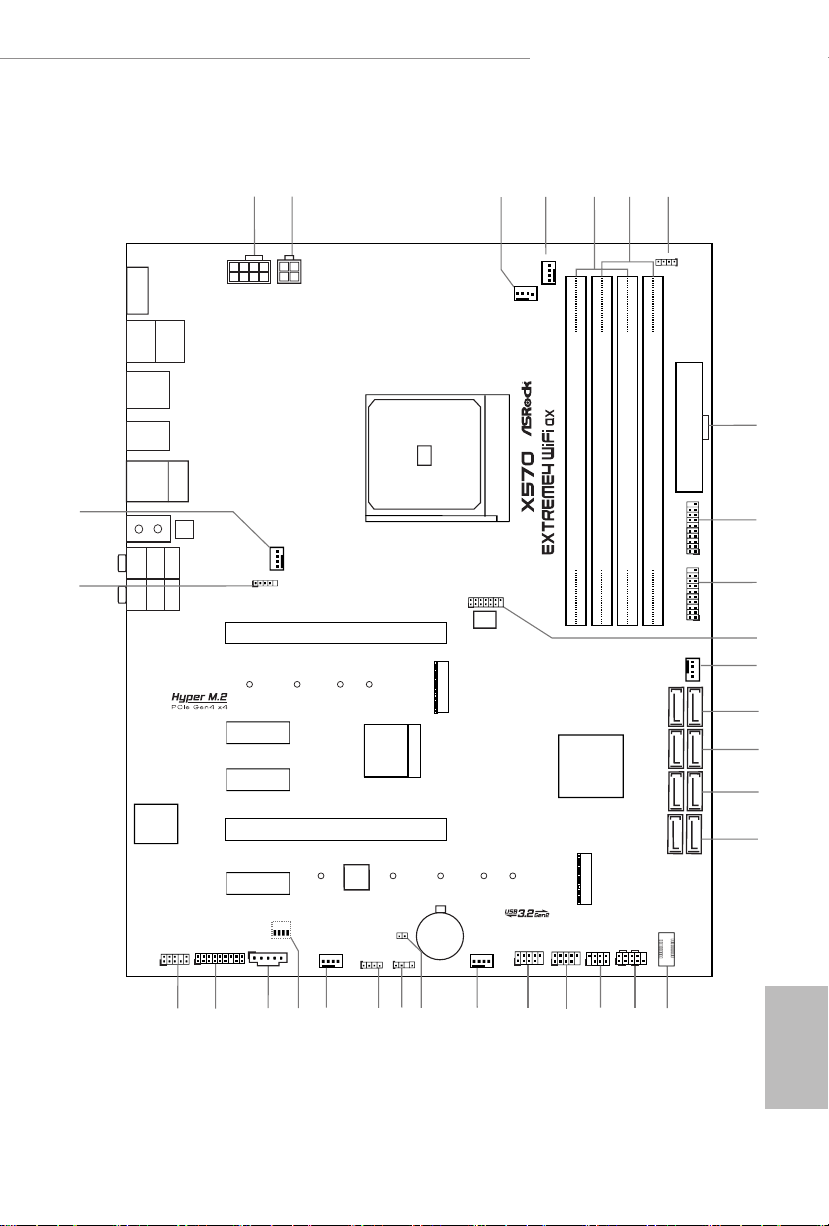

Motherboard Layout

DDR 4_A2 (6 4 bit, 28 8-pin m odule )

DDR 4_A1 (6 4 bit, 28 8-pin m odule )

DDR 4_B2 (6 4 bit, 28 8-pin m odule )

DDR 4_B1 (6 4 bit, 28 8-pin m odule )

ATXP WR 1

PCIE1

Top:

Central/Bass

Center :

REAR SPK

Top:

LINE IN

Center :

FRONT

Bottom :

Optica l

SPDIF

Bottom :

MIC IN

PCIE4

HDLED RESET

PLED PWRBTN

PANEL1

1

1

SPK_PLED1

1

HD_AUDIO1

SATA3_1_2

SATA3_3_4

SATA3_7_8

8

10

11

12

13

14

SATA3_5_6

15

16

USB_1_2

1

21

USB_3_4

1

20

30

1

6

5

29

17

USB 3.2 G en1

T: USB1

B: USB2

PS2

Keyb oard

/Mou se

CMOS

Battery

24

23

CPU_FAN1

9

1

TPMS1

USB 3.2 Gen2
T: USB31_TA_1
B: USB31_TC_1

M2_2

M2_1

CHA_FAN1/WP

CPU_FAN2/WP

4

3

USB3_7 _8

1

LAN

18

RoHS

PCIE5

ATX12V1

1

USB_5

AMD

Premium

X570

SOCKETAM4

CHA_FAN3/WP

25 22

ADDR_LED1

F_USB31_TC_1

PCIE3

HDM I1

2

ATX12V2

28

BIOS
ROM

USB 3.2 Gen1
T: USB5
B: USB6

Top:
RJ-45

T B1

1

RGB_HEADER1

1

1

AMD_FAN_LED1

1

1

19

USB3_9 _10

1

7

CHA_FAN4/WP

CHA_FAN2/WP

26

27

1

SPI_TPM_J1

PCIE2

M2_ WIFI_ 1

31

32

USB 3.2 Gen1
T: USB3
B: USB4

CPU

DRAM

VGA

BOOT

Super

I/O

CLRCMOS1

WiFi-802.11ax

Module

X570 Extreme4 WiFi ax

Purity

Sound 4

TM

English

1

English

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 4 pin 12V Power Connector (ATX12V2)

3 CPU Fan Connector (CPU_FAN1)

4 CPU / Waterpump Fan Connector (CPU_FAN2/WP)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

6 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

7 AMD FAN LED Header (AMD_FAN_LED1)

8 ATX Power Connector (ATXPWR1)

9 USB 3.2 Gen1 Header (USB3_9_10)

10 USB 3.2 Gen1 Header (USB3_7_8)

11 SPI TPM Header (SPI_TPM_J1)

12 Chassis / Waterpump Fan Connector (CHA_FAN4/WP)

13 SATA3 Connectors (SATA3_1_2)

14 SATA3 Connectors (SATA3_ 3_4)

15 SATA3 Connectors (SATA3_5_6)

16 SATA3 Connectors (SATA3_7_8)

17 Front Panel Type C USB 3.2 Gen1 Header (F_USB31_TC_1)

18 System Panel Header (PANEL1)

19 Power LED and Speaker Header (SPK_PLED1)

20 USB 2.0 Header (USB_3_4)

21 USB 2.0 Header (USB_1_2)

22 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

23 Clear CMOS Jumper (CLRCMOS1)

24 Addressable LED Header (ADDR_LED1)

25 RGB LED Header (RGB_HEADER1)

26 Chassis / Waterpump Fan Connector (CHA_FAN2/WP)

27 Post Status Checker (PSC)

28 underbolt AIC Header (TB1)

29 TPM Header (TPMS1)

30 Front Panel Audio Header (HD_AUDIO1)

31 AMD LED Fan USB Header (USB_5)

32 CPU / Waterpump Fan Connector (CHA_FAN1/WP)

2

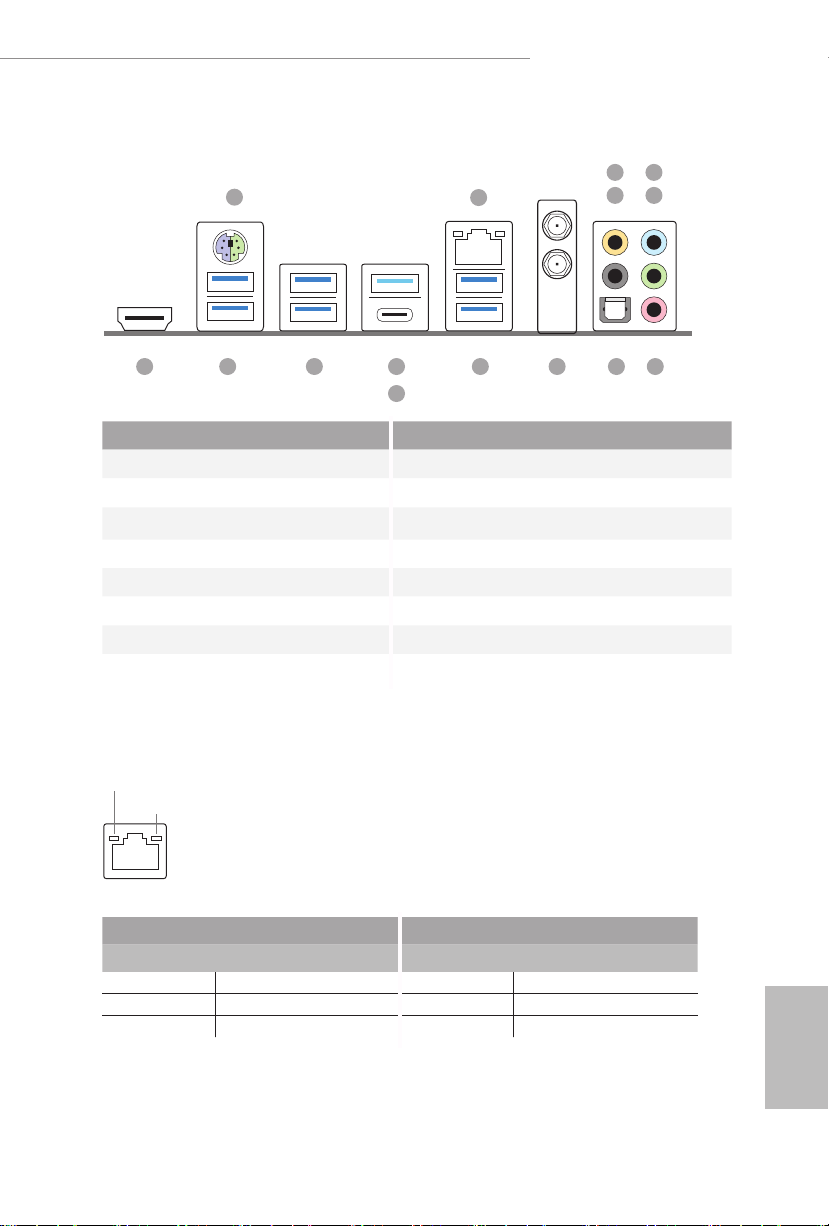

I/O Panel

X570 Extreme4 WiFi ax

5

1

2

436

13 10 9

12

78111415

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 9 Antenna Ports (on I/O Panel Shield)

2 LAN RJ-45 Port* 10 USB 3.2 Gen1 Ports (USB3_56)***

3 Central / Bass (Orange) 11 USB 3.2 Gen2 Type-A Port (USB31_TA_1)

4 Rear Speaker (Black) 12 USB 3.2 Gen2 Type-C Port (USB31_TC_1)

5 Line In (Light Blue) 13 USB 3.2 Gen1 Ports (USB3_34)

6 Front Speaker (Lime)** 14 USB 3.2 Gen1 Ports (USB3_12)

7 Microphone (Pink) 15 HDMI Port

8 Optical SPDIF Out Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

English

3

** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Speaker Jack”. See the table below
for connection d etails in accordance w ith the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

*** ACPI wake-up function is not supported on USB3_ 56 ports.

Line In

(No. 5)

English

4

X570 Extreme4 WiFi ax

Chapter 1 Introduction

ank you for purchasing ASRock X570 Extreme4 WiFi ax motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi­cations of this documentation occur, the updated version will be availabl e on ASRock’s
website w ithout further notice. If you require technical support related to this mother­board, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock
website http://www.asrock.com.

1.1 Package Contents

ASRock X570 Extreme4 WiFi ax Motherboard (ATX Form Factor)

•

ASRock X570 Extreme4 WiFi ax Quick Installation Guide

•

ASRock X570 Extreme4 WiFi ax Support CD

•

4 x Serial ATA (SATA) Data Cables (Optional)

•

1 x ASRock WiFi 2.4/5 GHz Antenna (Optional)

•

2 x Screws for M.2 Socket (Optional)

•

2 x Standos for M.2 Sockets (O ptiona l)

•

English

5

1.2 Specications

Platform

CPU

Chipset

Memory

* For Ryzen Series CPUs (Picasso), ECC is only supported with
PRO CPUs.
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 26 for DDR4 UDIMM maximum
frequency support.

ATX Form Factor

•

2oz Copper PCB

•

Supports AMD AM4 socket Ryzen™ 2000 and 3000 series

•

processors
Intersil Digital PWM

•

10 Power Phase design

•

AMD X570

•

Dual Channel DDR4 Memory Technology

•

4 x DDR4 DIMM Slots

•

AMD Ryzen series CPUs (Matisse) support DDR4 4666+

•

(OC)/4400(OC)/4300(OC)/4266(OC)/4200(OC)/4133(OC)/
3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un­buered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4

•

3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133 ECC
& non-ECC, un-buered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+

•

(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buered
memory*

Max. capacity of system memory: 128GB

•

15μ Gold Contact in DIMM Slots

•

|

English

6

Expansion
Slot

AMD Ryzen series CPUs (Matisse)

2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at

•

x16 (PCIE1) / x4 (PCIE4))*

Graphics

X570 Extreme4 WiFi ax

AMD Ryzen series CPUs (Pinnacle Ridge)

2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at

•

x16 (PCIE1) / x4 (PCIE4))*

AMD Ryzen series CPUs (Picasso)

2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8

•

(PCIE1) / x4 (PCIE4))*

* Supports NVMe SSD as boot disks

3 x PCI Express 4.0 x1 Slots

•

Supports AMD Quad CrossFireXTM and CrossFireX

•

1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax

•

module
15μ Gold Contact in VGA PCIe Slot (PCIE1)

•

Integrated AMD RadeonTM Vega Series Graphics in Ryzen

•

Series APU*

* Actual support may vary by CPU

DirectX 12, Pixel Shader 5.0

•

Shared memory default 2GB. Max Shared memory supports

•

up to 16GB.
* e Max shared memory 16GB requires 32GB system memory
installed.

Supports HDMI 2.0 with max. resolution up to 4K x 2K

•

(4096x2160) @ 30Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant

HDMI monitor is required)

Supports HDR (High Dynamic Range) with HDMI 2.0

•

Supports HDCP 2.2 with HDMI 2.0 Port

•

Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port

•

Supports Microso PlayReady®

•

TM

Audio

7.1 CH HD Audio with Content Protection (Realtek

•

ALC1220 Audio Codec)

Premium Blu-ray Audio support

•

Supports Surge Protection

•

Supports Purity SoundTM 4

•

- Nichicon Fine Gold Series Audio Caps

- 120dB SNR DAC with Dierential Amplier

- NE5532 Premium Headset Amplier for Front Panel
Audio Connector (Supports up to 600 Ohm headsets)

- Pure Power-In

English

7

English

LAN

Wireless
LAN

Rear Panel
I/O

- Direct Drive Technology

- PCB Isolate Shielding

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- 15μ Gold Audio Connector
Supports DTS Connect

•

Gigabit LAN 10/100/1000 Mb/s

•

GigaLAN Intel® I211AT

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

Intel® 802.11ax WiFi Module

•

Supports IEEE 802.11a/b/g/n/ax

•

Supports Dual-Band (2.4/5 GHz)

•

Supports WiFi6 802.11ax (2.4Gbps)

•

2 antennas to support 2 (Transmit) x 2 (Receive) diversity

•

technology
Supports Bluetooth 5.0 + High speed class II

•

Supports MU-MIMO

•

2 x Antenna Ports (on I/O Panel Shield)

•

1 x PS/2 Mouse/Keyboard Port

•

1 x HDMI Port

•

1 x Optical SPDIF Out Port

•

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD

•

Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD

•

Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

* Ultra USB Power is supported on USB3_56 ports.
* ACPI wake-up function is not supported on USB3_56 ports.

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LE D)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone

8

Storage

Connector

X570 Extreme4 WiFi ax

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type

•

2230/2242/2260/2280 M.2 PCI Express module up to
Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with
Pinnacle Ridge and Picasso)*
1 x Hyper M.2 Socket (M2_2), supports M Key type

•

2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module

and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit

1 x TPM Header

•

1 x SPI TPM Header

•

1 x Power LED and Speaker Header

•

1 x AMD Fan LED Header

•

* e AMD Fan LED Header is compatible with a regular RGB
LED stripe.
* e AMD Fan LED Header supports LED strips of maximum
load of 3A (36W) and length up to 2.5M.

1 x RGB LED Header

•

* Supports in total up to 12V/3A, 36W LED Strip

1 x Addressable LED Header

•

* Supports in total up to 5V/3A, 15W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

•

Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_
FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin
fan is in use.

English

9

BIOS
Feature

1 x 24 pin ATX Power Connector (Hi-Density Power

•

Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power

•

Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power

•

Connector)
1 x Front Panel Audio Connector (15μ Gold Audio

•

Conn ector)
1 x AMD LED Fan USB Header

•

1 x underbolt AIC Connector (5-pin) (Supports ASRock

•

underbolt AIC Card only)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD

•

Protection)

AMI UEFI Legal BIOS with GUI support

•

Supports “Plug and Play”

•

ACPI 5.1 compliance wake up events

•

Supports jumperfree

•

SMBIOS 2.3 support

•

CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_

•

CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi­adjustment

English

10

Hardware
Monitor

OS

Temperature Sensing: CPU, CPU/Water Pump, Chassis,

•

Chassis/Water Pump Fans
Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/

•

Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU/Water Pump, Chassis, Chassis/Water
Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis,

•

Chassis/Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VD-

•

DCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V,
VDDP

Microso® Windows® 10 64-bit

•

FCC, CE

Certica­tions

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that the re is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. O verclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your ow n risk and expense.
We are not responsible for possible damage caused by overclocking.

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

X570 Extreme4 WiFi ax

11

English

1.3 WiFi-802.11ax Module and ASRock WiFi 2.4/5 GHz
Antenna

WiFi-802.11ax + BT Module

is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ax + BT v5.0
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ax connectivity standards and Bluetooth v5.0. WiFi + BT module is an easy-to­use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v5.0 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 5.0 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs. e 2T2R WiFi
solution sets a WiFi high speed standard and oers max link rate up to 2.4Gbps.
* e transmission speed may vary according to the environment.

ASRock WiFi 2.4/5 GHz Antenna

English

12

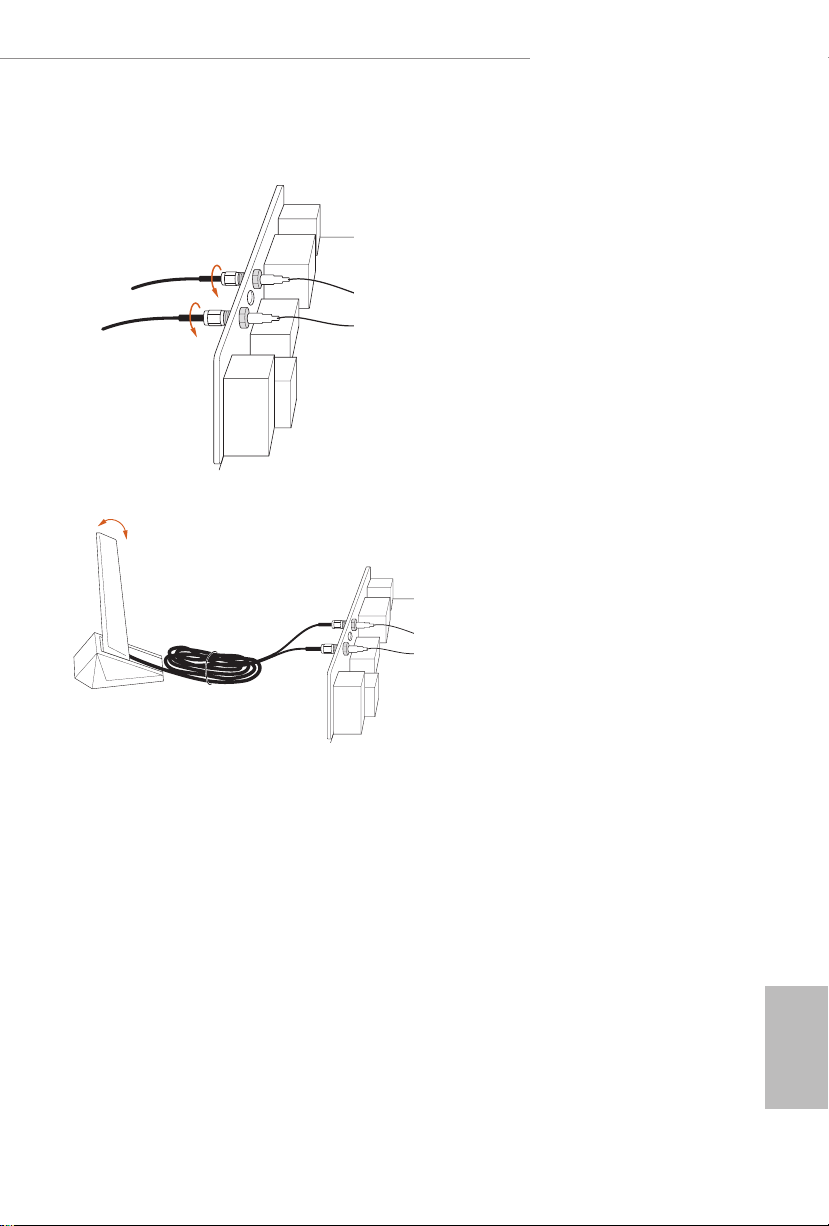

WiFi Antenna Installation Guide

X570 Extreme4 WiFi ax

Step 1

Connect the WiFi 2.4/5 GHz
Antenna to the antenna connectors. Turn
the antenna clockwise until it is securely
connected.

Step 2

Set the WiFi 2.4/5 GHz Antenna at
90-degree angle.

*You may need to adjust the direction of
the antenna for a stronger signal.

13

English

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

•

Failure to do so may cause physical injuries to you and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

14

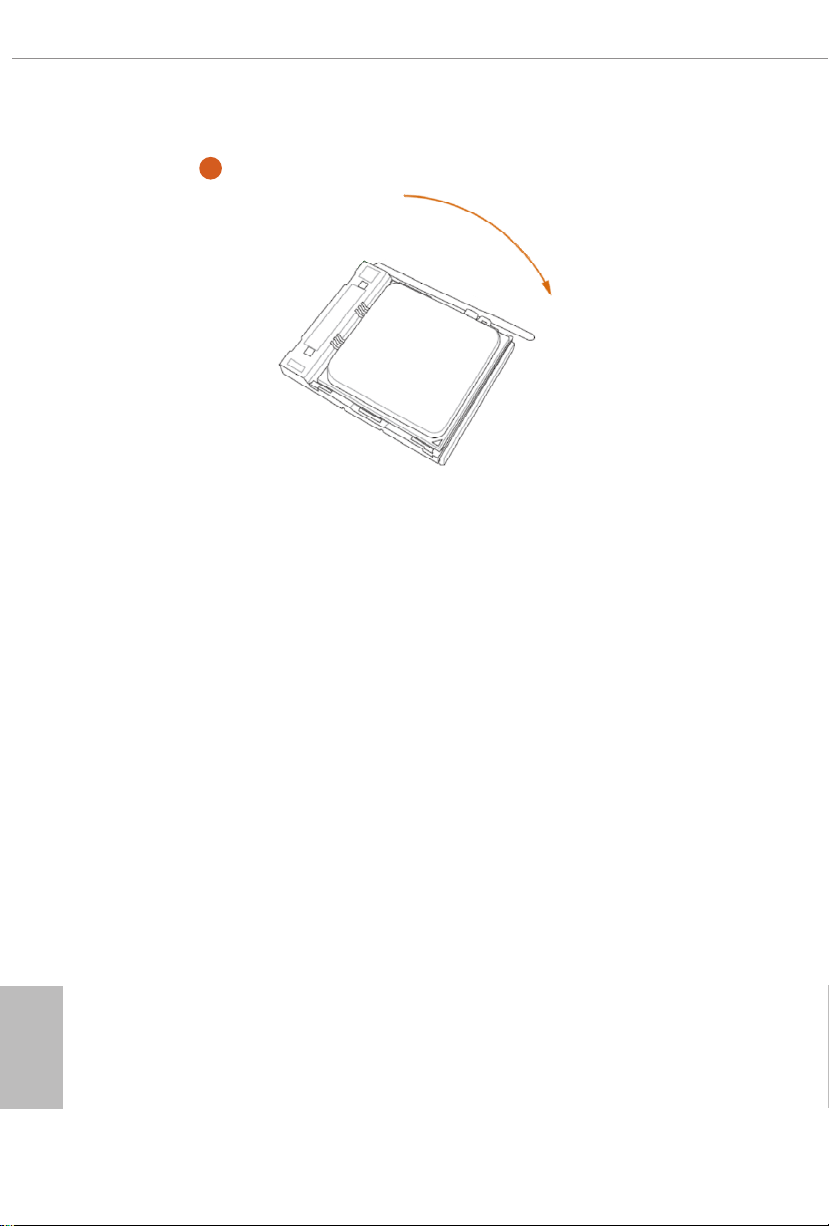

2.1 Installing the CPU

Unplug all power cables be fore installing the CPU.

1

X570 Extreme4 WiFi ax

2

English

15

3

English

16

X570 Extreme4 WiFi ax

2.2 Installing the CPU Fan and Heatsink

Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.

Please turn o the power or remove the power cord before changing a CPU or heatsink.

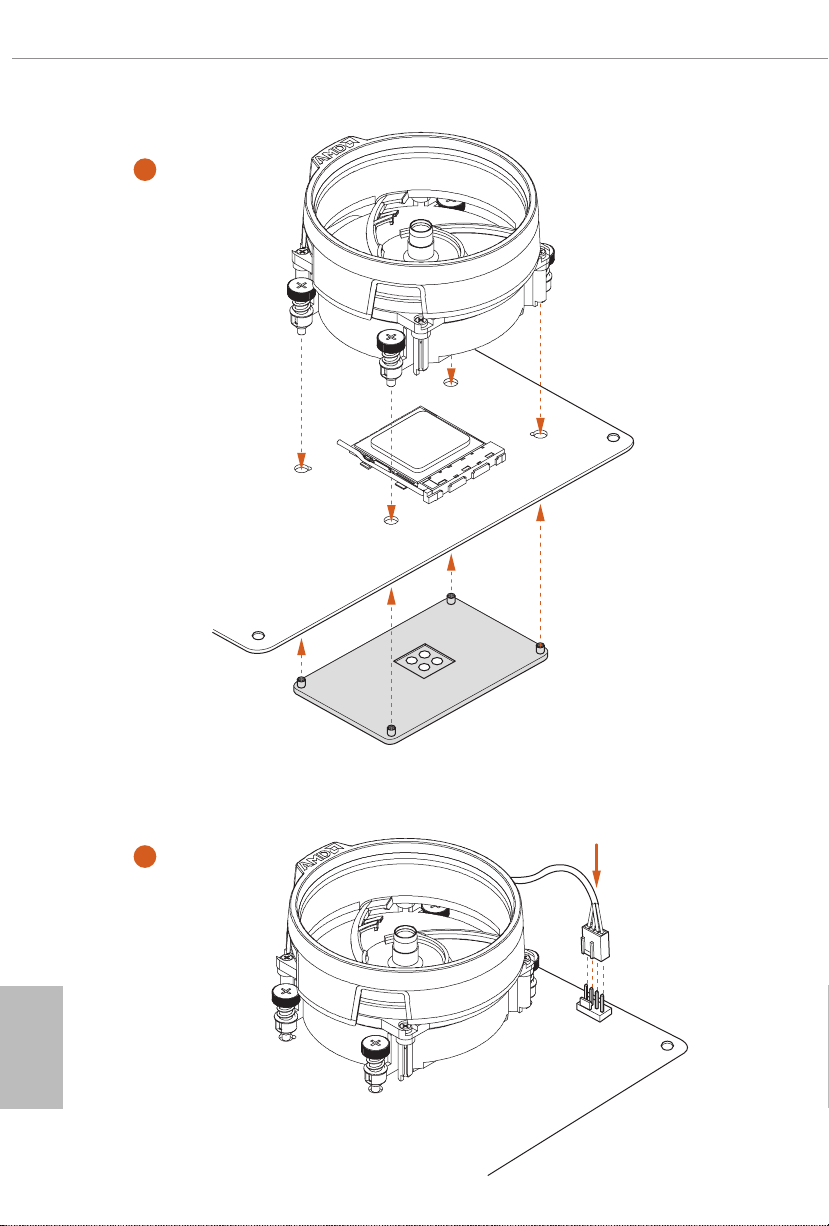

Installing the CPU Box Cooler SR1

1

2

English

17

3

English

18

4

1

N
FA

_

U

P

C

Installing the AM4 Box Cooler SR2

1

X570 Extreme4 WiFi ax

2

English

19

3

English

20

X570 Extreme4 WiFi ax

4

1

N

FA

_

U

P

C

5

4-pin FAN cable

RGB LED Cable

1

N

FA

CPU_

1

D

E

L

_

N

FA

_

D

AM

+12V

*e diagrams shown here are for reference only. e headers might be in a dierent position on
your motherboard. Please refer to page 36 for the orientation of AMD Fan LED Header (AMD_

FA N_ LE D1).

English

21

Installing the AM4 Box Cooler SR3

1

English

22

2

X570 Extreme4 WiFi ax

4

3

English

23

5

FAN1

CPU_

English

24

X570 Extreme4 WiFi ax

6

1

N

FA
_
U

P

C

2

D

E

L

_

B

RG

+12V

or

7

1

N

FA
_
U

P

C

1

D

E

L

_

N

FA

_

D

AM

5

_

B

S

U

Please note that only one cable should be used at a time in this step.
If you select AMD_FAN_LED1, please install ASRock utility "ASRock Polychrome SYNC".
If you select USB connector, please install AMD utility "SR3 Settings Soware".

*e diagrams shown here are for reference only. e headers might be in a dierent position on your
motherboard. Please refer to page 36 for the orientation of

AMD Fan LED Header (AMD_FAN_LED1)

and page 32 for the orientation of AMD LED Fan USB Header (USB_5).

English

25

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.

1. For dual channel conguration , you always need to in stall identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Du al Channel Memory Technology with only one or three
memory module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

4. We suggest that you install the memory modules on DDR4_A2 and DDR4_B2 rst
for better DRAM compatibility on 2 DIMM s conguration.

AMD non-XMP Memory Frequency Support

Ryzen Series CPUs (Matisse):

English

26

UDIMM Memory Slot

A1 A2 B1 B2

Frequency

(Mhz)

- SR - - 3200

- DR - - 3200

- SR - SR 3200

- DR - DR 3200

SR SR SR SR 2933

SR/DR DR SR/DR DR 2667

SR/DR SR/DR SR/DR SR/DR 2667

Ryzen Series CPUs (Pinnacle Ridge):

UDIMM Memory Slot

A1 A2 B1 B2

- SR - - 2933

- DR - - 2933

- SR - SR 2933

- DR - DR 2933

SR SR SR SR 2933

SR/DR DR SR/DR DR 2667

SR/DR SR/DR SR/DR SR/DR 2133-2400

Frequency

(Mhz)

Ryzen Series CPUs (Picasso):

UDIMM/SO-DIMMs Memory Slot

# of DIMMs on

the Channel

1 of 1 xR

1 of 2 xR-0

2 of 2 1R-1R 2133

2 of 2 2R-xR 1866

x=1 or 2

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label

DR: Dual rank DIMM, 2Rx4 or 2R x8 on DIMM module label

# of Ranks

per DIMM

1.2 0V

SR: 2933

DR: 2677

SR: 2667

DR: 2400

X570 Extreme4 WiFi ax

27

English
