Asrock X299 Killer SLI/ac Quick Installation Guide

Version 1.0
Published July 2017
Copyright©2017 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)

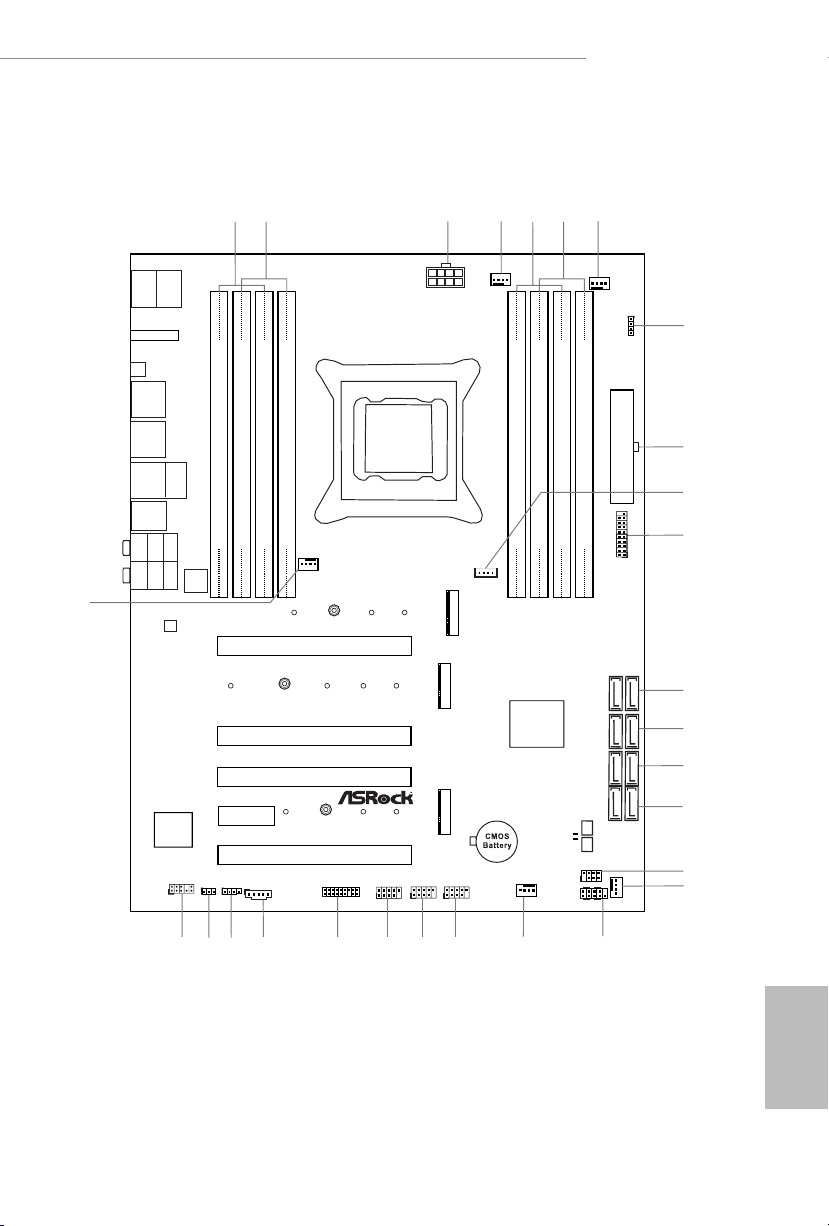

Motherboard Layout

ATXP WR 1

X299 Killer S LI/ac

Ult ra M.2

PCIe Ge n3 x4

RGB_LED2

1

Intel

X299

ATX12V1

LAN

LAN

PCIE1

Top:

Central/Bass

Center:

REAR SPK

Top:

LINE IN

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC IN

PCIE3

HDLED RESET

PLED PWRBTN

PANEL1

1

USB_5_6

1

1

USB_7_8

1

HD_AUDIO1

PCIE5

SATA3_2_3

SATA3_4_5

PCIE4

CPU_FAN1

CPU_OPT/W_PUMP1

RoHS

9

8

10

12

13

14

SATA3_6_7

15

2122

19

27

26

CLRC
BTN1

SATA3_0_1

3

4

7

DDR4 _B2 (64 b it, 288 -pin mo dule)

DDR4 _B1 (64 b it, 288 -pin mo dule)

DDR4 _A2 (64 b it, 288 -pin mo dule)

DDR4 _A1 (64 b it, 288 -pin mo dule)

2

1

23

18

1

TPMS1

CLRMOS1

1

CHA_FAN1

CHA_FAN2

25

28

DDR4 _C1 (64 b it, 288 -pin mo dule)

DDR4 _C2 (64 b it, 288 -pin mo dule)

DDR4 _D1 (64 b it, 288 -pin mo dule)

DDR4 _D2 (64 b it, 288 -pin mo dule)

6

5

2066 Socket

Top:
RJ-45

USB 2.0
T: USB1
B: USB2

1

SPK_PLED1

M2_1

M2_3

USB 3.1
T: USB31_TA_1
B: USB31_TC_1

M2_2

VROC1

11

USB3_5_ 6

1

1

16

17

T B1

1

RGB_LED1

1

24

USB 3.0
T: USB1
B: USB2

USB 3.0
T: USB3
B: USB4

PCIE2

CHA_FAN3/
W_PUMP2

USB 2.0

T: USB3

B: USB4

PS2

Keybo ard

/Mous e

1

USB_9_10

20

BIOS_A1

BIOS

BIOS_B_LED1

BIOS_B1

BIOS

BIOS_A_LED1

M2_WIFI_1

Purity

Sound 4

TM

X299 Killer SLI/ac

English

1

No. Description

1 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

2 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

3 ATX 12V Power Connector (ATX12V1)

4 CPU Fan / Waterpump Fan Connector (CPU_OPT/W_PUMP1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_C2, DDR4_D2)

6 2 x 288-pin DDR4 DIMM Slots (DDR4_C1, DDR4_D1)

7 CPU Fan Connector (CPU_FAN1)

8 RGB LED Header (RGB_LED2)

9 ATX Power Connector (ATXPWR1)

10 Virtual RAID On CPU Header (VROC1)

11 USB 3.0 Header (USB3_5_6)

12 SATA3 Connectors (SATA3_0_1)

13 SATA3 Connectors (SATA3_2_3)

14 SATA3 Connectors (SATA3_4_5)

15 SATA3 Connectors (SATA3_6_7)

16 Power LED and Speaker Header (SPK_PLED1)

17 Chassis Fan Connector (CHA_FAN1)

18 System Panel Header (PANEL1)

19 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/W_PUMP2)

20 USB 2.0 Header (USB_9_10)

21 USB 2.0 Header (USB_7_8)

22 USB 2.0 Header (USB_5_6)

23 TPM Header (TPMS1)

24 underbolt AIC Header (TB1)

25 RGB LED Header (RGB_LED1)

26 Clear CMOS Jumper (CLRMOS1)

27 Front Panel Audio Header (HD_AUDIO1)

28 Chassis Fan Connector (CHA_FAN2)

English

2

I/O Panel

1

X299 Killer SLI/ac

5

2

436

16

No. Description No. Description

1 USB 2.0 Port (USB_3_4) 9 USB 3.1 Type-A Port (USB31_TA_1)

2 LAN RJ-45 Port (Intel® I219V)* 10 USB 3.1 Type-C Port (USB31_TC_1)

3 Central / Bass (Orange) 11 USB 2.0 Ports (USB_1_2)

4 Rear Speaker (Black) 12 USB 3.0 Ports (USB3_1_2)

5 Line In (Light Blue) 13 USB 3.0 Ports (USB3_3_4)

6 Front Speaker (Lime)** 14 Clear CMOS Switch

7 Microphone (Pink) 15 Antenna Ports

8 Optical SPDIF Out Port 16 PS/2 Mouse/Keyboard Port (PS2_KB1)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

1415

13

1112

10

789

Activity / Link LED Speed LED

Status Description Status Description

O No Link Orange 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

English

3

** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Speaker Jack”. See the table below
for connection d etails in accordance w ith the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your
system. Please select “Mixe r ToolBox” , click “Enable playback multi-streaming”, and
click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select
“Realtek HDA Primary output” to u se the Rear Speaker, Central/Bass, and Front Speaker,
or select “Realtek HDA Audio 2nd output” to use the front panel audio.

Line In
(No. 5)

English

4

Chapter 1 Introduction

ank you for purchasing ASRock X299 Killer SLI/ac motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi­cations of this documentation occur, the updated version will be availabl e on ASRock’s
website w ithout further notice. If you require technical support related to this mother­board, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock
website http://www.asrock.com.

1.1 Package Contents

ASRock X299 Killer SLI/ac Motherboard (ATX Form Factor)

•

ASRock X299 Killer SLI/ac Quick Installation Guide

•

ASRock X299 Killer SLI/ac Support CD

•

1 x I/O Panel Shield

•

1 x ASRock SLI_HB_Bridge_2S Card (Optional)

•

1 x ASRock 3-Way SLI-2S1S Bridge Card (Optional)

•

4 x Serial ATA (SATA) Data Cables (Optional)

•

2 x ASRock WiFi 2.4/5 GHz Antennas (Opt iona l)

•

3 x Screws for Ultra M.2 Sockets (Optional)

•

X299 Killer SLI/ac

English

5

1.2 Specications

Platform

CPU

* Please note that the 4-Core processors only support Intel®
Turbo Boost Technology 2.0.

Chipset

Memory

* e maximum memory frequency supported may vary by
processor type.
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)

ATX Form Factor

•

8 Layer PCB

•

Supports Intel® CoreTM X-Series Processor Family for the

•

LGA 2066 Socket
Digi Power design

•

11 Power Phase design

•

Supports Intel® Turbo Boost Max Technology 3.0

•

Supports ASRock Hyper BCLK Engine III

•

Intel® X299

•

Quad Channel DDR4 Memory Technology

•

8 x DDR4 DIMM Slots

•

Supports DDR4 4400+(OC)*/4266(OC)/4133(OC)/4000

•

(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200(OC)/2
933(OC)/2800(OC)/2666/2400/2133 non-ECC, un-buered
memory

Supports non-ECC RDIMM (Registered DIMM)

•

Max. capacity of system memory: 128GB

•

Supports Intel® Extreme Memory Prole (XMP) 2.0

•

15μ Gold Contact in DIMM Slots

•

English

6

Expansion
Slot

4 x PCI Express 3.0 x16 Slots*

•

* If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5
will run at x16/x4/x16/x8.
* If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5
will run at x16/x4/x8/x0.
* If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5
will run at x16/x4/x0/x0 or x8/x4/x8/x0.
* Supports NVMe SSD as boot disks

1 x PCI Express 3.0 x1 Slot**

•

Audio

X299 Killer SLI/ac

** If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI
Express module up to Gen3 x2 (16 Gb/s).

Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM

•

and CrossFireXTM ***
Supports NVIDIA® Quad SLITM, 3-Way SLITM and SLITM***

•

*** 3-Way CrossFireXTM and 3-Way SLITM are only supported
with CPU with 44 lanes.

15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

•

7.1 CH HD Audio with Content Protection (Realtek

•

ALC1220 Audio Codec)
Premium Blu-ray Audio support

•

Supports Surge Protection

•

Nichicon Fine Gold Series Audio Caps

•

120dB SNR DAC with Dierential Amplier

•

TI® NE5532 Premium Headset Amplier for Front Panel

•

Audio Connector (Supports up to 600 Ohm headsets)
Pure Power-In

•

Direct Drive Technology

•

PCB Isolate Shielding

•

Impedance Sensing on Front Out port

•

Individual PCB Layers for R/L Audio Channel

•

15μ Gold Audio Connector

•

Supports Creative SoundBlaster Cinema3

•

LAN

Rear Panel
I/O

Gigabit LAN 10/100/1000 Mb/s

•

1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x PS/2 Mouse/Keyboard Port

•

1 x Optical SPDIF Out Port

•

4 x USB 2.0 Ports (Supports ESD Protection)

•

* 1 x Fatal1ty Mouse Port (USB 2.0) is included

1 x USB 3.1 Type-A Port (10 Gb/s) (ASMedia ASM3142)

•

(Supports ESD Protection)

English

7

Storage

1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM3142)

•

(Supports ESD Protection)
4 x USB 3.0 Ports (Supports ESD Protection)

•

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED

•

LE D)
1 x Clear CMOS Switch

•

HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
15 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will
be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will
be disabled.
* If M2_3 is occupied by a SATA-type M.2 device, SATA3_4
and SATA3_5 will be disabled.
* If M2_3 is occupied by a PCIe-type M.2 device, SATA3_4,
SATA3_5, SATA3_6 and SATA3_7 will be disabled.

1 x Ultra M.2 Socket (M2_2), supports M Key type

•

2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module

and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key

•

type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and

M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
** If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI
Express module up to Gen3 x2 (16 Gb/s).
** Supports Intel® OptaneTM Tech nolo gy
** Supports PCIe RAID (on M2_2 and M2_3)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit

English

8

Connector

1 x Virtual RAID On CPU Header

•

1 x TPM Header

•

1 x Power LED and Speaker Header

•

2 x RGB LED Headers

•

* Support up to 12V/3A, 36W LED Strip

X299 Killer SLI/ac

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.

1 x CPU Optional/Water Pump Fan Connector (4-pin)

•

* e CPU Optional/Water Pump Fan supports the water cooler
fan of maximum 1.5A (18W) fan power.

2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Con-

•

trol)
1 x Chassis Optional/Water Pump Fan Connector (4-pin)

•

* e Chassis Optional/Water Pump Fan supports the water
cooler fan of maximum 1.5A (18W) fan power.
* CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin
fan is in us

•

•

•

•

•

•

•

e.

1 x 24 pin ATX Power Connector (Hi-Density Power Con­nect or)
1 x 8 pin 12V Power Connector (Hi-Density Power Connec­tor)
1 x Front Panel Audio Connector (15μ Gold Audio Connec­tor)
1 x underbolt AIC Connector (5-pin)
3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports
ESD Protection)
2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (ASMedia
ASM1074 Hub) (Supports ESD Protection)
1 x Dr. Debug with LED

BIOS
Feature

2 x AMI UEFI Legal BIOS with multilingual GUI support (1

•

x Main BIOS and 1 x Backup BIOS)
Supports Secure Backup UEFI Technology

•

ACPI 6.1 Compliant wake up events

•

SMBIOS 3.0 Support

•

CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY,

•

VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD,
PEGRCOMP Voltage Multi-adjustment

English

9

Temperature Sensing: CPU, CPU Optional/Water Pump,

Hardware
Monitor

•

Chassis, Chassis Optional/Water Pump Fans
Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis,

•

Chassis Optional/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU Optional/Water Pump, Chassis, Chassis
Optional/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU Optional/Water Pump,

•

Chassis, Chassis Optional/Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

•

PCH 1.0V, VCCIO, VCCSA, VCCSFR

Microso® Windows® 10 64-bit

OS

Certica­tions

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that the re is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. O verclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your ow n risk and expense.
We are not responsible for possible damage caused by overclocking.

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

English

10

X299 Killer SLI/ac

1.3 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antenna

WiFi-802.11ac + BT Module

is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.0
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ac connectivity standards and Bluetooth v4.0. WiFi + BT module is an easy-to­use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v4.0 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 4.0 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs.

* e transmission speed may vary according to the environment.

11

English

WiFi Antennas Installation Guide

Step 1

Prepare the WiFi 2.4/5 GHz Antennas that come
with the package.

Step 2

Connect the two WiFi 2.4/5 GHz Antennas to
the antenna connectors. Turn the antenna clock­wise until it is securely connected.

Step 3

Set the WiFi 2.4/5 GHz Antenna as shown in the
illustration.

*You may need to adjust the direction of
the antenna for a stronger signal.

English

12

X299 Killer SLI/ac

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

13

English

2.1 Installing the CPU

1. Before you insert the 2066-Pin CPU into the socket, please check if the PnP cap i s on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to in sert the CPU into the socket if above situation is found . Otherwise, the CPU
will be seriously damaged.

2. Unplug all power cables before in stalling the CPU.

CAU TION:

Please note that X299 platform is only compatible with the LGA 2066 socket, which is
incompatible with the LGA 2011-3 socket (for X99 platform).

1

A

B

English

14

A

2

B

X299 Killer SLI/ac

3

4

A

B

5

English

15

6

A

B

7

A

B

English

16

8

Please save and replace the cover if the processor i s removed. e cover must be placed if
you wish to return the motherboard for aer service.

2.2 Installing the CPU Fan and Heatsink

1 2

X299 Killer SLI/ac

FAN

CPU_

English

17

2.3 Installation of Memory Modules (DIMM)

is motherboard provides eight 288-pin DDR4 (Double Data Rate 4) DIMM slots, and
supports Quad Channel Memory Technology.

1. For quad channel cong uration, you always need to install identical (the same brand,
speed , size and chip-type) DDR4 DIMM pairs.

2. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and DIMM may be damaged.

3. e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

Quad Channel Memory Conguration (For CPU with 44 or 28 PCIe lanes)

Priority 1 2

DDR4_B1

DDR4_B2

DDR4_A1

DDR4_A2

DDR4_D1

DDR4_D2

DDR4_C1

DDR4_C2

Populated Populated

Populated

Populated Populated

Populated

Populated Populated

Populated

Populated Populated

Populated

English

18

Dual Channel Memory Conguration (For CPU with 16 PCIe lanes)

Priority 1 2

DDR4_D1

DDR4_D2

DDR4_C1

DDR4_C2

Due to Intel® CPU spec denition, please install the memory modules on DDR4_A1,

•

DDR4_B1, DDR4_C1 and DDR4_D1 for rst priority. If the four DDR4 DIMM slots
above are fully installed, and you want to use more than four memory modules, please
install the other memory modules from le to right (from DDR4_A2, DDR4_B2,
DDR4_D2 to DDR4_C2.)
If only two memory modules are installed in the DDR4 DIMM slots, then Dual

•

Channel Memory Technology is activated. If three memory modules are installed, then
Triple Channel Memory Technology is activated. If more than four memory modules
are installed in the DDR4 DIMM slots, then Quad Channel Memory Technology is
activated.

Populated Populated

Populated

Populated Populated

Populated

X299 Killer SLI/ac

For CPU with 16 PCIe lanes, please install the memory modules on DDR4_C1, C2, D1

•

and D2 only.

1

2

3

English

19

2.4 Expansion Slots (PCI Express Slots)

ere are 5 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is switched o
or the power cord is unplugged. Please read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.
PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE4 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE5 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.
* If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/
x16/ x8.
* If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/
x8/x0.
* If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/
x0/x0 or x8/x4/x8/x0.
* If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI Express module up to
Gen3 x2 (16 Gb/s).

English

20

PCIe Slot Congurations (For CPU with 44 PCIe lanes)

PCIE1 PCIE2 PCIE3 PCIE4 PCIE5

Single Graphics Card x16 N/A N/A N/A N /A

Two Graphics Cards in

CrossFireXTM or SLITM

Mode

ree Graphics Cards in

3-Way CrossFireXTM Mode

or 3-Way SLITM Mode

x16 N /A x16 N/A N/A

x16 N /A x16 N/A x8

PCIe Slot Congurations (For CPU with 28 PCIe lanes)

PCIE1 PCIE2 PCIE3 PCIE4 PCIE5

Single Graphics Card x16 N/A N /A N/A N/A

Two Graphics Cards in

CrossFireXTM or SLITM

Mode

x16 N /A x8 N/A N /A

PCIe Slot Congurations (For CPU with 16 PCIe lanes)

PCIE1 PCIE2 PCIE3 PCIE4 PCIE5

Single Graphics Card x16 N/A N /A N/A N/A

Two Graphics Cards in

CrossFireXTM or SLITM

Mode

For a better ther mal environment, please connect a chassi s fan to the motherboard’s |
chassis fan connector (CHA_ FAN1, CHA_ FAN2 or CHA_FAN3) when using multipl e
graphics cards.

x8 N/A x8 N/A N/A

X299 Killer SLI/ac

21

English

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper
(C LR MOS 1)
(see p.1, No. 26)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.

Clear CMOSDefault

English

22

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
heade rs and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.

X299 Killer SLI/ac

System Panel Header
(9-pi n PANEL1)
(see p.1, No. 18)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to tur n
o your system using the power switch.

RESET (Reset Switch):
Connec t to the reset switch on the chassi s front panel. Press the reset sw itch to restart the
computer if the computer f reezes and fails to per form a normal restar t.

PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel. e LED i s on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 slee p state or powered o (S5).

HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or wr iting data.

e front panel design may dier by chassis. A front panel module mainly consists of power
switch, reset switch , power LED, hard dr ive activity LED, speaker and etc. When connect­ing your chassi s front panel module to thi s header, make sure the wire a ssignments and the
pin assignments are matched correctly.

1

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

GND

RESET#

GND

Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.

23

English

Power LED and Speaker

1

+5V

DUMMY

PLED+

PLED+

PLED-

DUMMY

SPEAKER

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

Header
(7-pin SPK_PLED1)
(see p.1, No. 16)

Please connect the
chassis power LED and
the chassis speaker to this
header.

English

Serial ATA3 Connectors
(SATA3_0_1:
see p.1, No. 12)
(SATA3_2_3:
see p.1, No. 13)
(SATA3_4_5:
see p.1, No. 14)
(SATA3_6_7:
see p.1, No. 15)

USB 2.0 Headers
(9-pin USB_5_6)
(see p.1, No. 22)
(9-pin USB_7_8)
(see p.1, No. 21)
(9-pin USB_9_10)
(see p.1, No. 20)

SATA3_0

SATA3_2

SATA3_4

SATA3_6

ese eight SATA3
connectors support SATA
data cables for internal

SATA3_1

storage devices with up to

6.0 Gb/s data transfer rate.

SATA3_3

* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_0 will be disabled.

SATA3_5

* If M2_2 is occupied by
a SATA-type M.2 device,
SATA3_1 will be disabled.

SATA3_7

* If M2_3 is occupied by
a SATA-type M.2 device,
SATA3_4 and SATA3_5
will be disabled.
* If M2_3 is occupied by
a PCIe-type M.2 device,
SATA3_4, SATA3_5,
SATA3_6 and SATA3_7
will be disabled.

ere are three headers
on this motherboard.
Each USB 2.0 header can
support two ports.

24

X299 Killer SLI/ac

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

OL

1
2
3
4

USB 3.0 Header
(19-pin USB3_5_6)
(see p.1, No. 11)

Front Panel Audio Header
(9-pin HD_ AUDIO1)
(see p.1, No. 27)

IntA_PA_SSRX-

IntA_PA_SSRX+

IntA_PA_SSTX-

IntA_PA_SSTX+

IntA_PA_D-

IntA_PA_D+

Vbus

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

GND

IntA_PB_SSTX+

GND

IntA_PB_D-

GND

IntA_PB_D+

Dummy

1

ere is one header on
this motherboard. is
USB 3.0 header can
support two ports.

is header is for
connecting audio devices
to the front audio panel.

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must sup­port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.

2. If you use an AC’97 audio panel , please install it to the front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connect
them for the AC’97 audio panel .
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.

Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.1, No. 17)

GND
FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin.

English

25

(4-pin CHA_FAN2)

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

1 2 3 4

4 3 2 1

4 3 2 1

(see p.1, No. 28)

FAN_SPEED_CONTROL

CHA_FAN_SPEED

FAN_VOLTAGE

GND

Chassis Optional/Water
Pump Fan Connector
(4-pin CHA_FAN3/W_
PUMP2)
(see p.1, No. 19)

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 7)

CPU Optional/Water
Pump Fan Connector
(4-pin CPU_OPT/W_
PUM P)
(see p.1, No. 4)

FAN_SPEED_CONTROL

CHA_FAN_SPEED

FAN_VOLTAGE

CPU_FAN_SPEED

FAN_VOLTAGE

GND

CPU_FAN_SPEED

FAN_VOLTAGE

GND

GND

is motherboard
provides two 4-Pin water
cooling

chassis

fan
connectors. If you plan to
connect a 3-Pin

chassis
water cooler fan, please
connect it to Pin 1-3.

is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

is motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.

English

26

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 9)

24

12

is motherboard
provides a 24-pin ATX
power connector. To use a
20-pin ATX power supply,
please plug it along Pin 1

1

13

and Pin 13.

X299 Killer SLI/ac

1

12V

1

1

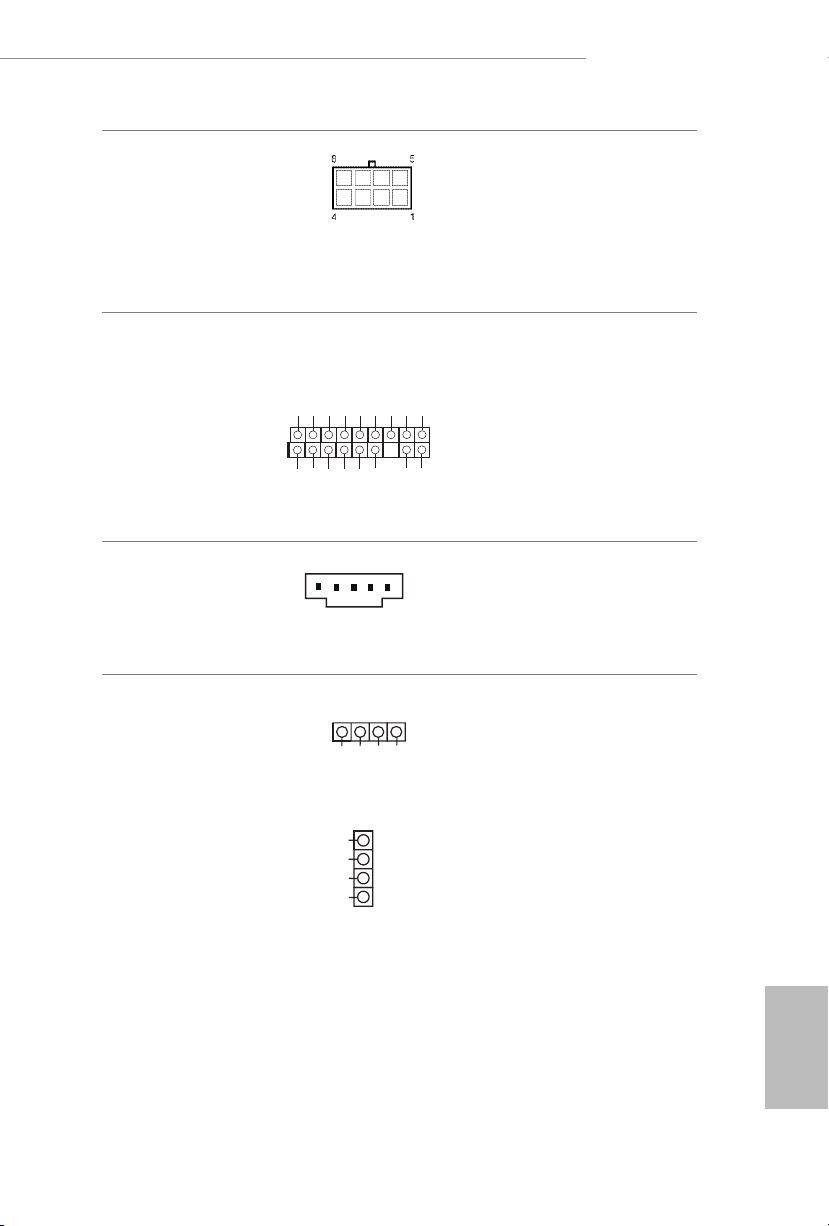

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 3)

TPM Header
(17-pi n TPMS1)
(see p.1, No. 23)

underbolt AIC
Connector
(5-pin TB1)
(see p.1, No. 24)

RGB LED Headers
(4-pi n RGB _LED1)
(see p.1, No. 25)

(4-pi n RGB _LED2)
(see p.1, No. 8)

1

SMB _CL K_M AIN

GN D

FRA M E

PC ICL K

SMB _DA TA_ MAI N

LAD 2

GN D

LAD 1

+3 V

LAD 3

LAD 0

PC IRS T #

12V GRB

G

R

B

is motherboard
provides an 8-pin ATX
12V power connector. To
use a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.

is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,

D

S_P WRD WN #

SER IRQ #

GN

digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and

GN D

+3V S B

ensures platform integrity.

Please connect a underbolt™
add-in card (AIC) to this
connector via the GPIO cable.

ese two RGB headers are used
to connect RGB LED extension
cable which allows
users to choose from various LED
lighting eects.

Caution: Never install the RGB

LED cable in the wrong orienta-

tion; otherwise, the cable may

be damaged.

*Please refer to page 34 for
further instructions on these two
headers.

English

27

Virtual RAID On CPU

VROC RAID KEY

1

Header
(4-pin VROC1)
(see p.1, No. 10)

GND

+3VSB

GND

is connector supports

Intel®
Virtual RAID on CPU and
NVME/AHCI RAID on CPU
PCIE.

With the introduction of the Intel VROC product, there are three modes of operation:

SKU HW key required Key features

•Pass-thru only (no RAID)

Pass-thru Not needed

•LED Management

•Hot Plug Support

•RAID 0 support for Intel Fultondale NVMe SSDs

English

Standard VRO CSTAN MOD

Premium

VROCPREMMOD

•Pass-thru SKU features

•RAID 0, 1, 10

•Standard SKU features

•RAID 5

ISS

VROCISSDMOD

•RAID 5 Write Hole Closure

*Only Intel SSDs are supported.
*For further details on VROC, please refer to the ocial information released by Intel.

28
