Asrock Q170M vPro Quick Installation Guide

Version 1.0
Published June 2015
Copyright©2015 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

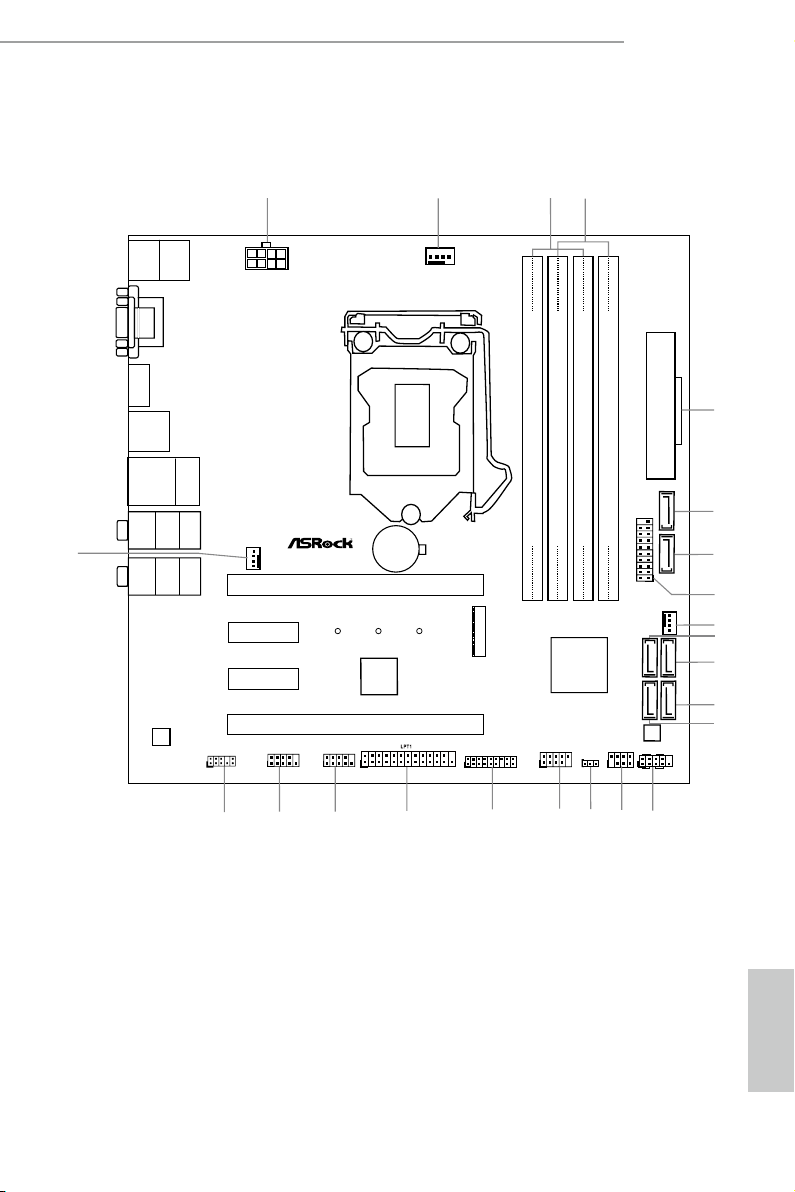

Motherboard Layout

Intel

Q170

Sup er

I/O

ATXPWR 1

HDLED RESET

PLED PWRBTN

PANEL1

1

COM1

1

Q170M vPro

RoHS

2

CPU_FAN1

5

1

Audio

CODEC

PCIE1

PCI Express 3.0

TPMS1

1

1

1

USB1_2

USB 3. 0

T: USB1

B: USB 2

PS2

Keyb oard

/Mous e

SPK_CI1

1

PCIE2

Fro nt USB 3. 0

14

15

16

17

18

19

20

22

CMOS

Battery

DDR 4_A2 (6 4 bit, 28 8-pin m odule )

DDR 4_A1 (6 4 bit, 28 8-pin m odule )

DDR 4_B2 (6 4 bit, 28 8-pin m odule )

DDR 4_B1 (6 4 bit, 28 8-pin m odule )

4

3

ATX12V1

11

7

8

SATA3_2

SATA3_3

SATA3_1

USB3_5 _6

12

13

SATA3_4

SATA3_5

128Mb

BIOS

6

SATA3_0

CHA_FAN2

9
10

CLRMOS1

1

1

HD_AUDIO1

PCIE3

PCIE4

M2_1

CT2CT3CT1

Top:
RJ-45

USB 3.0
T: USB3
B: USB4

HDM I1

USB 3.0
T: USB7
B: USB8

CHA_FAN1

23

Top:

SIDE S PK

Cent er:

REAR S PK

Bott om:

CTR BA SS

Top:

LINE I N

Cent er:

FRON T

Bott om:

MIC IN

COM2

1

21

VGA 1

DVI1

Q170M vPro

English

1

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_0)

7 SATA3 Connector (SATA3_1)

8 USB 3.0 Header (USB3_5_6)

9 Chassis Fan Connector (CHA_FAN2)

10 SATA3 Connector (SATA3_2)

11 SATA3 Connector (SATA3_3)

12 SATA3 Connector (SATA3_5)

13 SATA3 Connector (SATA3_4)

14 System Panel Header (PANEL1)

15 Chassis Intrusion and Speaker Header (SPK_CI1)

16 Clear CMOS Jumper (CLRMOS1)

17 USB 2.0 Header (USB1_2)

18 TPM Header (TPMS1)

19 Print Port Header (LPT1)

20 COM Port Header (COM1)

21 COM Port Header (COM2)

22 Front Panel Audio Header (HD_AUDIO1)

23 Chassis Fan Connector (CHA_FAN1)

English

2

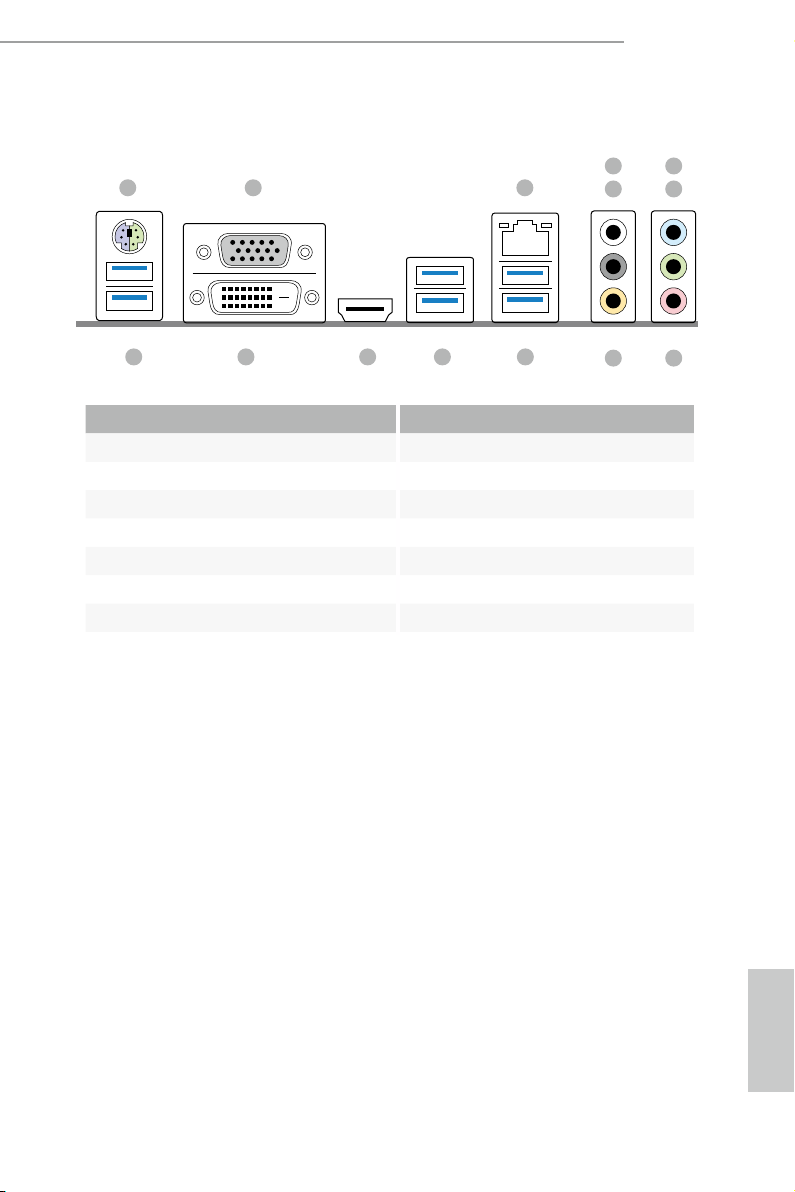

I/O Panel

1

Q170M vPro

4

6

2

3

5

7

14 1012

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 8 Microphone (Pink)

2 D-Sub Port 9 Central / Bass (Orange)

3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_34)

4 Side Speaker (Gray) 11 USB 3.0 Ports (USB3_7_8)

5 Rear Speaker (Black) 12 HDMI Port

6 Line In (Light Blue) 13 DVI-D Port

7 Front Speaker (Lime)** 14 USB 3.0 Ports (USB3_12)

13

11

9 8

English

3

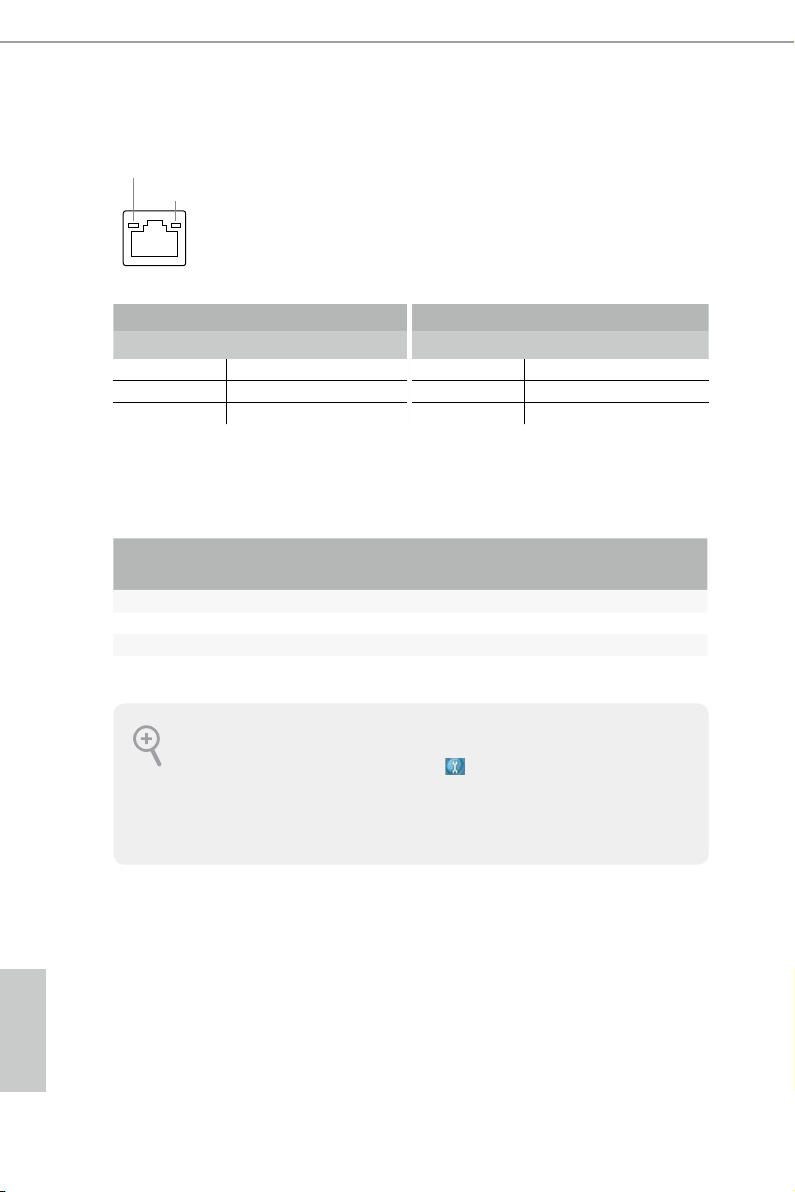

* ere are two LEDs on each LAN port. Plea se refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

** If you use a 2- channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.

English

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 9)

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. Aer restarting your computer, you will nd the “Mixer” tool
on your system. Please select “Mixer ToolBox” , click “Enable playback multi­streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are
allowed to selec t “Realtek HDA Primary output” to use the Rear Speaker, Central/
Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front
panel audio.

Line In

(No. 6)

4

Chapter 1 Introduction

ank you for purchasing ASRock Q170M vPro motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi­cations of this documentation occur, the updated version will be available on ASRock’s
website w ithout further notice. If you require technical suppor t related to this mother­board, please visit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

1.1 Package Contents

ASRock Q170M vPro Motherboard (Micro ATX Form Factor)

•

ASRock Q170M vPro Quick Installation Guide

•

ASRock Q170M vPro Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x I/O Panel Shield

•

1 x Screw for M.2 Socket

•

Q170M vPro

English

5

1.2 Specications

Platform

CPU

Chipset

* Intel® Small Business Advantage, Intel® vProTM Tech nol ogy
and Intel® Active Management Technology 1.1 can be supported
only with Intel® CoreTM vProTM processor family

Memory

Micro ATX Form Factor

•

Solid Capacitor design

•

High Density Glass Fabric PCB

•

th

Supports 6

•

Celeron® Processors (Socket 1151)
Digi Power design

•

6 Power Phase design

•

Supports Intel® Turbo Boost 2.0 Technology

•

Intel® Q170

•

Supports Intel® vProTM Tech nol ogy

•

Supports Intel® Active Management Technology 1.1

•

Supports Intel® Small Business Advantage 4.0

•

Dual Channel DDR4 Memory Technology

•

4 x DDR4 DIMM Slots

•

Supports DDR4 2133 non-ECC, un-buered memory

•

Max. capacity of system memory: 64GB

•

Supports Intel® Extreme Memory Prole (XMP) 2.0

•

Generation Intel® CoreTM i7/i5/i3/Pentium®/

English

6

Expansion
Slot

Graphics

2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4

•

mode)
2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

•

Supports AMD Quad CrossFireXTM and CrossFireXTM

•

Intel® HD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU
integrated.
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

•

Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 510/530
Pixel Shader 5.0, DirectX 12

•

Max. shared memory 1792MB

•

Audio

ree graphics output options: D-Sub, DVI-D and HDMI

•

Supports Triple Monitor

•

Supports HDMI with max. resolution up to 4K x 2K

•

(4096x2304) @ 24Hz
Supports DVI-D with max. resolution up to 1920x1200 @

•

60Hz
Supports D-Sub with max. resolution up to 1920x1200 @

•

60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
Supports Accelerated Media Codecs: HEVC, VP8, VP9

•

Supports HDCP with DVI-D and HDMI Ports

•

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

•

and HDMI Ports

7.1 CH HD Audio with Content Protection (Realtek ALC892

•

Audio Codec)
Premium Blu-ray Audio support

•

Supports Surge Protection (ASRock Full Spike Protection)

•

ELNA Audio Caps

•

Q170M vPro

LAN

Rear Panel
I/O

Gigabit LA N 10/100/10 00 Mb/s

•

Giga PHY Intel® I219LM

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection (ASRock Full Spike

•

Protection)
Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x PS/2 Mouse/Keyboard Port

•

1 x D-Sub Port

•

1 x DVI-D Port

•

1 x HDMI Port

•

6 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

•

Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LE D)
HD Audio Jacks: Side Speaker / Rear Speaker / Central /

•

Bass / Line in / Front Speaker / Microphone

English

7

Storage

Connector

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
14 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and
SATA3_1 will be disabled.

1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module

•

and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
* Supports ASRock U.2 Kit

1 x Onboard TPM (NUVOTON NPCT420)

•

1 x Print Port Header

•

2 x COM Port Headers

•

1 x TPM Header

•

1 x Chassis Intrusion and Speaker Header

•

1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)

•

2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed

•

Control)

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

English

8

BIOS
Feature

Hardware
Monitor

128Mb AMI UEFI Legal BIOS with multilingual GUI sup-

•

port

ACPI 1.1 Compliant wake up events

•

SMBIOS 2.3.1 Support

•

DRAM Voltage Multi-adjustment

•

CPU/Chassis temperature sensing

•

CPU/Chassis Fan Tachometer

•

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

•

CPU temperature)

CPU/Chassis Fan multi-speed control

•

CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU,

•

DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-

OS

•

bit
* To install Windows® 7 OS, a modied installation disk with
xHCI drivers packed into the ISO le is required. Please refer to
page 141 for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock’s
website for details: http://www.asrock.com

FCC, CE, WHQL

Certica­tions

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS , applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cau se damage to
the components and devices of your system. It should be done at your own r isk and expense.
We are not responsible for possible damage caused by overclocking.

•

ErP/EuP Ready (ErP/EuP ready power supply is required)

•

Q170M vPro

English

9

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

10

2.1 Installing the CPU

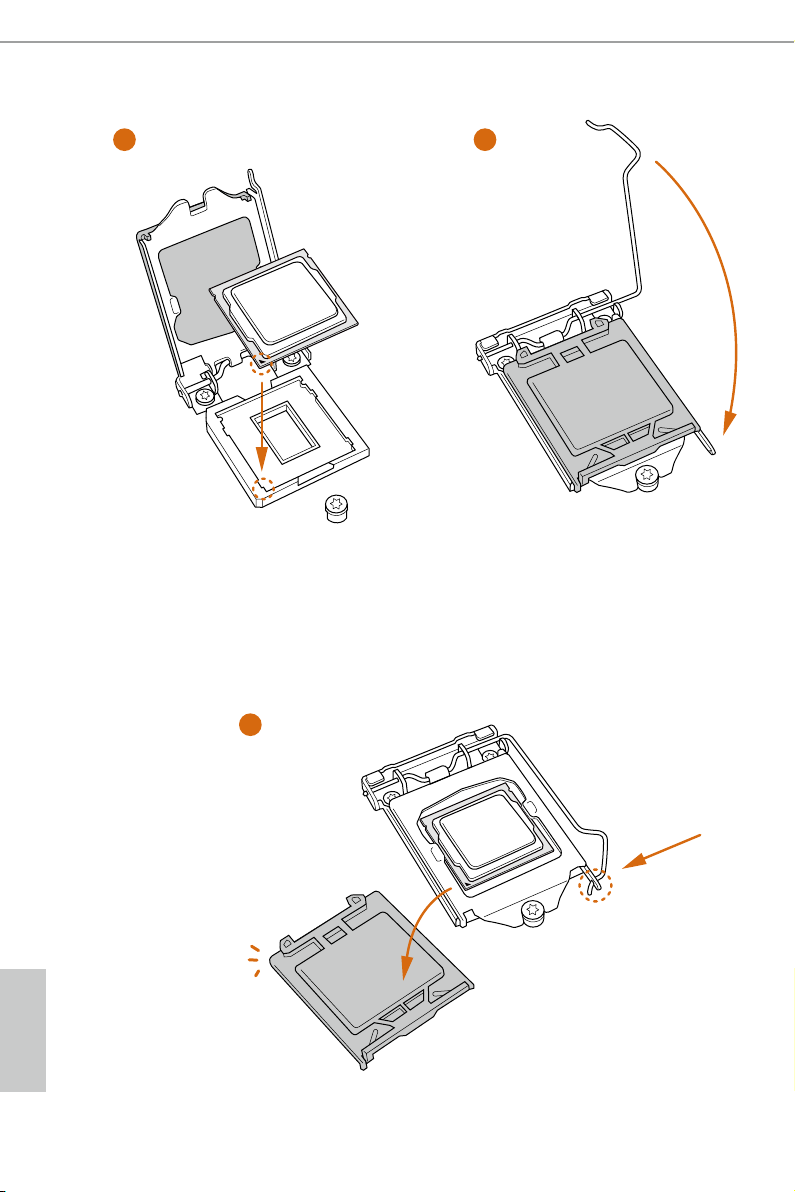

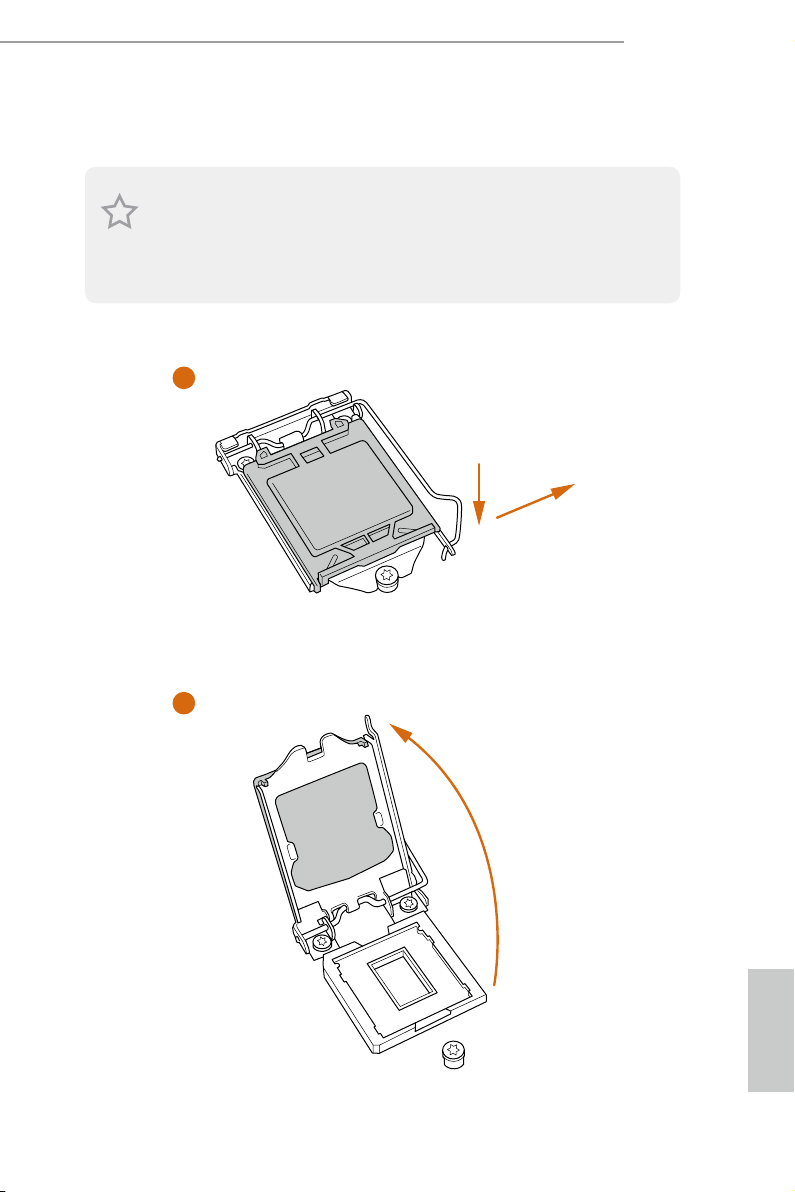

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU sur face is unclean, or if the re are any bent pins in the socket. Do not
force to in sert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.

2. Unplug all power cables be fore installing the CPU.

1

Q170M vPro

A

B

2

English

11

3

4

English

12

5

Please save and replace the cover if the processor is removed. e cove r must be placed if
you wish to return the motherboard for ae r service.

Q170M vPro

13

English

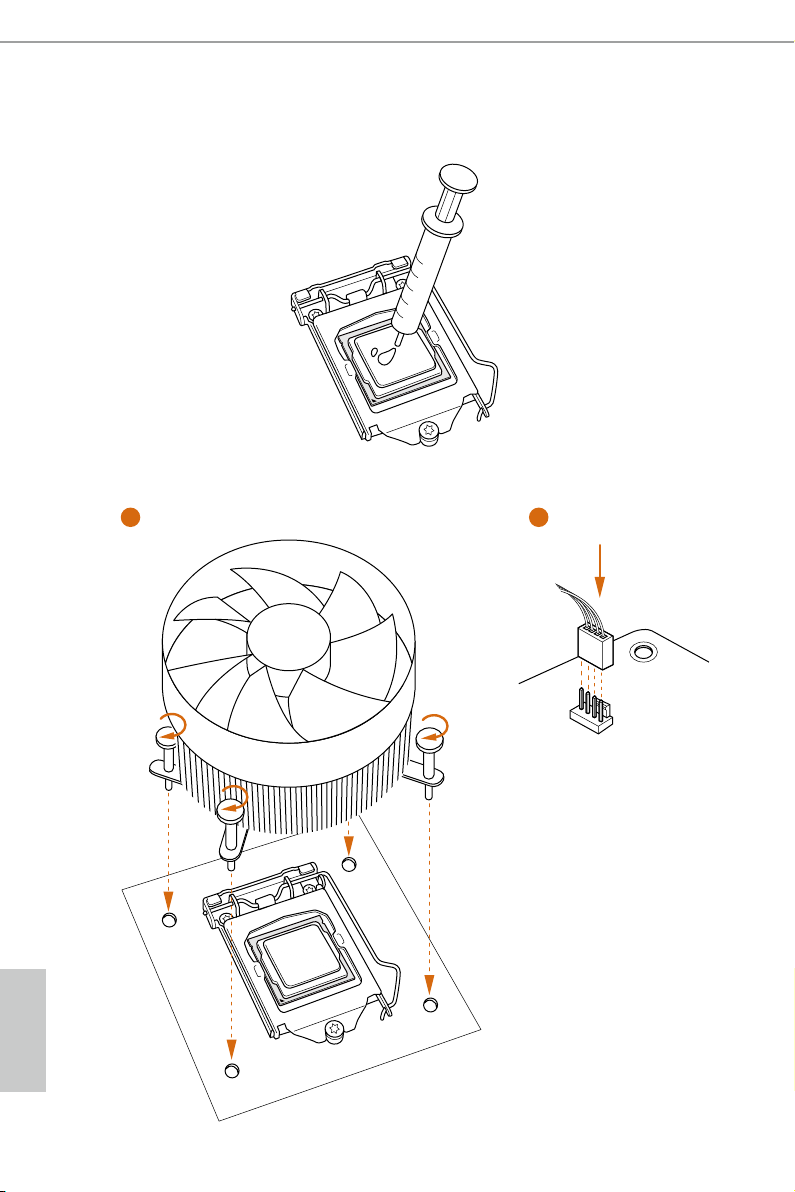

2.2 Installing the CPU Fan and Heatsink

1 2

English

14

FAN

CPU_

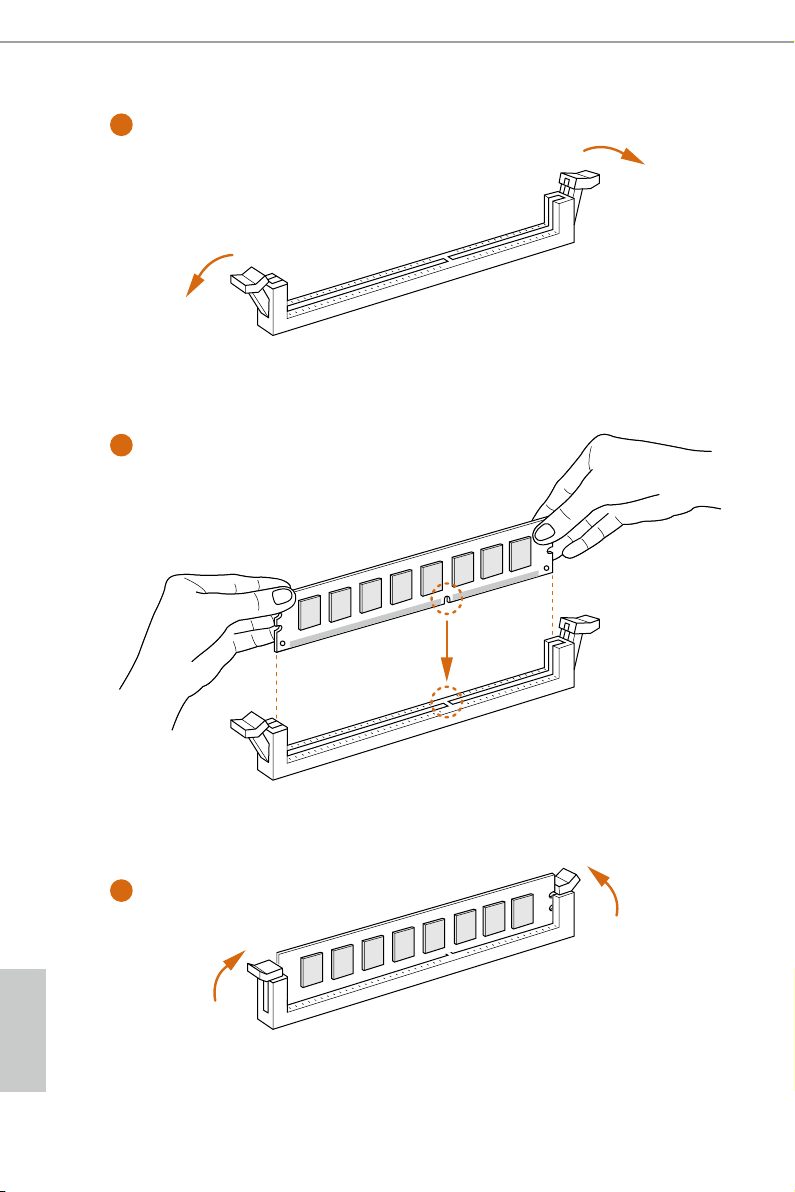

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same brand,
speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one or three memory
module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and DI MM may be damaged.

Dual Channel Memory Conguration

Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated

Q170M vPro

e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orie ntation.

English

15

1

2

English

16

3

2.4 Expansion Slots (PCI Express Slots)

ere are 4 PCI Express slots on the motherboard.

Before installing an expansion card, plea se make sure that the power supply is
switched o or the power cord is unplugged. Please read the documentation of the
expan sion card and make necessary hardware settings for the card before you start
the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIe Slot Congurations

PCIE1 PCIE4

Single Graphics Card x16 N/A

Q170M vPro

Two Graphics Cards in

CrossFireX

TM

Mode

For a better thermal environment, please connect a chassis fan to the motherboard ’s
chassis fan connector (CHA _FAN1 or CHA_FAN2) when using multiple g raphics
cards.

x16 x4

English

17

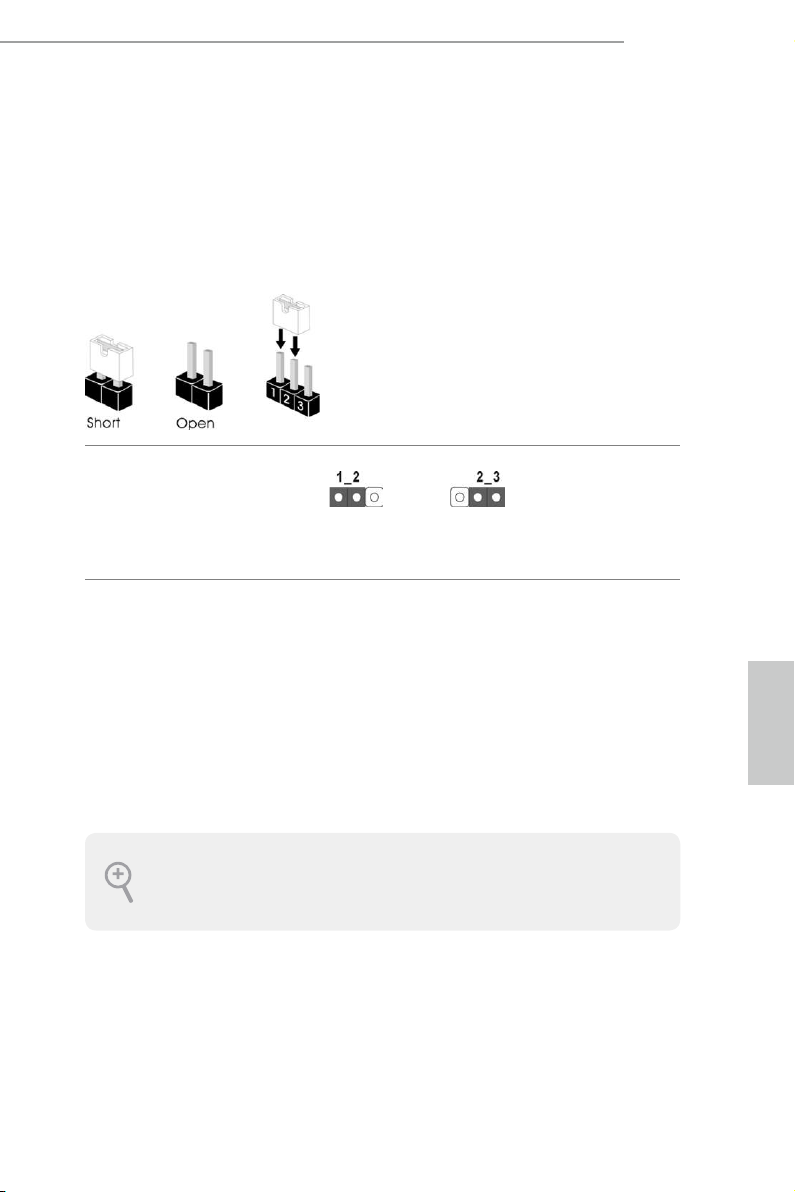

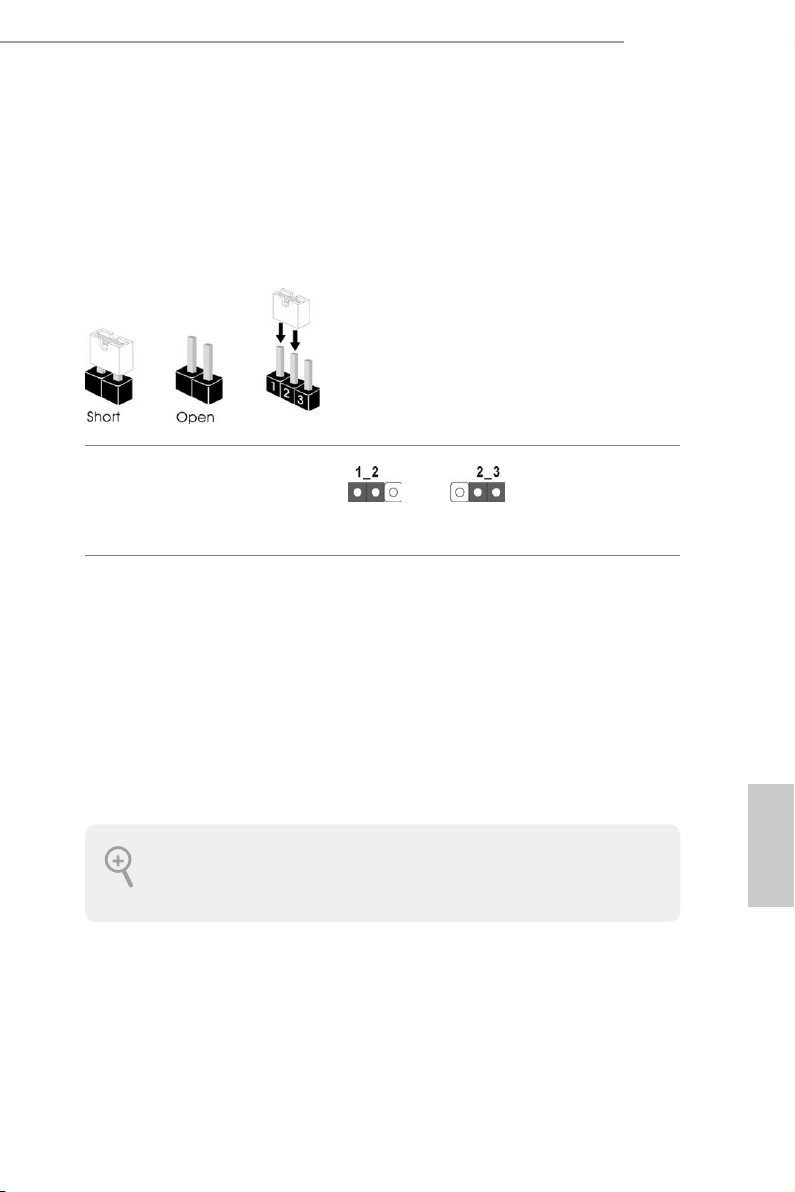

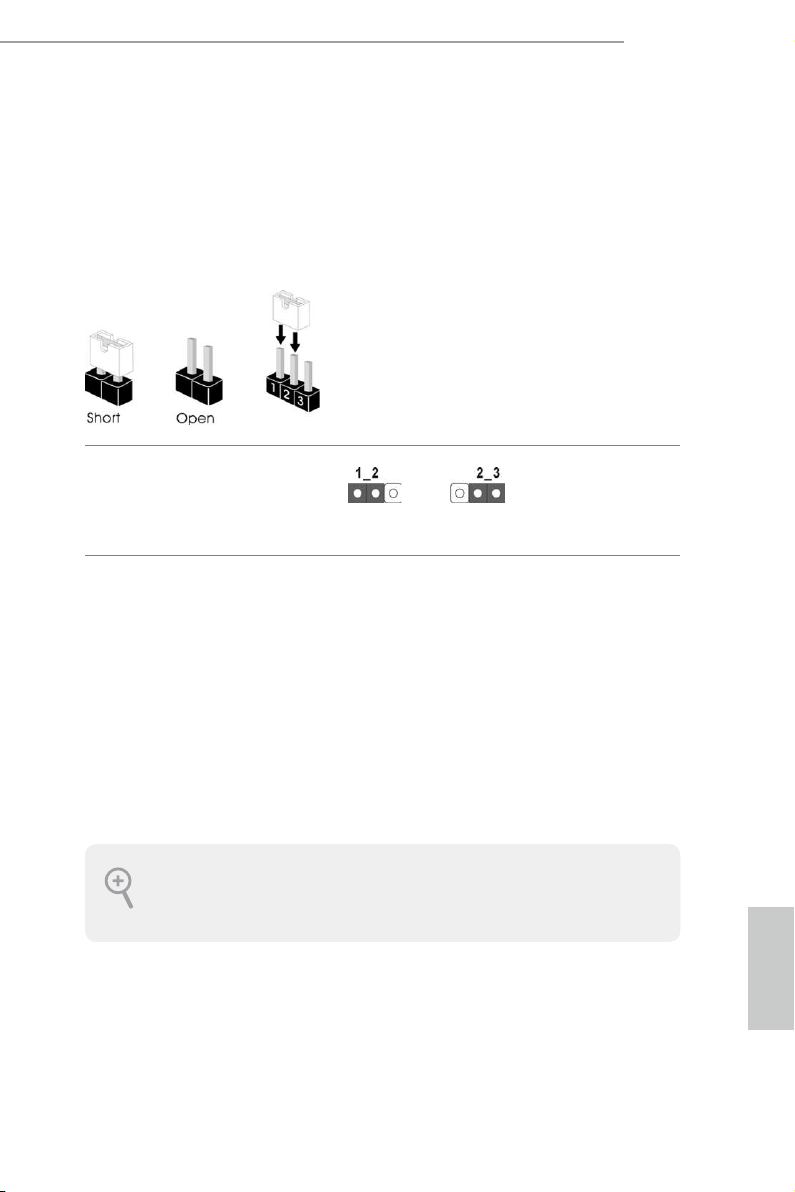

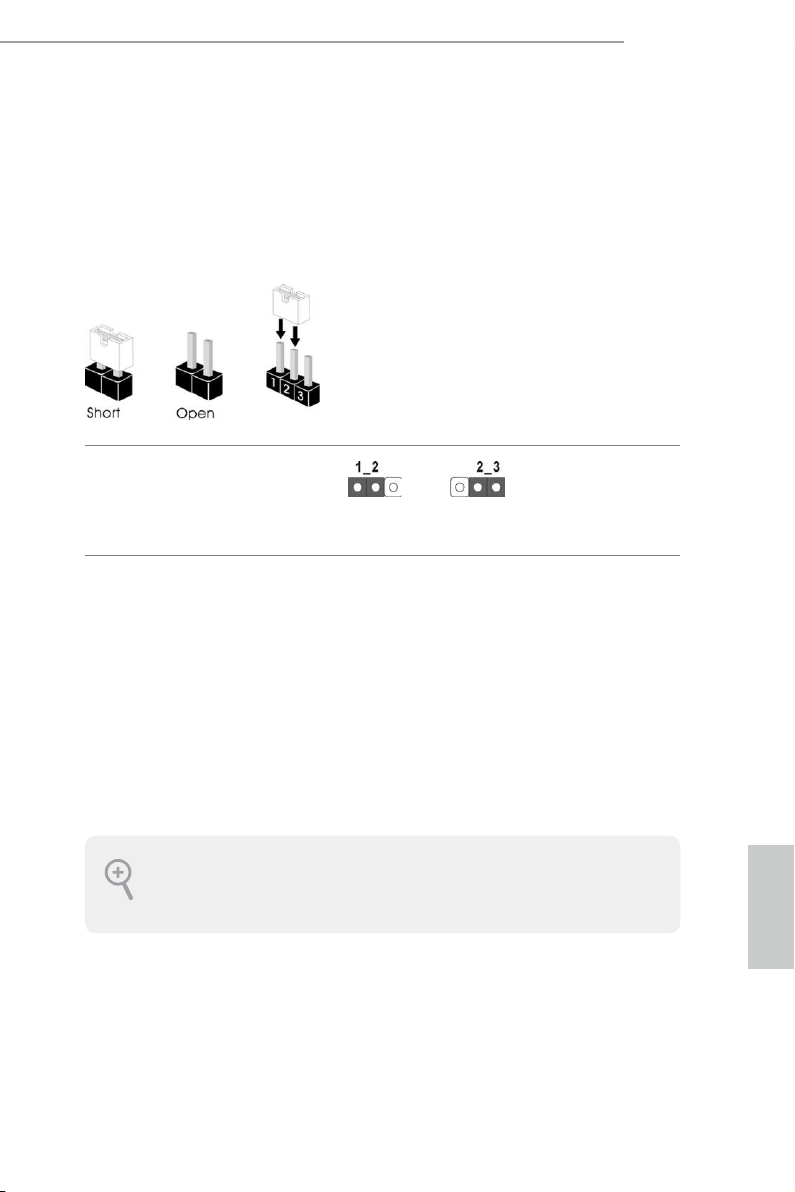

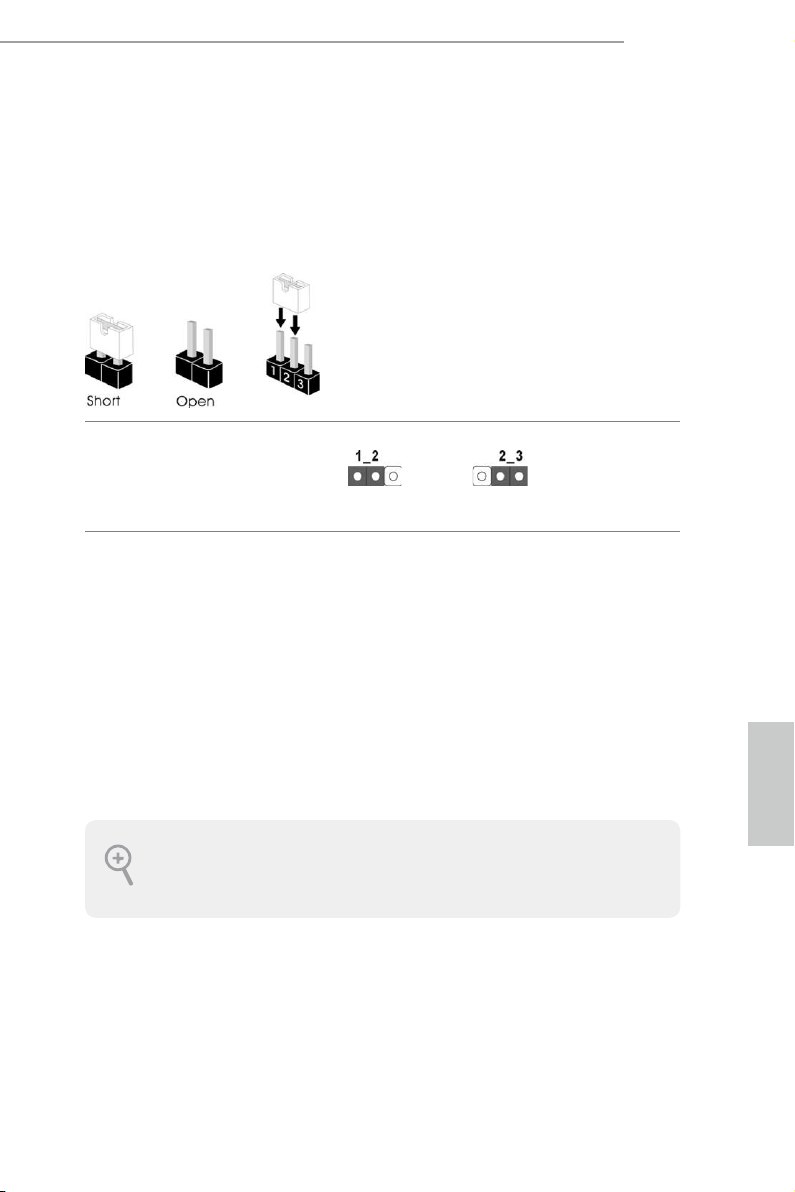

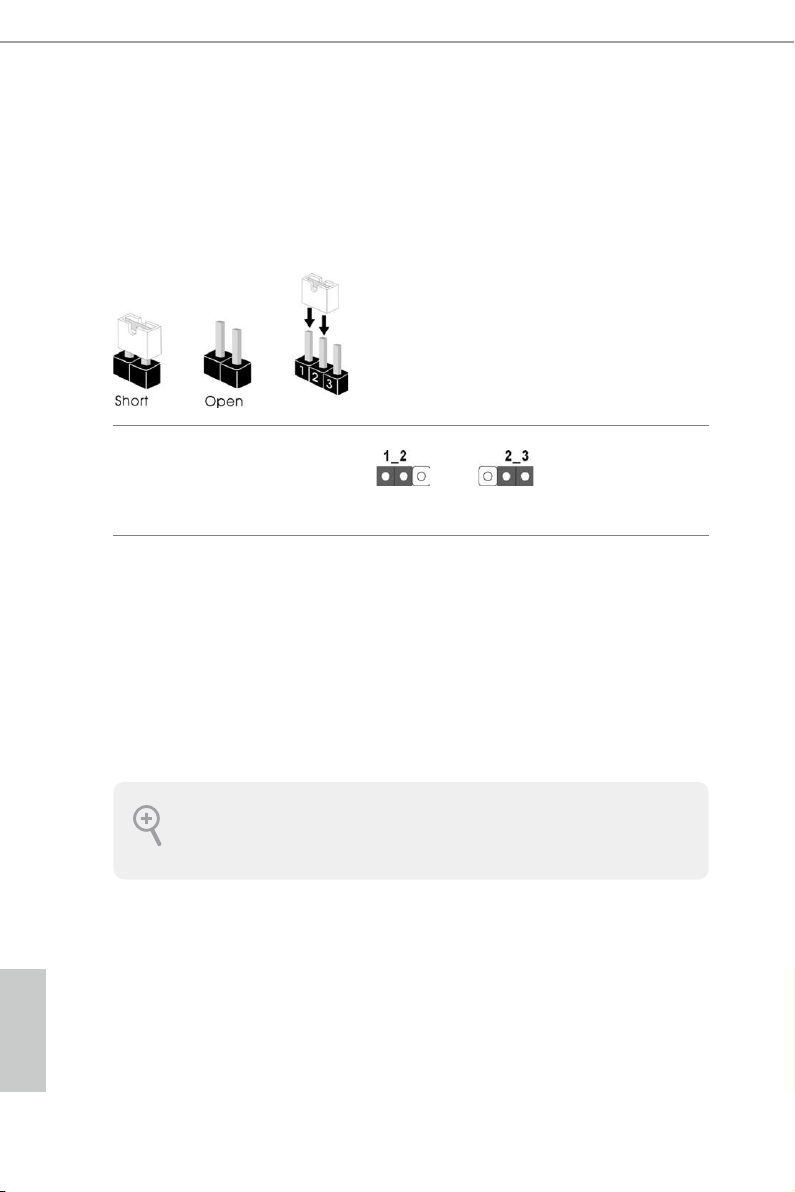

2.5 Jumpers Setup

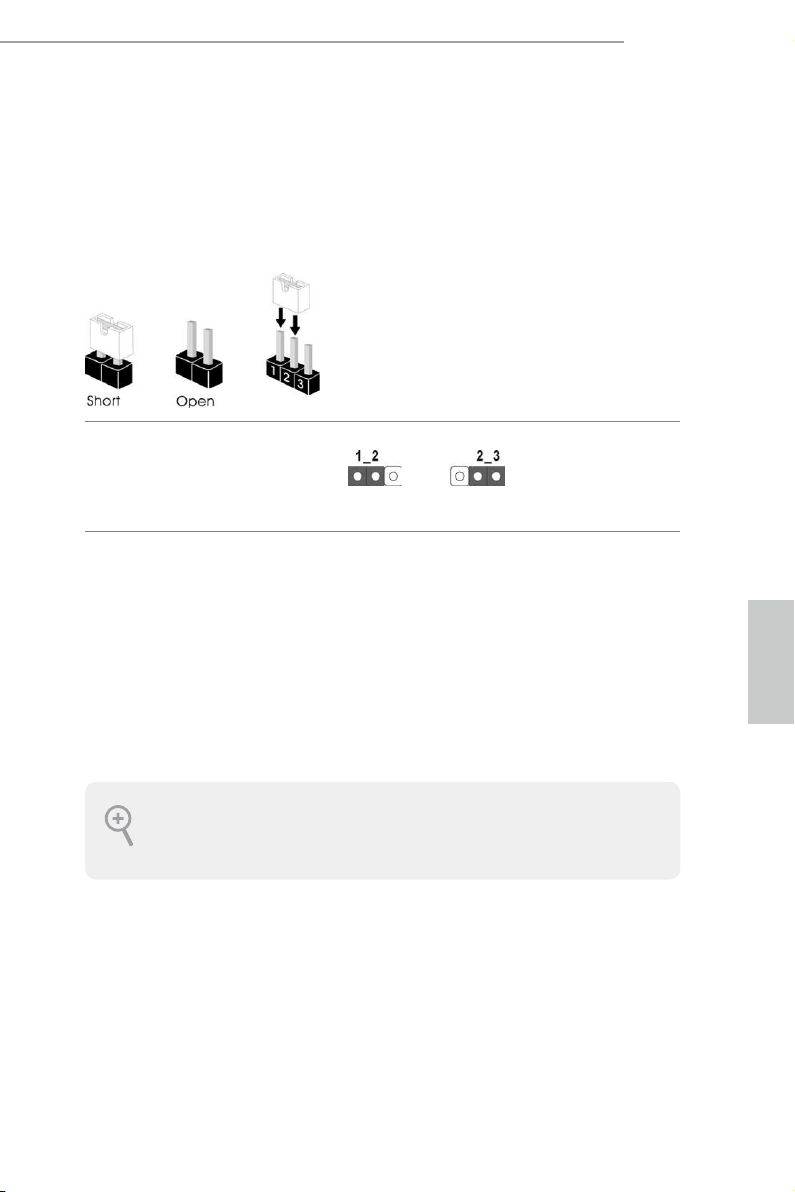

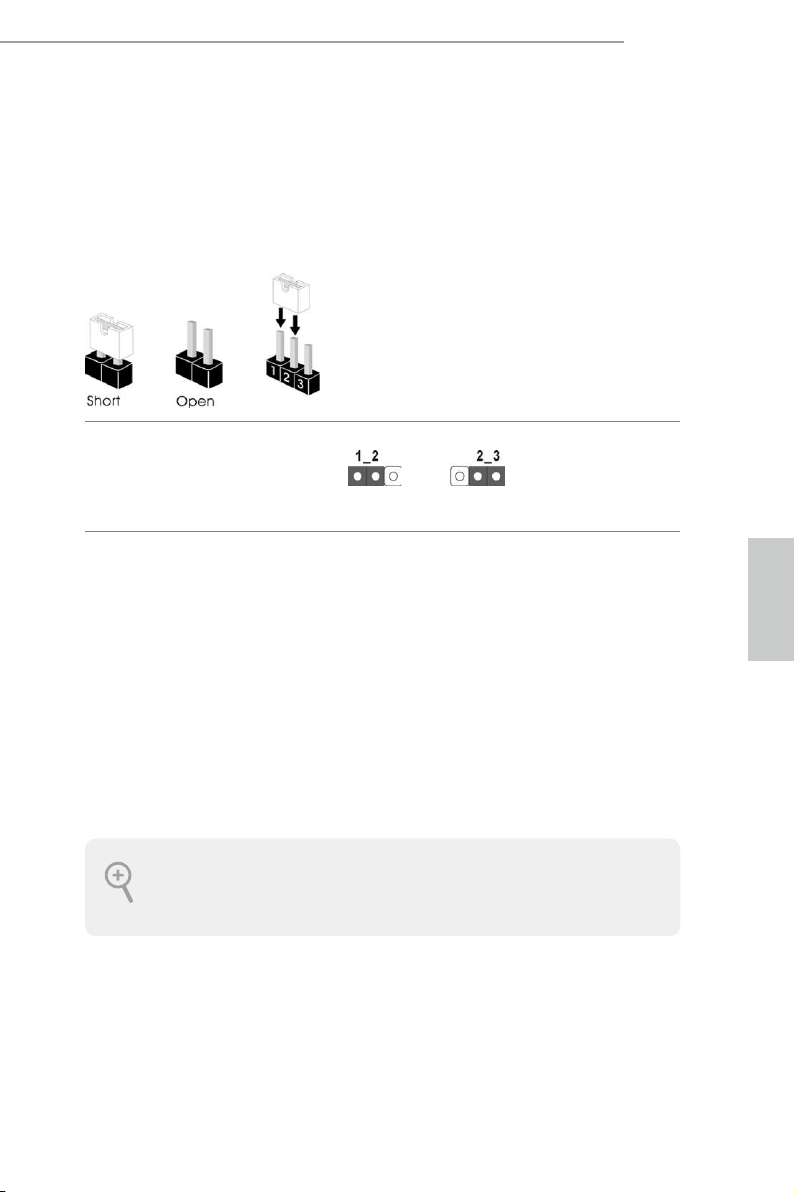

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper
(C LR MOS 1)
(see p.1, No. 16)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.

Default

Clear CMOS

English

18

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear
Status” to clear the record of previous chassis intrusion statu s.

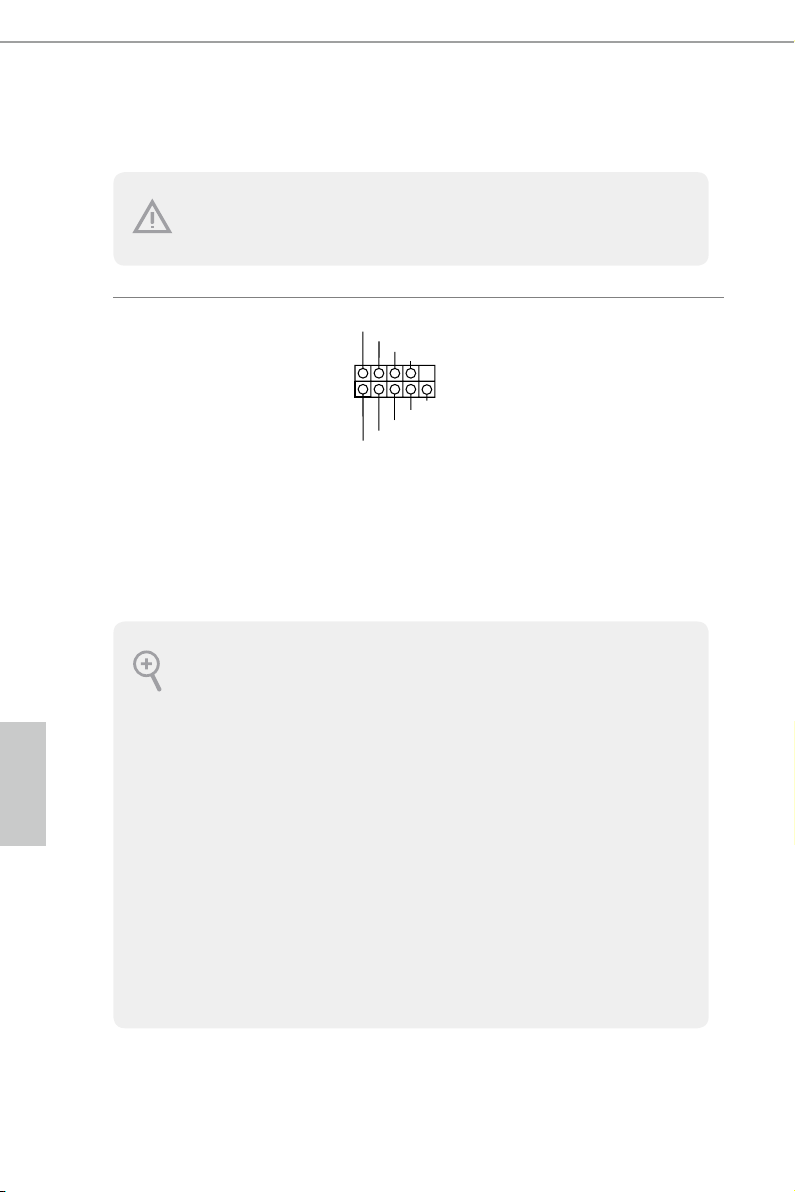

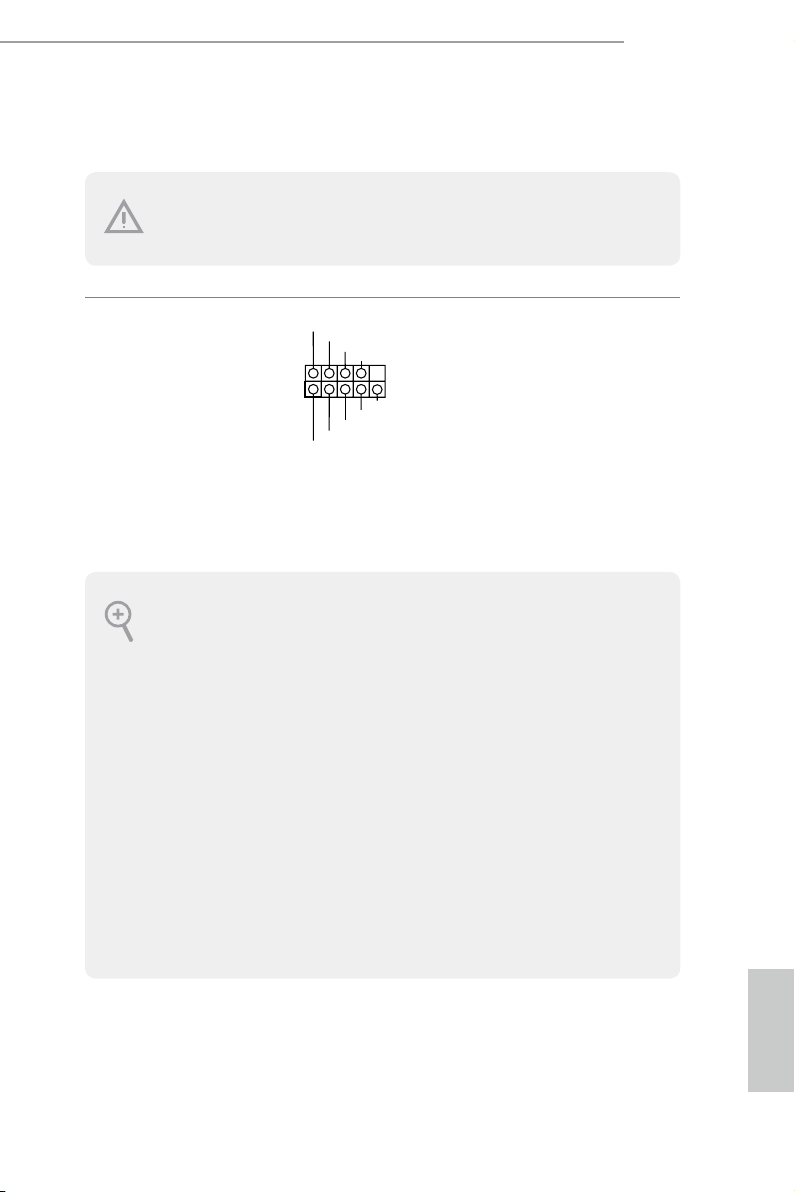

2.6 Onboard Headers and Connectors

1

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
heade rs and connectors. Placing jumper caps over the heade rs and connectors will cause
permanent damage to the motherboard.

Q170M vPro

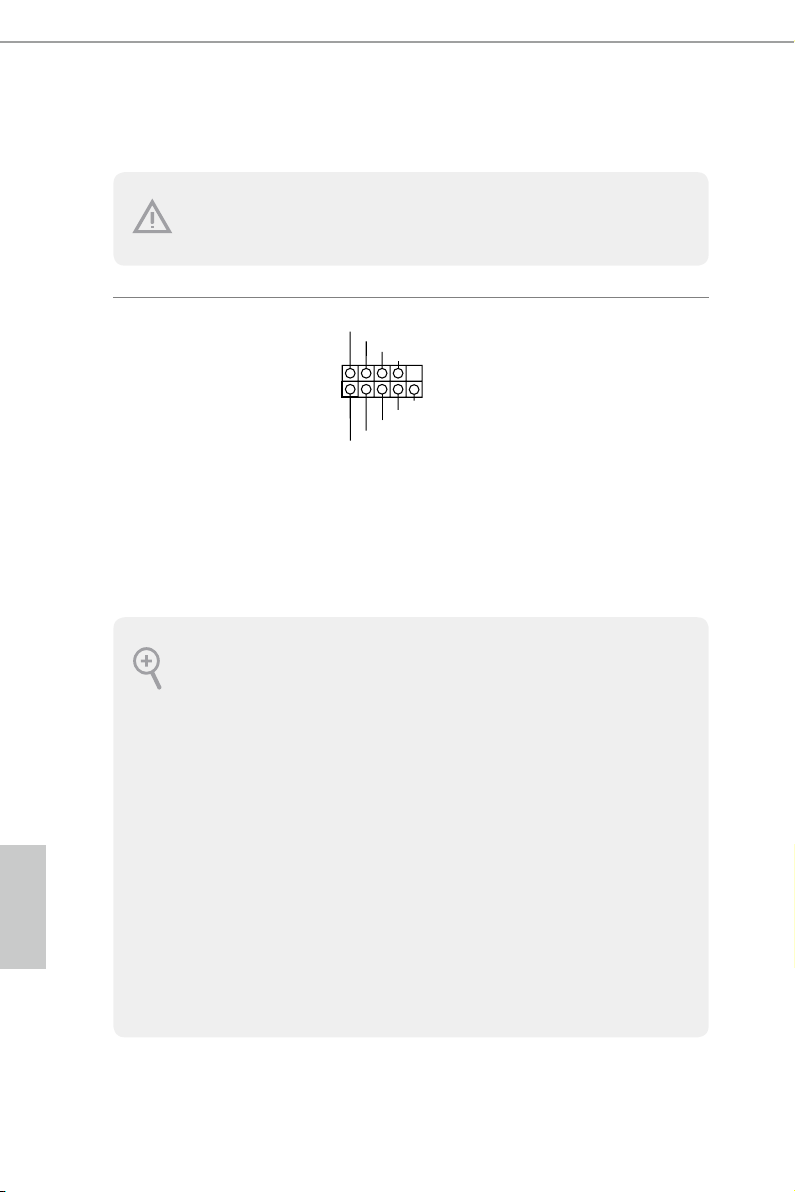

System Panel Header

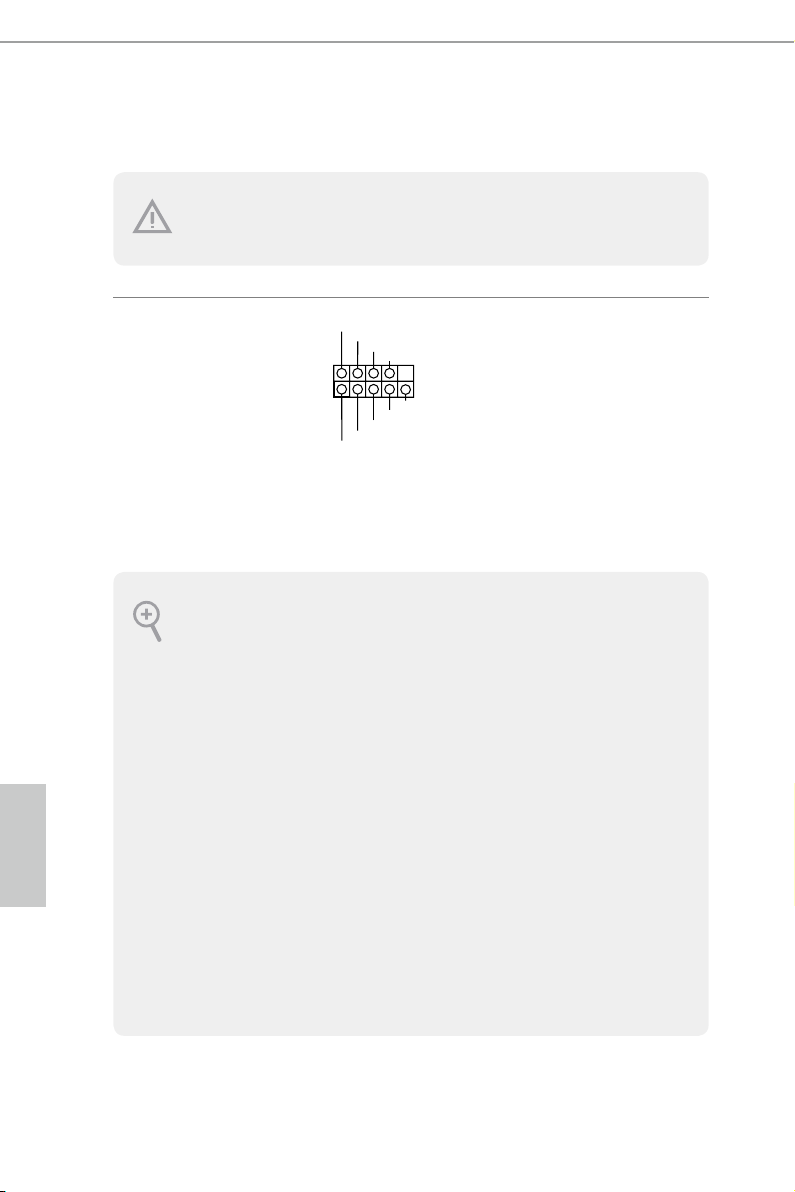

(9-p in PA NEL1)
(see p.1, No. 14)

PWRBTN (Power Switch):

Connec t to the power switch on the cha ssis front panel. You may congure the way to turn
o your system using the power switch.

RESET (Reset Sw itch):
Connec t to the reset switch on the cha ssis front panel. Press the reset switch to restart the
computer if the computer freezes and fails to pe rform a normal restar t.

PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel. e LED i s on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive activity LED on the cha ssis front panel. e LED is on when the
hard drive is reading or writing data.

e front panel design may dier by chassis. A f ront panel module mainly consists of power
switch, reset switch, power LED, hard drive activity LED, speaker and etc . When connect­ing your chassis front panel module to this header, make sure the wire assignments and the
pin assignment s are matched cor rectly.

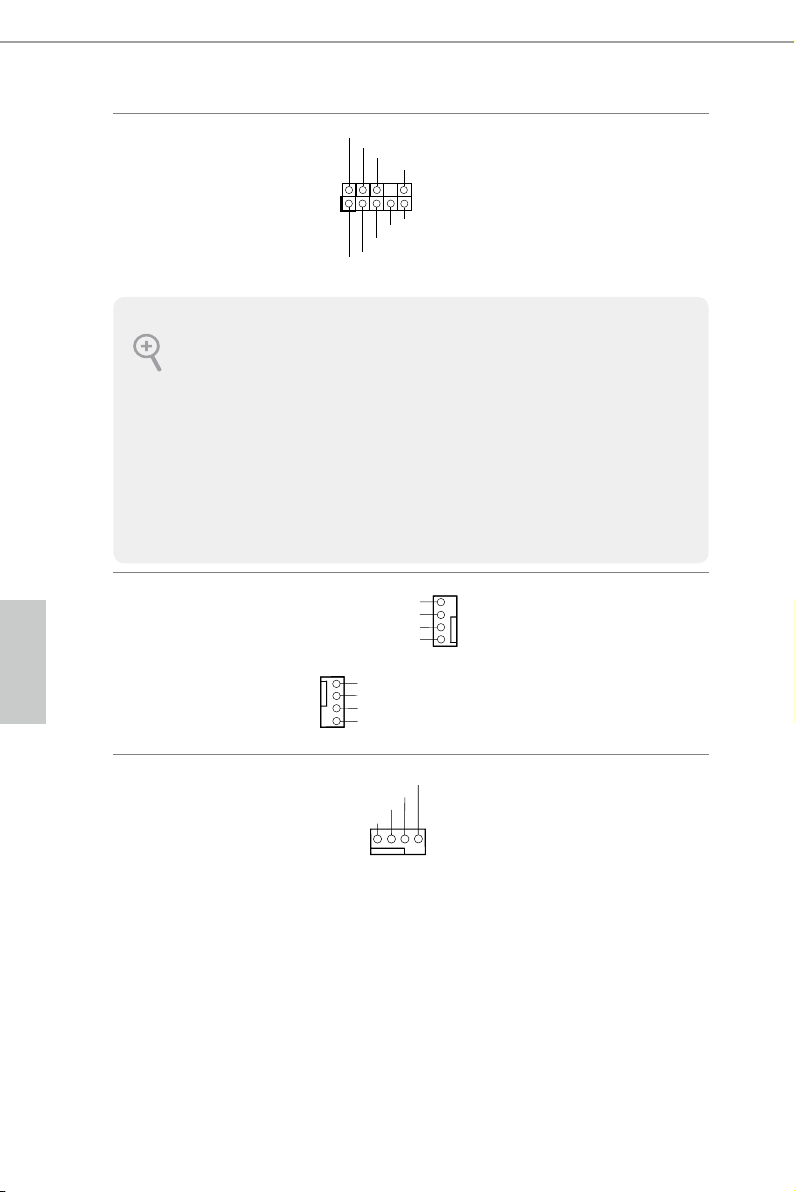

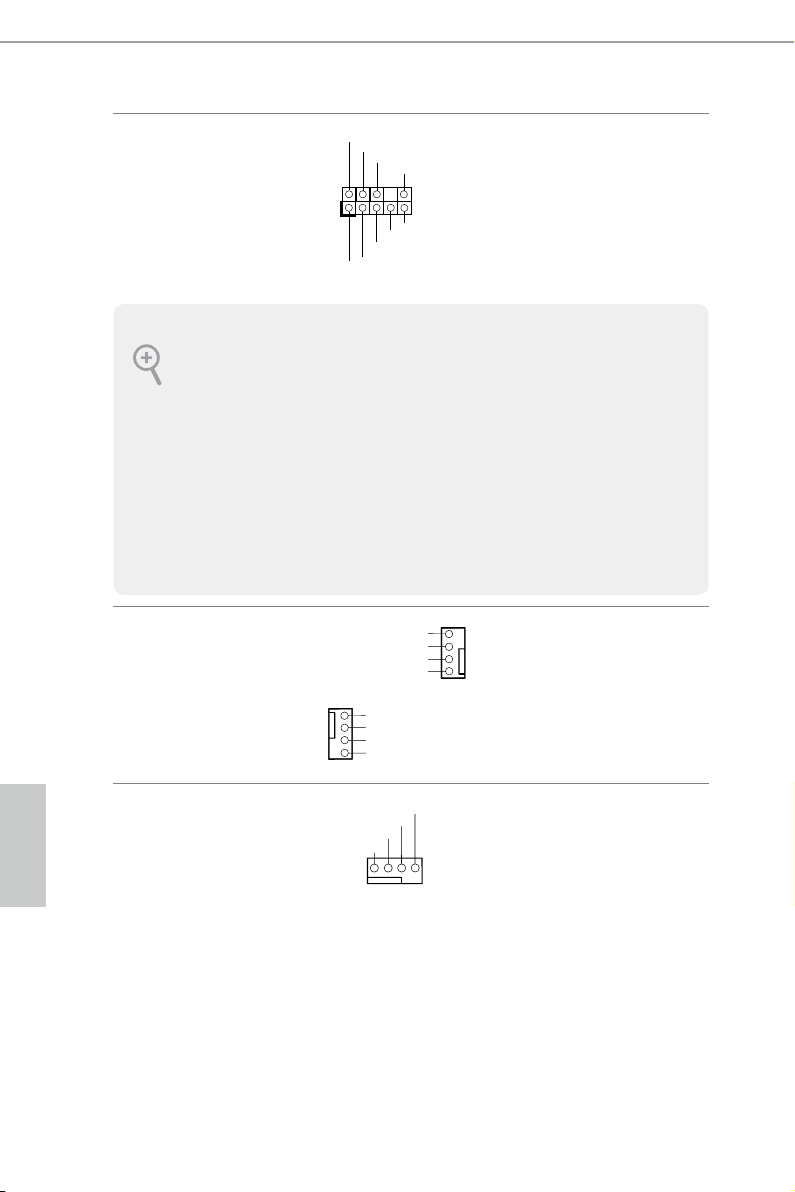

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.

English

19

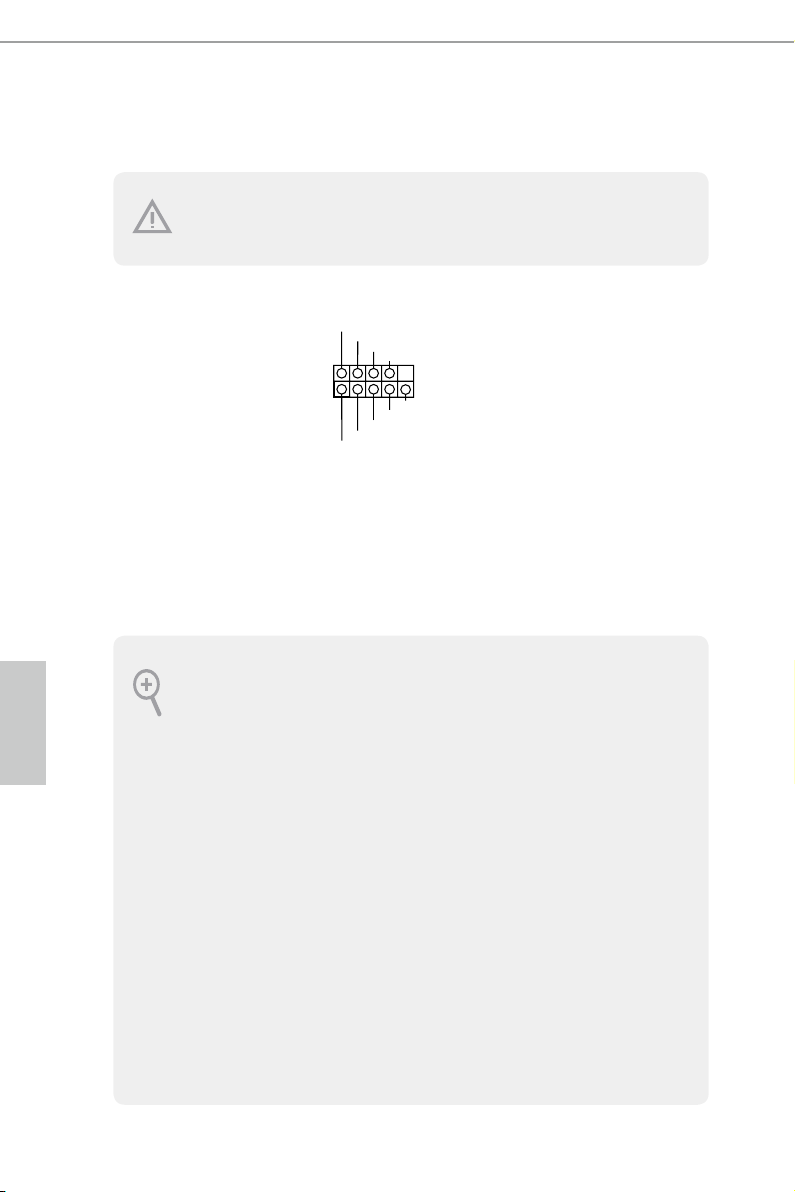

Chassis Intrusion and

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Speaker Header
(7-pi n SPK_CI1)
(see p.1, No. 15)

Please connect the
chassis intrusion and the
chassis speaker to this
header.

English

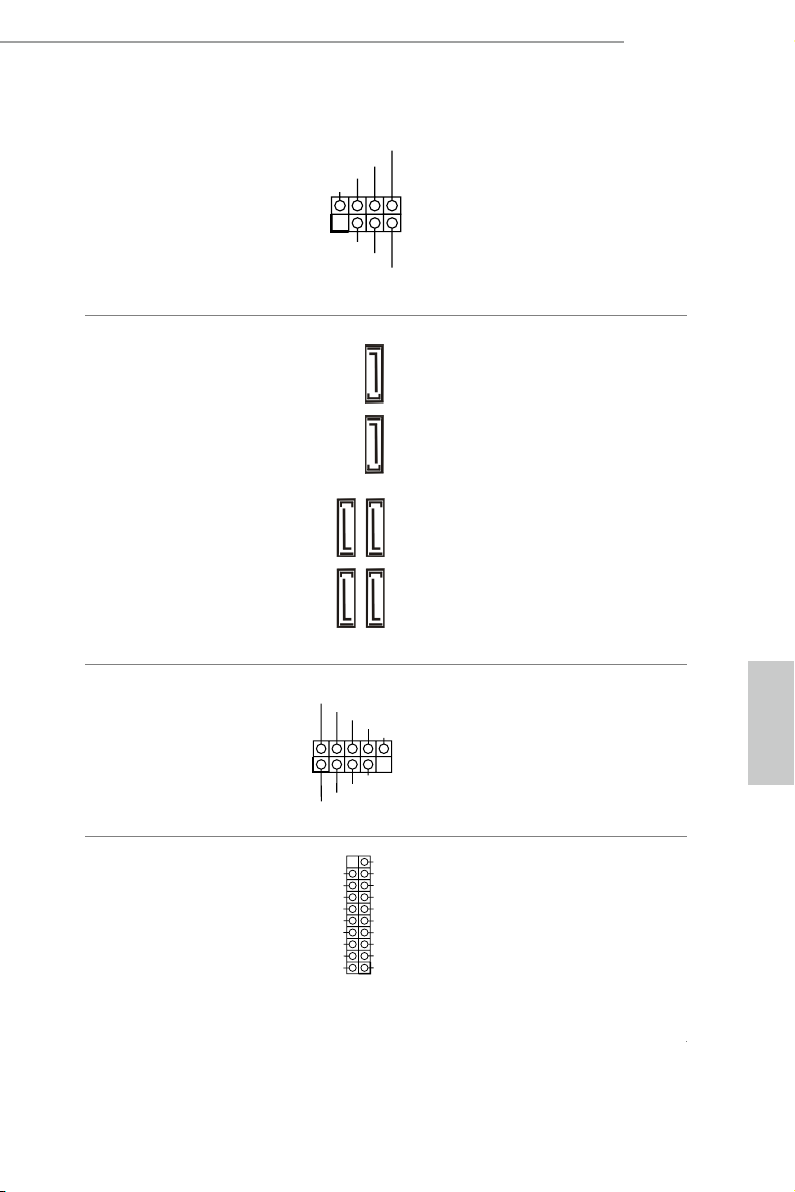

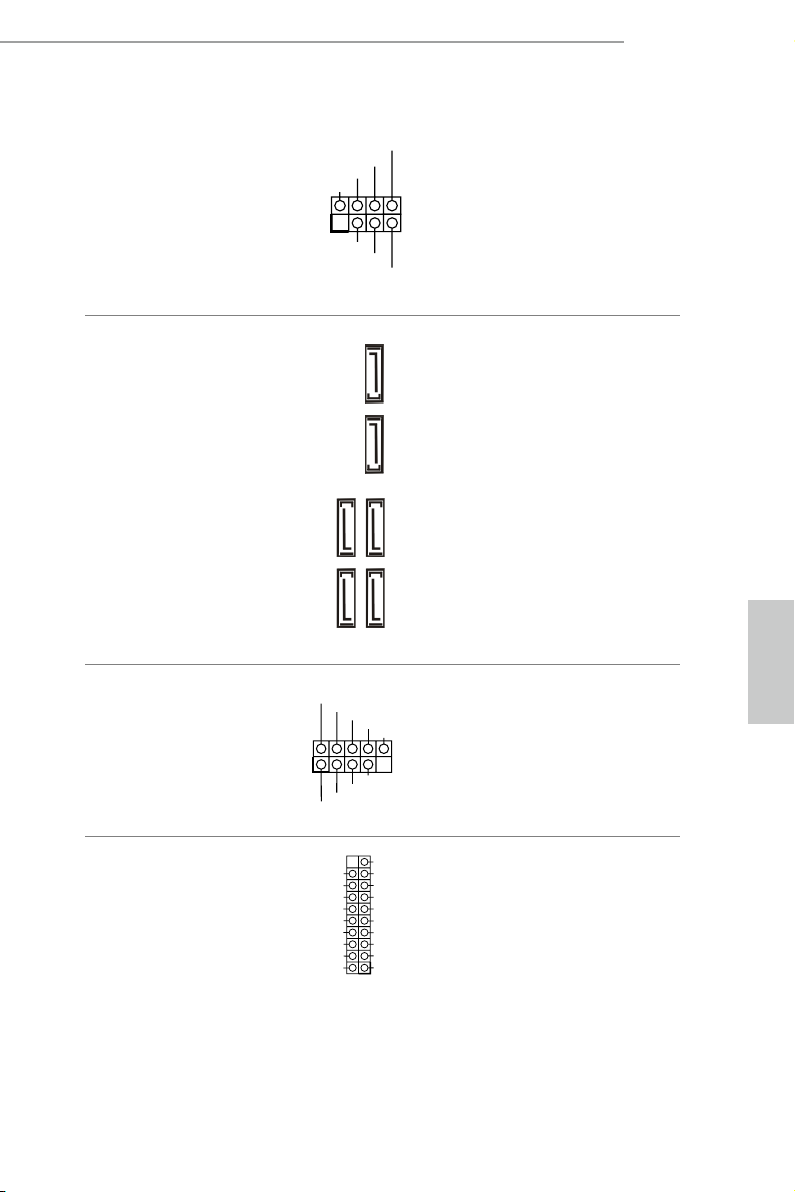

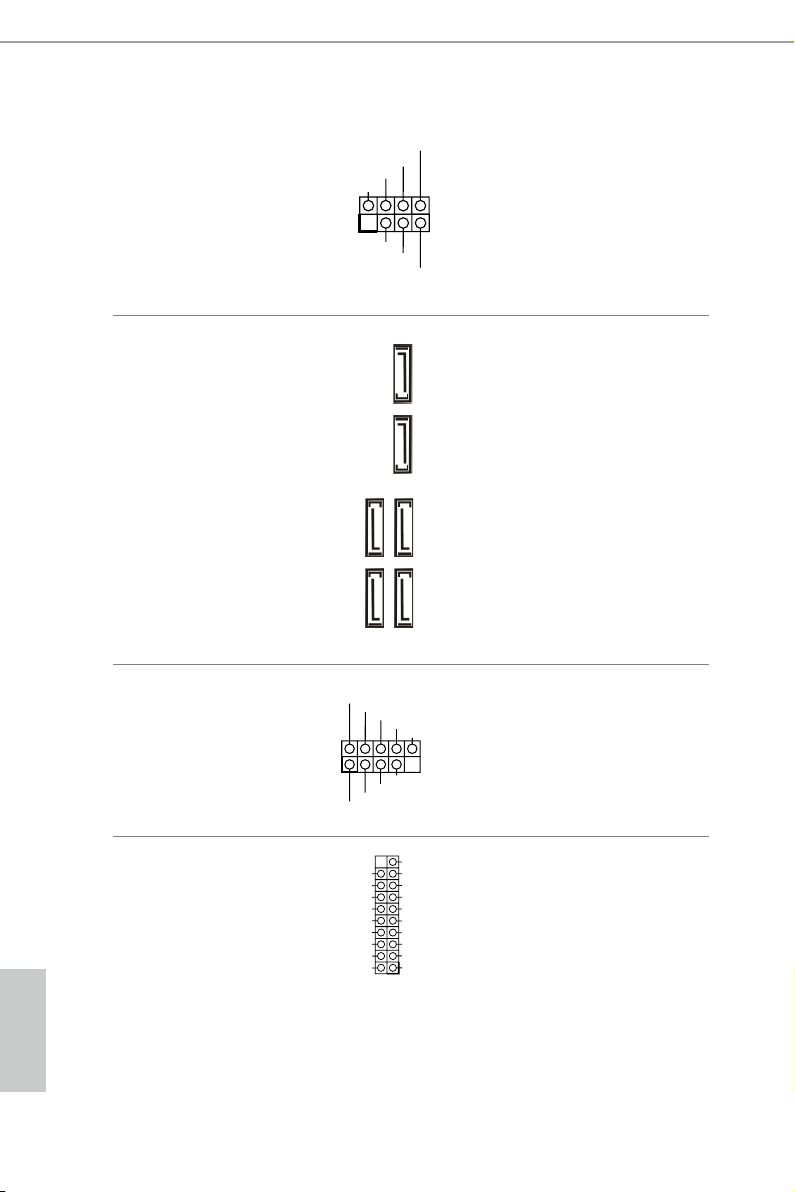

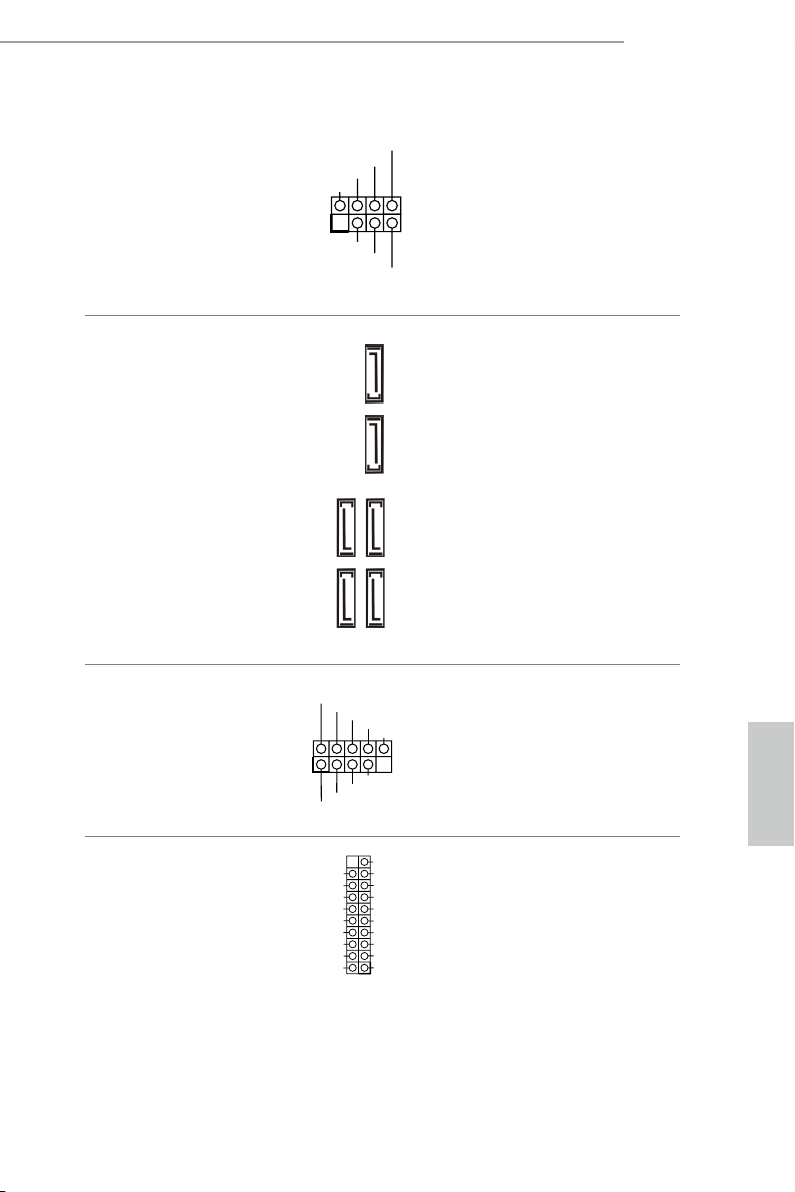

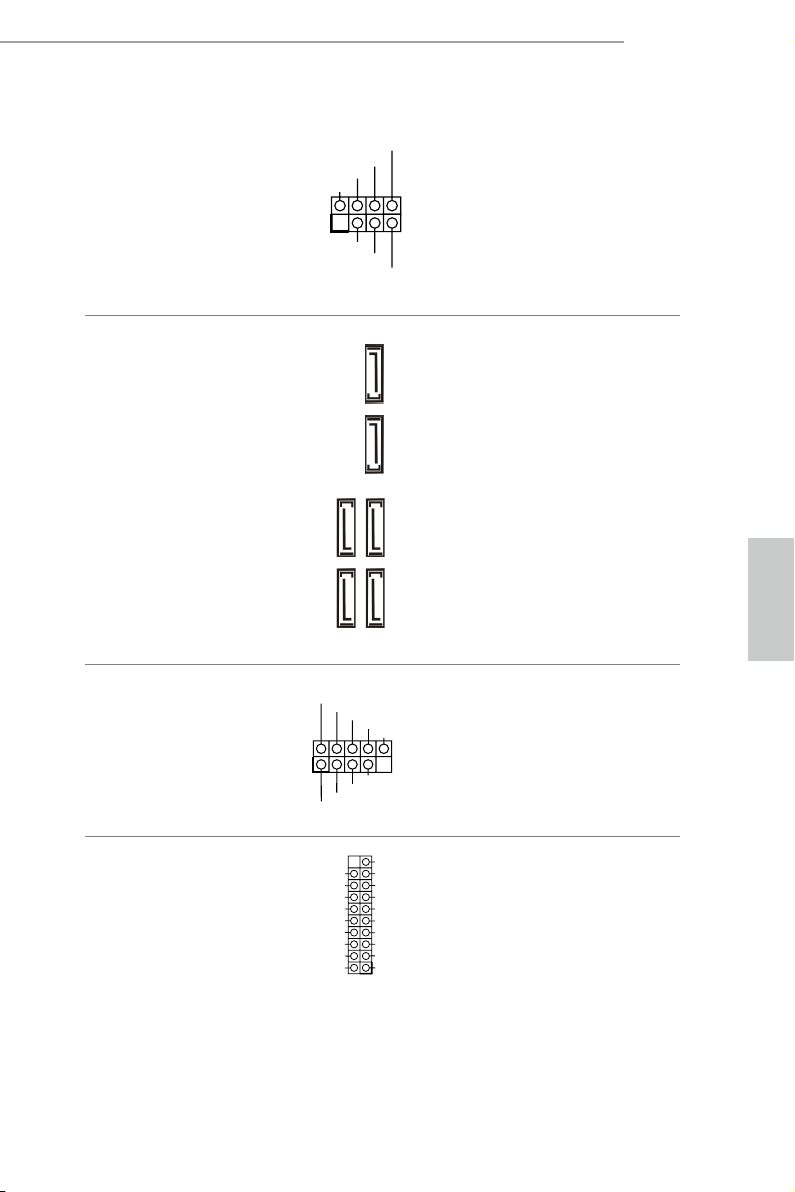

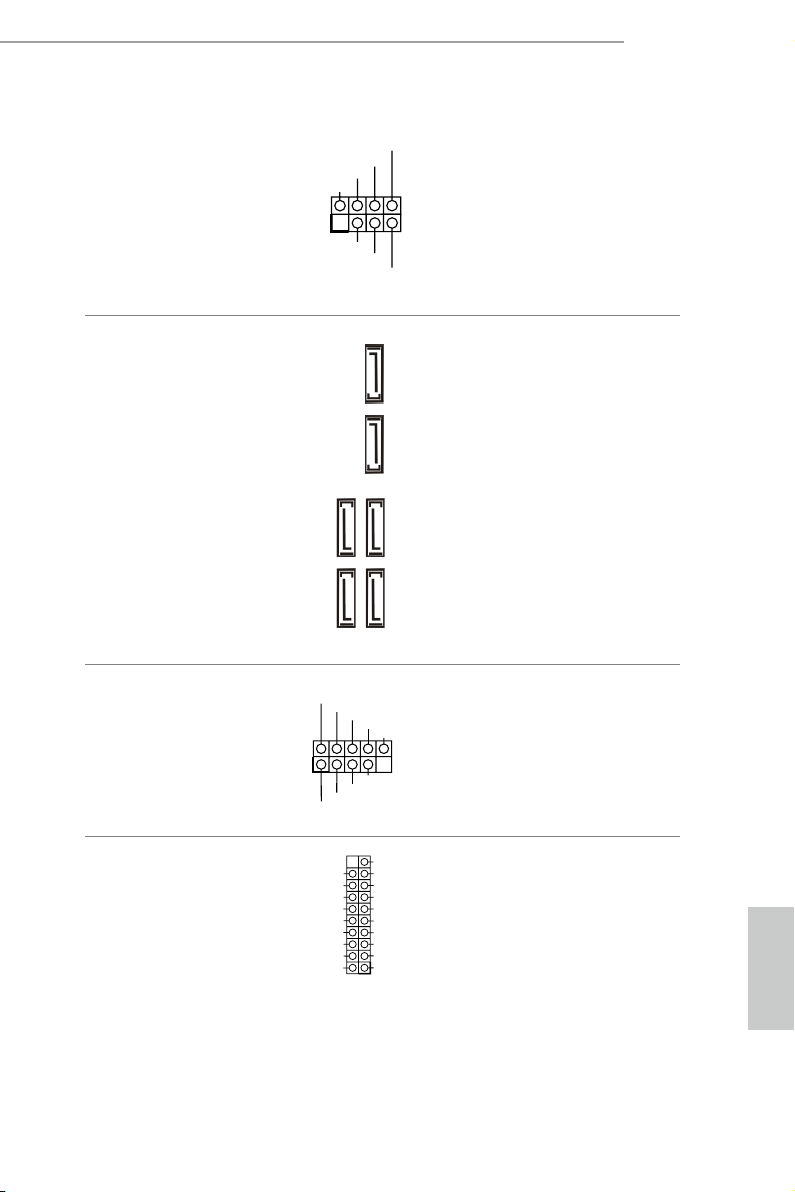

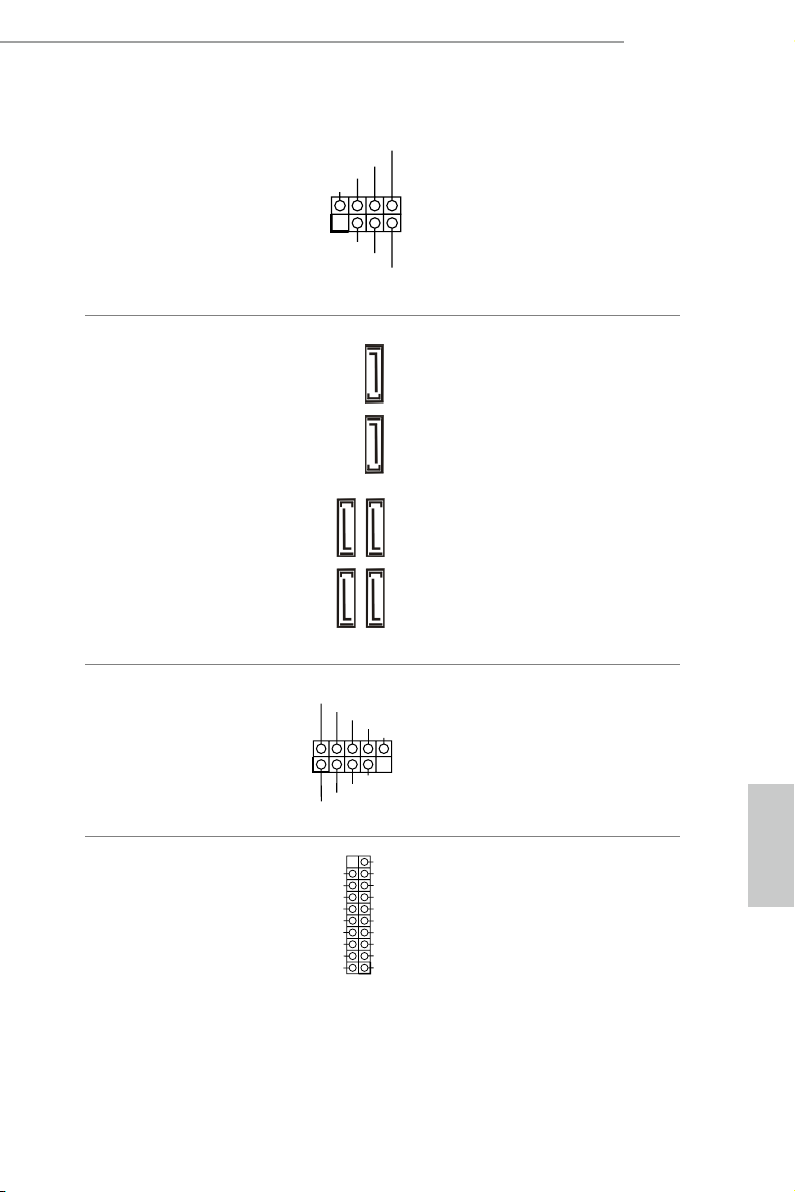

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 6)
(SATA3_1:
see p.1, No. 7)
(SATA3_2:
see p.1, No. 10)
(SATA3_3:
see p.1, No. 11)
(SATA3_4:
see p.1, No. 13)
(SATA3_5:
see p.1, No. 12)

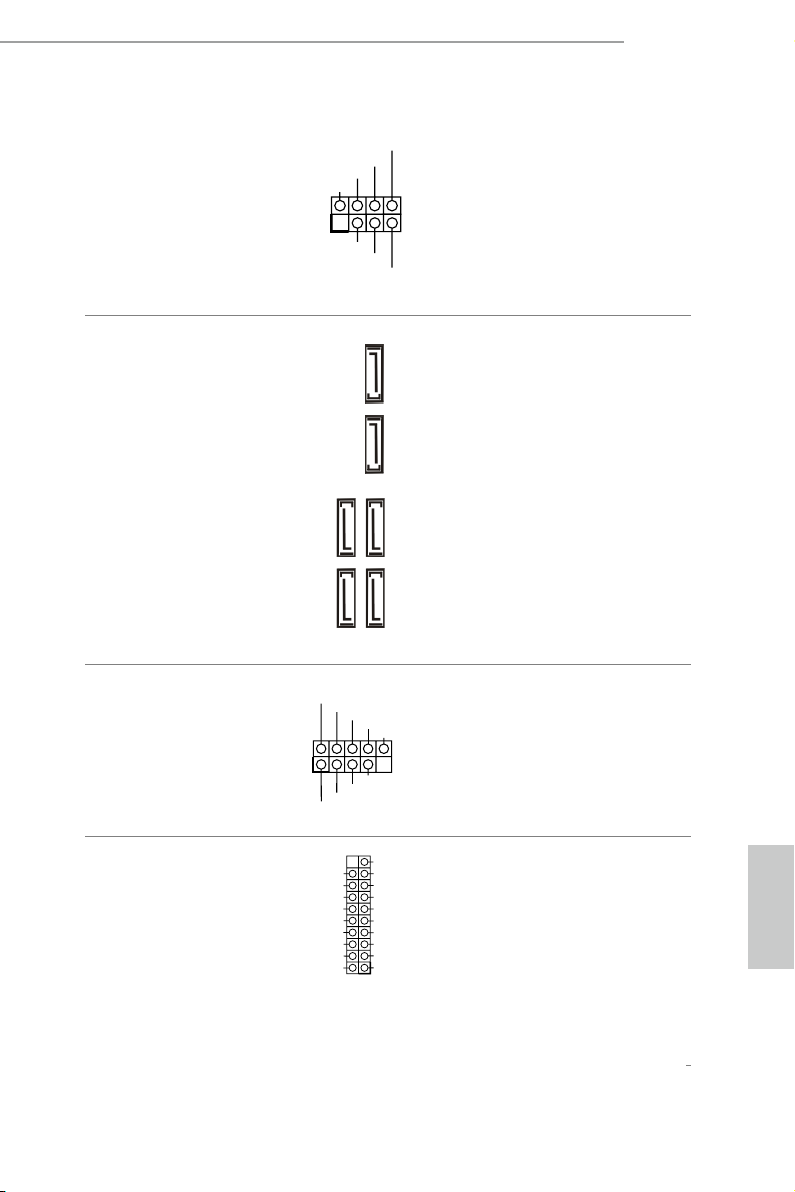

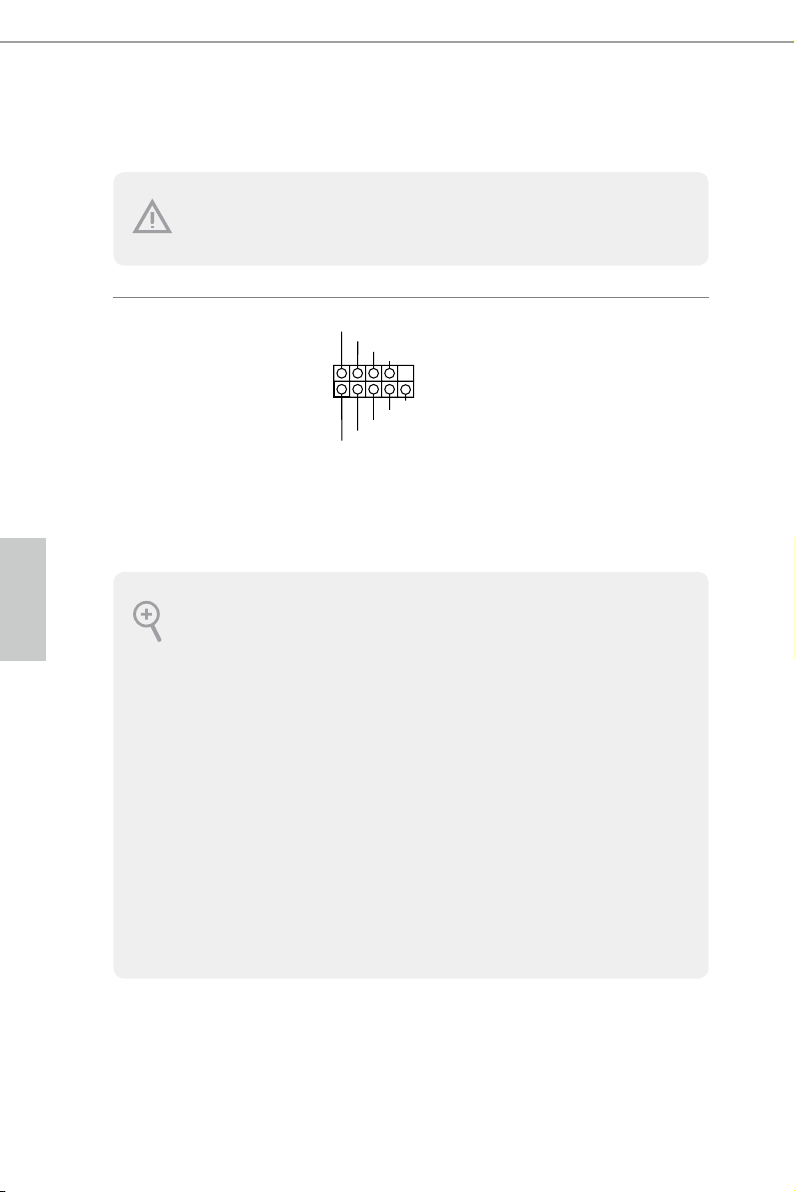

USB 2.0 Header
(9-pin USB1_2)
(see p.1, No. 17)

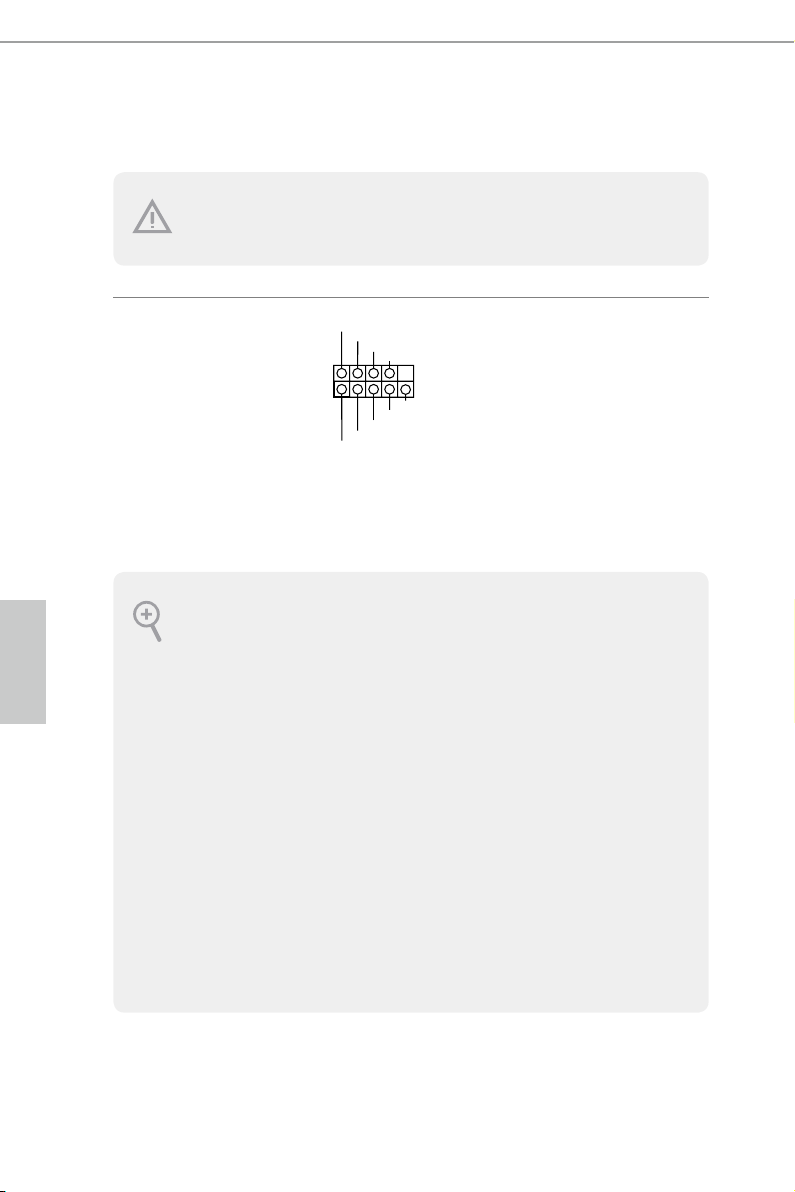

USB 3.0 Header
(19-pin USB3_5_6)
(see p.1, No. 8)

SATA3_2

SATA3_4

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

SATA3_0

SATA3_1

SATA3_3

SATA3_5

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to

6.0 Gb/s data transfer rate.
* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_0 and SATA3_1
will be disabled.

ere is one header on
this motherboard. is
USB 2.0 header can
support two ports.

Besides six USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB

3.0 header can support
two ports.

20

Q170M vPro

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

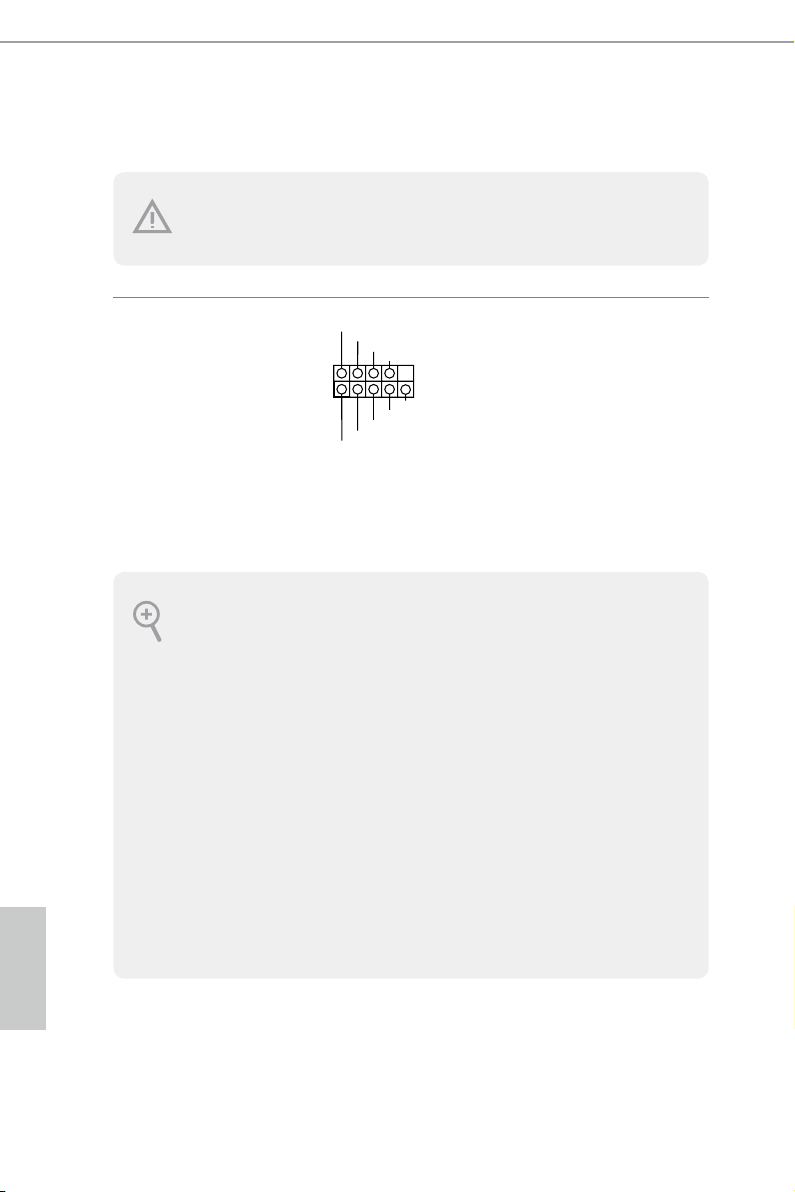

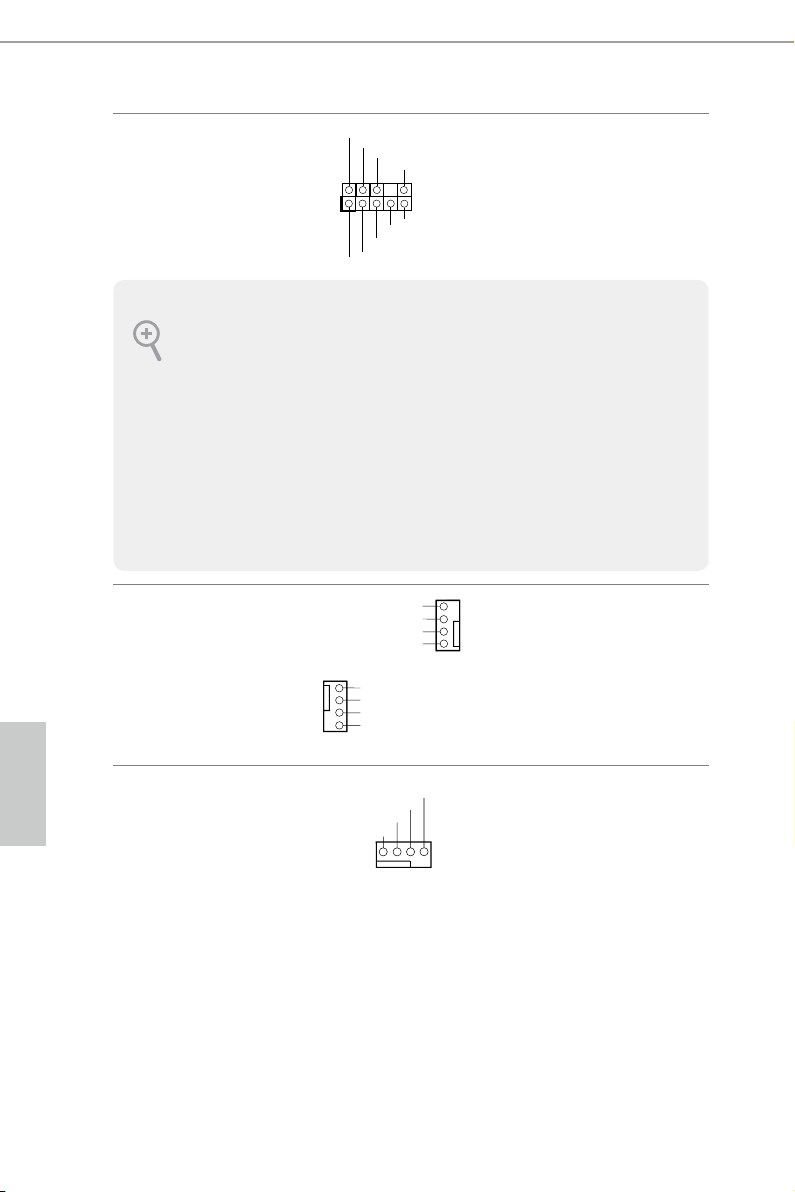

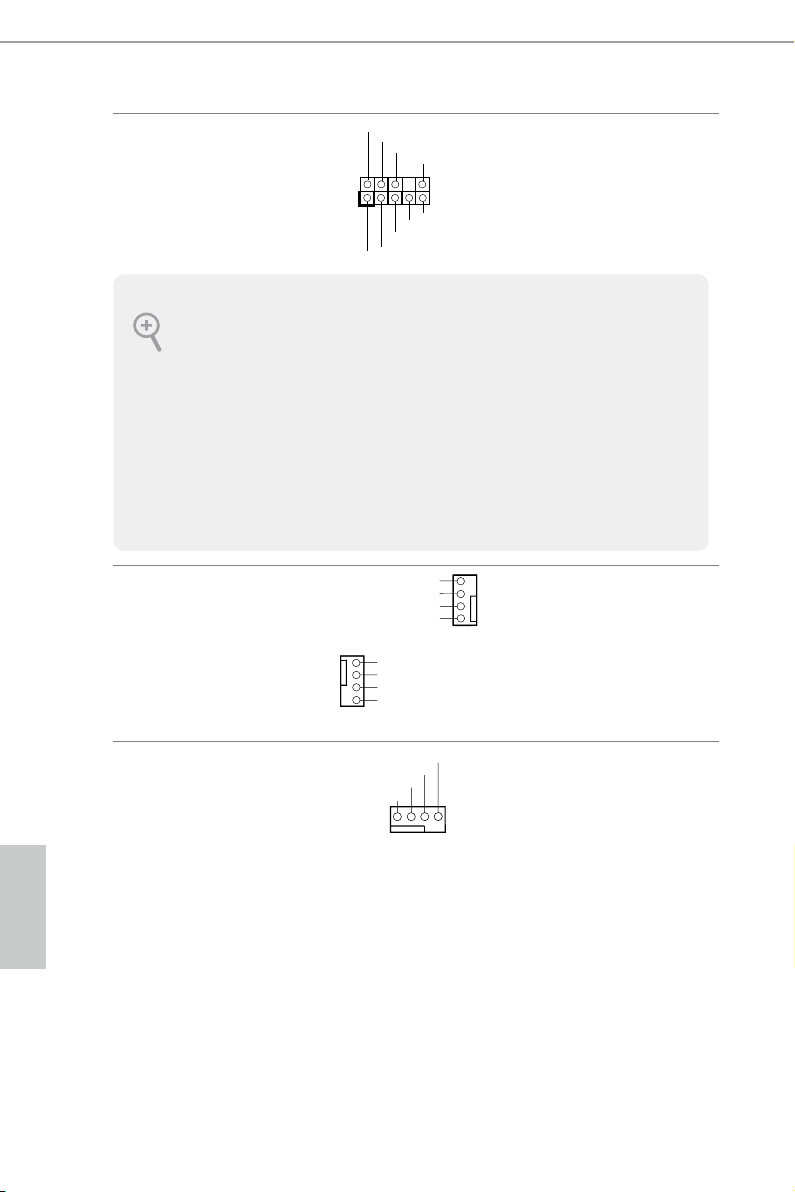

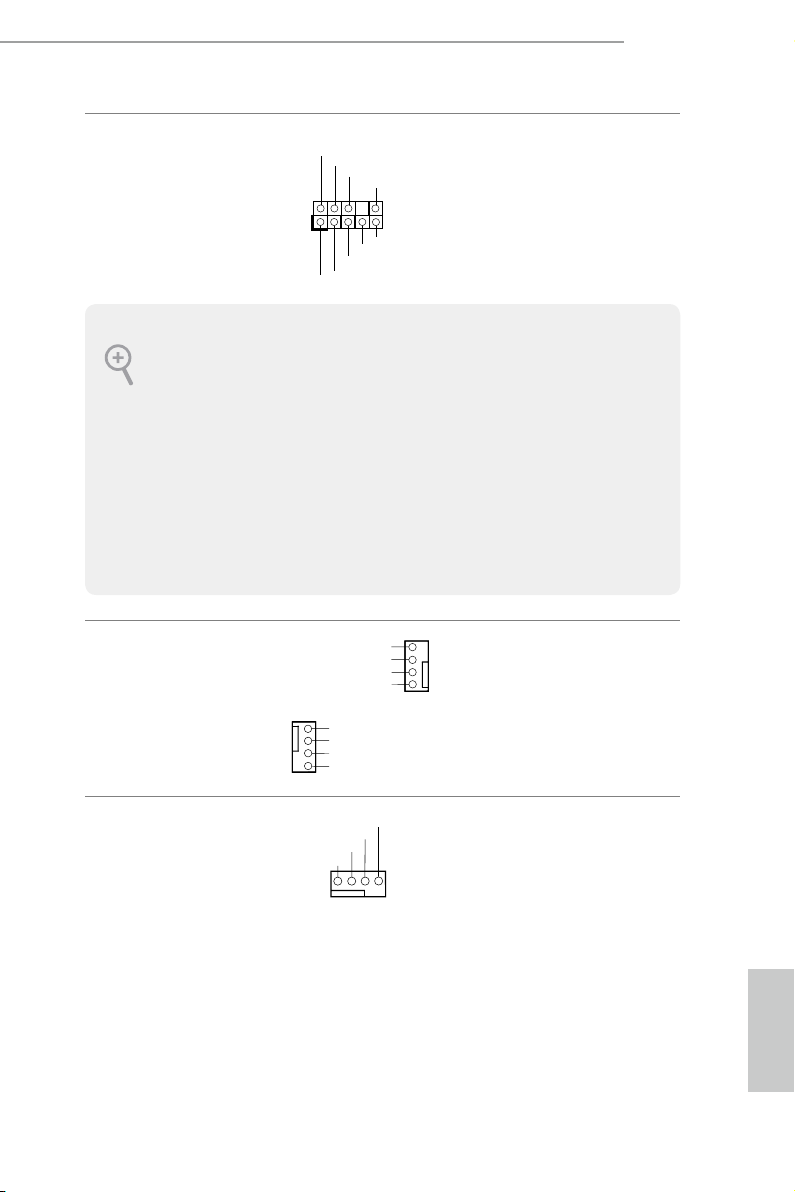

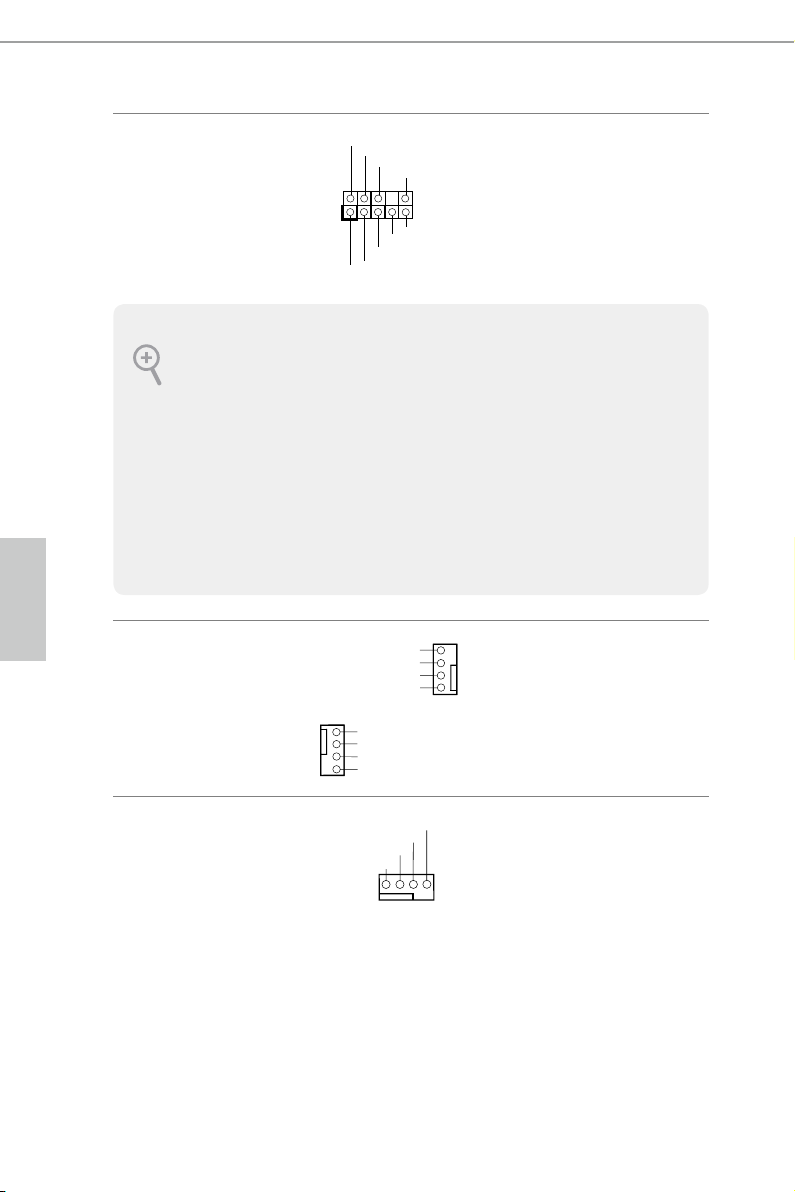

Front Panel Audio Header
(9-pin HD_AU DIO1)
(see p.1, No. 22)

is header is for
connecting audio devices
to the front audio panel.

1. High Denition Audio supports Jack Sensing, but the panel wire on the chas sis must sup­port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio heade r by the
steps below:
A. Connect Mic_ IN (MIC) to MIC2_L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connect
them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.

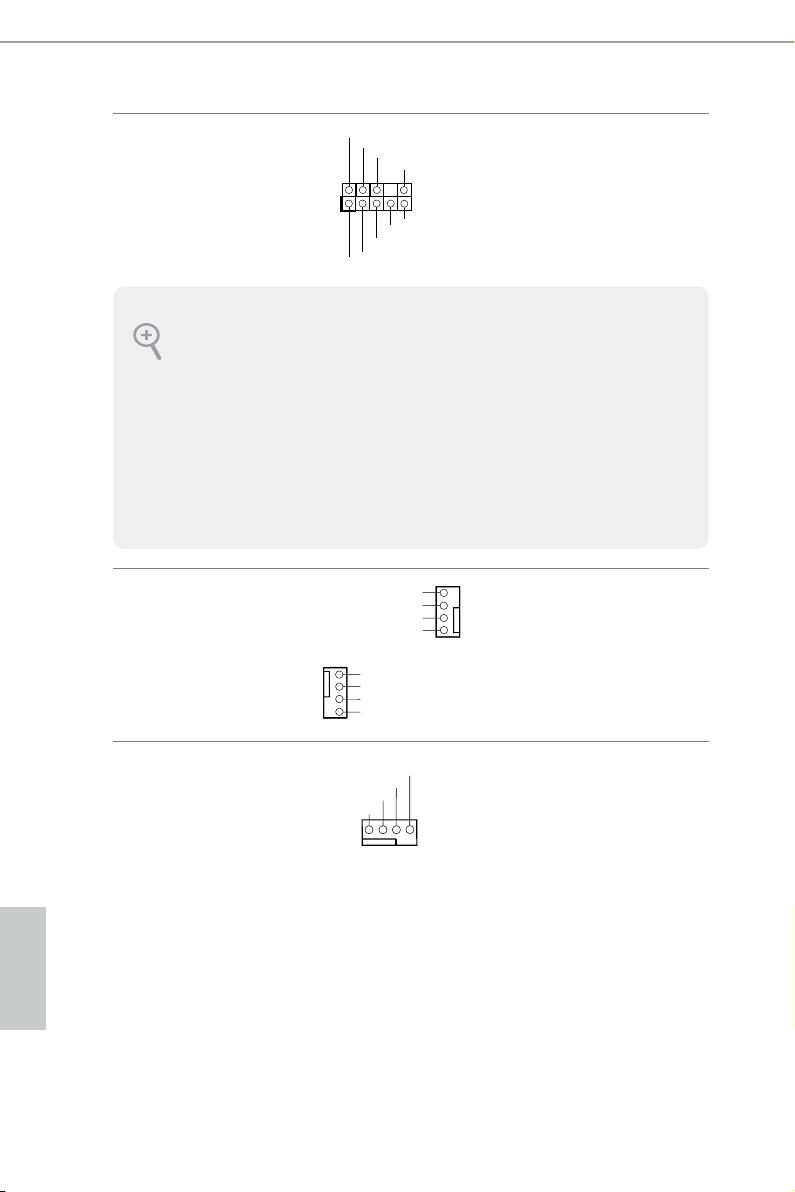

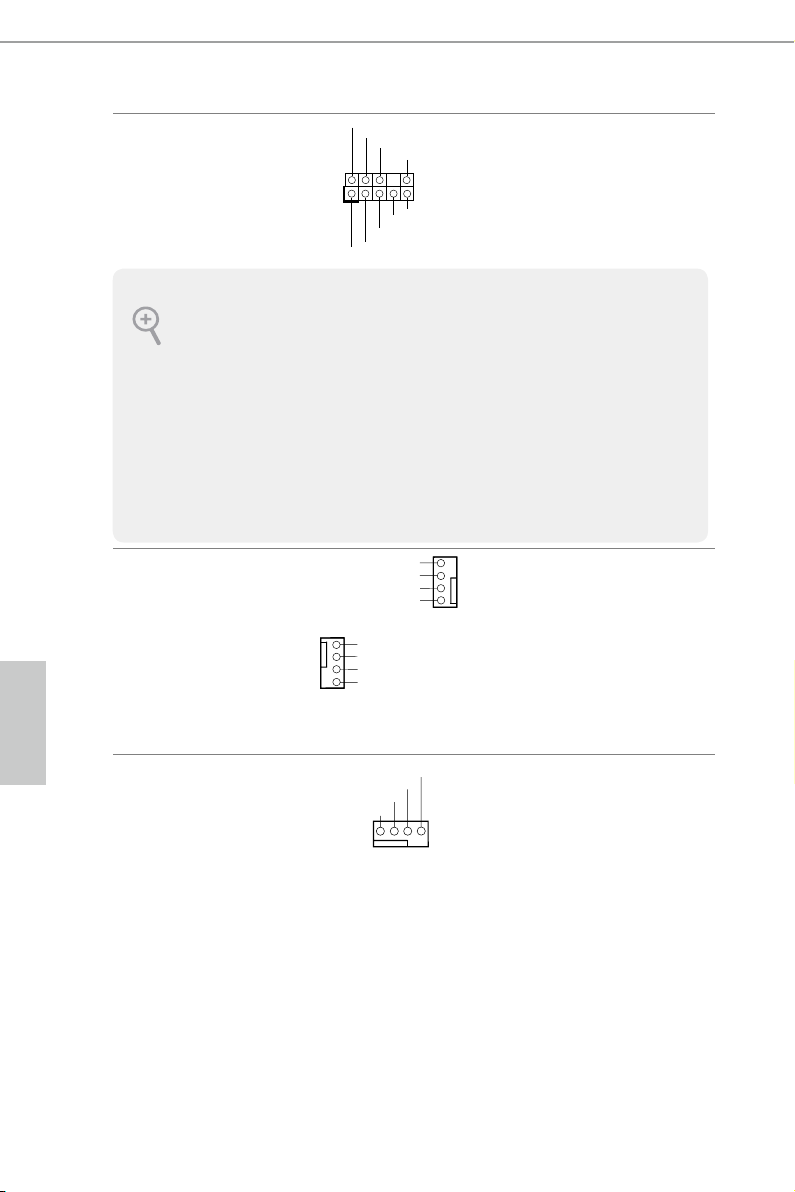

Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.1, No. 23)

(4-pin CHA_FAN2)
(see p.1, No. 9)

CHA_FAN_SPEED

FAN_VOLTAGE

GND

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin.

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 2)

CPU_FAN_SPEED

FAN_VOLTAGE

GND

is motherboard pro­vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

English

21

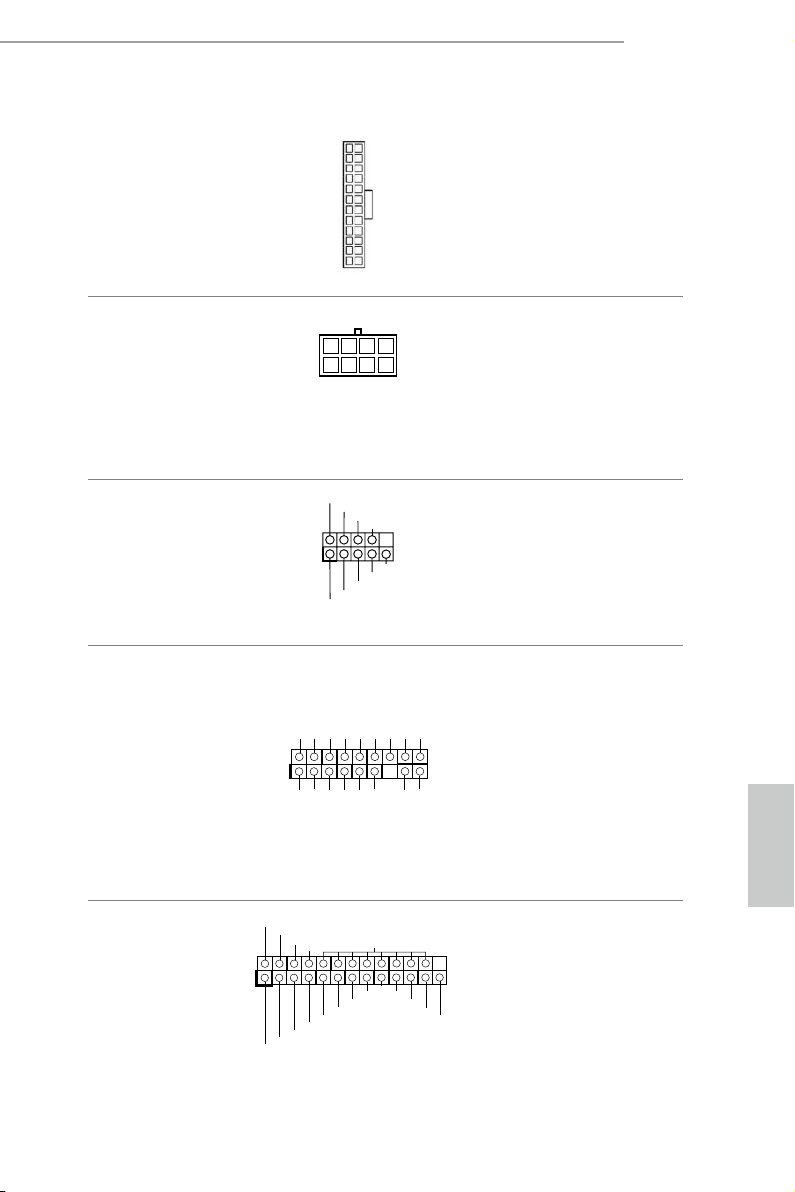

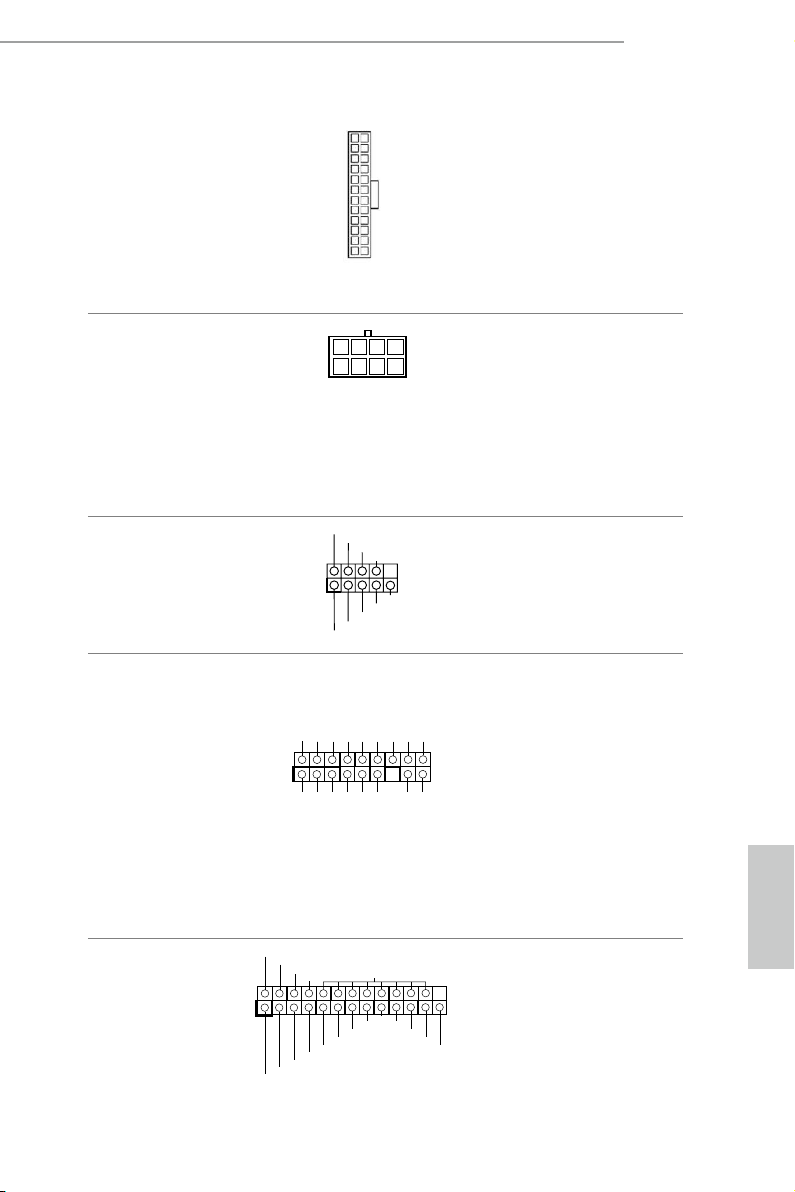

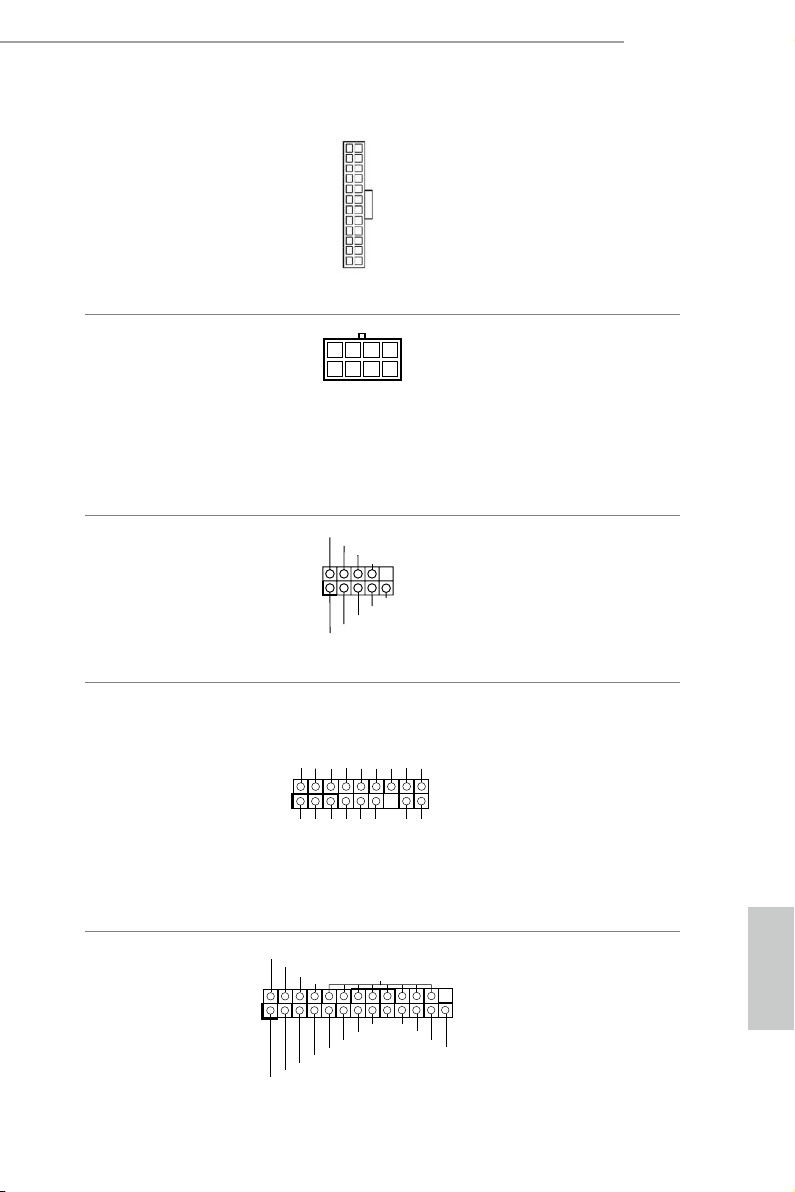

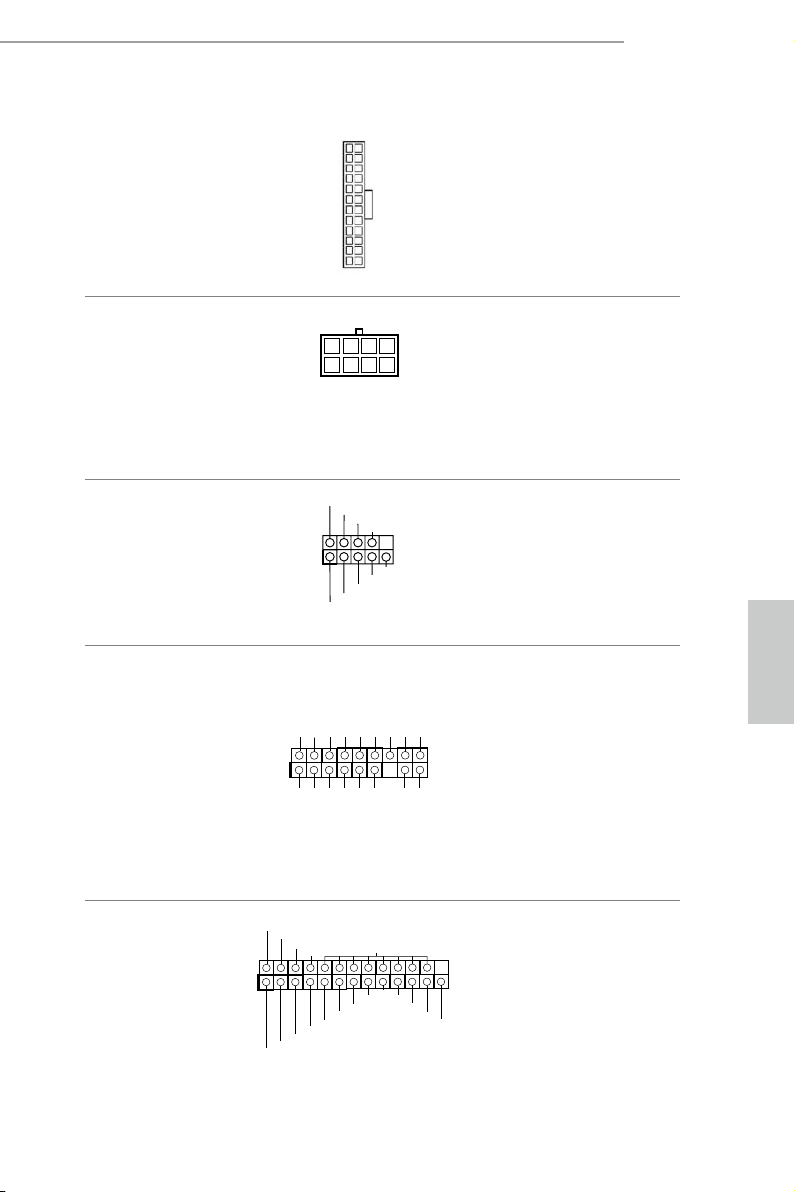

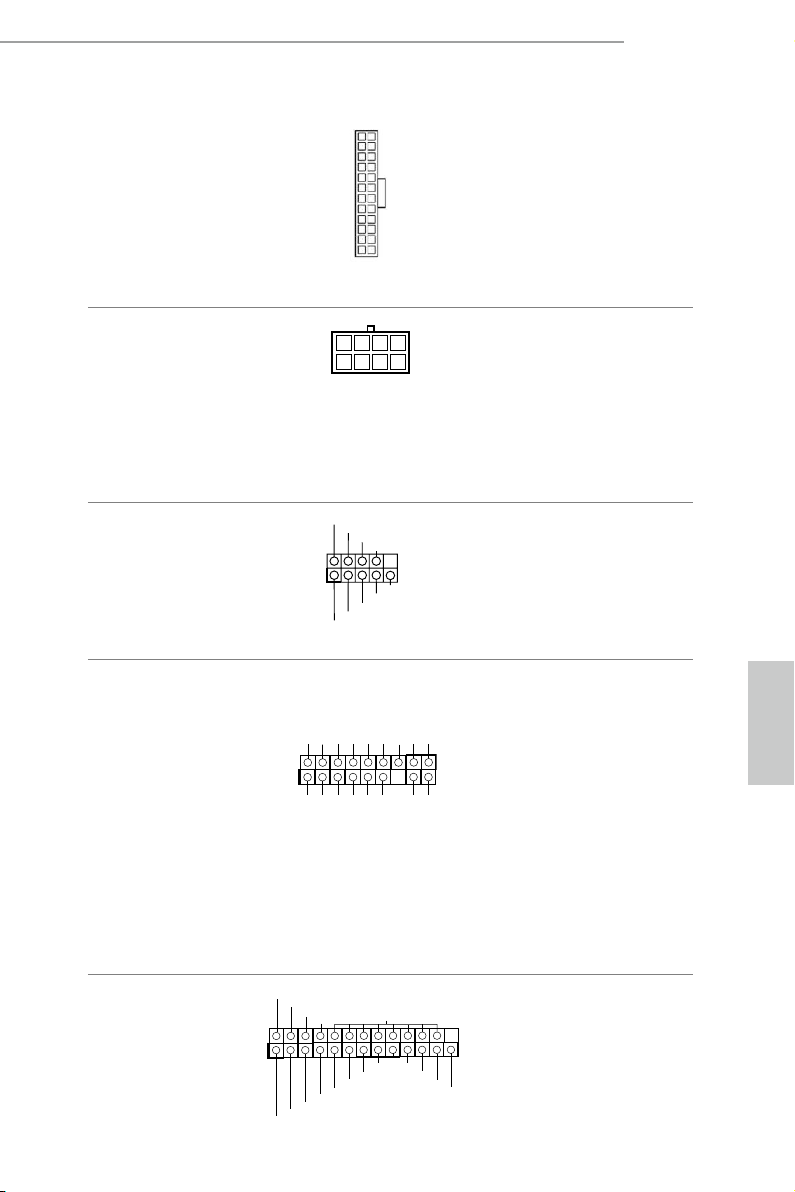

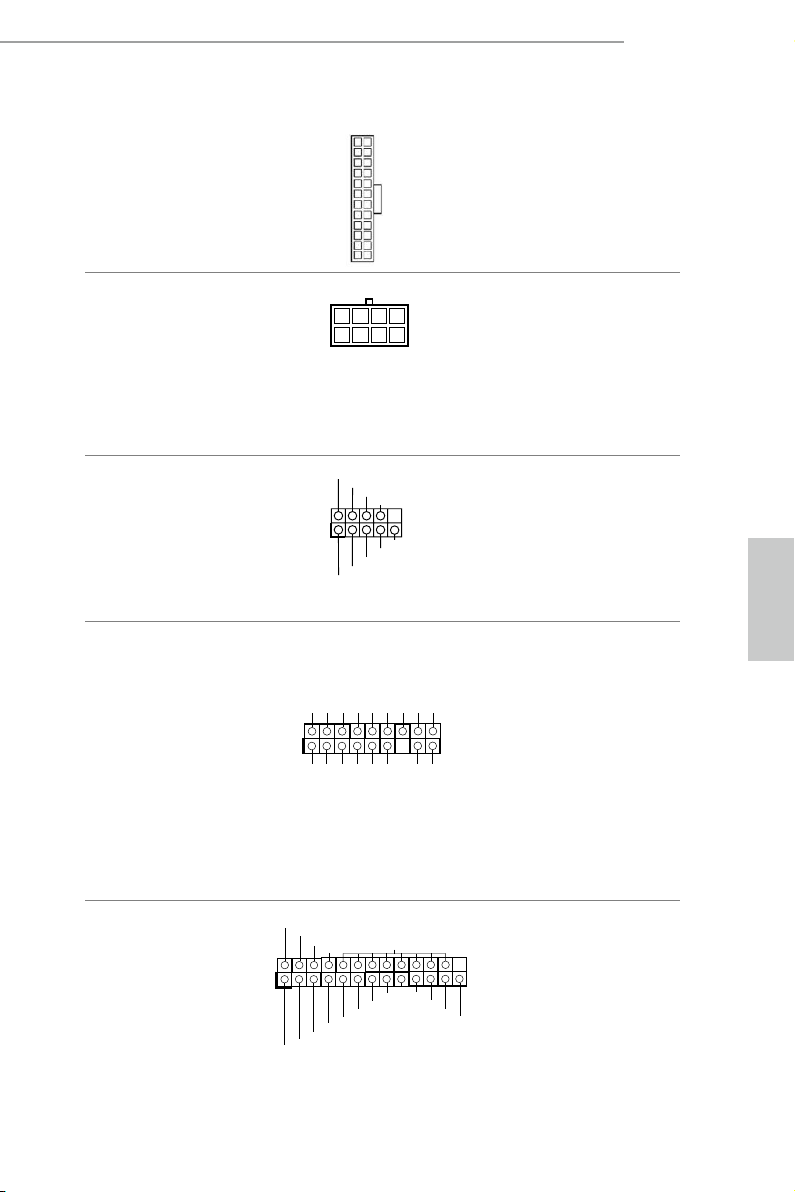

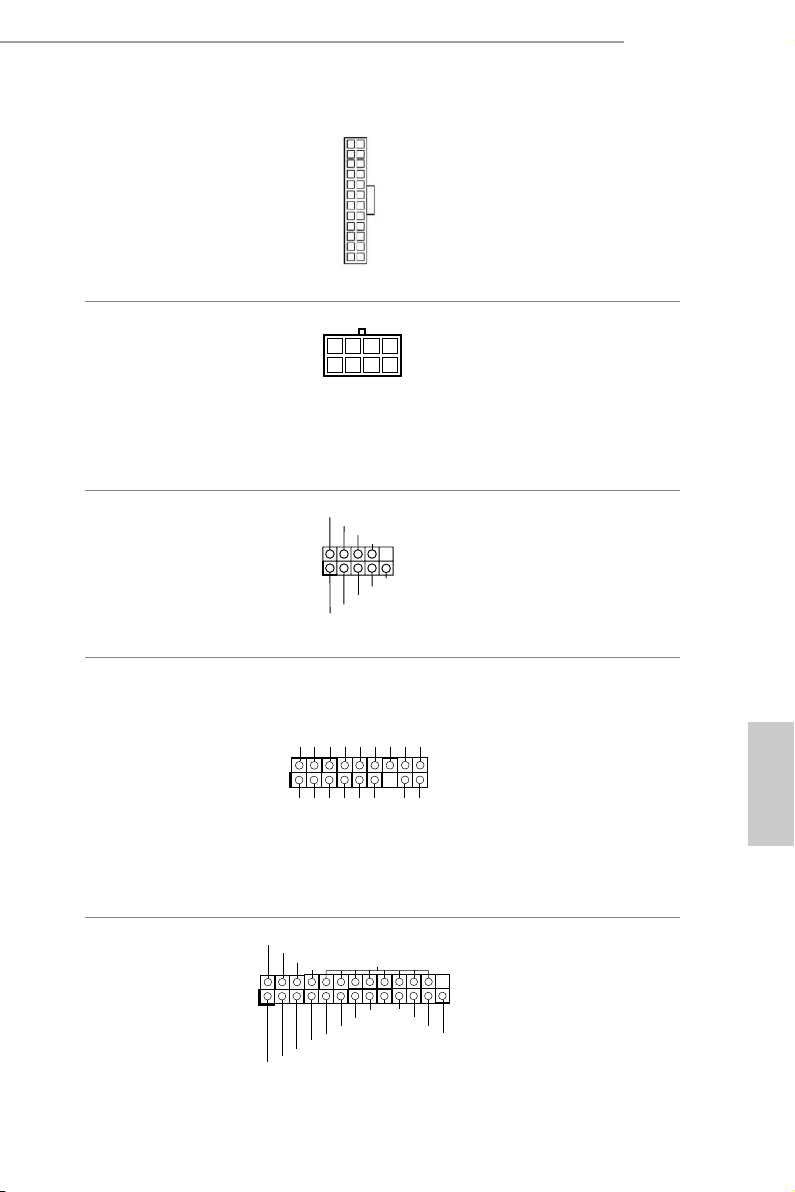

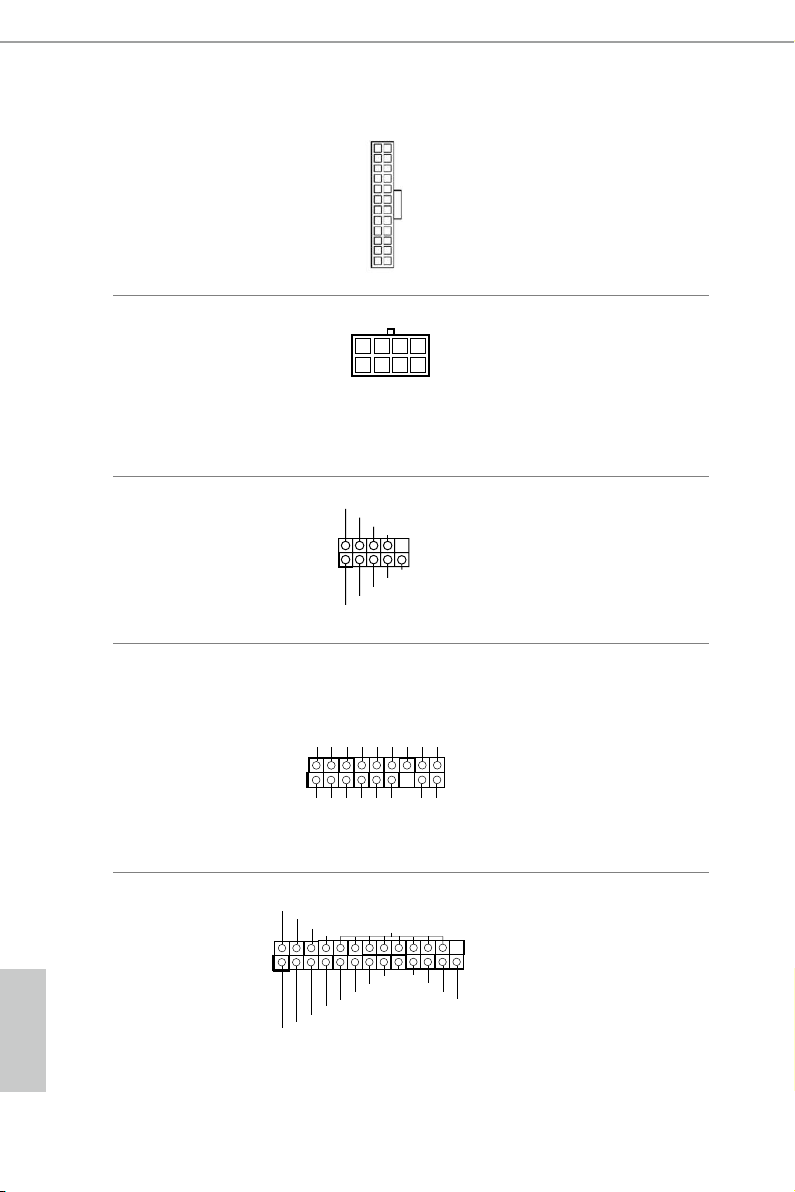

ATX Power Connector

5

1

8

1

PC

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

(24-pin AT XPW R1)
(see p.1, No. 5)

24

12

is motherboard pro­vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin

1

13

13.

English

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)

Serial Port Headers
(9-pin COM1)
(see p.1, No. 20)
(9-pin COM2)
(see p.1, No. 21)

TPM Header
(17-pi n TPMS1)
(see p.1, No. 18)

Print Port Header
(25-pin LPT1)
(see p.1, No. 19)

is motherboard pro­vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.

RRXD1

DDTR#1

DDSR#1

CCTS#1

ese COM headers
support serial port
modules.

RRI#1

RRTS#1

GND

TTXD1

DDCD#1

is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

LAD 1

1

+3 V

LAD 3

IRS T #

FRA ME

PC ICL K

D

GN D

S_P WRDW N #

SER IRQ #

GN

digital certicates, passwords,
and data. A TPM system also
helps enhance network security,

GN D

LAD 0

protects digital identities, and

+3V S B

ensures platform integrity.

is is an interface for print
port cable that allows
convenient connection of printer
devices.

22

Q170M vPro

3

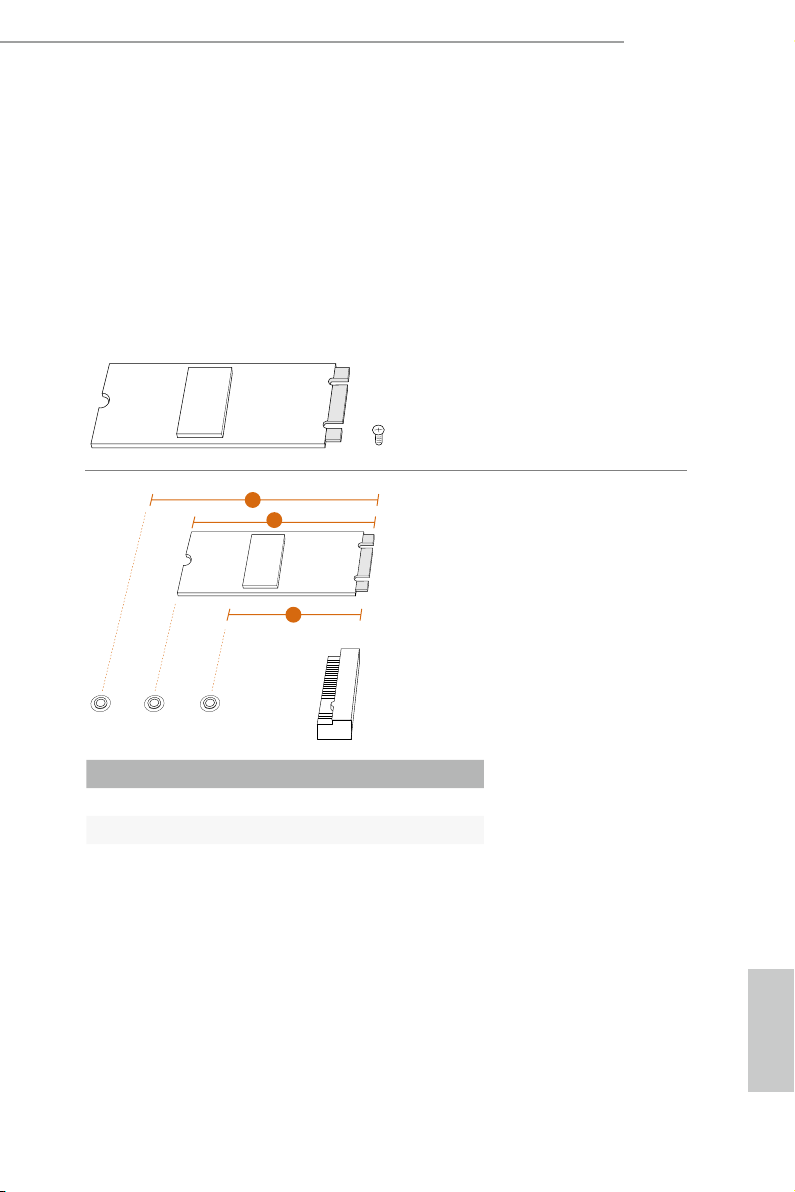

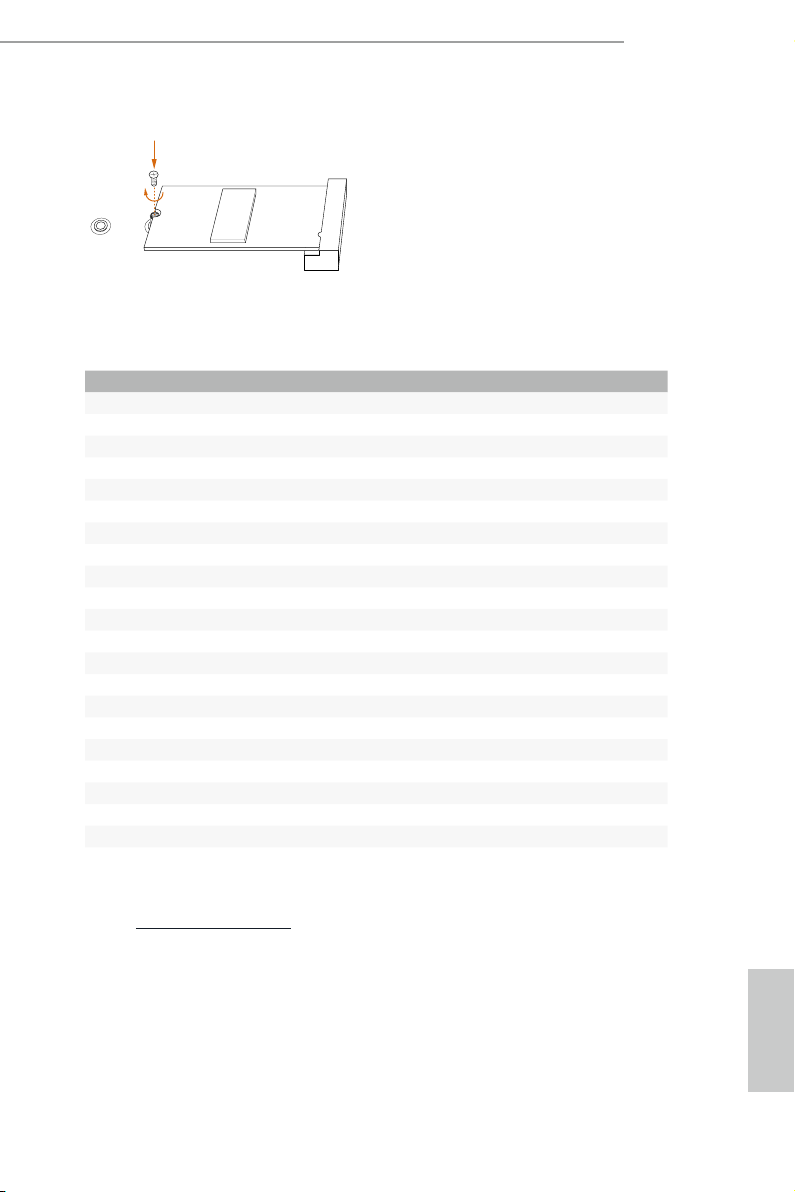

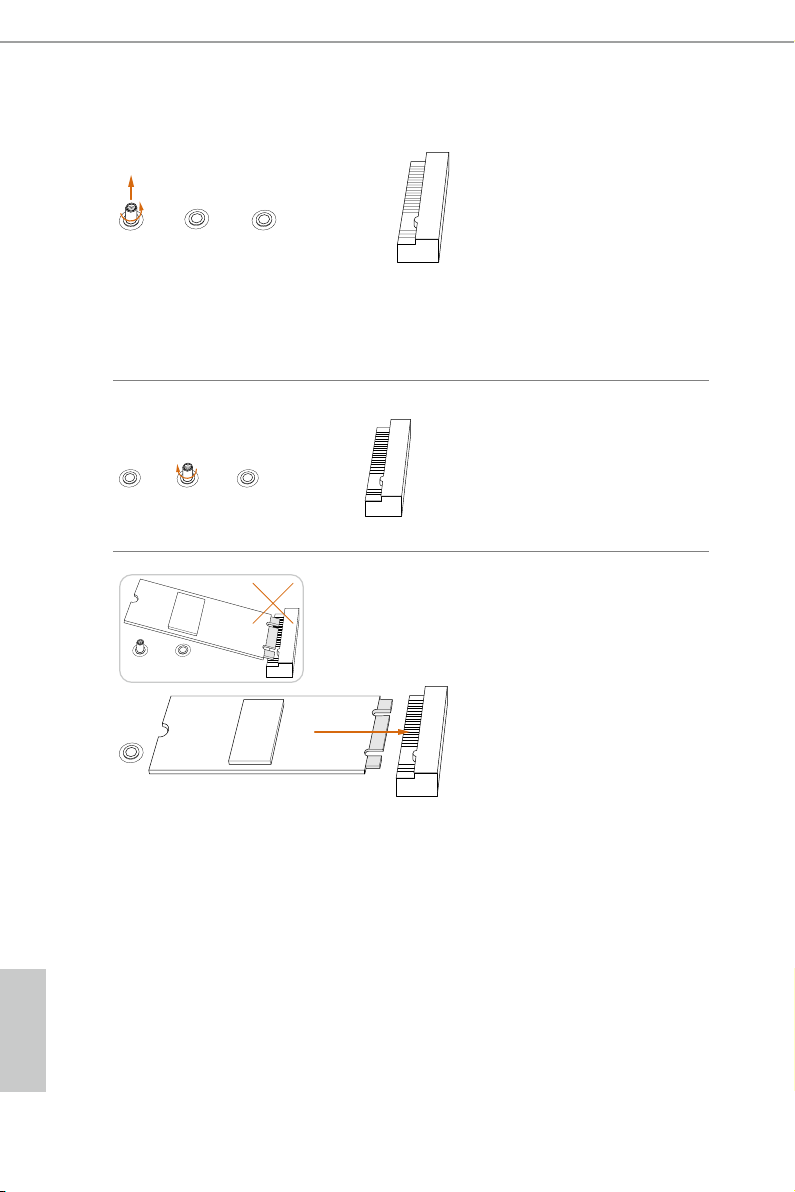

2.7 M.2_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2
Socket (M2_1) supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
Please be noted that if M 2_1 is occupied by a SATA-type M.2 device, SATA3_0 and
SATA3_1 will be disabled.

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module
and the screw.

2

1

ABC

No. 1 2 3

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type Type 2 242 Type2 260 Ty pe 2 280

Step 2

Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.

English

23

Step 3

Move the stando based on the
module type and length.

ABC

e stando is placed at the nut
location D by default. Skip Step 3
and 4 and go straight to Step 5 if you
are going to use the default nut.
Otherwise, release the stando by
hand.

Step 4

Peel o the yellow protective lm on
the nut to be used. Hand tighten the

ABC

stando into the desired nut location
on the motherboard.

Step 5

Align and gently insert the M.2
(NGFF) SSD module into the M.2

AB

slot. Please be aware that the M.2
(NGFF) SSD module only ts in one
orientation.

English

24

ABC

Step 6

Tighten the screw with a screwdriver
to secure the module into place.

NUT1NUT2C

Please do not overtighten the screw
as this might damage the module.

M.2_SSD (NGFF) Module Support List

Vendor Size Interface Length P/N

ADATA 128GB SATA3 2280 AXNS381E-128GM-B
ADATA 256GB SATA3 2280 AX NS381E -256GM-B
Crucial 120GB SATA3 2280 CT120M500SSD4
Crucial 240GB SATA3 2280 CT240M500SSD4
Intel 80GB SATA3 2280 Intel SSDSCKGW080A401/80G
Kingston 120GB SATA 3 2280 SM2280S3
Kingston 480GB PCIe2 x4 2280 SH2280S3/480G
Plextor 256GB PCIe 2280 PX-G25 6M6e
Plextor 512GB PCIe 2280 PX-G512M6e
Samsung 256GB PCIe3 x4 2280 SM951 (MZHPV256HDGL)
Samsung 512 GB PCIe3 x4 2280 SM951 (MZHPV512HDGL)
Samsung 512GB PCIe x4 2280 XP941-512G (MZHPU512HCGL)
SanDisk 128GB PCIe 2260 SD 6PP4M-12 8G
SanDisk 256GB PCIe 2260 SD6PP4M-256G
Te am 128GB SATA3 2242 TM4PS4128GMC105
Te am 128GB SATA3 2280 TM8PS4128GMC105
Te am 256GB SATA3 2280 TM8PS4256GMC105
Te am 256GB SATA3 2242 TM4PS4256GMC105
Tra nscend 256GB SATA 3 2242 TS256GMTS400
Tra nscend 512GB SATA3 2280 TS512GMTS800
Tra nscend 512GB SATA3 2260 TS512GMTS600

Q170M vPro

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for
details: http://www.asrock.com

English

25

1 Einleitung

Vielen Dank, dass Sie sich für das Q170M vPro von ASRock entschieden haben – ein
zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von
ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design,
das ASRock Streben nach Qualität und Beständigkeit erfüllt.

Da die technischen Daten des Motherboards sowie die BIOS-Soware aktualisiert werden
können, kann der Inhalt dieser Dokumentation ohne Ankündigung geändert werden. Falls
diese Dokumentation irgendwelchen Änderungen unterliegt, wird die aktualisierte Version
ohne weitere Hinweise auf der ASRock-Webseite zur Verfügung gestellt. Sollten Sie technische
Hilfe in Bezug auf dieses Motherboard benötigen, erhalten Sie auf unserer Webseite spezischen
Informationen über das von Ihnen verwendete Modell. Auch nden Sie eine aktuelle Liste
unterstützter VGA-Karten und Prozessoren auf der ASRock-Webseite: ASRock-Website
http://www.asrock.com.

1.1 Lieferumfang

•ASRock Q170M vPro-Motherboard (Micro-ATX-Formfaktor)

•ASRock Q170M vPro-Schnellinstallationsanleitung

•ASRock Q170M vPro-Support-CD

•2 x Serial-ATA- (SATA) Datenkabel (optional)

•1 x E/A-Blendenabschirmung

•1 x Schraube für M.2-Sockel

Deutsch

26

1.2 Technische Daten

Q170M vPro

Plattform

Prozessor

Chipsatz

Speicher

•Micro-ATX-Formfaktor

•Feststoondensator-Design

•Leiterplatte mit hochdichtem Glasgewebe

•Unterstützt die Prozessoren Intel® Core

Celeron® der 6. Generation (Sockel 1151)

•Digipower-Design

•6-Leistungsphasendesign

•Unterstützt Intel® Turbo Boost 2.0-Technologie

•Intel® Q170

•Unterstützt Intel® vPro

•Unterstützt Intel® Active Management Technology 1

•Unterstützt Intel® Small Business Advantage 4.0

* Intel® Small Business Advantage, Intel® vProTM-Technologie und
Intel® Active Management Technology 1.1 können nur mit der
Intel® CoreTM vProTM-Prozessorfamilie unterstützt werden

•Dualkanal-DDR4-Speichertechnologie

•4 x DDR4-DIMM-Steckplätze

•Unterstützt DDR4 2133 non-ECC, ungepuerter Speicher

•Systemspeicher, max. Kapazität: 64GB

•Unterstützt Intel® Extreme Memory Prole (XMP) 2.0

TM

-Technologie

TM

i7/i5/i3/Pentium®/

.

1

Erweiter­ungssteck­platz

Grakkarte

•2 x PCI-Express 3.0-x16-Steckplatz (PCIE1:x16-Modus;

PCIE4:x4-Modus)

•2 x PCI-Express 3.0-x1-Steckplätze (Flexible PCIe)

•Unterstützt AMD Quad CrossFireX

•Integrierte Intel® HD Graphics-Visualisierung und VGA-

Ausgänge können nur mit Prozessoren unterstützt werden, die
GPU-integriert sind.

•Unterstützt integrierte Intel® HD Graphics-Visualisierung:

Intel® Quick Sync Video mit AVC, MVC (S3D) und MPEG­2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 510/530

•Pixel Shader 5.0, DirectX 12

•Max. geteilter Speicher: 1792 MB

TM

und CrossFireXTM

Deutsch

27

Deutsch

Audio

LAN

Rückblende,
E/A

•Drei Grakkarten-Ausgangsoptionen: D-Sub, DVI-D und

HDMI

•Unterstützt drei Monitore

•Unterstützt HDMI mit maximaler Auösung von 4K x 2K

(4096 x 2304) bei 24 Hz

•Unterstützt DVI-D mit maximaler Auösung von 1920 x 1200

bei 60 Hz

•Unterstützt D-Sub mit maximaler Auösung von 1920 x 1200

bei 60 Hz

•Unterstützt Auto-Lippensynchronizität, hohe Farbtiefe

(12 bpc), xvYCC und HBR (Audio mit hoher Bitrate) mit
HDMI-Port (konformer HDMI-Monitor erforderlich)

•Unterstützt beschleunigte Mediencodecs: HEVC, VP8, VP9

•Unterstützt HDCP mit DVI-D- und HDMI-Ports

•Unterstützt Blu-ray- (BD) Wiedergabe (Full HD/1080p) mit

DVI-D- und HDMI-Ports

•7.1-Kanal-HD-Audio mit Inhaltsschutz (Realtek

ALC892-Audiocodec)

•Erstklassige Blu-ray-Audiounterstützung

•Unterstützt Überspannungsschutz (ASRock Full Spike

Protection)

•ELNA-Audiokondensatoren

•Gigabit LAN 10/100/1000 Mb/s

•Giga PHY Intel® I219LM

•Unterstützt Wake-On-LAN

•Unterstützt Blitzschutz/Schutz gegen elektrostatische

Entladung (ASRock Full Spike Protection)

•Unterstützt energieezientes Ethernet 802.3az

•Unterstützt PXE

•1 x PS/2-Maus-/Tastaturanschluss

•1 x D-Sub-Port

•1 x DVI-D-Port

•1 x HDMI-Port

•6 x USB 3.0-Ports (unterstützt Schutz gegen elektrostatische

Entladung (ASRock Full Spike Protection))

•1 x RJ-45-LAN-Port mit LED (Aktivität/Verbindung-LED und

Geschwindigkeit-LED)

•HD-Audioanschlüsse: Seitlicher Lautsprecher /

Hinterer Lautsprecher / Zentral / Bass / Line-in /
Vorderer Lautsprecher /Mikrofon

28

Q170M vPro

Speicher

Anschluss

BIOS­Funktion

Hard­wareüberwa­chung

•6 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt RAID

(RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage
Technology 14 und Intel Smart Response Technology), NCQ,

AHCI und Hot-Plugging
* Wenn M2_1 durch ein SATA-Typ-M.2-Gerät belegt ist, wird
SATA3_0 und SATA3_1 deaktiviert.

•1 x Ultra-M.2-Sockel, unterstützt M.2-SATA-III-6,0-Gb/s-Modul

und M.2-PCI-Express-Modul bis Gen3 x 4 (32 Gb/s)
* Unterstützt ASRock U.2-Kit

•1 x Druckerport-Anschlussleiste

•2 x COM-Anschluss-Stileiste

•1 x TPM-Stileiste

•1 x Gehäuseeingri- und Lautsprecher-Stileiste

•1 x CPU-Lüeranschluss (4-polig) (intelligente

Lüergeschwindigkeitssteuerung)

•2 x Gehäuselüeranschlüsse (4-polig) (intelligente

Lüergeschwindigkeitssteuerung)

•1 x 24-poliger ATX-Netzanschluss

•1 x 8-poliger 12-V-Netzanschluss

•1 x Audioanschluss an Frontblende

•1 x USB 2.0-Stileiste (unterstützt 2 USB 2.0-Ports)

(unterstützt Schutz gegen elektrostatische Entladung (ASRock

Full Spike Protection))

•1 x USB 3.0-Stileiste (unterstützt 2 USB 3.0-Ports)

(unterstützt Schutz gegen elektrostatische Entladung (ASRock

Full Spike Protection))

•128-Mb-AMI-UEFI-Legal-BIOS mit Unterstützung

mehrsprachiger grascher Benutzerschnittstellen

•ACPI 1.1-konforme Aufweckereignisse

•SMBIOS 2.3.1-Unterstützung

•DRAM-Spannungsmehrfachanpassung

•CPU-/Gehäusetemperaturerkennung

•CPU-/Gehäuselüertachometer

•Lautloser CPU-/Gehäuselüer (automatische Anpassung der

Gehäuselüergeschwindigkeit durch CPU-Temperatur)

•CPU-/Gehäuselüer-Mehrfachgeschwindigkeitssteuerung

•Gehäuse-oen-Erkennung

•Spannungsüberwachung: +12 V, +5 V, +3,3 V, CPU Vcore,

GT_CPU, DRAM, VPPM, PCH 1,0 V, VCCIO, VCCSA

Deutsch

29

Betriebssys­tem

•Microso® Windows® 10, 64 Bit / 8.1, 64 Bit / 7, 32 Bit /

7, 64 Bit
* Zur Installation des Windows® 7-Betriebssystems wird ein
modiziertes Installationslaufwerk mit xHCI-Treibern in der
ISO-Datei benötigt. Detaillierte Anweisungen nden Sie auf
Seite 141.
* Einzelheiten zum aktualisierten Windows® 10-Treiber
entnehmen Sie bitte der ASRock-Webseite:
http://www.asrock.com

Deutsch

Zertizierun­gen

* Detaillierte Produktinformationen nden Sie auf unserer Webseite: http://www.asrock.com

Bitte beachten Sie, dass mit einer Übertaktung, zu der die Anpassung von BIOS-Einstellungen,
die Anwendung der Untied Overclocking Technology oder die Nutzung von Übertaktung­swerkzeugen von Drittanbietern zählen, bestimmte Risiken verbunden sind. Eine Übertaktung
kann sich auf die Stabilität Ihres Systems auswirken und sogar Komponenten und Geräte Ihres
Systems beschädigen. Sie sollte auf eigene Gefahr und eigene Kosten durchgeführt werden. Wir
übernehmen keine Verantwortung für mögliche Schäden, die durch eine Übertaktung
verursacht wurden.

•FCC, CE, WHQL

•ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)

30

1.3 Jumpereinstellung

Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf
den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine Jumper­Kappe auf den Kontakten angebracht ist, ist der Jumper „oen“. Die Abbildung zeigt
einen 3-poligen Jumper, dessen Kontakt 1 und Kontakt 2 „kurzgeschlossen“ sind,
wenn eine Jumper-Kappe auf diesen 2 Kontakten angebracht ist.

CMOS-löschen-Jumper
(CLRMOS1)
(siehe S. 1, Nr. 16)

CLRMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen
und Rücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie
den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15
Sekunde, schließen Sie dann Kontakt 2 und Kontakt 3 an CLRMOS1 5 Sekunden
lang mit einer Jumper-Kappe kurz. Löschen Sie den CMOS jedoch nicht direkt nach
der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der
BIOS-Aktualisierung löschen müssen, starten Sie das System zunächst; fahren Sie es
dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum,
Zeit und Benutzerstandardprol nur gelöscht werden, wenn die CMOS-Batterie
entfernt wird.

Standard

CMOS löschen

Q170M vPro

Falls Sie den CMOS löschen, wird möglicherweise ein Gehäuseeingri erkannt. Bitte passen Sie
die BIOS-Option „Status löschen“ zur Löschung der Aufzeichnung des vorherigen Gehäuseein­gristatus an.

Deutsch

31

1.4 Integrierte Stiftleisten und Anschlüsse

1

Integrierte Stileisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper-Kappen
an diesen Stileisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen
Stileisten und Anschlüssen können Sie das Motherboard dauerha beschädigen.

Deutsch

Systemblende-Stileiste
(9-polig, PANEL1)
(siehe S. 1, Nr. 14)

PWRBTN (Ein-/Austaste):

Mit der Ein-/Austaste an der Frontblende des Gehäuses verbinden. Sie können die Abschaltung
Ihres Systems über die Ein-/Austaste kongurieren.

RESET (Reset-Taste):
Mit der Reset-Taste an der Frontblende des Gehäuses verbinden. Starten Sie den Computer
über die Reset-Taste neu, wenn er abstürzt oder sich nicht normal neu starten lässt.

PLED (Systembetriebs-LED):
Mit der Betriebsstatusanzeige an der Frontblende des Gehäuses verbinden. Die LED leuchtet,
wenn das System läu. Die LED blinkt, wenn sich das System im S1/S3-Ruhezustand bendet.
Die LED ist aus, wenn sich das System im S4-Ruhezustand bendet oder ausgeschaltet ist (S5).

HDLED (Festplattenaktivitäts-LED):
Mit der Festplattenaktivitäts-LED an der Frontblende des Gehäuses verbinden. Die LED
leuchtet, wenn die Festplatte Daten liest oder schreibt.

Das Design der Frontblende kann je nach Gehäuse variieren. Ein Frontblendenmodul besteht
hauptsächlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivität-LED, Lautspre­cher etc. Stellen Sie beim Anschließen Ihres Frontblendenmoduls an diese Stileiste sicher, dass
Kabel- und Pinbelegung richtig abgestimmt sind.

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Verbinden Sie
Netzschalter, Reset-Taste
und Systemstatusanzeige
am Gehäuse entsprechend
der nachstehenden
Pinbelegung mit dieser
Stileiste. Beachten Sie vor
Anschließen der Kabel die
positiven und negativen
Kontakte.

32

Q170M vPro

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Gehäuseeingris- und
Lautsprecher-Stileiste
(7-polig, SPK_CI1)
(siehe S. 1, Nr. 15)

Serial-ATA-III-Anschlüsse
(SATA3_0:
siehe S. 1, Nr. 6)
(SATA3_1:
siehe S. 1, Nr. 7)
(SATA3_2:
siehe S. 1, Nr. 10)
(SATA3_3:
siehe S. 1, Nr. 11)
(SATA3_4:
siehe S. 1, Nr. 13)
(SATA3_5:
siehe S. 1, Nr. 12)

USB 2.0-Stileiste
(9-polig, USB1_2)
(siehe S. 1, Nr. 17)

SATA3_2

SATA3_4

SATA3_0

SATA3_1

Bitte verbinden Sie Gehäu­seeingrisvorrichtung und
den Gehäuselautsprecher
mit dieser Stileiste.

Diese sechs SATA-III­Anschlüsse unterstützen
SATA-Datenkabel für
interne Speichergeräte mit
einer Datenübertragungsge
schwindigkeit bis 6,0 Gb/s.
* Wenn M2_1 durch ein
SATA-Typ-M.2-Gerät
belegt ist, wird SATA3_0

SATA3_3

und SATA3_1 deaktiviert.

SATA3_5

Es gibt eine Stileiste an
diesem Motherboard.
Diese USB 2.0-Stileiste
unterstützt zwei Ports.

USB 3.0-Stileiste
(19-polig, USB3_5_6)
(siehe S. 1, Nr. 8)

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

Neben sechs USB 3.0-Ports
an der E/A-Blende
bendet sich eine Stileiste
an diesem Motherboard.
Diese USB 3.0-Stileiste
unterstützt zwei Ports.

Deutsch

33

Audiostileiste

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

(Frontblende)
(9-polig, HD_AUDIO1)
(siehe S. 1, Nr. 22)

1. High Denition Audio unterstützt Anschlusserkennung, der Draht am Gehäuse muss dazu
jedoch HDA unterstützt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen
in unserer Anleitung und der Anleitung zum Gehäuse.

2. Bei Nutzung eines AC’97-Audiopanels dieses bitte anhand folgender Schritte an der
Audiostileiste der Frontblende installieren:
A. Mic_IN (Mikrofon) mit MIC2_L verbinden.
B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden.
C. Erde (GND) mit Erde (GND) verbinden.
D. MIC_RET und OUT_RET sind nur für das HD-Audiopanel vorgesehen. Sie müssen sie
nicht für das AC’97-Audiopanel verbinden.
E. Rufen Sie zum Aktivieren des vorderen Mikrofons das „FrontMic (Vorderes Mikro­fon)“-Register in der Realtek-Systemsteuerung auf und passen „Recording Volume (Aufnah­melautstärke)“ an.

Diese Stileiste dient
dem Anschließen von
Audiogeräten an der
Frontblende.

Deutsch

34

Gehäuselüeranschlüsse
(4-polig, CHA_FAN1)
(siehe S. 1, Nr. 23)

(4-polig, CHA_FAN2)
(siehe S. 1, Nr. 9)

CPU-Lüeranschluss
(4-polig, CPU_FAN1)
(siehe S. 1, Nr. 2)

CHA_FAN_SPEED

FAN_VOLTAGE

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

CPU_FAN_SPEED

FAN_VOLTAGE

GND

GND

Bitte verbinden Sie die
Lüerkabel mit den
Lüeranschlüssen; der
schwarze Draht gehört
zum Erdungskontakt.

Dieses Motherboard
bietet einen 4-poligen
CPU-Lüeranschluss
(lautloser Lüer). Falls Sie
einen 3-poligen
CPU-Lüer anschließen
möchten, verbinden Sie
ihn bitte mit Kontakt
1 bis 3.

Q170M vPro

5

1

8

1

PC

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

ATX-Netzanschluss
(24-polig, ATXPWR1)
(siehe S. 1, Nr. 5)

ATX-12-V-Netzanschluss
(8-polig, ATX12V1)
(siehe S. 1, Nr. 1)

Serieller-Port-Stileiste
(9-polig, COM1)
(siehe S. 1, Nr. 20)
(9-polig, COM2)
(siehe S. 1, Nr. 21)

TPM-Stileiste
(17-polig, TPMS1)
(siehe S. 1, Nr. 18)

Druckanschluss-Stileiste
(25-polig, LPT1)
(siehe S. 1, Nr. 19)

24

12

Dieses Motherboard
bietet einen 24-poligen
ATX-Netzanschluss.
Bitte schließen Sie es zur
Nutzung eines 20-poligen

1

13

ATX-Netzteils entlang
Kontakt 1 und Kontakt
13 an.

Dieses Motherboard bietet
einen 8-poligen ATX­12-V-Netzanschluss.
Bitte schließen Sie es zur
Nutzung eines 4-poligen
ATX-Netzteils entlang
Kontakt 1 und Kontakt
5 an.

RRXD1

DDTR#1

DDSR#1

CCTS#1

Diese COM-Stileisten
unterstützen
Seriellportmodule.

RRI#1

RRTS#1

GND

TTXD1

DDCD#1

Dieser Anschluss unterstützt das
Trusted Platform Module- (TPM)
System, das Schlüssel, digitale

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

LAD 1

1

+3 V

LAD 3

IRS T #

FRA ME

PC ICL K

D

GN D

S_P WRDW N #

SER IRQ #

GN

Zertikate, Kennwörter und
Daten sicher auewahren kann.
Ein TPM-System hil zudem bei

GN D

LAD 0

der Stärkung der Netzwerksich-

+3V S B

erheit, schützt digitale Identitäten
und gewährleistet die Plattform­integrität.

Diese Schnittstelle ist für Drucker­kabel vorgesehen und ermögli­cht bequemes Anschließen von

Deutsch

Druckern.

35

1 Introduction

Nous vous remercions d’avoir acheté cette carte mère ASRock Q170M vPro, une carte
mère able fabriquée conformément au contrôle de qualité rigoureux et constant
appliqué par ASRock. Fidèle à son engagement de qualité et de durabilité, ASRock
vous garantit une carte mère de conception robuste aux performances élevées.

Les spécications de la carte mère et du logiciel BIOS pouvant être mises à jour, le contenu de ce
document est soumis à modication sans préavis. En cas de modications du présent document,
la version mise à jour sera disponible sur le site Internet ASRock sans notication préalable.
Si vous avez besoin d’une assistance technique pour votre carte mère, veuillez visiter notre site
Internet pour plus de détails sur le modèle que vous utilisez. La liste la plus récente des cartes
VGA et des processeurs pris en charge est également disponible sur le site Internet de ASRock.
Site Internet ASRock http://www.asrock.com.

1.1 Contenu de l’emballage

•Carte mère ASRock Q170M vPro (facteur de forme Micro ATX)

•Guide d'installation rapide d'ASRock Q170M vPro

•CD de support d'ASRock Q170M vPro

•2 x câbles de données Serial ATA (SATA) (Optionnel)

•1 x panneau de protection E/S

•1 x vis pour sockets M.2

Français

36

1.2 Spécications

Q170M vPro

Plateforme

Processeur

Chipset

Mémoire

Fente d’ex­pansion

•Facteur de forme Micro ATX

•Conception à condensateurs solides

•PCB en tissu de verre haute densité

•Prend en charge les processeurs 6

e

génération Intel® CoreTM

i7/i5/i3/Pentium®/Celeron® (Socket 1151)

•Conception Digi Power

•Alimentation à 6 phases

•Prend en charge la technologie Intel® Turbo Boost 2.0

•Intel® Q170

•Prend en charge Intel® vPro

TM

Technology

•Prend en charge Intel® Active Management Technology 1.1

•Prend en charge Intel® Small Business Advantage 4.0

* Intel® Small Business Advantage, Intel® vProTM Technology et
Intel® Active Management Technology 1.1 peuvent être pris en
charge uniquement avec la famille de processeurs
Intel® CoreTM vPro

TM

•Technologie mémoire double canal DDR4

•4 x fentes DIMM DDR4

•Prend en charge les mémoires sans tampon non ECC

DDR4 2133

•Capacité max. de la mémoire système : 64Go

•Prend en charge Intel® Extreme Memory Prole (XMP) 2.0

•2 x fentes PCI Express 3.0 x 16 (PCIE1:mode x16 ;

PCIE4:mode x4)

•2 x fentes PCI Express 3.0 x 1 (Flexible PCIe)

•Prend en charge AMD Quad CrossFireX

TM

et CrossFireXTM

Graphiques

•La technologie Intel® HD Graphics Built-in Visuals et les

sorties VGA sont uniquement prises en charge par les
processeurs intégrant un contrôleur graphique.

•Prend en charge la technologie Intel® HD Graphics Built-in

Visuals : Intel® Quick Sync Video avec AVC, MVC (S3D) et
MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear
Video HD Technology, Intel® InsiderTM, Intel® HD Graphics
510/530

•Pixel Shader 5.0, DirectX 12

•Mémoire partagée max. 1792Mo

Français

37

Français

Audio

Réseau

Connectique
du panneau
arrière

•Trois options de sortie graphique : D-Sub, DVI-D et HDMI

•Prend en charge la conguration à triple moniteurs

•Prend en charge la technologie HDMI avec résolution

maximale de 4K x 2K (4096x2304) @ 24Hz

•Prend en charge le mode DVI-D avec une résolution

maximale de 1920x1200 @ 60Hz

•Prend en charge le mode D-Sub avec une résolution maximale

de 1920x1200 @ 60Hz

•Prend en charge les technologies Auto Lip Sync, Deep Color

(12bpc), xvYCC et HBR (High Bit Rate Audio) avec port
HDMI (un écran compatible HDMI est requis)

•Prend en charge les codecs multimédias accélérés: HEVC,

VP8, VP9

•Prend en charge HDCP via ports DVI-D et HDMI

•Prend en charge la lecture Blu-ray (BD) Full HD 1080p via

ports DVI-D et HDMI

•Audio 7.1 CH HD avec protection du contenu (codec audio

Realtek ALC892)

•Compatible audio Blu-ray Premium

•Protection contre les surtensions (Protection complète contre

les pics ASRock)

•Capuchons ELNA Audio

•Gigabit LAN 10/100/1000 Mo/s

•Giga PHY Intel® I219LM

•Prend en charge la fonction Wake-On-LAN

•Protection contre les orages/décharges électrostatiques

(Protection complète contre les pics ASRock)

•Prend en charge la fonction d’économie d’énergie Ethernet

802.3az

•Prend en charge PXE

•1 x port souris/clavier PS/2

•1 x port D-Sub

•1 x port DVI-D

•1 x port HDMI

•6 x ports USB 3.0 (Protection contre les décharges

électrostatiques (Protection complète contre les pics ASRock))

•1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED

VITESSE)

•Connecteurs jack audio HD : Haut-parleur latéral / haut-

parleur arrière / central / basses / entrée ligne / haut-parleur
avant / microphone

38

Q170M vPro

Stockage

Connecteur

Caractéris­tiques du
BIOS

Surveillance
du matériel

•6 x connecteurs SATA3 6,0 Go/s, compatibles RAID (RAID 0,

RAID 1, RAID 5, RAID 10, technologies Intel Rapid Storage 14

et Intel Smart Response), NCQ, AHCI et «Hot Plug»
* Si M2_1 est occupé par un périphérique M.2 type SATA,
SATA3_0 et SATA3_1 est désactivé.

•1 x socket Ultra M.2, prend en charge les modules M.2 SATA3

6,0 Go/s et M.2 PCI Express jusqu'à Gen3 x4 (32 Go/s)
* Prend en charge le kit ASRock U.2

•1 x embase pour port d’impression

•2 x embase pour port COM

•1 x embase TPM

•1 x prise DEL d’alimentation et emplacement sur châssis

•1 x connecteur pour ventilateur de processeur (4 broches)

(contrôle de vitesse de ventilateur intelligent)

•2 x connecteurs pour ventilateur du châssis (4 broches)

(contrôle de vitesse de ventilateur intelligent)

•1 x connecteur d’alimentation ATX 24 broches

•1 x connecteur d’alimentation 12V 8 broches

•1 x connecteur audio panneau frontal

•1 x embase USB 2.0 (2 ports USB 2.0 pris en charge)

(Protection contre les décharges électrostatiques (Protection

complète contre les pics ASRock))

•1 x embase USB 3.0 (2 ports USB 3.0 pris en charge)

(Protection contre les décharges électrostatiques (Protection

complète contre les pics ASRock))

•BIOS UEFI AMI 128Mo avec prise en charge d’interface

graphique multilingue

•Compatible ACPI 1.1 Wake Up Events

•Prend en charge SMBIOS 2.3.1

•Réglage de la tension DRAM

•Détection de la température du processeur/châssis

•Tachéomètre ventilateur processeur/châssis

•Ventilateur silencieux processeur/châssis (réglage automatique

de la vitesse du ventilateur du châssis d’après la température du

processeur)

•Contrôle simultané des vitesses des ventilateurs processeur/

châssis

•Détection CHASSIS OUVERT

•Surveillance de la tension d’alimentation : +12V, +5V, +3,3V,

CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1,0V, VCCIO,

VCCSA

Français

39

Système d’ex­ploitation

•Microso® Windows® 10 64 bits / 8.1 64 bits / 7 32 bits /

7 64 bits
* Pour installer Windows® 7, un disque d'installation modié avec
les pilotes xHCI intégrés au chier ISO est requis. Reportez-vous à
la page 141 pour des instructions plus détaillées.
* Pour le pilote mis à jour pour Windows® 10, veuillez visiter le site
Web d'ASRock pour plus de détails: http://www.asrock.com

Français

Certications

•FCC, CE, WHQL

•ErP/EuP Ready (alimentation ErP/EuP ready requise)

* pour des informations détaillées de nos produits, veuillez visiter notre site: http://www.asrock.com

Il est important de signaler que l’overcloking présente certains risques, incluant des modi­cations du BIOS, l’application d’une technologie d’overclocking déliée et l’utilisation d’outils
d’overclocking développés par des tiers. La stabilité de votre système peut être aectée par ces
pratiques, voire provoquer des dommages aux composants et aux périphériques du système.
L’overclocking se fait à vos risques et périls. Nous ne pourrons en aucun cas être tenus pour
responsables des dommages éventuels provoqués par l’overclocking.

40

1.3 Conguration des cavaliers (jumpers)

L’illustration ci-dessous vous renseigne sur la conguration des cavaliers (jumpers).
Lorsque le capuchon du cavalier est installé sur les broches, le cavalier est
«court-circuité». Si le capuchon du cavalier n’est pas installé sur les broches, le
cavalier est «ouvert». L’illustration représente un cavalier à 3 broches dont les broches
1 et 2 sont «court-circuitées» si un capuchon de cavalier est posé sur ces 2 broches.

Cavalier Clear CMOS
(CLRMOS1)
(voir p.1, No. 16)

CLRMOS1 vous permet d’eacer les donnés de la CMOS. Pour eacer les paramètres
du système et rétablir les valeurs par défaut, veuillez éteindre votre ordinateur
et débrancher son cordon d’alimentation. Patientez 15 secondes, puis utilisez un
capuchon de cavalier pour court-circuiter la broche 2 et la broche 3 sur CLRMOS1
pendant 5 secondes. Toutefois, n’eacez pas la CMOS immédiatement après avoir
mis à jour le BIOS. Si vous avez besoin d’eacer les données CMOS après une mise à
jour du BIOS, vous devez tout d’abord redémarrer le système, puis l’éteindre avant de
procéder à l’eacement de la CMOS. Veuillez noter que les paramètres mot de passe,
date, heure et prol de l’utilisateur seront uniquement eacés en cas de retrait de la
pile de la CMOS.

Par défaut

Fonction Clear CMOS

Q170M vPro

Si vous eacez la CMOS, l’alerte de châssis ouvert peut se déclencher. Veuillez régler l’option du
BIOS sur «Eacer » pour supprimer l’historique des intrusions de châssis précédentes.

Français

41

1.4 Embases et connecteurs de la carte mère

Les embases et connecteurs situés sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS
de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur
ces embases ou connecteurs endommagera irrémédiablement votre carte mère.

Français

Embase du panneau
système
(PANNEAU1 à 9 broches)
(voir p.1, No. 14)

PWRBTN (bouton d’alimentation):

pour brancher le bouton d’alimentation du panneau frontal du châssis. Vous pouvez congurer
la façon dont votre système doit s’arrêter à l’aide du bouton de mise en marche.

RESET (bouton de réinitiélisation):
pour brancher le bouton de réinitialisation du panneau frontal du châssis. Appuyez sur le bou­ton de réinitialisation pour redémarrer l’ordinateur en cas de plantage ou de dysfonctionnement
au démarrage.

PLED (LED d’alimentation du système) :
pour brancher le témoin d’état de l’alimentation du panneau frontal du châssis. Le LED est al­lumé lorsque le système fonctionne. Le LED clignote lorsque le système se trouve en mode veille
S1/S3. Le LED est éteint lorsque le système se trouve en mode veille S4 ou hors tension (S5).

HDLED (LED d’activité du disque dur) :
pour brancher le témoin LED d’activité du disque dur du panneau frontal du châssis. Le LED
est allumé lorsque le disque dur lit ou écrit des données.

La conception du panneau frontal peut varier en fonction du châssis. Un module de panneau
frontal est principalement composé d’un bouton de mise en marche, bouton de réinitialisa­tion, LED d’alimentation, LED d’activité du disque dur, haut-parleur etc. Lorsque vous reliez
le module du panneau frontal de votre châssis sur cette embase, veillez à parfaitement faire
correspondre les ls et les broches.

1

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

GND

RESET#

GND

Branchez le bouton de
mise en marche, le bouton
de réinitialisation et le
témoin d’état du système
présents sur le châssis
sur cette embase en
respectant la conguration
des broches illustrée
ci-dessous. Repérez
les broches positive et
négative avant de brancher
les câbles.

42

Q170M vPro

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Prise DEL d’alimentation et
emplacement sur châssis
(SPK_CI1 à 7broches)
(voir p.1, No. 15)

Connecteurs Serial ATA3
(SATA3_0:
voir p.1, No. 6)
(SATA3_1:
voir p.1, No. 7)
(SATA3_2:
voir p.1, No. 10)
(SATA3_3:
voir p.1, No. 11)
(SATA3_4:
voir p.1, No. 13)
(SATA3_5:
voir p.1, No. 12)

Embases USB 2.0
(USB1_2 à 9broches)
(voir p.1, No. 17)

SATA3_2

SATA3_4

SATA3_0

SATA3_1

SATA3_3

SATA3_5

Veuillez brancher
l'emplacement sur le
châssis et le haut-parleur
du châssis sur ce
connecteur.

Ces six connecteurs
SATA3 sont compatibles
avec les câbles de données
SATA pour les appareils
de stockage internes
avec un taux de transfert
maximal de 6,0 Go/s.
* Si M2_1 est occupé
par un périphérique M.2
type SATA, SATA3_0 et
SATA3_1 est désactivé.

Cette carte mère
comprend un connecteur.
Cette embase USB 2.0
peut prendre en charge
deux ports.

Embases USB 3.0
(USB3_5_6 à 19 broches)
(voir p.1, No. 8)

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

En plus des six ports
USB 3.0 sur le panneau
E/S, cette carte mère
est dotée d’une embase
supplémentaire. Cette
embase USB 3.0 peut
prendre en charge deux
ports.

Français

43

Embase audio du panneau

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

frontal
(HD_AUDIO1 à 9 broches)
(voir p.1, No. 22)

1. L’audio haute dénition prend en charge la technologie Jack Sensing (détection de la che),
mais le panneau grillagé du châssis doit être compatible avec la HDA pour fonctionner
correctement. Veuillez suivre les instructions gurant dans notre manuel et dans le manuel
du châssis pour installer votre système.

2. Si vous utilisez un panneau audio AC’97, veuillez le brancher sur l’embase audio du panneau
frontal en procédant comme suit :
A. branchez Mic_IN (MIC) sur MIC2_L.
B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L.
C. branchez la mise à terre (GND) sur mise à terre (GND).
D. MIC_RET et OUT_RET sont exclusivement réservés au panneau audio HD. Il est inutile
de les brancher avec le panneau audio AC’97.
E. Pour activer le micro frontal, sélectionnez l’onglet «FrontMic» du panneau de contrôle
Realtek et réglez le paramètre «Volume d’enregistrement».

Cette embase sert au
branchement des appareils
audio au panneau audio
frontal.

Français

44

Connecteurs du ventilateur
du châssis
(CHA_FAN1 à 4 broches)
(voir p.1, No. 23)

(CHA_FAN2 à 4 broches)
(voir p.1, No. 9)

Connecteur du ventilateur
du processeur
(CPU_FAN1 à 4 broches)
(voir p.1, No. 2)

CHA_FAN_SPEED

FAN_VOLTAGE

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

CPU_FAN_SPEED

FAN_VOLTAGE

GND

GND

Veuillez brancher les
câbles du ventilateur
sur les connecteurs du
ventilateur, puis reliez le
l noir à la broche de mise
à terre.

Cette carte mère est dotée
d’un connecteur pour
ventilateur de processeur
(Quiet Fan) à 4 broch­es. Si vous envisagez de
connecter un ventilateur
de processeur à 3 broches,
veuillez le brancher sur la
Broche 1-3.

Q170M vPro

5

1

8

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

Connecteur d’alimentation
AT X
(ATXPWR1 à 24 broches)
(voir p.1, No. 5)

Connecteur d’alimentation
ATX 12V
(ATX12V1 à 8 broches)
(voir p.1, No. 1)

Embase pour port série
(COM1 à 9 broches)
(voir p.1, No. 20)
(COM2 à 9 broches)
(voir p.1, No. 21)

Embase TPM
(TPMS1 à 17 broches)
(voir p.1, No. 18)

Embase de port
d’impression
(LPT1 à 25 broches)
(voir p.1, No. 19)

24

12

Cette carte mère est
dotée d’un connecteur
d’alimentation ATX à 24
broches. Pour utiliser une
alimentation ATX à 20

1

13

broches, veuillez eectuer
les branchements sur la
Broche 1 et la Broche 13.

Cette carte mère est dotée
d’un connecteur d’ali­mentation ATX 12V à
8 broches. Pour utiliser
une alimentation ATX à 4
broches, veuillez eectuer
les branchements sur la
Broche 1 et la Broche 5.

1

RRXD1

DDTR#1

TTXD1

DDCD#1

DDSR#1

CCTS#1

RRTS#1

GND

RRI#1

Ces connecteurs COM
prennent en charge les
modules à port série.

Ce connecteur prend en charge un
module TPM (Trusted Platform
Module – Module de plateforme

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

1

LAD 3

IRS T #

FRA ME

PC ICL K

D

GN D

LAD 1

S_P WRDW N #

SER IRQ #

GN

sécurisée), qui permet de sauve­garder clés, certicats numériques,
mots de passe et données en toute

+3 V

LAD 0

sécurité. Le système TPM permet

GN D

+3V S B

également de renforcer la sécurité
du réseau, de protéger les identités
numériques et de préserver l’in­tégrité de la plateforme.

Il s’agit d’une interface pour le

Français

câble du port d’impression qui
permet un branchement aisé des
périphériques d’impression.

45

1 Introduzione

Grazie per aver acquistato la scheda madre Q170M vPro ASRock, una scheda madre
adabile prodotta secondo i costanti e rigorosi controlli di qualità di ASRock.
La scheda madre ore eccellenti prestazioni con un design robusto che si adatta
all'impegno di ASRock di orire sempre qualità e durata.

Dato che le speciche della scheda madre e del soware BIOS possono essere aggiornate, il
contenuto di questa documentazione sarà soggetto a variazioni senza preavviso. Nel caso di
eventuali modiche della presente documentazione, la versione aggiornata sarà disponibile sul
sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda
madre, visitare il nostro sito Web per informazioni speciche relative al modello attualmente in
uso. È possibile trovare l'elenco di schede VGA più recenti e di supporto di CPU anche sul sito
Web di ASRock. Sito Web di ASRock http://www.asrock.com.

1.1 Contenuto della confezione

•Scheda madre Q170M vPro ASRock (fattore di forma Micro ATX)

•Guida rapida di installazione ASRock Q170M vPro

•CD di supporto ASRock Q170M vPro

•2 x cavi dati Serial ATA (SATA) (opzionali)

•1 x mascherina metallica posteriore I/O

•Vite per Socket M.2 x 1

Italiano

46

1.2 Speciche

Q170M vPro

Piattaforma

CPU

Chipset

Memoria

Alloggio
d’espan­sione

•Fattore di forma Micro ATX

•Design condensatore solido

•PCB di bra di vetro ad alta densità

•Supporta processori 6

th

Generation Intel® CoreTM i7/i5/i3/

Pentium®/Celeron® (Socket 1151)

•Design Digi Power

•Potenza a 6 fasi

•Supporta la tecnologia Intel® Turbo Boost 2.0

•Intel® Q170

•Supporta la tecnologia Intel® vPro

TM

•Supporta la tecnologia Intel® Active Management 1.1

•Supporta Intel® Small Business Advantage 4.0

* Intel® Small Business Advantage, tecnologia Intel® vProTM e
tecnologia Intel® Active Management 1.1 possono essere supportati
solo con la famiglia di processori Intel® CoreTM vPro

TM

•Tecnologia memoria DDR4 Dual Channel

•4 alloggi DIMM DDR4

•Supporto di memoria DDR4 2133 non-ECC, un-buered

•Capacità max. della memoria di sistema: 64GB

•Supporto di XMP (Extreme Memory Prole) Intel® 2.0

•2 alloggi PCI Express 3.0 x16 (PCIE1:Modalità x16;

PCIE4:modalità x4)

•2 alloggi PCI Express 3.0 x1 (Flexible PCIe)

•Supporta AMD Quad CrossFireX

TM

e CrossFireXTM

Graca

•La videograca integrata della scheda video HD Intel® e le

uscite VGA possono essere supportate soltanto con processori
con GPU integrata.

•Supporta la videograca integrata della scheda video HD Intel®:

Intel® Quick Sync Video con AVC, MVC (S3D) e MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, tecnologia Intel® Clear Video
HD, Intel® InsiderTM, Intel® HD Graphics 510/530

•Pixel Shader 5.0, DirectX 12

•Memoria condivisa max. 1792 MB

Italiano

47

Italiano

Audio

LAN

I/O pannello
posteriore

•Tre opzioni di output graco: D-Sub, DVI-D e HDMI

•Supporto di tre monitor

•Supporta HDMI con risoluzione max. no a 4K x 2K

(4096 x 2304) a 24Hz

•Supporta DVI-D con una risoluzione max. no a 1920 x 1200 a

60 Hz

•Supporta D-Sub con una risoluzione max. no a 1920 x 1200 a

60 Hz

•Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc),

xvYCC e HBR (High Bit Rate Audio) con porta HDMI
(è necessario un monitor compatibile HDMI)

•Supporto accelerazione codec multimediale: HEVC, VP8, VP9

•Supporto di HDCP con le porte DVI-D e HDMI

•Supporto di riproduzione Full HD 1080p Blu-ray (BD) con le

porte DVI-D e HDMI

•Audio HD a 7.1 canali con Content Protection (codec audio

Realtek ALC892)

•Supporto audio Blu-ray Premium

•Supporto protezione da sovratensione (protezione completa

ASRock dai picchi di corrente)

•Cappucci audio ELNA

•LAN Gigabit 10/100/1000 Mb/s

•Giga PHY Intel® I219LM

•Supporta Wake-On-LAN

•Supporto la protezione da fulmini/scariche elettrostatiche (ESD)

(protezione completa ASRock dai picchi di corrente)

•Supporta Energy Ecient Ethernet 802.3az

•Supporta PXE

•1 x porta mouse/tastiera PS/2

•1 x porta D-Sub

•1 x porta DVI-D

•1 x porta HDMI

•6 x Porte USB 3.0 (supporto protezione da scariche

elettrostatiche (ESD) (protezione completa ASRock dai picchi di
corrente))

•1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED LED)

•Connettori audio HD: Altoparlante laterale/altoparlante

posteriore/centrale/basso/ingresso linea/altoparlante anteriore/
microfono

48

Q170M vPro

Archiviazi­one

Connettore

•6 x Connettori SATA3 6,0 Gb/s, supportano RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14

e Intel Smart Response Technology), NCQ, AHCI e Hot Plug
* Se M2_1 è occupato da un dispositivo M.2 di tipo SATA,
SATA3_0 e SATA3_1 sarà disabilitato.

•1 x Socket Ultra M.2, supporta il modulo M.2 SATA3 6,0 Gb/s

ed il modulo M.2 PCI Express no a Gen3 x4 (32 Gb/s)
* Supporta kit ASRock U.2

•1 x header porta stampa

•2 x collettore porta COM

•1 x Collettore TMP

•1 x collegamento altoparlante e intrusione telaio

•1 x Connettore ventola CPU (4 pin) (Smart Fan Speed Control)

•2 x Connettori ventola telaio (4 pin) (Smart Fan Speed Control)

•1 x connettore alimentazione ATX 24 pin

•1 x Connettore alimentazione 12V 8-pin

•1 x connettore audio pannello frontale

•1 x Collettore USB 2.0 (supporta 2 porte USB 2.0) (supporto

protezione da scariche elettrostatiche (ESD) (protezione

completa ASRock dai picchi di corrente))

•1 x Collettore USB 3.0 (supporta 2 porte USB 3.0) (supporto

protezione da scariche elettrostatiche (ESD) (protezione

completa ASRock dai picchi di corrente))

Funzionalità
BIOS

Hardware
Monitor

•AMI UEFI Legal BIOS 128Mb con interfaccia di supporto

multilingue

•Eventi di riattivazione conformi a ACPI 1.1

•Supporto SMBIOS 2.3.1

•Regolazione variabile tensione DRAM

•Rilevamento temperatura CPU/telaio

•Tachimetro ventola CPU/telaio

•Ventola silenziosa CPU/telaio (regolazione automatica velocità

in base alla temperatura della CPU)

•Ventola CPU/telaio con controllo di varie velocità

•Rilevamento CASE OPEN

•Monitoraggio tensione: +12V, +5V, +3,3V, CPU Vcore,

GT_CPU, DRAM, VPPM, PCH 1,0V, VCCIO, VCCSA

Italiano

49

SO

•Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

* Per installare Windows® 7, è necessario un disco di installazione
modicato con i driver xHCI integrati nel le ISO. Fare riferimen­to a pagina 141 per altre istruzioni dettagliate.
* Per il driver aggiornato di Windows® 10, visitare il sito ASRock
all’indirizzo: http://www.asrock.com

Italiano

Certicazioni

•FCC, CE, WHQL

•ErP/EuP Ready (è necessaria alimentazione ErP/EuP ready)

* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com

Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la
regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o
l'utilizzo di strumenti di overclocking di terze parti. L'overclocking può inuenzare la stabilità
del sistema o perno provocare danni ai componenti e ai dispositivi del sistema. Occorre
eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da
overclocking.

50

1.3 Impostazione jumper

L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio
del jumper è posizionato sui pin, il jumper è "cortocircuitato". Se sui pin non è
posizionato alcun cappuccio del jumper, il jumper è "aperto". L'illustrazione mostra
un jumper a 3 pin i cui pin1 e pin2 sono "cortocircuitati" quando un cappuccio del
jumper è posizionato su questi 2 pin.

Jumper per azzerare la CMOS
(CLRMOS1)
(vedere pag. 1, n. 16)

CLRMOS1 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare
i parametri del sistema alla congurazione predenita, spegnere il computer e
scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un
cappuccio jumper per cortocircuitare il pin 2 ed il pin 3 su CLRMOS1 per 5 secondi.
Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se è necessario
azzerare la CMOS dopo l'aggiornamento del BIOS, è necessario riavviare prima il
sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della
CMOS. La password, la data, l'ora e il prolo predenito dell'utente saranno azzerati
solo se viene rimossa la batteria della CMOS.

predenito

Azzerare la CMOS

Q170M vPro

Se si azzera la CMOS, può essere rilevato il case aperto. Regolare l'opzione del BIOS "Azzerare
stato" per azzerare il registro del precedente stato di intrusione nello chassis.

Italiano

51

1.4 Header e connettori sulla scheda

1

Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper
su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori
provocherà danni permanenti alla scheda madre.

Italiano

Header sul pannello del
sistema
(PANEL1 a 9 pin)
(vedere pag. 1, n. 14)

PWRBTN (interruttore di alimentazione):

collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. È possibile
congurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.

RESET (interruttore di reset):
collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore
di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un normale
riavvio.

PLED (LED alimentazione del sistema):
collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED
è acceso quando il sistema è in funzione. Il LED continua a lampeggiare quando il sistema si
trova nello stato di sospensione S1/S3. Il LED è spento quando il sistema si trova nello stato di
sospensione S4 o quando è spento (S5).

HDLED (LED di attività disco rigido):
collegare al LED di attività disco rigido sul pannello anteriore dello chassis. Il LED è acceso
quando il disco rigido sta leggendo o scrivendo dati.

Il design del pannello anteriore può cambiare a seconda dello chassis. Un modulo di pannello
anteriore è composto principalmente da interruttore di alimentazione, interruttore di reset,
LED di alimentazione, LED di attività disco rigido, altoparlante, ecc. Quando si collega il
modulo del pannello anteriore dello chassis a questo header, accertarsi che le assegnazioni del
lo e le assegnazioni del pin corrispondano correttamente.

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Collegare l'interruttore
dell'alimentazione,
l'interruttore di reset e
l'indicatore dello stato del
sistema sullo chassis su
questo header secondo
la seguente assegnazione
dei pin. Annotare i pin
positivi e negativi prima di
collegare i cavi.

52

Q170M vPro

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Collegamento altoparlante
e intrusione telaio
(SPK_CI1 a 7 pin)
(vedere pag. 1, n. 15)

Connettori Serial ATA3
(SATA3_0:
vedere pag. 1, n. 6)
(SATA3_1:
vedere pag. 1, n. 7)
(SATA3_2:
vedere pag.1, n. 10)
(SATA3_3:
vedere pag.1, n. 11)
(SATA3_4:
vedere pag.1, n. 13)
(SATA3_5:
vedere pag.1, n. 12)

Header USB 2.0
(USB1_2 a 9 pin)
(vedere pag. 1, n. 17)

SATA3_2

SATA3_4

SATA3_0

SATA3_1

Collegare l’intrusione
telaio e l’altoparlante a
questo collegamento.

Questi sei connettori
SATA3 supportano cavi
dati SATA per dispositivi
di archiviazione interna,
con una velocità di
trasferimento dati no a 6,0
Gb/s.
* Se M2_1 è occupato
da un dispositivo M.2 di

SATA3_3

tipo SATA, SATA3_0 e
SATA3_1 sarà disabilitato.

SATA3_5

Su questa scheda madre
c’è un connettore. Questo
connettore USB 2.0 può
supportare due porte.

Header USB 3.0
(USB3_5_6 a 19 pin)
(vedere pag. 1, n. 8)

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

Oltre alle sei porte USB 3.0
del pannello I/O, questa
scheda madre è dotata
di un collettore. Questo
connettore USB 3.0 può
supportare due porte.

Italiano

53

Header audio pannello

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

anteriore
(AUDIO1_HD a 9 pin)
(vedere pag. 1, n. 22)

Questo header serve a
collegare i dispositivi
audio al pannello audio
anteriore.

1. L'audio ad alta denizione supporta le funzioni Jack sensing, ma il lo del pannello sullo
chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel
nostro manuale e nel manuale dello chassis per installare il sistema.

2. Se si utilizza un pannello audio AC’97, installarlo sull'header audio del pannello anteriore
seguendo le fasi di seguito:
A. Collegare Mic_IN (MIC) a MIC2_L.
B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L.
C. Collegare Ground (GND) a Ground (GND).
D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non è necessario
collegarli per il pannello audio AC’97.
Per attivare il microfono anteriore, andare alla scheda “FrontMic” nel pannello di controllo
Realtek e regolare il “Volume di registrazione”.

Italiano

54

Connettori ventola telaio
(CHA_FAN1 a 4 pin)
(vedere pag. 1, n. 23)

(CHA_FAN2 a 4 pin)
(vedere pag. 1, n. 9)

Connettore ventola CPU
(CPU_FAN1 a 4 pin)
(vedere pag. 1, n. 2)

CHA_FAN_SPEED

FAN_VOLTAGE

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

CPU_FAN_SPEED

FAN_VOLTAGE

GND

GND

Collegare i cavi della
ventola ai connettori della
ventola e far corrispondere
il lo nero al pin di terra.

Questa scheda madre è
dotata di un connettore per
la ventola della CPU (Ven­tola silenziosa) a 4 pin. Se
si decide di collegare una
ventola della CPU a 3 pin,
collegarla al pin 1-3.

Q170M vPro

5

1

8

1

PC

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

Connettore di
alimentazione ATX
(ATXPWR1 a 24 pin)
(vedere pag. 1, n. 5)

Connettore di
alimentazione ATX
da 12 V
(ATX12V1 a 8 pin)
(vedere pag. 1, n. 1)

Header porta seriale
(COM1 a 9 pin)
(vedere pag. 1, n. 20)
(COM2 a 9 pin)
(vedere pag. 1, n. 21)

Header TPM
(TPMS1 a 17 pin)
(vedere pag. 1, n. 18)

24

12

Questa scheda madre è
dotata di un connettore di
alimentazione ATX a 24
pin. Per utilizzare
un'alimentazione ATX a

1

13

20 pin, collegarla lungo il
pin 1 e il pin 13.

Questa scheda madre è
dotata di un connettore
di alimentazione ATX da
12 V a 8 pin. Per utilizzare
un'alimentazione ATX a
4 pin, collegarla lungo il
pin 1 e il pin 5.

RRXD1

DDTR#1

DDSR#1

CCTS#1

Questi connettori COM
supportano moduli per
porta seriale.

RRI#1

RRTS#1

GND

TTXD1

DDCD#1

Questo connettore supporta il
sistema Trusted Platform Module
(TPM), che può archiviare in

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

LAD 1

1

+3 V

LAD 3

IRS T #

FRA ME

PC ICL K

D

GN D

S_P WRDW N #

SER IRQ #

GN

modo sicuro chiavi, certicati
digitali, password e dati. Un
sistema TPM permette anche di

GN D

LAD 0

potenziare la sicurezza della rete,

+3V S B

di proteggere identità digitali e di
garantire l'integrità della
piattaforma.

Italiano

Header porta di stampa
(LPT1 a 25 pin)
(vedere pag. 1, n. 19)

Si tratta di un'interfaccia per il
cavo della porta di stampa che
consente una comoda connessione
ai dispositivi della stampante.

55

1 Introducción

Gracias por comprar la placa base ASRock Q170M vPro, una placa base able
fabricada según el rigurosísimo control de calidad de ASRock. Ofrece un rendimiento
excelente con un diseño resistente de acuerdo con el compromiso de calidad y
resistencia de ASRock.

Ya que las especicaciones de la placa base y el soware del BIOS podrán ser actualizados, el
contenido que aparece en esta documentación estará sujeto a modicaciones sin previo aviso.
Si esta documentación sufre alguna modicación, la versión actualizada estará disponible
en el sitio web de ASRock sin previo aviso. Si necesita asistencia técnica relacionada con esta
placa base, visite nuestro sitio web para obtener información especíca sobre el modelo que esté
utilizando. Podrá encontrar las últimas tarjetas VGA, así como la lista de compatibilidad de la
CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.

1.1 Contenido del paquete

•Placa base ASRock Q170M vPro (Factor de forma Micro ATX)

•Guía de instalación rápida de ASRock Q170M vPro

•CD de soporte de ASRock Q170M vPro

•2 cables de datos Serie ATA (SATA) (Opcional)

•1 escudo panel I/O

•1 Tornillo para el zócalo M.2

Español

56

1.2 Especicaciones

Q170M vPro

Plataforma

CPU

Conjunto
de chips

Memoria

Ranura de
expansión

•Factor de forma Micro ATX

•Diseño de condensador sólido

•PCB de bra de vidrio de alta densidad

•Admite la familia de procesadores Intel® Core

TM

i7/i5/i3/

Pentium®/Celeron® (zócalo 1151) de la 6ª generación

•Diseño Digi Power

•Diseño de 6 fases de alimentación

•Compatible con la tecnología de Intel® Turbo Boost 2.0

•Intel® Q170

•Compatible con la tecnología vPro

TM

de Intel®

•Compatible con la Tecnología Active Management 1.1 de

Intel®

•Compatible con Intel® Small Business Advantage 4.0

* Intel® Small Business Advantage, la Tecnología vProTM de Intel®
y la Tecnología Active Management 1.1 de Intel® pueden ser
compatibles únicamente con la familia de procesadores vProTM de
Intel® Core

TM

•Tecnología de memoria DDR4 de doble canal

•4 x Ranuras DIMM DDR4

•Compatible con memoria no-ECC, sin búfer DDR4 2133

•Capacidad máxima de la memoria del sistema: 64GB

•Admite Perl de memoria extremo de Intel® (XMP) 2.0

•2 x ranuras PCI Express 3.0 x16 (PCIE1:modo x16;

PCIE4:modo x4)

•2 x ranuras PCI Express 3.0 x1 (Flexible PCIe)

•Compatible con AMD Quad CrossFireX

TM

y CrossFireXTM

Español

Grácos

•La Tecnología visual integrada de grácos HD de Intel® y las

salidas de VGA son compatibles únicamente con procesadores
con GPU integrado.

•Compatible con la Tecnología visual integrada de grácos

HD de Intel®: Intel® Quick Sync Video con AVC, MVC (S3D)
y MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear
Video HD Technology, Intel® InsiderTM, Intel® HD Graphics
510/530

•Pixel Shader 5.0, DirectX 12

•Memoria compartida máxima: 1792MB

57

Español

Audio

LAN

Panel trasero
I/O

•Tres opciones de salida gráca: D-Sub, DVI-D y HDMI

•Compatible con tres monitores

•Admite la tecnología HDMI con una resolución máxima de

4K x 2K (4096x2304) a 24 Hz

•Compatible con DVI-D con máxima resolución hasta

1920x1200 @ 60Hz

•Compatible con D-Sub con máxima resolución hasta

1920x1200 @ 60Hz

•Compatible con Auto Lip Sync, Deep Color (12bpc), xvYCC y

HBR (audio de alta velocidad de bits) con HDMI (requiere un
monitor compatible con HDMI)

•Admite códecs multimedia acelerados: HEVC, VP8, VP9

•Compatible con función HDCP con puertos DVI-D y HDMI

•Compatible con reproducción Blu-ray (BD) Full HD de 1080p

con puertos DVI-D y HDMI

•7.1 Audio CH HD con Protección de contenido (Realtek

ALC892 Audio Codec)

•Compatible con audio Blu-ray Premium

•Compatible con protección por sobretensión (protección

ASRock Full Spike)

•Tapas de audio ELNA

•LAN Gigabit 10/100/1000 Mb/s

•Giga PHY Intel® I219LM

•Compatible con Wake-On-LAN

•Compatible con protección contra rayos y electricidad

electrostática (protección ASRock Full Spike)

•Compatible con Ethernet de consumo eciente de energía

802.3az

•Compatible con PXE

•1 puerto de ratón/teclado PS/2

•1 puerto D-Sub

•1 puerto DVI-D

•1 puerto HDMI

•6 puertos USB 3.0 (compatible con protección contra

electricidad estática (protección ASRock Full Spike))

•1 puerto LAN RJ-45 con LED (ACT/LINK LED y SPEED

LED)

•Conector de audio HD: Altavoz lateral / Altavoz trasero

/ Central / Graves / Entrada de línea / Altavoz frontal /
Micrófono

58

Q170M vPro

Almace­namiento

Conector

Función
del BIOS

Monitor
del
hardware

•6 Conectores SATA3 de 6,0 Gb/s, compatibilidad con RAID

(RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage
Technology 14 e Intel Smart Response Technology), NCQ,

AHCI y conexión en caliente
* Si M2_1 se ocupa con un dispositivo M.2 de tipo SATA, SATA3_0
y SATA3_1 se deshabilitará.

•1 Zócalo Ultra M.2, que admite el módulo SATA3 6,0 Gb/s M.2

y el módulo PCI Express M.2 hasta Gen3 x4 (32 Gb/s)
* Admiteel Kit U.2 de ASRock

•1 Base de conexiones de puerto de impresión

•2 Cabezal de puerto COM

•1 cabezal TPM

•1 cabezal de intrusión de chasis y de altavoces

•1 Conector (4 contactos) para el ventilador de la CPU (control

de velocidad de ventilador inteligente)

•2 Conectores (4 contactos) para el ventilador del chasis

(control de velocidad de ventilador inteligente)

•1 Conector de alimentación ATX de 24 pines

•1 conector de alimentación de 12V de 8 pines

•1 Conector de audio del panel frontal

•1 cabezal USB 2.0 (compatible con 2 puertos USB 2.0)

(compatible con protección contra electricidad estática

(protección ASRock Full Spike))

•1 cabezal USB 3.0 (compatible con 2 puertos USB 3.0)

(compatible con protección contra electricidad estática

(protección ASRock Full Spike))

•BIOS legal UEFI AMI de 128Mb compatible con interfaz

gráca de usuario multilingüe

•Eventos de reactivación conformes con ACPI 1.1

•Compatible con SMBIOS 2.3.1

•Multi-ajuste de voltaje DRAM

•Método de sensor de temperatura de la CPU/Chasis

•Tacómetro del ventilador de la CPU/Chasis

•CPU/Chasis Ventilador silencioso (Ajuste automático de

velocidad del ventilador del chasis por temperatura de la CPU)

•Control multivelocidad del ventilador de la CPU/Chasis

•Detección de CUBIERTA ABIERTA

•Control de voltaje: +12 V, +5 V, +3,3 V, Vcore de CPU,

GT_CPU, DRAM, VPPM, PCH 1,0 V, VCCIO y VCCSA

Español

59

SO

•Microso® Windows® 10 de 64 bits, 8.1 de 64 bits, 7 de 32 bits y

7 de 64 bits
* Para instalar el sistema operativo Windows® 7, se necesita un
disco de instalación modicado con los controladores xHCI
empaquetados en el archivo ISO. Consulte la página 141 para
obtener información más detallada.
* Para obtener el controlador actualizado para Windows® 10, visite
el sitio Web desde ASRock para obtener detalles:
http://www.asrock.com

Español

Certica­ciones

•FCC, CE, WHQL

•Compatible con ErP/EuP (requiere toma de alimentación

compatible con ErP/EuP)

* Para obtener más información acerca del producto, visite nuestro sitio web:

http://www.asrock.com

Tenga en cuenta que existen ciertos riesgos relacionados con el overclocking (sobreaceleración),
incluyendo el ajuste de la conguración del BIOS, aplicando la Tecnología overcloking no
vinculada o utilizando las herramientas de overclocking de tercera parte. El overclocking
podría afectar la estabilidad de su sistema o incluso dañar los componentes y dispositivos de
su sistema. Si lo realiza, todos los riesgos y gastos derivados del overclocking serán de su entera
responsabilidad. No nos hacemos responsables de posibles daños producidos por el overclocking.

60

1.3 Instalación de los puentes

La instalación muestra cómo deben instalarse los puentes. Cuando la tapa de puente
se coloca en los pines, el puente queda “Corto”. Si no coloca la tapa de puente en los
pines, el puente queda “Abierto”. La ilustración muestra un puente de 3 pines cuyo pin
1 y pin 2 son “Cortos” cuando se coloca una tapa de puente en estos 2 pines.

Puente de borrado de CMOS
(CLRMOS1)
(consulte la pág.1, N.º 16)

CLRMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los
parámetros del sistema a los valores predeterminados de instalación, apague el
ordenador y desenchufe el cable de alimentación de la toma de alimentación.
Después de esperar 15 segundos, utilice un tapa de puente para acortar el pin2
y el pin3 en el CLRMOS1 durante 5 segundos. Sin embargo, no borre el CMOS
justo después de que haya actualizado el BIOS. Si necesita borrar el CMOS cuando
acabe de actualizar el BIOS, deberá arrancar el sistema primero y, a continuación,
deberá apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la
contraseña, la fecha, la hora y el perl de usuario predeterminado serán eliminados
únicamente si se retira la pila del CMOS.

Predeterminado

Borrado de CMOS

Q170M vPro

Si borra el CMOS, podrá detectarse la cubierta abierta. Ajuste la opción del BIOS “Clear
Status” (Borrar estado) para borrar el registro del estado de intrusión anterior del chasis.

Español

61

1.4 Conectores y cabezales incorporados

1

Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre
estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores dañará
de forma permanente la placa base.

Español

Cabezal del panel del sistema
(PANEL1 de 9 pines)
(consulte la pág.1, N.º 14)

PWRBTN (Interruptor de alimentación):

Conéctelo al interruptor de alimentación del panel frontal del chasis. Deberá congurar la
forma en la que su sistema se apagará mediante el interruptor de alimentación.

RESET (Interruptor de reseteo):
Conéctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de reseteo
para resetear el ordenador si éste está bloqueado y no se puede reiniciar de forma normal.

PLED (Indicador LED de la alimentación del sistema):
Conéctelo al indicador de estado de la alimentación del panel frontal del chasis. El indicador
LED permanece encendido cuando el sistema está funcionando. El indicador LED parpadea
cuando el sistema se encuentra en estado de suspensión S1/S3. El indicador LED se apaga
cuando el sistema se encuentra en estado de suspensión S4 o está apagado (S5).

HDLED (Indicador LED de actividad en el disco duro):
Conéctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El indica­dor LED permanece encendido cuando el disco duro está leyendo o escribiendo datos.

El diseño del panel frontal puede ser diferente dependiendo del chasis. Un módulo de panel
frontal consta principalmente de: interruptor de alimentación, interruptor de reseteo, indicador
LED de alimentación, indicador LED de actividad en el disco duro, altavoz, etc. Cuando
conecte su módulo del panel frontal del chasis a este cabezal, asegúrese de que las asignaciones
de los cables y los pines coinciden correctamente.

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Conecte el interruptor de
alimentación, restablezca el
interruptor y el indicador
del estado del sistema del
chasis a los valores de este
cabezal, según los valores
asignados a los pines como
se indica a continuación.
Cerciórese de cuáles son
los pines positivos y los
negativos antes de conectar
los cables.

62

Q170M vPro

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Cabezal de intrusión de
chasis y de altavoces
(SPK_CI1 de 7 contactos)
(consulte la pág.1, N.º 15)

Conectores Serie ATA3
(SATA3_0:
consulte la pág.1, N.º 6)
(SATA3_1:
consulte la pág.1, N.º 7)
(SATA3_2:
consulte la pág.1, N.º 10)
(SATA3_3:
consulte la pág.1, N.º 11)
(SATA3_4:
consulte la pág.1, N.º 13)
(SATA3_5:
consulte la pág.1, N.º 12)

Cabezal USB 2.0
(USB1_2 de 9 contactos)
(consulte la pág.1, N.º 17)

SATA3_2

SATA3_4

SATA3_0

SATA3_1

Conecte la intrusión de
chasis y el altavoz del
chasis a este cabezal.

Estos seis conectores
SATA3 son compatibles
con cables de datos SATA
para dispositivos de
almacenamiento interno
con una velocidad de
transferencia de datos de
hasta 6,0 Gb/s.
* Si M2_1 se ocupa con

SATA3_3

un dispositivo M.2 de
tipo SATA, SATA3_0 y
SATA3_1 se deshabilitará.

SATA3_5

Esta placa base tiene otra
base de conexiones. Cada
base de conexiones USB 2.0
admite dos puertos.

Cabezal USB 3.0
(USB3_5_6 de 19 pines)
(consulte la pág.1, N.º 8)

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

Español

Además de seis puertos
USB 3.0 en el panel I/O,
esta placa base contiene
un cabezal. Cada base de
conexiones USB 3.0 admite
dos puertos.

63

Cabezal de audio del panel

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

frontal
(HD_AUDIO1 de 9 pines)
(consulte la pág.1, N.º 22)

1. El Audio de Alta Denición (HDA, en inglés) es compatible con el método de sensor de
conectores, sin embargo, el cable del panel del chasis deberá ser compatible con HDA para
que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual
y en el manual del chasis para instalar su sistema.

2. Si utiliza un panel de audio AC’97, colóquelo en el cabezal de audio del panel frontal siguien­do los pasos que se describen a continuación:
A. Conecte Mic_IN (MIC) a MIC2_L.
B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L.
C. Conecte Ground (Conexión a tierra) (GND) a Ground (GND).
D. MIC_RET y OUT_RET se utilizan únicamente con el panel de audio HD. No es necesario
que los conecte en el panel de audio AC’97.
E. Para activar el micrófono frontal, vaya a la cha “micrófono frontal” (FrontMic) en el pan­el de control de Realtek y ajuste el “Volumen de grabación” (Recording Volume).

Este cabezal se utiliza para
conectar dispositivos de
audio al panel de audio
frontal.

Español

64

Conectores para el
ventilador del chasis
(CHA_FAN1 de 4 pines)
(consulte la pág.1, N.º 23)

(CHA_FAN2 de 4 pines)
(consulte la pág.1, N.º 9)

Conector del ventilador de
la CPU
(CPU_FAN1 de 4 pines)
(consulte la pág.1, N.º 2)

CHA_FAN_SPEED

FAN_VOLTAGE

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

CPU_FAN_SPEED

FAN_VOLTAGE

GND

GND

Conecte los cables del
ventilador a los conectores
del ventilador y haga
coincidir el cable negro
con el pin de conexión a
tierra.

Esta placa base contiene
un conector de ventilador
(ventilador silencioso) de
CPU de 4 pines. Si tiene
pensando conectar un
ventilador de CPU de 3
pines, conéctelo al Pin 1-3.

Q170M vPro

5

1

8

1

PC

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

Conector de alimentación
AT X
(ATXPWR1 de 24 pines)
(consulte la pág.1, N.º 5)

Conector de alimentación
ATX de 12V
(ATX12V1 de 8 pines)
(consulte la pág.1, N.º 1)

Cabezal de puerto serie
(COM1 de 9 pines)
(consulte la pág.1, N.º 20)
(COM2 de 9 pines)
(consulte la pág.1, N.º 21)

Cabezal TPM
(TPMS1 de 17 pines)
(consulte la pág.1, N.º 18)

24

12

Esta placa base contiene
un conector de
alimentación ATX de 24
pines. Para utilizar una
toma de alimentación ATX

1

13

de 20 pines, conéctela en
los Pines del 1 al 13.

Esta placa base contiene
un conector de
alimentación ATX de 12V
y 8 pines. Para utilizar una
toma de alimentación ATX
de 4 pines, conéctela en los
Pines del 1 al 5.

RRXD1

DDTR#1

DDSR#1

CCTS#1

Estas bases de conexiones
COM admiten módulos de
puerto serie.

RRI#1

RRTS#1

GND

TTXD1

DDCD#1

Este conector es compatible con el
sistema Módulo de Plataforma

D

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

1

FRA ME

PC ICL K

GN D

LAD 1

S_P WRDW N #

+3 V

LAD 3

LAD 0

IRS T #

Segura (TPM, en inglés), que

SER IRQ #

GN

puede almacenar de forma segura
claves, certicados digitales,
contraseñas y datos. Un sistema

GN D

+3V S B

TPM también ayuda a aumentar

Español

la seguridad en la red, protege las
identidades digitales y garantiza la
integridad de la plataforma.

Cabezal de puerto
de impresión
(LPT1 de 25 pines)
(consulte la pág.1, N.º 19)

Ésta es una interfaz para el cable
del puerto de impresión que
permite una cómoda conexión de
dispositivos de impresión.

65

Русский

1 Введение

Благодарим вас за приобретение надежной материнской платы ASRock Q170M
vPro, выпускаемой под постоянным строгим контролем компании ASRock.
Эта материнская плата обеспечивает великолепную производительность
и характеризуется прочной конструкцией в соответствии с требованиями
компании ASRock в отношении качества и долговечности.

По причине обновления спецификации на материнскую платформу и программного
обеспечения BIOS содержимое настоящей документации может быть изменено без
предварительного уведомления. При изменении содержимого настоящего документа
его обновленная версия будет доступна на веб-сайте ASRock без предварительного
уведомления. При необходимости технической поддержки, связанной с материнской
платой, посетите веб-сайт и найдите на нем информацию о модели используемой
вами материнской платы. На веб-сайте ASRock также можно найти самый последний
перечень поддерживаемых VGA-карт и ЦП. Веб-сайт ASRock http://www.asrock.com.

1.1 Комплект поставки

•Материнская плата ASRock Q170M vPro (форм-фактор Micro ATX)

•Краткое руководство по установке ASRock Q170M vPro

•Диск с ПО для ASRock Q170M vPro

•2 х кабеля передачи данных Serial ATA (SATA) (приобретаются отдельно)

•1 х экран панели с портами ввода-вывода

•1 x Винт для гнезда M.2

66

1.2 Спецификация

Q170M vPro

Платформа

Процессор

Чипсет

Память

Слот
расширения

Графическая
система

•Форм-фактор Micro ATX

•Схема на основе твердотельных конденсаторов

•Печатная плата высокой плотности на основе

стеклоткани

•Поддержка процессоров 6-

го

поколения Intel® CoreTM i7/

i5/i3/Pentium®/Celeron® (Socket 1151)

•Digi Power design

•Система питания 6

•Поддержка технологии Intel® Turbo Boost 2.0

•Intel® Q170

•Поддержка технологии Intel® vPro

TM

•Поддержка технологии Intel® Active Management 1.1

•Поддержка Intel® Small Business Advantage 4.0

* Поддержка технологий Intel® Small Business Advantage,
Intel® vProTM и Intel® Active Management 1.1 доступна только
для процессоров семейства Intel® CoreTM vPro

TM

•Двухканальная память DDR4

•4 x гнезда DDR4 DIMM

•Поддержка модулей небуферизованной памяти DDR4

2133 без ECC

•Максимальный объем системной памяти: 64 Гб

•Поддержка Intel® Extreme Memory Prole (XMP) 2.0

•2 x слота PCI Express 3.0 x16 (PCIE1:режим x16;

PCIE4:режим x4)

•2 x PCI Express 3.0 x1 разъем (Flexible PCIe)

•Поддержка AMD Quad CrossFireX

TM

и CrossFireXTM

•Поддержка выходных сигналов Intel® HD Graphics

Built-in Visuals и VGA возможна только при
использовании процессоров со встроенными
графическими процессорами.

•Поддержка встроенных технологий визуализации Intel®

HD Graphics: Intel® Quick Sync Video с AVC, MVC (S3D)
и MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear
Video HD Technology, Intel® InsiderTM, Intel® HD Graphics
510/530

•Pixel Shader 5.0, DirectX 12

•Максимальный объем совместно используемой памяти:

1792 Мб

Русский

67

Русский

Аудио

LAN

Порты ввода­вывода на
задней панели

•Три графических выхода: D-Sub, DVI-D и HDMI

•Поддержка работы с тремя мониторами

•Поддержка HDMI с максимальным разрешением до

4K x 2K (4096x2304) при частоте обновления 24 Гц

•Поддержка DVI-D с максимальным разрешением до

1920x1200 при 60 Гц

•Поддержка D-Sub с максимальным разрешением до

1920x1200 при 60 Гц

•Поддержка Auto Lip Sync, Deep Color (12bpc), xvYCC и

HBR (High Bit Rate Audio) через порт HDMI
(требуется HDMI-совместимый монитор)

•Поддержка ускоренных медиа кодеков: HEVC, VP8, VP9

•Поддержка функции защиты HDCP через порты DVI-D

и HDMI

•Поддержка воспроизведения в режиме Full HD 1080p

Blu-ray (BD) через порты DVI-D и HDMI

•7.1-канальный звук высокой четкости HD Audio с

защитой данных (аудиокодек Realtek ALC892)

•Поддержка Premium Blu-ray Audio

•Защита от перенапряжения (ASRock Full Spike

Protection)

•Конденсаторы для аудиосистем ELNA

•Gigabit LAN 10/100/1000 Мб/с

•Giga PHY Intel® I219LM

•Поддержка Wake-On-LAN

•Молниезащита и защита электростатического

напряжения (ASRock Full Spike Protection)

•Поддержка Energy Ecient Ethernet 802.3az

•Поддержка PXE

•1 x PS/2 для мыши/клавиатуры

•1 x D-Sub

•1 x DVI-D

•1 x HDMI

•6 x Порт USB 3.0 с защитой от электростатического

напряжения (ASRock Full Spike Protection)

•1 x RJ-45 для ЛВС с СИД (СИД ACT/LINK и МИД

SPEED)

•Разъемы HD Audio: боковые динамики /

задние динамики / центральный динамик / сабвуфер /
линейный вход / передние динамики / микрофон

68

Q170M vPro

Запоминающие
устройства

Разъемы

•6 x Разъемы SATA3 со скоростью обмена данными 6,0

ГБ/с, поддержка технологий RAID (RAID 0,
RAID 1, RAID 5, RAID 10, Intel Rapid Storage
Technology 14 и Intel Smart Response Technology),

NCQ, AHCI и "горячего" подключения
* Если разъем M2_1 занят устройством М.2 типа SATA,
разъем SATA3_0 и SATA3_1 будет отключен.

•1 x Ultra M.2 Socket, поддержка модуля M.2 SATA3

со скоростью обмена данными 6,0 ГБ/с и модуля M.2

PCI Express до версии Gen3 x4 (32 ГБ/с)
* Поддержка комплекта ASRock U.2

•1 x колодка порта принтера

•2 x колодка СОМ-порта

•1 x Колодка ТРМ

•1 колодка с разъемами датчика вскрытия корпуса и

динамика

•1 x Разъем для вентилятора охлаждения процессора

(4-контактный) ("Умный" регулятор скорости

вентилятора)

•2 x Разъемы для вентилятора корпуса (4-контактный)

("Умный" регулятор скорости вентилятора)

•1 х разъем питания АТХ (24-контактный)

•1 x 8-контактный разъем питания 12 В

•1 x аудиоразъем на передней панели

•1 x Колодка USB 2.0 (до 2 портов USB 2.0) с защитой

от электростатического напряжения (ASRock Full

Spike Protection)

•1 x Колодка USB 3.0 (до 2 портов USB 3.0) с защитой

от электростатического напряжения (ASRock Full

Spike Protection)

Русский

Параметры BIOS

•AMI UEFI Legal BIOS 128 МБ с поддержкой

многоязычного графического интерфейса

•Совместимость с функцией энергопотребления в

стандарте ACPI 1.1

•Поддержка SMBIOS 2.3.1

•Регулировка напряжения DRAM

69

Контроль
оборудования

•Датчик температуры процессора/корпуса

•Тахометр вентилятора процессора/корпуса

•Бесшумный вентилятор охлаждения процессора/

корпуса (с автоматической регулировкой скорости
вращения в зависимости от температуры нагрева
процессора)

•Управление скоростью вращения вентилятора

охлаждения процессора/корпуса

•Технология определения вскрытия корпуса

•Контроль напряжения: +12 В, +5 В, +3,3 В, ЦП Vcore,

GT_CPU, DRAM, VPPM, PCH 1,0 В, VCCIO, VCCSA

Русский

ОС

•Microso® Windows® 10 64-разрядная /

8.1 64-разрядная/ 7 32-разрядная/ 7 64-разрядная
* Для установки ОС Windows® 7 потребуется
измененный установочный диск с драйверами
xHCI, упакованными в файл ISO. Более подробные
инструкции представлены на стр. 141.
* Подробные сведения об обновлении драйвера
Windows® 10 представлены на веб-сайте ASRock:
http://www.asrock.com

Сертификация

•FCC, CE, WHQL

•Совместимость с ErP/EuP (необходим блок питания,

соответствующий стандарту ErP/EuP)

* Для получения дополнительной информации об изделии посетите наш веб-сайт:

http://www.asrock.com

Следует учитывать, что разгон процессора, включая изменение настроек BIOS,
применение технологии Untied Overclocking Technology и использование инструментов
разгона независимых производителей, сопряжен с определенным риском. Разгон
процессора может повлиять на стабильность системы или даже привести к
повреждению ее компонентов и устройств. Вы выполняете разгон процессора на ваш
собственный риск и за свой счет. Мы не несем ответственность за возможный ущерб,
вызванный разгоном процессора.

70

1.3 Установка перемычек

Установка перемычек показана на рисунке. При установке колпачковой
перемычки на контакты перемычка «замкнута». Если колпачковая перемычка
на контакты не установлена, перемычка «разомкнута». На рисунке показана
3-контактная перемычка с замкнутыми контактами 1 и 2 при установке на них
колпачковой перемычки.

Перемычка сброса
настроек CMOS
(CLRMOS1)
(См. стр. 1, № 16)

CLRMOS1 используется для удаления данных CMOS. Чтобы сбросить и
обнулить параметры системы на настройки по умолчанию, выключите
компьютер и извлеките отключите кабель питания от источника питания.
Выждите 15 секунд и перемычкой замкните контакты 2 и 3 на CLRMOS1 на
5 секунд. Не сбрасывайте настройки CMOS сразу после обновления BIOS.
При необходимости сбросить настройки CMOS сразу после обновления BIOS
сначала перезагрузите систему, а затем выключите компьютер перед сбросом
настроек CMOS. Учтите, что пароль, дата, время и профиль пользователя по
умолчанию сбрасываются только в том случае, если извлечь батарею CMOS.

Сброс настроек CMOSпо умолчанию

Q170M vPro

Русский

Сброс настроек CMOS может привести к определению вскрытию корпуса. Чтобы
обнулить запись предыдущего определения вскрытия корпуса, используйте параметр
Clear Status (Обнулить состояние) BIOS.

71

1.4 Колодки и разъемы, расположенные на материнской

1

плате

Расположенные на материнской плате колодки и разъемы перемычками НЕ являются.
НЕ устанавливайте на эти колодки и разъемы колпачковые перемычки. Установка
колпачковых перемычек на эти колодки и разъемы может вызвать неустранимое
повреждение материнской платы.

Русский

Колодка системной
панели
(9-контактная, PANEL1)
(См. стр. 1, № 14)

PWRBTN (кнопка питания):

Подключение кнопки питания, расположенной на передней панели корпуса. Можно
настроить порядок выключения системы с использованием кнопки питания.

RESET (кнопка перезагрузки):
Подключение кнопки перезагрузки системы, расположенной на передней панели
корпуса. Нажмите кнопку перезагрузки, чтобы перезапустить компьютер, если он
завис и нормальный запуск невозможен.

PLED (светодиодный индикатор питания системы):
Подключение индикатора состояния, расположенного на передней панели корпуса.
Светодиодный индикатор горит, когда система работает. Когда система находится
в режиме ожидания S1/S3, светодиод мигает. Когда система находится в режиме
ожидания S4 или выключена (S5), светодиод не горит.

HDLED (светодиодный индикатор работы жесткого диска):
Подключение светодиодного индикатора работы жесткого диска, расположенного на
передней панели. Светодиодный индикатор горит, когда жесткий диск выполняет
считывание или запись данных.

Передняя панель может быть разной на разных корпусах. В основном передняя панель
включает в себя кнопку питания, кнопку перезагрузки, светодиодный индикатор
питания, светодиодный индикатор работы жесткого диска, динамик и т. д. При
подключении передней панели к этой колодке правильно подключайте провода к
контактам.

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Подключите
расположенные на корпусе
выключатель питания,
кнопку перезагрузки и
индикатор состояния
системы к этой колодке
в соответствии с
распределением контактов,
приведенным ниже. Перед
подключением кабелей
определите положительный
и отрицательный контакты.

72

Q170M vPro

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Колодка с разъемами
датчика вскрытия
корпуса и динамика
(7-контактный SPK_CI1)
(См. стр. 1, № 15)

Разъемы Serial ATA3
(SATA3_0:
См. стр. 1, № 6)
(SATA3_1:
См. стр. 1, № 7)
(SATA3_2:
см. стр.1, № 10)
(SATA3_3:
см. стр.1, № 11)
(SATA3_4:
см. стр.1, № 13)
(SATA3_5:
см. стр.1, № 12)

Колодка USB 2.0
(9-контактная, USB1_2)
(См. стр. 1, № 17)

SATA3_2

SATA3_4

SATA3_0

SATA3_1

Предназначена для
подключения датчика
вскрытия корпуса и
корпусного динамика.

Эти шесть разъемов
SATA3 предназначены
для подключения кабелей
SATA внутренних
запоминающих устройств
для передачи данных со
скоростью до 6,0 Гб/с.
* Если разъем M2_1 занят
устройством М.2 типа

SATA3_3

SATA, разъем SATA3_0 и
SATA3_1 будет отключен.

SATA3_5

На системной плате
размещена одна колодка.
Эта колодка USB 2.0
может поддерживать два
порта.

Русский

Колодка USB 3.0
(19-контактная,
USB3_5_6)
(См. стр. 1, № 8)

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

Кроме шести портов
USB 3.0 на панели ввода­вывода на системной
плате также имеется одна
колодка. Эта колодка USB

3.0 может поддерживать
два порта.

73

Аудиоколодка передней

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

панели
(9-контактная,
HD_AUDIO1)
(См. стр. 1, № 22)

1. Аудиосистема высокого разрешения поддерживает функцию распознавания разъема,
но для е правильной работы необходимо, чтобы провод панели корпуса поддерживал
передачу сигналов HDA. Инструкции по установке системы см. в этом руководстве
и руководстве на корпус.

2. При использовании аудиопанели AC’97 подключите ее к аудиоколодке передней
панели, как указано далее:
A. Подключите Mic_IN (MIC) к MIC2_L.
B. Подключите Audio_R (RIN) к OUT2_R, Audio_L (LIN) к OUT2_L.
C. Подключите провод заземления (GND) к контакту заземления (GND).
D. Контакты MIC_RET и OUT_RET используются только для аудиопанели высокого
разрешения. При использовании аудиопанели AC’97 их подключать не нужно.
E. Чтобы активировать передний микрофон, перейдите на вкладку FrontMic панели
управления Realtek и отрегулируйте параметр Recording Volume (Громкость записи).

Эта колодка
предназначена
для подключения
аудиоустройств к
передней аудиопанели.

Русский

74

Разъемы вентиляторов
корпуса
(4-контактный,
CHA_FAN1)
(См. стр. 1, № 23)

(4-контактный,
CHA_FAN2)
(См. стр. 1, № 9)

Разъем вентилятора
охлаждения процессора
(4-контактный,
CPU_FAN1)
(См. стр. 1, № 2)

CHA_FAN_SPEED

FAN_VOLTAGE

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

CPU_FAN_SPEED

FAN_VOLTAGE

GND

GND

Предназначены для
подключения кабелей
разъемов вентиляторов
и подключения черного
провода к заземлению.

Эта материнская
плата снабжена
4-контактным разъемом
для малошумящего
вентилятора ЦП. Если вы
собираетесь подключить
3-контактный вентилятор
охлаждения процессора,
подключайте его к
контактам 1-3.

Q170M vPro

5

1

8

PC

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

Разъем питания АТХ
(24-контактный,
ATXPWR1)
(См. стр. 1, № 5)

Разъем питания АТХ 12 В
(8-контактный, ATX12V1)
(См. стр. 1, № 1)

Колодка
последовательного порта
(9-контактная, COM1)
(См. стр. 1, № 20)
(9-контактная, COM2)
(См. стр. 1, № 21)

Колодка ТРМ
(17-контактная, TPMS1)
(См. стр. 1, № 18)

Колодка порта принтера
(25-контактная, LPT1)
(См. стр. 1, № 19)

24

12

Эта материнская плата
снабжена 24-контактным
разъемом питания АТХ.
Чтобы использовать
20-контактный

1

13

разъем питания ATX,
подключите его вдоль
контакта 1 и контакта 13.

Эта материнская плата
снабжена 8-контактным
разъемом питания АТХ
12 В. Чтобы использовать
4-контактный
разъем питания ATX,
подключите его вдоль
контакта 1 и контакта 5.

К этим разъемам
COM можно
подключать модули
последовательных
портов.

1

RRXD1

DDTR#1

TTXD1

DDCD#1

DDSR#1

CCTS#1

RRTS#1

GND

RRI#1

Этот разъем обеспечивает
поддержку системы Trusted
Platform Module (TPM),

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

LAD 1

1

D

GN D

S_P WRDW N #

SER IRQ #

GN

которая способна
обеспечить надежное

Русский

хранение ключей, цифровых

+3 V

LAD 3

IRS T #

FRA ME

PC ICL K

GN D

LAD 0

сертификатов, паролей и

+3V S B

данных. Система ТРМ также
повышает уровень сетевой
безопасности, защищает
цифровые идентификаторы
и обеспечивает целостность
платформы.

Это — интерфейс для
подключения кабеля порта
принтера, обеспечивающий
удобное подключение
устройств печати.

75

Português

1 Introdução

Obrigado por comprar a placa-mãe ASRock Q170M vPro, uma placa-mãe conável
produzida sob o controle de qualidade altamente consistente da ASRock. Esta placa
principal oferece um excelente desempenho com um design robusto em conformidade
com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.

Como as especicações da placa-mãe e do soware do BIOS podem ser atualizadas, o conteúdo
desta documentação estará sujeito a alterações sem aviso prévio. Caso ocorram modicações
a esta documentação, a versão atualizada estará disponível no site da ASRock sem aviso
prévio. Se precisar de assistência técnica relacionada a esta placa principal, visite o nosso site
para obter informações especícas sobre o modelo que estiver utilizando. Você também poderá
encontrar a lista de placas VGA e CPU mais recentes suportadas no site da ASRock. Site da
ASRock http://www.asrock.com.

1.1 Conteúdo da embalagem

•Placa-mãe ASRock Q170M vPro (Micro ATX Form Factor)

•Guia de Instalação Rápida ASRock Q170M vPro

•CD de Suporte ASRock Q170M vPro

•2 x Cabos de dados Serial ATA (SATA) (Opcional)

•1 x Painel de E/S

•1 x Parafuso para Soquete M.2

76

1.2 Especicações

Q170M vPro

Plataforma

CPU

Chipset

Memória

Slot de
expansão

•Micro ATX Form Factor

•Design de condensador sólido

•Tecido de Vidro de Alta densidade PCB

•Supports Processadores Intel® 6

ª

Geração CoreTM i7/i5/i3/

Pentium®/Celeron® (Soquete 1151)

•Design Digi Power

•Design com 6 fases de alimentação

•Suporta a tecnologia Intel® Turbo Boost 2.0

•Intel® Q170

•Suporta a tecnologia Intel® vPro

TM

•Suporta a tecnologia Intel® Active Management 1.1

•Suporta a tecnologia Intel® Small Business Advantage 4.0

* As tecnologias Intel® Small Business Advantage, Intel® vProTM e
Intel® Active Management 1.1 são suportadas apenas com a família
de processadores Intel® CoreTM vPro

TM

•Tecnologia de memória DDR4 de dois canais

•4 x Slots DIMM DDR4

•Suporta memória DDR4 2133, não ECC, sem memória

intermédia

•Capacidade máxima da memória do sistema: 64GB

•Suporta Extreme Memory Prole (XMP) 2.0 da Intel®

•2 x Slots PCI Express 3.0 x16 (PCIE1:modo x16; PCIE4:modo

x4)

•2 x Slots PCI Express 3.0 x1 (Flexible PCIe)

•Suporta AMD Quad CrossFireX

TM

e CrossFireXTM

Português

Grácos

•Os grácos incorporados Intel® HD e as saídas VGA só podem

ser suportados com processadores com GPU integrada.

•Suporta grácos incorporados Intel® HD: Intel® Quick Sync

Video com AVC, MVC (S3D) e MPEG-2 Full HW Encode1,
Intel® InTruTM 3D, Tecnologia Intel® Clear Video HD, Intel®
InsiderTM, Grácos Intel® HD 510/530

•Pixel Shader 5.0, DirectX 12

•Memória compartilhada máxima de 1792MB

77

Português

Áudio

LAN

E/S do
painel pos­terior

•Três opções de saída de grácos: D-Sub, DVI-D e HDMI

•Suporta conguração com três monitores

•Suporta HDMI com resolução máx. até 4K x 2K (4096x2304) @

24Hz

•Suporta DVI-D com resolução máxima de até 1920x1200 @

60Hz

•Suporta D-Sub com resolução máxima de até 1920x1200 @

60Hz

•Suporta Auto sincronização labial, Deep Color (12bpc), xvYCC

e HBR (High Bit Rate Audio) com porta HDMI (É necessário
um monitor compatível com HDMI)

•Suporta Codecs de Mídia Acelerada: HEVC, VP8, VP9

•Suporta HDCP com Portas DVI-D e HDMI

•Suporta reprodução Full HD 1080p Blu-ray (BD) com Portas

DVI-D e HDMI

•Áudio HD de 7.1 canais com proteção de conteúdo (Codec de

áudio Realtek ALC892)

•Suporte áudio Blu-ray superior

•Suporta proteção contra sobretensão (Proteção Total Contra

Picos ASRock)

•Fones de Áudio ELNA

•LAN Gigabit a 10/100/1000 Mb/s

•Giga PHY Intel® I219LM

•Suporta Wake-On-LAN

•Suporta Proteção contra Relâmpago/ESD (Proteção Total

Contra Picos ASRock)

•Suporta Energy Ecient Ethernet 802.3az

•Suporta PXE

•1 x Porta PS/2 para mouse/teclado

•1 x Porta D-Sub

•1 x Porta DVI-D

•1 x porta HDMI

•6 x Portas USB 3.0 (Suporta Proteção ESD (Proteção Total

Contra Picos ASRock))

•1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE

VELOCIDADE)

•Fichas de áudio HD: Alto-falante lateral / Alto-falante traseiro

/Central / Graves / Entrada de linha / Alto-falante frontal /
Microfone

78

Q170M vPro

Armazena­mento

Conector

•6 x Conectores SATA3 6,0 Gb/s, suporte RAID (RAID 0, RAID

1, RAID 5, RAID 10, Tecnologia de Armazenamento Rápido
Intel® 14 e Tecnologia de Resposta Inteligente Intel), NCQ,

AHCI e Conexão a Quente
* Se M2_1 é ocupado por um dispositivo tipo M.2 SATA, SATA3_0
e SATA3_1 será desativado.

•1 x Soquete Ultra M.2, Suporta módulo M. 2 SATA3 6,0 Gb/s

e módulo M.2 PCI Express até Gen3 x4 (32 Gb/s)
* Suporta Kit U.2 ASRock

•1 x Suporte Porta Impressão

•2 x suporte porta COM

•1 x Plataforma TPM

•1 x Intrusão do Chassi e Cabeçote de Autofalante

•1 x Conector de Ventoinha de CPU (4 pinos) (Controle de

Velocidade de Ventoinha Inteligente)

•2 x Conectores de Ventoinha de Chassi (4 pinos) (Controle de

Velocidade de Ventoinha Inteligente)

•1 conector alimentação ATX 24 pinos

•1 x Conector de energia 8-pinos 12V

•1 conector de áudio do painel frontal

•1 x Plataforma USB 2.0 (Suporta 2 portas USB 2.0) (Suporta

Proteção ESD (Proteção Total Contra Picos ASRock))

•1 x Plataforma USB 3.0 (Suporta 2 portas USB 3.0) (Suporta

Proteção ESD (Proteção Total Contra Picos ASRock))

Português

Funções
da BIOS

Monitor de
hardware

•128Mb IAM Legal UEFI BIOS com suporte multilingue GUI

•ACPI 1.1 compatível com eventos de despertar

•Suporta SMBIOS 2.3.1

•Multi-ajuste de Voltagem da DRAM

•Sensor de temperatura da CPU/Gabinete

•Tacômetro da Ventoinha da CPU/Gabinete

•Ventoinha silenciosa da CPU/Gabinete (Auto ajusta velocidade

da ventoinha do gabinete pela temperatura da CPU)

•Controle de multi velocidade da Ventoinha da CPU/Gabinete

•Detecção de ABERTURA da CAIXA

•Monitoramento da tensão: +12V, +5V, +3,3V, CPU Vcore,

GT_CPU, DRAM, VPPM, PCH 1,0V, VCCIO, VCCSA

79

SO

•Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

*Para instalar o SO Windows 7, um disco de instalação modicado
com condutores xHCI no arquivo ISO é necessário. Consulte a
página 141 para a operação mais detalhada.
* Para o driver atualizado do Windows® 10, por favor, visite o
website da ASRock para mais detalhes: http://www.asrock.com

Português

Certi­cações

•FCC, CE, WHQL

•Preparada para ErP/EuP (é necessária uma fonte de

alimentação preparada para ErP/EuP)

* Para obter informações detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com

Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das
denições na BIOS, a aplicação de tecnologia Untied Overclocking ou a utilização de
ferramentas de overclocking de terceiros. O overclocking poderá afetar a estabilidade do sistema
ou mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado
por sua conta e risco. Não nos responsabilizamos por possíveis danos causados pelo
overclocking.

80

1.3 Conguração dos jumpers

A imagem abaixo mostra como os jumpers são congurados. Quando a tampa do
jumper é colocada nos pinos, o jumper é "Curto". Se não for colocada uma tampa de
jumper nos pinos, o jumper é "Aberto". A imagem mostra um jumper de 3 pinos cujos
pino1 e pino2 estão "Curtos" quando a tampa do jumper é colocada nestes 2 pinos.

Apagar o Jumper CMOS
(CLRMOS1)
(ver p.1, N.º 16)

CLRMOS1 permite que você limpe os dados do CMOS. Para apagar e reinicializar
os parâmetros do sistema nos valores predenidos, desligue o computador e
desplugue a tomada da alimentação. Depois de aguardar 15 segundos, use uma capa
de jumper para fazer curto do pino 2 e do pino3 no CLRMOS1 por 5 segundos. No
entanto, não apague o CMOS logo após ter realizado a atualização da BIOS. Se você
precisar apagar o CMOS logo após ter terminado uma atualização da BIOS, deverá
primeiro iniciar o sistema e voltar a encerrá-lo antes de apagar o CMOS. Por favor,
observe que a senha, data, hora e perl padrão do usuário serão apagados só se a
bateria CMOS for removida.

Padrão

Apagar CMOS

Q170M vPro

Português

Se você apagar o CMOS, poderá ser detectada a abertura da caixa. Ajuste a opção do BIOS
"Limpar estado" para limpar o registo anterior de estado de intrusão no chassis.

81

1.4 Suportes e conectores onboard

1

Os conectores e suportes onboard NÃO são jumpers. NÃO coloque tampas de jumpers sobre es­tes terminais e conectores Colocar tampas de jumpers sobre os terminais e conectores irá causar
danos permanentes à placa-mãe.

Português

Suporte do painel de
sistema
(PAINEL1 de 9 pinos)
(ver p.1, N.º 14)

PWRBTN (Botão de alimentação):

Conecte o botão de alimentação no painel frontal do chassi. Você pode congurar a forma para
desligar o seu sistema através do botão de alimentação.

RESET (Botão de reinicialização):
Conecte o botão de reinicialização no painel frontal do chassi. Pressione o botão de reinicial­ização para reiniciar o computador, se ele congela e falha ao realizar um reinício normal.

PLED (LED de alimentação do sistema):
Conecte o indicador do estado da alimentação no painel frontal do chassi. O LED cará aceso
quando o sistema estiver em funcionamento. O LED cará piscando quando o sistema estiver
nos estados de suspensão S1/S3. O LED cará desligado quando o sistema estiver no estado de
suspensão S4 ou desligado (S5).

HDLED (LED de atividade do disco rígido):
Conecte o LED de atividade do disco rígido no painel frontal do chassi. O LED cará aceso
quando o disco rígido estiver lendo ou registrando dados.

O design do painel frontal poderá variar dependendo do chassi. Um módulo de painel frontal
consiste principalmente em um botão de alimentação, um botão de reinicialização, um LED de
alimentação, um LED de atividade do disco rígido, um alto-falante, etc. Ao conectar seu
módulo de painel frontal do chassi a este conector, certique-se de que os os e os pinos
correspondem de forma correta.

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Ligue o botão de
alimentação, o botão
de reinicialização e o
indicador do estado do
sistema no chassi deste
suporte, de acordo com a
descrição abaixo. Observe
os pinos positivos e
negativos antes de conectar
os cabos.

82

Q170M vPro

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Intrusão do Chassi e
Cabeçote de Autofalante
(SPK_CI1 de 7 pinos)
(ver p.1, N.º 15)

Conectores série ATA3
(SATA3_0:
ver p.1, N.º 6)
(SATA3_1:
ver p.1, N.º 7)
(SATA3_2:
ver p.1, N.º 10)
(SATA3_3:
ver p.1, N.º 11)
(SATA3_4:
ver p.1, N.º 13)
(SATA3_5:
ver p.1, N.º 12)

Suporte USB 2,0
(USB1_2 de 9 pinos)
(ver p.1, N.º 17)

SATA3_2

SATA3_4

SATA3_0

SATA3_1

Conecte a instrusão do
chassi e autofalante do
chassi a este cabeçote.

Estes seis conectores
SATA3 suportam
cabos de dados SATA
para dispositivos de
armazenamento interno
com uma taxa de
transferência de dados de
até 6,0 Gb/s.
* Se M2_1 é ocupado

SATA3_3

por um dispositivo tipo
M.2 SATA, SATA3_0 e
SATA3_1 será desativado.

SATA3_5

Há um cabeçote nesta
placa-mãe. Cada suporte
USB 2.0 pode ter duas
portas.

Português

Suporte USB 3.0
(USB3_5_6 de 19 pinos)
(ver p.1, N.º 8)

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

Além de seis portas USB

3.0 no painel de E/S, existe
uma plataforma nesta
placa-mãe. Cada suporte
USB 3.0 pode ter duas
portas.

83

Suporte de áudio do painel

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

frontal
(HD_AUDIO1 de 9 pinos)
(ver p.1, N.º 22)

1. O Áudio de alta denição suporta Sensor de Adaptador, mas o o do painel no chassi deverá
suportar HDA para funcionar corretamente. Por favor, siga as instruções no nosso manual e
no manual do chassi para instalar o seu sistema.

2. Se utilizar um painel de áudio AC’97, instale-o no terminal de áudio do painel frontal de
acordo com os passos abaixo:
A. Ligue Mic_IN (MIC) a MIC2_L.
B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L.
C. Conecte a ligação Terra (GND) à Terra (GND).
D. MIC_RET e OUT_RET destinam-se apenas ao painel de áudio HD. Você não precisa ligá­los ao painel de áudio AC’97.
E. Para ativar o microfone frontal, vá à guia “Microfone Frontal” no painel de controle
Realtek e ajuste o “Volume de gravação”.

Este suporte destina-se à
conexão dos dispositivos
de áudio no painel de
áudio frontal.

Português

84

Conectores da Ventoinha
do Chassi
(CHA_FAN1 de 4 pinos)
(ver p.1, N.º 23)

(CHA_FAN2 4 pinos)
(ver p.1, N.º 9)

Conector da Ventoinha
da CPU
(CPU_FAN1 de 4 pinos)
(ver p.1, N.º 2)

CHA_FAN_SPEED

FAN_VOLTAGE

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

CPU_FAN_SPEED

FAN_VOLTAGE

GND

GND

Por favor, conecte os
cabos do ventilador aos
conectores do ventilador e
corresponda o o preto no
pino terra.

Esta placa mãe inclui um
conector de ventilador
da CPU (Ventilador
silencioso) de 4 pinos. Se
você pretende conectar um
ventilador da CPU de
3 pinos, por favor,
conecte-o ao Pino 1-3.

Q170M vPro

5

1

8

RRXD1

1

PC

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

Conector de alimentação
AT X
(ATXPWR1 de 24 pinos)
(ver p.1, N.º 5)

Conector de alimentação
de 12V ATX
(ATX12V1 de 8 pinos)
(ver p.1, N.º 1)

Suporte da porta serial
(COM1 de 9 pinos)
(ver p.1, N.º 20)
(COM2 de 9 pinos)
(ver p.1, N.º 21)

Suporte TPM
(TPMS1 de 17 pinos)
(ver p.1, N.º 18)

24

12

Esta placa-mãe inclui um
conector de alimentação
ATX de 24 pinos. Para
utilizar uma fonte de
alimentação ATX de

1

13

20 pinos, introduza-a no
Pino 1 e Pino 13.

Esta placa-mãe inclui um
conector de alimentação
de 12V ATX de 8 pinos.
Para utilizar uma fonte de
alimentação ATX de
4 pinos, introduza-a no
Pino 1 e Pino 5.

DDTR#1

DDSR#1

CCTS#1

Estes cabeçalhos COM
suportam módulos da
porta serial.

RRI#1

RRTS#1

GND

TTXD1

DDCD#1

Este conector suporta um sistema
com Módulo de Plataforma
Conável (TPM), que pode

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

1

PC ICL K

LAD 1

+3 V

LAD 3

IRS T #

FRA ME

D

GN D

S_P WRDW N #

SER IRQ #

GN

armazenar com segurança chaves,
certicados digitais, senhas e
dados. Um sistema TPM também

GN D

LAD 0

ajuda a melhorar a segurança

+3V S B

Português

de rede, a proteger identidades
digitais e a garantir a integridade
da plataforma.

Suporte Porta Impressão
(LPT1 de 25 pinos)
(ver p.1, N.º 19)

Esta é uma interface para o cabo
da porta de impressão que permite
uma conexão conveniente dos
dispositivos da impressora.

85

1 Giriş

ASRock'ın zorlu kalite kontrol süreçlerinden geçmiş olan güvenilir ASRock Q170M
vPro anakartını satın aldığınız için teşekkür ederiz. Sağlam tasarımı ile ASRock'ın
kalite ve dayanıklılık taahhüdüne uygun şekilde mükemmel performans sağlar.

Anakart özellikleri ve BIOS yazılımı güncellenebileceğinden, bu dokümantasyonun içeriği
herhangi bir bildirimde bulunulmaksızın değiştirilebilir. Bu dokümantasyon üzerinde herhangi
bir değişiklik yapılması halinde, güncellenmiş sürüm, herhangi bir bildirim yapılmaksızın AS­Rock'ın web sitesinde yer alacaktır.. Bu anakart ile ilgili olarak teknik destek almak istiyorsanız,
lütfen kullandığınız model hakkında özel bilgiler için web sitemizi ziyaret edin. En güncel VGA
kartları ve CPU destek listelerini de ASRock'ın web sitesinden bulabilirsiniz. ASRock web sitesi
http://www.asrock.com.

1.1 Ambalaj İçeriği

•ASRock Q170M vPro Anakart (Micro ATX Form Faktörü)

Türkçe

•ASRock Q170M vPro Hızlı Kurulum Kılavuzu

•ASRock Q170M vPro Destek CD'si

•2 x Seri ATA (SATA) Veri Kablosu (İsteğe Bağlı)

•1 x I/O Panel Kalkanı

•1 x M.2 Yuvası için vida

86

1.2 Özellikler

Q170M vPro

Platform

CPU

Yonga küm­esi

Bellek

•Micro ATX Form Faktörü

•Yekpare Kapasitör tasarımı

•Yüksek Yoğunluklu Cam Elyaf PCB

•6. Nesil Intel® Core

destekler (Yuva 1151)

•Dijital Güç tasarımı

•6 Güç Saası tasarımı

•Intel® Turbo Boost 2.0 Teknolojisini destekler

•Intel® Q170

•Intel® vPro

•Intel® Active Management Technology 1.1 destekler

•Intel® Küçük İşletme Avantaj 4.0 özelliğini destekler

* Intel® Small Business Advantage, Intel® vProTM Technology ve
Intel® Active Management Technology 1.1 yalnızca Intel® CoreTM
vProTM işlemci ailesiyle desteklenebilir.

•Çi Kanallı DDR4 Bellek Teknolojisi

•4 x DDR4 DIMM Yuvası

•DDR4 2133 ECC olmayan, arabelleksiz bellek

•Maksimum sistem belleği kapasitesi: 64GB

•Intel® Üstün Bellek Proli (XMP) 2.0 destekler

TM

i7/i5/i3/Pentium®/Celeron® İşlemcileri

TM

Teknolojisini destekler

Türkçe

Genişletme
Yuvası

Grakler

•2 x PCI Express 3.0 x16 Yuva (PCIE1:x16 modu; PCIE4:x4

modu)

•2 x PCI Express 3.0 x1 yuva (Flexible PCIe)

•AMD Quad CrossFireX

•Intel® HD Graphics Dahili Görselleri ile VGA çıktıları,

yalnızca GPU entegre edilmiş işlemciler ile desteklenir.

•Intel® HD Graphics Dahili Görsellerini destekler : AVC, MVC

(S3D) ve MPEG-2 Full HW Encode1, Intel® InTruTM 3D,
Intel® Net Video HD Teknolojisi, Intel® InsiderTM, Intel® HD
Graphics 510/530 ile Intel® Quick Sync Video

•Pixel Shader 5.0, DirectX 12

•Maksimum paylaşılan bellek 1792MB

TM

ve CrossFireXTM desteğine sahiptir

87

•Üç grak çıkışı seçeneği: D-sub, DVI-D ve HDMI

•Üçlü Monitör Desteği

•4K x 2K (4096x2304) @ 24Hz'e kadar maksimum

çözünürlükte HDMI destekler

•1920x1200 @ 60Hz'ye kadar DVI-D işlevini destekler

•1920x1200 @ 60Hz'ye kadar çözünürlükle D-Sub işlevini

destekler

•HDMI Bağlantı Noktasıyla Otomatik Dudak

Senkronizasyonu, Derin Renk (12bpc), xvYCC ve HBR
(Yüksek Bit Oranlı Ses) özelliklerini destekler (Uyumlu bir
HDMI monitörü kullanılmalıdır)

•Hızlandırılmış Medya Kodlayıcıları-Kod Çözücüleri Destekler

HEVC, VP8, VP9

•DVI-D ve HDMI Bağlantı Noktalarıyla HDCP destekler

•DVI-D ve HDMI Bağlantı Noktalarıyla Tam HD 1080p

Blu-ray (BD) kayıttan yürütme destekler

Ses

Türkçe

LAN

•İçerik Koruma Özelliği ile 7.1 CH HD Ses (Realtek ALC892

Ses Codec Bileşeni)

•Üstün Blu-ray Ses desteği

•Dalgalanma Koruması Destekler (ASRock Tam Ani Gerilim

Koruması)

•ELNA Ses Kapakları

•Gigabit LAN 10/100/1000 Mb/s

•Giga PHY Intel® I219LM

•LAN Açılışını Destekler

•Yıldırım/ESD Koruması Destekler (ASRock Tam Ani Gerilim

Koruması)

•Enerji Verimliliğine Sahip Ethernet 802.3az işlevini destekler

•PXE özelliğini destekler

88

Arka Panel
I/O

•1 x PS/2 Fare/Klavye Bağlantı Noktası

•1 x D-Sub Bağlantı Noktası

•1 x DVI-D Bağlantı Noktası

•1 x HDMI Bağlantı Noktası

•6 x Bağlayıcısı USB 3.0 Bağlantı Noktası (ESD Koruması

Destekler (ASRock Tam Ani Gerilim Koruması))

•LED'e sahip 1 x RJ-45 LAN Bağlantı Noktası (ACT/LINK

LED ve SPEED LED)

•HD Ses Jakları: Yan Hoparlör / Arka Hoparlör / Merkezi /

Bas / Hat Girişi / Ön Hoparlör / Mikrofon

Q170M vPro

Depolama

Bağlayıcı

•6 x SATA3 6,0 Gb/sn bağlayıcısı, RAID (RAID 0, RAID 1,

RAID 5, RAID 10, Intel Rapid Storage Technology 14 ve Intel
Smart Response Technology), NCQ, AHCI ve Tak Çıkar

destekler
* M2_1, bir SATA tipi M.2 aygıtı tarafından kullanılıyorsa,
SATA3_0 ve SATA3_1 devre dışı bırakılacaktır.

•1 x Ultra M.2 Yuvası, M.2 SATA3 6,0 Gb/sn. modülünü

ve Gen3 x4 (32 Gb/sn.) değerine kadar M.2 PCI Express

modülünü destekler
* ASRock U.2 Takımını destekler

•1 x Yazdırma Bağlantı Noktası Bağlantısı

•2 x COM Bağlantı Noktası Bağlantısı

•1 x TPM Bağlantısı

•1 x Kasa Yetkisiz Erişim ve Hoparlör Bağlantısı

•1 x İşlemci Fanı Bağlayıcısı (4 pimli) (Akıllı Fan Hızı Kontrolü)

•2 x Kasa Fanı Bağlayıcısı (4 pimli) (Akıllı Fan Hızı Kontrolü)

•1 x 24 pim ATX Güç Bağlayıcısı

•1 x 8 pim 12V Güç Bağlayıcısı

•1 x Ön Panel Ses Bağlayıcısı

•1 x USB 2.0 Bağlantısı (2 USB 2.0 bağlantı noktası destekler)

(ESD Koruması Destekler (ASRock Tam Ani Gerilim

Koruması))

•1 x USB 3.0 Bağlantısı (2 USB 3.0 bağlantı noktası destekler)

(ESD Koruması Destekler (ASRock Tam Ani Gerilim

Koruması))

Türkçe

BIOS
Özelliği

Donanım
Monitörü

•Çok dilli GUI desteği ile 128Mb AMI UEFI Legal BIOS

•ACPI 1.1 Uyumlu uyandırma olayları

•SMBIOS 2.3.1 Desteği

•DRAM Gerilimi Çoklu Ayarlama

•CPU/Kasa sıcaklığı tespiti

•CPU/Kasa Fanı Devirölçer

•CPU/Kasa Sessiz Fan (İşlemci sıcaklığıyla otomatik ayarlı kasa

fanı hızı)

•CPU/Kasa Fanı çoklu hız kontrolü

•KASA AÇIK algılaması

•Voltaj izleme: +12V, +5V, +3,3V, CPU Vcore, GT_CPU, DRAM,

VPPM, PCH 1,0V, VCCIO, VCCSA

89

OS

•Microso® Windows® 10 64 bit / 8.1 64 bit / 7 32 bit / 7 64 bit

* Windows® 7 işletim sistemini yüklemek için, ISO dosyasında
sıkıştırılmış xHCI sürücülerine sahip değiştirilmiş yükleme diski
gereklidir. Daha ayrıntılı talimatlar için lütfen 141 sayfaya baş­vurun.
* Güncellenmiş Windows® 10 sürücüsü konusunda ayrıntılar için
lütfen ASRock web sitesini ziyaret edin:http://www.asrock.com

Belgeler

•FCC, CE, WHQL

•ErP/EuP için hazır (ErP/EuP için hazır güç beslemesi

gereklidir)

* Detaylı ürün bilgisi için, lütfen web sitemizi ziyaret edin: http://www.asrock.com

Lütfen, BIOS ayarlarını düzenleme, Bağımsız Hız Aşırtma Teknolojinin uygulanması ya da
üçüncü kişilerin hız aşırtma araçlarının kullanılması da dahil olmak üzere tüm hız aşırtma

Türkçe

işlemlerinin belirli bir risk taşıdığını unutmayın. Hız aşırtma, sisteminizin dayanıklılığını
etkileyebilir, hatta sisteminizde yer alan bileşen ve aygıtlara zarar verebilir. Bunu riski ve
masraarı size ait olmak üzere gerçekleştirilmelidir. Hız aşırtmadan doğabilecek zararlar
konusunda sorumlu olmayacağız.

90

1.3 Bağlantı Teli Kurulumu

Çizim, bağlantı tellerinin kurulumunu göstermektedir. Tel kapağı, pimlerin üzerine
yerleştirildiğinde, tel "Kısa" olur. Pimlerin üzerinde tel kapağı bulunmadığında, tel
"Açık" olur. Çizim, pin1 ve pin2 alanları "Kısa" olan ve bu iki pim üzerinde bir bağlantı
teli kapağı bulunan 3-pin bağlantı telini göstermektedir.

CMOS'u Temizle Bağlantı Teli
(CLRMOS1)
(bkz. sf.1, No. 16)

CLRMOS1, CMOS verilerini temizlememizi sağlar. Sistem parametrelerini
temizlemek ve varsayılan kurulum ayarlarına sıfırlamak için, lütfen bilgisayarı
kapatın ve güç kablosunu güç beslemesinden çekin. 15 saniye bekledikten
sonra, CLRMOS1 üzerindeki pin2 ve pin3'ü 5 saniye boyunca kısaltmak için
bir bağlantı teli kullanın. Ancak, CMOS'u lütfen BIOS'u güncelledikten hemen
sonra temizlemeyin. +BIOS'u güncelledikten hemen sonra CMOS'u temizlemeniz
gerekirse, önce sistemi başlatın ve ardından CMOS temizleme işlemi öncesinde
yeniden kapatın. Lütfen, parola, tarih, saat ve varsayılan kullanıcı prolinin yalnızca
CMOS bataryası çıkarıldığında temizleneceğini unutmayın.

Varsayılan

CMOS'u Temizle

Q170M vPro

Türkçe

CMOS'u temizlerseniz, kasa açık uyarısı alabilirsiniz. Önceki kasa yetkisiz erişim durumu
kaydını silmek için lütfen BIOS durumunu "Durumu Temizle" olarak belirleyin.

91

1.4 Ekli Bağlantılar ve Bağlayıcılar

1

Ekli bağlantılar ve bağlayıcılar bağlantı teli değildir. Bağlantı teli kapaklarını bu bağlantı
ve bağlayıcılar üzerine yerleştirmeyin. Bağlantı teli kapaklarının bağlantılar ile bağlayıcılar
üzerine yerleştirilmesi, anakarta kalıcı hasar verebilir.

Sistem Paneli Bağlantısı
(9-pin PANEL1)
(bkz sf.1, No. 14)

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Güç anahtarını bağlayın,
kasa üzerindeki anahtar ile
sistem durumu belirtecini
aşağıdaki pim düzenine
göre sıfırlayın. Kabloları
bağlarken pozitif ve negatif
pimleri not edin.

Türkçe

PWRBTN (Güç Anahtarı):

Güç anahtarını kasa ön paneline bağlayın. Güç anahtarını kullanarak sistemin hangi yöne
hareketle kapanacağını seçebilirsiniz.

RESET (Sıfırlama Anahtarı):
Sıfırlama anahtarını kasa ön paneline bağlayın. Bilgisayarın kilitlenmesi ve normal şekilde
yeniden başlatılamaması halinde reset (sıfırla) düğmesine basın.

PLED (Sistem Güç LED'i):
Güç durumu göstergesini kasa ön paneline bağlayın. Sistem çalışırken LED ışığı yanacaktır.
Sistem S1/S3 uyku durumdayken LED ışığı yanıp söner. Sistem S4 uyku durumunda ya da
kapalıyken (S5) LED ışık kapanır.

HDLED (Sabit Disk Etkinlik LED'i):
Sabit sürücü etkinlik LED'ini kasa ön paneline bağlayın. Sabit sürücü veri okur ya da yazarken
LED ışığı yanar.

Ön panel tasarımı kasaya göre değişiklik gösterebilir. Bir ön panel modülü, temel olarak bir güç
anahtarı, sıfırlama anahtarı, güç LED'i, sabit sürücü aktivitesi LED'i, hoparlör gibi birimlerden
oluşur. Kasanızın ön panel modülünü bu bağlantıya takmadan önce, kablo düzenlemeleri ile
pin düzenlemelerinin düzgün şekilde yapıldığından emin olun.

92

Q170M vPro

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

Kasa Yetkisiz Erişim ve
Hoparlör Bağlantısı
(7 pimli SPK_CI1)
(bkz. sf.1, No. 15)

Seri ATA3 Bağlayıcıları
(SATA3_0:
bkz. sf.1, No. 6)
(SATA3_1:
bkz. sf.1, No. 7)
(SATA3_2:
bkz. sf.1, No. 10)
(SATA3_3:
bkz. sf.1, No. 11)
(SATA3_4:
bkz. sf.1, No. 13)
(SATA3_5:
bkz. sf.1, No. 12)

USB 2.0 Bağlantı
(9 pimli USB1_2)
(bkz. sf.1, No. 17)

SATA3_2

SATA3_4

SATA3_0

SATA3_1

Lütfen kasa yetkisiz erişim
ve kasa hoparlörünü bu
bağlantıya takın.

Bu altı SATA3 bağlayıcısı,
veri aktarım hızı 6,0 Gb/
sn'ye kadar olan dahili
depolama aygıtları için
tasarlanmış SATA veri
kablolarını destekler.
* M2_1, bir SATA tipi
M.2 aygıtı tarafından
kullanılıyorsa, SATA3_0

SATA3_3

ve SATA3_1 devre dışı
bırakılacaktır.

SATA3_5

Bu ana kartta bir bağlantı
vardır. Bu USB 2.0
bağlantısı, iki adet bağlantı
noktasını destekleyebilir.

Türkçe

USB 3.0 Bağlantı
(19-pin USB3_5_6)
(bkz. sf.1, No. 8)

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

IntA_PB_SSTX+

GND

IntA_PB_D-

IntA_PB_D+

Dummy

Bu anakart üzerinde, I/O
paneli üzerindeki dört
USB 3.0 bağlantı
noktasının yanı sıra
bir adet bağlantı
bulunmaktadır. Bu USB 3.0
bağlantısı, iki adet bağlantı
noktasını destekleyebilir.

93

Ön Panel Ses Bağlantısı

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

1 2 3 4

FAN_SPEED_CONTROL

GND

OL

(9-pin HD_AUDIO1)
(bkz. sf.1, No. 22)

Bu bağlantı, ses aygıtlarının
ön ses paneline bağlanması
içindir.

1. Yüksek Tanımlı Ses, Jak Algılama özelliğini destekler, ancak bu işlevin düzgün çalışabilmesi
için kasa üzerindeki panel kablosunun HDA işlevini desteklemesi gerekmektedir. Sisteminizi
kurarken, lütfen kılavuzumuzdaki talimatlar ile kasa kılavuzundaki talimatları izleyin.

2. AC'97 ses paneli kullanıyorsanız, lütfen aşağıdaki adımları uygulayarak ön panel ses
bağlantısına takın:
A. Mic_IN'i (MIC) MIC2_L'ye bağlayın.
B. Audio_R'yi (RIN) OUT2_R'ye ve Audio_L'yi (LIN) OUT2_L'ye bağlayın.
C. Toprak'ı (GND) Toprak'a (GND) bağlayın.
D. MIC_RET ve OUT_RET yalnızca HD ses paneli içindir. AC'97 ses paneli için bunları
bağlamanıza gerek yoktur.
E. Ön mikrofonu etkinleştirmek için, Realtek Kontrol panelinde “FrontMic” sekmesine gidin
ve “Kayıt Ses Seviyesi”ni ayarlayın.

Türkçe

94

Kasa Fanı Bağlayıcıları
(4-pin CHA_FAN1)
(bkz sf.1, No. 23)

(4-pin CHA_FAN2)
(bkz sf.1, No. 9)

CPU Fan Bağlayıcısı
(4-pin CPU_FAN1)
(bkz sf.1, No. 2)

CHA_FAN_SPEED

FAN_VOLTAGE

GND

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

CPU_FAN_SPEED

FAN_VOLTAGE

GND

Lütfen fan kablolarını
fan bağlayıcılarına takın
ve siyah teli topraklama
pinine bağlayın.

Bu anakart, 4-Pin CPU
fan (Sessiz Fan) bağlayıcısı
sağlamaktadır. 3-Pin CPU
fan bağlamak istiyorsanız,
lütfen Pin 1-3'ü kullanın.

Q170M vPro

5

1

8

1

PC

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

ATX Güç Bağlayıcısı
(24-pin ATXPWR1)
(bkz. sf.1, No. 5)

ATX 12V Güç Bağlayıcısı
(8-pin ATX12V1)
(bkz. sf.1, No. 1)

Seri Bağlantı Noktası
Bağlantısı
(9-pin COM1)
(bkz. sf.1, No. 20)
(9-pin COM2)
(bkz. sf.1, No. 21)

TPM bağlantısı
(17-pin TPMS1)
(bkz. sf.1, No. 18)

24

12

Bu anakart, 24-pin ATX
güç bağlayıcısı sağlam­aktadır. 20-pin ATX güç
beslemesi kullanmak
için, lütfen Pin 1 ve Pin

1

13

13'e bağlayın.

Bu anakart, 8-pin ATX
12V güç bağlayıcısı
sağlamaktadır. 4-pin
ATX güç beslemesi
kullanmak için,
lütfen Pin 1 ve Pin 5'e
bağlayın.

RRXD1

DDTR#1

DDSR#1

CCTS#1

Bu COM bağlantıları
seri bağlantı noktası
modüllerini destekler.

RRI#1

RRTS#1

GND

TTXD1

DDCD#1

Türkçe

Bu bağlayıcı, anahtarlar, dijital
sertikalar, parolalar ve verileri
güvenli bir şekilde saklama

SMB _CLK _MAI N

SMB _DAT A_MA IN

LAD 2

GN D

1

LAD 3

IRS T #

FRA ME

PC ICL K

D

GN D

LAD 1

S_P WRDW N #

SER IRQ #

GN

özelliği bulunan Güvenilir Plat­form Modülü (TPM) sistemini
destekler. TPM sistemleri,

+3 V

GN D

LAD 0

aynı zamanda ağ güvenliğinin

+3V S B

artırılması, dijital kimlikler­in korunması ve platform
bütünlüğünün sağlanmasına da
yardımcıdır.

Yazdırma Bağlantı Noktası
Bağlantısı
(25-pin LPT1)
(bkz. sf.1, No. 19)

Bu, yazıcı aygıtların uyumlu
bir şekilde takılmasını sağlayan
bir yazdırma bağlantı noktası
arabirimidir.

95

한 국 어

1 개요

ASRock Q170M vPro 마더보드를 구입해 주셔서 감사합니다 . 이 마더보드는
ASRock 의 일관되고 엄격한 품질관리 하에 생산되어 신뢰성이 우수합니다 . 품

질과 내구성에 대한 ASRock 의 기준에 부합하는 우수한 성능과 견고한 설계를
제공합니다 .

마더보드 규격과 BIOS 소프트웨어를 업데이트할 수도 있기 때문에 , 이 문서의 내용은
예고 없이 변경될 수 있습니다 . 이 설명서가 변경될 경우 , 업데이트된 버전은 ASRock
의 웹사이트에서 추가 통지 없이 제공됩니다 .
필요한 경우 ,
십시오 .
니다 . A

당사의 웹사이트를 방문하여 사용 중인 모델에 대한 구체적 정보를 구하

ASRock 의 웹사이트에서는 최신 VGA 카드와 CPU 지원 목록도 찾을 수 있습
SRock 웹사이트 http://www.asrock.com.

1.1 포장 내용물

•

ASRock Q170M vPro 마더보드 (M

•

ASRock Q170M vPro 간편 설치 안내서

•

ASRock Q170M vPro 지원 CD

•

시리얼 ATA (SATA) 데이터 케이블 2 개 ( 선택 품목 )

•

I/O 패널 실드 1 개

•

M.2 소켓용 나사 1 개

icro ATX 폼 팩터 )

이 마더보드와 관련하여 기술적 지원이

96

1.2 규격

플랫폼

•

Micro ATX 폼 팩터

•

솔리드 콘덴서 구조

•

고밀도 유리 직물 PCB

Q170M vPro

CPU

칩세트

메모리

확장 슬롯

TM

기술 지원

TM

i7/i5/i3/Pentium®/Celeron® 프로세서 ( 소

모드 , PCIE4:x4 모

•

6 세대 Intel® Core
켓 1151) 지원

•

Digi 전원 구조

•

6 개 전원 위상 구조

•

Intel® Turbo Boost 2.0 기술 지원

•

Intel® Q170

•

Intel® vPro

•

Intel® Active Management Technology 1.1 지원

•

Intel® Small Business Advantage 4.0 지원
* Intel® Small Business Advantage, Intel® vProTM 기술 및 Intel®
Active Management Technology 1.1 은 Intel® CoreTM vProTM 프로
세서 제품군으로만 지원 가능

•

듀얼 채널 DDR4 메모리 기술

•

DDR4 DIMM 슬롯 4 개

•

DDR4 2133 비 ECC, 비버퍼링 메모리 지원

•

시스템 메모리 최대 용량 : 64GB

•

Intel® Extreme Memory Prole (XMP) 2.0 지원

•

PCI Express 3.0 x16 슬롯 2 개 (PCIE1:x16

드 )

•

PCI Express 3.0 x1 슬롯 2 개 (Flexible PCIe)

•

AMD Quad CrossFireXTM 및 CrossFireXTM 지원

한 국 어

그래픽

•

Intel® HD 그래픽스 빌트 - 인

통합 프로세서로만 지원할 수 있습니다 .

•

Intel® HD 그래픽스 빌트- 인 비주얼 지원 : AVC, MVC (S3D)

및 MPEG-2 풀 HW Encode1 지원 Intel® Quick Sync Video,

Intel® InTruTM 3D, Intel® 클리어 비디오 HD 기술 , Intel®

InsiderTM, Intel® HD 그래픽스 510/530

•

Pixel Shader 5.0, DirectX 12

•

최대 공유 메모리 1792MB

비주얼과 VGA 출력은 GPU

97

한 국 어

오디오

LAN

•

그래픽 출력 옵션 세 개 : D-S

•

삼중 모니터 지원

•

HDMI 지원 ( 최대 해상도 4K x 2K (4096x2304) @ 24Hz)

•

DVI-D 지원 ( 최대 해상도 1920x1200 @ 60Hz)

•

D-Sub 지원 ( 최대 해상도 1920x1200 @ 60Hz)

•

Auto Lip Sync, Deep Color (12bpc), xvYCC 및 HBR (High Bit
Rate Audio)(HDMI 포트 포함 ) 지원 (HDMI 호환 모니터
필요 )

•

가속화된 미디어 코덱 지원 : HEVC, VP8, VP9

•

DVI-D 및 HDMI 포트를 이용한 HDCP 지원

•

DVI-D 및 HDMI 포트를 이용한 Full HD 1080p Blu-ray (BD)
재생 지원

•

7.1 CH HD 오디오 콘텐츠 보호를 이용한 지원 (Realtek
ALC892 오디오 코덱 )

•

프리미엄 Blu-ray 오디오 지원

•

서지 보호 지원 (A

•

ELNA 오디오 캡

•

Gigabit LAN 10/100/1000 Mb/s

•

Giga PHY Intel® I219LM

•

Wake-On-LAN 지원

•

번개 /ES

D 보호 지원 (ASRock 풀 스파이크 보호 )

•

절전형 이더넷 802.3az 지원

•

PXE 지원

SRock 풀 스파이크 보호 )

ub, DVI-D 및 HDMI

98

후면 패널
I/O

•

PS/2 마우스 / 키보드

•

D-Sub 포트 1 개

•

DVI-D 포트 1 개

•

HDMI 포트 1 개

•

USB 3.0 포트 6 개 (ESD 보호 지원 (ASRock 풀 스파이크
보호 ))

•

LED 장착 RJ-45 LAN 포트 1 개 (ACT/LINK LED 및
SPEED LED)

•

HD 오디오 잭 : 측면 스피커 / 후면 스피커 / 중앙 / 베이스 /
라인 입력 / 전면 스피커 / 마이크

포트 1 개
