No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published April 2010

ASRock G41M-GE3 Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

Motherboard LayoutMotherboard Layout

English

EnglishEnglish

1 PS2_USB_PWR1 Jumper 18 Chassis Speaker Header (SPEAKER 1, White) 2 A TX 12V Connector (A TX12V1) 19 Chassis Intrusion Header (CI1) 3 775-Pin CPU Socket 20 BIOS SPI Chip 4 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB4_5, Blue) 5 2 x 240-pin DDR3 DIMM Slots 22 USB 2.0 Header (USB6_7, Blue)

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 23 South Bridge Controller

6 2 x 240-pin DDR3 DIMM Slots 2 4 Serial Port Connector (COM1)

(Dual Channel: DDR3_A2, DDR3_B2; White) 25 Floppy Connector (FLOPPY1) 7 A TX Power Connector (ATXPWR1) 26 Print Port Header (LPT1, White) 8 TPM Header (TPM1) 27 Infrared Module Header (IR1) 9 IDE1 Connector (IDE1, Blue) 28 Internal Audio Connector: CD1 (Black) 10 Chassis Fan Connector (CHA_FAN1) 29 Front Panel Audio Header 11 Clear CMOS Jumper (CLRCMOS1) (HD_AUDIO1, White) 12 Power Fan Connector (PWR_FAN1) 30 PCI Slots (PCI1- 2) 13 System Panel Header (P ANEL1, White) 31 PCI Express x16 Slot (PCIE2) 14 Fourth SATAII Connector (SA TAII_4; Blue) 32 PCI Express x1 Slot (PCIE1) 15 Third SATAII Connector (SATAII_3; Blue) 33 North Bridge Controller 16 Primary SATAII Connector (SA T AII_1; Blue) 17 Secondary SATAII Connector (SA T AII_2; Blue)

ASRock G41M-GE3 Motherboard

I/O PanelI/O Panel

I/O Panel

I/O PanelI/O Panel

1 PS/2 Mouse Port (Green) 8 Microphone (Pink)

* 2 LAN RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23) 4 Rear Speaker (Black) 11 VGA/DVI-D Port 5 Central / Bass (Orange) 12 VGA/D-Sub Port 6 Line In (Light Blue) 13 PS/2 Keyboard Port (Purple)

* 7 Front Speaker (Lime)

Activity/Link LED SPEED LED

Status Description Status Description

LAN Port LED Indications

ACT/LINK LED

SPEED LED

Off No Activity Off 10Mbps connection Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

LAN Port

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3) 2 V -- -- -4VV---6 VVV-8 VVVV

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on your system. Please follow below instructions according to the OS you install.

For Windows® XP / XP 64-bit OS: Please click “VIA HD Audio Deck” icon. Click “Jack” and then click “Configuration”. In “Configuration” screen, please check the item “Independent Headphone”.

For Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS: Please click “VIA HD Audio Deck” icon. Click “Advanced Options” on the right side on the bottom. In “Advanced Options” screen, please check the item “Independent Headphone”.

ASRock G41M-GE3 Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

1. Introduction1. Introduction

Thank you for purchasing ASRock G41M-GE3 motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard a nd step-by-ste p installation guide. More detailed information of the motherboard can be f ound in the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

1.1 Package Contents1.1 Package Contents

ASRock G41M-GE3 Motherboard

(Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm) ASRock G41M-GE3 Quick Installation Guide ASRock G41M-GE3 Support CD Two Serial ATA (SATA) Data Cables (Optional) One I/O Panel Shield

English

EnglishEnglish

ASRock G41M-GE3 Motherboard

1.21.2

SpecificationsSpecifications

1.2

Specifications

1.21.2

SpecificationsSpecifications

Platform - Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm CPU - LGA 775 for Intel® CoreTM 2 Extreme / CoreTM 2 Quad / Core

2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors

- Supports FSB1333/1066/800/533 MHz

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset - Northbridge: Intel® G41

- Southbridge: Intel® ICH7

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 3)

- 4 x DDR3 DIMM slots

- Support DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory (see CAUTION 4)

- Max. capacity of system memory: 8GB (see CAUTION 5)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

Graphics - Intel® Graphics Media Accelerator X4500

- Pixel Shader 4.0, DirectX 10

- Max. shared memory 1759MB (see CAUTION 6)

- Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers

- Supports DVI with max. resolution up to 1920x1200 @ 75Hz

- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

- Supports HDCP function with DVI-D port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with D VI-D port

Audio - 7.1 CH HD Audio (VIA® VT1718S Audio Codec) LAN - PCIE x1 Giga bit LAN 10/100/1000 Mb/s

- Realtek RTL81 11DL

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

EnglishEnglish

English

ASRock G41M-GE3 Motherboard

English

EnglishEnglish

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 7)

Connector - 4 x SATAII 3.0 Gb/s connectors (No Support for RAID and

“Hot Plug” functions) (see CAUTION 8)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x Print port header

- 1 x IR header

- 1 x COM port header

- 1 x TPM header

- 1 x Chassis Intrusion header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 9)

BIOS Feature - 8Mb AMI BIOS

- AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compli ance Wa ke Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

- Supports I. O. T. (Intelligent Overclocking Technology)

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

ASRock Software Suite (CyberLink DVD Suite and Creative Sound Blaster X-Fi MB) (OEM and Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 10 )

- Intelligent Energy Saver (see CAUTION 11)

- Instant Boot

- ASRock Instant Flash (see CAUTION 12)

- ASRock OC DNA (see CAUTION 13)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 14)

- ASRock U-COP (see CAUTION 15)

- Boot Failure Guard (B.F.G.)

ASRock G41M-GE3 Motherboard

Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CASE OPEN detection

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / Vista

/ VistaTM 64-bit /

XP / XP 64-bit compliant

Certifications - FCC, CE, WHQL

- EuP Ready (EuP ready power supply is required) (see CAUTION 16)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the thirdparty overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 35 of “User Manual” in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read “Untied Overclocking Technology” on page 21 for details.

3. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 13 for proper installation.

4. Please check the table below for the CPU FSB frequency and its corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDR3 800, DDR3 1066, DDR3 1333 1066 DDR3 800, DDR3 1066 800 DDR3 800

533 DDR3 800 * DDR3 1333 memory modules will operate in overclocking mode. * When you use a FSB533-CPU on this motherboard, it will run at

DDR3 533 if you adopt a DDR3 800 memory module.

5. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 7 / VistaTM / XP. For Windows® OS with 64-bit CPU, there is no such limitation.

6. The maximum shared memory size is defined by the chipset vendor and is subject to change. Please check Intel® website for the latest information.

EnglishEnglish

English

ASRock G41M-GE3 Motherboard

English

EnglishEnglish

7. For microphone input, this motherboard supports both stereo and mono modes. For audio output, this motherboard supports 2-channel, 4-channel, 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection.

8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII Hard Disk Setup Guide” on page 25 of “User Manual” in the support CD to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA hard disk to SATAII connector directly.

9. Power Management for USB 2.0 works fine under Microsoft® Windows® 7 64-bit / 7 / VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

10. It is a user-friendly ASRock overclocking tool which allows you to surveil your system by hardware monitor function and overclock your hardware devices to get the best system performance under Windows® environment. Please visit our website for the operation procedures of ASRock OC Tuner . ASRock website: http://www.asrock.com

11. Featuring an advanced proprietary hardware and software design, Intelligent Energy Saver is a revolutionary technology that delivers unparalleled power savings. In other words, it is able to provide exceptional power saving and improve power efficiency without sacrificing computing performance. Please visit our website for the operation procedures of Intelligent Energy Saver. ASRock website: http://www.asrock.com

12. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS without entering operating systems first like MS-DOS or Windows®. With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

13. The software name itself – OC DNA literally tells you what it is capable of. OC DNA, an exclusive utility developed by ASRock, provides a convenient way for the user to record the OC settings and share with others. It helps you to save your overclocking record under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and share with your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours! Please be noticed that the OC profile can only be shared and worked on the same motherboard.

14. Although this motherboard offers stepless control, it is not recommended to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU.

ASRock G41M-GE3 Motherboard

15. While CPU overheat is detected, the system will automatically shutdown. Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU a nd the he atsink when you in stall the PC system.

16. EuP, stands for Energy Using Product, wa s a provision regulated by European Union to define the power consumption for the completed system. According to EuP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP standard, an EuP ready motherboard a nd an EuP ready power supply are required. According to Intel’s suggestion, the EuP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details.

ASRock G41M-GE3 Motherboard

EnglishEnglish

English

2.2.

InstallationInstallation

Installation

2.2.

InstallationInstallation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Pre-installation PrecautionsPre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.12.1

CPU InstallationCPU Installation

2.1

CPU Installation

2.12.1

CPU InstallationCPU Installation

For the installation of Intel 775-LAND CPU, please follow the steps below.

English

EnglishEnglish

1010

775-Pin Socket Overview

Before you insert the 775-LAND CPU into the socket, please check if the CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

ASRock G41M-GE3 Motherboard

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two orientation key notches.

Pin1

orientation

key notch

orientation

key notch

Pin1

alignment key

black line

alignment key

775-LAND CPU

For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully pla ce the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Pla ce Cap):

Use your left hand index finger and thumb to support the load plate edge, engage PnP cap with right hand thumb and peel the cap from the socket while pressing on center of PnP cap to assist in removal.

ASRock G41M-GE3 Motherboard

775-Pin Socket

1111

EnglishEnglish

English

EnglishEnglish

1. It is recommended to use the cap tab to handle and avoid kicking off the PnP cap.

2. This cap must be placed if returning the motherboard for after service.

Step 4. Close the socket:

Step 4-1. Rotate the load plate onto the IHS. Step 4-2. While pressing down lightly on load

plate, engage the load lever.

Step 4-3. Secure load lever with load plate tab

under retention tab of load lever.

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

2.2

Installation of CPU Fan and Heatsink

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 775-LAND CPU. Step 1. Apply thermal interface material onto center

of IHS on the socket surface.

Step 2. Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the CPU fan connector on the motherboard (CPU_FAN1, see page 2, No. 4).

Step 3. Align fasteners with the motherboard

throughholes.

Step 4. Rotate the fastener clockwise, then press

down on fastener caps with thumb to install and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan

connector on the motherboard.

Step 6. Secure excess cable with tie-wrap to ensure

cable does not interfere with fan operation or contact other components.

1212

ASRock G41M-GE3 Motherboard

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install identical (the same brand, speed, size and chiptype) DDR3 DIMM pair in the slots of the same color. In other words, you have to install identical DDR3 DIMM pair in Dual Channel A (DDR3_A1 and DDR3_B1; Blue slots; see p.2 No.5) or identical DDR3 DIMM pair in Dual Channel B (DDR3_A2 and DDR3_B2; White slots; see p.2 No.6), so that Dual Channel Memory Technology can be activated. This motherboard also allows you to install four DDR3 DIMMs for dual channel configuration, and please install iden- tical DDR3 DIMMs in all four slots. You may refer to the Dual Channel Memory Configuration Table below.

Dual Channel Memory Configurations

DDR3_A1 DDR3_A2 DD R3_B1 DDR3_B2

(Blue Slot) (White Slot) (Blue Slot) (White Slot) (1) Populated - Populated (2) - Populated - Populated (3)* Populated Populated Populated Populated

* For the configuration (3), please install identical DDR3 DIMMs in all four

slots.

1. If you want to install two memory modules, for optimal compatibility and reliability, it is recommended to install them in the slots of the same color. In other words, install them either in the set of blue slots (DDR3_A1 and DDR3_B1), or in the set of white slots (DDR3_A2 and DDR3_B2).

2. If only one memory module or three memory modules are installed in the DDR3 DIMM slots on this motherboard, it is unable to activate the Dual Channel Memory T echnology.

3. If a pair of memory modules is NOT installed in the same Dual Channel, for example, installing a pair of memory modules in DDR3_A1 and DDR3_A2, it is unable to activate the Dual Channel Memory Technology .

4. It is not allowed to install a DDR or DDR2 memory module into DDR3 slot;otherwise, this motherboard and DIMM may be damaged.

5. This motherboard supports two double-sided or four single-sided DIMMs. Therefore, if you install four DDR3 DIMMs, you can only adopt four single-sided DIMMs.

ASRock G41M-GE3 Motherboard

1313

EnglishEnglish

English

Installing a DIMMInstalling a DIMM

Installing a DIMM

Installing a DIMMInstalling a DIMM

Please make sure to disconnect power supply before adding or removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

English

EnglishEnglish

1414

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

ASRock G41M-GE3 Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 2 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots:

PCIE1 (PCIE x1 slot) is used for PCI Express cards with x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc. PCIE2 (PCIE x16 slot) is used for PCI Express cards with x16 lane width graphics cards.

If you install the add-on PCI Express VGA card or other PCIE device to PCIE2 (PCIE x16 slot), the onboard VGA will be disabled. If you install the add-on PCI Express VGA card or other PCIE device to PCIE2 (PCIE x16 slot) and adjust the BIOS options “Primary Graphics Adapter” to [Onboard] and “Share Memory” to [Auto], then the onboard VGA will be enabled, and the primary screen will be onboard VGA.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Installing an expansion cardInstalling an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

ASRock G41M-GE3 Motherboard

1515

EnglishEnglish

English

2.5 Jumpers Setup2.5 Jumpers Setup

2.5 Jumpers Setup

2.5 Jumpers Setup2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.

Jumper Setting Description

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.2 No. 1) +5VSB (standby) for PS/2

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

Clear CMOS

(CLRCMOS1, 2-pin jumper) (see p.2 No. 1 1)

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short 2 pins on CLRCMOS1 for 5 seconds.

2-pin jumper

Short Open

or USB wake up events.

English

EnglishEnglish

1616

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear Status” to clear the record of previous chassis intrusion status.

ASRock G41M-GE3 Motherboard

2.6 Onboard Headers and Connectors2.6 Onboard Headers and Connectors

2.6 Onboard Headers and Connectors

2.6 Onboard Headers and Connectors2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

FDD connector

(33-pin FLOPPY1) (see p.2 No. 25)

the red-striped side to Pin1

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 9)

connect the blue end

to the motherboard

connect the black end to the IDE devices

80-conductor ATA 66/100 cable

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial A TAII Connectors These four Serial AT AII (SAT AII)

(SAT AII_1: see p.2, No. 16) connectors support SATA data (SAT AII_2: see p.2, No. 17) cables for internal storage (SAT AII_3: see p.2, No. 15) devices. The current SATAII (SAT AII_4: see p.2, No. 14) interface allows up to 3.0 Gb/s

SAT AII_2 SA TAII_4

SAT AII_1 SA TAII_3

data transfer rate.

Serial A TA (SA TA) Either end of the SATA data ca ble Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on the motherboard.

EnglishEnglish

English

ASRock G41M-GE3 Motherboard

1717

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are (see p.2 No. 22) two USB 2.0 headers on this

motherboard. Each USB 2.0 header can support two USB

2.0 ports.

(9-pin USB4_5) (see p.2 No. 21)

TPM Header This connector supports a

(19-pin TPM1) Trusted Platform Module (TPM) (see p.2 No. 8) system, which can securely

store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Chassis Intrusion Header This motherboard supports

(2-pin CI1) CASE OPEN detection feature (see p.2 No. 19) that detects if the chassis cover

has been removed. This feature requires a chassis with chassis intrusion detection design.

English

EnglishEnglish

1818

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting (see p.2 No. 27) and receiving infrared module.

Print Port Header This is an interface for print

(25-pin LPT1) port cable that allows (see p.2 No. 26) convenient connection of printer

devices.

ASRock G41M-GE3 Motherboard

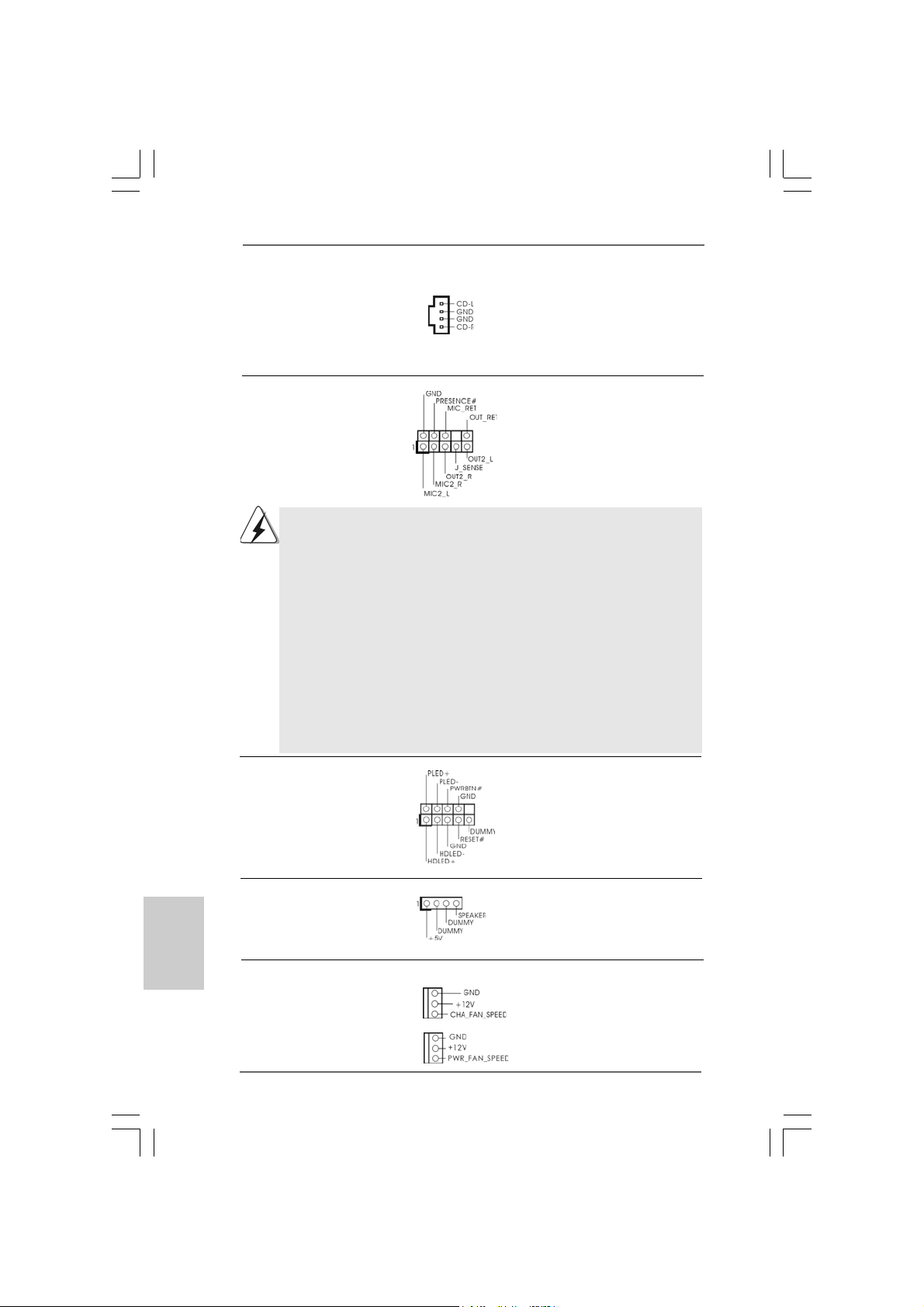

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input (CD1: see p.2 No. 28) from sound sources such as

CD1

a CD-ROM, D VD-ROM, TV tuner card, or MPEG card.

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows (see p.2 No. 29) convenient connection and

control of audio devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select

Chipset Configuration. Set the Front Panel Control option from

[Auto] to [Enabled].

System Panel Hea der This header a ccommodate s

(9-pin PANEL1) several system front pa nel (see p.2 No. 13) functions.

Chassis Spe aker He ader Please connect the chassis

(4-pin SPEAKER 1) speaker to this hea der. (see p.2 No. 18)

Chassis and Power Fan Connectors Please connect the fan cables

(3-pin CHA_FAN1) to the fan connectors and (see p.2 No. 10) match the black wire to the

ground pin.

(3-pin PWR_FAN1) (see p.2 No. 12)

ASRock G41M-GE3 Motherboard

1919

EnglishEnglish

English

CPU Fan Connector Please connect a CPU fan cable

(4-pin CPU_FAN1) to this connector and match (see p.2 No. 4) the black wire to the ground pin.

1 2 3 4

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

English

EnglishEnglish

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1) supply to this connector. (see p.2 No. 7)

Though this motherboard provides 24-pin ATX power connector,

12 124

it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

ATX 12V Power Connector Please connect an A TX 12V

(4-pin ATX12V1) power supply to this connector. (see p.2 No. 2)

Serial port Header This COM1 header supports a

(9-pin COM1) serial port module. (see p.2 No.24)

2020

ASRock G41M-GE3 Motherboard

2.72.7

Serial ASerial A

2.7

Serial A

2.72.7

Serial ASerial A InstallationInstallation

Installation

InstallationInstallation

This motherboard adopts Intel® ICH7 south bridge chipset that supports Serial AT A (SATA) / Serial ATAII (SATAII) hard disks. You may install SATA / SATAII hard disks on this motherboard for internal storage devices. This section will guide you to install the SATA / SAT AII hard disk s.

A (SAA (SA

A (SA

A (SAA (SA

A) / Serial AA) / Serial A

A) / Serial A

A) / Serial AA) / Serial A

AII (SAAII (SA

AII (SA

AII (SAAII (SA

AII) Hard DisksAII) Hard Disks

AII) Hard Disks

AII) Hard DisksAII) Hard Disks

ion

STEP 1: Install the SATA / SAT AII hard disk s into the drive bays of your chassis. STEP 2: Connect the SATA power ca ble to the SAT A / SATAII hard disk. STEP 3: Connect one end of the SATA data cable to the motherboard’s SAT AII

connector.

STEP 4: Connect the other end of the SATA data cable to the SAT A / SATAII hard

disk.

2.82.8

Driver Installation Guide Driver Installation Guide

2.8

Driver Installation Guide

2.82.8

Driver Installation Guide Driver Installation Guide

To install the drivers to your system, plea se insert the support CD to your optical drive first. Then, the drivers compatible to your system ca n be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install ca n work properly .

2.92.9

Untied Overclocking TUntied Overclocking T

2.9

Untied Overclocking T

2.92.9

Untied Overclocking TUntied Overclocking T

This motherboard supports Untied Overclocking Technology, which means during overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you enable Untied Overclocking function, plea se enter “Overclock Mode” option of BIOS setup to set the selection from [Auto] to [Manual]. Therefore, CPU FSB is untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB can operate under a more stable overclocking environment.

Please refer to the warning on page 7 for the possible overclocking risk before you apply Untied Overclocking Technology.

echnologyechnology

echnology

echnologyechnology

ASRock G41M-GE3 Motherboard

2121

EnglishEnglish

English

3. BIOS Information3. BIOS Information

3. BIOS Information

3. BIOS Information3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven progra m, which allows you to scroll through its various sub-menus and to select among the predetermined choices. For the detailed information about BIOS Setup, please refer to the User Manual (PDF file) contained in the Support CD.

English

EnglishEnglish

4. Sof4. Sof

4. Sof

4. Sof4. Sof

This motherboard supports various Microsoft® Windows® operating systems: 7 / 7 64-bit / VistaTM / Vista motherboard contains necessary drivers and useful utilities that will enhance motherboard features. To begin using the Support CD, insert the CD into your CDROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and doubleclick on the file “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus.

tware Supportware Suppor

tware Suppor

tware Supportware Suppor

64-bit / XP / XP 64-bit. The Support CD that came with the

t CD informationt CD information

t CD information

t CD informationt CD information

2222

ASRock G41M-GE3 Motherboard

1. Einführung1. Einführung

1. Einführung

1. Einführung1. Einführung

Wir danken Ihnen für den Kauf des ASRock G41M-GE3 Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robuste s Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit. Diese Schnellinstallationsanleitung führt in das Motherboard und die schrittweise Installation ein. Details über das Motherboard finden Sie in der Bedienungsanleitung auf der Support-CD.

Da sich Motherboard-Spezifikationen und BIOS-Software verändern können, kann der Inhalt dieses Handbuches ebenfalls jederzeit geändert werden. Für den Fall, dass sich Änderungen an diesem Handbuch ergeben, wird eine neue Version auf der ASRock-Website, ohne weitere Ankündigung, verfügbar sein. Die neuesten Grafikkarten und unterstützten CPUs sind auch auf der ASRock-Website aufgelistet. ASRock-Website: http://www.asrock.com Wenn Sie technische Unterstützung zu Ihrem Motherboard oder spezifische Informationen zu Ihrem Modell benötigen, besuchen Sie bitte unsere Webseite: www.asrock.com/support/index.asp

1.1 Kartoninhalt

ASRock G41M-GE3 Motherboard

(Micro ATX-Formfaktor: 24.4 cm x 21.8 cm; 9.6 Zoll x 8.6 Zoll) ASRock G41M-GE3 Schnellinstallationsanleitung ASRock G41M-GE3 Support-CD Zwei Serial ATA (SATA) -Datenkabel (optional) Ein I/O Shield

ASRock G41M-GE3 Motherboard

2323

DeutschDeutsch

Deutsch

1.21.2

SpezifikationenSpezifikationen

1.2

Spezifikationen

1.21.2

SpezifikationenSpezifikationen

Deutsch

DeutschDeutsch

2424

Plattform - Micro ATX-Formfaktor: 24.4 cm x 21.8 cm; 9.6 Zoll x 8.6 Zoll

CPU - LGA 775 für Intel® CoreTM 2 Extreme / CoreTM 2 Quad / Core

2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron unterstützt Penryn Quad Core Yorkfield und Dual Core Wolfdale Prozessoren

- FSB1333/1066/800/533 MHz

- Unterstützt Hyper-Threading-Technologie (siehe VORSICHT 1)

- Unterstützt Untied-Übertaktungstechnologie (siehe VORSICHT 2)

- Unterstützt EM64T -CPU

Chipsatz - Northbridge: Intel® G41

- Southbridge: Intel® ICH7

Speicher - Unterstützung von Dual-Kanal-DDR3-Speichertechnologie

(siehe VORSICHT 3)

- 4 x Steckplätze für DDR3

- Unterstützt DDR3 1333(OC)/1066/800 non-ECC, ungepuf ferter Speicher (siehe VORSICHT 4)

- Max. Kapazität des Systemspeichers: 8GB

(siehe VORSICHT 5) Erweiterungs- - 1 x PCI Express x16-Steckplätze steckplätze - 1 x PCI Express x1-Steckplätze

- 2 x PCI -Steckplätze

Onboard-VGA - Intel® Grafikmedienbeschleuniger X4500

- Pixel Shader 4.0, Dire ctX 10

- Maximal gemeinsam genutzter Speicher 1759MB

(siehe VORSICHT 6)

- Doppel-VGA Ausgabe: unterstützt D VI-D und D-Sub Ports

durch unabhängige Bildschirmanzeige Kontrolleure

- Unterstützt DVI mit einer maximalen Auflösung von

1920 x 1200 bei 75 Hz

- Unterstützt D-Sub mit einer maximalen Auflösung von

2048 x 1536 bei 60 Hz

- unterstützt HDCP Funktion mit DVI-D Port

- unterstützt 1080p Blu-ray (BD) / HD-DVD Playback mit DVI-D

Port

Audio - 7.1 CH HD Audio (VIA® VT1718S Audio Codec) LAN - PCIE x1 Giga bit LAN 10/100/1000 Mb/s

- Realtek RTL81 1 1DL

- Unterstützt Wake-On-LAN

ASRock G41M-GE3 Motherboard

E/A-Anschlüsse I/O Panel an der - 1 x PS/2-Mausanschluss

Rückseite - 1 x PS/2-Tastaturanschluss

- 1 x VGA/D-Sub port

- 1 x VGA/DVI-D port

- 4 x Standard-USB 2.0-Anschlüsse

- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)

- HD Audiobuchse: Lautsprecher seitlich / Lautsprecher hinten / Mitte/Bass / Audioeingang/ Lautsprecher vorne / Mikrofon (siehe VORSICHT 7)

Anschlüsse - 4 x SATAII-Anschlüsse, unterstützt bis 3.0 Gb/s

Datenübertragungsrate (Unterstützt keine “RAID”- und “Hot Plug”-Funktionen) (siehe VORSICHT 8)

- 1 x ATA100 IDE-Anschlüsse (Unterstützt bis 2 IDE-Geräte)

- 1 x FDD-Anschlüsse

- 1 x Druckerport-Anschlussleiste

- 1 x Infrarot-Modul-Header

- 1 x COM-Anschluss-Header

- 1 x TPM-Stiftleiste

- 1 x Verteiler für Gehäuseeindringversuche

- CPU/Gehäuse/Stromlüfter-Anschluss

- 24-pin ATX-Netz-Header

- 4-pin anschluss für 12V-ATX-Netzteil

- Interne Audio-Anschlüsse

- Anschluss für Audio auf der Gehäusevorderseite

- 2 x USB 2.0 Buchse (unterstützt 4 USB 2.0 Ports) (siehe VORSICHT 9)

BIOS - 8Mb AMI BIOS

- AMI legal BIOS mit Unterstützung für “Plug and Play”

- ACPI 1.1-Weckfunktionen

- JumperFree-Modus

- SMBIOS 2.3.1

- Unterstützt I. O. T. (Intelligente Übertakten Technologie)

- Unterstützt Smart BIOS

Support-CD - Treiber, Dienstprogramme, Antivirussoftware

(Probeversion), ASRock-Software-Suite (CyberLink DV D Suite und Creative Sound Blaster X-Fi MB) (OEM- und Testversion)

Einzigartige - ASRock OC Tuner (siehe VORSICHT 10) Eigenschaft - Intelligent Energy Saver (Intelligente Energiesparfunktion)

(siehe VORSICHT 11)

- Sofortstart

ASRock G41M-GE3 Motherboard

2525

DeutschDeutsch

Deutsch

- ASRock Instant Flash (siehe VORSICHT 12)

- ASRock OC DNA (siehe VORSICHT 13)

- Hybrid Booster:

- Schrittloser CPU-Frequenz-Kontrolle (siehe VORSICHT 14)

- ASRock U-COP (siehe VORSICHT 15)

- Boot Failure Guard (B.F.G. – Systemstartfehlerschutz)

Hardware Monitor - Überwachung der CPU-Temperatur

- Motherboardtemperaturerkennung

- Drehzahlmessung für CPU/Gehäuse/Stromlüfter

- CPU-Lüftergeräuschdämpfung

- GEHÄUSE OFFEN-Erkennung

- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore

Betriebssysteme - Unterstützt Microsoft® Windows® 7 / 7 64-Bit / VistaTM /

Vista

64-Bit / XP / XP 64-Bit

Zertifizierungen - FCC, CE, WHQL

- Gemäß Ökodesign-Richtlinie (EuP) (Stromversorgung

gemäß Ökodesign-Richtlinie (EuP) erforderlich)

(siehe VORSICHT 16)

* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website: http://www.asrock.com

WARNUNG

Beachten Sie bitte, dass Overclocking, einschließlich der Einstellung im BIOS, Anwenden der Untied Overclocking-Technologie oder Verwenden von Overclocking-Werkzeugen von Dritten, mit einem gewissen Risiko behaftet ist. Overclocking kann sich nachteilig auf die Stabilität Ihres Systems auswirken oder sogar Komponenten und Geräte Ihres Systems beschädigen. Es geschieht dann auf eigene Gefahr und auf Ihre Kosten. Wir übernehmen keine Verantwortung für mögliche Schäden, die aufgrund von Overclocking verursacht wurden.

Deutsch

DeutschDeutsch

2626

VORSICHT!

1. Die Einstellung der “Hyper-Threading Technology”, finden Sie auf Seite 35 des auf der Support-CD enthaltenen Benutzerhandbuches beschrieben.

2. Dieses Motherboard unterstützt die Untied-Übertaktungstechnologie. Unter “Entkoppelte Übertaktungstechnologie” auf Seite 21 finden Sie detaillierte Informationen.

3. Dieses Motherboard unterstützt Dual-Kanal-Speichertechnologie. Vor Implementierung der Dual-Kanal-Speichertechnologie müssen Sie die Installationsanleitung für die Speichermodule auf Seite 13 zwecks richtiger Installation gelesen haben.

ASRock G41M-GE3 Motherboard

4. Die unterstützten Arbeitsspeicherfrequenzen und die entsprechende CPU FSB-Frequenz entnehmen Sie bitte der nachstehenden Tabelle.

CPU FSB-Frequenz Unterstützte Arbeitsspeicherfrequenz

1333 DDR3 800, DDR3 1066, DDR3 1333 1066 DDR3 800, DDR3 1066 800 DDR3 800

533 DDR3 800 * DDR3 1333 Speichermodule werden in Übertakten Modus funktionieren. * Bei Verwendung einer FSB533-CPU auf diesem Motherboard lauft esmit DDR3 533, wenn Sie ein DDR3 800-Speichermodul verwenden.

5. Durch Betriebssystem-Einschränkungen kann die tatsächliche Speichergröße weniger als 4 GB betragen, da unter Windows® 7 / VistaTM / XP etwas Speicher zur Nutzung durch das System reserviert wird. Unter Windows® OS mit 64-Bit-CPU besteht diese Einschränkung nicht.

6. Die Maximalspeichergröße ist von den Chipshändler definiert und umgetauscht. Bitte überprüfen Sie Intel® website für die neuliche Information.

7. Der Mikrofoneingang dieses Motherboards unterstützt Stereo- und MonoModi. Der Audioausgang dieses Motherboards unterstützt 2-Kanal-, 4Kanal-, 6-Kanal- und 8-Kanal-Modi. Stellen Sie die richtige Verbindung anhand der Tabelle auf Seite 3 her.

8. Vor Installation der SATAII-Festplatte an den SATAII-Anschluss lesen Sie bitte “Setup-Anleitung für SATAII-Festplatte” auf Seite 25 der “Bedienungsanleitung” auf der Support-CD, um Ihre SATAII-Festplatte dem SATAII-Modus anzugleichen. Sie können die SATA-Festplatte auch direkt mit dem SATAII-Anschluss verbinden.

9. Das Power Management für USB 2.0 arbeitet unter Microsoft® Windows 7 64-Bit / 7 / VistaTM 64-Bit / VistaTM / XP 64-Bit / XP SP1 oder SP2 einwandfrei.

10. Es ist ein benutzerfreundlicher ASRock Übertaktenswerkzeug, das erlaubt, dass Sie Ihr System durch den Hardware-Monitor Funktion zu überblicken und Ihre Hardware-Geräte übertakten, um die beste Systemleistung unter der Windows® Umgebung zu erreichen. Besuchen Sie bitte unsere Website für die Operationsverfahren von ASRock OC Tuner. ASRock-Website: http://www.asrock.com

11. Mit einem fortschrittlichen, eigenständigen Hard- und Softwaredesign nutzt der Intelligent Energy Saver eine revolutionäre Technologie, die bisher unerreichte Energieeinsparungen ermöglicht. Mit anderen Worten: Sie verbrauchen besonders wenig Energie und erreichen einen hohen Wirkungsgrad, ohne dass dies zu Lasten der Rechenleistung geht. Auf unseren Internetseiten finden Sie einige Erläuterungen zur Funktionsweise des Intelligent Energy Saver. ASRock-Website: http://www.asrock.com

12. ASRock Instant Flash ist ein im Flash-ROM eingebettetes BIOS-FlashProgramm. Mithilfe dieses praktischen BIOS-Aktualisierungswerkzeugs können Sie das System-BIOS aktualisieren, ohne dafür zuerst Betriebssysteme wie MS-DOS oder Windows® aufrufen zu müssen. Mit

ASRock G41M-GE3 Motherboard

DeutschDeutsch

Deutsch

2727

Deutsch

DeutschDeutsch

diesem Progra mm bekommen Sie durch Drücken der <F6>-Taste während des POST-Vorgangs oder durch Drücken der <F2>-Taste im BIOS-Setup-Menü Zugang zu ASRock Instant Flash. Sie brauchen dieses Werkzeug einfach nur zu starten und die neue BIOS-Datei auf Ihrem USB-Flash-Laufwerk, Diskettenlaufwerk oder der Festplatte zu speichern, und schon können Sie Ihr BIOS mit nur wenigen Klickvorgängen ohne Bereitstellung einer zusätzlichen Diskette oder eines anderen komplizierten Flash-Programms a ktualisieren. Achten Sie darauf, dass das USB-Flash-Laufwerk oder die Festplatte das Dateisystem FAT32/16/12 benutzen muss.

13. Allein der Name – OC DNA* – beschreibt es wörtlich, was die Software zu leisten vermag. OC DNA ist ein von ASRock exklusiv entwickeltes Dienstprogramm, das Nutzern eine bequeme Möglichkeit bietet, Übertaktungseinstellungen aufzuzeichnen und sie Anderen mitzuteilen. Es hilft Ihnen, Ihre Übertaktungsaufzeichnung im Betriebssystem zu speichern und vereinfacht den komplizierten Aufzeichnungsvorgang von Übertaktungseinstellungen. Mit OC DNA können Sie Ihre Übertaktungseinstellungen als Profil abspeichern und Ihren Freunden zugänglich machen! Ihre Freunde können dann das Übertaktungsprofil auf ihren eigenen Systemen laden, um dieselben Übertaktungseinstellungen. Mit OC DNA können Sie Ihre Übertaktungseinstellungen als Profil abspeichern und Ihren Freunden zugänglich machen! Ihre Freunde können dann das Übertaktungsprofil auf ihren eigenen Systemen laden, um dieselben Übertaktungseinstellungen wie Sie zu erhalten! Beachten Sie bitte, dass das Übertaktungsprofil nur bei einem identischen Motherboard gemeinsam genutzt und funktionsfähig gemacht werden kann. Übertaktungseinstellungen wie Sie zu erhalten! Beachten Sie bitte, dass das Übertaktungsprofil nur bei einem identischen Motherboard gemeinsam genutzt und funktionsfähig gemacht werden kann.

14. Obwohl dieses Motherboard stufenlose Steuerung bietet, wird Overclocking nicht empfohlen. Frequenzen, die von den empfohlenen CPU-Busfrequenzen abweichen, können Instabilität des Systems verursachen oder die CPU beschädigen.

15. Wird eine Überhitzung der CPU registriert, führt das System einen automatischen Shutdown durch. Bevor Sie das System neu starten, prüfen Sie bitte, ob der CPU-Lüfter am Motherboard richtig funktioniert, und stecken Sie bitte den Stromkabelstecker aus und dann wieder ein. Um die Wärmeableitung zu verbessern, bitte nicht vergessen, etwas Wärmeleitpaste zwischen CPU und Kühl körper zu sprühen.

16. EuP steht für Energy Using Product und kennzeichnet die ÖkodesignRichtlinie, die von der Europäischen Gemeinschaft zur Festlegung des Energieverbrauchs von vollständigen Systemen in Kraft gesetzt wurde. Gemäß dieser Ökodesign-Richtlinie (EuP) muss der gesamte Netzstromverbrauch von vollständigen Systemen unter 1,00 Watt liegen, wenn sie ausgeschaltet sind. Um dem EuP-Standard zu entsprechen, sind ein EuP-fähiges Motherboard und eine EuP-fähige Stromversorgung

2828

ASRock G41M-GE3 Motherboard

erforderlich. Gemäß einer Empfehlung von Intel muss eine EuP-fähige Stromversorgung dem Standard entsprechen, was bedeutet, dass bei einem Stromverbrauch von 100 mA die 5-Volt-Standby-Energieeffizienz höher als 50% sein sollte. Für die Wahl einer EuP-fähigen Stromversorgung empfehlen wir Ihnen, weitere Details beim Hersteller der Stromversorgung abzufragen.

1.3 Einstellung der Jumper1.3 Einstellung der Jumper

1.3 Einstellung der Jumper

1.3 Einstellung der Jumper1.3 Einstellung der Jumper

Die Abbildung verdeutlicht, wie Jumper gesetzt werden. Werden Pins durch Jumperkappen verdeckt, ist der Jumper “Gebrückt”. Werden keine Pins durch Jumperkappen verdeckt, ist der Jumper

Gebrückt Offen

“Offen”. Die Abbildung zeigt einen 3-Pin Jumper dessen Pin1 und Pin2 “Gebrückt” sind, bzw. es befindet sich eine JumperKappe auf diesen beiden Pins.

Jumper Einstellun Beschreibung

PS2_USB_PWR1 Überbrücken Sie Pin2, Pin3, um

(siehe S.2 - No. 1) +5VSB (Standby) zu setzen

und die PS/2 oder USBWe ckfunktionen zu aktivieren.

Hinweis: Um +5VSB nutzen zu können, muss das Netzteil auf dieser Leitung 2A

oder mehr leisten können.

CMOS löschen

(CLRCMOS1, 2-Pin jumper) (siehe S.2 - No. 1 1)

2-Pin jumper

Hinweis: Mit CLRCMOS1 können Sie die Daten im CMOS löschen. Die CMOS Daten

beinhalten die Systeminformationen wie Systemkennwort, Datum, Zeit und System-Setupeinstellungen. Um die Einstellungen zu löschen und Default-Werte wiederherzustellen, schalten Sie den Computer aus, ziehen Sie den Netzstecker und überbrücken Sie 2-pin von CLRCMOS1 mithilfe des Jumpers für 5 Sekunden.

Durch Löschen des CMOS kann erkannt werden, wenn das Gehäuse offen ist. Bitte stellen Sie zum Löschen der Aufzeichnung des vorherigen Gehäuseindringungsstatus die BIOS-Option “Status leeren” ein.

ASRock G41M-GE3 Motherboard

2929

DeutschDeutsch

Deutsch

1.4 Integrierte Header und Anschlüsse1.4 Integrierte Header und Anschlüsse

1.4 Integrierte Header und Anschlüsse

1.4 Integrierte Header und Anschlüsse1.4 Integrierte Header und Anschlüsse

Integrierte Header und Anschlüsse sind KEINE Jumper. Setzen Sie KEINE Jumperkappen auf die se Hea der und Anschlüsse. Wenn Sie Jumperkappen auf Header und Anschlüsse setzen, wird das Motherboard unreparierbar beschädigt!

Anschluss für das Floppy-Laufwerk

(33-Pin FLOPPY1) (siehe S.2 - No. 25)

die rotgestreifte Seite auf Stift 1

Hinweis: Achten Sie darauf, dass die rotgestreifte Seite des Ka bel mit der Stift 1-

Seite des An schlusses verbunden wird.

Primärer IDE-Anschluss (Blauer)

(39-pin IDE1, siehe S.2 - No. 9)

Blauer Anschluss Schwarzer Anschluss zum Motherboard zur Festplatte

80-adriges ATA 66/100 Kabel

Hinweis: Details entnehmen Sie bitte den Anweisungen Ihres IDE-Gerätehändlers.

Seriell-ATAII-Anschlüsse Diese vier Serial ATA

(SAT AII_1: siehe S.2, Punkt 16) (SATA II) -Anschlüsse (SAT AII_2: siehe S.2, Punkt 17) unterstützen interne SATA- (SAT AII_3: siehe S.2, Punkt 15) oder SAT A II-Festplatten. Die (SAT AII_4: siehe S.2, Punkt 14) aktuelle SATAII-Schnittstelle

SAT AII_2 SA TAII_4

SAT AII_1 SA TAII_3

ermöglicht eine Datenübertragungsrate bis 3,0 Gb/s.

Deutsch

DeutschDeutsch

3030

Serial A TA- (SAT A-) Sie können beide Enden des Datenkabel SATA-Datenkabels entweder (Option) mit der SATA / SAT AII-

Festplatte oder dem SATAII-Anschluss am Mainboard verbinden.

ASRock G41M-GE3 Motherboard

+ 109 hidden pages
