Asrock FM2A78M-ITX+ Quick Installation Guide

Version 1.0

Published November 2013

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Ma nagement Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ASRock FM2A78M-ITX+ Motherboard

English

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

English

ASRock FM2A78M-ITX+ Motherboard

Motherboard Layout

DDR 3_B1 (6 4 bit, 24 0-pin m odule )

DDR 3_A1 (6 4 bit, 24 0-pin m odule )

PCIE1

AMD

A78 FCH

(Bolton -D 3)

Chipset

Fron t US B 3.0

Top:

CTR BASS

Cent er:

REAR SPK

Bott om:

Opti cal

SPDI F

Top:

LINE IN

Cent er:

FRON T

Bott om:

MIC IN

Top: RJ- 45

USB 3 .0 T: USB2 B: US B3

HD_AU DIO1

CLRCMOS1

64M b BIO S

RoHS

FM2A78M-ITX+

HDLED RESET

PLED PWR BTN

PANEL1

CHA_FA N1

USB_6 7

USB_4 5

CMO S

Bat tery

CI1

SATA3_2

SATA3_4

SATA3_1

SATA3_3

SATA3_6

SATA3_5

ATX12V 1

SOCK ET FM2b

USB 2. 0 T: USB0 B: USB 1

PS2

Keyb oard

/Mou se

VGA1

DVI 1

HDMI1

HDMI_IN1

TPMS1

CPU_FAN 1

USB3_ 0_1

PCI Ex pr ess 3.0

SPEAKER 1

ATXP WR1

English

ASRock FM2A78M-ITX+ Motherboard

No. Description

1 TPM Header (TPMS1) 2 CPU Fan Connector (CPU_FAN1) 3 Chassis Intrusion Header (CI1)

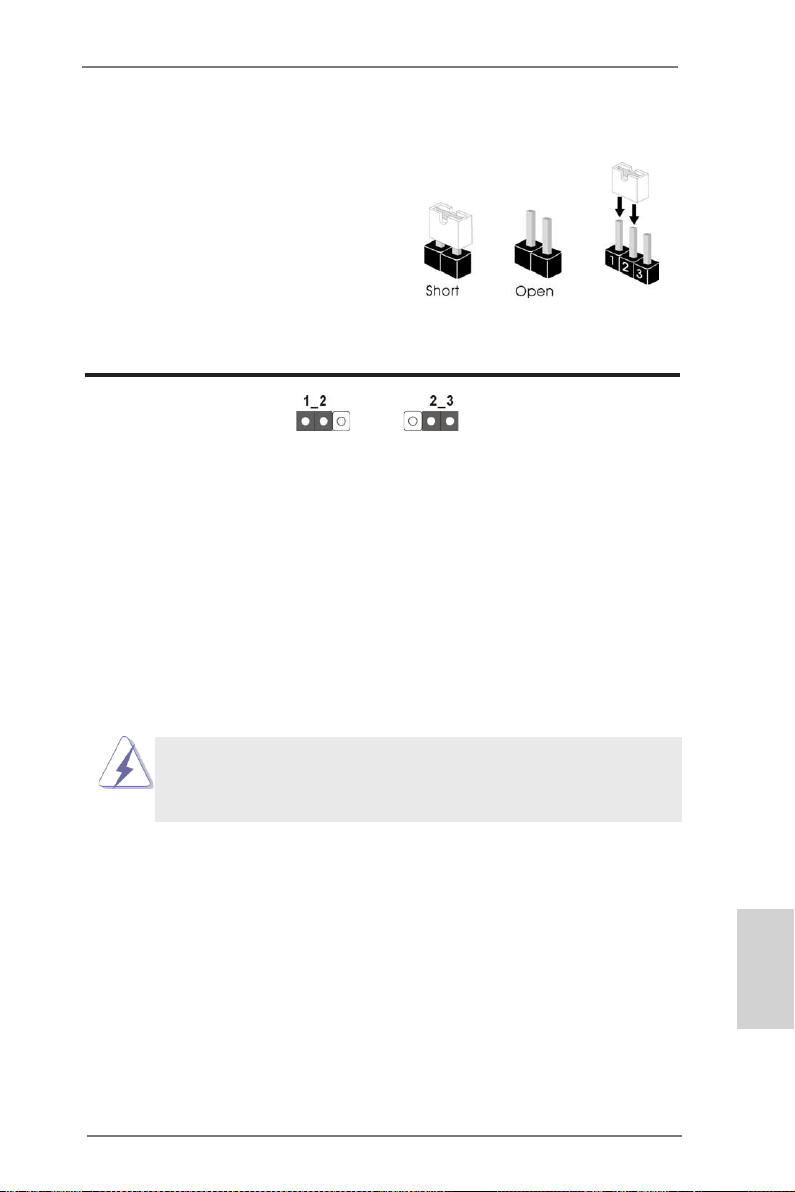

4 Clear CMOS Jumper (CLRCMOS1)

5 ATX Power Connector (ATXPWR1) 6 Chassis Speaker Header (SPEAKER1) 7 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1) 8 Chassis Fan Connector (CHA_FAN1)

9 System Panel Header (PANEL1) 10 USB 3.0 Header (USB3_0_1) 11 SATA3 Connector (SATA3_6) 12 SATA3 Connector (SATA3_5) 13 SATA3 Connector (SATA3_4) 14 SATA3 Connector (SATA3_3) 15 SATA3 Connector (SATA3_2) 16 SATA3 Connector (SATA3_1) 17 ATX 12V Power Connector (ATX12V1) 18 Front Panel Audio Header (HD_AUDIO1) 19 USB 2.0 Header (USB_45)

20 USB 2.0 Header (USB_67)

English

ASRock FM2A78M-ITX+ Motherboard

I/O Panel

1 2

No. Description No. Description

1 USB 2.0 Ports (USB01)* 8 Microphone (Pink) 2 D-Sub Port 9 Optical SPDIF Out Port

3 LAN RJ-45 Port** 10

4 Central / Bass (Orange) 11 HDMI-In Port 5 Rear Speaker (Black) 12 HDMI-Out Port 6 Line In (Light Blue) 13 DVI-D Port 7 Front Speaker (Lime)*** 14 PS/2 Mouse/Keyboard Port

USB 3.0 Ports (USB3_23) (AMD A78 FCH (Bolton-D3))

587

91011121314

ASRock FM2A78M-ITX+ Motherboard

English

* It is recommended to install the USB Keyboard/ Mouse cable to US B 2.0 por ts (USB01) instead of USB 3.0 p orts .

** There are two LEDs on the LAN por t. Please refer to the table below for the LAN por t LED indica-

tions.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED Status Description Status Description

Off No Link Off 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

*** If you use a 2-channel speaker, please connect the speaker ’s plug into “Front Speaker Jack”. S ee

the table below for connection detai ls in accordance with the type of speaker you use.

English

Audio Output

Channels

Front

Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

2 V -- -- -- 4 V V -- -- 6 V V V -- 8 V V V V

To enable Multi-S treaming, you need to connect a front panel audio cable to

the front panel audio header. Af ter resta rting your computer, you will nd the

“Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH”, “4CH ”, “6C H”, or “8CH” and then you are allowed to select “Realtek H DA Primary output” to use the Rear Speaker, Central/ Bass, and Front S peaker, or select “Realtek HDA Audio 2nd outpu t” to use the front panel audio.

ASRock FM2A78M-ITX+ Motherboard

Line In or

Side Speaker

(No. 6)

1. Introduction

Thank you for purchasing ASRock FM2A78M-ITX+ motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-bystep installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A78M-ITX+ Motherboard (Mini-ITX Form Factor) ASRock FM2A78M-ITX+ Quick Installation Guide ASRock FM2A78M-ITX+ Support CD 2 x Serial ATA (SATA) Data Cables (Optional) 1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 8 / 8 64-bit / 7 / 7 64-bit, it is

recommended to set the BIOS option in Storage Conguration to AHCI

mode. For the BIOS setup, please refer to the “User Manual” in our support CD for details.

ASRock FM2A78M-ITX+ Motherboard

English

1.2 Specications

Platform - Mini-ITX Form Factor

- All Solid Capacitor design A-Style - Home Cloud

- HDMI-In CPU - Supports Socket FM2+ 95W / FM2 100W processors

- 4 + 2 Power Phase design

Chipset - AMD A78 FCH (Bolton-D3) Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM Slots

- Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 32GB (see CAUTION 2)

- Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

- Supports AMD Memory Prole Technology (AMP) up to AMP

2400 Expansion Slot - 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode) * PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.

- Supports AMD Dual Graphics Graphics - Integrated AMD Radeon HD 8000/7000 series graphics in A-series APU

- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.

- Max. shared memory 2GB

- Three graphics output options: D-Sub, DVI-D and HDMI Ports

- Supports Triple Monitor

- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) (see CAUTION 3)

- Supports Blu-ray Stereoscopic 3D with HDMI Port

- Supports AMD Steady VideoTM 2.0: New video post processing capability for automatic jitter reduction on

ASRock FM2A78M-ITX+ Motherboard

home/online video

- Supports HDCP with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)

- Premium Blu-ray Audio support

- Supports DTS Connect LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Qualcomm® Atheros® AR8171

- Supports Qualcomm® Atheros® Security Wake On Internet Technology

- Supports Wake-On-LAN

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI-Out Port

- 1 x HDMI-In Port

- 1 x Optical SPDIF Out Port

- 2 x USB 2.0 Ports

- 2 x USB 3.0 Ports (AMD A78 FCH (Bolton-D3))

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug Connector - 1 x Chassis Intrusion Header

- 1 x TPM Header

- 1 x CPU Fan Connector (4-pin)

- 1 x Chassis Fan Connector (4-pin)

- 1 x 24 pin ATX Power Connector

- 1 x 4 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.0 Header by AMD A78 FCH (Bolton-D3) (Supports 2 USB 3.0 ports) BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

English

ASRock FM2A78M-ITX+ Motherboard

- ACPI 1.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3.1 support

- DRAM, VDDP, VDDR Voltage multi-adjustment Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) Hardware - CPU temperature sensing Monitor - Chassis temperature sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan multi-speed control

- CASE OPEN detection

- Voltage monitoring: +12V, +5V, +3.3V, Vcore OS - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certications - FCC, CE, WHQL

- ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

English

ASRock FM2A78M-ITX+ Motherboard

CAUTION!

1. Whether 2400/2133/1866/1600MHz memory speed is supported depends on the CPU you adopt. If you want to adopt DDR3 2400/2133/1866/1600 memory module on this motherboard, please refer to the memory support list on our website for the compatible memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 8 / 7. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

3. xvYCC and Deep Color are only supported under Windows® 8 64-bit / 8 / 7 64-bit / 7. Deep Color mode will be enabled only if the display supports 12bpc in EDID. HBR is supported under Windows® 8 64-bit / 8 / 7 64-bit / 7.

ASRock FM2A78M-ITX+ Motherboard

English

1.3 Unique Features

ASRock A-Tuning

A-Tuning is ASRock’s multi purpose software suite with a new

interface, more new features and improved utilities, including XFast R AM, Dehumidier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efcient way to save energy,

time, money, and improves system running speed for your system. It leverages the S3 and S4 ACPI features which normally enable the Sleep/Standby and Hibernation modes in Windows®

to shorten boot up time. By calling S3 and S4 at specic timing

during the shutdown and startup process, Instant Boot allows you to enter your Windows® desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems rst like MS-

DOS or Windows®. With this utility, you can press the <F6> key during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS le to your USB ash drive, oppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional oppy diskette or other complicated ash utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le system.

English

ASRock APP Charger

If you desire a faster, less restricted way of charging your

Apple devices, such as iPhone/iPad/iPod Touch, ASRock has prepared a wonderful solution for you - ASRock APP Charger. Simply install the APP Charger driver, it makes your iPhone charge much quickly from your computer and up to 40% faster than before. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Suspend to RAM (S3), hibernation mode (S4) or power off (S5). With APP Charger

ASRock FM2A78M-ITX+ Motherboard

driver installed, you can easily enjoy the marvelous charging

experience.

ASRock XFast LAN

ASRock XFast LAN provides a faster internet access, which

includes the benefits listed below. LAN Application Prioritiza-

tion: You can congure your application’s priority ideally and/or

add new programs. Lower Latency in Game: After setting online

game’s priority higher, it can lower the latency in games. Trafc

Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are transferring currently.

ASRock XFast RAM

ASRock XFast RAM is included in A-Tuning. It fully utilizes the

memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading

time of previously visited websites, making web surng faster

than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

ASRock Crashless BIOS

ASRock Crashless BIOS allows users to update their BIOS

without fear of failing. If power loss occurs during the BIOS up-

date process, ASRock Crashless BIOS will automatically nish

the BIOS update procedure after regaining power. Please note

that BIOS les need to be placed in the root directory of your

USB disk. Only USB2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict

internet access at specied times via OMG. You may schedule

the starting and ending hours of internet access granted to other

users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.

ASRock FM2A78M-ITX+ Motherboard

English

ASRock Internet Flash

ASRock Internet Flash searches for available UEFI firmware

updates from our servers. In other words, the system can auto-

detect the latest UEFI from our servers and ash them without

entering Windows® OS.

ASRock UEFI System Browser

ASRock UEFI system browser is a useful tool included in

graphical UEFI. It can detect the devices and configurations that users are currently using in their PC. With the UEFI system browser, you can easily examine the current system conguration in UEFI setup.

ASRock UEFI Tech Service

Contact ASRock Tech Service by sending a support request

from the UEFI setup utility if you are having trouble with your PC.

ASRock Dehumidier Function

Users may prevent motherboard damages due to dampness by

enabling “Dehumidier Function”. When enabling Dehumidier

Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

ASRock Easy RAID Installer

ASRock Easy RAID Installer can help you to copy the RAID

driver from a support CD to your USB storage device. After copying the RAID driver to your USB storage device, please change “SATA Mode” to “RAID”, then you can start installing the OS in RAID mode.

English

ASRock Easy Driver Installer

For users that don’t have an optical disk drive to install the

drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically.

ASRock FM2A78M-ITX+ Motherboard

ASRock Interactive UEFI

ASRock Interactive UEFI is a blend of system configuration

tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and brings a lot more amusing.

ASRock Fast Boot

With ASRock’s exclusive Fast Boot technology, it takes less

than 1.5 seconds to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

ASRock X-Boost

Brilliantly designed for combo overclocking, ASRock X-Boost

Technology is able to unleash the hidden power of your CPUs. Simply press “X” when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process.

ASRock Restart to UEFI

Windows® 8 brings the ultimate boot up experience. The light-

ning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI technology is designed for those requiring frequent UEFI access. It is included in ASRock’s exclusive allin-one A-Tuning tuning program that allows users to easily enter the UEFI automatically when turning on the PC next time. Just

simply enable this function; the PC will be assured to access the

UEFI directly in the very beginning.

ASRock USB Key

In a wor ld where time is money, why waste precious time

everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!

ASRock FM2A78M-ITX+ Motherboard

English

ASRock FAN-Tastic Tuning

ASRock FAN-Tastic Tuning is included in A-Tuning. Congure

up to ve different fan speeds using the graph. The fans will

automatically shift to the next speed level when the assigned temperature is met.

English

ASRock FM2A78M-ITX+ Motherboard

2. Installation

This is a Mini-ITX form factor motherboard. Before you install the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

ASRock FM2A78M-ITX+ Motherboard

English

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

Step 2. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the socket corner with a small triangle. Step 3. Carefully insert the CPU into the

socket until it ts in place.

angle.

The CPU ts only in one correct

orientation. DO NOT force the CPU into the socket to avoid bending of the pins.

English

Step 4. When the CPU is in place, press it

rmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked.

ASRock FM2A78M-ITX+ Motherboard

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 3, No. 2). For proper installation, please kindly refer to the instruction manuals of the CPU fan and the heatsink.

ASRock FM2A78M-ITX+ Motherboard

English

2.3 Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology.

For dual channel conguration, you always need to instal l identical (the

same brand, speed, size and chip-type) DDR3 DIMM pairs.

It is unable to activate Dual Channel Memory Techn ology wi th only one memor y module installed.

It is not al lowed to install a DD R or DDR2 memory module i nto a DDR3 slot; otherwise, this mo therbo ard and DI MM may be damaged.

The DIM M only ts in one correct orientation. It wi ll cause permanent damage to the mo therboard and the DIMM if you force the DIM M into the slot at incorrect orientation.

English

ASRock FM2A78M-ITX+ Motherboard

English

ASRock FM2A78M-ITX+ Motherboard

2.4 Expansion Slot (PCI Express Slot)

There is 1 PCI Express slot on this motherboard.

Before installing an expansion car d, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary har dware settings for the

PCIE Slot: PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graph-

card before you start the installation.

ics cards.

English

ASRock FM2A78M-ITX+ Motherboard

2.5 Jumpers Setup

The illustratio n shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1) (see p.3, No. 4)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

If you clear the CMOS, the case open may be detected. Please adjust the

BIOS option “Clear Status” to clear the record of previous chassis intrusion status.

Clear CMOSDefault

ASRock FM2A78M-ITX+ Motherboard

English

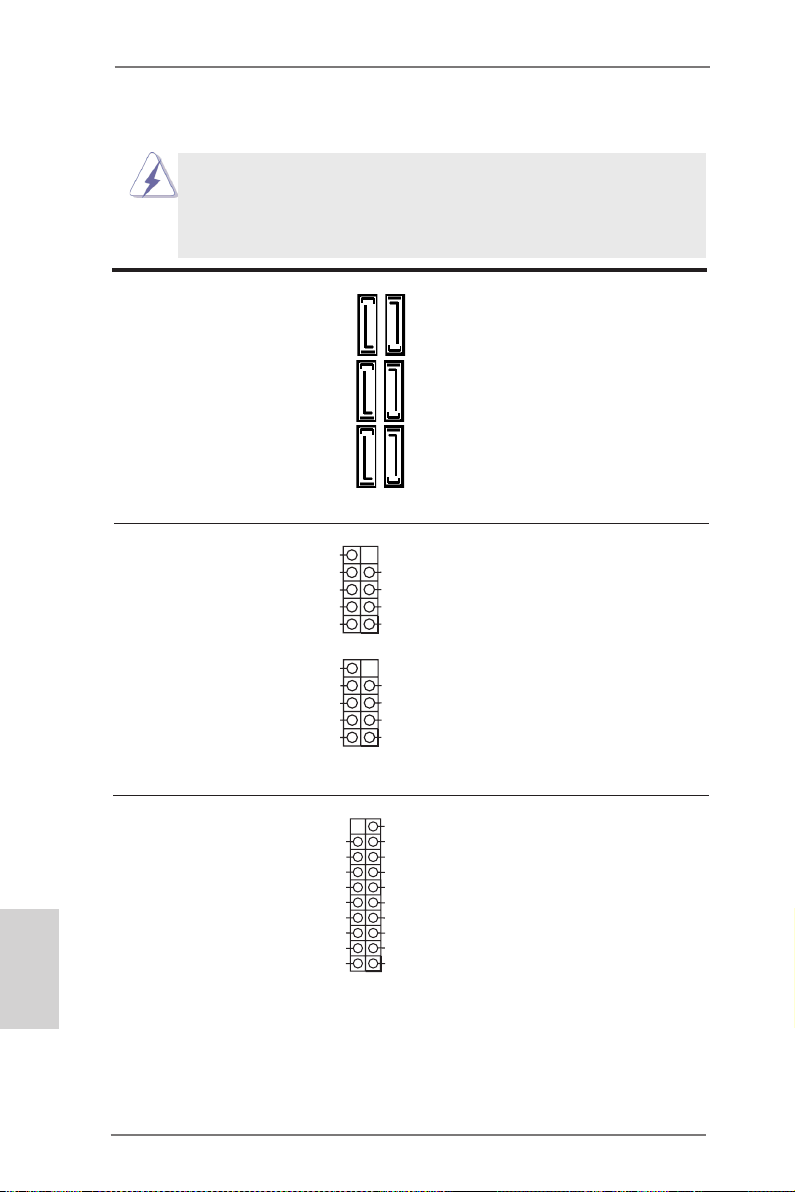

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

Serial ATA3 Connectors These six Serial ATA3

(SATA3_1: see p.3, No. 16)

(SATA3_2: see p.3, No. 15)

(SATA3_3: see p.3, No. 14)

(SATA3_4: see p.3, No. 13)

(SATA3_5: see p.3, No. 12)

(SATA3_6: see p.3, No. 11)

(SATA3) connectors support SATA data cables for internal storage devices. The current SATA3 interface allows up to

6.0 Gb/s data transfer rate.

English

SATA3_2 SATA3_4 SATA3_6

USB 2.0 Headers Besides two default USB 2.0

(9-pin USB_45)

(see p.3 No. 19)

ports on the I/O panel, there

are two USB 2.0 headers on

this motherboard. Each USB 2.0

DUM MY

GND GND

P+5

P-5

USB _PW R

header can support two USB

(9-pin USB_67)

(see p.3 No. 20)

2.0 ports.

DUM MY

GND GND

P+7

P-7

USB _PWR

USB 3.0 Header Besides two default USB 3.0

(19-pin USB3_0_1)

(see p.3, No. 10)

ports on the I/O panel, there is

one USB 3.0 header on this motherboard. This USB 3.0 header can support two USB 3.0 ports.

Vbu s

Int A_P 0_S SRX -

Int A_P 0_S SRX +

GND

Int A_P 0_S STX -

Int A_P 0_S STX +

GND

Int A_P 0_D -

Int A_P 0_D +

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

SATA3_1 SATA3_3 SATA3_5

ASRock FM2A78M-ITX+ Motherboard

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1)

(see p.3 No. 18)

panel audio cable that allows

convenient connection and

control of audio devices.

GND

PRE SENCE #

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio header as below:

A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic. For Windows® 8 / 8 64-bit / 7 / 7 64-bit 64-bit OS: Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

(see p.3 No. 9)

several system front panel functions.

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con-

gure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys-tem is in S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

ASRock FM2A78M-ITX+ Motherboard

English

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

(see p.3 No. 6)

speaker to this header.

English

Chassis Fan Connector Please connect the fan cable

(4-pin CHA_FAN1)

(see p.3 No. 8)

to the fan connector and

match the black wire to the

GND +12 V

CHA _FA N_S PEE D

FAN _SP EED _CO NTR OL

ground pin. CHA_FAN1 fan

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1)

(see p.3 No. 2)

cable to the connector and

match the black wire to the

ground pin.

FAN_ SPEED _CONT ROL

CPU _FAN_S PEED

+12 V

GND

1 2 3 4

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1)

(see p.3 No. 5)

supply to this connector.

24 13

12 1

speed can be controlled through UEFI or A-Tuning.

Pin 1-3 Connected

3-Pin Fan Installation

ASRock FM2A78M-ITX+ Motherboard

Though this motherboard provides 24-pin ATX power connector, it can still work if

you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

24 13

20-Pin ATX Power Supply Installation

12 1

ATX 12V Power Connector Please connect an ATX 12V

(4-pin ATX12V1)

(see p.3 No. 17)

power supply to this connector.

Chassis Intrusion Header This motherboard supports

(2-pin CI1)

CASE OPEN detection feature

(see p.3, No. 3)

that detects if the chassis cover

Sig nal

GND

has been removed. This feature requires a chassis with chassis intrusion detection design.

TPM Header This connector supports

(17-pin TPMS1)

(see p.3, No. 1)

Trusted Platform Module (TPM)

system, which can securely

store keys, digital certicates,

passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

English

ASRock FM2A78M-ITX+ Motherboard

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which allows you to scroll through its various sub-menus and to select among the predetermined choices. For the detailed information about BIOS Setup, please refer to the

User Manual (PDF le) contained in the Support CD.

4. Software Support CD information

This motherboard supports various Microsoft bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit. The Support CD that came with the motherboard contains necessary drivers and useful utilities that will enhance motherboard features. To begin using the Support CD, insert the CD into your CDROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-

click on the le “ASRSETUP.EXE” from the BIN folder in the Support CD to display

the menus.

Windows® operating systems: 8.1 32-

English

ASRock FM2A78M-ITX+ Motherboard

1. Einführung

Wir danken Ihnen für den Kauf des ASRock FM2A78M-ITX+ Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit. Diese Schnellinstallationsanleitung führt in das Motherboard und die schrittweise Installation

ein. Details über das Motherboard nden Sie in der Bedienungsanleitung auf der

Support-CD.

Da sich Motherboard-Spezikationen und BIOS-Software verändern

können, kann der Inhalt dieses Handbuches ebenfalls jederzeit geändert werden. Für den Fall, dass sich Änderungen an diesem Handbuch ergeben, wird eine neue Version auf der ASRock-Website, ohne weitere

Ankündigung, verfügbar sein. Die neuesten Grakkarten und unterstützten

CPUs sind auch auf der ASRock-Website aufgelistet. ASRock-Website: http://www.asrock.com Wenn Sie technische Unterstützung zu Ihrem Motherboard oder spezische Informationen zu Ihrem Modell benötigen, besuchen Sie bitte unsere Webseite: www.asrock.com/support/index.asp

1.1 Kartoninhalt

ASRock FM2A78M-ITX+ Motherboard (Mini-ITX-Formfaktor) ASRock FM2A78M-ITX+ Schnellinstallationsanleitung ASRock FM2A78M-ITX+ Support-CD 2 x Serial ATA (SATA) -Datenkabel (optional) 1 x I/O Shield

ASRock erinnert...

Zur besseren Leistung unter Windows® 8 / 8 64 Bit / 7 / 7 64 Bit empfehlen wir, die Speicherkonfiguration im BIOS auf den AHCI-Modus einzustellen. Hinweise zu den BIOS-Einstellungen nden Sie in der Bedienungsanleitung auf der mitgelieferten CD.

ASRock FM2A78M-ITX+ Motherboard

Deutsch

1.2 Spezikationen

Plattform - Mini-ITX-Formfaktor

- Vollständig solides Kondensatordesign A-Stil - Heim-Cloud

- HDMI-Eingang CPU - Unterstützt Prozessoren für Sockel FM2+ (95 W) / FM2 (100 W)

- 4 + 2-Stromphasendesign

Chipsatz - AMD A78 FCH (Bolton-D3) Speicher - Unterstützung von Dual-Kanal-Speichertechnologie

- 2 x Steckplätze für DDR3

- Unterstützt DDR3 2400+(OC)/2133(OC)/1866/1600/1333/ 1066 non-ECC, ungepufferter Speicher

- Max. Kapazität des Systemspeichers: 32GB

- Unterstützt Intel® Extreme Memory Prole (XMP)1.3/1.2

- Unterstützt AMDs Memory Prole Technology (AMP) bis

AMP 2400 Erweiterungs- - 1 x PCI Express 3.0 x16-Steckplatz (PCIE1: x6-Modus) steckplätze * PCIE 3.0 wird nur mit FM2+-Prozessor unterstützt. FM2-Prozessor unterstützt nur PCIE 2.0.

- Unterstützt AMD duale Grakkarten Onboard-VGA - Integrierte Grakkarte der AMD Radeon HD 8000/7000-

Serie in APU der A-Serie

- DirectX 11.1, Pixel Shader 5.0 mit FM2+-Prozessor. DirectX 11, Pixel Shader 5.0 mit FM2-Prozessor.

- Maximal gemeinsam genutzter Speicher 2GB

- Drei VGA-Ausgangsoptionen: D-Sub, DVI-D sowie HDMI

- Unterstützt drei Monitore

- Unterstützt HDMI mit einer maximalen Auösung von

1920 x 1200 bei 60 Hz

- Unterstützt Dual-link DVI-D mit einer maximalen Auösung

von 2560 x 1600 bei 60 Hz

- Unterstützt D-Sub mit einer maximalen Auösung von

1920 x 1200 bei 60 Hz

- Unterstützt Auto Lip Sync, Deep Color (12bpc), xvYCC und HBR (High Bit Rate-Audio) mit HDMI (kompatibler HDMI-Bildschirm erforderlich)

- Unterstützt stereoskopisches 3D per Blu-ray mit HDMI

- Unterstützt AMD Steady VideoTM 2.0: Neuartige Funktion der Videonachbearbeitung für automatische Reduzierung von

ASRock FM2A78M-ITX+ Motherboard

Bildschwankungen bei Heim-/Online-Videos

- Unterstützt HDCP mit DVI-D- und HDMI-Ports

- Unterstutzt 1080p Blu-ray (BD)-Wiedergabe mit DVI-D- und HDMI-Ports Audio - 7.1-Kanal-HD-Audio mit Inhaltsschutz (Realtek ALC1150- Audiocodec)

- Erstklassige Blu-ray-Audiounterstützung

- Unterstützt DTS Connect LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Qualcomm® Atheros® AR8171

- Unterstützt Qualcomm® Atheros® Security Wake On Internet-Technologie

- Unterstützt Wake-On-LAN

- Unterstützt energieefzientes Ethernet 802.3az

- Unterstützt PXE E/A-Anschlüsse - 1 x PS/2-Maus/Tastaturanschluss an der - 1 x D-Sub port Rückseite - 1 x DVI-D port

- 1 x HDMI-Ausgang

- 1 x HDMI-Eingang

- 1 x optischer SPDIF-Ausgang

- 2 x Standard-USB 2.0-Anschlüsse

- 2 x Standard-USB 3.0-Anschlüsse (AMD A78 FCH (Bolton-D3))

- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)

- HD Audiobuchse: Lautsprecher hinten / Mitte/Bass / Audioeingang / Lautsprecher vorne / Mikrofon Speicher - 6 x SATA 3-Anschluss mit 6,0 Gb/s, unterstützt RAID (RAID 0, RAID 1 und RAID 10), NCQ-, AHCI- und „Hot Plugging“-Funktionen Anschlüsse - 1 x Verteiler für Gehäuseeindringversuche

- 1 x TPM-Stiftleiste

- 1 x CPUlüfter-Anschluss (4-pin)

- 1 x Gehäuselüfter-Anschluss (4-pin)

- 1 x 24-pin ATX-Netz-Header

- 1 x 4-pin anschluss für 12V-ATX-Netzteil

- 1 x Anschluss für Audio auf der Gehäusevorderseite

- 2 x USB 2.0-Anschlüsse (Unterstützung 4 zusätzlicher USB 2.0-Anschlüsse)

- 1 x USB 3.0-Anschlüsse über AMD A78 FCH (Bolton-D3) (Unterstützung 2 zusätzlicher USB 3.0-Anschlüsse)

ASRock FM2A78M-ITX+ Motherboard

Deutsch

BIOS - 64-Mb-AMI-UEFI-Legal-BIOS mit Unterstützung

mehrsprachiger grascher Benutzerschnittstellen

- Unterstützung für “Plug and Play”

- ACPI 1.1-Weckfunktionen

- JumperFree-Modus

- SMBIOS 2.3.1

- DRAM, VDDP und VDDR Stromspannung Multianpassung Support-CD - Treiber, Dienstprogramme, Antivirussoftware (Probeversion), Google Chrome Browser und Toolbar, Start8 (30-Tage-Testversion) Hardware Monitor - CPU-Temperatursensor

- Motherboardtemperaturerkennung

- Drehzahlmessung für CPUlüfter

- Drehzahlmessung für Gehäuselüfter

- Geräuscharmer CPU/Gehäuselüfter

- Mehrstuge Geschwindigkeitsteuerung für CPU-/

Gehäuselüfter

- GEHÄUSE OFFEN-Erkennung

- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore

Betriebssysteme - Unterstützt Microsoft

Windows® 8.1 32-Bit / 8.1 64-Bit / 8 32-Bit / 8 64-Bit / 7 32-Bit / 7 64-Bit Zertizierungen - FCC, CE, WHQL

- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich)

* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website: http://www.asrock.com

Deutsch

ASRock FM2A78M-ITX+ Motherboard

1.3 Einstellung der Jumper

Die Abbildung verdeutlicht, wie Jumper gesetzt werden. Werden Pins durch Jumperkappen verdeckt, ist der Jumper “Gebrückt”. Werden keine Pins durch Jumperkappen verdeckt, ist der Jumper “Offen”. Die Abbildung zeigt einen 3-Pin Jumper dessen Pin1 und Pin2 “Ge-

brückt” sind, bzw. es bendet sich eine

Jumper-Kappe auf diesen beiden Pins.

Jumper Einstellun Beschreibung

CMOS löschen

(CLRCMOS1, 3-Pin jumper) (siehe S.3, No. 4)

Hinweis:

CLRCMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen und Zurücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte aus und trennen das Netzkabel von der Stromversorgung. Warten Sie 15 Sekunden, schließen Sie dann Pin2 und Pin3 am CLRCMOS1 über einen Jumper fünf Sekunden lang kurz. Sie sollten das CMOS allerdings nicht direkt nach der BIOS-Aktualisierung löschen. Wenn Sie das CMOS nach Abschluss der BIOS-Aktualisierung löschen müssen, fahren Sie zuerst das System hoch. Fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort,

Datum, Uhrzeit, benutzerdeniertes Prol, 1394 GUID und MAC-Adresse

nur gelöscht werden, wenn die CMOS-Batterie entfernt wird.

DefaultEinstellung

CMOS löschen

Durch Löschen des CMOS kann erkannt werden, wenn das Gehäuseoffen ist. Bitte stellen Sie zum Löschen der Aufzeichnung des vorherigenGehäuseindringungsstatus die BIOS-Option “Status leeren” ein.

ASRock FM2A78M-ITX+ Motherboard

Deutsch

1.4 Anschlüsse

Anschlussleisten sind KEINE Jumper. Setzen Sie KEINE Jumperkappen auf die Pins der Anschlussleisten. Wenn Sie die Jumperkappen auf die Anschlüsse setzen, wird das Motherboard permanent beschädigt!

Anschluss Beschreibung

Seriell-ATA3-Anschlüsse Diese sechs Serial ATA3-

(SATA3_1: siehe S.3 - No. 16)

(SATA3_2: siehe S.3 - No. 15)

(SATA3_3: siehe S.3 - No. 14)

(SATA3_4: siehe S.3 - No. 13)

(SATA3_5: siehe S.3 - No. 12)

(SATA3_6: siehe S.3 - No. 11)

Datenübertragungsrate bis

6,0 Gb/s.

(SATA3-)Verbínder unterstützten SATA-Datenkabel für interne

Massenspeichergeräte. Die

aktuelle SATA3- Schnittstelle

ermöglicht eine

SATA3_2 SATA3_4 SATA3_6

SATA3_1 SATA3_3 SATA3_5

Deutsch

USB 2.0-Header Zusätzlich zu den zwei

(9-pol. USB_45)

(siehe S.3 - No. 19)

üblichen USB 2.0-Ports an den

I/O-Anschlüssen benden sich

zwei USB 2.0- Anschlussleisten am

(9-pol. USB_67)

(siehe S.3 - No. 20)

Motherboard. Pro USB 2.0-

Anschlussleiste werden zwei

USB 2.0-Ports unterstützt.

USB 3.0-Header Neben zwei Standard-USB

(19-pol. USB3_0_1)

(siehe S.3 - No. 10)

3.0-Ports am E/A-Panel

bendet sich ein USB 3.0-

Header an diesem Motherboard. Dieser USB 3.0 Header kann zwei USB 3.0 Ports unterstützen.

DUM MY

GND GND

P+5

P-5

USB _PW R

DUM MY

GND GND

P+7

P-7

USB _PWR

Vbu s

Int A_P 0_S SRX -

Int A_P 0_S SRX +

GND

Int A_P 0_S STX -

Int A_P 0_S STX +

GND

Int A_P 0_D -

Int A_P 0_D +

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

ASRock FM2A78M-ITX+ Motherboard

Anschluss für Audio auf Dieses Interface zu einem der Gehäusevorderseite Audio-Panel auf der Vorder

(9-Pin HD_AUDIO1)

(siehe S.3 - No. 18)

seite Ihres Gehäuses,

ermöglicht Ihnen eine bequeme Anschlussmöglichkeit und Kontrolle über Audio-Geräte.

GND

PRE SENCE #

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. High Denition Audio unterstützt Jack Sensing (automatische Erkennung

falsch angeschlossener Geräte), wobei jedoch die Bildschirmverdrahtung am Gehäuse HDA unterstützen muss, um richtig zu funktionieren. Beachten Sie bei der Installation im System die Anweisungen in unserem Handbuch und im Gehäusehandbuch.

2. Wenn Sie die AC’97-Audioleiste verwenden, installieren Sie diese wie nachstehend beschrieben an der Front-Audioanschlussleiste: A. Schließen Sie Mic_IN (MIC) an MIC2_L an. B. Schließen Sie Audio_R (RIN) an OUT2_R und Audio_L (LIN) an OUT2_L an. C. Schließen Sie Ground (GND) an Ground (GND) an.

D. MIC_RET und OUT_RET sind nur für den HD-Audioanschluss gedacht. Diese

Anschlüsse müssen nicht an die AC’97-Audioleiste angeschlossen werden.

E. So aktivieren Sie das Mikrofon an der Vorderseite. Bei den Betriebssystemen Windows® 8 / 8 64 Bit / 7 / 7 64 Bit: Wählen Sie im Realtek-Bedienfeld die „FrontMic“ (Vorderes Mikrofon)- Registerkarte. Passen Sie die „Recording Volume“ (Aufnahmelautstärke) an.

System Panel-Header Dieser Header unterstützt

(9-pin PANEL1)

(siehe S.3 - No. 9)

mehrere Funktion der

Systemvorderseite.

Schließen Sie die Ein-/Austaste, die Reset-Taste und die Systemstatusanzeige am Gehäuse an diesen Header an; befolgen Sie dabei die nachstehenden Hinweise zur Pinbelegung. Beachten Sie die positiven und negativen Pins, bevor Sie die Kabel anschließen.

PWRBTN (Ein-/Ausschalter):

Zum Anschließen des Ein-/Ausschalters an der Frontblende des Gehäu

ses. Sie können kongurieren, wie das System mit Hilfe des

Ein-/Ausschalters ausgeschaltet werden können soll.

RESET (Reset-Taste):

Zum Anschließen der Reset-Taste an der Frontblende des Gehäuses. Mit der Reset-Taste können Sie den Computer im Falle eines Absturzes neu starten.

ASRock FM2A78M-ITX+ Motherboard

Deutsch

PLED (Systembetriebs-LED):

Zum Anschließen der Betriebsstatusanzeige an der Frontblende des Gehäuses. Die LED leuchtet, wenn das System in Betrieb ist. Die LED

blinkt, wenn sich das System im Ruhezustand S3 bendet. Die LED schaltet sich aus, wenn sich das System in den Modi S4 bendet

oder ausgeschaltet ist (S5).

HDLED (Festplattenaktivitäts-LED):

Zum Anschließen der Festplattenaktivitäts-LED an der Frontblende des Gehäuses. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.

Das Design der Frontblende kann je nach Gehäuse variiere. Ein Frontblendenmodul besteht hauptsächlich aus einer Ein-/Austaste, einer Reset-Taste, einer Betriebs-LED, einer Festplattenaktivitäts-LED, Lautsprechern, etc. Stellen Sie beim Anschließen des Frontblendenmoduls Ihres Gehäuses an diesem Header sicher, dass die Kabel- und Pinbelegung korrekt übereinstimmen.

Gehäuselautsprecher-Header Schließen Sie den

(4-pin SPEAKER1)

(siehe S.3 - No. 6)

Gehäuselautsprecher an

diesen Header an.

Gehäuselüfteranschlüsse Verbinden Sie die Lüfterkabel

(4-pin CHA_FAN1)

(siehe S.3 - No. 8)

mit den Lüfteranschlüssen,

wobei der schwarze Draht an

den Schutzleiterstift

angeschlossenwird.

Deutsch

CPU-Lüfteranschluss Verbinden Sie das CPU -

(4-pin CPU_FAN1)

(siehe S.3 - No. 2)

Lüfterkabel mit diesem

Anschluss und passen Sie den schwarzen Draht dem Erdungsstift an.

FAN_ SPEED _CONT ROL

CPU _FAN_S PEED

+12 V

GND

1 2 3 4

ASRock FM2A78M-ITX+ Motherboard

Obwohl dieses Motherboard einen vierpoligen CPU-Lüfteranschluss (Quiet Fan) bietet, können auch CPU-Lüfter mit dreipoligem Anschluss angeschlossen werden; auch ohne Geschwindigkeitsregulierung. Wenn Sie einen dreipoligen CPU-Lüfter an den CPU-Lüferanschluss dieses Motherboards anschließen möchten, verbinden Sie ihn bitte mit den Pins 1 – 3.

Pins 1–3 anschließen

Lüfter mit dreipoligem Anschluss installieren

ATX-Netz-Header Verbinden Sie die ATX-

(24-pin ATXPWR1)

(siehe S.3 - No. 5)

Stromversorgung mit diesem

Header.

24 13

12 1

Obwohl dieses Motherboard einen 24-pol. ATX-Stromanschluss bietet,

kann es auch mit einem modizierten traditionellen 20-pol. ATX-Netzteil

verwendet werden. Um ein 20-pol. ATX-Netzteil zu verwenden, stecken Sie den Stecker mit Pin 1 und Pin 13 ein.

Installation eines 20-pol. ATX-Netzteils

24 13

12 1

ATX 12V Anschluss Bitte schließen Sie an diesen

(4-pin ATX12V1)

(siehe S.3 - No. 17)

Anschluss die ATX 12V

Stromversorgung an.

Verteiler für Gehäuseeindringversuche Dieses Motherboard unterstützt

(2-pin CI1)

die GEHÄUSE OFFEN-

(siehe S.3 - No. 3)

Erkennungsfunktion,die

feststellt, ob dieGehäuseab-

Sig nal

GND

deckung entferntwurde. Für diese Funktion istein Ge häuse erforderlich, dasmit ei nem Design zur Erkennung von Gehäuseeindringver suchenausgestattet ist.

Deutsch

ASRock FM2A78M-ITX+ Motherboard

TPM-Stiftleiste Dieser Anschluss unterstützt

(17-pol. TPMS1)

(siehe S.3 - No. 1)

das Trusted Platform Module-

(TPM) System, das Schlüssel,

digitale Zertikate, Kennwörter

und Daten sicher aufbewahren kann. Ein TPM-System hilft zudem bei der Stärkung der Netzwerksicherheit, schützt digitale Identitäten und gewährleistet die Plattforminteg rität.

Deutsch

ASRock FM2A78M-ITX+ Motherboard

2. BIOS-Information

Das Flash Memory dieses Motherboards speichert das Setup-Utility. Drücken Sie <F2> oder <Del> während des POST (Power-On-Self-Test) um ins Setup zu gelangen, ansonsten werden die Testroutinen weiter abgearbeitet. Wenn Sie ins Setup gelangen wollen, nachdem der POST durchgeführt wurde, müssen Sie das System über die Tastenkombination <Ctrl> + <Alt> + <Delete> oder den Reset-Knopf auf der Gehäusevorderseite, neu starten. Natürlich können Sie einen Neustart auch durchführen, indem Sie das System kurz ab- und danach wieder anschalten. Das Setup-Programm ist für eine bequeme Bedienung entwickelt worden. Es ist ein menügesteuertes Programm, in dem Sie durch unterschiedliche Untermenüs scrollen und die vorab festgelegten Optionen auswählen können. Für detaillierte Informationen zum BIOS-Setup, siehe bitte das Benutzerhandbuch (PDF Datei) auf der Support CD.

3. Software Support CD information

Dieses Motherboard unterstützt eine Reiche von Microsoft® Windows® Betriebssystemen: 8.1 32-Bit / 8.1 64-Bit / 8 32-Bit / 8 64-Bit / 7 32-Bit / 7 64-Bit. Die Ihrem Motherboard beigefügte Support-CD enthält hilfreiche Software, Treiber und Hilfsprogramme, mit denen Sie die Funktionen Ihres Motherboards verbessern können Legen Sie die Support-CD zunächst in Ihr CD-ROM-Laufwerk ein. Der Willkommensbildschirm mit den Installationsmenüs der CD wird automatisch aufgerufen, wenn Sie die “Autorun”-Funktion Ihres Systems aktiviert haben. Erscheint der Wilkommensbildschirm nicht, so “doppelklicken” Sie bitte auf das File ASRSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menügesteuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert.

ASRock FM2A78M-ITX+ Motherboard

Deutsch

1. Introduction

Merci pour votre achat d’une carte mère ASRock FM2A78M-ITX+, une carte mère

très able produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité et la abilité au long terme. Ce Guide d’installation rapide présente la carte mère et constitue un guide d’installation pas à pas. Des informations plus détaillées concernant la carte mère pourront être trouvées dans le manuel l’utilisateur qui se trouve sur le CD

d’assistance.

Les spécications de la carte mère et le BIOS ayant pu être mis à jour, le contenu de ce manuel est sujet à des changements sans notication. Au cas où n’importe qu’elle modication intervenait sur ce manuel, la version mise à jour serait disponible sur le site web

ASRock sans nouvel avis. Vous trouverez les listes de prise en

charge des cartes VGA et CPU également sur le site Web ASRock.

Site web ASRock, http://www.asrock.com Si vous avez besoin de support technique en relation avec cette carte mère, veuillez consulter notre site Web pour de plus amples informations particulières au modèle que vous utilisez. www.asrock.com/support/index.asp

1.1 Contenu du paquet

Carte mère ASRock FM2A78M-ITX+ (Facteur de forme Mini-ITX) Guide d’installation rapide ASRock FM2A78M-ITX+ CD de soutien ASRock FM2A78M-ITX+

2 x câbles de données de série ATA (SATA) (en option)

1 x I/O Panel Shield

Français

ASRock vous rappelle...

Pour bénéficier des meilleures performances sous Windows® 8 / 8 64 bits / 7 / 7 64 bits, il est recommandé de paramétrer l'option BIOS dans Conguration de stockage en mode AHCI. Pour plus de détails sur l'installation BIOS, référez-vous au "Mode d'emploi" sur votre CD de support.

ASRock FM2A78M-ITX+ Motherboard

1.2 Spécications

Format - Facteur de forme Mini-ITX

- Conception à condensateurs solides A-Style - Home Cloud

- Entrée HDMI CPU - Prend en charge les processeurs à socket FM2+ 95W / FM2

100W

- Conception 4 + 2 Power Phase

Chipsets - AMD A78 FCH (Bolton-D3) Mémoire - Compatible avec la Technologie de Mémoire à Canal

Double

- 2 x slots DIMM DDR3

- Supporter DDR3 2400+(OC)/2133(OC)/1866/1600/1333/

1066 non-ECC, sans amortissement mémoire

- Capacité maxi de mémoire système: 32GB

- Prend en charge le prol de mémoire extrême Intel® (XMP)

1.3/1.2

- Prend en charge la technologie AMD Memory Prole (Prol de mémoire AMD - AMP) jusqu’à AMP 2400 Slot d’extension - 1 x slot PCI Express 3.0 x16 (PCIE1 à mode x16)

* PCIE 3.0 est uniquement pris en charge le processeur FM2+. Avec le processeur FM2, seul PCIE 2.0 est pris en charge.

- Support de AMD Dual Graphics

VGA sur carte - APU AMD Radeon HD 8000/7000 série graphiques A-series

- DirectX 11.1, Pixel Shader 5.0 avec processeur FM2+. DirectX 11, Pixel Shader 5.0 avec processeur FM2.

- mémoire partagée max 2GB

- Trois options de sortie VGA: D-Sub, DVI-D et HDMI

- Prend en charge la conguration à triple moniteurs

- Prend en charge le HDMI avec une résolution maximale jusqu’à 1920x1200 @ 60Hz

- Prend en charge le Dual-link DVI-D avec une résolution maximale jusqu’à 2560x1600 @ 60Hz

- Prend en charge le D-Sub avec une résolution maximale jusqu’à 1920x1600 @ 60Hz

- Prend en charge Lip Sync, Deep Color (12bpc), xvYCC et

HBR (High Bit Rate Audio: Audio à haut débit binaire) avec

HDMI (Moniteur compatible HDMI requis)

- Prend en charge la 3D stéréoscopique Blu-ray avec HDMI

Français

ASRock FM2A78M-ITX+ Motherboard

Français

- Supporte AMD Steady VideoTM 2.0: Nouvelle fonctionnalité

de traitement post-vidéo pour réduction automatique des tremblements dans les clips vidéo en ligne/maison

- Prise en charge de la fonction HDCP avec ports DVI-D et HDMI

- Supporter 1080p Blu-ray(BD) avec ports DVI-D et HDMI Audio - Audio 7.1 CH HD avec protection du contenu (codec audio Realtek ALC1150)

- Compatible audio Blu-ray Premium

- Prend en charge DTS Connect LAN - PCIE x1 Gigabit LAN 10/100/1000 Mo/s

- Qualcomm® Atheros® AR8171

- Prend en charge la technologie Qualcomm® Atheros® Security Wake On sur Internet

- Prend en charge la fonction Wake-On-LAN

- Prend en charge la fonction d’économie d’énergie Ethernet

802.3az

- Prend en charge PXE Panneau arrière - 1 x port souris/clavier PS/2

- 1 x port D-Sub

- 1 x port DVI-D

- 1 x port de sortie HDMI

- 1 x port d’entrée HDMI

- 1 x Port de sortie optique SPDIF

- 2 x ports USB 2.0 par défaut

- 2 x ports USB 3.0 par défaut (AMD A78 FCH (Bolton-D3))

- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et LED VITESSE)

- Prise HD Audio: Haut-parleur arrière / Central /Basses /

Entrée Ligne / Haut-parleur frontal / Microphone

Stockage - 6 x connecteurs 6,0 Gb/s SATA3, prise en charge des fonctions RAID (RAID 0, RAID 1 et RAID 10), NCQ, AHCI et

« Connexion à chaud »

Connecteurs - 1 x Embase d’intrusion châssis

- 1 x embase TPM

- 1 x Connecteur pour ventilateur de CPU (br. 4)

- 1 x Connecteur pour ventilateur de Châssis (br. 4)

- 1 x br. 24 connecteur d’alimentation ATX

- 1 x br. 4 connecteur d’alimentation 12V ATX

- 1 x Connecteur audio panneau avant

- 2 x En-tête USB 2.0 (prendre en charge 4 ports USB 2.0

supplémentaires)

ASRock FM2A78M-ITX+ Motherboard

- 1 x En-tête USB 3.0 de AMD A78 FCH (Bolton-D3) (prendre

en charge 2 ports USB 3.0 supplémentaires) BIOS - BIOS UEFI AMI 64Mo légaux avec prise en charge

interface graphique multilingue

- Support du “Plug and Play”

- Compatible pour événements de réveil ACPI 1.1

- Gestion jumperless

- Support SMBIOS 2.3.1

- DRAM, VDDP et VDDR Tension Multi-ajustement CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (Version d’essai), Google Chrome Browser et Toolbar, Start8 (30 jours

d’évaluation) Surveillance - Détection de la température du processeur système - Détection de la température du châssis

- Tachéomètre du ventilateur processeur

- Tachéomètre du ventilateur châssis

- Fonction ventilateur silencieux processeur/châssis Quiet Fan

- Contrôle simultané des vitesse du ventilateur processeur/

châssis

- Détection d’OUVERTURE DE BOÎTIER

- Monitoring de la tension: +12V, +5V, +3.3V, Vcore OS - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certications - FCC, CE, WHQL

- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise)

* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web: http://www.asrock.com

ASRock FM2A78M-ITX+ Motherboard

Français

1.3 Réglage des cavaliers

L’illustration explique le réglage des cavaliers. Quand un capuchon est placé sur les broches, le cavalier est « FERME ». Si au-

cun capuchon ne relie les broches,le cava-

lier est « OUVERT ». L’illustration montre un cavalier à 3 broches dont les broches 1 et 2 sont « FERMEES » quand le capuchon est placé sur ces 2 broches.

Le cavalier Description

Effacer la CMOS

(CLRCMOS1)

(voir p.3 g. 4)

Remarque :

Paramètres

par défaut

CLRCMOS1 vous permet d’effacer les données du CMOS. Pour effacer et réinitialiser les paramètres du système à la conguration originale, veuillez éteindre l’ordinateur et débrancher le cordon d’alimentation de

la prise de courant. Après 15 secondes, utilisez un couvercle de jumper pour court-circuiter les broches pin2 et pin3 de CLRCMOS1 pendant

secondes. Veuillez cependant ne pas effacer le CMOS immédiatement

près avoir mis à jour le BIOS. Si vous avez besoin d’effacer le CMOS après avoir mis à jour le BIOS, vous devez allumer en premier le système, puis l’éteindre avant de continuer avec l’opération d’effacement du CMOS. Veuillez noter que le mot de passe, la date, l’heure, le prol par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée.

Effacer la CMOS

Français

Si vous effacez la CMOS, il se peut qu’une ouverture du boîtier

soitdétectée. Veuillez ajuster l’option du BIOS “Clear Status” (Effacerl’état) pour effacer la mention d’état d’intrusion dans le

châssis.

ASRock FM2A78M-ITX+ Motherboard

1.4 En-têtes et Connecteurs sur Carte

Connecteurs Série ATA3 Ces six connecteurs Série

(SATA3_1: voir p.3 No. 16)

(SATA3_2: voir p.3 No. 15)

(SATA3_3: voir p.3 No. 14)

(SATA3_4: voir p.3 No. 13)

(SATA3_5: voir p.3 No. 12)

(SATA3_6: voir p.3 No. 11)

aller jusqu’à 6,0 Gb/s.

Les en-têtes et connecteurs sur carte NE SONT PAS des cavaliers. NE PAS placer les capuchons de cavalier sur ces en-têtes et connecteurs. Le fait de placer les capuchons de cavalier sur les entêtes et connecteurs causera à la carte mère des dommages irréversibles!

ATA3 (SATA3) prennent en

charge les câbles SATA pour

les périphériques de stockage

internes. L’interface SATA3 actuelle permet des taux

transferts de données pouvant

SATA3_2 SATA3_4 SATA3_6

SATA3_1 SATA3_3 SATA3_5

En-tête USB 2.0 A côté des deux ports USB

(USB_45 br.9)

(voir p.3 No. 19)

2.0 par défaut sur le panneau

E/S, il y a deux embases USB

2.0 sur cette carte mère. Chaque embase USB 2.0 peut

(USB_67 br.9)

(voir p.3 No. 20)

prendre en charge 2 ports USB

2.0.

En-tête USB 3.0 En plus des deux ports USB

(USB3_0_1 br. 19)

(voir p.3 No. 10)

3.0 par défaut sur le panneau

E/S, il y a une barrette USB 3.0 sur la carte mère. Cette barrette USB 3.0 peut prendre en charge deux ports USB 3.0.

DUM MY

GND GND

P+5

P-5

USB _PW R

DUM MY

GND GND

P+7

P-7

USB _PWR

Vbu s

Int A_P 0_S SRX -

Int A_P 0_S SRX +

GND

Int A_P 0_S STX -

Int A_P 0_S STX +

GND

Int A_P 0_D -

Int A_P 0_D +

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

ASRock FM2A78M-ITX+ Motherboard

Français

GND

PRE SENCE #

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

Connecteur audio panneau C’est une interface pour

(HD_AUDIO1 br. 9)

(voir p.3 No. 18)

un câble avant audio en façade

qui permet le branchement et

le contrôle commodes de

périphériques audio.

1. L’audio à haute dénition (HDA) prend en charge la détection de che, mais le l de panneau sur le châssis doit prendre en charge le HDA pour

fonctionner correctement. Veuillez suivre les instructions dans notre

manuel et le manuel de châssis an installer votre système.

2. Si vous utilisez le panneau audio AC’97, installez-le sur l’adaptateur audio

du panneau avant conformément à la procédure ci-dessous : A. Connectez Mic_IN (MIC) à MIC2_L. B. Connectez Audio_R (RIN) à OUT2_R et Audio_L (LIN) à OUT2_L. C. Connectez Ground (GND) à Ground (GND). D. MIC_RET et OUT_RET sont réservés au panneau audio HD. Vous

n’avez pas besoin de les connecter pour le panneau audio AC’97. E. Pour activer le micro avant. Pour les systèmes d’exploitation Windows® 8 / 8 64 bits / 7 / 7 64 bits: Allez sur l’onglet “FrontMic” (Micro avant) sur le Panneau de contrôle Realtek. Ajustez “Recording Volume” (Volume d’enregistrement).

En-tête du panneau système Cet en-tête permet d’utiliser

(PANEL1 br.9)

(voir p.3 No. 9)

plusieurs fonctions du

panneau système frontal.

Français

Connectez l’interrupteur d’alimentation, l’interrupteur de réinitialisation et l’indicateur d’état du système du châssis sur cette barrette en respectant l’affectation des broches décrite ci-dessous. Faites attention aux broches positives et négatives avant de connecter les câbles.

PWRBTN (Interrupteur d’alimentation):

Connectez ici le connecteur d’alimentation sur le panneau avant du

châssis. Vous pouvez congurer la façon de mettre votre système hors

tension avec l’interrupteur d’alimentation.

RESET (Interrupteur de réinitialisation):

Connectez ici le connecteur de réinitialisation sur le panneau avant du châssis. Appuyez sur l’interrupteur de réinitialisation pour redémarrer l’ordinateur s’il se bloque ou s’il n’arrive pas à redémarrer normalement.

ASRock FM2A78M-ITX+ Motherboard

PLED (DEL alimentation système):

Connectez ici l’indicateur d’état de l’alimentation sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le système est en

marche. Le voyant DEL clignote lorsque le système est en mode veille

S3. Le voyant DEL est éteint lorsque le système est en mode veille S4 ou lorsqu’il est éteint (S5).

HDLED (DEL activité du disque dur):

Connectez ici le voyant DEL d’activité du disque dur sur le panneau avant du châssis. Ce voyant DEL est allumé lorsque le disque dur est en train de lire ou d’écrire des données.

Le design du panneau avant peut varier en fonction du châssis. Un module de panneau avant consiste principalement en : interrupteur

d’alimentation, interrupteur de réinitialisation, voyant DEL d’alimentation, voyant DEL d’activité du disque dur, haut-parleur, etc. Lorsque vous connectez le panneau avant de votre châssis sur cette barrette, vériez bien à faire correspondre les ls et les broches.

En-tête du haut-parleur Veuillez connecter le de châssis haut-parleur de châssis sur

(SPEAKER1 br. 4)

(voir p.3 No. 6)

cet en-tête.

Connecteur pour châssis ventilateur

(CHA_FAN1 br. 4)

(voir p.3 No. 8)

Branchez les câbles du ventilateur aux connecteurs pour ventilateur et faites correspondre

le l noir à la broche de terre.

Connecteur du ventilateur Veuillez connecter le câble de de l’UC ventilateur d’UC sur ce

(CPU_FAN1 br. 4)

(voir p.3 No. 2)

Bien que cette carte mère offre un support de (Ventilateur silencieux

ventilateur de CPU à 4 broches , le ventilateur de CPU à 3 broches peut

bien fonctionner même sans la fonction de commande de vitesse du

ventilateur. Si vous prévoyez de connecter le ventilateur de CPU à 3

broches au connecteur du ventilateur de CPU sur cette carte mère, veuillez le connecter aux broches 1-3.

connecteur et brancher le l

noir sur la broche de terre.

FAN_ SPEED _CONT ROL

CPU _FAN_S PEED

+12 V

GND

1 2 3 4

Installation de ventilateur à 3 broches

Broches 1-3 connectées

ASRock FM2A78M-ITX+ Motherboard

Français

En-tête d’alimentation ATX Veuillez connecter l’unité

(ATXPWR1 br. 24)

(voir p.3 No. 5)

d’alimentation ATX sur cet en-

tête.

24 13

12 1

Bien que cette carte mère fournisse un connecteur de courant ATX 24 broches, elle peut encore fonctionner si vous adopter une alimentation traditionnelle ATX 20 broches. Pour utiliser une alimentation ATX 20

broches, branchez à l’alimentation électrique ainsi qu’aux broches 1 et

13.

24 13

Français

20-Installation de l’alimentation électrique ATX

12 1

Connecteur ATX 12V Veuillez connecter une unité

(ATX12V1 br.4)

(voir p.3 No. 17)

d’alimentation électrique ATX

12V sur ce connecteur.

Embase d’intrusion châssis Cette carte-mère prend

(CI1 br.2)

en charge la détection

(voir p.3 No. 3)

d’OUVERTURE DE BOÎTIER,

Sig nal

GND

quidétecte tout retrait du

capot duchâssis. Cette fonction-

nécessite un châssis qui a été-

conçu pour la

détectiond’intrusion dans le

châssis.

ASRock FM2A78M-ITX+ Motherboard

Embase TPM Ce connecteur prend en charge

(TPMS1 17 broches)

(voir p.3 No. 1)

un module TPM (Trusted Plat-

form Module – Module de

plateforme sécurisée), qui permet de sauvegarder clés, certicats numériques, mots de passe et données en toute sécurité. Le système TPM permet également de renfor cer la sécurité du réseau, de protéger les identités numé riques et de préserver l’intégrité

de la plateforme.

Français

ASRock FM2A78M-ITX+ Motherboard

2. Informations sur le BIOS

La puce Flash Memory sur la carte mère stocke le Setup du BIOS. Lorsque vous démarrez l’ordinateur, veuillez presser <F2> ou <Del> pendant le POST (Power-OnSelf-Test) pour entrer dans le BIOS; sinon, le POST continue ses tests de routine. Si

vous désirez entrer dans le BIOS après le POST, veuillez redémarrer le système en

pressant <Ctl> + <Alt> + <Suppr>, ou en pressant le bouton de reset sur le boîtier

du système. Vous pouvez également redémarrer en éteignant le système et en le

rallumant. L’utilitaire d’installation du BIOS est conçu pour être convivial. C’est un

programme piloté par menu, qui vous permet de faire déler par ses divers sousmenus et de choisir parmi les choix prédéterminés. Pour des informations détaillées sur le BIOS, veuillez consulter le Guide de l’utilisateur (chier PDF) dans le CD

technique.

3. Informations sur le CD de support

Cette carte mère supporte divers systèmes d’exploitation Microsoft® Windows®:

8.1 32 bits / 8.1 64 bits / 8 32 bits / 8 64 bits / 7 32 bits / 7 64 bits. Le CD technique

livré avec cette carte mère contient les pilotes et les utilitaires nécessaires pour améliorer les fonctions de la carte mère. Pour utiliser le CD technique, insérezle dans le lecteur de CD-ROM. Le Menu principal s’afche automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, localisez dans le CD technique le chier “ASRSETUP.EXE” dans le dossier BIN et double-cliquez dessus pour afcher les menus.

Français

ASRock FM2A78M-ITX+ Motherboard

1. Introduzione

Grazie per aver scelto una scheda madre ASRock FM2A78M-ITX+, una scheda

madre afdabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni

eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca

della qualità e della resistenza.

Questa Guida Rapida all’Installazione contiene l’introduzione alla motherboard e la

guida passo-passo all’installazione. Informazioni più dettagliate sulla motherboard si

possono trovare nel manuale per l’utente presente nel CD di supporto.

Le speciche della scheda madre e il software del BIOS possono

essere aggiornati, pertanto il contenuto di questo manuale può subire variazioni senza preavviso. Nel caso in cui questo manuale sia

modicato, la versione aggiornata sarà disponibile sul sito di ASRock senza altro avviso. Sul sito ASRock si possono anche trovare le più

recenti schede VGA e gli elenchi di CPU supportate. ASRock website http://www.asrock.com Se si necessita dell’assistenza tecnica per questa scheda madre,

visitare il nostro sito per informazioni speciche sul modello che si

sta usando. www.asrock.com/support/index.asp

1.1 Contenuto della confezione

Scheda madre ASRock FM2A78M-ITX+ (Fattore di forma Mini-ITX) Guida di installazione rapida ASRock FM2A78M-ITX+ CD di supporto ASRock FM2A78M-ITX+ 2 x cavi dati Serial ATA (SATA) (opzionali) 1 x I/O Shield

ASRock vi ricorda...

Per ottenere migliori prestazioni in Windows® 8 / 8 64-bit / 7 / 7 64-bit, si

consiglia di impostare l'opzione BIOS in Storage Conguration (Congurazione di archiviazione) sulla modalità AHCI. Per l'impostazione BIOS, fare riferimento a “User Manual” (Manuale dell'utente) nel CD di supporto

per dettagli.

ASRock FM2A78M-ITX+ Motherboard

Italiano

1.2 Speciche

Piattaforma - Fattore di forma Mini-ITX

- Design di condensatore solido Stile superiore - Home Cloud

- Ingresso HDMI Processore - Supporto per processori socket FM2+ 95W / FM2 100W

- Struttura di fase con alimentazione 4 + 2 Chipset - AMD A78 FCH (Bolton-D3) Memoria - Supporto tecnologia Dual Channel Memory

- 2 x slot DDR3 DIMM

- Supporto DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, momoria senza buffer

- Capacità massima della memoria di sistema: 32GB

- Supporto di Intel® XMP (Extreme Memory Prole)1.3/1.2

- Supporta tecnologia AMD Memory Prole (AMP) no ad AMP

2400 Slot di - 1 x slot PCI Express 3.0 x16 (PCIE1: modalità x16) espansione * PCIE 3.0 è supportato solo con CPU FM2+. Con CPU FM2, supporta solo PCIE 2.0.

- Supporta AMD Dual Graphics VGA su scheda - Graca serie AMD Radeon HD 8000/7000 integrata in APU serie A

- DirectX 11.1, Pixel Shader 5.0 con CPU FM2+. DirectX 11, Pixel Shader 5.0 con CPU FM2.

- Memoria massima condivisa 2GB

- Tre opzioni d’output VGA: D-Sub, DVI-D e HDMI

- Supporta il triplo monitor

- Supporta HDMI 1.4a con risoluzione massima no a

1920x1200 @ 60Hz

- Supporta Dual-link DVI-D con risoluzione massima no a

2560x1600 @ 60Hz

- Supporta D-Sub con risoluzione massima no a 1920x1200 @

60Hz

- Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc), xvYCC e HBR (High Bit Rate Audio) con HDMI (è necessario un monitor compatibile HDMI)

- Supporta Blu-ray Stereoscopico in 3D con HDMI

- Supporta AMD Steady VideoTM 2.0: Nuova capacità di post-elab orazione video per la riduzione automatica delle vibrazioni nei video a casa/on-line

ASRock FM2A78M-ITX+ Motherboard

- Supporto della funzione HDCP con le porte DVI-D e HDMI

- Supporto 1080p Blu-ray (BD) riproduzione con le porte DVI-D e HDMI Audio - Audio HD a 7.1 canali con Content Protection (codec audio Realtek ALC1150)

- Supporto audio Blu-ray Premium

- Supporta DTS Connect LAN - PCIE x 1 LAN Gigabit 10/100/1000 Mb/s

- Qualcomm® Atheros® AR8171

- Supporta la tecnologia Qualcomm® Atheros® Security Wake On Internet

- Supporta Wake-On-LAN

- Supporta Energy Efcient Ethernet 802.3az

- Supporta PXE Pannello - 1 x porta PS/2 per mouse/tastiera posteriore - 1 x Porta D-Sub I/O - 1 x Porta DVI-D

- 1 x Porta HDMI-Out

- 1 x Porta HDMI-In

- 1 x Porta ottica SPDIF Out

- 2 x porte USB 2.0 già integrate

- 2 x porte USB 3.0 già integrate (AMD A78 FCH (Bolton-D3))

- 1 x porte LAN RJ-45 con LED (LED azione/collegamento e

LED velocità)

- Connettore HD Audio: cassa posteriore / cassa centrale / bassi / ingresso linea / cassa frontale / microfono Archiviazione - 6 x connettori SATA3 6,0 Gb/s, supporto di RAID (RAID 0, RAID 1 e RAID 10) e delle funzioni NCQ, AHCI e “Hot Plug” Connettori - 1 x header di intrusione dello chassis

- 1 x header TPM

- 1 x Connettore CPU ventola (4-pin)

- 1 x Connettore Chassis ventola (4-pin)

- 1 x 24-pin collettore alimentazione ATX

- 1 x 4-pin connettore ATX 12V

- 1 x Connettore audio sul pannello frontale

- 2 x Collettore USB 2.0 (supporta 4 porte USB 2.0)

- 1 x Collettore USB 3.0 di AMD A78 FCH (Bolton-D3) (supporta 2 porte USB 3.0) BIOS - BIOS legale 64Mb AMI UEFI con supporto GUI multilingue

- Supporta “Plug and Play”

- Compatibile con ACPI 1.1 wake up events

- Supporta jumperfree

ASRock FM2A78M-ITX+ Motherboard

Italiano

- Supporta SMBIOS 2.3.1

- Regolazione multi-voltaggio DRAM, VDDP e VDDR CD di - Driver, utilità, software antivirus (Versione dimostrativa), supporto Google Chrome Browser e Toolbar, Start8 (30 giorni di prova) Monitoraggio - Sensore per la temperatura del processore Hardware - Sensore temperatura scheda madre

- Indicatore di velocita per la ventola del CPU

- Indicatore di velocita per la ventola del Chassis

- Ventola CPU/chassis silenziosa

- Ventola CPU/chassis con controllo di varie velocità

- Rilevamento CASE APERTO

- Voltaggio: +12V, +5V, +3.3V, Vcore Compatibilità - Microsoft® Windows® 8.1 32 bit / 8.1 64 bit / 8 32 bit / 8 64 bit / SO 7 32 bit / 7 64 bit Certicazioni - FCC, CE, WHQL

- Predisposto ErP/EuP (è necessaria l’alimentazione predis posta per il sistema ErP/EuP)

* Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com

Italiano

ASRock FM2A78M-ITX+ Motherboard

1.3 Setup dei Jumpers

L’illustrazione mostra come sono settati i jumper. Quando il ponticello è posizionato sui pin, il jumper è “CORTOCIRCUITATO”. Se sui pin non ci sono ponticelli, il jumper è “APERTO”. L’illustrazione mostra un jumper a 3 pin in cui il pin1 e il pin2 sono “CORTOCIRCUITATI” quando il ponticello è posizionato su questi pin.

Jumper Settaggio del Jumper

Resettare la CMOS

(CLRCMOS1) (vedi p.3 item 4)

Nota:

CLRCMOS1 permette si azzerare i dati nella CMOS. Per cancellare e ripristinare i

parametri del sistema sulla congurazione iniziale, spegnere il computer e

Impostazione

predenita

scollegare il cavo d’alimentazione dalla presa di corrente. Attendere 15 secondi, poi usare un cappuccio jumper per cortocircuitare il pin 2 ed il pin 3 su CLRCMOS1 per 5 secondi. Tuttavia, si consiglia di non cancellare la CMOS subito dopo avere aggiornato il BIOS. Se si deve azzerare la CMOS quando si è completato l’aggiornamento del BIOS, è necessario per prima cosa avviare il sistema e poi spegnerlo prima di eseguire l’azzeramento della CMOS. No-

tare che password, data, ore, prolo utente predenito, 1394 GUID e indirizzo

MAC saranno cancellati solo se è rimossa la batteria della CMOS.

Azzeramen-

to CMOS

Se si cancella la CMOS, potrebbe essere rilevata l’apertura del case. Regolare l’opzione del BIOS “Clear Status” (Cancella stato) per cancellarela registrazione del precedente stato d’intrusione chassis.

ASRock FM2A78M-ITX+ Motherboard

Italiano

1.4 Collettori e Connettori su Scheda

Connettori Serial ATA3 Questi sei connettori Serial

(SATA3_1: vedi p.3 Nr. 16)

(SATA3_2: vedi p.3 Nr. 15)

(SATA3_3: vedi p.3 Nr. 14)

(SATA3_4: vedi p.3 Nr. 13)

(SATA3_5: vedi p.3 Nr. 12)

(SATA3_6: vedi p.3 Nr. 11)

attuale permette velocità di trasferimento dati no a

6.0 Gb/s.

I collettori ed i connettori su scheda NON sono dei jumper. NON installare cappucci per jumper su questi collettori e connettori. L’installazione

di cappucci per jumper su questi collettori e connettori provocherà

danni permanenti alla scheda madre!

ATA3 (SATA3) supportano cavi

dati SATA per dispositivi di immagazzinamento interni. ATA3 (SATA3) supportano cavi SATA per dispositivi di memoria interni. L’interfaccia SATA3

SATA3_2 SATA3_4 SATA3_6

SATA3_1 SATA3_3 SATA3_5

Italiano

Collettore USB 2.0 Oltre alle due porte USB 2.0

(9-pin USB_45)

(vedi p.3 Nr. 19)

predenite nel pannello I/O, la

scheda madre dispone di due intestazioni USB 2.0. Ciascuna intestazione USB 2.0 supporta due porte USB 2.0.

(9-pin USB_67) (vedi p.3 Nr. 20)

Collettore USB 3.0 Oltre alle due porte USB 3.0

(19-pin USB3_0_1)

(vedi p.3 Nr. 10)

standard del pannello I/O,

questa scheda madre è dotata di un header USB 3.0 che supporta due porte USB 3.0.

DUM MY

GND GND

P+5

USB _PW R

DUM MY

GND GND

P+7

USB _PWR

Vbu s

Int A_P 0_S SRX -

Int A_P 0_S SRX +

GND

Int A_P 0_S STX -

Int A_P 0_S STX +

GND

Int A_P 0_D -

Int A_P 0_D +

P-5

P-7

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

ASRock FM2A78M-ITX+ Motherboard

Connettore audio sul È un’interfaccia per il cavo del pannello frontale pannello audio. Che consente

(9-pin HD_AUDIO1)

(vedi p.3 Nr. 18)

connessione facile e controllo

dei dispositivi audio.

GND

PRE SENCE #

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. La caratteristica HDA (High Denition Audio) supporta il rilevamento dei

connettori, però il pannello dei cavi sul telaio deve supportare la funzione

HDA (High Denition Audio) per far sì che questa operi in modo corretto.

Attenersi alle istruzioni del nostro manuale e del manuale del telaio per installare il sistema.

2. Se si utilizza un pannello audio AC’97, installarlo nell’intestazione audio del pannello anteriore, come indicato di seguito:

A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) ad OUT2_L. C. Collegare Ground (GND) a Ground (GND).

D. MIC_RET e OUT_RET sono solo per il pannello audio HD. Non è necessario collegarli per il pannello audio AC’97.

E. Per attivare il microfono frontale. Sistema operativo Windows® 8 / 8 64-bit / 7 / 7 64-bit: Andare alla scheda “FrontMic” (Microfono frontale) del pannello di controllo Realtek. Regolare la voce “Recording Volume” (Volume registrazione).

Collettore pannello di sistema Questo collettore accomoda

(9-pin PANEL1)

(vedi p.3 Nr. 9

diverse funzioni di sistema

pannello frontale.

Collegare l’interruttore d’alimentazione, l’interruttore di ripristino, l’indicatore di stato del sistema del pannello frontale del telaio a questo

header in base all’assegnazione dei pin denita di seguito. Determinare i

pin positivi e negativi prima di collegare i cavi.

PWRBTN (interruttore d’alimentazione):

Va collegato all’interruttore d’alimentazione del pannello frontale del

telaio. Usando l’interruttore d’alimentazione si può congurare il modo in

cui si spegne il sistema.

RESET (interruttore di ripristino):

Va collegato all’interruttore di ripristino del pannello frontale del telaio. Premere l’interruttore di ripristino per riavviare il sistema se il computer si blocca e non riesce ad eseguire un normale riavvio.

ASRock FM2A78M-ITX+ Motherboard

Italiano

PLED (LED alimentazione del sistema):

Va collegato all’indicatore di stato d’alimentazione del pannello frontale del telaio. Il LED è acceso quando il sistema è operativo. Il LED continua a lampeggiare quando il sistema è in stato di standby S3. Il LED è spento quando il sistema è in stato di sospensione /ibernazione S4 oppure spento (S5).

HDLED (LED attività disco rigido):

Va collegato al LED attività disco rigido del pannello frontale del telaio. Il

LED è acceso quando disco rigido legge e scrive i dati.

Il design del pannello frontale può variare in base ai telai. Il modulo di un pannello frontale può consistere di: interruttore d’alimentazione,

interruttore di ripristino, LED d’alimentazione, LED attività disco rigido,

casse, eccetera. Quando si collega il modulo del pannello frontale a

questo header, assicurarsi che l’assegnazione dei li e dei pin sia fatta

corrispondere in modo appropriato.

Collettore casse telaio Collegare le casse del telaio a

(4-pin SPEAKER1)

(vedi p.3 Nr. 6)

questo collettore.

Collettori Chassis ventola Collegare i cavi della ventola ai

(4-pin CHA_FAN1)

(vedi p.3 Nr. 8)

corrispondenti connettori

facendo combaciare il cavo

nero col pin di terra.

Italiano

Connettore ventolina CPU Collegare il cavo della ventolina

(4-pin CPU_FAN1)

(vedi p.3 Nr. 2)

CPU a questo connettore e far

combaciare il lo nero al pin

terra.

FAN_ SPEED _CONT ROL

CPU _FAN_S PEED

+12 V

GND

1 2 3 4

Sebbene la presente scheda madre disponga di un supporto per ventola CPU a 4 piedini (ventola silenziosa), la ventola CPU a 3 piedini è in

grado di funzionare anche senza la funzione di controllo della velocità

della ventola. Se si intende collegare la ventola CPU a 3 piedini al connettore della ventola CPU su questa scheda madre, collegarla ai piedini 1-3.

Piedini 1-3 collegati

Installazione della ventola a 3 piedini

ASRock FM2A78M-ITX+ Motherboard

Connettore alimentazione ATX Collegare la sorgente

(24-pin ATXPWR1)

(vedi p.3 Nr. 5)

d’alimentazione ATX a questo

connettore.

24 13

12 1

Con questa scheda madre, c’è in dotazione un connettore elettrico ATX a 24 pin, ma può funzionare lo stesso se si adotta un alimentatore ATX a 20 pin. Per usare l’alimentatore ATX a 20 pin, collegare l’alimentatore con il Pin 1 e il Pin 13.

Installazione dell’alimentatore ATX a 20 pin

24 13

12 1

Connettore ATX 12 V Collegare un alimentatore ATX

(4-pin ATX12V1)

(vedi p.3 Nr. 17)

12 V a questo connettore.

Header di intrusione dello chassis Questa scheda madre supporta

(2-pin CI1)

la funzione di rilevamento del

(vedi p.3 Nr. 3)

CASE APERTOche rileva che

Sig nal

GND

il coperchio dellochassis è stato rimosso.Questa funzione richiede unochassis con struttura dirilevamento di intrusione dellochassis.

ASRock FM2A78M-ITX+ Motherboard

Italiano

Header TPM Questo connettore supporta il

(TPMS1 17 pin)

(vedi p.3 No. 1)

sistema Trusted Platform Mo-

dule (TPM), che può archiviare

in modo sicuro chiavi, certicati

digitali, password e dati. Un sistema TPM permette anche di potenziare la sicurezza della

rete, di proteggere identità digi tali e di garantire l’integrità della

piattaforma.

Italiano

ASRock FM2A78M-ITX+ Motherboard

2. Informazioni sul BIOS

La Flash Memory sulla scheda madre contiene le Setup Utility. Quando si avvia il computer, premi <F2> o <Del> durante il Power-On-Self-Test (POST) della Setup utility del BIOS; altrimenti, POST continua con i suoi test di routine. Per entrare il BIOS Setup dopo il POST, riavvia il sistema premendo <Ctl> + <Alt> + <Delete>, o

premi il tasto di reset sullo chassis del sistema. Per informazioni più dettagliate circa il Setup del BIOS, fare riferimento al Manuale dell’Utente (PDF le) contenuto nel cd

di supporto.

3. Software di supporto e informazioni su

Questa scheda madre supporta vari sistemi operativi Microsoft® Windows®: 8.1 32bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit. Il CD di supporto a corredo della scheda madre contiene i driver e utilità necessari a potenziare le caratteristiche della scheda. Inserire il CD di supporto nel lettore CD-ROM. Se la funzione

“AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul le “ASRSETUP. EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù.

ASRock FM2A78M-ITX+ Motherboard

Italiano

1. Introducción

Gracias por su compra de ASRock FM2A78M-ITX+ placa madre, una placa de con-

anza producida bajo el control de calidad estricto y persistente. La placa madre

provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock. Esta Guía rápida de instalación contiene una introducción a la placa base y una guía de instalación paso a paso. Puede encontrar una información más detallada sobre la placa base en el manual de usuario incluido en el CD de soporte.

Porque las especicaciones de la placa madre y el software de BIOS

podrían ser actualizados, el contenido de este manual puede ser cambiado

sin aviso. En caso de cualquier modicación de este manual, la versión

actualizada estará disponible en el website de ASRock sin previo aviso.

También encontrará las listas de las últimas tarjetas VGA y CPU soportadas

en la página web de ASRock. Website de ASRock http://www.asrock.com Si necesita asistencia técnica en relación con esta placa base, visite

nuestra página web con el número de modelo especíco de su placa.

www.asrock.com/support/index.asp

1.1 Contenido de la caja

Placa base ASRock FM2A78M-ITX+ (Factor de forma Mini-ITX) Guía de instalación rápida de ASRock FM2A78M-ITX+ CD de soporte de ASRock FM2A78M-ITX+ 2 x cables de datos Serial ATA (SATA) (Opcional) 1 x protección I/O

Español

ASRock le recuerda...

Para mejorar el rendimiento en Windows® 8 / 8 64 bits / 7 / 7 64 bits,

es recomendable establecer la opción del BIOS de la conguración de almacenamiento en el modo AHCI. Para obtener detalles sobre la con-

guración del BIOS, consulte el “Manual del usuario” que se encuentra en nuestro CD de soporte.

ASRock FM2A78M-ITX+ Motherboard

1.2 Especicación

Plataforma - Factor de forma Mini-ITX

- Diseño de los Condensadores: All Solid A-Style - Home Cloud

- Entrada HDMI Procesador - Admite zócalos de procesadores FM2+ 95W / FM2 100W

- Diseño de fases de potencia 4 + 2

Chipset - AMD A78 FCH (Bolton-D3) Memoria - Soporte de Tecnología de Memoria de Doble Canal

- 2 x DDR3 DIMM slots

- Apoya DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, memoria de un-buffered

- Máxima capacidad de la memoria del sistema: 32GB

- Compatible con Intel® Extreme Memory Prole (XMP)1.3/1.2

- Admite tecnología de perl de memoria AMD (AMP, Memory Prole Technology) hasta AMP 2400

Ranuras de - 1 x ranura PCI Express 3.0 x16 (PCIE1: modo x16) Expansión * Solo se admite PCIE 3.0 con FM2+ CPU. Con FM2 CPU, solo se admite PCIE 2.0.

- Admite tarjeta gráca dual de AMD VGA OnBoard - Grácos integrados de serie 8000/7000, HD AMD Radeon con APU de serie A

- DirectX 11.1, Sombreador de píxeles 5.0 con FM2+ CPU. DirectX 11, Sombreador de píxeles 5.0 con FM2 CPU.

- 2GB de Memoria máxima compartida

- Tres opciones de salida VGA: D-Sub, DVI-D y HDMI

- Compatible con monitores triples

- Admite HDMI con una resolución máxima de 1920x1200 a 60 Hz

- Admite Dual-link DVI-D con una resolución máxima de 2560x1600 a 60 Hz

- Admite D-Sub con una resolución máxima de 1920x1200 a 60 Hz

- Admite Sincronización automática entre audio y vídeo, Deep Color (12 bpc), xvYCC y HBR (audio de alta tasa de bits) con HDMI (se necesita un monitor compatible con HDMI)

- Admite la función 3D estereoscópica Blu-ray con HDMI

- Admite AMD Steady VideoTM 2.0: Nueva capacidad de pospro cesamiento de vídeo para reducción automática de

oscila ciones en vídeo doméstico y en línea

Español

ASRock FM2A78M-ITX+ Motherboard

Español

- Admite la función HDCP con puertos DVI-D y HDMI

- Apoya la reproducción de Blu-rayo de 1080p (BD) con puertos DVI-D y HDMI Audio - 7.1 Audio CH HD con Protección de contenido (Realtek ALC1150 Audio Codec)

- Compatible con audio Blu-ray Premium

- Compatible con DTS Connect LAN - LAN Gigabit PCIE x1 10/100/1000 Mb/s

- Qualcomm® Atheros® AR8171

- Compatible con la Tecnología de seguridad en internet Wake On Qualcomm® Atheros

- Compatible con Wake-On-LAN

- Compatible con Ethernet de consumo eciente de

energía 802.3az

- Compatible con PXE Entrada/Salida - 1 x puerto de ratón/teclado PS/2 de Panel - 1 x Puerto D-Sub Trasero - 1 x Puerto DVI-D

- 1 x puerto de salida HDMI

- 1 x puerto de entrada HDMI

- 1 x puerto de salida óptica SPDIF

- 2 x puertos USB 2.0 predeterminados

- 2 x puertos USB 3.0 predeterminados (AMD A78 FCH (Bolton-D3))

- 1 x Puerto LAN RJ-45 con LED (LED de ACCIÓN/ ENLACE y LED de VELOCIDAD)

- Conexión de audio: Altavoz trasero / Central/Bajos / Entrada de línea / Altavoz frontal / Micrófono Almacenamiento - 6 x conectores SATA3 de 6,0 Gb/s compatibles con funciones RAID (RAID 0, RAID 1 y RAID 10), NCQ, AHCI y de “conexión en caliente” compatibles con funciones NCQ, AHCI y de “conexión en caliente” Conectores - 1 x Conector de detección de intrusión en el chasis

- 1 x cabezal TPM

- 1 x Conector de ventilador de CPU (4-pin)

- 1 x Conector de ventilador de chasis (4-pin)

- 1 x 24-pin cabezal de alimentación ATX

- 1 x 4-pin conector de ATX 12V power

- 1 x Conector de audio de panel frontal

- 2 x Cabezal USB 2.0 (admite 4 puertos USB 2.0 adicionales)

ASRock FM2A78M-ITX+ Motherboard

- 1 x Cabezal USB 3.0 de AMD A78 FCH (Bolton-D3)(admite 2 puertos USB 3.0 adicionales) BIOS - BIOS Legal UEFI AMI de 64Mb compatibles con interfaz

gráca de usuario multilingüe

- Soporta “Plug and Play”

- ACPI 1.1 compliance wake up events

- Soporta “jumper free setup”

- Soporta SMBIOS 2.3.1

- Múltiple ajuste de DRAM, VDDP y VDDR Voltage CD de soport - Controladores, Utilerías, Software de Anti Virus (Versión de prueba), Google Chrome Browser y Toolbar, Start8 (Versión de prueba de 30 días) Monitor Hardware - Sensor de temperatura de la CPU

- Sensor de temperatura de la Chasis

- Tacómetro del ventilador de CPU

- Tacómetro del ventilador de Chasis

- CPU/Chasis Ventilador silencioso

- Control multivelocidad del ventilador de CPU/Chasis

- Control de APERTURA DE CARCASA

- Monitor de Voltaje: +12V, +5V, +3.3V, Vcore OS - En conformidad con Microsoft® Windows® 8.1 32 bits / 8.1 64 bits / 8 32 bits / 8 64 bits / 7 32 bits / 7 64 bits Certicaciones - FCC, CE, WHQL

- Cumple con la directiva ErP/EuP (se requiere una fuente de alimentación que cumpla con la directiva ErP/EuP)

* Para más información sobre los productos, por favor visite nuestro sitio web: http://www.asrock.com

ASRock FM2A78M-ITX+ Motherboard

Español

1.3 Setup de Jumpers

La ilustración muestra como los jumpers

son congurados. Cuando haya un jumper-

cap sobre los pins, se dice gue el jumper está “Short”. No habiendo jumper cap sobre los pins, el jumper está “Open”. La ilustración muesta un jumper de 3 pins cuyo pin 1 y pin 2 están “Short”.

Jumper Setting

Limpiar CMOS

(CLRCMOS1, jumper de 3 pins) (ver p.3, No. 4)

Nota:

Valor predeterminado

Restablecimiento de

la CMOS

CLRCMOS1 permite borrar los datos de la memoria CMOS. Para borrar los parámetros del sistema y restablecer la conguración predeterminada de los mismos, apague el equipo y desenchufe el cable de alimentación de la toma de corriente

eléctrica. Deje que transcurran 15 segundos y, después, utilice un puente

cortocircuitar los contactos 2 y 3 de CLRCMOS1 durante 5 segundos. No borre

la memoria CMOS justamente después de actualizar el BIOS. Si necesita borrar la memoria CMOS justamente después de actualizar el BIOS, debe iniciar primero

el sistema y, a continuación, cerrarlo antes de llevar a cabo el borrado de dicha memoria. Tenga en cuenta que la contraseña, la fecha, la hora, el perl predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se borrará si la batería CMOS se quita.

para

Español

Si borra la memoria CMOS, se puede detectar un caso de abertura. Ajuste la opción del BIOS “Clear Status” (Borrar estado) para borrar elregistro del estado de intrusión anterior del chasis.

ASRock FM2A78M-ITX+ Motherboard

1.4 Cabezales y Conectores en Placas

Los conectores y cabezales en placa NO son puentes. NO coloque las cubiertas de los puentes sobre estos cabezales y conectores. El colocar cubiertas de puentes sobre los conectores y cabezales provocará un daño permanente en la placa base.

Conexiones de serie ATA3 Estas seis conexiones de

(SATA3_1: vea p.3, N. 16)

(SATA3_2: vea p.3, N. 15)

(SATA3_3: vea p.3, N. 14)

(SATA3_4: vea p.3, N. 13)

(SATA3_5: vea p.3, N. 12)

(SATA3_6: vea p.3, N. 11)

serie ATA3 (SATA3) admiten cables SATA para dispositivos de almacenamiento internos. La interfaz SATA3 actual permite una velocidad de transferencia de 6.0 Gb/s.

SATA3_2 SATA3_4 SATA3_6

Cabezal USB 2.0 Además de dos puertos

(9-pin USB_45)

(vea p.3, N. 19)

USB 2.0 predeterminados en el

panel de E/S, hay dos bases de conexiones USB 2.0 en esta placa base. Cada una de estas bases de conexiones

(9-pin USB_67)

(vea p.3, N. 20)

admite dos puertos USB 2.0.

DUM MY

GND GND

P+5

P-5

USB _PW R

DUM MY

GND GND

P+7

P-7

USB _PWR

Cabezal USB 3.0 Además de dos puertos 3.0

(19-pin USB3_0_1)

(vea p.3, N. 10)

predeterminados situados en el

panel E/S, encontrará una cabecera USB 3.0 en esta placa base. Esta cabecera USB

3.0 admiten dos puertos USB

3.0.

Vbu s

Int A_P 0_S SRX -

Int A_P 0_S SRX +

GND

Int A_P 0_S STX -

Int A_P 0_S STX +

GND

Int A_P 0_D -

Int A_P 0_D +

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

SATA3_1 SATA3_3 SATA3_5

Español

ASRock FM2A78M-ITX+ Motherboard

Conector de audio de Este es una interface para panel frontal cable de audio de panel frontal

(9-pin HD_AUDIO1)

(vea p.3, N. 18)

que permite conexión y control

conveniente de apparatos de

Audio.

GND

PRE SENCE #

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. El Audio de Alta Denición soporta la detección de conector, pero

el cable de panel en el chasis debe soportar HDA para operar correctamente. Por favor, siga las instrucciones en nuestro manual y en el manual de chasis para instalar su sistema.

2. Si utiliza el panel de sonido AC’97, instálelo en la cabecera de sonido del panel frontal de la siguiente manera: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) en OUT2_L. C. Conecte Ground (GND) a Ground (GND).

D. MIC_RET y OUT_RET son sólo para el panel de sonido HD. No

necesitará conectarlos al panel de sonido AC’97. E. Activación del micrófono frontal. En sistemas operativos Windows® 8 / 8 64-bit / 7 / 7 64-bit:

Acceda a la cha “FrontMic” (Micrófono frontal) del panel de control

Realtek. Ajuste la posición del control deslizante “Recording Volume” (Volumen de grabación).

Cabezal de panel de sistema Este cabezar acomoda varias

(9-pin PANEL1)

(vea p.3, N. 9)

dunciones de panel frontal de

sistema.

Español

Conecte el interruptor de alimentación, el interruptor de restablecimiento y el indicador de estado del sistema situados en el chasis con esta cabecera en función de las siguientes asignaciones de contacto. Preste atención a los contactos positivos y negativos antes de conectar los cables.

PWRBTN (interruptor de alimentación):

Conecte el interruptor de encendido situado en el panel frontal del

chasis. Puede congurar la forma de apagar su sistema mediante el

interruptor de alimentación.

RESTABLECER (interruptor de restablecimiento):

Conecte el interruptor de restablecimiento situado en el panel frontal del chasis. Pulse el interruptor de restablecimiento para restablecer el equipo si se bloquea y no se reinicia con normalidad.

ASRock FM2A78M-ITX+ Motherboard

PLED (LED de alimentación del sistema):

Conecte el indicador de estado de alimentación situado en el panel

frontal del chasis. El LED se enciende cuando el sistema esté en

funcionamiento. El LED parpadea cuando el sistema se encuentre en estado de suspensión S3. El LED se apaga cuando el sistema se encuentre en estado de suspensión S4 o se apaga (S5).

HDLED (LED de actividad del disco duro):

Conecte el LED de actividad de disco duro situado en el panel frontal

del chasis. El LED se enciende cuando el disco duro esté leyendo o

escribiendo datos.

Es posible que el diseño del panel frontal varíe en función del chasis. Un módulo del panel frontal consiste principalmente de interruptor de alimentación, interruptor de restablecimiento, LED de alimentación, LED de actividad del disco duro, altavoz, etc. Al conectar el módulo del panel

frontal del chasis a esta cabecera, asegúrese de que las asignaciones

de cables y las asignaciones de contactos coincidan correctamente.

Cabezal del altavoz del chasis Conecte el altavoz del chasis a

(4-pin SPEAKER1)

(vea p.3, N. 6)

su cabezal.

Conectores de ventilador de chasis

(4-pin CHA_FAN1)

(vea p.3, N. 8)

Por favor, conecte los cables del ventilador a los conectores de ventilador, haciendo coincidir el cable negro con la patilla de masa.

Conector del ventilador Conecte el cable del ventilador de la CPU de la CPU a este conector y

(4-pin CPU_FAN1)

(vea p.3, N. 2)

Aunque esta placa base proporciona compatibilidad para un ventilador (silencioso) de procesador de 4 contactos, el ventilador de procesador de 3 contactos seguirá funcionando correctamente incluso sin la función de control de velocidad del ventilador. Si pretende enchufar el ventilador de procesador de 3 contactos en el conector del ventilador de

procesador de esta placa base, conéctelo al contacto 1-3.

haga coincidir el cable negro

con el conector de tierra.

FAN_ SPEED _CONT ROL

CPU _FAN_S PEED

+12 V

GND

1 2 3 4

Contacto 1-3 conectado

Instalación del ventilador de 3 contactos

ASRock FM2A78M-ITX+ Motherboard

Español

Cabezal de alimentación ATX Conecte la fuente de

(24-pin ATXPWR1)

(vea p.3, N. 5)

A pesar de que esta placa base incluye in conector de alimentación ATX

de 24 pins, ésta puede funcionar incluso si utiliza una fuente de

alimentación ATX de 20 pins tradicional. Para usar una fuente de alimentación ATX de 20 pins, por favor, conecte su fuente de alimentación usando los Pins 1 y 13.

alimentación ATX a su cabezal.

24 13

12 1

Instalación de una Fuente de Alimentación ATX de 20 Pins

24 13

12 1

Conector de ATX 12V power Tenga en cuenta que es

(4-pin ATX12V1)

(vea p.3, N. 17)

necesario conectar este

conector a una toma de corriente con el enchufe ATX 12V, de modo que proporcione

suciente electricidad. De lo

contrario no se podrá encender.

Conector de detección de intrusión en el chasis Esta placa base admite la

(2-pin CI1)

función de control de

(vea p.3, N. 3)

APERTURA DE CARCASA,

quepermite detectar si se

Sig nal

GND

haretirado la cubierta del chasis.Dicha función requiere unchasis con diseño

especícopara la detección de

intrusiónen el chasis.

Español

ASRock FM2A78M-ITX+ Motherboard

Cabezal TPM Este conector es compat-

(TPMS1 de 17 terminales)

(vea p.3, N. 1)

ible con el sistema Módulo de

Plataforma Segura (TPM, en

inglés), que puede almacenar de forma segura claves, certi-

cados digitales, contraseñas y

datos. Un sistema TPM también

ayuda a aumentar la seguridad en la red, protege identidades digitales y garantiza la integri dad de la plataforma.

Español

ASRock FM2A78M-ITX+ Motherboard

2. BIOS Información

El Flash Memory de la placa madre deposita SETUP Utility. Durante el Power-Up (POST) apriete <F2> o <Del> para entrar en la BIOS. Sí usted no oprime ninguna

tecla, el POST continúa con sus rutinas de prueba. Si usted desea entrar en la BIOS después del POST, por favor reinicie el sistema apretando <Ctl> + <Alt> +

<Borrar>, o apretando el botón Reset en el panel del ordenador. Para información

detallada sobre como congurar la BIOS, por favor reérase al Manual del Usuario

(archivo PDF) contenido en el CD.

3. Información de Software Support CD

Esta placa-base soporta diversos tipos de sistema operativo Windows®: 8.1 32 bits / 8.1 64 bits / 8 32 bits / 8 64 bits / 7 32 bits / 7 64 bits. El CD de instalación que acompaña la placa-base trae todos los drivers y programas utilitarios para instalar y

congurar la placa-base. Para iniciar la instalación, ponga el CD en el lector de CD y se desplegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y

doble-pulse en el archivo “ASRSETUP.EXE” para iniciar la instalación.

Español

ASRock FM2A78M-ITX+ Motherboard

1. Введение

Благодарим вас за покупку материнской платы ASRock FM2A78M-ITX+ надежной материнской платы, изготовленной в соответствии с постоянно предъявляемыми ASRock жесткими требованиями к качеству. Она обеспечивает превосходную производительность и отличается отличной конструкцией, которые отражают приверженность ASRock качеству и долговечности. Данное руководство по быстрой установке включает вводную информацию о материнской плате и пошаговые инструкции по ее установке. Более подробные сведения о плате можно найти в руководстве пользователя на компакт-диске поддержки.

Спецификации материнской платы и программное обеспечение BIOS иногда изменяются, поэтому содержание этого руководства может обновляться без уведомления. В случае любых модификаций руководства его новая версия будет размещена на веб-сайте ASRock без специального уведомления. Кроме того, самые свежие списки поддерживаемых модулей памяти и процессоров можно найти на сайте ASRock. Адрес веб-сайта ASRock http://www.asrock.com При необходимости технической поддержки по вопросам данной материнской платы посетите наш веб-сайт для получения информации об используемой модели.

www.asrock.com/support/index.asp

1.1 Комплектность

Материнская плата ASRock FM2A78M-ITX+ (Форм-фактор Mini-ITX) Руководство по быстрой установке ASRock FM2A78M-ITX+ Компакт-диск поддержки ASRock FM2A78M-ITX+ 2 x кабель данных Serial ATA (SATA) (дополнительно) 1 x I/O Щит Группы ввода / вывода

ASRock напоминает...

Для обеспечения максимальной производительности ОС Windows® 8 / 8 64-bit / 7 / 7 64-bit рекомендуется в BIOS выбрать для параметра Storage Configuration (Конфигурация запоминающего устройства) реж им A HCI. Подробные свед е н и я о н а с т р о й к е BI O S см . в руководстве пользователя на прилагаемом компакт-диске.

ASRock FM2A78M-ITX+ Motherboard

Русский

1.2 Спецификации

Платформа - Форм-фактор Mini-ITX

- Использование только твердотельных конденсаторов A-Style - Home Cloud

- Вход HDMI Процессор - Поддержка разъема FM2+ 95 Вт / процессоров FM2 100 Вт

- Технология 4 + 2 Power Phase Design

Набор микросхем - AMD A78 FCH (Bolton-D3) Память - Поддержка технологии Dual Channel DDR3 Memory Technology

- 2 x гнезда DDR3 DIMM

- Поддержите DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066 не- ECC, безбуферная память

- Mакс. 32 Гб

- Поддержка профиля Intel® Extreme Memory Prole (XMP)1.3/1.2

- Поддержка технологии AMD Memory Prole (AMP) до AMP 2400 Гнезда - 1 x слота PCI Express 3.0 x16 (PCIE1: режим x16) расширения * PCIE 3.0 поддерживается только с процессором FM2+. С процессором FM2 поддерживается только PCIE 2.0.

- Поддерживаются режимы AMD двойные видеокарты Графика - Встроенный процессор AMD Radeon HD серии 8000/7000 с графикой в APU серии A

- DirectX 11.1, Pixel Shader 5.0 с процессором FM2+. DirectX 11, Pixel Shader 5.0 с процессором FM2.

- Макс. объем разделяемой памяти 2GB

- Три VGA-выхода: D-Sub, DVI-D и HDMI

- Поддержка работы с тремя мониторами

- Поддержка HDMI с максимальным разрешением до 1920х1200 @ 60 Гц

- Поддержка Dual-link DVI-D с максимальным разрешением до 2560х1600 @ 60 Гц

- Поддержка D-Sub с максимальным разрешением до 1920х1200 @ 60 Гц

- Поддержка Auto Lip Sync, Deep Color (12 бит на цветовой канал), xvYCC и HBR (High Bit Rate Audio) через HDMI (необходим монитор с разъемом HDMI)

- Поддержка стандарта Blu-ray Stereoscopic 3D со спецификацией

HDMI

- Поддержка технологии AMD Steady VideoTM 2.0: новая функция постобработки видеоизображения для автоматического устранения дрожания при просмотре домашних и онлайновых видеозаписей

- Поддержка функции HDCP через разъемы DVI-D и HDMI

- Подержат Blu-луч 1080p (КОММУТАЦИОННАЯ ДОСКА) через разъемы DVI-D и HDMI

ASRock FM2A78M-ITX+ Motherboard

Аудиосистема - 7.1-канальный звук высокой четкости HD Audio с защитой данных (аудиокодек Realtek ALC1150)

- Под держка Premium Blu-ray Audio

- Под держка DTS-подключения ЛВС - PCIE x1 Gigabit LAN 10/100/1000 Мб/с

- Qualcomm® Atheros® AR8171

- Под держка технологи Qualcomm® Atheros® Security Wake On

Internet Technology

- Под держка Wake-On-LAN

- Под держка Energy Efcient Ethernet 802.3az

- Поддержка PXE

Разъемы ввода- - 1 x порт мыши/клавиатуры PS/2 вывода на задней - 1 x D-Sub порт панели - 1 x DVI-D порт

- 1 x HDMI-выход

- 1 x HDMI-вход

- 1 x порт Optical SPDIF Out

- 2 x порта USB 2.0 на задней панели в стандартной конфигурации

- 2 x порта USB 3.0 на задней панели в стандартной конфигурации (AMD A78 FCH (Bolton-D3))

- Разъем 1 x RJ-45 LAN с светодиодным индикатором (индикатор ACT/LINK и индикатор SPEED)

- Соединитель звуковой подсистемы: тыльная колонка / центральная / субвуфер / линейный вход / передняя колонка / микрофон

Запоминающие - 6 x разъема SATA3 6,0 Гбит/с, поддержка функций RAID (RAID 0, устройства RAID 1 и RAID 10), NCQ, AHCI и «горячего подключения» Колодки и - 1 x разъем датчика открытой крышки плате - 1 x колодка ТРМ

- 1 x соединитель CPU FAN (4-контактный)

- 1 x соединитель Chassis FAN (4-контактный)

- 1 x 24-контактный Колодка питания ATX

- 1 x 4-контактный Разъем ATX 12 В

- 1 x Аудиоразъем передней панели

- 2 x Колодка USB 2.0 (одна колодка для поддержки 4 дополнительных портов USB 2.0

- 1 x Колодка USB 3.0 AMD A78 FCH (Bolton-D3) (одна колодка для поддержки 2 дополнительных портов USB 3.0) BIOS - 64 Мб AMI UEFI Legal BIOS с поддержкой многоязычного ГИП

- поддержка “Plug and Play”

- ACPI 1.1, включение по событиям

- поддержка режима настройки без перемычек

- поддержка SMBIOS 2.3.1

- Регулировка напряжений DRAM, VDDP и VDDR

Компактдиск - Драйверы, Утилиты, Антивирус (пробная версия), Google Chrome поддержки Browser и Toolbar, Start8 (демоверсия на 30 дней) Контроль - Датчик температуры ЦП

Русский

ASRock FM2A78M-ITX+ Motherboard

оборудования - Датчик температуры корпуса

- Тахометр вентиляторов ЦП питания

- Тахометр вентиляторов корпуса питания

- Бесшумный вентилятор ЦП/корпуса

- Управление оборотами вентилятора ЦП/корпуса

- Определение открытой крышки

- Контроль напряжения: +12V, +5V, +3.3V, Vcore

Операцион - Совместимость с Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit ные системы - FCC, CE, WHQL Сертификаты - Совместимость с ErP/EuP Ready (требуется блок питания

совместимый с ErP/EuP) * Для детальной информации продукта, пожалуйста посетите наш вебсайт:

http://www.asrock.com

Русский

ASRock FM2A78M-ITX+ Motherboard

1.3 Установка перемычек

Конфигурация перемычек иллюстрируется на рисунке. Когда перемычка надета на контакты, они называются “замкнутыми” (short). Если на контактах перемычки нет, то они называются “разомкнутыми” (open). На иллюстрации показана 3-контактная перемычка, у которой контакты 1 и 2 замкнуты.

Перемычка Установка Описание

Очистка CMOS

(CLRCMOS1,

3-контактная перемычка) (см. стр. 3, п. 4)

Стандартные Очистка CMOS

Примечание.

Контактн ая колодк а CLRC MOS1 по зв оляет очисти ть да нные CM OS. Для очистки данных и восстановления заводских системных параметров сначала вы ключи те ком пью те р и отс оедин ите сетевую вил ку к абеля питан ия от электророзетки. Выждите не менее 15 секунд и колпачковой перемычкой на 5 секунд перемкните штырьки 2 и 3 контактной колодки CLRCMOS1. Однако не производите очистку CMOS непосредственно после обновления BIOS. Если необходимо очистить CMOS сразу же после окончания обновления BIOS, то, перед очисткой CMOS, необходимо сначала выполнить загрузку системы, а затем завершить ее работу. Примите во внимание, что пароль, дата, время, профиль пользователя по умолчанию, идентификатор 1394 GUID и MAC-адрес будут очищены только тогда, когда будет извлечена из своего гнезда батарейка

CMOS.

Очистка CMOS может вызвать срабатывание датчика открытой крышки. Измените опцию «Clear Status» в BIOS, чтобы очистить записи о предыдущих срабатываниях датчика.

Русский

ASRock FM2A78M-ITX+ Motherboard

1.4 Колодки и разъемы на плате

Имеющиеся на плате колодки и разъемы НЕ ЯВЛЯЮТСЯ контактами для перемычек. НЕ УСТАНАВЛИВАЙТЕ перемычки на эти колодки и разъемы – это приведет к необратимому повреждению материнской платы!

Разъемы Serial ATA3 шесть соединителя Serial ATA3

(SATA3_1, см. стр. 3, п. 16) (SATA3_2, см. стр. 3, п. 15) (SATA3_3, см. стр. 3, п. 14) (SATA3_4, см. стр. 3, п. 13) (SATA3_5, см. стр. 3, п. 12) (SATA3_6, см. стр. 3, п. 11)

допускает скорость передачи данных до \ 6,0 Гбит/с.

предназначаются для подключения внутренних устройств хранения с

использованием нтерфейсных

кабелей SATA3. В настоящее

время интерфейс SATA

SATA3_2 SATA3_4 SATA3_6

SATA3_1 SATA3_3 SATA3_5

Русский

Колодка USB 2.0 Помимо два стандартных

(9-контактный USB_45) (см. стр. 3, п. 19)

вывода, на данной материнской плате предусмотрено два разъема USB 2.0. Каждый разъем USB 2.0 поддерживает два порта

USB 2.0.

(9-контактный USB_67) (см. стр. 3, п. 20)

Колодка USB 3.0 Помимо два стандартных

(19-контактный USB3_0_1) (см. стр. 3, п. 10)

плате предусмотрен один разъем USB 3.0. Этот разъем USB 3.0 поддерживает два порта USB 3.0.

DUM MY

портов USB 2.0 на панели ввода-

GND GND

P+5

USB _PW R

DUM MY

GND GND

P+7

USB _PWR

портов USB 3.0 на панели ввода-

Int A_P 0_S SRX -

Int A_P 0_S SRX +

Int A_P 0_S STX -

Int A_P 0_S STX +

Int A_P 0_D -

Int A_P 0_D +

P-5

P-7

Vbu s

GND

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

вывода, на данной материнской

ASRock FM2A78M-ITX+ Motherboard

Аудиоразъем передней Этот интерфейс предназначен панели для присоединения

(9-контактный HD_AUDIO1) (см. стр. 3, п. 18)

обеспечивающего удобное

аудиокабеля передней панели,

подключение аудиоустройств и управление ими.

GND

PRE SENCE #

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. Система High Denition Audio поддерживает функцию автоматического обнаружения разъемов (Jack Sensing), однако для ее правильной pаботы кабель панели в корпусе должен поддерживать HDA. При сборке системы следуйте инструкциям, приведенным в нашем руководстве и руководстве пользователя для корпуса.

2. Если вы используете аудиопанель AC’97, подключите ее к колодке аудиоинтерфейса передней панели следующим образом: A. Подключите выводы Mic_IN (MIC) к контактам MIC2_L. B. Подключите выводы Audio_R (RIN) к контактам OUT2_R, а выводы Audio_L (LIN) к контактам OUT2_L. C. Подключите выводы Ground (GND) к контактам Ground (GND).

D. Контакты MIC_RET и OUT_RET предназначены только для аудиопанели HD. При использовании аудиопанели AC’97

подключать их не нужно.

E. Процедура активации микрофона приведена ниже. ] Для ОС Windows® 8 / 8 64-бита / 7 / 7 64-бита: Перейдите к вкладке «FrontMic» (Передний микрофон) в панели управления Realtek. Отрегулируйте уровень «Recording Volume» (Громкость записи).

Колодка системной панели Данная колодка обеспечивает

(9-контактный PANEL1) (см. стр. 3, п. 9)

работу нескольких функций

передней панели системы.

ASRock FM2A78M-ITX+ Motherboard

Русский

Подключите к этому разъему кнопку питания, кнопку сброса и индикатор состояния системы на корпусе в соответствии с указанным ниже назначением контактов. При подключении кабелей необходимо соблюдать полярность положительных и отрицательных контактов.

PWRBTN (кнопка питания):

Подключите к этим контактам кнопку питания на передней панели корпуса. Способ выключения системы с помощью кнопки питания можно настроить.

RESET (кнопка сброса):

Подключите к этим контактам кнопку сброса на передней панели корпуса. Нажмите кнопку сброса для перезагрузки компьютера, если компьютер «завис» и нормальную перезагрузку выполнить не удается.

PLED (индикатор питания системы):

Подключите к этим контактам индикатор состояния питания на передней панели корпуса. Этот индикатор светится, когда система работает. Индикатор мигает, когда система находится в режиме ожидания S3. Этот индикатор не светится, когда система находится в режиме ожидания S4, либо выключена (S5).

HDLED (индикатор активности жесткого диска):

Подключите к этим контактам индикатор активности жесткого диска на передней панели корпуса. Этот индикатор светится, когда осуществляется считывание или запись данных на жестком диске.

Конструкция передней панели может различаться в зависимости от корпуса. Модуль передней панели в основном состоит из кнопки питания, кнопки сброса, индикатора питания, индикатора активности жесткого диска, динамика и т.п. При подключении к этому разъему модуля передней панели корпуса удостоверьтесь, что провода подключаются к соответствующим контактам.

Русский

Колодка динамика корпуса Подключите к этой колодке

(4-контактный SPEAKER1) (см. стр. 3, п. 6)

Chassis Fan-соединители

(4-контактный CHA_FAN1) (см. стр. 3, п. 8)

компьютера.

кабель от динамика на корпусе

Подключите кабели вентилятора к соединителям и присоедините черный шнур к штырю заземления.

ASRock FM2A78M-ITX+ Motherboard

Разъем вентилятора Подключите к этому разъему процессора кабель вентилятора процессора

(4-контактный CPU_FAN1) (см. стр. 3, п. 2)

так, чтобы черный провод

соответствовал контакту земли.

FAN_ SPEED _CONT ROL

CPU _FAN_S PEED

+12 V

GND

1 2 3 4

Данная материнская плата поддерживает вентиляторы процессора с 4-контактным разъемом (функция тихого режима вентилятора), однако вентиляторы с 3-контактным разъемом также будут успешно работать, хотя функция управления скоростью вращения вентилятора окажется недоступной. Если вы хотите подключить вентилятор процессора с 3-контактным разъемом к разъему вентилятора процессора на данной материнской плате, для этого следует использовать контакты 1-3.

Контакты 1-3 подключены

Установка вентилятора с 3-контактным разъемом

Колодка питания ATX Подключите к этой колодке

(24-контактный ATXPWR1) (см. стр. 3, п. 5)

24 13

кабель питания ATX.

12 1

Несмотря на то, что эта материнская плата предусматривает 24-штыревой разъем питания ATX, работа будет продолжаться, даже если адаптируется традиционный 20-штыревой разъем питания ATX. Для использования 20-штыревого разъема питания ATX вставьте источник питания вместе со штекером 1 и штекером

13.

Установка 20-штыревого разъема питания ATX

24 13

12 1

Колодка питания 12V-ATX Обратите внимание, что к этому

(4-контактный ATX12V1) (см. стр. 3, п. 17)

разъему необходимо

подключить вилку блока питания ATX 12 В, чтобы обеспечить достаточную мощность электропитания. В противном случае включение системы будет невозможно.

Русский

ASRock FM2A78M-ITX+ Motherboard

Датчик открытой крышки Эта материнская плата

(2-контактный CI1) (см. стр. 3, п. 3)

определения открытой крышки,

поддерживает функцию

Sig nal

GND

которая позволяет определить, была ли снята крышка корпуса. Функция требует поддержку со стороны корпуса.

Колодка ТРМ Этот разъем обеспечивает

(17-выводов TPMS1) (см. стр. 3, п. 1)

поддержку системы Trusted

Platform Module (TPM), которая способна обеспечить надежное хранение ключей, цифровых сертификатов, паролей и данных. Система ТРМ также повышает уровень сетевой безопасности, защищает цифровые идентификаторы и обеспечивает целостность платформы.

Русский

ASRock FM2A78M-ITX+ Motherboard

2. Информация о BIOS

Утилита настройки BIOS (BIOS Setup) хранится во флэш-памяти на материнской плате. Чтобы войти в программу настройки BIOS Setup, при запуске компьютера нажмите <F2> или <Del> во время самопроверки при включении питания (Power-On-Self-Test – POST). Если этого не сделать, то процедуры тестирования POST будут продолжаться обычным образом. Если вы захотите вызвать BIOS Setup уже после POST, перезапустите систему с помощью клавиш <Ctrl> + <Alt> + <Delete> или нажатия кнопки сброса на корпусе системы. Подробную информацию о программе BIOS Setup вы найдете в Руководстве пользователя (в формате PDF) на компакт-диске поддержки.

3. Информация о компакт-диске поддержки с программным обеспечением

Данная материнская плата поддерживает различные операционные системы Microsoft®

Windows®: 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit. Поставляемый вместе

с ней компакт-диск поддержки содержит необходимые драйверы и полезные утилиты, которые расширяют возможности материнской платы. Чтобы начать работу с компакт-диском поддержки, вставьте его в дисковод CD-ROM. Если в вашем компьютере включена функция автозапуска (AUTORUN), то на экране автоматически появится главное меню компакт-диска (Main Menu). Если этого не произошло, найдите в папке BIN на компакт-диске поддержки файл ASRSETUP.EXE и дважды щелкните на нем, чтобы открыть меню.

ASRock FM2A78M-ITX+ Motherboard

Русский

1. Introdução

Gratos por comprar nossa placa–mãe FM2A78M-ITX+ um produto conável feito com ASRock um estrito controle de qualidade consistente. Com um excelente de-

sempenho, essa placa é dotada de um projeto robusto que atende a ASRock de

compromisso com a qualidade e durabilidade. Este Guia de Instalação Rápida apresenta a placa-mãe e o guia de instalação passo a passo. Mais informações detalhadas sobre a placa-mãe podem ser encontradas no manual do usuário do CD de suporte.

Português

ser atualizados, o conteúdo deste manual pode ser cambiado sem aviso. Em caso de qualquer modicação deste manual, a versão atualizada estará disponível no website de ASRock sem prévio aviso. Pode também

encontrar as listas das mais recentes placas VGA e das CPUs suportadas no site da web da ASRock. Website de ASRock http://www.asrock.com Se precisar de apoio técnico em relação a este placa-mãe, por favor visite

o nosso sítio da internet para informação especíca acerca do modelo que

está a utilizar. www.asrock.com/support/index.asp

Porque as especicações da placa mãe e o software de BIOS poderiam

1.1 Este pacote contém

Placa-mãe ASRock FM2A78M-ITX+ (Formato Mini-ITX) Guia de instalação rápida da ASRock FM2A78M-ITX+ CD de suporte da placa ASRock FM2A78M-ITX+ 2 x cabo de dados ATA Serial (SATA) (Opcional) 1 x proteção I/O

A ASRock recorda-lhe...

Para obter melhor desempenho em Windows® 8 / 8 64-bit / 7 / 7 64-bit,

recomendamos que dena a opção Conguração de Armazenamento na BIOS para o modo AHCI. Para mais detalhes acerca da conguração da

BIOS consulte o “Manual de utilizador” no nosso CD de suporte.

ASRock FM2A78M-ITX+ Motherboard

1.2 Especicações

Plataforma - Formato Mini-ITX

- Design de condensador sólido Estilo A - Home Cloud

- Entrada HDMI CPU 100W

- Alimentação de 4 + 2 fases Chipsets - AMD A78 FCH (Bolton-D3) Memória - Suporte à tecnologia de memória de duplo canal

- 2 x slots de DDR3 DIMM

- Suporta memória DDR3 2400+(OC)/2133(OC)/1866/1600/ 1333/1066, não ECC, sem tampão

- Capacidade máxima de memória do sistema: 32GB

- Suporta Extreme Memory Prole (XMP)1.3/1.2 da Intel

- Suporta Tecnologia de Perl de Memória AMD (AMP) até AMP

2400

Slots de - 1 x ranhura PCI Express 3.0 x16 (PCIE1: modo x16) Expansão * PCIE 3.0 é suportado apenas com CPU FM2+. CPU FM2 suporta apenas PCIE 2.0.

- Suporta Dual Graphics da AMD VGA integrado - Placa gráca integrada AMD Radeon HD série 8000/7000 na

APU série A

- DirectX 11.1, Pixel Shader 5.0 com CPU FM2+. DirectX 11, Pixel Shader 5.0 com CPU FM2.

- Memória partilhada máxima 2GB

- Três opções de saída VGA: D-Sub, DVI-D e HDMI

- Suporta conguração com três monitores

- Suporta HDMI Tecnologia com resolução máxima até 1920x1200 @ 60Hz

- Suporta Dual-link DVI-D com resolução máxima até

2560x1600 @ 60Hz

- Suporta D-Sub com resolução máxima até 1920x1200 @

60Hz

- Suporta as funções Auto Lip Sync (Sincronização automática do som), Deep Color (Profundidade da cor) (12bpc), xvYCC e

HBR (áudio de taxa de bits elevada) com HDMI (é necessário

um monitor compatível com a norma HDMI)

- Suporta 3D Estereoscópico Blu-ray com HDMI

- Suporta processadores com Socket FM2+ a 95W / FM2 a

Português

ASRock FM2A78M-ITX+ Motherboard

Português

- Suporta AMD Steady VideoTM 2.0: Nova capacidade de pós-processamento de vídeo para redução automática de vibrações em vídeo local/online

- Suporta função HDCP com portas DVI-D e HDMI

- Suporta a norma Blu-ray de alta denição 1080p (BD) com

portas DVI-D e HDMI Áudio - Áudio HD de 7.1 canais com protecção de conteúdo (Codec de áudio Realtek ALC1150)

- Suporte áudio Blu-ray superior

- Suporta a tecnologia DTS Connect LAN - LAN Gigabit 10/100/1000 Mb/s PCIE x1

- Qualcomm® Atheros® AR8171

- Suporta a tecnologia Qualcomm® Atheros® Security Wake

On Internet

- Suporta Wake-On-LAN

- Suporta IEEE 802.3az

- Suporta PXE Entrada/Saída - 1 x porta para teclado/mouse PS/2 pelo painel - 1 x porta D-Sub

- 1 x porta DVI-D

- 1 x porta de saída HDMI

- 1 x porta de entrada HDMI

- 1 x Porta de saída SPDIF óptica

- 2 x portas USB 2.0 padrão

- 2 x portas USB 3.0 padrão (AMD A78 FCH (Bolton-D3))

- 1 x porta LAN RJ-45 com LED (LED ACT/LIG e LED VELOCIDADE)

- Ficha de áudio HD: Altifalante traseiro/Central/Baixos/Entrada

de linha/Altifalante frontal/Microfone Armazenamento - 6 x conectores SATA3 a 6,0 Gb/s, com suporte para RAID (RAID 0, RAID 1 e RAID 10), NCQ, AHCI e funções Hot Plug

Conectores - 1 x Conector de intrusão no chassis

- 1 x Terminal TPM

- 1 x Conector do ventilador da CPU (4 pinos)

- 1 x Conector do ventilador da chassis (4 pinos)

- 1 x Conector de força do ATX de 24 pinos

- 1 x Conector ATX 12 V de 4 pinos

- 1 x Conector Áudio do painel frontal

- 2 x cabezal USB 2.0 (suporta 4 portas USB 2.0)

- 1 x cabezal USB 3.0 pela AMD A78 FCH (Bolton-D3) (suporta 2 portas USB 3.0)

ASRock FM2A78M-ITX+ Motherboard

BIOS - BIOS UEFI ocial da AMI de 64Mb com suporte de interface multilíngue

- Suporta dispositivos “Plug and Play”

- ACPI 1.1 atendendo a eventos de “wake up”

- Suporta dispositivos sem jumper

- Suporte para SMBIOS 2.3.1

- DRAM, VDDP e VDDR Voltage Multi-adjustment CD de suporte - Controladores, utilitários, software antivírus (Experimentacao Versao), Navegador Google Chrome e Barra de Ferramentas, Start8 (30 dias de avaliação) Monitor do HW - Sensores de temperature do procesador

- Medição de temperatura da chassis

- Tacômetros de ventilador do processador

- Tacômetros de ventilador do chassis

- Ventoinha silenciosa para a processador/chassis

- Processador/chassis Fan Controle Multi-Velocidade

- Detecção de CAIXA ABERTA

- Monitoramento de voltagem: +12 V, +5 V, +3.3 V, Vcore Sistema - Microsoft® Windows® 8.1 de 32 bits / 8.1 de 64 bits / 8 de 32 Operacional bits / 8 de 64 bits / 7 de 32 bits / 7 de 64 bits Certicações - FCC, CE, WHQL

- “ErP/EuP Ready” (é necessária alimentação eléctrica “ErP/

EuP Ready”)

* Para informações mais detalhadas por favor visite o nosso sítio Web: http://www.asrock.com

ASRock FM2A78M-ITX+ Motherboard

Português

1.3 Conguração dos Jumpers

A ilustração mostra como os jumpers são

congurados. Quando há uma capa de

jumpers sobre os pinos, diz–se que o jumper está “curto”. Não havendo capa sobre os pinos, o jumper está “aberto”. A ilustração mostra um jumper de 3 pinos em que os pinos 1 e 2 están “curtos” quando a capa de jumper estiver colocada sobre esses 2 pinos.

Jumper Conguração

Restaurar CMOS

(CLRCMOS1, jumper de 3 pinos) (veja a folha 3, No. 4)

Nota: CLRCMOS1 permite você limpar os dados em CMOS. Os dados em CMOS

incluem informações da conguração do sistema como: por exemplo a senha do sistema, data, tempo, e os parámetros da conguração do sistema. Para limpar e recongurar os parámetros do sistema a conguração inicial da fá-

brica, por favor desligue o cabo de força, ponha em curto–circuito os pin 2 e pin 3 de CLRCMOS1 por mais de 5 segundos para limpar o CMOS usando um jumper. Por favor lembrese de remover o jumper depois de limpar o COMS. Se precisar limpar o CMOS ao concluir a atualização do BIOS, deverá reiniciar o sistema primeiro e, em seguida, desligá-lo antes de executar a ação de limpeza o CMO hora, perfil predefinido de utilizador, 1394 GUID e endereço MAC apenas serão limpos se a bateria do CMOS for retirada.

Conguração-padrão Limpar o CMOS

S. Tenha em atenção que a palavra-passe, data,

Português

Se limpar o CMOS, poderá ser detectada a abertura da caixa. Ajuste aopção do BIOS “Clear Status” (Limpar estado) para limpar o registo anterior de estado de intrusão no chassis.

ASRock FM2A78M-ITX+ Motherboard

1.4 Conectores

Os conectores NÃO SÃO jumpers. NÃO coloque capas de jumper sobre estes conectores. A colocação de pontos de jumper sobre os

conectores causará danos irreversíveis à placa-mãe.

Conectores ATA3 Serial Estes seis conectores Serial

(SATA3_1: veja a folha 3, No. 16)

(SATA3_2: veja a folha 3, No. 15)

(SATA3_3: veja a folha 3, No. 14)

(SATA3_4: veja a folha 3, No. 13)

(SATA3_5: veja a folha 3, No. 12)

(SATA3_6: veja a folha 3, No. 11)

dados de até 6.0 Gb/s.

ATA (SATA3) suportam unidades de disco rígido SATA ou SATA3 como dispositivos de armazenamento internos. A atual interface SATA3 permite

uma taxa de transferência de

SATA3_2 SATA3_4 SATA3_6

SATA3_1 SATA3_3 SATA3_5

Cabezal USB 2.0 Além das dois portas USB 2.0

(USB_45 de 9 pinos)

(veja a folha 3, No. 19)

por defeito no painel de

USB 2.0 nesta placa-mãe. Cada ligação USB 2.0 pode

(USB_67 de 9 pinos)

(veja a folha 3, No. 20)

suportar dois portas USB 2.0.

Cabezal USB 3.0 Além das dois portas USB 3.0

(USB3_0_1 de 19 pinos)

(veja a folha 3, No. 10)

USB 3.0 nesta placa-mãe. Cada ligação USB 3.0 pode suportar dois portas USB 3.0.

DUM MY

GND GND

entrada/saída, há dois ligações

por defeito no painel de

entrada/saída, há uns ligações

P+5

USB _PW R

DUM MY

GND GND

P+7

USB _PWR

Int A_P 0_S SRX -

Int A_P 0_S SRX +

Int A_P 0_S STX -

Int A_P 0_S STX +

Int A_P 0_D -

Int A_P 0_D +

P-5

P-7

Vbu s

GND

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

Português

ASRock FM2A78M-ITX+ Motherboard

Conector Áudio do painel Esta é uma interface para o

frontal cabo de áudio no painel frontal,

(HD_AUDIO1 de 9 pinos)

(veja a folha 3, No. 18)

que permite uma conexão e

controle convenientes dos

dispositivos de áudio.

GND

PRE SENCE #

MIC 2_R

MIC 2_L

MIC _RET

J_S ENSE

OUT 2_R

OUT _RET

OUT 2_L

1. Áudio de elevada denição que suporta a sensibilidade da tomada, mas o o do painel existente no chassis tem de suportar HDA para

funcionar correctamente. Siga s instruções que aparecem no manual e no manual do chassis para instalar o sistema.

2. Se utilizar o painel de áudio AC’97, instale-o no cabeçalho de áudio

do painel frontal, como a gura abaixo mostra:

A. Ligue o Mic_IN (MIC) ao MIC2_L. B. Ligue o Audio_R (RIN) ao OUT2_R e o Audio_L (LIN) ao OUT2_L. C. Ligue o Ground (GND) ao Ground (GND). D. MIC_RET e OUT_RET são apenas para o painel de áudio HD. Não necessita de os ligar para o painel de áudio AC’97. E. Para activar o microfone frontal.

Para os Sistemas Operativos Windows® 8 / 8 64-bit / 7 / 7 64-bit: Aceda ao separador “Microfone frontal” no painel de Controlo Realtek. Ajuste o “Volume de gravação”.

Conector do painel do sistema Este conector acomoda várias

(PANEL1 de 9 pinos)

(veja a folha 3, No. 9)

funções do painel frontal do

sistema.

Português

Ligue o botão de alimentação, o botão de reposição e o indicador do

estado do sistema no chassis a este conector de acordo com a descrição abaixo. Tenha em atenção os pinos positivos e negativos antes de ligar os cabos.

PWRBTN (Botão de alimentação):

Ligue ao botão de alimentação no painel frontal do chassis. Pode congu-

rar a forma para desligar o seu sistema através do botão de alimentação.

RESET (Botão de reposição):

Ligue ao botão de reposição no painel frontal do chassis. Prima o botão

de reposição para reiniciar o computador caso este bloqueie e não seja possível reiniciar normalmente.

ASRock FM2A78M-ITX+ Motherboard

PLED (LED de alimentação do sistema): Ligue ao indicador do estado da alimentação no painel frontal do chassis.

O LED cará acesso quando o sistema estiver em funcionamento. O LED cará intermitente quando o sistema estiver no estado de suspensão S3. O LED cará desligado quando o sistema estiver nos estados de suspen-

são S4 ou desligado (S5).

HDLED (LED de actividade do disco rígido): Ligue ao LED de actividade do disco rígido no painel frontal do chassis. O

LED cará acesso quando o disco rígido estiver a ler ou a escrever dados.

O design do painel frontal poderá variar dependendo do chassis. Um

módulo de painel frontal consiste principalmente em um botão de alimentação, um botão de reposição, um LED de alimentação, um LED de actividade do disco rígido, um altifalante, etc. Ao ligar o seu módulo de painel

frontal do chassis a este conector, certique-se que os os e os pinos têm

uma correspondência exacta.

Conector do alto-falante Ligue o alto-falante do chassi do chassi neste conector.

(SPEAKER1 de 4 pinos) (veja a folha 3, No. 6)

Conector do ventilador do chassis Ligue o cabo do ventilador

(CHA_FAN1 de 4 pinos)

(veja a folha 3, No. 8)

neste conector, coincidindo o o

preto com o pino de aterramen

to.

Conector do ventilador da Ligue o cabo do ventilador da

CPU CPU, coincidindo o o preto

(CPU_FAN1 de 4 pinos)

(veja a folha 3, No. 2)

com o pino de aterramento.

FAN_ SPEED _CONT ROL

CPU _FAN_S PEED

+12 V

GND

1 2 3 4

Apesar de esta placa-mãe possuir 4 apoios para uma ventoinha de CPU (Ventoinha silenciosa), uma ventoinha de 3 pinos para CPU poderá funcionar mesmo sem a função de controlo de velocidade da ventoinha. Se pretender ligar uma ventoinha de 3 pinos para CPU ao conector de ventoinha do CPU nesta placa-mãe, por favor, ligue-a aos pinos 1-3.

Pinos 1-3 ligados

Instalação de Ventoinha de 3 pinos

ASRock FM2A78M-ITX+ Motherboard

Português

Conector de força do ATX Ligue a fonte de alimentação

(ATXPWR1 de 24 pinos)

(veja a folha 3, No. 5)

ATX neste conector.

24 13

12 1

Embora esta placa-mãe providencie um conector de energia ATX de 24 pinos, pode apesar disso funcionar com a adapta-ção de uma fonte de energia tradicional de 20 pinos. Para usar a fonte de alimentação de 20 pinos, por favor ligue a sua fonte de alimentação com o Pino 1 e o Pino

13.

Instalação da Fonte de alimentação ATX de 20 Pinos

24 13

12 1

Conector de força do ATX 12V Ligue a fonte de alimentação

(ATX12V1 de 4 pinos)

(veja a folha 3, No. 17)

ATX 12V neste conector.

Conector de intrusão no chassis Esta placa principal suporta a

(CI1 de 2 pinos)

(veja a folha 3, No. 3)

função de detecção de

ABERTURA da CAIXA

Sig nal

GND

quedetecta se a tampa do chassisfoi removida. Esta funçãorequer um chassis com designde detecção de intrusão.

Português

ASRock FM2A78M-ITX+ Motherboard

Terminal TPM Este conector suporta um

(TPMS1 de 17 pinos)

(veja a folha 3, No. 1)

sistema com Módulo de

Plataforma Conável (TPM),

que pode armazenar com

segurança chaves, certicados

digitais, palavras-passe e dados. Um sistema TPM

também ajuda a melhorar a

segurança de rede, a proteger identidades digitais e a garantir a integridade da plataforma.

Português

ASRock FM2A78M-ITX+ Motherboard

2. Informações da BIOS

O Utilitário de Conguração do BIOS está armazenado no chip FWH do BIOS. Ao

iniciar o computador, pressione <F2> ou <Del> durante o Autoteste de iniciação

(POST) para acessar o Utilitário de Conguração do BIOS; caso contrário, o POST continuará com as rotinas de teste. Se desejar acessar o Utilitário de Conguração

do BIOS depois do POST, reinicie o sistema pressionando <Ctl> + <Alt> + <Del>, ou pressionando o botão de reinício no chassi do sistema. Para as informações de-

talhadas sobre o Utilitário de Conguração do BIOS, consulte o Manual do Usuário

(arquivo PDF) no CD de suporte.

3. Informações do CD de Suporte

Esta placa Mãe suporta vários sistemas operacionais: Microsoft® Windows®: 8.1 de 32 bits / 8.1 de 64 bits / 8 32 de bits / 8 de 64 bits / 7 de 32 bits / 7 de 64 bits. O CD de instalação que acompanha a placa Mãe contem: drivers e utilitários necessários para um melhor desempenho da placa Mãe. Para começar a usar o CD de instalação, introduza o CD na leitora de CD-ROM do computador. Automaticamente iniciará o menu principal, casa o AUTORUN esteja ativado. Se o menu principal não aparecer automaticamente, explore o CD e execute o “ASRSETUP.EXE” localizado na pasta BIN.

Português

ASRock FM2A78M-ITX+ Motherboard

1. Giriş

ASRock’ın kesintisiz titiz kalite denetimi altında üretilen güvenilir bir anakart olan ASRock FM2A78M-ITX+ anakartını satın aldığınız için teşekkür ederiz. ASRock’ın kalite ve dayanıklılık konusundaki kararlılığına uygun güçlü tasarımıyla mükemmel

bir performans sunar.

Bu Hızlı Takma Kılavuzu anakarta giriş ve adım adım takma kılavuzu içerir. Anakart hakkında daha ayrıntılı bilgiyi Destek CD’sinde sunulan kullanıcı kılavuzunda bula-

bilirsiniz.

Anakart özellikleri ve BIOS yazılımı güncelleştirilebileceğinden bu kılavuzun içeriği önceden haber verilmeksizin değişebilir. Bu belgede değişiklik yapılması durumun

-da, güncelleştirilmiş sürüm ayrıca haber verilmeksizin ASRock web sitesinde sunulur. En son VGA kartlarını ve CPU destek listelerini de ASRock web sitesinde

bulabilirsiniz. ASRock web sitesi http://www.asrock.com

Bu anakartla ilgili teknik desteğe ihtiyacınız olursa, kullandığınız modele özel bilgiler

için lütfen web sitemizi ziyaret edin. www.asrock.com/support/index.asp

1.1 Paket İçindekiler

ASRock FM2A78M-ITX+ Anakart (Mini-ITX Form Faktörü) ASRock FM2A78M-ITX+ Hızlı Takma Kılavuzu ASRock FM2A78M-ITX+ Destek CD’si

2 x Seri ATA (SATA) Veri Kablosu (İsteğe Bağlı) 1 x G/Ç Panel Kalkanı

ASRock Size Şunu Hatırlatır...

Windows® 8 / 8 64-bit / 7 / 7 64-bit ile daha iyi performans elde etmek

için, Depolama Konfigürasyonundaki BIOS seçeneğini AHCI moduna ayarlamanız tavsiye edilir. BIOS ayarı için, ayrıntıları öğrenmek üzere lütfen destek CD'mizdeki "Kullanıcı Kılavuzu"na bakın.

ASRock FM2A78M-ITX+ Motherboard

Türkçe

1.2 Özellikler



Platform - Mini-ITX Form Faktörü

- Tam Katı Bağlayıcı tasarımı A-Stili - Ev Bulutu

- HDMI-Girişi CPU - Yuva FM2+ 95W / FM2 100W işlemciler için destek

- 4 + 2 Güç Fazı Tasarımı

Yonga seti - AMD A78 FCH (Bolton-D3) Bellek - Çift Kanallı DDR3 Belleği Teknolojisi

- 2 x DDR3 DIMM yuva

- DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066 ECC olmayan, ara belleksiz bellek

- Sistem belleğinin maks. kapasitesi: 32 GB

- Intel® Extreme Bellek Prolini (XMP)1.3/1.2 destekler

- AMP 2400’e kadar AMD Bellek Proli Teknolojisini (AMP)

destekler

Genişletme - 1 x PCI Express 3.0 x16 yuva (PCIE1: x16 modu) Yuvası * PCIE 3.0 yalnızca FM2+ İşlemci ile desteklenir. FM2

İşlemciyle, yalnızca PCIE 2.0 destekler.

- AMD Dual Graphics’i destekler

Grakler - A serisi APU’da tümleşik AMD Radeon HD 8000/7000 serisi grakler

- FM2+ İşlemciyle DirectX 11.1, Pixel Shader 5.0. FM2 İşlemciyle DirectX 11, Pixel Shader 5.0.

- Maks. paylaюэlan bellek 2GB

- Ьз VGA Зэkэю seзeneрi: D-Sub, DVI-D ve HDMI

- Üçlü Monitör Desteği

- 60Hz’de 1920x1200’e kadar maks. зцzьnьrlьkle HDMI

Teknolojisini destekler

- 60Hz’de 2560x1600’e kadar maks. зцzьnьrlьkle Dual-link DVI-D’yэ destekler

- 60Hz’de 1920x1600’ya kadar maks. зцzьnьrlьkle D-Sub’э

destekler

- Auto Lip Sync, Deep Color (12bpc), HDMI ile xvYCC ve

HBR’yi (Yьksek Bit Hэzlэ Ses) destekler (Uyumlu HDMI

monitцr gerekir)

- HDMI bulunan Blu-Ray stereoskopik 3D’yi desteklemektedir

- AMD Steady VideoTM 2.0’yu destekler: Ev/çevrimiçi videoda

otomatik titreşim azaltma için yeni video işleme sonrası özelliği

- DVI-D ve HDMI portlarэyla HDCP iюlevini destekler

ASRock FM2A78M-ITX+ Motherboard

- DVI-D ve HDMI portlarэyla Tam HD 1080p Blu-ray (BD) oynatэmэnэ destekler Ses - İçerik Koruma Özelliği ile 7.1 CH HD Ses (Realtek ALC1150 Ses Codec Bileşeni)

- Üstün Blu-ray ses desteği

- DTS Connect işlevini destekler LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Qualcomm® Atheros® AR8171

- Qualcomm® Atheros® Güvenli İnternet Açışı Teknolojisini destekler

- LAN Açılışını Destekler

- Enerji Verimliliğine Sahip Ethernet 802.3az işlevini destekler

- PXE özelliğini destekler

Arka Panel - 1 x PS/2 Fare/Klavye Portu G/З - 1 x D-Sub Portu

- 1 x DVI-D Portu

- 1 x HDMI Çıkış Bağlantı Noktası

- 1 x HDMI Giriş Bağlantı Noktası

- 1 x Optik SPDIF Çıkışı Portu

- 2 x Kullanıma Hazır USB 2.0 Portu

- 2 x Kullanıma Hazır USB 3.0 Portu (AMD A78 FCH (Bolton-D3))

- 1 x RJ-45 LAN Portu, LED’li (AKT/LЭNK LED’i ve HIZ LED)

- HD Ses Jakı: Arka Hoparlör/Orta/Bas/Hat Girişi/Ön Hoparlör/

Mikrofon

Depolama - 6 x SATA3 6,0Gb/sn konektör, donanım RAID (RAID 0, RAID 1 ve RAID 10), NCQ, AHCI ve “Sistem Aзэkken Bileюen Takma” işlevlerini Konektör - 1 x Kasaya Yetkisiz Erişim şi

- 1 x TPM bağlantısı

- 1 x CPU FAN konektörü (4 pin)

- 1 x Kasa FAN konektörü (4 pin)

- 1 x 24 pin ATX güç konektörü

- 1 x 4 pin 12V güç konektörü

- 1 x Ön panel ses konektörü

- 2 x USB 2.0 ş (4 USB 2.0 portu destekler)

- 1 x AMD A78 FCH (Bolton-D3) ile USB 3.0 bağlantısı (2 USB

3.0 portu destekler)

Türkçe

ASRock FM2A78M-ITX+ Motherboard

BIOS Özelliği - Çok dilli GUI desteğiyle 64Mb AMI UEFI Legal BIOS

- GUI destekli AMI UEFI Geçerli BIOS

- “Tak Çalıştır”ı destekler

- ACPI 1.1 Uyumlu Uyandırma Olayları

- Jumpersız ayarlamayı destekler

- AMBIOS 2.3.1 Desteği

- DRAM, VDDP ve VDDR Voltaj Çoklu ayarı

Destek CD’si - Sürücüler, Yardımcı Programlar, AntiVirüs Yazılımı (Deneme Sürümü), Google Chrome Browser ve Toolbar, Start8 (30 günlük deneme) Donanım - CPU Sıcaklık Duyarlılığı Monitör - Kasa Sıcaklık Duyarlılığı

- CPU Fan Takometresi

- Kasa Fan Takometresi

- CPU/Kasa Sessiz Fanı

- CPU/Kasa Fan Çoklu-Hız Kontrolü

- KASA AÇIK algılaması

- Voltaj İzleme: +12V, +5V, +3,3V, CPU Vcore

İS - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Sertikalar - FCC, CE, WHQL

- ErP/EuP Hazır (ErP/EuP hazır güç kaynağı gerekli)

* Ayrıntılı ürün bilgileri için lütfen web sitemizi ziyaret edin: http://www.asrock.com

Türkçe

ASRock FM2A78M-ITX+ Motherboard

1.3 Jumper'ların Ayarı

Şekilde jumper'ların nasıl ayarlandıkları gösterilmektedir. Jumper kapağı pinler üzerine yerleştirildiğinde jumper "Kapalı" dır. Jumper kapağı pinler üzerindeyken jumper "Açık" tır. Şekilde pin1 ve pin2'si "Kapalı" olan jumper kapağı bu 2 pine yerleştirilmiş 3-pinli jumper

gösterilmektedir.

Jumper Ayar

CMOS’u temizleme

(CLRCMOS1, 3-pinli jumper) (bkz. S.3 No. 4)

Not:

CLRCMOS1, CMOS’daki verilerinizi temizlemenize olanak sağlar. Sistem parametrelerini temizlemek ve varsayılan ayara sıfırlamak için lütfen bilgisayarı kapatın ve güç kablosunun şini güç kaynağından çekin. 15 saniye bekledikten sonra, pin2 ve pin3‘ü CLRCMOS1’de 5 saniye kısaltmak için bir atlatıcı şapkası kullanın. Ancak, BIOS’u güncelledikten hemen sonra lütfen CMOS’u temizlemeyin. BIOS’u güncellemeyi tamamladığınızda CMOS’u temizlemeniz gerekirse, ilk olarak sistemi başlatmanız ve ardından CMOS temizleme işlemini gerçekleştirmeden önce kapatmanız gereklidir. Parola, tarih, saat, kullanıcı varsayılan proli, 1394 GUID ve MAC adresinin yalnızca CMOS pili çıkarıldığında temizleneceğini lütfen aklınızda bulundurunuz.

Clear CMOSDefault

CMOS’u temizlerseniz, kasa açma algılanabilir. Lütfen “Temizleme Durumu” BIOS seçeneğini önceki kasaya yetkisiz erişim durumunun kaydı için ayarlayın.

ASRock FM2A78M-ITX+ Motherboard

Türkçe

1.4 Yerleşik Fişler ve Konektörler

Yerleşik şler ve konektörler jumper DEĞİLDİR. Bu şlerin ve konektörlerin üzerine jumper kapakları YERLEŞTİRMEYİN. Fişlerin ve konektörlerin üzerine jumper kapakları yerleştirmek anakartın kalıcı olarak zarar görmesine neden olabilir!

Seri ATA3 Konektörler Bu altı Seri ATA3 (SATA3)

(SATA3_1: bkz. S.3, No. 16)

(SATA3_2: bkz. S.3, No. 15)

(SATA3_3: bkz. S.3, No. 14)

(SATA3_4: bkz. S.3, No. 13)

(SATA3_5: bkz. S.3, No. 12)

(SATA3_6: bkz. S.3, No. 11)

konektör, dahili depolama

cihazları için SATA veri

kablolarını destekler. Geçerli

SATA3 arayüzü 6,0 Gb/sn veri

aktarım hızına izin verir.

Türkçe

SATA3_2 SATA3_4 SATA3_6

USB 2.0 Fişleri G/Ç panelindeki varsayılan iki

(9-pinli USB_45)

(bkz. S.3 No. 19)

USB 2.0 portundan başka, bu

anakartta iki USB 2.0 şi

bulunur. Her USB 2.0 şi iki

DUM MY

GND GND

P+5

P-5

USB _PW R

USB 2.0 portunu destekler.

(9-pinli USB_67) (bkz. S.3 No. 20)

DUM MY

GND GND

P+7

P-7

USB _PWR

USB 3.0 Fişleri I/O panelinde bulunan iki adet

(19-pinli USB3_0_1)

(bkz. S.3 No. 10)

varsayılan USB 3.0 bağlantı

noktasının yanı sıra, bu ana

kart üzerinde bir adet USB 3.0

bağlantısı bulunur. Bu USB 3.0 bağlantısı iki adet USB 3.0 bağlantı noktasını

Vbu s

Int A_P 0_S SRX -

Int A_P 0_S SRX +

GND

Int A_P 0_S STX -

Int A_P 0_S STX +

GND

Int A_P 0_D -

Int A_P 0_D +

destekleyebilir.

P+4

P-4

USB _PW R

P+6

P-6

USB _PWR

Vbu sVbu s

Int A_P 1_S SRX -

Int A_P 1_S SRX +

GND

Int A_P 1_S STX -

Int A_P 1_S STX +

GND

Int A_P 1_D -

Int A_P 1_D +

SATA3_1 SATA3_3 SATA3_5

100

ASRock FM2A78M-ITX+ Motherboard

Asrock FM2A78M-ITX+ Quick Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

English
