Asrock Fatal1ty X370 Gaming-ITX/ac Quick Installation Guide

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel

: +886-2-28965588 ext.123 (Standard International call charges apply)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Fatal1ty Story

Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I actually played competitive billiards in professional tournaments and won four or ve games o guys who played at the highest level. I actually thought of making a career of it, but at that young age situations change rapidly. Because I’ve been blessed with great hand-eye coordination and a grasp of mathematics (an important element in video gaming) I gravitated to that activity.

GOING PRO

I started professional gaming in 1999 when I entered the CPL (Cyberathlete Professional League) tournament in Dallas and won $4,000 for coming in third place. Emerging as one of the top players in the United States, a company interested in sponsoring me ew me to Sweden to compete against the top 12 players in the world. I won 18 straight games, lost none, and took rst place, becoming the number one ranked Quake III player in the world in the process. Two months later I followed that success by traveling to Dallas and defending my title as the world’s best Quake III player, winning the $40,000 grand prize. From there I entered competitions all over the world, including Singapore, Korea, Germany, Australia, Holland and Brazil in addition to Los Angeles, New York and St. Louis.

WINNING STREAK

I was excited to showcase my true gaming skills when defending my title as CPL Champion of the year at the CPL Winter 2001 because I would be competing in a totally dierent rst person shooter (fps) game, Alien vs. Predator II. I won that competition and walked away with a new car. e next year I won the same title playing Unreal Tournament 2003, becoming the only three-time CPL champion of the year. And I did it playing a different game each year, something no one else has ever done and a feat of which I am extremely proud.

At QuakeCon 2002, I faced o against my rival ZeRo4 in one of the most highly anticipated matches of the year, winning in a 14 to (-1) killer victory. Competing at Quakecon 2004, I became the World’s 1st Doom3 Champion by defeating Daler in a series of very challenging matches and earning $25,000 for the victory.

Since then Fatal1ty has traveled the globe to compete against the best in the world, winning prizes and acclaim, including the 2005 CPL World Tour Championship in New York City for a $150,000 rst place triumph. In August 2007, Johnathan was awarded the rst ever Lifetime Achievement Award in the four year history of the eSports-Award for “showing exceptional sportsmanship, taking part in shaping eSports into what it is today and for being the prime representative of this young sport. He has become the gurehead for eSports worldwide”.

LIVIN’ LARGE

Since my rst big tournament wins, I have been a “Professional Cyberathlete”, traveling the world and livin’ large with lots of International media coverage on outlets such as MTV, ESPN and a 60 Minutes segment on CBS to name only a few. It's unreal - it's crazy. I’m living a dream by playing video games for a living. I’ve always been athletic and took sports like hockey and football very seriously, working out and training hard. is discipline helps me become a better gamer and my drive to be the best has opened the doors necessary to become a professional.

A DREAM

Now, another dream is being realized – building the ultimate gaming computer, made up of the best parts under my own brand. Quality hardware makes a huge difference in competitions…a couple more frames per second and everything gets really nice. It’s all about getting the computer processing faster and allowing more uid movement around the maps.

My vision for Fatal1ty hardware is to allow gamers to focus on the game without worrying about their equipment, something I’ve preached since I began competing. I don’t want to worry about my equipment. I want to be there – over and done with - so I can focus on the game. I want it to be the fastest and most stable computer equipment on the face of the planet, so quality is what Fatal1ty Brand products represent.

Johnathan “Fatal1ty” Wendel

e Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trademarks of Fatal1ty, Inc., and are used under license. © 2017 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective owners.

Motherboard Layout

ATXP WR1

CLRCMOS 1

USB_3_4

HD_AUDI O1

CPU_FAN 1

RJ- 45 LAN

SOCK ET AM4

HDM I2

ATX12V1

Ult ra M.2

PCI e Ge n3 x4

USB3_ 3_4

CHA_FAN2

HDLED RESET

PLED PWRBT N

PANEL1

RoHS

DDR 4_ A1 (6 4 bit , 28 8-p in m odu le)

DDR 4_ B1 (6 4 bit , 28 8-p in m odu le)

AMD

Promonto ry

X370

USB 3. 0 T: US B1 B: USB 2

AMD_FAN_L ED1

LPC1

X370 Gamin g- IT X/ac

PCI E1

CHA_FAN/ W_PUMP

USB 3.0 T:U SB31_ TA_1 B: USB3 1_TC _1

USB 2 .0

T: USB1

B: US B2

PS2

Keybo ard

/Mous e

HDM I1

Top:

Central/Bass

Cente r:

REAR SPK

Top:

LINE IN

Cente r:

FRONT

Botto m:

Optic al

SPDIF

Botto m:

MIC I N

USB_5

SPEAKER1

M2_ WI FI_ 1

SATA3_2

SATA3_4

SATA3_1

SATA3_3

Fatal1ty X370 Gaming-ITX/ac Series

BIOS ROM

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 AMD LED Fan USB Header (USB_5)

3 AMD Fan LED Header (AMD_FAN_LED1)

4 CPU Fan Connector (CPU_FAN1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

6 Chassis Fan Connector (CHA_FAN2)

7 ATX Power Connector (ATXPWR1)

8 USB 2.0 Header (USB_3_4)

9 USB 3.0 Header (USB3_3_4)

10 SATA3 Connector (SATA3_2)

11 SATA3 Connector (SATA3_1)

12 SATA3 Connector (SATA3_3)

13 SATA3 Connector (SATA3_4)

14 System Panel Header (PANEL1)

15 LPC Header (LPC1)

16 Clear CMOS Jumper (CLRCMOS1)

17 Chassis Fan / Waterpump Fan Connector (CHA_FAN/W_PUMP)

18 Front Panel Audio Header (HD_AUDIO1)

19 Chassis Speaker Header (SPEAKER1)

English

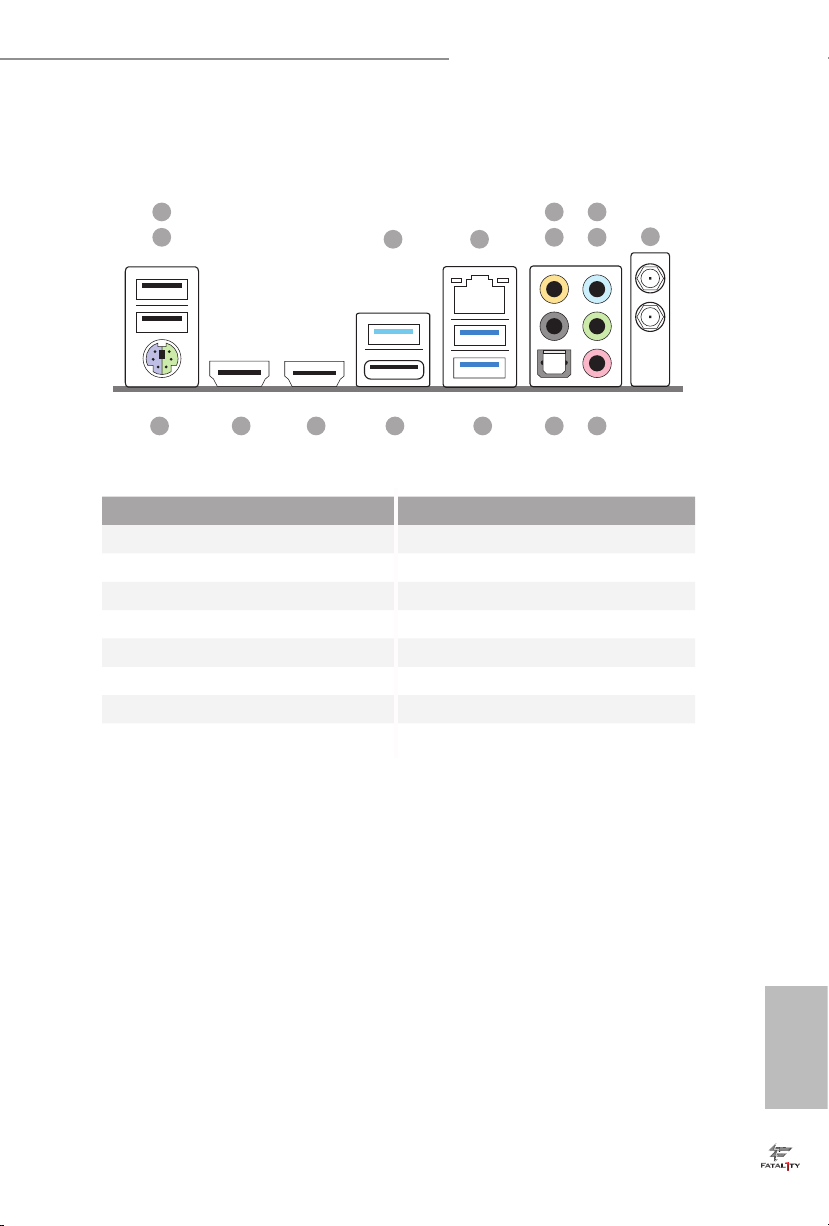

I/O Panel

Fatal1ty X370 Gaming-ITX/ac Series

658

101112131516

No. Description No. Description

1 Fatal1ty Mouse Port (USB_1) 9 Antenna Ports

2 USB 2.0 Port (USB_2) 10 Microphone (Pink)

3 USB 3.0 Port (USB31_TA_1) 11 Optical SPDIF Out Port

4 LAN RJ-45 Port* 12 USB 3.0 Ports (USB3_12)

5 Central / Bass (Orange) 13 USB 3.0 Type-C Port (USB31_TC_1)

6 Rear Speaker (Black) 14 HDMI Port

7 Line In (Light Blue) 15 HDMI Port

8 Front Speaker (Lime)** 16 PS/2 Mouse/Keyboard Port

English

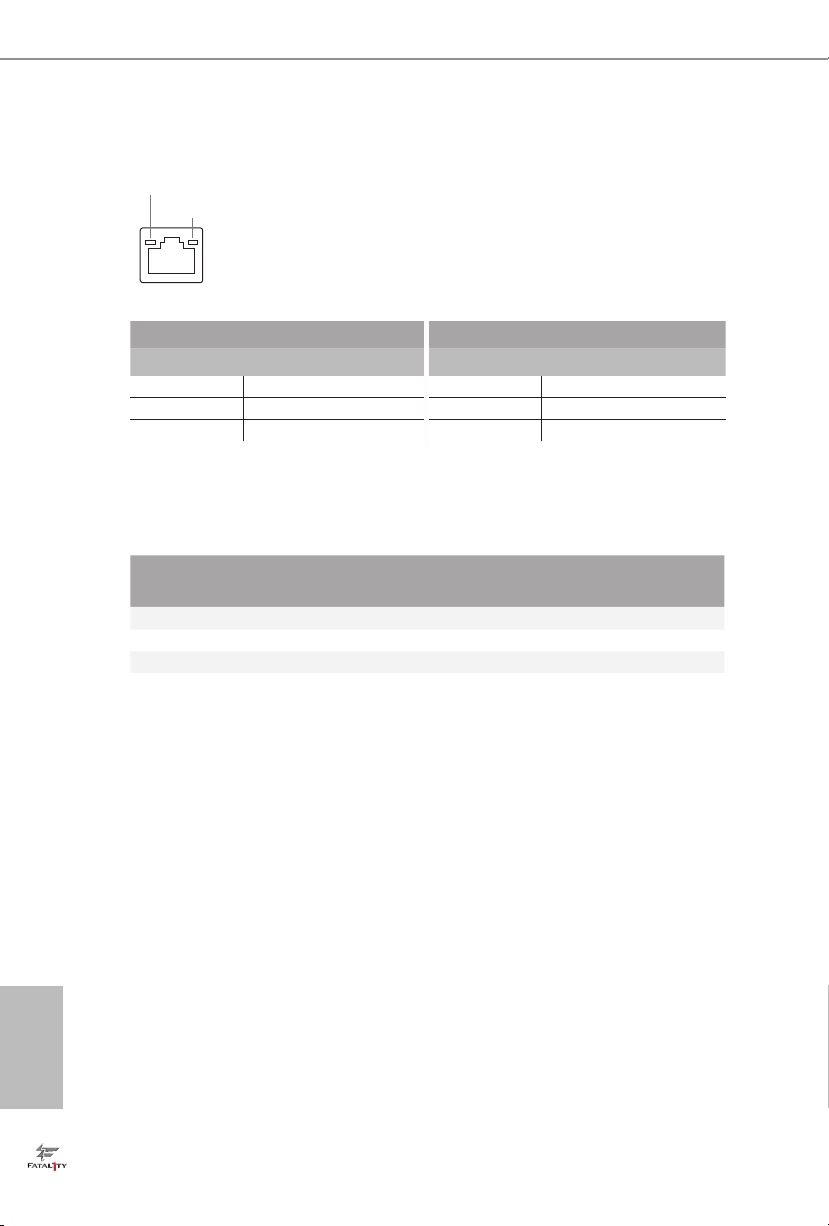

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Speaker Jack”. See the table below for connection d etails in accordance w ith the type of speaker you use.

English

Audio Output

Channels

Front Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

2 V -- -- -- 4 V V -- -- 6 V V V -- 8 V V V V

Line In (No. 7)

Fatal1ty X370 Gaming-ITX/ac Series

WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antenna

WiFi-802.11ac + BT Module

is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.0 module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/ g/n/ac connectivity standards and Bluetooth v4.0. WiFi + BT module is an easy-touse wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth v4.0 standard features Smart Ready technology that adds a whole new class of functionality into the mobile devices. BT 4.0 also includes Low Energy Technology and ensures extraordinary low power consumption for PCs. e 2T2R WiFi solution sets a WiFi high speed standard and oers max link rate up to 867Mbps. * e transmission speed may vary according to the environment.

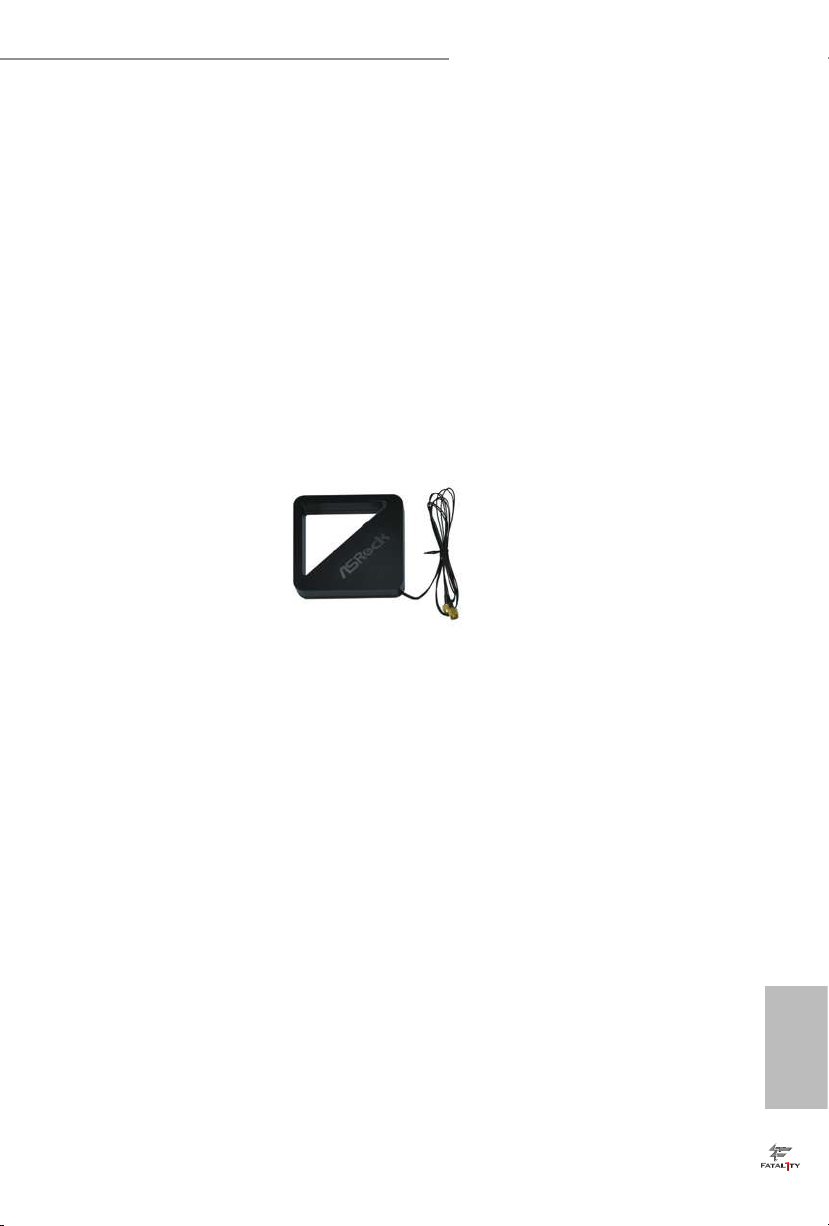

ASRock WiFi 2.4/5 GHz Antenna

English

Chapter 1 Introduction

ank you for purchasing ASRock Fatal1ty X370 Gaming-ITX/ac Series motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the content of this manual will be subject to change without notice. In ca se any modications of this manual occur, the updated version will be available on ASRock’s website without further notice. If you require technical suppor t related to this motherboard, please visit our website for spe cic information about the model you are using. You may nd the l atest VGA cards and CPU support list on ASRock’s website a s well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock Fatal1ty X370 Gaming-ITX/ac Series Motherboard (Mini-ITX Form Factor)

•

ASRock Fatal1ty X370 Gaming-ITX/ac Series Quick Installation Guide

•

ASRock Fatal1ty X370 Gaming-ITX/ac Series Support CD

•

1 x I/O Panel Shield

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x ASRock WiFi 2.4/5 GHz Antenna (Optional)

•

1 x Screw for M.2 Socket (Optional)

•

English

1.2 Specications

Platform

CPU

Chipset

Memory

•

* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) * Please refer to page 23 for DDR4 UDIMM maximum frequency support.

•

Fatal1ty X370 Gaming-ITX/ac Series

Mini-ITX Form Factor 2oz Copper PCB

Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) Digi Power design 8 Power Phase design Supports 95W Water Cooling

AMD Promontory X370

Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots AMD Ryzen series CPUs support DDR4 3200+(OC)/2933 (OC)/2667/2400/2133 ECC & non-ECC, un-buered memory* AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buered memory*

Max. capacity of system memory: 32GB 15μ Gold Contact in DIMM Slots

Expansion Slot

Graphics

AMD Ryzen series CPUs

1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

•

AMD 7th A-Series APUs

1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*

•

* Supports NVMe SSD as boot disks

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-

•

802.11ac module (on the rear I/O) 15μ Gold Contact in VGA PCIe Slot (PCIE1)

•

Integrated AMD RadeonTM R-Series Graphics in A-series

•

APU*

English

Audio

* Actual support may vary by CPU

DirectX 12, Pixel Shader 5.0

•

Max. shared memory 2GB

•

Supports 2 x HDMI with max. resolution up to 4K x 2K

•

(4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required) Supports HDCP with HDMI Ports

•

Supports Full HD 1080p Blu-ray (BD) playback with HDMI

•

Ports

7.1 CH HD Audio with Content Protection (Realtek ALC1220

•

Audio Codec) Premium Blu-ray Audio support

•

Supports Surge Protection

•

Nichicon Fine Gold Series Audio Caps

•

120dB SNR DAC with Dierential Amplier

•

Pure Power-In

•

Direct Drive Technology

•

PCB Isolate Shielding

•

Impedance Sensing on Line Out port

•

Individual PCB Layers for R/L Audio Channel

•

Gold Audio Jacks

•

Supports Creative SoundBlaster Cinema3

•

English

LAN

Wireless LAN

Gigabit LAN 10/100/1000 Mb/s

•

GigaLAN Intel® I211AT

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

Supports IEEE 802.11a/b/g/n/ac

•

Supports Dual-Band (2.4/5 GHz)

•

Supports high speed wireless connections up to 867Mbps

•

2 antennas to support 2 (Transmit) x 2 (Receive) diversity

•

technology Supports Bluetooth 4.0 / 3.0 + High speed class II

•

Rear Panel I/O

Storage

Fatal1ty X370 Gaming-ITX/ac Series

2 x Antenna Ports

•

1 x PS/2 Mouse/Keyboard Port

•

2 x HDMI Ports

•

1 x Optical SPDIF Out Port

•

2 x USB 2.0 Ports (Supports ESD Protection)

•

* 1 x Fatal1ty Mouse Port (USB 2.0) is included

1 x USB 3.0 Type-A Port (Supports ESD Protection)

•

1 x USB 3.0 Type-C Port (Supports ESD Protection)

•

2 x USB 3.0 Ports (Supports ESD Protection)

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone (Gold Audio Jacks)

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3

•

6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with

A-Series APU)*

* Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit

Connector

1 x LPC Header

•

1 x AMD Fan LED Header

•

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

1 x Chassis Fan Connector (4-pin)

•

1 x Chassis Optional/Water Pump Fan Connector (4-pin)

•

(Smart Fan Speed Control) * e Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. * CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector (Hi-Density Power

•

Connector)

1 x Front Panel Audio Connector

•

1 x AMD LED Fan USB Header

•

English

BIOS Feature

Hardware Monitor

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD

•

Protection) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

•

Protection)

AMI UEFI Legal BIOS with GUI support

•

Supports “Plug and Play”

•

ACPI 5.1 compliance wake up events

•

Supports jumperfree

•

SMBIOS 2.3 support

•

CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjust-

•

ment

Temperature Sensing: CPU, Chassis, Chassis Optional/Water

•

Pump Fans Fan Tachometer: CPU, Chassis, Chassis Optional/Water

•

Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, Chassis, Chassis Optional/Water Pump Fans Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/

•

Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

•

Microso® Windows® 10 64-bit

•

* For the updated Windows® 10 driver, please visit ASRock’s website for details: http://www.asrock.com

English

FCC, CE

Certications

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Ove rclocking Technology, or using thirdparty overclocking tools. Overclocking may aect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage cau sed by overclocking.

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

Fatal1ty X370 Gaming-ITX/ac Series

Chapter 2 Installation

is is a Mini-ITX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

•

Failure to do so may cause physical injuries to you and damages to motherboard components. In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components. When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

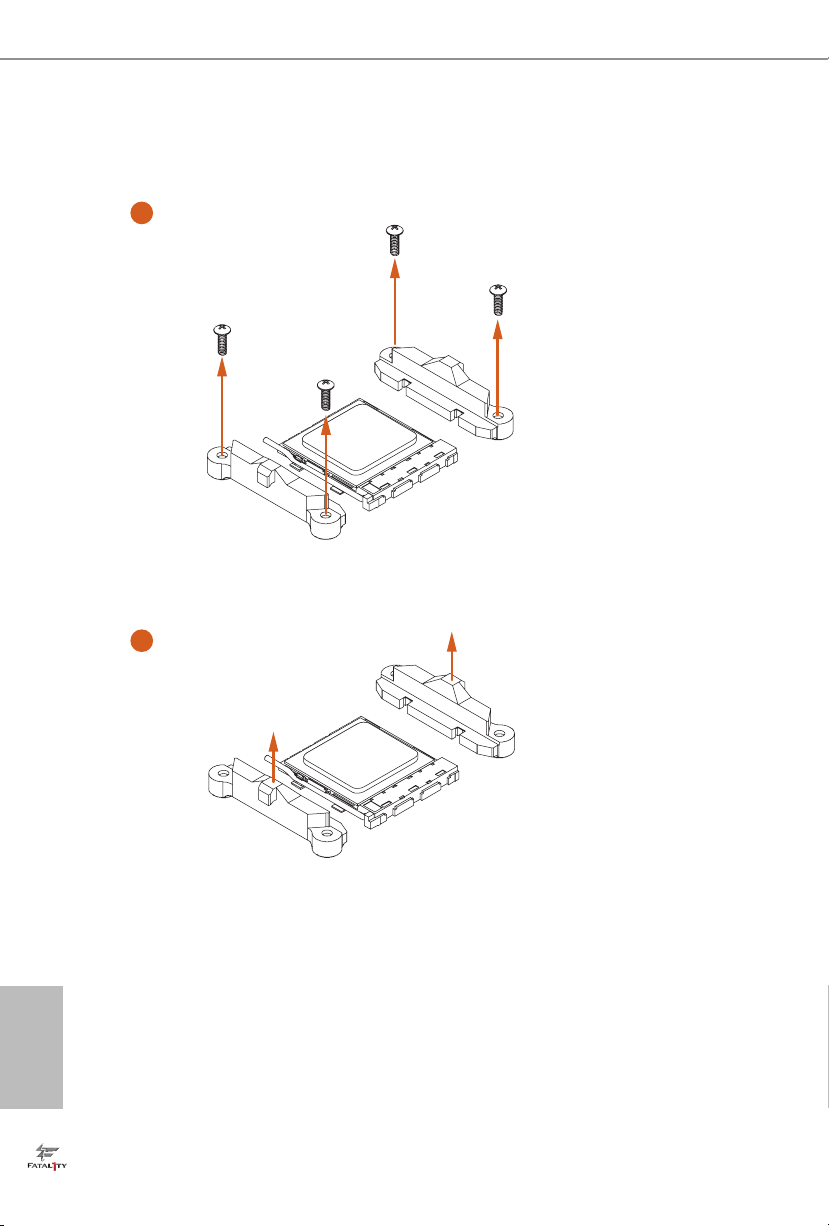

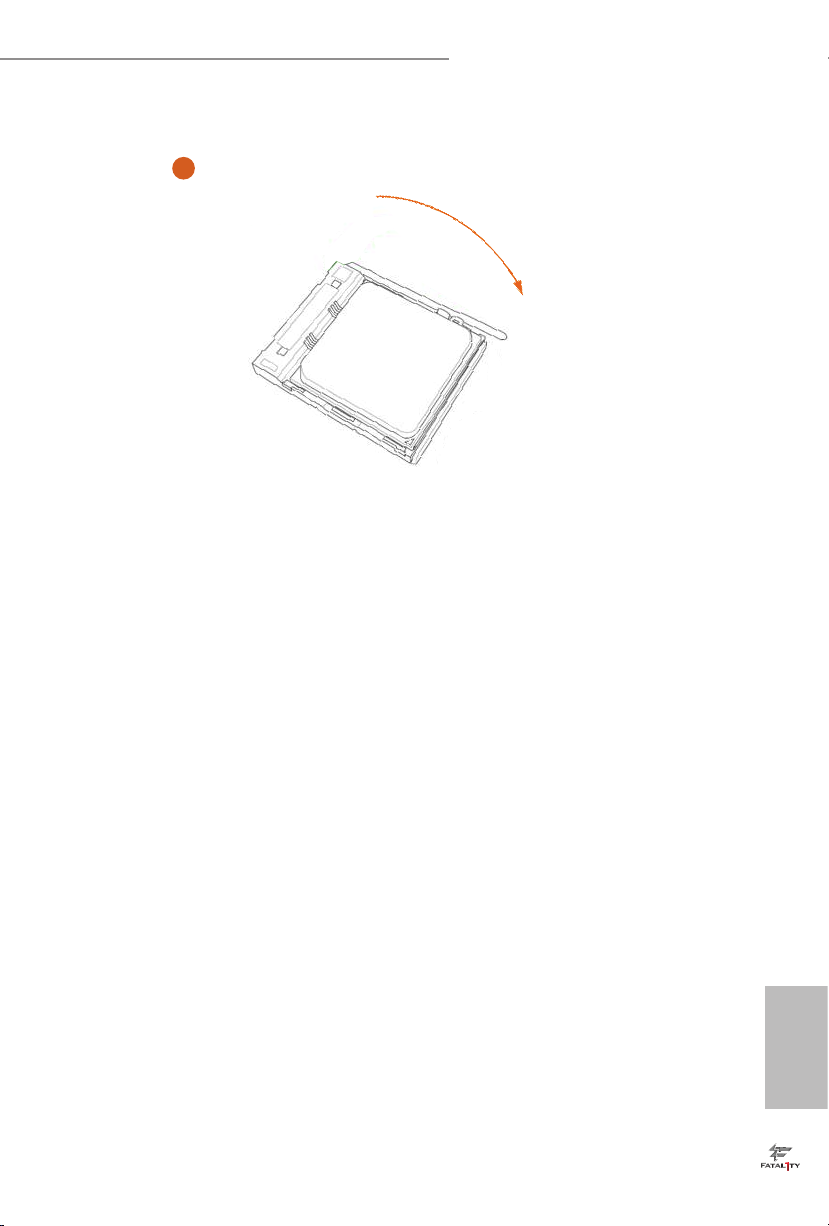

2.1 Installing the CPU

Unplug all power cables be fore installing the CPU.

English

Fatal1ty X370 Gaming-ITX/ac Series

English

2.2 Installing the CPU Fan and Heatsink

Aer you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.

Please turn o the power or remove the power cord before changing a CPU or heatsink.

Installing the CPU Box Cooler SR1

English

Fatal1ty X370 Gaming-ITX/ac Series

English

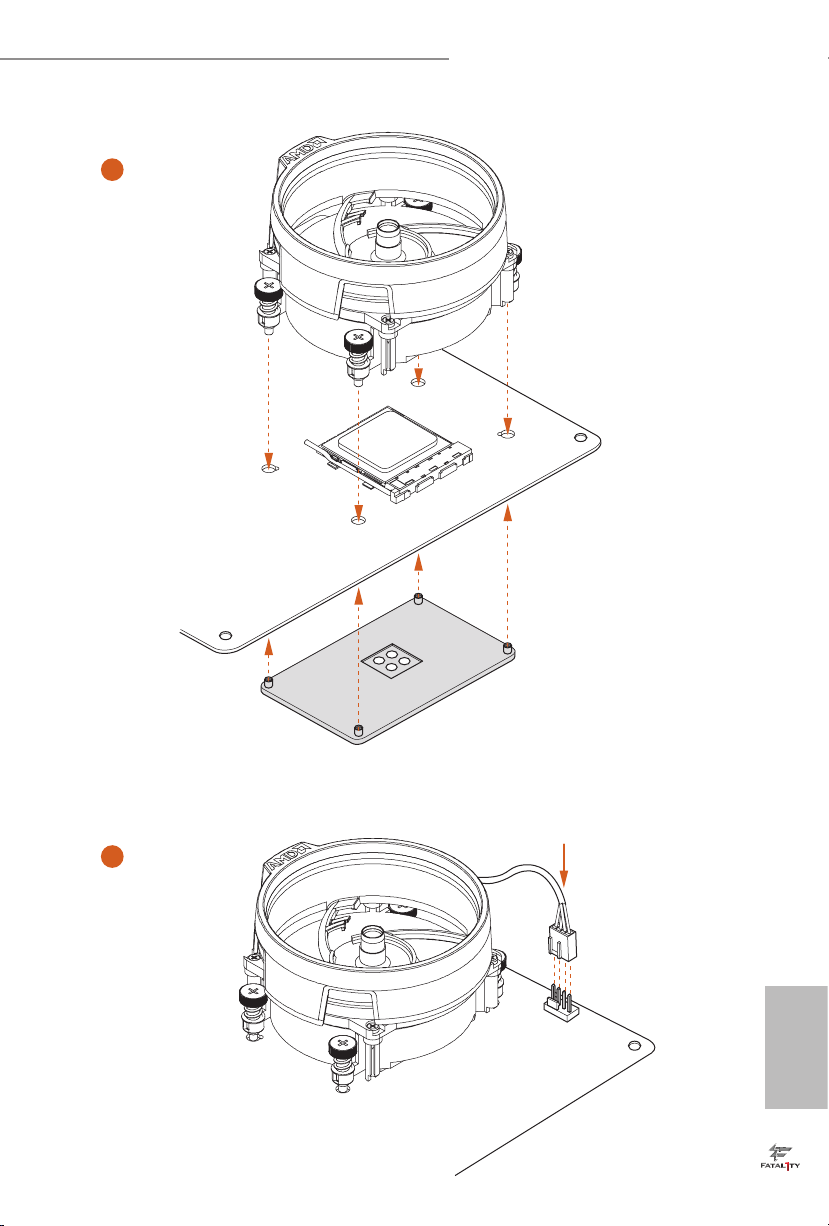

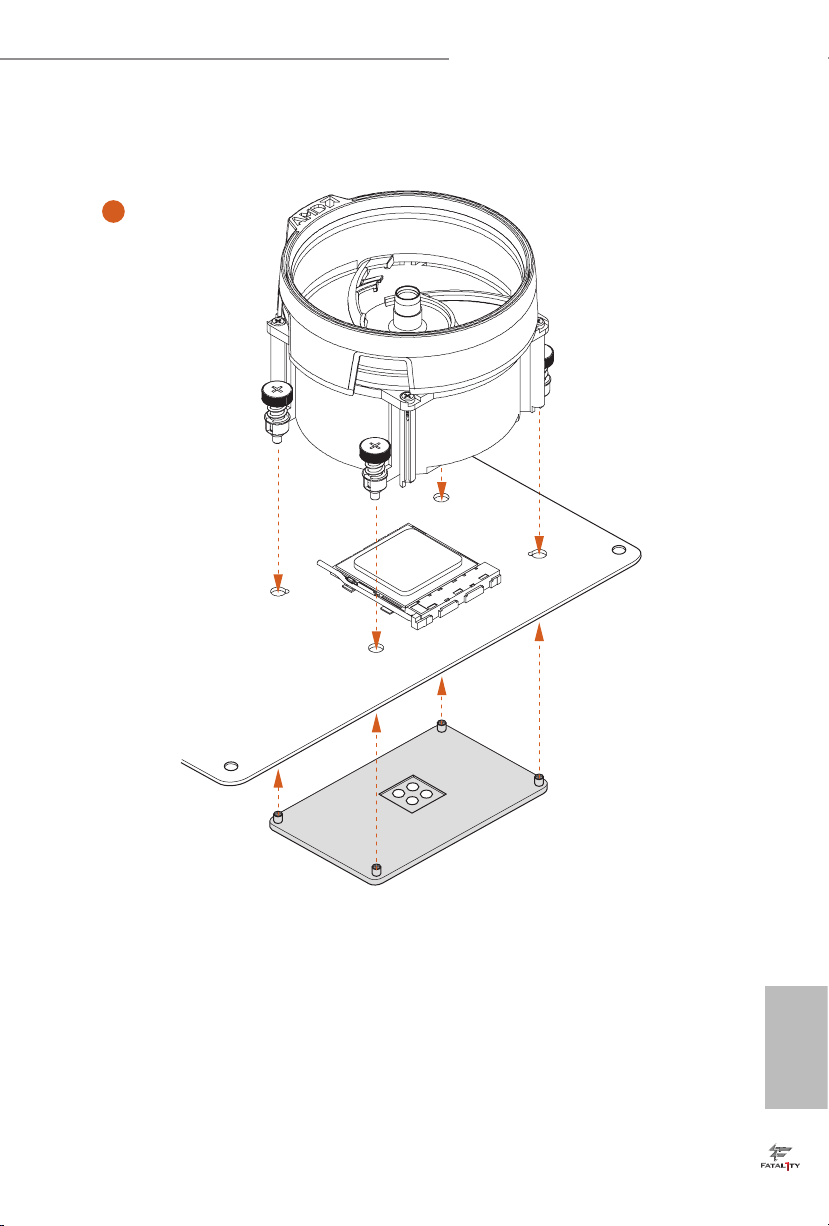

Installing the AM4 Box Cooler SR2

English

Fatal1ty X370 Gaming-ITX/ac Series

English

4-pin FAN cable

English

RGB LED Cable

CPU_

+12V

*e diagram shown here are for reference only. Please refer to page 30 for the orientation of AMD Fan LED Header (AMD_FAN_LED1).

Installing the AM4 Box Cooler SR3

Fatal1ty X370 Gaming-ITX/ac Series

English

Fatal1ty X370 Gaming-ITX/ac Series

CPU_FAN1

English

+12V

English

Please note that only one cable should be used at a time in this step. If you select AMD_FAN_LED1, please install ASRock utility "ASRock RGB LED". If you select USB connector, please install AMD utility "SR3 Settings Soware".

*e diagram shown here are for reference only. Please refer to page 30 for the orientation of AMD Fan LED Header (AMD_FAN_LED1) and page 28 for the orientation of AMD LED Fan USB Header (USB_5).

Fatal1ty X370 Gaming-ITX/ac Series

2.3 Installing Memory Modules (DIMM)

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

DDR4 UDIMM Maximum Frequency Support

A-Series APUs:

UDIMM Memory Slot

A1 B1

- SR 2400

SR - 2400

- DR 2400

DR - 2400

SR SR 2400

DR DR 2400

Frequency

(Mhz)

Ryzen CPUs:

UDIMM Memory Slot

A1 B1

- SR 2667

SR - 2667

- DR 2667

DR - 2667

SR SR 2667

DR DR 2667

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label

DR: Dual rank DIMM, 2Rx4 or 2R x8 on DIMM module label

Frequency

(Mhz)

English

e DIMM only ts in one correct orientation. It will cause permanent damage to the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect orientation.

English

Fatal1ty X370 Gaming-ITX/ac Series

2.4 Expansion Slot (PCI Express Slot)

ere is 1 PCI Express slot on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is switched o or the power cord is unplugged. Plea se read the documentation of the expan sion card and make necessary hardware settings for the card before you start the installation.

PCIe slot:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.* * PCIE1 will downgrade to x8 mode when A-Series APU is installed.

English

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper (CLRMOS1) (see p.1, No. 16)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn o the computer and unplug the power cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right aer you update the BIOS. If you need to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default prole will be cleared only if the CMOS battery is removed.

Clear CMOSDefault

English

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

Fatal1ty X370 Gaming-ITX/ac Series

System Panel Header (9-pin PANEL1) (see p.1, No. 14)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to turn o your system using the power switch.

RESET (Reset Switch):

Connec t to the reset switch on the chassis front panel. Press the reset sw itch to restart the computer if the compute r freezes and fails to perform a normal restart.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel. e LED i s on when the system is ope rating. e LED keeps blinking when the system i s in S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive activity LED on the chassis front panel. e LED is on when the hard dr ive is reading or writing data.

e front panel design may dier by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard dr ive activity LED, speak er and etc. When connecting your chassis front panel module to this head er, make sure the wire assig nments and the pin assig nments are matched correctly.

GND RES ET#

PWR BT N #

PLE D-

PLE D+

GND

HDL ED -

HDL ED +

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

Chassis Speaker Header (4-pin SPEAKER1) (see p.1, No. 19)

Please connect the chassis speaker to this header.

English

Serial ATA3 Connectors (SATA3_1: see p.1, No. 11) (SATA3_2: see p.1, No. 10) (SATA3_3: see p.1, No. 12) (SATA3_4: see p.1, No. 13)

SATA3_2

SATA3_4

ese four SATA3 connectors support SATA data cables for internal

SATA3_1

storage devices with up to

6.0 Gb/s data transfer rate.

SATA3_3

English

AMD LED Fan USB Header (4-pin USB_5) (see p.1, No. 2)

USB 2.0 Header (9-pin USB_3_4) (see p.1, No. 8)

USB 3.0 Header (19-pin USB3_3_4) (see p.1, No. 9)

Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 18)

Dumm y

IntA _PB_ D+

IntA _PB_ D-

IntA _PB_ SSTX +

IntA _PB_ SSTX -

IntA _PB_ SSRX +

IntA _PB_ SSRX -

Vbus

GND

MIC 2_L

GND

PRE SEN CE#

MIC _RE T

OUT 2_R

MIC 2_R

IntA _PA_D +

IntA _PA_D -

GND

IntA _PA_S STX+

IntA _PA_S STX-

GND

IntA _PA_S SRX+

IntA _PA_S SRX-

Vbus

OUT _RE T

OUT 2_L

J_S ENS E

is header is used for connecting the USB connector on the AMD SR3 Heatsink.

ere is one header on this motherboard. Each USB 2.0 header can support two ports.

ere is one header on this motherboard. Each USB 3.0 header can support two ports.

is header is for connecting audio devices to the front audio panel.

Fatal1ty X370 Gaming-ITX/ac Series

GND

FAN_ VOLTAG E_CO NTR OL

FAN_ SPEE D

FAN_ SPEE D_C ONT ROL

4 3 2 1

1. High Denition Audio support s Jack Sensing, but the panel wire on the chassis must suppor t HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_ L. B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L. C. Connect Ground (GND) to Ground (GND). D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connect them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adju st “Recording Volume”.

Chassis Fan Connector (4-pin CHA_FAN2) (see p.1, No. 6)

Chassis Optional/Water Pump Fan Connector (4-pin CHA_FAN/W_ PUMP) (see p.1, No. 17)

CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 4)

FAN _S PEE D_ CON TR OL

CHA _F AN_ SP EED

FAN _V OLT AG E

GND

FAN _VOLT AGE

CPU _F

AN_ SPEED

FAN_ SPEED _CONT ROL

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

is motherboard provides two 4-Pin water cooling

chassis

fan connectors. If you plan to connect a 3-Pin

chassis water cooler fan, please connect it to Pin 1-3.

is motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

English

ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 7)

is motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin

13.

ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)

AMD FAN LED Header (4-pin AMD_FAN_ LED1) (see p.1, No. 3)

12V G R B

is motherboard provides a 8-pin ATX 12V power connector. To use a

4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

AMD FAN LED Header is used to connect RGB LED extension cable that comes with AMD heatsink. e cable connection allows users to choose from various LED lighting eects.

Caution: Never install the FAN

LED cable in the wrong orienta-

tion; otherwise, the cable may

be damaged.

English

Fatal1ty X370 Gaming-ITX/ac Series

1 Einleitung

Vielen Dank, dass Sie sich für die ASRock Fatal1ty X370 Gaming-ITX/ac Series von ASRock entschieden haben – ein zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualität und Beständigkeit erfüllt.

Da die technischen Daten des Motherboards sowie die BIOS-Soware aktualisiert werden können, kann der Inhalt dieser Anleitung ohne Ankündigung geändert werden. Falls diese Anleitung irgendwelchen Änderungen unterliegt, wird die aktualisierte Version ohne weitere Hinweise auf der ASRock-Webseite zur Verfügung gestellt. Sollten Sie technische Hilfe in Bezug auf dieses Motherboard benötigen, erhalten Sie auf unserer Webseite spezischen Informationen über das von Ihnen verwendete Modell. Auch nden Sie eine aktuelle Liste unterstützter VGA-Karten und Prozessoren auf der ASRock-Webseite: http://www.asrock.com.

1.1 Lieferumfang

Motherboard der ASRock Fatal1ty X370 Gaming-ITX/ac Series (Mini-ITX-Formfaktor)

•

Schnellinstallationsanleitung zur ASRock Fatal1ty X370 Gaming-ITX/ac-Series

•

Support-CD zur ASRock Fatal1ty X370 Gaming-ITX/ac-Series

•

1 x E/A-Blendenabschirmung

•

2 x Serial-ATA- (SATA) Datenkabel (optional)

•

1 x ASRock-WiFi-2,4/5-GHz-Antenne (optional)

•

1 x Schraube für M.2-Sockel (optional)

•

Deutsch

1.2 Technische Daten

Mini-ITX-Formfaktor

Plattform

Prozessor

Chipsatz

Speicher

•

Platine mit zwei Unzen Kupfergehalt

•

Unterstützt AMD-Sockel-AM4-APUs der A-Serie (Bristol

•

Ridge) und Prozessoren der Ryzen-Serie (Summit Ridge) Digi Power design

•

8-Leistungsphasendesign

•

Unterstützt 95-W-Wasserkühlung

•

AMD Promontory X370

•

Dualkanal-DDR4-Speichertechnologie

•

2 x DDR4-DIMM-Steckplätze

•

Prozessoren der AMD-Ryzen-Serie unterstützen DDR4

•

3200+(OC)/2933 (OC)/2667/2400/2133 ECC und non-ECC, ungepuerter Speicher* APUs von AMDs A-Serie der 7. Generation unterstützen

•

DDR4 2400/2133 ECC und non-ECC, ungepuerter Speicher* * Weitere Informationen nden Sie in der Speicherkompatibilitätsliste auf der ASRock-Webseite. (http://www.asrock.com/) * Bitte beachten Sie Seite 23 für die maximal unterstützte Frequenz von DDR4-UDIMM.

Systemspeicher, max. Kapazität: 32 GB

•

15-μ-Goldkontakt in DIMM-Steckplätze

•

Deutsch

Erweiterungssteckplatz

Grakkarte

Prozessoren der AMD-Ryzen-Serie

1 x PCI-Express 3.0-x16-Steckplatz (PCIE1:x16-Modus)*

•

APUs von AMDs A-Serie der 7. Generation

1 x PCI-Express 3.0-x16-Steckplatz (PCIE1:x8-Modus)*

•

* Unterstützt NVMe-SSD als Bootplatte

1 x vertikaler M.2-Sockel (Key E) mit dem mitgelieferten

•

802.11ac-WLAN-Modul (an den rückseitigen I/O)

15-μ-Goldkontakt in VGA-PCIe-Steckplatz (PCIE1)

•

Integrierte Grakkarte der AMD-RadeonTM-R-Serie in APU

•

der A-Serie*

Audio

Fatal1ty X370 Gaming-ITX/ac Series

* Tatsächliche Unterstützung kann je nach Prozessor variieren

DirectX 12, Pixel Shader 5.0

•

Max. geteilter Speicher 2GB

•

Unterstützt 2 x HDMI mit maximaler Auösung von 4K x 2K

•

(4096 x 2160) bei 24 Hz / (3840 x 2160) bei 30 Hz Unterstützt Auto-Lippensynchronizität, hohe Farbtiefe (12

•

bpc), xvYCC und HBR (Audio mit hoher Bitrate) mit HDMIPorts (konformer HDMI-Monitor erforderlich) Unterstützt HDCP mit HDMI-Ports

•

Unterstützt Blu-ray- (BD) Wiedergabe (Full HD/1080p) mit

•

HDMI-Ports

7.1-Kanal-HD-Audio mit Inhaltsschutz (Realtek ALC1220-

•

Audiocodec) Erstklassige Blu-ray-Audiounterstützung

•

Unterstützt Überspannungsschutz

•

Nichicon-Audiokappen der Fine Gold-Serie

•

120-dB-SRV-DAC mit Dierentialverstärker

•

Reiner Stromeingang

•

Direct Drive Technology

•

PCB-isolierte Abschirmung

•

Impedanzerkennung am Line-Ausgang

•

Individuelle PCB-Layer für rechten/linken Audiokanal

•

Goldene Audioanschlüsse

•

Unterstützt Creative SoundBlaster Cinema3

•

LAN

Wireless LAN

Gigabit LAN 10/100/1000 Mb/s

•

GigaLAN Intel® I211AT

•

Unterstützt Wake-On-LAN

•

Unterstützt Schutz gegen Blitzschlag/elektrostatische Entladung

•

Unterstützt energieezientes Ethernet 802.3az

•

Unterstützt PXE

•

Unterstützt IEEE 802.11a/b/g/n/ac

•

Unterstützt Dualband (2,4/5 GHz)

•

Unterstützt drahtlose Hochgeschwindigkeitsverbindungen bis

•

867 Mb/s 2 Antennen zur Unterstützung von Diversitätstechnologie 2

•

(senden) x 2 (empfangen) Unterstützt Bluetooth 4.0 / 3.0 + High-Speed, Klasse II

•

Deutsch

Rückblende, E/A

Speicher

2 x Antennenanschluss

•

1 x PS/2-Maus-/Tastaturanschluss

•

2 x HDMI-Port

•

1 x Optischer SPDIF-Ausgang

•

2 x USB-2.0-Ports (unterstützt Schutz gegen elektrostatische

•

Entladung) * 1 x Fatal1ty-Mausanschluss (USB 2.0) ist inklusive

1 x USB-3.0-Typ-A-Port (unterstützt Schutz gegen elektrosta-

•

tische Entladung)

1 x USB-3.0-Typ-C-Port (unterstützt Schutz gegen elektrosta-

•

tische Entladung)

2 x USB-3.0-Ports (unterstützt Schutz gegen elektrostatische

•

Entladung)

1 x RJ-45-LAN-Port mit LED (Aktivität/Verbindung-LED und

•

Geschwindigkeit-LED)

HD-Audioanschlüsse: Hintere Lautsprecher / Zentral / Bass /

•

Line-in / Vorderer Lautsprecher / Mikrofon (goldene Audioan-

schlüsse)

4 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt RAID (RAID 0,

•

RAID 1 und RAID 10), NCQ, AHCI und Hot-Plugging

1 x Ultra-M.2-Sockel, unterstützt M-Key-Typ-2280-M.2-SATA-

•

III-6,0-Gb/s-Modul und M.2-PCI-Express-Modul bis Gen3 x 4

(32 Gb/s) (mit Ryzen-CPU) oder Gen3 x2 (16 Gb/s) (mit APU

der A-Serie)** * Unterstützt NVMe-SSD als Bootplatte * Unterstützt ASRock U.2-Kit

Deutsch

Anschluss

1 x LPC-Stileiste

•

1 x AMD-Lüer-LED-Stileiste

•

1 x CPU-Lüeranschluss (4-polig)

•

* Der CPU-Lüeranschluss unterstützt einen CPU-Lüer mit einer maximalen Lüerleistung von 1 A (12 W).

1 x Gehäuselüeranschluss (4-polig)

•

1 x Anschluss für Optionales-Gehäuse-/Wasserpumpenlüer

•

(4-polig) (intelligente Lüergeschwindigkeitssteuerung) * Der Optionales-Gehäuse-/Wasserpumpenlüer unterstützt einen Wasserkühlerlüer mit einer maximalen Lüerleistung von 1,5 A (18 W). * CHA_FAN1/W_PUMP können automatisch erkennen, ob ein 3oder 4-poliger Lüer verwendet wird.

1 x 24-poliger ATX-Netzanschluss

•

1 x 8-poliger 12-V-Netzanschluss (hochdichter Netzanschluss)

•

1 x Audioanschluss an Frontblende

•

1 x AMD-LED-Lüer-USB-Stileiste

•

BIOSFunktion

Hardwareüberwachung

Fatal1ty X370 Gaming-ITX/ac Series

1 x USB 2.0-Stileiste (unterstützt zwei USB 2.0-Ports)

•

(unterstützt Schutz gegen elektrostatische Entladung) 1 x USB 3.0-Stileiste (unterstützt zwei USB 3.0-Ports)

•

(unterstützt Schutz gegen elektrostatische Entladung)

AMI-UEFI-Legal-BIOS mit Unterstützung grascher Benut-

•

zerschnittstellen Unterstützt „Plug-and-Play“

•

ACPI 5.1-konforme Aufweckereignisse

•

Jumper-frei

•

SMBIOS 2.3-Unterstützung

•

CPU, DRAM, PCH 1,05V, PROM 2,5V / Mehrfachspannung-

•

sanpassung

Temperaturerkennung: CPU-, Gehäuse-, Optionales-Gehäuse-/

•

Wasserpumpen-Lüer Lüertachometer: CPU-, Gehäuse-, Optionales-Gehäuse-/

•

Wasserpumpen-Lüer Lautloser Lüer (automatische Anpassung der Gehäuselüer-

•

geschwindigkeit durch CPU-Temperatur): CPU-, Gehäuse-, Optionales-Gehäuse-/Wasserpumpen-Lüer Mehrfachgeschwindigkeitssteuerung: CPU-, Gehäuse-, Option-

•

ales-Gehäuse-/Wasserpumpen-Lüer Spannungsüberwachung: +12 V, +5 V, +3,3 V, CPU Vcore

•

Microso® Windows® 10, 64 Bit

Betriebssystem

•

* Einzelheiten zum aktualisierten Windows® 10-Treiber entnehmen Sie bitte der ASRock-Webseite:http://www.asrock.com

FCC, CE

Zertizierungen

* Detaillierte Produktinformationen nden Sie auf unserer Webseite: http://www.asrock.com

Bitte beachten Sie, dass mit einer Übertaktung, zu der die Anpassung von BIOS-Einstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von Übertaktungswerkzeugen von Drittanbietern zählen, bestimmte Risiken verbunden sind. Eine Übertaktung kann sich auf die Stabilität Ihres Systems auswirken und sogar Komponenten und Geräte Ihres Systems beschädigen. Sie sollte auf eigene Gefahr und eigene Kosten durchgeführt werden. Wir übernehmen keine Verantwortung für mögliche Schäden, die durch eine Übertaktung verursacht wurden.

•

ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)

•

Deutsch

1.3 Jumpereinstellung

Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine JumperKappe auf den Kontakten angebracht ist, ist der Jumper „oen“. Die Abbildung zeigt einen 3-poligen Jumper, dessen Kontakt 1 und Kontakt 2 „kurzgeschlossen“ sind, wenn eine Jumper-Kappe auf diesen 2 Kontakten angebracht ist.

CMOS-löschen-Jumper (CLRMOS1) (siehe S. 1, Nr. 16)

CLRMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen und Rücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schließen Sie dann Kontakt 2 und Kontakt 3 an CLRMOS1 5 Sekunden lang mit einer Jumper-Kappe kurz. Löschen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOSAktualisierung löschen müssen, starten Sie das System zunächst; fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit und Benutzerstandardprol nur gelöscht werden, wenn die CMOS-Batterie entfernt wird.

CMOS löschenStandard

Deutsch

Fatal1ty X370 Gaming-ITX/ac Series

1.4 Integrierte Stiftleisten und Anschlüsse

Integrierte Stileisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE JumperKappen an diesen Stileisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen Stileisten und Anschlüssen können Sie das Motherboard dauerha beschädigen.

Systemblende-Stileiste (9-polig, PANEL1) (siehe S. 1, Nr. 14)

PWRBTN (Ein-/Austaste):

Mit der Ein-/Austaste an der Frontblende des Gehäuses verbinden. Sie können die Abschaltung Ihres Systems über die Ein-/Austaste kongurieren.

RESET (Reset-Taste):

Mit der Reset-Taste an der Frontblende des Gehäuses verbinden. Starten Sie den Computer über die Reset-Taste neu, wenn er abstürzt oder sich nicht normal neu starten lässt.

PLED (Systembetriebs-LED):

Mit der Betriebsstatusanzeige an der Frontblende des Gehäuses verbinden. Die LED leuchtet, wenn das System läu. Die LED blinkt, wenn sich das System im S3-Ruhezustand bendet. Die LED ist aus, wenn sich das System im S4-Ruhezustand bendet oder ausgeschaltet ist (S5).

HDLED (Festplattenaktivitäts-LED):

Mit der Festplattenaktivitäts-LED an der Frontblende des Gehäuses verbinden. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.

Das Design der Frontblende kann je nach Gehäuse variieren. Ein Frontblendenmodul besteht hauptsächlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, FestplattenaktivitätLED, Lautsprecher etc. Stellen Sie beim Anschließen Ihres Frontblendenmoduls an diese Stileiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.

GND

PWR BT N #

PLE D-

PLE D+

GND

RES ET#

GND

HDL ED -

HDL ED +

Verbinden Sie Netzschalter, Reset-Taste und Systemstatusanzeige am Gehäuse entsprechend der nachstehenden Pinbelegung mit dieser Stileiste. Beachten Sie vor Anschließen der Kabel die positiven und negativen Kontakte.

Gehäuselautsprecherstileiste (4-polig, SPEAKER1) (siehe S. 1, Nr. 19)

DUM MY

+5V

SPE AKE R

DUM MY

Bitte verbinden Sie den Gehäuselautsprecher mit dieser Stileiste.

Deutsch

Serial-ATA-III-Anschlüsse (SATA3_1: siehe S. 1, Nr. 11) (SATA3_2: siehe S. 1, Nr. 10) (SATA3_3: siehe S. 1, Nr. 12) (SATA3_4: siehe S. 1, Nr. 13)

SATA3_2

SATA3_4

Diese vier SATA-IIIAnschlüsse unterstützen SATA-Datenkabel für interne

SATA3_1

Speichergeräte mit einer Date nübertragungsgeschwindigkeit

SATA3_3

bis 6,0 Gb/s.

Deutsch

AMD-LED-Lüer-USBStileiste (4-polig, USB_5) (siehe S. 1, Nr. 2)

USB 2.0-Stileiste (9-polig, USB_3_4) (siehe S. 1, Nr. 8)

USB 3.0-Stileiste (19-polig, USB3_3_4) (siehe S. 1, Nr. 9)

Audiostileiste (Frontblende) (9-polig, HD_AUDIO1) (siehe S. 1, Nr. 18)

Dumm y

IntA _PB_ D+

IntA _PB_ D-

IntA _PB_ SSTX +

IntA _PB_ SSTX -

IntA _PB_ SSRX +

IntA _PB_ SSRX -

Vbus

GND

MIC 2_L

GND

PRE SEN CE#

MIC _RE T

OUT 2_R

MIC 2_R

IntA _PA_D +

IntA _PA_D -

GND

IntA _PA_S STX+

IntA _PA_S STX-

GND

IntA _PA_S SRX+

IntA _PA_S SRX-

Vbus

OUT _RE T

OUT 2_L

J_S ENS E

Diese Stileiste dient der Verbindung des USBAnschlusses am AMD-SR3Kühlkörper.

Es gibt eine Stileiste an diesem Motherboard. Jede USB

2.0-Stileiste kann zwei Ports unterstützen.

Es gibt eine Stileiste an diesem Motherboard. Jede USB

3.0-Stileiste kann zwei Ports unterstützen.

Diese Stileiste dient dem Anschließen von Audiogeräten an der Frontblende.

Fatal1ty X370 Gaming-ITX/ac Series

GND

FAN_ VOLTAG E_CO NTR OL

FAN_ SPEE D

FAN_ SPEE D_C ONT ROL

1. High Denition Audio unterstützt Anschlusserkennung, der Draht am Gehäuse muss dazu jedoch HDA unterstützt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Gehäuse.

2. Bei Nutzung eines AC’97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostileiste der Frontblende installieren: A. Mic_IN (Mikrofon) mit MIC2_L verbinden. B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden. C. Erde (GND) mit Erde (GND) verbinden. D. MIC_RET und OUT_RET sind nur für das HD-Audiopanel vorgesehen. Sie müssen sie nicht für das AC’97-Audiopanel verbinden. E. Rufen Sie zum Aktivieren des vorderen Mikrofons das „FrontMic (Vorderes Mikrofon)“-Register in der Realtek-Systemsteuerung auf und passen „Recording Volume (Aufnahmelautstärke)“ an.

Gehäuselüeranschluss (4-polig, CHA_FAN2) (siehe S. 1, Nr. 6)

Optionales-Gehäuse-/ Wasserpumpen-Lüeranschluss (4-polig, CHA_FAN/W_PUMP) (siehe S. 1, Nr. 17)

CPU-Lüeranschluss (4-polig, CPU_FAN1) (siehe S. 1, Nr. 4)

FAN _S PEE D_ CON TR OL

CHA _F AN_ SP EED

FAN _V OLT AG E

GND

4 3 2 1

GND

FAN _VOLT AGE

CPU _F

AN_ SPEED

FAN_ SPEED _CONT ROL

Bitte verbinden Sie die Lüerkabel mit den Lüeranschlüssen; der schwarze Draht gehört zum Erdungskontakt.

Dieses Motherboard bietet zwei 4-polige WasserkühlungGehäuselüeranschlüsse. Falls Sie einen 3-poligen Wasserkühlerlüer

Gehäuse-

anschließen möchten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.

Dieses Motherboard bietet einen 4-poligen CPU-Lüeranschluss (lautloser Lüer). Falls Sie einen 3-poligen CPULüer anschließen möchten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.

Deutsch

ATX-Netzanschluss (24-polig, ATXPWR1) (siehe S. 1, Nr. 7)

Dieses Motherboard bietet einen 24-poligen ATX-Netzanschluss. Bitte schließen Sie es zur Nutzung eines 20-poligen ATX-Netzteils entlang Kontakt

1 und Kontakt 13 an.

ATX-12-V-Netzanschluss (8-polig, ATX12V1) (siehe S. 1, Nr. 1)

AMD-Lüer-LED-Stileiste (4-polig, AMD_FAN_LED1) (siehe S. 1, Nr. 3)

12V G R B

Dieses Motherboard bietet

einen 8-poligen ATX-12-VNetzanschluss. Bitte schließen Sie es zur Nutzung eines 4-po-

ligen ATX-Netzteils entlang Kontakt 1 und Kontakt 5 an.

Die AMD-Lüer-LED-Stileiste dient dem Anschluss des mit dem AMD-Kühlkörpers gelieferten RGB-LED-Verlängerungskabels. Der Kabelanschluss ermöglicht Nutzern die Wahl zwischen verschiedenen LED-Lichteekten.

Achtung: Installieren Sie das

Lüer-LED-Kabel niemals fals-

ch herum; andernfalls könnte

das Kabel beschädigt werden.

Deutsch

Fatal1ty X370 Gaming-ITX/ac Series

1 Introduction

Nous vous remercions d’avoir acheté cette carte mère ASRock de la série ASRock Fatal1ty X370 Gaming-ITX/ac, une carte mère able fabriquée conformément au contrôle de qualité rigoureux et constant appliqué par ASRock. Fidèle à son engagement de qualité et de durabilité, ASRock vous garantit une carte mère de conception robuste aux performances élevées.

Les spécications de la carte mère et du logiciel BIOS pouvant être mises à jour, le contenu de ce document est soumis à modication sans préavis. En cas de modications du présent document, la version mise à jour sera disponible sur le site Internet ASRock sans notication préalable. Si vous avez besoin d’une assistance technique pour votre carte mère, veuillez visiter notre site Internet pour plus de détails sur le modèle que vous utilisez. La liste la plus récente des cartes VGA et des processeurs pris en charge est également disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.

1.1 Contenu de l’emballage

Carte mère ASRock Fatal1ty X370 Gaming-ITX/ac Series (facteur de forme Mini-ITX)

•

Guide d'installation rapide pour la série ASRock Fatal1ty X370 Gaming-ITX/ac

•

CD de support pour la ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

1 x panneau de protection E/S

•

2 x câbles de données Serial ATA (SATA) (Optionnel)

•

1 x antenne Wi-Fi 2,4/5 GHz ASRock (Optionnel)

•

1 x vis pour socket M.2 (Optionnel)

•

Français

1.2 Spécications

Plateforme

Processeur

Chipset

Mémoire

•

* Veuillez consulter la liste de prise en charge des mémoires sur le site Web d'ASRock pour de plus amples informations. (http://www. asrock.com/) * Veuillez consulter la page 23 pour connaître la prise en charge de la fréquence maximale de l'UDIMM DDR4.

•

Facteur de forme Mini-ITX PCB cuivre 2 onces

Prend en charge les APU série A (Bristol Ridge) et les CPU série Ryzen (Summit Ridge) AM4 à socket AMD Digi Power design Alimentation à 8 phases Prend en charge le refroidissement par eau 95 W

AMD Promontory X370

Technologie mémoire double canal DDR4 2 x fentes DIMM DDR4 Les processeurs AMD série Ryzen prennent en charge les mémoires sans tampon* ECC et non ECC DDR4 3200+(OC)/2933 (OC)/2667/2400/2133 Les APU AMD série A de 7 les mémoires sans tampon* ECC et non ECC DDR4 2400/2133

Capacité max. de la mémoire système : 32Go Contacts dorés 15μ sur fentes DIMM

ème

génération prennent en charge

Français

Fente d’expansion

Graphiques

Processeurs AMD série Ryzen

1 x fente PCI Express 3.0 x 16 (PCIE1:mode x16)*

•

APU AMD série A de 7

1 x fente PCI Express 3.0 x 16 (PCIE1:mode x8)*

•

* Prend en charge les SSD NVMe comme disques de démarrage

1 x socket M.2 vertical (touche E) avec le module Wi-Fi

•

802.11ac fourni (sur l'E/S arrière) Contact doré 15μ dans fente VGA PCIe (PCIE1)

•

Carte graphique AMD RadeonTM série R intégrée dans APU

•

série A*

ème

génération

Audio

Réseau

Réseau sans-l

Fatal1ty X370 Gaming-ITX/ac Series

* La prise en charge réelle peut varier selon le processeur

DirectX 12, Pixel Shader 5.0

•

Mémoire partagée max. 2 Go

•

Prend en charge 2 x HDMI avec résolution maximale de 4K ×

•

2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Prend en charge les technologies Auto Lip Sync, Deep Color

•

(12bpc), xvYCC et HBR (High Bit Rate Audio) avec ports HDMI (un écran compatible HDMI est requis) Prend en charge HDCP via ports HDMI

•

Prend en charge la lecture Blu-ray (BD) Full HD 1080p via

•

ports HDMI

Audio 7.1 CH HD avec protection du contenu (codec audio

•

Realtek ALC1220) Compatible audio Blu-ray Premium

•

Prend en charge la protection contre les surtensions

•

Couvercles audio série en or n Nichicon

•

120dB SNR DAC avec amplicateur diérentiel

•

Entrée d’alimentation Pure Power

•

Technologie Direct Drive

•

Blindage isolant PCB

•

Détection d'impédance sur le port de sortie ligne

•

Couches de PCB individuelles pour canal audio D/G

•

Connecteurs jack audio or

•

Prend en charge Creative SoundBlaster Cinema3

•

Gigabit LAN 10/100/1000 Mo/s

•

GigaLAN Intel® I211AT

•

Prend en charge la fonction Wake-On-LAN

•

Prend en charge la protection contre la foudre/les décharges

•

électrostatiques Prend en charge la fonction d’économie d’énergie Ethernet

•

802.3az Prend en charge PXE

•

Prend en charge IEEE 802.11a/b/g/n/ac

•

Prend en charge le mode Dual-Band (2.4/5 GHz)

•

Prend en charge la connexion sans-l à haute vitesse jusqu’à

•

867Mbps 2 antennes pour prendre en charge la technologie diversiée 2

•

(émission) x 2 (réception) Prend en charge Bluetooth 4.0 / 3.0 + haute vitesse classe II

•

Français

Connectique du panneau arrière

Stockage

2 x ports antenne

•

1 x port souris/clavier PS/2

•

2 x ports HDMI

•

1 x port sortie optique SPDIF

•

2 x ports USB 2.0 (Protection contre les décharges électrosta-

•

tiques)

* 1 x port souris Fatal1ty (USB 2.0) est inclus

1 x port USB 3.0 type A (Protection contre les décharges élec-

•

trostatiques) 1 x port USB 3.0 type C (Protection contre les décharges élec-

•

trostatiques) 2 x ports USB 3.0 (Protection contre les décharges électrosta-

•

tiques) 1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED

•

VITESSE) Connecteurs jack audio HD : Haut-parleur arrière / central /

•

basses / entrée ligne / haut-parleur avant / microphone (Connecteurs jack audio or)

4 x connecteurs SATA3 6,0 Gbit/s, prise en charge de RAID

•

(RAID 0, RAID 1 et RAID 10), NCQ, AHCI et branchement à chaud 1 x socket Ultra M.2, prend en charge les modules M.2 SATA3

•

6,0 Go/s type 2280 touche M et M.2 PCI Express jusqu'à Gen3 x4 (32 Go/s) (avec CPU Ryzen) ou Gen3 x2 (16 Go/s) (avec

APU série A)* * Prend en charge les SSD NVMe comme disques de démarrage * Prend en charge le kit ASRock U.2

Français

Connecteur

1 x embase LPC

•

1 x embase LED de ventilateur AMD

•

1 x connecteur pour ventilateur de CPU (4 broches)

•

* Le connecteur pour ventilateur de CPU prend en charge un ventilateur de CPU d'une puissance maximale de 1 A (12 W).

1 x connecteur pour ventilateur de châssis (4 broches)

•

1 x connecteur pour ventilateur de châssis optionnel/pompe à

•

eau (4 broches) (contrôle de vitesse de ventilateur intelligent) * Le ventilateur de châssis optionnel/pompe à eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 1,5 A (18 W). * CHA_FAN1/W_PUMP peuvent détecter automatiquement si un ventilateur 3 broches ou 4 broches est utilisé.

1 x connecteur d’alimentation ATX 24 broches

•

1 x connecteur d’alimentation 12V 8 broches (connecteur

•

d’alimentation haute densité)

1 x connecteur audio panneau frontal

•

Caractéristiques du BIOS

Surveillance du matériel

Fatal1ty X370 Gaming-ITX/ac Series

1 x embase USB de ventilateur LED AMD

•

1 x embase USB 2.0 (2 ports USB 2.0 pris en charge) (Protection

•

contre les décharges électrostatiques) 1 x embase USB 3.0 (2 ports USB 3.0 pris en charge) (Protection

•

contre les décharges électrostatiques)

BIOS UEFI AMI avec prise en charge d’interface graphique

•

Prend en charge la fonction «Plug and Play»

•

Compatible ACPI 5.1 Wake Up Events

•

Prend en charge la conguration Jumpfree

•

Compatible SMBIOS 2.3

•

Réglage de la tension CPU, DRAM, PCH 1,05V, PROM 2,5V

•

Détection de température : Ventilateurs de CPU / châssis /

•

châssis optionnel / pompe à eau Tachymètre de ventilateur : Ventilateurs de CPU / châssis /

•

châssis optionnel / pompe à eau Ventilateur silencieux (réglage automatique de la vitesse du

•

ventilateur du châssis d’après la température du CPU) : Ventilateurs de CPU / châssis / châssis optionnel / pompe à eau Contrôle simultané des vitesses du ventilateur : Ventilateurs de

•

CPU / châssis / châssis optionnel / pompe à eau Surveillance de la tension d’alimentation : +12V, +5V, +3,3V,

•

CPU Vcore

Microso® Windows® 10 64 bits

Système d’exploitation

•

* Pour le pilote mis à jour pour Windows® 10, veuillez visiter le site Web d'ASRock pour plus de détails: http://www.asrock.com

FCC, CE

Certications

* pour des informations détaillées de nos produits, veuillez visiter notre site: http://www.asrock.com

Il est important de signaler que l’overcloking présente certains risques, incluant des modications du BIOS, l’application d’une technologie d’overclocking déliée et l’utilisation d’outils d’overclocking développés par des tiers. La stabilité de votre système peut être aectée par ces pratiques, voire provoquer des dommages aux composants et aux périphériques du système. L’overclocking se fait à vos risques et périls. Nous ne pourrons en aucun cas être tenus pour responsables des dommages éventuels provoqués par l’overclocking.

•

ErP/EuP Ready (alimentation ErP/EuP ready requise)

•

Français

1.3 Conguration des cavaliers (jumpers)

L’illustration ci-dessous vous renseigne sur la conguration des cavaliers (jumpers). Lorsque le capuchon du cavalier est installé sur les broches, le cavalier est «courtcircuité». Si le capuchon du cavalier n’est pas installé sur les broches, le cavalier est «ouvert». L’illustration représente un cavalier à 3 broches dont les broches 1 et 2 sont «court-circuitées» si un capuchon de cavalier est posé sur ces 2 broches.

Cavalier Clear CMOS (CLRMOS1) (voir p.1, No. 16)

CLRMOS1 vous permet d’eacer les donnés de la CMOS. Pour eacer les paramètres du système et rétablir les valeurs par défaut, veuillez éteindre votre ordinateur et débrancher son cordon d’alimentation. Patientez 15 secondes, puis utilisez un capuchon de cavalier pour court-circuiter la broche 2 et la broche 3 sur CLRMOS1 pendant 5 secondes. Toutefois, n’eacez pas la CMOS immédiatement après avoir mis à jour le BIOS. Si vous avez besoin d’eacer les données CMOS après une mise à jour du BIOS, vous devez tout d’abord redémarrer le système, puis l’éteindre avant de procéder à l’eacement de la CMOS. Veuillez noter que les paramètres mot de passe, date, heure et prol de l’utilisateur seront uniquement eacés en cas de retrait de la pile de la CMOS.

Fonction Clear CMOSPar défaut

Français

Fatal1ty X370 Gaming-ITX/ac Series

1.4 Embases et connecteurs de la carte mère

Les embases et connecteurs situés sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irrémédiablement votre carte mère.

Embase du panneau système (PANNEAU1 à 9 broches) (voir p.1, No. 14)

PWRBTN (bouton d’alimentation):

pour brancher le bouton d’alimentation du panneau frontal du châssis. Vous pouvez congurer la façon dont votre système doit s’arrêter à l’aide du bouton de mise en marche.

RESET (bouton de réinitiélisation):

pour brancher le bouton de réinitialisation du panneau frontal du châssis. Appuyez sur le bouton de réinitialisation pour redémarrer l’ordinateur en cas de plantage ou de dysfonctionnement au démarrage.

PLED (LED d’alimentation du système) :

pour brancher le témoin d’état de l’alimentation du panneau frontal du châssis. Le LED est allumé lorsque le système fonctionne. Le LED clignote lorsque le système se trouve en mode veille S3. Le LED est éteint lorsque le système se trouve en mode veille S4 ou hors tension (S5).

HDLED (LED d’activité du disque dur) :

pour brancher le témoin LED d’activité du disque dur du panneau frontal du châssis. Le LED est allumé lorsque le disque dur lit ou écrit des données.

La conception du panneau frontal peut varier en fonction du châssis. Un module de panneau frontal est principalement composé d’un bouton de mise en marche, bouton de réinitialisation, LED d’alimentation, LED d’activité du disque dur, haut-parleur etc. Lorsque vous reliez le module du panneau frontal de votre châssis sur cette embase, veillez à parfaitement faire correspondre les ls et les broches.

GND

PWR BT N #

PLE D-

PLE D+

GND

RES ET#

GND

HDL ED -

HDL ED +

Branchez le bouton de mise en marche, le bouton de réinitialisation et le témoin d’état du système présents sur le châssis sur cette embase en respectant la conguration des broches illustrée ci-dessous. Repérez les broches positive et négative avant de brancher les câbles.

Français

Embase du haut-parleur du châssis (SPEAKER1 à 4 broches) (voir p.1, No. 19)

DUM MY

+5V

SPE AKE R

DUM MY

Veuillez brancher le hautparleur du châssis sur cette embase.

Connecteurs Serial ATA3 (SATA3_1: voir p.1, No. 11) (SATA3_2: voir p.1, No. 10) (SATA3_3: voir p.1, No. 12) (SATA3_4: voir p.1, No. 13)

SATA3_2

SATA3_4

Ces quatre connecteurs SATA3 sont compatibles avec les câbles de données SATA pour les

SATA3_1

appareils de stockage internes avec un taux de transfert

SATA3_3

maximal de 6,0 Go/s.

Français

Embase USB de ventilateur LED AMD (USB_5 à 4 broches) (voir p.1, No.2)

Embase USB 2.0 (USB_3_4 à 9 broches) (voir p.1, No. 8)

Embase USB 3.0 (USB3_3_4 à 19 broches) (voir p.1, No. 9)

Embase audio du panneau frontal (HD_AUDIO1 à 9 broches) (voir p.1, No. 18)

Dumm y

IntA _PB_ D+

IntA _PB_ D-

IntA _PB_ SSTX +

IntA _PB_ SSTX -

IntA _PB_ SSRX +

IntA _PB_ SSRX -

Vbus

GND

MIC 2_L

GND

PRE SEN CE#

MIC _RE T

OUT 2_R

MIC 2_R

IntA _PA_D +

IntA _PA_D -

GND

IntA _PA_S STX+

IntA _PA_S STX-

GND

IntA _PA_S SRX+

IntA _PA_S SRX-

Vbus

OUT _RE T

OUT 2_L

J_S ENS E

Cette embase sert à connecter le connecteur USB sur le dissipateur thermique AMD SR3.

Cette carte mère comprend un connecteur. Chaque embase USB 2.0 peut prendre en charge deux ports.

Cette carte mère comprend un connecteur. Chaque embase USB 3.0 peut prendre en charge deux ports.

Cette embase sert au branchement des appareils audio au panneau audio frontal.

Fatal1ty X370 Gaming-ITX/ac Series

GND

FAN_ VOLTAG E_CO NTR OL

FAN_ SPEE D

FAN_ SPEE D_C ONT ROL

4 3 2 1

1. L’audio haute dénition prend en charge la technologie Jack Sensing (détection de la che), mais le panneau grillagé du châssis doit être compatible avec la HDA pour fonctionner correctement. Veuillez suivre les instructions gurant dans notre manuel et dans le manuel du châssis pour installer votre système.

2. Si vous utilisez un panneau audio AC’97, veuillez le brancher sur l’embase audio du panneau frontal en procédant comme suit : A. branchez Mic_IN (MIC) sur MIC2_L. B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L. C. branchez la mise à terre (GND) sur mise à terre (GND). D. MIC_RET et OUT_RET sont exclusivement réservés au panneau audio HD. Il est inutile de les brancher avec le panneau audio AC’97. E. Pour activer le micro frontal, sélectionnez l’onglet «FrontMic» du panneau de contrôle Realtek et réglez le paramètre «Volume d’enregistrement».

Connecteur du ventilateur du châssis (CHA_FAN2 à 4 broches) (voir p.1, No. 6)

Connecteur du ventilateur de châssis optionnel/pompe à eau (CHA_FAN/W_PUMP à 4 broches) (voir p.1, No. 17)

Connecteur du ventilateur du processeur (CPU_FAN1 à 4 broches) (voir p.1, No. 4)

FAN _S PEE D_ CON TR OL

CHA _F AN_ SP EED

FAN _V OLT AG E

GND

FAN _VOLT AGE

CPU _F

AN_ SPEED

FAN_ SPEED _CONT ROL

Veuillez brancher les câbles du ventilateur sur les connecteurs du ventilateur, puis reliez le l noir à la broche de mise à terre.

Cette carte mère est dotée de deux connecteurs pour ventilateur de

châssis

à refroidissement par eau à 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour châssis

à 3 broches, veuillez le

brancher sur la Broche 1-3.

Cette carte mère est dotée d’un connecteur pour ventilateur de processeur (Quiet Fan) à 4 broches. Si vous envisagez de connecter un ventilateur de processeur à 3 broches, veuillez le brancher sur la Broche 1-3.

Français

Connecteur d’alimentation ATX (ATXPWR1 à 24 broches) (voir p.1, No. 7)

Cette carte mère est dotée d’un connecteur d’alimentation ATX à 24 broches. Pour utiliser une alimentation ATX à 20 broches, veuillez eectuer les

branchements sur la Broche 1 et la Broche 13.

Français

Connecteur d’alimentation ATX 12V (ATX12V1 à 8 broches) (voir p.1, No. 1)

Emb ase LED de VE NTILATEUR AMD (AMD_FAN_LED1 à 4 broches) (voir p.1, No. 3)

12V G R B

Cette carte mère est dotée d’un

connecteur d’alimentation ATX 12V à 8 broches. Pour utiliser une alimentation ATX

à 4 broches, veuillez eectuer les branchements sur la Broche 1 et la Broche 5.

L'embase LED de VENTILATEUR AMD sert à connecter le câble d'extension LED RVB fourni avec un dissipateur thermique AMD. La connexion par câble permet aux utilisateurs de choisir parmi plusieurs eets lumineux LED.

Attention : N'installez jamais le

câble LED de VENTILATEUR

dans le mauvais sens ; dans le

cas contraire, le câble peut être

endommagé.

Fatal1ty X370 Gaming-ITX/ac Series

1 Introduzione

Congratulazioni per l’acquisto della scheda madre ASRock Fatal1ty X370 GamingITX/ac Series, una scheda madre adabile prodotta secondo i severissimi controlli di qualità ASRock. La scheda madre ore eccellenti prestazioni con un design robusto che si adatta all'impegno di ASRock di orire sempre qualità e durata.

Dato che le speciche della scheda madre e del soware BIOS possono essere aggiornate, il contenuto di questo manuale sarà soggetto a variazioni senza preavviso. Nel caso di eventuali modiche del presente manuale, la versione aggiornata sarà disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda madre, visitare il nostro sito Web per informazioni speciche relative al modello attualmente in uso. È possibile trovare l'elenco di schede VGA più recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http://www.asrock.com.

1.1 Contenuto della confezione

Scheda madre ASRock Fatal1ty X370 Gaming-ITX/ac Series (Form Factor Mini-ITX)

•

Guida all'installazione rapida di ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

CD di supporto ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

1 x mascherina metallica posteriore I/O

•

2 x cavi dati Serial ATA (SATA) (opzionali)

•

1 x antenna ASRock WiFi da 2,4/5 GHz (opzionali)

•

1 x viti per Socket M.2 (opzionali)

•

Italiano

1.2 Speciche

Piattaforma

CPU

Chipset

Memoria

Fattore di forma Mini-ITX

•

PCB 2oz rame

•

Supporta APU serie A (Bristol Ridge) e CPU serie Ryzen

•

(Summit Ridge) AMD Socket AM4 Digi Power design

•

Potenza a 8 fasi

•

Supporta rareddamento ad acqua 95 W

•

AMD Promontory X370

•

Tecnologia memoria DDR4 Dual Channel

•

2 x alloggi DIMM DDR4

•

Le CPU serie AMD Ryzen supportano DDR4 3200+(OC)/2933

•

(OC)/2667/2400/2133 ECC e non ECC, senza buer* Le APU serie AMD 7a Gen A supportano DDR4 2400/2133

•

ECC e non ECC, senza buer* * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock.com/) * Fare riferimento a pagina 23 per il supporto della frequenza massima DDR4 UDIMM.

Capacità max. della memoria di sistema: 32 GB

•

Contatti d’oro 15μ negli alloggi DIMM

•

Italiano

Alloggio d’espansione

Graca

CPU serie AMD Ryzen

1 x alloggio PCI Express 3.0 x16 (PCIE1:modalità x16)*

•

APU serie AMD 7th A

1 x alloggio PCI Express 3.0 x16 (PCIE1:modalità x8)*

•

* Supporto di SSD NVMe come disco d’avvio

1 x Socket M.2 verticale (Key E) con il modulo WiFi-802.11ac

•

fornito (sul pannello I/O posteriore)

Contatti d’oro 15μ nell’alloggio VGA PCIe (PCIE1)

•

Graca AMD RadeonTM serie R in APU serie A*

•

Audio

Fatal1ty X370 Gaming-ITX/ac Series

* Il supporto eettivo può variare in base alla CPU

DirectX 12, Pixel Shader 5.0

•

Memoria condivisa max. 2GB

•

Supporta 2 xHDMI con risoluzione massima no a 4K x 2K

•

(4096x2160) a 24Hz / (3840x2160) a 30Hz Supporto delle funzioni Auto Lip Sync, Deep Color (12bpc),

•

xvYCC e HBR (High Bit Rate Audio) con porte HDMI (è necessario un monitor compatibile HDMI) Supporta HDCP con porte HDMI

•

Supporto di riproduzione Full HD 1080p Blu-ray (BD) con la

•

porte HDMI

Audio HD a 7.1 canali con Content Protection (codec audio

•

Realtek ALC1220) Supporto audio Blu-ray Premium

•

Supporta protezione da sovratensione

•

Cappucci audio Nichicon serie Fine Gold

•

120dB SNR DAC con amplicatore dierenziale

•

Ingresso Pure Power

•

Tecnologia Direct Drive

•

Schermatura isolata PCB

•

Sensore impedenza sulla porta di uscita linea

•

Layer PCB individuali per canali audio R/L

•

Connettori audio dorati

•

Supporta Creative SoundBlaster Cinema3

•

LAN

LAN wireless

LAN Gigabit 10/100/1000 Mb/s

•

GigaLAN Intel® I211AT

•

Supporto WOL (Wake-On-LAN)

•

Supporta protezione da fulmini/scariche elettrostatiche

•

Supporto Energy Ecient Ethernet 802.3az

•

Supporto PXE

•

Supporta IEEE 802.11a/b/g/n/ac

•

Supporta Dual-Band (2,4/5 GHz)

•

Supporta la connessione wireless ad alta velocità no a 867

•

Mbps 2 antenne per supportare tecnologia a diversità 2 (trasmissione)

•

x 2 (ricezione) Supporta Bluetooth 4.0/3.0 + classe II ad alta velocità

•

Italiano

I/O pannello posteriore

Archiviazione

Connettore

2 x porte antenna

•

1 x porta mouse/tastiera PS/2

•

2 x porte HDMI

•

1 x porta uscita SPDIF ottico

•

2 x porte USB 2.0 (supporta protezione da scariche elettrostat-

•

iche) * È inclusa 1 porta mouse Fatal1ty (USB 2.0)

1 x Porta USB 3.0 di tipo A (supporta protezione da scariche

•

elettrostatiche)

1 x Porta USB 3.0 di tipo C (supporta protezione da scariche

•

elettrostatiche)

2 x porte USB 3.0 (supporta protezione da scariche elettrostat-

•

iche)

1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED

•

LED)

Connettori audio HD: altoparlante posteriore/centrale/basso/

•

ingresso linea/altoparlante anteriore/microfono (connettori

audio dorati)

4 x connettori SATA3 6,0 Gb/s, supporto RAID (RAID 0, RAID

•

1, e RAID 10), NCQ, AHCI e Hot Plug

1 x socket Ultra M.2, supporta il modulo M.2 SATA3 6,0 Gb/s

•

di tipo M Key 2280 ed il modulo M.2 PCI Express no a Gen3

x4 (32 Gb/s) (con Ryzen CPU) o Gen3 x2 (16 Gb/s) (con APU

serie A)* * Supporto di SSD NVMe come disco d’avvio * Supporta kit ASRock U.2

1 x connettore LPC

•

1 x Collettore LED AMD FAN

•

1 x connettore ventola CPU (4-pin)

•

* Il connettore ventola CPU supporta ventole CPU con potenza massima di 1 A (12 W).

1 x Connettore ventola telaio (4-pin)

•

1 x connettore ventola telaio optional/ventola pompa dell’acqua

•

(4-pin) (Smart Fan Speed Control) * La ventola telaio/ventola pompa dell’acqua supporta ventole di sistemi di rareddamento ad acqua di potenza massima di 1,5A (18W). * CHA_FAN1/W_PUMP sono in grado di rilevare se è in uso una ventola a 3 pin o 4 a pin.

1 x connettore alimentazione ATX 24 pin

•

1 x connettore alimentazione 12V 8-pin (connettore

•

alimentazione ad alta densità)

1 x connettore audio pannello frontale

•

1 x collettore USB AMD LED FAN

•

Funzionalità BIOS

Hardware Monitor

Fatal1ty X370 Gaming-ITX/ac Series

1 x connettore USB 2.0 (supporto di 2 porte USB 2.0) (supporta

•

protezione da scariche elettrostatiche) 1 x connettore USB 3.0 (supporto di 2 porte USB 3.0) (supporta

•

protezione da scariche elettrostatiche)

AMI UEFI Legal BIOS con interfaccia di supporto

•

Supporta “Plug and Play”

•

Eventi di riattivazione conformi a ACPI 5.1

•

Supporta jumperfree

•

Supporto di SMBIOS 2.3

•

Multiregolazione tensione CPU, DRAM, PCH 1,05 V, PROM

•

2,5V

Sensore di temperatura: Ventole CPU, telaio, telaio optional,

•

pompa dell’acqua Tachimetro ventola: Ventole CPU, telaio, telaio optional, pompa

•

dell’acqua Ventola silenziosa (regolazione automatica velocità in base alla

•

temperatura della CPU): Ventole CPU, telaio, telaio optional, pompa dell’acqua Controllo velocità ventola: Ventole CPU, telaio, telaio optional,

•

pompa dell’acqua Monitoraggio tensione: +12 V, +5 V, +3,3 V, CPU Vcore

•

Microso® Windows® 10 64 bit

•

* Per il driver aggiornato di Windows® 10, visitare il sito ASRock all’indirizzo: http://www.asrock.com

FCC, CE

Certicazioni

* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com

Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o l'utilizzo di strumenti di overclocking di terze parti. L'overclocking può inuenzare la stabilità del sistema o perno provocare danni ai componenti e ai dispositivi del sistema. Occorre eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da overclocking.

•

ErP/EuP Ready (è necessaria alimentazione ErP/EuP ready)

•

Italiano

1.3 Impostazione jumper

L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper è posizionato sui pin, il jumper è "cortocircuitato". Se sui pin non è posizionato alcun cappuccio del jumper, il jumper è "aperto". L'illustrazione mostra un jumper a 3 pin i cui pin1 e pin2 sono "cortocircuitati" quando un cappuccio del jumper è posizionato su questi 2 pin.

Jumper per azzerare la CMOS (CLRMOS1) (vedere pag. 1, n. 16)

CLRMOS1 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare i parametri del sistema alla congurazione predenita, spegnere il computer e scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un cappuccio jumper per cortocircuitare il pin 2 ed il pin 3 su CLRMOS1 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se è necessario azzerare la CMOS dopo l'aggiornamento del BIOS, è necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della CMOS. La password, la data, l'ora e il prolo predenito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS.

Azzerare la CMOSPredenito

1.4 Header e connettori sulla scheda

Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocherà danni permanenti alla scheda madre.

Fatal1ty X370 Gaming-ITX/ac Series

Header sul pannello del sistema (PANEL1 a 9 pin) (vedere pag. 1, n. 14)

PWRBTN (interruttore di alimentazione):

collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. È possibile congurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.

RESET (interruttore di reset):

collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un normale riavvio.

PLED (LED alimentazione del sistema):

collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare quando il sistema si trova nello stato di sospensione S3. Il LED è spento quando il sistema si trova nello stato di sospensione S4 o quando è spento (S5).

HDLED (LED di attività disco rigido):

collegare al LED di attività disco rigido sul pannello anteriore dello chassis. Il LED è acceso quando il disco rigido sta leggendo o scrivendo dati.

Il design del pannello anteriore può cambiare a seconda dello chassis. Un modulo di pannello anteriore è composto principalmente da interruttore di alimentazione, interruttore di reset, LED di alimentazione, LED di attività disco rigido, altoparlante, ecc. Quando si collega il modulo del pannello anteriore dello chassis a questo header, accertarsi che le assegnazioni del lo e le assegnazioni del pin corrispondano correttamente.

GND

PWR BT N #

PLE D-

PLE D+

GND

RES ET#

GND

HDL ED -

HDL ED +

Collegare l'interruttore dell'alimentazione, l'interruttore di reset e l'indicatore dello stato del sistema sullo chassis su questo header secondo la seguente assegnazione dei pin. Annotare i pin positivi e negativi prima di collegare i cavi.

Italiano

Header altoparlante chassis (SPEAKER1 a 4 pin) (vedere pag. 1, n. 19)

DUM MY

+5V

SPE AKE R

DUM MY

Collegare l'altoparlante dello chassis a questo header.

Connettori Serial ATA3 (SATA3_1: vedere pag.1, n. 11) (SATA3_2: vedere pag. 1, n. 10) (SATA3_3: vedere pag. 1, n. 12) (SATA3_4: vedere pag.1, n. 13)

SATA3_2

SATA3_4

Questi quattro connettori SATA3 supportano cavi dati SATA per dispositivi di

SATA3_1

archiviazione interna, con una velocità di trasferimento dati

SATA3_3

no a 6,0 Gb/s.

Italiano

Header USB AMD LED FAN (USB_5 a 4 pin) (vedere pag. 1, n. 2)

Header USB 2.0 (USB_3_4 a 9 pin) (vedere pag. 1, n. 8)

Header USB 3.0 (USB3_3_4 a 19 pin) (vedere pag. 1, n. 9)

Header audio pannello anteriore (AUDIO1_HD a 9 pin) (vedere pag. 1, n. 18)

Dumm y

IntA _PB_ D+

IntA _PB_ D-

IntA _PB_ SSTX +

IntA _PB_ SSTX -

IntA _PB_ SSRX +

IntA _PB_ SSRX -

Vbus

GND

MIC 2_L

GND

PRE SEN CE#

MIC _RE T

OUT 2_R

MIC 2_R

IntA _PA_D +

IntA _PA_D -

GND

IntA _PA_S STX+

IntA _PA_S STX-

GND

IntA _PA_S SRX+

IntA _PA_S SRX-

Vbus

OUT _RE T

OUT 2_L

J_S ENS E

Questo header viene utilizzato per il collegamento del connettore USB sul dissipatore di calore AMD SR3.

Su questa scheda madre c’è un connettore. Ciascun header USB 2.0 può supportare due porte.

Su questa scheda madre c’è un connettore. Ciascun header USB 3.0 può supportare due porte.

Questo header serve a collegare i dispositivi audio al pannello audio anteriore.

Fatal1ty X370 Gaming-ITX/ac Series

GND

FAN_ VOLTAG E_CO NTR OL

FAN_ SPEE D

FAN_ SPEE D_C ONT ROL

4 3 2 1

1. L'audio ad alta denizione supporta le funzioni Jack sensing, ma il lo del pannello sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.

2. Se si utilizza un pannello audio AC’97, installarlo sull'header audio del pannello anteriore seguendo le fasi di seguito: A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Collegare Ground (GND) a Ground (GND). D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non è necessario collegarli per il pannello audio AC’97. E. Per attivare il microfono anteriore, andare alla scheda “FrontMic” nel pannello di controllo Realtek e regolare il “Volume di registrazione”.

Connettore della ventola dello chassis (CHA_FAN2 a 4 pin) (vedere pag. 1, n. 6)

Connettore ventola telaio optional / pompa dell'acqua (4 pin CHA_FAN/W_PUMP) (vedere pag. 1, n. 17)

Connettore ventola CPU (CPU_FAN1 a 4 pin) (vedere pag. 1, n. 4)

FAN _S PEE D_ CON TR OL

CHA _F AN_ SP EED

FAN _V OLT AG E

GND

FAN _VOLT AGE

CPU _F

AN_ SPEED

FAN_ SPEED _CONT ROL

Collegare i cavi della ventola ai connettori della ventola e far corrispondere il lo nero al pin di terra.

Questa scheda madre fornisce due connettori ventola

telaio con rareddamento ad acqua a 4 pin. Se si decide di collegare una ventola

telaio

con rareddamento ad acqua a 3 pin, collegarla al pin 1-3.

Questa scheda madre è dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.

Italiano

Connettore di alimentazione ATX (ATXPWR1 a 24 pin) (vedere pag. 1, n. 7)

Questa scheda madre è dotata di un connettore di alimentazione ATX a 24 pin. Per utilizzare un'alimentazione ATX a 20 pin, collegarla lungo il pin 1

e il pin 13.

Italiano

Connettore di alimentazione ATX da 12 V (ATX12V1 a 8 pin) (vedere pag. 1, n. 1)

Header LED AMD FAN (AMD_FAN_LED1 a 4 pin) (vedere pag. 1, n. 3)

12V G R B

Questa scheda madre è dotata

di un connettore di alimentazione ATX da 12 V a 8 pin. Per utilizzare un'alimentazione

ATX a 4 pin, collegarla lungo il pin 1 e il pin 5.

Il header LED AMD FAN viene utilizzato per collegare la prolunga LED RGB in dotazione con dissipatore di calore AMD. Il collegamento del cavo consente agli utenti di selezionare tra vari eetti di illuminazione a LED.

Attenzione: Non installare il

cavo LED FAN in senso er-

rato; in caso contrario, il cavo

potrebbe danneggiarsi.

Fatal1ty X370 Gaming-ITX/ac Series

1 Introducción

Gracias por comprar la placa base de ASRock Fatal1ty X370 Gaming-ITX/ac Series, una placa base able fabricada según el rigurosísimo control de calidad de ASRock. Ofrece un rendimiento excelente con un diseño resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.

Ya que las especicaciones de la placa base y el soware del BIOS podrán ser actualizados, el contenido que aparece en este manual estará sujeto a modicaciones sin previo aviso. Si este manual sufre alguna modicación, la versión actualizada estará disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia técnica relacionada con esta placa base, visite nuestro sitio web para obtener información especíca sobre el modelo que esté utilizando. Podrá encontrar las últimas tarjetas VGA, así como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.

1.1 Contenido del paquete

Placa base de ASRock Fatal1ty X370 Gaming-ITX/ac Series (factor de forma Mini-ITX)

•

Guía de instalación rápida de ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

CD de soporte de ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

1 x escudo panel I/O

•

2 x cables de datos Serie ATA (SATA) (Opcional)

•

1 x Antena ASRock WiFi 2,4/5 GHz (Opcional)

•

1 x tornillo para socket M.2 (Opcional)

•

Español

1.2 Especicaciones

Factor de forma Mini-ITX

Plataforma

CPU

Conjunto de chips

Memoria

•

Circuito impreso (PCB) de 2 oz de cobre

•

Admite APU de la serie A AM4 con zócalo AMD (Bristol

•

Ridge) y CPU de la serie Ryzen (Summit Ridge) Digi Power design

•

Diseño de 8 fases de alimentación

•

Admite refrigeración por agua de 95 W

•

AMD Promontory X370

•

Tecnología de memoria DDR4 de doble canal

•

2 x ranuras DIMM DDR4

•

Las CPU de la serie AMD admiten memoria sin búfer DDR4

•

3200+ (OC)*/2933 (OC)/2667/2400/2133 ECC y no ECC APU de la serie Gen A de la 7a generación AMD admiten

•

memoria sin bufer DDR4 2400/2133 ECC y no ECC* * Para obtener más información, consulte la lista de memorias compatibles en el sitio web de ASRock. (http://www.asrock.com/) * Consulte la página 23 para conocer las frecuencias máximas compatibles de DDR4 UDIMM.

Capacidad máxima de memoria del sistema: 32 GB

•

Contacto 15μ Gold en ranuras DIMM

•

Ranura de expansión

Grácos

CPU de la serie AMD Ryzen

1 x ranura PCI Express 3.0 x16 (PCIE1:modo x16)*

•

APU de la serie A AMD 7a

1 x ranura PCI Express 3.0 x16 (PCIE1:modo x8)*

•

* Admite unidad de estado sólido de NVMe como disco de arranque

1 x Zócalo M.2 vertical (clave E) con el módulo WiFi-802.11ac

•

integrado (en la E/S trasera)

Contacto 15μ Gold en ranura VGA PCIe (PCIE1)

•

Grácos de la serie R de AMD RadeonTM integrados en APU de

•

las series A*

Audio

LAN

LAN inalámbrica

Fatal1ty X370 Gaming-ITX/ac Series

* El soporte real puede variar según la CPU

DirectX 12, Pixel Shader 5.0

•

Memoria máxima compartida de 2GB

•

Admite 2 HDMI con una resolución máxima de 4K x 2K

•

(4096x2160) a 24 Hz / (3840x2160) a 30 Hz Admite Sincronización automática entre audio y vídeo, color

•

profundo (12 bpc), xvYCC y HBR (audio de alta tasa de bits) con puertos HDMI (se necesita un monitor compatible con HDMI) Admite HDCP con puertos HDMI

•

Compatible con reproducción Blu-ray (BD) Full HD de 1080p

•

con puertos HDMI

7.1 Audio CH HD con Protección de contenido (Realtek

•

ALC1220 Audio Codec) Compatible con audio Blu-ray Premium

•

Admite protección contra sobretensiones

•

Tapas de audio Nichion de la serie Fine Gold

•

DAC con SNR de 120 dB con amplicador diferencial

•

Entrada de alimentación pura

•

Tecnología de unidad directa

•

Protección de aislamiento de PCB

•

Detección de impedancia en el puerto salida de línea

•

Capas PCB individuales para canal de audio D/I

•

Conectores de audio de oro

•

Admite Creative SoundBlaster Cinema3

•

Gigabit LAN 10/100/1000 Mb/s

•

GigaLAN Intel® I211AT

•

Admite la función Reactivación de LAN

•

Admite protección contra rayos y descargas electrostáticas

•

(ESD) Admite Ethernet 802.3az de eciencia energética

•

Admite PXE

•

Compatible con IEEE 802.11a/b/g/n/ac

•

Compatible con Banda Dual (2,4/5 GHz)

•

Compatible con conexión inalámbrica de alta velocidad hasta

•

867 Mbps 2 antenas compatibles con Tecnología de diversidad 2 (Trans-

•

misión) x 2 (Recepción) Compatible con Bluetooth 4.0 / 3.0 + Alta velocidad clase II

•

Español

E/S en panel posterior

Almacenamiento

Conector

2 x Puertos de antena

•

1 x Puerto de ratón/teclado PS/2

•

2 x Puertos HDMI

•

1 x puerto de salida SPDIF óptica

•

2 x puertos USB 2.0 (admite protección contra descargas elec-

•

trostáticas) * 1 x Puerto para ratón Fatal1ty (USB 2.0) incluido

1 x Puerto USB 3.0 de tipo A (admite protección contra descar-

•

gas electrostáticas)

1 x Puerto USB 3.0 de tipo C (admite protección contra descar-

•

gas electrostáticas)

2 x Puertos USB 3.0 (admite protección contra descargas elec-

•

trostáticas)

1 x Puerto LAN RJ-45 con LED (LED DE ACTIVIDAD/EN-

•

LACE y LED DE VELOCIDAD)

Conector de audio HD: Altavoz trasero / Central / Graves /

•

Entrada de línea / Altavoz frontal / Micrófono (conectores de

audio de oro)

4 x conectores SATA3 de 6,0 Gb/s, compatible con RAID (RAID

•

0, RAID 1 y RAID 10), NCQ, AHCI y conexión en caliente

1 x Zócalo Ultra M.2 que admite el módulo SATA3 6,0 Gb/s M.2

•

de tipo 2280 con clave M y el módulo PCI Express M.2 hasta

Gen3 x4 (32 Gb/s) (con CPU de la serie Ryzen) o Gen3 x2 (16

Gb/s) (con APU de la serie A)* * Admite unidad de estado sólido de NVMe como disco de arranque * Admite el Kit U.2 de ASRock

1 x Conector LPC

•

1 x Base de conexiones de LED de ventilador AMD

•

1 x Conector para ventilador de la CPU (4 pines)

•

* El conector para ventilador de la CPU admite ventilador de la CPU con una potencia de ventilador de 1 A (12 W) máxima.

1 x Conector para ventilador del chasis (4 contactos)

•

1 x Conector (4 contactos) para el ventilador de la bomba de

•

agua/opcional del chasis (control de velocidad de ventilador

inteligente) * El ventilador de la bomba de agua/opcional del chasis admite ventilador del disipador por agua con una potencia de ventilador máxima de 1,5 A (18 W). * CHA_FAN1/W_PUMP se pueden detectar automáticamente si se usa el ventilador de 3 o 4 pines.

1 x conector de alimentación ATX de 24 contactos

•

1 x conector de alimentación de 8 pines y 12V (conector de

•

alimentación de alta densidad)

1 x Conector de audio en el panel frontal

•

1 x Base de conexiones USB de ventilador de LED AMD

•

Función del BIOS

Monitor de hardware

Fatal1ty X370 Gaming-ITX/ac Series

1 x base de conexiones USB 2.0 (admite 2 puertos USB 2.0).

•

Admite protección contra descargas electrostáticas. 1 x base de conexiones USB 3.0 (admite 2 puertos USB 3.0).

•

Admite protección contra descargas electrostáticas.

BIOS legal UEFI AMI compatible con interfaz gráca de

•

usuario Compatible con “Plug and Play”

•

Eventos de reactivación conformes con ACPI 5.1

•

Compatible con Jumper FREE

•

Admite SMBIOS 2.3

•

Multiajuste de voltaje de CPU, DRAM, PCH 1,05V, PROM 2,5V

•

Detección de temperatura: Ventiladores de la bomba de agua/

•

chasis/opcional del chasis/CPU Tacómetro del ventilador: Ventiladores de la bomba de agua/

•

chasis/opcional del chasis/CPU Ventilador silencioso (ajuste automático de la velocidad del

•

ventilador del chasis por temperatura de la CPU): Ventiladores de la bomba de agua/chasis/opcional del chasis/CPU Control de varias velocidades del ventilador: Ventiladores de la

•

bomba de agua/chasis/opcional del chasis/CPU Supervisión del voltaje: +12 V, +5 V, +3,3 V, Vcore de CPU

•

Microso® Windows® 10 64 bits

•

* Para obtener el controlador actualizado para Windows® 10, visite el sitio Web desde ASRock para obtener detalles: http://www.asrock.com

FCC y CE

Certicaciones

•

Preparado para ErP/EuP (se necesita una fuente de aliment-

•

ación preparada para ErP/EuP)

* Para obtener información detallada del producto, visite nuestro sitio Web: http://www.asrock.com

Tenga en cuenta que hay un cierto riesgo implícito en las operaciones de aumento de la velocidad del reloj, incluido el ajuste del BIOS, aplicando la tecnología de aumento de velocidad liberada o utilizando las herramientas de aumento de velocidad de otros fabricantes. El aumento de la velocidad puede afectar a la estabilidad del sistema e, incluso, dañar los componentes y dispositivos del sistema. Esta operación se debe realizar bajo su propia responsabilidad y usted debe asumir los costos. No asumimos ninguna responsabilidad por los posibles daños causados por el aumento de la velocidad del reloj.

Español

1.3 Instalación de los puentes

La instalación muestra cómo deben instalarse los puentes. Cuando la tapa de puente se coloca en los pines, el puente queda “Corto”. Si no coloca la tapa de puente en los pines, el puente queda “Abierto”. La ilustración muestra un puente de 3 pines cuyo pin 1 y pin 2 son “Cortos” cuando se coloca una tapa de puente en estos 2 pines.

Puente de borrado de CMOS (CLRMOS1) (consulte la pág.1, Nº 16)

CLRMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los parámetros del sistema a los valores predeterminados de instalación, apague el ordenador y desenchufe el cable de alimentación de la toma de alimentación. Después de esperar 15 segundos, utilice un tapa de puente para acortar el pin2 y el pin3 en el CLRMOS1 durante 5 segundos. Sin embargo, no borre el CMOS justo después de que haya actualizado el BIOS. Si necesita borrar el CMOS cuando acabe de actualizar el BIOS, deberá arrancar el sistema primero y, a continuación, deberá apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la contraseña, la fecha, la hora y el perl de usuario predeterminado serán eliminados únicamente si se retira la pila del CMOS.

Borrado de CMOSPredeterminado

Fatal1ty X370 Gaming-ITX/ac Series

1.4 Conectores y cabezales incorporados

Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores dañará de forma permanente la placa base.

Cabezal del panel del sistema (PANEL1 de 9 pines) (consulte la pág.1, Nº 14)

PWRBTN (Interruptor de alimentación):

Conéctelo al interruptor de alimentación del panel frontal del chasis. Deberá congurar la forma en la que su sistema se apagará mediante el interruptor de alimentación.

RESET (Interruptor de reseteo):

Conéctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de reseteo para resetear el ordenador si éste está bloqueado y no se puede reiniciar de forma normal.

PLED (Indicador LED de la alimentación del sistema):

Conéctelo al indicador de estado de la alimentación del panel frontal del chasis. El indicador LED permanece encendido cuando el sistema está funcionando. El indicador LED parpadea cuando el sistema se encuentra en estado de suspensión S3. El indicador LED se apaga cuando el sistema se encuentra en estado de suspensión S4 o está apagado (S5).

HDLED (Indicador LED de actividad en el disco duro):

Conéctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El indicador LED permanece encendido cuando el disco duro está leyendo o escribiendo datos.

El diseño del panel frontal puede ser diferente dependiendo del chasis. Un módulo de panel frontal consta principalmente de: interruptor de alimentación, interruptor de reseteo, indicador LED de alimentación, indicador LED de actividad en el disco duro, altavoz, etc. Cuando conecte su módulo del panel frontal del chasis a este cabezal, asegúrese de que las asignaciones de los cables y los pines coinciden correctamente.

GND

PWR BT N #

PLE D-

PLE D+

GND

RES ET#

GND

HDL ED -

HDL ED +

Conecte el interruptor de alimentación, restablezca el interruptor y el indicador del estado del sistema del chasis a los valores de este cabezal, según los valores asignados a los pines como se indica a continuación. Cerciórese de cuáles son los pines positivos y los negativos antes de conectar los cables.

Español

Cabezal de altavoces del chasis (SPEAKER1 de 4 pines) (consulte la pág.1, N.º 19)

DUM MY

+5V

SPE AKE R

DUM MY

Conecte el altavoz del chasis a este cabezal.

Conectores Serie ATA3 (SATA3_1: consulte la pág.1, N.º 11) (SATA3_2: consulte la pág.1, N.º 10) (SATA3_3: consulte la pág.1, N.º 12) (SATA3_4: consulte la pág.1, N.º 13)

SATA3_2

SATA3_4

Estos cuatro conectores SATA3 son compatibles con cables de datos SATA para dispositivos

SATA3_1

de almacenamiento interno con una velocidad de transferencia

SATA3_3

de datos de hasta 6,0 Gb/s.

Español

Base de conexiones USB de ventilador de LED AMD (USB_5 de 4 pines) (consulte la pág.1, Nº 2)

Cabezal USB 2.0 (USB_3_4 de 9 pines) (consulte la pág.1, Nº 8)

Cabezal USB 3.0 (USB3_3_4 de 19 pines) (consulte la pág.1, Nº 9)

Cabezal de audio del panel frontal (HD_AUDIO1 de 9 pines) (consulte la pág.1, Nº 18)

Dumm y

IntA _PB_ D+

IntA _PB_ D-

IntA _PB_ SSTX +

IntA _PB_ SSTX -

IntA _PB_ SSRX +

IntA _PB_ SSRX -

Vbus

GND

MIC 2_L

GND

PRE SEN CE#

MIC _RE T

OUT 2_R

MIC 2_R

IntA _PA_D +

IntA _PA_D -

GND

IntA _PA_S STX+

IntA _PA_S STX-

GND

IntA _PA_S SRX+

IntA _PA_S SRX-

Vbus

OUT _RE T

OUT 2_L

J_S ENS E

Esta base de conexiones se utiliza para enchufar el conector USB del disipador SR3 AMD.

Esta placa base tiene otra base de conexiones. Cada cabezal USB 2.0 admite dos puertos.

Esta placa base tiene otra base de conexiones. Cada cabezal USB 3.0 admite dos puertos.

Este cabezal se utiliza para conectar dispositivos de audio al panel de audio frontal.

Fatal1ty X370 Gaming-ITX/ac Series

GND

FAN_ VOLTAG E_CO NTR OL

FAN_ SPEE D

FAN_ SPEE D_C ONT ROL

4 3 2 1

1. El Audio de Alta Denición (HDA, en inglés) es compatible con el método de sensor de conectores, sin embargo, el cable del panel del chasis deberá ser compatible con HDA para que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual y en el manual del chasis para instalar su sistema.

2. Si utiliza un panel de audio AC’97, colóquelo en el cabezal de audio del panel frontal siguiendo los pasos que se describen a continuación: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L. C. Conecte Ground (Conexión a tierra) (GND) a Ground (GND). D. MIC_RET y OUT_RET se utilizan únicamente con el panel de audio HD. No es necesario que los conecte en el panel de audio AC’97. E. Para activar el micrófono frontal, vaya a la cha “micrófono frontal” (Front Mic) en el panel de control de Realtek y ajuste el “Volumen de grabación” (Recording Volume).

Conector del ventilador del chasis (CHA_FAN2 de 4 pines) (consulte la pág.1, Nº 6)

Conector del ventilador de la bomba de agua/opcional del chasis (CHA_FAN/W_PUMP de 4 pines) (consulte la pág.1, N.º 17)

Conector del ventilador de la CPU (CPU_FAN1 de 4 pines) (consulte la pág.1, N.º 4)

FAN _S PEE D_ CON TR OL

CHA _F AN_ SP EED

FAN _V OLT AG E

GND

FAN _VOLT AGE

CPU _F

AN_ SPEED

FAN_ SPEED _CONT ROL

Conecte los cables del ventilador a los conectores del ventilador y haga coincidir el cable negro con el pin de conexión a tierra.

Esta placa base proporciona dos conectores de ventilador del chasis

de refrigeración por agua de 4 pines. Si tiene pensando conectar un ventilador de refrigeración por agua del

chasis

de 3

pines, conéctelo al pin 1-3.

Esta placa base contiene un conector de ventilador (ventilador silencioso) de CPU de 4 pines. Si tiene pensando conectar un ventilador de CPU de 3 pines, conéctelo al Pin 1-3.

Español

Conector de alimentación ATX (ATXPWR1 de 24 pines) (consulte la pág.1, Nº 7)

Esta placa base contiene un conector de alimentación ATX de 24 pines. Para utilizar una toma de alimentación ATX de 20 pines, conéctela en los Pines

del 1 al 13.

Español

Conector de alimentación ATX de 12V (ATX12V1 de 8 pines) (consulte la pág.1, Nº 1)

Base de conexiones de LED de VENTILADOR AMD (AMD_FAN_LED1 de 4 pines) (consulte la pág.1, Nº 3)

12V G R B

Esta placa base contiene un

conector de alimentación ATX de 12V y 8 pines. Para utilizar una toma de alimentación ATX

de 4 pines, conéctela en los Pines del 1 al 5.

La base de conexiones de LED de VENTILADOR AMD se utiliza para conectar el alagador de LED RGB incluido con el disipador AMD. La conexión del cable permite a los usuarios elegir entre diferentes efectos de iluminación de LED.

Precaución: Nunca instale el ca-

ble de LED del VENTILADOR

con la orientación incorrecta

ya que, de lo contrario, el cable

puede dañarse.

Fatal1ty X370 Gaming-ITX/ac Series

1 Введение

Благодарим вас за приобретение надежной системной платы ASRock Fatal1ty X370 Gaming-ITX/ac Series, выпускаемой под постоянным жестким контролем качества компании ASRock. Эта материнская плата обеспечивает великолепную производительность и отличается надежной конструкцией в соответствии с требованиями компании ASRock в отношении качества и долговечности.

По причине обновления спецификации на материнскую платформу и программного обеспечения BIOS содержимое настоящего руководства может быть изменено без предварительного уведомления. При изменении содержимого настоящего руководства его обновленная версия будет доступна на веб-сайте ASRock без предварительного уведомления. При необходимости технической поддержки, связанной с материнской платой, посетите веб-сайт и найдите на нем информацию о модели используемой вами материнской платы. На веб-сайте ASRock также можно найти самый последний перечень поддерживаемых VGAкарт и ЦП. Веб-сайт ASRock http://www.asrock.com.

1.1 Комплект поставки

Системная плата ASRock Fatal1ty X370 Gaming-ITX/ac Series (форм-фактор Mini-

•

ITX) Краткое руководство по установке платы ASRock Fatal1ty X370 Gaming-ITX/ac

•

Series Компакт-диск с документацией к плате ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

1 x экран панели с портами ввода-вывода

•

2 x кабеля передачи данных Serial ATA (SATA) (приобретаются отдельно)

•

1 x ASRock WiFi-антенна 2,4/5 ГГц (приобретаются отдельно)

•

1 x винт для слота M.2 (приобретаются отдельно)

•

Русский

1.2. Технические характеристики

Форм-фактор Mini-ITX

Платформа

ЦП

Чипсет

Память

•

Медная печатная плата 2 унции

•

Поддерживаются процессоры AMD APU серии A (Bristol

•

Ridge) и ЦП серии Ryzen (Summit Ridge) под сокет AM4 Digi Power design

•

Система питания 8

•

Поддерживается водяное охлаждение, 95Вт

•

AMD Promontory X370

•

Двухканальная память DDR4

•

2 x гнезда DDR4 DIMM

•

Для процессоров AMD серии Ryzen поддерживаются

•

модули небуферизованной памяти DDR4 3200+(OC)/2933 (OC)/2667/2400/2133 с ECC и без ECC* Для процессоров AMD APU серии A 7-го поколения

•

поддерживаются модули небуферизованной памяти

DDR4 2400/2133 с ECC и без ECC* * Дополнительная информация представлена в Списке совместимой памяти (Memory Support List ) на веб-сайте ASRock. (http://www.asrock.com/) * Максимальные поддерживаемые частоты DDR4 UDIMM см на стр. 23.

Максимальный объем ОЗУ: 32ГБ

•

Гнезда DIMM с золочеными контактами 15мк

•

Слот расширения

Графическая подсистема

Процессоры AMD серии Ryzen

1 x Слот PCI Express 3.0 x16 (PCIE1:режим x16)*

•

Процессоры AMD APU серии A 7-го поколения

1 x Слот PCI Express 3.0 x16 (PCIE1:режим x8)*

•

* Поддерживаются в качестве загрузочных SSD-диски типа NVMe.

1 вертикальный слот M.2 (ключ E) с входящим в

•

комплект поставки модулем WiFi-802.11ac (на задней

панели ввода-вывода)

Позолоченные контакты разъема VGA PCIe (PCIE1) 15μ

•

Встроенный видеоадаптер AMD RadeonTM R в

•

процессорах APU серий A*

Звук

LAN

Fatal1ty X370 Gaming-ITX/ac Series

* Фактическая поддержка зависит от ЦП

DirectX 12, пиксельные шейдеры 5.0

•

Максимальный объем общей памяти: 2ГБ

•

Поддерживаются 2 порта HDMI с максимальным

•

разрешением до 4K x 2K (4096x2160) при частоте обновления 24Гц (3840x2160 при 30Гц) Поддерживаются Auto Lip Sync, Deep Color (12 бит/

•

цвет), xvYCC и HBR (High Bit Rate Audio) через порты HDMI (требуется соответствующий HDMI-монитор) Поддерживается HDCP через порты HDMI.

•

Поддержка воспроизведения Full HD 1080p Blu-ray (BD)

•

через порты HDMI

7.1-канальный звук высокой четкости HD Audio с

•

защитой данных (аудиокодек Realtek ALC1220) Поддержка Premium Blu-ray Audio

•

Защита от перепадов напряжения в электрической сети

•

Конденсаторы для аудиосистем серии Nichicon Fine Gold

•

ЦАП с отношением сигнал/шум 120дБ с

•

дифференциальным усилителем Стабилизированный вход питания

•

Технология Direct Drive

•

Изолирующее экранирование печатной платы

•

Определение сопротивления нагрузки, подключенной к

•

линейному выходу. Отдельные слои печатной платы для левого и правого

•

аудиоканалов Позолоченные контакты аудиоразъемов

•

Поддержка Creative SoundBlaster Cinema3

•

Gigabit Ethernet 10/100/1000 Мбит/с

•

GigaLAN Intel® I211AT

•

Поддерживается пробуждение по ЛВС

•

Молниезащита и защита от электростатических

•

разрядов Поддерживается Energy Ecient Ethernet 802.3az

•

Поддерживается PXE

•

Русский

Беспроводная ЛВС

Поддержка IEEE 802.11a/b/g/n/ac

•

Поддержка двух диапазонов (2,4/5 ГГц)

•

Поддержка высокоскоростного беспроводного

•

подключения до 867 Мбит/с 2 антенны для поддержки технологии передачи данных

•

«2 (передача) x 2 (прием)» Поддержка Bluetooth 4.0 / 3.0 + High speed class II

•

Русский

Порты вводавывода на задней панели

Запоминающие устройства

2 x антенных порта

•

1 x порт PS/2 для мыши/клавиатуры

•

2 x порта HDMI

•

1 x оптический выходной SPDIF

•

2 x порта USB 2.0 (с защитой от электростатических

•

разрядов) * 1 x Порт для мыши Fatal1ty (USB 2.0) входит в комплект

1 x Порт USB 3.0 тип А (с защитой от электростатических

•

разрядов)

1 x Порт USB 3.0 тип C (с защитой от электростатических

•

разрядов)

2 x порта USB 3.0 (с защитой от электростатических

•

разрядов)

1 x порт ЛВС RJ-45 с индикаторами («Активность/

•

Соединение» и «Скорость»)

Разъемы HD Audio: тыловые АС / центральная АС /

•

сабвуфер / линейный вход / фронтальные АС / микрофон

(позолоченные контакты)

4 x порта SATA3 со скоростью передачи данных 6,0Гб/с,

•

поддержка RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI

и «горячего подключения».

1 x слот Ultra M.2, поддерживается модуль M.2 SATA3 с

•

ключом M типа 2280 с пропускной способностью 6,0Гб/с

и модуль M.2 PCI Express до версии Gen3 x4 (32Гб/с)

(с процессором Ryzen) или Gen3 x2 (16Гб/с) (с процессора

APU серии A)* * Поддерживаются в качестве загрузочных SSD-диски типа NVMe. * Поддержка комплекта ASRock U.2

Разъемы

1 x колодка LPC

•

1 x колодка для подключения светодиодной подсветки

•

вентилятора AMD.

1 x разъем для вентилятора охлаждения ЦП,

•

4-контактный * Разъем процессорного вентилятора поддерживает вентилятор с потребляемым током не более 1А (12Вт).

1 x разъем для корпусного вентилятора (4-контактный)

•

1 x разъем для дополнительного корпусного вентилятора

•

или водяной помпы (4-контактный) (смарт-регулятор

скорости вентилятора) * Разъем для дополнительного корпусного вентилятора или водяной помпы поддерживает вентилятор с потребляемым током не более 1,5А (18Вт). * Для разъемов CHA_FAN1/W_PUMP автоматически определяется тип подключенного вентилятора: 3- или 4-контактный.

1 x разъем питания АТХ, 24-контактный

•

Fatal1ty X370 Gaming-ITX/ac Series

1 x разъем питания 12 В (8-контактный разъем питания

•

высокой плотности) 1 x аудиоразъем на передней панели

•

1 x колодка для подключения USB-кулера AMD со

•

светодиодной подсветкой 1 x колодка USB 2.0 (2 порта USB 2.0 с защитой от

•

электростатических разрядов) 1 x колодка USB 3.0 (2 порта USB 3.0 с защитой от

•

электростатических разрядов)

AMI UEFI Legal BIOS с поддержкой графического

Параметры BIOS

Контроль оборудования

Операционные системы

Сертификация

* С дополнительной информацией об изделии можно ознакомиться на веб-сайте: http://www.asrock.com

•

интерфейса Поддержка технологии «Plug and Play»

•

Совместимость с управлением энергопотреблением по

•

ACPI 5.1 Поддержка функции JumperFree

•

Поддерживается SMBIOS 2.3.

•

Регулировка напряжений ЦП, DRAM, PCH 1,05 В, PROM

•

2,5 В

Контроль температуры: Процессорный вентилятор,

•

корпус, дополнительный корпусной вентилятор, водяная помпа Тахометр: Процессорный вентилятор, корпус,

•

дополнительный корпусной вентилятор, водяная помпа Бесшумная работа (с автоматической регулировкой

•

скорости вращения в зависимости от температуры ЦП): Процессорный вентилятор, корпус, дополнительный корпусной вентилятор, водяная помпа Регулировка скорости вращения: Процессорный

•

вентилятор, корпус, дополнительный корпусной вентилятор, водяная помпа Контроль напряжений: +12 В, +5 В, +3,3 В, Vcore ЦП

•

Microso® Windows® 10 (64-разрядная)

•

* Подробные сведения об обновлении драйвера для Windows® 10 представлены на веб-сайте ASRock: http://www.asrock.com

FCC, CE

•

Совместимость с ErP/EuP (необходим блок питания,

•

соответствующий стандарту ErP/EuP)

Русский

Следует учитывать, что разгон процессора, включая изменение настроек BIOS, применение технологии Untied Overclocking и использование инструментов разгона независимых производителей, сопряжен с определенным риском. Разгон процессора может снизить стабильность системы или даже привести к повреждению ее компонентов и устройств. Разгон процессора осуществляется пользователем на собственный риск и за собственный счет. Мы не несем ответственность за возможный ущерб, вызванный разгоном процессора.

Русский

1.3 Установка перемычек

Установка перемычек показана на рисунке. При установке колпачковой перемычки на контакты перемычка «замкнута». Если колпачковая перемычка на контакты не установлена, перемычка «разомкнута». На рисунке показана 3-контактная перемычка с замкнутыми контактами 1 и 2 при установке на них колпачковой перемычки.

Перемычка сброса настроек CMOS (CLRMOS1) (см. стр. 1, № 16)

CLRMOS1 используется для удаления данных CMOS. Чтобы сбросить и обнулить параметры системы на настройки по умолчанию, выключите компьютер и извлеките отключите кабель питания от источника питания. Выждите 15 секунд и перемычкой замкните контакты 2 и 3 на CLRMOS1 на 5 секунд. Не сбрасывайте настройки CMOS сразу после обновления BIOS. При необходимости сбросить настройки CMOS сразу после обновления BIOS сначала перезагрузите систему, а затем выключите компьютер перед сбросом настроек CMOS. Учтите, что пароль, дата, время и профиль пользователя по умолчанию сбрасываются только в том случае, если извлечь батарею CMOS.

Сброс настроек CMOSпо умолчанию

Fatal1ty X370 Gaming-ITX/ac Series

1.4 Колодки и разъемы, расположенные на материнской плате

Расположенные на материнской плате колодки и разъемы перемычками НЕ являются. НЕ устанавливайте на эти колодки и разъемы колпачковые перемычки. Установка колпачковых перемычек на эти колодки и разъемы может вызвать неустранимое повреждение материнской платы.

Колодка системной панели (9-контактная, PANEL1) (см. стр. 1, № 14)

PWRBTN (кнопка питания):

Подключение кнопки питания, расположенной на передней панели корпуса. Можно настроить порядок выключения системы с использованием кнопки питания.

RESET (кнопка перезагрузки):

Подключение кнопки перезагрузки системы, расположенной на передней панели корпуса. Нажмите кнопку перезагрузки, чтобы перезапустить компьютер, если он завис и нормальный запуск невозможен.

PLED (светодиодный индикатор питания системы):

Подключение индикатора состояния, расположенного на передней панели корпуса. Светодиодный индикатор горит, когда система работает. Когда система находится в режиме ожидания S3, светодиод мигает. Когда система находится в режиме ожидания S4 или выключена (S5), светодиод не горит.

HDLED (светодиодный индикатор работы жесткого диска):

Подключение светодиодного индикатора работы жесткого диска, расположенного на передней панели. Светодиодный индикатор горит, когда жесткий диск выполняет считывание или запись данных.

Передняя панель может быть разной на разных корпусах. В основном передняя панель включает в себя кнопку питания, кнопку перезагрузки, светодиодный индикатор питания, светодиодный индикатор работы жесткого диска, динамик и т. д. При подключении передней панели к этой колодке правильно подключайте провода к контактам.

GND

PWR BT N #

PLE D-

PLE D+

GND

RES ET#

GND

HDL ED -

HDL ED +

Подключите расположенные на корпусе выключатель питания, кнопку перезагрузки и индикатор состояния системы к этой колодке в соответствии с распределением контактов, приведенным ниже. Перед подключением кабелей определите положительный и отрицательный контакты.

Русский

Колодка динамика корпуса (4-контактная, SPEAKER1) (см. стр. 1,№ 19)

DUM MY

+5V

SPE AKE R

DUM MY

Предназначена для подключения динамика корпуса.

Разъемы Serial ATA3 (SATA3_1: см. стр.1,№ 11) (SATA3_2: см. стр. 1, № 10) (SATA3_3: см. стр. 1, № 12) (SATA3_4: см. стр.1,№ 13)

SATA3_2

SATA3_4

Эти четыре разъема SATA3 предназначены для подключения кабелей SATA

SATA3_1

внутренних запоминающих устройств для передачи

SATA3_3

данных со скоростью до 6,0 Гбит/с.

Русский

Колодка для подключения USB-кулера AMD со светодиодной подсветкой. (4-контактная, USB_5) (см. стр. 1, № 2)

Колодка USB 2.0 (9-контактная, USB_3_4) (см. стр. 1, № 8)

Колодка USB 3.0 (19-контактная, USB3_3_4) (см. стр. 1, № 9)

Аудиоколодка передней панели (9-контактная, HD_AUDIO1) (см. стр. 1, № 18)

Dumm y

IntA _PB_ D+

IntA _PB_ D-

IntA _PB_ SSTX +

IntA _PB_ SSTX -

IntA _PB_ SSRX +

IntA _PB_ SSRX -

Vbus

GND

MIC 2_L

GND

PRE SEN CE#

MIC _RE T

OUT 2_R

MIC 2_R

IntA _PA_D +

IntA _PA_D -

GND

IntA _PA_S STX+

IntA _PA_S STX-

GND

IntA _PA_S SRX+

IntA _PA_S SRX-

Vbus

OUT _RE T

OUT 2_L

J_S ENS E

Эта колодка служит для подключения разъема USB на кулере AMD SR3.

На системной плате размещена одна колодка. Каждая колодка USB 2.0 может поддерживать два порта.

На системной плате размещена одна колодка. Каждая колодка USB 3.0 может поддерживать два порта.

Эта колодка предназначена для подключения аудиоустройств к передней аудиопанели.

Fatal1ty X370 Gaming-ITX/ac Series

GND

FAN_ VOLTAG E_CO NTR OL

FAN_ SPEE D

FAN_ SPEE D_C ONT ROL

4 3 2 1

1. Аудиосистема высокого разрешения поддерживает функцию распознавания разъема, но для е правильной работы необходимо, чтобы провод панели корпуса поддерживал передачу сигналов HDA. Инструкции по установке системы см. в этом руководстве и руководстве на корпус.

2. При использовании аудиопанели AC’97 подключите ее к аудиоколодке передней панели, как указано далее: A. Подключите Mic_IN (MIC) к MIC2_L. B. Подключите Audio_R (RIN) к OUT2_R, Audio_L (LIN) к OUT2_L. C. Подключите провод заземления (GND) к контакту заземления (GND). D. Контакты MIC_RET и OUT_RET используются только для аудиопанели высокого разрешения. При использовании аудиопанели AC’97 их подключать не нужно. E. Чтобы активировать передний микрофон, перейдите на вкладку FrontMic панели управления Realtek и отрегулируйте параметр Recording Volume (Громкость записи).

Разъем вентилятора корпуса (4-контактный, CHA_FAN2) (см. стр. 1, № 6)

Разъем для дополнительного вентилятора или помпы водяного охлаждения корпуса (4-контактный CHA_FAN/W_ PUMP) (см. стр. 1,№ 17)

Разъем вентилятора охлаждения процессора (4-контактный, CPU_FAN1) (см. стр. 1,№ 4)

FAN _S PEE D_ CON TR OL

CHA _F AN_ SP EED

FAN _V OLT AG E

GND

FAN _VOLT AGE

CPU _F

AN_ SPEED

FAN_ SPEED _CONT ROL

Предназначены для подключения кабелей разъемов вентиляторов и подключения черного провода к заземлению.

Данная материнская плата оснащена двумя 4-контактными разъемами для системы водяного охлаждения корпуса. 3-контактную систему водяного охлаждения корпуса следует подключать к контактам 1–3.

Эта материнская плата снабжена 4-контактным разъемом для малошумящего вентилятора ЦП. Если вы собираетесь подключить 3-контактный вентилятор охлаждения процессора, подключайте его к контактам 1-3.

Русский

Разъем питания АТХ (24-контактный, ATXPWR1) (см. стр. 1, № 7)

Эта материнская плата снабжена 24-контактным разъемом питания АТХ. Чтобы использовать 20-контактный разъем

питания ATX, подключите его вдоль контакта 1 и контакта 13.

Русский

Разъем питания АТХ 12 В (8-контактный, ATX12B1) (см. стр. 1, № 1)

Колодка для подключения светодиодной подсветки вентилятора AMD. (4-контактная, AMD_FAN_ LED1) (см. стр. 1, № 3)

12V G R B

Эта материнская плата

снабжена 8-контактным разъемом питания АТХ 12 В. Чтобы использовать

4-контактный разъем питания ATX, подключите его вдоль контакта 1 и контакта 5.

Колодка для подключения светодиодной подсветки вентилятора AMD служит для подключения удлинительного кабеля светодиодной RGB-подсветки, который поставляется с кулером AMD. Подключив этот кабель, можно различные световые эффекты.

Внимание! Категорически

запрещается подключать

кабель светодиодной

подсветки вентилятора с

нарушением полярности, так

как это может привести к его

повреждению.

Fatal1ty X370 Gaming-ITX/ac Series

1 Introdução

Obrigado por comprar a placa-mãe Fatal1ty X370 Gaming-ITX/ac Series da ASRock, uma placa-mãe conável produzida sob o controle de qualidade altamente consistente da ASRock. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.

Como as especicações da placa principal e o soware do BIOS poderão ser atualizados, o conteúdo deste manual estará sujeito a alterações sem aviso prévio. No caso de ocorrerem modicações neste manual, a versão atualizada estará disponível no site da ASRock sem aviso prévio. Se precisar de assistência técnica relacionada a esta placa principal, visite o nosso site para obter informações especícas sobre o modelo que estiver utilizando. Você também poderá encontrar a lista de placas VGA e CPU mais recentes suportadas no site da ASRock. Site da ASRock http://www.asrock.com.

1.1 Conteúdo da embalagem

Placa-mãe ASRock Fatal1ty X370 Gaming-ITX/ac Series (Mini-ATX Form Factor)

•

Guia de Instalação Rápida ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

CD de Suporte da ASRock Fatal1ty X370 Gaming-ITX/ac Series

•

1 x Painel de E/S

•

2 x Cabos de dados Serial ATA (SATA) (Opcional)

•

1 x Antena de 2,4/5 GHz da ASRock WiFi (Opcional)

•

1 x Parafuso para Soquete M.2 (Opcional)

•

Português

1.2 Especicações

Plataforma

CPU

Chipset

Memória

•

* Por favor, consulte a Lista de Suporte de Memória no site da ASRock para obter mais informação. (http://www.asrock.com/) * Por favor consulte a página 23 para suporte de frequência máxima DDR4 UDIMM.

•

Formato Mini-ITX PCB 2oz de Cobre

Suporta soquete AMD série-A AM4 APUs (Bristol Ridge) e CPUs série Ryzen (Ridge Summit) Digi Power design Design com 8 fases de alimentação Suporta Refrigeração de Água 95W

AMD Promontory X370

Tecnologia de memória DDR4 de dois canais 2 x Slots DIMM DDR4 Suporta memória DDR4 3200+(OC)/2933 (OC)/2667/2400/2133 ECC e não ECC, sem memória intermediária* APUs AMD 7ª Ger Série A suportam DDR4 2400/2133 ECC e não ECC, sem memória intermediária*

Capacidade máxima da memória do sistema: 32GB Contato em Ouro 15μ nos slots DIMM

Slot de expansão

Grácos

CPUs AMD séries Ryzen

1 x Slot PCI Express 3.0 x16 (PCIE1:modo x16)*

•

APUs AMD 7ª Série A

1 x Slot PCI Express 3.0 x16 (PCIE1:x8 modo)*

•

* Suporta NVMe SSD nos discos de inicialização

1 x Soquete M.2 Vertical (Tecla E) com módulo Wi-Fi-802.11ac

•

incluído (na I/O traseira) Contato em Ouro 15μ no Slot PCIe VGA (PCIE1)

•

AMD RadeonTM Integrado Série R Gráca em Séries A APU*

•

Áudio

Fatal1ty X370 Gaming-ITX/ac Series

* Suporte atual pode vairar por CPU

DirectX 12, Pixel Shader 5.0

•

Memória compartilhada máxima de 2GB

•

Suporta 2 x HDMI com resolução máx. até 4K x 2K (4096x2160)

•

@ 24Hz / (3840x2160) @ 30Hz Suporta Auto sincronização labial, Deep Color (12bpc), xvYCC

•

e HBR (High Bit Rate Audio) com portas HDMI (É necessário um monitor compatível com HDMI) Suporta HDCP com Portas HDMI

•

Suporta reprodução Full HD 1080p Blu-ray (BD) com Portas

•

HDMI

Áudio HD de 7.1 canais com proteção de conteúdo (Codec de

•

áudio Realtek ALC1220) Suporte áudio Blu-ray superior

•

Suporta Proteção de Sobretensão

•

Capacitor de Áudio Série Ouro Fino Nichicon

•

120dB SNR DAC com amplicador diferencial

•

Ligação Pura

•

Tecnologia de drive direto

•

Blindagem de isolamento PCB

•

Sensoriamento de Impedância na porta de Saída de Linha

•

Camadas de PCB individuais por canal de áudio R/L

•

Fonres de Áudio Gold

•

Suporta Creative SoundBlaster Cinema3

•

Português

LAN

LAN sem os

LAN Gigabit a 10/100/1000 Mb/s

•

GigaLAN Intel® I211AT

•

Suporta Wake-On-LAN

•

Oferece Suporte à Proteção de Relâmpago/ESD

•

Suporta Energy Ecient Ethernet 802.3az

•

Suporta PXE

•

Suporta IEEE 802.11a/b/g/n/ac

•

Suporta banda dupla (2,4/5 GHz)

•

Suporta conexão sem o de alta velocidade até 867Mbps

•

2 antenas para suportar tecnologia de diversidade 2 (Transmis-

•

são) x 2 (Recepção) Suporta Bluetooth 4.0 / 3.0 + Classe II de alta velocidade

•

Português

E/S do painel posterior

Armazenamento

Conector

2 x Portas de Antena

•

1 x Porta PS/2 para mouse/teclado

•

2 x Portas HDMI

•

1 x Porta de saída SPDIF ótica

•

2 x Portas USB 2.0 (Suporta Proteção ESD)

•

* 1 x Porta de Mouse Fatal1ty (USB 2.0) é incluída

1 x Porta USB 3.0 Tipo A (Suporta Proteção ESD)

•

1 x Porta USB 3.0 Tipo C (Suporta Proteção ESD)

•

2 x Portas USB 3.0 (Suporta Proteção ESD)

•

1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE

•

VELOCIDADE) Fichas de áudio HD: Alto-falante posterior / Central / Graves /

•

Entrada de linha / Alto-falante frontal / Microfone( Entradas de Áudio Gold)

4 x Conectores SATA3 6,0 Gb/s, suporta RAID (RAID 0, RAID

•

1, e RAID 10), NCQ, AHCI e Conexão a Quente 1 x soquete M.2 Ultra, suporta Chave M tipo 2280 módulo M.2

•

SATA3 6,0 Gb/s e módulo M.2 PCI Express até Gen3 x4 (32 Gb/s) (com CPU Série Ridge) ou Gen3 x2 (16 Gb/s) (com APU

Série-A) * * Suporta NVMe SSD nos discos de inicialização * Suporta Kit U.2 ASRock

1 x Plataforma LPC

•

1 x Cabeçote de LED Fan AMD

•

1 x Conector da ventoinha da CPU (4 pinos)

•

* O Conector do Ventilador de CPU suporta o ventilador de CPU de alimentação máxima 1A do ventilador (12W).

1 x Conector da ventoinha do Gabinete (4 pinos)

•

1 x Conector de Ventilador de Chassi/Ventilador da Bomba

•

de Água (4 pinos) (Controle de Velocidade de Ventoinha

Inteligente) * O Ventilador de Chassi Opcional/Ventilador da Bomba de Água suporta o ventilador de refrigerador a água de 1,5A máximo (18W) potência do ventilador. * CHA_FAN1/W_PUMP pode detectar automaticamente se ventoinha de 3 pinos ou 4 pinos está em uso.

1 x Conector alimentação ATX 24 pinos

•

1 x Conector de energia 8-pinos 12V (Conector de energia de

•

alta densidade)

Funções da BIOS

Monitor de hardware

Fatal1ty X370 Gaming-ITX/ac Series

1 x Conector de áudio do painel frontal

•

1 x Plataforma AMD LED Fan USB

•

1 x Plataforma USB 2.0 (Suporta 2 portas USB 2.0) (Suporta

•

Proteção ESD) 1 x Plataforma USB 3.0 (Suporta 2 portas USB 3.0) (Suporta

•

Proteção ESD)

AMI UEFI Legal BIOS com suporte GUI

•

Suporta “Plug and Play”

•

ACPI 5.1 compatível com eventos de despertar

•

Suporta jumperfree

•

Suporte SMBIOS 2.3

•

Multi-ajuste de tensão de CPU, DRAM, PCH 1,05V, PCH 2,5V

•

Sensor de Temperatura: Ventilador da CPU, Chassis, Chassis

•

Opcional/Bomba de Água Tacômetro da ventoinha: Ventilador da CPU, Chassis, Chassis

•

Opcional/Bomba de Água Ventoinha Silenciosa (Auto ajusta velocidade da ventoinha do

•

chassi pela temperatura da CPU): Ventilador da CPU, Chassis, Chassis Opcional/Bomba de Água Controle multi-velocidade da ventoinha: Ventilador da CPU,

•

Chassis, Chassis Opcional/Bomba de Água Monitoramento da tensão: +12V, +5V, +3,3V, CPU Vcore

•

Microso® Windows® 10 64-bit

•

* Para o driver atualizado do Windows® 10, por favor, visite o website da ASRock para mais detalhes:http://www.asrock.com

Português

FCC, CE

Certicações

•

Preparada para ErP/EuP (é necessária uma fonte de alimen-

•

tação preparada para ErP/EuP)

* Para obter informações detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com

Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das denições na BIOS, a aplicação de tecnologia Untied Overclocking ou a utilização de ferramentas de overclocking de terceiros. O overclocking poderá afetar a estabilidade do sistema ou mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado por sua conta e risco. Não nos responsabilizamos por possíveis danos causados pelo overclocking.

Português

1.3 Conguração dos jumpers

A imagem abaixo mostra como os jumpers são congurados. Quando a tampa do jumper é colocada nos pinos, o jumper é "Curto". Se não for colocada uma tampa de jumper nos pinos, o jumper é "Aberto". A imagem mostra um jumper de 3 pinos cujos pino1 e pino2 estão "Curtos" quando a tampa do jumper é colocada nestes 2 pinos.

Apagar o Jumper CMOS (CLRMOS1) (ver p.1, N.º 16)

CLRMOS1 permite que você limpe os dados do CMOS. Para apagar e reinicializar os parâmetros do sistema nos valores predenidos, desligue o computador e desplugue a tomada da alimentação. Depois de aguardar 15 segundos, use uma capa de jumper para fazer curto do pino 2 e do pino3 no CLRMOS1 por 5 segundos. No entanto, não apague o CMOS logo após ter realizado a atualização da BIOS. Se você precisar apagar o CMOS logo após ter terminado uma atualização da BIOS, deverá primeiro iniciar o sistema e voltar a encerrá-lo antes de apagar o CMOS. Por favor, observe que a senha, data, hora e perl padrão do usuário serão apagados só se a bateria CMOS for removida.

Apagar CMOSPadrão

1.4 Suportes e conectores onboard

Os conectores e suportes onboard NÃO são jumpers. NÃO coloque tampas de jumpers sobre estes terminais e conectores Colocar tampas de jumpers sobre os terminais e conectores irá causar danos permanentes à placa-mãe.

Fatal1ty X370 Gaming-ITX/ac Series

Suporte do painel de sistema (PAINEL1 de 9 pinos) (ver p.1, N.º 14)

PWRBTN (Botão de alimentação):

Conecte o botão de alimentação no painel frontal do chassi. Você pode congurar a forma para desligar o seu sistema através do botão de alimentação.

RESET (Botão de reinicialização):

Conecte o botão de reinicialização no painel frontal do chassi. Pressione o botão de reinicialização para reiniciar o computador, se ele congela e falha ao realizar um reinício normal.

PLED (LED de alimentação do sistema):

Conecte o indicador do estado da alimentação no painel frontal do chassi. O LED cará aceso quando o sistema estiver em funcionamento. O LED cará piscando quando o sistema estiver nos estados de suspensão S3. O LED cará desligado quando o sistema estiver no estado de suspensão S4 ou desligado (S5).

HDLED (LED de atividade do disco rígido):

Conecte o LED de atividade do disco rígido no painel frontal do chassi. O LED cará aceso quando o disco rígido estiver lendo ou registrando dados.

O design do painel frontal poderá variar dependendo do chassi. Um módulo de painel frontal consiste principalmente em um botão de alimentação, um botão de reinicialização, um LED de alimentação, um LED de atividade do disco rígido, um alto-falante, etc. Ao conectar seu módulo de painel frontal do chassi a este conector, certique-se de que os os e os pinos correspondem de forma correta.

GND

PWR BT N #

PLE D-

PLE D+

GND

RES ET#

GND

HDL ED -

HDL ED +

Ligue o botão de alimentação, o botão de reinicialização e o indicador do estado do sistema no chassi deste suporte, de acordo com a descrição abaixo. Observe os pinos positivos e negativos antes de conectar os cabos.

Português

Suporte do alto-falante do chassi (SPEAKER1 de 4 pinos) (ver p.1, N.º 19)

DUM MY

+5V

SPE AKE R

DUM MY

Por favor, conecte o alto-falante do chassi a este suporte.

Conectores série ATA3 (SATA3_1: ver p.1, N.º 11) (SATA3_2: ver p.1, N.º 10) (SATA3_3: ver p.1, N.º 12) (SATA3_4: ver p.1, N.º 13)

SATA3_2

SATA3_4

Estes quatro conectores SATA3 suportam cabos de dados SATA para dispositivos de

SATA3_1

armazenamento interno com uma taxa de transferência de

SATA3_3

dados de até 6,0 Gb/s.

Português

Plataforma AMD LED Fan USB (USB_5 de 4 pinos) (ver p.1, N.º 2)

Suporte USB 2.0 (USB_3_4 de 9 pinos) (ver p.1, N.º 8)

Suporte USB 3.0 (USB3_3_4 de 19 pinos) (ver p.1, N.º 9)

Suporte de áudio do painel frontal (HD_AUDIO1 de 9 pinos) (ver p.1, N.º 18)

Dumm y

IntA _PB_ D+

IntA _PB_ D-

IntA _PB_ SSTX +

IntA _PB_ SSTX -

IntA _PB_ SSRX +

IntA _PB_ SSRX -

Vbus

GND

MIC 2_L

GND

PRE SEN CE#

MIC _RE T

OUT 2_R

MIC 2_R

IntA _PA_D +

IntA _PA_D -

GND

IntA _PA_S STX+

IntA _PA_S STX-

GND

IntA _PA_S SRX+

IntA _PA_S SRX-

Vbus

OUT _RE T

OUT 2_L

J_S ENS E

Este cabeçote é utilizado para conectar o conector USB ao Dissipador de calor AMD SR3.

Há um cabeçote nesta placamãe. Cada suporte USB 2.0 pode suportar duas portas.

Há um cabeçote nesta placamãe. Cada suporte USB 3.0 pode suportar duas portas.

Este suporte destina-se à conexão dos dispositivos de áudio no painel de áudio frontal.

Fatal1ty X370 Gaming-ITX/ac Series

GND

FAN_ VOLTAG E_CO NTR OL

FAN_ SPEE D

FAN_ SPEE D_C ONT ROL

4 3 2 1

1. O Áudio de alta denição suporta Sensor de Adaptador, mas o o do painel no chassi deverá suportar HDA para funcionar corretamente. Por favor, siga as instruções no nosso manual e no manual do chassi para instalar o seu sistema.

2. Se utilizar um painel de áudio AC’97, instale-o no terminal de áudio do painel frontal de acordo com os passos abaixo: A. Ligue Mic_IN (MIC) a MIC2_L. B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Conecte a ligação Terra (GND) à Terra (GND). D. MIC_RET e OUT_RET destinam-se apenas ao painel de áudio HD. Você não precisa ligá-los ao painel de áudio AC’97. E. Para ativar o microfone frontal, vá à guia “Microfone Frontal” no painel de controle Realtek e ajuste o “Volume de gravação”.

Conector do ventilador do chassi (CHA_FAN2 de 4 pinos) (ver p.1, N.º 6)

Chassis Opcional / Conector da ventoinha de bomba de água (CHA_FAN/W_PUMP de 4 pinos ) (ver p.1, N.º 17)

Conector da Ventoinha da CPU (CPU_FAN1 de 4 pinos) (ver p.1, N.º 4)

FAN _S PEE D_ CON TR OL

CHA _F AN_ SP EED

FAN _V OLT AG E

GND

FAN _VOLT AGE

CPU _F

AN_ SPEED

FAN_ SPEED _CONT ROL

Por favor, conecte os cabos do ventilador aos conectores do ventilador e corresponda o o preto no pino terra.

Esta placa mãe fornece conectores de ventilador do

chassis

de refrigeração a água de 4 pinos. Se você pretende conectar um ventilador de refrigeração a água de

chassis

de 3 pinos, por favor,

conecte-o ao Pino 1-3.

Esta placa mãe inclui um conector de ventilador da CPU (Ventilador silencioso) de 4 pinos. Se você pretende conectar um ventilador da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.

Português

Conector de alimentação ATX (ATXPWR1 de 24 pinos) (ver p.1, N.º 7)

Esta placa-mãe inclui um conector de alimentação ATX de 24 pinos. Para utilizar uma fonte de alimentação ATX de 20 pinos, introduza-a no Pino

1 e Pino 13.

Português

Conector de alimentação de 12V ATX (ATX12V1 de 8 pinos) (ver p.1, N.º 1)

Cabeçote de LED FAN AMD (AMD_FAN_LED1 de 4 pinos) (ver p.1, N.º 3)

12V G R B

Esta placa-mãe inclui um

conector de alimentação de 12V ATX de 8 pinos. Para utilizar uma fonte de alimentação

ATX de 4 pinos, introduza-a no Pino 1 e Pino 5.

Cabeçote de LED FAN AMD é usado para conectar o cabo de extensão de LED RGB que vem com dissipador de calor AMD. A conexão de cabo permite aos usuários escolher entre vários efeitos de iluminação de LED.

Atenção: Nunca instale o cabo

FAN LED na orientação errada;

caso contrário, o cabo pode ser

danicado.

Fatal1ty X370 Gaming-ITX/ac Series

1 Giriş

ASRock'ın zorlu kalite kontrol süreçlerinden geçmiş olan ASRock Fatal1ty X370 Gaming-ITX/ac Series ana kartını satın aldığınız için teşekkür ederiz. Sağlam tasarımı ile ASRock'ın kalite ve dayanıklılık taahhüdüne uygun şekilde mükemmel performans sağlar.

Ana kart özellikleri ve BIOS yazılımı güncellenebileceğinden, bu kılavuzun içeriği herhangi bir bildirimde bulunulmaksızın değiştirilebilir. Bu kılavuz üzerinde herhangi bir değişiklik yapılması hâlinde, güncellenmiş sürüm, herhangi bir bildirim yapılmaksızın ASRock'ın web sitesinde yer alacaktır.. Bu ana kartla ilgili olarak teknik destek almak isterseniz, lütfen kullandığınız model hakkında özel bilgiler için web sitemizi ziyaret edin. En güncel VGA kartları ve işlemci destek listesini de ASRock'ın web sitesinde bulabilirsiniz. ASRock web sitesi http://www.asrock.com.

1.1 Ambalaj İçeriği

ASRock Fatal1ty X370 Gaming-ITX/ac Series Ana Kartı (Mini ITX Form Faktörü)

•

ASRock Fatal1ty X370 Gaming-ITX/ac Series Hızlı Kurulum Kılavuzu

•

ASRock Fatal1ty X370 Gaming-ITX/ac Series Destek CD'si

•

1 tane G/Ç Paneli Kalkanı

•

2 tane Seri ATA (SATA) Veri Kablosu (İsteğe Bağlı)

•

1 tane ASRock WiFi 2,4/5 GHz Anten (İsteğe Bağlı)

•

1 tane M.2 Yuvası için vida (İsteğe Bağlı)

•

Türkçe

1.2 Özellikler

Mini-ITX Form Faktörü

Platform

İşlemci

Yonga kümesi

Bellek

Türkçe

•

2 ons Bakır PCB

•

AMD Soket AM4 A Serisi APU'ları (Bristol Ridge) ve Ryzen

•

Serisi işlemcileri (Summit Ridge) destekler Digi Güç tasarımı

•

8 Güç Saası tasarımı

•

95 W Suyla Soğutmayı destekler

•

AMD Promontory X370

•

Çi Kanallı DDR4 Bellek Teknolojisi

•

2 tane DDR4 DIMM Yuvası

•

AMD Ryzen serisi işlemciler DDR4 3200+(OC)/2933

•

(OC)/2667/2400/2133 ECC ve ECC olmayan, arabelleksiz bellek destekler* AMD 7. Nesil A Serisi APU'lar, DDR4 2400/2133 ECC ve ECC

•

olmayan, arabelleksiz bellek destekler* * Ayrıntılı bilgi için ASRock'ın web sitesindeki Bellek Desteği Listesine bakın. (http://www.asrock.com/) * Lütfen DDR4 UDIMM en fazla frekans desteği için 23. sayfaya bakın.

En fazla sistem belleği kapasitesi: 32 GB

•

DIMM Yuvalarında 15 μ Altın Temas

•

Genişletme Yuvası

Grakler

AMD Ryzen serisi işlemciler

1 tane PCI Express 3.0 x16 Yuva (PCIE1:x16 modu)*

•

AMD 7. Nesil A Serisi APU'lar

1 tane PCI Express 3.0 x16 Yuva (PCIE1:x8 modu)*

•

* Önyükleme diskleri olarak NVMe SSD destekler

1 tane Dikey M.2 Yuva (Tuş E), birlikte gelen WiFi-802.11ac

•

modüllü (arka G/Ç kısmında)

VGA PCIe Yuvasında (PCIE1) 15 μ Altın Temas

•

A serisi APU'da tümleşik AMD RadeonTM R Serisi Grakler*

•

Ses

Fatal1ty X370 Gaming-ITX/ac Series

* Asıl destek işlemciye göre değişiklik gösterebilir.

DirectX 12, Pixel Shader 5.0

•

En fazla paylaşılan bellek 2GB

•

4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

•

değerlerine kadar en fazla çözünürlükle 2 tane HDMI destekler HDMI Bağlantı Noktalarıyla Otomatik Dudak

•

Senkronizasyonu, Derin Renk (12bpc), xvYCC ve HBR (Yüksek Bit Oranlı Ses) özelliklerini destekler (Uyumlu bir HDMI monitörü kullanılmalıdır) HDMI Bağlantı noktalarıyla HDCP işlevini destekler

•

HDMI bağlantı noktalarıyla Full HD 1080p Blu-ray (BD)

•

kayıttan yürütmeyi destekler

İçerik Koruma özelliğine sahip 7.1 kanal HD Ses (Realtek

•

ALC1220 Ses Kodlayıcı-Kod Çözücü) Üstün Blu-ray Ses desteği

•

Aşırı Gerilim Korumasını destekler

•

Nichicon Fine Gold Serisi Ses Kapakları

•

Fark Yükselteçli 120 dB SNR DAC

•

Saf Güç Girişi

•

Direct Drive Teknolojisi

•

PCB Yalıtım Koruması

•

Hat Çıkış bağlantı noktasında Empedans Algılama

•

Sağ/Sol Ses Kanalı için Bağımsız PCB Katmanları

•

Altın Ses Girişleri

•

Creative SoundBlaster Cinema3'ü destekler

•

Türkçe

LAN

Kablosuz LAN

Gigabit LAN 10/100/1000 Mb/s

•

GigaLAN Intel® I211AT

•

Yerel Ağ Üzerinden Açmayı destekler

•

Yıldırım/ESD Korumasını destekler

•

Enerji Verimliliğine Sahip Ethernet 802.3az işlevini destekler

•

PXE özelliğini destekler

•

IEEE 802.11a/b/g/n/ac işlevini destekler

•

Çi Bant özelliğini destekler (2,4/5 GHz)

•

867 Mbps değerine kadar yüksek hızlı kablosuz bağlantıları

•

destekler 2 (Verici) x 2 (Alıcı) olmak üzere eşzaman teknolojisini destek-

•

leyecek 2 anten Bluetooth 4.0 / 3.0 + II. sınıf yüksek hızı destekler

•

2 tane Anten Bağlantı Noktası

Arka Panel G/Ç

Depolama

Türkçe

•

1 tane PS/2 Fare/Klavye Bağlantı Noktası

•

2 tane HDMI Bağlantı Noktası

•

1 tane Optik SPDIF Çıkışı Bağlantı Noktası

•

2 tane USB 2.0 Bağlantı Noktası (ESD Korumasını destekler)

•

* 1 tane Fatal1ty Fare Yuvası (USB 2.0) dahildir

1 tane USB 3.0 Tip A Bağlantı Noktası (ESD Korumasını

•

destekler)

1 tane USB 3.0 Tip C Bağlantı Noktası (ESD Korumasını

•

destekler)

2 tane USB 3.0 Bağlantı Noktası (ESD Korumasını destekler)

•

1 tane RJ-45 LAN LED'e sahip Bağlantı Noktası (ACT/LINK

•

LED ve SPEED LED)

HD Ses Girişleri/Çıkışları: Arka Hoparlör / Merkezi / Bas / Hat

•

Girişi / Ön Hoparlör / Mikrofon (Altın Ses Girişleri)

4 tane SATA3 6,0 Gb/sn. Bağlayıcı, RAID (RAID 0, RAID 1, ve

•

RAID 10), NCQ, AHCI ve Tak Çıkar desteği

1 tane Ultra M.2 Yuvası, M Anahtar tipi 2280 M.2 SATA3

•

6,0 Gb/sn. modülünü ve Gen3 x4 (32 Gb/sn.) (Ryzen Serisi

işlemciyle) veya Gen3 x2 (16 Gb/sn.) (A Serisi APU ile)

değerine kadar M.2 PCI Express modülünü destekler* * Önyükleme diskleri olarak NVMe SSD destekler * ASRock U.2 Takımını destekler

Bağlayıcı

1 tane LPC Bağlantısı

•

1 tane AMD Fan LED Bağlantısı

•

1 tane İşlemci Fanı Bağlayıcı (4 pimli)

•

* İşlemci Fanı Bağlayıcı, en fazla 1 A (12 W) fan gücünde işlemci fanı destekler.

1 tane Kasa Fanı Bağlayıcısı (4 pimli)

•

1 tane Kasa İsteğe Bağlı/Su Pompalı Fan Bağlayıcı (4 pimli)

•

(Akıllı Fan Hızı Kontrolü) * Kasa İsteğe Bağlı/Su Pompalı Fan, en fazla 1,5 A (18 W) fan gücünde su soğutmalı fan destekler. * CHA_FAN1/W_PUMP, 3 pimli fanın mı yoksa 4 pimli fanın mı kullanımda olduğunu otomatik olarak algılayabilir.

1 tane 24 pim ATX Güç Bağlayıcısı

•

1 tane 8 pim 12 V Güç Bağlayıcısı (Yüksek Yoğunluklu Güç

•

Bağlayıcısı)

1 tane Ön Panel Ses Bağlayıcısı

•

1 tane AMD LED Fan USB Bağlantısı

•

BIOS Özelliği

Donanım Monitörü

Fatal1ty X370 Gaming-ITX/ac Series

1 tane USB 2.0 Bağlantısı (2 USB 2.0 bağlantı noktasını

•

destekler) (ESD Korumasını destekler) 1 tane USB 3.0 Bağlantısı (2 USB 3.0 bağlantı noktasını

•

destekler) (ESD Korumasını destekler)

Grak kullanıcı arayüzü desteğiyle AMI UEFI Legal BIOS

•

"Tak ve Çalıştır" özelliğini destekler

•

ACPI 5.1 uyumluluğu uyandırma olayları

•

Bağlantı teli olmadan çalıştırma özelliğini destekler

•

SMBIOS 2.3 desteği

•

İşlemci, DRAM, PCH 1,05 V, PROM 2,5 V Voltaj Çoklu Ayarı

•

Sıcaklık Algılama: İşlemci, Kasa, Kasa İsteğe Bağlı/Su Pompalı

•

Fanlar Fan Devirölçer: İşlemci, Kasa, Kasa İsteğe Bağlı/Su Pompalı

•

Fanlar Sessiz Fan (İşlemci sıcaklığıyla otomatik ayarlanan kasa fanı

•

hızı): İşlemci, Kasa, Kasa İsteğe Bağlı/Su Pompalı Fanlar Fan Çoklu Hız Kontrolü: İşlemci, Kasa, Kasa İsteğe Bağlı/Su

•

Pompalı Fanlar Gerilim izleme: +12 V, +5 V, +3,3 V, İşlemci Vcore

•

Türkçe

Microso® Windows® 10 64 bit

İşletim Sistemi

•

* Güncellenmiş Windows® 10 sürücüsü konusunda ayrıntılar için lütfen ASRock web sitesini ziyaret edin: http://www.asrock.com

FCC, CE

Onaylar

•

ErP/EuP için hazır (ErP/EuP için hazır güç beslemesi gerek-

•

lidir)

* Detaylı ürün bilgisi için lütfen web sitemizi ziyaret edin: http://www.asrock.com

Lütfen, BIOS ayarlarını düzenleme, Bağımsız Hız Aşırtma Teknolojisinin uygulanması veya üçüncü taraf hız aşırtma araçlarının kullanılması da dâhil olmak üzere tüm hız aşırtma işlemlerinin belirli bir risk taşıdığını unutmayın. Hız aşırtma, sisteminizin dayanıklılığını etkileyebilir, hatta sisteminizde yer alan bileşenlere ve aygıtlara zarar verebilir. Bu, riski ve masraarı size ait olmak üzere gerçekleştirilmelidir. Hız aşırtmadan doğabilecek zararlar konusunda sorumlu olmayacağız.

1.3 Bağlantı Teli Kurulumu

Çizim, bağlantı tellerinin kurulumunu göstermektedir. Tel kapağı, pimlerin üzerine yerleştirildiğinde, tel "Kısa" olur. Pimlerin üzerinde tel kapağı bulunmadığında, tel "Açık" olur. Çizim, pin1 ve pin2 alanları "Kısa" olan ve bu iki pim üzerinde bir bağlantı teli kapağı bulunan 3 pimli bağlantı telini göstermektedir.

CMOS'u Temizle Bağlantı Teli (CLRMOS1) (bkz. s.1, No. 16)

CMOS'u TemizleVarsayılan

Türkçe

CLRMOS1, CMOS verilerini temizlemenizi sağlar. Sistem parametrelerini temizlemek ve varsayılan kurulum ayarlarına sıfırlamak için, lütfen bilgisayarı kapatın ve güç kablosunu güç beslemesinden çekin. 15 saniye bekledikten sonra, CLRMOS1 üzerindeki pin2 ve pin3'e 5 saniye boyunca kısa devre yaptırmak için bir bağlantı teli kullanın. Ancak, CMOS'u lütfen BIOS'u güncelledikten hemen sonra temizlemeyin. BIOS'u güncelledikten hemen sonra CMOS'u temizlemeniz gerekirse, önce sistemi başlatın ve ardından CMOS temizleme işlemi öncesinde yeniden kapatın. Şifre, tarih, saat ve varsayılan kullanıcı prolinin yalnızca CMOS pili çıkarıldığında temizleneceğini lütfen unutmayın.

Asrock Fatal1ty X370 Gaming-ITX/ac Quick Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
