Version 1.0
Published June 2017
Copyright©2017 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: +886-2-28965588 ext.123 (Standard International call charges apply)
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
Fatal1ty Story
Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I actually
played competitive billiards in professional tournaments and won four or ve games o guys
who played at the highest level. I actually thought of making a career of it, but at that young
age situations change rapidly. Because I’ve been blessed with great hand-eye coordination and
a grasp of mathematics (an important element in video gaming) I gravitated to that activity.
GOING PRO
I started professional gaming in 1999 when I entered the CPL (Cyberathlete Professional
League) tournament in Dallas and won $4,000 for coming in third place. Emerging as one
of the top players in the United States, a company interested in sponsoring me ew me to
Sweden to compete against the top 12 players in the world. I won 18 straight games, lost
none, and took rst place, becoming the number one ranked Quake III player in the world
in the process. Two months later I followed that success by traveling to Dallas and defending
my title as the world’s best Quake III player, winning the $40,000 grand prize. From there
I entered competitions all over the world, including Singapore, Korea, Germany, Australia,
Holland and Brazil in addition to Los Angeles, New York and St. Louis.
WINNING STREAK
I was excited to showcase my true gaming skills when defending my title as CPL
Champion of the year at the CPL Winter 2001 because I would be competing in a totally
dierent rst person shooter (fps) game, Alien vs. Predator II. I won that competition and
walked away with a new car. e next year I won the same title playing Unreal Tournament
2003, becoming the only three-time CPL champion of the year. And I did it playing a
different game each year, something no one else has ever done and a feat of which I am
extremely proud.
At QuakeCon 2002, I faced o against my rival ZeRo4 in one of the most highly
anticipated matches of the year, winning in a 14 to (-1) killer victory. Competing at Quakecon
2004, I became the World’s 1st Doom3 Champion by defeating Daler in a series of very
challenging matches and earning $25,000 for the victory.
Since then Fatal1ty has traveled the globe to compete against the best in the world, winning
prizes and acclaim, including the 2005 CPL World Tour Championship in New York City for
a $150,000 rst place triumph. In August 2007, Johnathan was awarded the rst ever Lifetime
Achievement Award in the four year history of the eSports-Award for “showing exceptional
sportsmanship, taking part in shaping eSports into what it is today and for being the prime
representative of this young sport. He has become the gurehead for eSports worldwide”.
LIVIN’ LARGE
Since my rst big tournament wins, I have been a “Professional Cyberathlete”, traveling the
world and livin’ large with lots of International media coverage on outlets such as MTV,
ESPN and a 60 Minutes segment on CBS to name only a few. It's unreal - it's crazy. I’m living
a dream by playing video games for a living. I’ve always been athletic and took sports like
hockey and football very seriously, working out and training hard. is discipline helps me
become a better gamer and my drive to be the best has opened the doors necessary to become
a professional.
A DREAM
Now, another dream is being realized – building the ultimate gaming computer, made
up of the best parts under my own brand. Quality hardware makes a huge difference in
competitions…a couple more frames per second and everything gets really nice. It’s all about
getting the computer processing faster and allowing more uid movement around the maps.
My vision for Fatal1ty hardware is to allow gamers to focus on the game without worrying
about their equipment, something I’ve preached since I began competing. I don’t want to
worry about my equipment. I want to be there – over and done with - so I can focus on
the game. I want it to be the fastest and most stable computer equipment on the face of the
planet, so quality is what Fatal1ty Brand products represent.
Johnathan “Fatal1ty” Wendel
e Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trademarks of Fatal1ty, Inc., and are used
under license. © 2017 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective
owners.
Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 9
1.5 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz
Antenna 11
Chapter 2 Installation 13
2.1 Installing the CPU 14

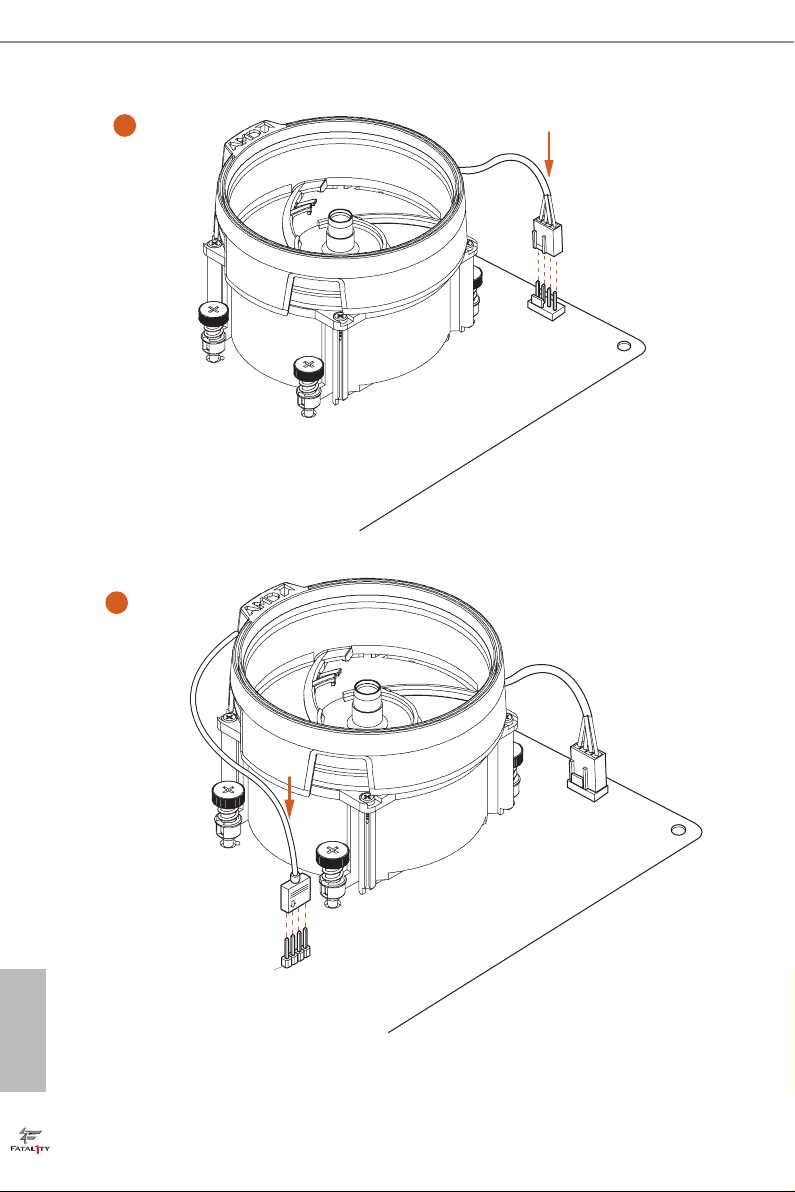

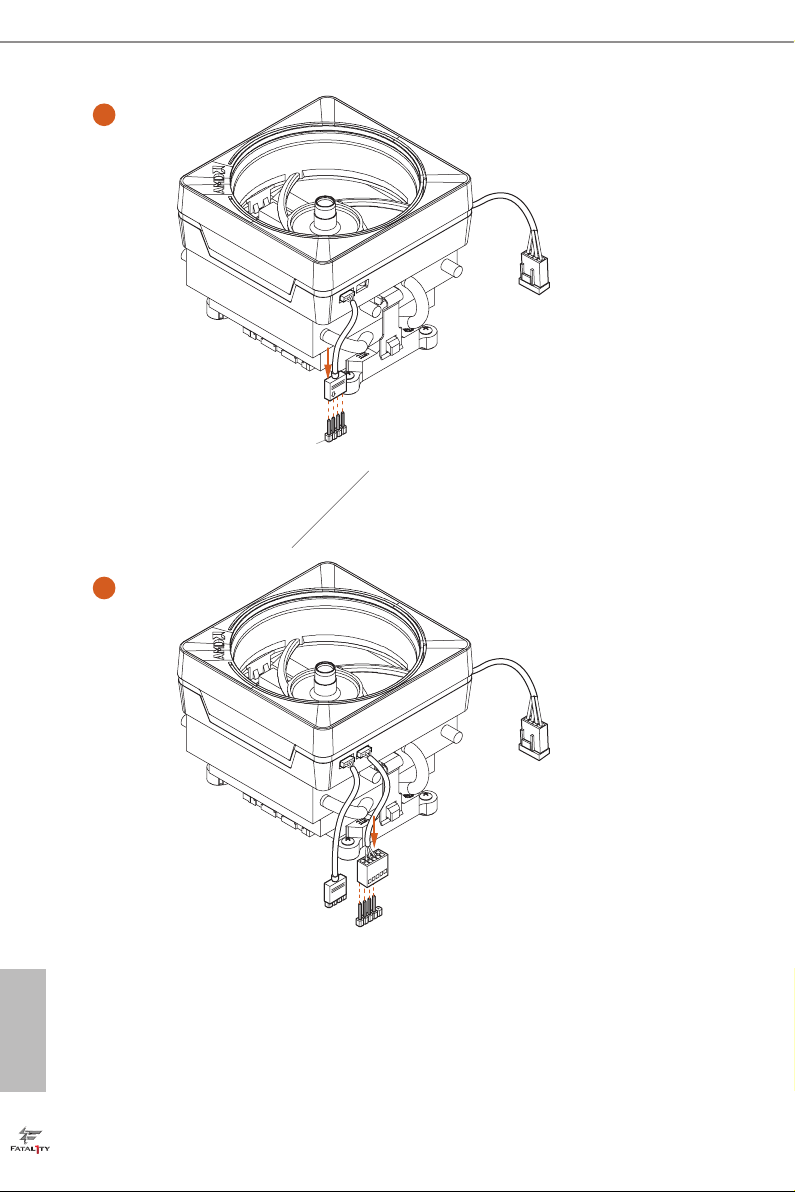

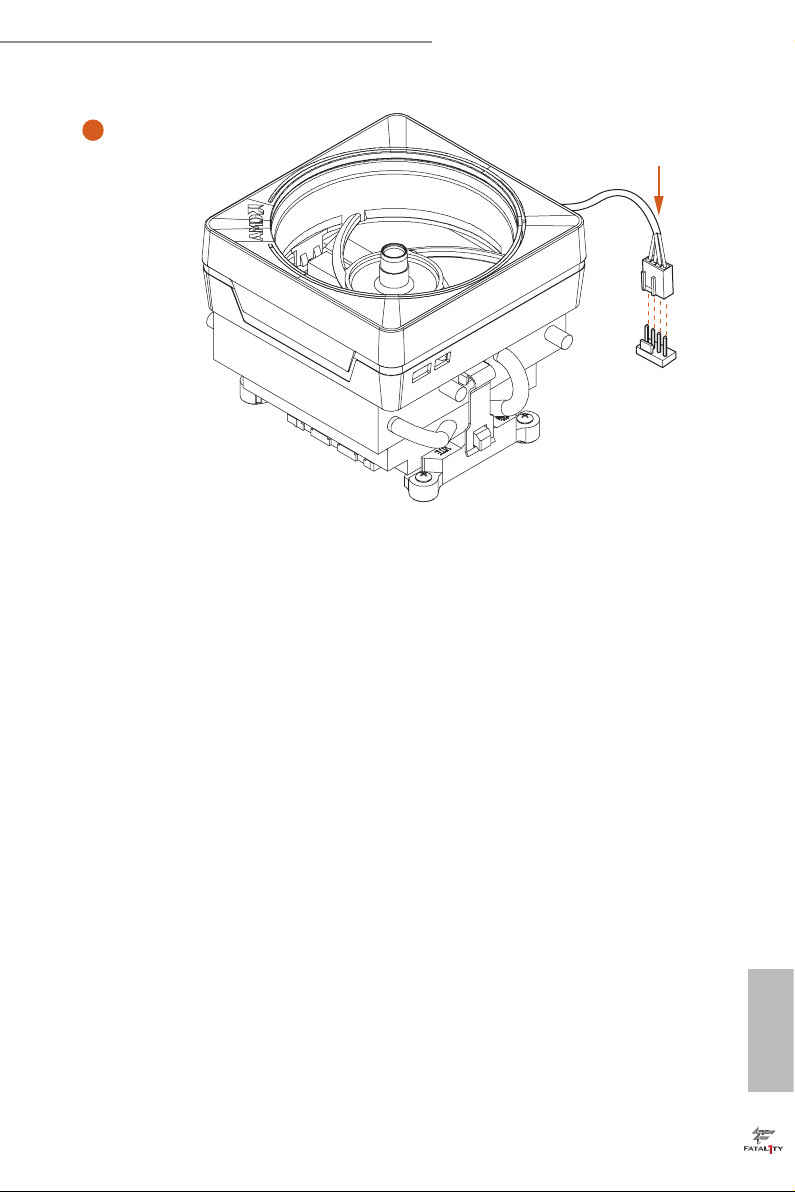

2.2 Installing the CPU Fan and Heatsink 16
2.3 Installing Memory Modules (DIMM) 25
2.4 Expansion Slot (PCI Express Slot) 27
2.5 Jumpers Setup 28
2.6 Onboard Headers and Connectors 29
Chapter 3 Software and Utilities Operation 33
3.1 Installing Drivers 33
3.2 F-Stream 34
3.2.1 Installing F-Stream 34
3.2.2 Using F-Stream 34
3.3 ASRock Live Update & APP Shop 37
3.3.1 UI Overview 37
3.3.2 Apps 38
3.3.3 BIOS & Drivers 41
3.3.4 Setting 42
3.4 Creative SoundBlaster Cinema3 43
3.5 ASRock RGB LED Utility 44
Chapter 4 UEFI SETUP UTILITY 45
4.1 Introduction 45
4.1.1 UEFI Menu Bar 45
4.1.2 Navigation Keys 46
4.2 Main Screen 47
4.3 OC Tweaker Screen 48
4.4 Advanced Screen 50
4.4.1 CPU Conguration 51

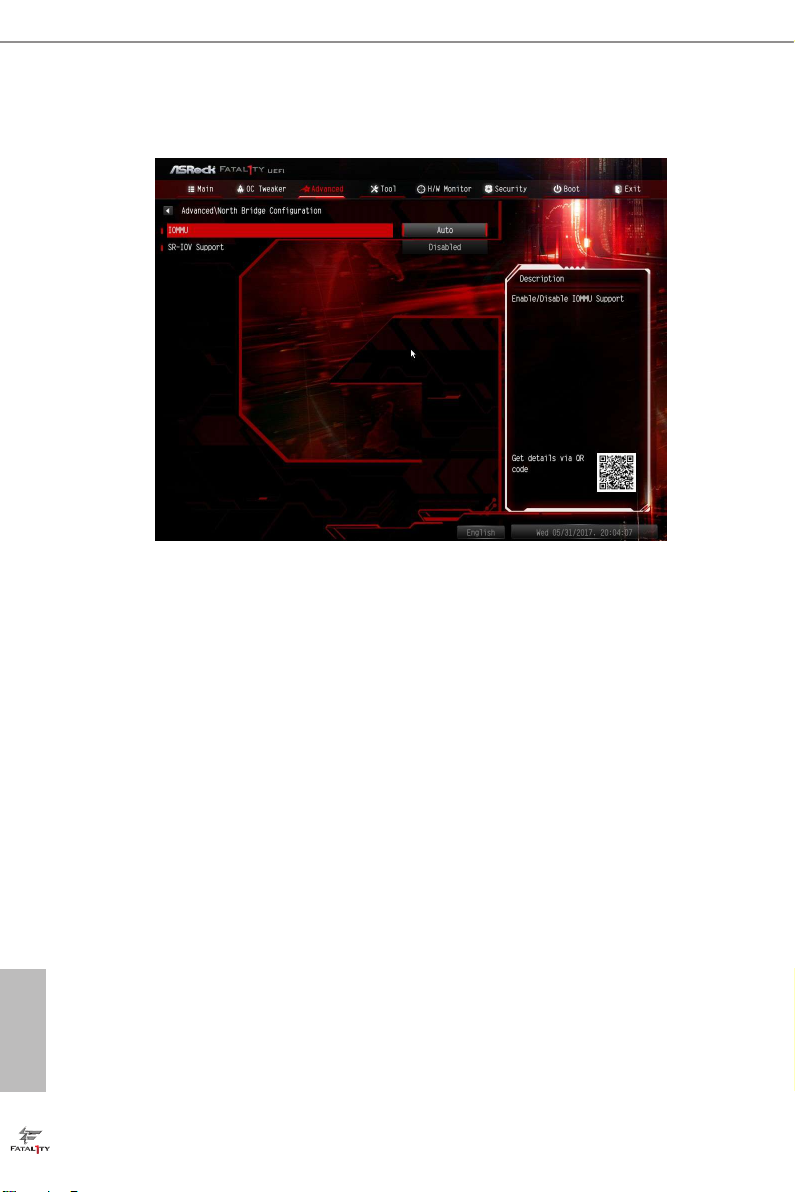

4.4.2 North Bridge Conguration 52
4.4.3 South Bridge Conguration 53
4.4.4 Storage Conguration 54

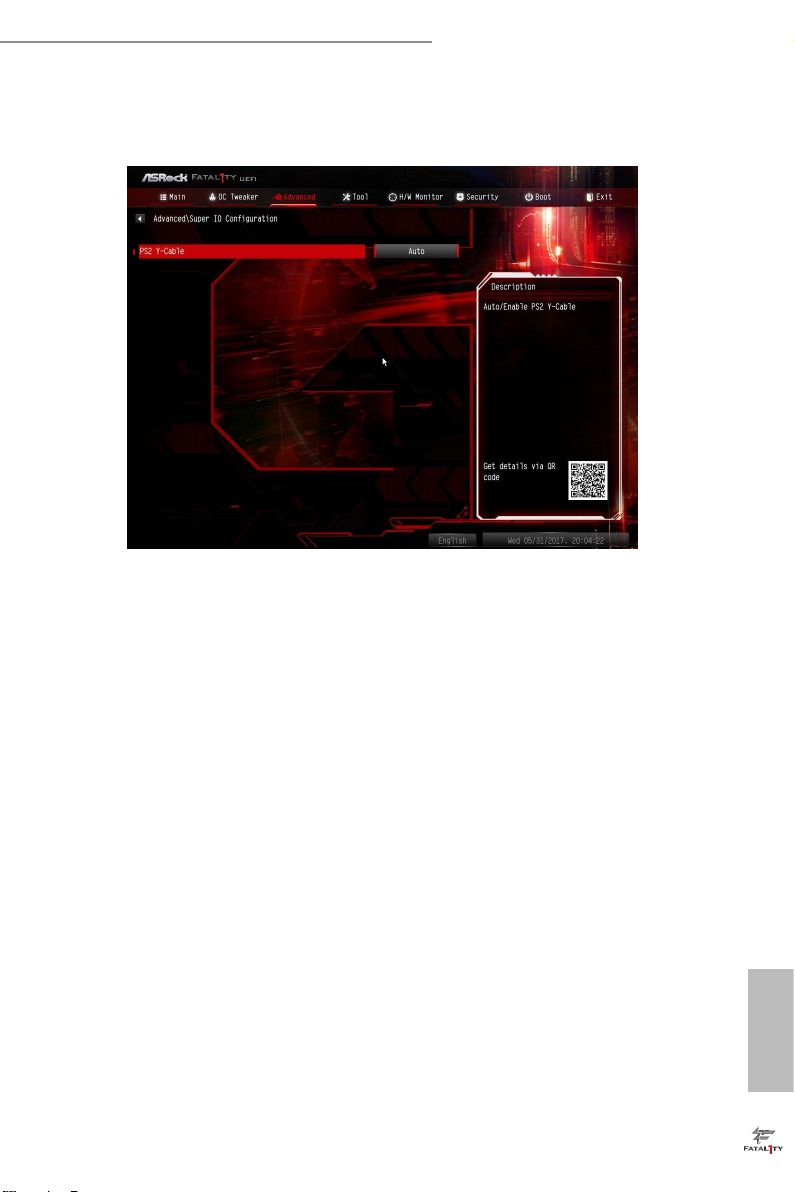

4.4.5 Super IO Conguration 55

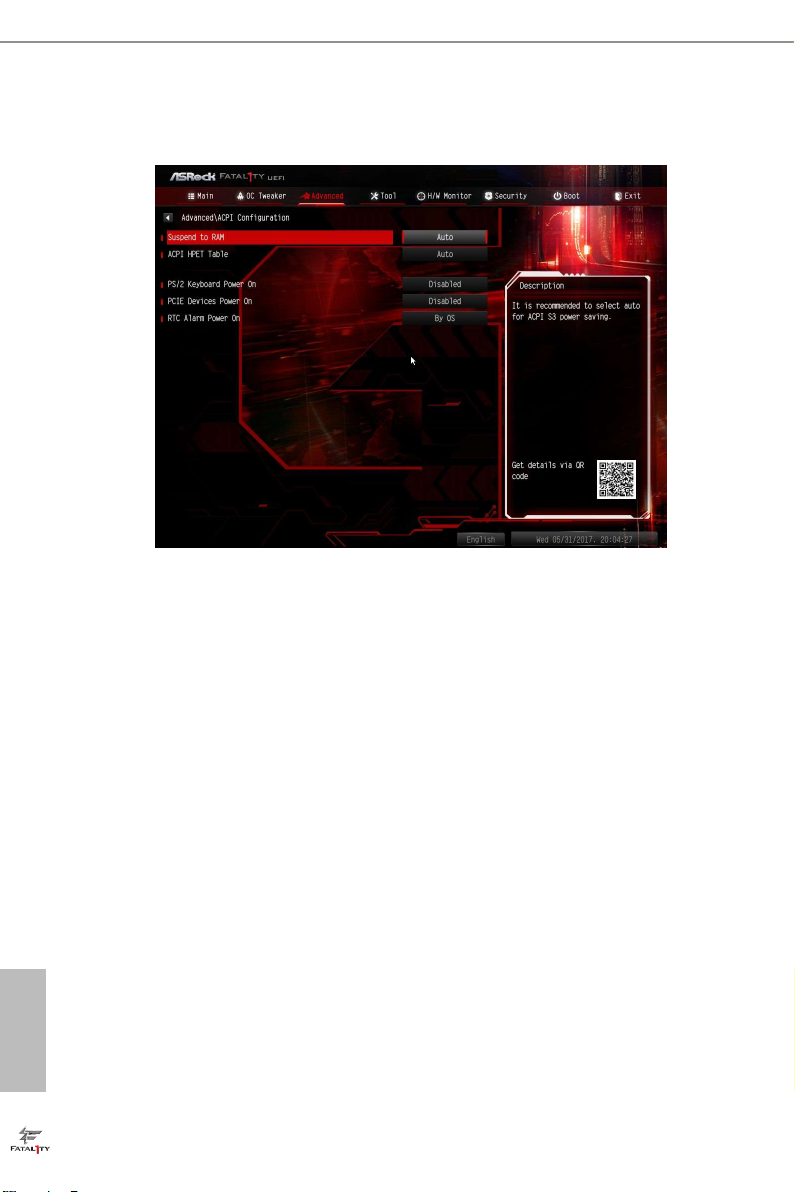

4.4.6 ACPI Conguration 56

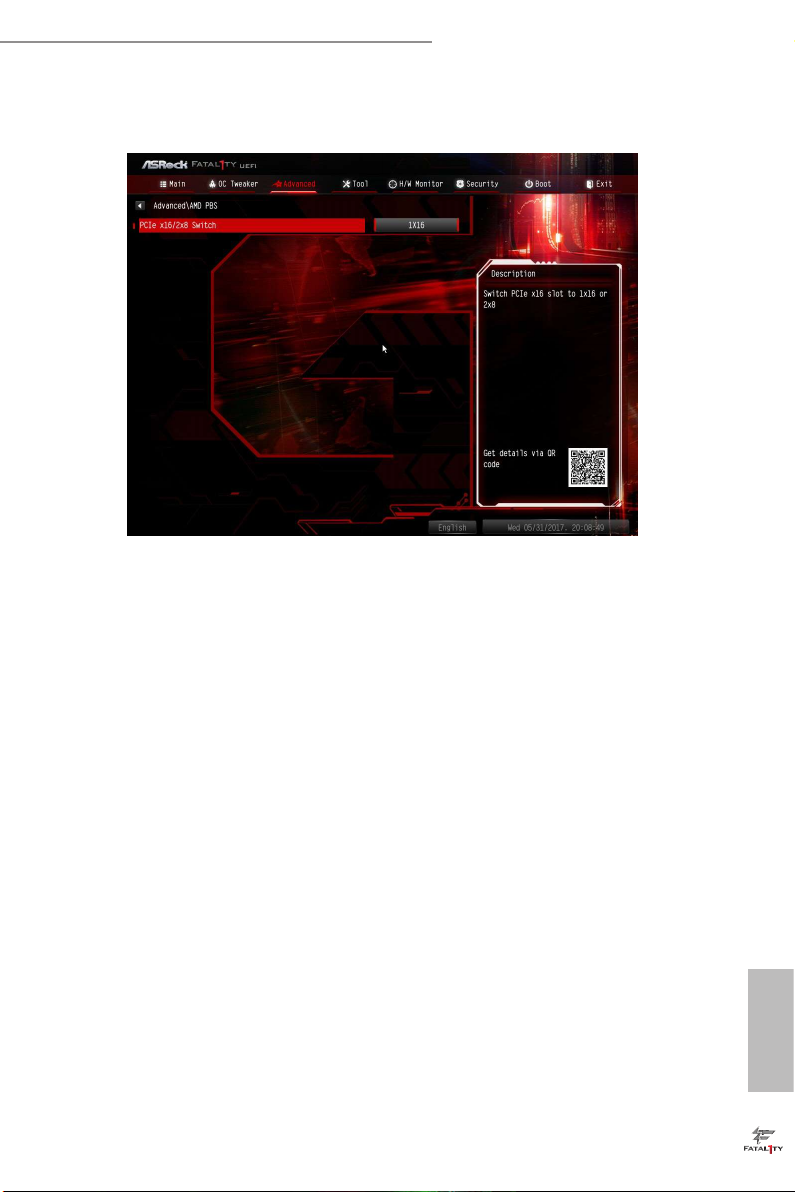

4.4.7 AMD PBS 57
4.5 Tools 58

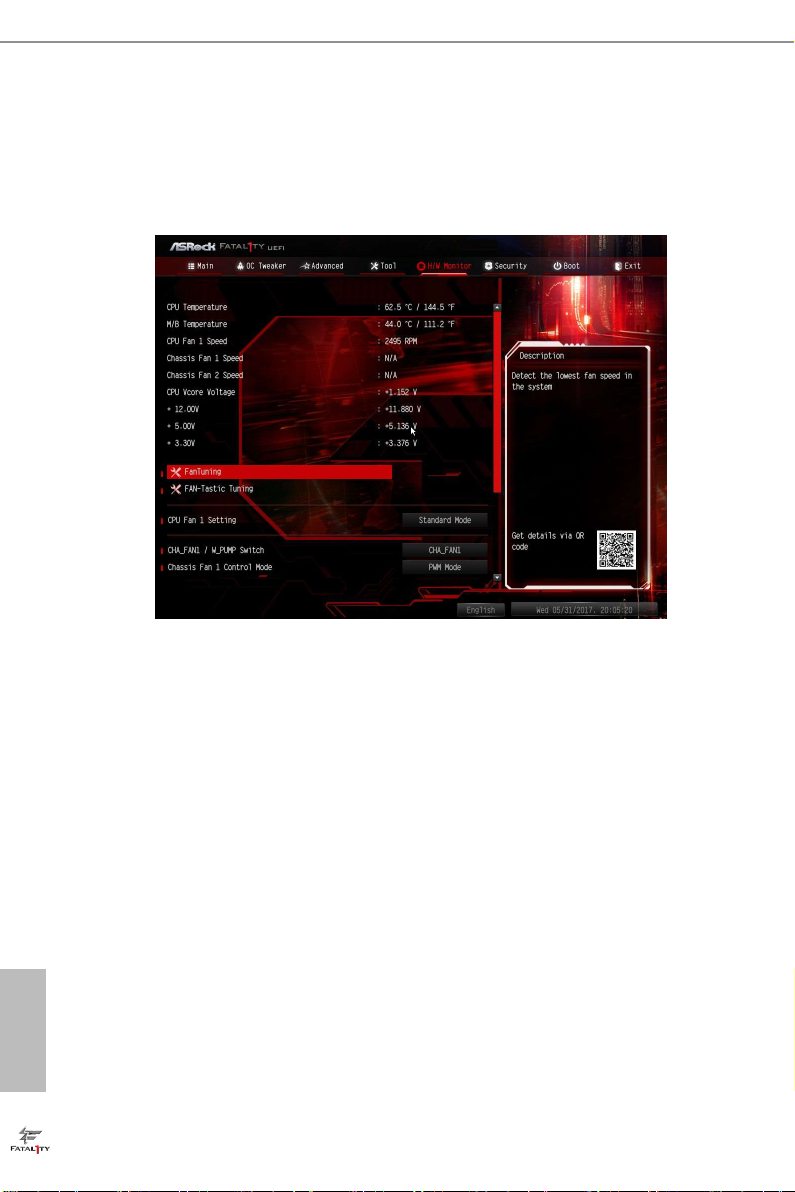

4.6 Hardware Health Event Monitoring Screen 60
4.7 Security Screen 62

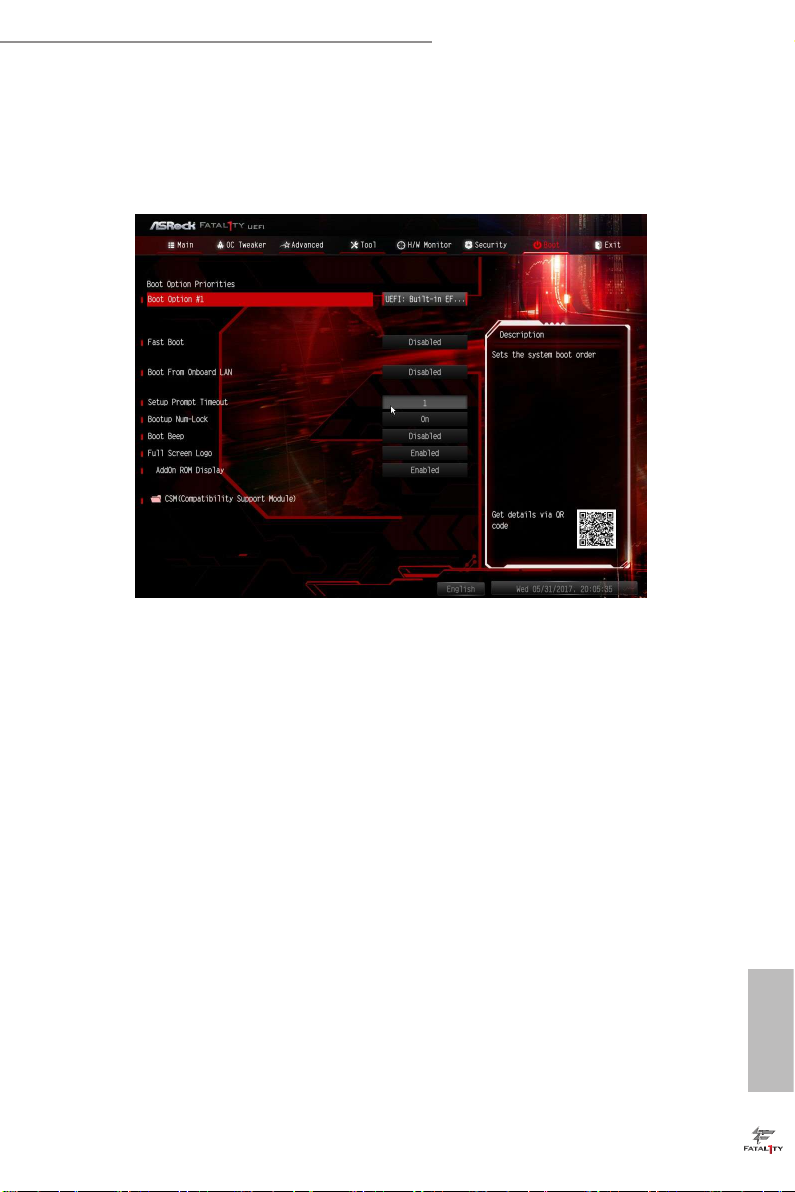

4.8 Boot Screen 63
4.9 Exit Screen 66
Fatal1ty AB350 Gaming-ITX/ac Series
Chapter 1 Introduction
ank you for purchasing ASRock Fatal1ty AB350 Gaming-ITX/ac Series
motherboard, a reliable motherboard produced under ASRock’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock’s commitment to quality and endurance.
In this manual, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.
Becau se the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In ca se any modications of this manual occur, the updated version will be available on ASRock’s website
without further notice. If you require technical suppor t related to this motherboard,
please visit our website for spe cic information about the model you are using. You
may nd the l atest VGA cards and CPU support list on ASRock ’s website a s well.
ASRock website http://www.a srock .com.
1.1 Package Contents
ASRock Fatal1ty AB350 Gaming-ITX/ac Series Motherboard (Mini-ITX Form Factor)
•
ASRock Fatal1ty AB350 Gaming-ITX/ac Series Quick Installation Guide
•
ASRock Fatal1ty AB350 Gaming-ITX/ac Series Support CD
•
1 x I/O Panel Shield
•
2 x Serial ATA (SATA) Data Cables (Optional)
•
2 x ASRock WiFi 2.4/5 GHz Antennas (Optional)
•
1 x Screw for M.2 Socket (Optional)
•
English
1
1.2 Specications
Platform
CPU
Chipset
Memory
•
•
•
•
•
•
•
•
•
•
•
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 25 for DDR4 UDIMM maximum frequency
support.
•
•
Mini-ITX Form Factor
2oz Copper PCB
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge)
and Ryzen Series CPUs (Summit Ridge)
Digi Power design
8 Power Phase design
Supports 95W Water Cooling
AMD Promontory B350
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
AMD Ryzen series CPUs support DDR4 3200+(OC)/2933
(OC)/2667/2400/2133 ECC & non-ECC, un-buered memo-
ry*
AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC
& non-ECC, un-buered memory*
Max. capacity of system memory: 32GB
15μ Gold Contact in DIMM Slots
English
2
Expansion
Slot
Graphics
AMD Ryzen series CPUs
1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
•
AMD 7th A-Series APUs
1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
•
* Supports NVMe SSD as boot disks
1 x Vertical M.2 Socket (Key E) with the bundled WiFi-
•
802.11ac module (on the rear I/O)
15μ Gold Contact in VGA PCIe Slot (PCIE1)
•
Integrated AMD RadeonTM R-Series Graphics in A-series
•
APU*
Audio
Fatal1ty AB350 Gaming-ITX/ac Series
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
•
Max. shared memory 2GB
•
Supports 2 x HDMI with max. resolution up to 4K x 2K
•
(4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
•
HBR (High Bit Rate Audio) with HDMI Ports (Compliant
HDMI monitor is required)
Supports HDCP with HDMI Ports
•
Supports Full HD 1080p Blu-ray (BD) playback with HDMI
•
Ports
7.1 CH HD Audio with Content Protection (Realtek ALC1220
•
Audio Codec)
Premium Blu-ray Audio support
•
Supports Surge Protection
•
Nichicon Fine Gold Series Audio Caps
•
120dB SNR DAC with Dierential Amplier
•
Pure Power-In
•
Direct Drive Technology
•
PCB Isolate Shielding
•
Impedance Sensing on Line Out port
•
Individual PCB Layers for R/L Audio Channel
•
Gold Audio Jacks
•
Supports Creative SoundBlaster Cinema3
•
LAN
Wireless
LAN
Gigabit LAN 10/100/1000 Mb/s
•
GigaLAN Intel® I211AT
•
Supports Wake-On-LAN
•
Supports Lightning/ESD Protection
•
Supports Energy Ecient Ethernet 802.3az
•
Supports PXE
•
Supports IEEE 802.11a/b/g/n/ac
•
Supports Dual-Band (2.4/5 GHz)
•
Supports high speed wireless connections up to 433Mbps
•
Supports Bluetooth 4.0 / 3.0 + High speed class II
•
English
3
English
Rear Panel
I/O
Storage
Connector
2 x Antenna Ports
•
1 x PS/2 Mouse/Keyboard Port
•
2 x HDMI Ports
•
1 x Optica l SPDIF Out Port
•
2 x USB 2.0 Ports (Supports ESD Protection)
•
* 1 x Fatal1ty Mouse Port (USB 2.0) is included
1 x USB 3.0 Type-A Port (Supports ESD Protection)
•
1 x USB 3.0 Type-C Port (Supports ESD Protection)
•
2 x USB 3.0 Ports (Supports ESD Protection)
•
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
•
LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
•
Front Speaker / Microphone (Gold Audio Jacks)
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
•
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3
•
6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4
(32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with
A-Series APU)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
1 x LPC Header
•
1 x AMD Fan LED Header
•
1 x CPU Fan Connector (4-pin)
•
* e CPU Fan Connector supports the CPU fan of ma ximum
1A (12W) fan power.
1 x Chassis Fan Connector (4-pin)
•
1 x Chassis Optional/Water Pump Fan Connector (4-pin)
•
(Smart Fan Speed Control)
* e Chassis Optional/Water Pump Fan supports the water
cooler fan of maximum 1.5A (18W) fan power.
* CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is
in use.
1 x 24 pin ATX Power Connector
•
1 x 8 pin 12V Power Connector (Hi-Density Power
•
Connector)
1 x Front Panel Audio Connector
•
1 x AMD LED Fan USB Header
•
4
BIOS
Feature
Hardware
Monitor
Fatal1ty AB350 Gaming-ITX/ac Series
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD
•
Protection)
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD
•
Protection)
AMI UEFI Legal BIOS with GUI support
•
Supports “Plug and Play”
•
ACPI 5.1 compliance wake up events
•
Supports jumperfree
•
SMBIOS 2.3 support
•
CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjust-
•
ment
Temperature Sensing: CPU, Chassis, Chassis Optional/Water
•
Pump Fans
Fan Tachometer: CPU, Chassis, Chassis Optional/Water
•
Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
•
ture): CPU, Chassis, Chassis Optional/Water Pump Fans
Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/
•
Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
•
Microso® Windows® 10 64-bit
OS
•
* For the updated Windows® 10 driver, please visit ASRock’s web-
site for details: http://www.asrock.com
FCC, CE
Certications
* For detailed product information, please visit our website: http://ww w.asrock.com
Please realize that the re is a certain r isk involved with overclo cking, including adju sting the setting in the BIOS, applying Untied Ove rclocking Technology, or using thirdparty o verclocking tools. Overclocking may aect your system’s stability, or even c ause
damage to the components and dev ices of your system. It should be done at your own
risk and expense. We are not responsible for possible damage cau sed by overclocking.
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
English
5
1.3 Motherboard Layout
ATXP WR1
CLRCMOS 1
1
1
USB_3_4
HD_AUDI O1
1
CPU_FAN 1
RJ- 45 LAN
SOCK ET AM4
HDM I2
ATX12V1
Ult ra M.2
PCI e Ge n3 x4
USB3_ 3_4
1
CHA_FAN2
HDLED RESET
PLED PWRBT N
PANEL1
1
RoHS
DDR 4_ A1 (6 4 bit , 28 8-p in m odu le)
DDR 4_ B1 (6 4 bit , 28 8-p in m odu le)
AMD
Promonto ry
B350
USB 3. 0
T: US B1
B: USB 2
AMD_FAN_L ED1
1
LPC1
1
AB35 0 Gami ng -I TX/ac
PCI E1
CHA_FAN/ W_PUMP
USB 3.0
T:U SB31_ TA_1
B: USB3 1_TC _1
USB 2 .0
T: USB1
B: US B2
PS2
Keybo ard
/Mous e
HDM I1
Top:
Central/Bass
Cente r:
REAR SPK
Top:
LINE IN
Cente r:
FRONT
Botto m:
Optic al
SPDIF
Botto m:
MIC I N
USB_5
1
SPEAKER1
1
M2_ WI FI_ 1
SATA3_2
SATA3_4
SATA3_1
SATA3_3
Top Side View
English
6
BIOS
ROM
Back Side View
Fatal1ty AB350 Gaming-ITX/ac Series
Ultr a M. 2
English
7
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 AMD LED Fan USB Header (USB_5)
3 AMD Fan LED Header (AMD_FAN_LED1)
4 CPU Fan Connector (CPU_FAN1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
6 Chassis Fan Connector (CHA_FAN2)
7 ATX Power Connector (ATXPWR1)
8 USB 2.0 Header (USB_3_4)
9 USB 3.0 Header (USB3_3_4)
10 SATA3 Connector (SATA3_2)
11 SATA3 Connector (SATA3_1)
12 SATA3 Connector (SATA3_3)
13 SATA3 Connector (SATA3_4)
14 System Panel Header (PANEL1)
15 LPC Header (LPC1)
16 Clear CMOS Jumper (CLRCMOS1)
17 Chassis Fan / Waterpump Fan Connector (CHA_FAN/W_PUMP)
18 Front Panel Audio Header (HD_AUDIO1)
19 Chassis Speaker Header (SPEAKER1)
English
8
1.4 I/O Panel
Fatal1ty AB350 Gaming-ITX/ac Series
658
7
9
101112131516
1
2
43
14
No. Description No. Description
1 Fatal1ty Mouse Port (USB_1) 9 Antenna Ports
2 USB 2.0 Port (USB_2) 10 Microphone (Pink)
3 USB 3.0 Port (USB31_TA_1) 11 Optical SPDIF Out Port
4 LAN RJ-45 Port* 12 USB 3.0 Ports (USB3_12)
5 Central / Bass (Orange) 13 USB 3.0 Type-C Port (USB31_TC_1)
6 Rear Speaker (Black) 14 HDMI Port
7 Line In (Light Blue) 15 HDMI Port
8 Front Speaker (Lime)** 16 PS/2 Mouse/Keyboard Port
English
9
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications .
ACT/LINK L ED
SPEED LE D
LAN Por t
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Speaker Jack”. See the table below
for connection d etails in accordance w ith the type of speaker you use.
English
Audio Output
Channels
Front Speaker
(No. 8)
Rear Speaker
(No. 6)
Central / Bass
(No. 5)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
Line In
(No. 7)
10
Fatal1ty AB350 Gaming-ITX/ac Series
1.5 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antenna
WiFi-802.11ac + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.0
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ac connectivity standards and Bluetooth v4.0. WiFi + BT module is an easy-to-
use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v4.0 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 4.0 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs.
* e transmission speed may vary according to the environment.
11
English
WiFi Antennas Installation Guide
Step 1
Prepare the WiFi 2.4/5 GHz Antennas that come
with the package.
Step 2
Connect the two WiFi 2.4/5 GHz Antennas to
the antenna connectors. Turn the antenna clock-
wise until it is securely connected.
Step 3
Set the WiFi 2.4/5 GHz Antenna as shown in the
illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.
English
12
Fatal1ty AB350 Gaming-ITX/ac Series
Chapter 2 Installation
is is a Mini-ITX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard.
•
Failure to do so may cause physical injuries to you and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
13
English
2.1 Installing the CPU
Unplug all power cables be fore installing the CPU.
1
English
14
2
Fatal1ty AB350 Gaming-ITX/ac Series
3
15
English
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Ma ke sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove the power cord before changing a CPU or heatsink.
Installing the CPU Box Cooler SR1
1
English
16
2
Fatal1ty AB350 Gaming-ITX/ac Series
3
4
1
N
FA
_
U
P
C
English
17
Installing the AM4 Box Cooler SR2
1
2
English
18
Fatal1ty AB350 Gaming-ITX/ac Series
3
19
English
4
1
N
FA
_
U
P
C
5
4-pin FAN cable
English
20
RGB LED Cable
1
FAN
CPU_
1
D
LE
_
N
FA
_
D
AM
+12V
*e diagram shown here are for reference only. Please refer to page 32 for the orientation of
AMD Fan LED Header (AMD_FAN_LED1).
Installing the AM4 Box Cooler SR3
1
Fatal1ty AB350 Gaming-ITX/ac Series
2
English
21
3
4
English
22
Fatal1ty AB350 Gaming-ITX/ac Series
5
CPU_FAN1
23
English
6
1
N
FA
_
U
P
C
1
D
E
L
_
N
FA
_
D
AM
+12V
or
7
1
N
FA
_
U
P
C
1
D
E
L
_
N
FA
_
D
AM
5
_
B
S
U
English
Please note that only one cable should be used at a time in this step.
If you select AMD_FAN_LED1, please install ASRock utility "ASRock RGB LED".
If you select USB connector, please install AMD utility "SR3 Settings So ware".
*e diagram shown here are for reference only. Please refer to page 32 for the orientation of AMD Fan
LED Header (AMD_FAN_LED1) and page 30 for the orientation of AMD LED Fan USB Header (USB_5).
24
Fatal1ty AB350 Gaming-ITX/ac Series
2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channe l conguration, you always need to in stall identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It is una ble to activate Dual Channel Memo ry Technology with only one me mory
module instal led.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
DDR4 UDIMM Maximum Frequency Support
A-Series APUs:
UDIMM Memory Slot
A1 B1
- SR 2400
SR - 2400
- DR 2400
DR - 2400
SR SR 2400
DR DR 2400
Frequency
(Mhz)
Ryzen CPUs:
UDIMM Memory Slot
A1 B1
- SR 2667
SR - 2667
- DR 2667
DR - 2667
SR SR 2667
DR DR 2667
SR: Single rank DIMM, 1Rx4 or 1R x8 on DIMM module label
DR: Dua l ran k DIMM, 2Rx4 or 2R x8 on DIMM module label
Frequency
(Mhz)
English
25
e DIMM only ts in one correct orie ntation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
1
2
English
26
3
Fatal1ty AB350 Gaming-ITX/ac Series
2.4 Expansion Slot (PCI Express Slot)
ere is 1 PCI Express slot on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and mak e necessary hardware settings for the card before you start
the installation.
PCIe slot:
PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.*
* PCIE1 will downgrade to x8 mode when A-Series APU is installed.
27
English
2.5 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS1)
(see p.6, No. 16)
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Clear CMOSDefault
English
28
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these header s and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.
Fatal1ty AB350 Gaming-ITX/ac Series
System Panel Header
(9-pin PANEL1)
(see p.6, No. 14)
PWRBTN (Power Switch):
Connec t to the power switch on the chassi s front panel. You may congure the way to
turn o your system using the power switch.
RESET (Reset Switch):
Connec t to the reset switch on the chassi s front panel. P ress the reset sw itch to restart
the computer if the compute r freezes and fails to perform a normal restart.
PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel. e LED i s on when
the system is ope rating. e LED keeps blinking when the system i s in S3 sleep state.
e LED is o when the system i s in S4 sle ep state or powered o (S5).
HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on when
the hard dr ive is reading or w riting data.
e front panel de sign may dier by chassis. A front pane l module mainly consists
of power switch , reset switch, power LED, hard dr ive activity LED, speak er and etc.
When connecting your chassis front panel module to this head er, make sure the wire
assig nments and the pin assig nments are matched correctly.
GND RES ET#
PWR BT N #
PLE D-
PLE D+
GND
GND
HDL ED -
HDL ED +
1
Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 19)
Please connect the chassis
speaker to this header.
English
29
Serial ATA3 Connectors
(SATA3_1:
see p.6, No. 11)
(SATA3_2:
see p.6, No. 10)
(SATA3_3:
see p.6, No. 12)
(SATA3_4:
see p.6, No. 13)
SATA3_2
SATA3_4
ese four SATA3
connectors support SATA
data cables for internal
SATA3_1
storage devices with up to
6.0 Gb/s data transfer rate.
SATA3_3
English
AMD LED Fan USB
Header
(4-pin USB_5)
(see p.6, No. 2)
USB 2.0 Header
(9-pin USB_3_4)
(see p.6, No. 8)
USB 3.0 Header
(19-pin USB3_3_4)
(see p.6, No. 9)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.6, No. 18)
Dumm y
IntA _PB_ D+
IntA _PB_ D-
IntA _PB_ SSTX +
IntA _PB_ SSTX -
IntA _PB_ SSRX +
IntA _PB_ SSRX -
Vbus
GND
1
MIC 2_L
1
GND
GND
PRE SEN CE#
MIC _RE T
OUT 2_R
MIC 2_R
IntA _PA_D +
IntA _PA_D -
GND
IntA _PA_S STX+
IntA _PA_S STX-
GND
IntA _PA_S SRX+
IntA _PA_S SRX-
Vbus
OUT _RE T
OUT 2_L
J_S ENS E
is header is used for
connecting the USB
connector on the AMD
SR3 Heatsink.
ere is one header on
this motherboard. Each
USB 2.0 header can
support two ports.
ere is one header on
this motherboard. Each
USB 3.0 header can
support two ports.
is header is for
connecting audio devices
to the front audio panel.
30
Fatal1ty AB350 Gaming-ITX/ac Series
GND
FAN_ VOLTAG E_CO NTR OL
FAN_ SPEE D
FAN_ SPEE D_C ONT ROL
1. High Denition Audio support s Jack Sensing, but the panel wire on the cha ssis must
suppor t HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your syste m.
2. If you use an AC’97 audio panel, please install it to the front panel au dio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to
connec t them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adju st “Recording Volume”.
Chassis Fan Connector
(4-pin CHA_FAN2)
(see p.6, No. 6)
Chassis Optional/Water
Pump Fan Connector
(4-pin CHA_FAN/W_
PUMP)
(see p.6, No. 17)
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.6, No. 4)
FAN _S PEE D_ CON TR OL
CHA _F AN_ SP EED
FAN _V OLT AG E
GND
4 3 2 1
GND
FAN _VOLT AGE
CPU _F
AN_ SPEED
FAN_ SPEED _CONT ROL
Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin.
is motherboard
provides two 4-Pin water
cooling
chassis
fan
connectors. If you plan to
connect a 3-Pin
chassis
water cooler fan, please
connect it to Pin 1-3.
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
English
31
ATX Power Connector
(24-pin ATXPWR1)
(see p.6, No. 7)
12
24
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
1
13
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.6, No. 1)
AMD FAN LED Header
(4-pin AMD_FAN_
LED1)
(see p.6, No. 3)
5
8
1
12V G R B
1
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
AMD FAN LED Header is used
to connect RGB LED
extension cable that comes with
AMD heatsink. e cable
connection allows users to choose
from various LED lighting
eects.
Caution: Never install the FAN
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
English
32
Fatal1ty AB350 Gaming-ITX/ac Series
Chapter 3 Software and Utilities Operation
3.1 Installing Drivers
e Support CD that comes with the motherboard contains necessary drivers and
useful utilities that enhance the motherboard’s features.
Running The Support CD
To begin using the support CD, insert the CD into your CD-ROM drive. e CD
automatically displays the Main Menu if “AUTORUN” is enabled in your computer.
If the Main Menu does not appear automatically, locate and double click on the le
“ASRSETUP.EXE” in the Support CD to display the menu.
Drivers Menu
e drivers compatible to your system will be auto-detected and listed on the
support CD driver page. Please click Instal l All or follow the order from top to
bottom to install those required drivers. erefore, the drivers you install can work
properly.
Utilities Menu
e Utilities Menu shows the application soware that the motherboard supports.
Click on a specic item then follow the installation wizard to insta ll it.
To improve Windows 7 compatibility, please download and install the following hot
x provided by Microso.
“KB2720599”: http://support.microso.com/ kb/2720599/en-us
English
33
3.2 F-Stream
F-Stream is ASRock’s multi purpose soware suite with a new interface, more new
features and improved utilities.
3.2.1 Installing F-Stream
F-Stream can be downloaded from ASRock Live Update & APP Shop. Aer the
installation, you will nd the icon “F-Stream“ on your desktop. Double-click the
“F-Stream“ icon, F-Stream main menu will pop up.
3.2.2 Using F-Stream
ere are ve sections in F-Stream main menu: Operation Mode, OC Tweaker,
System Info, FAN-Tastic Tuning and Settings.
Operation Mode
Choose an operation mode for your computer.
English
34
OC Tweaker
Congurations for overclocking the system.
Fatal1ty AB350 Gaming-ITX/ac Series
System Info
View information about the system.
*e System Browser tab may not appear for certain models.
English
35
FAN-Tastic Tuning
Congure up to ve dierent fan speeds using the graph. e fans will automatically shi
to the next speed level when the assigned temperature is met.
Settings
Congure ASRock F-Stream. Click to select "Auto run at Windows Startup" if you
want F-Stream to be launched when you start up the Windows operating system.
English
36
Fatal1ty AB350 Gaming-ITX/ac Series
3.3 ASRock Live Update & APP Shop
e ASRock Live Update & APP Shop is an online store for purchasing and
downloading soware applications for your ASRock computer. You can quick ly and
easily insta ll various apps and support utilities. With ASRock Live Update & APP
Shop, you can optimize your system and keep your motherboard up to date simply
with a few clicks.
Double-click on your desktop to access ASRock Live Update & APP Shop
utility.
*You need to be connected to the Internet to download apps f rom the ASRock Live Update & APP Shop.
3.3.1 UI Overview
Category Panel
Hot News
Information Panel
Category Panel: e category panel contains several category tabs or buttons that
when selected the information panel below displays the relative information.
Information Panel: e information panel in the center displays data about the
currently selected category and allows users to perform job-related tasks.
Hot News: e hot news section displays the various latest news. Click on the image
to visit the website of the selected news and know more.
English
37
3.3.2 Apps
When the "Apps" tab is selected, you will see all the available apps on screen for you
to download.
Installing an App
Step 1
Find the app you want to install.
e most recommended app appears on the le side of the screen. e other various
apps are shown on the right. Please scroll up and down to see more apps listed.
English
38
You can check the price of the app and whether you have already intalled it or not.
- e red icon displays the price or "Free" if the app is free of charge.
- e green "Installed" icon means the app is installed on your computer.
Step 2
Click on the app icon to see more details about the selected app.
Fatal1ty AB350 Gaming-ITX/ac Series
Step 3
If you want to install the app, click on the red icon to start downloading.
Step 4
When installation completes, you can nd the green "Installed " icon appears on the
upper right corner.
To uninstall it, simply click on the trash can icon .
*e trash icon may not appear for certain apps.
English
39
Upgrading an App
You can only upgrade the apps you have already installed. When there is an
available new version for your app, you will nd the mark of "New Version"
appears below the installed app icon.
Step 1
Click on the app icon to see more details.
Step 2
Click on the yellow icon to start upgrading.
English
40
Fatal1ty AB350 Gaming-ITX/ac Series
3.3.3 BIOS & Drivers
Installing BIOS or Drivers
When the "BIOS & Drivers" tab is selected, you will see a list of recommended or
critical updates for the BIOS or drivers. Please update them all soon.
Step 1
Please check the item information before update. Click on to see more details.
Step 2
Click to select one or more items you want to update.
Step 3
Click Update to start the update process.
English
41
3.3.4 Setting
In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
English
42
Fatal1ty AB350 Gaming-ITX/ac Series
3.4 Creative SoundBlaster Cinema3
e SoundBlasterTM Cinema3, powered by the SBX Pro Studio technologies, is designed to
bring the same great audio experience found in live performances, lms, and recording
studios to the PC. With this utility, you can easily enhance your audio environment in
ve modes, including Headphones, Speakers, Music, Movie, Game, Voice and Custom.
1 2 3 4 5
ere are ve functions in SoundBlasterTM Cinema3:
No. Function Description
Surround
1
Crystalizer
2
Bass
3
Smart Volume
4
Dialog Plus
5
Creating unprecedented levels of audio realism by producing
virtual speakers around, above and below you.
Making music sound as good as the artist originally
intended by ensuring that every audio detail is heard.
Enhancing bass sound experience by expanding the low
frequency tones.
Minimizing abrupt volume changes by automatically
adjusting the loudness of your audio playback.
Enhancing voices in music and movies for drastically clearer
vocal range.
English
43
3.5 ASRock RGB LED Utility
Now you can adjust the RGB LED color through the ASRock RGB LED utility. Download
this utility from the ASRock Live Update & APP Shop and start coloring your PC style
your way!
Drag the tab to customize your
preference.
Toggle on/o the
RGB LED switch
Sync RGB LED eects
for all LED regions of
the motherboard
Select a RGB LED light eect
from the drop-down menu.
English
44
Fatal1ty AB350 Gaming-ITX/ac Series
Chapter 4 UEFI SETUP UTILITY
4.1 Introduction
is section explains how to use the UEFI SETUP UTILITY to congure your
system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right
aer you power on the computer, other wise, the Power-On-Self-Test (POST) will
continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer
POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the
reset button on the system chassis. You may also restart by turning the system o
and then back on.
Becau se the UEFI soware is constantly being upd ated, the following UEFI setup
screens and de scriptions are for reference purpose only, and they may not exactly
match what you see on your scre en.
4.1.1 UEFI Menu Bar
e top of the screen has a menu bar with the following selections:
Main
OC Tweaker
Advanced
Tool
H/W Monitor
Security
Boot
Exit
For setting system time/date information
For overclocking congurations
For advanced system congurations
Useful tools
Displays current hardware status
For security settings
For conguring boot settings and boot priority
Exit the current screen or the UEFI Setup Utility
English
45
4.1.2 Navigation Keys
Use < > key or < > key to choose among the selections on the menu bar, and
use < > key or < > key to move the cursor up or down to select items, then
press <Enter> to get into the sub screen. You can also use the mouse to click your
required item.
Please check the following table for the descriptions of each navigation key.
Navigation Key(s) Description
+ / -
<Tab>
<PGUP>
<PGDN>
<HOME>
<END>
<F1>
<F7>
<F9>
<F10>
<F12>
<ESC>
To change option for the selected items
Switch to next function
Go to the previous page
Go to the next page
Go to the top of the screen
Go to the bottom of the screen
To display the General Help Screen
Discard changes and exit the SETUP UTILITY
Load optimal default values for all the settings
Save changes and exit the SETUP UTILITY
Print screen
Jump to the Exit Screen or exit the current screen
English
46
Fatal1ty AB350 Gaming-ITX/ac Series
4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
47
English
4.3 OC Tweaker Screen
In the OC Tweaker screen, you can set up overclocking features.
Becau se the UEFI soware is constantly being upd ated, the following UEFI setup
screens and de scriptions are for reference purpose only, and they may not exactly
match what you see on your scre en.
English
48
Voltage Conguration
DRAM Voltage
Use this to select DRAM Voltage. e default value is [Auto].
2.50V Voltage
Congure the voltage for the 2.50V PROM.
+1.8 Voltage
Congure +1.8V voltage.
1.05V Voltage
Chipset 1.05V Voltage. Use default settings for best performance.
Save User Default
Fatal1ty AB350 Gaming-ITX/ac Series
Type a prole name and press enter to save your settings as user default.
Load User Default
Load previously saved user defaults.
Save User UEFI Setup Prole to Disk
It helps you to save current UEFI settings as an user prole to disk.
Load User UEFI Setup Prole from Disk
You can load previous saved prole from the disk.
49
English
4.4 Advanced Screen
In this section, you may set the congurations for the following items: CPU
Conguration, North Bridge Conguration, South Bridge Conguration, Storage-
Conguration, Super IO Conguration, ACPI Conguration and AMD PBS.
Setting wrong values in this sec tion may cause the system to malfunction.
English
50
UEFI Conguration
Active Page on Entry
Select the default page when entering the UEFI setup utility.
Full HD UEFI
When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor
supports Full HD resolution. If the monitor does not support Full HD resolution,
then the resolution will be set to 1024 x 768. When [Disable] is selected, the
resolution will be set to 1024 x 768 directly.
Fatal1ty AB350 Gaming-ITX/ac Series
4.4.1 CPU Conguration
Cool 'n' Quiet
Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology. e default
value is [Enabled]. Conguration options: [Enabled] and [Disabled]. If you install
Windows® OS and want to enable this function, please set this item to [Enabled].
Please note that enabling this function may reduce CPU voltage and memory
frequency, and lead to system stability or compatibility issue with some memory
modules or power supplies. Please set this item to [Disable] if above issue occurs.
AMD fTPM Switch
Use this to enable or disable AMD CPU fTPM.
SVM Mode
When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can
utilize the additional hardware capabilities provided by AMD-V. e default value is
[Enabled]. Conguration options: [Enabled] and [Disabled].
C6 Mode
Use this item to enable or disable Core C6 mode. e default value is [Enabled].
English
51
4.4.2 North Bridge Conguration
IOMMU
Use this to enable or disable IOMMU. e default value of this feature is [Disabled].
Share Memory
Congure the size of memory that is allocated to the integrated graphics processor
when the system boots up.
English
52
Fatal1ty AB350 Gaming-ITX/ac Series
4.4.3 South Bridge Conguration
Onboard HD Audio
Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and
automatically disable it when a sound card is installed.
Front Panel
Enable/disable front panel HD audio.
Deep Sleep
Congure deep sleep mode for power saving when the computer is shut down.
Restore on AC/Power Loss
Select the power state aer a power failure. If [Power O] is selected, the power will
remain o when the power recovers. If [Power On] is selected, the system will start
to boot up when the power recovers.
WAN Radio
Enable/disable the WiFi module's connectivity.
English
53
4.4.4 Storage Conguration
SATA Controller(s)
Enable/disable the SATA controllers.
SATA Mode
AHCI: Supports new features that improve performance.
English
54
RAID: Combine multiple disk drives into a logical unit.
SATA Hot Plug
Enable/disable the SATA Hot Plug.
4.4.5 Super IO Conguration
PS2 Y-Cable
Enable the PS2 Y-Cable or set this option to Auto.
Fatal1ty AB350 Gaming-ITX/ac Series
55
English
4.4.6 ACPI Conguration
Suspend to RAM
It is recommended to select auto for ACPI S3 power saving.
ACPI HPET Table
Enable the High Precision Event Timer for better performance and to pass WHQL
tests.
English
56
PS/2 Keyboard Power On
Allow the system to be waked up by a PS/2 Keyboard.
PCIE Devices Power On
Allow the system to be waked up by a PCIE device and enable wake on LAN.
RTC Alarm Power On
Allow the system to be waked up by the rea l time clock alarm. Set it to By OS to let
it be handled by your operating system.
Fatal1ty AB350 Gaming-ITX/ac Series
4.4.7 AMD PBS
PCIe x16/2x8 Switch (only for Ryzen Series CPUs (Summit Ridge))
Switch PCIe x16 slot to 1x16 or 2x8.
57
English
4.5 Tools
RGB LED
ASRock RGB LED allows you to adjust the RGB LED color to your liking.
Easy RAID Installer
Easy R AID Installer helps you to copy the R AID driver from the support CD to
your USB storage device. Aer copying the drivers please change the SATA mode to
RAID, then you can start installing the operating system in RAID mode.
English
58
Fatal1ty AB350 Gaming-ITX/ac Series
Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
Internet Flash - DHCP (Auto IP), Auto
ASRock Internet Flash downloads and updates the latest UEFI rmware version
from our servers for you. Please setup network conguration before using Internet
Flash.
*For BIOS backup and recovery purpose, it is recommended to plug in your USB
pen drive before using this function.
Network Conguration
Use this to congure internet connection settings for Internet Flash.
Internet Setting
Enable or disable sound eects in the setup utility.
UEFI Download Server
Select a server to download the UEFI rmware.
English
59
4.6 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
Fan Tuning
Measure Fan Min Duty Cycle.
English
60
Fan-Tastic Tuning
Select a fan mode for CPU Fans 1&2, or choose Customize to set 5 CPU
temperatures and assign a respective fan speed for each temperature.
CPU Fan 1 Setting
Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
CHA_FAN1 / W_Pump Switch
Select Chassis Optional or Water Pump mode.
Chassis Fan 1 Control Mode
Select PWM mode or DC mode for Chassis Optional fan.
Chassis Fan 1 Setting
Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures
Fatal1ty AB350 Gaming-ITX/ac Series
and assign a respective fan speed for each temperature.
Chassis Fan 1 Temp Source
Select a fan temperature source for Chassis Fan 1.
Chassis Fan 2 Setting
Select a fan mode for Chassis Fan 2, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
Chassis Fan 2 Temp Source
Select a fan temperature source for Chassis Fan 2.
Over Temperature Protection
When Over Temperature Protection is enabled, the system automatically shuts
down when the motherboard is overheated.
61
English
4.7 Security Screen
In this section you may set or change the supervisor/user password for the system.
You may also clear the user password.
Supervisor Password
Set or change the password for the administrator account. Only the administrator
has authority to change the settings in the UEFI Setup Utility. Leave it blank and
press enter to remove the password.
English
62
User Password
Set or change the password for the user account. Users are unable to change the
settings in the UEFI Setup Utility. Leave it blank and press enter to remove the
password.
Secure Boot
Enable to support Secure Boot.
Fatal1ty AB350 Gaming-ITX/ac Series
4.8 Boot Screen
is section displays the available devices on your system for you to congure the
boot settings and the boot priority.
Fast Boot
Fast Boot minimizes your computer's boot time. In fast mode you may not boot
from an USB storage device.
Boot From Onboard LAN
Allow the system to be waked up by the onboard LAN.
Setup Prompt Timeout
Congure the number of seconds to wait for the setup hot key.
Bootup Num-Lock
Select whether Num Lock should be turned on or o when the system boots up.
Boot Beep
Select whether the Boot Beep should be turned on or o when the system boots up. Please
note that a buzzer is needed.
Full Screen Logo
Enable to display the boot logo or disable to show normal POST messages.
English
63
AddOn ROM Display
Enable AddOn ROM Display to see the AddOn ROM messages or congure the
AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.
English
64
Fatal1ty AB350 Gaming-ITX/ac Series
CSM (Compatibility Support Module)
CSM
Enable to launch the Compatibility Support Module. Please do not disable unless
you’re running a WHCK test.
Launch PXE OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
Launch Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
Launch Video OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
English
65
4.9 Exit Screen
Save Changes and Exit
When you select this option the following message, “Save conguration changes
and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP
UTILITY.
Discard Changes and Exit
When you select this option the following message, “Discard changes and exit
setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving
any changes.
English
66
Discard Changes
When you select this option the following message, “Discard changes?” will pop
out. Select [OK] to discard all changes.
Load UEFI Defaults
Load UEFI default values for a ll options. e F9 key can be used for this operation.
Launch EFI Shell from lesystem device
Copy shellx64.e to the root directory to launch EFI Shell.
Fatal1ty AB350 Gaming-ITX/ac Series
Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re welcome
to visit ASRock’s website at http://ww w.asrock.com; or you may contact your dealer
for further information. For technical questions, please submit a support request
form at http://www.asrock.com/support/tsd.asp
ASRock Incorporation
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
e Netherlands
Phone: +31-24-345-44-33
Fax: +31-24-345-44-38
ASRock America, Inc.
13848 Magnolia Ave, Chino, CA91710
U.S.A.
Phone: +1-909-590-8308
Fax: +1-909-590-1026
English
67
Loading...
