Asrock DeskMeet B660 Series User Manual (B660-ITX)

Version 1.0

Published February 2022

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 Front Panel 9

1.5 Rear Panel 10

Chapter 2 Installation 11

2.1 Installing the CPU 12

2.2 Installing the CPU Fan and Heatsink 15

2.3 Installing Memory Modules (DIMM) 16

2.4 Expansion Slot (PCIe Slot) 18

2.5 Jumpers Setup 19

2.6 Onboard Headers and Connectors 20

2.7 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT)
Installation Guide 23

2.8 M.2_SSD (NGFF) Module Installation Guide 25

Chapter 3 Auto Driver Installer 29

Chapter 4 UEFI SETUP UTILITY 30

4.1 Introduction 30

4.2 EZ Mode 31

4.3 Advanced Mode 32

4.3.1 UEFI Menu Bar 32

4.3.2 Navigation Keys 33

4.4 Main Screen 34

4.5 OC Tweaker Screen 35

4.6 Advanced Screen 49

4.6.1 CPU Conguration 50

4.6.2 Chipset Conguration 53

4.6.3 Storage Conguration 55

4.6.4 ACPI Conguration 56

4.6.5 USB Conguration 57

4.6.6 Trusted Computing 58

4.7 Tools 60

4.8 Hardware Health Event Monitoring Screen 62

4.9 Security Screen 64

4.10 Boot Screen 65

4.11 Exit Screen 68

Chapter 1 Introduction

ank you for purchasing B660-ITX motherboard. In this documentation, Chapter

1 and 2 contains the introduction of the motherboard and step-by-step installation

guides. Chapter 3 contains the operation guide of the soware and utilities. Chapter

4 contains the conguration guide of the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

1.1 Package Contents

B660-ITX Motherboard (Deep mini-ITX Form Factor)

•

1 x I/O Panel Shield

•

2 x SATA Cables (Optional)

•

2 x Screws for M.2 Sockets (M2*2) (Optional)

•

1 x Screw for WiFi Module (M2*2) (Optional)

•

B660-ITX

English

1.2 Specications

Platform

CPU

Chipset

Memory

Expansion
Slot

•

•

•

•

•

•

•

•

•

•

* Supports DDR4 3200 natively.

•

•

•

•

* Supports NVMe SSD as boot disks

•

Deep mini-ITX Form Factor

Supports 12th Gen Intel® CoreTM Processors (LGA1700)

Digi Power design

6 Power Phase design

Supports Intel® Hybrid Technolog y

Supports Intel® Turbo Boost Ma x 3.0 Technology

Intel® B660

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC,

un-buered memory

Max. capacity of system memory: 128GB

Supports Intel® Extreme Memory Prole (XMP) 2.0

15μ Gold Contact in DIMM Slots

1 x PCIe Gen4x16 Slot*

1 x M.2 Socket (Key E), supports ty pe 2230 WiFi/BT module

and Intel® CNVi (Integrated WiFi/BT)

Intel® UHD Graphics Built-in Visuals and the VGA outputs

Graphics

English

•

can be supported only with processors which are GPU

integrated.

Intel® Xe Graphics Architecture (Gen 12)

•

ree graphics output options: D-Sub, DisplayPort 1.4 and

•

HDMI

Supports Triple Monitor

•

Supports HDMI 2.1 TMDS Compatible with max. resolution

•

up to 4K x 2K (4096x2160) @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @

•

60Hz

2 3

Audio

LAN

Front
Panel I/O

Supports DisplayPort 1.4 with DSC (compressed) max.

•

resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @

120Hz

Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and

•

DisplayPort 1.4 Ports

Realtek ALC897 Audio Codec

•

Supports Surge Protection

•

1 x Headphone/Headset Jack

•

5.1 CH HD Audio

•

Gigabit LAN 10/100/10 00 Mb/s

•

Giga PHY Intel® I219V

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

1 x Headphone/Headset Jack

•

2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection (Full

•

Spike Protection))

1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection (Full

•

Spike Protection))

2 x USB 2.0 Ports (Supports ESD Protection (Full Spike Pro-

•

te ction))

B660-ITX

Rear Panel
I/O

1 x D-Sub Port

•

1 x HDMI Port

•

1 x DisplayPort 1.4

•

2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection (Full

•

Spike Protection))

2 x USB 2.0 Ports (Supports ESD Protection (Full Spike

•

Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

•

English

Storage

RAID

Connector

3 x SATA3 6.0 Gb/s Connectors

•

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280

•

SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

1 x Hyper M.2 Socket (M2_ 2, Key M), supports type 2280

•

PCIe Gen4x4 (64 Gb/s) mode*

* Supports Intel® OptaneTM Tech nolo gy

** Supports Intel® Volume Management Device (VMD)

* Supports NVMe SSD as boot disks

Supports RAID 0, RAID 1, RAID 5 and R AID 10 for SATA

•

storage devices

1 x Chassis Intrusion Header

•

1 x CPU Fan Connector

•

* e CPU Fan Connector supports the CPU fan of ma ximum 1A

(12W) fan power.

1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Header

•

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD

•

Protection)

AMI UEFI Legal BIOS with multilingual GUI support

BIOS
Feature

Hardware
Monitor

English

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN

•

AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH , +1.05V PCH

Voltage Multi-adjustment

Fan Tachometer: CPU, Chassis/Water Pump Fans

•

Quiet Fan (Auto adjust chassis fan speed by CPU temperature):

•

CPU, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans

•

CASE OPEN detection

•

Voltage monitoring: CPU Vcore, +1.05V_PCH, +12V, +5V,

•

+3.3V, CPU Vcore

4 5

Microso® Windows® 10 64-bit / 11 64-bit

OS

Certica­tions

Please realiz e that the re is a certain r isk involved with o verclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technolog y, or using third-party
overclocking to ols. O verclocking may aect your system’s stability, or even c ause damage to
the components and devices of your system. It should be don e at your ow n risk and expense.
We are not responsibl e for possible damage caused by overclo cking.

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

B660-ITX

English

USB 3.2 Gen1

F_USB31_TC_1

Headphone

/ Headset

VGA1

HDMI1

DP1

CPU_FAN1

RoHS

7

1

DDR4_A2 (64 bit, 288-pin module)

DDR4_A1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

ATXPWR1

SATA3_1

SATA3_2

CHA_FAN1
/WP

1

PANEL1

1

HDLED RESET

PLED PWRBTN

CI1

1

ATX12V1

M.2 WiFi

M.2 PCIe SSD

PCIE1

USB 3.2 G en1

T: USB3_3

B: USB3 _4

USB 2. 0

T: USB_5

B: USB _6

USB 2 .0

T: USB1

B: US B2

3

12

4

5

6

9

RJ-45

Line Out

USB 3 .2 Gen1

USB 3 1_2_

USB_3_4

8

10

11

CLR
MOS1

13

Intel

B660

B660-ITX

2

SATA3_3

1.3 Motherboard Layout

English

6 7

7

M2_2

Back Side View

B660-ITX

English

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 Chassis Intrusion Header (CI1)

7 ATX Power Connector (ATXPWR1)

8 SATA3 Connector (SATA3_3)

9 SATA3 Connector (SATA3_2)

10 Clear CMOS Jumper (CLRMOS1)

11 System Panel Header (PANEL1)

12 USB 2.0 Header (USB_3_4)

13 SATA3 Connector (SATA3_1)

English

8 9

1.4 Front Panel

B660-ITX

1

No. Description No. Description

1 Headphone/Headset Jack (AUDIO1) 3 USB 3.2 Gen1 Type-A Ports

2 USB 3.2 Gen1 Type-C Port (USB3_3_4)

(F_USB31_TC_1) 4 USB 2.0 Ports (USB_5_6)

2 3 4

English

1.5 Rear Panel

2

1

3

89

7 5

6

4

No. Description No. Description

1 LAN RJ-45 Port* 6 USB 3.2 Gen1 Type-A Ports

2 Line In (Light Blue) (USB3_1_2)

3 Front Speaker (Lime) 7 D-Sub Port

4 Microphone (Pink) 8 DisplayPort 1.4

5 USB 2.0 Ports (USB12) 9 HDMI Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

English

10 11

Chapter 2 Installation

is is a Deep mini-ITX form factor motherboard. Before you install the

motherboard, study the conguration of your chassis to ensure that the

motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

B660-ITX

English

2.1 Installing the CPU

1

1. Before you insert the 1700-P in CPU into the socket, plea se check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the sock et. Do not
force to in sert the CPU into the socket if above situation is found . Otherwise, the CPU
will be seriously damaged.

2. Unplug all power cables before installing the CPU.

2 3

A

B

English

12 13

B660-ITX

4

76

5

English

Please save and replace the cover if the processor i s removed. e cover must be placed if
you wish to return the motherboard for aer service.

English

14 15

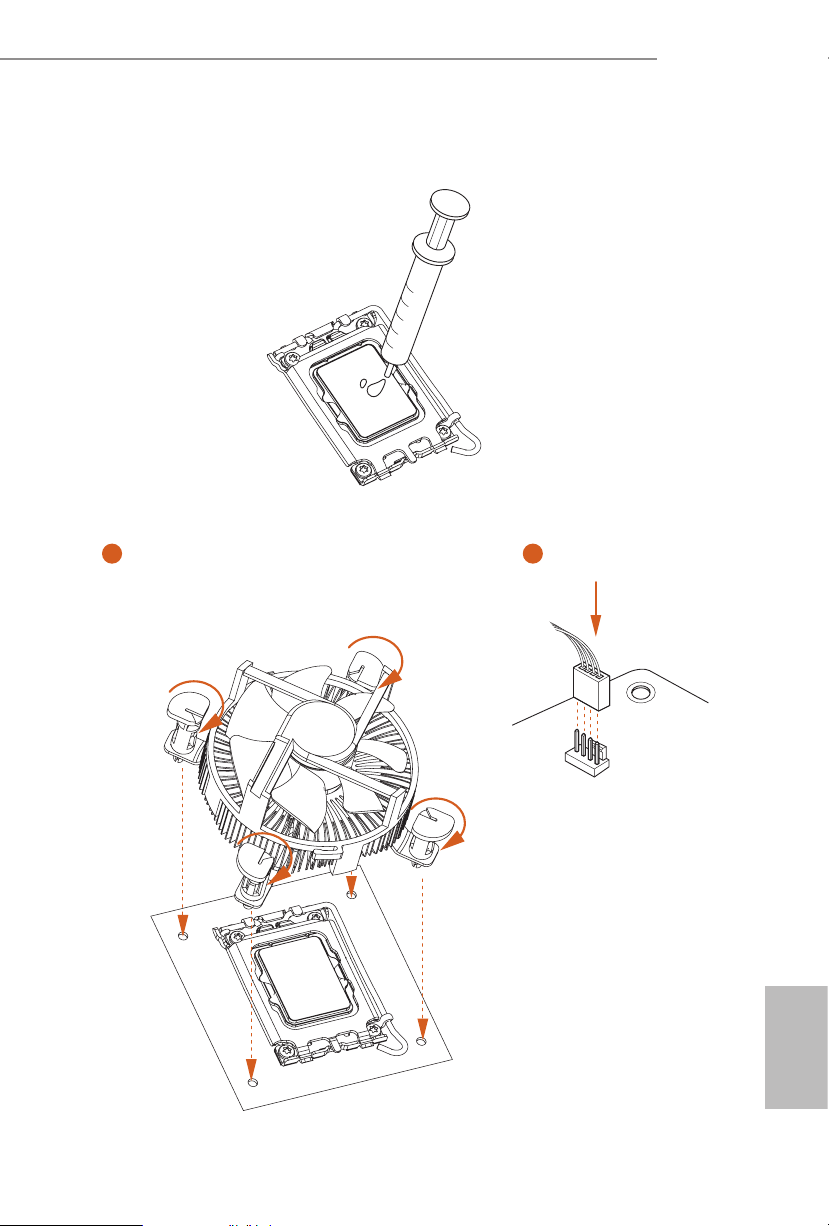

2.2 Installing the CPU Fan and Heatsink

1 2

B660-ITX

CPU_FAN

English

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to a ctivate Dual Channel Memory Technology with only one or three
memory module installed.

3. It is not allowed to install a DDR, DDR 2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

Recommended Memory Conguration

1 DIMM

A1 A2 B1 B2

V

2 DIMMs

A1 A2 B1 B2

V V

4 DIMMs

A1 A2 B1 B2

V V V V

e DIMM only ts in one correct orie ntation. It will cause permanent dam age to
the motherboard and the DIMM if you force the DIMM into the slot at incor rect
orientation.

English

16 17

B660-ITX

1

2

3

English

2.4 Expansion Slot (PCIe Slot)

ere are 1 PCIe slot on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and mak e necessary h ardware settings for the card before you start
the installation.

PCIe slot:

PCIE1 (PCIe 4.0 x16 slot) is used for PCIe x16 lane width graphics cards.

English

18 19
