Asrock B650E PG Riptide WiFi User Manual

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re

welcome to visit ASRock’s website at http://ww w.asrock.com; or you may contact

your dealer for further information. For technical questions, please submit a

support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

e-mail: [e-mail]

ASRock EUROPE B.V.

e-mail: [e-mail]

ASRock America, Inc.

e-mail: [e-mail]

Scan the QR code to view more manuals and documents.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 I/O Panel 8

1.5 Block Diagram 10

1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antennas 11

1.7 Graphics Card Holder 13

Chapter 2 Installation 14

2.1 Installing the CPU 15

2.2 Installing the CPU Fan and Heatsink 18

2.3 Installing Memory Modules (DIMM)

2.4 Connecting the Front Panel Header 29

2.5 Installing the Motherboard 30

2.6 Installing SATA Drives 31

2.7 Installing a Graphics Card 33

2.8 Connecting Peripheral Devices 35

2.9 Connecting the Power Connectors 36

2.10 Power On 37

2.11 Jumpers Setup 38

2.12 Onboard Headers and Connectors 39

27

2.13 Smart Switches 51

2.14 Post Status Checker 53

2.15 M.2 SSD Module Installation Guide (M2_1) 54

2.16 M.2 SSD Module Installation Guide (M2_2) 58

2.17 M.2 SSD Module Installation Guide (M2_3) 61

B650E PG Riptide WiFi

Chapter 1 Introduction

ank you for purchasing ASRock B650E PG Riptide WiFi motherboard, a reliable

motherboard produced under ASRock ’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this doc umentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, plea se visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRo ck’s
website a s well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock B650E PG Riptide WiFi Motherboard (ATX Form Factor)

•

ASRock B650E PG Riptide WiFi User Manual

•

2 x Serial ATA (SATA) Data Cables (Optiona l)

•

2 x ASRock WiFi 2.4/5/6 GHz Antennas (Optional)

•

2 x Screws for M.2 Sockets (Optional)

•

1 x Graphics Card Holder (Optional)

•

English

1

1.2 Specications

Platform

CPU

Chipset

Memory

•

•

•

•

•

•

•

•

•

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

ATX Form Factor

8 Layer PCB

Supports AMD Socket AM5 RyzenTM 7000 Series Processors

AMD B650

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buered memory up to

6600+(OC)*

Max. capacity of system memor y: 128GB

Supports Extreme Memory Prole (XMP) and EXTended

Proles for Overclocking (EXPO) memory modules

English

2

Expansion
Slot

Graphics

Audio

CPU:

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

•

1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

•

Chipset:

1 x PCIe 4.0 x1 Slot (PCIE2)*

•

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe

•

WiFi module

* Supports NVMe SSD as boot disks

Supports AMD CrossFireTM

•

15μ Gold Contact in VGA PCIe Slot (PCIE1)

•

Integrated AMD R DNATM 2 graphics (Actual support may

•

vary by CPU)

1 x HDMI 2.1 TMDS Compatible, supports HDR, HDCP 2.3

•

and max. resolution up to 4K 60Hz

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

•

Nahimic Audio

•

LAN

Wireless
LAN

USB

B650E PG Riptide WiFi

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

•

Killer® E3100G

•

Supports Killer LAN Soware

•

802.11ax Wi-Fi 6E Module

•

Supports IEEE 802.11a/b/g/n/ac/ax

•

Supports Dual-Band 2x2 with extended 6GHz band* sup-

•

port

* Wi-Fi 6E (6GHz band) will be supported by Microso® Win-

dows® 11. e availability will depend on the dierent regula-

tion status of each country and region. It will be activated (for

supported countries) through Windows Update and soware

updates once available.

* A 6GHz compatible router is required for 6E functionality.

2 antennas to support 2 (Transmit) x 2 (Receive) diversity

•

technolog y

Supports Bluetooth + High speed class II

•

Supports MU-MIMO

•

1 x USB 3.2 Gen2x2 Type-C (Front)

•

1 x USB 3.2 Gen2 Type-C (Rear)

•

1 x USB 3.2 Gen2 Type-A (Rear)

•

4 x USB 3.2 Gen1 (2 Rear, 2 Front)

•

9 x USB 2.0 (6 Rear, 3 Front)

•

* All USB ports support ESD Protection

Rear Panel
I/O

2 x Antenna Ports

•

1 x HDMI Port

•

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)

•

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)

•

2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming

•

Ports)

6 x USB 2.0 Ports

•

1 x RJ-45 LAN Port

•

1 x BIOS Flashback Button

•

HD Audio Jacks: Line in / Front Speaker / Microphone

•

English

3

English

4

Storage

RAID

Connector

CPU:

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280

•

PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

1 x M.2 Socket (M2_2, Key M), supports type

•

2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s)

modes*

1 x Hyper M.2 Socket (M2_3, Key M), supports type

•

2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

2 x SATA3 6.0 Gb/s Connectors

•

ASMedia ASM1061:

2 x SATA3 6.0 Gb/s Connectors

•

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

Supports RAID 0 and RAID 1 for SATA storage devices

•

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe

•

storage devices*

* Requires additional M.2 NVMe expansion cards to support

RAID 10

1 x SPI TPM Header

•

1 x Power LED and Speaker Header

•

1 x RGB LED Header*

•

3 x Addressable LED Headers**

•

1 x CPU Fan Connector (4-pin)***

•

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)****

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

•

Speed Control)*****

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x 4 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

1 x underbolt AIC Connector (5-pin) (Supports ASRock

•

underbolt 4 AIC Card)

2 x USB 2.0 Headers (Support 3 USB 2.0 ports)

•

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

•

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

•

(ReDriver)

* Supports in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

**** CPU_FAN2/WP supports the fan power up to 2A (24W).

***** CHA_FAN1~4/WP support the fan power up to 2A (24W).

***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect

if 3-pin or 4-pin fan is in use.

AMI UEFI Legal BIOS with GUI support

BIOS

•

Feature

Microso® Windows® 11 64-bit

OS

Certica­tions

* For detailed product information, plea se visit our webs ite: http://ww w.asrock.com

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

B650E PG Riptide WiFi

Please realize that there is a certain risk involved w ith overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or u sing
third-party ove rclocking tools. Overclocking may aect your syste m’s stability, or
even cause damage to the component s and devices of your system. It should be done
at your own risk an d expense. We are not re sponsible for possibl e damage cause d by
overclocking.

English

5

1.3 Motherboard Layout

English

6

B650E PG Riptide WiFi

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 4 pin 12V Power Connector (ATX12V2)

3 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

4 CPU Fan Connector (CPU_FAN1)

5 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)

6 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)

7 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

8 Addressable LED Header (ADDR_LED2)

9 Addressable LED Header (ADDR_LED3)

10 Post Status Checker (PSC)

11 ATX Power Connector (ATXPWR1)

12 USB 3.2 Gen1 Header (USB32_4_5)

13 Front Panel Type C USB 3.2 Gen2x2 Header (USB32_TC_2)

14 SPI TPM Header (SPI_TPM_J1)

15 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_1) (Lower)

16 SATA3 Connector (SATA3_A2) (Upper), SATA3 Connector (SATA3_A1) (Lower)

17 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

18 System Panel Header (PANEL1)

19 Power LED and Speaker Header (SPK_PLED1)

20 Clear CMOS Jumper (CLRCMOS1)

21 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

22 USB 2.0 Header (USB_7_8)

23 USB 2.0 Header (USB_9)

24 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

25 Addressable LED Header (ADDR_LED1)

26 RGB LED Header (RGB_LED1)

27 5-pin underbolt AIC Connector (TB1)

28 Front Panel Audio Header (HD_ AUDIO1)

English

7

1.4 I/O Panel

3

1

2

4

English

1112

10 6

9

7

5

8

No. Description No. Description

1 Antenna Ports 7 USB 3.2 Gen2 Type-A Port (USB32_1)

2 2.5G LAN RJ-45 Port* 8 USB 3.2 Gen2 Type-C Port (USB32_TC_1)

3 Line In (Light Blue)** 9 USB 2.0 Ports (USB_56)

4 Front Speaker (Lime)** 10 USB 2.0 Ports (USB_1234)

5 Microphone (Pink)** 11 HDMI Port

6 USB 3.2 Gen1 Ports (USB32_23)*** 12 BIOS Flashback Button

* ere are two LEDs on each LAN port. Please refer to the table below for the LA N port LED indic ations .

ACT/LINK L ED

SPEED LED

LAN Port

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection

On Link Green 2.5Gbps connection

8

** Function of the Audio Port s in 7.1-chann el Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Spea ker Out
Lime (Front panel) Side Speaker Out

*** USB32_23 are Lightning Gaming Ports.

B650E PG Riptide WiFi

English

9

1.5 Block Diagram

SATA 2 ports

SATA

English

Flash ROM

PCIe1 Gen5x16 Slot

x16 Gen5

Channel A

DDR5 Slot x2

PCIe3 Gen3x4 Slot

M2_1(PCIe x4)

x4 Gen3

x4 Gen5

AMD AM5

Processor

DP0

Channel B

HDMI Port

DDR5 Slot x2

SIO NCT6796D-S

SPI

eSPI

PCIe x4 Gen4 BUS

LGA1718

5Gb/s

AZ(HD Audio)

10Gb/s

Audio Codec ALC897-VB2

Rear USB3.2 GEN2 Type A+C

Rear USB3.2 GEN1 port(LAN down)

M2_3(PCIe x4)

x4 Gen4

20Gb/s

Front USB3.2 Gen2X2 Type C

ASM1061

M2_2(PCIe x2/SATA)

x2 Gen3

x1

1st

AMD PROM21

5Gb/s

5Gb/s

Front USB3.2 GEN1 2 ports

Rear USB3.2 GEN1 1 port(LAN UP)

WiFi KeyE

SATA 2 ports

Killer 2.5GLAN E3100G

SATA 6Gb

x1

x1

Chipset

480Mb/s

480Mb/s

Rear USB2.0 4 ports

from USB2.0 Hub

Front USB2.0 3 ports

Rear USB2.0 2 ports

the down port support Flash Back

10

Line in

Front Speaker

Microphone

B650E PG Riptide WiFi

1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antennas

802.11ax Wi-Fi 6E + BT Module

is motherboard comes with an exclusive 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT

module that oers support for 802.11 a/b/g/n/ac/ax Wi-Fi 6E connectivity standards

and Bluetooth. Wi-Fi 6E + BT module is an easy-to-use wireless local area network

(WLAN) adapter to support Wi-Fi 6E + BT. Bluetooth standard features Smart Ready

technolog y that adds a whole new class of functionality into the mobile devices.

BT also includes Low Energy Technology and ensures extraordinary low power

consumption for PCs.

* e transmission speed may vary according to the environment.

* Wi-Fi 6E (6GHz band) will be supported by Microso® Windows® 11. e availability

will depend on the dierent regulation status of each country and region. It will be

activated (for supported countries) through Windows Update and soware updates

once available.

* A 6GHz compatible router is required for 6E functionality.

11

English

WiFi Antennas Installation Guide

Step 1

Prepare the WiFi 2.4/5/6 GHz Antennas that

come with the package.

Step 2

Connect the two WiFi 2.4/5/6 GHz Antennas

to the antenna connectors. Turn the antenna

clockwise until it is securely connected.

Step 3

Set the WiFi 2.4/5/6 GHz Antenna as shown in

the illustration.

*You may need to adjust the direction of

the antenna for a stronger signal.

English

12

1.7 Graphics Card Holder

Installing the Graphics Card Holder

Before in stalling the Graphic s Card Holder , please make sure that your motherboard
is prope rly installed into a PC case.

Type A Type B

B650E PG Riptide WiFi

Step 1

Secure the Graphics Card Holder to the chassis

with 2 screws.

*ere are two types of screws in the package.

Please use the appropriate type based on the

standos on the motherboard tray of your PC

case.

Step 2

Aer installing your graphics card, place the

bracket in the proper position to make sure that

it holds your graphics card in place.

en secure the bracket to the Graphics Card

Holder with 1 screw.

English

13

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study

the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a

grounded wrist strap or touch a safety grounded object before you handle the

components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

14

2.1 Installing the CPU

1. Before you inser t the 1718-Pin CPU into the sock et, please check if the P nP cap
is on the socket, if the CPU surface is unclean , or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Other wise, the CPU wil l be seriously damaged.

2. Unplug all power cables before installing the CPU.

Tutorial Video

B650E PG Riptide WiFi

Turn your CPU to the correct orientation before opening

the CPU socket cover.

English

15

1

A

B

2

English

16

3

4

Carefully place the CPU in as at as

possible. Do not drop it.

B650E PG Riptide WiFi

5

Make sure the CPU is aligned with the

socket before locking it into place.

6

7

Make sure the black cover plate

is always in place until it pops o

when closing the socket lever.

Please save the cover if the pro cessor is removed. e cover must be placed if you wish
to return the mothe rboard for aer ser vice.

English

17

2.2 Installing the CPU Fan and Heatsink

Aer you install the CPU into this motherboard, it is necessary to install a larger

heatsink and cooling fan to dissipate heat. You also need to spray thermal grease

between the CPU and the heatsink to improve heat dissipation. Make sure that the

CPU and the heatsink are securely fastened and in good contact with each other.

Please turn o the power or remove the power cord before chang ing a CPU or heatsink .

Installing the CPU Cooler (Type 1)

1

English

18

2

B650E PG Riptide WiFi

3

4

CPU_FAN1

English

19

Installing the CPU Cooler (Type 2)

1

2

English

20

B650E PG Riptide WiFi

3

4

CPU_FAN1

English

21

5

CPU_FAN1

RGB_LED1

+12V

*e illustrations shown here are for reference purposes only and may not exactly match

the model you purchase.

English

22

Installing the CPU Cooler (Type 3)

1

B650E PG Riptide WiFi

2

English

23

3

4

English

24

B650E PG Riptide WiFi

5

CPU_FAN1

25

English

6

CPU_FAN1

RGB_LED1

+12V

or

English

26

CPU_FAN1

RGB_LED1

USB_1_2

Please note that only one cable should be used at a time in this step.

If you select RGB_LED1, please install ASRock utility "ASRock Polychrome SYNC".

If you select USB connector, please install AMD utility "SR3 Settings Soware".

*e illustrations shown here are for reference purposes only and may not exactly match

the model you purchase.

B650E PG Riptide WiFi

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR5 (Double Data Rate 5) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same

brand, speed, size and chip-type) DDR5 DIMM pairs.

2. It is unable to activate Dual C hannel Memory Technology with only one or three
memor y module installed.

3. It is not allowed to in stall a DDR, DDR2 , DDR3 or DDR4 memory module into a
DDR5 slot; otherwise, this motherboard an d DIMM may be damaged.

4. e DIMM only ts in one correct orientation. It w ill cause per manent d amage to
the mothe rboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

Recommended Memory Conguration

1 DIMM

A1 A2 B1 B2

V

2 DIMMs

A1 A2 B1 B2

V V

4 DIMMs

A1 A2 B1 B2

V V V V

e rst boot may take some time.

Please be patient and refer to the following table for booting time.

*It may vary by dierent setups.

Memory 1st boot after clear CMOS

2 x 16GB 90 sec
2 x 32GB 150 sec
4 x 16GB 170 sec
4 x 32GB 315 sec

English

27

1

2

English

28

3

B650E PG Riptide WiFi

1

2.4 Connecting the Front Panel Header

32:(56:

+''/('

5(6(76:

32:(5/('

32:(5/('

2

RESET SW

HDD LED

3$1(/

System Panel Header

910

Power SW (-) RESET SW (+)

B

Power LED (-)

A

Power LED (+)

12

PANEL1

RESET SW (-)Power SW (+)

HDD LED (-)

HDD LED (+)

Front Panel Wires

D

C

A B C D

English

29

2.5 Installing the Motherboard

English

30

2.6 Installing SATA Drives

1

Optical Drive

SATA Drive

2

B650E PG Riptide WiFi

SATA Data Cable

English

31

3

4

SATA Power Connector

SATA Data Connector

English

32

2.7 Installing a Graphics Card

1

B650E PG Riptide WiFi

CLICK!

English

33

Expansion Slots (PCIe Slots)

ere are 3 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is
switched o or the power cord i s unplugged. Please read the document ation of the
expan sion card and mak e neces sary hardware settings for the card before you start
the installation.

PCIe slots:

PCIE1 (PCIe 5.0 x16 slot) is used for PCIe x16 lane width graphics cards.

PCIE2 (PCIe 4.0 x1 slot) is used for PCIe x1 lane width cards.

PCIE3 (PCIe 3.0 x16 slot) is used for PCIe x4 lane width graphics cards.

PCIe Slot Congurations

PCIE1 PCIE3

Single Graphics Card Gen5x16 N/A

English

34

Two Graphics Cards in

CrossFireTM Mode

For a better ther mal environment , please connect a chassis fan to the mothe rboard’s
chassis fan connector (CHA_FAN1~4 /WP) when using multiple graphics cards.

Gen5x16 Gen3x4

2.8 Connecting Peripheral Devices

B650E PG Riptide WiFi

35

English

2.9 Connecting the Power Connectors

English

36

$7;9

$7;3:5

2.10 Power On

B650E PG Riptide WiFi

1

2

3

4

37

English

2.11 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is

“Open”.

Clear CMOS Jumper

(CLRCMOS1) (see p.6, No. 20)

CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes

system setup information such as system password, date, time, and system setup

parameters. To clear and reset the system parameters to default setup, please

turn o the computer and unplug the power cord, then use a jumper cap to short

the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper

cap aer clearing the CMOS. If you need to clear the CMOS when you just nish

updating the BIOS, you must boot up the system rst, and then shut it down

before you do the clear-CMOS action.

English

38

CLRCMOS1

2-pin Jumper

Short: Clear CMOS

Open: Default

B650E PG Riptide WiFi

2.12 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumpe r caps over

System Panel Header

(9-pin PANEL1) (see p.6, No. 18)

Connect the power button, reset button and system status indicator on the chassis

to this header according to the pin assignments below. Note the positive and

negative pins before connecting the cables.

these headers and conne ctors. Placing jumper caps over the headers and conn ectors
will cause per manent damage to the mothe rboard.

PANEL1

PLE D+

PLE D-

PWR BTN #

GND

1

HDL ED+

PWRBTN (Power But ton):

Connec t to the power button on the chassis front panel. You may congure the way
to turn o your system using the power button.

RESET (Reset Button):

Connec t to the reset button on the chassis f ront panel. Pre ss the reset button to
restar t the computer if the computer freezes and fails to perform a normal restart.

PLED (Syste m Power LED):

Connec t to the power status indic ator on the chassis front panel. e LED is on when
the system is operating. e LED keeps blinking when the system is in S1/S3 sleep
state. e LED is o when the system is in S 4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive ac tivity L ED on the chassis front panel. e LED is on
when the hard drive i s reading or writing data.

e front panel design may dier by chassis. A front panel module mainly consists
of power button, reset but ton, power LED, hard drive activity LED, speaker and etc.
When connecting your chassis front panel module to this header, make sure the wire
assig nments and the pin assignments are matched correctly.

GND

HDL ED-

GND

RES ET#

English

39

Power LED and Speaker Header

PLE D-

SPE AKE R

(7-pin SPK_PLED1) (see p.6, No. 19)

Please connect the chassis power LED and the chassis speaker to this header.

SPK_PLED1

DUM MY

DUM MY

+5V

1

PLE D+

PLE D+

Serial ATA3 Connectors

Right Angle:

(SATA3_1) (see p.6, No. 15) (Lower)

(SATA3_2) (see p.6, No. 15) (Upper)

(SATA3_A1) (see p.6, No. 16) (Lower)

(SATA3_A2) (see p.6, No. 16) (Upper)

ese four SATA3 connectors support SATA data cables for internal storage

devices with up to 6.0 Gb/s data transfer rate.

*To minimize the boot time, use AMD SATA ports (SATA3_1~2) for your SSDs.

English

40

SATA3_A2 SATA3_2

SATA3_A1 SATA3_1

USB 2.0 Headers

(9-pin USB_7_8) (see p.6, No. 22)

(4-pin USB_9) (see p.6, No. 23)

ere are two headers on this motherboard.

1

USB _PW R

USB_7_8

USB _PW R

1

USB _PW R

USB_9

P-

P+

-B
+B

GND

GND

+A

-A

B650E PG Riptide WiFi

GND

DUM MY

USB 3.2 Gen1 Header

(19-pin USB32_4_5) (see p.6, No. 12)

ere is one header on this motherboard. is USB 3.2 Gen1 header can support

two ports.

USB32_4_5

VbusVbus

IntA _PB_ SSRX-

Vbus

IntA _PA_SS RX-

IntA _PA_SS RX+

IntA _PA_SS TX-

IntA _PA_SS TX+

IntA _PA_D-

IntA _PA_D+

IntA _PB_ SSRX+

GND

IntA _PB_ SSTX-

GND

IntA _PB_ SSTX+

GND

IntA _PB_ D-

GND

IntA _PB_ D+

Dumm y

1

English

41

Front Panel Type C USB 3.2 Gen2x2 Header

(20-pin USB32_TC_2) (see p.6, No. 13)

ere is one Front Panel Type C USB 3.2 Gen2x2 Header on this motherboard.

is header is used for connecting a USB 3.2 Gen2x2 module for additional USB 3.2

Gen2x2 ports.

USB32_TC_2

USB Type-C Cable

Front Panel Audio Header

(9-pin HD_AUDIO1) (see p.6, No. 28)

is header is for connecting audio devices to the front audio panel.

English

42

HD_AUDIO1

GND

PRE SEN CE#

MIC _RE T

OUT _RE T

1

High Denition Audio supports Jack S ensing, but the panel wire on the chassis mu st
suppor t HDA to function correctly. Please follow the instr uctions in our manual and
chassis manu al to install your system.

MIC 2_L

OUT 2_R

MIC 2_R

OUT 2_L

J_S ENS E

Chassis/Water Pump Fan Connectors

GND

GND

CHA _FA N_SP EED

FAN _SP EED_ CON TRO L

FAN _VO LTAG E

1 2 3 4

GND

GND

(4-pin CHA_FAN1/WP) (see p.6, No. 21)

(4-pin CHA_FAN2/WP) (see p.6, No. 17)

(4-pin CHA_FAN3/WP) (see p.6, No. 3)

(4-pin CHA_FAN4/WP) (see p.6, No. 24)

is motherboard provides four 4-Pin water cooling

plan to connect a 3-Pin

chassis

water cooler fan, please connect it to Pin 1-3.

CHA_FAN3/WP

CHA_FAN2/WP

chassis

fan connectors. If you

FAN _VO LTAG E

CHA _FA N_SP EED

FAN _SP EED_ CON TRO L

B650E PG Riptide WiFi

CHA_FAN4/WP

FAN _VO LTAG E

CHA _FA N_SP EED

FAN _SP EED_ CON TRO L

1 2 3 4

1 2 3 4

CHA_FAN1/WP

FAN _VO LTAG E

CHA _FA N_SP EED

FAN _SP EED_ CON TRO L

1 2 3 4

English

43

CPU Fan Connector

4 3 2 1

(4-pin CPU_FAN1) (see p.6, No. 4)

is motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to

connect a 3-Pin CPU fan, please connect it to Pin 1-3.

CPU_FAN1

4 3 2 1

GND

+12 V

FAN_ SPE ED_C ONT ROL

CPU _FAN _SPE ED

CPU/Water Pump Fan Connector

(4-pin CPU_FAN2/WP) (see p.6, No. 7)

is motherboard provides a 4-Pin water cooling CPU fan connector. If you plan

to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.

English

44

CPU_FAN2/WP

GND

FAN_ VOLTA GE

CPU_ F

AN_S PEED

FAN_S PEED_ CONTR OL

B650E PG Riptide WiFi

8 5

ATX Power Connector

(24-pin ATXPWR1) (see p.6, No. 11)

is motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX

power supply, please plug it along Pin 1 and Pin 13.

ATXPWR1

12

24

1

13

ATX 12V Power Connector

(8-pin ATX12V1) (see p.6, No. 1)

is motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin

ATX power supply, please plug it a long Pin 1 and Pin 5.

*Warning: Please make sure that the power cable connected is for the CPU and

not the graphics card. Do not plug the PCIe power cable to this

connector.

ATX12V1

4

1

English

45

ATX 12V Power Connector

(4-pin ATX12V2) (see p.6, No. 2)

Please connect an ATX 12V power supply to this connector.

*e power supply plug ts into this connector in only one orientation.

*Connecting an ATX 12V 4-pin cable to ATX12V2 is optional.

*For advanced overclocking we suggest using this connector together with

ATX12V1.

ATX12V2

English

46

B650E PG Riptide WiFi

SPI_ DQ3

SPI TPM Header

(13-pin SPI_TPM_J1) (see p.6, No. 14)

is connector supports SPI Trusted Platform Module (TPM) system, which can

securely store keys, digital certicates, passwords, and data. A TPM system also

helps enhance network security, protects digital identities, and ensures platform

integrity.

SPI_TPM_J1

SPI_ PWR

Dumm y

CLK

SPI_ MOSI

RST#

TPM_ PIRQ

1

SPI_ DQ2

SPI_ MISO

SPI_ CS0

GND

RSMR ST#

SPI_ TPM_ CS#

underbolt AIC Connecto

(5-pin TB1) (see p.6, No. 27)

Please connect a underbolt™ add-in card (AIC) to the underbolt AIC connec-

tor via the GPIO cable.

*Please install the underbolt™ AIC card to PCIE3 (default slot).

*For the underbolt compatibility and limitation, please visit www.asrock.com.

TB1

English

47

RGB LED Header

(4-pin RGB_LED1) (see p.6, No. 26)

is RGB header is used to connect RGB LED extension cable which allow users to

choose from various LED lighting eects.

Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the

cable may be damaged.

RGB_LED1

1

+12 V G R B

English

48

Connect your RGB LED strip to the

LED Header (RGB_LED1)

on the mother-

board.

1. Never in stall the RGB LED cable in the wrong orientation; other wise, the cable
may be damaged.

2. Before installing or removing your RGB LED cable, plea se power o your system
and unplug the power cord from the power supply. Failure to do so may cause dam­ages to motherboard components.

1. Please note that the RGB LED str ips do not come with the package.

2. e RGB LED header support s standard 5050 RGB LED s trip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.

RGB

1

B

R

G

V

2

1

B650E PG Riptide WiFi

Addressable LED Headers

(3-pin ADDR_LED1) (see p.6, No. 25)

(3-pin ADDR_LED2) (see p.6, No. 8)

(3-pin ADDR_LED3) (see p.6, No. 9)

ese headers are used to connect

to choose from various LED lighting eects.

Caution: Never install the Addressable LED cable in the wrong orientation; otherwise,

the cable may be damaged.

Addressable

LED extension cables which allow users

ADDR_LED3

ADDR_LED2

Connect your

to the

Addressable RGB LED

strips

Addressable LED Headers (ADDR_

LED1 / ADDR_LED2 / ADDR_LED3)

the motherboard.

on

ADDR_LED1

1

GND

DO_ ADD R

VOU T

1

English

49

1. Never in stall the RGB LED cable in the wrong orientation; other wise, the cable
may be damaged.

2. Before installing or removing your RGB LED cable, plea se power o your system
and unplug the power cord from the power supply. Failure to do so may cause dam­ages to motherboard components.

1. Please note that the RGB LED str ips do not come with the package.

2. e RGB LED header support s WS2812B addressable RGB LED str ip (5V/Data/
GND), with a ma ximum power rating of 3A (5V) and length within 2 meters.

English

50

B650E PG Riptide WiFi

2.13 Smart Switches

e motherboard has one smart switch: BIOS Flashback Button, allowing users to

ash the BIOS.

BIOS Flashback Button

(BIOS_FB1) (see p.8, No. 11)

BIOS Flashback Button allows users to ash the BIOS.

BIOS_FB1

USB BIOS Flashback port

English

51

ASRock BIOS Flashback feature allows you to update BIOS without powering on t he system,
even wit hout CPU.

Before u sing the BIOS Flashback function, plea se suspend BitLocker and any encryp­tion or security relying on the TPM. Make sure that you have already stored and
backup -ed the recovery key. If the recover y key is missing while encryption is ac tive,
the data w ill stay encrypted and the syste m will not boot into the operating system . It
is recommended to disable fTPM before updating the BIOS. Otherwise an unpredict­able failure may occ ur.

To use the USB BIOS Flashback f unction, Please follow the steps below.

1. Download the latest BIOS le from ASRock 's website : http://ww w.asrock.com.

2. Copy t he BIOS le to your USB ash d rive. Please make sure the le system of

your USB ash drive must be FAT32.

3. Extract BIOS  le from the zip le.

4. Rename the le to “creative.rom” and save it to t he root director y of X: USB ash drive.

5. Plug the 24 pin power connector to the motherboard. en turn on the power supply's AC
switch.
*ere is no need to power on the system.

6. en plug you r USB drive to the USB BIOS Flashback port.

7. Press the BIOS Flashback Switch for about three seconds. en the LED star ts to blink.

8. Wait unti l the LED stops bli nki ng, ind icating that BIOS ashing has been completed.
*If the LED light turns solid green, this means that the BIOS Flashback is not
operating properly. Please make sure that you plug the USB drive to the USB BIOS Flashback
port.
**If the LED does not light up at all then please disconnect power from the system and
remove/disconnect the CMOS bat tery from the mot herboard for several minutes. Reconnect
power and battery and try again.

English

52

B650E PG Riptide WiFi

2.14 Post Status Checker

Post Status Checker (PSC) diagnoses the computer when users power on the

machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is

dysfunctional. e lights go o if the four mentioned above are functioning normally.

It is normal for the DR AM status LED to blink during memory training. is indi­cates the system is working properly.

Tutorial Video

English

53

2.15 M.2 SSD Module Installation Guide (M2_1)

e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and

mSATA. e Blazing M.2 Socket (M2_1, Key M) supports type 2280 PCIe Gen5x4 (128

Gb/s) mode.

Installing the M.2 SSD Module

Step 1

Prepare a M.2 SSD module and the

screw.

Step 2

Depending on the PCB t ype and

length of your M.2 SSD module, nd

the corresponding nut location to be

used.

English

54

No. 1

Nut Location A

PCB Length 8cm

Module Type Type 2280

B650E PG Riptide WiFi

2

1

Step 3

1

Before installing a M.2 SSD

module, please loosen the screws to

remove the M.2 heatsink.

*Please remove the protective lms

on the bottom side of the M.2

heatsink before you install a M.2

SSD module.

Step 4

Align and gently insert the M.2 SSD

module into the M.2 slot. Please

be aware that the M.2 SSD module

only ts in one orientation.

A

A

o

20

English

55

Correct Installation:

e SSD's PCB is in proper place, and

the M.2 heatsink can be screwed in.

Step 5

Before securing the M.2 heatsink,

make sure to align the notch on

the SSD to the stando on the

motherboard; otherwise, the SSD

module may be damaged.

English

56

Incorrect Installation:

e SSD's PCB sits between M.2 heatsink

and stando. Do not continue.

B650E PG Riptide WiFi

1

2

For the latest updates of M.2 SSD module support list, please visit our website for details:

http://ww w.asrock.com

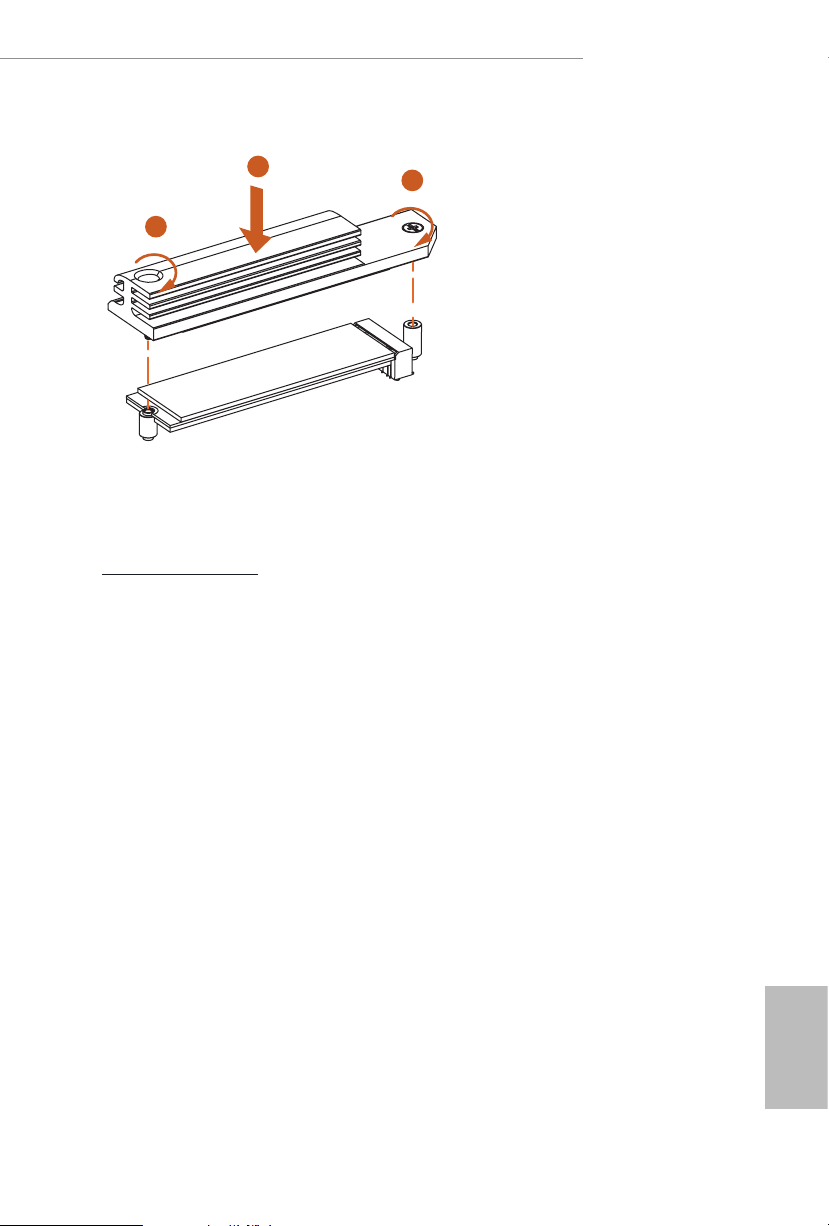

Step 6

3

Tighten the screws with a screwdriver

to secure the module and M.2

heatsink into place in the order

shown. Tighten screw opposite the

M.2 connector rst (2), and then

tighten the one next to the M.2

connector (3).

*Please do not overtighten the screw

as this might damage the module and

M.2 heatsink.

57

English

2.16 M.2 SSD Module Installation Guide (M2_2)

e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and

mSATA. e M.2 Socket (M2_2, Key M) supports type 2242/2260/2280 SATA3 6.0 Gb/s &

PCIe Gen3x2 (16 Gb/s) modes.

Installing the M.2 SSD Module

Step 1

Prepare a M.2 SSD module and the

screw.

English

3

2

1

ABC

No. 1 2 3

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type Type 2242 Type 2260 Type 2280

Step 2

Depending on the PCB t ype and

length of your M.2 SSD module, nd

the corresponding nut location to be

used.

58

B650E PG Riptide WiFi

1

2

Step 3

Before installing a M.2 SSD module,

please loosen the screws to remove

1

the M.2 heatsink.

*Please remove the protective lms

on the bottom side of the M.2

heatsink before you install a M.2

SSD module.

Step 4

Move the stando based on the

module type and length.

ABC

e stando is placed at the nut

location C by default. Sk ip Step 4

and 5 and go straight to Step 6 if you

are going to use the default nut.

Step 5

Peel o the yellow protective lm on

ABC

the nut to be used. Hand tighten the

stando into the desired nut location

on the motherboard.

59

English

Step 6

Align and gently insert the M.2

SSD module into the M.2 slot.

Please be aware that the M.2 SSD

module only ts in one orientation.

ABC

English

ABC

o

20

Step 7

Tighten the screw with a

screwdriver to secure the

module into place. Please do not

NUT1NUT2C

overtighten the screw as this might

damage the module.

2

1

Step 8

Tighten the screws with a

screwdriver to secure the M.2

2

heatsink into place. Please do

not overtighten the screw as this

might damage the module and M.2

heatsink.

For the latest updates of M.2 SSD module support list, please visit our website for details:

http://ww w.asrock.com

60

B650E PG Riptide WiFi

2.17 M.2 SSD Module Installation Guide (M2_3)

e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and

mSATA. e Hyper M.2 Socket (M2_3, Key M) supports type 2260/2280 PCIe Gen4x4 (64

Gb/s) mode.

Installing the M.2 SSD Module

Step 1

Prepare a M.2 SSD module and the

screw.

Step 2

Depending on the PCB t ype and

length of your M.2 SSD module, nd

the corresponding nut location to be

used.

No. 1 2

Nut Location A B

PCB Length 6cm 8cm

Module Type Type 2260 Type 2280

English

61

1

2

Step 3

Before installing a M.2 SSD module,

please loosen the screws to remove

1

the M.2 heatsink.

*Please remove the protective lms

on the bottom side of the M.2

heatsink before you install a M.2

SSD module.

Step 4

Move the stando based on the

module type and length.

e stando is placed at the nut

location B by default. Sk ip Step 4

and 5 and go straight to Step 6 if you

are going to use the default nut.

Step 5

Peel o the yellow protective lm on

the nut to be used. Hand tighten the

stando into the desired nut location

on the motherboard.

English

62

B650E PG Riptide WiFi

Step 6

Align and gently insert the M.2

SSD module into the M.2 slot.

Please be aware that the M.2 SSD

AB

AB

NUT1NUT2B

o

20

module only ts in one orientation.

Step 7

Tighten the screw with a

screwdriver to secure the

module into place. Please do not

overtighten the screw as this might

damage the module.

2

1

Step 8

Tighten the screws with a

screwdriver to secure the M.2

2

heatsink into place. Please do

not overtighten the screw as this

might damage the module and M.2

heatsink.

For the latest updates of M.2 SSD module support list, please visit our website for details:

http://ww w.asrock.com

English

63

Version 1.0

Published July 2022

Copyright©2022 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibilit y for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.
is equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. ese limits are designed to provide
reasonable protection against harmful interference in a residential installation. is
equipment generates, uses and can radiate radio frequency energ y and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

WARNING

THIS PRODUCT CONTAINS A BUTTOON BATTERY
If swallowed, a button battery can cause serious injury or death.
Please keep batteries out of sight or reach of children.

CALIFORNIA, USA ONLY

e Lithium batter y adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)

ASRock INC. hereby declares that this device is in compliance with the essential require­ments and other relevant provisions of related UKCA Directives. Full text of UKCA
declaration of conformity is available at: http://www.asrock.com

ASRock INC. hereby declares that this device is in compliance with the essential require­ments and other relevant provisions of related Directives. Full text of EU declaration of
conformity is available at: http://www.asrock.com

ASRock follows the green design concept to design and manufacture our products, and
makes sure that each stage of the product life cycle of ASRock product is in line with
global environmental regulations. In addition, ASRock disclose the relevant information
based on regulation requirements.

Please refer to https://www.asrock.com/general/about.asp?cat=Responsibility for informa­tion disclosure based on regulation requirements ASRock is complied with.

DO NOT throw the motherboard in municipal waste. is product has been
designed to enable proper reuse of parts and recycling. is symbol of the
crossed out wheeled bin indicates that the product (electrical and electronic
equipment) should not be placed in municipal waste. Check local regulations
for disposal of electronic products.

CE Warning

is device complies with directive 2014/53/EU issued by the Commision of the
European Community.

is equipment complies with EU radiation exposure limits set forth for an
uncontrolled environment.
is equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.

Operations in the 5.15-5.35GHz band are restricted to indoor usage only.

Radio transmit power per transceiver type

Function Frequency Maximum Output Power (EIRP)

2400-2483.5 MHz 18.5 + / -1.5 dbm

5150-5250 MHz 21.5 + / -1.5 dbm

WiFi

Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm

5250-5350 MHz

5470-5725 MHz

18.5 + / -1.5 dbm (no TPC)

21.5 + / -1.5 dbm (TPC)

25.5 + / -1.5 dbm (no TPC)

28.5 + / -1.5 dbm (TPC)
