B560M Steel Legend

Chapter 1 Introduction

ank you for purchasing ASRock B560M Steel Legend motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

Becau se the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to change without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s website w ithout f urther notice. If you require technical support relate d to this motherboard, please vi sit our website for s pecic information about the model you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s website a s well. ASRock website ht tp://www.a srock.com.

1.1 Package Contents

ASRock B560M Steel Legend Motherboard (Micro ATX Form Factor)

•

ASRock B560M Steel Legend Quick Installation Guide

•

ASRock B560M Steel Legend Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x I/O Panel Shield

•

3 x Screws for M.2 Sockets (Optional)

•

1 x Stando for M.2 Socket (Optional)

•

English

1.2 Specications

Platform

CPU

Chipset

Memory

•

* 11th Gen Intel® CoreTM (i9/i7/i5) support DDR4 up to 3200;

CoreTM (i3), Pentium® and Celeron® support DDR4 up to 2666.

* 10th Gen Intel® CoreTM (i9/i7) support DDR4 up to 2933; CoreTM

(i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

•

Micro ATX Form Factor

Supports 10th Gen Intel® CoreTM Processors and 11th Gen

Intel® CoreTM Processors (LGA1200)

Digi Power design

10 Power Phase design

Supports Intel® Turbo Boost Max 3.0 Technology

Intel® B560

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

11th Gen Intel® CoreTM Processors support DDR4 non-ECC,

un-buered memory up to 4800+(OC)*

10th Gen Intel® CoreTM Processors support DDR4 non-ECC,

un-buered memory up to 4666+(OC)*

Supports ECC UDIMM memory modules (operate in non-

ECC mode)

Max. capacity of system memory: 128GB

Supports Intel® Extreme Memory Prole (XMP) 2.0

15μ Gold Contact in DIMM Slots

English

Expansion Slot

11th Gen Intel® CoreTM Processors

1 x PCI Express 4.0 x16 Slot*

•

10th Gen Intel® CoreTM Processors

1 x PCI Express 3.0 x16 Slot*

•

* Supports NVMe SSD as boot disks

2 x PCI Express 3.0 x1 Slots

•

1 x M.2 Socket (Key E), supports ty pe 2230 WiFi/BT module

•

and Intel® CNVi (Integrated WiFi/BT)

15μ Gold Contact in VGA PCIe Slot (PCIE1)

•

Graphics

B560M Steel Legend

Intel® UHD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU

integrated.

11th Gen Intel® CoreTM Processors support Intel® Xe Graphics

•

Architecture (Gen 12). 10th Gen Intel® CoreTM Processors

support Gen 9 Graphics

Graphics, Media & Compute: Microso DirectX 12, OpenGL

•

4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /

Switchable Graphics, OpenCL 2.1

Display & Content Security: Rec. 2020 (Wide Color Gamut),

•

Microso PlayReady 3.0, UHD/HDR Blu-ray Disc

Dual graphics output: support HDMI and DisplayPort 1.4

•

ports by independent display controllers

Supports HDMI 2.0 with ma x. resolution up to 4K x 2K

•

(4096x2160) @ 60Hz

Supports DisplayPort 1.4 with max. resolution up to 4K x 2K

•

(4096x2304) @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant

HDMI monitor is required)

Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4

•

Ports

Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and

•

DisplayPort 1.4 Ports

* 11th Gen Intel® CoreTM Processors support HDMI 2.0. 10th Gen

Intel® CoreTM Processors support HDMI 1.4.

Audio

LAN

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

•

Supports Surge Protection

•

Gold Audio Jacks

•

15μ Gold Audio Connector

•

Nahimic Audio

•

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

•

Dragon RTL8125BG

•

Supports Dragon 2.5G LAN Soware

•

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

English

Rear Panel I/O

Storage

- Optimized Default Setting for Game, Browser, and

Streaming Modes

- User Customized Priority Control

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

3 x Antenna Mounting Points

•

1 x PS/2 Mouse/Keyboard Port

•

1 x HDMI Port

•

1 x DisplayPort 1.4

•

1 x Optica l SPDIF Out Port

•

4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports

•

ESD Protection)

2 x USB 2.0 Ports (Supports ESD Protection)

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone (Gold Audio Jacks)

6 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage

•

Technology 18, NCQ, AHCI and Hot Plug*

* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will

be disabled.

1 x Hyper M.2 Socket (M2_1), supports M Key ty pe

•

2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64

Gb/s) (with 11th Gen Intel® CoreTM Processors) or Gen3 x4 (32

Gb/s) (with 10th Gen Intel® CoreTM Processors)**

1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2

•

SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen3 x4 (32 Gb/s)**

** M2_1 supports Intel® OptaneTM Technology (with 10th Gen

Intel® CoreTM Processors)

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector

B560M Steel Legend

1 x SPI TPM Header

•

1 x Chassis Intrusion and Speaker Header

•

2 x RGB LED Headers

•

* Support in total up to 12V/3A, 36W LED Strip

2 x Addressable LED Headers

•

* Support in total up to 5V/3A, 15W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of ma ximum

1A (12W) fan power.

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)

* e CPU/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

•

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and

CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector (Hi-Density Power Con-

•

nector)

1 x 8 pin 12V Power Connector (Hi-Density Power Connec-

•

tor)

1 x Front Panel Audio Connector (15μ Gold Audio Connec-

•

tor)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

•

(Supports ESD Protection)

BIOS Feature

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VC-

•

CIO 1 2, VPPM, VCCIN AUX Voltage Multi-adjustment

English

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water

Hardware Monitor

•

Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/

•

Water Pump Fans

CASE OPEN detection

•

Voltage monitoring: CPU Vcore, VCCIN AUX, DRAM, VC-

•

CIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V

Microso® Windows® 10 64-bit

Certications

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain r isk involved with overclo cking, including adjusting the setting in the BIOS, applying Untied Overclocking Technol ogy, or using third-party overclocking tool s. Overclocking may aect your system’s stability, or even cause dam age to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for poss ible damage caused by overclocking.

•

FCC, CE

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

English

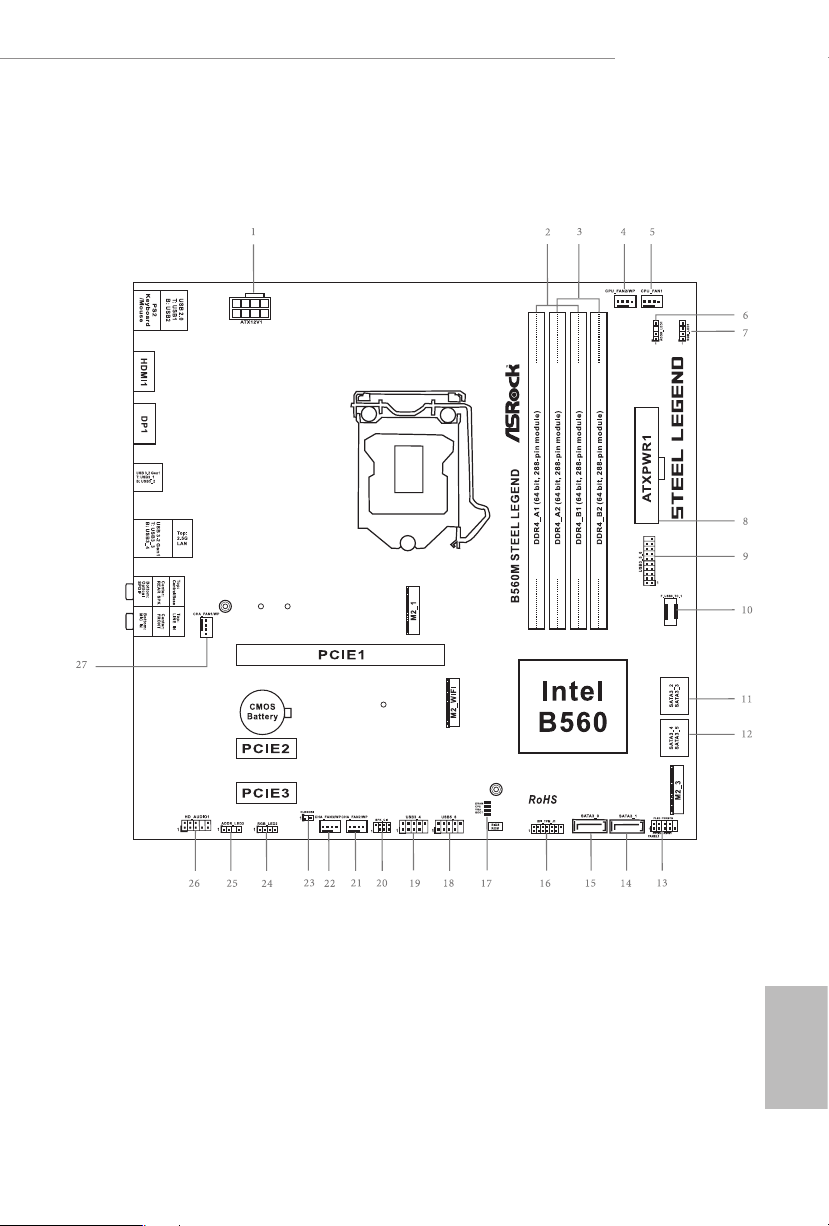

1.3 Motherboard Layout

B560M Steel Legend

English

No. Description

1 12V Power Connector (ATX12V1)

2 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

4 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

5 CPU Fan Connector (CPU_FAN1)

6 Addressable LED Header (ADDR_LED1)

7 RGB LED Header (RGB_LED1)

8 ATX Power Connector (ATXPWR1)

9 USB 3.2 Gen1 Header (USB3_ 5_6)

10 Front Panel Type C USB 3.2 Gen2x2 Header (F_USB3_TC_1)

11 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_3) (Lower)

12 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_5) (Lower)

13 System Panel Header (PANEL1)

14 SATA3 Connector (SATA3_1)

15 SATA3 Connector (SATA3_0)

16 SPI TPM Header (SPI_TPM_J1)

17 POST Status Checker (PSC)

18 USB 2.0 Header (USB5_6)

19 USB 2.0 Header (USB3_4)

20 Chassis Intrusion and Speaker Header (SPK_CI1)

21 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

22 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

23 Clear CMOS Jumper (CLRMOS1)

24 RGB LED Header (RGB_LED2)

25 Addressable LED Header (ADDR_LED2)

26 Front Panel Audio Header (HD_AUDIO1)

27 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English

1.4 I/O Panel

1 2

B560M Steel Legend

436

13 911

No. Description No. Description

1 USB 2.0 Ports (USB12) 8 Optica l SPDIF Out Port

2 2.5G LAN RJ-45 Port (Dragon RTL8125BG)* 9 USB 3.2 Gen1 Ports (USB3_3_4)

3 Central / Bass (Orange) 10 USB 3.2 Gen1 Ports (USB3_1_2)

4 Rear Speaker (Black) 11 DisplayPort 1.4

5 Line In (Light Blue) 12 HDMI Port

6 Front Speaker (Lime)** 13 PS/2 Mouse/Keyboard Port

7 Microphone (Pink)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications .

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps/1Gbps connection

On Link Green 2.5Gbps connection

English

** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Speaker Jack”. See the table below for connection d etails in accordance w ith the type of speaker you use.

Audio Output

Channels

2 V -- -- -- 4 V V -- -- 6 V V V -- 8 V V V V

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

Line In

(No. 5)

English

B560M Steel Legend

Chapter 2 Installation

is is a Micro ATX form factor motherboard. Before you install the motherboard,

study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard

components.

In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

2.1 Installing the CPU

1. Before you insert the 120 0-Pin CPU into the socket, please check if the PnP ca p is on the socket, if the CPU sur face is unclean, or if th ere are any b ent pins in the socket. Do not force to insert the CPU into the socket if above situ ation is found. Other wise, the CPU wil l be seriously d amaged.

2. Unplug all power cables be fore installing the CPU.

English

B560M Steel Legend

English

Please save and replace the cover if the processor i s removed. e cover must be placed if you wish to return the motherboard for aer service.

English

2.2 Installing the CPU Fan and Heatsink

1 2

B560M Steel Legend

CPU_FAN

English

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identica l (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memor y Technology with only one or three memor y module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Conguration

Priority DDR4_ A1 DDR4_ A2 DDR4_B1 DDR4_B2

1 Populated Populated 2 Populated Populated Populated Populated

e DIMM only ts in one correct orie ntation. It will cause permanent dam age to the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect orientation .

English

B560M Steel Legend

English

2.4 Expansion Slots (PCI Express Slots)

ere are 3 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is switched o or the power cord is unplugged. Plea se read the documentation of the expan sion card and mak e necessary hardware settings for the card before you start the installation.

PCIe slots:

11th Gen Intel® CoreTM Processors:

PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

10th Gen Intel® CoreTM Processors:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

For a better ther mal environment, ple ase connect a ch assi s fan to the motherboard’s chassis fan connector (CHA_ FAN1/WP, CHA_ FAN2/WP or CHA_ FAN3/WP) when using multiple graphics cards.

English

B560M Steel Legend

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is

“Open”.

Clear CMOS Jumper

(CLRMOS1)

(see p.7, No. 23)

CLRMOS1 allows you to clear the data in CMOS. e data in CMOS includes

system setup information such as system password, date, time, and system setup

parameters. To clear and reset the system parameters to default setup, please turn

o the computer and unplug the power cord, then use a jumper cap to short the

pins on CLR MOS1 for 3 seconds. Please remember to remove the jumper cap aer

clearing the CMOS. If you need to clear the CMOS when you just nish updating

the BIOS, you must boot up the system rst, and then shut it down before you do

the clear-CMOS action.

If you clear the CMOS, the case open may be detec ted. Please adjust the BIOS option “Clear Status” to clear the record of previou s chassis intrusion status.

2-pin Jumper

Short: Clear CMOS

Open: Default

English

2.6 Onboard Headers and Connectors

SPE AKE R

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these header s and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header

(9-pin PANEL1)

(see p.7, No. 13)

PWRBTN (Power Button):

Connec t to the power button on the chassi s front panel. You may congure the way to turn o your system using the powe r button.

RESET (Reset Button):

Connec t to the reset button on the chassi s front panel. Press the reset button to restar t the computer if the computer freezes and fails to perform a nor mal restart.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel. e LED i s on when the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive ac tivity LED on the chassis front panel. e LED is on when the hard drive i s reading or writing data.

e front panel de sign may dier by chassis. A front pane l module mainly consists of power button , reset button, power LED, hard dr ive activity LED, speaker and etc. When connecting your chassis front panel module to this head er, make sure the wire assig nments and the pin assig nments are matched correctly.

PLE D+

PLE D-

HDL ED-

HDL ED+

PWR BTN #

GND

RES ET#

GND

Connect the power

button, reset button and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

English

Chassis Intrusion and

Speaker Header

(7-pin SPK_CI1)

(see p.7, No. 20)

DUM MY +5V

SIG NAL

DUM MY

GND

DUM MY

Please connect the

chassis intrusion and the

chassis speaker to this

header.

B560M Steel Legend

Serial ATA3 Connectors

Right Angle:

(SATA3_2:

see p.7, No. 11) (Upper)

(SATA3_3:

see p.7, No. 11) (Lower)

(SATA3_4:

see p.7, No. 12) (Upper)

(SATA3_5:

see p.7, No. 12) (Lower)

Vertical:

(SATA3_0:

see p.7, No. 15)

(SATA3_1:

see p.7, No. 14)

USB 2.0 Headers

(9-pin USB3_4)

(see p.7, No. 19)

(9-pin USB5_6)

(see p.7, No. 18)

SATA3_0

USB _PW R

SATA3_2

SATA3_4

SATA3_1

P-

P+

GND

P+

P-

DUM MY

ese six SATA3

connectors support SATA

data cables for internal

SATA3_3

storage devices with up to

6.0 Gb/s data transfer rate.

SATA3_5

* If M2_2 is occupied by

a SATA-type M.2 device,

SATA3_1 will be disabled.

ere are two headers

on this motherboard.

Each USB 2.0 header can

support two ports.

USB 3.2 Gen1 Header

(19-pin USB3_5_6)

(see p.7, No. 9)

Front Panel Type C USB

3.2 Gen2x2 Header

(20-pin F_USB3_TC_1)

(see p.7, No. 10)

Vbus

IntA _PA_S SRX-

IntA _PA_S SRX+

GND

IntA _PA_S STX-

IntA _PA_S STX+

GND

IntA _PA_D -

IntA _PA_D +

USB Type-C Cable

VbusVbus

IntA _PB_ SSRX -

IntA _PB_ SSRX +

GND

IntA _PB_ SSTX -

IntA _PB_ SSTX +

GND

IntA _PB_ D-

IntA _PB_ D+

Dumm y

ere is one header on

this motherboard. is

USB 3.2 Gen1 header can

support two ports.

ere is one Front

Panel Type C USB 3.2

Gen2x2 Header on this

motherboard. is header

is used for connecting a

USB 3.2 Gen2x2 module

for additional USB 3.2

Gen2x2 ports.

English

Front Panel Audio Header

GND

(9-pin HD_AUDIO1)

(see p.7, No. 26)

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio heade r by the steps below: A. Connect Mic_IN (MIC) to MIC2_ L. B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L. C. Connect Ground (GND) to Ground (GND). D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connec t them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adju st “Recording Volume”.

GND

PRE SEN CE#

MIC 2_R

MIC 2_L

MIC _RE T

J_S ENS E

OUT 2_R

OUT _RE T

OUT 2_L

is header is for

connecting audio devices

to the front audio panel.

English

Chassis/Water Pump Fan

Connectors

(4-pin CHA_FAN1/WP)

(see p.7, No. 27)

(4-pin CHA_FAN2/WP)

(see p.7, No. 21)

(4-pin CHA_FAN3/WP)

(see p.7, No. 22)

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.7, No. 5)

GND

FAN_VOLTAGE

CHA _FA N_S PEE D

FAN _SP EED _CO NTR OL

FAN _VO LT AGE

CHA _FA N_S PE ED

FAN _SP EED _C ONT ROL

1 2 3 4

FAN_ SP EED _CO NT ROL

CPU _FA N_S PEE D

+12 V

GND

4 3 2 1

is motherboard provides three

4-Pin water cooling

chassis

fan

connectors. If you plan to con-

nect a 3-Pin

chassis

water cooler

fan, please connect it to Pin 1-3.

is motherboard

provides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

B560M Steel Legend

FAN_S PEED_ CONTR OL

8 5

CPU/Water Pump Fan

Connector

(4-pin CPU_FAN2/WP)

(see p.7, No. 4)

ATX Power Connector

(24-pin ATXPWR1)

(see p.7, No. 8)

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.7, No. 1)

CPU_ FAN_SP EED

FAN_ VOLTA GE

GND

1 2 3 4

is motherboard

provides a 4-Pin water

cooling CPU fan

connector. If you plan

to connect a 3-Pin CPU

water cooler fan, please

connect it to Pin 1-3.

is motherboard pro-

vides a 24-pin ATX power

connector. To use a 20-pin

ATX power supply, please

plug it along Pin 1 and Pin

13.

is motherboard

provides a 8-pin ATX 12V

power connector. To use a

4-pin ATX power supply,

please plug it along Pin 1

and Pin 5.

*Warning: Please make

sure that the power cable

connected is for the CPU

and not the graphics

card. Do not plug the

PCIe power cable to this

connector.

SPI TPM Header

(13-pin SPI_TPM_J1)

(see p.7, No. 16)

SPI _ DQ3

SPI _ DQ2

+3. 3 V

Dum m y

SPI _ MIS O

SPI _ CS0

CLK

SPI _ MOS I

GND

RSM R ST#

RST #

TPM _ PIR Q

SPI _ TPM _CS #

is connector supports SPI

Trusted Platform Module (TPM)

system, which can securely store

keys, digital certicates, pass-

words, and data. A TPM system

also helps enhance network

security, protects digital

identities, and ensures platform

integrity.

English

RGB LED Headers

(4-pin RGB_LED1)

(see p.7, No. 7)

(4-pin RGB_LED2)

(see p.7, No. 24)

12V G R B

ese two RGB headers are used

to connect RGB LED extension

cable which allows

users to choose from various LED

lighting eects.

Caution: Never install the RGB

LED cable in the wrong orienta-

tion; otherwise, the cable may

be damaged.

*Please refer to page 47 for

further instructions on these two

headers.

English

Addressable LED Headers

(3-pin ADDR_LED1)

(see p.7, No. 6)

(3-pin ADDR_LED2)

(see p.7, No. 25)

VOU T

DO_ ADD R

GND

ese two

are used to connect

Addressable

headers

LED extension cable which

allows users to choose from

various LED lighting eects.

Caution: Never install the

Addressable LED cable in the

wrong orientation; otherwise,

the cable may be damaged.

*Please refer to page 48 for

further instructions on this

header.

B560M Steel Legend

2.7 Post Status Checker

Post Status Checker (PSC) diagnoses the computer when users power on the

machine. It emits a red light to indicate whether the CPU, memory, VGA or storage

is dysfunctional. e lights go o if the four mentioned above are functioning

normally.

English

2.8 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide

e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key

E) supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT).

* e M.2 socket does not support SATA M.2 SSDs.

Before you install Intel® Integrated Connectivity (CNVi) module, be sure to turn o the AC power.

Installing the WiFi/BT module or Intel® CNVi (Integrated WiFi/BT)

Step 1

Prepare a type 2230 WiFi/BT module

or Intel® CNVi (Integrated WiFi/BT)

and the screw.

Step 2

Find the nut location to be used.

English

PCB Length: 3cm Module Type: Type2230

B560M Steel Legend

Step 3

Gently insert the WiFi/BT module

or Intel® CNVi (Integrated WiFi/

BT) into the M.2 slot. Please be aware

that the module only ts in one

orientation.

Step 4

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw as

this might damage the module.

English

2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)

The M.2, also known as the Next Generat ion Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. e Hy per M.2

Sockets (M2_1) supports M Key type 2242/2260/2280 M.2 PCI Ex press module up to

Gen4x4 (64 Gb/s) (with 11th Gen Intel® CoreTM Processors) or Gen3x4 (32 Gb/s) (with 10th

Gen Intel® CoreTM Processors).

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

English

ABC

No. 1 2 3

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type Type 2242 Type2260 Type 2280

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

B560M Steel Legend

Step 3

ABC

Before installing a M.2 (NGFF) SSD

module, please loosen the screws to

remove the M.2 heatsink.

*Please remove the protective lms

on the bottom side of the M.2

heatsink before you install a M.2

SSD module.

Step 4

Prepare the M.2 stando that comes

with the package. en hand tighten

the stando into the desired nut

location on the motherboard. Align

and gently insert the M.2 (NGFF)

SSD module into the M.2 slot. Please

be aware that the M.2 (NGFF) SSD

module only ts in one orientation.

ABC

Step 5

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw

NUT1NUT2C

as this might damage the module.

English

Step 6

Tighten the screw with a screwdriver

to secure the module and M.2

heatsink into place. Please do

not overtighten the screw as this

might damage the module and M.2

heatsink.

English

M.2_SSD (NGFF) Module Support List

Vendor Interface P/N

ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA PCIe3 x4 ASX8000NP-512GM-C ADATA PCIe3 x4 ASX7000NP-512GT-C Apacer PCIe3 x4 AP240GZ280 Corsair PCIe3 x4 CSSD-F240GBMP500 Intel PCIe3 x4 SSDPEKKF256G7 Intel PCIe3 x4 SSDPEKKF512G7 Kingston PCIe3 x4 SKC1000/480G Kingston PCIe2 x4 SH2280S3/480G OCZ PCIe3 x4 RVD400-M2280-512G (NVME) PATRIOT PCIe3 x4 PH240GPM280SSDR NVME Plextor PCIe3 x4 PX-128M8PeG Plextor PCIe3 x4 PX-1TM8PeG Plextor PCIe3 x4 PX-256M8PeG Plextor PCIe3 x4 PX-512M8PeG Plextor PCIe PX-G256M6e Plextor PCIe PX-G512M6e Samsung PCIe3 x4 SM961 MZVPW128HEGM (NVM) Samsung PCIe3 x4 PM961 MZVLW128HEGR (NVME) Samsung PCIe3 x4 960 EVO (MZ-V6E250) (NVME) Samsung PCIe3 x4 960 EVO (MZ-V6E250BW) (NVME) Samsung PCIe3 x4 SM951 (NVME) Samsung PCIe3 x4 SM951 (MZHPV256HDGL) Samsung PCIe3 x4 SM951 (MZHPV512HDGL) Samsung PCIe3 x4 SM951 (NVME) Samsung PCIe x4 XP941-512G (MZHPU512HCGL) SanDisk PCIe SD6PP4M-128G SanDisk PCIe SD6PP4M-256G TEAM PCIe3 x4 TM8FP2240G0C101 TEAM PCIe3 x4 TM8FP2480GC110 WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) WD PCIe3 x4 WDS512G1X0C-00ENX0 (NVME)

B560M Steel Legend

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for

details: http://www.asrock.com

English

2.10 M.2_SSD (NGFF) Module Installation Guide (M2_2)

The M.2, also known as the Next Generat ion Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2

Sockets (M2_ 2) supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI

Express module up to Gen3 x4 (32 Gb/s).

* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

English

No. 1

Nut Location A

PCB Length 8cm

Module Type Type2280

B560M Steel Legend

Step 3

Align and gently insert the M.2

(NGFF) SSD module into the M.2

slot. Please be aware that the M.2

(NGFF) SSD module only ts in one

orientation.

Step 4

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw as

NUT1NUT2

this might damage the module.

English

M.2_SSD (NGFF) Module Support List

Vendor Interface P/N

ADATA SATA3 AXNS330E-32GM-B ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA PCIe3 x4 ASX8000NP-512GM-C ADATA PCIe3 x4 ASX7000NP-512GT-C Apacer PCIe3 x4 AP240GZ280 Corsair PCIe3 x4 CSSD-F240GBMP500 Crucial SATA3 CT120M500SSD4 Crucial SATA3 CT240M500SSD4 Intel SATA3 Intel SSDSCKGW080A401/80G Intel PCIe3 x4 SSDPEKKF256G7 Intel PCIe3 x4 SSDPEKKF512G7 Kingston SATA3 SM2280S3 Kingston PCIe3 x4 SKC1000/480G Kingston PCIe2 x4 SH2280S3/480G OCZ PCIe3 x4 RVD400-M2280-512G (NVME) PATRIOT PCIe3 x4 PH240GPM280SSDR NVME Plextor PCIe3 x4 PX-128M8PeG Plextor PCIe3 x4 PX-1TM8PeG Plextor PCIe3 x4 PX-256M8PeG Plextor PCIe3 x4 PX-512M8PeG Plextor PCIe PX-G256M6e Plextor PCIe PX-G512M6e Samsung PCIe3 x4 SM961 MZVPW128HEGM (NVM) Samsung PCIe3 x4 PM961 MZVLW128HEGR (NVME) Samsung PCIe3 x4 960 EVO (MZ-V6E250) (NVME) Samsung PCIe3 x4 960 EVO (MZ-V6E250BW) (NVME) Samsung PCIe3 x4 SM951 (NVME) Samsung PCIe3 x4 SM951 (MZHPV256HDGL) Samsung PCIe3 x4 SM951 (MZHPV512HDGL) Samsung PCIe3 x4 SM951 (NVME) Samsung PCIe x4 XP941-512G (MZHPU512HCGL) SanDisk PCIe SD6PP4M-128G SanDisk PCIe SD6PP4M-256G Team SATA3 TM4PS4128GMC105 Team SATA3 TM4PS4256GMC105 Team SATA3 TM8PS4128GMC105 Team SATA3 TM8PS4256GMC105

B560M Steel Legend

TEAM PCIe3 x4 TM8FP2240G0C101 TEAM PCIe3 x4 TM8FP2480GC110 Transcend SATA3 TS256GMTS400 Transcend SATA3 TS512GMTS600 Transcend SATA3 TS512GMTS800 V-Color SATA3 VLM100-120G-2280B-RD V-Color SATA3 VLM100-240G-2280RGB V-Color SATA3 VSM100-240G-2280 V-Color SATA3 VLM100-240G-2280B-RD WD SATA3 WDS100T1B0B-00AS40 WD SATA3 WDS240G1G0B-00RC30 WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) WD PCIe3 x4 WDS512G1X0C-00ENX0 (NVME)

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for

details: http://www.asrock.com

English

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

e Support CD that comes with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. e CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu does not appear automatically, locate and double click on the le

“ASRSETUP.EXE” in the Support CD to display the menu.

Drivers Menu

e drivers compatible to your system will be auto-detected and listed on the

support CD driver page. Please click Instal l All or follow the order from top to

bottom to install those required drivers. erefore, the drivers you install can work

properly.

Utilities Menu

e Utilities Menu shows the application soware that the motherboard supports.

Click on a specic item then follow the installation wizard to insta ll it.

English

B560M Steel Legend

3.2 ASRock Motherboard Utility (A-Tuning)

ASRock Motherboard Utilit y (A-Tuning) is ASRock’s multi purpose soware suite

with a new interface, more new features and improved utilities.

3.2.1 Installing ASRock Motherboard Utility (A-Tuning)

ASRock Motherboard Utilit y (A-Tuning) can be downloaded from ASRock Live

Update & APP Shop. Aer the installation, you will nd the icon “ASRock Mother-

board Utility (A-Tuning)“ on your desktop. Double-click the

“ASRock Motherboard Utility (A-Tuning)“ icon, ASRock Motherboard Utility

(A-Tuning) main menu will pop up.

3.2.2 Using ASRock Motherboard Utility (A-Tuning)

ere are ve sections in ASRock Motherboard Utility (A-Tuning) main menu:

Operation Mode, OC Tweaker, System Info, FAN-Tastic Tuning and Settings.

Operation Mode

Choose an operation mode for your computer.

English

OC Tweaker

Congurations for overclocking the system.

System Info

View information about the system.

*e System Browser tab may not appear for certain models.

English

B560M Steel Legend

FAN-Tastic Tuning

Congure up to ve dierent fan speeds using the graph. e fans will automatically shi

to the next speed level when the assigned temperature is met.

Settings

Congure ASRock ASRock Motherboard Utility (A-Tuning). Click to select "Auto

run at Windows Startup" if you want ASRock Motherboard Utility (A-Tuning) to

be launched when you start up the Windows operating system.

English

3.3 ASRock Live Update & APP Shop

e ASRock Live Update & APP Shop is an online store for purchasing and

downloading soware applications for your ASRock computer. You can quick ly and

easily insta ll various apps and support utilities. With ASRock Live Update & APP

Shop, you can optimize your system and keep your motherboard up to date simply

with a few clicks.

Double-click on your desktop to access ASRock Live Update & APP Shop utility.

*You need to be connected to the Internet to download apps f rom the ASRock Live Update & APP Shop.

3.3.1 UI Overview

Category Panel

Hot News

English

Information Panel

Category Panel: e category panel contains several category tabs or buttons that

when selected the information panel below displays the relative information.

Information Panel: e information panel in the center displays data about the

currently selected category and allows users to perform job-related tasks.

Hot News: e hot news section displays the various latest news. Click on the image

to visit the website of the selected news and know more.

B560M Steel Legend

3.3.2 Apps

When the "Apps" tab is selected, you will see all the available apps on screen for you

to download.

Installing an App

Step 1

Find the app you want to install.

e most recommended app appears on the le side of the screen. e other various

apps are shown on the right. Please scroll up and down to see more apps listed.

You can check the price of the app and whether you have already intalled it or not.

- e red icon displays the price or "Free" if the app is free of charge.

- e green "Installed" icon means the app is installed on your computer.

Step 2

Click on the app icon to see more details about the selected app.

English

Step 3

If you want to install the app, click on the red icon to start downloading.

Step 4

When installation completes, you can nd the green "Installed " icon appears on the

upper right corner.

English

To uninstall it, simply click on the trash can icon . *e trash icon may not appear for certain apps.

B560M Steel Legend

Upgrading an App

You can only upgrade the apps you have already installed. When there is an

available new version for your app, you will nd the mark of "New Version"

appears below the installed app icon.

Step 1

Click on the app icon to see more details.

Step 2

Click on the yellow icon to start upgrading.

English

3.3.3 BIOS & Drivers

Installing BIOS or Drivers

When the "BIOS & Drivers" tab is selected, you will see a list of recommended or

critical updates for the BIOS or drivers. Please update them all soon.

Step 1

Please check the item information before update. Click on to see more details.

Step 2

English

Click to select one or more items you want to update.

Step 3

Click Update to start the update process.

3.3.4 Setting

In the "Setting" page, you can change the language, select the server location, and

determine if you want to automatically run the ASRock Live Update & APP Shop

on Windows startup.

B560M Steel Legend

English

3.4 Nahimic Audio

Nahimic audio soware provides an incredible high denition sound technology which

boosts the audio and voice performance of your system. Nahimic Audio interface is

composed of four tabs: Audio, Microphone, Sound Tracker and Settings.

ere are four functions in Nahimic audio :

No. Function Description

From this tab, you can mute the current audio device, choose

Audio

between four factory audio proles, turn all audio eects on/o, restores the current prole to its default settings and access Surround Sound and various features.

English

Microphone

Sound

Tracker

Settings

From this tab, you can mute the current mic device, choose between two factory mic proles, turn/o all microphone eects, restore the current prole to its default settings, and access Static Noise Suppression and various features.

e Sound Tracker provides a visual indication localizing the sources of the sounds while in a game. ese are represented by dynamic segments pointing the direction of the sounds: the more opaque they are, the stronger the sounds are.

From this tab, you can access all settings and information of the soware.

B560M Steel Legend

3.5 ASRock Polychrome SYNC

ASRock Polychrome SYNC is a lighting control utility specically designed for unique indi-

viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by

connecting the LED strip, you can customize various lighting schemes and patterns, including

Static, Breathing, Strobe, Cycling, Music, Wave and more.

Connecting the LED Strip

Connect your RGB LED strips to the

motherboard.

RGB LED Headers (RGB_LED1, RGB_LED2)

RGB_LED1

RGB_LED2

12V G R B

on the

1. Never in stall the RGB LED cable in the w rong orientation; otherwi se, the cable may be damaged.

2. Before installing or removing your RGB LED cable, pl ease power o your system and unplug the powe r cord from the power supply. Failure to do so m ay cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.

2. e RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

English

Connecting the Addressable RGB LED Strip

Connect your

ADDR_LED2)

Addressable RGB LED

on the motherboard.

strips to the

Addressable LED Headers (ADDR_LED1,

ADDR_LED1

English

ADDR_LED2

GND

DO_ ADD R

VOU T

1. Never in stall the RGB LED cable in the w rong orientation; otherwi se, the cable may be damaged.

2. Before installing or removing your RGB LED cable, pl ease power o your system and unplug the powe r cord from the power supply. Failure to do so m ay cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.

2. e RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/ GND), with a ma ximum power rating of 3A (5V) and length w ithin 2 meters.

B560M Steel Legend

ASRock Polychrome SYNC Utility

Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility.

Download this utility from the ASRock Live Update & APP Shop and start coloring your

PC style your way!

Drag the tab to customize your

preference.

Toggle on/o the

RGB LED switch

Sync RGB LED eects

for all LED regions of

the motherboard

Select a RGB LED light eect

from the drop-down menu.

English

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

is section explains how to use the UEFI SETUP UTILITY to congure your

system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right

aer you power on the computer, other wise, the Power-On-Self-Test (POST) will

continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer

POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the

reset button on the system chassis. You may also restart by turning the system o

and then back on.

Becau se the UEFI soware is constantly being upd ated, the following UEFI setup screens and de scriptions are for reference purpose only, and they may not exactly match what you see on your scre en.

English

B560M Steel Legend

4.2 EZ Mode

e EZ Mode screen appears when you enter the BIOS setup program by default. EZ

mode is a dashboard which contains multiple readings of the system’s current status.

You can check the most crucial information of your system, such as CPU speed,

DRAM frequency, SATA information, fan speed, etc.

Press <F6> or click the "Advanced Mode" button at the upper right corner of the

screen to switch to "Advanced Mode" for more options.

1 2 3 4 5 6

No. Function

Help

Load UEFI Defaults

Save Changes and Exit

Discard Changes

Change Language

Switch to Advanced Mode

English

4.3 Advanced Mode

e Advanced Mode provides more options to congure the BIOS settings. Refer to

the following sections for the detailed congurations.

To access the EZ Mode, press <F6> or click the "EZ Mode" button at the upper right

corner of the screen.

4.3.1 UEFI Menu Bar

e top of the screen has a menu bar with the following selections:

Main

OC Tweaker

Advanced

Tool

H/W Monitor

Security

Boot

Exit

For setting system time/date information

For overclocking congurations

For advanced system congurations

Useful tools

Displays current hardware status

For security settings

For conguring boot settings and boot priority

Exit the current screen or the UEFI Setup Utility

English

4.3.2 Navigation Keys

Use < > key or < > key to choose among the selections on the menu bar, and

use < > key or < > key to move the cursor up or down to select items, then

press <Enter> to get into the sub screen. You can also use the mouse to click your

required item.

Please check the following table for the descriptions of each navigation key.

Navigation Key(s) Description

B560M Steel Legend

+ / -

<Tab>

<PGUP>

<PGDN>

<HOME>

<END>

<F1>

<F5>

<F7>

<F9>

<F10>

<F12>

<ESC>

To change option for the selected items

Switch to next function

Go to the previous page

Go to the next page

Go to the top of the screen

Go to the bottom of the screen

To display the General Help Screen

Add / Remove Favorite

Discard changes and exit the SETUP UTILITY

Load optimal default values for all the settings

Save changes and exit the SETUP UTILITY

Print screen

Jump to the Exit Screen or exit the current screen

English

4.4 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and

display the system overview.

e availability and location of BIOS settings can be dierent for dierent models and BIOS versions .

English

My Favorite

Display your collection of BIOS items. Press F5 to add/remove your favorite items.

4.5 OC Tweaker Screen

In the OC Tweaker screen, you can set up overclocking features.

B560M Steel Legend

CPU Conguration

CPU Ratio

e CPU speed is determined by the CPU Ratio multiplied with the BCLK.

Increasing the CPU Ratio will increase the internal CPU clock speed without

aecting the clock speed of other components.

AVX2 Ratio Oset

AVX2 Ratio Oset species a negative oset from the CPU Ratio for AVX

workloads. AVX is a more stressful workload that lower the AVX ratio to ensure

maximum possible ratio for SSE workloads.

AVX-512 Ratio Oset

AVX-512 Ratio Oset species a negative oset from the CPU Ratio for AVX-512

workloads. AVX-512 is a more stressful work load that lower the AVX ratio to ensure

English

maximum possible ratio for SSE workloads.

CPU Cache Ratio

e CPU Interna l Bus Speed Ratio. e maximum should be the same as the CPU

Ratio.

GT Frequency

Congure the frequency of the integrated GPU.

BCLK Spread Spectrum Mode

Enable Spread Spectrum to reduce electromagnetic interference for passing EMI

tests. Disable to achieve higher clock speeds when overclocking.

BCLK Aware Adaptive Voltage

BCLK Aware Adaptive Voltage enable/disable. When enabled, pcode will be aware

of the BCLK frequency when calculating the CPU V/F curves. is is ideal for

BCLK OC to avoid high voltage overrides.

Boot Performance Mode

Select the performance state that the BIOS will set before OS hando.

Ring to Core Ratio Oset

Disable Ring to Core Ratio Oset so the ring and core can run at the same fre-

quency.

English

Intel SpeedStep Technology

Intel SpeedStep technology allows processors to switch between multiple frequen-

cies and voltage points for better power saving and heat dissipation.

Intel Turbo Boost Technology

Intel Turbo Boost Technology enables the processor to run above its base operating

frequency when the operating system requests the highest performance state.

Intel Speed Shift Technology

Enable/Disable Intel Speed Shi Technology support. Enabling will expose the

CPPC v2 interface to allow for hardware controlled P-sates.

Intel Turbo Boost Max Technology 3.0

Intel Turbo Boost Technology enables the processor to run above its base operating

frequency when the operating system requests the highest performance state.

Intel Thermal Velocity Boost Voltage Optimizations

is service controls thermal based voltage optimizations for processors that

implment the Intel ermal Velocity Boost (TVB) feature.

Dual Tau Boost

Enable Dual Tau Boost feature. is is only applicable for CMLS 35W/65W/125W

skus. is item is only supported with processors with Cong TDP support.

Long Duration Power Limit

Congure Package Power Limit 1 in watts. When the limit is exceeded, the CPU

ratio will be lowered aer a period of time. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

Long Duration Maintained

Congure the period of time until the CPU ratio is lowered when the Long

Duration Power Limit is exceeded.

Short Duration Power Limit

Congure Package Power Limit 2 in watts. When the limit is exceeded, the CPU

ratio will be lowered immediately. A lower limit can protect the CPU and save

power, while a higher limit may improve performance.

B560M Steel Legend

CPU Core Current Limit

Congure the current limit of the CPU core. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

System Agent Current Limit

Congure the current limit of the system agent. A lower limit can protect the CPU

and save power, while a higher limit may improve performance.

GT Current Limit

Congure the current limit of the GT slice. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

DRAM Conguration

Memory Information

Allows users to browse the serial presence detect (SPD) and Intel extreme memory prole

(XMP) for DDR4 modules.

DRAM Timing Conguration

English

Load XMP Setting

Load XMP settings to overclock the memory and perform beyond standard

specications.

DRAM Reference Clock

Select Auto for optimized settings.

DRAM Frequency

If [Auto] is selected, the motherboard will detect the memory module(s) inserted

and assign the appropriate frequency automatically.

DRAM Gear Mode

Gear2 mode doubled the ratio in memory controller, and it is good for high

frequency.

System Agent Geyserville

Congure System Agent Geyserville (SA GV) settings.

Primary Timing

CAS# Latency (tCL)

e time between sending a column address to the memory and the beginning of the data

in response.

RAS# to CAS# Delay and Row Precharge (tRCDtRP)

English

RAS# to CAS# Delay : e number of clock cycles required between the opening of a row

of memory and accessing columns within it.

Row Precharge: e number of clock cycles required between the issuing of the precharge

command and opening the next row.

RAS# Active Time (tRAS)

e number of clock cycles required between a bank active command and issuing the

precharge command.

Command Rate (CR)

e delay between when a memor y chip is selected and when the rst active command can

be issued.

Secondary Timing

Write Recovery Time (tWR)

B560M Steel Legend

e amount of delay that must elapse aer the completion of a valid write operation,

before an active bank can be precharged.

Refresh Cycle Time (tRFC)

e number of clocks from a Refresh command until the rst Activate command to

the same rank.

RAS to RAS Delay (tRRD_L)

e number of clocks between two rows activated in dierent banks of the same

rank.

RAS to RAS Delay (tRRD_S)

e number of clocks between two rows activated in dierent banks of the same

rank.

Write to Read Delay (tWTR_L)

e number of clocks between the last valid write operation and the next read command to

the same interna l bank.

Write to Read Delay (tWTR_S)

e number of clocks between the last valid write operation and the next read command to

the same interna l bank.

Read to Precharge (tRTP)

e number of clocks that are inserted between a read command to a row pre-

charge command to the same rank.

Four Activate Window (tFAW)

e time window in which four activates are allowed the same rank.

CAS Write Latency (tCWL)

Congure CAS Write Latency.

Third Timing

tREFI

Congure refresh cycles at an average periodic interval.

tCKE

Congure the period of time the DDR4 initiates a minimum of one refresh

command internally once it enters Self-Refresh mode.

English

Turn Around Timing

Turn Around Timing Optimization

Auto is enabled in general case.

tRDRD_sg

Congure between module read to read delay.

tRDRD_dg

Congure between module read to read delay.

tRDRD_dr

Congure between module read to read delay.

tRDRD_dd

Congure between module read to read delay.

tRDWR_sg

Congure between module read to write delay.

tRDWR_dg

Congure between module read to write delay.

tRDWR_dr

Congure between module read to write delay.

English

tRDWR_dd

Congure between module read to write delay.

tWRRD_sg

Congure between module write to read delay.

tWRRD_dg

Congure between module write to read delay.

tWRRD_dr

Congure between module write to read delay.

tWRRD_dd

Congure between module write to read delay.

tWRWR_sg

Congure between module write to write delay.

tWRWR_dg

Congure between module write to write delay.

tWRWR_dr

Congure between module write to write delay.

tWRWR_dd

Congure between module write to write delay.

Round Trip Timing

Round Trip Timing Optimization

Auto is enabled in general case.

Rx FiF0 Delay Oset

Congure Rx FIF0 Delay Oset.

Initial RTL (A1 Rank1)
