Motherboard Layout
Top Side View
B550 Phantom Gaming-ITX/ax
English
1
Back Side View
English
2
No. Description
1ATX 12V Power Connector (ATX12V1)
2CPU Fan Connector (CPU_FAN1)
3Addressable LED Header (ADDR_LED1)
4RGB LED Header (RGB_LED1)
5CPU/Water Pump Fan Connector (CPU_FAN2/WP)
62 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
7ATX Power Connector (ATXPWR1)
8SATA3 Connectors (SATA3_1_2)
9SATA3 Connectors (SATA3_3_4)
10 USB 3.2 Gen1 Header (USB3_5_6)
11 System Panel Header (PANEL1)
12 USB 2.0 Header (USB_1_2)
13 Front Panel Type C USB 3.2 Gen2 Header (USB32_TC_2)
14 Clear CMOS Jumper (CLRCMOS1)
15 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
16 Chassis Speaker Header (SPEAKER1)
17 Front Panel Audio Header (HD_AUDIO1)
B550 Phantom Gaming-ITX/ax
English
3
I/O Panel
1
2
3
4
5
10
9
8
7
6
No. DescriptionNo. Description
12.5G LAN RJ-45 Port (Intel® I225V)*6Antenna Ports
USB 3.2 Gen2 Type-A Port
2
(USB32_TA_1)
7Microphone (Pink)**
3DisplayPort 1.48USB 3.2 Gen1 Ports
4Line In (Light Blue)**9HDMI Port
5Front Speaker (Lime)**10
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
** Function of the Au dio Ports in 7.1-channel Con guration:
PortFunction
Light Blue (Rear panel)Rear Speaker Out
Lime (Rear panel)Front Speaker Out
Pink (Rear panel)Central /Subwoofer Speaker Out
Lime (Front panel)Side Speaker Out
B550 Phantom Gaming-ITX/ax
WiFi-802.11ax Module and ASRock WiFi 2.4/5 GHz Antenna
WiFi-802.11ax + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ax + BT v5.2 module
(pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/g/n/
ax connectivity standards and Bluetooth v5.2. WiFi + BT module is an easy-to-use
wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth v5.2
standard features Smart Ready technology that adds a whole new class of functionality
into the mobile devices. BT 5.2 also includes Low Energy Technology and ensures
extraordinary low power consumption for PCs. e 2T2R WiFi solution sets a WiFi
high speed standard and oers max link rate up to 2.4Gbps.
* e transmission speed may vary according to the environment.
ASRock WiFi 2.4/5 GHz Antenna
English
5
Chapter 1 Introduction
ank you for purchasing ASRock B550 Phantom Gaming-ITX/ax motherboard,
a reliable motherboard produced under ASRock ’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website http://www.a srock.com.
1.1 Package Contents
ASRock B550 Phantom Gaming-ITX/ax Motherboard (Mini-ITX Form Factor)
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 23 for DDR4 UDIMM maximum
frequency support.
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
•
Speed Control)
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan
•
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin
or 4-pin fan is in use.
1 x 24 pin ATX Power Connector (Hi-Density Power Con-
•
nector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
•
tor)
1 x Front Panel Audio Connector (15μ Gold Audio Connec-
•
tor)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
•
ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
•
(Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD
•
Protection)
English
10
BIOS
Feature
Hardware
Monitor
OS
B550 Phantom Gaming-ITX/ax
AMI UEFI Legal BIOS with GUI support
•
Supports “Plug and Play”
•
ACPI 5.1 compliance wake up events
•
Supports jumperfree
•
SMBIOS 2.3 support
•
CPU, CPU VDDCR_SOC, DRAM, VPPM, Chipset 1.05V,
•
2.50V, +1.8V, VDDP Voltage Multi-adjustment
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-
•
ter Pump Fans
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
•
Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
Please realize that the re is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tool s. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
English
11
Chapter 2 Installation
is is a Mini-ITX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard.
•
Failure to do so may cause physical injuries to you and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
English
12
2.1 Installing the CPU
Unplug all power cables be fore installing the CPU.
1
B550 Phantom Gaming-ITX/ax
2
English
13
3
English
14
B550 Phantom Gaming-ITX/ax
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove the power cord before changing a CPU or heatsink.
Installing the CPU Box Cooler SR1
1
2
English
15
3
English
16
4
1
N
FA
_
U
P
C
Installing the AM4 Box Cooler SR2
1
B550 Phantom Gaming-ITX/ax
2
English
17
3
English
18
B550 Phantom Gaming-ITX/ax
4
1
N
FA
_
U
P
C
*e diagrams shown here are for reference only. e headers might be in a dierent position on
your motherboard.
19
English
Installing the AM4 Box Cooler SR3
1
English
20
2
B550 Phantom Gaming-ITX/ax
4
3
English
21
5
CPU_FAN1
6
English
22
1
N
FA
_
U
P
C
2
D
E
L
_
B
RG
+12V
*e diagrams shown here are for reference only. e headers might be in a dierent position
on your motherboard.
B550 Phantom Gaming-ITX/ax

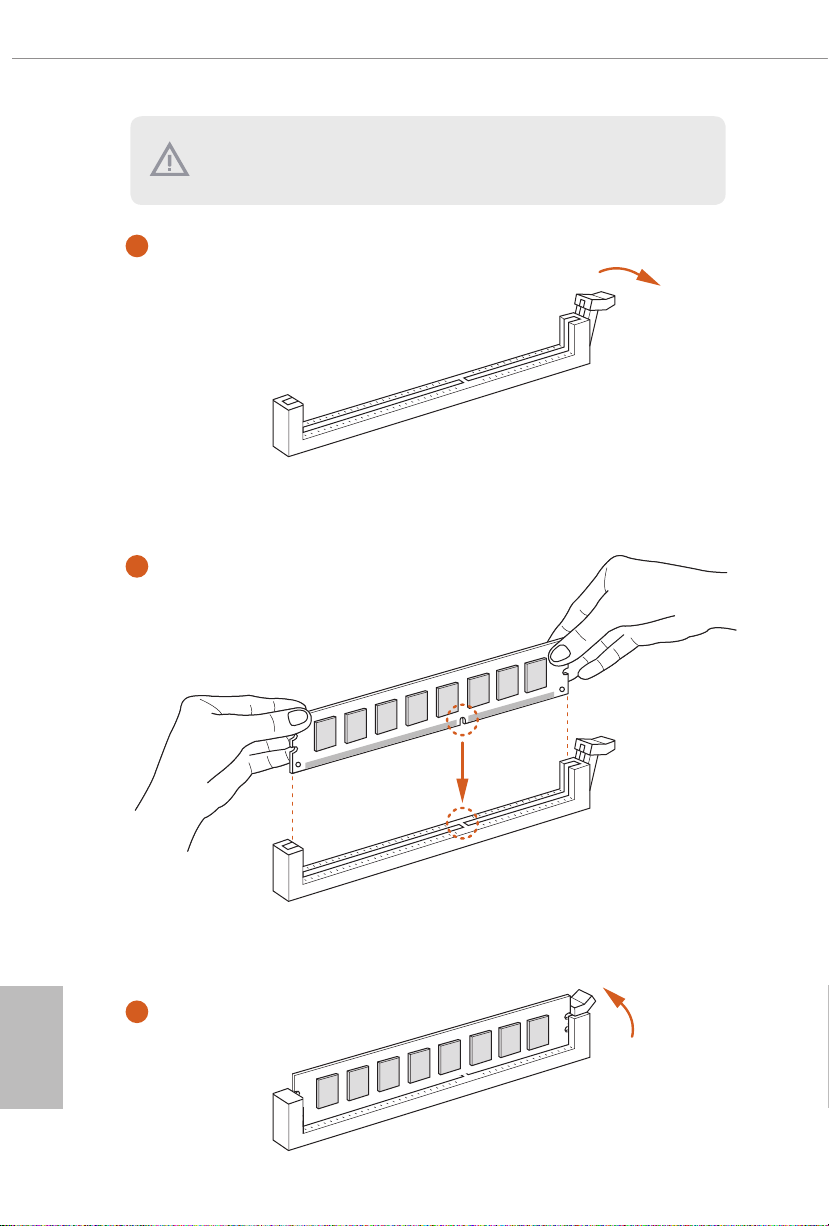

2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same
brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memor y Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
AMD non-XMP Memory Frequency Support
Ryzen Series CPUs (Matisse):
UDIMM Memory Slot
A1B1
SR-3200
-SR3200
DR-3200
-DR3200
SRSR3200
DRDR3200
Ryzen Series APUs (Renoir):
UDIMM Memory Slot
A1B1
SR-3200
-SR3200
DR-3200
-DR3200
SRSR3200
DRDR3200
Frequency
(Mhz)
Frequency
(Mhz)
English
23
e DIMM only ts in one correct orientation. It will cause permanent damage to
the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect
orientation.
1
2
English
24
3
B550 Phantom Gaming-ITX/ax
2.4 Expansion Slot (PCI Express Slot)
ere is 1 PCI Express slot on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and make necessary hardware settings for the card before you start
the installation.
PCIe slots:
PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIe Slot Congurations
PCIE1
Ryzen Series CPUs (Matisse)Gen4x16
Ryzen Series APUs (Renoir)Gen3x16
For a better ther mal environment, please connect a chassi s fan to the motherboard’s
chassis fan connector (CHA_ FAN1/WP) when using multiple graphics cards.
English
25
2.5 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
English
Clear CMOS Jumper
(CLRCMOS1)
(see p.1, No. 14)
CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes
system setup information such as system password, date, time, and system setup
parameters. To clear and reset the system parameters to default setup, please
turn o the computer and unplug the power cord, then use a jumper cap to short
the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper
cap aer clearing the CMOS. If you need to clear the CMOS when you just nish
updating the BIOS, you must boot up the system rst, and then shut it down
before you do the clear-CMOS action.
2-pin Jumper
Short: Clear CMOS
Open: Default
26
Loading...
+ 145 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
