Asrock B550 Phantom Gaming 4/ac Quick Installation Guide

Version 1.0 Published May 2020 Copyright©2020 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate”
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel
: +886-2-28965588 ext.123 (Standard International call charges apply)
e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CE Warning
is device complies with directive 2014/53/EU issued by the Commision of the European Community.
is equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. is equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Operations in the 5.15-5.35GHz band are restricted to indoor usage only.
Radio transmit power per transceiver type
Function Frequency Maximum Output Power (EIRP)
2400-2483.5 MHz 18.5 + / -1.5 dbm
5150-5250 MHz 21.5 + / -1.5 dbm
WiFi
Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm
5250-5350 MHz
5470-5725 MHz
18.5 + / -1.5 dbm (no TPC)
21.5 + / -1.5 dbm (TPC)
25.5 + / -1.5 dbm (no TPC)
28.5 + / -1.5 dbm (TPC)
Motherboard Layout
DDR 4_A2 (6 4 bit, 28 8-pin m odule )
DDR 4_A1 (6 4 bit, 28 8-pin m odule )
DDR 4_B2 (6 4 bit, 28 8-pin m odule )
DDR 4_B1 (6 4 bit, 28 8-pin m odule )
ATX12V1
ATXP WR 1
PCIE3
HDLED RESET
PLED PWRBTN
PANEL1
1
USB_3_4
1
1
SPK_PLED1
1
HD_AUDIO1
PCIE1
RoHS
13
17
2
Hyper M.2
PCIe Gen4 x4
CMOS
Battery
PCIE2
12
9
USB3_ 7_8
10
SATA3_4
SATA3_3
CLRCMOS1
1
3
PCIE4
AUDIO CODEC
SUPER
I/O
18
20
2122
28
19
6
5
CHA_FAN3/WP
CHA_FAN1/WP
CPU_FAN2/WP
ATX12V2
CPU_FAN1
4
1
16
ADDR_LED1
1
RGB_LED1
1
26
ADDR_LED2
1
RGB_LED2
1
7
8
29
CPU
DRAM
VGA
BOOT
USB 3.2 Ge n1
T: USB3_1
B: USB3_ 2
Top: RJ-45
USB 3.2 Gen1 T: USB3_5 B: USB3_6
PS2
Keybo ard
/Mous e
Top:
LINE I N
Cent er:
FRON T
Bott om:
MIC IN
USB_1_2
1
27
SOCKETAM4
15
14
SATA3_2
SATA3_1
COM1
1
23
CHA_FAN2/WP
M2_1
C 3
C 2
T
T
C 4
T
C 1
T
25
24
CHA_FAN4/WP
USB 3.2 Gen1 T: USB3_3 B: USB3_4
HDMI 1
1
SPI_TPM_J1
11
AMD
B550
M2_2
M2_WIFI_CT1
WiFi-802.11ac
Module
B550 Phantom Gaming 4/ac
English
1
No. Description
1 CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP)
2 ATX 12V Power Connector (ATX12V1)
3 ATX 12V Power Connector (ATX12V2)
4 CPU Fan Connector (CPU_FAN1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
7 RGB LED Header (RGB_LED2)
8 Addressable LED Header (ADDR_LED2)
9 ATX Power Connector (ATXPWR1)
10 USB 3.2 Gen1 Header (USB3_7_8)
11 SPI TPM Header (SPI_TPM_J1)
12 SATA3 Connector (SATA3_3)
13 SATA3 Connector (SATA3_4)
14 SATA3 Connector (SATA3_1)
15 SATA3 Connector (SATA3_2)
16 Post Status Checker (PSC)
17 System Panel Header (PANEL1)
18 Power LED and Speaker Header (SPK_PLED1)
19 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)
20 Clear CMOS Jumper (CLRCMOS1)
21 USB 2.0 Header (USB_3_4)
22 USB 2.0 Header (USB_1_2)
23 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)
24 Chassis Fan / Waterpump Fan Connector (CHA_FAN4/WP)
25 Addressable LED Header (ADDR_LED1)
26 RGB LED Header (RGB_LED1)
27 COM Port Header (COM1)
28 Front Panel Audio Header (HD_AUDIO1)
29 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)
English
2

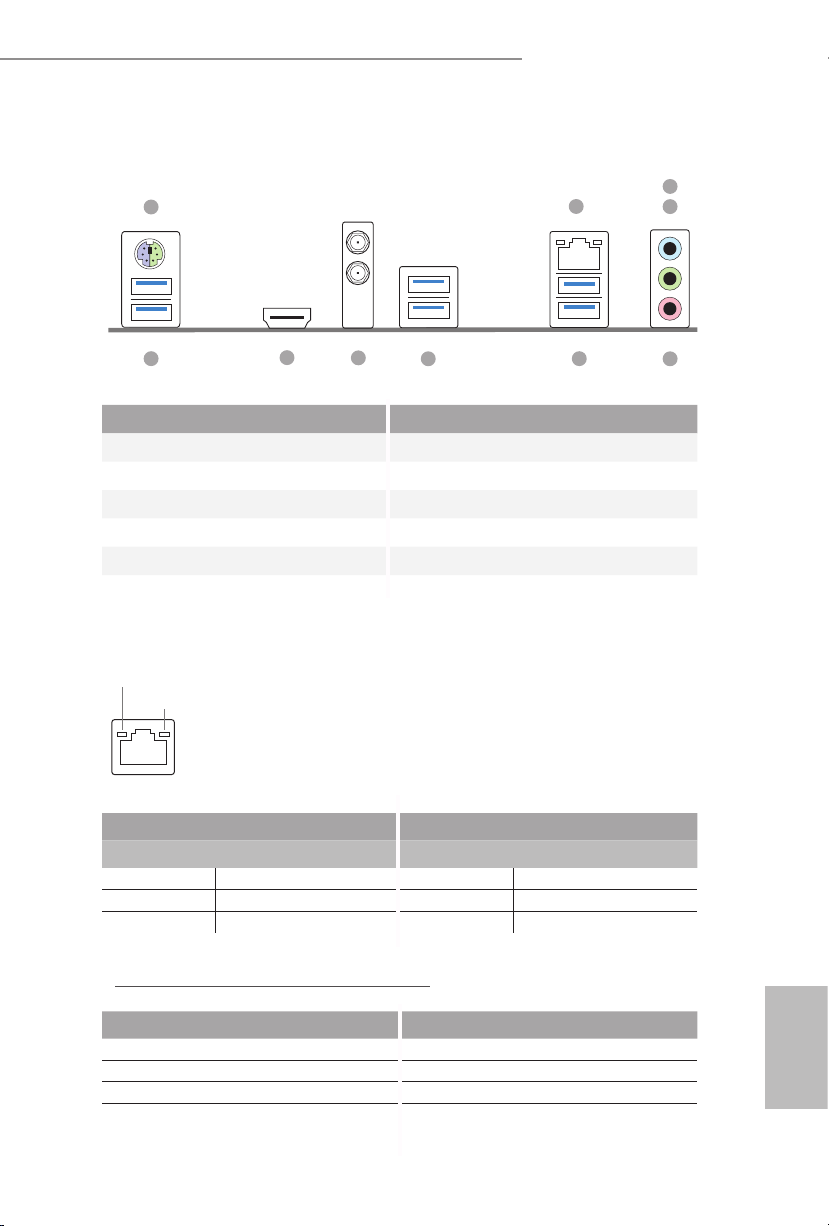

I/O Panel
1
B550 Phantom Gaming 4/ac
3
2
4
10
9
8
7
6
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 6 USB 3.2 Gen1 Ports (USB3_5_6)
2 LAN RJ-45 Port* 7 USB 3.2 Gen1 Ports (USB3_3_4)
3 Line In (Light Blue)** 8 Antenna Ports
4 Front Speaker (Lime)** 9 HDMI Port
5 Microphone (Pink)** 10 USB 3.2 Gen1 Ports (USB3_1_2)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Por t
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection
5
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker Out
English
3
WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antennas
WiFi-802.11ac + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.2 module that oers support for WiFi 802.11 a/b/g/n/ac connectivity standards and Bluetooth v4.2. WiFi + BT module is an easy-to-use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth v4.2 standard features Smart Ready technology that adds a whole new class of functionality into the mobile devices. BT 4.2 also includes Low Energy Technology and ensures extraordinary low power consumption for PCs. * e transmission speed may vary according to the environment.
English
4

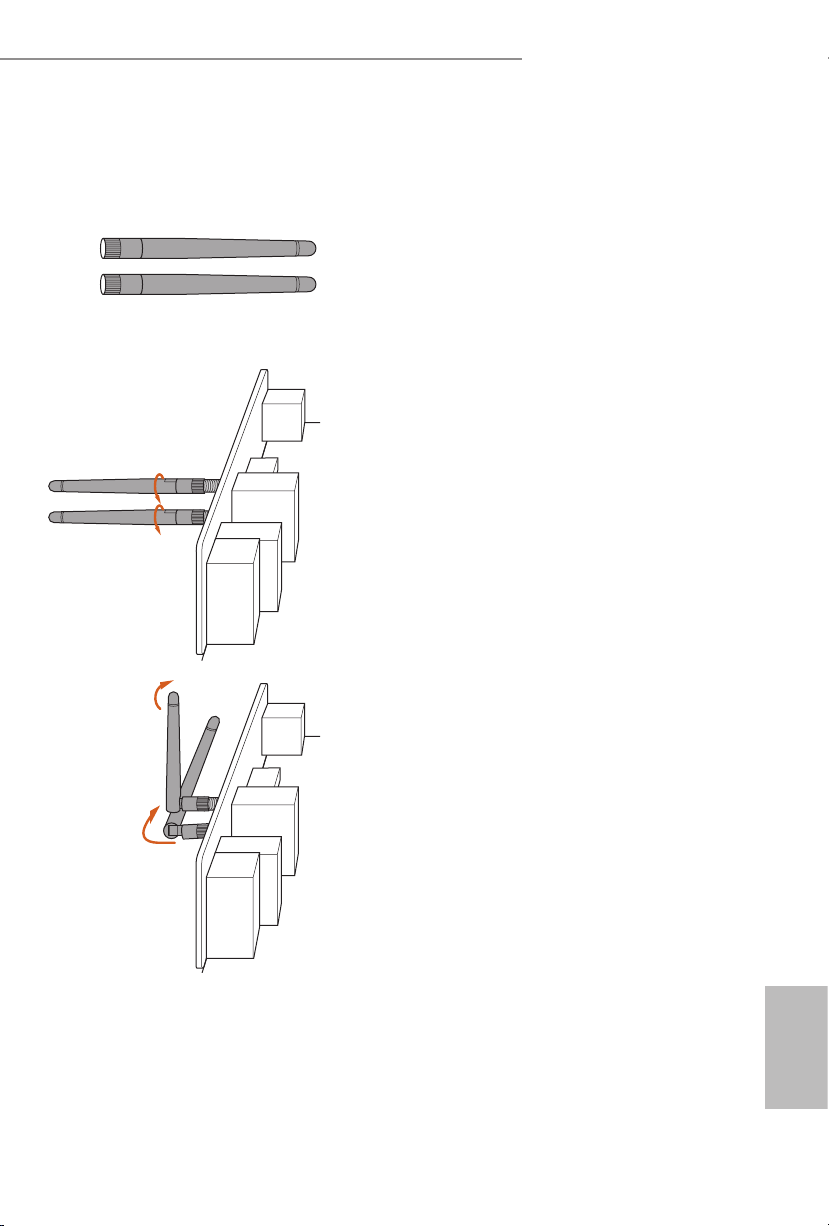

WiFi Antennas Installation Guide
B550 Phantom Gaming 4/ac
Step 1
Prepare the WiFi 2.4/5 GHz Antennas that come with the package.
Step 2
Connect the two WiFi 2.4/5 GHz Antennas to the antenna connectors. Turn the antenna clock­wise until it is securely connected.
Step 3
Set the WiFi 2.4/5 GHz Antenna as shown in the illustration.
*You may need to adjust the direction of the antenna for a stronger signal.
English
5
Chapter 1 Introduction
ank you for purchasing ASRock B550 Phantom Gaming 4/ac motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.
Becau se the motherboard specications and the BIOS soware might be updated, the content of this manual will be subject to change without notice. In ca se any modica­tions of this manual occur, the updated version will be available on ASRock’s website without further notice. If you require technical suppor t related to this motherboard, please visit our website for spe cic information about the model you are using. You may nd the l atest VGA cards and CPU support list on ASRock’s website a s well. ASRock website http://www.asrock.com.
1.1 Package Contents
ASRock B550 Phantom Gaming 4/ac Motherboard (ATX Form Factor)
•
ASRock B550 Phantom Gaming 4/ac Quick Installation Guide
•
ASRock B550 Phantom Gaming 4/ac Support CD
•
2 x Serial ATA (SATA) Data Cables (Optional)
•
2 x ASRock WiFi 2.4/5 GHz Antennas (Optional)
•
1 x Screw for M.2 Socket (Optional)
•
1 x I/O Panel Shield
•
English
6
1.2 Specications
Platform
CPU
Chipset
Memory
•
•
•
•
* Not compatible with AMD Athlon™ Processors.
•
•
•
•
•
•
•
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
* Please refer to page 23 for DDR4 UDIMM maximum frequency support.
•
•
•
B550 Phantom Gaming 4/ac
ATX Form Factor Solid Capacitor design 2oz Copper PCB
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
Digi Power design 8 Power Phase design
AMD B550
Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) /4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/ 4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/ 3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non­ECC, un-buered memory* AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) /4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333 (OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/ 3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667­/2400/2133 ECC & non-ECC, un-buered memory*
Max. capacity of system memory: 128GB Supports Extreme Memory Prole (XMP) memory modules 15μ Gold Contact in DIMM Slots
English
7
Expansion Slot
AMD Ryzen series CPUs (Matisse)
2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3:
•
Gen3 x4 mode)*
AMD Ryzen series APUs (Renoir)
2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3:
•
Gen3 x4 mode)*
* Supports NVMe SSD as boot disks
2 x PCI Express 3.0 x1 Slots
•
Supports AMD Quad CrossFireXTM and CrossFireX
•
1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac
•
module
TM
English
Graphics
Audio
Integrated AMD Radeon
•
TM
Vega Series Graphics in Ryzen
Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
•
Shared memory default 2GB. Max Shared memory supports
•
up to 16GB. * e Max shared memory 16GB requires 32GB system memory installed.
Supports HDMI 2.1 with max. resolution up to 4K x 2K
•
(4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
•
HBR (High Bit Rate Audio) with HDMI 2.1 Port
(Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
•
Supports HDCP 2.3 with HDMI 2.1 Port
•
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
•
Supports Microso PlayReady®
•
7.1 CH HD Audio with Content Protection (Realtek ALC1200
•
Audio Codec)
Premium Blu-ray Audio support
•
Supports Surge Protection
•
PCB Isolate Shielding
•
Individual PCB Layers for R/L Audio Channel
•
Nahimic Audio
•
8
LAN
Wireless LAN
Rear Panel I/O
B550 Phantom Gaming 4/ac
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
•
Realtek RTL8111H
•
Supports Wake-On-LAN
•
Supports Lightning/ESD Protection
•
Supports Energy Ecient Ethernet 802.3az
•
Supports PXE
•
Intel® 802.11ac WiFi Module
•
Supports IEEE 802.11a/b/g/n/ac
•
Supports Dual-Band (2.4/5 GHz)
•
Supports high speed wireless connections up to 433Mbps
•
Supports Bluetooth 4.2 + High speed class II
•
2 x Antenna Ports
•
1 x PS/2 Mouse/Keyboard Port
•
1 x HDMI Port
•
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
•
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
•
LED) HD Audio Jacks: Line in / Front Speaker / Microphone
•
Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
•
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Hyper M.2 Socket (M2_1), supports M Key type
•
2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64
Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit
English
9
Connector
1 x COM Port Header
•
1 x SPI TPM Header
•
1 x Power LED and Speaker Header
•
2 x RGB LED Headers
•
* Support in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
•
* Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
•
* e CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
•
Speed Control) 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
•
Speed Control) * e Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_ FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x 24 pin ATX Power Connector
•
1 x 8 pin 12V Power Connector
•
1 x 4 pin 12V Power Connector
•
1 x Front Panel Audio Connector
•
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
•
Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
•
(Supports ESD Protection)
English
10
BIOS Feature
AMI UEFI Legal BIOS with GUI support
•
Supports “Plug and Play”
•
ACPI 5.1 compliance wake up events
•
Supports jumperfree
•
SMBIOS 2.3 support
•
CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5,
•
2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-
Hardware Monitor
•
ter Pump Fans Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
•
Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
•
ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/
•
Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VD-
•
DCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
Microso® Windows® 10 64-bit
OS
Certica­tions
* For detailed product information, please visit our website: http://www.asrock .com
Please realize that the re is a certain risk involved with overclocking, including adjust­ing the setting in the BIOS, applying Untied Ove rclocking Technology, or using third­party overclocking tools. Overclocking may aect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage cau sed by overclocking.
•
FCC, CE
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
B550 Phantom Gaming 4/ac
11
English
Chapter 2 Installation
is is an ATX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard.
•
Failure to do so may cause physical injuries to you and damages to motherboard components. In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components. When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
English
12

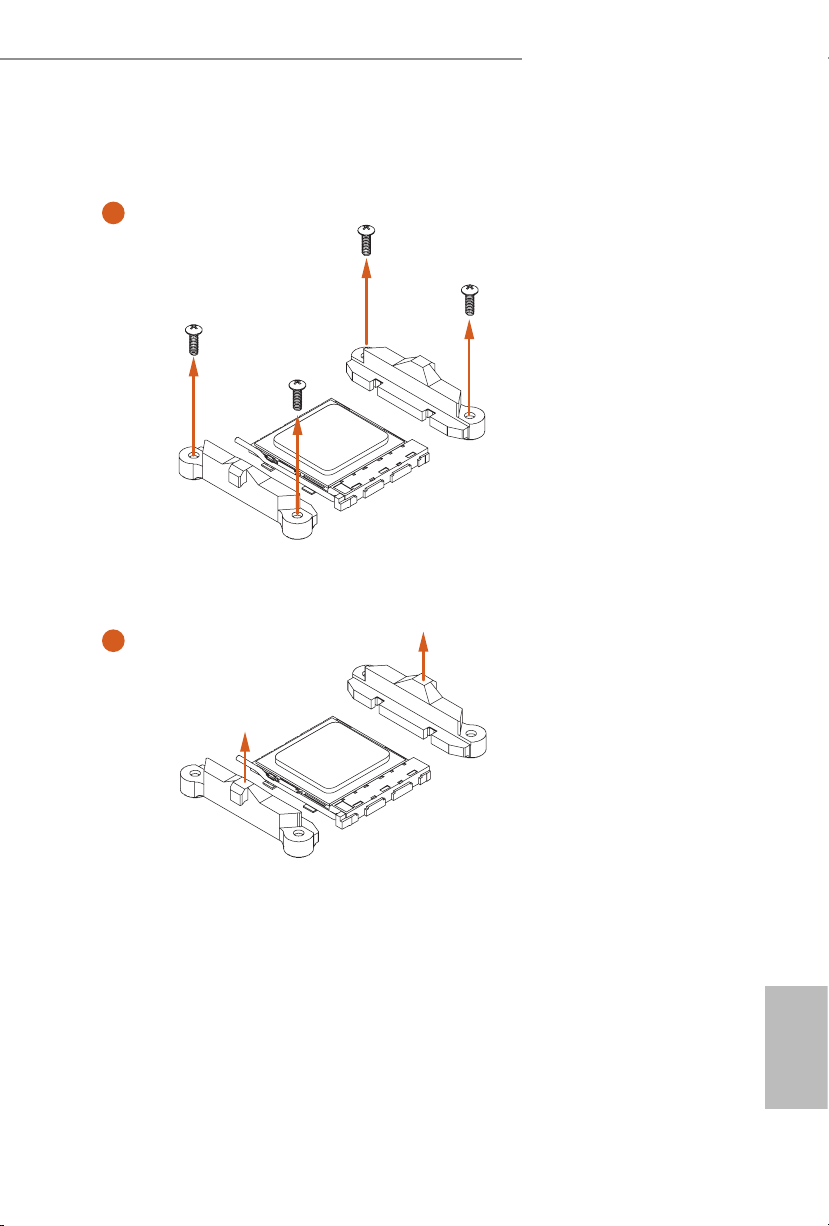

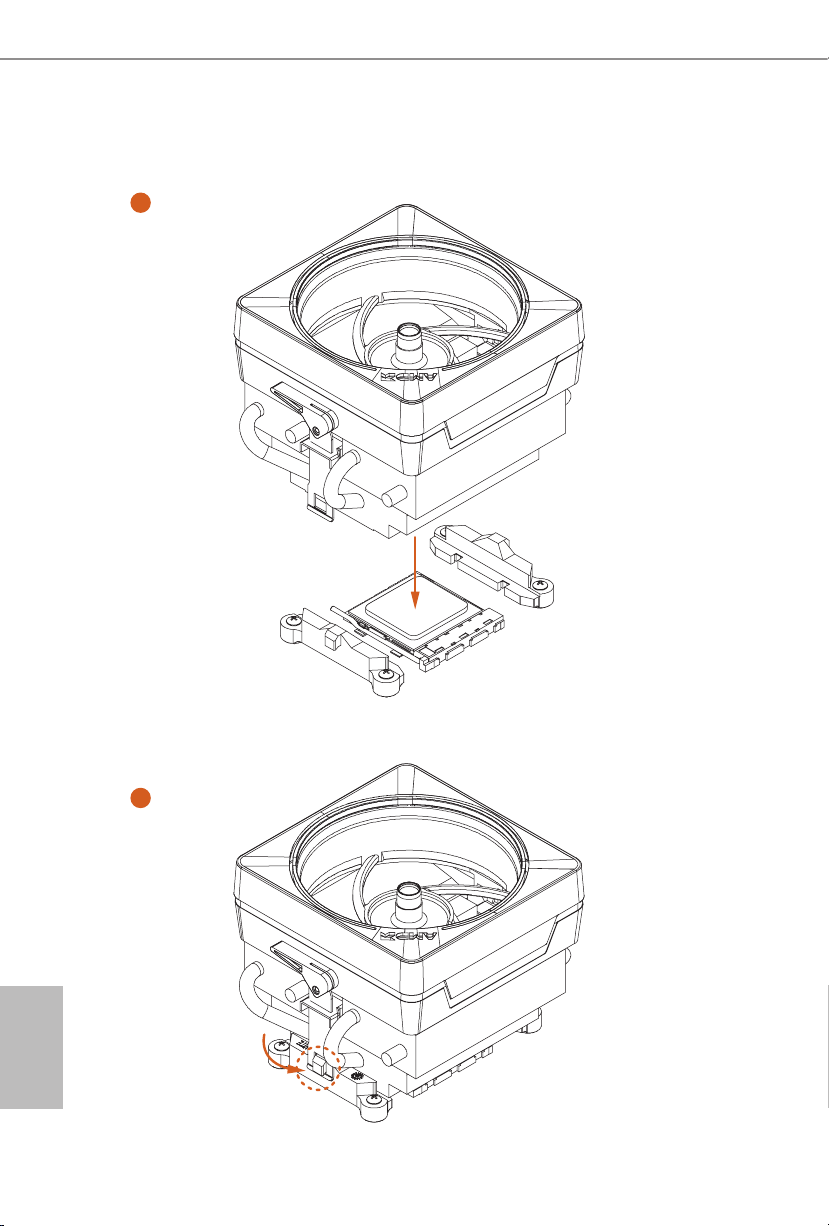

2.1 Installing the CPU

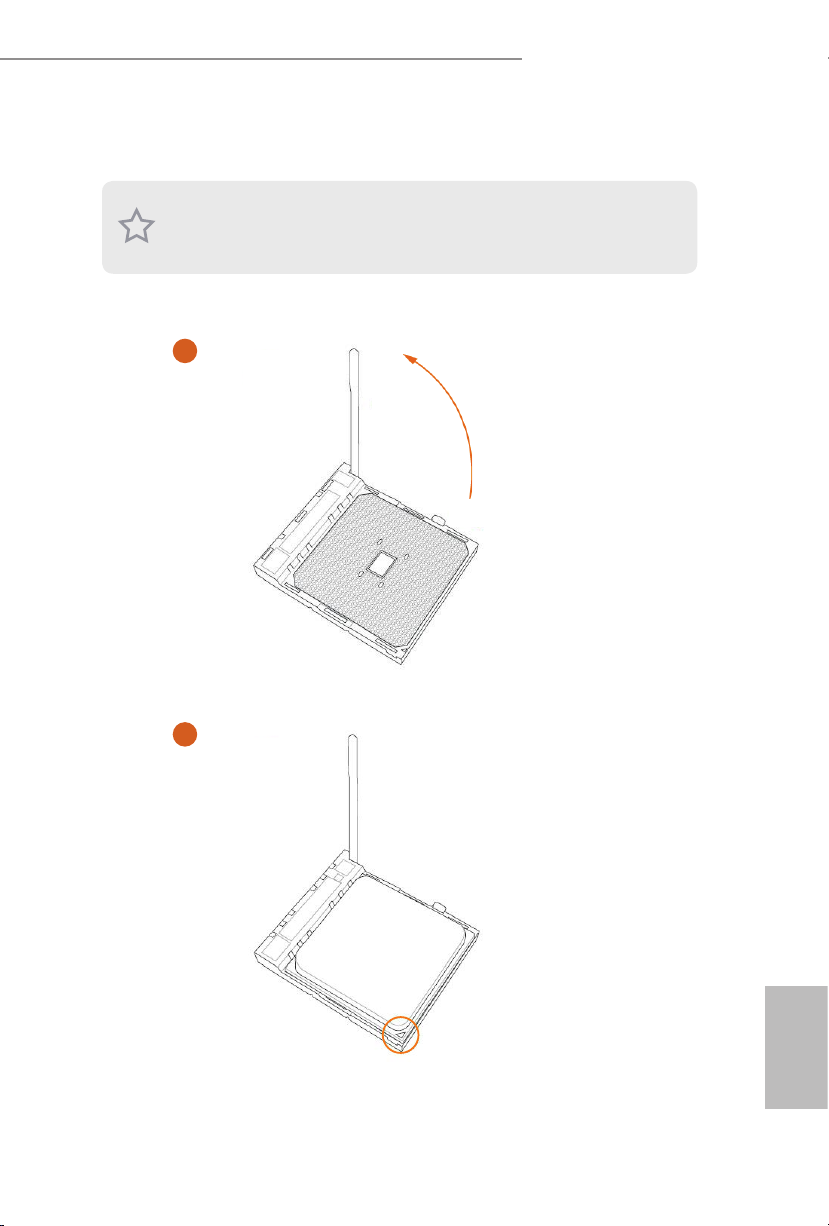

Unplug all power cables be fore installing the CPU.
1
B550 Phantom Gaming 4/ac
2
English
13
3
English
14
B550 Phantom Gaming 4/ac
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove the power cord before changing a CPU or heatsink.
Installing the CPU Box Cooler SR1
1
2
English
15
3
English
16
4
1
N
FA
_
U
P
C

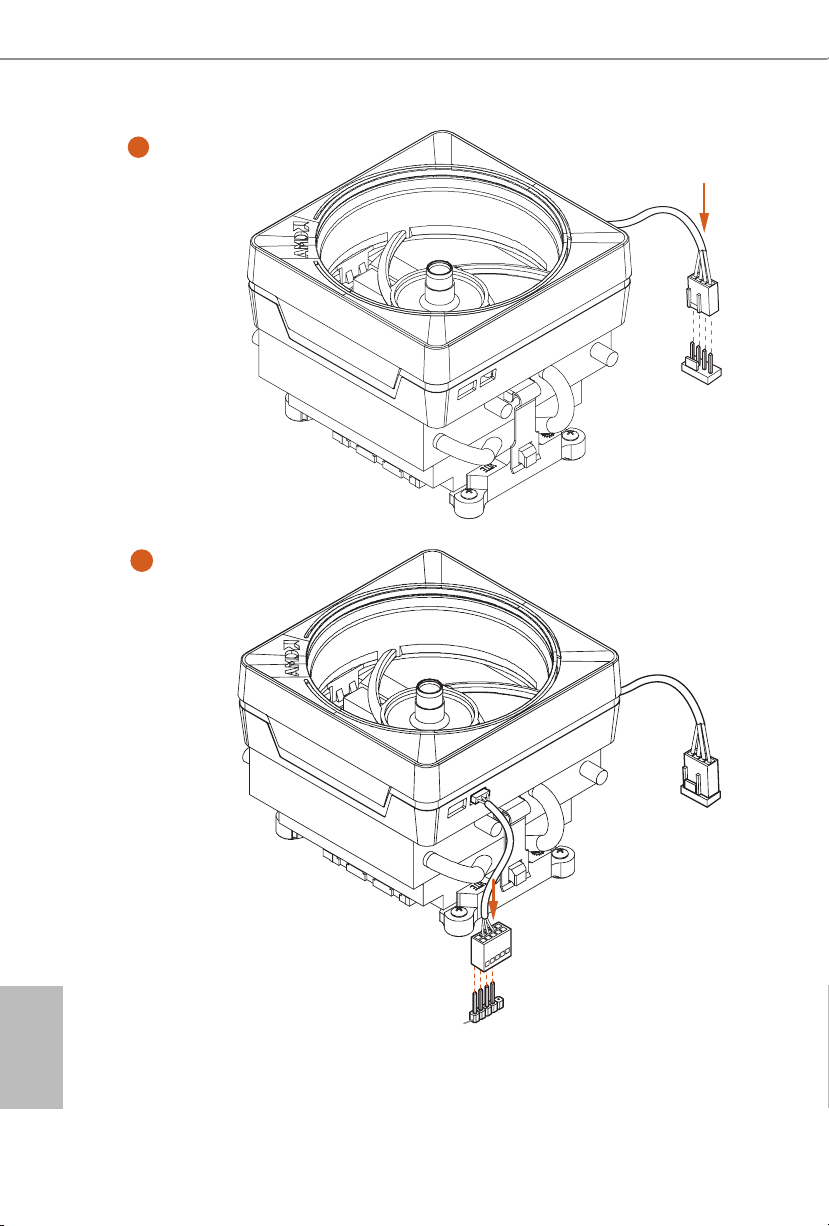

Installing the AM4 Box Cooler SR2
1
B550 Phantom Gaming 4/ac
2
English
17
3
English
18
B550 Phantom Gaming 4/ac
4
1
N
FA
_
U
P
C
*e diagrams shown here are for reference only. e header might be in a dierent position on your motherboard.
19
English

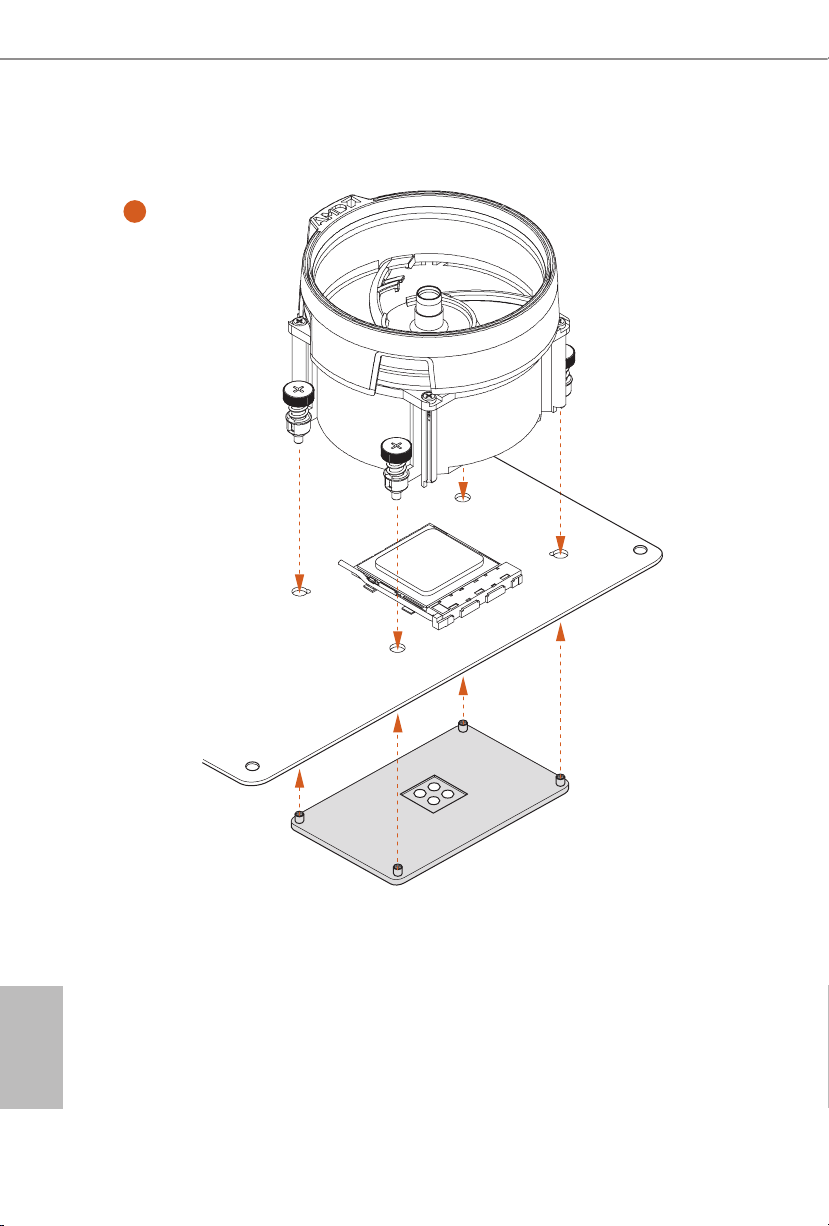

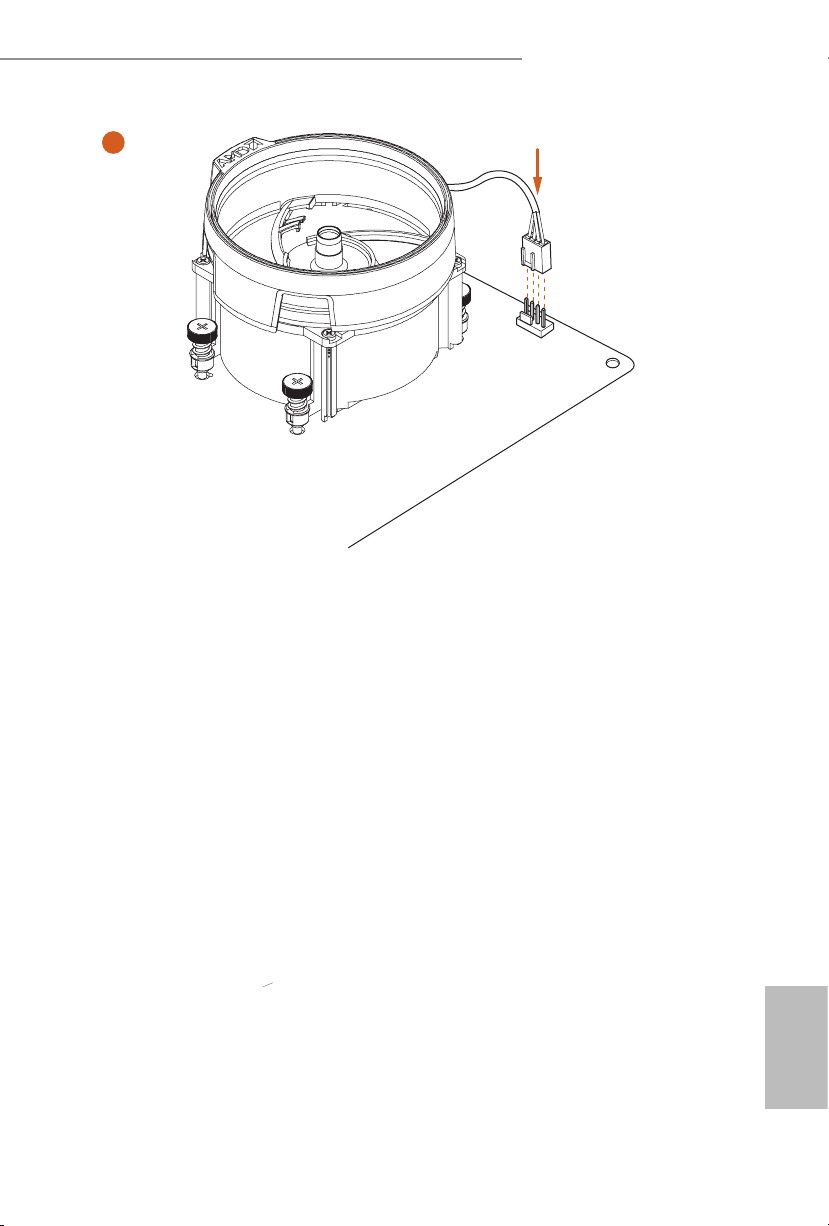

Installing the AM4 Box Cooler SR3
1
English
20
2
B550 Phantom Gaming 4/ac
4
3
English
21
5
N
1
R
G
CPU_FAN1
6
English
22
2
D
E
L
_
B
+12V
*e diagrams shown here are for reference only. e header might be in a dierent position on your motherboard.
FA
_
U P C
B550 Phantom Gaming 4/ac
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same brand, speed , size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR, DDR 2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
DDR4 UDIMM Maximum Frequency Support
Ryzen Series CPUs (Matisse):
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 3200
- DR - - 3200
- SR - SR 3200
- DR - DR 3200
SR SR SR SR 2933
SR/DR DR SR/DR DR 2667
SR/DR SR/DR SR/DR SR/DR 2667
Frequency
(Mhz)
English
23
Ryzen Series APUs (Renoir):
UDIMM Memory Slot
A1 A2 B1 B2
- SR - - 3200
- DR - - 3200
- SR - SR 3200
- DR - DR 3200
SR SR SR SR 2933
SR/DR DR SR/DR DR 2667
SR/DR SR/DR SR/DR SR/DR 2667
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2R x8 on DIMM module label
Frequency
(Mhz)
English
24

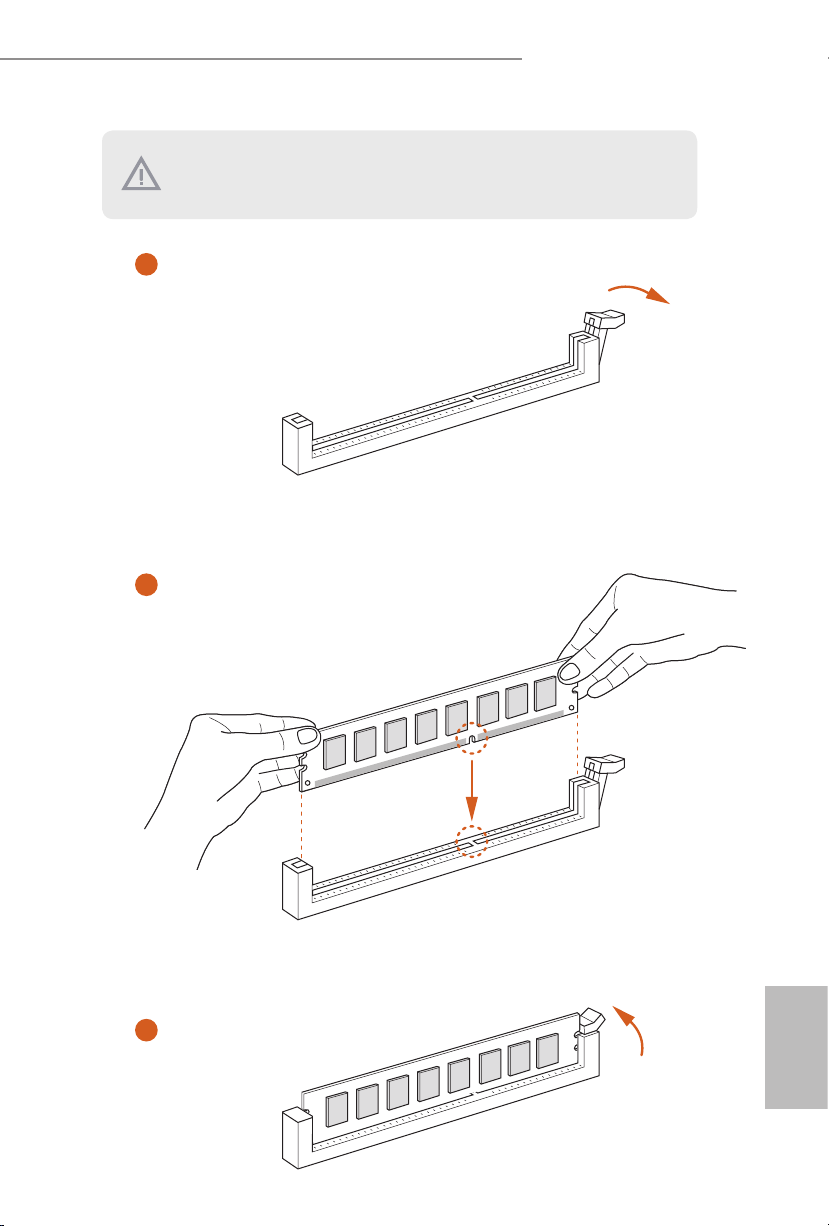

e DIMM only ts in one correct orientation. It will cause permanent damage to the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect orientation.
1
2
B550 Phantom Gaming 4/ac
3
English
25
2.4 Expansion Slots (PCI Express Slots)
ere are 4 PCI Express slots on the motherboard.
Before installing an ex pansion card, please make sure that the power supply is switched o or the power cord is unplugged. Plea se read the documentation of the expan sion card and make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards. PCIE4 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE1 PCIE3
Ryzen Series CPUs (Matisse) Gen4x16 Gen3x4
Ryzen Series APUs (Renoir) Gen3x16 Gen3x4
For a better ther mal environment, please connect a chassi s fan to the motherboard’s chassis fan connector (CHA_ FAN1/WP, CHA_ FAN2/WP, CHA_FAN3/WP or CHA_ FAN4/WP) when using multiple graphics cards.
English
26
Loading...
+ 158 hidden pages
