No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see ww w.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: +886-2-28965588 ext.123 (Standard International call charges apply)
e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CE Warning
is device complies with directive 2014/53/EU issued by the Commision of the European
Community.
is equipment complies with EU radiation exposure limits set forth for an uncontrolled
environment.
is equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
Operations in the 5.15-5.35GHz band are restricted to indoor usage only.
Radio transmit power per transceiver ty pe
FunctionFrequencyMaximum Output Power (EIRP)
2400-2483.5 MHz18.5 + / -1.5 dbm
5150-5250 MHz21.5 + / -1.5 dbm
WiFi
Bluetooth2400-2483.5 MHz8.5 + / -1.5 dbm
5250-5350 MHz
5470-5725 MHz
18.5 + / -1.5 dbm (no TPC)
21.5 + / -1.5 dbm (TPC)
25.5 + / -1.5 dbm (no TPC)
28.5 + / -1.5 dbm (TPC)
Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 7
1.4 I/O Panel 9
1.5 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antennas 10
Chapter 2 Installation 12
2.1 Installing the CPU 13
2.2 Installing the CPU Fan and Heatsink 15
2.3 Installing Memory Modules (DIMM) 23
2.4 Expansion Slots (PCI Express Slots) 26
2.5 Jumpers Setup 27
2.6 Onboard Headers and Connectors 28
2.7 Post Status Checker 33
2.8 CrossFireXTM and Quad CrossFireXTM Operation Guide 34
2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards 34
ank you for purchasing ASRock B550 Phantom Gaming 4/ac motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
In this manual, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.
Becau se the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In ca se any modications of this manual occur, the updated version will be available on ASRock’s website
without further notice. If you require technical suppor t related to this motherboard,
please visit our website for spe cic information about the model you are using. You
may nd the l atest VGA cards and CPU support list on ASRock ’s website a s well.
ASRock website http://www.asrock.com.
1.1 Package Contents
ASRock B550 Phantom Gaming 4/ac Motherboard (ATX Form Factor)
Please realize that the re is a certain r isk involved with overclo cking, including adju sting the setting in the BIOS, applying Untied Ove rclocking Technology, or using thirdparty o verclocking tools. Overclocking may aect your system’s stability, or even c ause
damage to the components and dev ices of your system. It should be done at your own
risk and expense. We are not responsible for possible damage cau sed by overclocking.
•
FCC, CE
•
ErP/EuP ready (ErP/EuP ready power supply is required)
•
English
6
1.3 Motherboard Layout
DDR 4_A2 (6 4 bit, 28 8-pin m odule )
DDR 4_A1 (6 4 bit, 28 8-pin m odule )
DDR 4_B2 (6 4 bit, 28 8-pin m odule )
DDR 4_B1 (6 4 bit, 28 8-pin m odule )
ATX12V1
ATXP WR 1
PCIE3
HDLED RESET
PLED PWRBTN
PANEL1
1
USB_3_4
1
1
SPK_PLED1
1
HD_AUDIO1
PCIE1
RoHS
13
17
2
Hyper M.2
PCIe Gen4 x4
CMOS
Battery
PCIE2
12
9
USB3_ 7_8
10
SATA3_4
SATA3_3
CLRCMOS1
1
3
PCIE4
AUDIO
CODEC
SUPER
I/O
18
20
2122
28
19
6
5
CHA_FAN3/WP
CHA_FAN1/WP
CPU_FAN2/WP
ATX12V2
CPU_FAN1
4
1
16
ADDR_LED1
1
RGB_LED1
1
26
ADDR_LED2
1
RGB_LED2
1
7
8
29
CPU
DRAM
VGA
BOOT
USB 3.2 Ge n1
T: USB3_1
B: USB3_ 2
Top:
RJ-45
USB 3.2 Gen1
T: USB3_5
B: USB3_6
PS2
Keybo ard
/Mous e
Top:
LINE I N
Cent er:
FRON T
Bott om:
MIC IN
USB_1_2
1
27
SOCKETAM4
15
14
SATA3_2
SATA3_1
COM1
1
23
CHA_FAN2/WP
M2_1
C 3
C 2
T
T
C 4
T
C 1
T
25
24
CHA_FAN4/WP
USB 3.2 Gen1
T: USB3_3
B: USB3_4
HDMI 1
1
SPI_TPM_J1
11
AMD
B550
M2_2
M2_WIFI_CT1
WiFi-802.11ac
Module
B550 Phantom Gaming 4/ac
English
7
No. Description
1CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP)
2ATX 12V Power Connector (ATX12V1)
3ATX 12V Power Connector (ATX12V2)
4CPU Fan Connector (CPU_FAN1)
52 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
62 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
7RGB LED Header (RGB_LED2)
8Addressable LED Header (ADDR_LED2)
9ATX Power Connector (ATXPWR1)
10 USB 3.2 Gen1 Header (USB3_7_8)
11 SPI TPM Header (SPI_TPM_J1)
12 SATA3 Connector (SATA3_3)
13 SATA3 Connec tor (SATA3_4)
14 SATA3 Connector (SATA3_1)
15 SATA3 Connector (SATA3_2)
16 Post Status Checker (PSC)
17 System Panel Header (PANEL1)
18 Power LED and Speaker Header (SPK_PLED1)
19 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)
20 Clear CMOS Jumper (CLRCMOS1)
21 USB 2.0 Header (USB_3_4)
22 USB 2.0 Header (USB_1_2)
23 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)
24 Chassis Fan / Waterpump Fan Connector (CHA_FAN4/WP)
25 Addressable LED Header (ADDR_LED1)
26 RGB LED Header (RGB_LED1)
27 COM Port Header (COM1)
28 Front Panel Audio Header (HD_AUDIO1)
29 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)
** Function of the Audio Ports in 7.1-channel Conguration:
PortFunction
Light Blue (Rear panel)Rear Speaker Out
Lime (Rear panel)Front Speaker Out
Pink (Rear panel)Central /Subwoofer Speaker Out
Lime (Front panel)Side Speaker Out
English
9
1.5 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antennas
WiFi-802.11ac + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.2 module
that oers support for WiFi 802.11 a/b/g/n/ac connectivity standards and Bluetooth
v4.2. WiFi + BT module is an easy-to-use wireless local area network (WLAN) adapter
to support WiFi + BT. Bluetooth v4.2 standard features Smart Ready technology that
adds a whole new class of functionality into the mobile devices. BT 4.2 also includes
Low Energy Technology and ensures extraordinary low power consumption for PCs.
* e transmission speed may vary according to the environment.
English
10
WiFi Antennas Installation Guide
B550 Phantom Gaming 4/ac
Step 1
Prepare the WiFi 2.4/5 GHz Antennas that come
with the package.
Step 2
Connect the two WiFi 2.4/5 GHz Antennas to
the antenna connectors. Turn the antenna clock-
wise until it is securely connected.
Step 3
Set the WiFi 2.4/5 GHz Antenna as shown in the
illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.
English
11
Chapter 2 Installation
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
Make sure to unplug the power cord before installing or removing the motherboard.
•
Failure to do so may cause physical injuries to you and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,
•
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
•
in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-
•
tighten the screws! Doing so may damage the motherboard.
English
12
2.1 Installing the CPU
Unplug all power cables be fore installing the CPU.
1
B550 Phantom Gaming 4/ac
2
English
13
3
English
14
B550 Phantom Gaming 4/ac
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Ma ke sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Please turn o the power or remove the power cord before changing a CPU or heatsink.

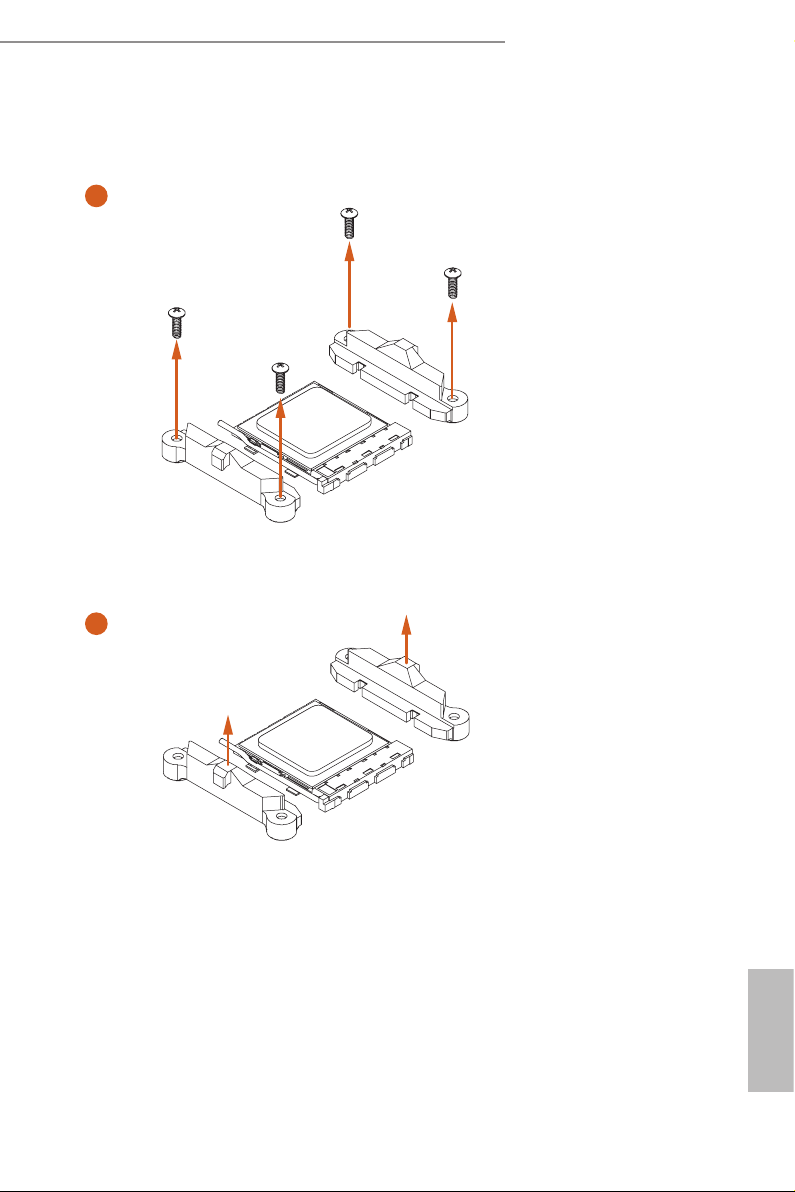

Installing the CPU Box Cooler SR1
1
2
English
15
3
English
16
4
1
N
FA
_
U
P
C

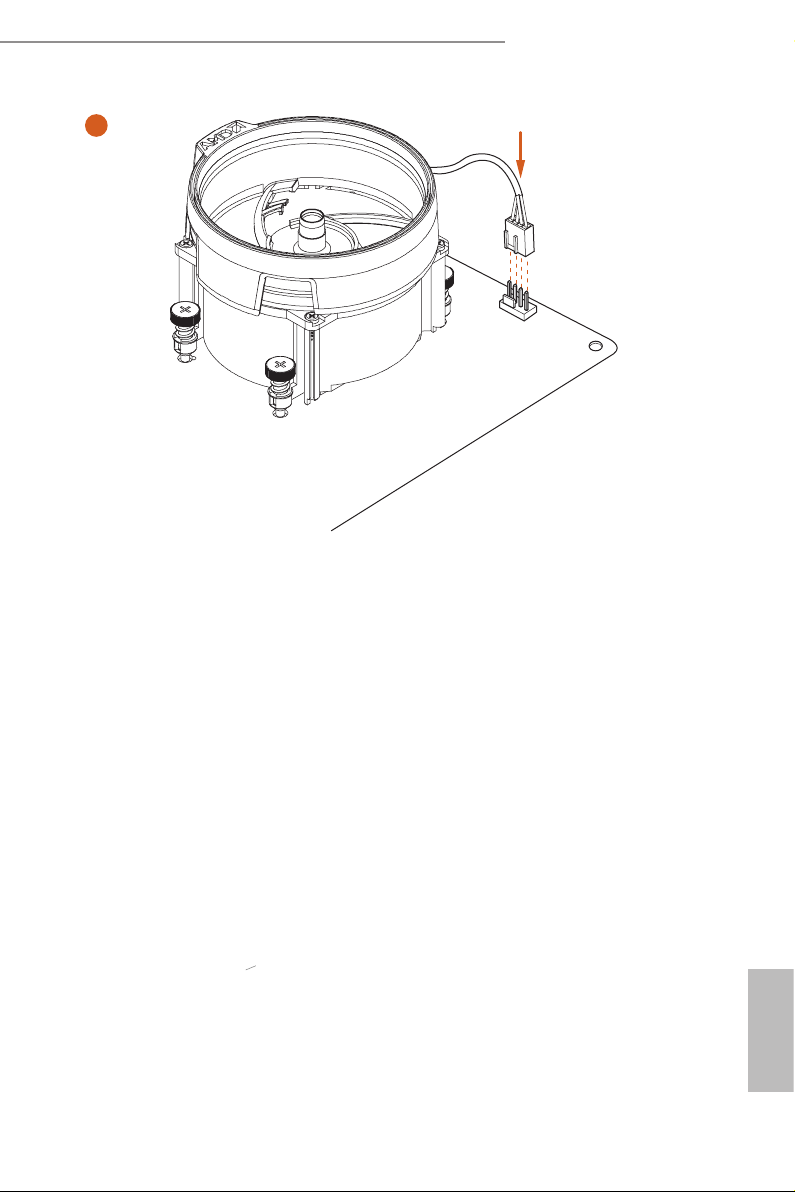

Installing the AM4 Box Cooler SR2
1
B550 Phantom Gaming 4/ac
2
English
17
3
English
18
B550 Phantom Gaming 4/ac
4
1
N
FA
_
U
P
C
*e diagrams shown here are for reference only. e header might be in a dierent
position on your motherboard.
19
English
