AMD K7 Main Board Jumper Setting Detail
NOTE:
This is for AMD K7 main board to set th e jumper setting. Please make
sure the CPU FSB before settin g the jumper. It may cause PC unstable
or can not reboot if you didn’t set the correct jumper setting.
Model List (Please click your main board model directly)
K7-VIA Series
K7VT2
M810LMR
K7VM2
K7VM2 R3.0
K7VT4-4X
K7VT4A
K7VM4
K7VM3
K7VT4A+
K7VT6
K7V88
K7Upgrade-880
K7Upgrade-600
K7VT4A PRO
K7-SIS Series
K7S8X
K7S8X R3.0
K7S8XE
K7S8XE R3.0
K7S8XE+
746FX-M
K7S41
K7S41GX
1 / 20
AMD K7 Main Board Jumper Setting Detail
K7VT2: Support FSB 200/266 (User Guide P.11)
Jumper Setting 100 (= FSB 200):FSB_SEL1 : 2 _3
Please move the jumper cap to FSB_SEL1 : 2_3
Jumper Setting 133 (= FSB 266):FSB_SEL 1 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
M810LMR
: Support FSB 200/266 (User Guide P.10)
Jumper Setting 100MHz (= FSB 200):FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 2_3
Jumper Setting 133MHz (= FSB 266):FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
2 / 20
AMD K7 Main Board Jumper Setting Detail
K7VM2
: Support FSB 200/266 (User Guide P.11)
Jumper Setting 100MHz (= FSB 200):FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 2_3
Jumper Setting 133MHz (= FSB 266):FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
K7VM2 R3.0
: Support FSB 200/266 (User Guide P.11)
Jumper Setting 200MHz:FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 2_3
Jumper Setting 266MHz:FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
3 / 20
AMD K7 Main Board Jumper Setting Detail

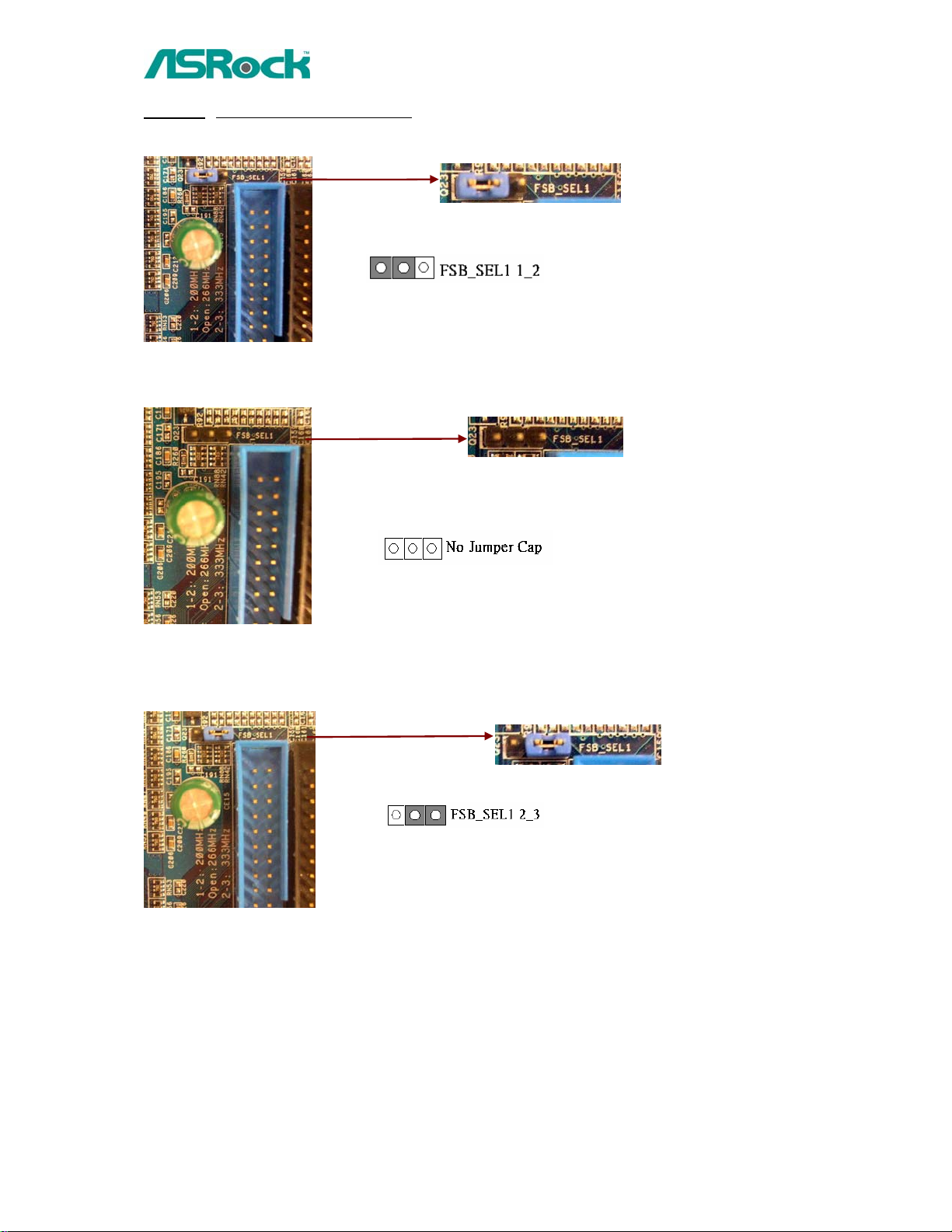

K7VT4-4X
: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
Jumper Setting 266MHz:None
Please move the j umper cap away
Jumper Setting 333:FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
4 / 20
AMD K7 Main Board Jumper Setting Detail
K7VT4A
: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
Jumper Setting 266MHz:None
Please move the jumper cap away
Jumper Setting 333:FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
5 / 20
AMD K7 Main Board Jumper Setting Detail
K7VM4
: Support FSB 200/266/333 (User Guide P.12)
Jumper Setting 200MHz:FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL1 : 1_2
Jumper Setting 266MHz:None
Please move the jumper cap away
Jumper Setting 333MHz:FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 2_3
6 / 20
AMD K7 Main Board Jumper Setting Detail
K7VM3
: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
Jumper Setting 266MHz:None
Please move the ju mper cap away
Jumper Setting 333MHz:FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL1 : 2_3
7 / 20
AMD K7 Main Board Jumper Setting Detail

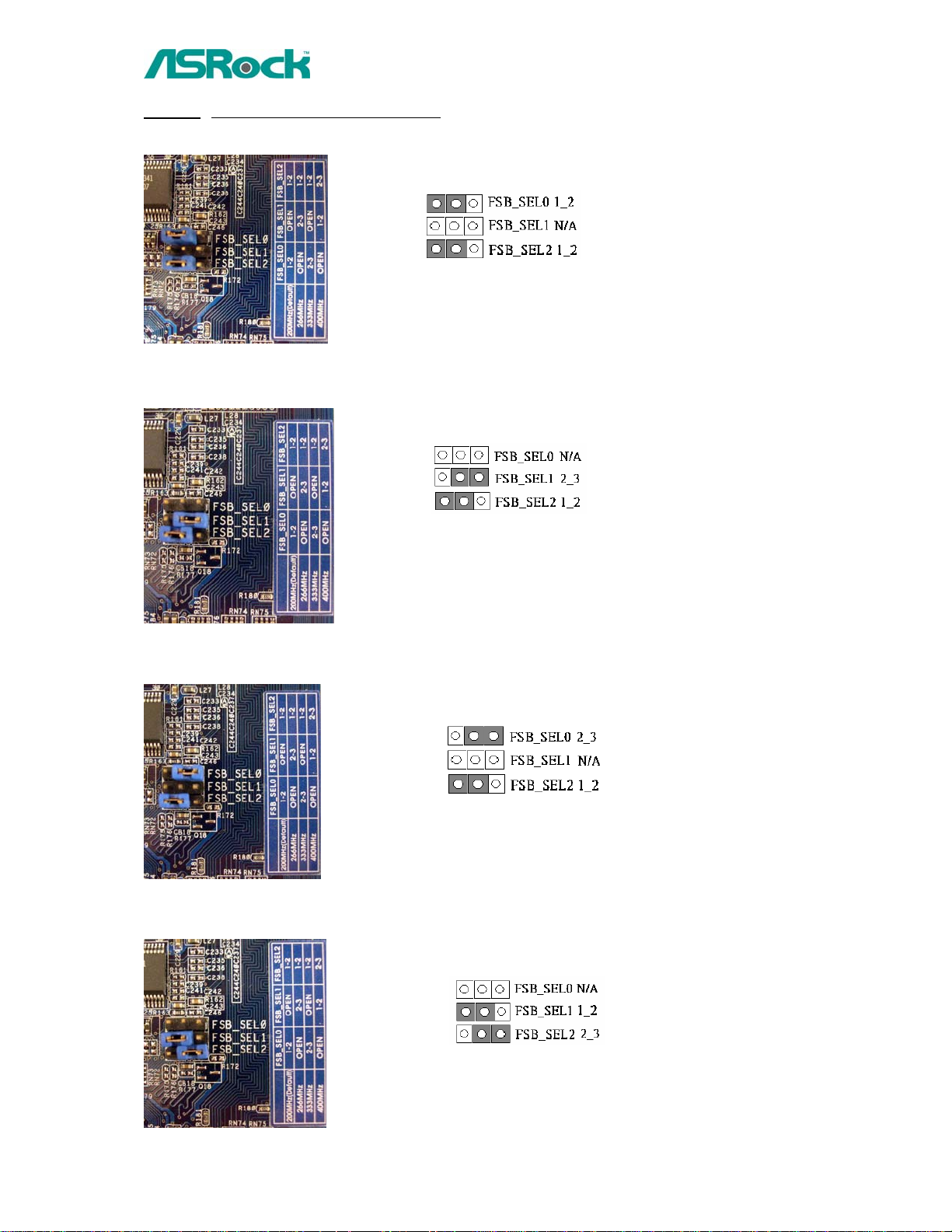

K7VT4A+
: Support FSB 200/266/333/400 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2 and
FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
8 / 20
AMD K7 Main Board Jumper Setting Detail
K7VT6
: Support FSB 200/266/333/400 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
9 / 20
AMD K7 Main Board Jumper Setting Detail

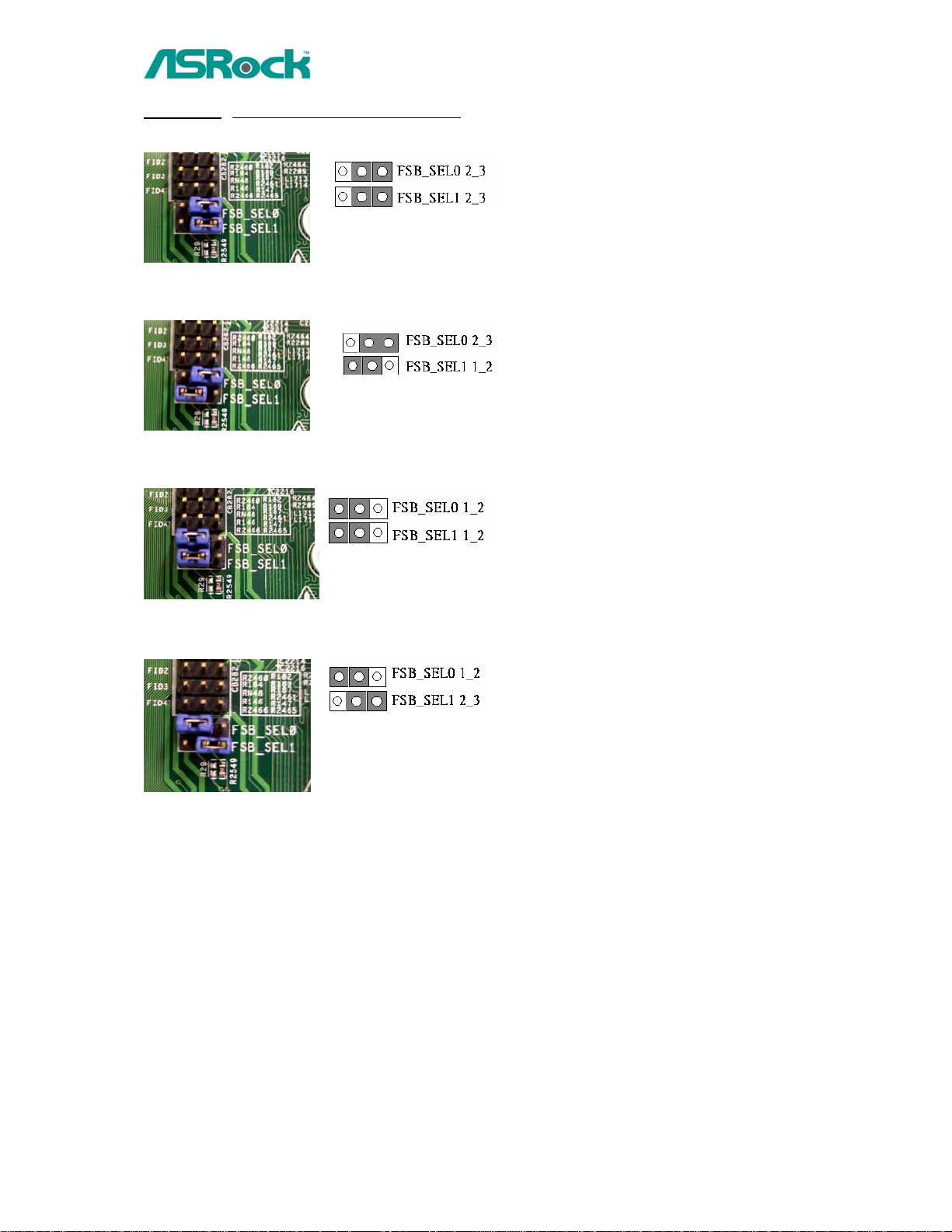

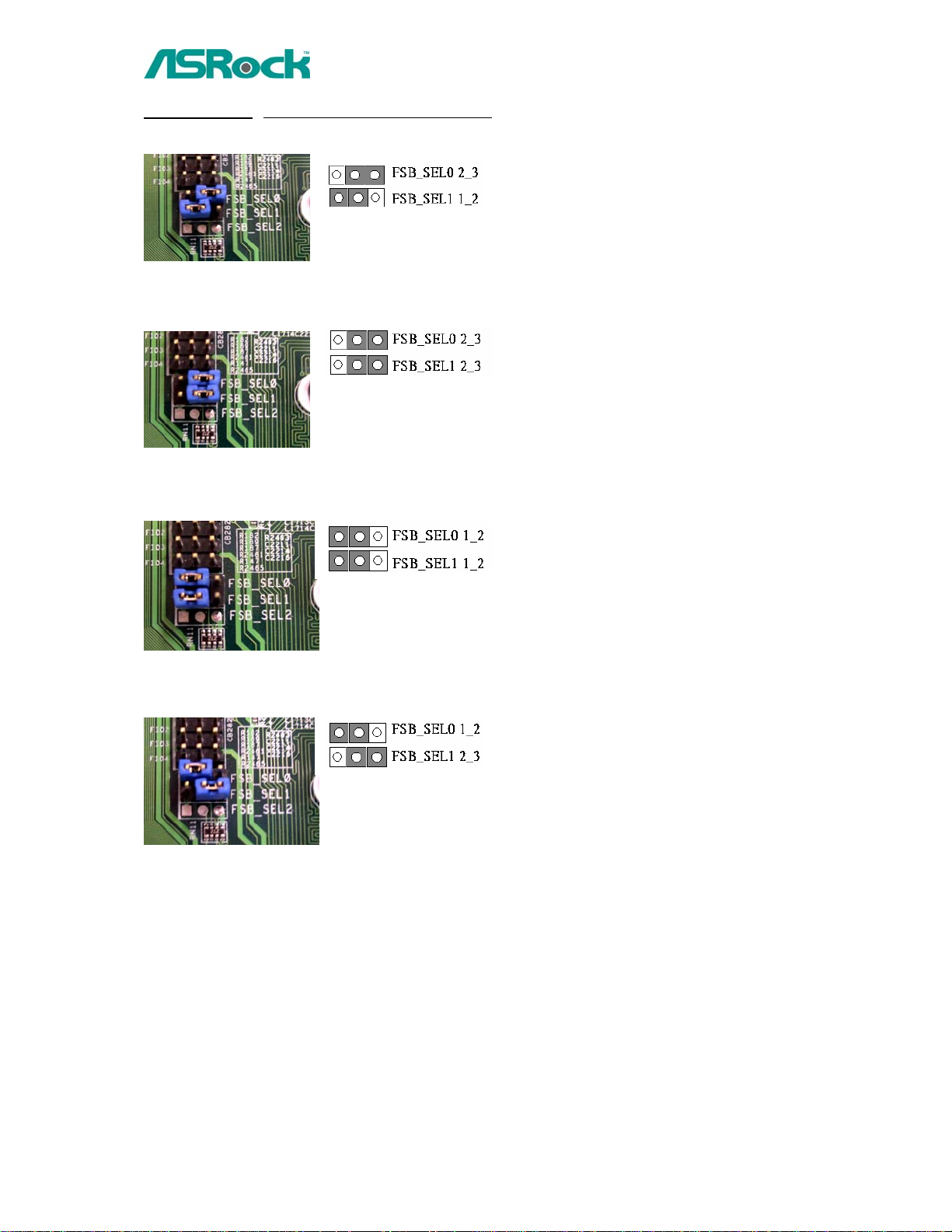

K7V88: Support FSB 200/266/333/400 (User Guide P.15)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 2_3
Jumper Setting 266MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 1_2
Jumper Setting 333MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL2 : 2_3
Jumper Setting 400MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL1 : 2_3
10 / 20
AMD K7 Main Board Jumper Setting Detail
K7Upgrade-880
: Support FSB 200/266/333/400 (User Guide P.16)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 2_3
Jumper Setting 266MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
FSB_SEL1 : 1_2
Jumper Setting 333MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL2 : 2_3
Jumper Setting 400MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
FSB_SEL1 : 2_3
11 / 20
AMD K7 Main Board Jumper Setting Detail
K7Upgrade-600
: Support FSB 200/266/333/400 (User Guide P.15)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
12 / 20
AMD K7 Main Board Jumper Setting Detail
K7VT4A PRO
: Support FSB 200/266/333/400 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 1_2 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL1 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL1 :2_3 and
FSB_SEL2 : 1_2
Jumper Setting 333:FSB_SEL0 : 2_3 FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and FSB_SEL2 : 1_2
Jumper Setting 400:FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL1 : 1_2
and FSB_SEL2 : 2_3
13 / 20
AMD K7 Main Board Jumper Setting Detail

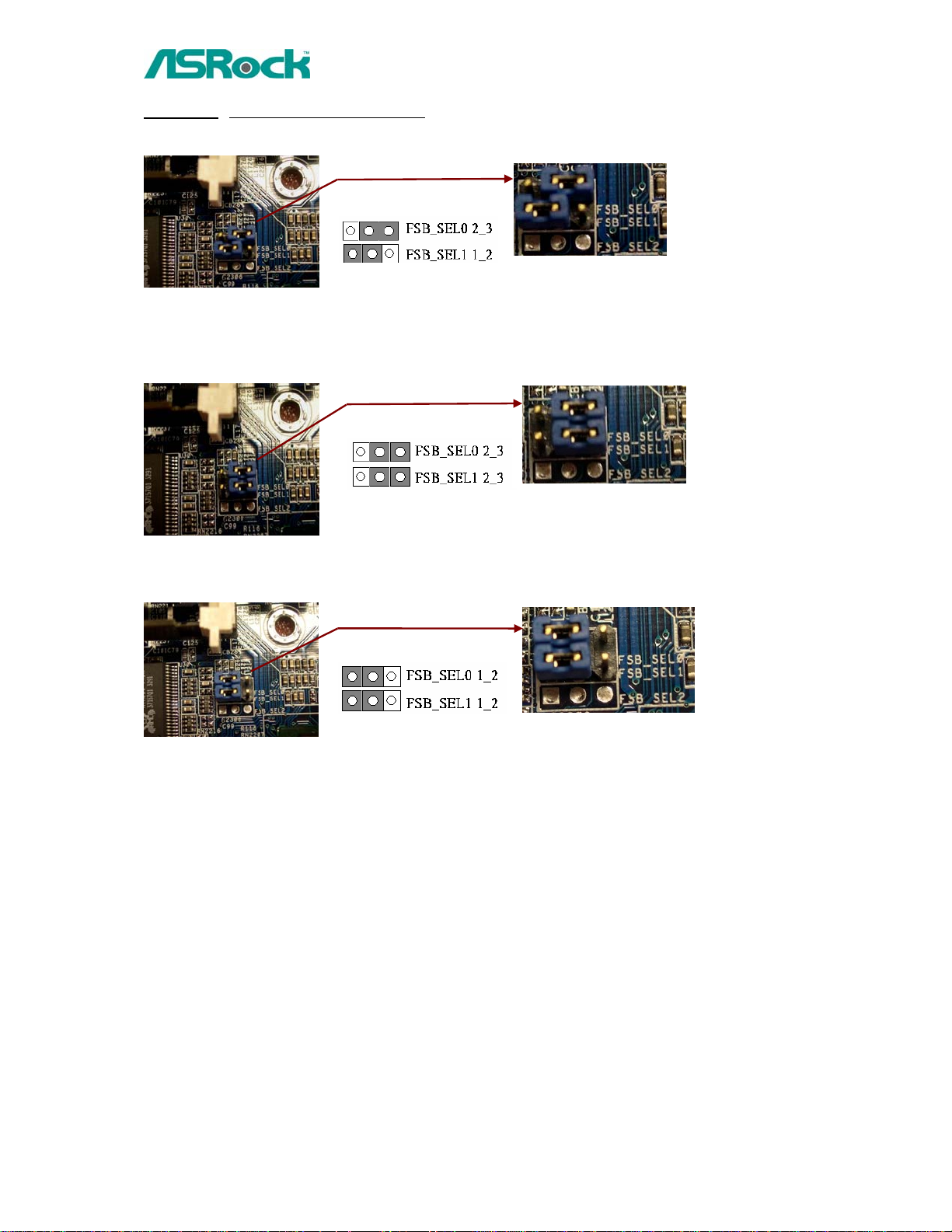

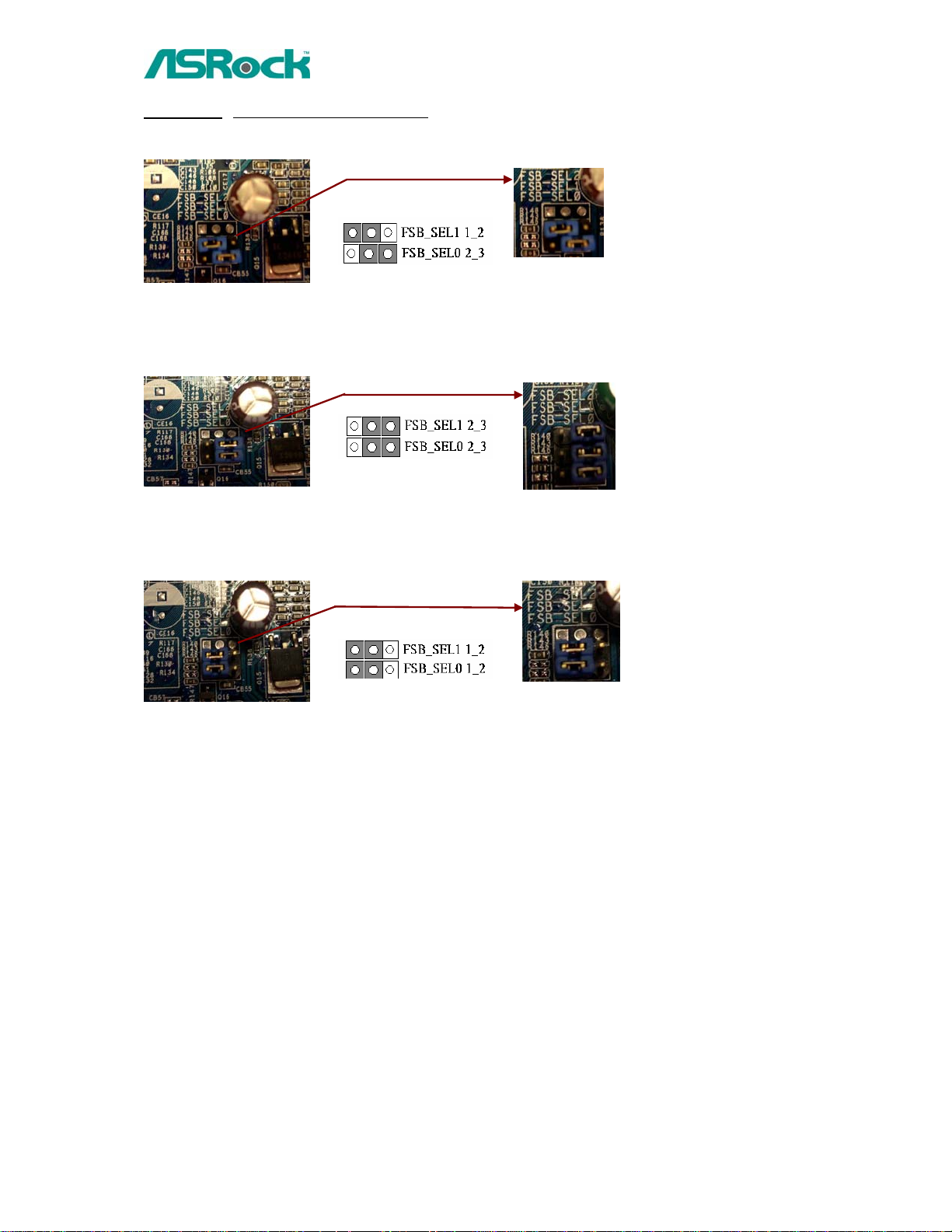

K7S8X
: Support FSB 200/266/33 3 (User Guide P.11)
Jumper Setting 100MHz (= FSB 200):FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 133MHz (= FSB 266):FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Jumper Setting 166MHz (= FSB 333):FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
K7S8X R3.0
: Support FSB 200/266/333 (Use r Guide P.11)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
14 / 20
AMD K7 Main Board Jumper Setting Detail
K7S8XE: Support FSB 200/266/333/400 (U ser Guide P.12)
Jumper Setting 100MHz (= FSB 200):FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 133MHz (= FSB 266):FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Jumper Setting 166MHz (= FSB 333):FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Jumper Setting 200MHz (= FSB 400):FSB_SEL0 : 1_2 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 2_3
15 / 20
AMD K7 Main Board Jumper Setting Detail
K7S8XE R3.0: Support FSB 200/266/333/400 (User Guide P.12)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Jumper Setting 400MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 2_3
16 / 20
AMD K7 Main Board Jumper Setting Detail
K7S8XE+: Support FSB 200/266/333/400 (User Gui de P.13)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
Jumper Setting 400MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 2_3
17 / 20
AMD K7 Main Board Jumper Setting Detail
746FX-M: Support FSB 200/266/333 (User Guide P.13)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
18 / 20
AMD K7 Main Board Jumper Setting Detail
K7S41
: Support FSB 200/266/333/400 (User Guide P.14)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3FSB_SEL2 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2 FSB_SLE2 : 2_3
Please move the jumper cap to FSB_SEL0 : 1_2 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 2_3
Jumper Setting 400MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2FSB_SEL2 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2 and
the others to FSB_SEL1 : 1_2 FSB_SEL2 : 1_2
19 / 20
AMD K7 Main Board Jumper Setting Detail
K7S41GX: Support FSB 200/266/333 (User Guide P.14)
Jumper Setting 200MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 1_2
Jumper Setting 266MHz:FSB_SEL0 : 2_3 FSB_SEL1 : 2_3
Please move the jumper cap to FSB_SEL0 : 2_3
and the other to FSB_SEL1 : 2_3
Jumper Setting 333MHz:FSB_SEL0 : 1_2 FSB_SEL1 : 1_2
Please move the jumper cap to FSB_SEL0 : 1_2
and the other to FSB_SEL1 : 1_2
20 / 20
