ASRock 4COREN73PV-HD720P User Manual V1.0 V3

4CoreN73PV-HD720p
User Manual
Version 1.0/3.0
Published July 2008
Copyright©2008 ASRock INC. All rights reserved.
11
1
11
Copyright Notice:Copyright Notice:
Copyright Notice:Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:
Disclaimer:Disclaimer:
Specifications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
22
2
22
ContentsContents
Contents
ContentsContents
1 Introduction1 Introduction
1 Introduction
1 Introduction1 Introduction
1.1 Package Contents .......................................................... 5
1.2 Specifications ................................................................. 6
1.3 Minimum Hardware Requirement Table for Windows
VistaTM Premium 2007 and Basic Logo.......................... 9
1.4 Minimum Hardware Requirement for 720p Blu-ray (BD) /
HD-DVD Playback Support ..........................................10
1.5 720p Blu-ray (BD) / HD-DVD Films Which Pass Our Lab
Test ................................................................................. 11
1.6 Motherboard Layout ........................................................ 12
1.7 ASRock 6CH DVI I/O ...................................................... 13
2 Installation2 Installation
2 Installation
2 Installation2 Installation
2.1 Screw Holes ................................................................... 14
2.2 Pre-installation Precautions ............................................ 14
2.3 CPU Installation .............................................................. 15
2.4 Installation of Heatsink and CPU fan ............................... 17
2.5 Installation of Memory Modules (DIMM) ......................... 18
2.6 Expansion Slots (PCI and PCI Express Slots) ..................... 19

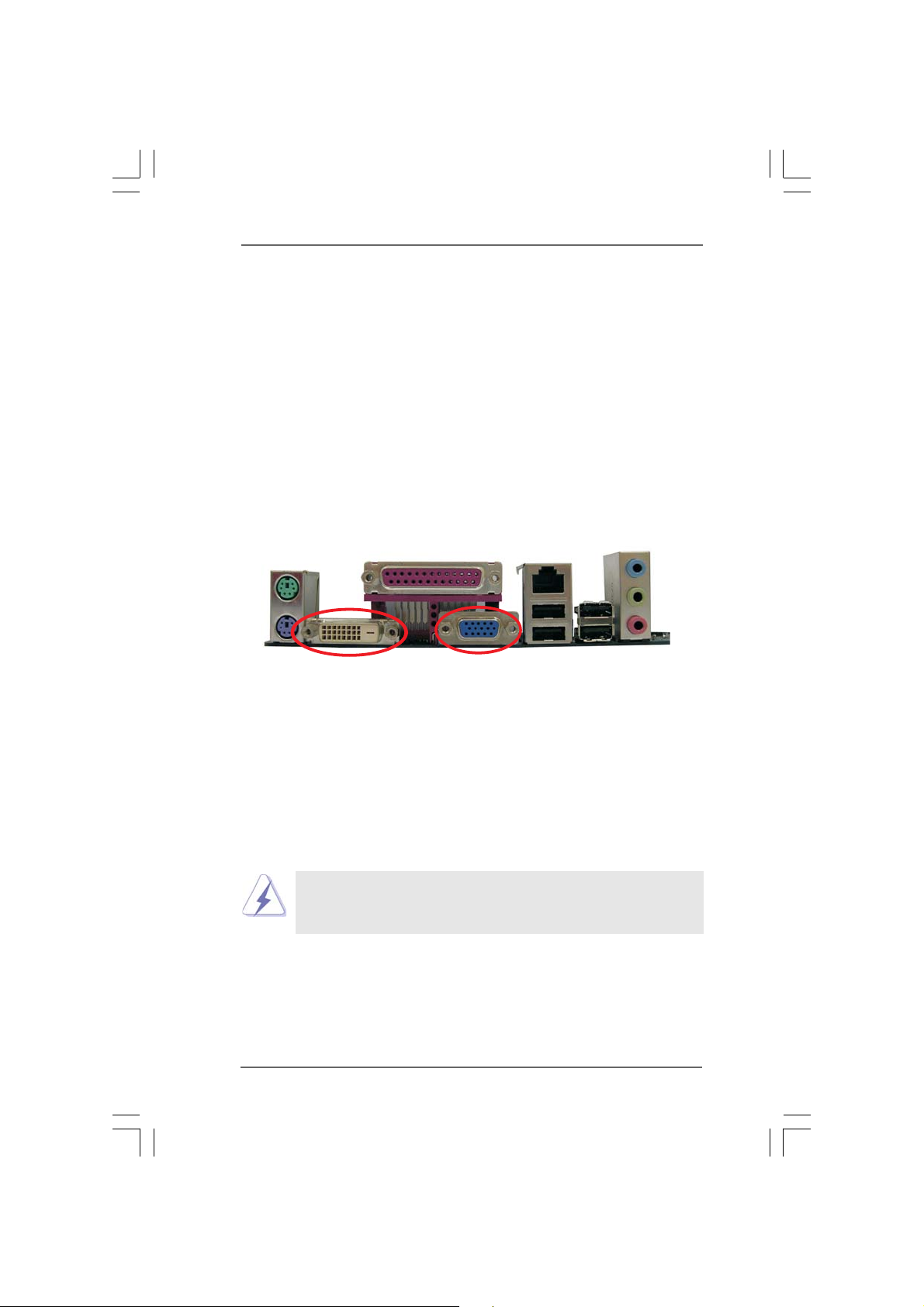

2.7 Dual Monitor and Surround Display Features ................ 20
2.8 Jumpers Setup ............................................................... 23
2.9 Onboard Headers and Connectors .................................. 24
2.10 SATAII Hard Disk Setup Guide ....................................... 28
2.11 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks
Installation .................................................................... 29
2.12 Hot Plug and Hot Swap Functions for SATA / SATAII
HDDs........................................................................ 29

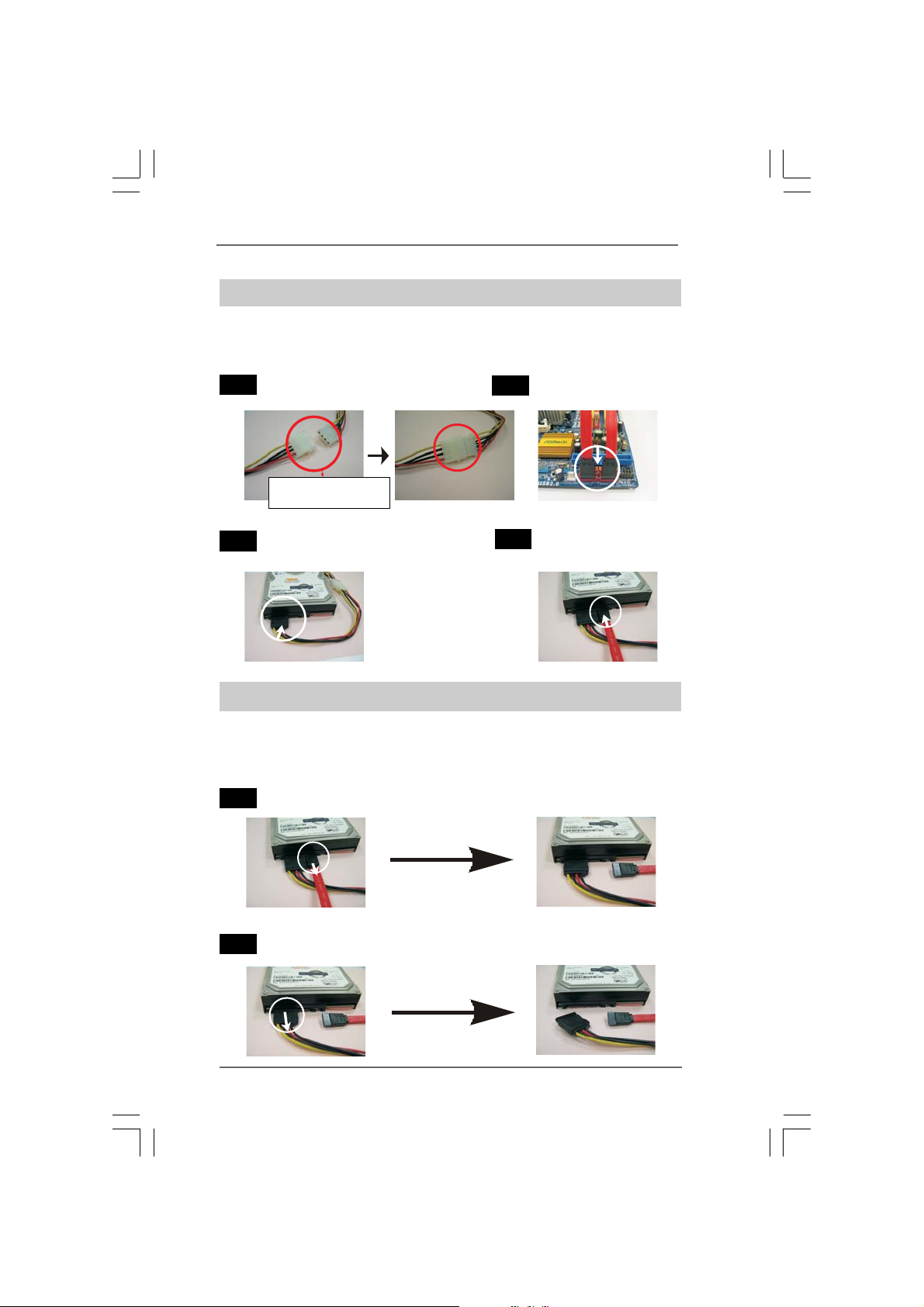

2.13 SATA / SATAII HDD Hot Plug Feature and Operation
Guide ....................................................................... 30
2.14 Driver Installation Guide .............................................. 32
2.15 Installing Windows® XP / XP 64-bit / VistaTM / Vista
Without RAID Functions ............................................. 32
2.15.1 Installing Windows® XP / XP 64-bit Without RAID
2.15.2 Installing Windows® VistaTM / Vista
2.16 Installing Windows® XP / XP 64-bit / VistaTM /
Vista
2.16.1 Installing Windows® XP / XP 64-bit With RAID
......................................................................................................
...................................................
......................................................................................................
..........................................................................................................
.....................................................
..........................................................................................................
Functions....................................................... 32
Functions....................................................... 33
TM
64-bit With RAID Functions............................... 34
Functions....................................................... 34
TM
64-bit Without RAID
®
TM
5 5
5
5 5
14 14
14
14 14
64-bit
33
3
33
2.16.2 Installing Windows® VistaTM / Vista
RAID Functions ............................................. 35
2.17 Untied Overclocking Technology .................................. 36
3 BIOS S3 BIOS S
3 BIOS S
3 BIOS S3 BIOS S
4 Software Support4 Software Support
4 Software Support
4 Software Support4 Software Support
ETUP UTILITYETUP UTILITY
ETUP UTILITY
ETUP UTILITYETUP UTILITY
3.1 Introduction ..................................................................... 37
3.1.1 BIOS Menu Bar ..................................................... 37
3.1.2 Navigation Keys .................................................... 38
3.2 Main Screen ................................................................... 38
3.3 Advanced Screen ............................................................ 38
3.3.1 CPU Configuration ................................................ 39
3.3.2 Chipset Configuration ............................................ 41
3.3.3 ACPI Configuration ................................................ 43
3.3.4 IDE Configuration .................................................. 44
3.3.5 PCIPnP Configuration ........................................... 46
3.3.6 Floppy Configuration ............................................. 47
3.3.7 Super IO Configuration .......................................... 47
3.3.8 USB Configuration ................................................ 49
3.4 Hardware Health Event Monitoring Screen ...................... 49
3.5 Boot Screen ................................................................... 50
3.5.1 Boot Settings Configuration ................................... 51
3.6 Security Screen .............................................................. 51
3.7 Exit Screen .................................................................... 52
4.1 Install Operating System ................................................ 53
4.2 Support CD Information ................................................... 53
4.2.1 Running Support CD ............................................. 53
4.2.2 Drivers Menu ......................................................... 53
4.2.3 Utilities Menu ........................................................ 53
4.2.4 Contact Information ............................................... 53
....................................................................................
..........................................
....................................................................................
....................................................................................
..........................................
....................................................................................
TM
64-bit With
37 37
37
37 37
53 53
53
53 53
44
4
44
Chapter 1 IntroductionChapter 1 Introduction
Chapter 1 Introduction
Chapter 1 IntroductionChapter 1 Introduction
Thank you for purchasing ASRock 4CoreN73PV-HD720p motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRock’s commitment to qual-
ity and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-
step guide to the hardware installation. Chapter 3 and 4 contain the configuration
guide to BIOS setup and information of the Support CD.
Because the motherboard specifications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest VGA cards and CPU support lists on ASRock website
as well. ASRock website
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.1 P1.1 P
ackack
1.1 P
1.1 P1.1 P
ASRock 4CoreN73PV-HD720p Motherboard
(Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm)
ASRock 4CoreN73PV-HD720p Quick Installation Guide ASRock 4CoreN73PV-HD720p Support CD
One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable
One Ribbon Cable for a 3.5-in Floppy Drive
One Serial ATA (SATA) Data Cable (Optional)
One Serial ATA (SATA) HDD Power Cable (Optional)
One ASRock 6CH DVI I/O Panel Shield
age Contentsage Contents
ack
age Contents
ackack
age Contentsage Contents
http://www.asrock.com
55
5
55
1.21.2
SpecificationsSpecifications
1.2
Specifications
1.21.2
SpecificationsSpecifications
Platform - Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm CPU - LGA 775 for Intel
®
CoreTM 2 Extreme / CoreTM 2 Quad / Core
2 Duo / Pentium® Dual Core / Celeron®, supporting Quad Core
Yorkfield and Dual Core Wolfdale processors
- FSB1333/1066/800/533MHz
- Supports Hyper-Threading Technology (see CAUTION 1)
- Supports Untied Overclocking Technology (see CAUTION 2)
- Supports EM64T CPU
Chipset - NVIDIA
®
GeForce 7100 / nForce 630i
Memory - 2 x DDR2 DIMM slots
- Support DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB (see CAUTION 3)
Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 4)
- ASRock U-COP (see CAUTION 5)
- Boot Failure Guard (B.F.G.)
Expansion Slot - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Graphics - Integrated NVIDIA
®
GeForce 7100
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB (see CAUTION 6)
- Dual VGA Output: support DVI-D and D-Sub ports by
independent display controllers
- Supports HDCP function with DVI-D port
- Supports 720p Blu-ray (BD) / HD-DVD playback (see CAUTION 7)
Audio - 5.1 CH Windows
®
VistaTM Premium Level HD Audio
(ALC662 Audio Codec)
LAN - 4CoreN73PV-HD720p R1.0:
Realtek Giga PHY RTL8211B, speed 10/100/1000 Mb/s
- 4CoreN73PV-HD720p R3.0:
Realtek PHY RTL8201CL, speed 10/100 Ethernet
- Supports Wake-On-LAN
Rear Panel I/O ASRock 6CH_DVI I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
TM
66
6
66
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in/Front Speaker/Microphone
Connector - 4 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and “Hot Plug” functions (see CAUTION 8)
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 9)
- 1 x WiFi/E header (see CAUTION 10)
BIOS Feature - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- AMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version) Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft
®
Windows® XP / XP 64-bit / Vista
TM
/ VistaTM 64-bit
compliant
Certifications - FCC, CE, WHQL
* For detailed product information, please visit our website: http://www.asrock.com
WAR NING
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using the third-
party overclocking tools. Overclocking may affect your system stability, or even
cause damage to the components and devices of your system. It should be done at
your own risk and expense. We are not responsible for possible damage caused by
overclocking.
77
7
77
CAUTION!
1. About the setting of “Hyper Threading Technology”, please check page
40.
2. This motherboard supports Untied Overclocking Technology. Please read
“Untied Overclocking Technology” on page 36 for details.
3. Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under Windows
and Windows
®
VistaTM. For Windows® XP 64-bit and Windows® Vista
64-bit with 64-bit CPU, there is no such limitation.
4. Although this motherboard offers stepless control, it is not recommended
to perform over-clocking. Frequencies other than the recommended CPU
bus frequencies may cause the instability of the system or damage the
CPU.
5. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal grease
between the CPU and the heatsink when you install the PC system.
6. The maximum shared memory size is defined by the chipset vendor
and is subject to change. Please check NVIDIA
®
website for the latest
information.
7. 720p Blu-ray (BD) / HD-DVD playback support on this motherboard
requires the proper hardware configuration. Please refer to page10 and 11
for the minimum hardware requirement and the passed 720p Blu-ray (BD)
/ HD-DVD films in our lab test.
8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII
Hard Disk Setup Guide” on page 28 to adjust your SATAII hard disk drive to
SATAII mode. You can also connect SATA hard disk to SATAII connector
directly.
9. Power Management for USB 2.0 works fine under Microsoft® Windows
VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.
10. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g or
WiFi-802.11n module, an easy-to-use wireless local area network
(WLAN) adapter. It allows you to create a wireless environment and
enjoy the convenience of wireless network connectivity. Please visit our
website for the availability of ASRock WiFi-802.11g or WiFi-802.11n
module. ASRock website http://www.asrock.com
®
XP
TM
®
88
8
88
1.31.3
Minimum Hardware RMinimum Hardware R
1.3
Minimum Hardware R
1.31.3
Minimum Hardware RMinimum Hardware R
® ®
®
WindowsWindows
Windows
WindowsWindows
® ®
VistaVista
Vista
VistaVista
TMTM
TM
TMTM
equirement Tequirement T
equirement T
equirement Tequirement T
Premium 2007 and Basic Logo Premium 2007 and Basic Logo
Premium 2007 and Basic Logo
Premium 2007 and Basic Logo Premium 2007 and Basic Logo
able forable for
able for
able forable for
For system integrators and users who purchase this motherboard and
plan to submit Windows® VistaTM Premium 2007 and Basic logo, please follow
below table for minimum hardware requirements.
CPU Celeron D 326
Memory 1GB system memory (Premium)
512MB Single Channel (Basic)
VGA DX9.0 with WDDM Driver
DVI with HDCP
* If you use onboard VGA with total system memory size 512MB and plan to
submit Windows
onboard VGA to 64MB. If you use onboard VGA with total system memory size
above 512MB and plan to submit Windows® VistaTM Premium or Basic logo,
please adjust the shared memory size of onboard VGA to 128MB or above.
* If you plan to use external graphics card on this motherboard, please refer to
Premium Discrete requirement at
* If the onboard VGA supports DVI, it must also support HDCP function to qualify for
Windows® VistaTM Premium 2007 logo.
* After June 1, 2007, all Windows
minimum hardware requirements in order to qualify for Windows
Premium 2007 logo.
®
VistaTM Basic logo, please adjust the shared memory size of
http://www.asrock.com
®
VistaTM systems are required to meet above
®
Vista
TM
99
9
99
1.41.4
Minimum Hardware Requirement for 720p Blu-rayMinimum Hardware Requirement for 720p Blu-ray
1.4
Minimum Hardware Requirement for 720p Blu-ray
1.41.4
Minimum Hardware Requirement for 720p Blu-rayMinimum Hardware Requirement for 720p Blu-ray
(BD) / HD(BD) / HD
(BD) / HD
(BD) / HD(BD) / HD
720p Blu-ray (BD) / HD-DVD playback support on this motherboard
requires the proper hardware configuration. Please refer to below table
for the minimum hardware requirement.
CPU Wolfdale E8500
VGA Onboard VGA with DVI-D port
Memory DDR2 800, 1GB x 2
Suggested OS Windows
* If you need to use CyberLink PowerDVD Ultra version 7.2 or 7.3, we suggest to
disable Hardware Acceleration function for better playback performance and
compatibility. After executing CyberLink PowerDVD Ultra program, please follow
below steps to disable Hardware Acceleration function.
A. Right-click the main page of CyberLink PowerDVD Ultra program.
B. Click “Configuration”.
C. Select “Video”.
D. Click “Enable hardware acceleration (nVidia PureVideo)” to remove the “V” mark
in this item.
E. Click “OK” to save the change.
-D-D
VD Playback SupporVD Playback Suppor
-D
VD Playback Suppor
-D-D
VD Playback SupporVD Playback Suppor
®
VistaTM or Windows® VistaTM 64
tt
t
tt
1010
10
1010
1.51.5
PP
1.5
1.51.5
assed 720p Blu-ray (BD) / HDassed 720p Blu-ray (BD) / HD
P
assed 720p Blu-ray (BD) / HD
PP
assed 720p Blu-ray (BD) / HDassed 720p Blu-ray (BD) / HD
LL
ab Tab T
estest
L
ab T
est
LL
ab Tab T
estest
DVD Film Name Format Producer
Type
Blu-ray SWORDFISH VC-1 WB
DVD UNDERWORLD EVOLUTION MPEG-2 SONY
CASINO ROYALE MPEG-4-AVC SONY
THE LAST STAND MPEG-4-AVC FOX
SPEED MPEG-4-AVC FOX
THE LEAGUE OF MPEG-4-AVC FOX
EXTRAORDINARY GENTLEMEN
HD- KING KONG VC-1 UNIVERSAL
DVD THE INTERPRETER MPEG-4-AVC UNIVERSAL
NEW ORLEANS CONCERT MPEG-2 WEA
ONE SIX RIGHT MPEG-2 TERWILLIGER
* MPEG-4-AVC mentioned above refers to the same format of H.264.
* Above passed films are tested under below configuration.
Items Configurations
CPU Wolfdale E8500
VGA Onboard VGA with DVI-D port
Memory DDR2 800, 1GB x 2
OS Windows® VistaTM or Windows® VistaTM 64
Playback Software CyberLink PowerDVD Ultra
DVD Player Pioneer BDR-101A / LG GBW-H10N (BD)
HP HD100 (HD-DVD)
-D-D
-D
-D-D
VD FVD F
VD F
VD FVD F
ilms in Ourilms in Our
ilms in Our
ilms in Ourilms in Our
1111
11
1111
1.6 Motherboard Layout1.6 Motherboard Layout
1.6 Motherboard Layout
1.6 Motherboard Layout1.6 Motherboard Layout
28
27
26 25
24
23 22
21
Keyboard
Mouse
PS2
PS2
DVI_CON1
PARALLEL PORT
VGA1
USB2.0 T:USB0 B:USB1
USB 2.0 T: U SB 2 B: USB3
Bottom:
MIC IN
Center:
FRONT
LAN PHY
1
PS2_USB_PWR1
Top: RJ-45
Top:
LINE IN
CD1
HD_AUDIO1
1
1
USB4_5
11
11
AUDIO CODEC
34567
2
20.3cm (8.0in)
ATX12V1
ATXPWR1
HDCP
DVI
USB6_7
EXPRESS
PCI
4Mb
PCIE1
BIOS
4CoreN73PV-HD720p
NVIDIA
GeForce 7100
/ nForce 630i
Chipset
PCIE2
SATAII
WIFI/E
1
RAID
PCI1
PCI2
FLOPPY1
IR1
1
RoHS
CPU_FAN1
IDE1
24.4cm (9.6in)
DDRII_2 (64bit, 240-pin module)
DDRII_1 (64bit, 240-pin module)
DDR2 800
Wolfdale
Yorkfield
FSB1333
Quad Core CPU
CLRCMOS1
1
CMOS
I/O
Battery
Super
COM1
CHA_FAN1
1
PLED PWRBTN
PANEL1
1
HDLED RESET
SPEAKER1
1
SATAII_1(PORT1.0)
8
9
10
11
SATAII_2(PORT1.1)
SATAII_3(PORT1.2)
SATAII_4(PORT1.3)
14
20
19
1718
1516
12
13
1 PS2_USB_PWR1 Jumper 16 Chassis Fan Connector (CHA_FAN1) 2 ATX Power Connector (ATXPWR1) 17 Chassis Speaker Header (SPEAKER 1) 3 ATX 12V Connector (ATX12V1) 18 Floppy Connector (FLOPPY1) 4 775-Pin CPU Socket 19 DeskExpress Hot Plug Detection Header 5 CPU Fan Connector (CPU_FAN1) (IR1) 6 North Bridge Controller 20 WiFi/E Header (WIFI/E) 7 2 x 240- p in DD R2 DI MM Sl o ts 21 Front Panel Audio Header (HD_AUDIO1)
(DDRII_1 and DDRII_2; Yellow) 22 PCI Slots (PCI1 - 2) 8 IDE1 Connector (IDE1, Blue) 23 Internal Audio Connector: CD1 (Black) 9 Serial Port Connector (COM1) 2 4 PCI Express x16 Slot (PCIE2) 10 Clear CMOS Jumper (CLRCMOS1) 2 5 SPI Flash Memory (4Mb) 11 System Panel Header (PANEL1) 26 PCI Express x1 Slot (PCIE1) 12 Fourth SATAII Connector (SATAII_4 (PORT1.3)) 27 USB 2.0 Header (USB6_7, Blue) 13 Third SATAII Connector (SATAII_3 (PORT1.2)) 28 USB 2.0 Header (USB4_5, Blue) 14 Secondary SATAII Connector (SATAII_2 (PORT1.1)) 15 Primary SATAII Connector (SATAII_1 (PORT1.0))
1212
12
1212
1.71.7
ASRock 6CH_DVI I/OASRock 6CH_DVI I/O
1.7
ASRock 6CH_DVI I/O
1.71.7
ASRock 6CH_DVI I/OASRock 6CH_DVI I/O
1
2
3
4
5
6
11
1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23) 2 Parallel Port 8 USB 2.0 Ports (USB01) 3 RJ-45 Port 9 VGA/D-Sub Port 4 Line In (Light Blue) 10 VGA/DVI-D Port 5 Front Speaker (Lime) 11 PS/2 Keyboard Port (Purple)
* 6 Microphone (Pink)
* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming. For Windows® XP:
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system. For Windows
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
10
®
VistaTM:
9
7
8
1313
13
1313
Chapter 2 InstallationChapter 2 Installation
Chapter 2 Installation
Chapter 2 InstallationChapter 2 Installation
4CoreN73PV-HD720p is a Micro ATX form factor (9.6" x 8.0", 24.4 x 20.3 cm) motherboard.
Before you install the motherboard, study the configuration of your chassis to ensure
that the motherboard fits into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes2.1 Screw Holes
2.1 Screw Holes
2.1 Screw Holes2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
2.2 Pre-installation Precautions
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use
a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.
1414
14
1414
2.3 CPU Installation2.3 CPU Installation
2.3 CPU Installation
2.3 CPU Installation2.3 CPU Installation
For the installation of Intel 775-LAND CPU,
please follow the steps below.
Before you insert the 775-LAND CPU into the socket, please check if
the CPU surface is unclean or if there is any bent pin on the socket.
Do not force to insert the CPU into the socket if above situation is
found. Otherwise, the CPU will be seriously damaged.
Step 1. Open the socket:
Step 1-1. Disengaging the lever by depressing
down and out on the hook to clear
retention tab.
Step 1-2. Rotate the load lever to fully open po-
sition at approximately 135 degrees.
Step 1-3. Rotate the load plate to fully open po-
sition at approximately 100 degrees.
775-Pin Socket Overview
Step 2. Insert the 775-LAND CPU:
Step 2-1. Hold the CPU by the edges where are
marked with black lines.
Step 2-2. Orient the CPU with IHS (Integrated
Heat Sink) up. Locate Pin1 and the two
orientation key notches.
Pin1
orientation
key notch
775-LAND CPU
orientation
key notch
1515
15
1515
Pin1
alignment key
black line
775-Pin Socket
black line
alignment key
For proper inserting, please ensure to match the two orientation key
notches of the CPU with the two alignment keys of the socket.
Step 2-3. Carefully place the CPU into the socket
by using a purely vertical motion.
Step 2-4. Verify that the CPU is within the socket
and properly mated to the orient keys.
Step 3. Remove PnP Cap (Pick and Place Cap):
Use your left hand index finger and thumb to
support the load plate edge, engage PnP cap
with right hand thumb and peel the cap from the
socket while pressing on center of PnP cap to
assist in removal.
1. It is recommended to use the cap tab to handle and avoid kicking
off the PnP cap.
2. This cap must be placed if returning the motherboard for after
service.
Step 4. Close the socket:
Step 4-1. Rotate the load plate onto the IHS.
Step 4-2. While pressing down lightly on load
plate, engage the load lever.
Step 4-3. Secure load lever with load plate tab
under retention tab of load lever.
1616
16
1616
2.42.4
Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
2.4
Installation of CPU Fan and Heatsink
2.42.4
Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
This motherboard is equipped with 775-Pin socket that supports Intel 775-LAND CPU.
Please adopt the type of heatsink and cooling fan compliant with Intel 775-LAND CPU
to dissipate heat. Before you installed the heatsink, you need to spray thermal
interface material between the CPU and the heatsink to improve heat dissipation.
Ensure that the CPU and the heatsink are securely fastened and in good contact with
each other. Then connect the CPU fan to the CPU_FAN connector (CPU_FAN1, see
page 12, No. 5).
For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink.
Below is an example to illustrate the installation of the heatsink for 775-LAND CPU.
Step 1. Apply thermal interface material onto center
of IHS on the socket surface.
Step 2. Place the heatsink onto the socket. Ensure
fan cables are oriented on side closest to the
CPU fan connector on the motherboard
(CPU_FAN1, see page 12, No. 5).
Step 3. Align fasteners with the motherboard
throughholes.
Step 4. Rotate the fastener clockwise, then press
down on fastener caps with thumb to install
and lock. Repeat with remaining fasteners.
If you press down the fasteners without rotating them clockwise,
the heatsink cannot be secured on the motherboard.
Step 5. Connect fan header with the CPU fan
connector on the motherboard.
Step 6. Secure excess cable with tie-wrap to ensure
cable does not interfere with fan operation or
contact other components.
1717
17
1717
2.5 Installation of Memor2.5 Installation of Memor
2.5 Installation of Memor
2.5 Installation of Memor2.5 Installation of Memor
This motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM slots.
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
y Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)
y Modules (DIMM)y Modules (DIMM)
notch
break
notch
break
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the
slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.
1818
18
1818
2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)
2.6 Expansion Slots (PCI and PCI Express Slots)
2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)
There are 2 PCI slots and 2 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
PCIE slots: PCIE1 (PCIE x1 slot) is used for PCI Express cards with x1 lane width
cards, such as Gigabit LAN card, SATA2 card, etc.
PCIE2 (PCIE x16 slot) is used for PCI Express cards with x16 lane
width graphics cards.
Installing an expansion cardInstalling an expansion card
Installing an expansion card
Installing an expansion cardInstalling an expansion card
Step 1. Before installing the expansion card, please make sure that the power supply
is switched off or the power cord is unplugged. Please read the documentation
of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws
for later use.
Step 3. Align the card connector with the slot and press firmly until the card is com-
pletely seated on the slot.
Step 4. Fasten the card to the chassis with screws.
1919
19
1919
2.7 Dual Monitor and Surround Display Features2.7 Dual Monitor and Surround Display Features
2.7 Dual Monitor and Surround Display Features
2.7 Dual Monitor and Surround Display Features2.7 Dual Monitor and Surround Display Features
Dual Monitor Feature
This motherboard supports dual monitor feature. With the internal dual VGA output
support (DVI-D and D-Sub), you can easily enjoy the benefits of dual monitor feature
without installing any add-on VGA card to this motherboard. This motherboard also
provides independent display controllers for DVI-D and D-Sub to support dual VGA
output so that DVI-D and D-sub can drive same or different display contents. To enable
dual monitor feature, please follow the below steps:
1. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel of this
motherboard. Connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O
panel of this motherboard.
VGA/DVI-D port
2. If you have installed onboard VGA driver from our support CD to your system
already, you can freely enjoy the benefits of dual monitor function provided by
VGA/DVI-D and VGA/D-Sub ports with this motherboard after your system
boots. If you haven’t installed onboard VGA driver yet, please install onboard
VGA driver from our support CD to your system and restart your computer.
Then you can start to use dual monitor function provided by VGA/DVI-D and
VGA/D-Sub ports with this motherboard.
When you playback HDCP-protected video from Blu-ray (BD) or
HD-DVD disc, the content will be displayed only in one of the two
monitors instead of both monitors.
VGA/D-Sub port
2020
20
2020
Surround Display Feature
This motherboard supports surround display upgrade. With the internal dual VGA
output support (DVI-D and D-Sub) and the external add-on PCI Express VGA card, you
can easily enjoy the benefits of surround display feature. Please refer to the following
steps to set up a surround display environment:
1. Install the NVIDIA® PCI Express VGA card to PCIE2 slot. Please refer to page 19
for proper expansion card installation procedures for details.
2. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel of this
motherboard. Connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O
panel of this motherboard.
3. Boot your system. Press <F2> to enter BIOS setup. Enter “Share Memory”
option to adjust the memory capability to [32MB], [64MB], [128MB] or [256MB] to
enable the function of VGA/D-sub. Please make sure that the value you select
is less than the total capability of the system memory. If you do not adjust the
BIOS setup, the default value of “Share Memory”, [Auto], will disable
VGA/D-Sub function when the add-on VGA card is inserted to this
motherboard.
4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to
your system. If you have installed the onboard VGA driver and the add-on PCI
Express VGA card driver already, there is no need to install them again.
5. Set up a multi-monitor display.
For Windows® XP / XP 64-bit OS:
Right click the desktop, choose “Properties”, and select the “Settings” tab so
that you can adjust the parameters of the multi-monitor according to the steps
below.
A. Click the “Identify” button to display a large number on each monitor.
B. Right-click the display icon in the Display Properties dialog that you wish
to be your primary monitor, and then select “Primary”. When you use
multiple monitors with your card, one monitor will always be Primary, and
all additional monitors will be designated as Secondary.
C. Select the display icon identified by the number 2.
D. Click “Extend my Windows desktop onto this monitor”.
E. Right-click the display icon and select “Attached”, if necessary.
F. Set the “Screen Resolution” and “Color Quality” as appropriate for the
second monitor. Click “Apply” or “OK” to apply these new values.
G. Repeat steps C through E for the diaplay icon identified by the number
one, two, three and four.
For Windows® VistaTM / VistaTM 64-bit OS:
Right click the desktop, choose “Personalize”, and select the “Display
Settings” tab so that you can adjust the parameters of the multi-monitor
according to the steps below.
2121
21
2121
A. Click the number ”2” icon.
B. Click the items “This is my main monitor” and “Extend the desktop onto
this monitor”.
C. Click “OK” to save your change.
D. Repeat steps A through C for the display icon identified by the number
three and four.
6. Use Surround Display. Click and drag the display icons to positions representing
the physical setup of your monitors that you would like to use. The placement of
display icons determines how you move items from one monitor to another.
HDCP Function with D VI-D Port
HDCP function is supported with DVI-D port on this motherboard. To
use HDCP function with this motherboard, you need to adopt the
monitor that supports HDCP function as well. Therefore, you can
enjoy the superior display quality with high-definition HDCP encryption
contents. Please refer to below instruction for more details about HDCP
function.
What is HDCP?
HDCP stands for High-Bandwidth Digital Content Protection, a
specification developed by Intel® for protecting digital entertainment
content that uses the DVI interface. HDCP is a copy protection
scheme to eliminate the possibility of intercepting digital data
midstream between the video source, or transmitter - such as a
computer, DVD player or set-top box - and the digital display, or
receiver - such as a monitor, television or projector. In other words,
HDCP specification is designed to protect the integrity of content as it
is being transmitted.
Products compatible with the HDCP scheme such as DVD players,
satellite and cable HDTV set-top-boxes, as well as few entertain-
ment PCs requires a secure connection to a compliant display. Due
to the increase in manufacturers employing HDCP in their equipment,
it is highly recommended that the HDTV or LCD monitor you purchase
is compatible.
2222
22
2222

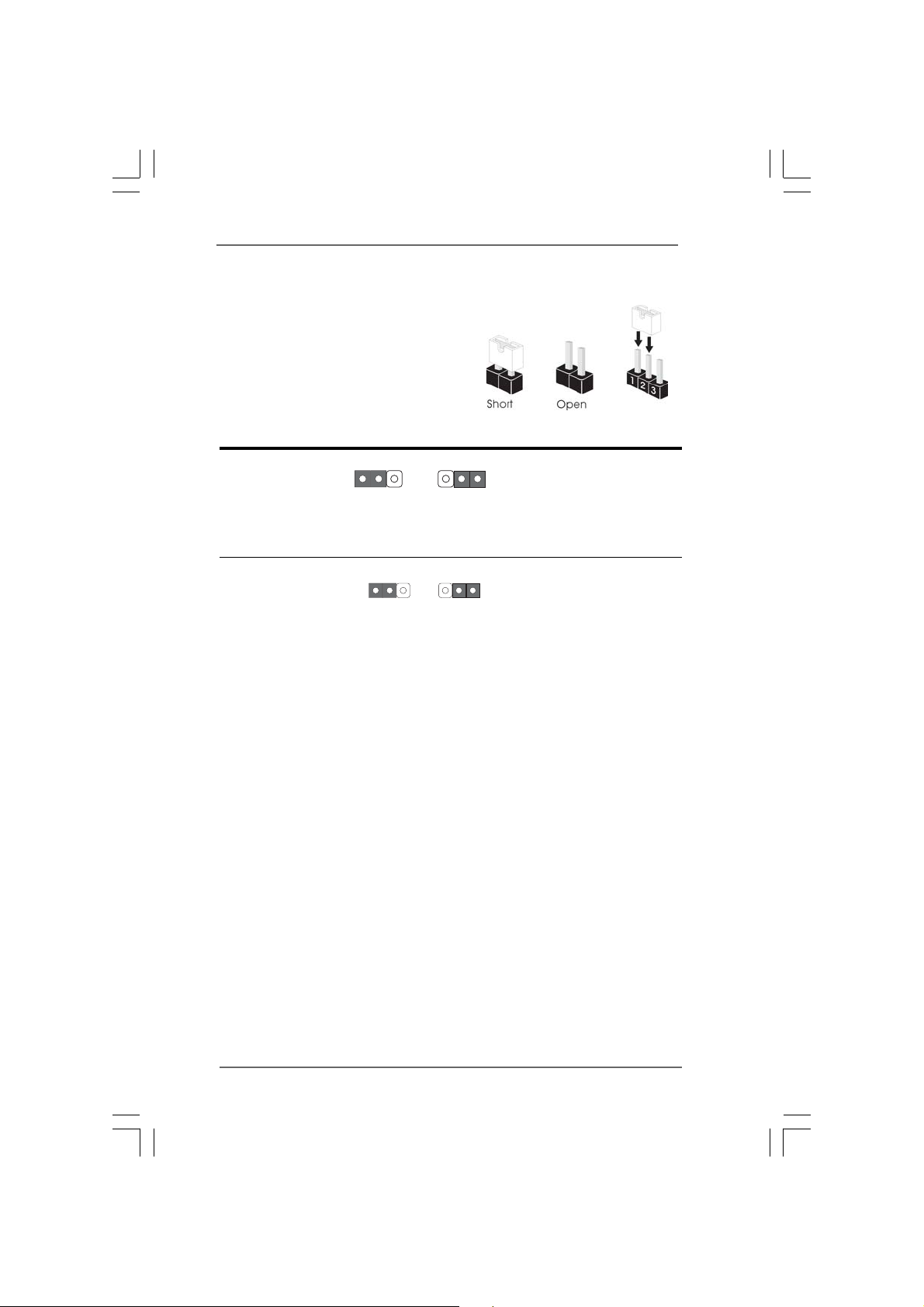

2.8 Jumpers Setup2.8 Jumpers Setup
2.8 Jumpers Setup
2.8 Jumpers Setup2.8 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap is
placed on pins, the jumper is “Open”. The il-
lustration shows a 3-pin jumper whose pin1
and pin2 are “Short” when jumper cap is
placed on these 2 pins.
Jumper Setting Description
PS2_USB_PWR1 Short pin2, pin3 to enable
(see p.12 No. 1) +5VSB (standby) for PS/2
1_2
+5V
2_3
+5VSB
or USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power
supply.
Clear CMOS Jumper
(CLRCMOS1)
(see p.12 No. 10)
1_2
Default
2_3
Clear CMOS
Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord from the power supply.
After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1
for 5 seconds. However, please do not clear the CMOS right after you update the
BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you
must boot up the system first, and then shut it down before you do the clear-
CMOS action.
2323
23
2323

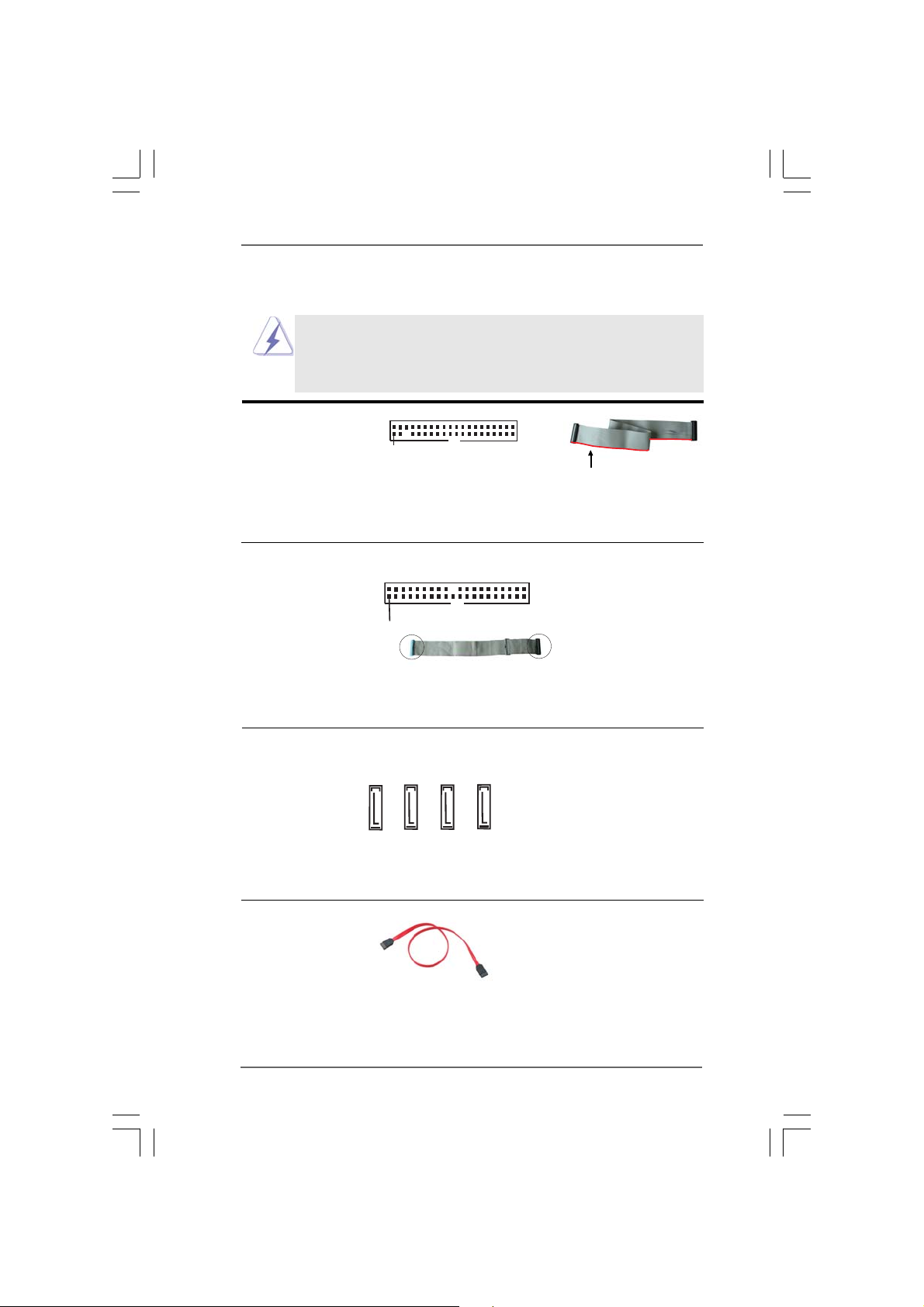

2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
FDD connector
(33-pin FLOPPY1)
(see p.12 No. 18)
Pin1
FLOPPY1
the red-striped side to Pin1
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.12 No. 8)
PIN1
connect the blue end
to the motherboard
IDE1
connect the black end
to the IDE devices
80-conductor ATA 66/100133 cable
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These four Serial ATAII (SATAII)
(SATAII_1 (PORT1.0): connectors support SATA data
see p.12, No. 15) cables for internal storage
(SATAII_2 (PORT1.1): devices. The current SATAII
see p.12, No. 14) interface allows up to 3.0 Gb/s
(SATAII_3 (PORT1.2): data transfer rate.
see p.12, No. 13)
(SATAII_4 (PORT1.3):
see p.12, No. 12)
SATAII_1 (PORT1.0)
SATAII_2 (PORT1.1)
SATAII_3 (PORT1.2)
SATAII_4 (PORT1.3)
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on this motherboard.
2424
24
2424

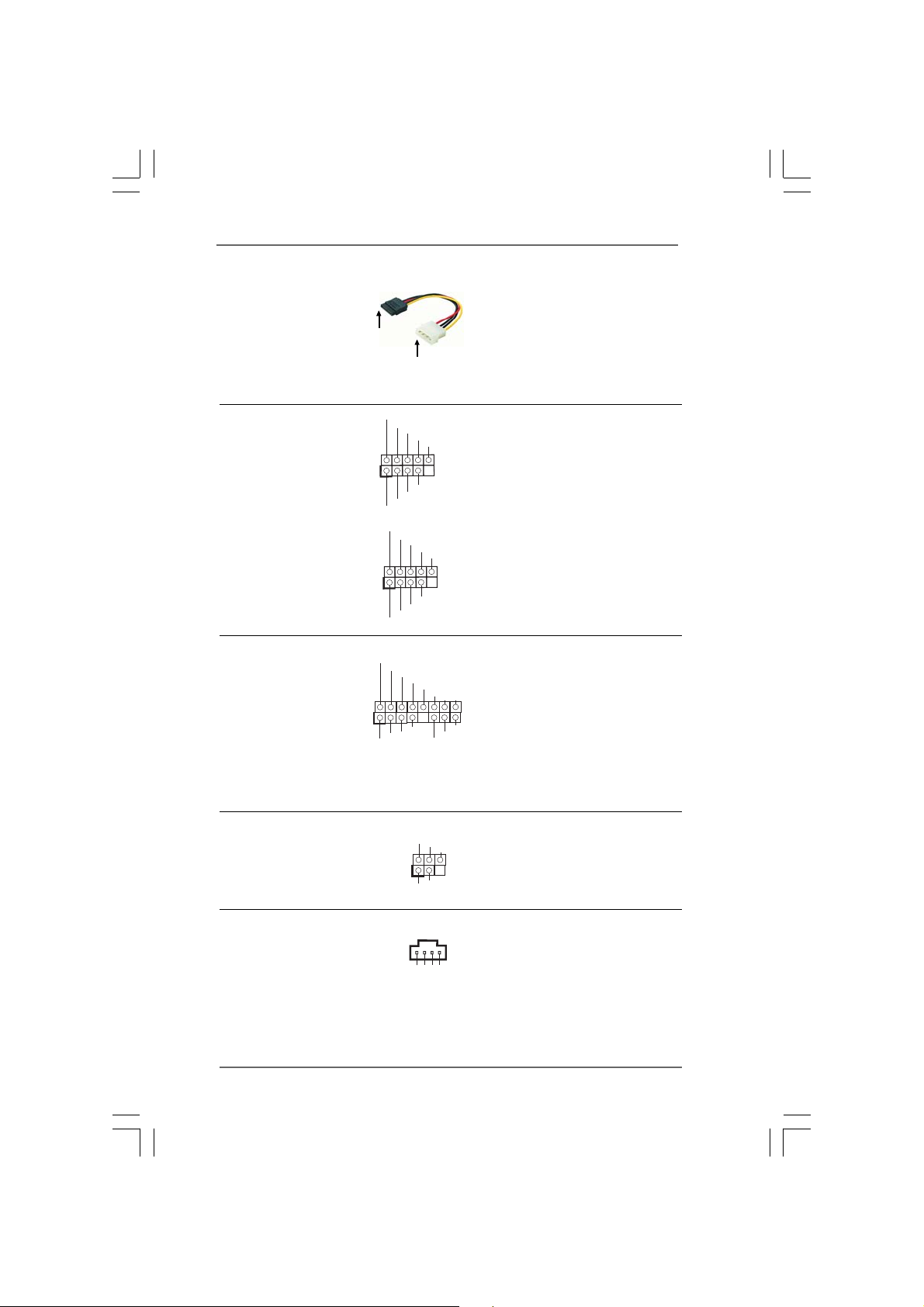

Serial AT A (SATA) Please conne ct the black end of
CD-L
GND
GND
CD-R
Power Cable SAT A power ca ble to the power
(Optional) conne ctor on ea ch drive. Then
USB 2.0 Headers Besides four default USB 2.0
(9-pin US6_7) ports on the I/O panel, there are (see p.12 No. 27) two USB 2.0 headers on this
(9-pin USB4_5) (see p.12 No. 28)
connect to the SAT A HDD
power connector
1
1
USB_PWR
P-7
P-6
USB_PWR
USB_PW R
P-5
P-4
USB_PW R
P+7
P+6
connect to the power supply
GND
DUMMY
GND
P+5
GND
DUMMY
GND
P+4
connect the white end of SA TA power cable to the power connector of the power supply.
motherboard. Each USB 2.0 header can support two USB
2.0 ports.
WiFi/E Header This header supports WiFi+AP
(15-pin WIFI/E) function with ASRock (see p.12 No. 20) WiFi-802.11g or WiFi-802.11n
USB+5V_2
1
USB+5V_1
TXN
TXP
GND2
PCIE_RST#
+3SVB
RXP
RXN
PexCLK
GND1
PexCLK#
D0+
D0-
PME#
module, an easy-to-use wireless local area network (WLAN) adapter. It allows you to create a wireless environment a nd enjoy the convenience of wireless network connectivity.
If you don’t plan to use WiFi+AP functin on this motherboard, this header can be
used as a 4-Pin USB 2.0 header to support one USB 2.0 port. To connect the
4-Pin USB device cable to this header, please refer to
this picture for proper installation.
DeskExpress Hot Plug Detection This header supports the Hot Header Plug detection function for
(5-pin IR1) ASRock DeskExpress. (see p.12 No. 19)
IRTX
+5VSB
Hotplug#
1
GND
IRRX
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input (CD1: see p.12 No. 23) from sound sources such a s
CD1
a CD-ROM, D V D-ROM, TV tuner card, or MPEG card.
2525
25
2525
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.12 No. 21) convenient connection and
1
GND
PRE SENCE#
MIC2_R
MIC2_L
MIC_R ET
J_SENSE
OUT 2_R
OUT_R ET
control of audio devices.
OUT 2_L
1. High Definition Audio supports Jack Sensing, but the panel wire on the
chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select
Chipset Configuration. Set the Front Panel Control option from
[Auto] to [Enabled].
F. Enter Windows system. Click the icon on the lower right hand
taskbar to enter Realtek HD Audio Manager.
For Windows
®
XP / XP 64-bit OS:
Click “Audio I/O”, select “Connector Settings” , choose
“Disable front panel jack detection”, and save the change by
clicking “OK”.
®
For Windows
VistaTM / VistaTM 64-bit OS:
Click the right-top “Folder” icon , choose “Disable front
panel jack detection”, and save the change by clicking “OK”.
1
1
PLED+
PLED-
HDLED -
HDLED +
DUMMY
+5V
PWRBTN#
GND
RES ET#
GND
SPEAKER
DUMMY
2626
26
2626
DUMMY
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.12 No. 11) functions.
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.12 No. 17)
Chassis Fan Connector Please connect a chassis fan
(3-pin CHA_FAN1) cable to this connector and
(see p.12 No. 16) match the black wire to the
GND
+12V
CHA_FAN_SPEED
ground pin.
CPU Fan Connector Please connect a CPU fan cable
(4-pin CPU_FAN1) to this connector and match
(see p.12 No. 5) the black wire to the ground pin.
4 3 2 1
+12V
CPU _FAN_SPEED
FAN_S PEED_CONTR OL
GND
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
24
ATX Power Connector Please connect an ATX power
12
(24-pin ATXPWR1) supply to this connector.
(see p.12 No. 2)
13
1
Though this motherboard provides 24-pin ATX power connector,
Pin 1-3 Connected
3-Pin Fan Installation
12
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
20-Pin ATX Power Supply Installation
1
ATX 12V Connector Please connect an ATX 12V
(4-pin ATX12V1) power supply to this connector.
(see p.12 No. 3)
24
13
Serial port Header This COM1 header
(9-pin COM1) supports a serial port module.
(see p.12 No. 9)
1
RRXD1
DDTR#1
TTXD1
DDCD#1
DDSR#1
CCTS#1
RRTS#1
GND
2727
27
2727
RRI#1
2.10 SA2.10 SA
2.10 SA
2.10 SA2.10 SA

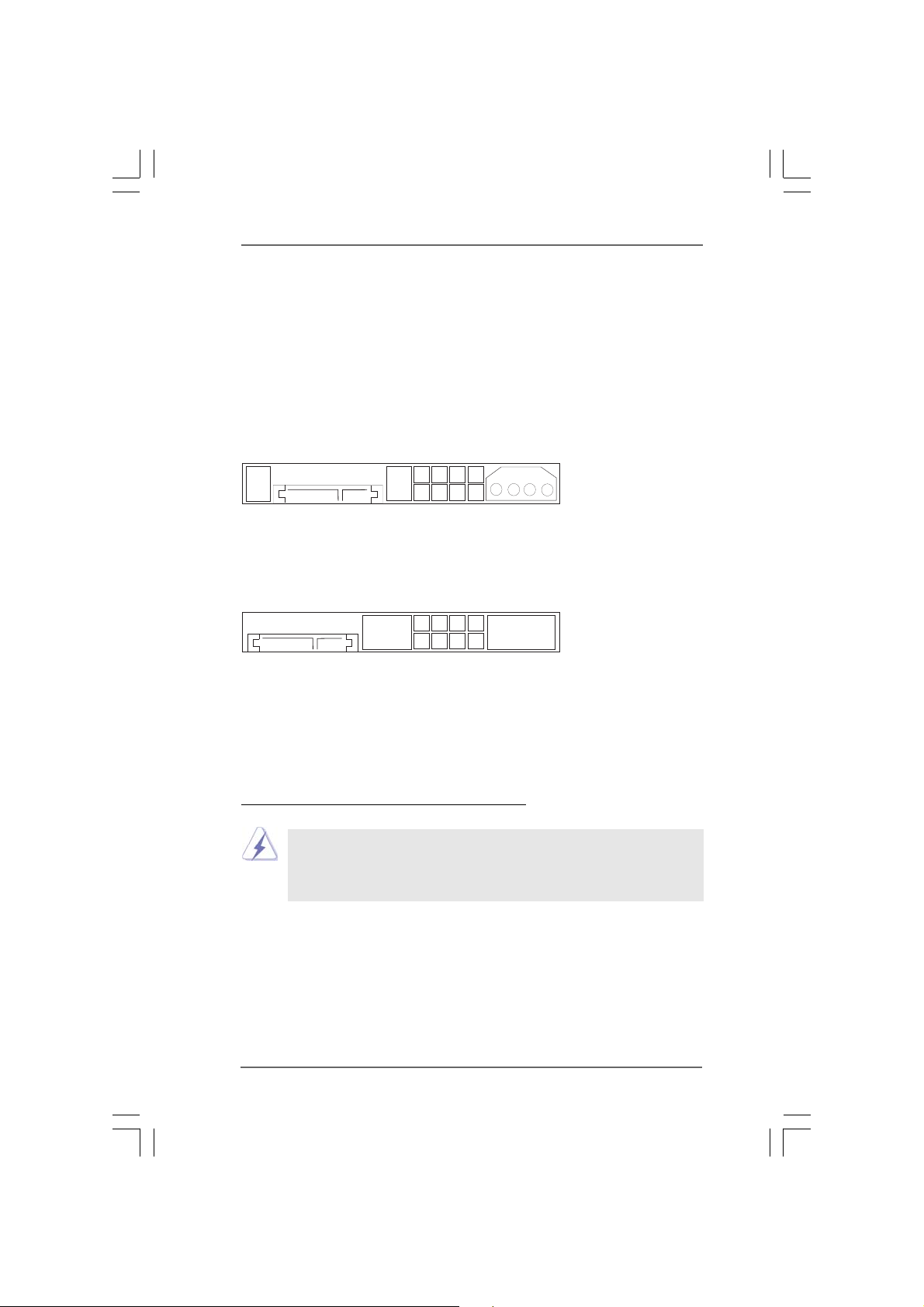

Before installing SATAII hard disk to your computer, please carefully read below
SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be
at SATAII mode, which operate with the best performance. In order to enable SATAII
function, please follow the below instruction with different vendors to correctly adjust
your SATAII hard disk to SATAII mode in advance; otherwise, your SATAII hard disk
may fail to run at SATAII mode.
Western Digital
If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled.
On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the jumpers
from pin 5 and pin 6.
SAMSUNG
If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled.
On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the
jumpers from pin 3 and pin 4.
TT
AII Hard Disk Setup GuideAII Hard Disk Setup Guide
T
AII Hard Disk Setup Guide
TT
AII Hard Disk Setup GuideAII Hard Disk Setup Guide
1357
2468
1357
2468
HIT ACHI
Please use the Feature Tool, a DOS-bootable tool, for changing various ATA
features. Please visit HITACHI’s website for details:
http://www.hitachigst.com/hdd/support/download.htm
The above examples are just for your reference. For different SATAII hard
disk products of different vendors, the jumper pin setting methods may not
be the same. Please visit the vendors’ website for the updates.
2828
28
2828
2.112.11
2.11
2.112.11
This motherboard adopts NVIDIA® GeForce 7100 / nForce 630i chipset that supports
Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and RAID functions. You may
install SATA / SATAII hard disks on this motherboard for internal storage devices. This
section will guide you to install the SATA / SATAII hard disks.
STEP 1: Install the SATA / SATAII hard disks into the drive bays of your chassis.
STEP 2: Connect the SATA power cable to the SATA / SATAII hard disk.
STEP 3: Connect one end of the SATA data cable to the motherboard’s SATAII
STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard
2.122.12
2.12
2.122.12
This motherboard supports Hot Plug and Hot Swap functions for SATA / SATAII
Devices in RAID / AHCI mode. NVIDIA® GeForce 7100 / nForce 630i chipset provides
hardware support for Advanced Host controller Interface (AHCI), a new operation
interface for SATA host controllers developed thru a joint industry effort. AHCI also
provides usability enhancements such as Hot Plug.
Serial ASerial A
Serial A
Serial ASerial A
InstallationInstallation
Installation
InstallationInstallation
connector.
disk.
Hot Plug and Hot Swap FHot Plug and Hot Swap F
Hot Plug and Hot Swap F
Hot Plug and Hot Swap FHot Plug and Hot Swap F
HDDsHDDs
HDDs
HDDsHDDs
TT
A (SAA (SA
TT
T
A (SA
TT
A (SAA (SA
NOTE What is Hot Plug Function?
If the SATA / SATAII HDDs are NOT set for RAID configuration, it is
called “Hot Plug” for the action to insert and remove the SATA / SATAII
HDDs while the system is still power-on and in working condition.
However, please note that it cannot perform Hot Plug if the OS has
been installed into the SATA / SATAII HDD.
A) / Serial AA) / Serial A
T
A) / Serial A
TT
A) / Serial AA) / Serial A
TT
AII (SAAII (SA
T
AII (SA
TT
AII (SAAII (SA
unctions for SAunctions for SA
unctions for SA
unctions for SAunctions for SA
TT
AII) Hard DisksAII) Hard Disks
T
AII) Hard Disks
TT
AII) Hard DisksAII) Hard Disks
TT
A / SAA / SA
T
A / SA
TT
A / SAA / SA
TT
T
TT
AIIAII
AII
AIIAII
What is Hot Swap Function?
If SATA / SATAII HDDs are built as RAID 1 or RAID 5 then it is called
“Hot Swap” for the action to insert and remove the SATA / SATAII
HDDs while the system is still power-on and in working condition.
2929
29
2929
2.13 SA2.13 SA
2.13 SA
2.13 SA2.13 SA
This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID / AHCI
mode. Please read below operation guide of SATA / SATAII HDD Hot Plug feature
carefully. Before you process the SATA / SATAII HDD Hot Plug, please check below
cable accessories from the motherboard gift box pack.
A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
A. SATA data cable (Red) B. SATA power cable
TT
A / SAA / SA
T
A / SA
TT
A / SAA / SA
GuideGuide
Guide
GuideGuide
TT
AII HDD Hot Plug FAII HDD Hot Plug F
T
AII HDD Hot Plug F
TT
AII HDD Hot Plug FAII HDD Hot Plug F
eature and Operationeature and Operation
eature and Operation
eature and Operationeature and Operation
SATA 7-pin
connector
The SATA 15-pin power
connector (Black) connect
to SATA / SATAII HDD
1x4-pin conventional
power connector (White)
connect to power supply
Caution
1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug
cannot be processed.
2. Even some SATA / SATAII HDDs provide both SATA 15-pin power connector
and IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin
conventional power connector interface is definitely not able to support Hot
Plug and will cause the HDD damage and data loss.
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which supports
SATA / SATAII HDD Hot Plug.
* The SATA / SATAII Hot Plug feature might not be supported by the chipset
because of its limitation, the SATA / SATAII Hot Plug support information of our
motherboard is indicated in the product spec on our website:
www.asrock.com
2. Make sure your SATA / SATAII HDD can support Hot Plug function from your
dealer or HDD user manual. The SATA / SATAII HDD, which cannot support Hot
Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATAII driver is installed into system properly. The
latest SATA / SATAII driver is available on our support website:
www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.
3030
30
3030
How to Hot Plug a SA TA / SATAII HDD:
Points of attention, before you process the Hot Plug:
Please do follow below instruction sequence to process the Hot Plug, improper
procedure will cause the SATA / SATAII HDD damage and data loss.
Step 1
Please connect SATA power cable 1x4-pin end
(White) to the power supply 1x4-pin cable.
SATA power cable 1x4-pin
power connector (White)
Step 3
Connect SATA 15-pin power cable connector
(Black) end to SATA / SATAII HDD.
Step 2
Connect SATA data cable to
the motherboard’s SATAII connector.
Step 4
Connect SATA data cable to
the SATA / SATAII HDD.
How to Hot Unplug a SATA / SATAII HDD:
Points of attention, before you process the Hot Unplug:
Please do follow below instruction sequence to process the Hot Unplug, improper
procedure will cause the SATA / SATAII HDD damage and data loss.
Step 1
Unplug SATA data cable from SATA / SATAII HDD side.
Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII HDD side.
Step 2
3131
31
3131
2.142.14
Driver Installation GuideDriver Installation Guide
2.14
Driver Installation Guide
2.142.14
Driver Installation GuideDriver Installation Guide
To install the drivers to your system, please insert the support CD to your optical drive
first. Then, the drivers compatible to your system can be auto-detected and listed on
the support CD driver page. Please follow the order from up to bottom side to install
those required drivers. Therefore, the drivers you install can work properly.
2.152.15
Installing WindowsInstalling Windows
2.15
Installing Windows
2.152.15
Installing WindowsInstalling Windows
64-bit W64-bit W
64-bit W
64-bit W64-bit W
If you want to install Windows® XP, Windows® XP 64-bit, Windows® VistaTM or
Windows® VistaTM 64-bit on your SATA / SATAII HDDs without RAID functions, please
follow below procedures according to the OS you install.
2.15.1 Installing Windows2.15.1 Installing Windows
2.15.1 Installing Windows
2.15.1 Installing Windows2.15.1 Installing Windows
F F
F
F F
If you want to install Windows® XP / Windows® XP 64-bit on your SATA / SATAII HDDs
without RAID functions, please follow below steps.
Using SATA / SATAII HDDs with NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [AHCI].
STEP 2: Make a SATA / SATAII driver diskette.
A. Insert the ASRock Support CD into your optical drive to boot your system.
(There are two ASRock Support CD in the motherboard gift box pack, please
choose the one for Windows® XP / XP 64-bit.)
B. During POST at the beginning of system boot-up, press <F11> key, and
then a window for boot devices selection appears. Please select CD-ROM
as the boot device.
C. When you see the message on the screen, “Generate Serial ATA driver
diskette [YN]?”, press <Y>.
D. Then you will see these messages,
Plea se choose:
1. Generate AHCI Driver diskette for WindowsXP
2. Generate RAID Driver diskette for WindowsXP
3. Generate AHCI Driver diskette for WindowsXP64
4. Generate RAID Driver diskette for WindowsXP64
5. Exit Reboot system now Press any key to continue
ithout RAID Fithout RAID F
ithout RAID F
ithout RAID Fithout RAID F
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
XP / XP 64-bit / Vista
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID
XP / XP 64-bit Without RAID
XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID
TM TM
TM
TM TM
/ Vista/ Vista
/ Vista
/ Vista/ Vista
TMTM
TM
TMTM
3232
32
3232
Please insert a floppy diskette into the floppy drive. Select your required
item on the list according to the mode you choose and the OS you install.
Then press any key.
E. The system will start to format the floppy diskette and copy SATA / SATAII
drivers into the floppy diskette.
STEP 3: Install Windows® XP / XP 64-bit OS on your system.
After making a SATA / SATAII driver diskette, you can start to install Windows® XP / XP
64-bit on your system. At the beginning of Windows® setup, press F6 to install a third-
party AHCI driver. When prompted, insert the SATA / SATAII driver diskette containing
the NVIDIA® AHCI driver. After reading the floppy disk, the driver will be presented. Select
the driver to install according to the OS you install. The
drivers are as below:
A. NVIDIA nForce Storage Controller (required) Windows XP B. NVIDIA nForce Storage Controller (required) Windows XP64
Please select A for Windows® XP in AHCI mode. Please select B for Windows® XP 64-bit
in AHCI mode.
Using SATA / SATAII HDDs without NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [non-RAID].
STEP 2: Install Windows® XP / XP 64-bit OS on your system.
Vista Vista
Vista
Vista Vista
3333
33
3333
TMTM
TM
TMTM
/ Vista / Vista
/ Vista
/ Vista / Vista
2.15.2 Installing Windows2.15.2 Installing Windows
2.15.2 Installing Windows
2.15.2 Installing Windows2.15.2 Installing Windows
W W
ithout RAID Fithout RAID F
W
ithout RAID F
W W
ithout RAID Fithout RAID F
If you want to install Windows® VistaTM / Windows® VistaTM 64-bit on your SATA /
SATAII HDDs without RAID functions, please follow below steps.
Using SATA / SATAII HDDs with NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [AHCI].
STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.
Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive
to boot your system, and follow the instruction to install Windows® VistaTM / Windows
VistaTM 64-bit OS on your system. When you see “Where do you want to install Windows?
” page, please insert the ASRock Support CD into your optical drive, and click the “Load
Driver” button on the left on the bottom to load the NVIDIA® AHCI drivers. NVIDIA® AHCI
drivers are in the following path in our Support CD:
®
unctionsunctions
unctions
unctionsunctions
TMTM
TM
TMTM
64-bit 64-bit
64-bit
64-bit 64-bit
®
(There are two ASRock Support CD in the motherboard gift box pack, please
choose the one for Windows® VistaTM / VistaTM 64-bit.)
.. \ I386 \ AHCI_Vista (For Windows .. \ AMD64\ AHCI_Vista64 (For Windows
After that, please insert Windows® VistaTM / Windows® VistaTM 64-bit optical disk into
the optical drive again to continue the installation.
Using SATA / SATAII HDDs without NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [non-RAID].
STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.
Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive
to boot your system, and follow the instruction to install Windows® VistaTM / Windows
VistaTM 64-bit OS on your system.
®
Vista
TM
®
Vista
OS)
TM
64-bit OS)
®
2.162.16
Installing WindowsInstalling Windows
2.16
Installing Windows
2.162.16
Installing WindowsInstalling Windows
64-bit W64-bit W
64-bit W
64-bit W64-bit W
If you want to install Windows® XP, Windows® XP 64-bit, Windows® VistaTM or
Windows® VistaTM 64-bit on your SATA / SATAII HDDs with RAID functions, please
follow below procedures according to the OS you install.
2.16.1 Installing Windows2.16.1 Installing Windows
2.16.1 Installing Windows
2.16.1 Installing Windows2.16.1 Installing Windows
F F
F
F F
If you want to install Windows® XP / Windows® XP 64-bit on your SATA / SATAII HDDs
with RAID functions, please follow below steps.
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [RAID].
STEP 2: Make a SATA / SATAII driver diskette.
Please make a SATA / SATAII driver diskette by following section 2.15.1 step 2 on
page 32.
STEP 3: Use “RAID Installation Guide” to set RAID configuration.
Before you start to configure RAID function, you need to check the RAID installation
guide in the Support CD for proper configuration. Please refer to the BIOS RAID
installation guide part of the document in the following path in the Support CD:
.. \ RAID Installation Guide
ith RAID Fith RAID F
ith RAID F
ith RAID Fith RAID F
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
XP / XP 64-bit / Vista
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit With RAID XP / XP 64-bit With RAID
XP / XP 64-bit With RAID
XP / XP 64-bit With RAID XP / XP 64-bit With RAID
TM TM
TM
TM TM
/ Vista/ Vista
/ Vista
/ Vista/ Vista
TMTM
TM
TMTM
3434
34
3434
STEP 4: Install Windows® XP / XP 64-bit OS on your system.
After step1, 2, 3, you can start to install Windows® XP / Windows® XP 64-bit OS on your
system. At the beginning of Windows® setup, press F6 to install a third-party RAID
driver. When prompted, insert the SATA / SATAII driver diskette containing the NVIDIA
RAID driver. After reading the floppy disk, the drivers will be presented. Select the drivers
to install. The drivers are as below:
A. NVIDIA RAID Driver (required) B. NVIDIA nForce Storage Controller (required)
Please select A and B for Windows® XP / XP 64-bit in RAID mode. (There are two RAID
drivers needed for RAID mode, you have to select them separately. Please specify the
first RAID driver and then specify again for the second one.)
NOTE. If you install Windows® XP / Windows® XP 64-bit on IDE HDDs and want to manage
(create, convert, delete, or rebuild) RAID functions on SATA / SATAII HDDs, you still
need to set up “SATA Operation Mode” to [RAID] in BIOS first. Then, please set the
RAID configuration by using the Windows RAID installation guide part of the docu
ment in the following path in the Support CD:
.. \ RAID Installation Guide
®
2.16.2 Installing Windows2.16.2 Installing Windows
2.16.2 Installing Windows
2.16.2 Installing Windows2.16.2 Installing Windows
RAID F RAID F
RAID F
RAID F RAID F
unctionsunctions
unctions
unctionsunctions
®
Vista Vista
Vista
Vista Vista
TMTM
TM
TMTM
/ Vista / Vista
/ Vista
/ Vista / Vista
TMTM
TM
TMTM
64-bit With 64-bit With
64-bit With
64-bit With 64-bit With
If you want to install Windows® VistaTM / Windows® VistaTM 64-bit on your SATA /
SATAII HDDs with RAID functions, please follow below steps.
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [RAID].
STEP 2: Use “RAID Installation Guide” to set RAID configuration.
Before you start to configure RAID function, you need to check the RAID installation
guide in the Support CD for proper configuration. Please refer to the BIOS RAID
installation guide part of the document in the following path in the Support CD:
.. \ RAID Installation Guide STEP 3: Install Windows® VistaTM / VistaTM 64-bit OS on your system.
Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive
to boot your system, and follow the instruction to install Windows® VistaTM / Windows
VistaTM 64-bit OS on your system. When you see “Where do you want to install Windows?
” page, please insert the ASRock Support CD into your optical drive,
and click the “Load Driver” button on the left on the bottom to load the NVIDIA® RAID
drivers. NVIDIA® RAID drivers are in the following path in our Support CD:
(There are two ASRock Support CD in the motherboard gift box pack, please
choose the one for Windows® VistaTM / VistaTM 64-bit.)
®
.. \ I386 \ RAID_Vista (For Windows .. \ AMD64\ RAID_Vista64 (For Windows
Vista
TM
®
Vista
OS)
TM
64-bit OS)
®
3535
35
3535
After that, please insert Windows® VistaTM / Windows® VistaTM 64-bit optical disk into
the optical drive again to continue the installation.
NOTE. If you install Windows® VistaTM / Windows® VistaTM 64-bit on IDE HDDs and want to
manage (create, convert, delete, or rebuild) RAID functions on SATA / SATAII HDDs,
you still need to set up “SATA Operation Mode” to [RAID] in BIOS first. Then, please
set the RAID configuration by using the Windows RAID installation guide in the
following path in the Support CD:
.. \ RAID Installation Guide
2.172.17
Untied Overclocking TUntied Overclocking T
2.17
Untied Overclocking T
2.172.17
Untied Overclocking TUntied Overclocking T
This motherboard supports Untied Overclocking Technology, which means during
overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you
enable Untied Overclocking function, please enter “Overclock Mode” option of BIOS
setup to set the selection from [Auto] to [CPU, PCIE, Async.]. Therefore, CPU FSB is
untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB
can operate under a more stable overclocking environment.
Please refer to the warning on page 7 for the possible overclocking risk
before you apply Untied Overclocking Technology.
echnologyechnology
echnology
echnologyechnology
3636
36
3636
Chapter 3 BIOS SETUP UTILITYChapter 3 BIOS SETUP UTILITY
Chapter 3 BIOS SETUP UTILITY
Chapter 3 BIOS SETUP UTILITYChapter 3 BIOS SETUP UTILITY
3.13.1
IntroductionIntroduction
3.1
Introduction
3.13.1
IntroductionIntroduction
This section explains how to use the BIOS SETUP UTILITY to configure your system.
The BIOS SPI chip on the motherboard stores the BIOS SETUP UTILITY. You may run
the BIOS SETUP UTILITY when you start up the computer. Please press <F2> during
the Power-On-Self-Test (POST) to enter the BIOS SETUP UTILITY, otherwise, POST
will continue with its test routines.
If you wish to enter the BIOS SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system off and then back on.
Because the BIOS software is constantly being updated, the
following BIOS setup screens and descriptions are for refer-
ence purpose only, and they may not exactly match what you
see on your screen.
3.1.13.1.1
BIOS Menu BarBIOS Menu Bar
3.1.1
BIOS Menu Bar
3.1.13.1.1
BIOS Menu BarBIOS Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information Advanced To set up the advanced BIOS features H/W Monitor To display current hardware status Boot To set up the default system device to locate and load the
Operating System
Security To set up the security features Exit To exit the current screen or the BIOS SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu bar,
and then press <Enter> to get into the sub screen.
3737
37
3737
3.1.23.1.2
Navigation KeysNavigation Keys
3.1.2
Navigation Keys
3.1.23.1.2
Navigation KeysNavigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the BIOS SETUP UTILITY
<ESC> To jump to the Exit Screen or exit the current screen
3.23.2
Main ScreenMain Screen
3.2
Main Screen
3.23.2
Main ScreenMain Screen
When you enter the BIOS SETUP UTILITY, the Main screen will appear and display
the system overview
Advanced H/W Monitor Boot Security Exit
Main
System Overview
System Time
System Date
BIOS Version Processor Type
Processor Speed Microcode Update Cache Size
Total Memory
DDRII 1 DDRII 2
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[ :00:09]
14
: 4CoreN73PV-HD720p P1.00 : Intel (R) Core (TM)2 Quad CPU
: 2500MHz : 10676/606 : 6144KB
: 2048MB with 256MB shared memory : 1024MB/266MHz (DDRII533) : 1024MB/266MHz (DDRII533)
[Thu 01/10/2007]
Q9300 @ 2.50GHz (64bit)
Use [Enter], [TAB] or [SHIFT-TAB] to select a field.
Use [+] or [-] to configure system Time.
Select Screen
Select Item +- Change Field Tab Select Field F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
System Time [Hour:Minute:Second]
Use this item to specify the system time.
System Date [Day Month/Date/Year]
Use this item to specify the system date.
3.33.3
Advanced ScreenAdvanced Screen
3.3
Advanced Screen
3.33.3
Advanced ScreenAdvanced Screen
In this section, you may set the configurations for the following items: CPU
Configuration, Chipset Configuration, ACPI Configuration, IDE Configuration, PCIPnP
Configuration, Floppy Configuration, SuperIO Configuration, and USB Configuration.
3838
38
3838
BIOS SETUP UTILITY
Main
Advanced Settings
WARNING: Setting wrong values in below sections
CPU Configuration
Chipset Configuration ACPI Configuration IDE Configuration PCIPnP Configuration Floppy Configuration SuperIO Configuration USB Configuration
Advanced
may cause system to malfunction.
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
H/W Monitor Boot Security Exit
Setting wrong values in this section may cause
the system to malfunction.
3.3.13.3.1
CPU ConfigurationCPU Configuration
3.3.1
CPU Configuration
3.3.13.3.1
CPU ConfigurationCPU Configuration
Configure CPU
Select Screen
Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
Advanced
CPU Configuration
Overclock Mode
CPU Frequency (MHz)
Boot Failure Guard CPU Spread Spectrum PCIE Spread Spectrum SATAII Spread Spectrum
Ratio Actual Value 7.5
Enhanced Halt State Max CPUID Value Limit Intel Virtualization tech. CPU Thermal Throttling No-Excute Memory Protection Hyper Threading Technology Intel (R) SpeedStep (tm) tech.
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Auto]
[333]
[Enabled] [Disabled] [Disabled] [Disabled]
[Disabled] [Disabled] [Enabled] [Enabled] [Disabled] [Enabled] [Disabled]
Select the over clock mode.
Select Screen
Select Screen Select Item
Select Item
+- Change Option
+- Change Option F1 General Help
F1 General Help F9 Load Defaults
F9 Load Defaults F10 Save and Exit
F10 Save and Exit ESC Exit
ESC Exit
Overclock Mode
Use this to select Overclock Mode. The default value is [Auto]. Configuration
options: [Auto], [CPU, PCIE, Sync.] and [CPU, PCIE, Async.].
CPU Frequency (MHz)
Use this option to adjust CPU frequency.
Boot Failure Guard
Enable or disable the feature of Boot Failure Guard.
CPU Spread Spectrum
This feature will be set to [Disabled] as default. Configuration options:
[Disabled] and [Auto].
3939
39
3939
PCIE Spread Spectrum
This feature will be set to [Disabled] as default. Configuration options:
[Disabled] and [Enabled].
SATA Spread Spectrum
This feature will be set to [Disabled] as default. Configuration options:
[Disabled] and [Enabled].
Ratio Actual Value
This is a read-only item, which displays the ratio actual value of this
motherboard.
Enhance Halt State
All processors support the Halt State (C1). The C1 state is supported
through the native processor instructions HLT and MWAIT and requires no
hardware support from the chipset. In the C1 power state, the processor
maintains the context of the system caches.
Max CPUID Value Limit
For Prescott CPU only, some OSes (ex. NT4.0) cannot handle the function
with disable. This should be enabled in order to boot legacy OSes that
cannot support CPUs with extended CPUID functions.
Intel (R) Virtualization tech.
When this option is set to [Enabled], a VMM (Virtual Machine Architecture)
can utilize the additional hardware capabilities provided by Vanderpool
Technology. This option will be hidden if the installed CPU does not support
Intel (R) Virtualization Technology.
CPU Thermal Throttling
You may select [Enabled] to enable P4 CPU internal thermal control mecha-
nism to keep the CPU from overheated.
No-Excute Memory Protection
No-Execution (NX) Memory Protection Technology is an enhancement to the
IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX) Memory
Protection” can prevent data pages from being used by malicious software to
execute code. This option will be hidden if the current CPU does not support
No-Excute Memory Protection.
Hyper Threading Technology
To enable this feature, it requires a computer system with an Intel Pentium® 4
processor that supports Hyper-Threading technology and an operating system
that includes optimization for this technology, such as Microsoft® Windows
XP. Set to [Enabled] if using Microsoft® Windows® XP, or Linux kernel version
2.4.18 or higher. This option will be hidden if the installed CPU does not sup-
port Hyper-Threading technology.
Intel (R) SpeedStep(tm) tech.
Intel (R) SpeedStep(tm) tech. is Intel’s new power saving technology. Proces-
sor can switch between multiple frequency and voltage points to enable power
®
4040
40
4040
savings. The default value is [Auto]. Configuration options: [Auto], [Enabled]
and [Disabled]. If you install Windows® XP and select [Auto], you need to set
the “Power Schemes” as “Portable/Laptop” to enable this function. If you
install Windows® VistaTM and want to enable this function, please set this item
to [Enabled]. This item will be hidden if the current CPU does not support Intel
(R) SpeedStep(tm) tech..
Please note that enabling this function may reduce CPU voltage and lead to system
stability or compatibility issue with some power supplies. Please set this item to
[Disable] if above issue occurs.
3.3.23.3.2
Chipset ConfigurationChipset Configuration
3.3.2
Chipset Configuration
3.3.23.3.2
Chipset ConfigurationChipset Configuration
Advanced
Chipset Configuration
DRAM Frequency
Flexibility Option
Memory Timings
OnBoard GPU Clock Share Memory Primary Graphics Adapter
Onboard LAN OnBoard HD Audio
Front Panel
DRAM Voltage VTT Voltage VDDQ Voltage
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Auto]
[Disabled]
[Auto]
[Auto] [Auto] [PCI]
[Enabled] [Auto] [Auto]
[Auto] [Auto] [Auto]
Options
Auto 266MHz (DDRII533) 333MHz (DDRII667) 400MHz (DDRII800) Manual
Select Screen
Select Item + - Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s)
inserted and assigns appropriate frequency automatically. You may also
select other value as operating frequency: [266MHz (DDRII533)], [333MHz
(DDRII667)] and [400MHz (DDRII800)].
Flexibility Option
The default value of this option is [Disabled]. It will allow better tolerance for
memory compatibility when it is set to [Enabled].
Memory Timings
Use this to adjust values for memory timings. Configuration options: [Auto]
and [Manual]. The default value is [Auto].
OnBoard GPU Clock
Use this option to adjust onboard GPU clock. Configuration options: [Auto]
and [Manual]. The default value is [Auto].
Share Memory
This allows you to set share memory feature. The default value is [Auto].
Configuration options: [Auto], [32MB], [64MB], [128MB] and [256MB].
4141
41
4141
Primary Graphics Adapter
This item will switch the PCI Bus scanning order while searching for video
card. It allows you to select the type of Primary VGA in case of multiple video
controllers. The default value of this feature is [PCI]. Configuration options:
[PCI], [Onboard] and [PCI Express].
Onboard LAN
This allows you to enable or disable the onboard LAN feature.
OnBoard HD Audio
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you
select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is
plugged.
Front Panel
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio Front
Panel.
DRAM V oltage
Use this to select DRAM Voltage. Configuration options: [Auto], [1.85V],
[1.90V], [1.95V], [2.00V] and [2.05V]. The default value of this feature is [Auto].
VTT Voltage
Use this to select VTT Voltage. Configuration options: [Auto], [1.24V],
[1.31V], [1.375V] and [1.42V]. The default value of this feature is [Auto].
VDDQ Voltage
Use this to select VTT Voltage. Configuration options: [Auto], [1.24V],
[1.31V], [1.375V] and [1.42V]. The default value of this feature is [Auto].
4242
42
4242
3.3.33.3.3
ACPI ConfigurationACPI Configuration
3.3.3
ACPI Configuration
3.3.33.3.3
ACPI ConfigurationACPI Configuration
Advanced
ACPI Settings
Suspend To RAM
Repost Video on STR Resume Check Ready Bit
Restore on AC / Power Loss PCI Devices Power On PS /2 Keyboard Power On RTC Alarm Power On
ACPI HPET Table
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Auto]
[No] [Enabled]
[Power Off] [Disabled] [Disabled] [Disabled]
[Disabled]
Select auto-detect or disable the STR feature.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
Suspend to RAM
Use this item to select whether to auto-detect or disable the Suspend-to-
RAM feature. Select [Auto] will enable this feature if the OS supports it. If
you set this item to [Disabled], the functions “Repost Video on STR Resume”
and “Check Ready Bit” will be hidden.
Repost Video on STR Resume This feature allows you to repost video on STR resume. (STR refers to
suspend to RAM.)
Check Ready Bit Use this item to enable or disable the feature Check Ready Bit.
Restore on AC/Power Loss
This allows you to set the power state after an unexpected AC/power
loss. If [Power Off] is selected, the AC/power remains off when the
power recovers. If [Power On] is selected, the AC/power resumes
and the system starts to boot up when the power recovers.
PCI Devices Power On
Use this item to enable or disable PCI devices to turn on the system from the
power-soft-off mode.
PS/2 Keyboard Power On
Use this item to enable or disable PS/2 keyboard to turn on the system from
the power-soft-off mode.
RTC Alarm Power On
Use this item to enable or disable RTC (Real Time Clock) to power on the
system.
4343
43
4343
ACPI HPET T able
Use this item to enable or disable ACPI HPET Table. The default value is
[Disabled]. Please set this option to [Enabled] if you plan to use this
motherboard to submit Windows® VistaTM certification.
3.3.43.3.4
IDE ConfigurationIDE Configuration
3.3.4
IDE Configuration
3.3.43.3.4
IDE ConfigurationIDE Configuration
Advanced
IDE Configuration
OnBoard IDE Controller
OnBoard SATA Controller
SATA Operation Mode
IDE1 Master IDE1 Slave SATAII_1 SATAII_2 SATAII_3 SATAII_4
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
OnBoard IDE Controller
Use this item to enable or disable the “OnBoard IDE Controller” feature.
OnBoard SA TA Controller
Use this item to enable or disable the “OnBoard SATA Controller” feature.
SATA Operation Mode
Use this item to adjust SATA Operation Mode. The default value of this option
is [non-RAID]. If you want to operate RAID function on SATA / SATAII HDDs,
please select [RAID]. Configuration options: [non-RAID], [RAID] and [AHCI].
* If you select [RAID] mode, SATA / SATAII HDDs can not be accessed until you finish
configuring RAID functions in NVIDIA BIOS / Windows RAID Utility.
IDE Device Configuration
You may set the IDE configuration for the device that you specify. We will use
the “IDE1 Master” as the example in the following instruction, which can be
applied to the configurations of “IDE1 Slave” as well.
BIOS SETUP UTILITY
[Enabled]
[Enabled] [non-RAID]
[Hard Disk] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected]
To enable or disable the onboard IDE controller.
Select Screen
Select Screen Select Item
Select Item
+- Change Option
+- Change Option F1 General Help
F1 General Help F9 Load Defaults
F9 Load Defaults F10 Save and Exit
F10 Save and Exit ESC Exit
ESC Exit
4444
44
4444
Advanced
Primary IDE Master
Device Vendor Size LBA Mode Block Mode PIO Mode Async DMA Ultra DMA S.M.A.R.T.
Type
LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
:Hard Disk :ST340014A :40.0 GB :Supported :16Sectors :4 :MultiWord DMA-2 :Ultra DMA-5 :Supported
[Auto]
[Auto] [Auto] [Auto] [Auto] [Disabled] [Enabled]
Select the type of device connected to the system.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
TYPE
Use this item to configure the type of the IDE device that you specify. Configu-
ration options: [Not Installed], [Auto], [CD/DVD], and [ARMD].
[Not Installed]: Select [Not Installed] to disable the use of IDE device. [Auto]: Select [Auto] to automatically detect the hard disk drive.
After selecting the hard disk information into BIOS, use a disk
utility, such as FDISK, to partition and format the new IDE hard
disk drives. This is necessary so that you can write or read data
from the hard disk. Make sure to set the partition of the Primary
IDE hard disk drives to active.
[CD/DVD]:This is used for IDE CD/DVD drives. [ARMD]: This is used for IDE ARMD (ATAPI Removable Media Device),
such as MO.
LBA/Large Mode
Use this item to select the LBA/Large mode for a hard disk > 512 MB under
DOS and Windows; for Netware and UNIX user, select [Disabled] to
disable the LBA/Large mode.
Block (Multi-Sector Tra nsfer)
The default value of this item is [Auto]. If this feature is enabled, it will enhance
hard disk performance by reading or writing more data during each transfer.
PIO Mode
Use this item to set the PIO mode to enhance hard disk performance by o p -
timizing the hard disk timing.
DMA Mode
DMA capability allows the improved transfer-speed and data-integrity for com-
patible IDE devices.
4545
45
4545
DMA Mode
DMA capability allows the improved transfer-speed and data-integrity for com-
patible IDE devices.
S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis,
and Reporting Technology) feature. Configuration options: [Disabled], [Auto],
[Enabled].
32-Bit Data Transfer
Use this item to enable 32-bit access to maximize the IDE hard disk data
transfer rate.
3.3.53.3.5
PCIPnP ConfigurationPCIPnP Configuration
3.3.5
PCIPnP Configuration
3.3.53.3.5
PCIPnP ConfigurationPCIPnP Configuration
Advanced
Advanced PCI / PnP Settings
PCI Latency Timer
PCI IDE BusMaster
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[32]
[Enabled]
Value in units of PCI clocks for PCI device latency timer register.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
PCI Latency Timer
The default value is 32. It is recommended to keep the default value unless
the installed PCI expansion cards’ specifications require other settings.
PCI IDE BusMaster
Use this item to enable or disable the PCI IDE BusMaster feature.
4646
46
4646
3.3.63.3.6
Floppy ConfigurationFloppy Configuration
3.3.6
Floppy Configuration
3.3.63.3.6
Floppy ConfigurationFloppy Configuration
In this section, you may configure the type of your floppy drive.
Advanced
Floppy Configuration
Floppy A
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
3.3.73.3.7
Super IO ConfigurationSuper IO Configuration
3.3.7
Super IO Configuration
3.3.73.3.7
Super IO ConfigurationSuper IO Configuration
Advanced
Configure Super IO Chipset
OnBoard Floppy Controller
Serial Port Address Infrared Port Address Parallel Port Address
Parallel Port Mode
EPP Version ECP Mode DMA Channel
Parallel Port IRQ
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
BIOS SETUP UTILITY
[1.44 MB 3 "]
[Enabled]
[3F8 /IRQ4] [Disabled] [378] [ECP + EPP] [1.9] [DMA3] [IRQ7]
Select the type of
1
2
floppy drive connected to the system.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
Allow BIOS to Enable or Disable Floppy Controller.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
OnBoard Floppy Controller
Use this item to enable or disable floppy drive controller.
Serial Port Address
Use this item to set the address for the onboard serial port or disable it.
Configuration options: [Disabled], [3F8 / IRQ4], [2F8 / IRQ3], [3E8 / IRQ4],
[2E8 / IRQ3].
Infrared Port Address
Use this item to set the address for the onboard infrared port or disable it.
Configuration options: [Disabled], [2F8 / IRQ3], and [2E8 / IRQ3]. If you plan to
use ASRock DeskExpress on this motherboard, please keep this item on
[Disabled] option.
4747
47
4747
Parallel Port Address
Use this item to set the address for the onboard parallel port or disable it.
Configuration options: [Disabled], [378], and [278].
Parallel Port Mode
Use this item to set the operation mode of the parallel port. The default
value is [ECP+EPP]. If this option is set to [ECP+EPP], it will show the EPP
version in the following item, “EPP Version”. Configuration options:
[Normal], [Bi-Directional], and [ECP+EPP].
EPP Version
Use this item to set the EPP version. Configuration options: [1.9]
and [1.7].
ECP Mode DMA Channel
Use this item to set the ECP mode DMA channel. Configuration
options: [DMA0], [DMA1], and [DMA3].
Parallel Port IRQ
Use this item to set the IRQ for the parallel port. Configuration options:
[IRQ5] and [IRQ7].
4848
48
4848
3.3.83.3.8
USB ConfigurationUSB Configuration
3.3.8
USB Configuration
3.3.83.3.8
USB ConfigurationUSB Configuration
Advanced
USB Configuration
USB Controller
USB 2.0 Support Legacy USB Support
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Enabled]
[Enabled] [Disabled]
To enable or disable the onboard USB controllers.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
USB Controller
Use this item to enable or disable the use of USB controller.
USB 2.0 Support
Use this item to enable or disable the USB 2.0 support.
Legacy USB Support
Use this item to enable or disable the support to emulate legacy I/O
devices such as mouse, keyboard,... etc. Or you may select [Auto] so
that the system will start to auto-detect; if there is no USB device
connected, “Auto” option will disable the legacy USB support.
3.43.4
Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen
3.4
Hardware Health Event Monitoring Screen
3.43.4
Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen
In this section, it allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, CPU fan
speed, chassis fan speed, and the critical voltage.
Main Advanced
Hardware Health Event Monitoring
CPU Temperature M /B Temperature
CPU Fan Speed Chassis Fan Speed
Vcore + 3.30V + 5.00V + 12.00V
CPU Quiet Fan [Disabled]
v02.54 (C)Copyright 1985-2003, American Megatrends, Inc.
BIOS SETUP UTILITY
H/W Monitor
: 37C/98F : 31C/87F
: 3400 RPM :N/A
: 1.629V : 3.306V : 5.067V : 11.890V
4949
49
4949
Boot Security Exit
Enable/Disable CPU Quiet Fan Function.
Select Screen
Select Item F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
CPU Quiet Fan
This item allows you to identify the temperature of CPU fan. If you set this
option as [Disabled], the CPU fan will operate in full speed. If you set this
option as [Enabled], you will find the items “Target CPU Temperature
( C)”, “Tolerance ( C)”, and “Minimun Fan Speed” appear to allow you
adjusting them. The default value is [Disabled]. You are allowed to enable
this function only when you install 4-pin CPU fan.
Target CPU Temperature (
C)
The target temperature will be between 45 C and 65 C. The default
value is [50].
Tolerance (
C)
The default value of tolerance is [2], which means the error of the
target CPU temperature will be within 2 C.
Target Fan Speed
Use this option to set the target fan speed. You can freely adjust the
target fan speed according to the target CPU temperature that you
choose. The default value is [Fast]. Configuration options: [Fast], [Middle]
and [Slow].
3.53.5
Boot ScreenBoot Screen
3.5
Boot Screen
3.53.5
Boot ScreenBoot Screen
In this section, it will display the available devices on your system for you to config-
ure the boot settings and the boot priority.
Main Advanced H/W Monitor
Boot Settings
Boot Settings Configuration
1st Boot Device 2nd Boot Device 3rd Boot Device 4th Boot Device
Hard Disk Drives Removable Drives CD/DVD Drives
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[1st Floppy Device] [HDD: PM -HDS722580VL] [CD/DVD: 3S-CD-ROMC] [USB]
5050
50
5050
Boot
Security Exit
Configure Settings
during System Boot.
Select Screen
Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
3.5.13.5.1
3.5.1
3.5.13.5.1
Boot Settings ConfigurationBoot Settings Configuration
Boot Settings Configuration
Boot Settings ConfigurationBoot Settings Configuration
BIOS SETUP UTILITY
Boot Settings Configuration
Boot From Onboard LAN
Bootup Num-Lock
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
[Disabled]
[On]
Boot
To enable or disable the boot from onboard LAN feature.
+ - Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
Select Screen Select Item
Boot From Onboard LAN
Use this item to enable or disable the Boot From Onboard LAN feature.
Boot Up Num-Lock
If this item is set to [On], it will automatically activate the Numeric Lock
function after boot-up.
3.63.6
Security ScreenSecurity Screen
3.6
Security Screen
3.63.6
Security ScreenSecurity Screen
In this section, you may set or change the supervisor/user password for the system.
For the user password, you may also clear it.
Main Advanced H/W Monitor Boot
Security Settings
Supervisor Password : Not Installed User Password : Not Installed
Change Supervisor Password
Change User Password
BIOS SETUP UTILITY
Security
Install or Change the password.
Exit
Select Screen
Select Item Enter Change F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
5151
51
5151
3.73.7
Exit ScreenExit Screen
3.7
Exit Screen
3.73.7
Exit ScreenExit Screen
Main Advanced H/W Monitro Boot Security
Exit Options
Save Changes and Exit
Discard Changes and Exit Discard Changes
Load Optimal Defaults
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Exit
Exit system setup after saving the changes.
F10 key can be used for this operation.
Select Screen
Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
Save Changes and Exit
When you select this option, it will pop-out the following message, “Save
configuration changes and exit setup?” Select [OK] to save the changes
and exit the BIOS SETUP UTILITY.
Discard Changes and Exit
When you select this option, it will pop-out the following message, “Dis-
card changes and exit setup?” Select [OK] to exit the BIOS SETUP UTILITY
without saving any changes.
Discard Changes
When you select this option, it will pop-out the following message, “Dis-
card changes?” Select [OK] to discard all changes.
Load Optimal Defaults
When you select this option, it will pop-out the following message, “Load
optimal defaults?” Select [OK] to load the default values for all the setup
configurations.
5252
52
5252
Chapter 4 SofChapter 4 Sof
Chapter 4 Sof
Chapter 4 SofChapter 4 Sof
4.14.1
Install Operating SystemInstall Operating System
4.1
Install Operating System
4.14.1
Install Operating SystemInstall Operating System
This motherboard supports various Microsoft® Windows® operating systems: XP / XP
64-bit / VistaTM / Vista
vary, use the setup procedures in this chapter for general reference only. Refer to your
OS documentation for more information.
4.24.2
Support CD InformationSupport CD Information
4.2
Support CD Information
4.24.2
Support CD InformationSupport CD Information
The Support CD that came with the motherboard contains necessary drivers and
useful utilities that enhance the motherboard features.
4.2.14.2.1
4.2.1
4.2.14.2.1
To begin using the support CD, insert the CD into your CD-ROM drive. The CD
automatically displays the Main Menu if “AUTORUN” is enabled in your computer.
If the Main Menu did not appear automatically, locate and double click on the
file “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus.
4.2.24.2.2
4.2.2
4.2.24.2.2
The Drivers Menu shows the available devices drivers if the system detects
installed devices. Please install the necessary drivers to activate the devices.
4.2.34.2.3
4.2.3
4.2.34.2.3
The Utilities Menu shows the applications software that the motherboard
supports. Click on a specific item then follow the installation wizard to install it.
TM
64-bit. Because motherboard settings and hardware options
Running The Support CDRunning The Support CD
Running The Support CD
Running The Support CDRunning The Support CD
Drivers MenuDrivers Menu
Drivers Menu
Drivers MenuDrivers Menu
Utilities MenuUtilities Menu
Utilities Menu
Utilities MenuUtilities Menu
tware Supportware Suppor
tware Suppor
tware Supportware Suppor
tt
t
tt
4.2.44.2.4
Contact InformationContact Information
4.2.4
Contact Information
4.2.44.2.4
Contact InformationContact Information
If you need to contact ASRock or want to know more about ASRock, welcome
to visit ASRock’s website at http://www.asrock.com; or you may contact your
dealer for further information.
5353
53
5353
NOTE.
If you install the VGA driver (version 163.91) on your system, but the window is not in
full screen mode, please follow below steps to adjust the window.
1. Right-click the desktop and select NVIDIA Control Panel.
2. Click Display and click Change Flat Panel Scaling.
3. In the option When using a resolution lower than my display’s native resolution, please select Use my display’s built-in scaling.
5454
54
5454
4CoreN73PV-HD720p
User Manual
Version 1.0/3.0
Published July 2008
Copyright©2008 ASRock INC. All rights reserved.
11
1
11
Copyright Notice:Copyright Notice:
Copyright Notice:Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:
Disclaimer:Disclaimer:
Specifications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
22
2
22
ContentsContents
Contents
ContentsContents
1 Introduction1 Introduction
1 Introduction
1 Introduction1 Introduction
1.1 Package Contents .......................................................... 5
1.2 Specifications ................................................................. 6
1.3 Minimum Hardware Requirement Table for Windows
VistaTM Premium 2007 and Basic Logo.......................... 9
1.4 Minimum Hardware Requirement for 720p Blu-ray (BD) /
HD-DVD Playback Support ..........................................10
1.5 720p Blu-ray (BD) / HD-DVD Films Which Pass Our Lab
Test ................................................................................. 11
1.6 Motherboard Layout ........................................................ 12
1.7 ASRock 6CH DVI I/O ...................................................... 13
2 Installation2 Installation
2 Installation
2 Installation2 Installation
2.1 Screw Holes ................................................................... 14
2.2 Pre-installation Precautions ............................................ 14
2.3 CPU Installation .............................................................. 15
2.4 Installation of Heatsink and CPU fan ............................... 17
2.5 Installation of Memory Modules (DIMM) ......................... 18
2.6 Expansion Slots (PCI and PCI Express Slots) ..................... 19
2.7 Dual Monitor and Surround Display Features ................ 20
2.8 Jumpers Setup ............................................................... 23
2.9 Onboard Headers and Connectors .................................. 24
2.10 SATAII Hard Disk Setup Guide ....................................... 28
2.11 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks
Installation .................................................................... 29
2.12 Hot Plug and Hot Swap Functions for SATA / SATAII
HDDs........................................................................ 29
2.13 SATA / SATAII HDD Hot Plug Feature and Operation
Guide ....................................................................... 30
2.14 Driver Installation Guide .............................................. 32
2.15 Installing Windows® XP / XP 64-bit / VistaTM / Vista
Without RAID Functions ............................................. 32
2.15.1 Installing Windows® XP / XP 64-bit Without RAID
2.15.2 Installing Windows® VistaTM / Vista
2.16 Installing Windows® XP / XP 64-bit / VistaTM /
Vista
2.16.1 Installing Windows® XP / XP 64-bit With RAID
......................................................................................................
...................................................
......................................................................................................
..........................................................................................................
.....................................................
..........................................................................................................
Functions....................................................... 32
Functions....................................................... 33
TM
64-bit With RAID Functions............................... 34
Functions....................................................... 34
TM
64-bit Without RAID
®
TM
5 5
5
5 5
14 14
14
14 14
64-bit
33
3
33
2.16.2 Installing Windows® VistaTM / Vista
RAID Functions ............................................. 35
2.17 Untied Overclocking Technology .................................. 36
3 BIOS S3 BIOS S
3 BIOS S
3 BIOS S3 BIOS S
4 Software Support4 Software Support
4 Software Support
4 Software Support4 Software Support
ETUP UTILITYETUP UTILITY
ETUP UTILITY
ETUP UTILITYETUP UTILITY
3.1 Introduction ..................................................................... 37
3.1.1 BIOS Menu Bar ..................................................... 37
3.1.2 Navigation Keys .................................................... 38
3.2 Main Screen ................................................................... 38
3.3 Advanced Screen ............................................................ 38
3.3.1 CPU Configuration ................................................ 39
3.3.2 Chipset Configuration ............................................ 41
3.3.3 ACPI Configuration ................................................ 43
3.3.4 IDE Configuration .................................................. 44
3.3.5 PCIPnP Configuration ........................................... 46
3.3.6 Floppy Configuration ............................................. 47
3.3.7 Super IO Configuration .......................................... 47
3.3.8 USB Configuration ................................................ 49
3.4 Hardware Health Event Monitoring Screen ...................... 49
3.5 Boot Screen ................................................................... 50
3.5.1 Boot Settings Configuration ................................... 51
3.6 Security Screen .............................................................. 51
3.7 Exit Screen .................................................................... 52
4.1 Install Operating System ................................................ 53
4.2 Support CD Information ................................................... 53
4.2.1 Running Support CD ............................................. 53
4.2.2 Drivers Menu ......................................................... 53
4.2.3 Utilities Menu ........................................................ 53
4.2.4 Contact Information ............................................... 53
....................................................................................
..........................................
....................................................................................
....................................................................................
..........................................
....................................................................................
TM
64-bit With
37 37
37
37 37
53 53
53
53 53
44
4
44
Chapter 1 IntroductionChapter 1 Introduction
Chapter 1 Introduction
Chapter 1 IntroductionChapter 1 Introduction
Thank you for purchasing ASRock 4CoreN73PV-HD720p motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRock’s commitment to qual-
ity and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-
step guide to the hardware installation. Chapter 3 and 4 contain the configuration
guide to BIOS setup and information of the Support CD.
Because the motherboard specifications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest VGA cards and CPU support lists on ASRock website
as well. ASRock website
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.1 P1.1 P
ackack
1.1 P
1.1 P1.1 P
ASRock 4CoreN73PV-HD720p Motherboard
(Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm)
ASRock 4CoreN73PV-HD720p Quick Installation Guide ASRock 4CoreN73PV-HD720p Support CD
One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable
One Ribbon Cable for a 3.5-in Floppy Drive
One Serial ATA (SATA) Data Cable (Optional)
One Serial ATA (SATA) HDD Power Cable (Optional)
One ASRock 6CH DVI I/O Panel Shield
age Contentsage Contents
ack
age Contents
ackack
age Contentsage Contents
http://www.asrock.com
55
5
55
1.21.2
SpecificationsSpecifications
1.2
Specifications
1.21.2
SpecificationsSpecifications
Platform - Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm CPU - LGA 775 for Intel
®
CoreTM 2 Extreme / CoreTM 2 Quad / Core
2 Duo / Pentium® Dual Core / Celeron®, supporting Quad Core
Yorkfield and Dual Core Wolfdale processors
- FSB1333/1066/800/533MHz
- Supports Hyper-Threading Technology (see CAUTION 1)
- Supports Untied Overclocking Technology (see CAUTION 2)
- Supports EM64T CPU
Chipset - NVIDIA
®
GeForce 7100 / nForce 630i
Memory - 2 x DDR2 DIMM slots
- Support DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB (see CAUTION 3)
Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 4)
- ASRock U-COP (see CAUTION 5)
- Boot Failure Guard (B.F.G.)
Expansion Slot - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Graphics - Integrated NVIDIA
®
GeForce 7100
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB (see CAUTION 6)
- Dual VGA Output: support DVI-D and D-Sub ports by
independent display controllers
- Supports HDCP function with DVI-D port
- Supports 720p Blu-ray (BD) / HD-DVD playback (see CAUTION 7)
Audio - 5.1 CH Windows
®
VistaTM Premium Level HD Audio
(ALC662 Audio Codec)
LAN - 4CoreN73PV-HD720p R1.0:
Realtek Giga PHY RTL8211B, speed 10/100/1000 Mb/s
- 4CoreN73PV-HD720p R3.0:
Realtek PHY RTL8201CL, speed 10/100 Ethernet
- Supports Wake-On-LAN
Rear Panel I/O ASRock 6CH_DVI I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
TM
66
6
66
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in/Front Speaker/Microphone
Connector - 4 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and “Hot Plug” functions (see CAUTION 8)
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 9)
- 1 x WiFi/E header (see CAUTION 10)
BIOS Feature - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- AMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version) Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft
®
Windows® XP / XP 64-bit / Vista
TM
/ VistaTM 64-bit
compliant
Certifications - FCC, CE, WHQL
* For detailed product information, please visit our website: http://www.asrock.com
WAR NING
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using the third-
party overclocking tools. Overclocking may affect your system stability, or even
cause damage to the components and devices of your system. It should be done at
your own risk and expense. We are not responsible for possible damage caused by
overclocking.
77
7
77
CAUTION!
1. About the setting of “Hyper Threading Technology”, please check page
40.
2. This motherboard supports Untied Overclocking Technology. Please read
“Untied Overclocking Technology” on page 36 for details.
3. Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under Windows
and Windows
®
VistaTM. For Windows® XP 64-bit and Windows® Vista
64-bit with 64-bit CPU, there is no such limitation.
4. Although this motherboard offers stepless control, it is not recommended
to perform over-clocking. Frequencies other than the recommended CPU
bus frequencies may cause the instability of the system or damage the
CPU.
5. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal grease
between the CPU and the heatsink when you install the PC system.
6. The maximum shared memory size is defined by the chipset vendor
and is subject to change. Please check NVIDIA
®
website for the latest
information.
7. 720p Blu-ray (BD) / HD-DVD playback support on this motherboard
requires the proper hardware configuration. Please refer to page10 and 11
for the minimum hardware requirement and the passed 720p Blu-ray (BD)
/ HD-DVD films in our lab test.
8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII
Hard Disk Setup Guide” on page 28 to adjust your SATAII hard disk drive to
SATAII mode. You can also connect SATA hard disk to SATAII connector
directly.
9. Power Management for USB 2.0 works fine under Microsoft® Windows
VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.
10. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g or
WiFi-802.11n module, an easy-to-use wireless local area network
(WLAN) adapter. It allows you to create a wireless environment and
enjoy the convenience of wireless network connectivity. Please visit our
website for the availability of ASRock WiFi-802.11g or WiFi-802.11n
module. ASRock website http://www.asrock.com
®
XP
TM
®
88
8
88
1.31.3
Minimum Hardware RMinimum Hardware R
1.3
Minimum Hardware R
1.31.3
Minimum Hardware RMinimum Hardware R
® ®
®
WindowsWindows
Windows
WindowsWindows
® ®
VistaVista
Vista
VistaVista
TMTM
TM
TMTM
equirement Tequirement T
equirement T
equirement Tequirement T
Premium 2007 and Basic Logo Premium 2007 and Basic Logo
Premium 2007 and Basic Logo
Premium 2007 and Basic Logo Premium 2007 and Basic Logo
able forable for
able for
able forable for
For system integrators and users who purchase this motherboard and
plan to submit Windows® VistaTM Premium 2007 and Basic logo, please follow
below table for minimum hardware requirements.
CPU Celeron D 326
Memory 1GB system memory (Premium)
512MB Single Channel (Basic)
VGA DX9.0 with WDDM Driver
DVI with HDCP
* If you use onboard VGA with total system memory size 512MB and plan to
submit Windows
onboard VGA to 64MB. If you use onboard VGA with total system memory size
above 512MB and plan to submit Windows® VistaTM Premium or Basic logo,
please adjust the shared memory size of onboard VGA to 128MB or above.
* If you plan to use external graphics card on this motherboard, please refer to
Premium Discrete requirement at
* If the onboard VGA supports DVI, it must also support HDCP function to qualify for
Windows® VistaTM Premium 2007 logo.
* After June 1, 2007, all Windows
minimum hardware requirements in order to qualify for Windows
Premium 2007 logo.
®
VistaTM Basic logo, please adjust the shared memory size of
http://www.asrock.com
®
VistaTM systems are required to meet above
®
Vista
TM
99
9
99
1.41.4
Minimum Hardware Requirement for 720p Blu-rayMinimum Hardware Requirement for 720p Blu-ray
1.4
Minimum Hardware Requirement for 720p Blu-ray
1.41.4
Minimum Hardware Requirement for 720p Blu-rayMinimum Hardware Requirement for 720p Blu-ray
(BD) / HD(BD) / HD
(BD) / HD
(BD) / HD(BD) / HD
720p Blu-ray (BD) / HD-DVD playback support on this motherboard
requires the proper hardware configuration. Please refer to below table
for the minimum hardware requirement.
CPU Wolfdale E8500
VGA Onboard VGA with DVI-D port
Memory DDR2 800, 1GB x 2
Suggested OS Windows
* If you need to use CyberLink PowerDVD Ultra version 7.2 or 7.3, we suggest to
disable Hardware Acceleration function for better playback performance and
compatibility. After executing CyberLink PowerDVD Ultra program, please follow
below steps to disable Hardware Acceleration function.
A. Right-click the main page of CyberLink PowerDVD Ultra program.
B. Click “Configuration”.
C. Select “Video”.
D. Click “Enable hardware acceleration (nVidia PureVideo)” to remove the “V” mark
in this item.
E. Click “OK” to save the change.
-D-D
VD Playback SupporVD Playback Suppor
-D
VD Playback Suppor
-D-D
VD Playback SupporVD Playback Suppor
®
VistaTM or Windows® VistaTM 64
tt
t
tt
1010
10
1010
1.51.5
PP
1.5
1.51.5
assed 720p Blu-ray (BD) / HDassed 720p Blu-ray (BD) / HD
P
assed 720p Blu-ray (BD) / HD
PP
assed 720p Blu-ray (BD) / HDassed 720p Blu-ray (BD) / HD
LL
ab Tab T
estest
L
ab T
est
LL
ab Tab T
estest
DVD Film Name Format Producer
Type
Blu-ray SWORDFISH VC-1 WB
DVD UNDERWORLD EVOLUTION MPEG-2 SONY
CASINO ROYALE MPEG-4-AVC SONY
THE LAST STAND MPEG-4-AVC FOX
SPEED MPEG-4-AVC FOX
THE LEAGUE OF MPEG-4-AVC FOX
EXTRAORDINARY GENTLEMEN
HD- KING KONG VC-1 UNIVERSAL
DVD THE INTERPRETER MPEG-4-AVC UNIVERSAL
NEW ORLEANS CONCERT MPEG-2 WEA
ONE SIX RIGHT MPEG-2 TERWILLIGER
* MPEG-4-AVC mentioned above refers to the same format of H.264.
* Above passed films are tested under below configuration.
Items Configurations
CPU Wolfdale E8500
VGA Onboard VGA with DVI-D port
Memory DDR2 800, 1GB x 2
OS Windows® VistaTM or Windows® VistaTM 64
Playback Software CyberLink PowerDVD Ultra
DVD Player Pioneer BDR-101A / LG GBW-H10N (BD)
HP HD100 (HD-DVD)
-D-D
-D
-D-D
VD FVD F
VD F
VD FVD F
ilms in Ourilms in Our
ilms in Our
ilms in Ourilms in Our
1111
11
1111
1.6 Motherboard Layout1.6 Motherboard Layout
1.6 Motherboard Layout
1.6 Motherboard Layout1.6 Motherboard Layout
27
26 25
23
28
24
22
21
Keyboard
Mouse
PS2
PS2
DVI_CON1
PARALLEL PORT
VGA1
USB2.0 T:USB0 B:USB1
USB 2.0 T: U SB 2 B: USB3
Bottom:
MIC IN
Center:
FRONT
LAN PHY
1
PS2_USB_PWR1
Top: RJ-45
Top:
LINE IN
CD1
HD_AUDIO1
1
1
USB4_5
11
11
AUDIO CODEC
34567
2
20.3cm (8.0in)
ATX12V1
ATXPWR1
HDCP
DVI
USB6_7
EXPRESS
PCI
4Mb
PCIE1
BIOS
4CoreN73PV-HD720p
NVIDIA
GeForce 7100
/ nForce 630i
Chipset
PCIE2
SATAII
WIFI/E
1
RAID
PCI1
PCI2
FLOPPY1
IR1
1
RoHS
CPU_FAN1
IDE1
24.4cm (9.6in)
DDRII_2 (64bit, 240-pin module)
DDRII_1 (64bit, 240-pin module)
DDR2 800
Wolfdale
Yorkfield
FSB1333
Quad Core CPU
CLRCMOS1
1
CMOS
I/O
Super
COM1
CHA_FAN1
1
Battery
SPEAKER1
1
PLED PWRBTN
PANEL1
1
HDLED RESET
SATAII_1(PORT1.0)
8
9
10
11
SATAII_2(PORT1.1)
SATAII_3(PORT1.2)
SATAII_4(PORT1.3)
14
20
19
1718
1516
12
13
1 PS2_USB_PWR1 Jumper 16 Chassis Fan Connector (CHA_FAN1) 2 ATX Power Connector (ATXPWR1) 17 Chassis Speaker Header (SPEAKER 1) 3 ATX 12V Connector (ATX12V1) 18 Floppy Connector (FLOPPY1) 4 775-Pin CPU Socket 19 DeskExpress Hot Plug Detection Header 5 CPU Fan Connector (CPU_FAN1) (IR1) 6 North Bridge Controller 20 WiFi/E Header (WIFI/E) 7 2 x 240- p in DD R2 DI MM Sl o ts 21 Front Panel Audio Header (HD_AUDIO1)
(DDRII_1 and DDRII_2; Yellow) 22 PCI Slots (PCI1 - 2) 8 IDE1 Connector (IDE1, Blue) 23 Internal Audio Connector: CD1 (Black) 9 Serial Port Connector (COM1) 2 4 PCI Express x16 Slot (PCIE2) 10 Clear CMOS Jumper (CLRCMOS1) 2 5 SPI Flash Memory (4Mb) 11 System Panel Header (PANEL1) 26 PCI Express x1 Slot (PCIE1) 12 Fourth SATAII Connector (SATAII_4 (PORT1.3)) 27 USB 2.0 Header (USB6_7, Blue) 13 Third SATAII Connector (SATAII_3 (PORT1.2)) 28 USB 2.0 Header (USB4_5, Blue) 14 Secondary SATAII Connector (SATAII_2 (PORT1.1)) 15 P r i mary SATAII Connector (SATAII_1 (PORT1.0))
1212
12
1212
1.71.7
ASRock 6CH_DVI I/OASRock 6CH_DVI I/O
1.7
ASRock 6CH_DVI I/O
1.71.7
ASRock 6CH_DVI I/OASRock 6CH_DVI I/O
1
2
3
4
5
6
11
1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23) 2 Parallel Port 8 USB 2.0 Ports (USB01) 3 RJ-45 Port 9 VGA/D-Sub Port 4 Line In (Light Blue) 10 VGA/DVI-D Port 5 Front Speaker (Lime) 11 PS/2 Keyboard Port (Purple)
* 6 Microphone (Pink)
* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming. For Windows® XP:
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system. For Windows
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
10
®
VistaTM:
9
7
8
1313
13
1313
Chapter 2 InstallationChapter 2 Installation
Chapter 2 Installation
Chapter 2 InstallationChapter 2 Installation
4CoreN73PV-HD720p is a Micro ATX form factor (9.6" x 8.0", 24.4 x 20.3 cm) motherboard.
Before you install the motherboard, study the configuration of your chassis to ensure
that the motherboard fits into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes2.1 Screw Holes
2.1 Screw Holes
2.1 Screw Holes2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
2.2 Pre-installation Precautions
2.2 Pre-installation Precautions2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use
a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.
1414
14
1414
2.3 CPU Installation2.3 CPU Installation
2.3 CPU Installation
2.3 CPU Installation2.3 CPU Installation
For the installation of Intel 775-LAND CPU,
please follow the steps below.
Before you insert the 775-LAND CPU into the socket, please check if
the CPU surface is unclean or if there is any bent pin on the socket.
Do not force to insert the CPU into the socket if above situation is
found. Otherwise, the CPU will be seriously damaged.
Step 1. Open the socket:
Step 1-1. Disengaging the lever by depressing
down and out on the hook to clear
retention tab.
Step 1-2. Rotate the load lever to fully open po-
sition at approximately 135 degrees.
Step 1-3. Rotate the load plate to fully open po-
sition at approximately 100 degrees.
775-Pin Socket Overview
Step 2. Insert the 775-LAND CPU:
Step 2-1. Hold the CPU by the edges where are
marked with black lines.
Step 2-2. Orient the CPU with IHS (Integrated
Heat Sink) up. Locate Pin1 and the two
orientation key notches.
Pin1
orientation
key notch
775-LAND CPU
orientation
key notch
1515
15
1515
Pin1
alignment key
black line
775-Pin Socket
black line
alignment key
For proper inserting, please ensure to match the two orientation key
notches of the CPU with the two alignment keys of the socket.
Step 2-3. Carefully place the CPU into the socket
by using a purely vertical motion.
Step 2-4. Verify that the CPU is within the socket
and properly mated to the orient keys.
Step 3. Remove PnP Cap (Pick and Place Cap):
Use your left hand index finger and thumb to
support the load plate edge, engage PnP cap
with right hand thumb and peel the cap from the
socket while pressing on center of PnP cap to
assist in removal.
1. It is recommended to use the cap tab to handle and avoid kicking
off the PnP cap.
2. This cap must be placed if returning the motherboard for after
service.
Step 4. Close the socket:
Step 4-1. Rotate the load plate onto the IHS.
Step 4-2. While pressing down lightly on load
plate, engage the load lever.
Step 4-3. Secure load lever with load plate tab
under retention tab of load lever.
1616
16
1616
2.42.4
Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
2.4
Installation of CPU Fan and Heatsink
2.42.4
Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
This motherboard is equipped with 775-Pin socket that supports Intel 775-LAND CPU.
Please adopt the type of heatsink and cooling fan compliant with Intel 775-LAND CPU
to dissipate heat. Before you installed the heatsink, you need to spray thermal
interface material between the CPU and the heatsink to improve heat dissipation.
Ensure that the CPU and the heatsink are securely fastened and in good contact with
each other. Then connect the CPU fan to the CPU_FAN connector (CPU_FAN1, see
page 12, No. 5).
For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink.
Below is an example to illustrate the installation of the heatsink for 775-LAND CPU.
Step 1. Apply thermal interface material onto center
of IHS on the socket surface.
Step 2. Place the heatsink onto the socket. Ensure
fan cables are oriented on side closest to the
CPU fan connector on the motherboard
(CPU_FAN1, see page 12, No. 5).
Step 3. Align fasteners with the motherboard
throughholes.
Step 4. Rotate the fastener clockwise, then press
down on fastener caps with thumb to install
and lock. Repeat with remaining fasteners.
If you press down the fasteners without rotating them clockwise,
the heatsink cannot be secured on the motherboard.
Step 5. Connect fan header with the CPU fan
connector on the motherboard.
Step 6. Secure excess cable with tie-wrap to ensure
cable does not interfere with fan operation or
contact other components.
1717
17
1717
2.5 Installation of Memor2.5 Installation of Memor
2.5 Installation of Memor
2.5 Installation of Memor2.5 Installation of Memor
This motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM slots.
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
y Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)
y Modules (DIMM)y Modules (DIMM)
notch
break
notch
break
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the
slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.
1818
18
1818
2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)
2.6 Expansion Slots (PCI and PCI Express Slots)
2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)
There are 2 PCI slots and 2 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
PCIE slots: PCIE1 (PCIE x1 slot) is used for PCI Express cards with x1 lane width
cards, such as Gigabit LAN card, SATA2 card, etc.
PCIE2 (PCIE x16 slot) is used for PCI Express cards with x16 lane
width graphics cards.
Installing an expansion cardInstalling an expansion card
Installing an expansion card
Installing an expansion cardInstalling an expansion card
Step 1. Before installing the expansion card, please make sure that the power supply
is switched off or the power cord is unplugged. Please read the documentation
of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws
for later use.
Step 3. Align the card connector with the slot and press firmly until the card is com-
pletely seated on the slot.
Step 4. Fasten the card to the chassis with screws.
1919
19
1919
2.7 Dual Monitor and Surround Display Features2.7 Dual Monitor and Surround Display Features
2.7 Dual Monitor and Surround Display Features
2.7 Dual Monitor and Surround Display Features2.7 Dual Monitor and Surround Display Features
Dual Monitor Feature
This motherboard supports dual monitor feature. With the internal dual VGA output
support (DVI-D and D-Sub), you can easily enjoy the benefits of dual monitor feature
without installing any add-on VGA card to this motherboard. This motherboard also
provides independent display controllers for DVI-D and D-Sub to support dual VGA
output so that DVI-D and D-sub can drive same or different display contents. To enable
dual monitor feature, please follow the below steps:
1. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel of this
motherboard. Connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O
panel of this motherboard.
VGA/DVI-D port
2. If you have installed onboard VGA driver from our support CD to your system
already, you can freely enjoy the benefits of dual monitor function provided by
VGA/DVI-D and VGA/D-Sub ports with this motherboard after your system
boots. If you haven’t installed onboard VGA driver yet, please install onboard
VGA driver from our support CD to your system and restart your computer.
Then you can start to use dual monitor function provided by VGA/DVI-D and
VGA/D-Sub ports with this motherboard.
When you playback HDCP-protected video from Blu-ray (BD) or
HD-DVD disc, the content will be displayed only in one of the two
monitors instead of both monitors.
VGA/D-Sub port
2020
20
2020
Surround Display Feature
This motherboard supports surround display upgrade. With the internal dual VGA
output support (DVI-D and D-Sub) and the external add-on PCI Express VGA card, you
can easily enjoy the benefits of surround display feature. Please refer to the following
steps to set up a surround display environment:
1. Install the NVIDIA® PCI Express VGA card to PCIE2 slot. Please refer to page 19
for proper expansion card installation procedures for details.
2. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel of this
motherboard. Connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O
panel of this motherboard.
3. Boot your system. Press <F2> to enter BIOS setup. Enter “Share Memory”
option to adjust the memory capability to [32MB], [64MB], [128MB] or [256MB] to
enable the function of VGA/D-sub. Please make sure that the value you select
is less than the total capability of the system memory. If you do not adjust the
BIOS setup, the default value of “Share Memory”, [Auto], will disable
VGA/D-Sub function when the add-on VGA card is inserted to this
motherboard.
4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to
your system. If you have installed the onboard VGA driver and the add-on PCI
Express VGA card driver already, there is no need to install them again.
5. Set up a multi-monitor display.
For Windows® XP / XP 64-bit OS:
Right click the desktop, choose “Properties”, and select the “Settings” tab so
that you can adjust the parameters of the multi-monitor according to the steps
below.
A. Click the “Identify” button to display a large number on each monitor.
B. Right-click the display icon in the Display Properties dialog that you wish
to be your primary monitor, and then select “Primary”. When you use
multiple monitors with your card, one monitor will always be Primary, and
all additional monitors will be designated as Secondary.
C. Select the display icon identified by the number 2.
D. Click “Extend my Windows desktop onto this monitor”.
E. Right-click the display icon and select “Attached”, if necessary.
F. Set the “Screen Resolution” and “Color Quality” as appropriate for the
second monitor. Click “Apply” or “OK” to apply these new values.
G. Repeat steps C through E for the diaplay icon identified by the number
one, two, three and four.
For Windows® VistaTM / VistaTM 64-bit OS:
Right click the desktop, choose “Personalize”, and select the “Display
Settings” tab so that you can adjust the parameters of the multi-monitor
according to the steps below.
2121
21
2121
A. Click the number ”2” icon.
B. Click the items “This is my main monitor” and “Extend the desktop onto
this monitor”.
C. Click “OK” to save your change.
D. Repeat steps A through C for the display icon identified by the number
three and four.
6. Use Surround Display. Click and drag the display icons to positions representing
the physical setup of your monitors that you would like to use. The placement of
display icons determines how you move items from one monitor to another.
HDCP Function with D VI-D Port
HDCP function is supported with DVI-D port on this motherboard. To
use HDCP function with this motherboard, you need to adopt the
monitor that supports HDCP function as well. Therefore, you can
enjoy the superior display quality with high-definition HDCP encryption
contents. Please refer to below instruction for more details about HDCP
function.
What is HDCP?
HDCP stands for High-Bandwidth Digital Content Protection, a
specification developed by Intel® for protecting digital entertainment
content that uses the DVI interface. HDCP is a copy protection
scheme to eliminate the possibility of intercepting digital data
midstream between the video source, or transmitter - such as a
computer, DVD player or set-top box - and the digital display, or
receiver - such as a monitor, television or projector. In other words,
HDCP specification is designed to protect the integrity of content as it
is being transmitted.
Products compatible with the HDCP scheme such as DVD players,
satellite and cable HDTV set-top-boxes, as well as few entertain-
ment PCs requires a secure connection to a compliant display. Due
to the increase in manufacturers employing HDCP in their equipment,
it is highly recommended that the HDTV or LCD monitor you purchase
is compatible.
2222
22
2222
2.8 Jumpers Setup2.8 Jumpers Setup
2.8 Jumpers Setup
2.8 Jumpers Setup2.8 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap is
placed on pins, the jumper is “Open”. The il-
lustration shows a 3-pin jumper whose pin1
and pin2 are “Short” when jumper cap is
placed on these 2 pins.
Jumper Setting Description
PS2_USB_PWR1 Short pin2, pin3 to enable
(see p.12 No. 1) +5VSB (standby) for PS/2
1_2
+5V
2_3
+5VSB
or USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power
supply.
Clear CMOS Jumper
(CLRCMOS1)
(see p.12 No. 10)
1_2
Default
2_3
Clear CMOS
Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord from the power supply.
After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1
for 5 seconds. However, please do not clear the CMOS right after you update the
BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you
must boot up the system first, and then shut it down before you do the clear-
CMOS action.
2323
23
2323
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
FDD connector
(33-pin FLOPPY1)
(see p.12 No. 18)
Pin1
FLOPPY1
the red-striped side to Pin1
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.12 No. 8)
PIN1
connect the blue end
to the motherboard
IDE1
connect the black end
to the IDE devices
80-conductor ATA 66/100133 cable
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These four Serial ATAII (SATAII)
(SATAII_1 (PORT1.0): connectors support SATA data
see p.12, No. 15) cables for internal storage
(SATAII_2 (PORT1.1): devices. The current SATAII
see p.12, No. 14) interface allows up to 3.0 Gb/s
(SATAII_3 (PORT1.2): data transfer rate.
see p.12, No. 13)
(SATAII_4 (PORT1.3):
see p.12, No. 12)
SATAII_1 (PORT1.0)
SATAII_2 (PORT1.1)
SATAII_3 (PORT1.2)
SATAII_4 (PORT1.3)
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on this motherboard.
2424
24
2424
Serial ATA (SATA) Please connect the black end of
CD-L
GND
GND
CD-R
Power Cable SATA power cable to the power
(Optional) connector on each drive. Then
connect to the SATA HDD
power connector
connect to the
power supply
connect the white end of SATA
power cable to the power
connector of the power supply.
1
1
USB+5V_2
1
USB+5V_1
USB_PWR
P-7
P-6
USB_PWR
USB_PWR
P-5
P-4
USB_PWR
TXN
TXP
D0+
D0-
P+7
P+6
P+5
P+4
GND2
GND1
GND
DUMMY
GND
GND
DUMMY
GND
PCIE_RST#
+3SVB
PME#
RXN
PexCLK
PexCLK#
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
RXP
module, an easy-to-use wireless
local area network (WLAN)
adapter. It allows you to create a
USB 2.0 Headers Besides four default USB 2.0
(9-pin US6_7) ports on the I/O panel, there are
(see p.12 No. 27) two USB 2.0 headers on this
(9-pin USB4_5)
(see p.12 No. 28)
WiFi/E Header This header supports WiFi+AP
(15-pin WIFI/E) function with ASRock
(see p.12 No. 20) WiFi-802.11g or WiFi-802.11n
wireless environment and enjoy the
convenience of wireless network
connectivity.
DeskExpress Hot Plug Detection This header supports the Hot
Header Plug detection function for
(5-pin IR1) ASRock DeskExpress.
(see p.12 No. 19)
IRTX
+5VSB
Hotplug#
1
GND
IRRX
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input
(CD1: see p.12 No. 23) from sound sources such as
CD1
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
2525
25
2525
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.12 No. 21) convenient connection and
1
GND
PRE SENCE#
MIC2_R
MIC2_L
MIC_R ET
J_SENSE
OUT 2_R
OUT_R ET
control of audio devices.
OUT 2_L
1. High Definition Audio supports Jack Sensing, but the panel wire on the
chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select
Chipset Configuration. Set the Front Panel Control option from
[Auto] to [Enabled].
F. Enter Windows system. Click the icon on the lower right hand
taskbar to enter Realtek HD Audio Manager.
For Windows
®
XP / XP 64-bit OS:
Click “Audio I/O”, select “Connector Settings” , choose
“Disable front panel jack detection”, and save the change by
clicking “OK”.
®
For Windows
VistaTM / VistaTM 64-bit OS:
Click the right-top “Folder” icon , choose “Disable front
panel jack detection”, and save the change by clicking “OK”.
1
1
PLED+
PLED-
HDLED -
HDLED +
DUMMY
+5V
PWRBTN#
GND
RES ET#
GND
SPEAKER
DUMMY
2626
26
2626
DUMMY
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.12 No. 11) functions.
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.12 No. 17)
Chassis Fan Connector Please connect a chassis fan
(3-pin CHA_FAN1) cable to this connector and
(see p.12 No. 16) match the black wire to the
GND
+12V
CHA_FAN_SPEED
ground pin.
CPU Fan Connector Please connect a CPU fan cable
(4-pin CPU_FAN1) to this connector and match
(see p.12 No. 5) the black wire to the ground pin.
4 3 2 1
+12V
CPU _FAN_SPEED
FAN_S PEED_CONTR OL
GND
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
24
ATX Power Connector Please connect an ATX power
12
(24-pin ATXPWR1) supply to this connector.
(see p.12 No. 2)
13
1
Though this motherboard provides 24-pin ATX power connector,
Pin 1-3 Connected
3-Pin Fan Installation
12
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
20-Pin ATX Power Supply Installation
1
ATX 12V Connector Please connect an ATX 12V
(4-pin ATX12V1) power supply to this connector.
(see p.12 No. 3)
24
13
Serial port Header This COM1 header
(9-pin COM1) supports a serial port module.
(see p.12 No. 9)
1
RRXD1
DDTR#1
TTXD1
DDCD#1
DDSR#1
CCTS#1
RRTS#1
GND
2727
27
2727
RRI#1
2.10 SA2.10 SA
2.10 SA
2.10 SA2.10 SA
Before installing SATAII hard disk to your computer, please carefully read below
SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be
at SATAII mode, which operate with the best performance. In order to enable SATAII
function, please follow the below instruction with different vendors to correctly adjust
your SATAII hard disk to SATAII mode in advance; otherwise, your SATAII hard disk
may fail to run at SATAII mode.
Western Digital
If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled.
On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the jumpers
from pin 5 and pin 6.
SAMSUNG
If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled.
On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the
jumpers from pin 3 and pin 4.
TT
AII Hard Disk Setup GuideAII Hard Disk Setup Guide
T
AII Hard Disk Setup Guide
TT
AII Hard Disk Setup GuideAII Hard Disk Setup Guide
1357
2468
1357
2468
HIT ACHI
Please use the Feature Tool, a DOS-bootable tool, for changing various ATA
features. Please visit HITACHI’s website for details:
http://www.hitachigst.com/hdd/support/download.htm
The above examples are just for your reference. For different SATAII hard
disk products of different vendors, the jumper pin setting methods may not
be the same. Please visit the vendors’ website for the updates.
2828
28
2828
2.112.11
2.11
2.112.11
This motherboard adopts NVIDIA® GeForce 7100 / nForce 630i chipset that supports
Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and RAID functions. You may
install SATA / SATAII hard disks on this motherboard for internal storage devices. This
section will guide you to install the SATA / SATAII hard disks.
STEP 1: Install the SATA / SATAII hard disks into the drive bays of your chassis.
STEP 2: Connect the SATA power cable to the SATA / SATAII hard disk.
STEP 3: Connect one end of the SATA data cable to the motherboard’s SATAII
STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard
2.122.12
2.12
2.122.12
This motherboard supports Hot Plug and Hot Swap functions for SATA / SATAII
Devices in RAID / AHCI mode. NVIDIA® GeForce 7100 / nForce 630i chipset provides
hardware support for Advanced Host controller Interface (AHCI), a new operation
interface for SATA host controllers developed thru a joint industry effort. AHCI also
provides usability enhancements such as Hot Plug.
Serial ASerial A
Serial A
Serial ASerial A
InstallationInstallation
Installation
InstallationInstallation
connector.
disk.
Hot Plug and Hot Swap FHot Plug and Hot Swap F
Hot Plug and Hot Swap F
Hot Plug and Hot Swap FHot Plug and Hot Swap F
HDDsHDDs
HDDs
HDDsHDDs
TT
A (SAA (SA
TT
T
A (SA
TT
A (SAA (SA
NOTE What is Hot Plug Function?
If the SATA / SATAII HDDs are NOT set for RAID configuration, it is
called “Hot Plug” for the action to insert and remove the SATA / SATAII
HDDs while the system is still power-on and in working condition.
However, please note that it cannot perform Hot Plug if the OS has
been installed into the SATA / SATAII HDD.
A) / Serial AA) / Serial A
T
A) / Serial A
TT
A) / Serial AA) / Serial A
TT
AII (SAAII (SA
T
AII (SA
TT
AII (SAAII (SA
unctions for SAunctions for SA
unctions for SA
unctions for SAunctions for SA
TT
AII) Hard DisksAII) Hard Disks
T
AII) Hard Disks
TT
AII) Hard DisksAII) Hard Disks
TT
A / SAA / SA
T
A / SA
TT
A / SAA / SA
TT
T
TT
AIIAII
AII
AIIAII
What is Hot Swap Function?
If SATA / SATAII HDDs are built as RAID 1 or RAID 5 then it is called
“Hot Swap” for the action to insert and remove the SATA / SATAII
HDDs while the system is still power-on and in working condition.
2929
29
2929
2.13 SA2.13 SA
2.13 SA
2.13 SA2.13 SA
This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID / AHCI
mode. Please read below operation guide of SATA / SATAII HDD Hot Plug feature
carefully. Before you process the SATA / SATAII HDD Hot Plug, please check below
cable accessories from the motherboard gift box pack.
A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
A. SATA data cable (Red) B. SATA power cable
TT
A / SAA / SA
T
A / SA
TT
A / SAA / SA
GuideGuide
Guide
GuideGuide
TT
AII HDD Hot Plug FAII HDD Hot Plug F
T
AII HDD Hot Plug F
TT
AII HDD Hot Plug FAII HDD Hot Plug F
eature and Operationeature and Operation
eature and Operation
eature and Operationeature and Operation
SATA 7-pin
connector
The SATA 15-pin power
connector (Black) connect
to SATA / SATAII HDD
1x4-pin conventional
power connector (White)
connect to power supply
Caution
1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug
cannot be processed.
2. Even some SATA / SATAII HDDs provide both SATA 15-pin power connector
and IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin
conventional power connector interface is definitely not able to support Hot
Plug and will cause the HDD damage and data loss.
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which supports
SATA / SATAII HDD Hot Plug.
* The SATA / SATAII Hot Plug feature might not be supported by the chipset
because of its limitation, the SATA / SATAII Hot Plug support information of our
motherboard is indicated in the product spec on our website:
www.asrock.com
2. Make sure your SATA / SATAII HDD can support Hot Plug function from your
dealer or HDD user manual. The SATA / SATAII HDD, which cannot support Hot
Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATAII driver is installed into system properly. The
latest SATA / SATAII driver is available on our support website:
www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.
3030
30
3030
How to Hot Plug a SA TA / SATAII HDD:
Points of attention, before you process the Hot Plug:
Please do follow below instruction sequence to process the Hot Plug, improper
procedure will cause the SATA / SATAII HDD damage and data loss.
t to power supply
Step 1
Please connect SATA power cable 1x4-pin end
(White) to the power supply 1x4-pin cable.
SATA power cable 1x4-pin
power connector (White)
Step 3
Connect SATA 15-pin power cable connector
(Black) end to SATA / SATAII HDD.
Step 2
Connect SATA data cable to
the motherboard’s SATAII connector.
Step 4
Connect SATA data cable to
the SATA / SATAII HDD.
How to Hot Unplug a SATA / SATAII HDD:
Points of attention, before you process the Hot Unplug:
Please do follow below instruction sequence to process the Hot Unplug, improper
procedure will cause the SATA / SATAII HDD damage and data loss.
Step 1
Unplug SATA data cable from SATA / SATAII HDD side.
Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII HDD side.
Step 2
3131
31
3131
2.142.14
Driver Installation GuideDriver Installation Guide
2.14
Driver Installation Guide
2.142.14
Driver Installation GuideDriver Installation Guide
To install the drivers to your system, please insert the support CD to your optical drive
first. Then, the drivers compatible to your system can be auto-detected and listed on
the support CD driver page. Please follow the order from up to bottom side to install
those required drivers. Therefore, the drivers you install can work properly.
2.152.15
Installing WindowsInstalling Windows
2.15
Installing Windows
2.152.15
Installing WindowsInstalling Windows
64-bit W64-bit W
64-bit W
64-bit W64-bit W
If you want to install Windows® XP, Windows® XP 64-bit, Windows® VistaTM or
Windows® VistaTM 64-bit on your SATA / SATAII HDDs without RAID functions, please
follow below procedures according to the OS you install.
2.15.1 Installing Windows2.15.1 Installing Windows
2.15.1 Installing Windows
2.15.1 Installing Windows2.15.1 Installing Windows
F F
F
F F
If you want to install Windows® XP / Windows® XP 64-bit on your SATA / SATAII HDDs
without RAID functions, please follow below steps.
Using SATA / SATAII HDDs with NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [AHCI].
STEP 2: Make a SATA / SATAII driver diskette.
A. Insert the ASRock Support CD into your optical drive to boot your system.
(There are two ASRock Support CD in the motherboard gift box pack, please
choose the one for Windows® XP / XP 64-bit.)
B. During POST at the beginning of system boot-up, press <F11> key, and
then a window for boot devices selection appears. Please select CD-ROM
as the boot device.
C. When you see the message on the screen, “Generate Serial ATA driver
diskette [YN]?”, press <Y>.
D. Then you will see these messages,
Plea se choose:
1. Generate AHCI Driver diskette for WindowsXP
2. Generate RAID Driver diskette for WindowsXP
3. Generate AHCI Driver diskette for WindowsXP64
4. Generate RAID Driver diskette for WindowsXP64
5. Exit Reboot system now Press any key to continue
ithout RAID Fithout RAID F
ithout RAID F
ithout RAID Fithout RAID F
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
XP / XP 64-bit / Vista
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID
XP / XP 64-bit Without RAID
XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID
TM TM
TM
TM TM
/ Vista/ Vista
/ Vista
/ Vista/ Vista
TMTM
TM
TMTM
3232
32
3232
Please insert a floppy diskette into the floppy drive. Select your required
item on the list according to the mode you choose and the OS you install.
Then press any key.
E. The system will start to format the floppy diskette and copy SATA / SATAII
drivers into the floppy diskette.
STEP 3: Install Windows® XP / XP 64-bit OS on your system.
After making a SATA / SATAII driver diskette, you can start to install Windows® XP / XP
64-bit on your system. At the beginning of Windows® setup, press F6 to install a third-
party AHCI driver. When prompted, insert the SATA / SATAII driver diskette containing
the NVIDIA® AHCI driver. After reading the floppy disk, the driver will be presented. Select
the driver to install according to the OS you install. The
drivers are as below:
A. NVIDIA nForce Storage Controller (required) Windows XP B. NVIDIA nForce Storage Controller (required) Windows XP64
Please select A for Windows® XP in AHCI mode. Please select B for Windows® XP 64-bit
in AHCI mode.
Using SATA / SATAII HDDs without NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [non-RAID].
STEP 2: Install Windows® XP / XP 64-bit OS on your system.
Vista Vista
Vista
Vista Vista
3333
33
3333
TMTM
TM
TMTM
/ Vista / Vista
/ Vista
/ Vista / Vista
2.15.2 Installing Windows2.15.2 Installing Windows
2.15.2 Installing Windows
2.15.2 Installing Windows2.15.2 Installing Windows
W W
ithout RAID Fithout RAID F
W
ithout RAID F
W W
ithout RAID Fithout RAID F
If you want to install Windows® VistaTM / Windows® VistaTM 64-bit on your SATA /
SATAII HDDs without RAID functions, please follow below steps.
Using SATA / SATAII HDDs with NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [AHCI].
STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.
Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive
to boot your system, and follow the instruction to install Windows® VistaTM / Windows
VistaTM 64-bit OS on your system. When you see “Where do you want to install Windows?
” page, please insert the ASRock Support CD into your optical drive, and click the “Load
Driver” button on the left on the bottom to load the NVIDIA® AHCI drivers. NVIDIA® AHCI
drivers are in the following path in our Support CD:
®
unctionsunctions
unctions
unctionsunctions
TMTM
TM
TMTM
64-bit 64-bit
64-bit
64-bit 64-bit
®
(There are two ASRock Support CD in the motherboard gift box pack, please
choose the one for Windows® VistaTM / VistaTM 64-bit.)
.. \ I386 \ AHCI_Vista (For Windows .. \ AMD64\ AHCI_Vista64 (For Windows
After that, please insert Windows® VistaTM / Windows® VistaTM 64-bit optical disk into
the optical drive again to continue the installation.
Using SATA / SATAII HDDs without NCQ and Hot Plug functions
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [non-RAID].
STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.
Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive
to boot your system, and follow the instruction to install Windows® VistaTM / Windows
VistaTM 64-bit OS on your system.
®
Vista
TM
®
Vista
OS)
TM
64-bit OS)
®
2.162.16
Installing WindowsInstalling Windows
2.16
Installing Windows
2.162.16
Installing WindowsInstalling Windows
64-bit W64-bit W
64-bit W
64-bit W64-bit W
If you want to install Windows® XP, Windows® XP 64-bit, Windows® VistaTM or
Windows® VistaTM 64-bit on your SATA / SATAII HDDs with RAID functions, please
follow below procedures according to the OS you install.
2.16.1 Installing Windows2.16.1 Installing Windows
2.16.1 Installing Windows
2.16.1 Installing Windows2.16.1 Installing Windows
F F
F
F F
If you want to install Windows® XP / Windows® XP 64-bit on your SATA / SATAII HDDs
with RAID functions, please follow below steps.
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [RAID].
STEP 2: Make a SATA / SATAII driver diskette.
Please make a SATA / SATAII driver diskette by following section 2.15.1 step 2 on
page 32.
STEP 3: Use “RAID Installation Guide” to set RAID configuration.
Before you start to configure RAID function, you need to check the RAID installation
guide in the Support CD for proper configuration. Please refer to the BIOS RAID
installation guide part of the document in the following path in the Support CD:
.. \ RAID Installation Guide
ith RAID Fith RAID F
ith RAID F
ith RAID Fith RAID F
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
XP / XP 64-bit / Vista
XP / XP 64-bit / Vista XP / XP 64-bit / Vista
unctionsunctions
unctions
unctionsunctions
®
XP / XP 64-bit With RAID XP / XP 64-bit With RAID
XP / XP 64-bit With RAID
XP / XP 64-bit With RAID XP / XP 64-bit With RAID
TM TM
TM
TM TM
/ Vista/ Vista
/ Vista
/ Vista/ Vista
TMTM
TM
TMTM
3434
34
3434
STEP 4: Install Windows® XP / XP 64-bit OS on your system.
After step1, 2, 3, you can start to install Windows® XP / Windows® XP 64-bit OS on your
system. At the beginning of Windows® setup, press F6 to install a third-party RAID
driver. When prompted, insert the SATA / SATAII driver diskette containing the NVIDIA
RAID driver. After reading the floppy disk, the drivers will be presented. Select the drivers
to install. The drivers are as below:
A. NVIDIA RAID Driver (required) B. NVIDIA nForce Storage Controller (required)
Please select A and B for Windows® XP / XP 64-bit in RAID mode. (There are two RAID
drivers needed for RAID mode, you have to select them separately. Please specify the
first RAID driver and then specify again for the second one.)
NOTE. If you install Windows® XP / Windows® XP 64-bit on IDE HDDs and want to manage
(create, convert, delete, or rebuild) RAID functions on SATA / SATAII HDDs, you still
need to set up “SATA Operation Mode” to [RAID] in BIOS first. Then, please set the
RAID configuration by using the Windows RAID installation guide part of the docu
ment in the following path in the Support CD:
.. \ RAID Installation Guide
®
2.16.2 Installing Windows2.16.2 Installing Windows
2.16.2 Installing Windows
2.16.2 Installing Windows2.16.2 Installing Windows
RAID F RAID F
RAID F
RAID F RAID F
unctionsunctions
unctions
unctionsunctions
®
Vista Vista
Vista
Vista Vista
TMTM
TM
TMTM
/ Vista / Vista
/ Vista
/ Vista / Vista
TMTM
TM
TMTM
64-bit With 64-bit With
64-bit With
64-bit With 64-bit With
If you want to install Windows® VistaTM / Windows® VistaTM 64-bit on your SATA /
SATAII HDDs with RAID functions, please follow below steps.
STEP 1: Set Up BIOS.
A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.
B. Set the “SATA Operation Mode” option to [RAID].
STEP 2: Use “RAID Installation Guide” to set RAID configuration.
Before you start to configure RAID function, you need to check the RAID installation
guide in the Support CD for proper configuration. Please refer to the BIOS RAID
installation guide part of the document in the following path in the Support CD:
.. \ RAID Installation Guide STEP 3: Install Windows® VistaTM / VistaTM 64-bit OS on your system.
Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive
to boot your system, and follow the instruction to install Windows® VistaTM / Windows
VistaTM 64-bit OS on your system. When you see “Where do you want to install Windows?
” page, please insert the ASRock Support CD into your optical drive,
and click the “Load Driver” button on the left on the bottom to load the NVIDIA® RAID
drivers. NVIDIA® RAID drivers are in the following path in our Support CD:
(There are two ASRock Support CD in the motherboard gift box pack, please
choose the one for Windows® VistaTM / VistaTM 64-bit.)
®
.. \ I386 \ RAID_Vista (For Windows .. \ AMD64\ RAID_Vista64 (For Windows
Vista
TM
®
Vista
OS)
TM
64-bit OS)
®
3535
35
3535
After that, please insert Windows® VistaTM / Windows® VistaTM 64-bit optical disk into
the optical drive again to continue the installation.
NOTE. If you install Windows® VistaTM / Windows® VistaTM 64-bit on IDE HDDs and want to
manage (create, convert, delete, or rebuild) RAID functions on SATA / SATAII HDDs,
you still need to set up “SATA Operation Mode” to [RAID] in BIOS first. Then, please
set the RAID configuration by using the Windows RAID installation guide in the
following path in the Support CD:
.. \ RAID Installation Guide
2.172.17
Untied Overclocking TUntied Overclocking T
2.17
Untied Overclocking T
2.172.17
Untied Overclocking TUntied Overclocking T
This motherboard supports Untied Overclocking Technology, which means during
overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you
enable Untied Overclocking function, please enter “Overclock Mode” option of BIOS
setup to set the selection from [Auto] to [CPU, PCIE, Async.]. Therefore, CPU FSB is
untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB
can operate under a more stable overclocking environment.
Please refer to the warning on page 7 for the possible overclocking risk
before you apply Untied Overclocking Technology.
echnologyechnology
echnology
echnologyechnology
3636
36
3636
Chapter 3 BIOS SETUP UTILITYChapter 3 BIOS SETUP UTILITY
Chapter 3 BIOS SETUP UTILITY
Chapter 3 BIOS SETUP UTILITYChapter 3 BIOS SETUP UTILITY
3.13.1
IntroductionIntroduction
3.1
Introduction
3.13.1
IntroductionIntroduction
This section explains how to use the BIOS SETUP UTILITY to configure your system.
The BIOS SPI chip on the motherboard stores the BIOS SETUP UTILITY. You may run
the BIOS SETUP UTILITY when you start up the computer. Please press <F2> during
the Power-On-Self-Test (POST) to enter the BIOS SETUP UTILITY, otherwise, POST
will continue with its test routines.
If you wish to enter the BIOS SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system off and then back on.
Because the BIOS software is constantly being updated, the
following BIOS setup screens and descriptions are for refer-
ence purpose only, and they may not exactly match what you
see on your screen.
3.1.13.1.1
BIOS Menu BarBIOS Menu Bar
3.1.1
BIOS Menu Bar
3.1.13.1.1
BIOS Menu BarBIOS Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information Advanced To set up the advanced BIOS features H/W Monitor To display current hardware status Boot To set up the default system device to locate and load the
Operating System
Security To set up the security features Exit To exit the current screen or the BIOS SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu bar,
and then press <Enter> to get into the sub screen.
3737
37
3737
3.1.23.1.2
Navigation KeysNavigation Keys
3.1.2
Navigation Keys
3.1.23.1.2
Navigation KeysNavigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the BIOS SETUP UTILITY
<ESC> To jump to the Exit Screen or exit the current screen
3.23.2
Main ScreenMain Screen
3.2
Main Screen
3.23.2
Main ScreenMain Screen
When you enter the BIOS SETUP UTILITY, the Main screen will appear and display
the system overview
Advanced H/W Monitor Boot Security Exit
Main
System Overview
System Time
System Date
BIOS Version Processor Type
Processor Speed Microcode Update Cache Size
Total Memory
DDRII 1 DDRII 2
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[ :00:09]
14
: 4CoreN73PV-HD720p P1.00 : Intel (R) Core (TM)2 Quad CPU
: 2500MHz : 10676/606 : 6144KB
: 2048MB with 256MB shared memory : 1024MB/266MHz (DDRII533) : 1024MB/266MHz (DDRII533)
[Thu 01/10/2007]
Q9300 @ 2.50GHz (64bit)
Use [Enter], [TAB] or [SHIFT-TAB] to select a field.
Use [+] or [-] to configure system Time.
Select Screen
Select Item +- Change Field Tab Select Field F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
System Time [Hour:Minute:Second]
Use this item to specify the system time.
System Date [Day Month/Date/Year]
Use this item to specify the system date.
3.33.3
Advanced ScreenAdvanced Screen
3.3
Advanced Screen
3.33.3
Advanced ScreenAdvanced Screen
In this section, you may set the configurations for the following items: CPU
Configuration, Chipset Configuration, ACPI Configuration, IDE Configuration, PCIPnP
Configuration, Floppy Configuration, SuperIO Configuration, and USB Configuration.
3838
38
3838
BIOS SETUP UTILITY
Main
Advanced Settings
WARNING: Setting wrong values in below sections
CPU Configuration
Chipset Configuration ACPI Configuration IDE Configuration PCIPnP Configuration Floppy Configuration SuperIO Configuration USB Configuration
Advanced
may cause system to malfunction.
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
H/W Monitor Boot Security Exit
Setting wrong values in this section may cause
the system to malfunction.
3.3.13.3.1
CPU ConfigurationCPU Configuration
3.3.1
CPU Configuration
3.3.13.3.1
CPU ConfigurationCPU Configuration
Configure CPU
Select Screen
Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
Advanced
CPU Configuration
Overclock Mode
CPU Frequency (MHz)
Boot Failure Guard CPU Spread Spectrum PCIE Spread Spectrum SATAII Spread Spectrum
Ratio Actual Value 7.5
Enhanced Halt State Max CPUID Value Limit Intel Virtualization tech. CPU Thermal Throttling No-Excute Memory Protection Hyper Threading Technology Intel (R) SpeedStep (tm) tech.
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Auto]
[333]
[Enabled] [Disabled] [Disabled] [Disabled]
[Disabled] [Disabled] [Enabled] [Enabled] [Disabled] [Enabled] [Disabled]
Select the over clock mode.
Select Screen
Select Screen Select Item
Select Item
+- Change Option
+- Change Option F1 General Help
F1 General Help F9 Load Defaults
F9 Load Defaults F10 Save and Exit
F10 Save and Exit ESC Exit
ESC Exit
Overclock Mode
Use this to select Overclock Mode. The default value is [Auto]. Configuration
options: [Auto], [CPU, PCIE, Sync.] and [CPU, PCIE, Async.].
CPU Frequency (MHz)
Use this option to adjust CPU frequency.
Boot Failure Guard
Enable or disable the feature of Boot Failure Guard.
CPU Spread Spectrum
This feature will be set to [Disabled] as default. Configuration options:
[Disabled] and [Auto].
3939
39
3939
PCIE Spread Spectrum
This feature will be set to [Disabled] as default. Configuration options:
[Disabled] and [Enabled].
SATA Spread Spectrum
This feature will be set to [Disabled] as default. Configuration options:
[Disabled] and [Enabled].
Ratio Actual Value
This is a read-only item, which displays the ratio actual value of this
motherboard.
Enhance Halt State
All processors support the Halt State (C1). The C1 state is supported
through the native processor instructions HLT and MWAIT and requires no
hardware support from the chipset. In the C1 power state, the processor
maintains the context of the system caches.
Max CPUID Value Limit
For Prescott CPU only, some OSes (ex. NT4.0) cannot handle the function
with disable. This should be enabled in order to boot legacy OSes that
cannot support CPUs with extended CPUID functions.
Intel (R) Virtualization tech.
When this option is set to [Enabled], a VMM (Virtual Machine Architecture)
can utilize the additional hardware capabilities provided by Vanderpool
Technology. This option will be hidden if the installed CPU does not support
Intel (R) Virtualization Technology.
CPU Thermal Throttling
You may select [Enabled] to enable P4 CPU internal thermal control mecha-
nism to keep the CPU from overheated.
No-Excute Memory Protection
No-Execution (NX) Memory Protection Technology is an enhancement to the
IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX) Memory
Protection” can prevent data pages from being used by malicious software to
execute code. This option will be hidden if the current CPU does not support
No-Excute Memory Protection.
Hyper Threading Technology
To enable this feature, it requires a computer system with an Intel Pentium® 4
processor that supports Hyper-Threading technology and an operating system
that includes optimization for this technology, such as Microsoft® Windows
XP. Set to [Enabled] if using Microsoft® Windows® XP, or Linux kernel version
2.4.18 or higher. This option will be hidden if the installed CPU does not sup-
port Hyper-Threading technology.
Intel (R) SpeedStep(tm) tech.
Intel (R) SpeedStep(tm) tech. is Intel’s new power saving technology. Proces-
sor can switch between multiple frequency and voltage points to enable power
®
4040
40
4040
savings. The default value is [Auto]. Configuration options: [Auto], [Enabled]
and [Disabled]. If you install Windows® XP and select [Auto], you need to set
the “Power Schemes” as “Portable/Laptop” to enable this function. If you
install Windows® VistaTM and want to enable this function, please set this item
to [Enabled]. This item will be hidden if the current CPU does not support Intel
(R) SpeedStep(tm) tech..
Please note that enabling this function may reduce CPU voltage and lead to system
stability or compatibility issue with some power supplies. Please set this item to
[Disable] if above issue occurs.
3.3.23.3.2
Chipset ConfigurationChipset Configuration
3.3.2
Chipset Configuration
3.3.23.3.2
Chipset ConfigurationChipset Configuration
Advanced
Chipset Configuration
DRAM Frequency
Flexibility Option
Memory Timings
OnBoard GPU Clock Share Memory Primary Graphics Adapter
Onboard LAN OnBoard HD Audio
Front Panel
DRAM Voltage VTT Voltage VDDQ Voltage
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Auto]
[Disabled]
[Auto]
[Auto] [Auto] [PCI]
[Enabled] [Auto] [Auto]
[Auto] [Auto] [Auto]
Options
Auto 266MHz (DDRII533) 333MHz (DDRII667) 400MHz (DDRII800) Manual
Select Screen
Select Item + - Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s)
inserted and assigns appropriate frequency automatically. You may also
select other value as operating frequency: [266MHz (DDRII533)], [333MHz
(DDRII667)] and [400MHz (DDRII800)].
Flexibility Option
The default value of this option is [Disabled]. It will allow better tolerance for
memory compatibility when it is set to [Enabled].
Memory Timings
Use this to adjust values for memory timings. Configuration options: [Auto]
and [Manual]. The default value is [Auto].
OnBoard GPU Clock
Use this option to adjust onboard GPU clock. Configuration options: [Auto]
and [Manual]. The default value is [Auto].
Share Memory
This allows you to set share memory feature. The default value is [Auto].
Configuration options: [Auto], [32MB], [64MB], [128MB] and [256MB].
4141
41
4141
Primary Graphics Adapter
This item will switch the PCI Bus scanning order while searching for video
card. It allows you to select the type of Primary VGA in case of multiple video
controllers. The default value of this feature is [PCI]. Configuration options:
[PCI], [Onboard] and [PCI Express].
Onboard LAN
This allows you to enable or disable the onboard LAN feature.
OnBoard HD Audio
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you
select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is
plugged.
Front Panel
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio Front
Panel.
DRAM V oltage
Use this to select DRAM Voltage. Configuration options: [Auto], [1.85V],
[1.90V], [1.95V], [2.00V] and [2.05V]. The default value of this feature is [Auto].
VTT Voltage
Use this to select VTT Voltage. Configuration options: [Auto], [1.24V],
[1.31V], [1.375V] and [1.42V]. The default value of this feature is [Auto].
VDDQ Voltage
Use this to select VTT Voltage. Configuration options: [Auto], [1.24V],
[1.31V], [1.375V] and [1.42V]. The default value of this feature is [Auto].
4242
42
4242
3.3.33.3.3
ACPI ConfigurationACPI Configuration
3.3.3
ACPI Configuration
3.3.33.3.3
ACPI ConfigurationACPI Configuration
Advanced
ACPI Settings
Suspend To RAM
Repost Video on STR Resume Check Ready Bit
Restore on AC / Power Loss PCI Devices Power On PS /2 Keyboard Power On RTC Alarm Power On
ACPI HPET Table
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[Auto]
[No] [Enabled]
[Power Off] [Disabled] [Disabled] [Disabled]
[Disabled]
Select auto-detect or disable the STR feature.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
Suspend to RAM
Use this item to select whether to auto-detect or disable the Suspend-to-
RAM feature. Select [Auto] will enable this feature if the OS supports it. If
you set this item to [Disabled], the functions “Repost Video on STR Resume”
and “Check Ready Bit” will be hidden.
Repost Video on STR Resume This feature allows you to repost video on STR resume. (STR refers to
suspend to RAM.)
Check Ready Bit Use this item to enable or disable the feature Check Ready Bit.
Restore on AC/Power Loss
This allows you to set the power state after an unexpected AC/power
loss. If [Power Off] is selected, the AC/power remains off when the
power recovers. If [Power On] is selected, the AC/power resumes
and the system starts to boot up when the power recovers.
PCI Devices Power On
Use this item to enable or disable PCI devices to turn on the system from the
power-soft-off mode.
PS/2 Keyboard Power On
Use this item to enable or disable PS/2 keyboard to turn on the system from
the power-soft-off mode.
RTC Alarm Power On
Use this item to enable or disable RTC (Real Time Clock) to power on the
system.
4343
43
4343
ACPI HPET T able
Use this item to enable or disable ACPI HPET Table. The default value is
[Disabled]. Please set this option to [Enabled] if you plan to use this
motherboard to submit Windows® VistaTM certification.
3.3.43.3.4
IDE ConfigurationIDE Configuration
3.3.4
IDE Configuration
3.3.43.3.4
IDE ConfigurationIDE Configuration
Advanced
IDE Configuration
OnBoard IDE Controller
OnBoard SATA Controller
SATA Operation Mode
IDE1 Master IDE1 Slave SATAII_1 SATAII_2 SATAII_3 SATAII_4
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
OnBoard IDE Controller
Use this item to enable or disable the “OnBoard IDE Controller” feature.
OnBoard SA TA Controller
Use this item to enable or disable the “OnBoard SATA Controller” feature.
SATA Operation Mode
Use this item to adjust SATA Operation Mode. The default value of this option
is [non-RAID]. If you want to operate RAID function on SATA / SATAII HDDs,
please select [RAID]. Configuration options: [non-RAID], [RAID] and [AHCI].
* If you select [RAID] mode, SATA / SATAII HDDs can not be accessed until you finish
configuring RAID functions in NVIDIA BIOS / Windows RAID Utility.
IDE Device Configuration
You may set the IDE configuration for the device that you specify. We will use
the “IDE1 Master” as the example in the following instruction, which can be
applied to the configurations of “IDE1 Slave” as well.
BIOS SETUP UTILITY
[Enabled]
[Enabled] [non-RAID]
[Hard Disk] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected]
To enable or disable the onboard IDE controller.
Select Screen
Select Screen Select Item
Select Item
+- Change Option
+- Change Option F1 General Help
F1 General Help F9 Load Defaults
F9 Load Defaults F10 Save and Exit
F10 Save and Exit ESC Exit
ESC Exit
4444
44
4444
Advanced
Primary IDE Master
Device Vendor Size LBA Mode Block Mode PIO Mode Async DMA Ultra DMA S.M.A.R.T.
Type
LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
:Hard Disk :ST340014A :40.0 GB :Supported :16Sectors :4 :MultiWord DMA-2 :Ultra DMA-5 :Supported
[Auto]
[Auto] [Auto] [Auto] [Auto] [Disabled] [Enabled]
Select the type of device connected to the system.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
TYPE
Use this item to configure the type of the IDE device that you specify. Configu-
ration options: [Not Installed], [Auto], [CD/DVD], and [ARMD].
[Not Installed]: Select [Not Installed] to disable the use of IDE device. [Auto]: Select [Auto] to automatically detect the hard disk drive.
After selecting the hard disk information into BIOS, use a disk
utility, such as FDISK, to partition and format the new IDE hard
disk drives. This is necessary so that you can write or read data
from the hard disk. Make sure to set the partition of the Primary
IDE hard disk drives to active.
[CD/DVD]:This is used for IDE CD/DVD drives. [ARMD]: This is used for IDE ARMD (ATAPI Removable Media Device),
such as MO.
LBA/Large Mode
Use this item to select the LBA/Large mode for a hard disk > 512 MB under
DOS and Windows; for Netware and UNIX user, select [Disabled] to
disable the LBA/Large mode.
Block (Multi-Sector Tra nsfer)
The default value of this item is [Auto]. If this feature is enabled, it will enhance
hard disk performance by reading or writing more data during each transfer.
PIO Mode
Use this item to set the PIO mode to enhance hard disk performance by o p -
timizing the hard disk timing.
DMA Mode
DMA capability allows the improved transfer-speed and data-integrity for com-
patible IDE devices.
4545
45
4545
DMA Mode
DMA capability allows the improved transfer-speed and data-integrity for com-
patible IDE devices.
S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis,
and Reporting Technology) feature. Configuration options: [Disabled], [Auto],
[Enabled].
32-Bit Data Transfer
Use this item to enable 32-bit access to maximize the IDE hard disk data
transfer rate.
3.3.53.3.5
PCIPnP ConfigurationPCIPnP Configuration
3.3.5
PCIPnP Configuration
3.3.53.3.5
PCIPnP ConfigurationPCIPnP Configuration
Advanced
Advanced PCI / PnP Settings
PCI Latency Timer
PCI IDE BusMaster
v02.54 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
[32]
[Enabled]
Value in units of PCI clocks for PCI device latency timer register.
Select Screen
Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit
PCI Latency Timer
The default value is 32. It is recommended to keep the default value unless
the installed PCI expansion cards’ specifications require other settings.
PCI IDE BusMaster
Use this item to enable or disable the PCI IDE BusMaster feature.
4646
46
4646
Loading...
