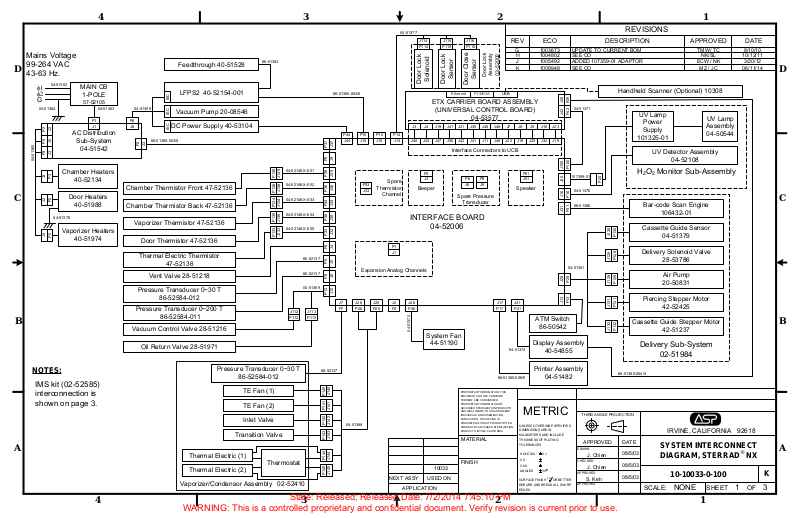

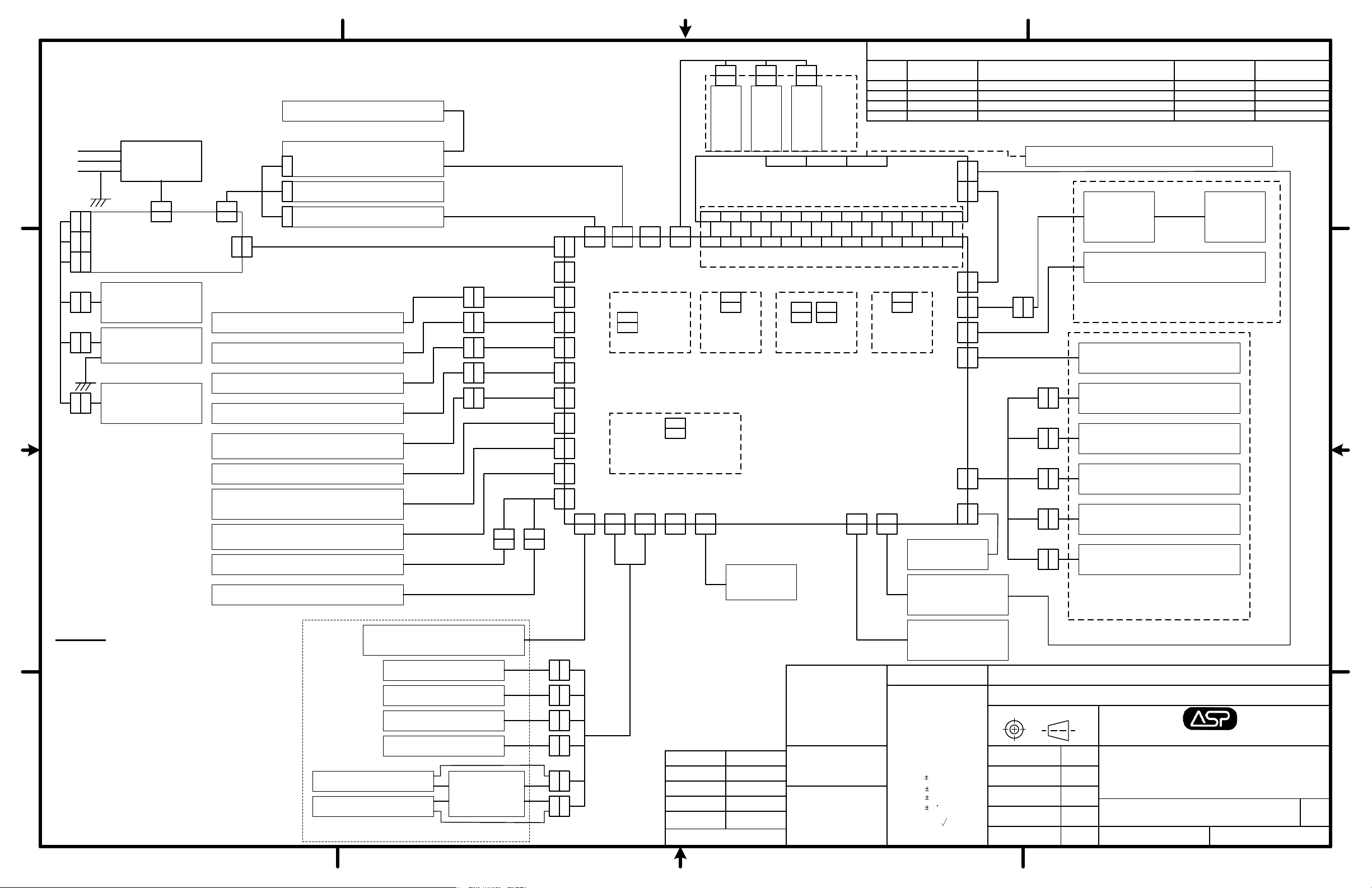

1234
State: Released; Released Date: 7/2/2014 7:45:10 PM
WARNING: This is a controlled proprietary and confidential document. Verify revision is current prior to use.
Mains Voltage
99-264 VAC
D
43-63 Hz.
G
04-51364
P3 P5 P2
04-51365
J3
C
J2
J5
B
04-51362
MAIN CB
1-POLE
57-52105
J2J5J3
AC Distribution
Sub-System
04-51542
Chamber Heaters
P3
P2
04-51378
P5
40-52134
Door Heaters
40-51988
Vaporizer Heaters
40-51974
04-51363
P1
J1 J6
Chamber Thermistor Front 47-52136
Chamber Thermistor Back 47-52136
Feedthrough 40-51528
LFPS2 40-52154-001
IEC
04-51399
P6
J2
P2
66-51385-003/8
Vacuum Pump 20-08546
IEC
DC Power Supply 40-53104
IEC
Vaporizer Thermistor 47-52136
Door Thermistor 47-52136
Thermal Electric Thermistor
47-52136
Vent Valve 28-51218
Pressure Transducer 0~30 T
86-52584-012
Pressure Transducer 0~200 T
86-52584-011
Vacuum Control Valve 28-51216
Oil Return Valve 28-51971
66-51383
04-52146-X-001
J139
P139
04-52146-X-002
J136
P136
04-52146-X-003
J134
P134
04-52146-X-004
J138
P138
04-52146-X-005
J133
P133
J112
P112
66-52137
66-52137
04-51369
J113
P113
66-51385-003/8
P44
J44
J37
P37
J9
P9
J39
P39
J36
P36
J34
P34
J38
P38
J33
P33
J4
P4
J5
P5
J6
P6
J12
P12
J7
P7
04-51377
P15
J15
P33
J33
P14
P10
J14
J10
Spare
Thermistor
Channel
INTERFACE BOARD
P1
J1
Expansion Analog Channels
J2
J26
P26
J25
P25
J46
P2
P46
04-51372
J114
P114
Solenoid
Door Lock
J115
P115
Door Lock
J116
P116
03-52002
Assembly
Sensor
Sensor
Door Lock
Door Close
Ethernet PCMCIA USB
ETX CARRIER BOARD ASSEMBLY
(UNIVERSAL CONTROL BOARD)
04-53577
J41J4J3 J19 J21 J35 J46 J48 J7
J50J43J40 J47 J42 J41 J11 J48 J22
Interface Connectors to UCB
P3
J3
Beeper
P9
J6P6J9
Spare Pressure
Transducer
04-52006
J17
P17
System Fan
44-51190
REVISIONS
REV ECO DESCRIPTION DATEAPPROVED
G 1003673 UPDATE TO CURRENT BOM TMW/ TC 8/10/10
H 1004802 SEE CO NK/SL 10/12/11
J 1005492 ADDED 107359-01 ADAPTOR ECW / NK 3/20/12
K 1008948 SEE CO MZ / JC 06/11/14
Handheld Scanner (Optional) 10308
P29
04-51371
J42
J8 J9 J10 J23
J18 J29 J32 J19
P51
J51
Speaker
J21
P21
ATM Switch
Display Assembly
04-51374
86-50542
40-54855
P42
J100
P100
J20 J29
J16
P16
J31
P31P28
04-51381
J28
J13
P13
107359-01
04-51376
66-51386
P20
J130J128J129J131J132
P130
P128P129P131
P132
UV Lamp
Power
Supply
101325-01
UV Lamp
Assembly
04-50544
UV Detector Assembly
04-52108
H2O2 Monitor Sub-Assembly
Bar-code Scan Engine
106432-01
Cassette Guide Sensor
04-51379
Delivery Solenoid Valve
28-53786
Air Pump
20-50831
Piercing Stepper Motor
42-52425
Cassette Guide Stepper Motor
42-51237
Delivery Sub-System
02-51984
D
C
B
NOTES:
Pressure Transducer 0~30 T
66-52137
86-52584-012
IMS kit (02-52585)
interconnection is
shown on page 3.
TE Fan (1)
TE Fan (2)
Inlet Valve
Transition Valve
P140
P141
P142
P143
J140
J141
J142
J143
04-51388
A
Thermal Electric (1)
Thermostat
Thermal Electric (2)
Vaporizer/Condensor Assembly 02-52410
P144
P145
J144
J145
NEXT ASSY USED ON
APPLICATION
10033
66-51385-006/9
PROPRIETARY INFORMATION: THIS
DOCUMENT AND THE CONTENTS
THEREOF ARE CONSIDERED
PROPRIETARY INFORMATION OF
ADVANCED STERILIZATION PRODUCTS
AND DISCLOSURE TO UNAUTHORIZED
INDIVIDUALS OR DISSEMINATION,
PUBLICATION, OR COPYING IS
PROHIBITED WITHOUT PRIOR WRITTEN
CONSENT BY ADVANCED STERILIZATION
PRODUCTS, IRVINE, CALIFORNIA.
MATERIAL
FINISH
Printer Assembly
04-51482
METRIC
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN
MILLIMETERS AND INCLUDE
THICKNESS OF PLATING
TOLERANCES
HOLE DIA:
0.X
0.XX
ANGLES 30
SURFACE FINISH
DEBURR AND BREAK ALL SHARP
EDGES
0.1
1.6
OR BETTER
66-51385-004/5
THIRD ANGLE PROJECTION
APPROVED
DRAWN
J. Chien
CHECKED
J. Chien
APPROVED
S. Keh
APPROVED
DATE
08/5/03
08/5/03
08/5/03
IRVINE, CALIFORNIA 92618
SYSTEM INTERCONNECT
DIAGRAM, STERRAD® NX
10-10033-0-100
SCALE:
SHEET OF
1234
A
K
1 3NONE
Page 2

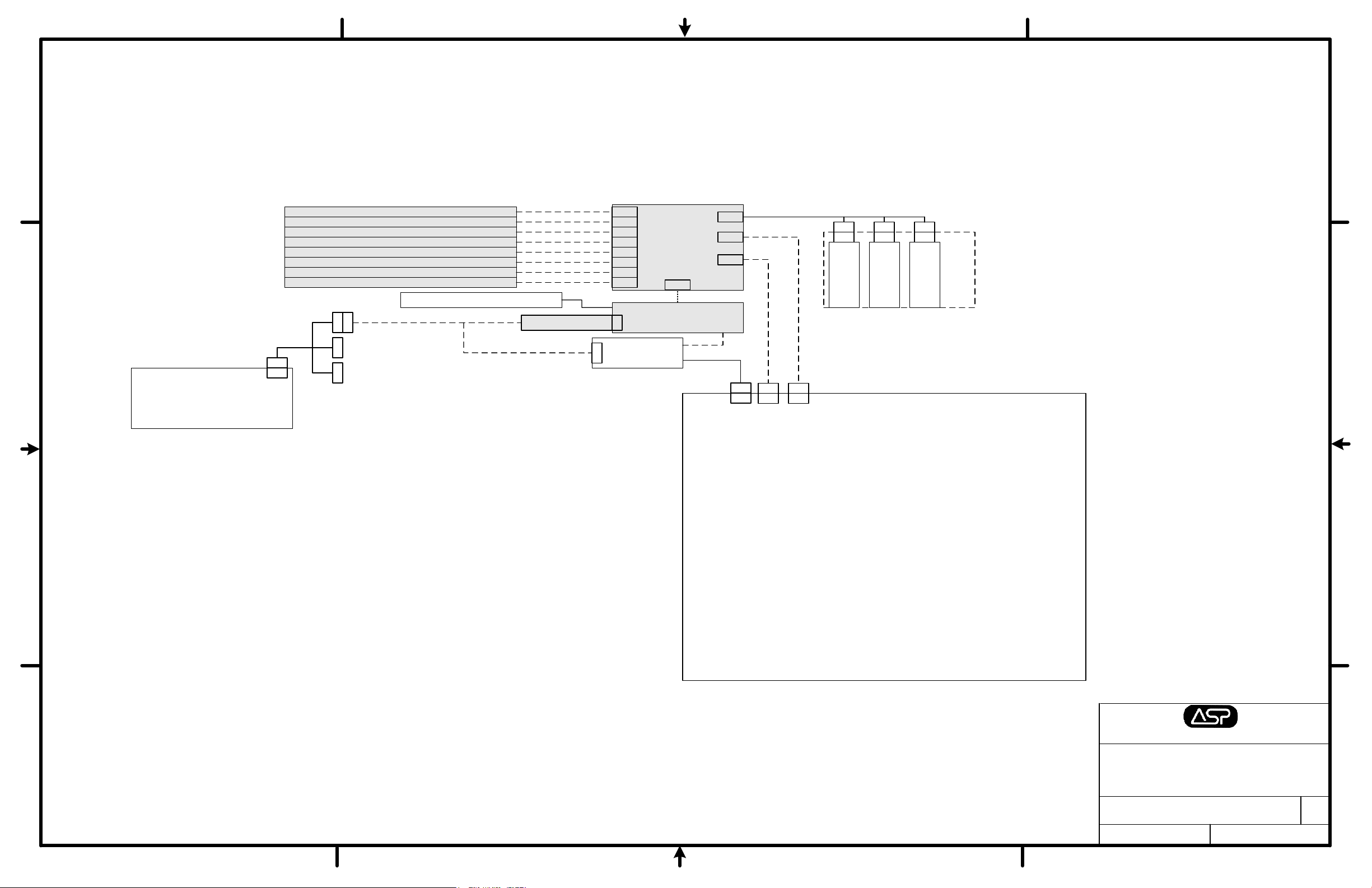

Notes: Unless Otherwise Specified
State: Released; Released Date: 7/2/2014 7:45:10 PM
WARNING: This is a controlled proprietary and confidential document. Verify revision is current prior to use.
1234
D
C
B
Cable
Item ASP P/N Description From To Connector (From) Connector (To)
Harness Assembly, System Power, Main Circuit
1 04-51362
2 04-51363 Harness Assembly, AC Power, AC Distribution Circuit Breaker AC Distribution Quick Disconnect Molex 3 Position 14 M
3 04-51364 Harness Assembly, Earth Ground AC Inlet Chassis Quick Disconnect Ring Terminal 14 M
4 04-51365
5 04-51369
6 04-51371 Harness Assembly, DC Power, ULCC Interface Board ULCC Molex 10 Position Molex 10 Position 18 M
7 04-51372 Harness Assembly, System Fan Interface Board System Fan Molex 2 Position Molded Connector 18 M
8 Removed
9 04-51374 Harness Assembly, LCD Display Interface Board LCD Display Molex 24 Position Molex 24 Position 24 M
10 04-51376 Harness Assembly, UV Detector Interface Board UV Detector Molex 4 Position Molex 4 Position 24 M
11 04-51377 Harness Assembly, Door Lock System Interface Board
12 04-51378 Harness Assembly, Chassis Ground, Door Door Chassis
13 04-51381 Harness Assembly, Delivery system Interface Board Delivery system Molex 20 Position
14 66-51383 Cable Assembly, Twin Axial, 1.5 Foot LFPS2 Feed through
15 66-52137 Cable Assembly, DSub-9 Female To RJ11 Plug Interface Board Pressure Transducer 30T RJ11 DB9 Female 26 B
16 66-52137 Cable Assembly, DSub-9 Female To RJ11 Plug Interface Board Pressure Transducer 30T RJ11 DB9 Female 26 B
17 66-52137 Cable Assembly, DSub-9 Female To RJ11 Plug Interface Board Pressure Transducer 200T RJ11 DB9 Female 26 B
18 66-51385-003/8 Cable Assembly, D-Sub, 15 Position, Shielded, M/F Interface Board LFPS2 DB15 Male DB15 Female 24 B
19 66-51385-006/9 Cable Assembly, D-Sub, 9 Position, Shielded, M/F Interface Board Printer DB9 Male DB9 Female 24 B
20 66-51385-003/8 Cable Assembly, D-Sub, 15 Position, Shielded, M/F Interface Board AC Distribution DB15 Female DB15 Male 24 B
66-51385-004/5
21
22 66-51386 Cable, Flat Flex, 12 Position Interface Board Barcode Reader FFC FFC NA B
23 04-51388 Harness Assembly, Thermal Electric System Interface Board Vaporizer/Condenser Molex 4+8 Position Molex 2+2+2+2+2+2 22 M
24 04-52146-X-XXX Cable Extension, Thermistor Interface Board
25 04-51399 Harness Assembly, AC-Out AC Distribution
Breaker
Harness Assembly, Heaters
Harness Assembly, Valve, Vacuum Control/Oil
Return Interface Board Vacuum Control Valve Molex 2 Position Molex 2 Position 18 M
Cable Assembly, High Density, 15 Position,
Shielded, M/M UCB LCD Display HD15 Male HD15 Male 24 B
AC Inlet Circuit Breaker Quick Disconnect Quick Disconnect 14 M
Vaporizer, Chamber, Door
AC Distribution
Door Lock Sensor, Door
Latch Sensor, Door Lock
Door, Vaporizor, TE and
Heaters Molex 4 Position Molex 4 Position 18 M
Molex 4+2 Position,
solenoid Molex 10 Position
Ring Terminal, Quick
Disconnect Ring Terminal 14 M
Twin Axial Twin Axial 22 B
Chamber Thermistors Molex 3 Position Molex 3 Position 24 M
LFPS2, Vacuum Pump,
DC Power Supply Molex 12 Position IEC-320 18 M
Quick Disconnect 18 M
Molex 6+6+4+2+2
Position 24 M
AWG
Make Or
Buy
D
C
B
26
107359-01
Cable Adaptor, Surge Suppressor, NX
UV Power Supply Interface Board
P20 J20 24 B
A
IRVINE, CALIFORNIA 92618
SYSTEM INTERCONNECT
DIAGRAM, STERRAD® NX
SCALE:
NONE
SHEET OF
1234
A
K10-10033-0-100
2 3
Page 3
Notes: Unless Otherwise Specified
State: Released; Released Date: 7/2/2014 7:45:10 PM
WARNING: This is a controlled proprietary and confidential document. Verify revision is current prior to use.
Shaded components and dotted line interconnects
are parts from the IMS kit.
1234
D
C
AC Distribution
Sub-System
04-51542
Chamber Thermistor Front 47-52136
TE Thermistor 47-52136
Door Thermistor 47-52136
Vaporizer Thermistor 47-52136
Chamber Thermistor Back 47-52136
Chamber Pressure Transducer 0-30T 86-52584-012
Vap. Pressure Transducer 0-30T 86-52584-012
Chamber Pressure Transducer 0-200T 86-52584-011
Feedthrough 40-51528
IEC
IEC
04-51399
P6
J6
IECIEC
04-52146-X-002
66-52137
66-52137
66-52137
66-51383
RFI Filter 04-53018
J13
J15
J18
J14
J16
J1
J4
J5
IMS
04-52399
(SEE NOTES)
J3
Power Verification Meter
35-50384-2-001
IEC
LFPS2
IEC
40-52154-001
66-50520
66-51385-003/8
J20
J19
P1
P15
J15
04-51377
04-52412
P10
J10
P14
J14
J114
P114
Solenoid
Door Lock
J115
P115
Sensor
Door Lock
J116
P116
Sensor
Door Close
Assembly
Door Lock
D
03-52002
C
B
A
INTERFACE BOARD
04-52006
IRVINE, CALIFORNIA 92618
SYSTEM INTERCONNECT
DIAGRAM, STERRAD® NX
SCALE:
NONE
SHEET OF
B
A
K10-10033-0-100
3 3
1234
