ASO Premade SENTIR edge User Manual

Technical Document Ver 2.1
Valid: 16/07/2018

300mm 300mm

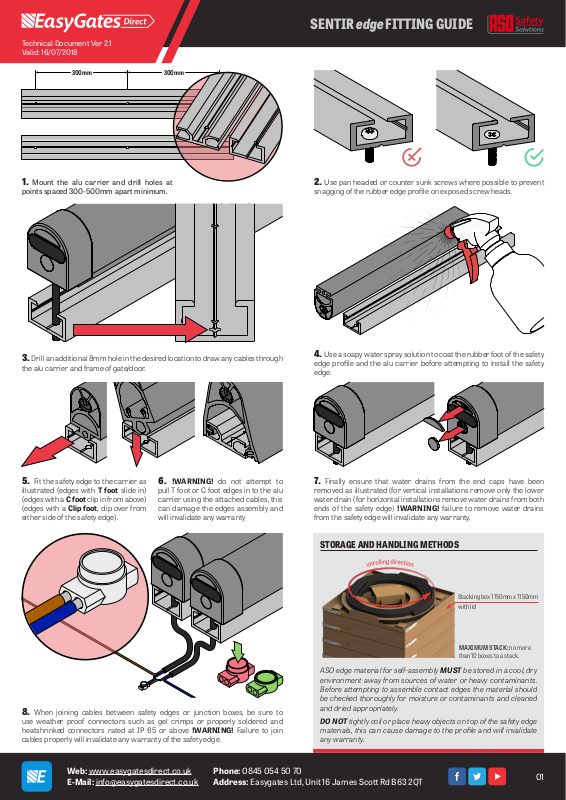

SENTIR edge FITTING GUIDE

1. Mount the alu carrier and drill holes at

points spaced 300-500mm apart minimum.

3. Drill an additional 8mm hole in the desired location to draw any cables through

the alu carrier and frame of gate/door.

2. Use pan headed or counter sunk screws where possible to prevent

snagging of the rubber edge profile on exposed screw heads.

4. Use a soapy water spray solution to coat the rubber foot of the safety

edge profile and the alu carrier before aempting to install the safety
edge.

5. Fit the safety edge to the carrier as

illustrated (edges with T foot slide in)
(edges with a C foot clip in from above)
(edges with a Clip foot, clip over from
either side of the safety edge).

6. !WARNING! do not aempt to

pull T foot or C foot edges in to the alu
carrier using the aached cables, this
can damage the edges assembly and
will invalidate any warranty

8. When joining cables between safety edges or junction boxes, be sure to

use weather proof connectors such as gel crimps or properly soldered and
heatshrinked connectors rated at IP 65 or above !WARNING! Failure to join
cables properly will invalidate any warranty of the safety edge.

7. Finally ensure that water drains from the end caps have been

removed as illustrated (for vertical installations remove only the lower
water drain (for horizontal installations remove water drains from both
ends of the safety edge) !WARNING! failure to remove water drains
from the safety edge will invalidate any warranty.

STORAGE AND HANDLING METHODS

Stacking box 1150mm x 1150mm

with lid

MAXIMUM STACK: no more
than 10 boxes to a stack.

ASO edge material for self-assembly MUST be stored in a cool, dry
environment away from sources of water or heavy contaminants.
Before aempting to assemble contact edges the material should
be checked thoroughly for moisture or contaminants and cleaned

and dried appropriately.

DO NOT tightly coil or place heavy objects on top of the safety edge
materials, this can cause damage to the profile and will invalidate
any warranty.

Web: www.easygatesdirect.co.uk
E-Mail: [e-mail]

Phone: [phone]
Address: Easygates Ltd, Unit 16 James Sco Rd B63 2QT

01

Technical Document Ver 2.1
Valid: 16/07/2018

MANUFACTURERS LIMITED WARRANTY

WARRANTIES AND DISCLAIMERS

SENTIR edge DOCUMENTATION

Easygates Ltd, Inc. (“Seller”) warrants that the product will be free
from substantial defects in material and workmanship, and will
substantially perform in accordance with the technical specifications
set forth in the description of the product for the duration of the
warranty period specified below.

The warranty period is twenty four (24) months from the date
of purchase. Proof of date of purchase must be provided when
aempting to make any warranty claim.

The product (i) may be newly manufactured, (ii) may be assembled
from new or serviceable used parts that are equivalent to new parts
in performance, or (iii) may have been previously installed. During the
warranty period, Seller will repair or replace any defective item of the
product or parts or components of the product promptly reported
to Seller by customer and which Seller determines was defective
due to a warranty defect. In the event that Seller determines, in its
reasonable discretion, that the defect in a product was not caused
by customer or a third party, Seller shall, at its option, either provide
customer with a refund or credit for the purchase price paid or
provide a suitable replacement of the same (or similar) type to
customer for the defective product.

Seller may, at its own discretion and costs, elect to first aempt to
repair any defect at Seller’s facilities in Halesowen, West Midlands
and thereafter, at Seller’s discretion, travel to customer’s location.
Labor costs of diagnosis are not included in this warranty. Under no
circumstances shall the repair of any product result in an extension
of the warranty period granted herein. Customer shall not aempt
to repair or resolve any product without the prior consent of Seller.
Any aempt by customer to repair or resolve any product without
the prior consent of Seller shall void this warranty. Because the
product requires on-going maintenance, the preceding warranty is
not a substitute for maintenance services or other support service
by Seller.

The warranty as to the product does not cover any defect under
warranty aributable in whole or in part to (i) non-Seller products
and services, and any interfaces or links of such to the products,
alterations of out-of- specification supplies, (ii) accidents, misuse,
negligence or failure of customer to follow instructions for proper
use, care and cleaning of the product, (iii) external factors (e.g., failure
or fluctuation of electrical power or air conditioning, fire, flood), or
(iv) failure by customer to comply with Seller’s specifications.

EXCEPT AS EXPRESSLY STATED AND SET FORTH HEREIN, THERE ARE
NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED,
CONCERNING THE PRODUCT AND NO SUCH WARRANTIES OR
REPRESENTATIONS SHALL BE IMPLIED UNDER ANY APPLICABLE
LAW, IN EQUITY OR OTHERWISE, INCLUDING WITHOUT LIMITATION,
A WARRANTY OF MERCHANTABILITY, A WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE, OR ANY OTHER WARRANTY WHICH
MAY BE IMPLIED UNDER COMMON LAW.

from moisture (e.g. not outdoors). Before assembly/fiing of the
rubber profile, it should be checked thoroughly for any signs of
damage or water ingress. If damage is present the rubber profile
should not be used.

LIMITATION OF LIABILITY

Unless further limited elsewhere in this Agreement, the entire
liability of Seller and customer’s exclusive remedy for damages from
any cause related to or arising out of a warranty defect, regardless
of the form of action, whether in contract or in tort, will not exceed
the amount of the purchase price for each purchase order for the
product which is the subject maer or directly related to the causes
of action asserted.

In no event will Seller, its agents, subcontractors, suppliers and
employees be liable for (a) any incidental, indirect, special or
consequential damages, including, but not limited to, loss of use,
revenue, profits or savings, substitute rental or for any other reason,
even if Seller knew or should have known of the possibility of such
losses or damages, (b) claims, demands or actions against customer
by any person, except as provided by applicable law.

CREDIT SUSPENSION / PAYMENT ACCELERATION

Seller may at will suspend performance of any order, declare a debt’s
entire balance due or require payment in cash, collateral as security
or other adequate assurances satisfactory to seller including but not
limited to payment in advance when, because of the financial condition
the customer or otherwise seller deems its position regarding the
prospect of payment insecure.

CUSTOMER`S CANCELLATION / RETURN OF PRODUCTS

Orders accepted by seller and subsequently canceled by customer for
reasons beyond control of seller are subject to cancellation charges.
As to products returned to seller, customer is limited to credit
allowance or replacement if the returned item is deemed to contain
defects as described in the previous section of this document. CASH
REFUNDS WILL NOT BE GIVEN under any circumstances. No returns
will be accepted without a “Return Authorization Number”, this
number must be clearly visible on all packages. Return numbers can
be obtained by telephone, fax or e-mail form Easygates Ltd directly.

RISK OF LOSS

Deliveries of the products are made FOB place of shipment and risk of
loss passes to customer upon delivery of the products to the carrier
at the point of shipment. Transportation shall be at customer’s sole
risk and expense and any claim for loss or damag in transit shall be
against the carrier only.

CLERICAL ERRORS

STORAGE & HANDLING

All rubber profile materials should be stored in a cool, dry place away

Web: www.easygatesdirect.co.uk
E-Mail: [e-mail]

Phone: [phone]
Address: Easygates Ltd, Unit 16 James Sco Rd B63 2QT

Seller has the right to correct any stenographic or clerical errors in
any of the writings issued by it and is not responsible for the content
of such error.

02
